F14616_ANGELETTE-S-B
Print
~10° spot beam compatible with BJB and B+W connectors
Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

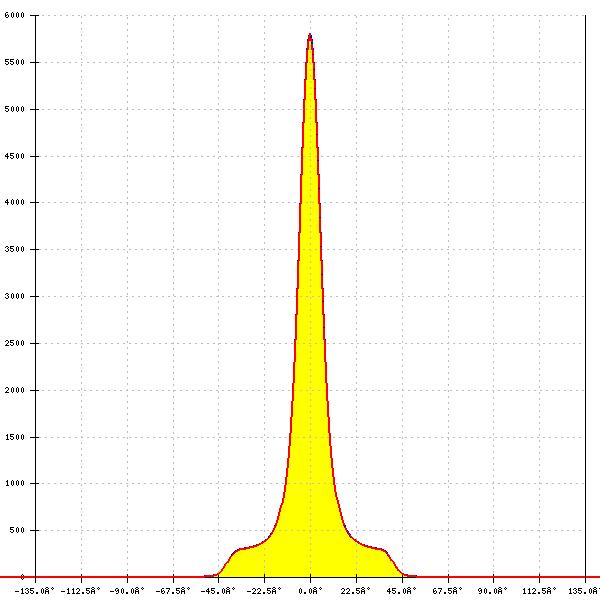

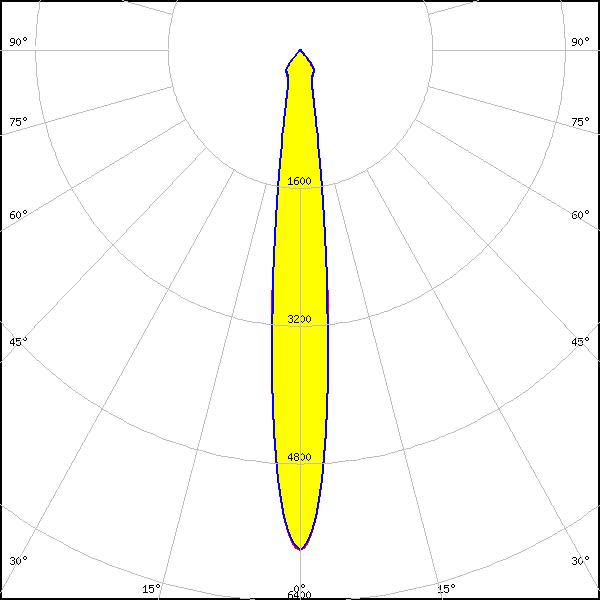

Optical results
LED:
V15 Gen6
LES size: 15.2 mm
Required components:
BJB: 47.319.2224
FWHM:
13°
FWTM:
26°
Peak intensity:
7.400 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V18 Gen6
LES size: 18.6 mm
Required components:
BJB: 47.319.2274
FWHM:
15°
FWTM:
31°
Peak intensity:
6.000 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V18 Gen7
LES size: 19.2 mm
Required components:
BJB: 47.319.2350
FWHM:
15°
FWTM:
33°
Peak intensity:
5.500 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V22 Gen6
LES size: 22.0 mm
Required components:
A.A.G. STUCCHI: 8102-G2
FWHM:
18°
FWTM:
42°
Peak intensity:
4.300 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
12°
FWTM:
25°
Peak intensity:
8.400 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
FWHM:
12°
FWTM:
25°
Peak intensity:
7.800 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
FWHM:
13°
FWTM:
29°
Peak intensity:
6.400 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
A.A.G. STUCCHI: 8101-G2
FWHM:
12°
FWTM:
25°
Peak intensity:
8.100 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
FWHM:
14°
FWTM:
36°
Peak intensity:
5.200 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL04x/CLU04x
LES size: 22.0 mm
Required components:
BJB: 47.319.2030
FWHM:
17°
FWTM:
37°
Peak intensity:
4.900 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
A.A.G. STUCCHI: 8403/G2
FWHM:
10°
FWTM:
21°
Peak intensity:
10.700 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 25xx
LES size: 19.0 mm
Required components:
A.A.G. STUCCHI: 8401-G2
FWHM:
14°
FWTM:
31°
Peak intensity:
5.900 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1208
LES size: 15.0 mm
Required components:
FWHM:
12°
FWTM:
22°
Peak intensity:
9.275 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1208
LES size: 15.0 mm
Required components:
FWHM:
14°
FWTM:
33°
Peak intensity:
5.700 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1208
LES size: 15.0 mm
Required components:
A.A.G. STUCCHI: 8301-G2
FWHM:
12°
FWTM:
26°
Peak intensity:
7.800 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L19 CoB
LES size: 19.0 mm
Required components:
BJB: 47.319.2030
FWHM:
17°
FWTM:
48°
Peak intensity:
4.100 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L19 CoB
LES size: 19.0 mm
Required components:
FWHM:
18°
FWTM:
58°
Peak intensity:
3.400 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L23 CoB
LES size: 23.0 mm
Required components:
FWHM:
22°
FWTM:
72°
Peak intensity:
2.700 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L23 CoB
LES size: 23.0 mm
Required components:
BJB: 47.319.2030
FWHM:
20°
FWTM:
64°
Peak intensity:
3.300 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
A.A.G. STUCCHI: 8101-G2
FWHM:
12°
FWTM:
26°
Peak intensity:
7.720 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
12°
FWTM:
26°
Peak intensity:
7.720 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM:
14°
FWTM:
33°
Peak intensity:
5.670 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM:
14°
FWTM:
33°
Peak intensity:
5.670 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC040D / LC060D / LC080D
LES size: 22.0 mm
Required components:
BJB: 47.319.2030
FWHM:
18°
FWTM:
39°
Peak intensity:
4.470 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES15
LES size: 15.0 mm
Required components:
BJB: 47.319.2021
FWHM:
12°
FWTM:
26°
Peak intensity:
7.700 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES17 H
FWHM:
14°
FWTM:
32°
Peak intensity:
5.900 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES21 H
FWHM:
18°
FWTM:
42°
Peak intensity:
4.300 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XOB 14.5 mm
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
11°
FWTM:
24°
Peak intensity:
8.348 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
