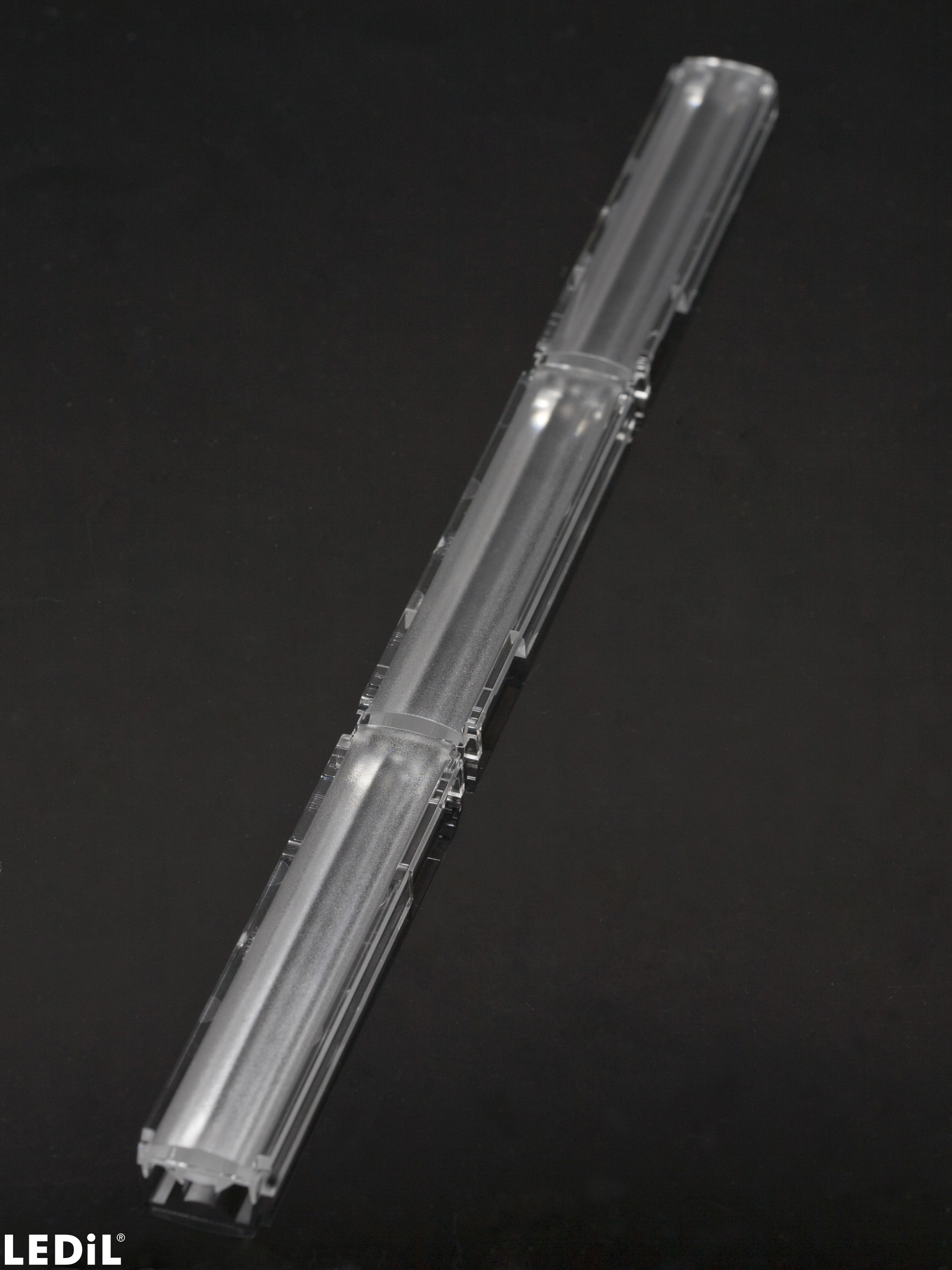

F14468_FLORENCE-1R-Z60
Print
~60° + 110° medium beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results

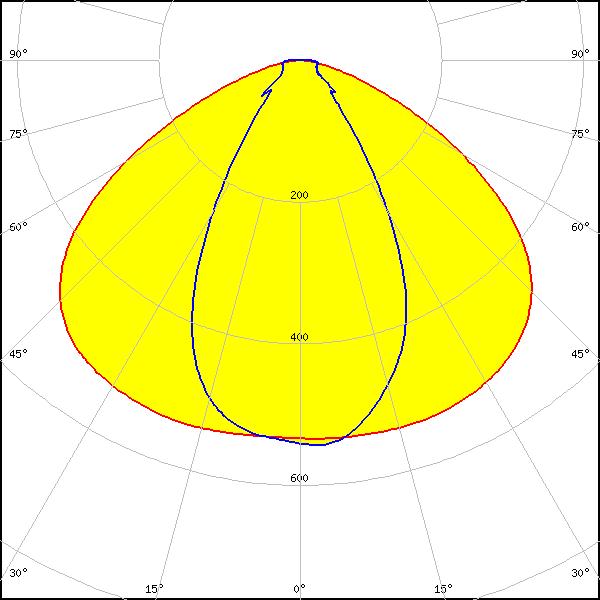

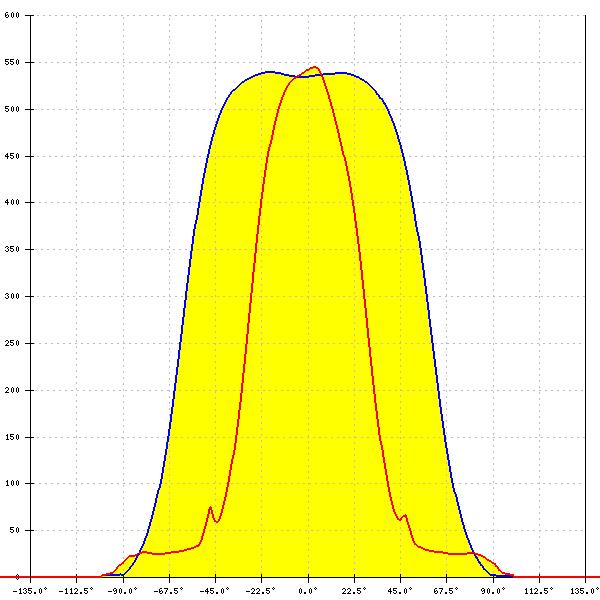

LED:
CALGD0414-M8W1
FWHM:
58° + 121°
FWTM:
99° + 153°
Peak intensity:
0.550 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

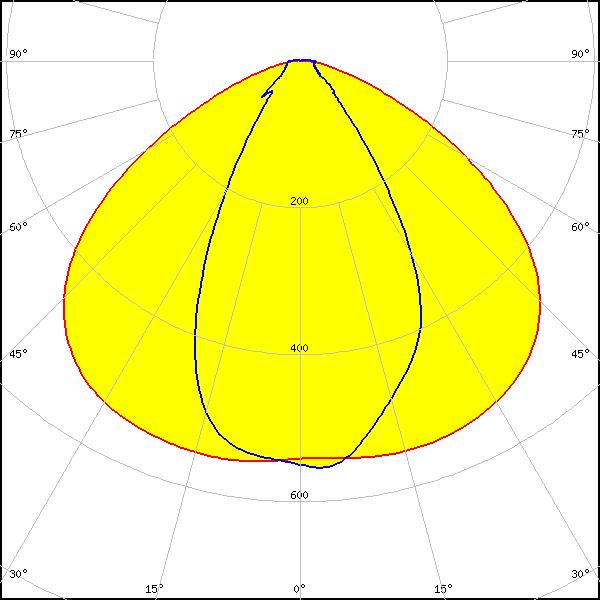

LED:

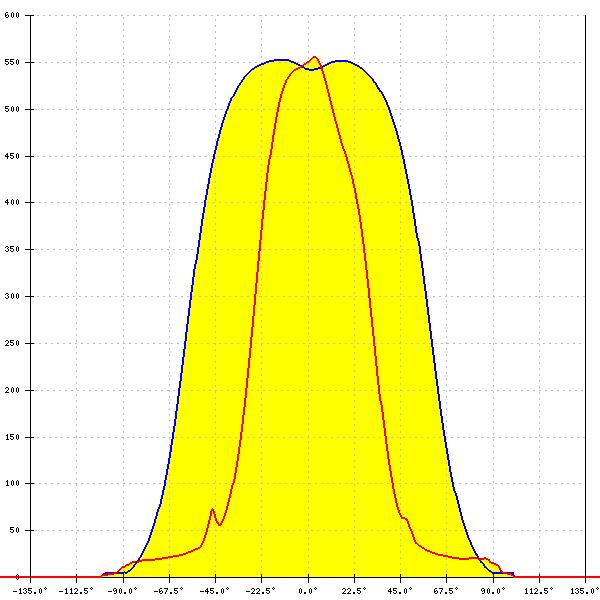

CALGD0814-M17W1
FWHM:
57° + 118°
FWTM:
99° + 152°
Peak intensity:
0.550 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
L0-280024-xxx-C0800-L267
FWHM:
65° + 107°
FWTM:
107° + 148°
Peak intensity:
0.530 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

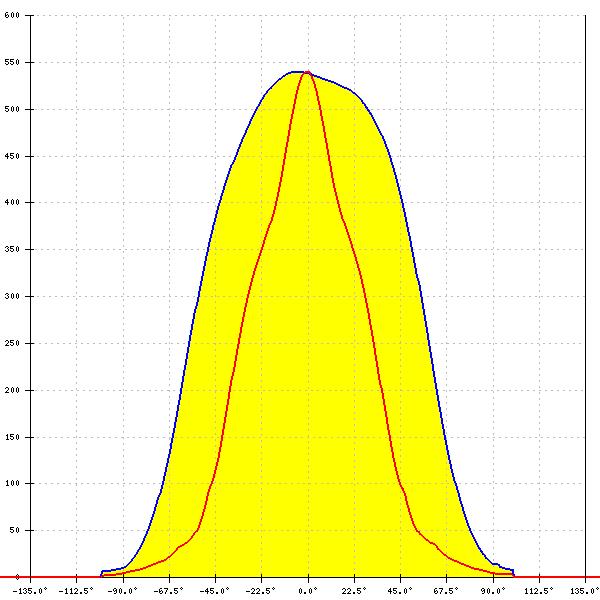

LED:

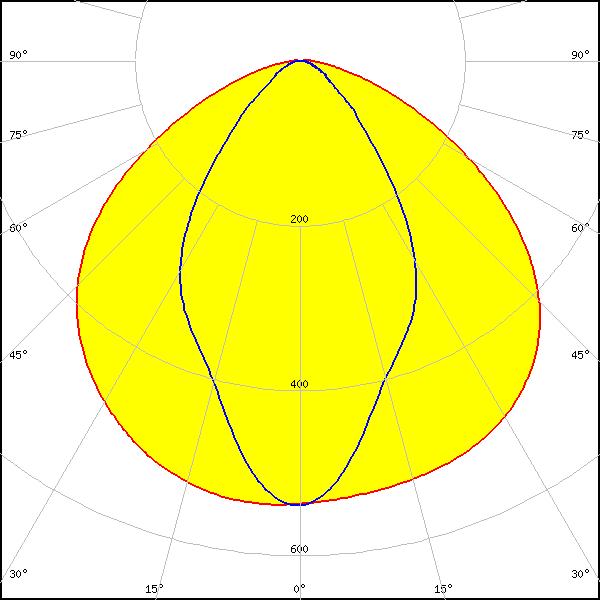

XH-B/G
FWHM:
63° + 113°
FWTM:
105° + 155°
Peak intensity:
0.540 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 2835 Line
FWHM:
59° + 107°
FWTM:
86° + 146°
Peak intensity:
0.650 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

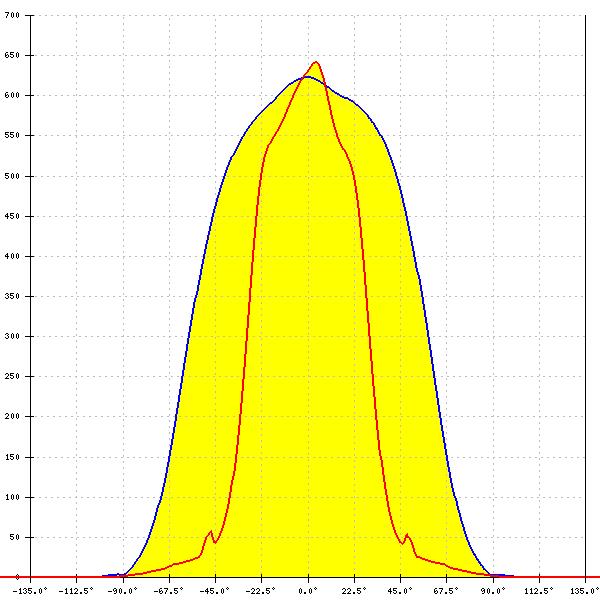

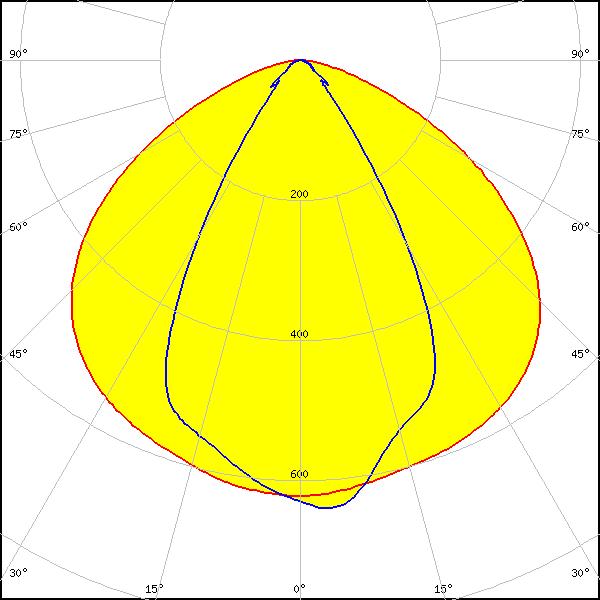

LED:
LUXEON 3014
FWHM:
59° + 115°
FWTM:
82° + 151°
Peak intensity:
0.640 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

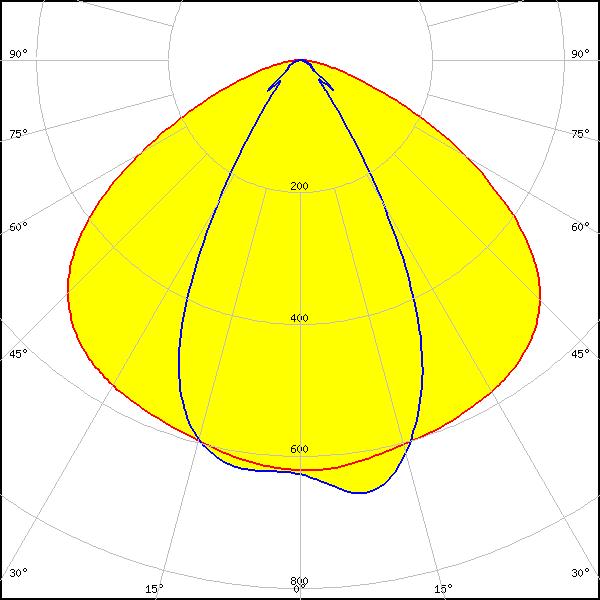

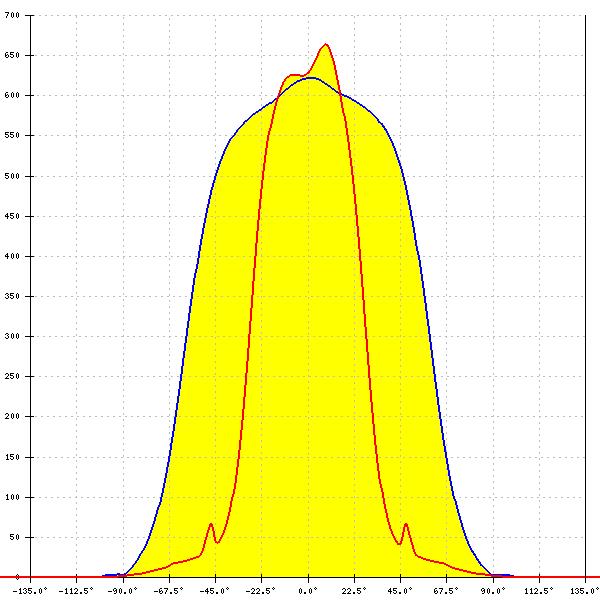

LED:
LUXEON 3020
FWHM:
55° + 117°
FWTM:
96° + 151°
Peak intensity:
0.660 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

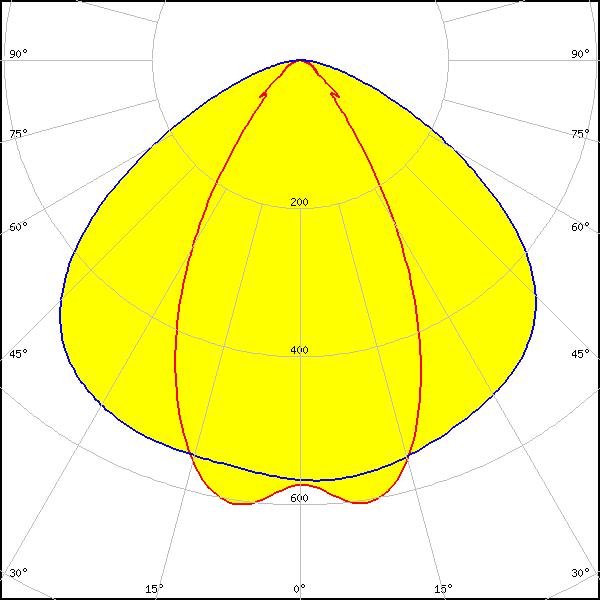

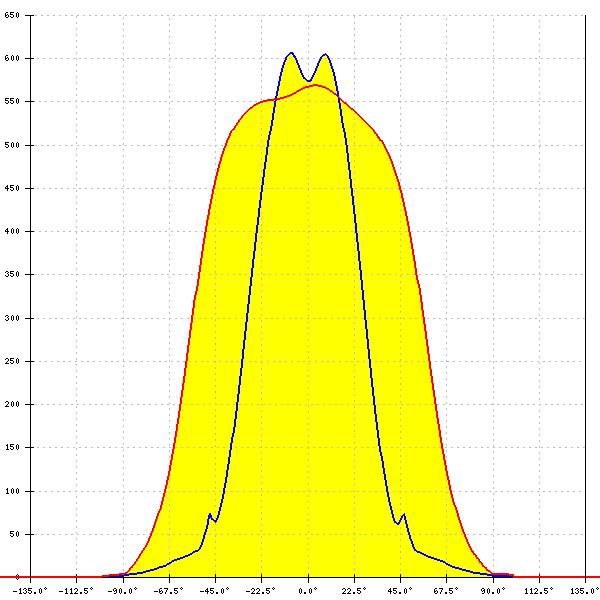

LED:
LUXEON 3030 2D (Round LES)
FWHM:
57° + 114°
FWTM:
97° + 150°
Peak intensity:
0.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

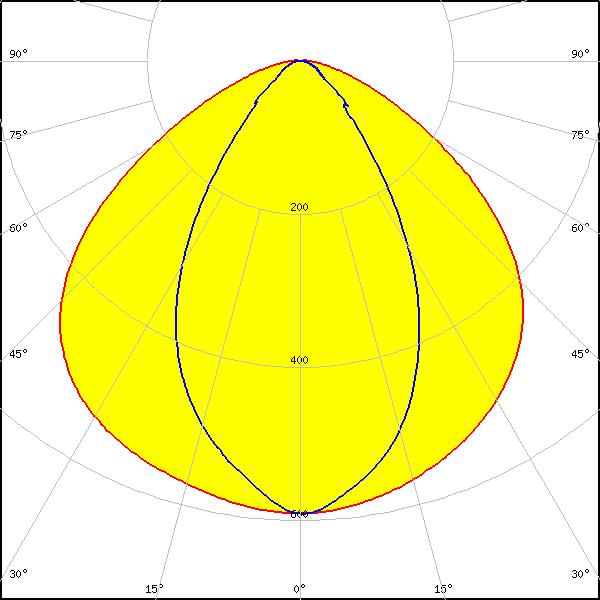

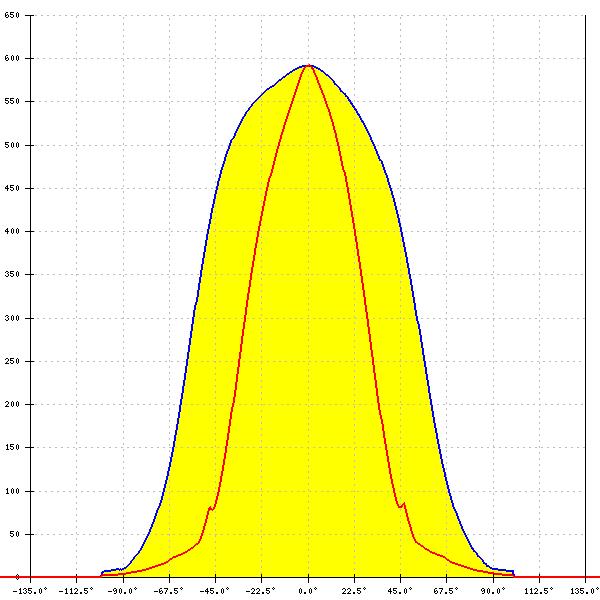

LED:
LUXEON 3535 2D
FWHM:
60° + 109°
FWTM:
100° + 150°
Peak intensity:
0.590 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

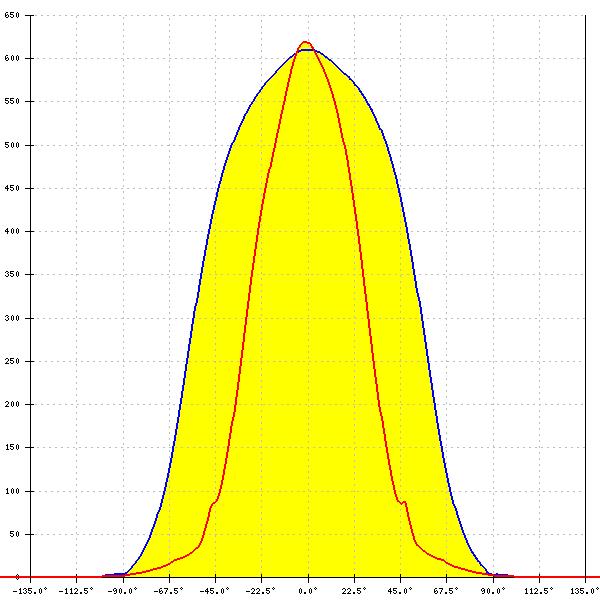

LED:

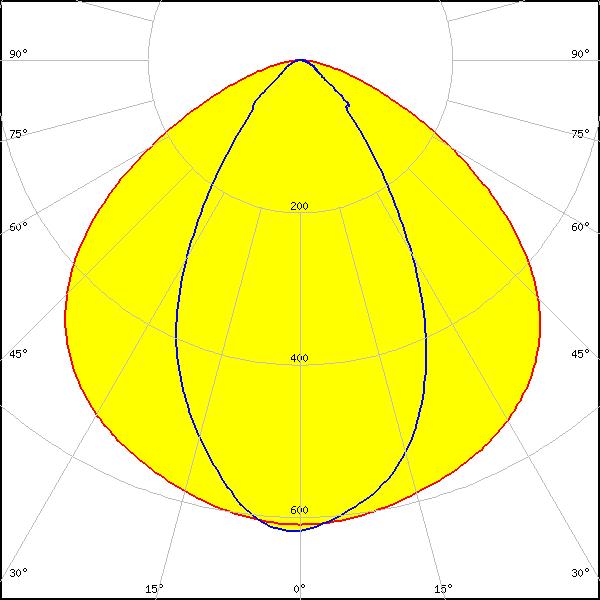

LUXEON 3535L
FWHM:
59° + 110°
FWTM:
99° + 149°
Peak intensity:
0.620 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

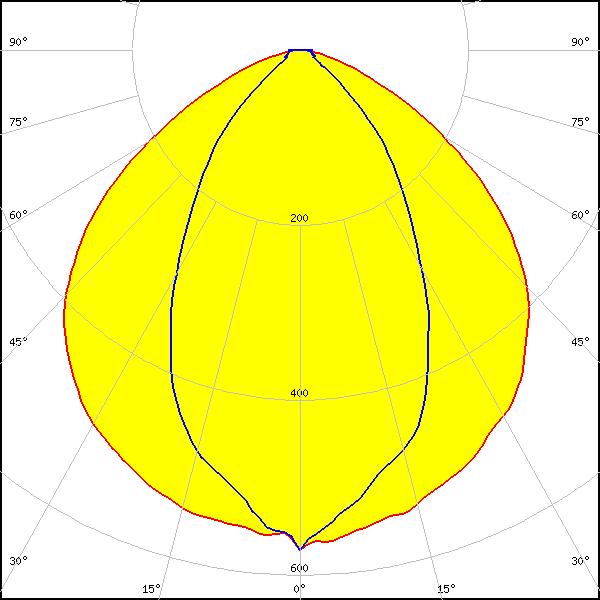

LED:
LUXEON 5050 Round LES
FWHM:
61° + 107°
FWTM:
103° + 146°
Peak intensity:
0.570 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

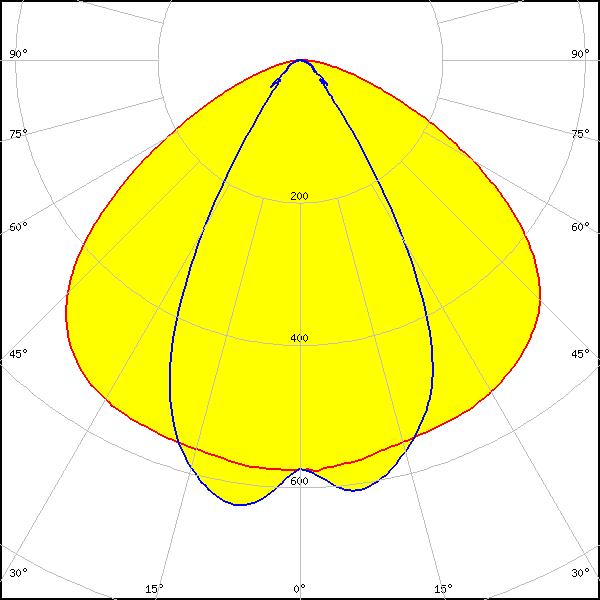

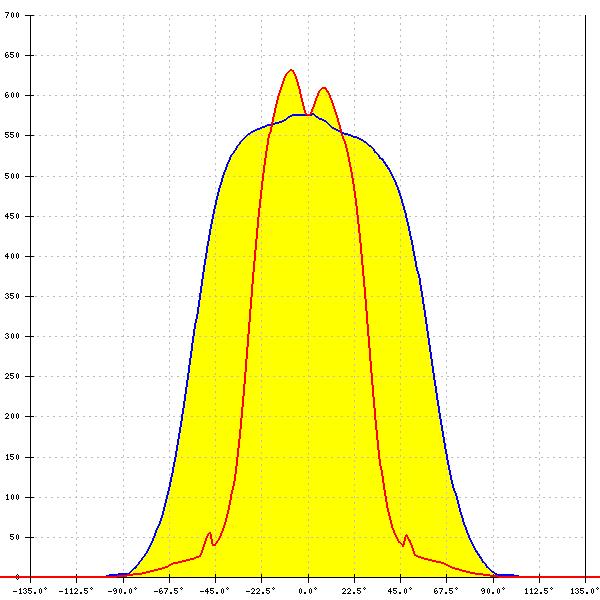

LED:
MP-2016
FWHM:
58° + 115°
FWTM:
82° + 157°
Peak intensity:
0.630 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

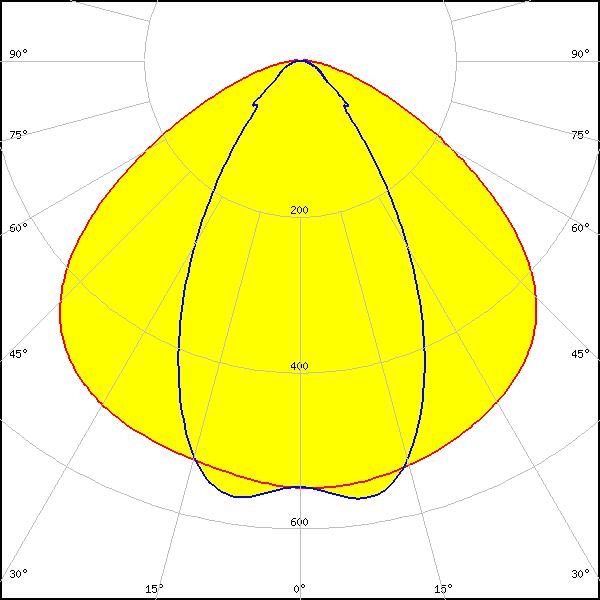

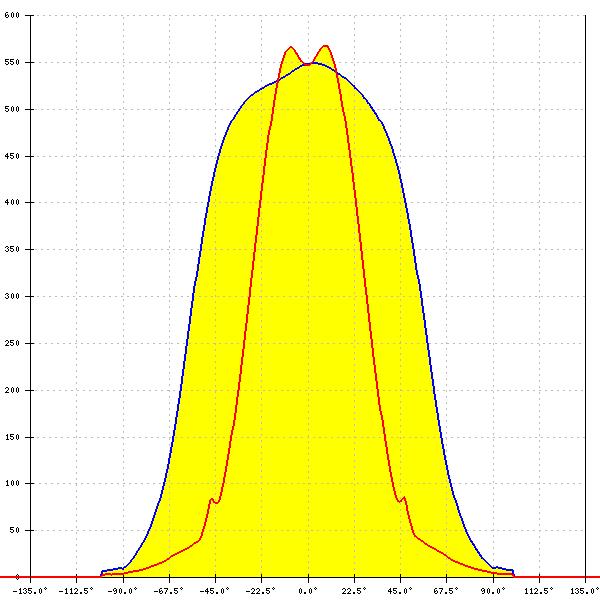

LED:
NF2x757D
FWHM:
59° + 114°
FWTM:
101° + 152°
Peak intensity:
0.570 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

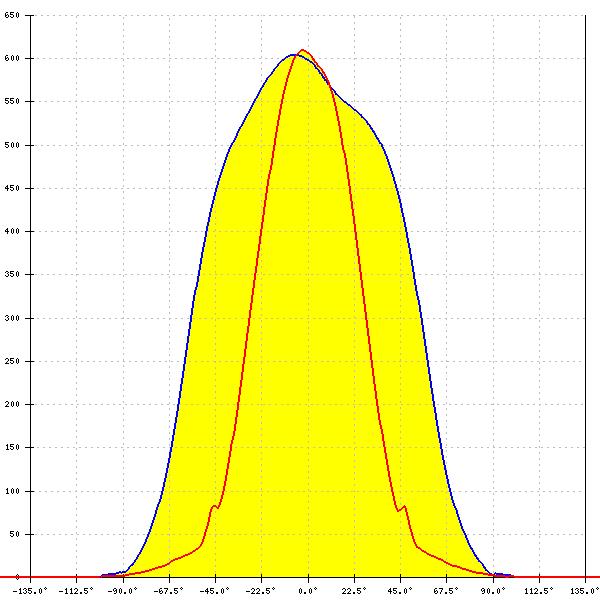

LED:

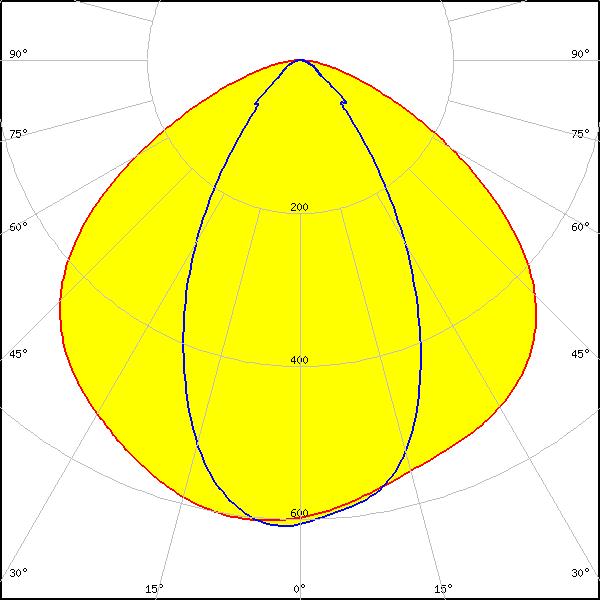

NF2x757G
FWHM:
56° + 111°
FWTM:
98° + 150°
Peak intensity:
0.600 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

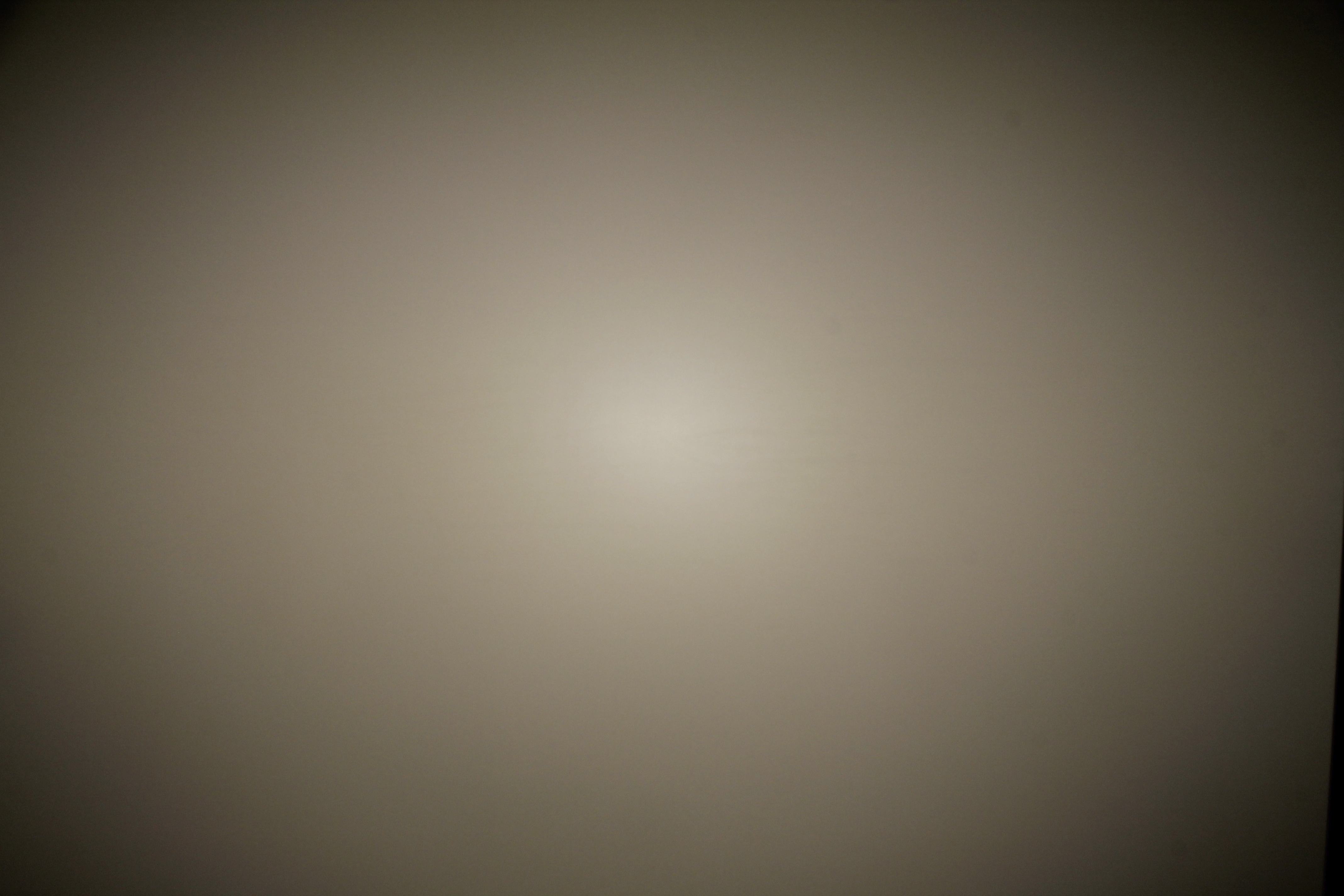

LED:

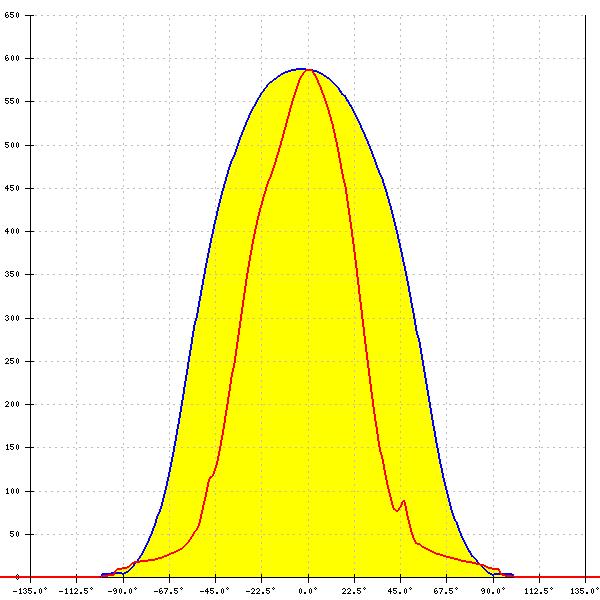

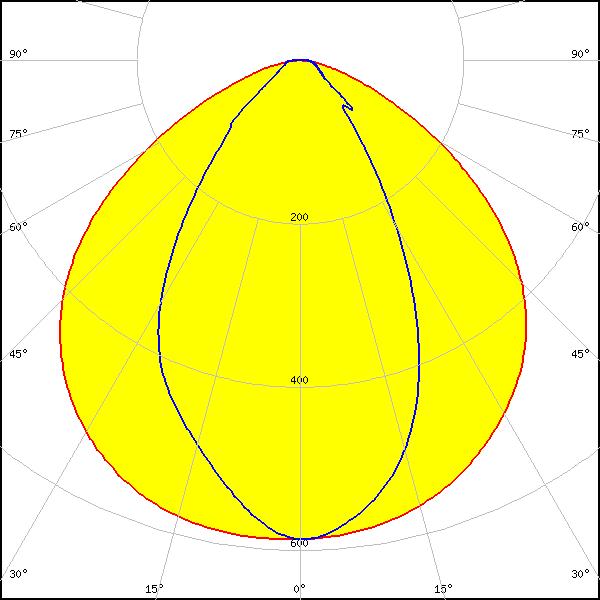

NFSW757H
Required components:
FWHM:
107° + 60°
FWTM:
148° + 104°
Peak intensity:
0.587 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

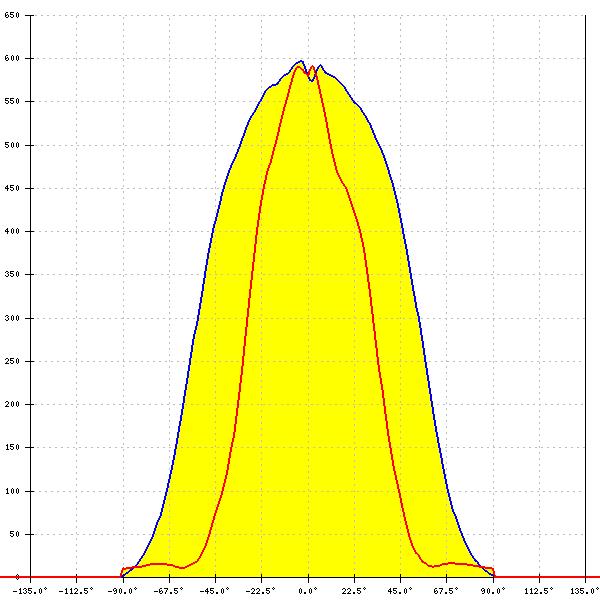

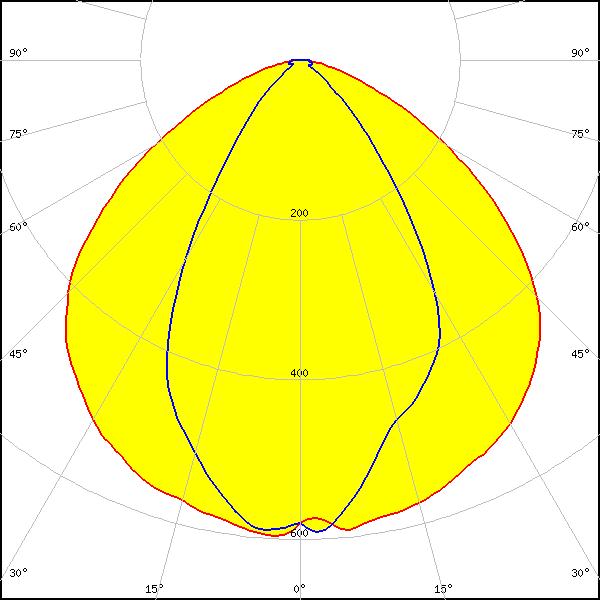

Duris E 2835
FWHM:
61° + 107°
FWTM:
95° + 147°
Peak intensity:
0.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

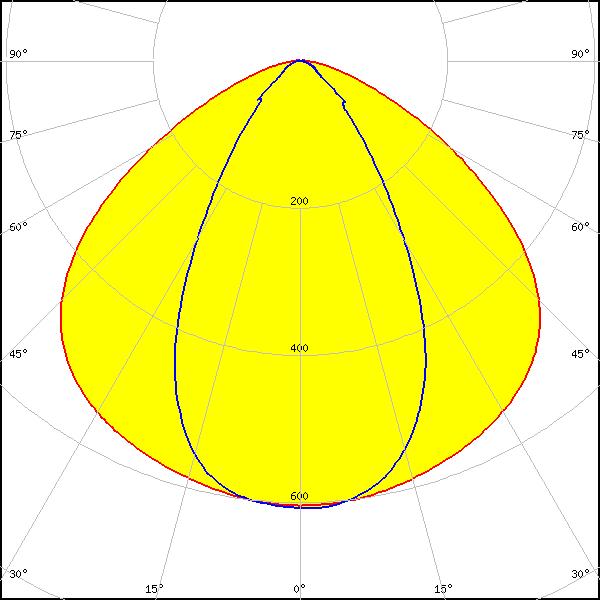

LED:

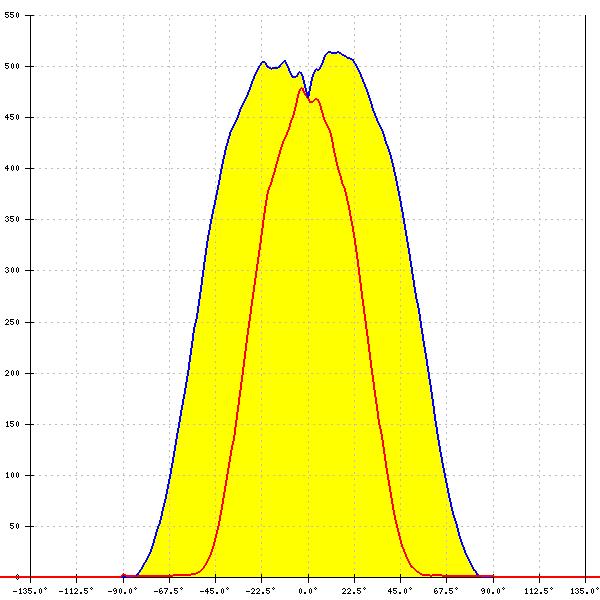

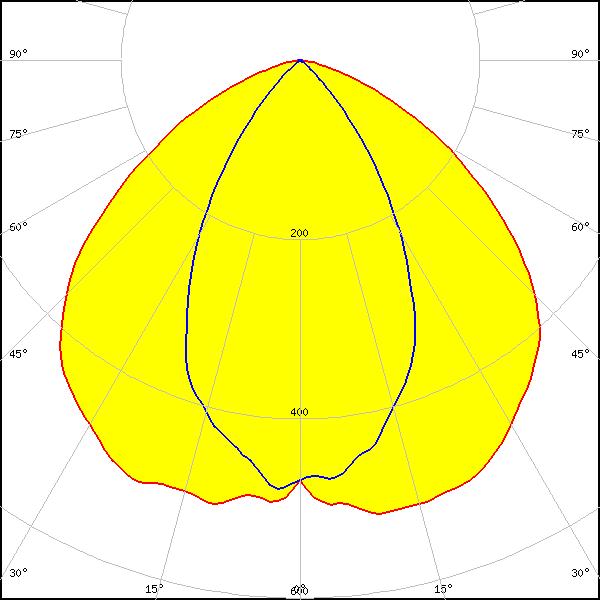

Duris E5
Required components:
FWHM:
108° + 58°
FWTM:
144° + 88°
Peak intensity:
0.516 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

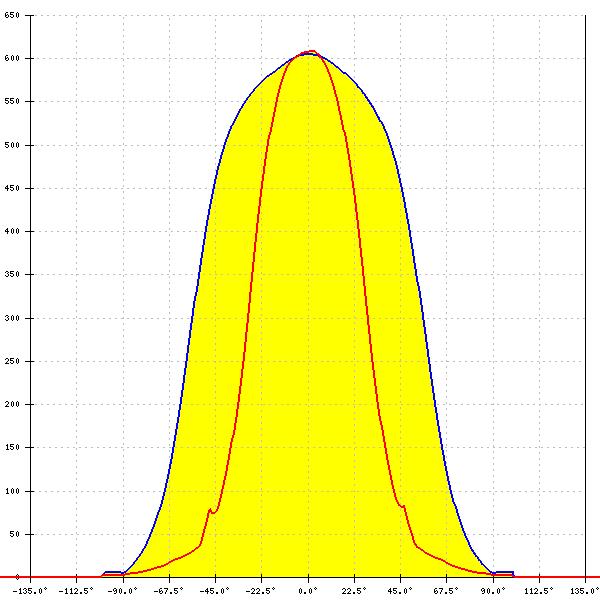

LED:
Duris E5
FWHM:
112° + 58°
FWTM:
149° + 99°
Peak intensity:
0.610 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

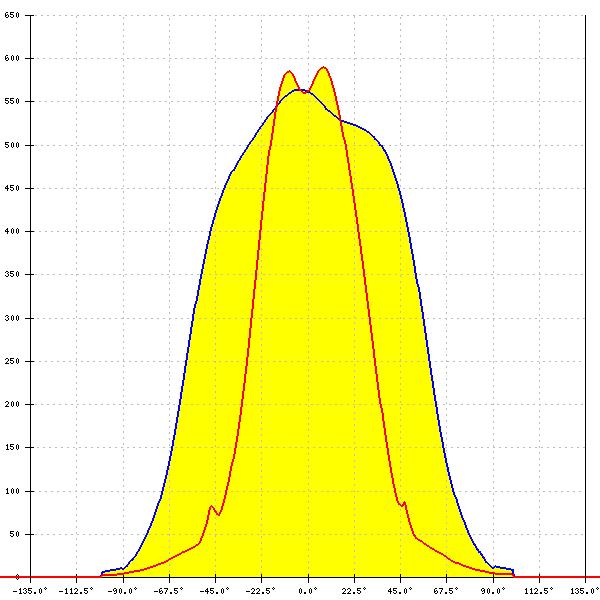

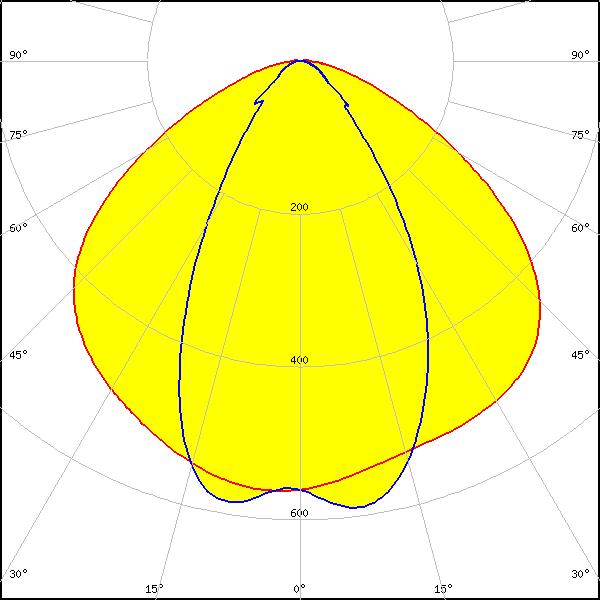

LED:
Duris S5 (2 chip)
FWHM:
58° + 114°
FWTM:
100° + 154°
Peak intensity:
0.590 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

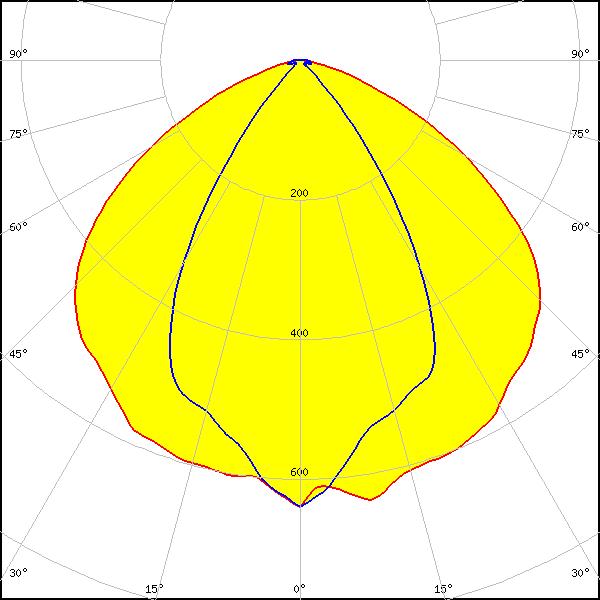

LED:
OSCONIQ C 2424
FWHM:
112° + 61°
FWTM:
146° + 83°
Peak intensity:
0.644 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo LED Line 1ft HF 1R HV5
Required components:
FWHM:
112° + 58°
FWTM:
151° + 101°
Peak intensity:
0.596 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo LED Line 1ft MF 1R HV5 & LV5
Required components:
FWHM:
112° + 59°
FWTM:
151° + 100°
Peak intensity:
0.597 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:

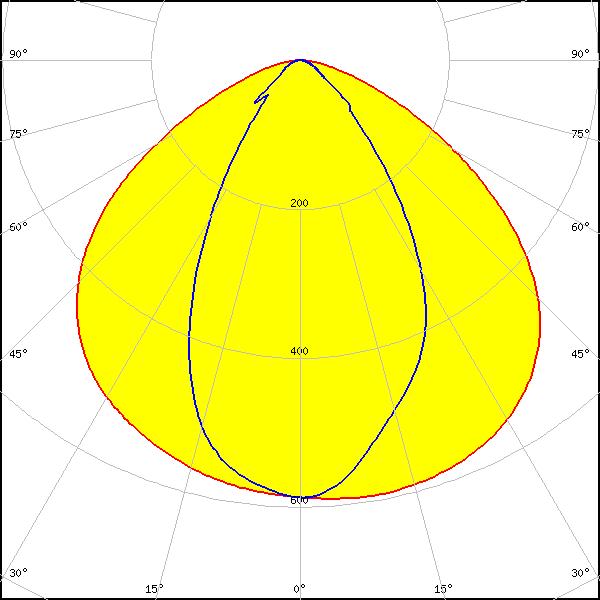

LM28xB Series
FWHM:
57° + 113°
FWTM:
98° + 150°
Peak intensity:
0.620 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LM28xB Series
Required components:
FWHM:
111° + 59°
FWTM:
150° + 101°
Peak intensity:
0.593 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

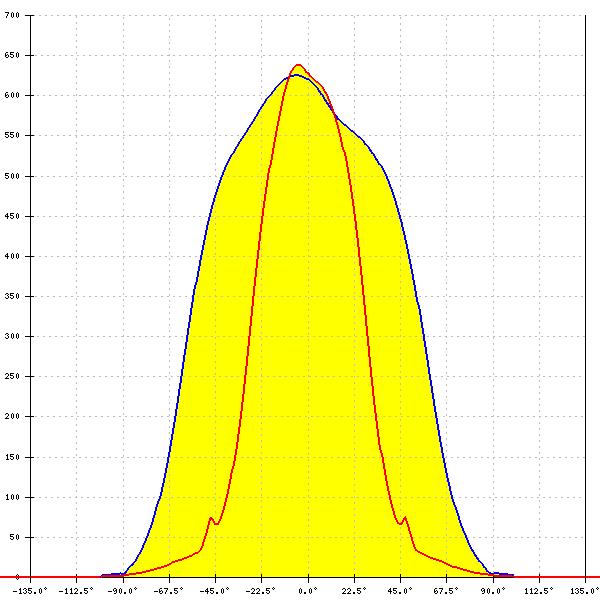

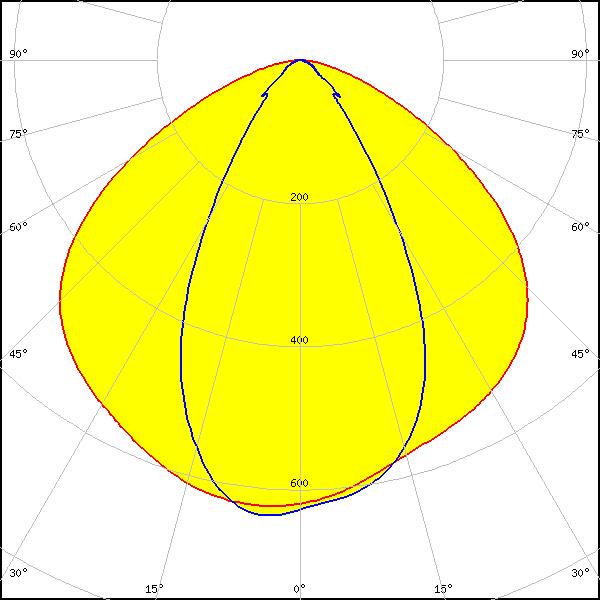

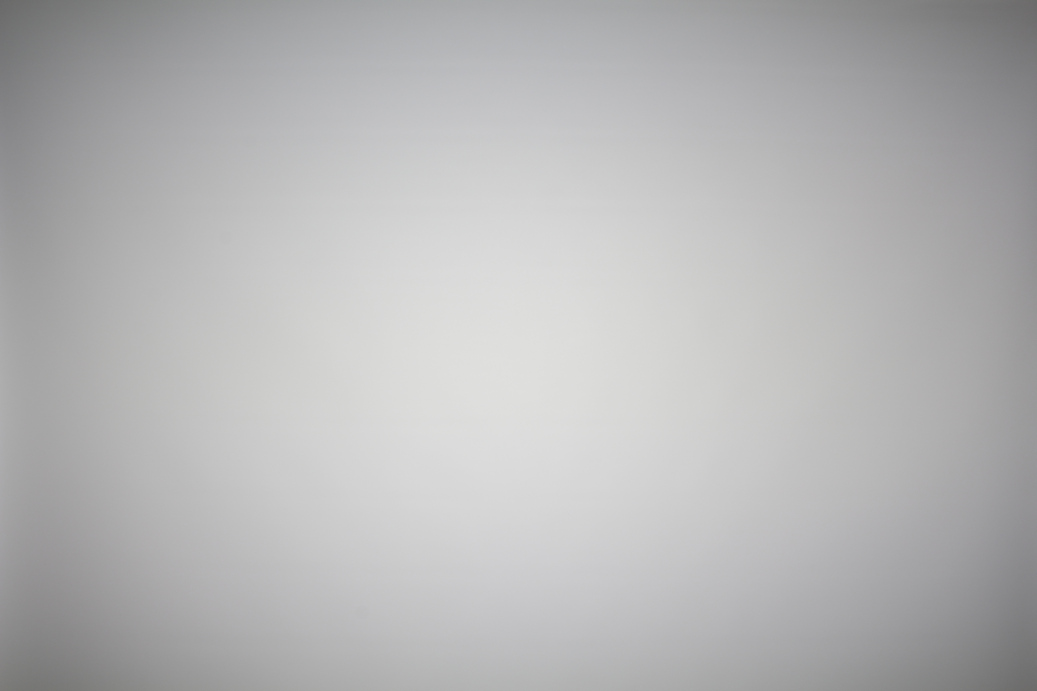

LED:
LM301A
FWHM:
56° + 113°
FWTM:
98° + 151°
Peak intensity:
0.640 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

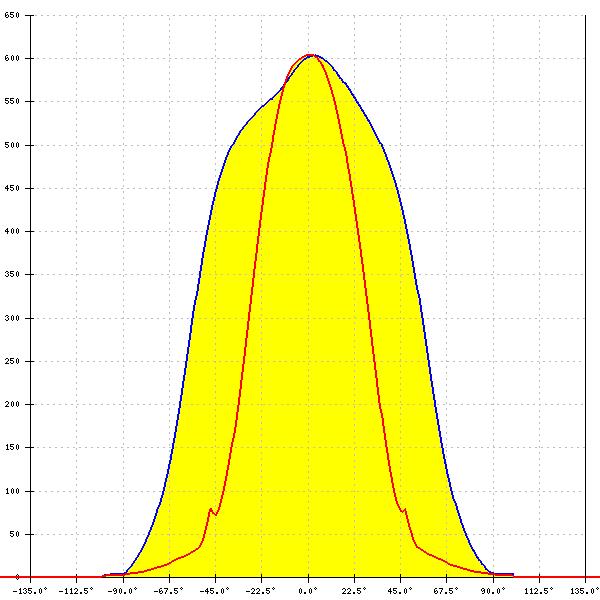

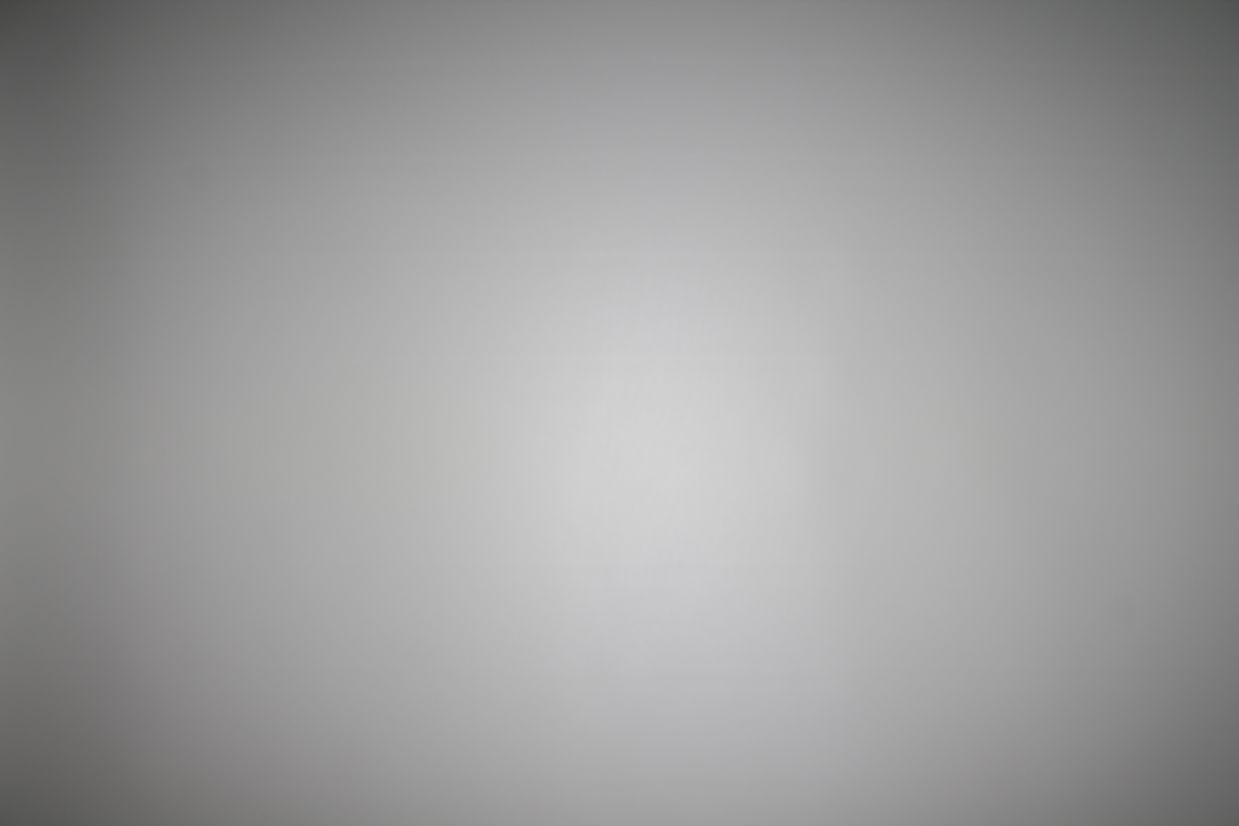

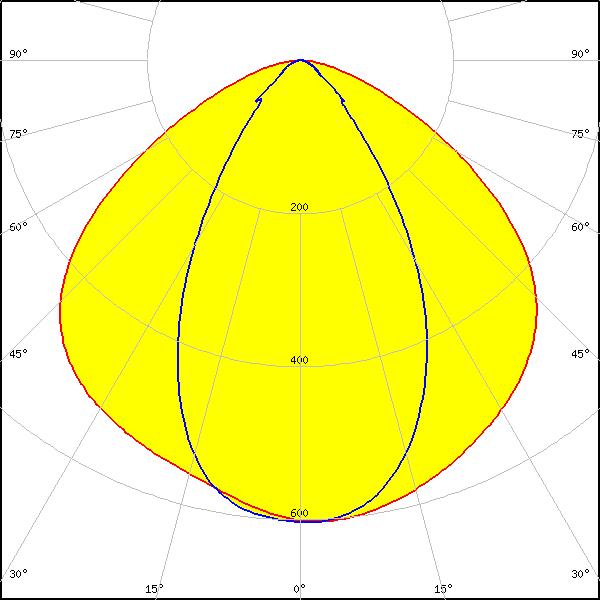

LED:
LM302A
FWHM:
59° + 111°
FWTM:
99° + 151°
Peak intensity:
0.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

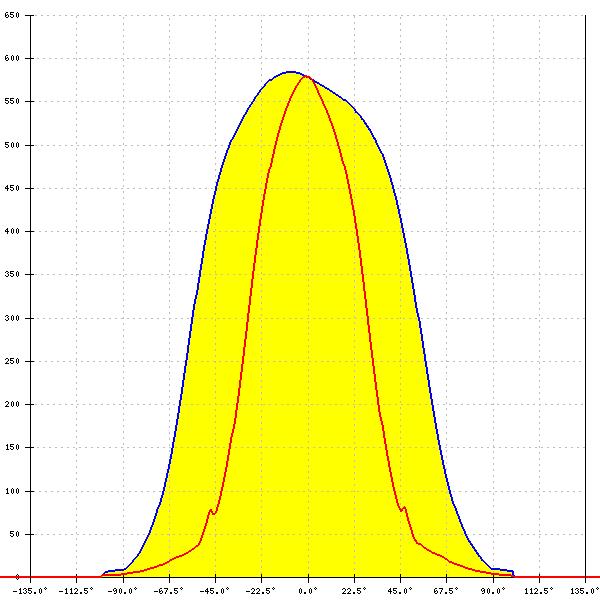

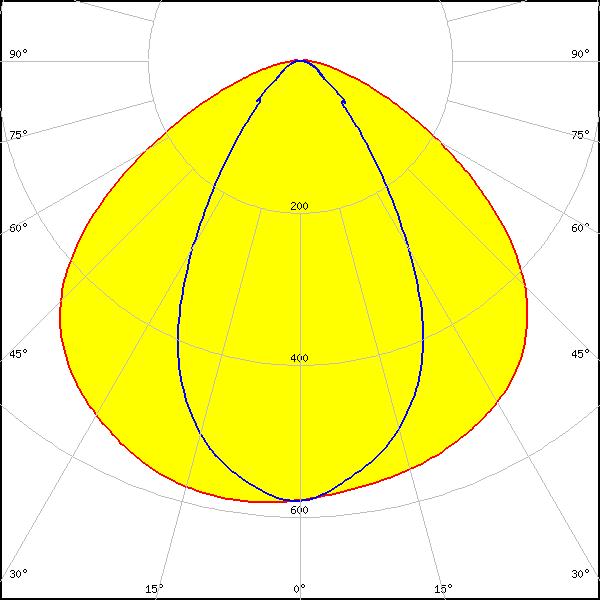

LED:
LM561B
FWHM:
59° + 111°
FWTM:
100° + 151°
Peak intensity:
0.580 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

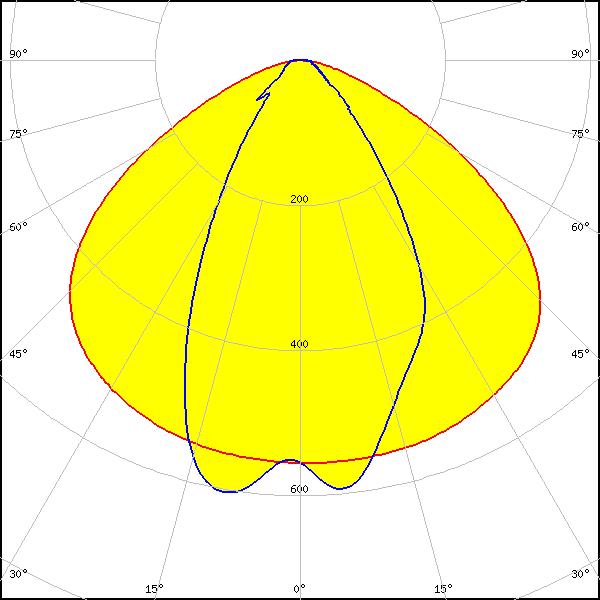

LED:

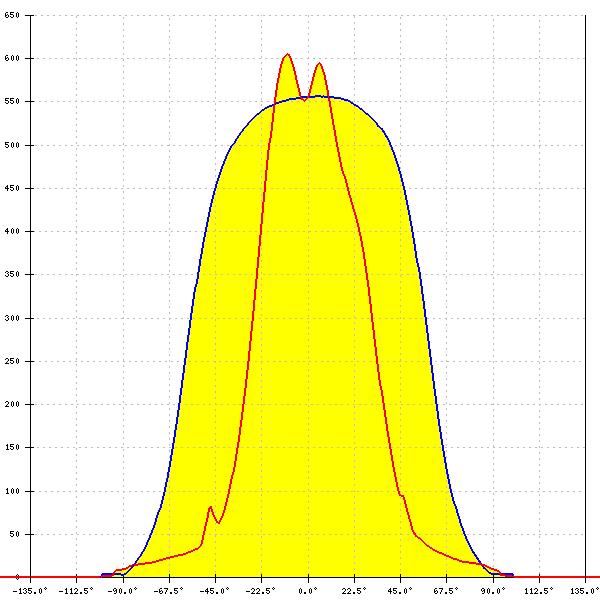

LM561B Plus
Required components:
FWHM:
117° + 58°
FWTM:
151° + 100°
Peak intensity:
0.605 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

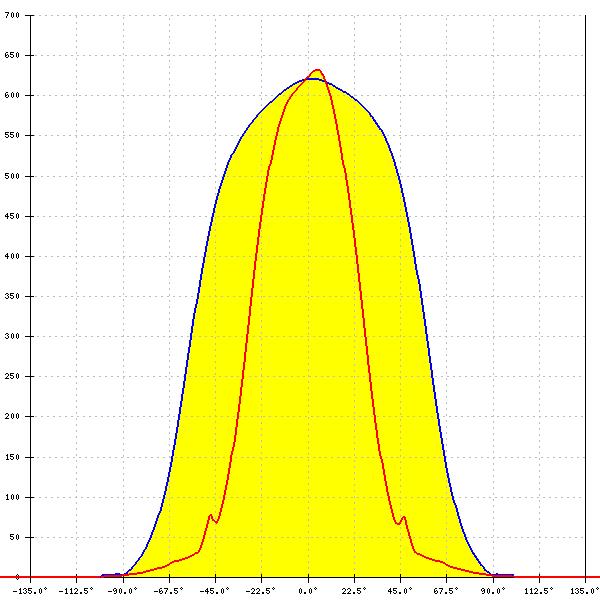

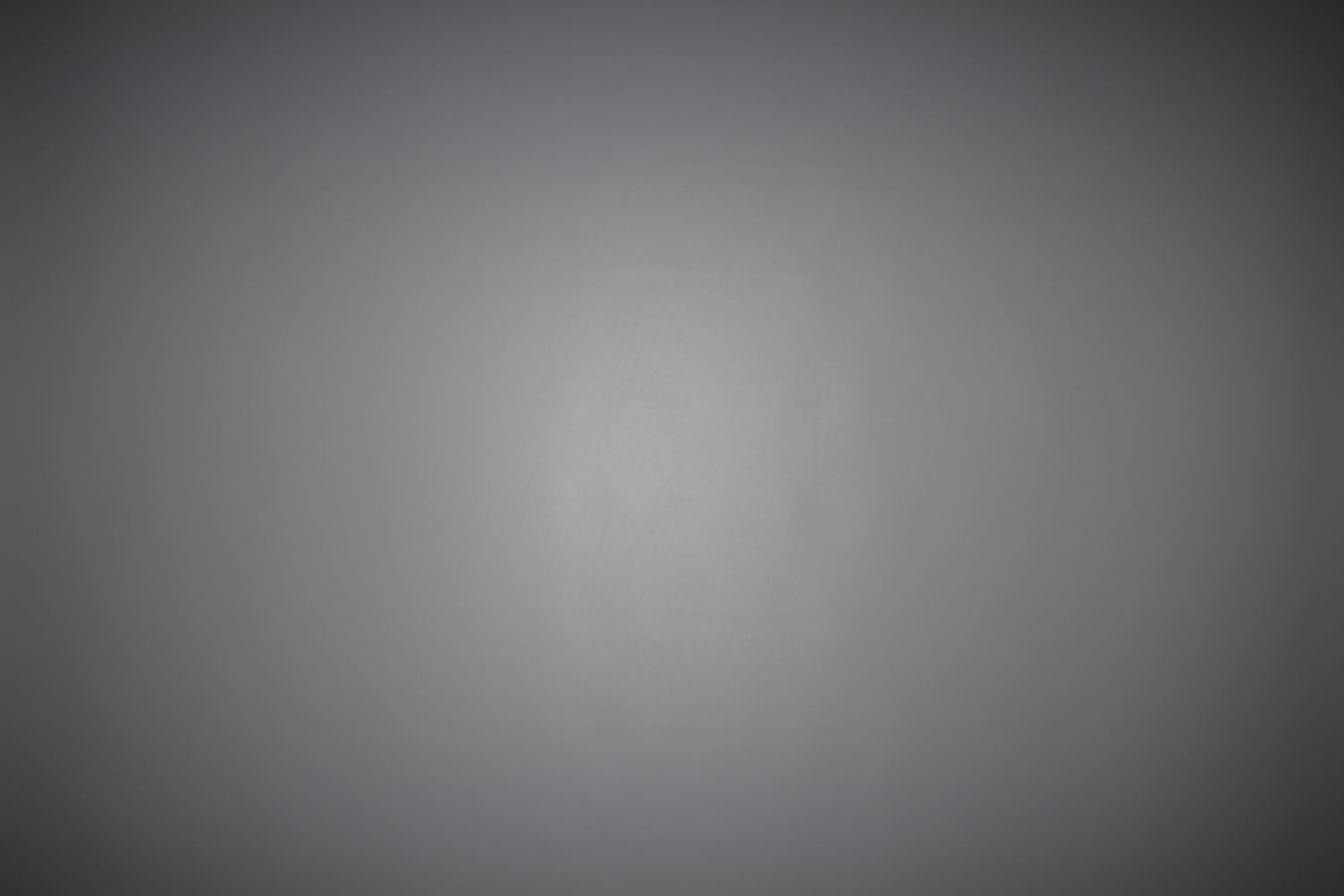

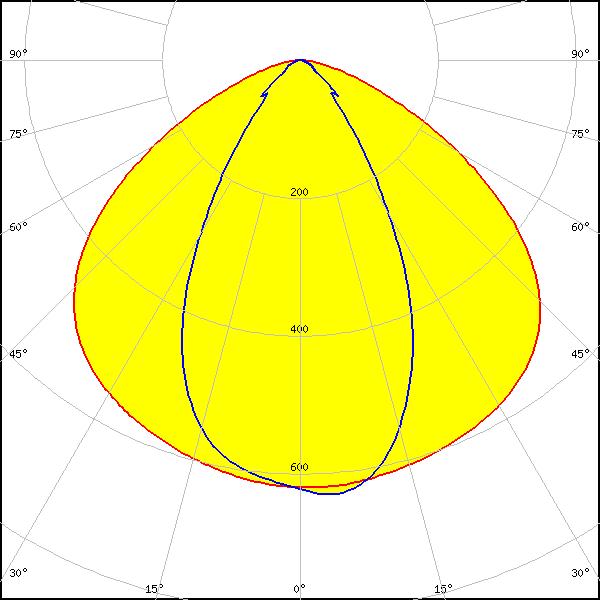

LED:
LM561C
FWHM:
56° + 113°
FWTM:
98° + 149°
Peak intensity:
0.630 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

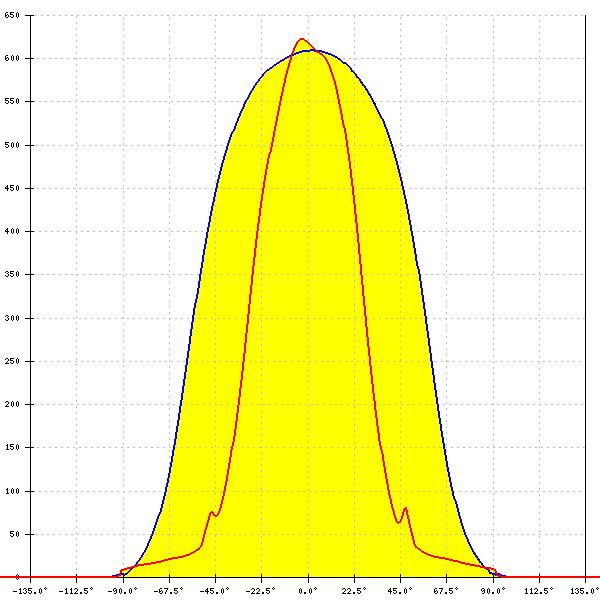

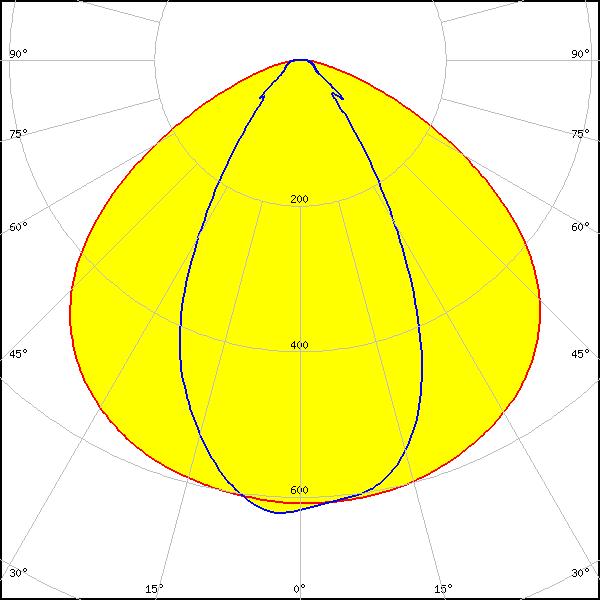

LED:
LT-S282N
FWHM:
56° + 112°
FWTM:
99° + 149°
Peak intensity:
0.620 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

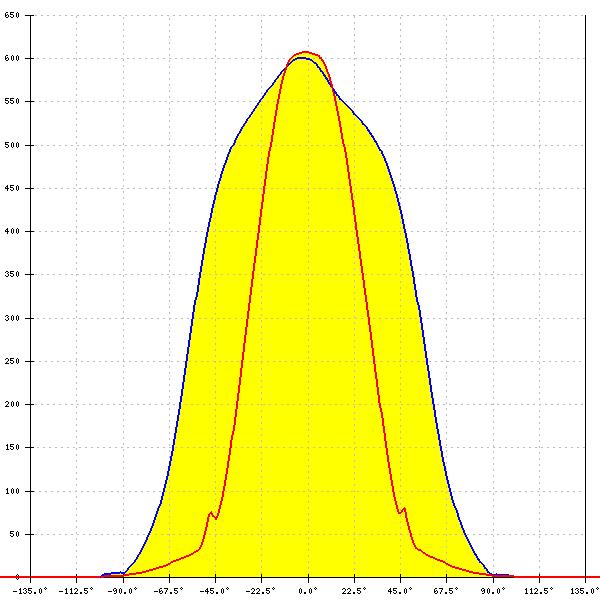

LED:

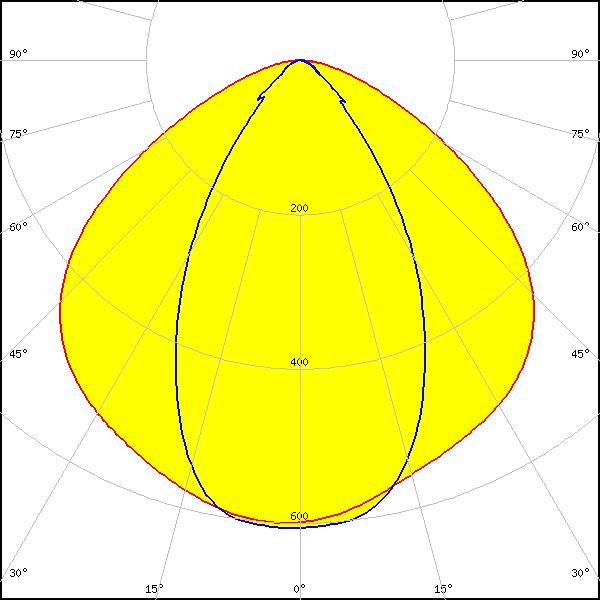

SEOUL 3030
FWHM:
59° + 111°
FWTM:
98° + 150°
Peak intensity:
0.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 3030
Required components:
FWHM:
115° + 55°
FWTM:
150° + 98°
Peak intensity:
0.610 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

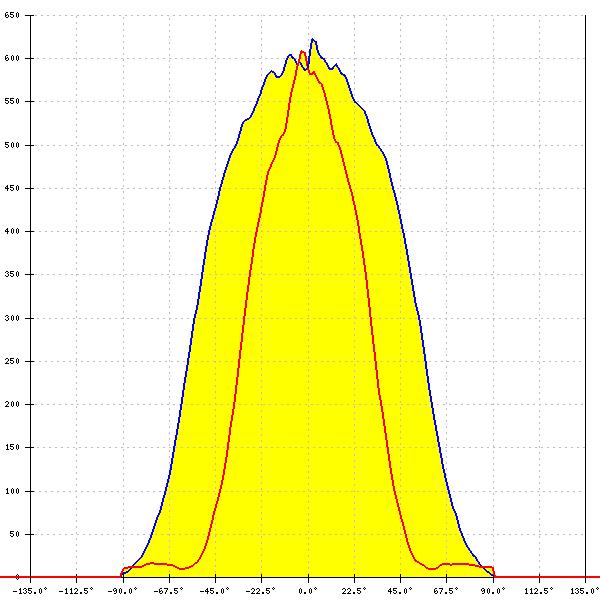

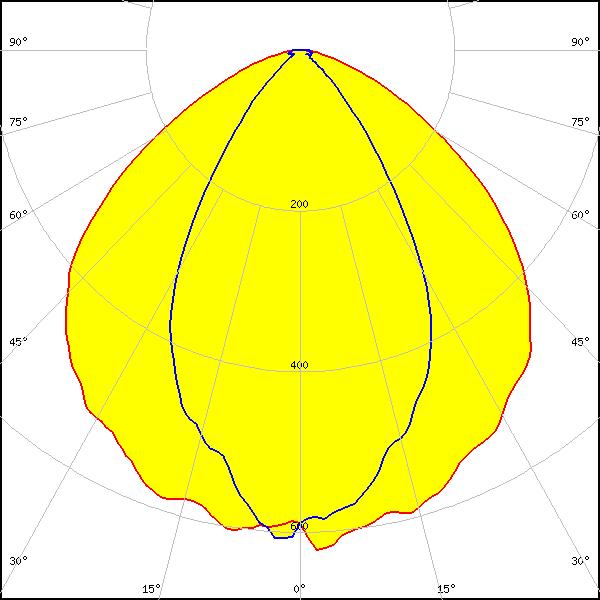

LED:
SEOUL DC 3030C
FWHM:
107° + 62°
FWTM:
147° + 94°
Peak intensity:
0.625 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
