F13839_ANGELINA-XW-B
Print

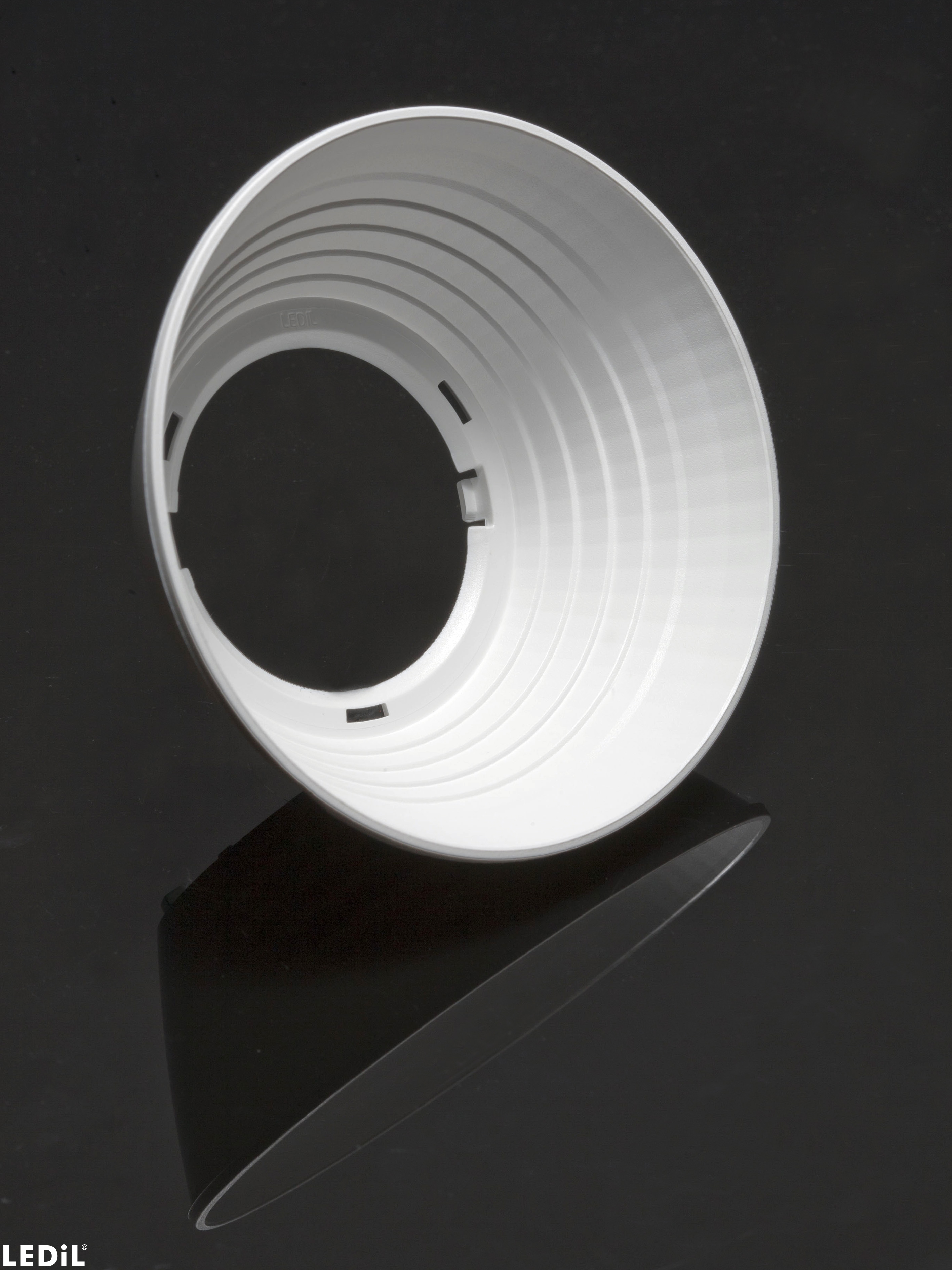

White version with ~91° wide beam compatible with BJB and B+W connectors
Component Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results
LED:
BXRA ES Rectangle
LES size: 19.2 mm
Required components:
BJB: 47.319.2040
FWHM:
94°
FWTM:
135°
Peak intensity:
0.478 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

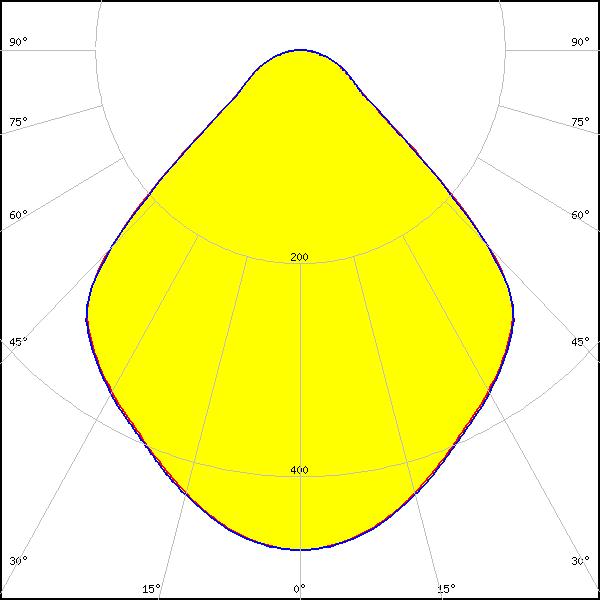

LED:

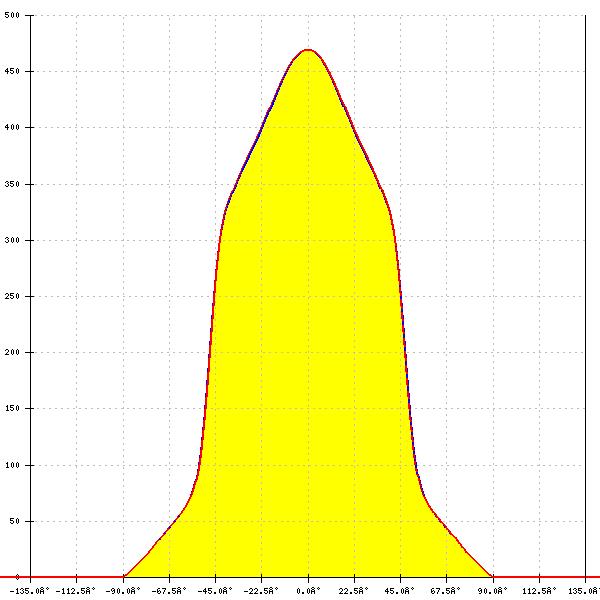

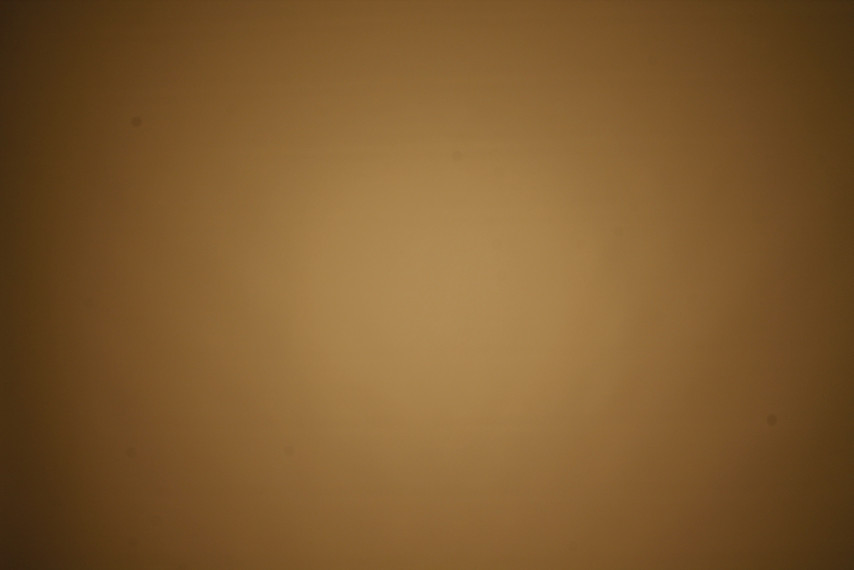

V15 Gen6
LES size: 15.2 mm
Required components:
BJB: 47.319.2224
FWHM:
92°
FWTM:
133°
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

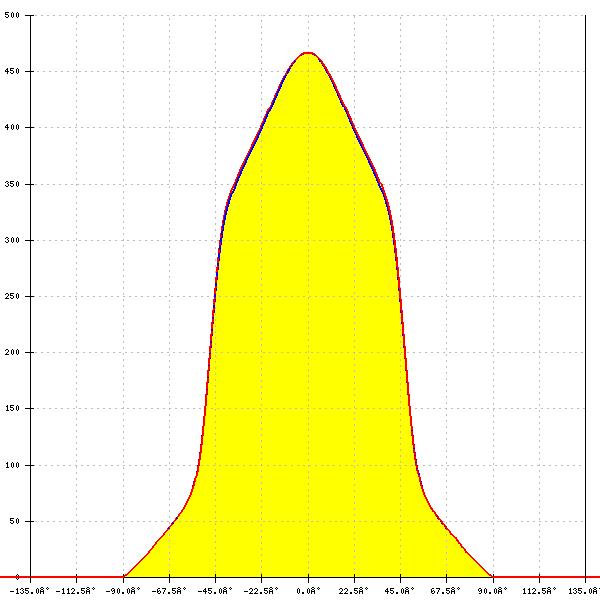

LED:

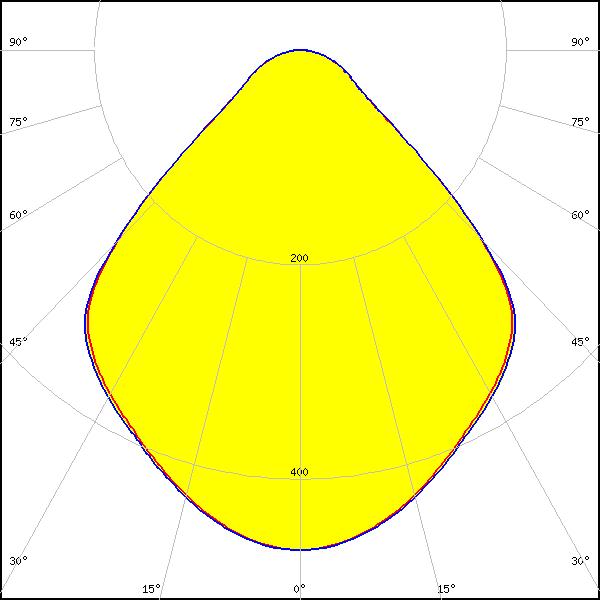

V18 Gen6
LES size: 18.6 mm
Required components:
BJB: 47.319.2274
FWHM:
92°
FWTM:
134°
Peak intensity:
0.490 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V18 Gen7
LES size: 19.2 mm
Required components:
BJB: 47.319.2350
FWHM:
92°
FWTM:
134°
Peak intensity:
0.490 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

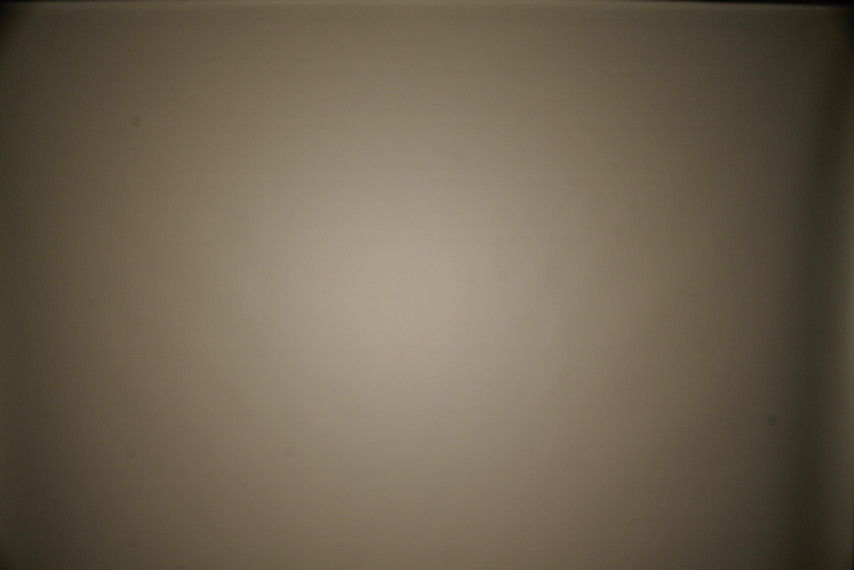

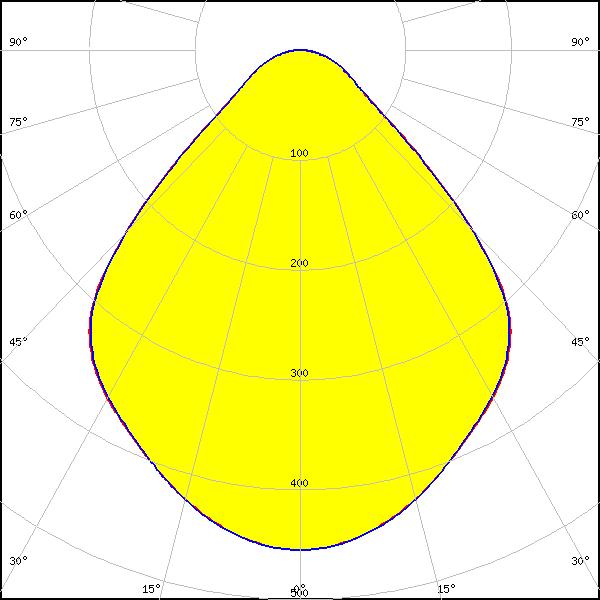

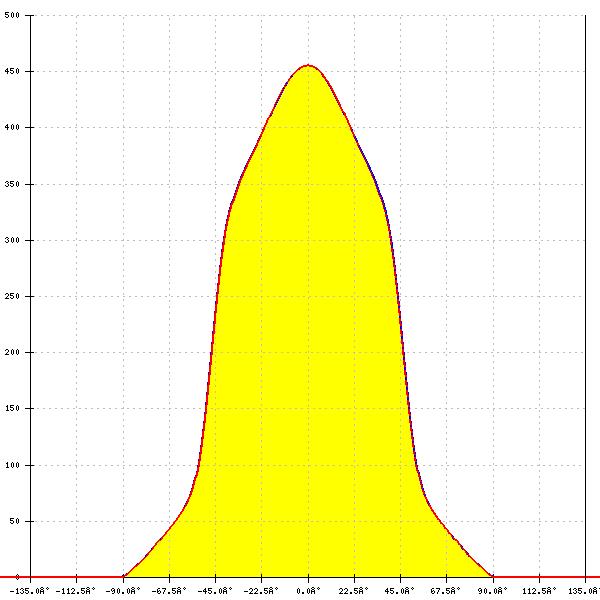

V22 Gen6
LES size: 22.0 mm
Required components:
A.A.G. STUCCHI: 8102-G2
FWHM:
91°
FWTM:
133°
Peak intensity:
0.490 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V22 Gen7
LES size: 22.6 mm
Required components:
BJB: 47.319.2030
FWHM:
91°
FWTM:
133°
Peak intensity:
0.490 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU03x
LES size: 14.5 mm
Required components:
FWHM:
93°
FWTM:
132°
Peak intensity:
0.450 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU03x
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
93°
FWTM:
133°
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU03x
LES size: 14.5 mm
Required components:
A.A.G. STUCCHI: 8101-G2
FWHM:
93°
FWTM:
135°
Peak intensity:
0.490 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU04x
LES size: 22.0 mm
Required components:
FWHM:
91°
FWTM:
132°
Peak intensity:
0.450 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU04x
LES size: 22.0 mm
Required components:
BJB: 47.319.2030
FWHM:
91°
FWTM:
134°
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU04x
LES size: 22.0 mm
Required components:
A.A.G. STUCCHI: 8102-G2
FWHM:
92°
FWTM:
135°
Peak intensity:
0.480 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU730/731/733
LES size: 13.0 mm
Required components:
BJB: 47.319.2030
FWHM:
86°
FWTM:
110°
Peak intensity:
0.635 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 25xx
LES size: 19.0 mm
Required components:
FWHM:
92°
FWTM:
133°
Peak intensity:
0.460 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 25xx
LES size: 19.0 mm
Required components:
BJB: 47.319.2141
FWHM:
92°
FWTM:
134°
Peak intensity:
0.490 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 25xx
LES size: 19.0 mm
Required components:
A.A.G. STUCCHI: 8401-G2
FWHM:
93°
FWTM:
135°
Peak intensity:
0.490 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 30xx
LES size: 23.0 mm
Required components:
A.A.G. STUCCHI: 8404-G2
FWHM:
90°
FWTM:
134°
Peak intensity:
0.490 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1204/1205
LES size: 13.0 mm
Required components:
A.A.G. STUCCHI: 8301-G2
FWHM:
94°
FWTM:
135°
Peak intensity:
0.490 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

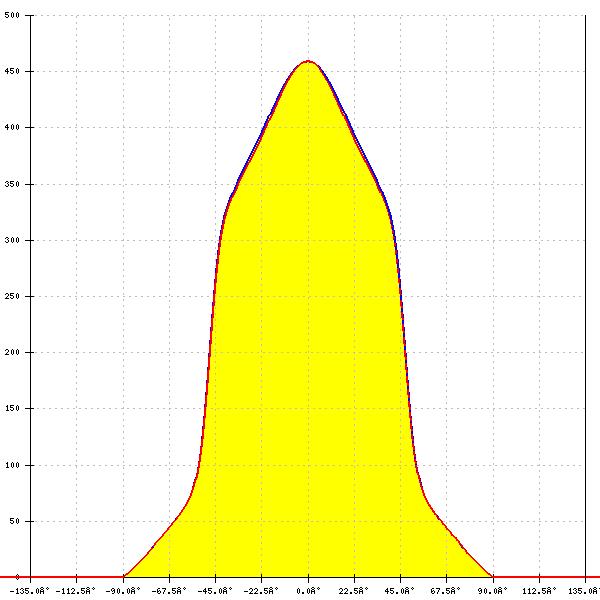

LED:

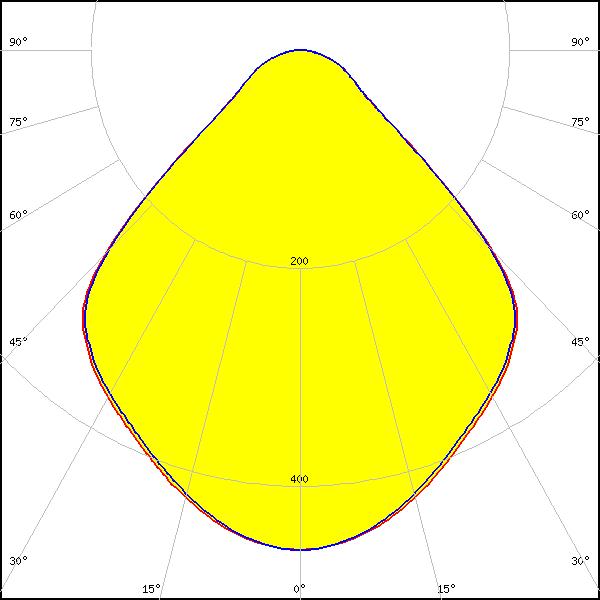

LUXEON CoB 1208
LES size: 15.0 mm
Required components:
A.A.G. STUCCHI: 8301-G2
FWHM:
93°
FWTM:
135°
Peak intensity:
0.490 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1211
LES size: 18.5 mm
Required components:
BJB: 47.319.2030
FWHM:
92°
FWTM:
135°
Peak intensity:
0.480 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1211
LES size: 18.5 mm
Required components:
A.A.G. STUCCHI: 8102-G2
FWHM:
91°
FWTM:
133°
Peak intensity:
0.490 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
FWHM:
91°
FWTM:
133°
Peak intensity:
0.490 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
BJB: 47.319.2030
FWHM:
91°
FWTM:
134°
Peak intensity:
0.490 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON K12
LES size: 13.5 mm
Required components:
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON K12
LES size: 13.5 mm
Required components:
BJB: 47.319.2070
FWHM:
91°
FWTM:
112°
Peak intensity:
0.533 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON K16
LES size: 17.0 mm
Required components:
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON K16
LES size: 17.0 mm
Required components:
BJB: 47.319.2070
FWHM:
91°
FWTM:
108°
Peak intensity:
0.540 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-14 (19x19)
LES size: 14.3 mm
Required components:
BJB: 47.319.2021
FWHM:
92°
FWTM:
134°
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-22 (28x28)
LES size: 22.0 mm
Required components:
BJB: 47.319.2030
FWHM:
91°
FWTM:
135°
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S13 19x19
LES size: 13.0 mm
Required components:
BJB: 47.319.2021
FWHM:
94°
FWTM:
137°
Peak intensity:
0.470 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S19
LES size: 17.9 mm
Required components:
A.A.G. STUCCHI: 8503-G2
FWHM:
92°
FWTM:
134°
Peak intensity:
0.490 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S19
LES size: 17.9 mm
Required components:
BJB: 47.319.2170
FWHM:
93°
FWTM:
134°
Peak intensity:
0.480 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L19 CoB
LES size: 19.0 mm
Required components:
BJB: 47.319.2030
FWHM:
91°
FWTM:
130°
Peak intensity:
0.520 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L19 CoB
LES size: 19.0 mm
Required components:
FWHM:
91°
FWTM:
130°
Peak intensity:
0.500 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L23 CoB
LES size: 23.0 mm
Required components:
FWHM:
90°
FWTM:
131°
Peak intensity:
0.500 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L23 CoB
LES size: 23.0 mm
Required components:
BJB: 47.319.2030
FWHM:
90°
FWTM:
131°
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM:
93°
FWTM:
133°
Peak intensity:
0.460 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM:
93°
FWTM:
133°
Peak intensity:
0.460 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
A.A.G. STUCCHI: 8101-G2
FWHM:
93°
FWTM:
134°
Peak intensity:
0.490 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
93°
FWTM:
134°
Peak intensity:
0.490 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC040D / LC060D / LC080D
LES size: 22.0 mm
Required components:
BJB: 47.319.2030
FWHM:
91°
FWTM:
127°
Peak intensity:
0.460 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC12/18
LES size: 14.6 mm
Required components:
A.A.G. STUCCHI: 8101-G2
FWHM:
93°
FWTM:
135°
Peak intensity:
0.490 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC25/40/60
LES size: 22.6 mm
Required components:
A.A.G. STUCCHI: 8102-G2
FWHM:
91°
FWTM:
134°
Peak intensity:
0.480 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Mega Zenigata (GW5DGC)
LES size: 16.0 mm
Required components:
BJB: 47.319.2011
FWHM:
93°
FWTM:
134°
Peak intensity:
0.480 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Mega Zenigata (GW6DME)
LES size: 16.0 mm
Required components:
BJB: 47.319.2011
FWHM:
93°
FWTM:
134°
Peak intensity:
0.480 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Mega Zenigata (GW6DME)
LES size: 16.0 mm
Required components:
A.A.G. STUCCHI: 8301-G2
FWHM:
93°
FWTM:
134°
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES17 H
FWHM:
91°
FWTM:
133°
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES21 H
FWHM:
90°
FWTM:
133°
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XOB 14.5 mm
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
93°
FWTM:
132°
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
