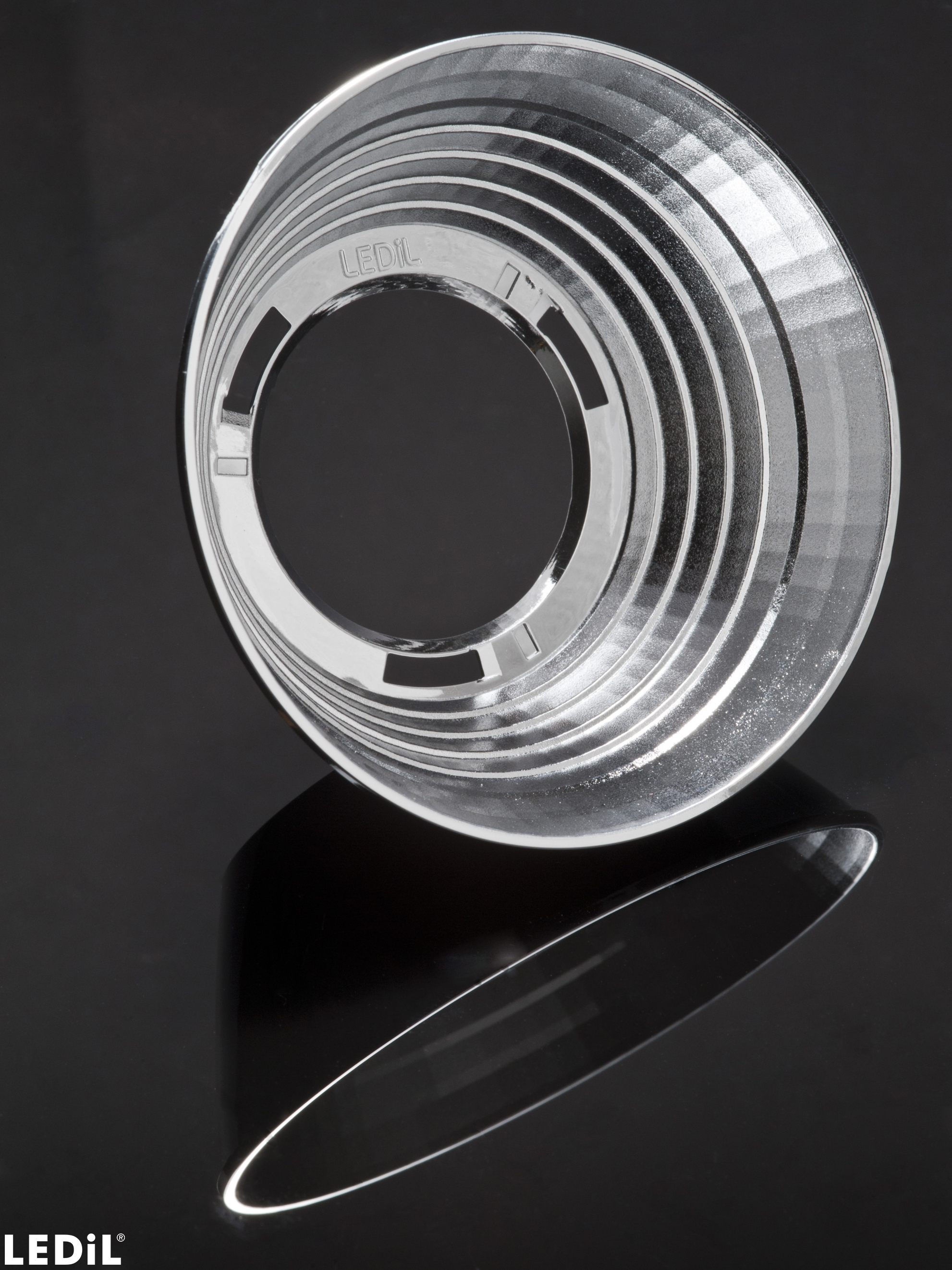

F13661_ANGELINA-W-B
Print
~50° wide beam compatible with BJB and B+W connectors
Component Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

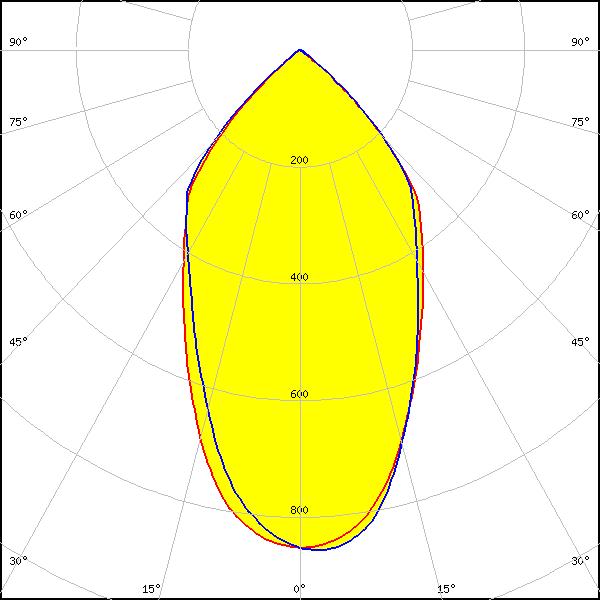

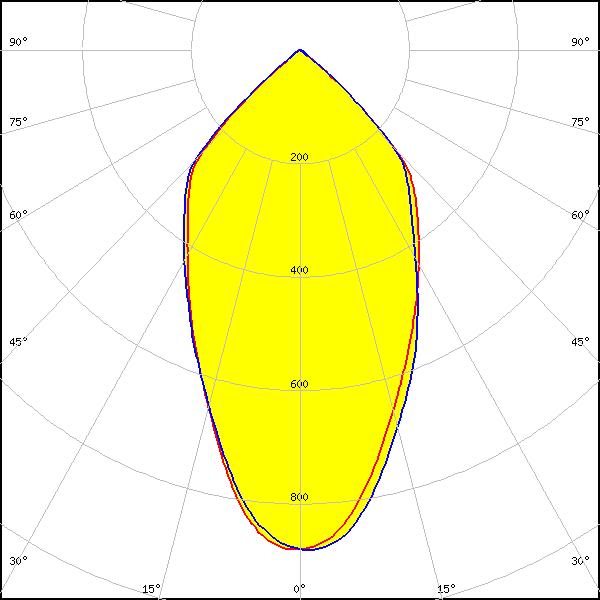

Optical results

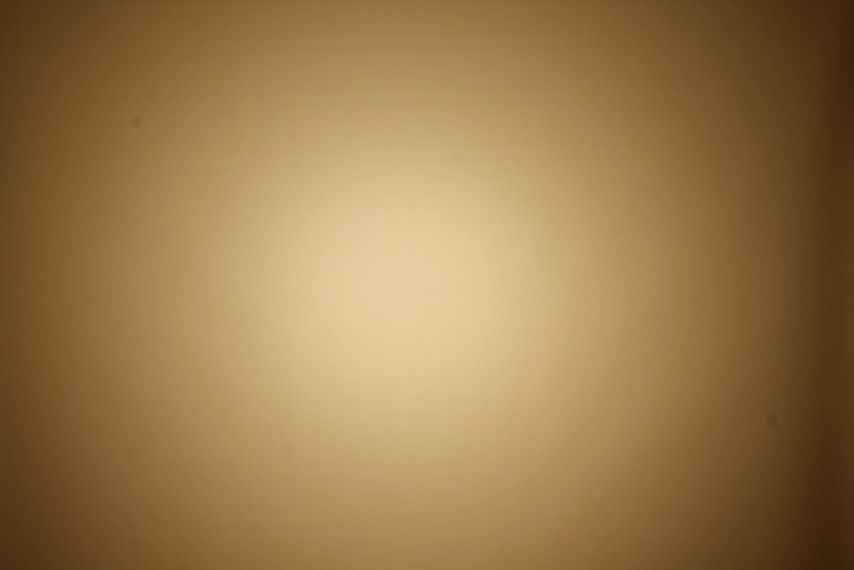

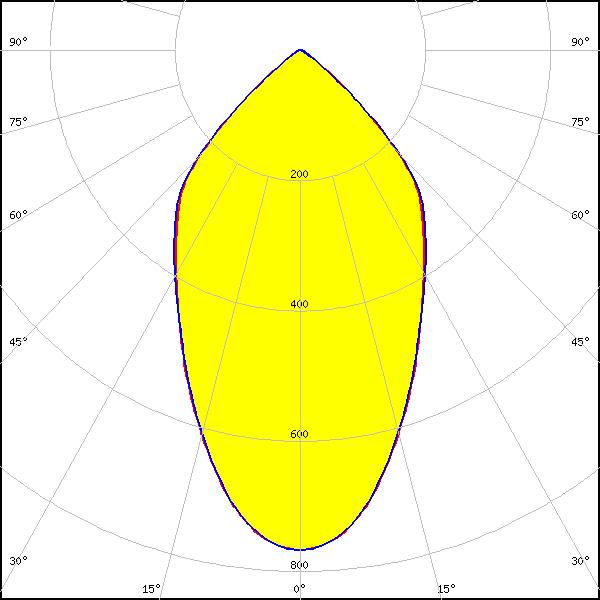

LED:

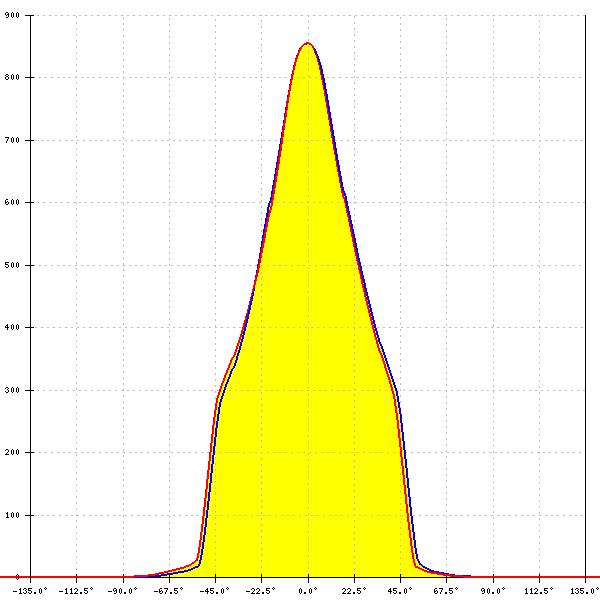

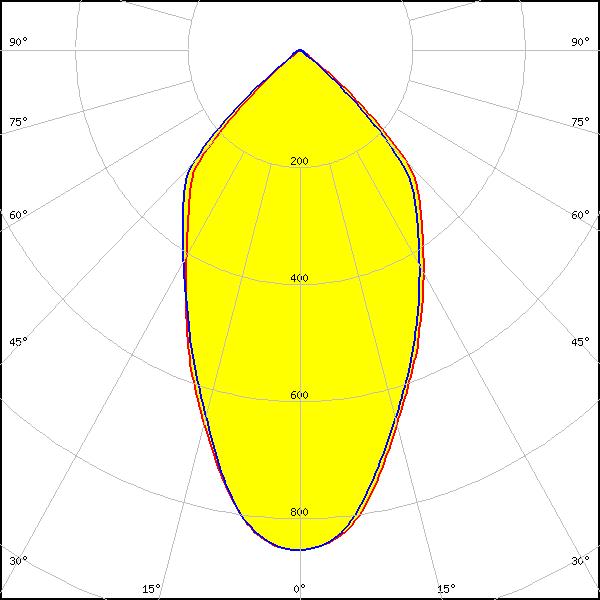

V15 Gen6
LES size: 15.2 mm
Required components:
BJB: 47.319.2224
FWHM:
59°
FWTM:
101°
Peak intensity:
0.850 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

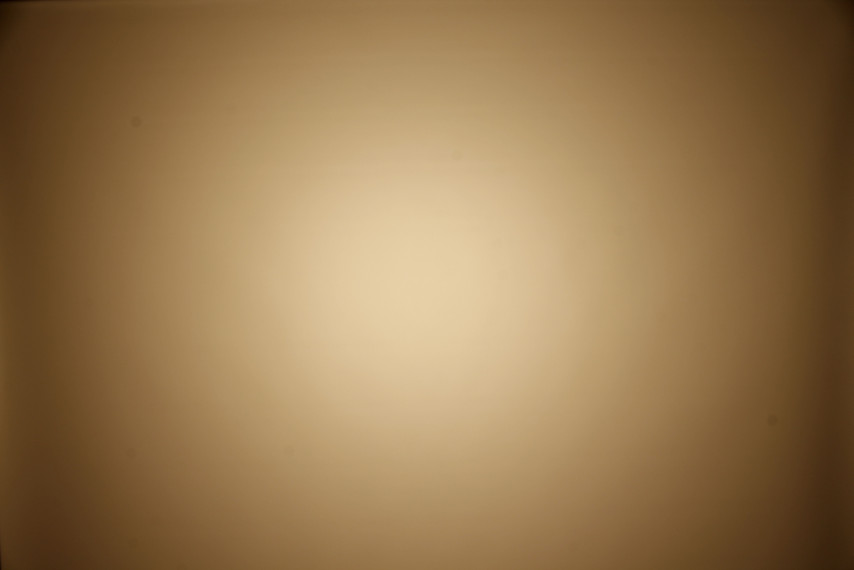

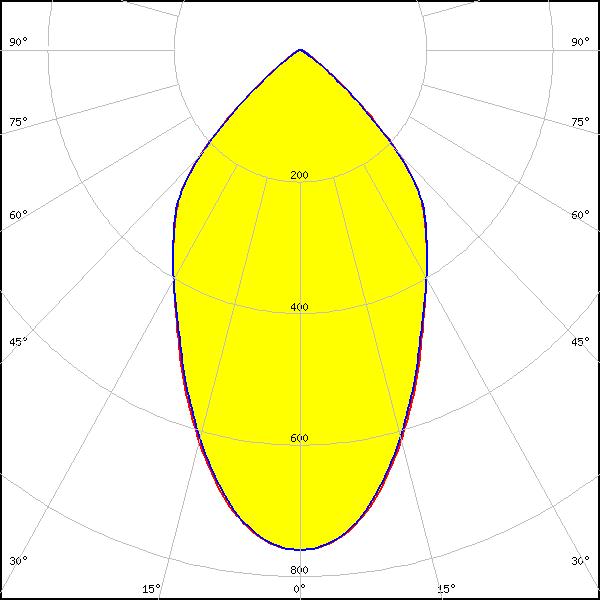

LED:

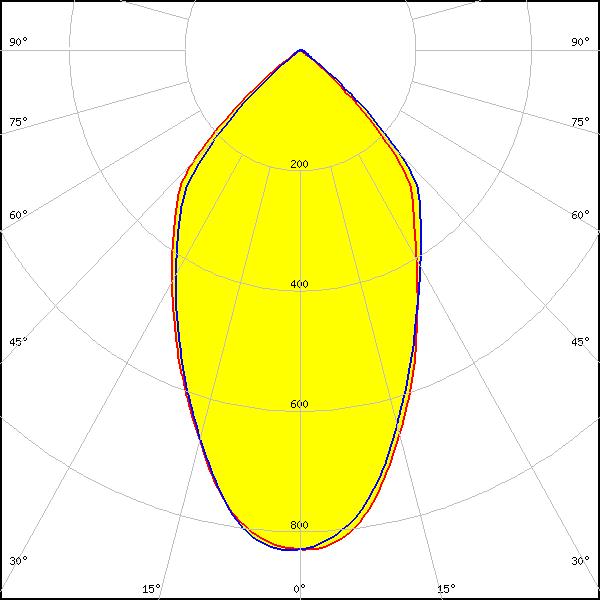

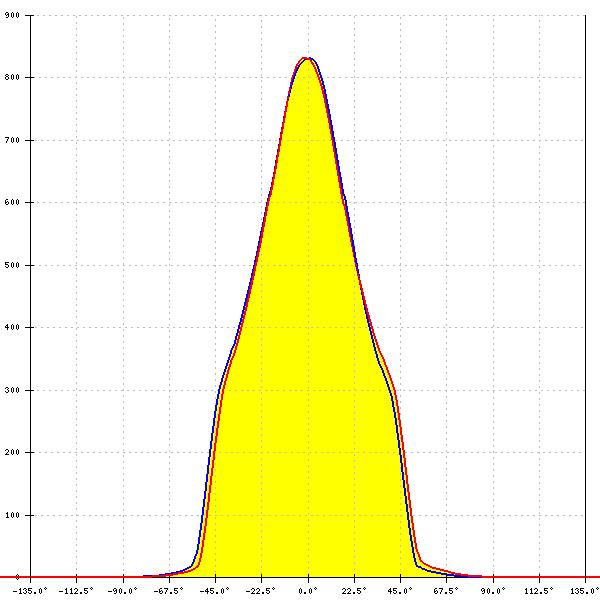

V18 Gen6
LES size: 18.6 mm
Required components:
BJB: 47.319.2274
FWHM:
61°
FWTM:
101°
Peak intensity:
0.830 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

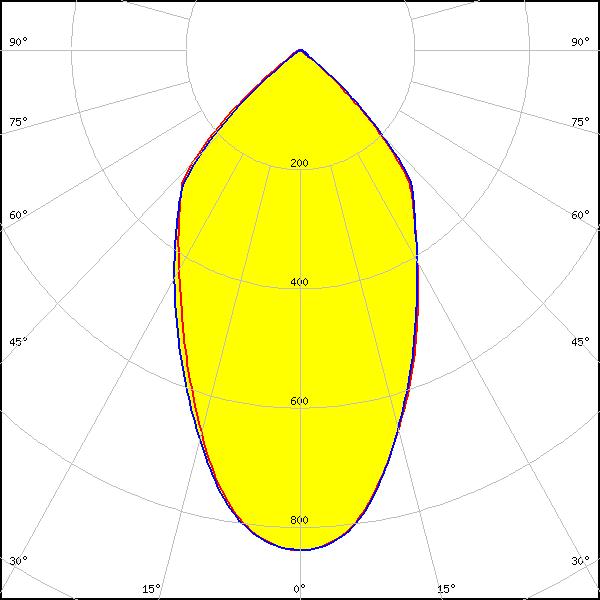

LED:

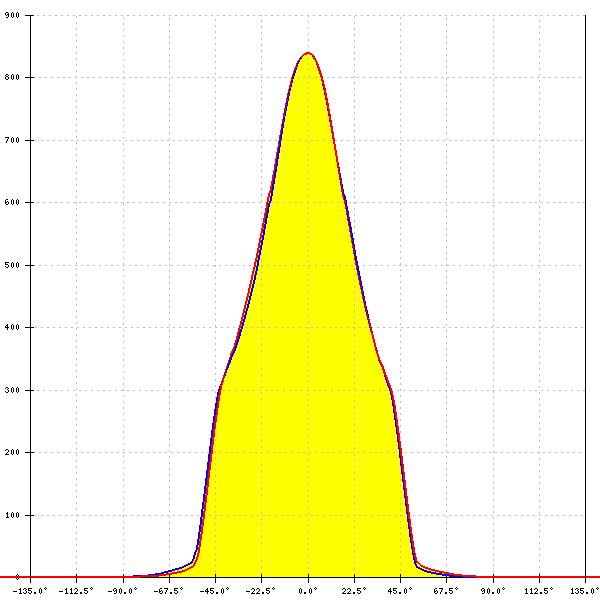

V18 Gen7
LES size: 19.2 mm
Required components:
BJB: 47.319.2350
FWHM:
60°
FWTM:
102°
Peak intensity:
0.840 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

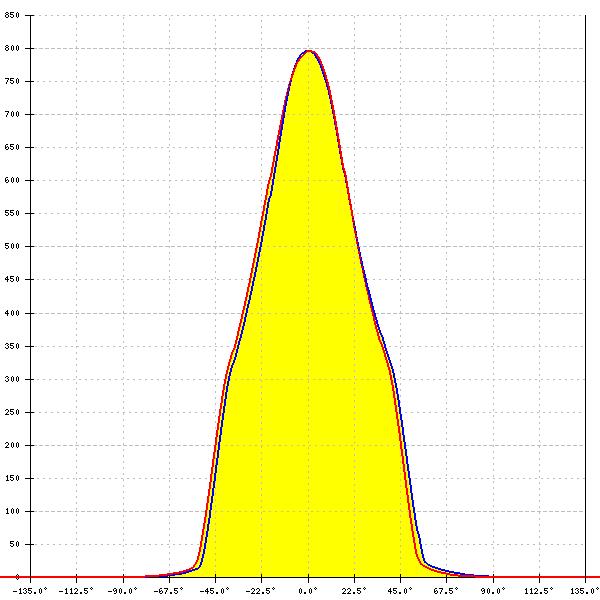

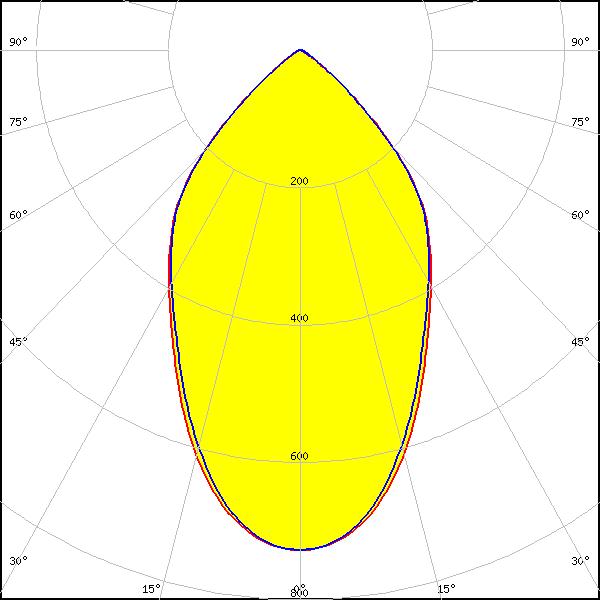

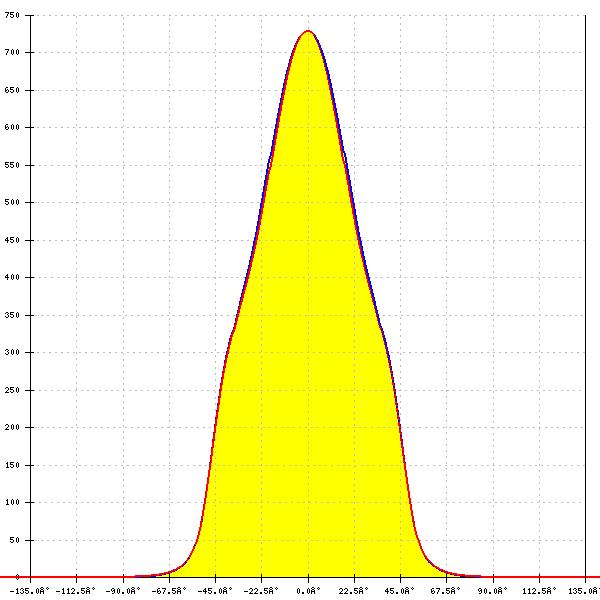

LED:

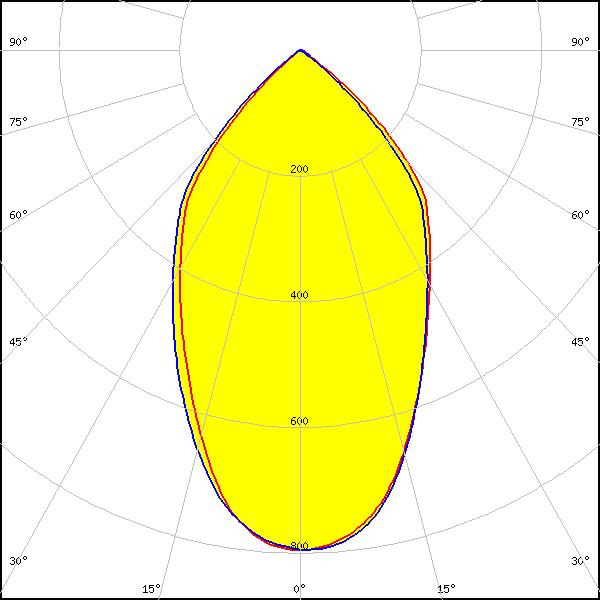

V22 Gen6
LES size: 22.0 mm
Required components:
A.A.G. STUCCHI: 8102-G2
FWHM:
63°
FWTM:
101°
Peak intensity:
0.800 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

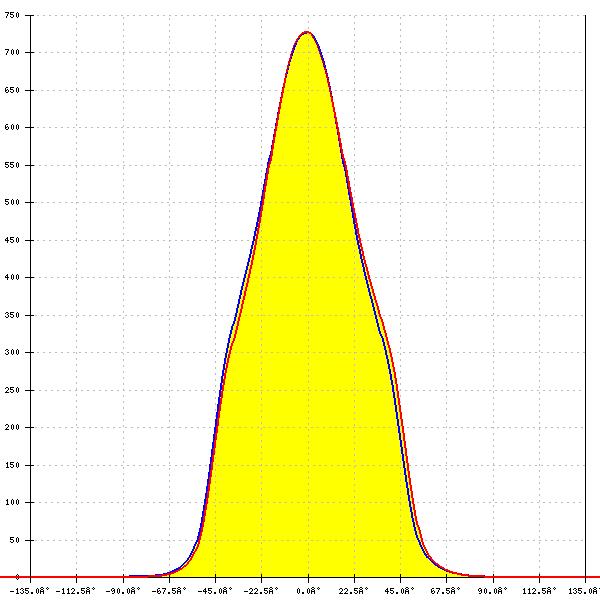

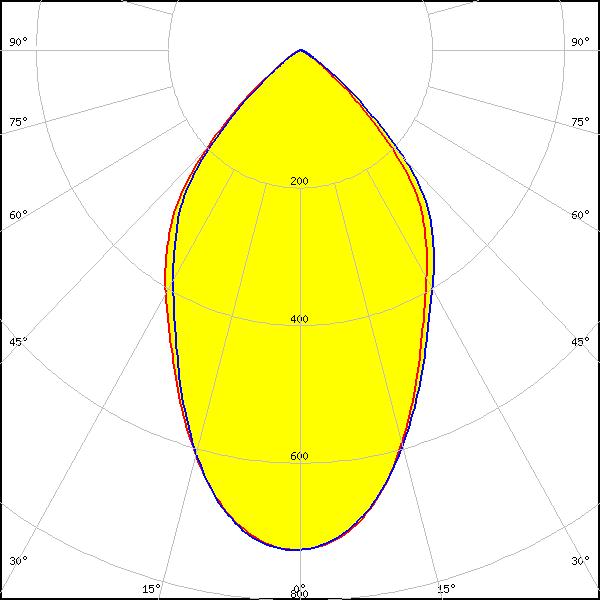

LED:

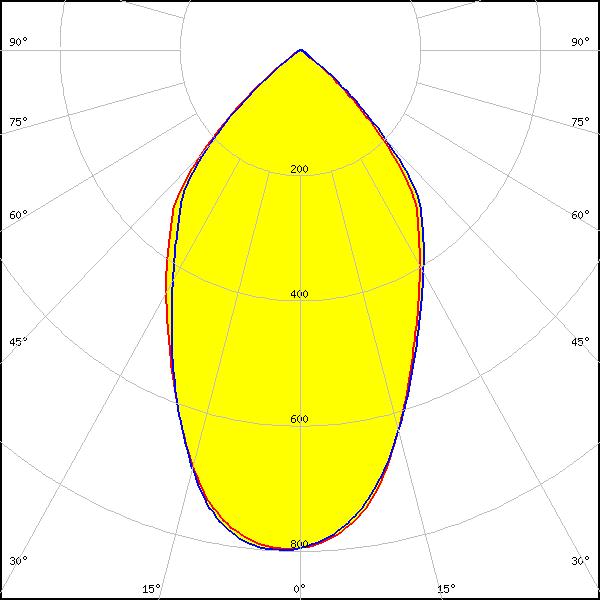

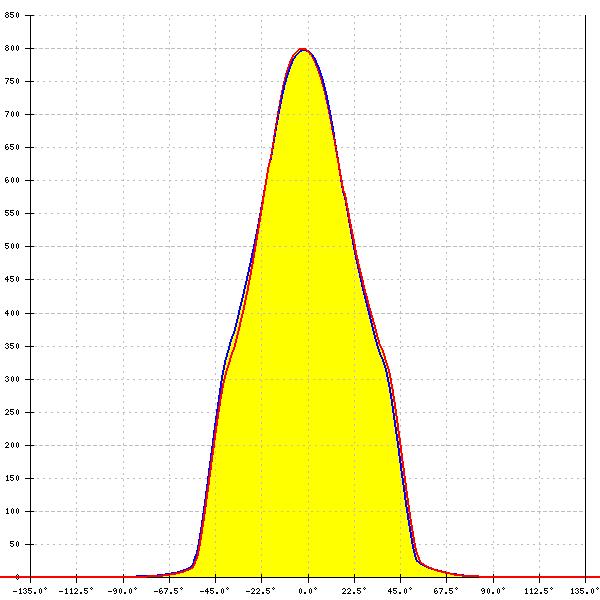

V22 Gen7
LES size: 22.6 mm
Required components:
BJB: 47.319.2030
FWHM:
63°
FWTM:
102°
Peak intensity:
0.800 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

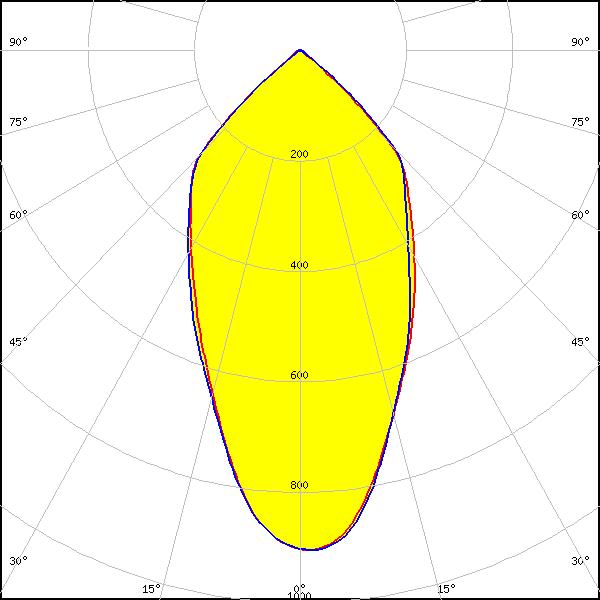

LED:

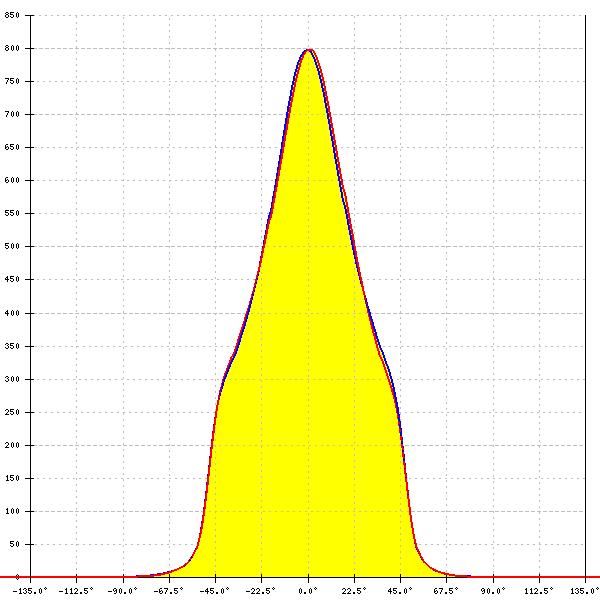

CLU03x
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
49°
FWTM:
98°
Peak intensity:
1.000 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU03x
LES size: 14.5 mm
Required components:
FWHM:
60°
FWTM:
102°
Peak intensity:
0.800 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

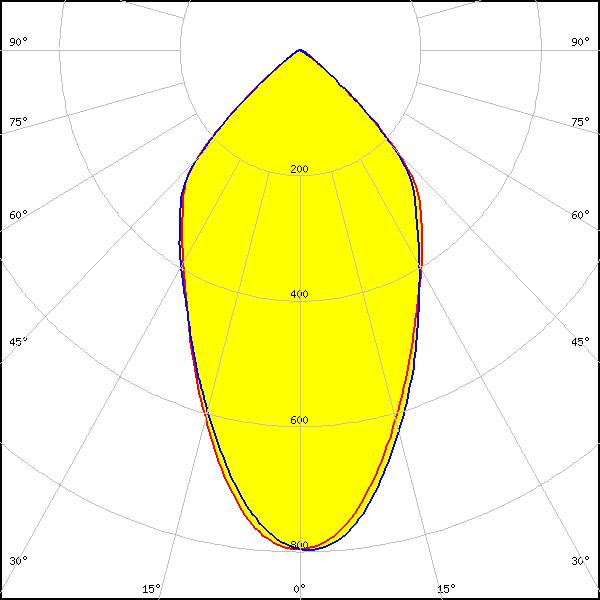

CLU03x
LES size: 14.5 mm
Required components:
A.A.G. STUCCHI: 8101-G2
FWHM:
55°
FWTM:
100°
Peak intensity:
0.900 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

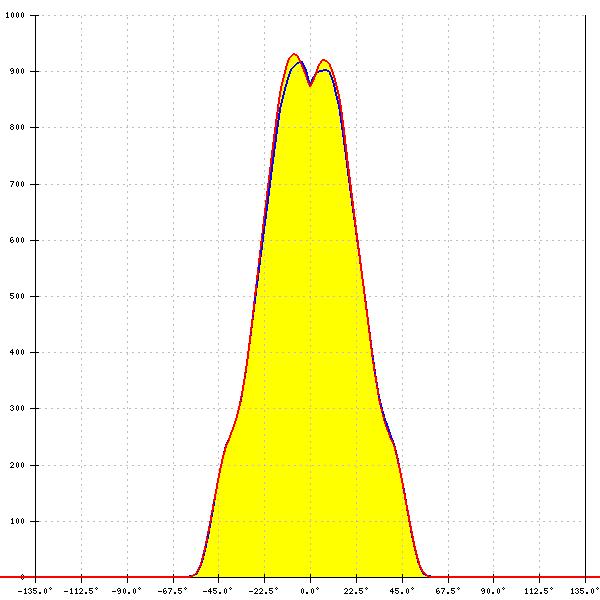

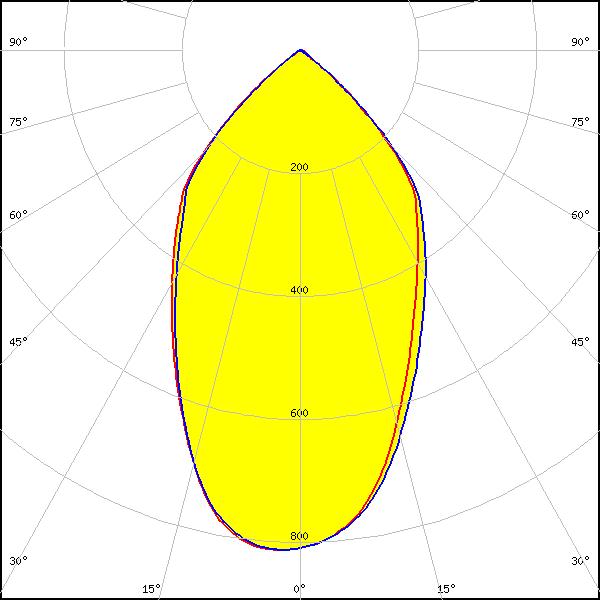

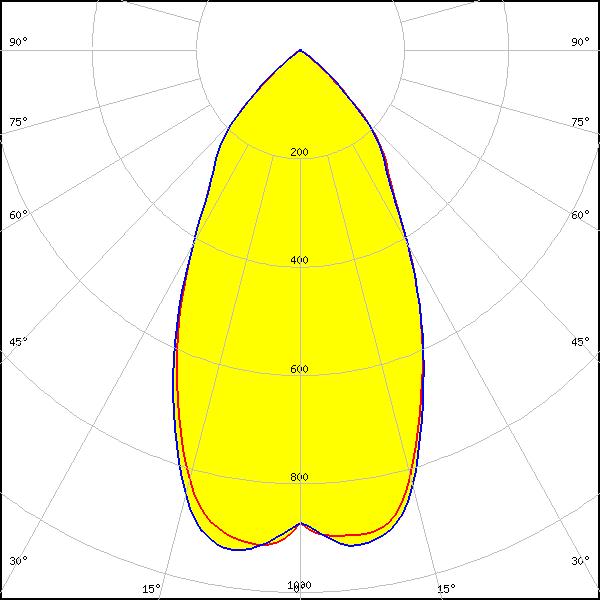

CLU04x
LES size: 22.0 mm
Required components:
BJB: 47.319.2030
FWHM:
55°
FWTM:
98°
Peak intensity:
0.940 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU04x
LES size: 22.0 mm
Required components:
FWHM:
66°
FWTM:
104°
Peak intensity:
0.730 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

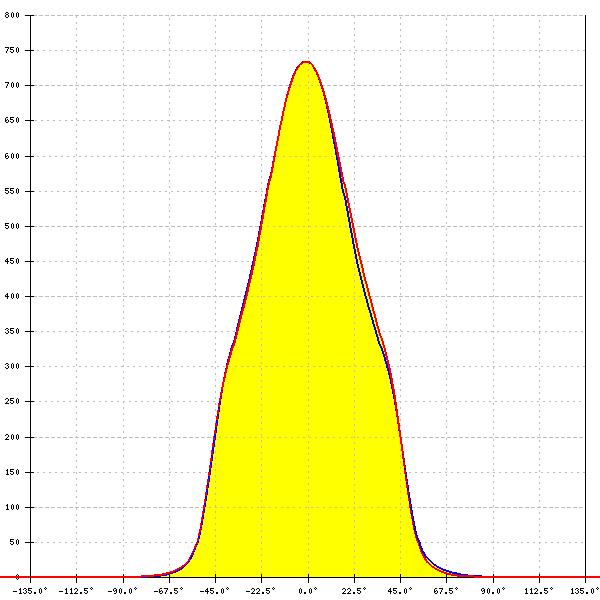

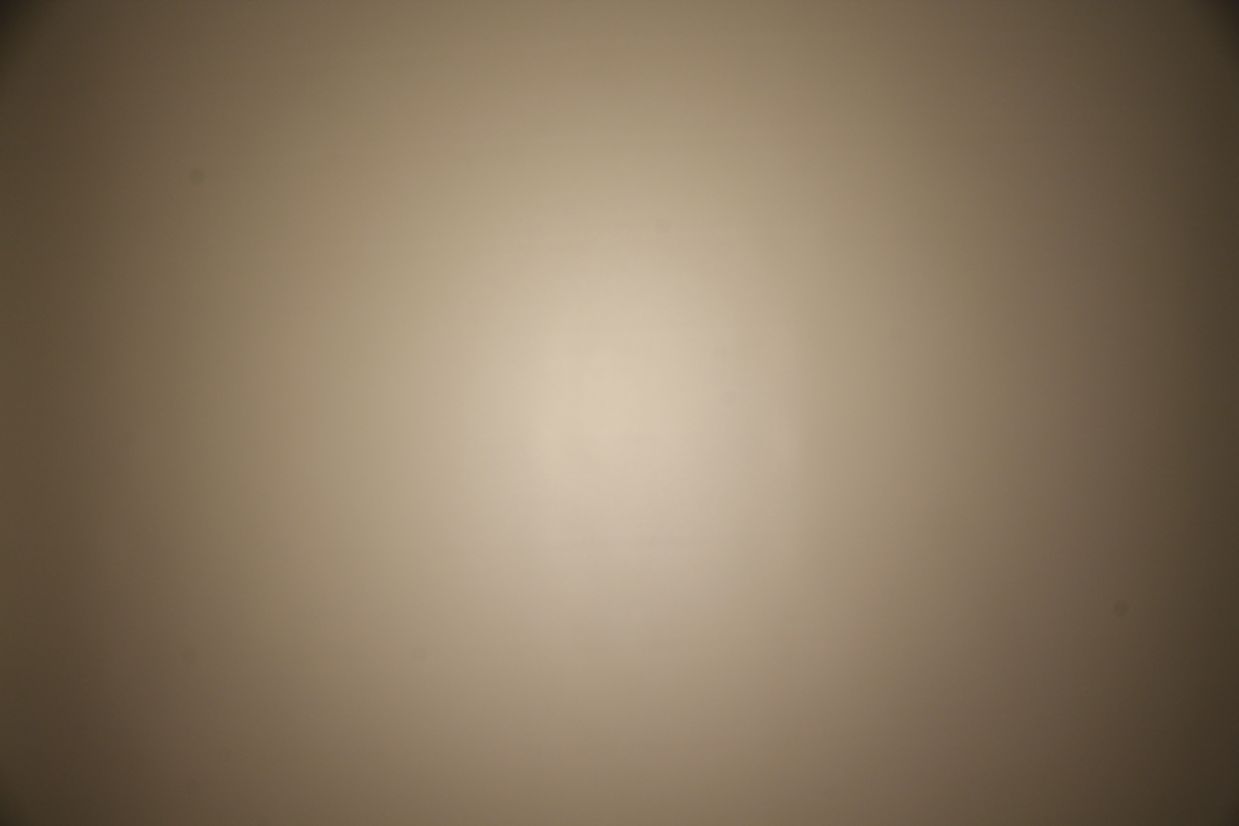

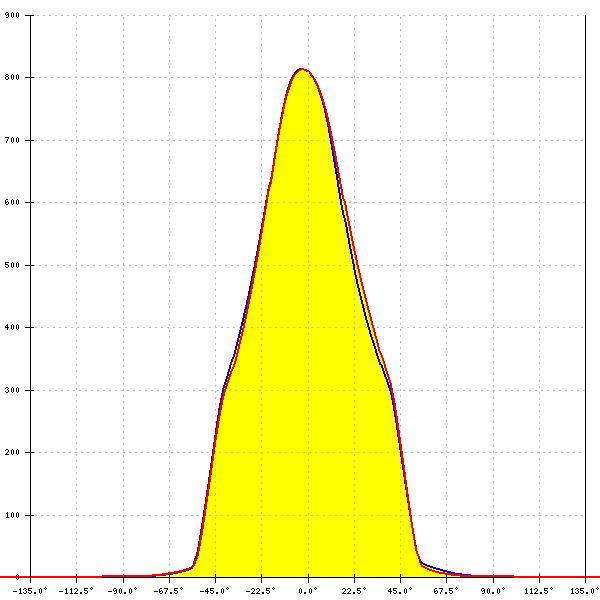

LED:

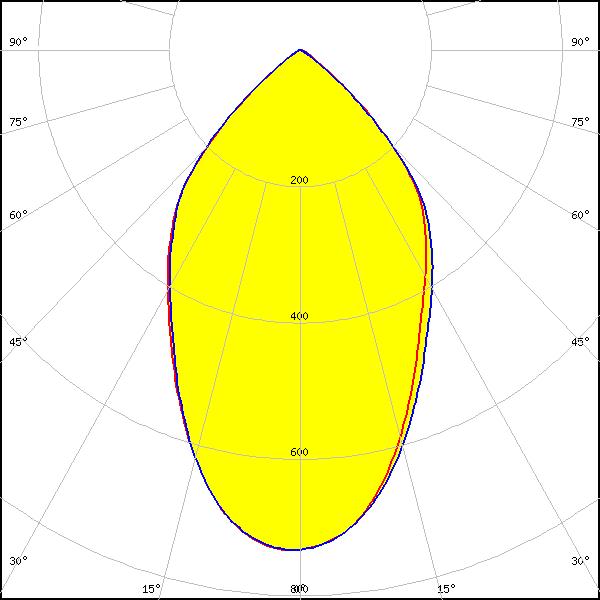

CLU04x
LES size: 22.0 mm
Required components:
A.A.G. STUCCHI: 8102-G2
FWHM:
62°
FWTM:
102°
Peak intensity:
0.820 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

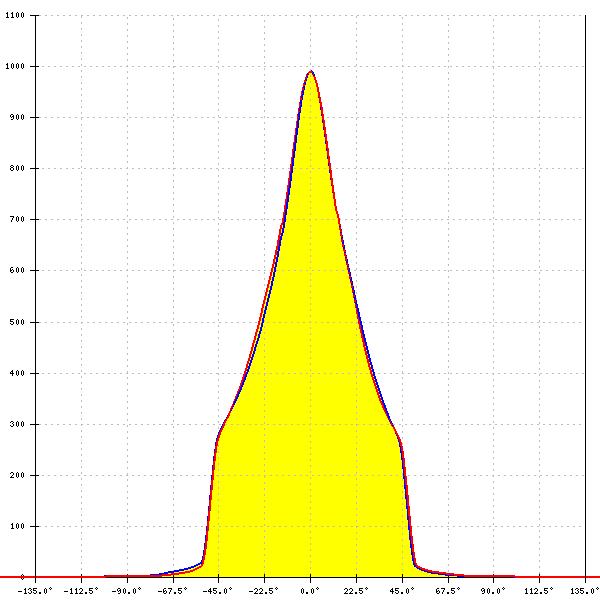

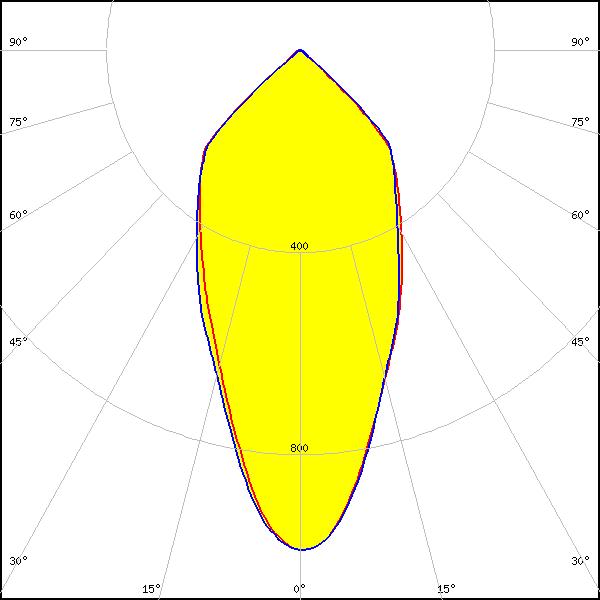

CLU720/721/723
LES size: 11.0 mm
Required components:
A.A.G. STUCCHI: 8101-G2
FWHM:
51°
FWTM:
100°
Peak intensity:
0.950 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU720/721/723
LES size: 11.0 mm
Required components:
BJB: 47.319.2021
FWHM:
49°
FWTM:
99°
Peak intensity:
1.000 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

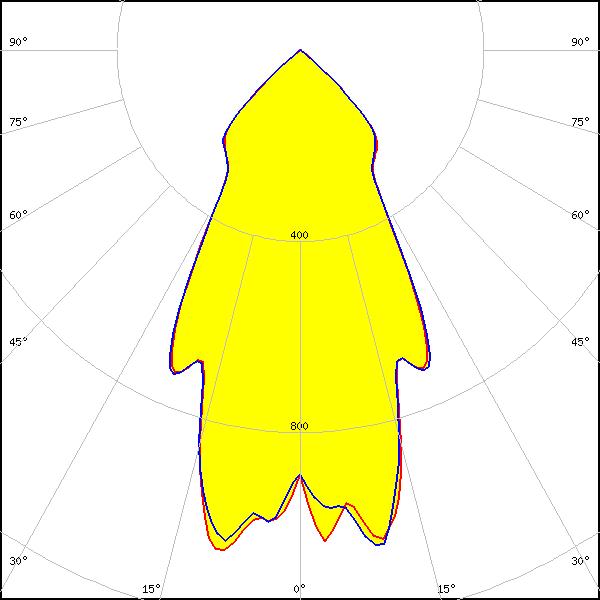

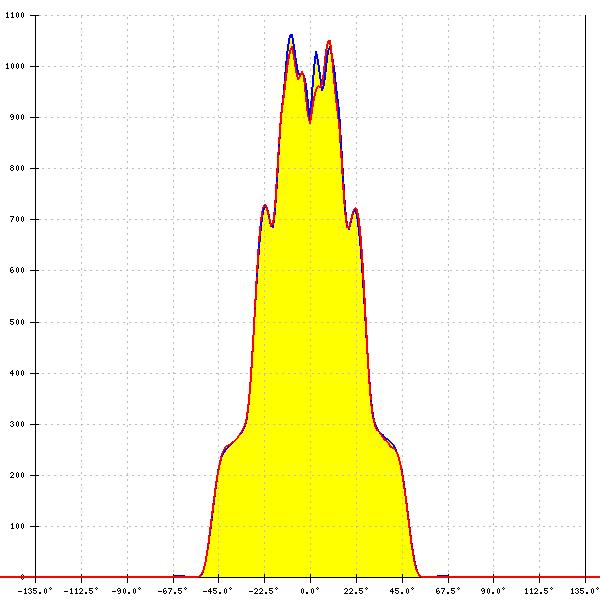

LED:
CLU730/731/733
LES size: 13.0 mm
Required components:
BJB: 47.319.2030
FWHM:
52°
FWTM:
98°
Peak intensity:
1.080 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

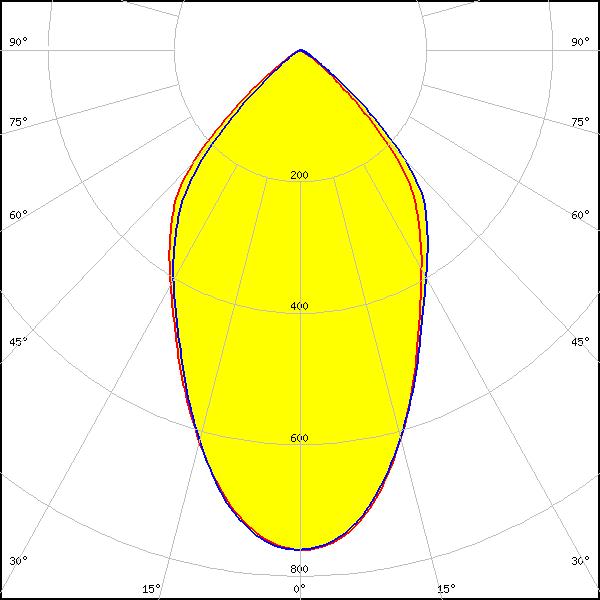

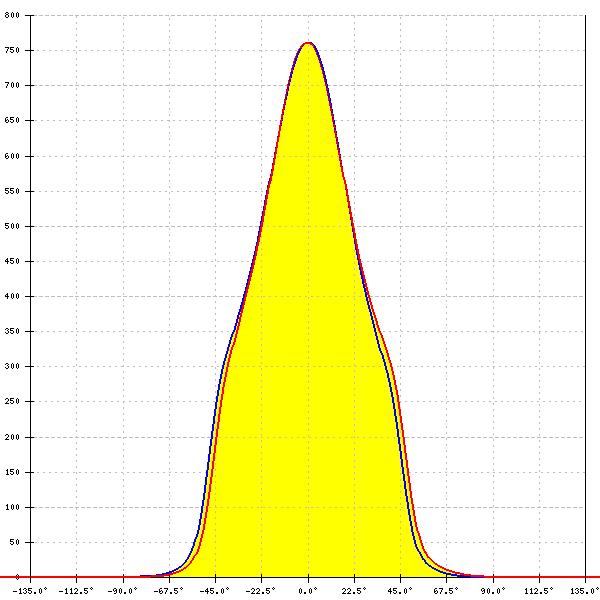

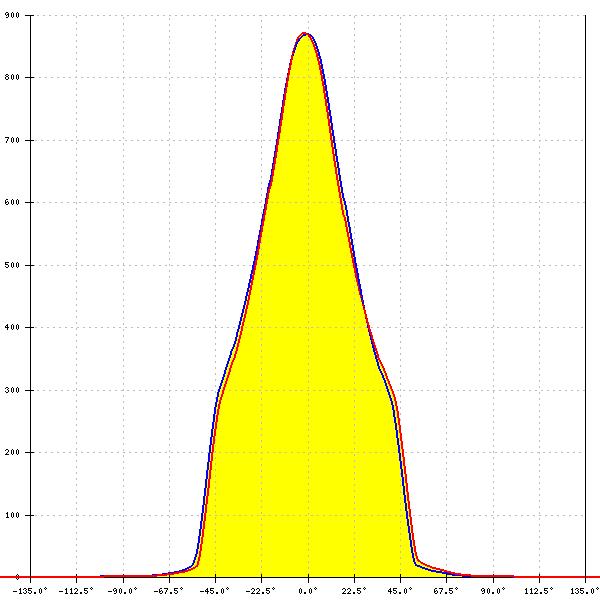

LED:

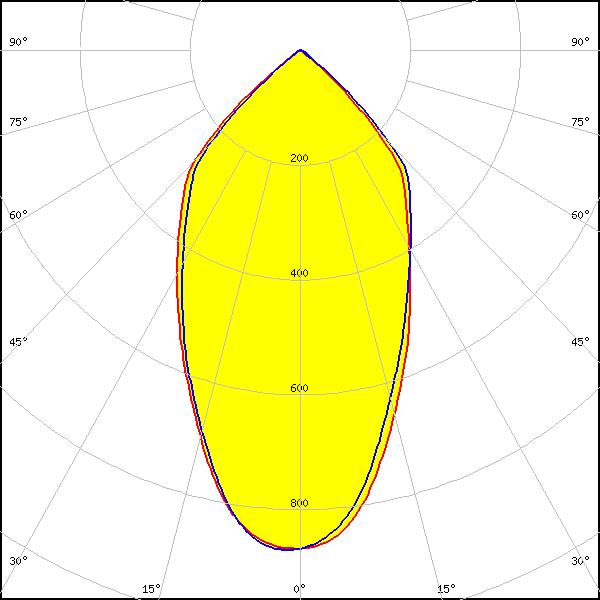

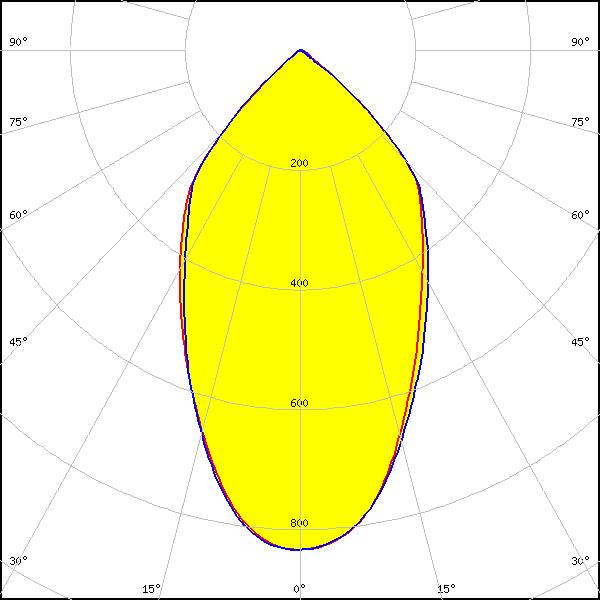

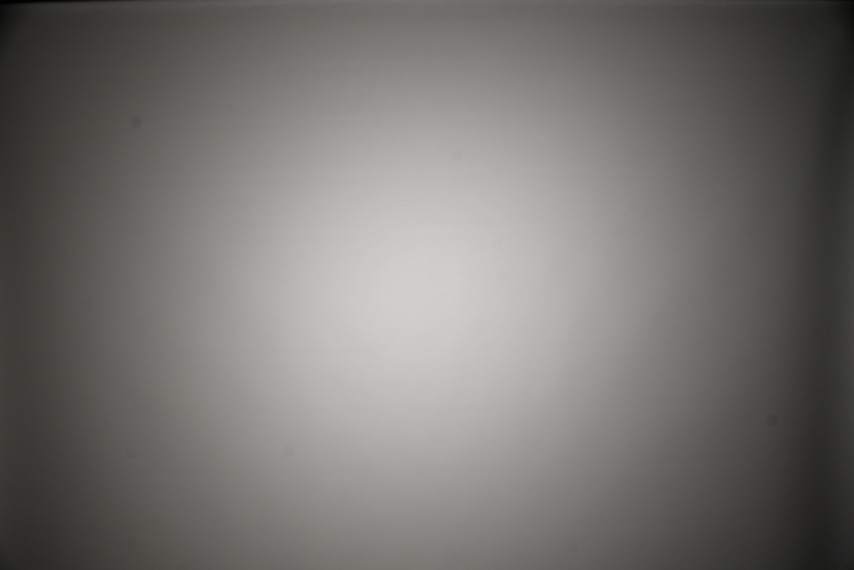

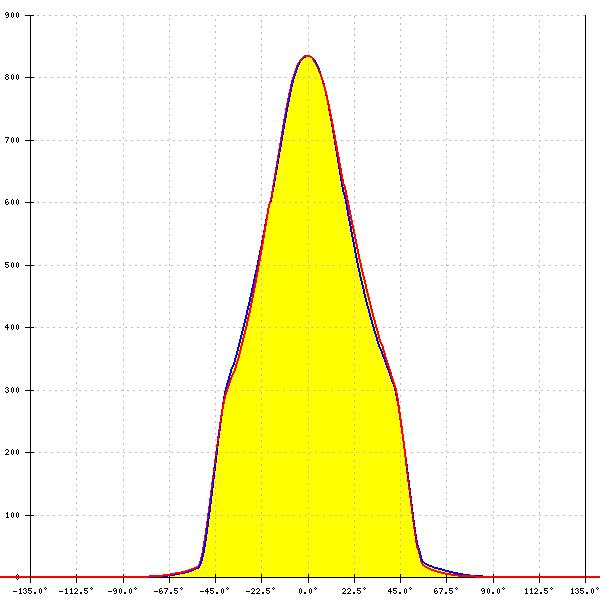

CXA/B 25xx
LES size: 19.0 mm
Required components:
BJB: 47.319.2141
FWHM:
61°
FWTM:
101°
Peak intensity:
0.800 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 25xx
LES size: 19.0 mm
Required components:
FWHM:
64°
FWTM:
103°
Peak intensity:
0.760 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 25xx
LES size: 19.0 mm
Required components:
A.A.G. STUCCHI: 8401-G2
FWHM:
57°
FWTM:
101°
Peak intensity:
0.870 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

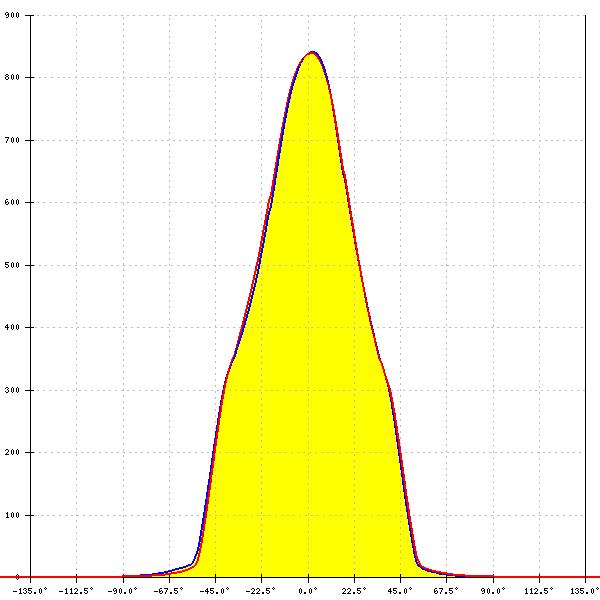

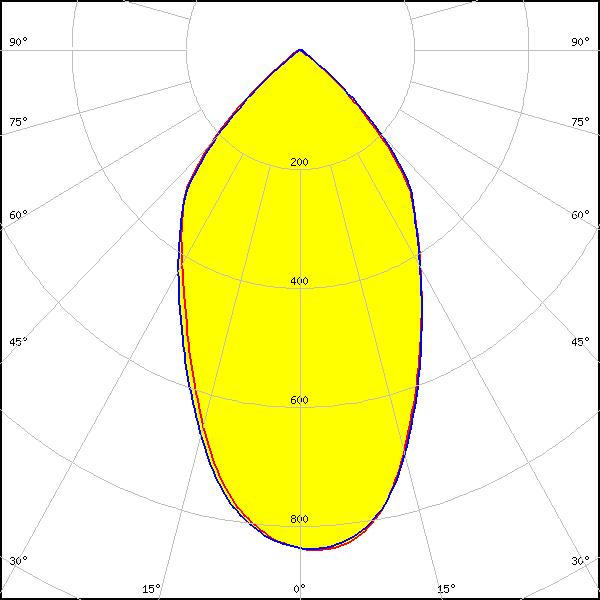

CXA/B 30xx
LES size: 23.0 mm
Required components:
A.A.G. STUCCHI: 8404-G2
FWHM:
63°
FWTM:
101°
Peak intensity:
0.840 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

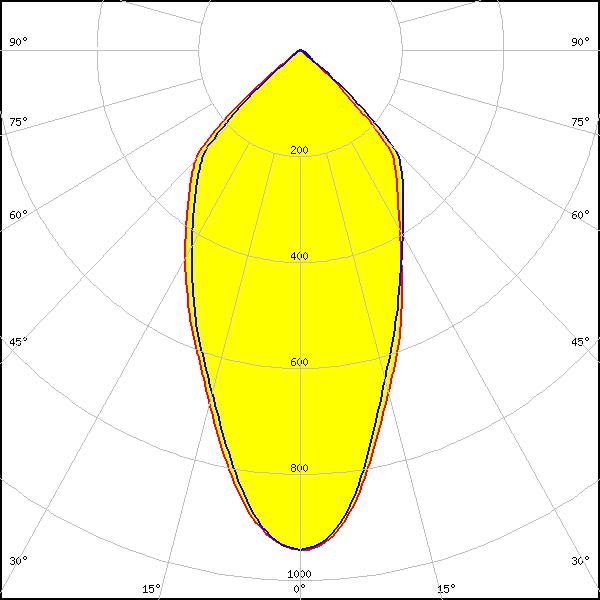

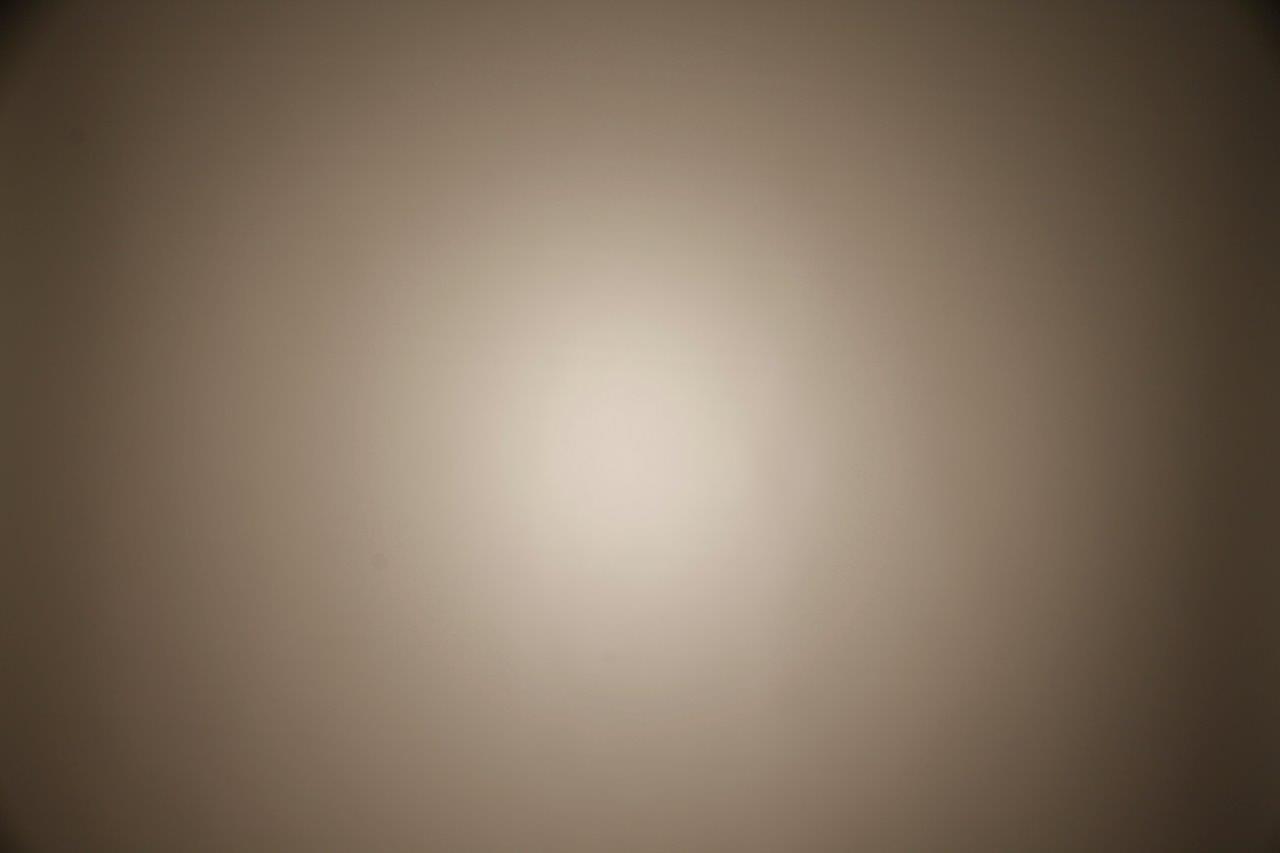

LED:

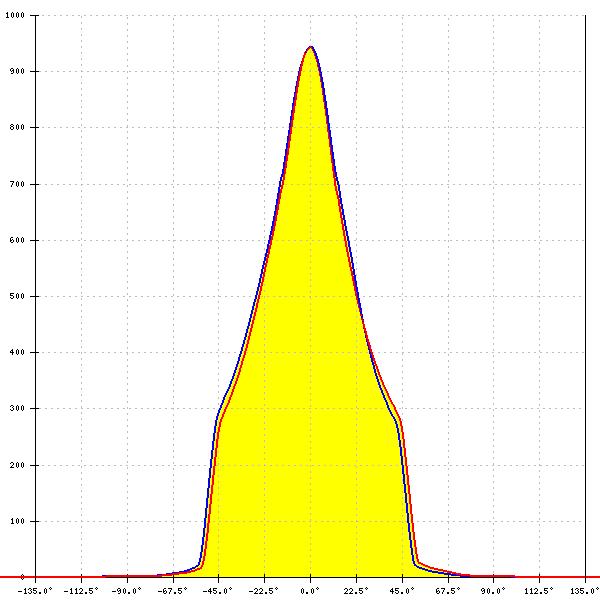

LUXEON CoB 1204/1205
LES size: 13.0 mm
Required components:
A.A.G. STUCCHI: 8301-G2
FWHM:
53°
FWTM:
100°
Peak intensity:
0.940 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

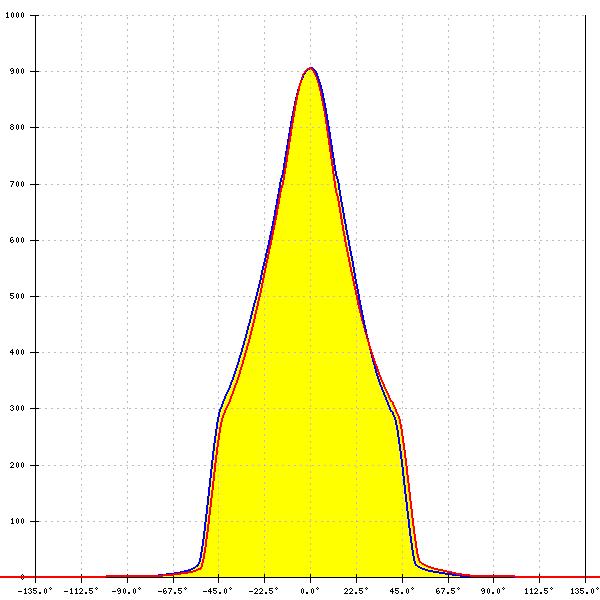

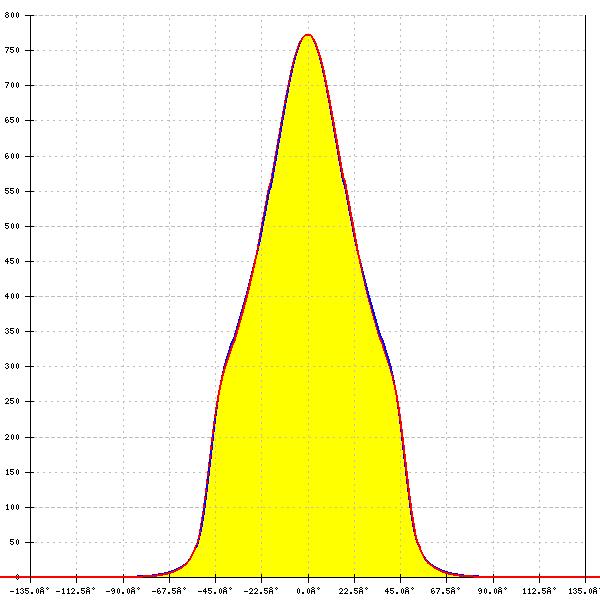

LED:

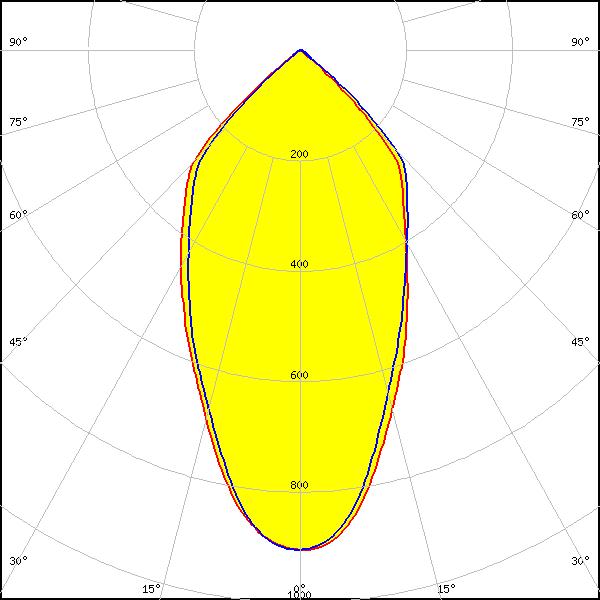

LUXEON CoB 1208
LES size: 15.0 mm
Required components:
A.A.G. STUCCHI: 8301-G2
FWHM:
55°
FWTM:
100°
Peak intensity:
0.900 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

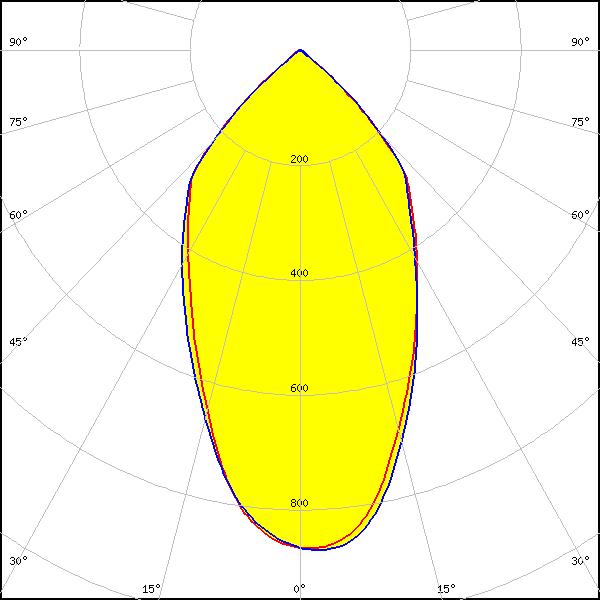

LED:

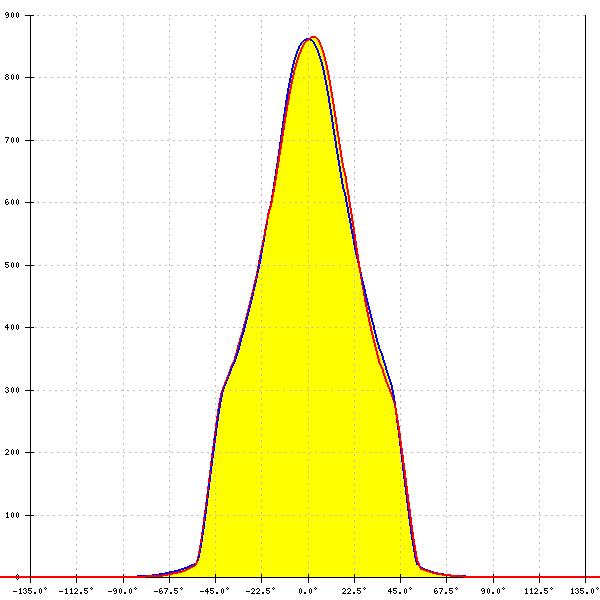

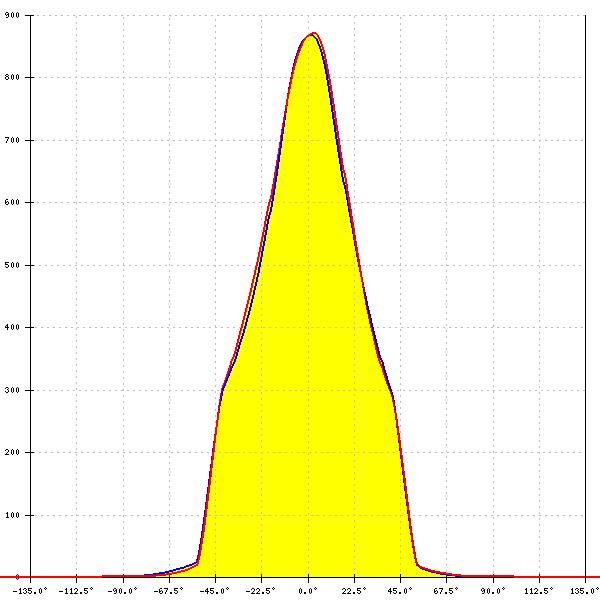

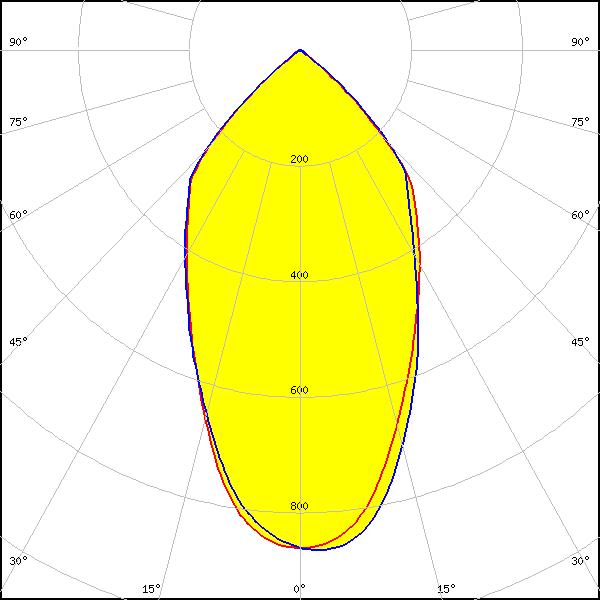

LUXEON CoB 1211
LES size: 18.5 mm
Required components:
BJB: 47.319.2030
FWHM:
58°
FWTM:
101°
Peak intensity:
0.870 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1211
LES size: 18.5 mm
Required components:
A.A.G. STUCCHI: 8102-G2
FWHM:
58°
FWTM:
100°
Peak intensity:
0.870 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

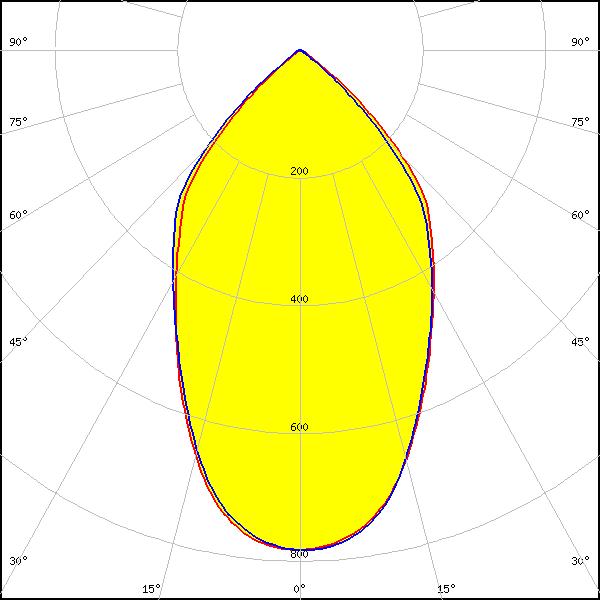

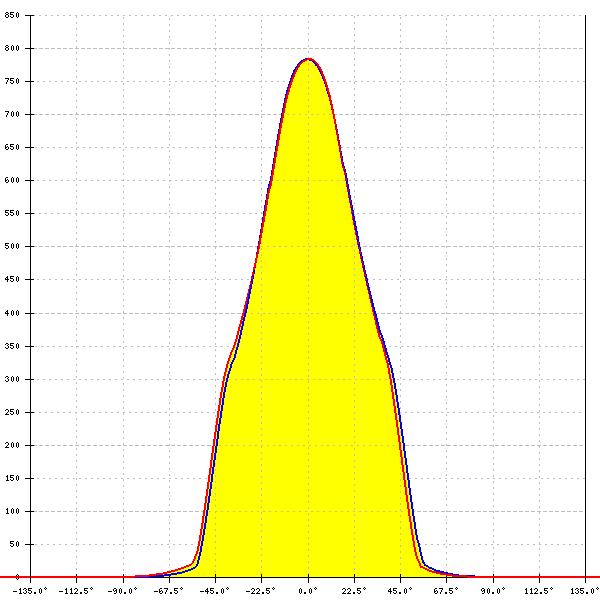

LED:

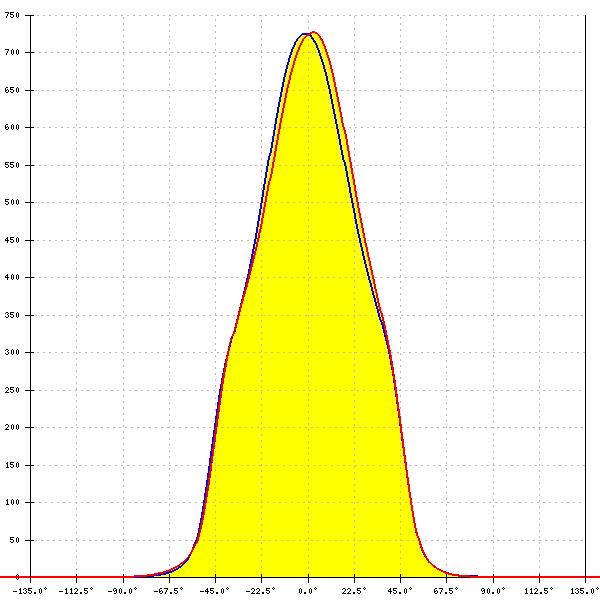

LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
BJB: 47.319.2030
FWHM:
65°
FWTM:
102°
Peak intensity:
0.780 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

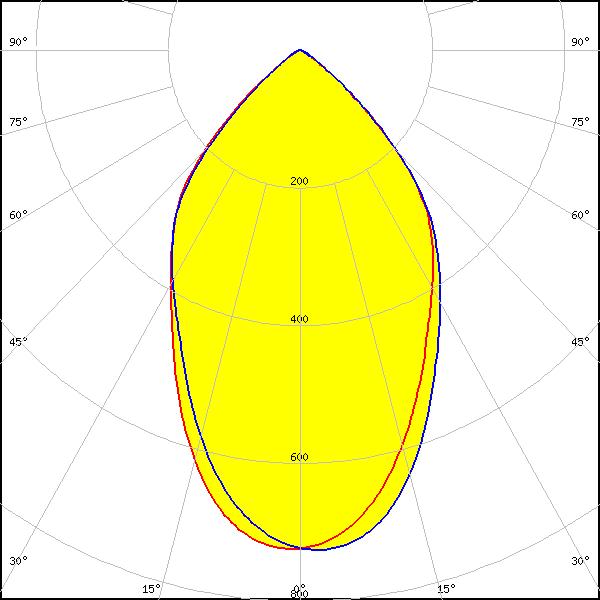

LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
FWHM:
67°
FWTM:
104°
Peak intensity:
0.730 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

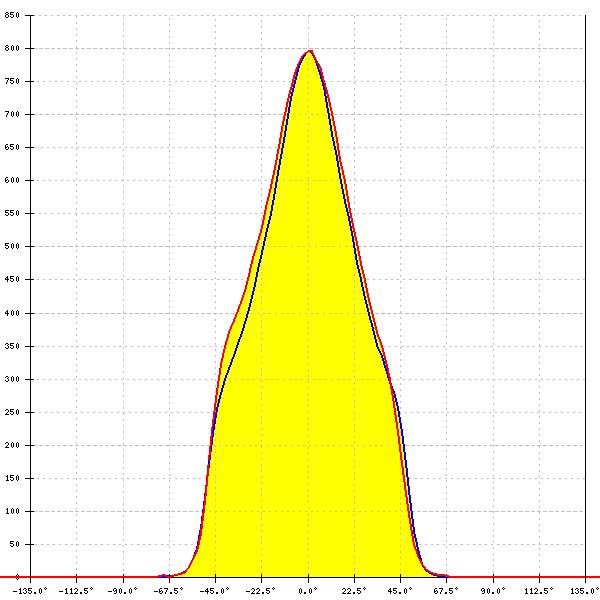

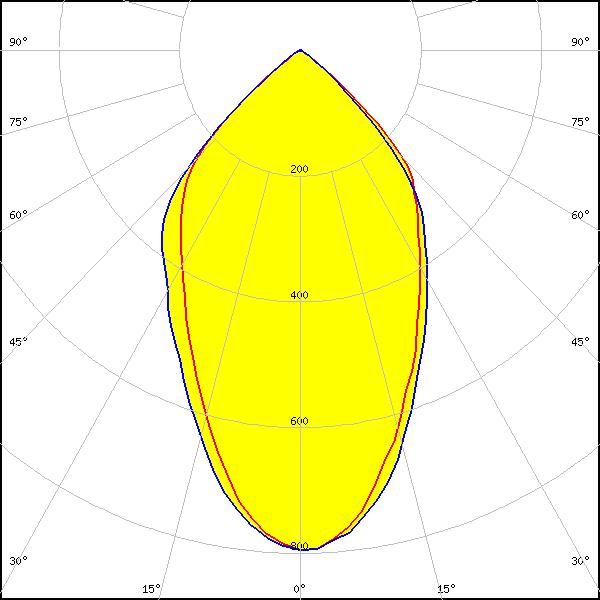

LUXEON K12
LES size: 13.5 mm
Required components:
BJB: 47.319.2070
FWHM:
46°
FWTM:
96°
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON K12
LES size: 13.5 mm
Required components:
FWHM:
64°
FWTM:
104°
Peak intensity:
0.800 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

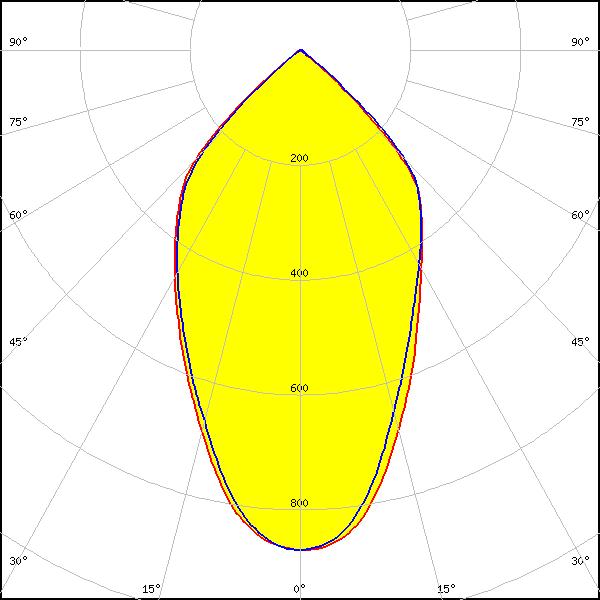

LED:

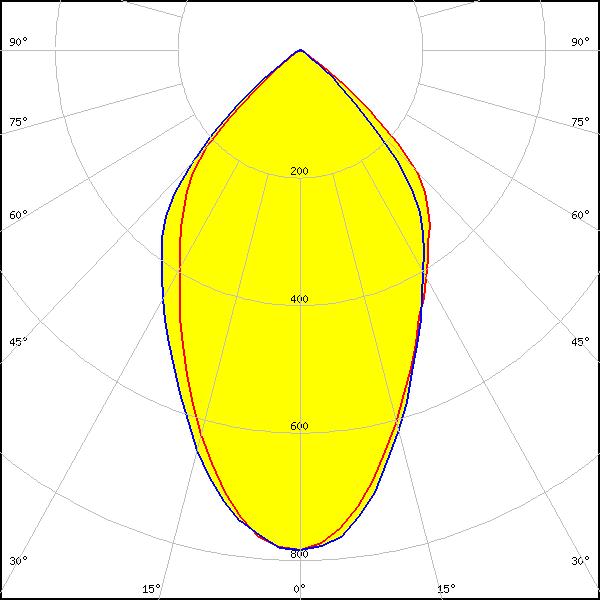

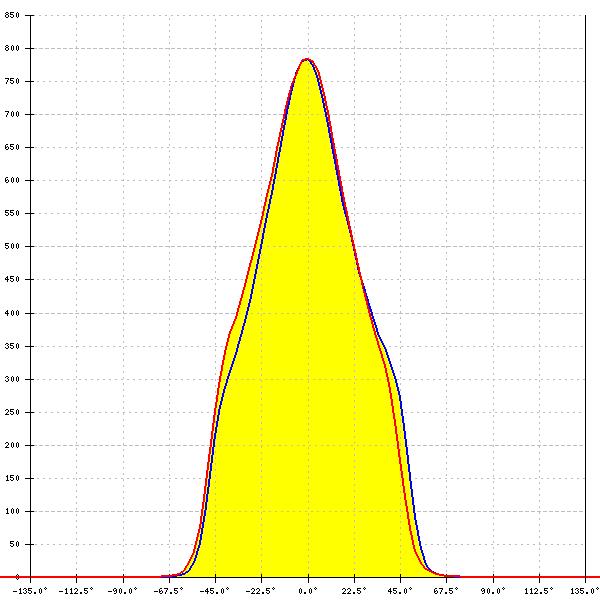

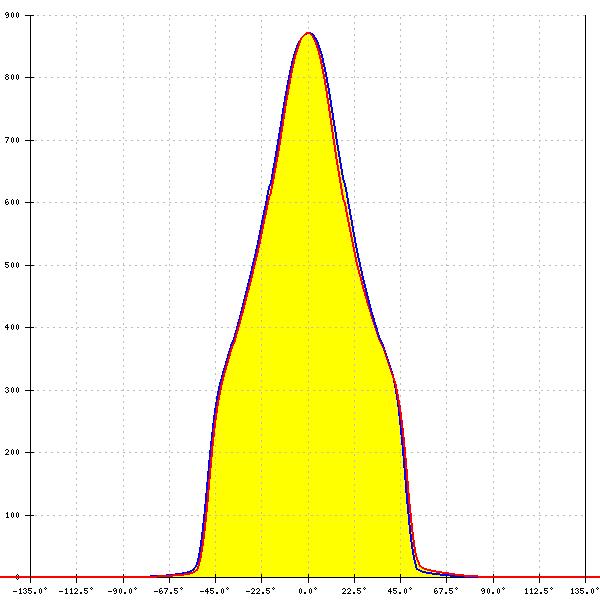

LUXEON K16
LES size: 17.0 mm
Required components:
BJB: 47.319.2070
FWHM:
61°
FWTM:
-
Peak intensity:
0.870 cd/lm
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON K16
LES size: 17.0 mm
Required components:
FWHM:
65°
FWTM:
104°
Peak intensity:
0.800 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

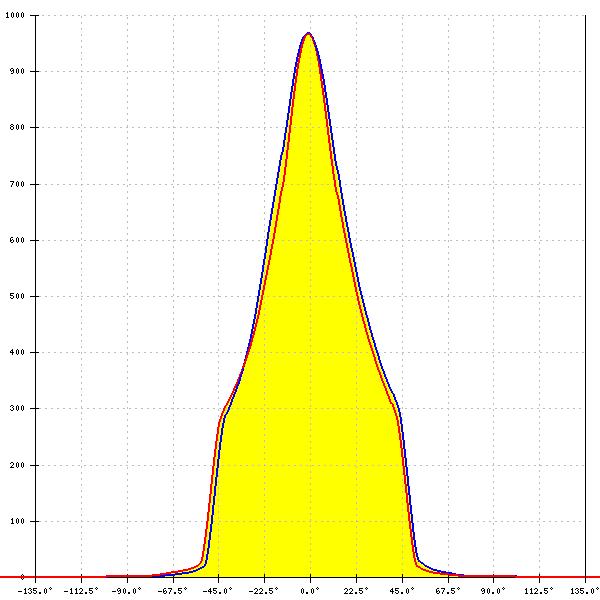

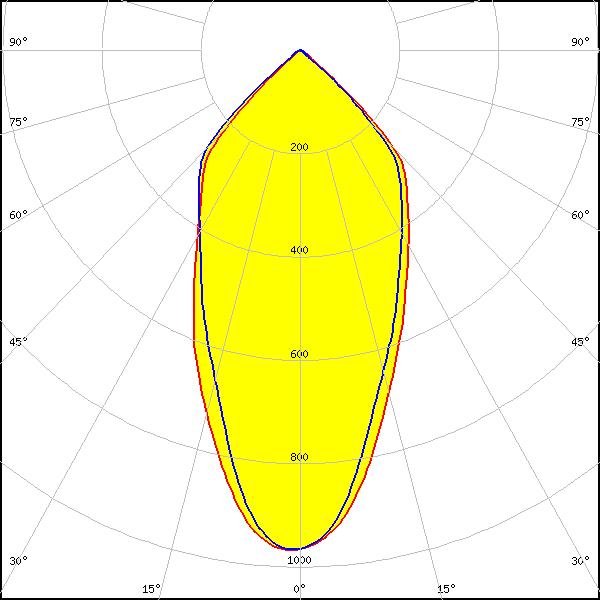

CxM-14 (19x19)
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
51°
FWTM:
99°
Peak intensity:
0.970 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

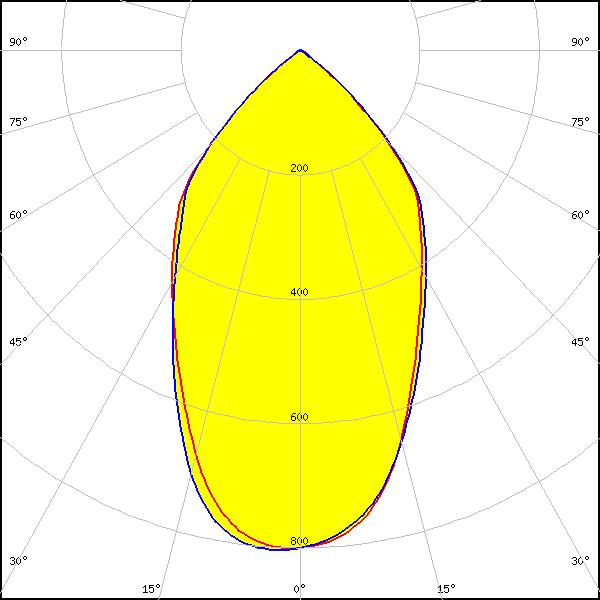

LED:

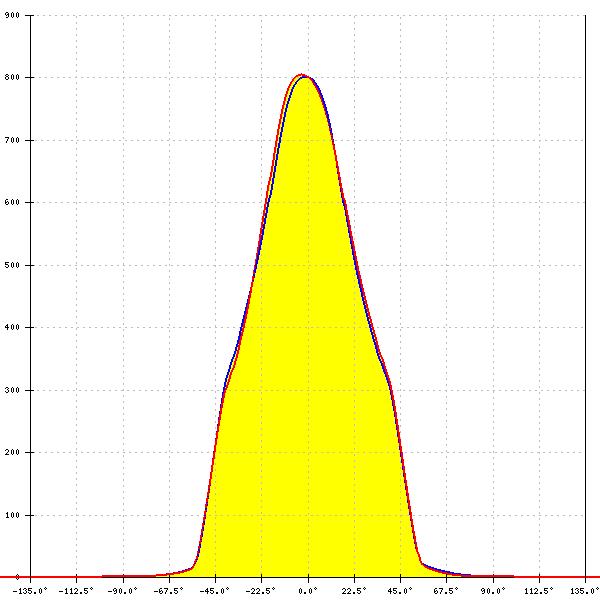

CxM-22 (28x28)
LES size: 22.0 mm
Required components:
BJB: 47.319.2030
FWHM:
63°
FWTM:
102°
Peak intensity:
0.800 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

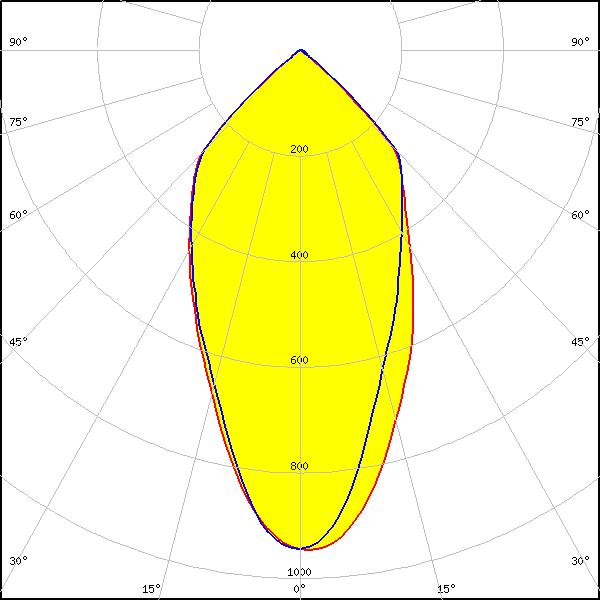

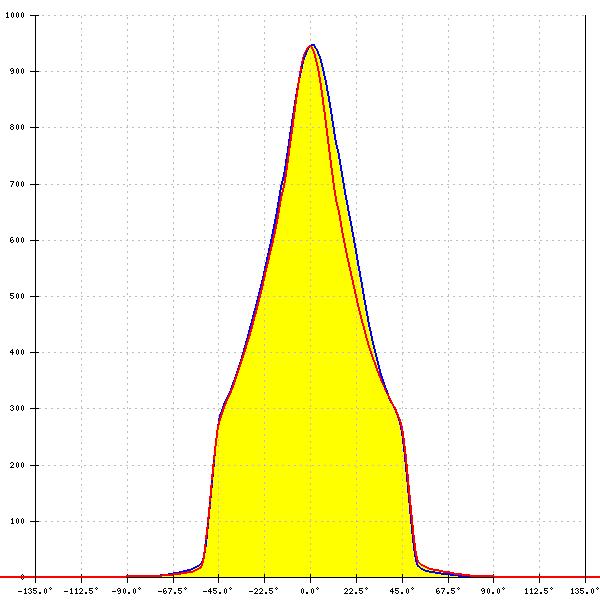

LED:

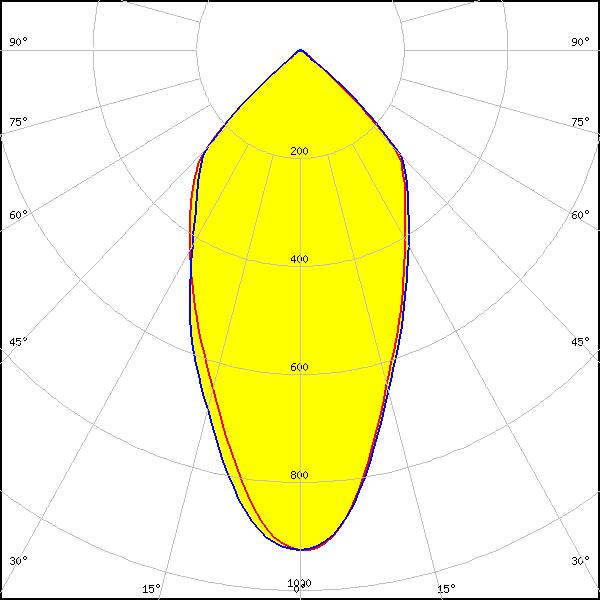

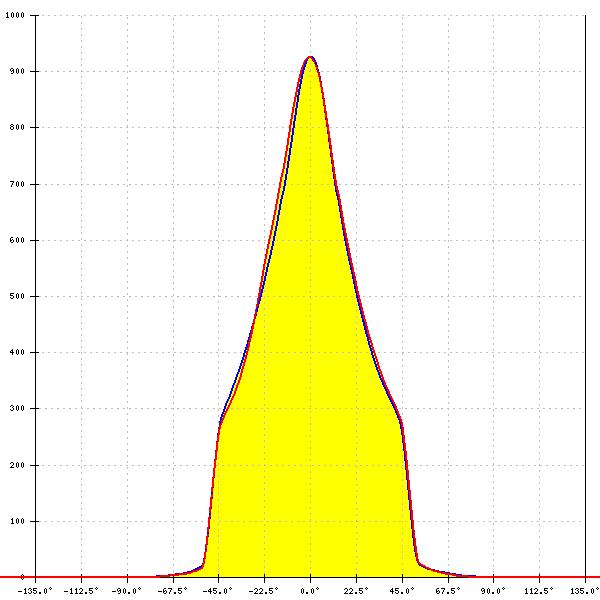

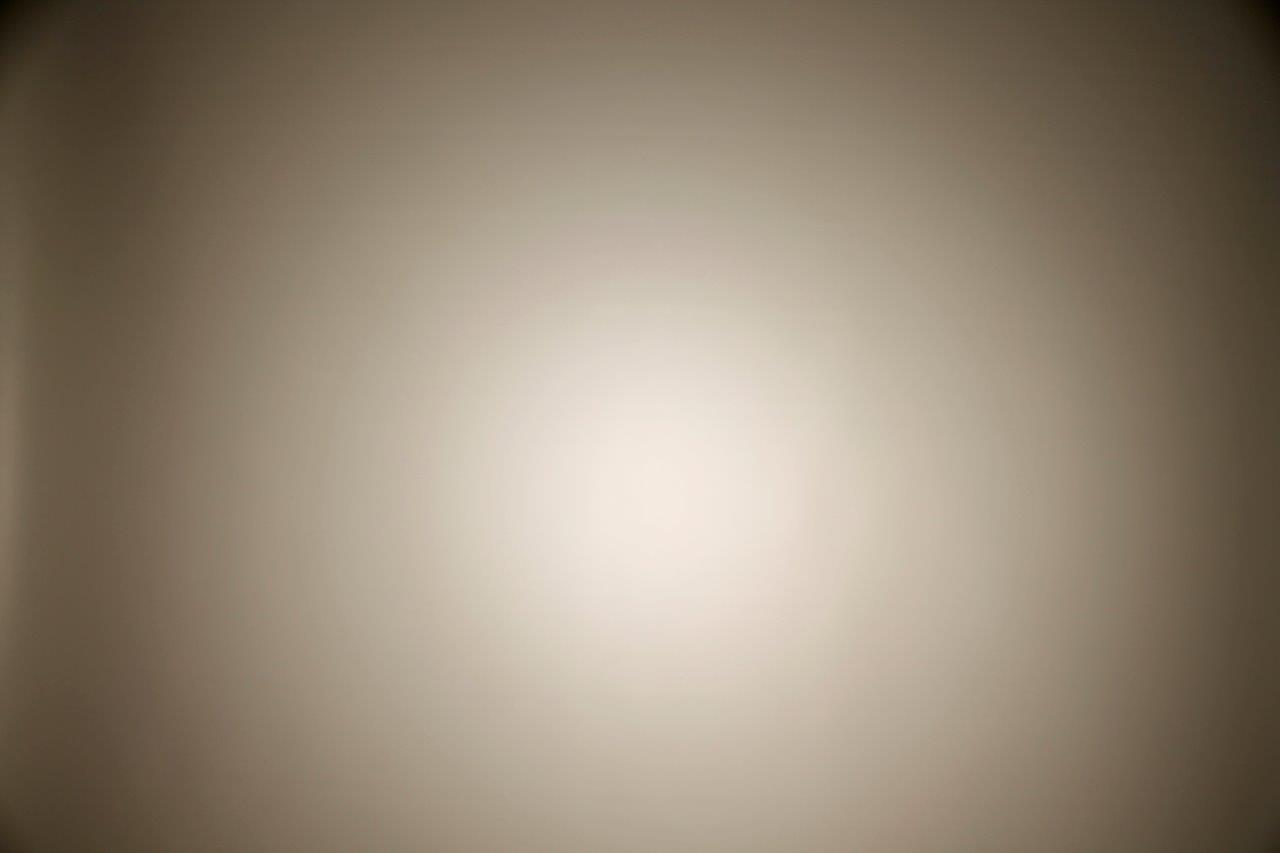

Soleriq S13
LES size: 13.2 mm
Required components:
A.A.G. STUCCHI: 8502-G2
FWHM:
52°
FWTM:
100°
Peak intensity:
0.950 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S13 19x19
LES size: 13.0 mm
Required components:
BJB: 47.319.2021
FWHM:
53°
FWTM:
100°
Peak intensity:
0.920 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

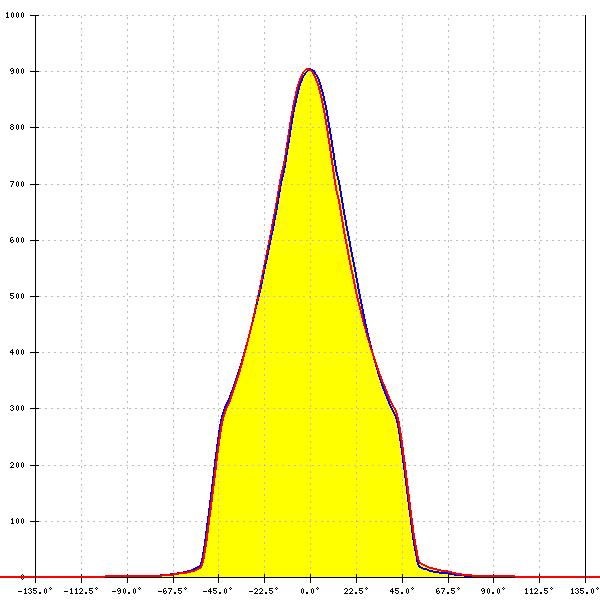

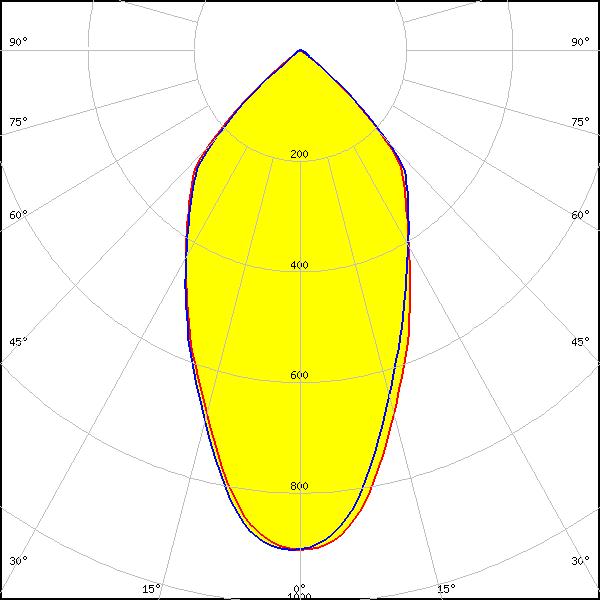

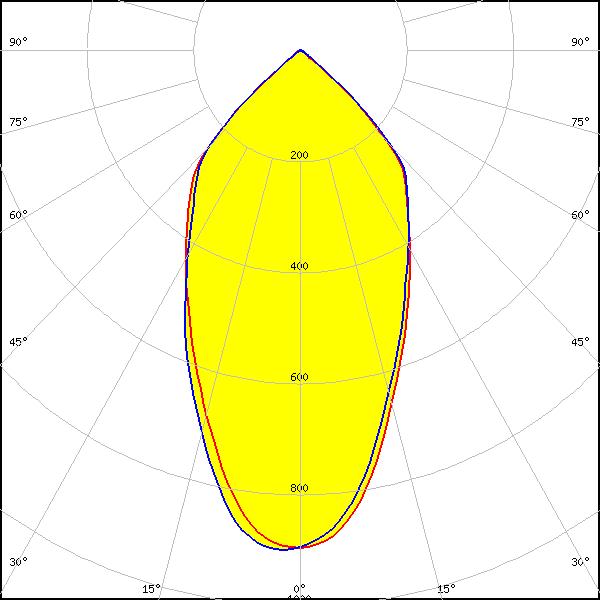

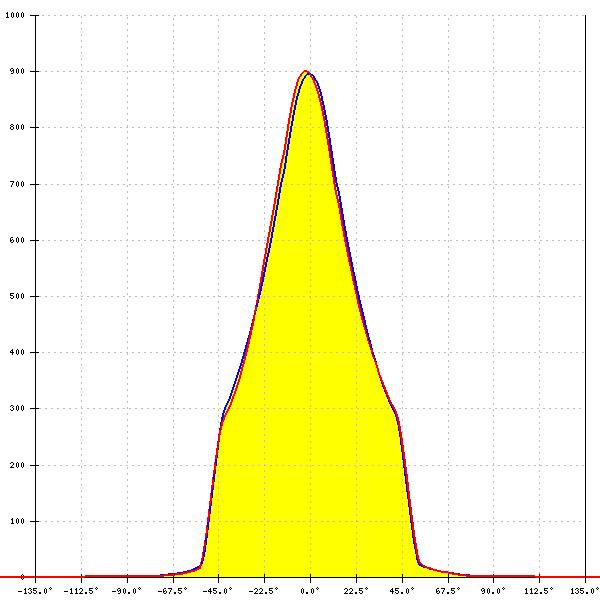

Soleriq S19
LES size: 17.9 mm
Required components:
A.A.G. STUCCHI: 8503-G2
FWHM:
55°
FWTM:
100°
Peak intensity:
0.900 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S19
LES size: 17.9 mm
Required components:
BJB: 47.319.2170
FWHM:
55°
FWTM:
100°
Peak intensity:
0.900 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

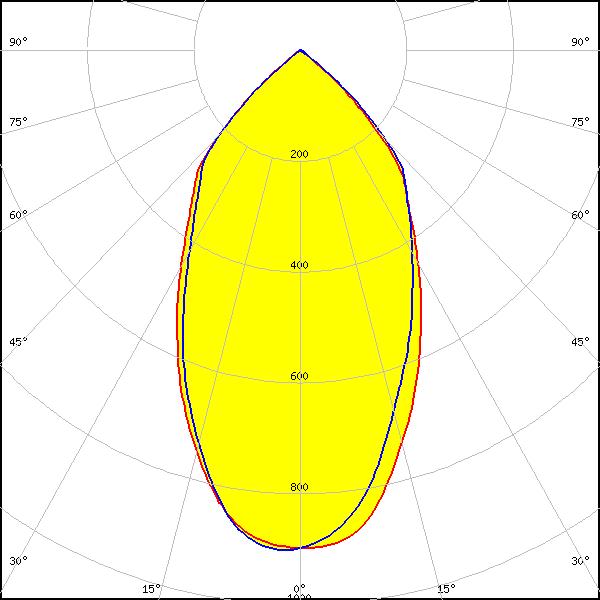

LED:

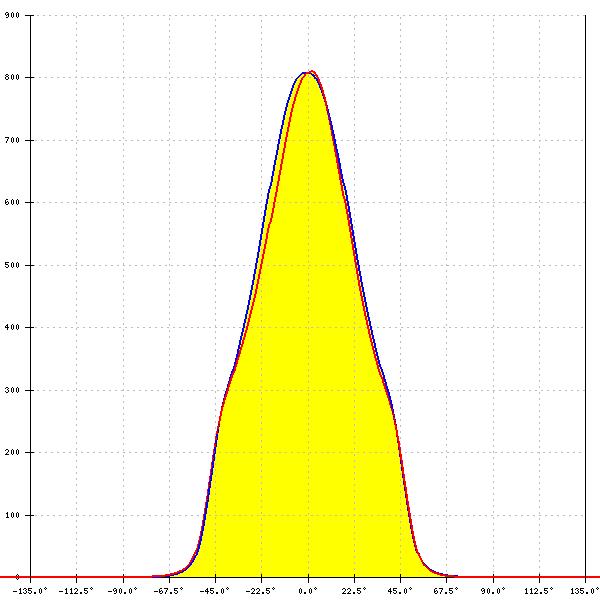

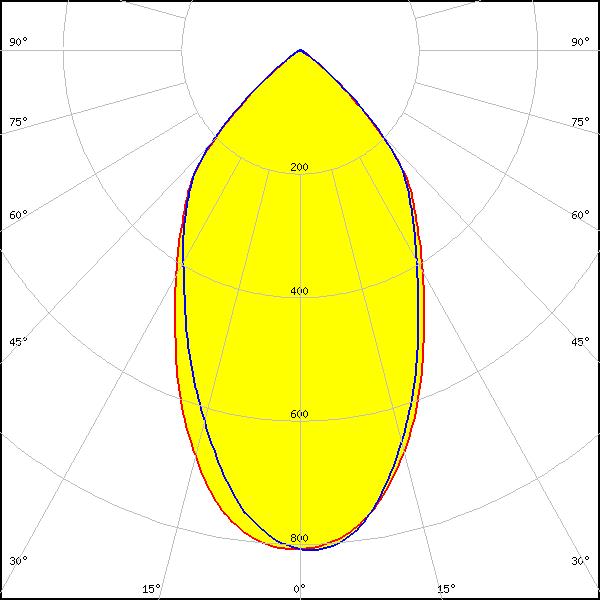

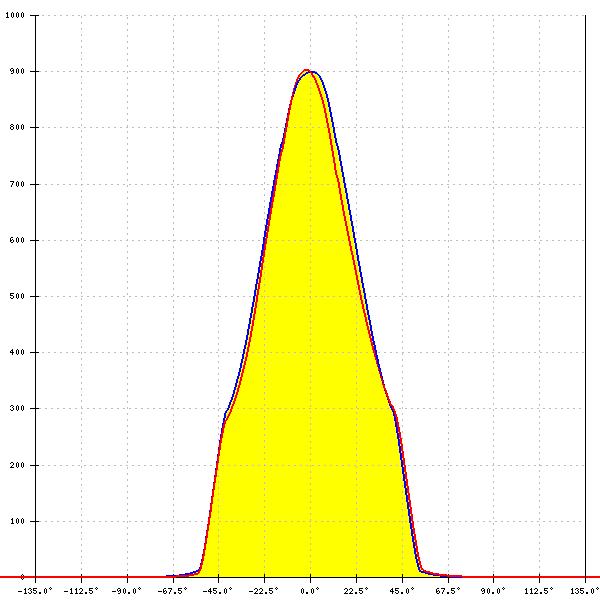

Fortimo SLM L19 CoB
LES size: 19.0 mm
Required components:
BJB: 47.319.2030
FWHM:
58°
FWTM:
100°
Peak intensity:
0.900 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L19 CoB
LES size: 19.0 mm
Required components:
FWHM:
60°
FWTM:
102°
Peak intensity:
0.810 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

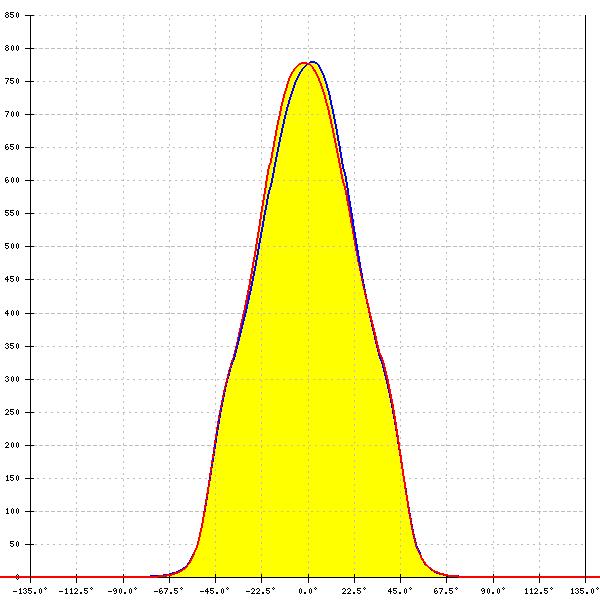

Fortimo SLM L23 CoB
LES size: 23.0 mm
Required components:
FWHM:
62°
FWTM:
102°
Peak intensity:
0.800 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

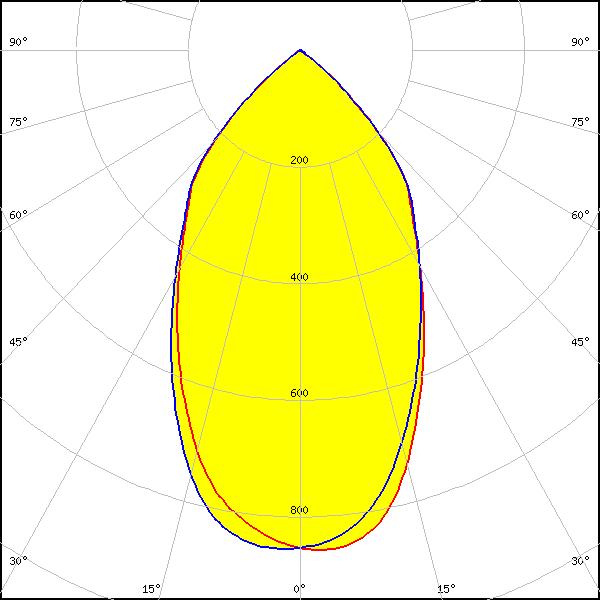

LED:

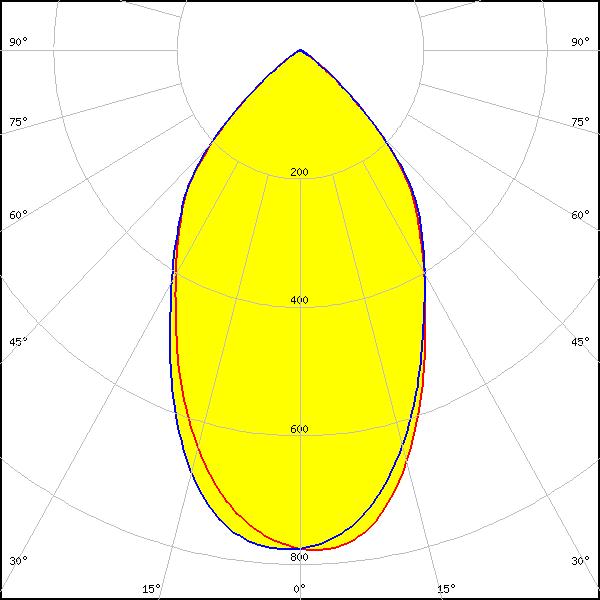

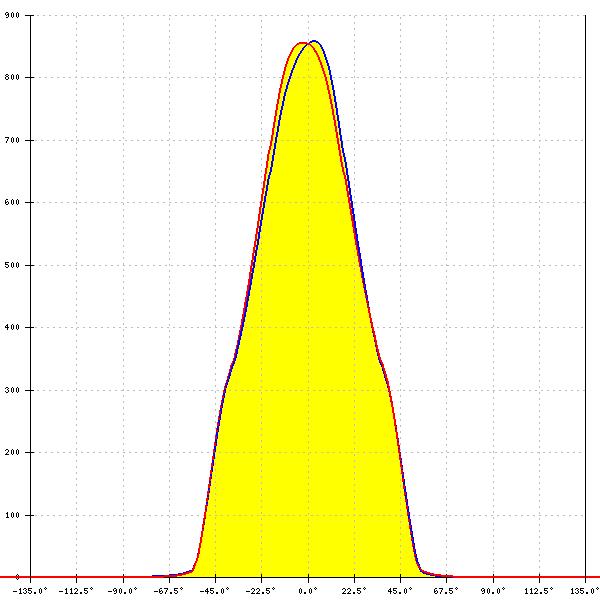

Fortimo SLM L23 CoB
LES size: 23.0 mm
Required components:
BJB: 47.319.2030
FWHM:
60°
FWTM:
101°
Peak intensity:
0.900 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

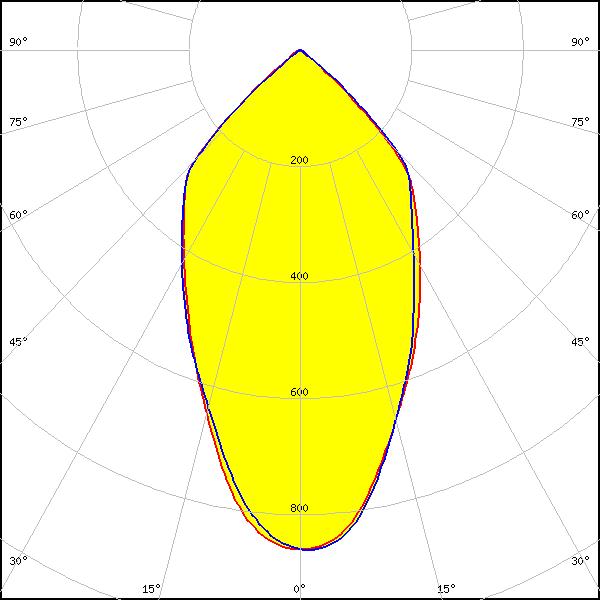

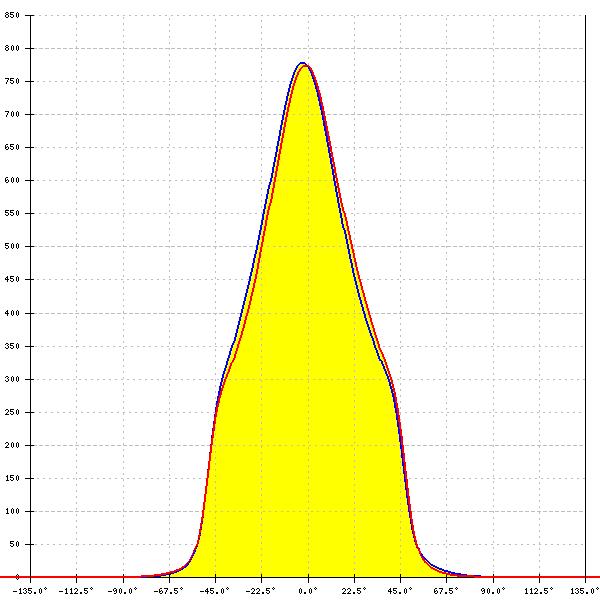

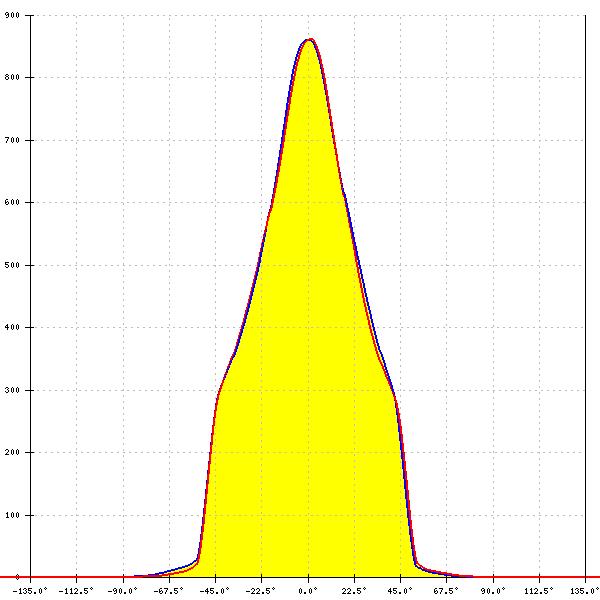

LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
A.A.G. STUCCHI: 8101-G2
FWHM:
59°
FWTM:
101°
Peak intensity:
0.860 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
59°
FWTM:
101°
Peak intensity:
0.860 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM:
62°
FWTM:
103°
Peak intensity:
0.780 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM:
62°
FWTM:
103°
Peak intensity:
0.780 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC040D / LC060D / LC080D
LES size: 22.0 mm
Required components:
BJB: 47.319.2030
FWHM:
54°
FWTM:
97°
Peak intensity:
0.950 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

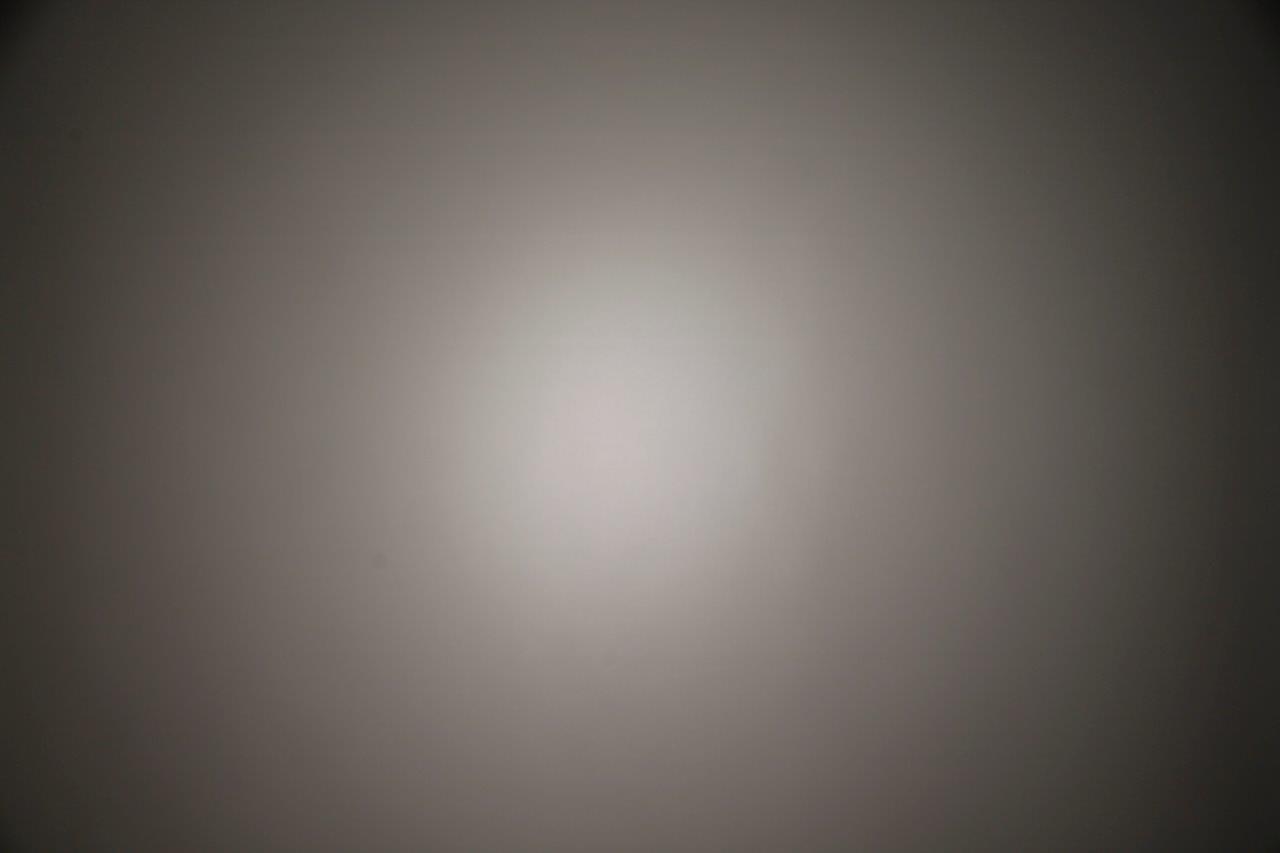

LED:

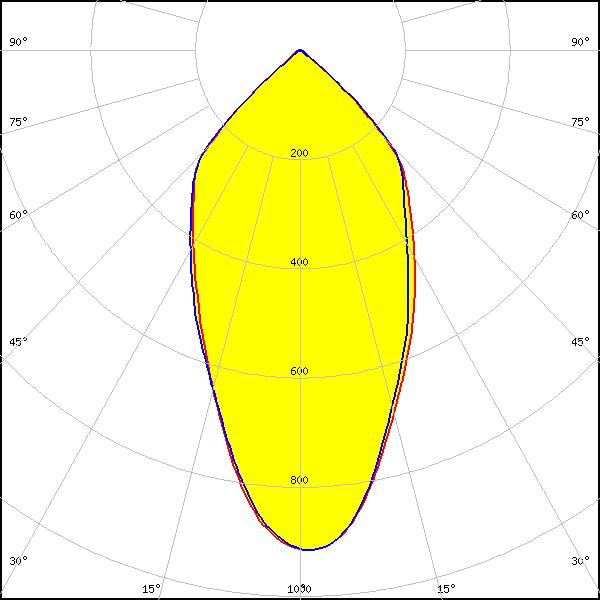

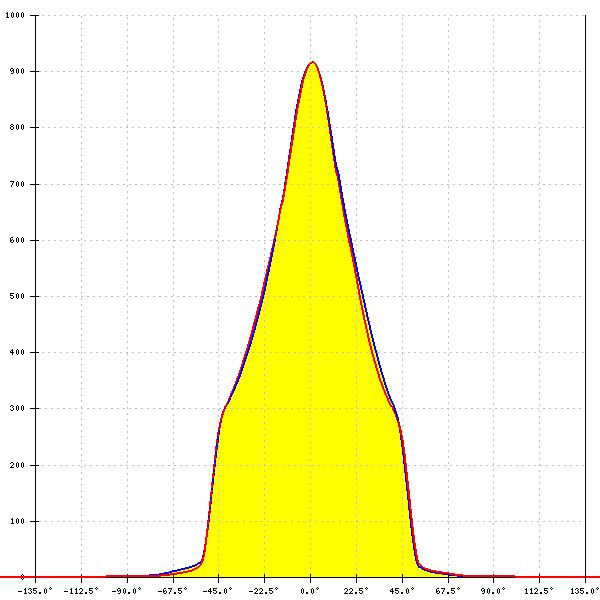

ZC12/18
LES size: 14.6 mm
Required components:
A.A.G. STUCCHI: 8101-G2
FWHM:
54°
FWTM:
99°
Peak intensity:
0.920 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

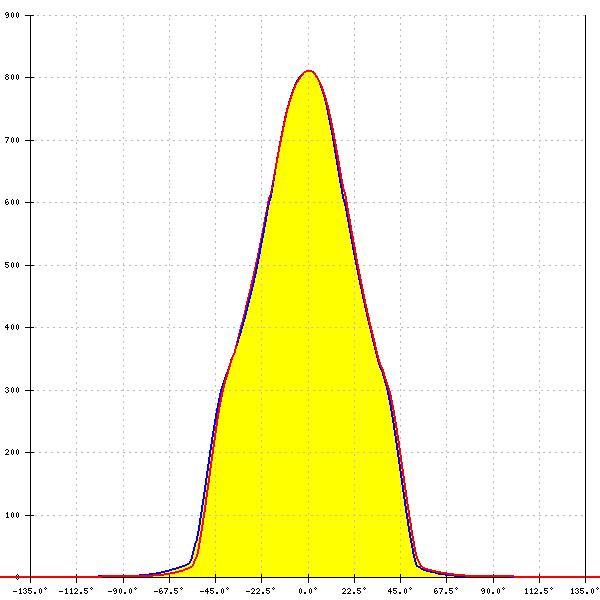

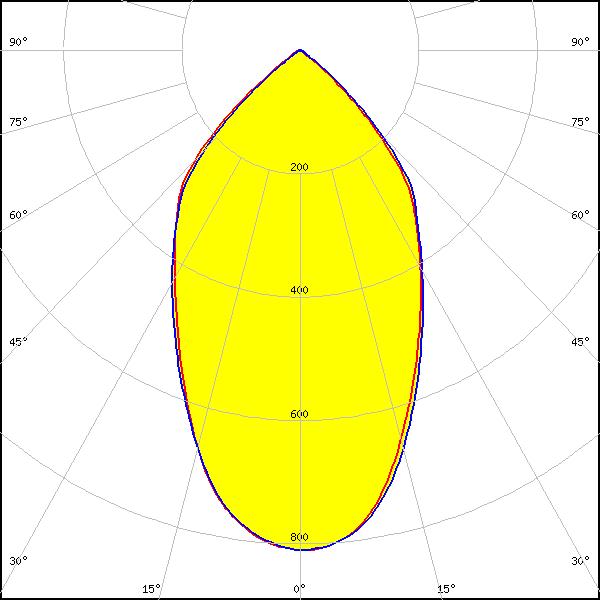

ZC25/40/60
LES size: 22.6 mm
Required components:
A.A.G. STUCCHI: 8102-G2
FWHM:
62°
FWTM:
102°
Peak intensity:
0.810 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Mega Zenigata (GW5DGC)
LES size: 16.0 mm
Required components:
BJB: 47.319.2011
LEDs/each optic:
1
Light colour/type:
White
LED:

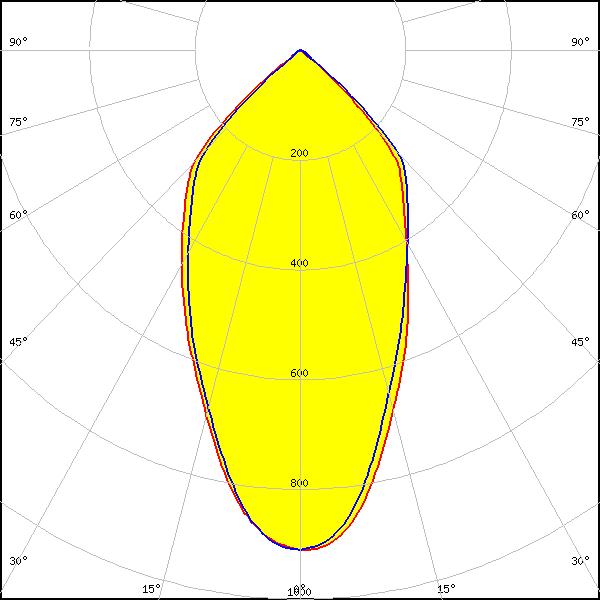

Mega Zenigata (GW6DME)
LES size: 16.0 mm
Required components:
BJB: 47.319.2011
LEDs/each optic:
1
Light colour/type:
White

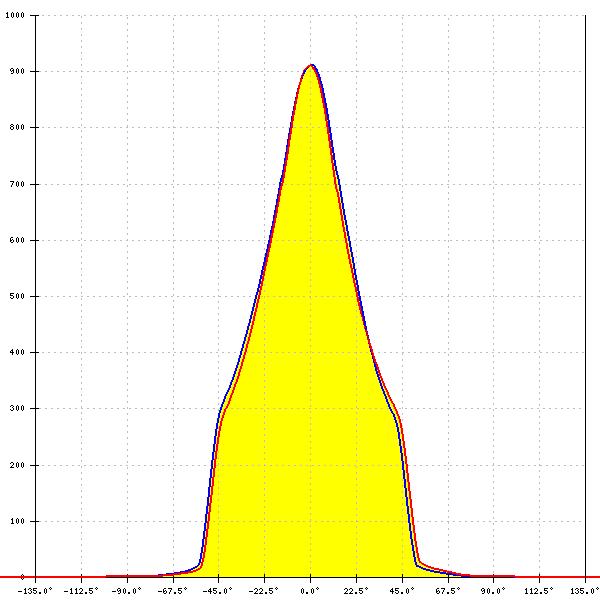

LED:
Mega Zenigata (GW6DME)
LES size: 16.0 mm
Required components:
A.A.G. STUCCHI: 8301-G2
FWHM:
55°
FWTM:
100°
Peak intensity:
0.910 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

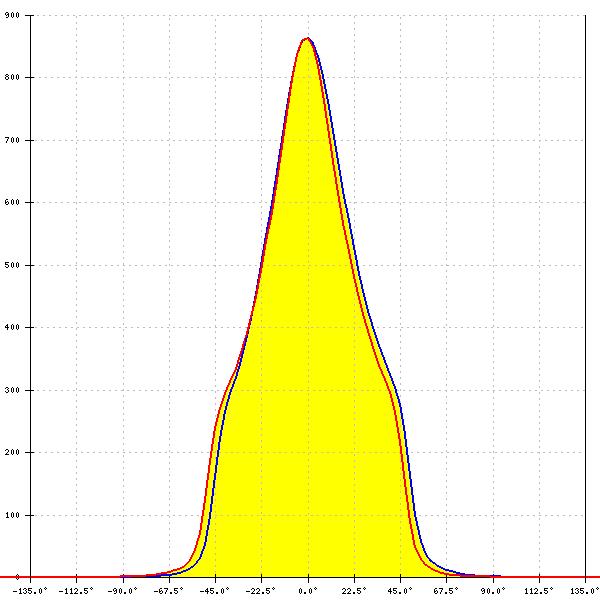

LED:

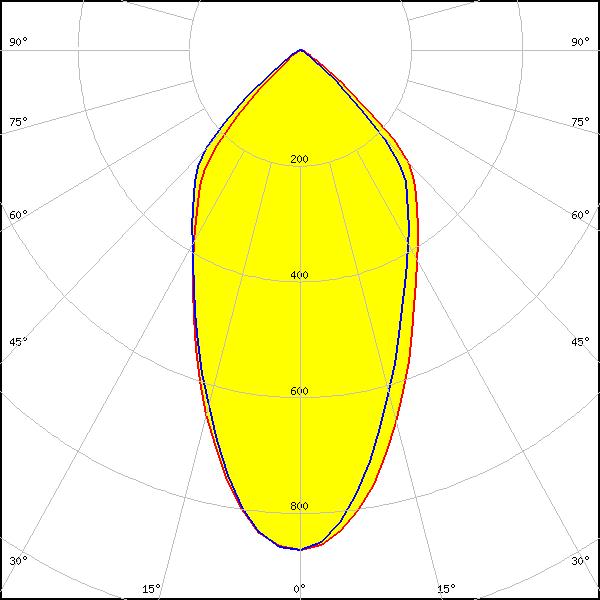

Tiger Zenigata (GWTGCBG4FD)
LES size: 15.5 mm
Required components:
FWHM:
54°
FWTM:
101°
Peak intensity:
0.870 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

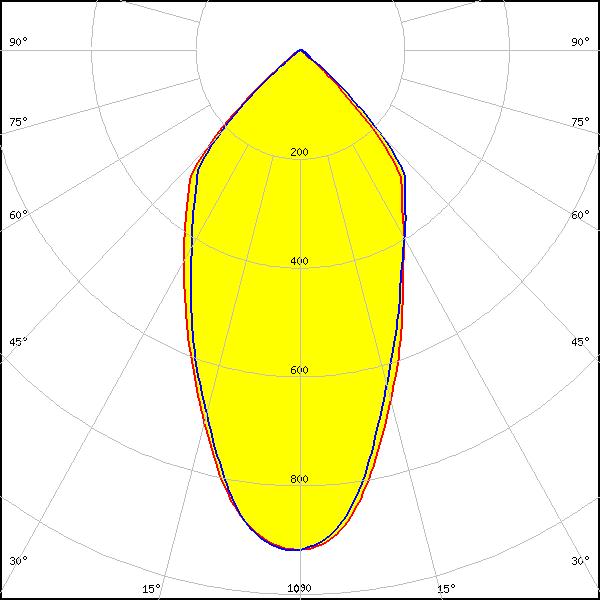

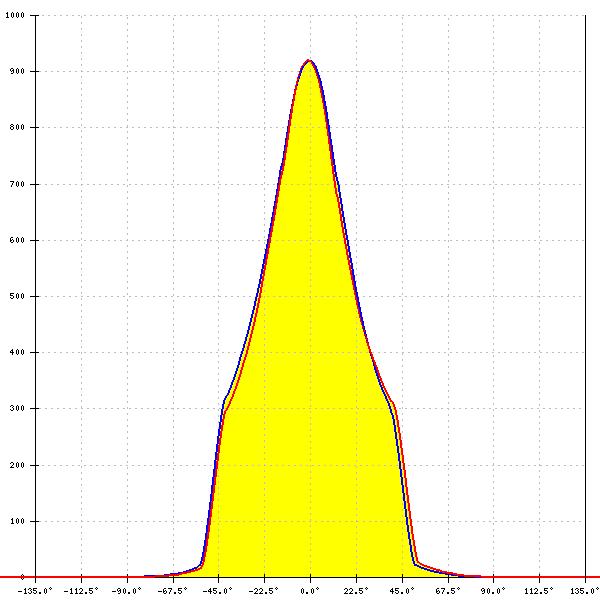

SLE G7 LES17 H
FWHM:
53°
FWTM:
99°
Peak intensity:
0.920 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

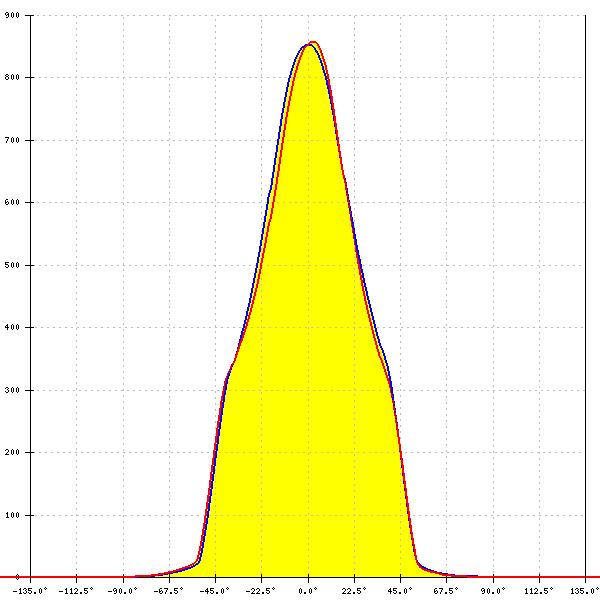

LED:
SLE G7 LES21 H
FWHM:
59°
FWTM:
100°
Peak intensity:
0.860 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

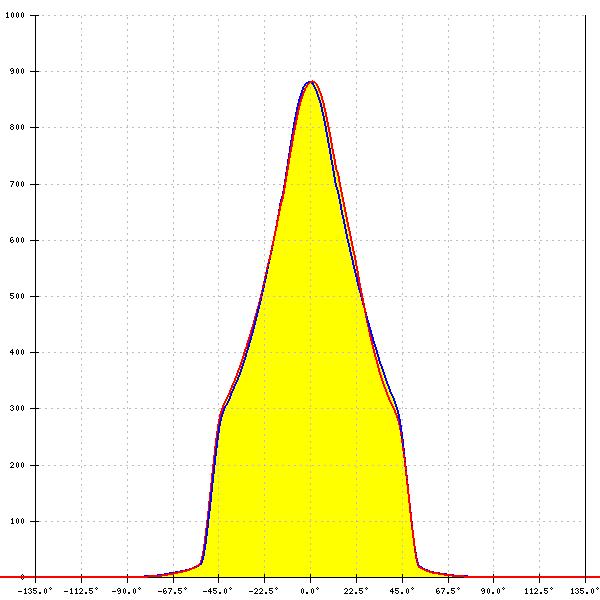

LED:

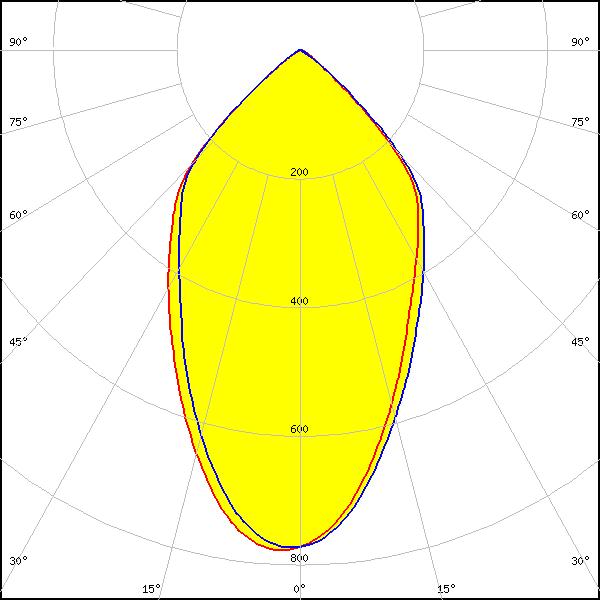

XOB 14.5 mm
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
57°
FWTM:
100°
Peak intensity:
0.882 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

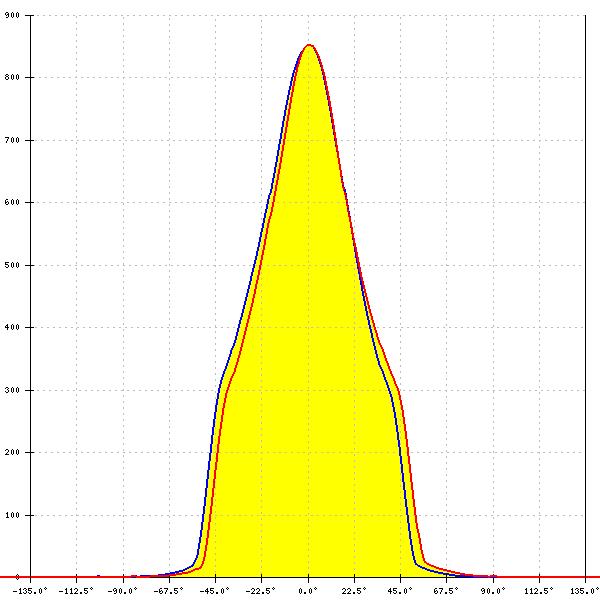

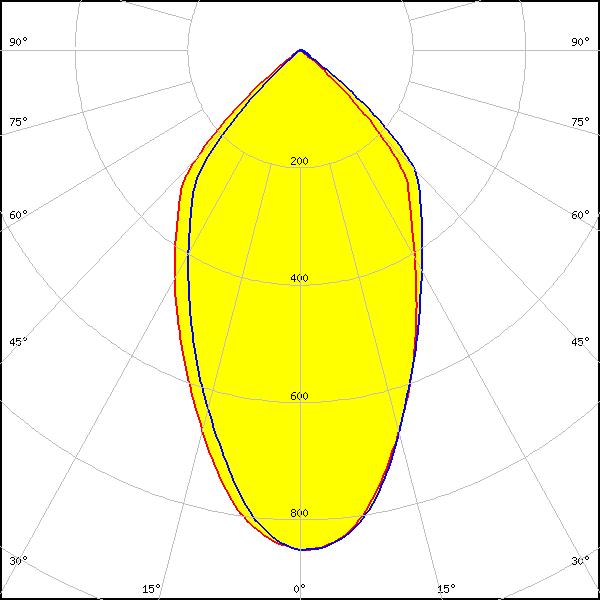

LED:
XTM - 19mm LES
LES size: 19.0 mm
Required components:
FWHM:
59°
FWTM:
101°
Peak intensity:
0.900 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
