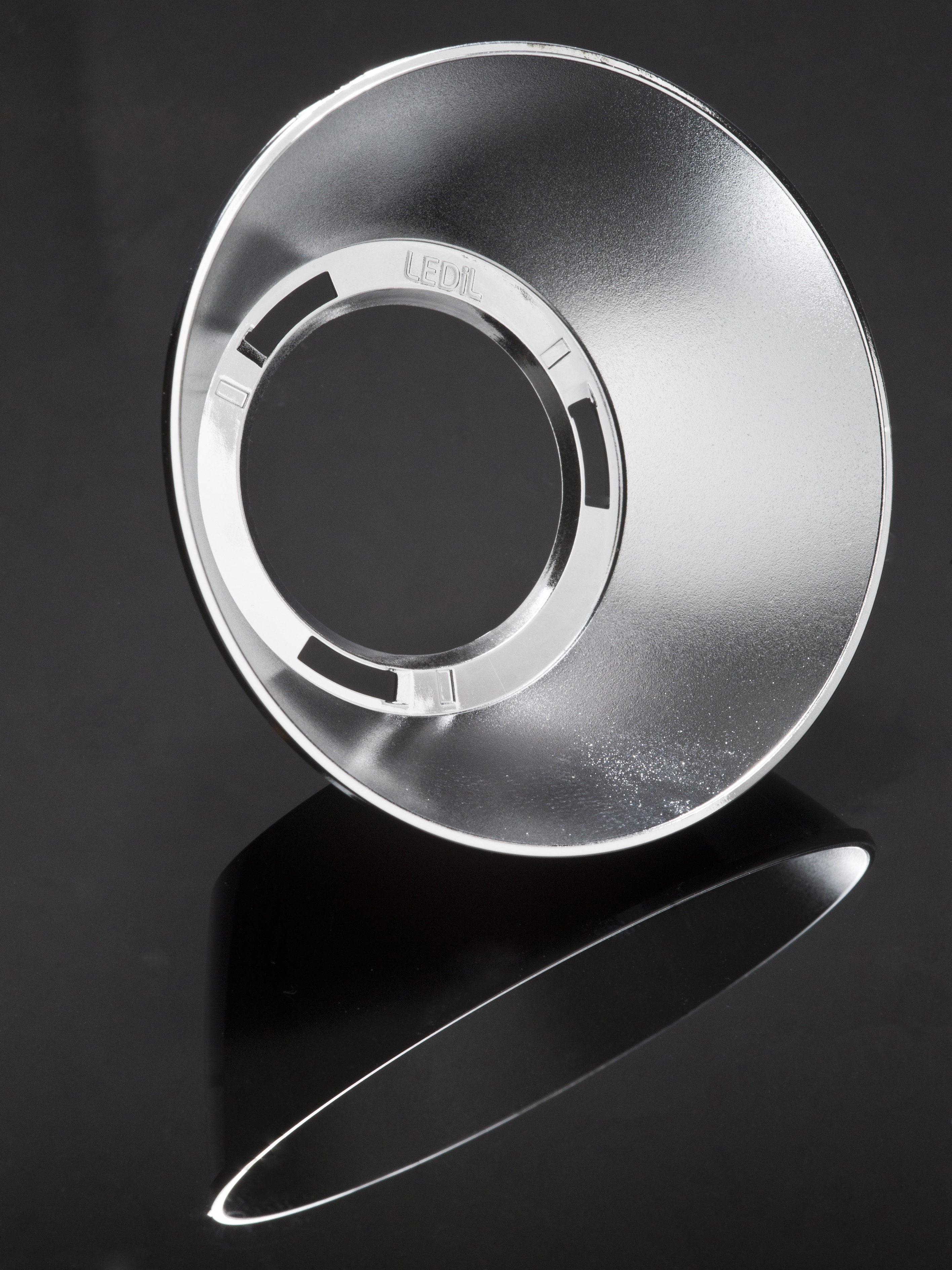

F13659_ANGELINA-S-B
Print

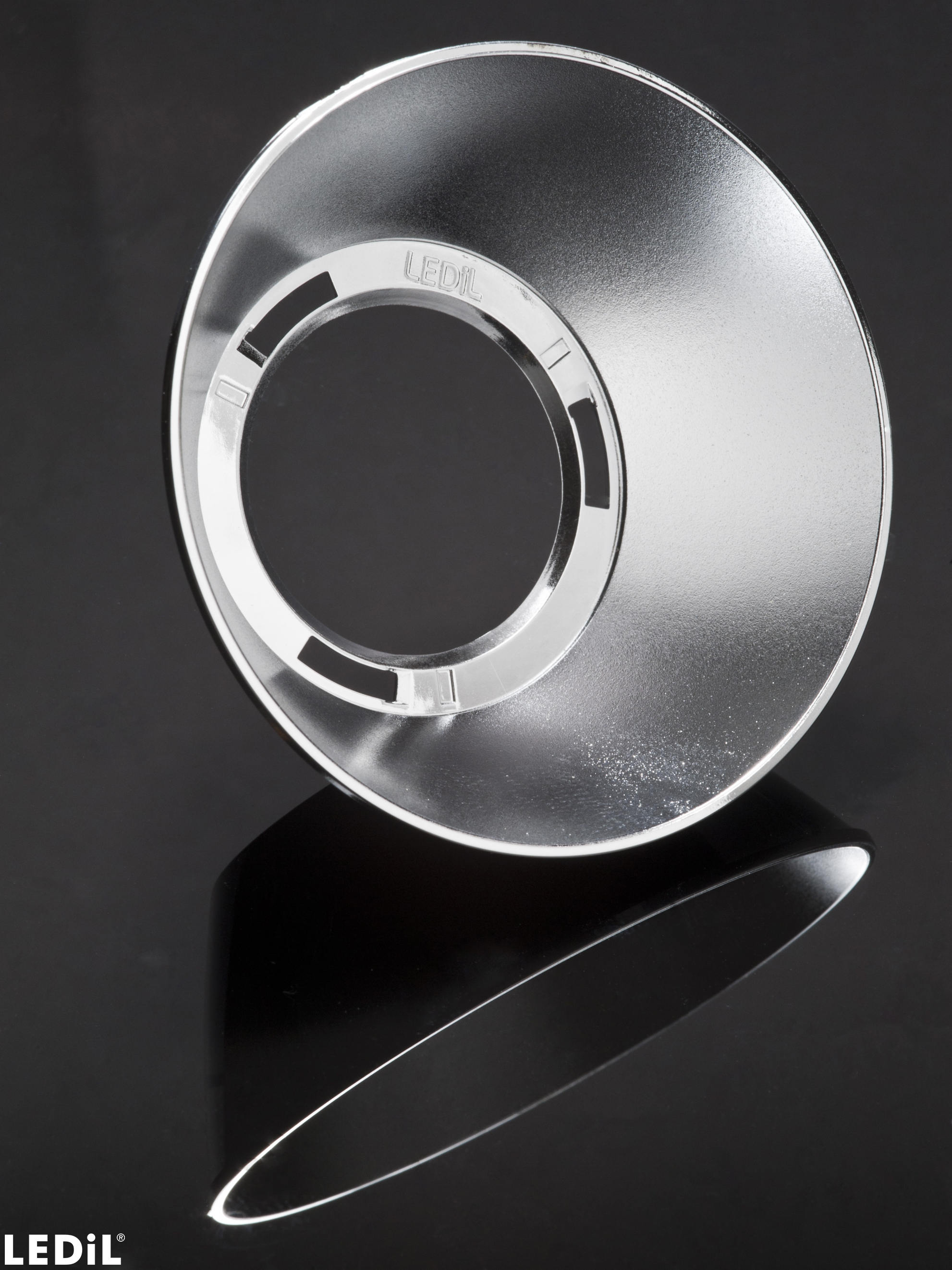

~20° spot beam compatible with BJB and B+W connectors
Component Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

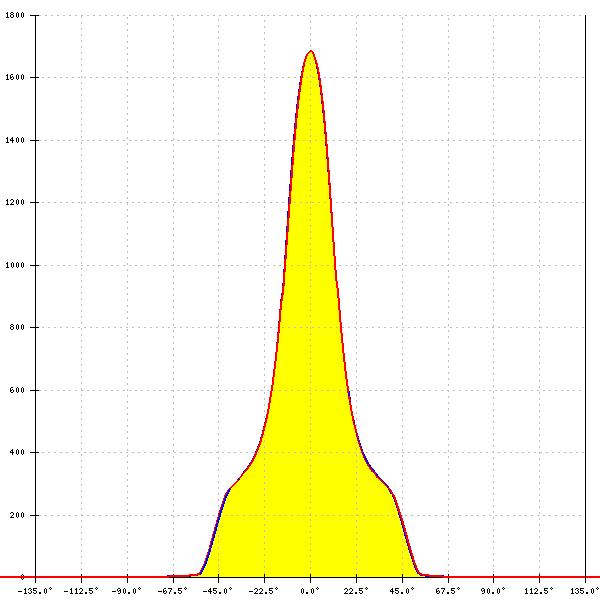

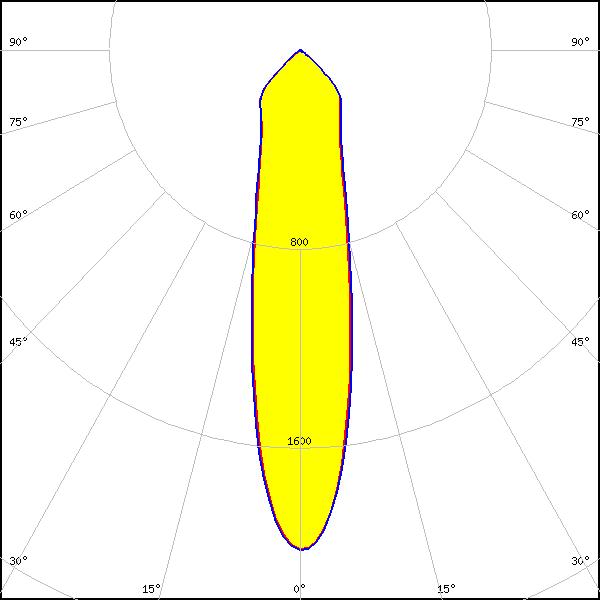

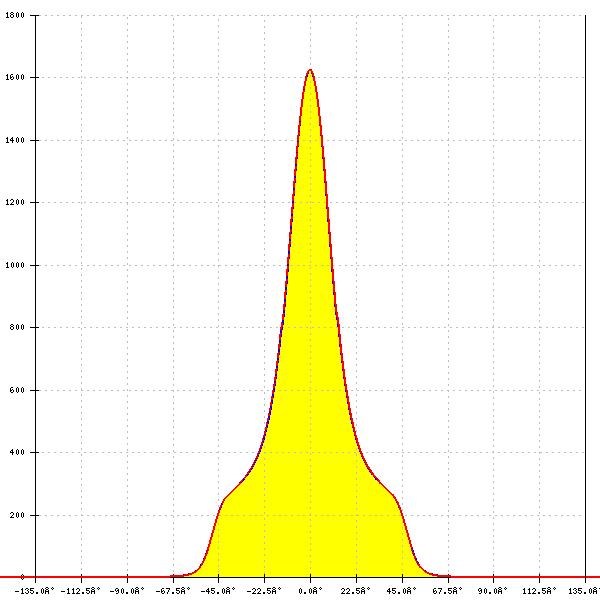

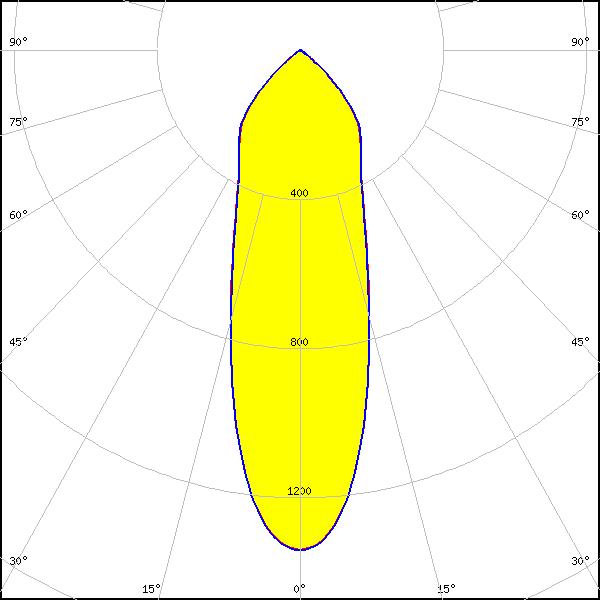

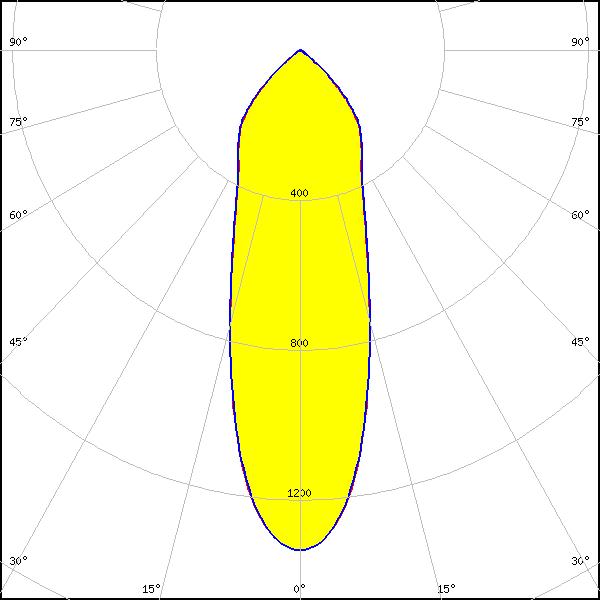

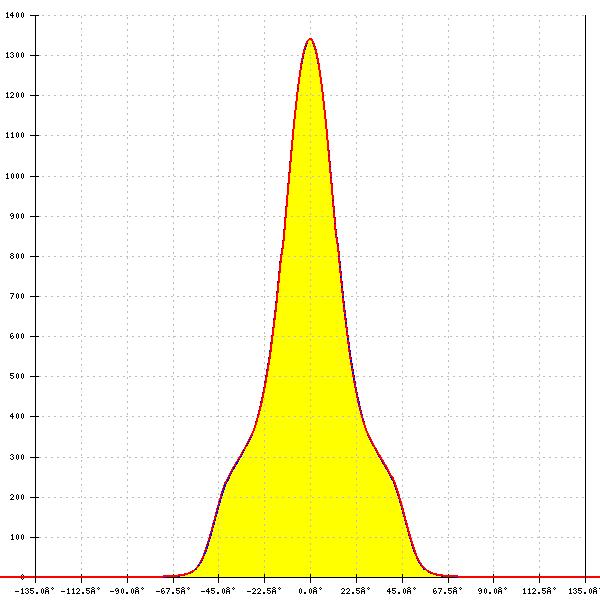

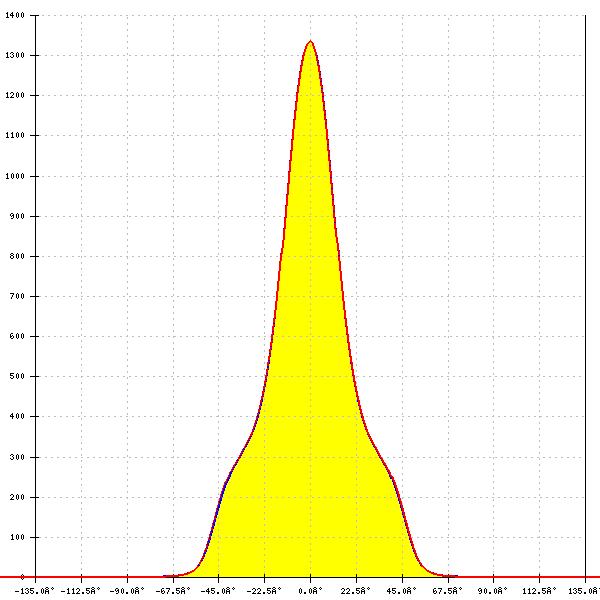

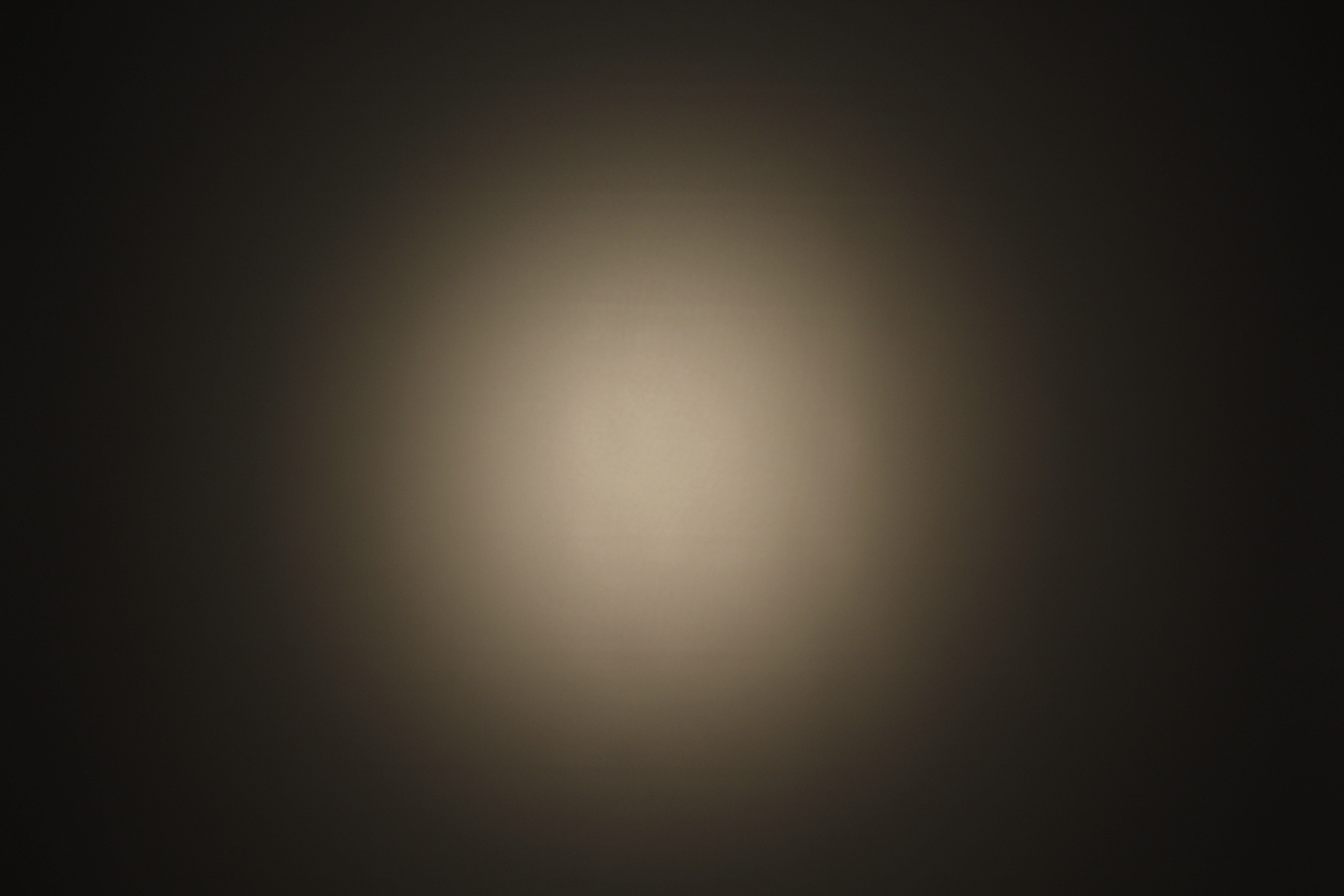

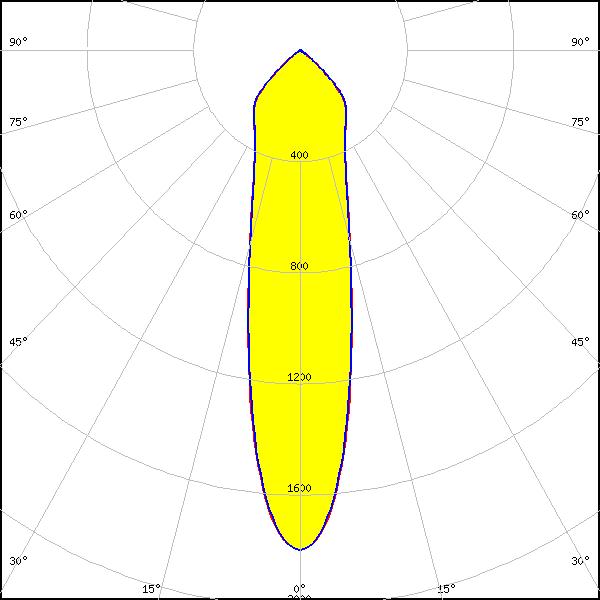

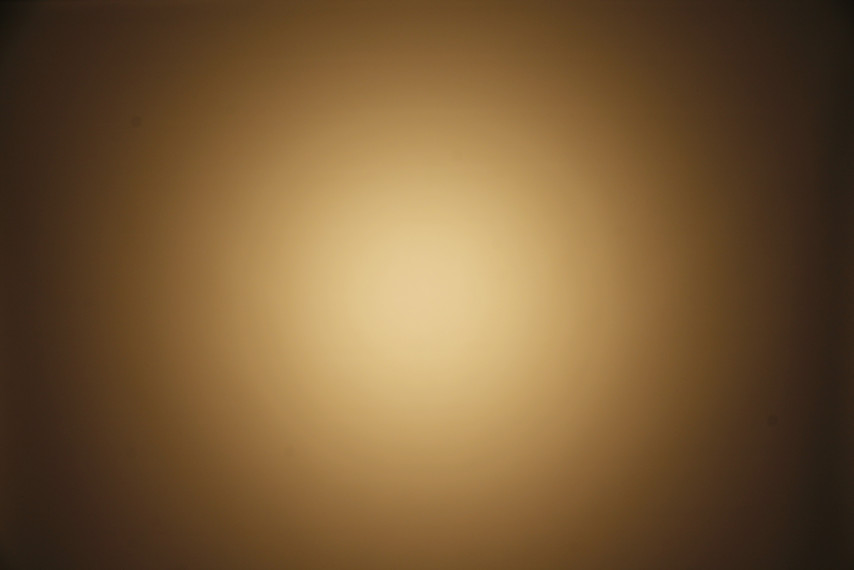

Optical results

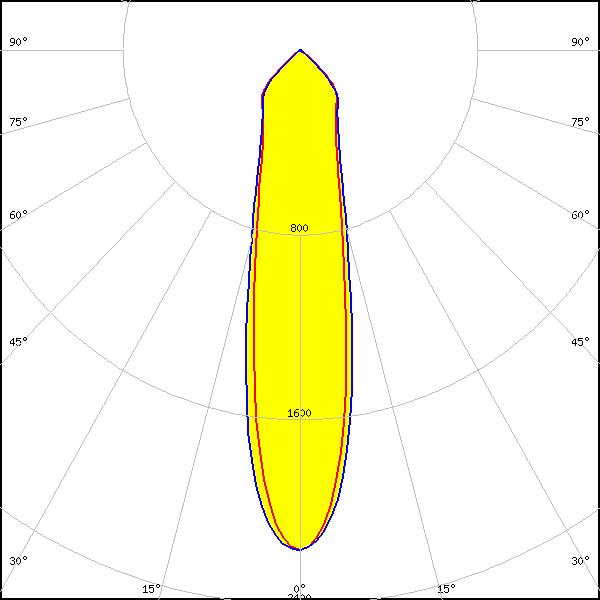

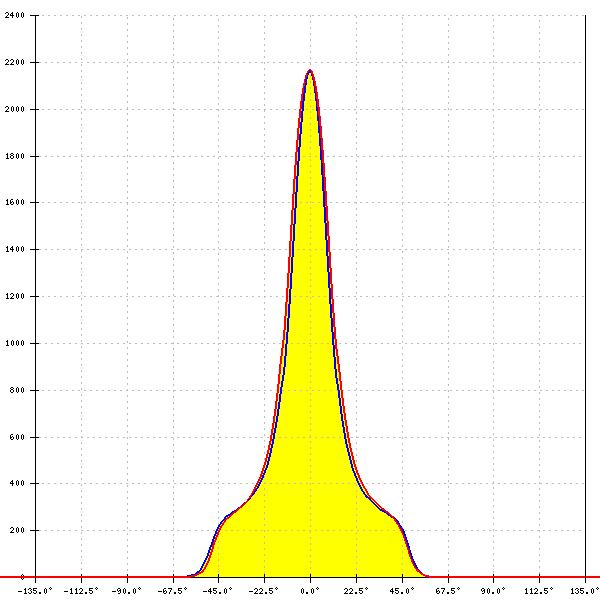

LED:
BXRA ES Rectangle
LES size: 19.2 mm
Required components:
BJB: 47.319.2040
FWHM:
23°
FWTM:
90°
Peak intensity:
2.170 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

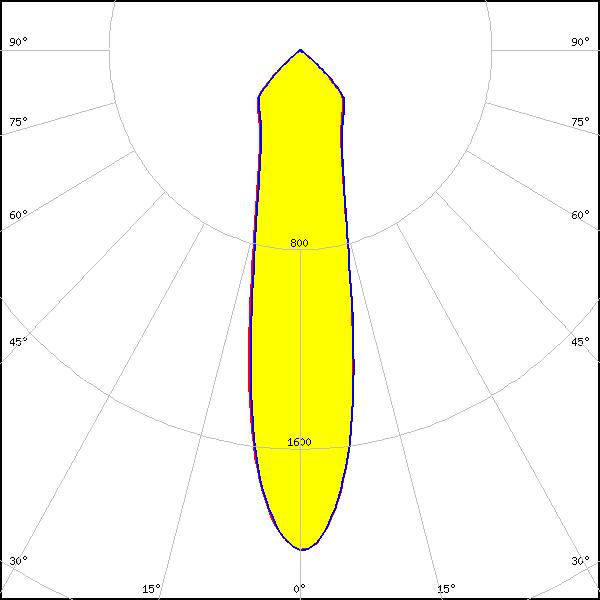

V15 Gen6
LES size: 15.2 mm
Required components:
BJB: 47.319.2224
FWHM:
24°
FWTM:
92°
Peak intensity:
2.000 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

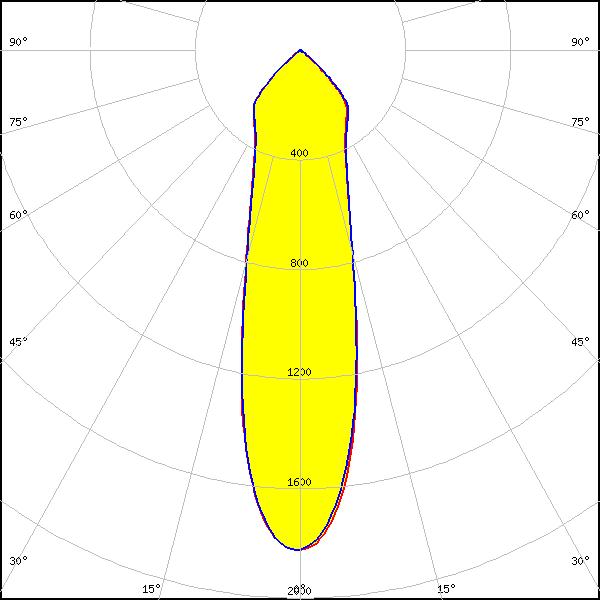

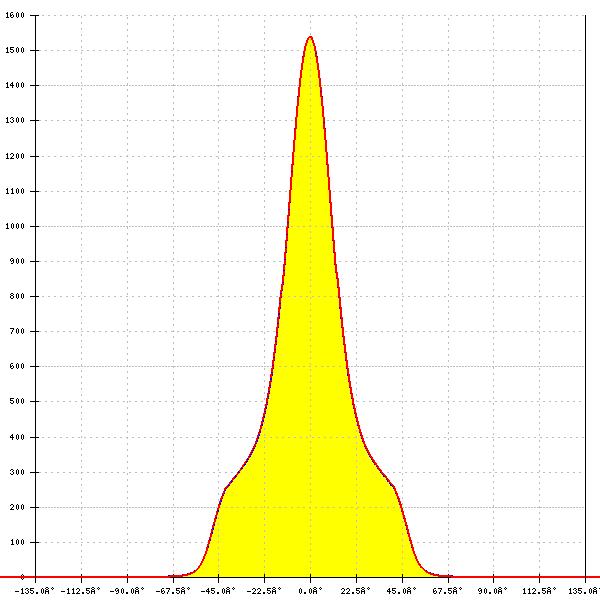

V18 Gen6
LES size: 18.6 mm
Required components:
BJB: 47.319.2274
FWHM:
27°
FWTM:
92°
Peak intensity:
1.800 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

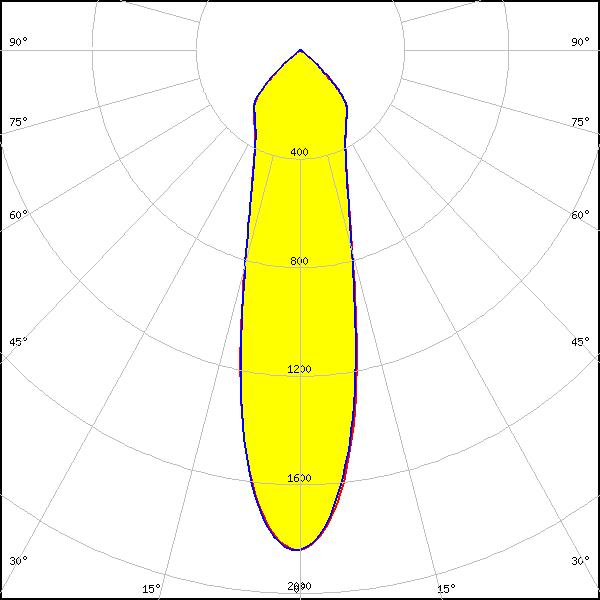

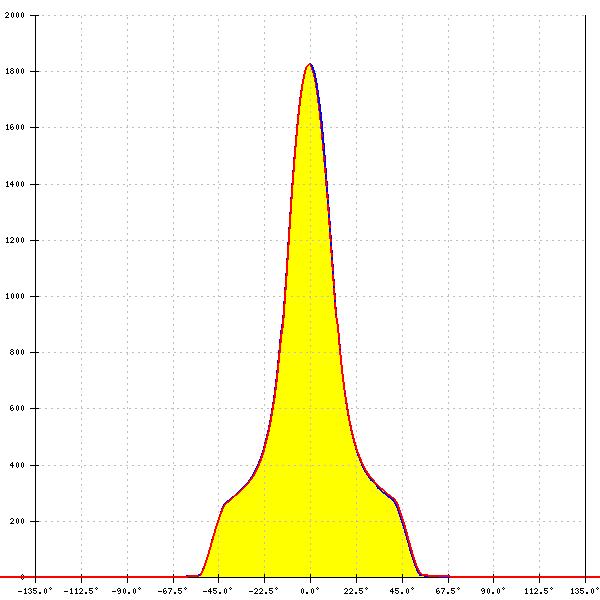

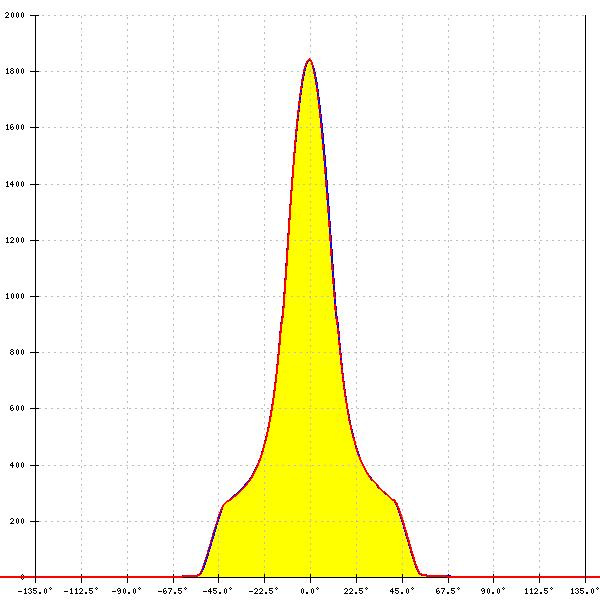

LED:
V18 Gen7
LES size: 19.2 mm
Required components:
BJB: 47.319.2350
FWHM:
27°
FWTM:
92°
Peak intensity:
1.800 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

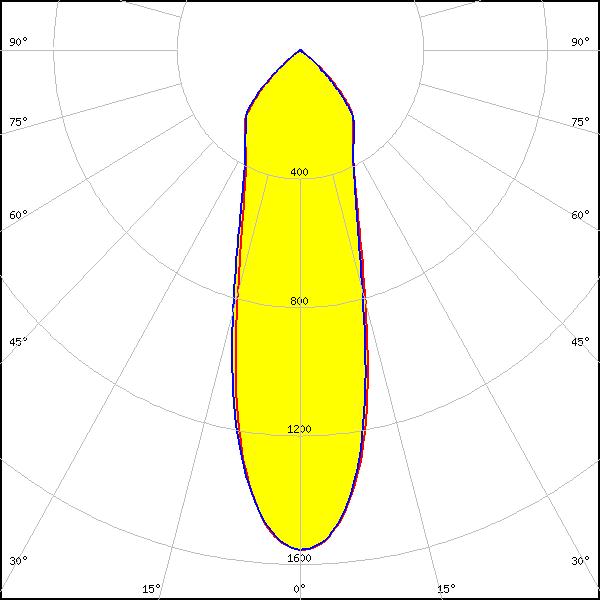

LED:

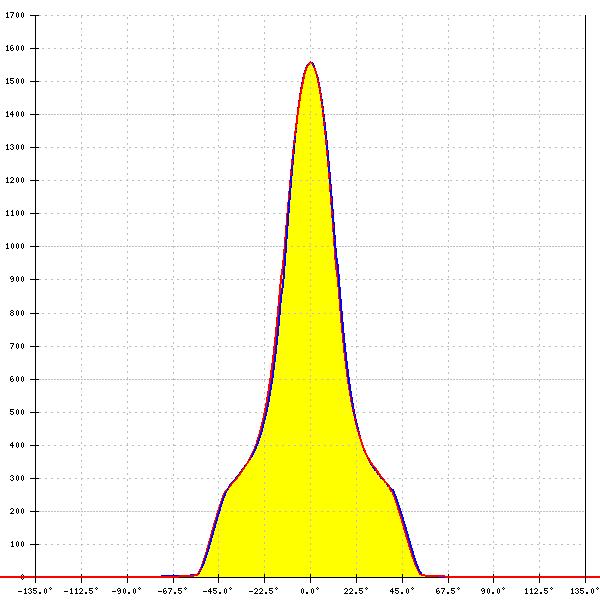

V22 Gen6
LES size: 22.0 mm
Required components:
A.A.G. STUCCHI: 8102-G2
FWHM:
31°
FWTM:
93°
Peak intensity:
1.600 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

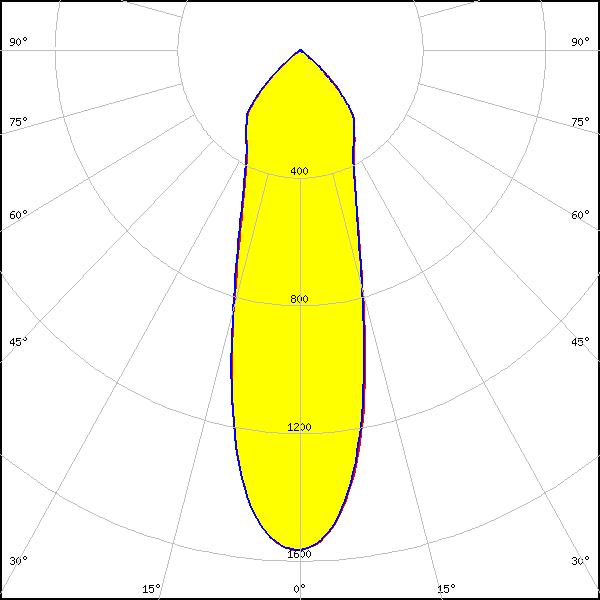

V22 Gen7
LES size: 22.6 mm
Required components:
BJB: 47.319.2030
FWHM:
31°
FWTM:
92°
Peak intensity:
1.600 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

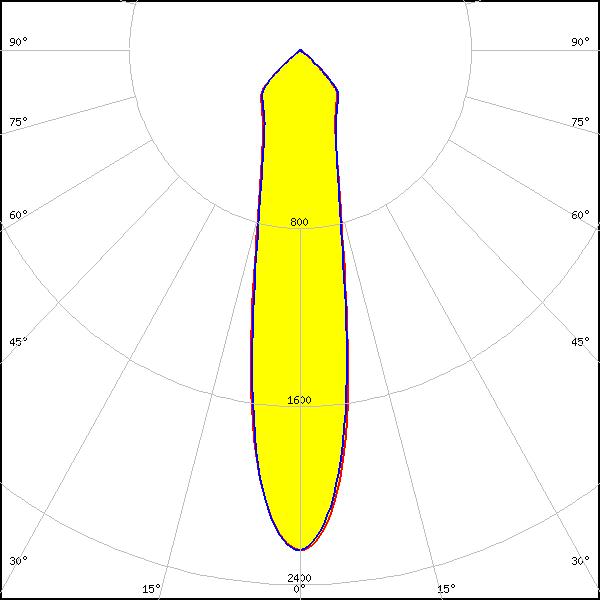

LED:

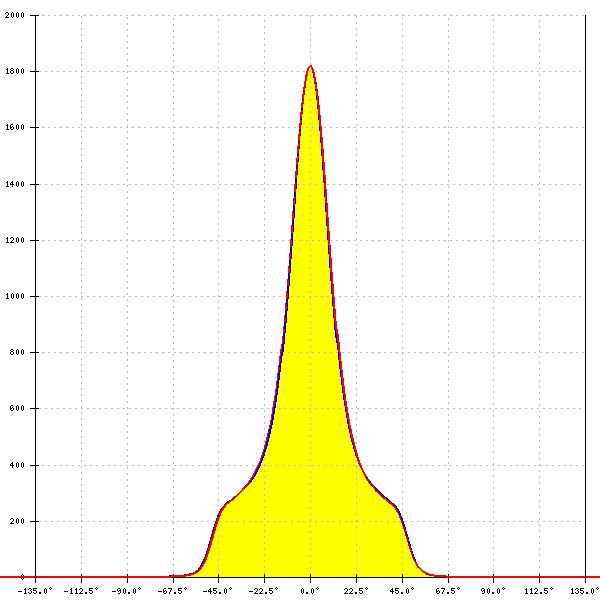

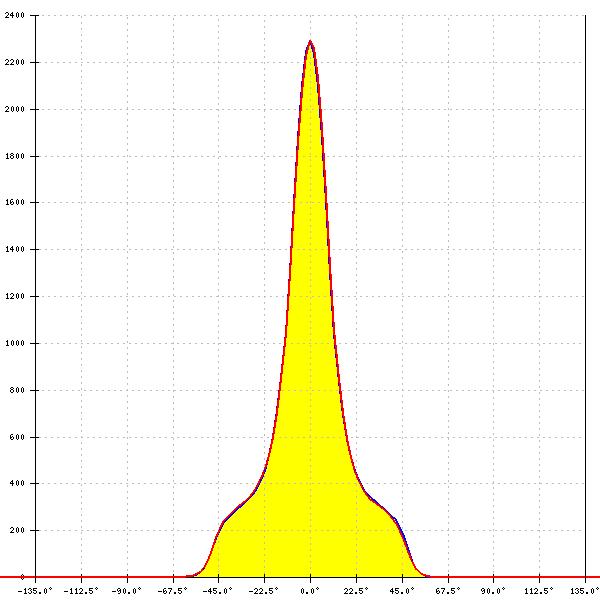

CLU03x
LES size: 14.5 mm
Required components:
FWHM:
25°
FWTM:
92°
Peak intensity:
1.820 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

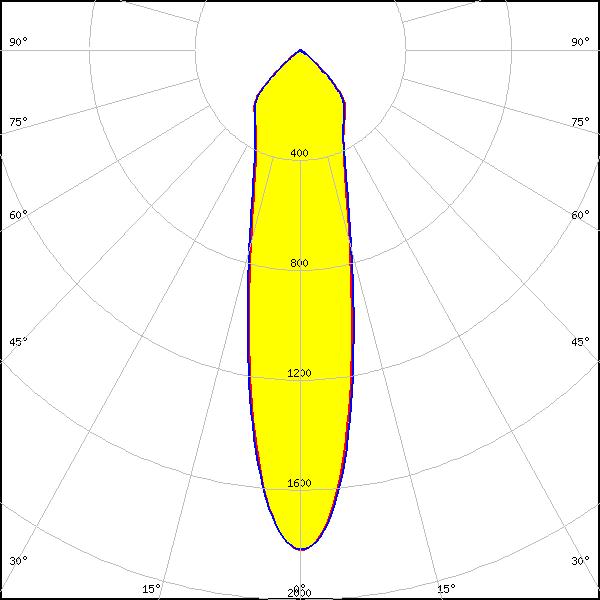

CLU03x
LES size: 14.5 mm
Required components:
A.A.G. STUCCHI: 8101-G2
FWHM:
22°
FWTM:
91°
Peak intensity:
2.250 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

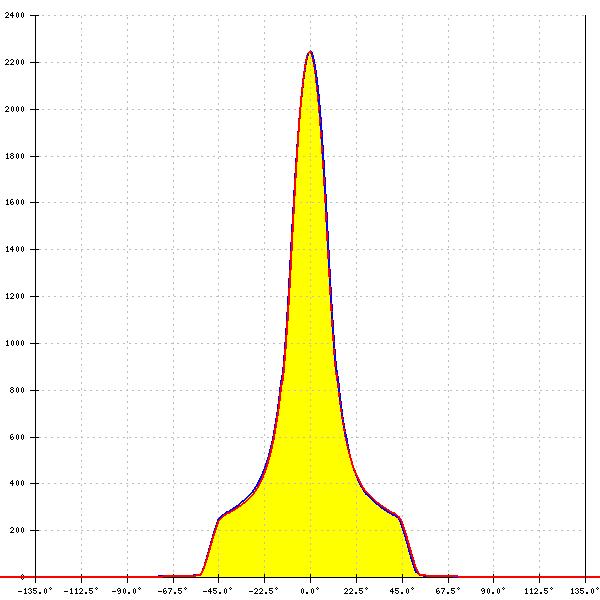

LED:
CLU03x
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
23°
FWTM:
86°
Peak intensity:
2.150 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

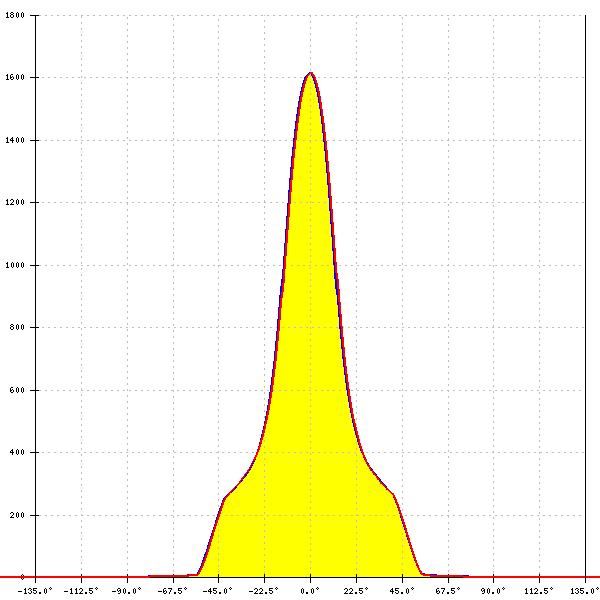

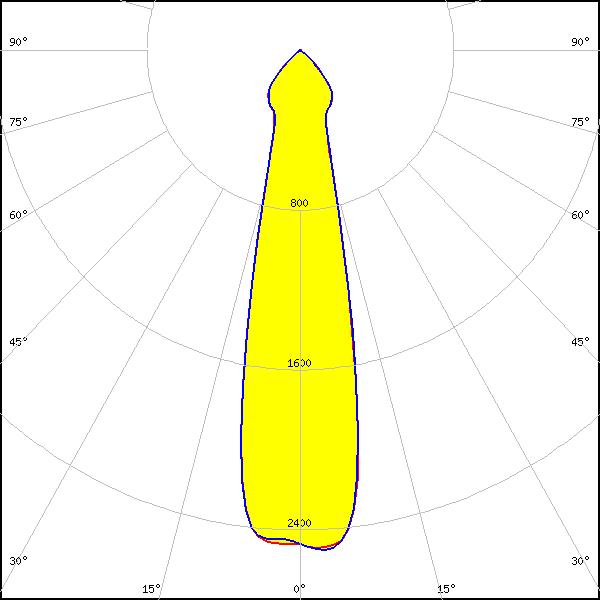

LED:

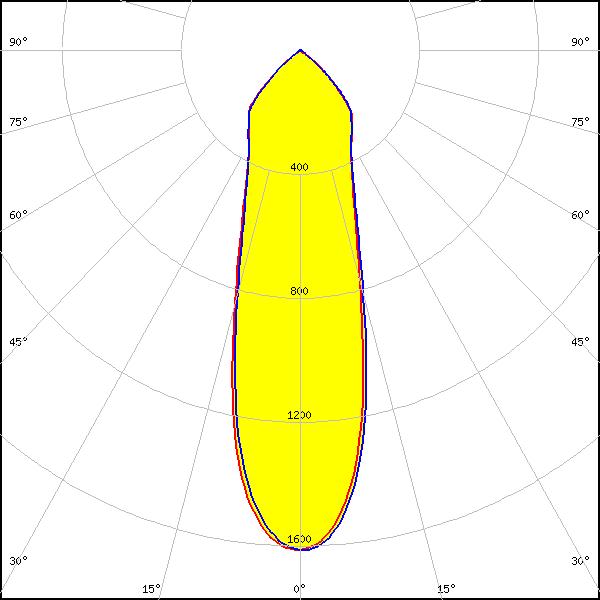

CLU04x
LES size: 22.0 mm
Required components:
BJB: 47.319.2315
FWHM:
24°
FWTM:
79°
Peak intensity:
2.517 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU04x
LES size: 22.0 mm
Required components:
FWHM:
33°
FWTM:
94°
Peak intensity:
1.390 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

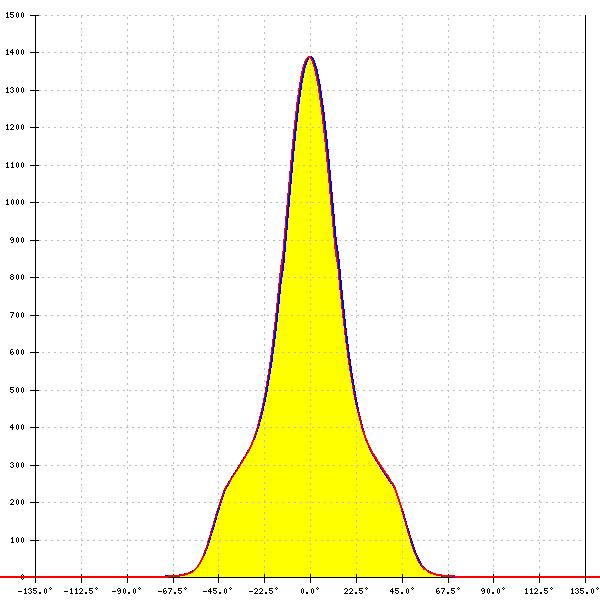

LED:

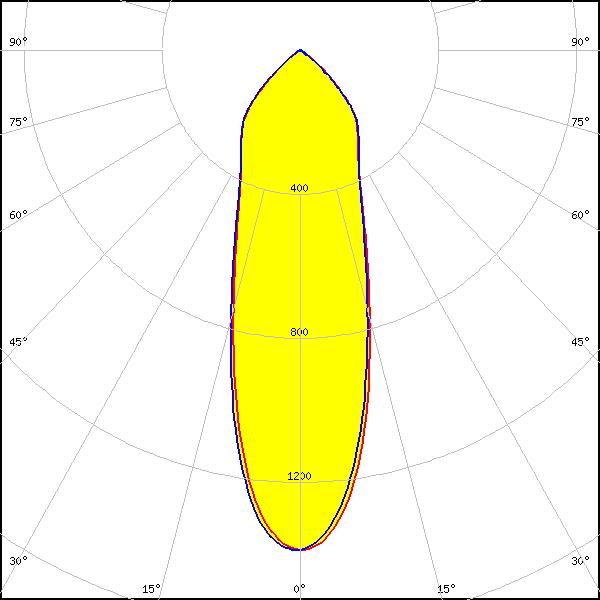

CLU04x
LES size: 22.0 mm
Required components:
A.A.G. STUCCHI: 8102-G2
FWHM:
30°
FWTM:
93°
Peak intensity:
1.600 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

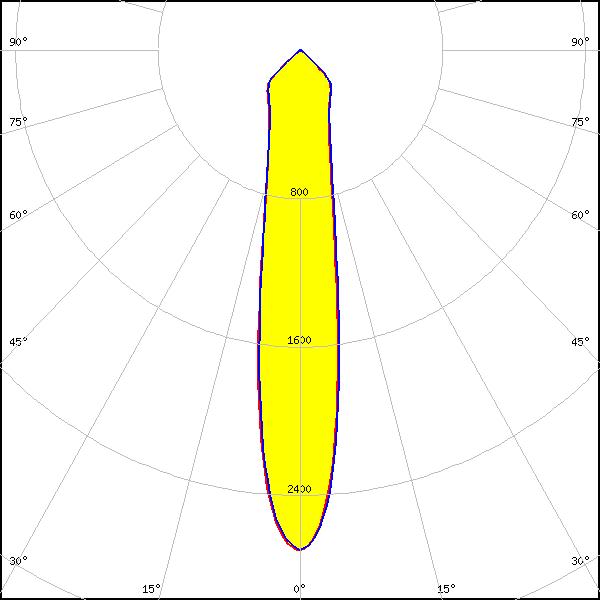

CLU720/721/723
LES size: 11.0 mm
Required components:
A.A.G. STUCCHI: 8101-G2
FWHM:
19°
FWTM:
88°
Peak intensity:
2.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

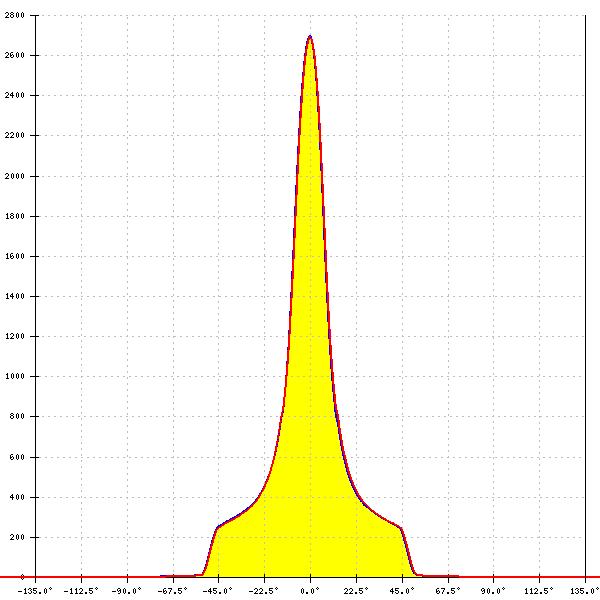

CLU720/721/723
LES size: 11.0 mm
Required components:
BJB: 47.319.2021
FWHM:
19°
FWTM:
81°
Peak intensity:
2.700 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

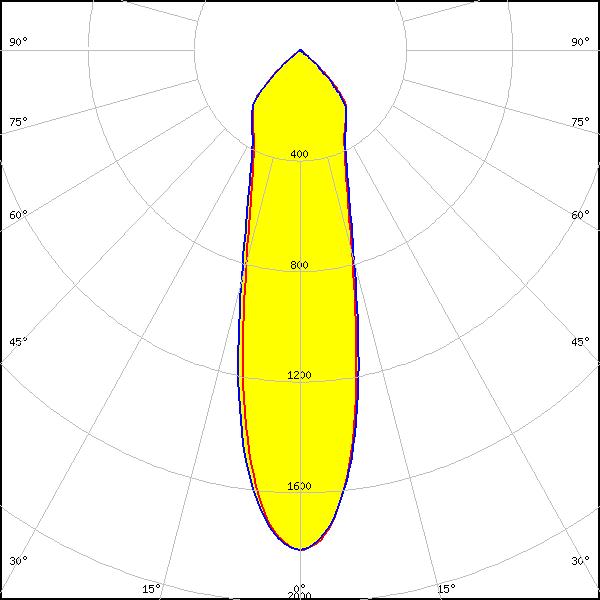

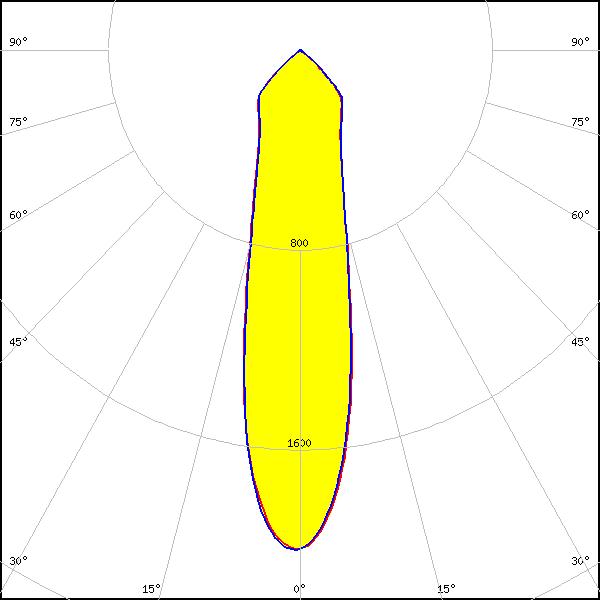

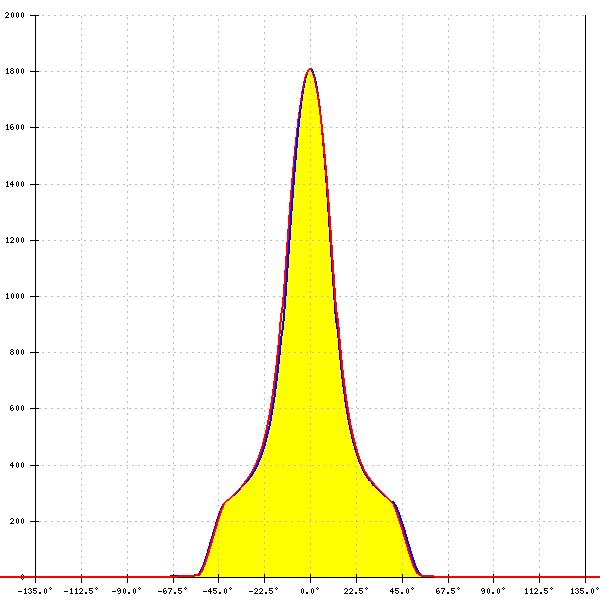

LED:

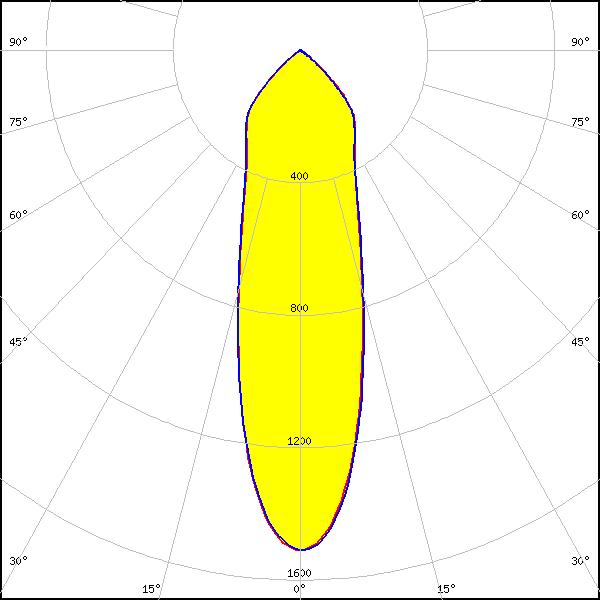

CXA/B 25xx
LES size: 19.0 mm
Required components:
BJB: 47.319.2141
FWHM:
27°
FWTM:
91°
Peak intensity:
1.800 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 25xx
LES size: 19.0 mm
Required components:
FWHM:
30°
FWTM:
93°
Peak intensity:
1.500 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 25xx
LES size: 19.0 mm
Required components:
A.A.G. STUCCHI: 8401-G2
FWHM:
25°
FWTM:
91°
Peak intensity:
2.000 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

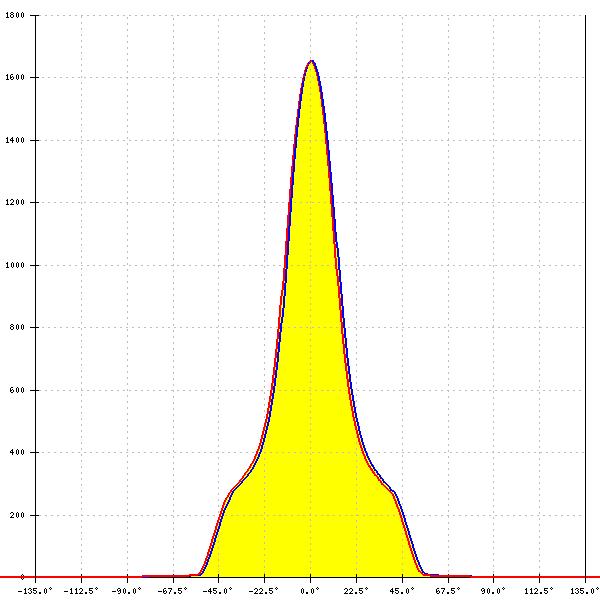

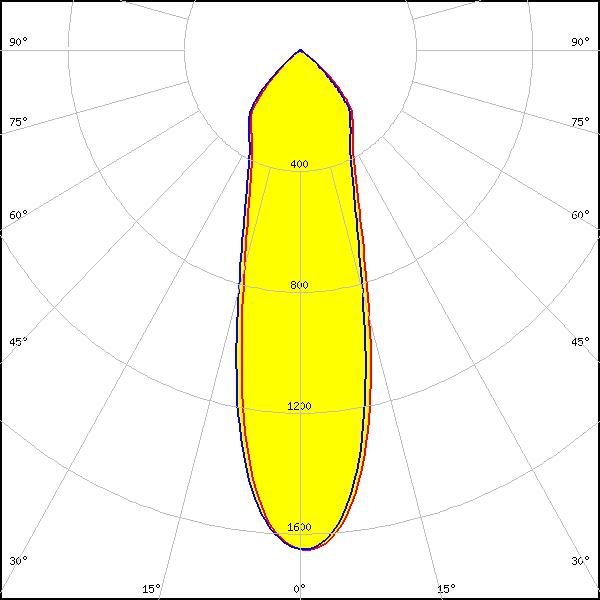

LED:
CXA/B 30xx
LES size: 23.0 mm
Required components:
A.A.G. STUCCHI: 8404-G2
FWHM:
30°
FWTM:
92°
Peak intensity:
1.660 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

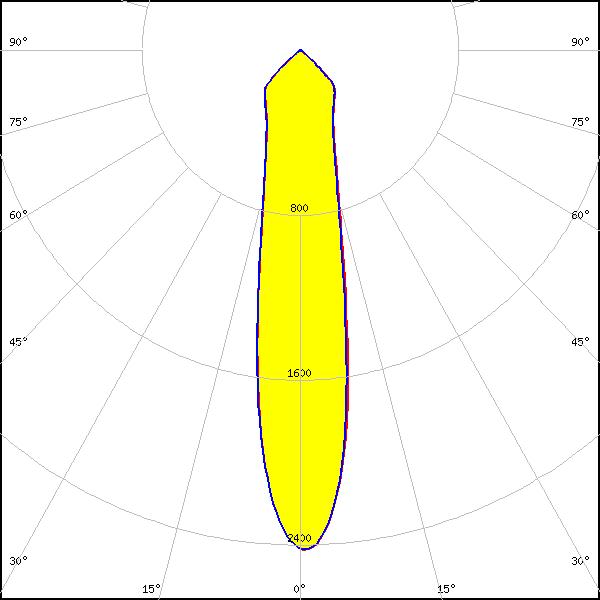

LUXEON CoB 1204/1205
LES size: 13.0 mm
Required components:
A.A.G. STUCCHI: 8301-G2
FWHM:
21°
FWTM:
89°
Peak intensity:
2.430 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

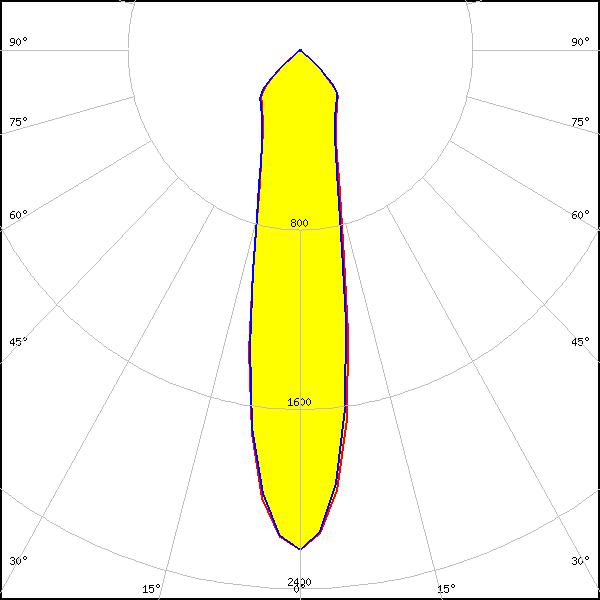

LED:
LUXEON CoB 1208
LES size: 15.0 mm
Required components:
A.A.G. STUCCHI: 8301-G2
FWHM:
23°
FWTM:
90°
Peak intensity:
2.230 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

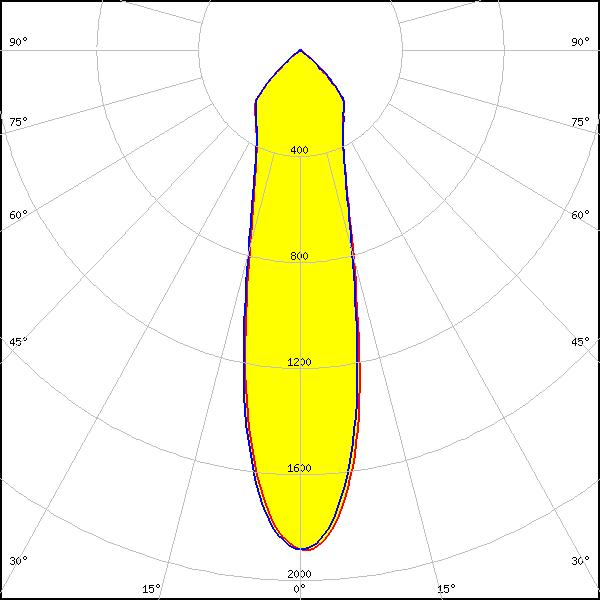

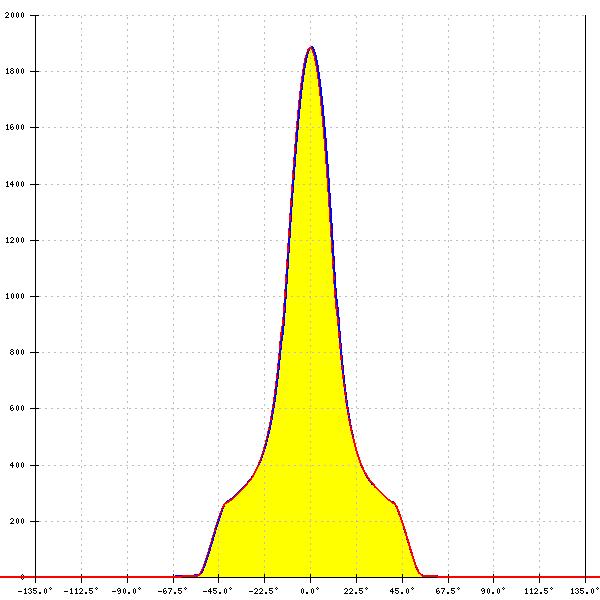

LED:

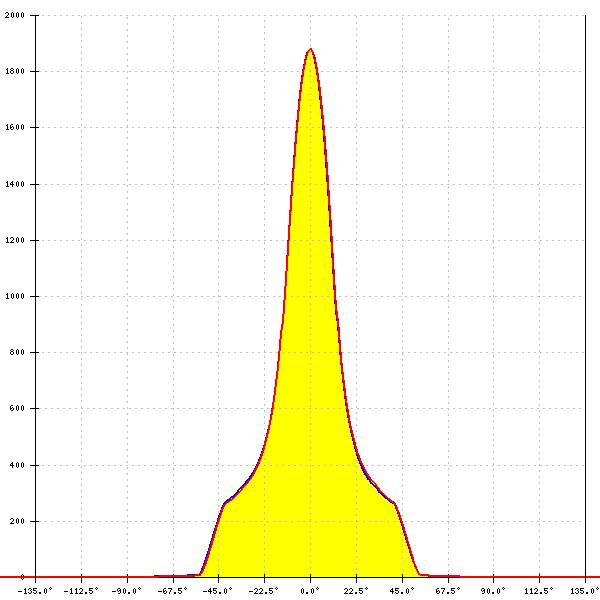

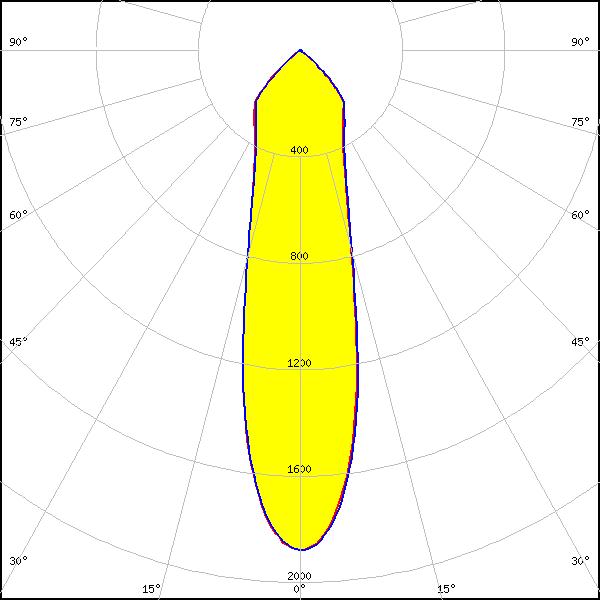

LUXEON CoB 1211
LES size: 18.5 mm
Required components:
BJB: 47.319.2030
FWHM:
26°
FWTM:
91°
Peak intensity:
1.900 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1211
LES size: 18.5 mm
Required components:
A.A.G. STUCCHI: 8102-G2
FWHM:
26°
FWTM:
91°
Peak intensity:
1.880 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

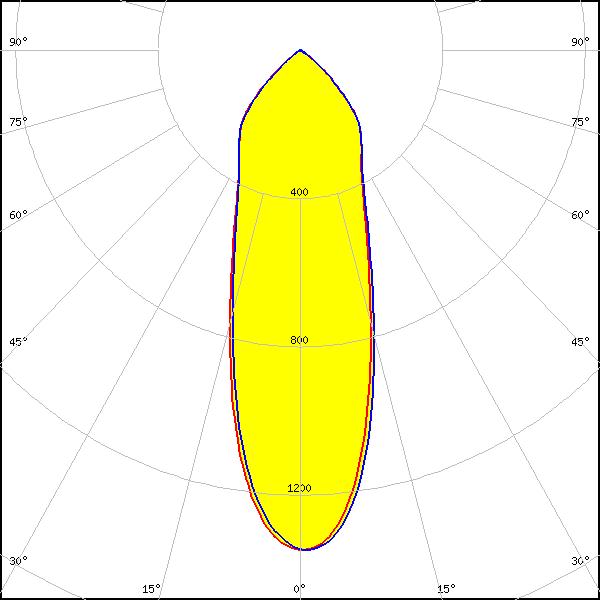

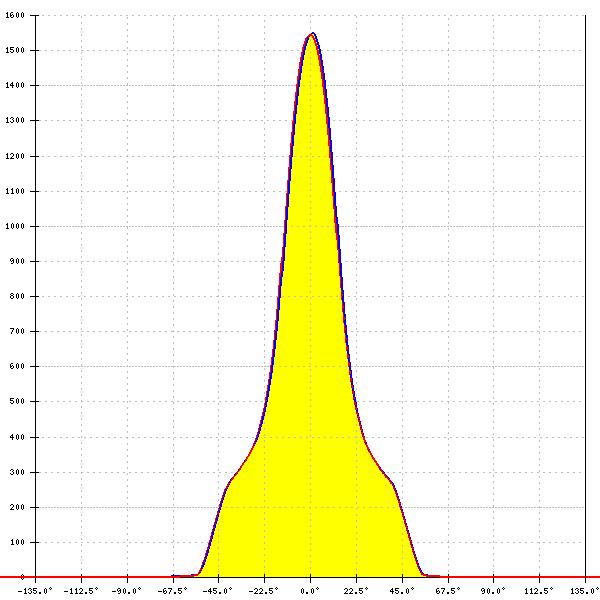

LED:

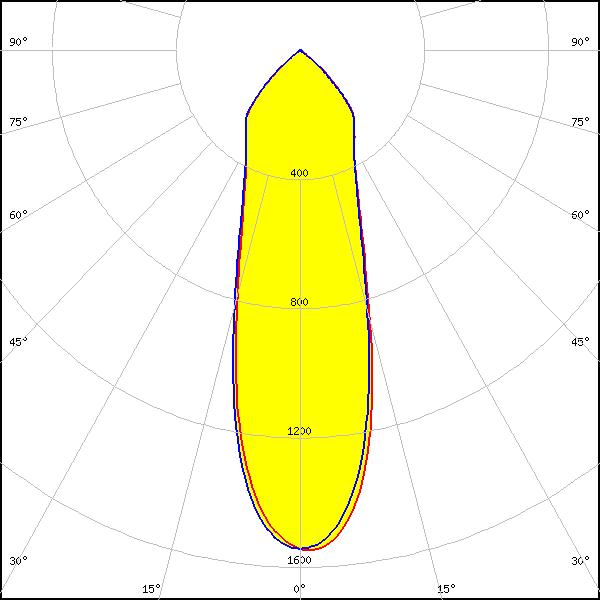

LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
BJB: 47.319.2030
FWHM:
32°
FWTM:
93°
Peak intensity:
1.550 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

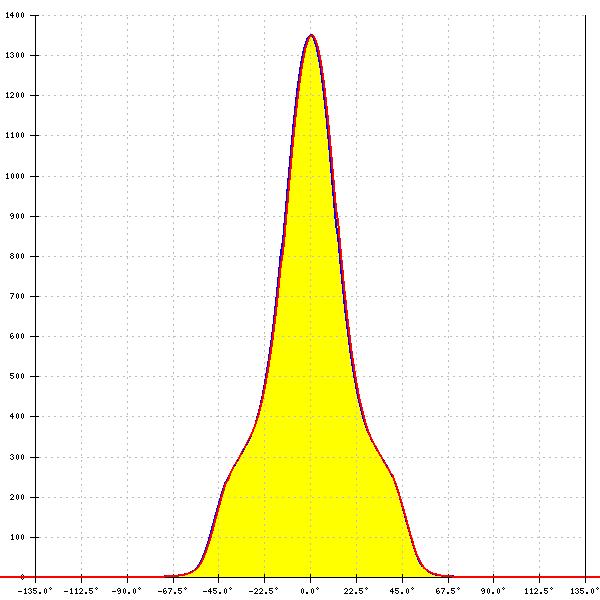

LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
FWHM:
34°
FWTM:
95°
Peak intensity:
1.350 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

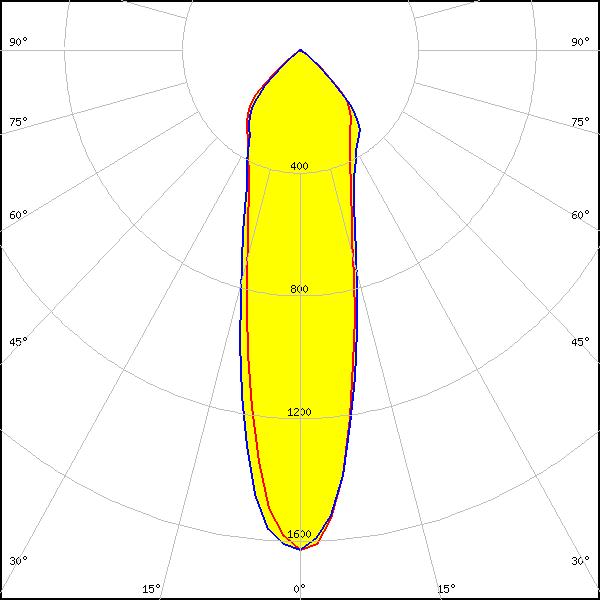

LED:
LUXEON K12
LES size: 13.5 mm
Required components:
BJB: 47.319.2070
FWHM:
15°
FWTM:
26°
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON K12
LES size: 13.5 mm
Required components:
FWHM:
27°
FWTM:
95°
Peak intensity:
1.600 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

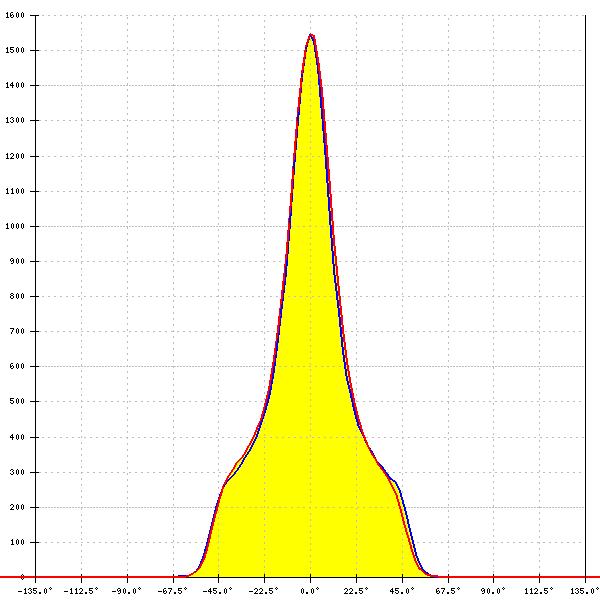

LED:

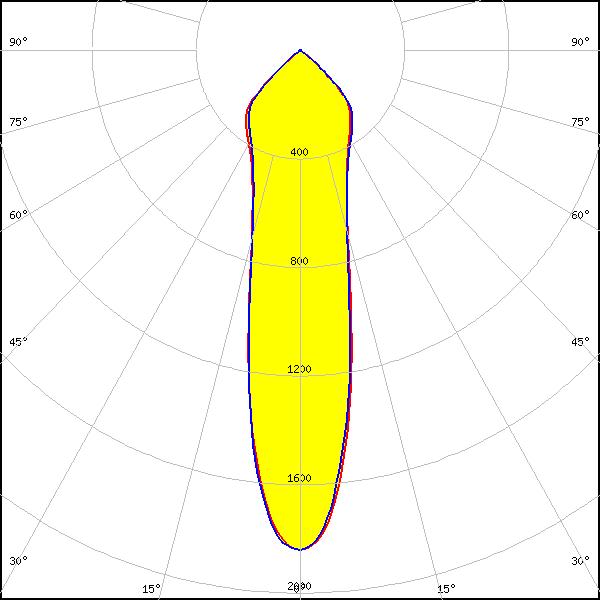

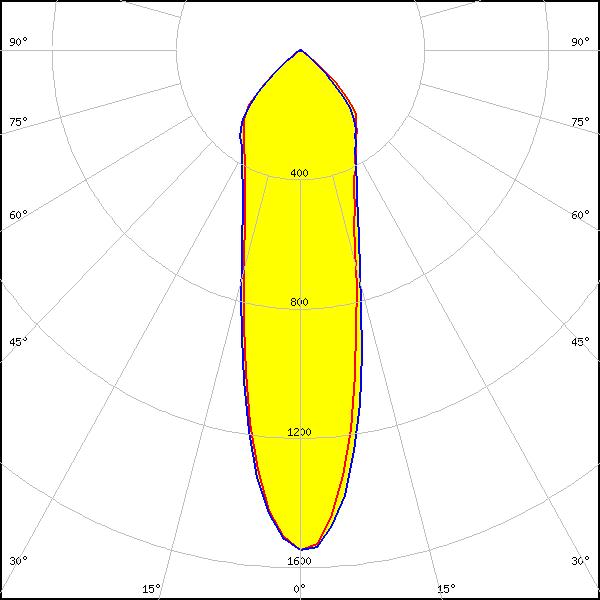

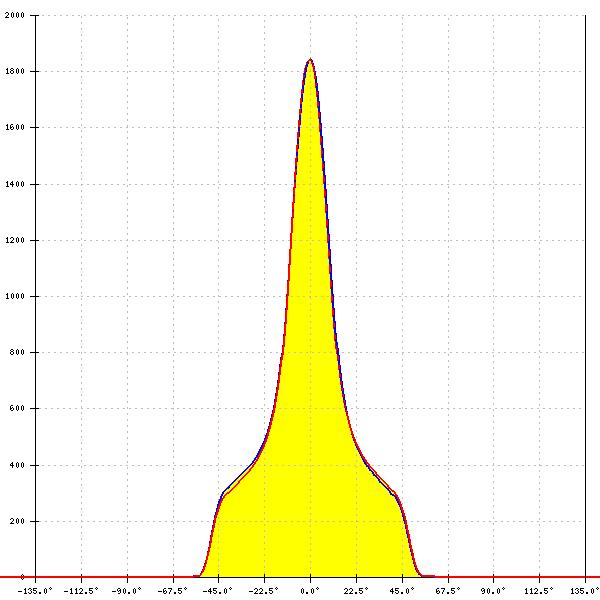

LUXEON K16
LES size: 17.0 mm
Required components:
BJB: 47.319.2070
FWHM:
24°
FWTM:
94°
Peak intensity:
1.800 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON K16
LES size: 17.0 mm
Required components:
FWHM:
29°
FWTM:
95°
Peak intensity:
1.500 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

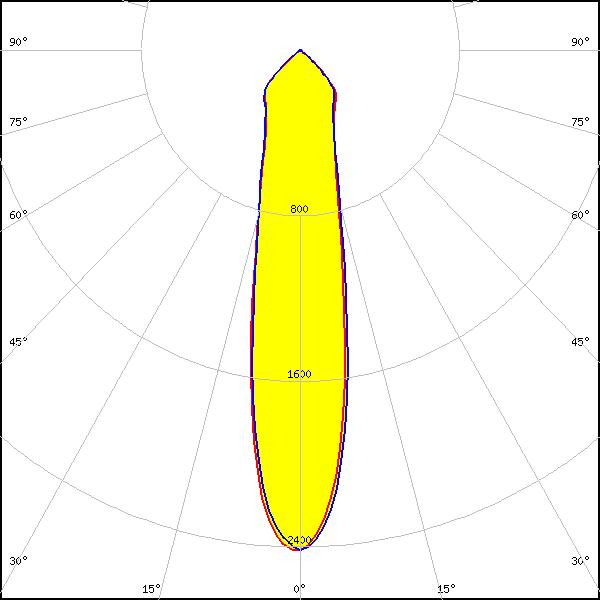

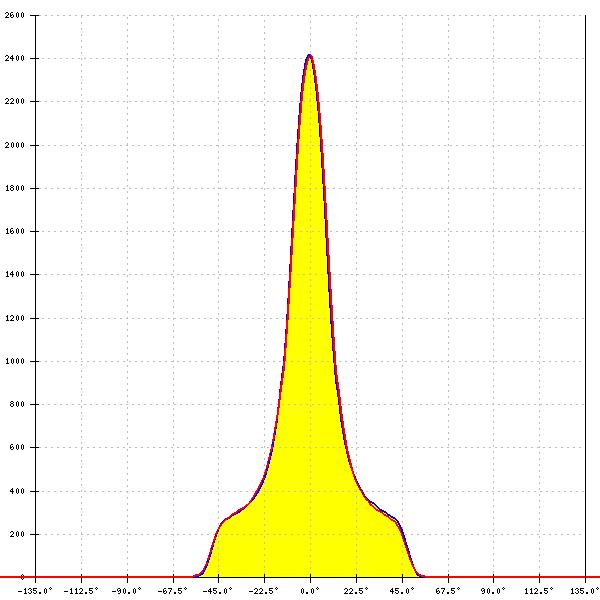

CxM-14 (19x19)
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
23°
FWTM:
87°
Peak intensity:
2.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

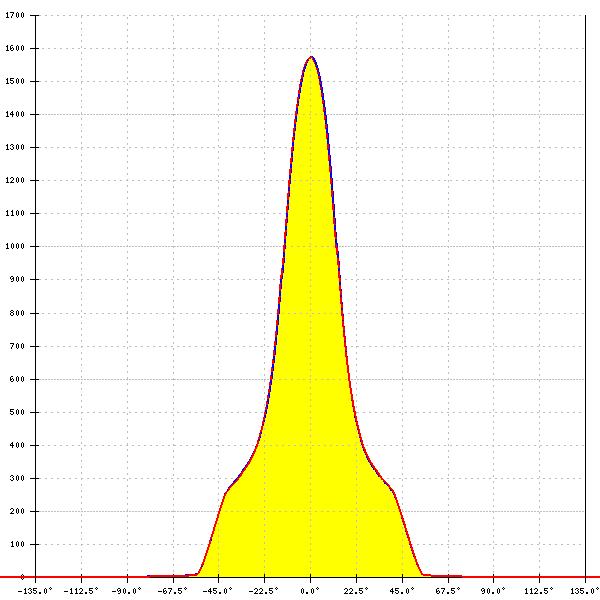

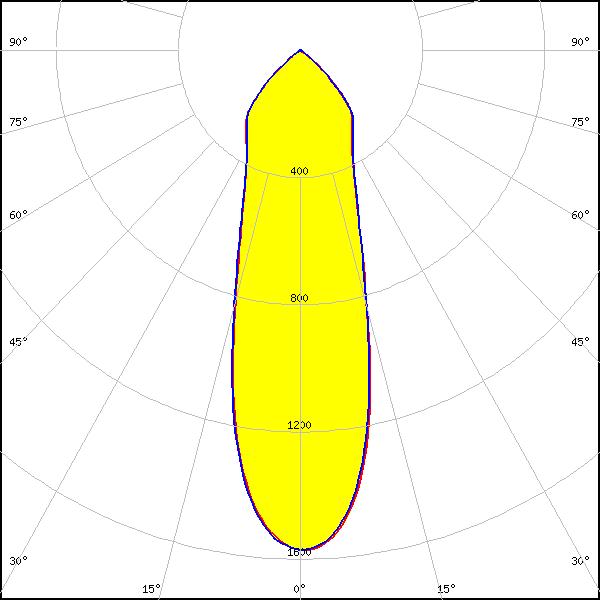

LED:
CxM-22 (28x28)
LES size: 22.0 mm
Required components:
BJB: 47.319.2030
FWHM:
32°
FWTM:
93°
Peak intensity:
1.600 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

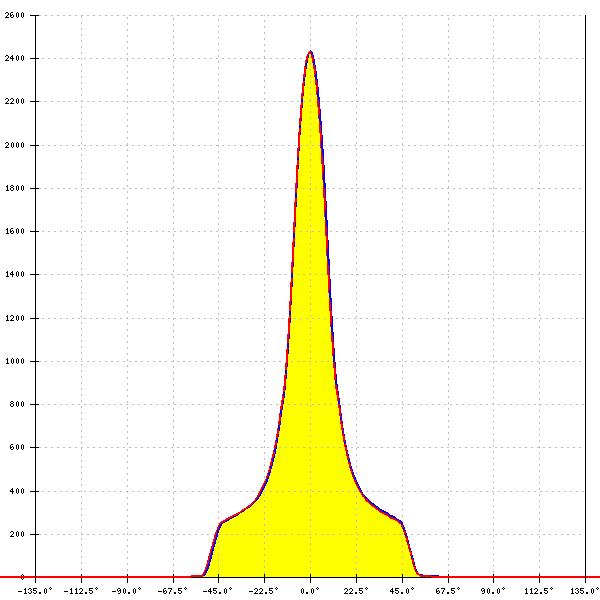

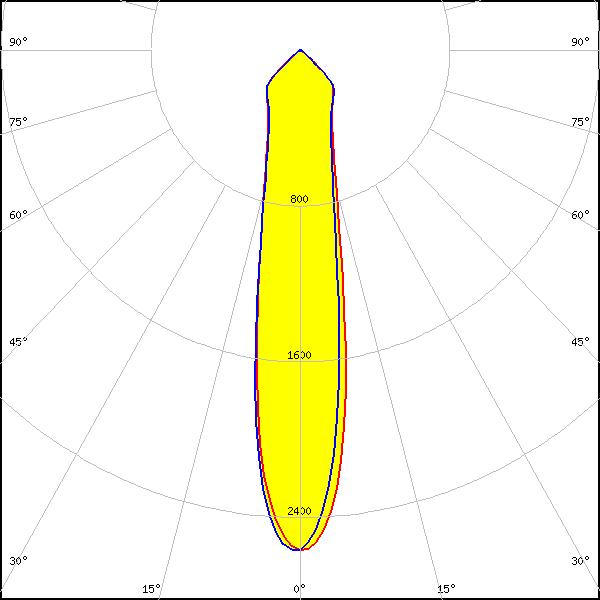

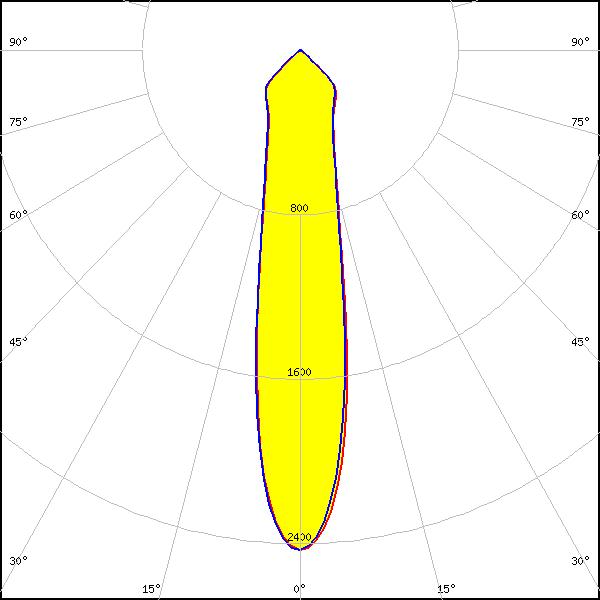

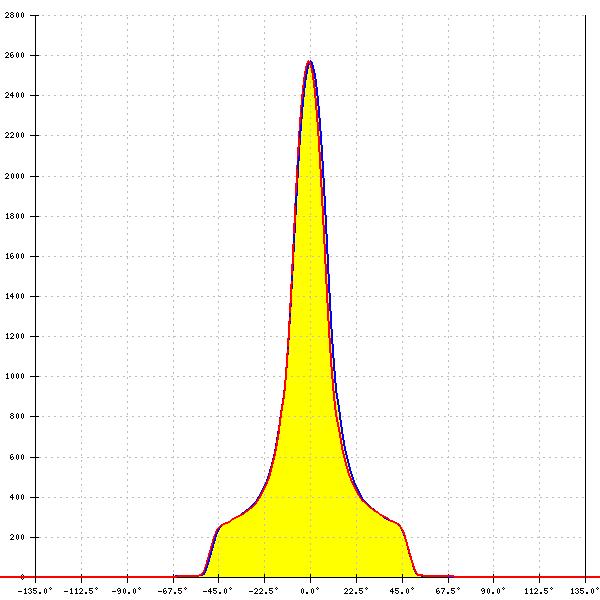

Soleriq S13
LES size: 13.2 mm
Required components:
A.A.G. STUCCHI: 8502-G2
FWHM:
20°
FWTM:
87°
Peak intensity:
2.580 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S13 19x19
LES size: 13.0 mm
Required components:
BJB: 47.319.2021
FWHM:
20°
FWTM:
89°
Peak intensity:
2.400 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

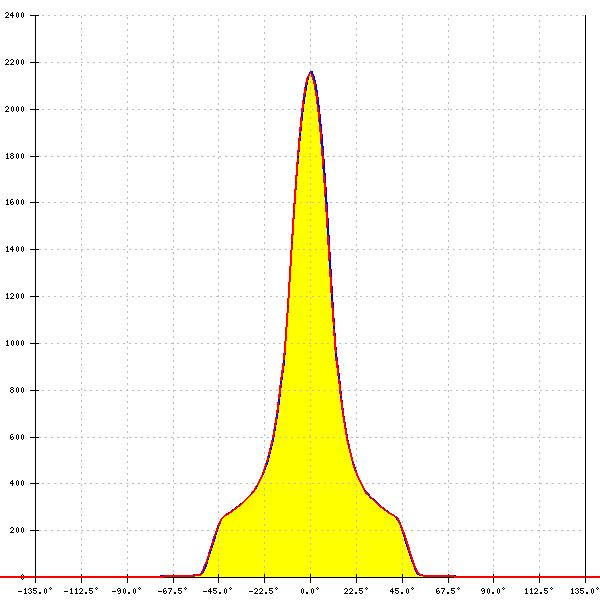

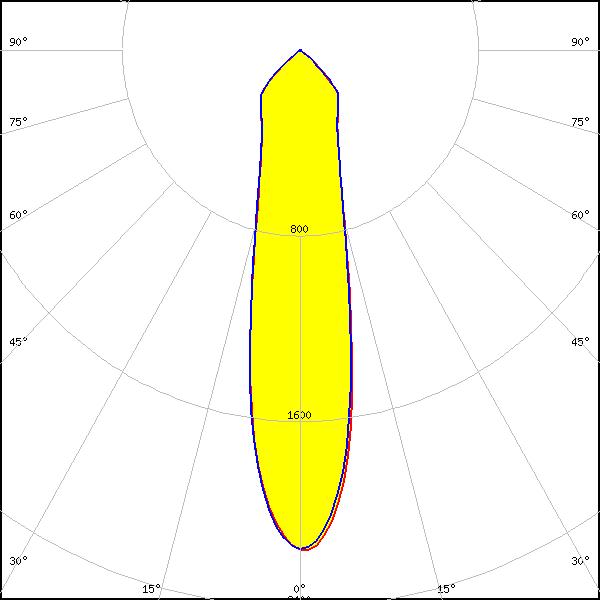

LED:

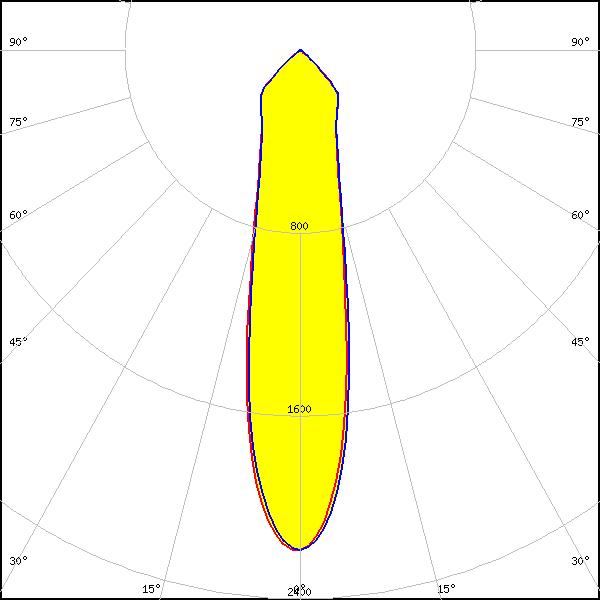

Soleriq S19
LES size: 17.9 mm
Required components:
A.A.G. STUCCHI: 8503-G2
FWHM:
23°
FWTM:
89°
Peak intensity:
2.200 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S19
LES size: 17.9 mm
Required components:
BJB: 47.319.2170
FWHM:
23°
FWTM:
90°
Peak intensity:
2.160 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

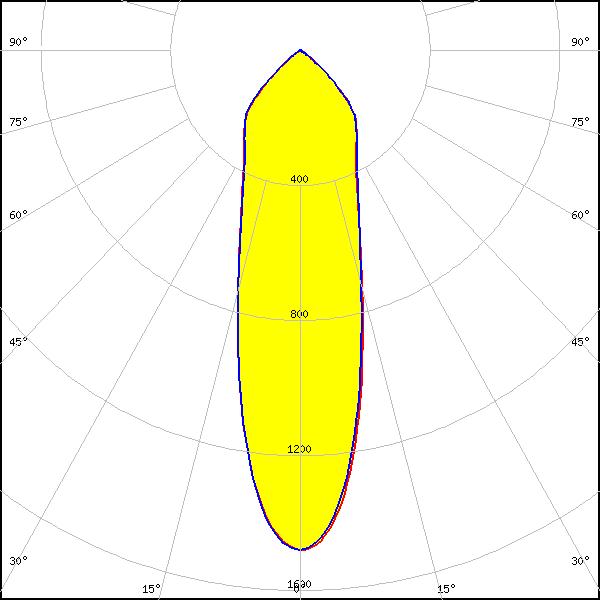

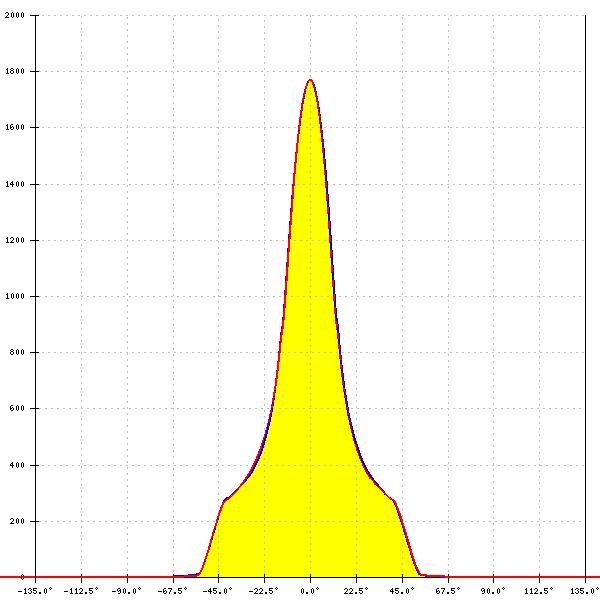

LED:

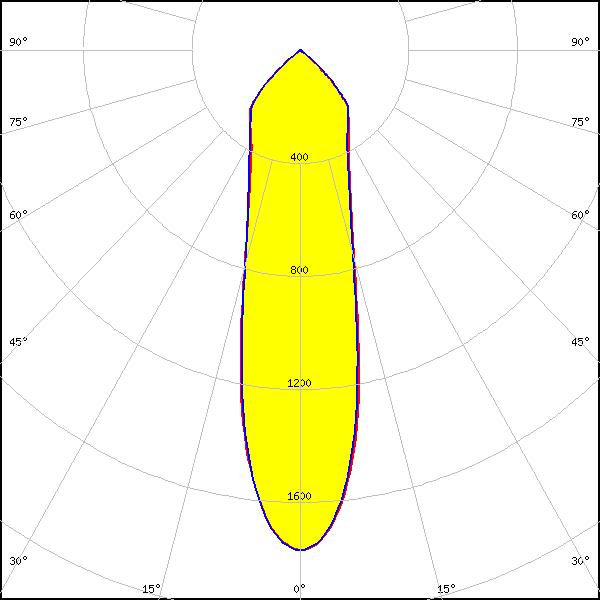

Fortimo SLM L19 CoB
LES size: 19.0 mm
Required components:
BJB: 47.319.2030
FWHM:
27°
FWTM:
92°
Peak intensity:
1.800 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L19 CoB
LES size: 19.0 mm
Required components:
FWHM:
30°
FWTM:
94°
Peak intensity:
1.500 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

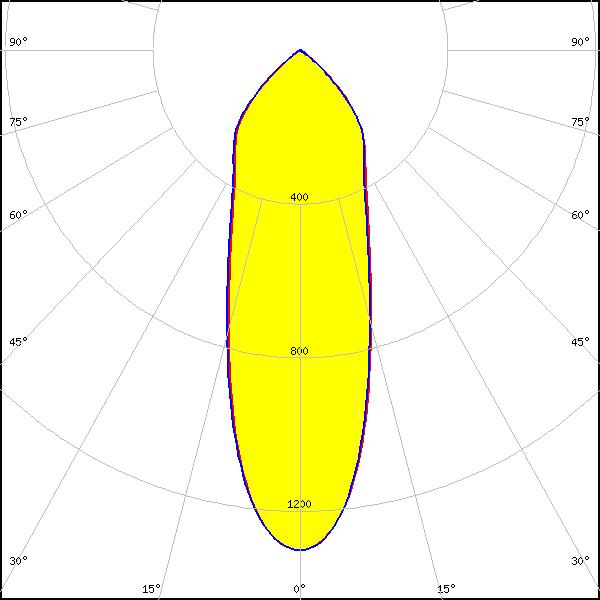

Fortimo SLM L23 CoB
LES size: 23.0 mm
Required components:
FWHM:
34°
FWTM:
95°
Peak intensity:
1.300 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

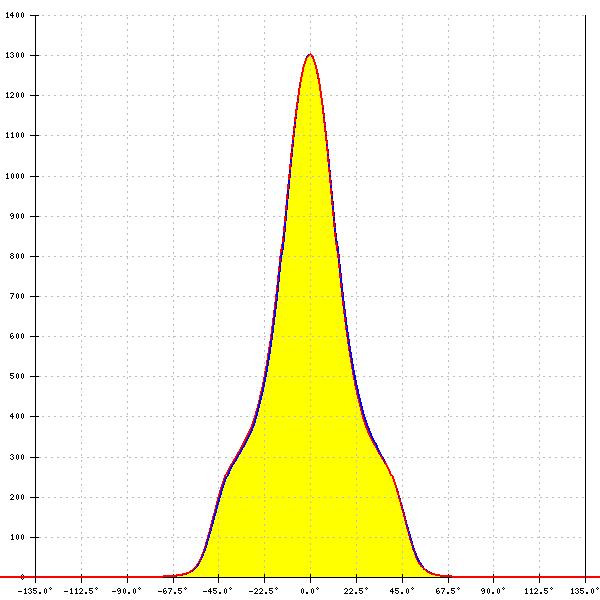

LED:

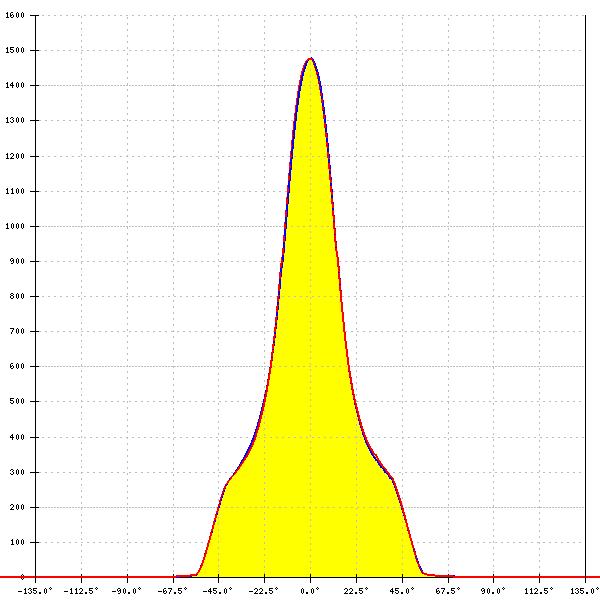

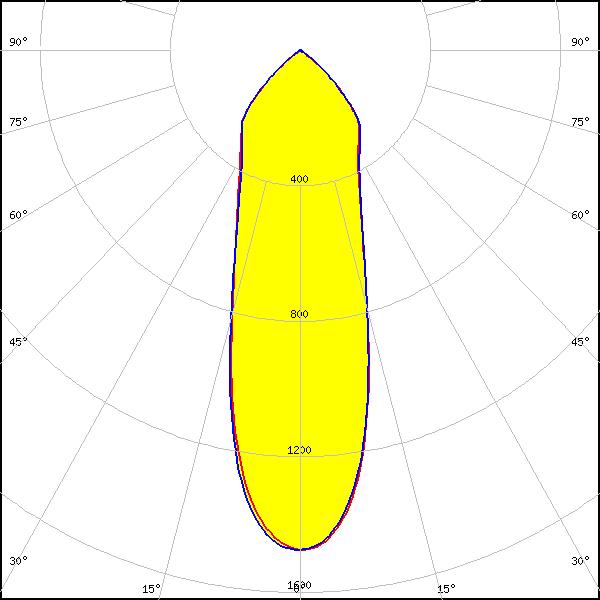

Fortimo SLM L23 CoB
LES size: 23.0 mm
Required components:
BJB: 47.319.2030
FWHM:
32°
FWTM:
95°
Peak intensity:
1.500 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

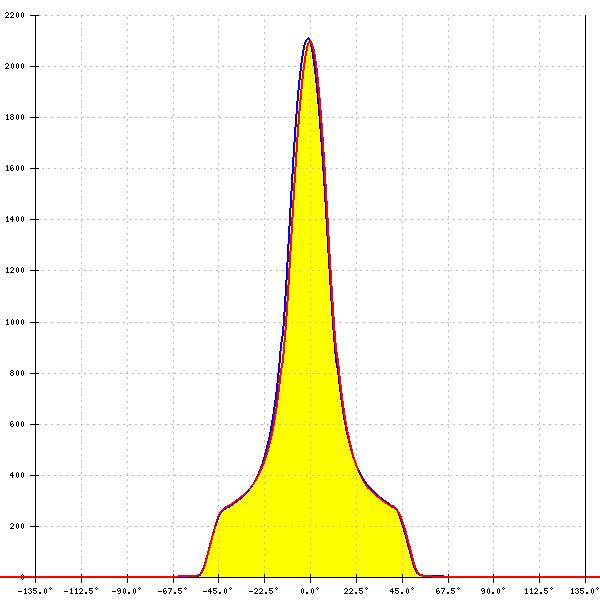

LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
A.A.G. STUCCHI: 8101-G2
FWHM:
24°
FWTM:
91°
Peak intensity:
2.110 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

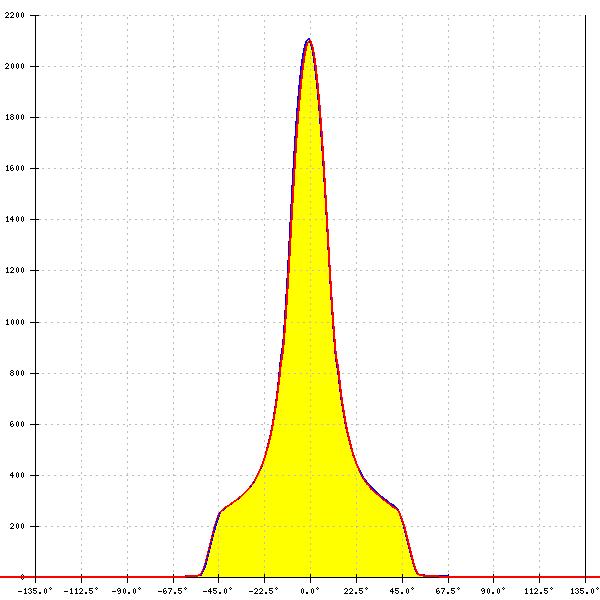

LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
24°
FWTM:
91°
Peak intensity:
2.110 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

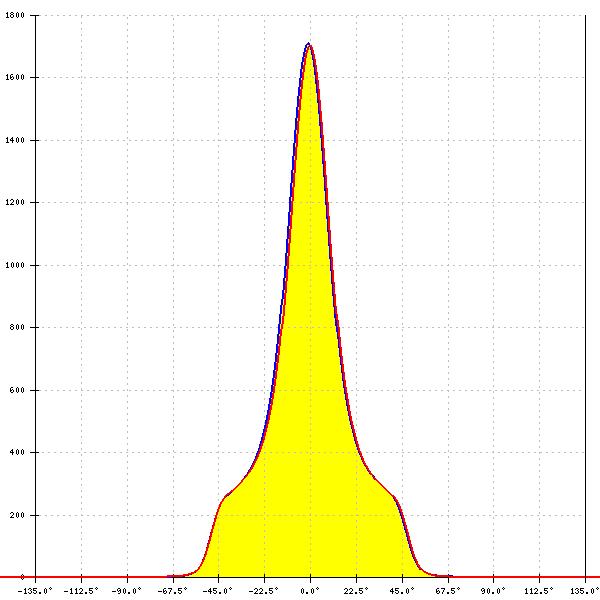

LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM:
27°
FWTM:
93°
Peak intensity:
1.710 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM:
27°
FWTM:
93°
Peak intensity:
1.710 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC040D / LC060D / LC080D
LES size: 22.0 mm
Required components:
BJB: 47.319.2030
FWHM:
27°
FWTM:
85°
Peak intensity:
2.150 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

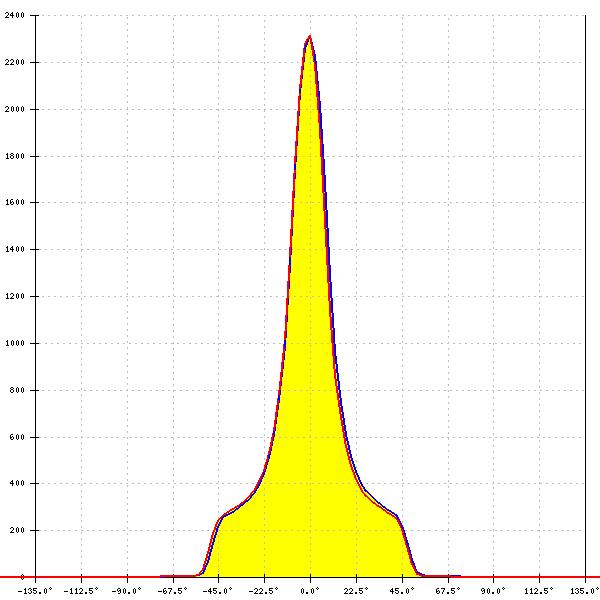

LED:

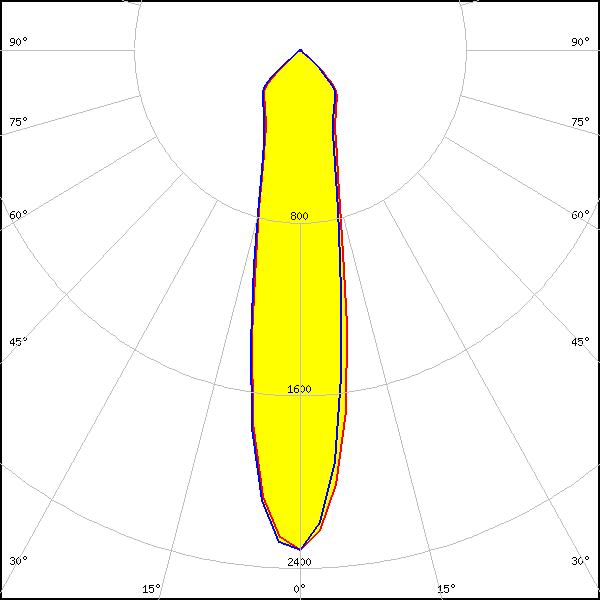

ZC12/18
LES size: 14.6 mm
Required components:
A.A.G. STUCCHI: 8101-G2
FWHM:
22°
FWTM:
89°
Peak intensity:
2.330 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

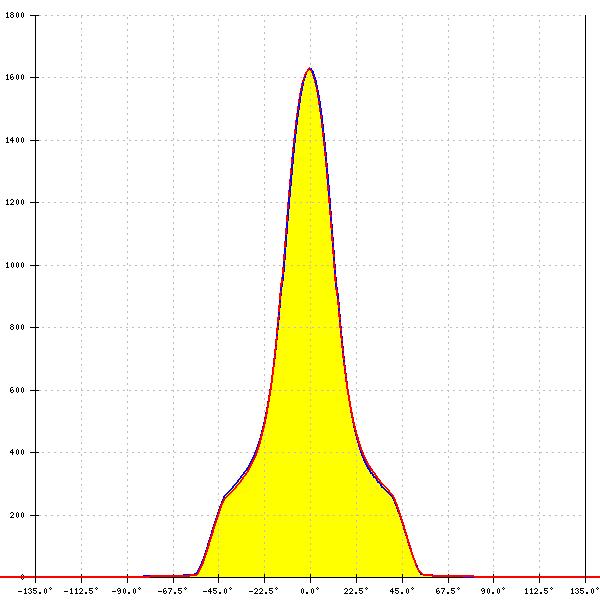

LED:

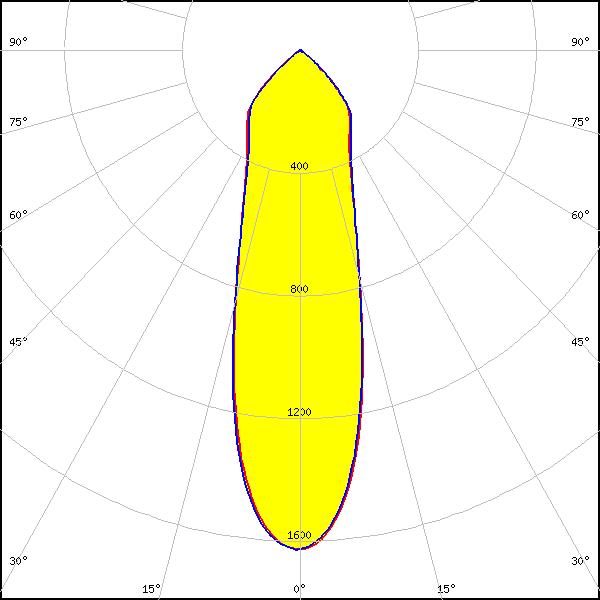

ZC25/40/60
LES size: 22.6 mm
Required components:
A.A.G. STUCCHI: 8102-G2
FWHM:
30°
FWTM:
93°
Peak intensity:
1.630 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Mega Zenigata (GW5DGC)
LES size: 16.0 mm
Required components:
BJB: 47.319.2011
LEDs/each optic:
1
Light colour/type:
White
LED:

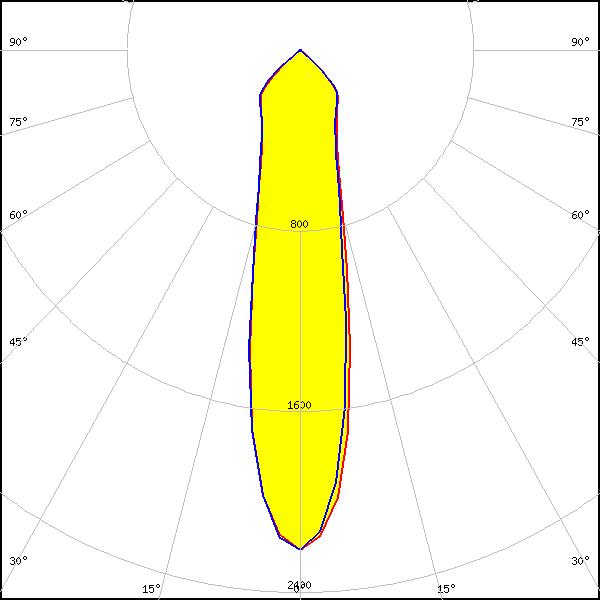

Mega Zenigata (GW6DME)
LES size: 16.0 mm
Required components:
BJB: 47.319.2011
LEDs/each optic:
1
Light colour/type:
White
LED:

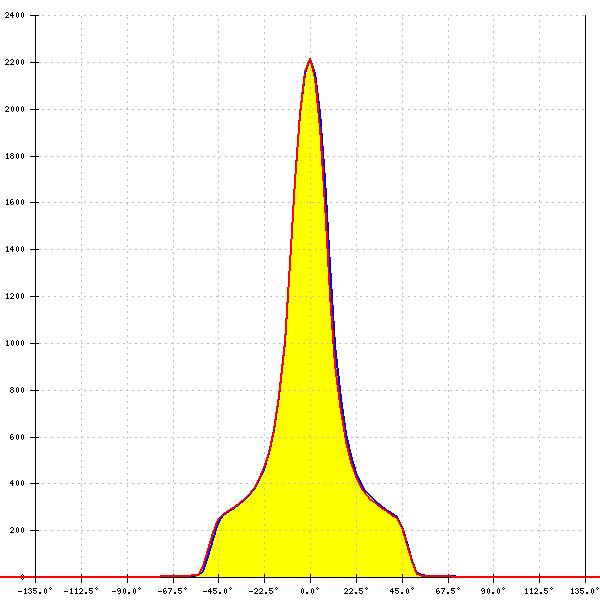

Mega Zenigata (GW6DME)
LES size: 16.0 mm
Required components:
A.A.G. STUCCHI: 8301-G2
FWHM:
23°
FWTM:
90°
Peak intensity:
2.210 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

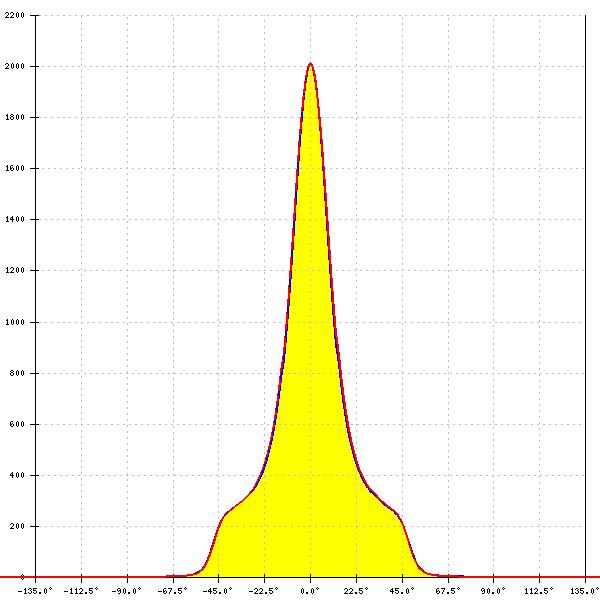

LED:
Tiger Zenigata (GWTGCBG4FD)
LES size: 15.5 mm
Required components:
FWHM:
23°
FWTM:
90°
Peak intensity:
2.000 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

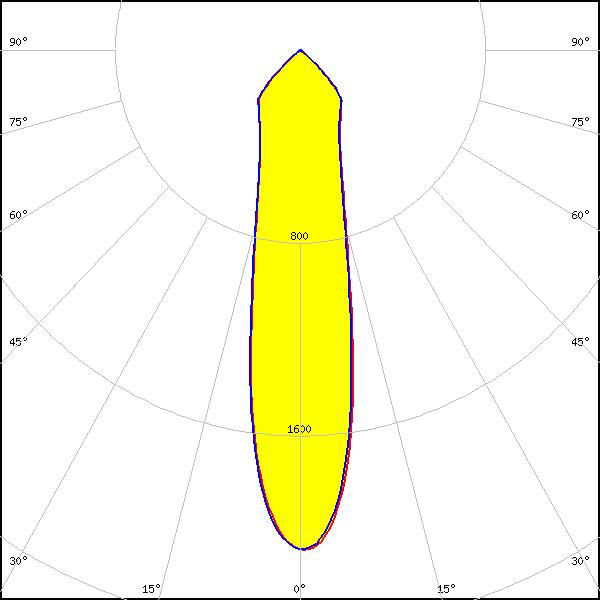

LED:
SLE G7 LES17 H
FWHM:
24°
FWTM:
89°
Peak intensity:
2.100 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

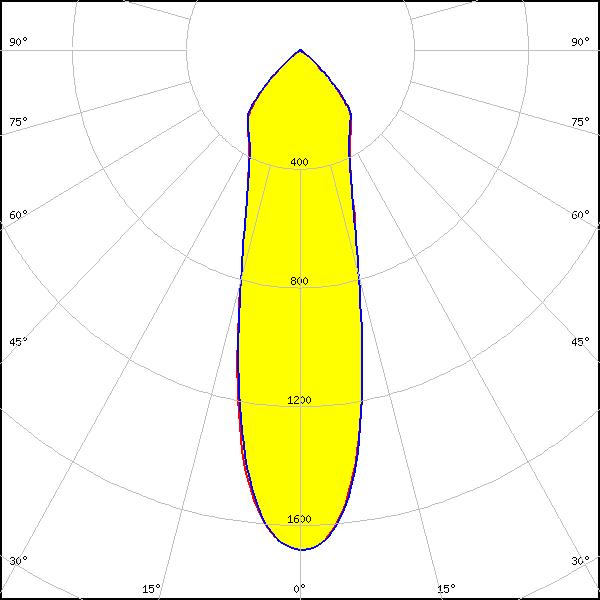

LED:
SLE G7 LES21 H
FWHM:
29°
FWTM:
91°
Peak intensity:
1.700 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

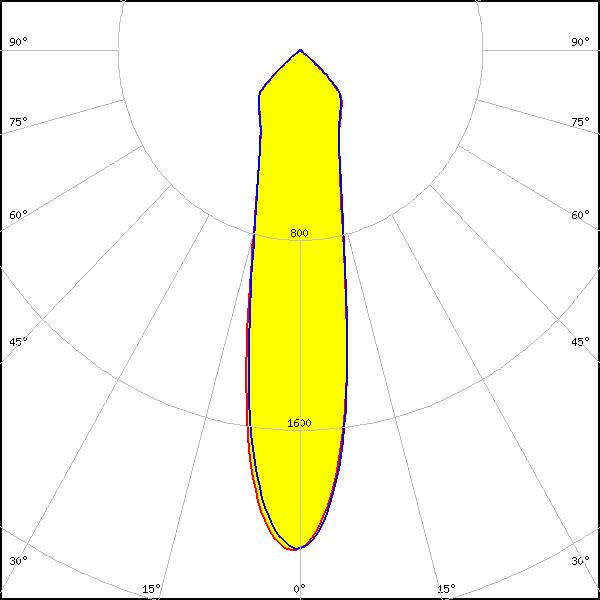

LED:
XOB 14.5 mm
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
23°
FWTM:
92°
Peak intensity:
2.106 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

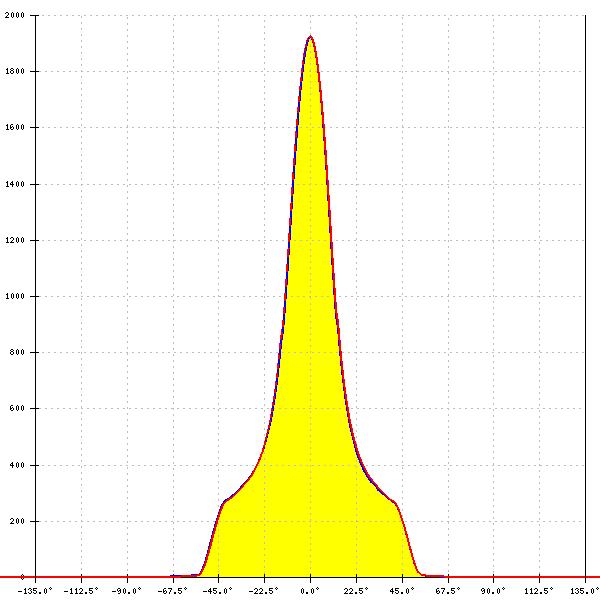

LED:
XTM - 19mm LES
LES size: 19.0 mm
Required components:
FWHM:
25°
FWTM:
91°
Peak intensity:
1.900 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
