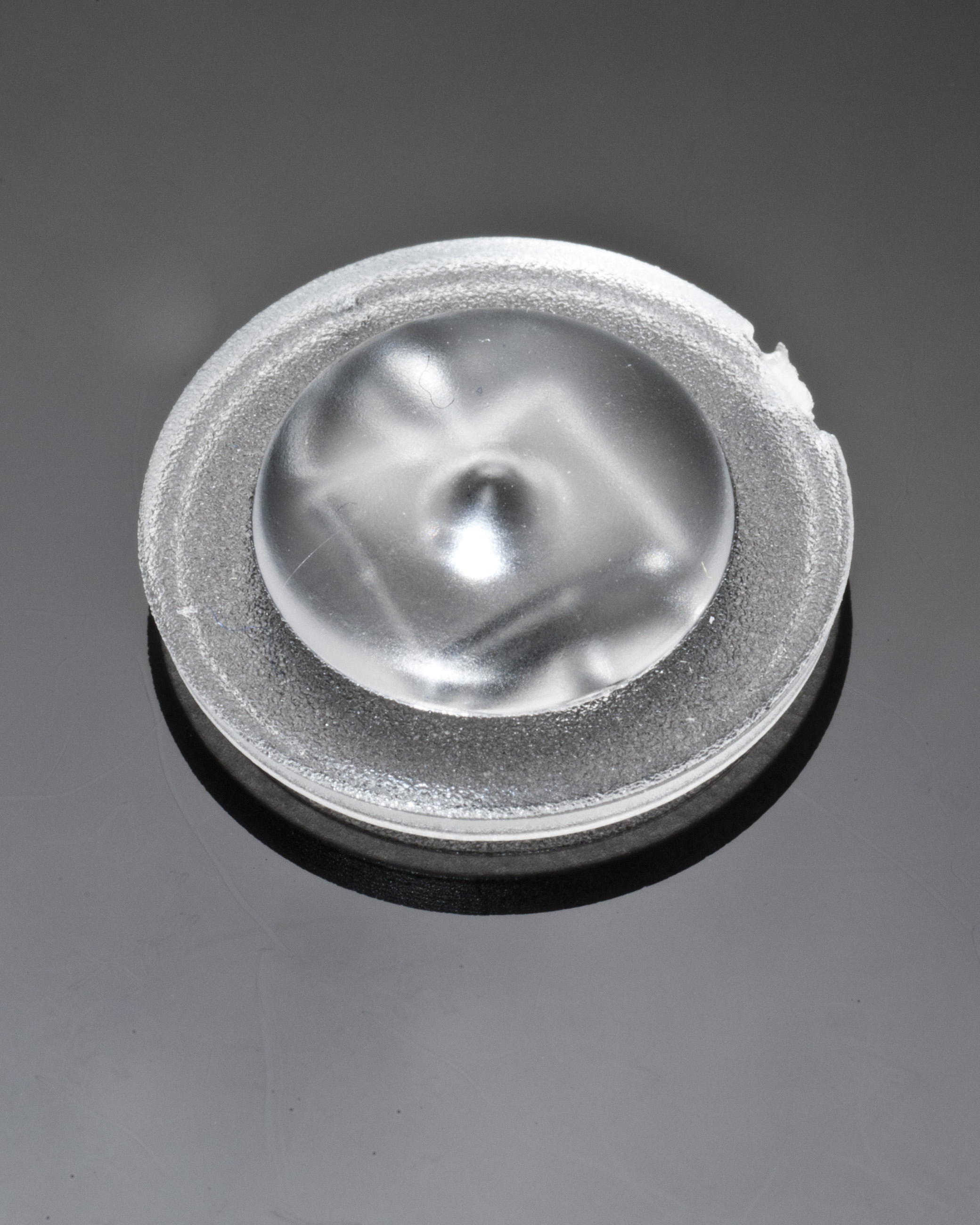

    F11947_JULIA-A

    Print

    ~90° + 160° wide beam

    Specification
    • Dimensions:
      19 mm
    • Height:
      4.66 mm
    • Fastening:
      glue, pin
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      4500 pcs
    • Box size:
      470 x 235 x 270 mm
    • Box weight:
      7.9 kg
    • MPQ:
      500 pcs
    • MOQ:
      1000 pcs
    • MOQ size:
      480 x 280 x 80 mm
    • MOQ weight:
      2.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      F11947_JULIA-A
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR126.b - Change of packaging quantities 190916

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    News

    PRODUCT NEWS - JULIA-A

    Application guide

    Backlighting with JULIA-A

    Application area

    Architectural Outdoor Lighting

    Application area

    Special Indoor Applications

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

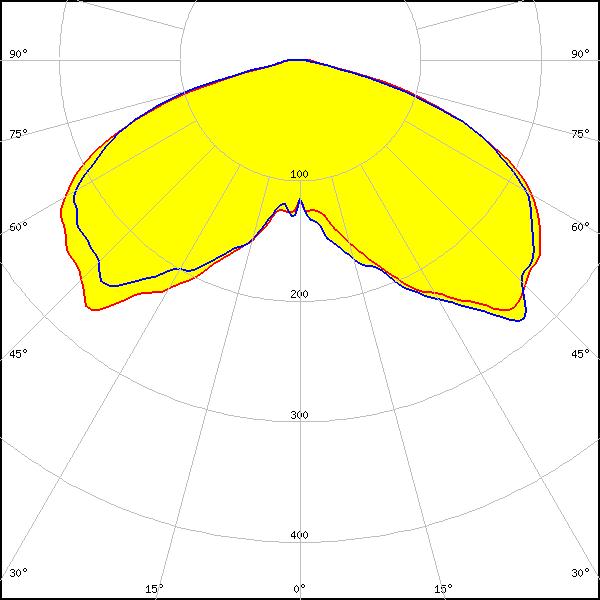

    Optical results

    LED: XP-E
    FWHM: 164°
    FWTM: -
    Peak intensity: 0.240 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G
    FWHM: 166°
    FWTM: -
    Peak intensity: 0.210 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Rebel
    FWHM: 154°
    FWTM: -
    Peak intensity: 0.260 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

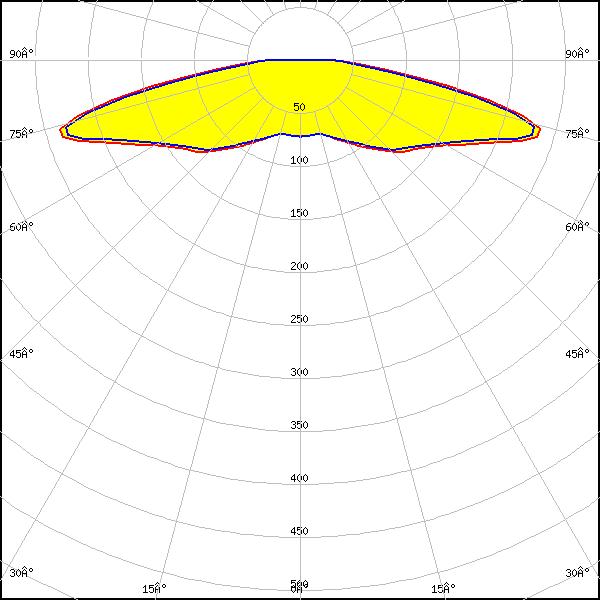

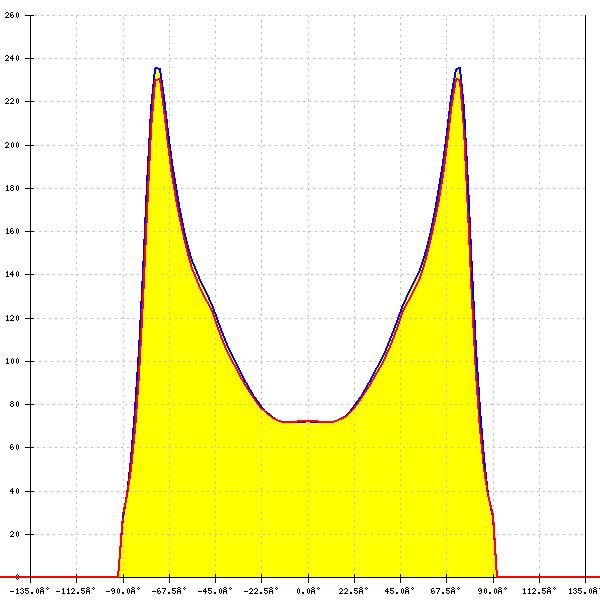

    LED: LUXEON Rebel ES
    FWHM: 163°
    FWTM: -
    Peak intensity: 0.240 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NCSxx19A
    FWHM: 156°
    FWTM: -
    Peak intensity: 0.240 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

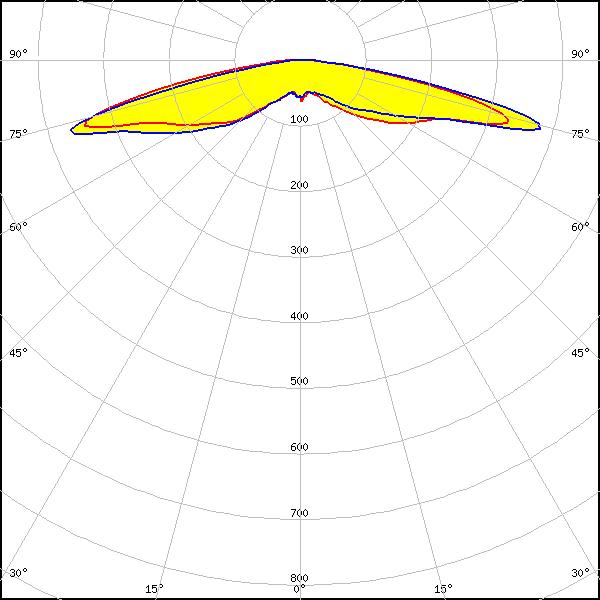

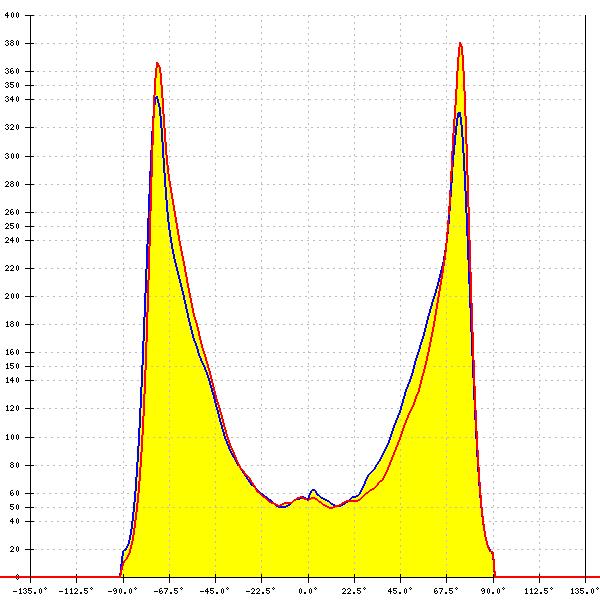

    LED: NF2W757G-MT (Tunable White)
    FWHM: 158° + 160°
    FWTM: 170° + 172°
    Peak intensity: 0.383 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: NVSxx19A
    FWHM: 159°
    FWTM: -
    Peak intensity: 0.240 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: DURIS S5 (2 chip)
    FWHM: 140°
    FWTM: 157°
    Peak intensity: 0.290 cd/lm
    Efficiency: 99 %
    LEDs/each optic: 1
    Light colour/type: White

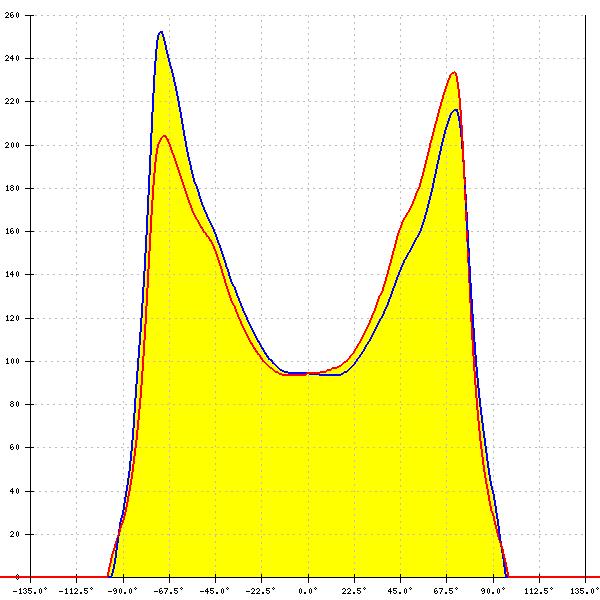

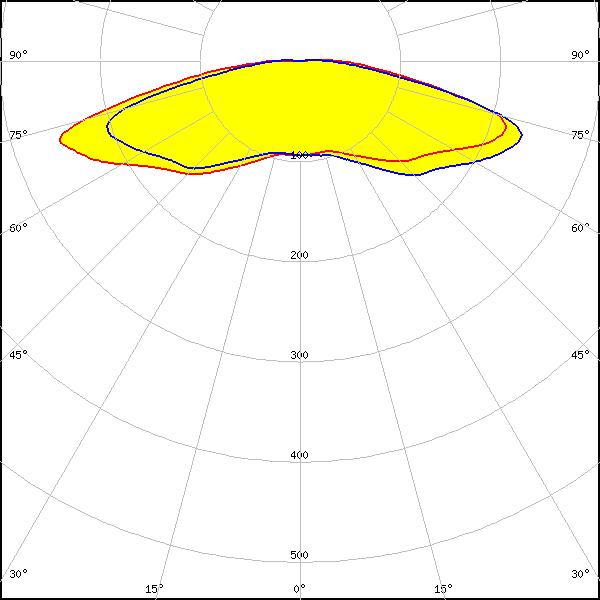

    LED: OSLON Square PC
    FWHM: 165°
    FWTM: 185°
    Peak intensity: 0.250 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON SSL 150
    FWHM: 159°
    FWTM: -
    Peak intensity: 0.300 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON SSL 80
    FWHM: 158°
    FWTM: -
    Peak intensity: 0.200 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5
    FWHM: 160°
    FWTM: -
    Peak intensity: 0.270 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
