CS19838_CORAL-IP-OW
Print

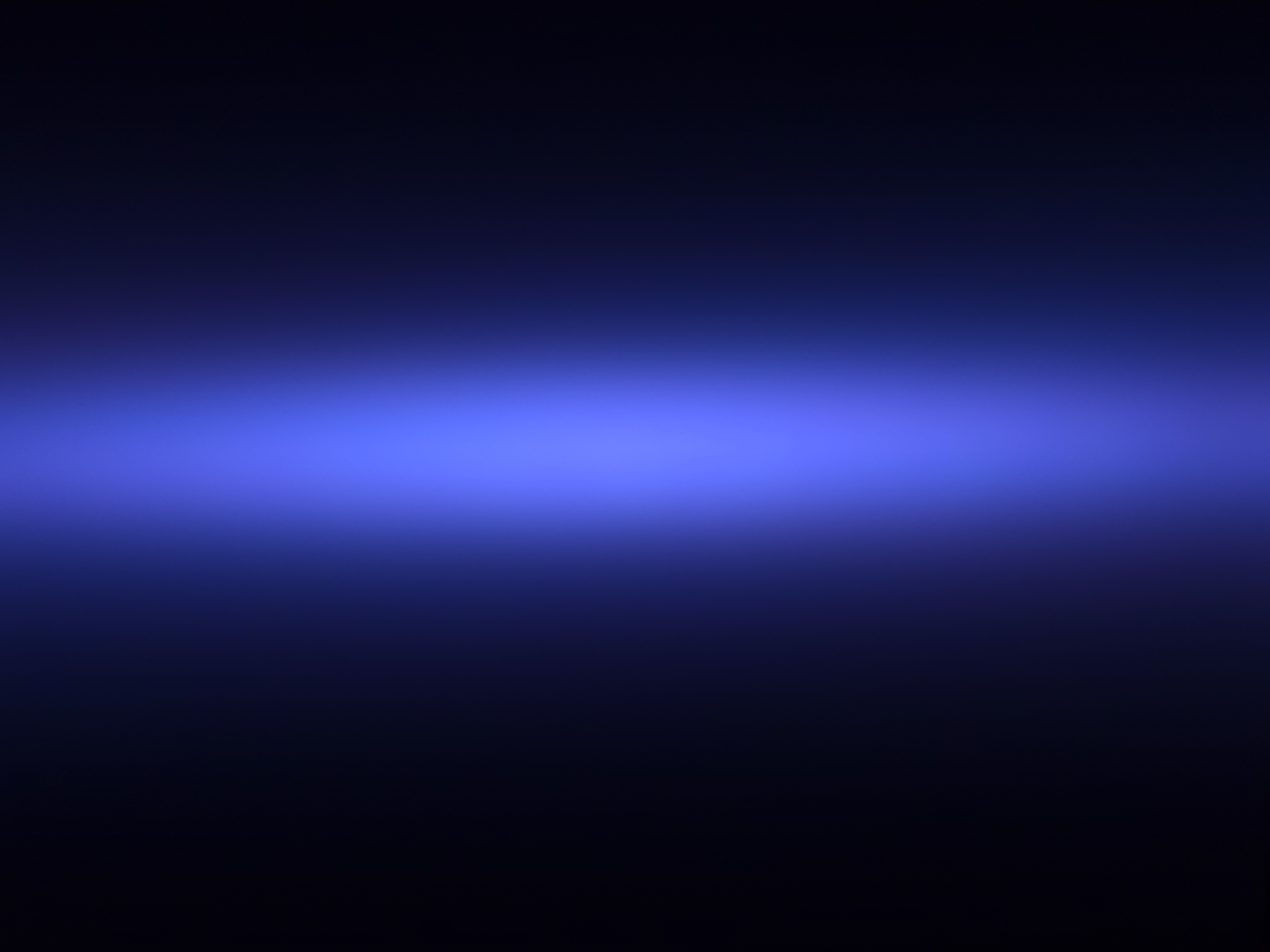

115 + 6° oval beam
Component Materials
- CORAL-IP-OWSingle lensPC-ABS
- CORAL-IP-OW-SEALSealSilicone
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

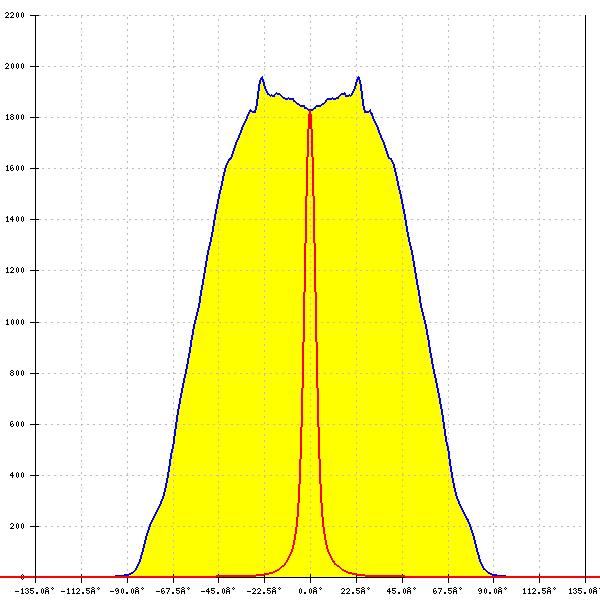

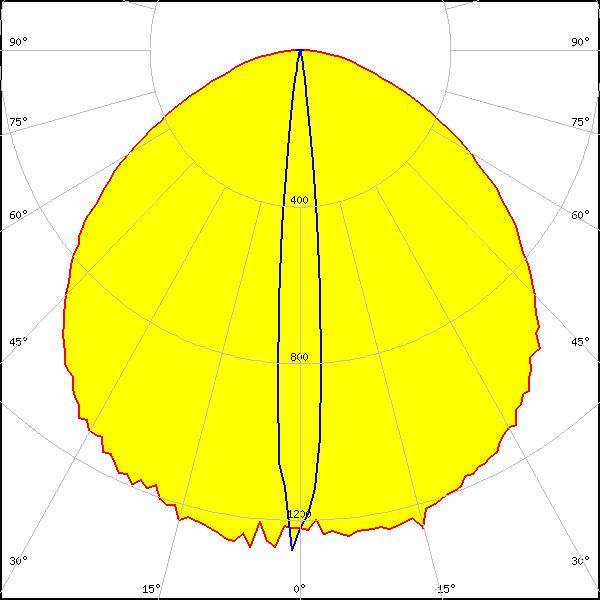

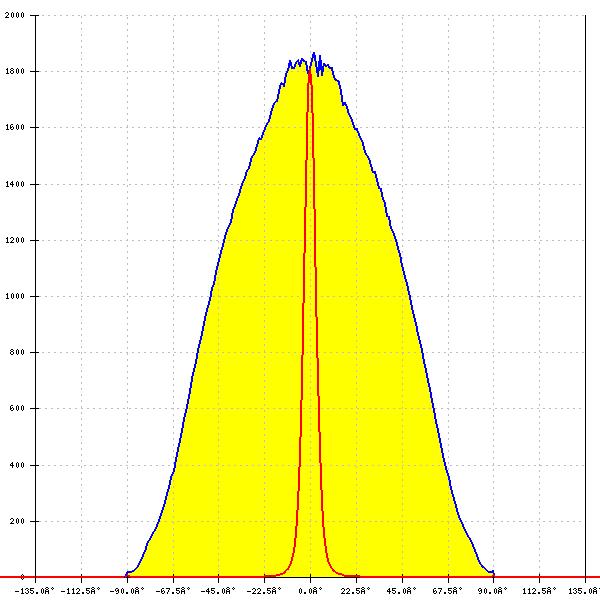

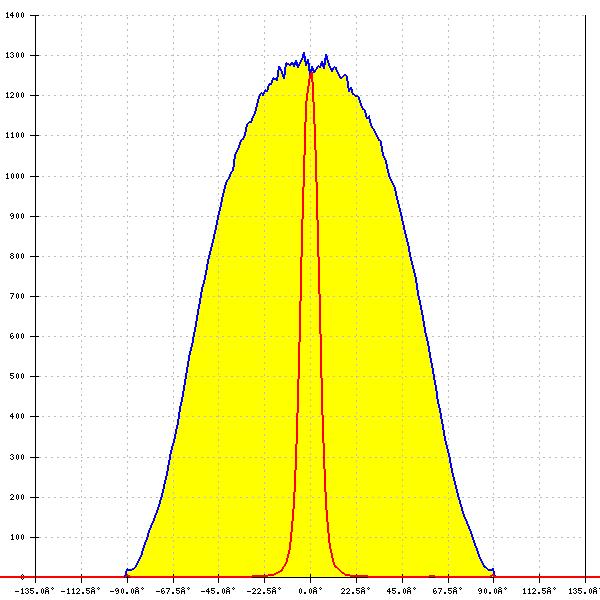

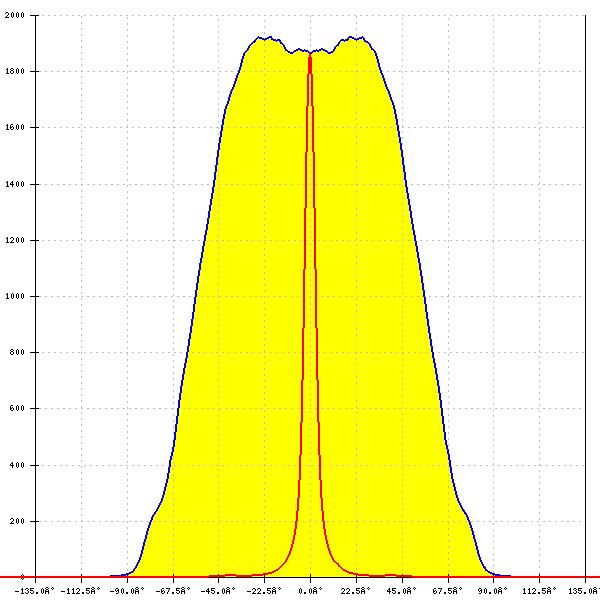

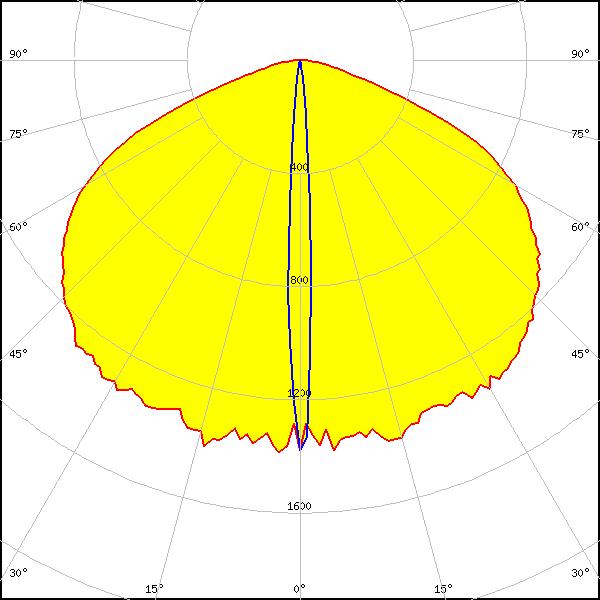

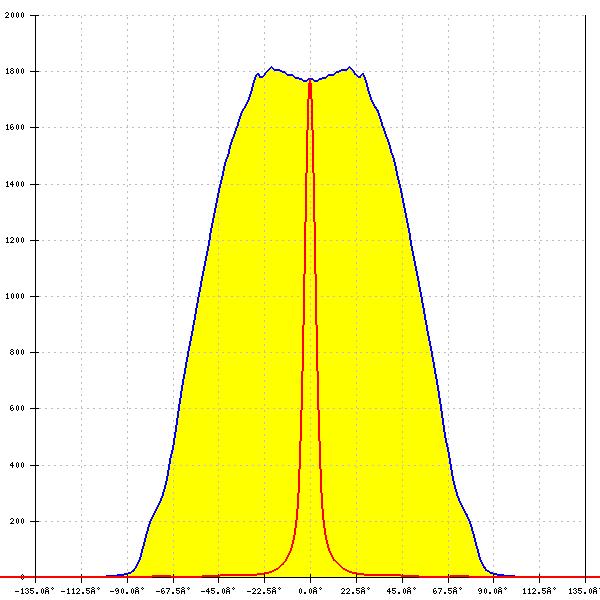

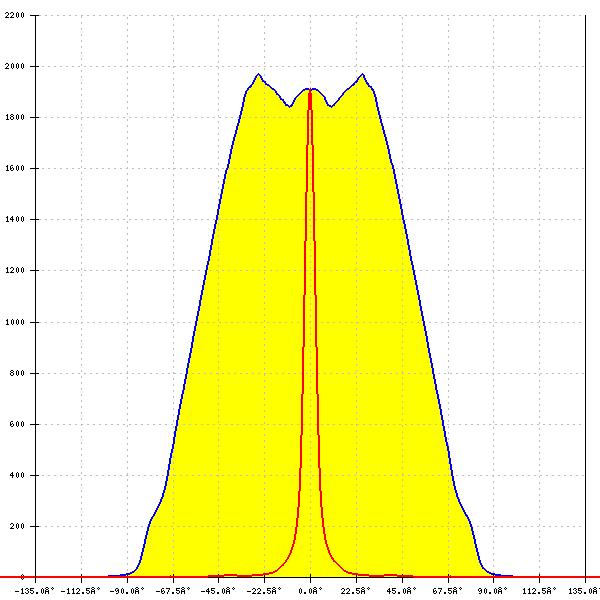

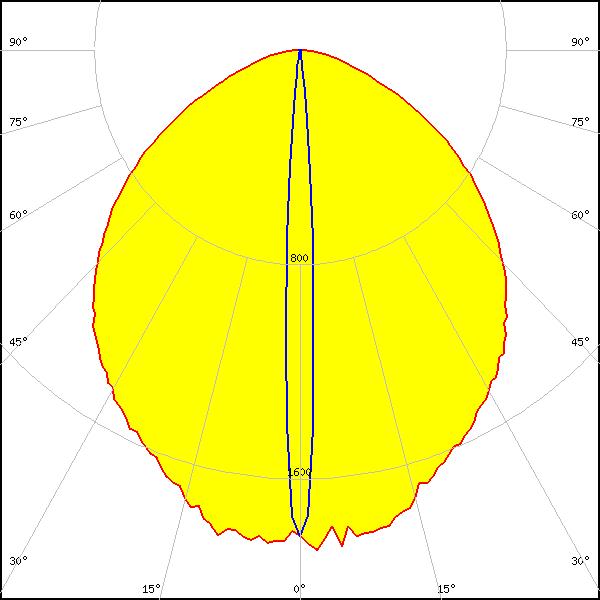

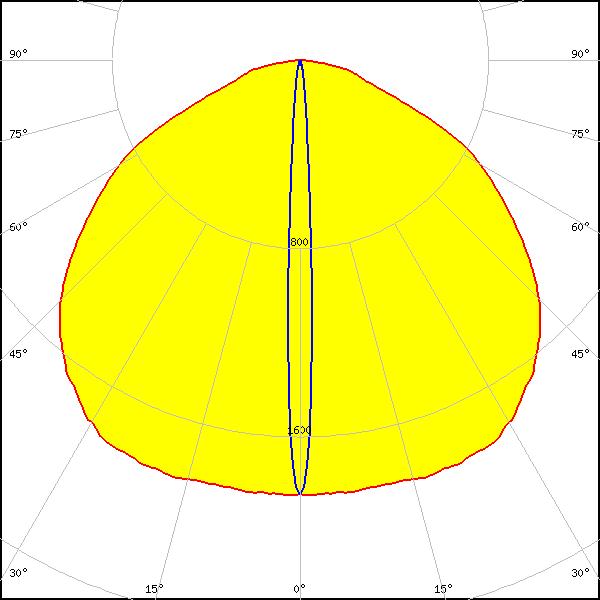

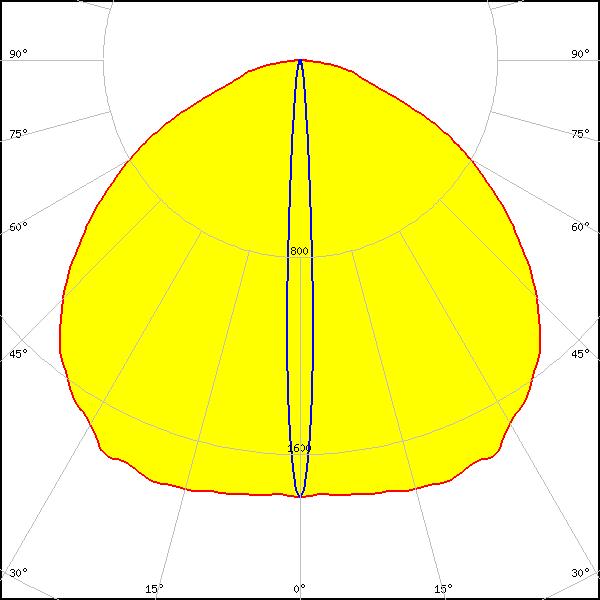

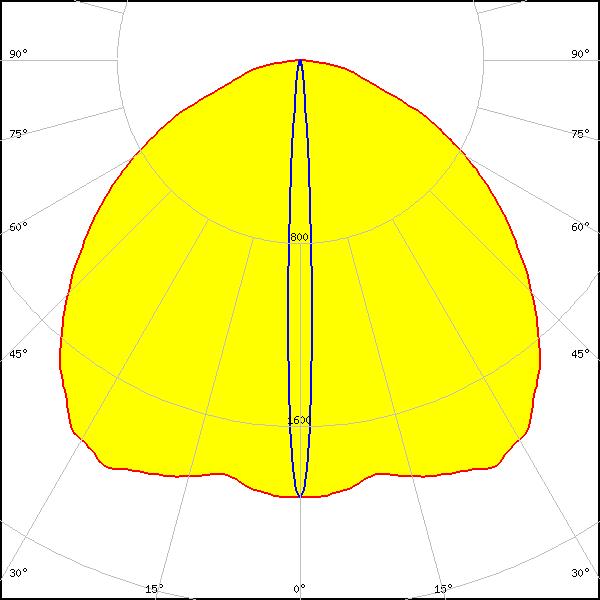

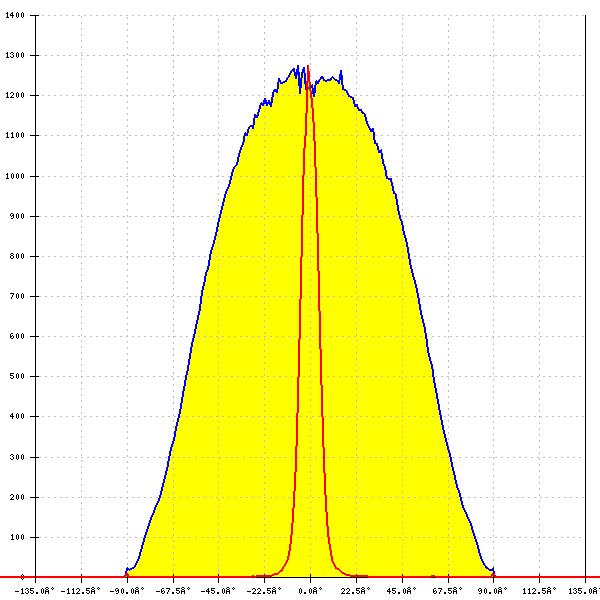

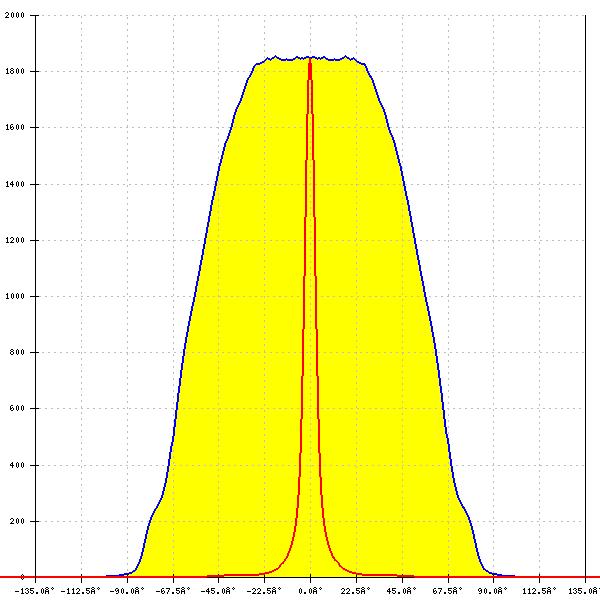

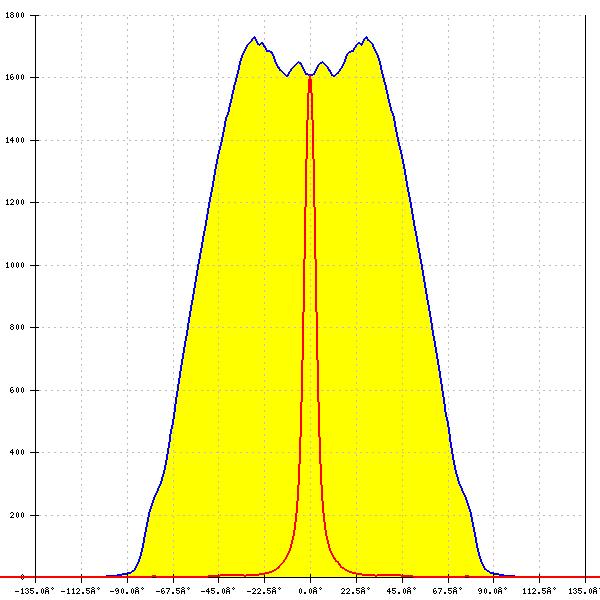

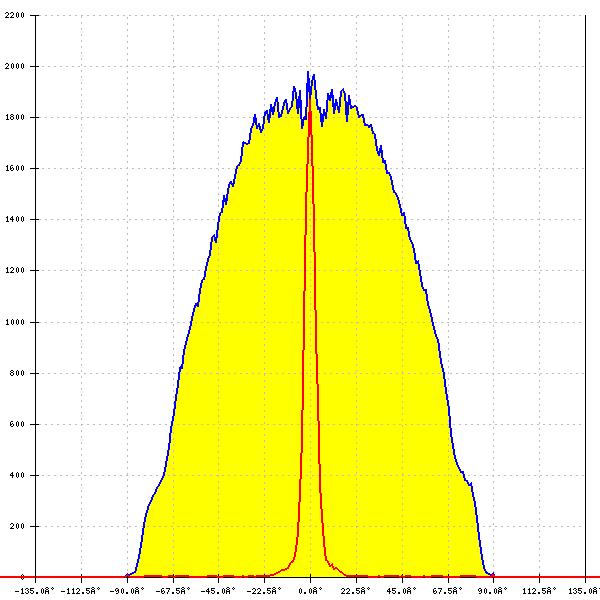

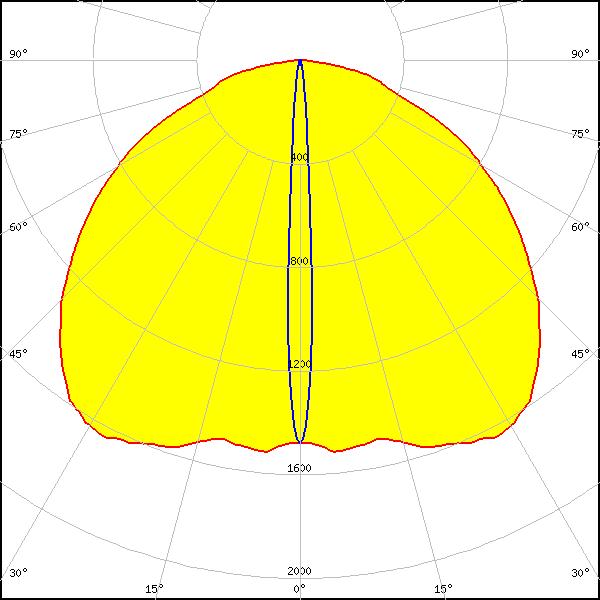

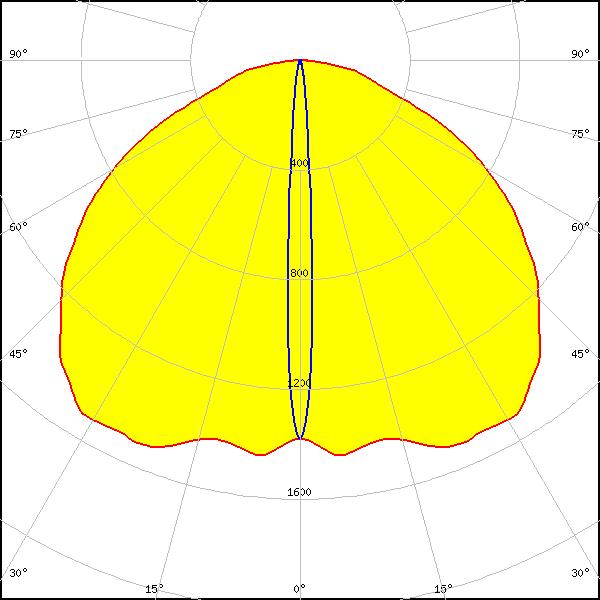

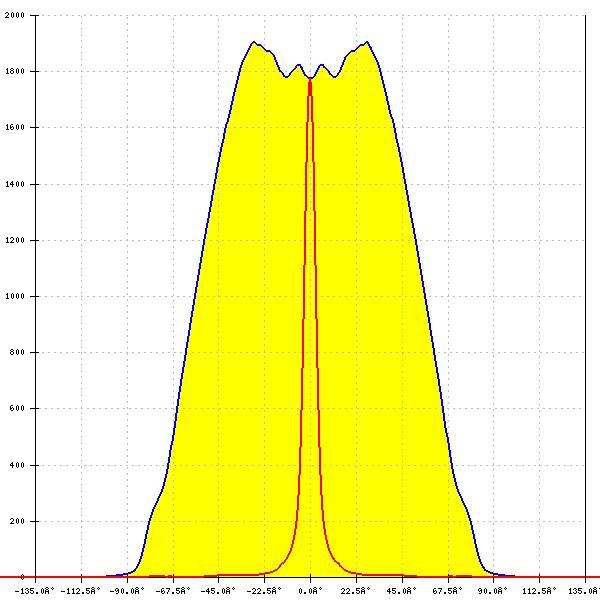

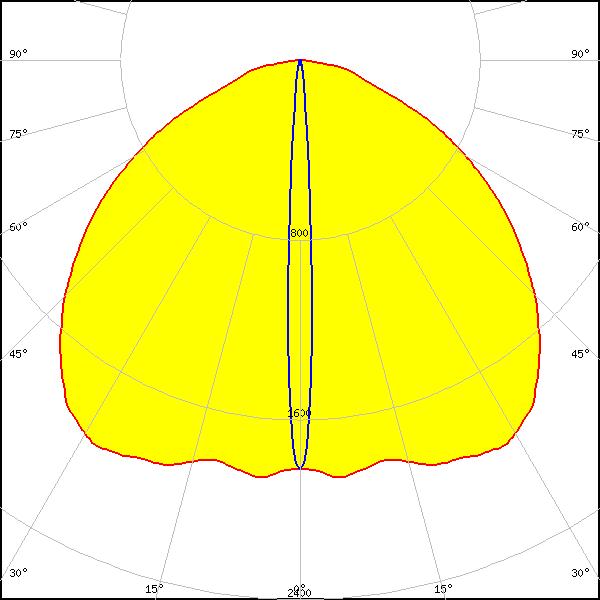

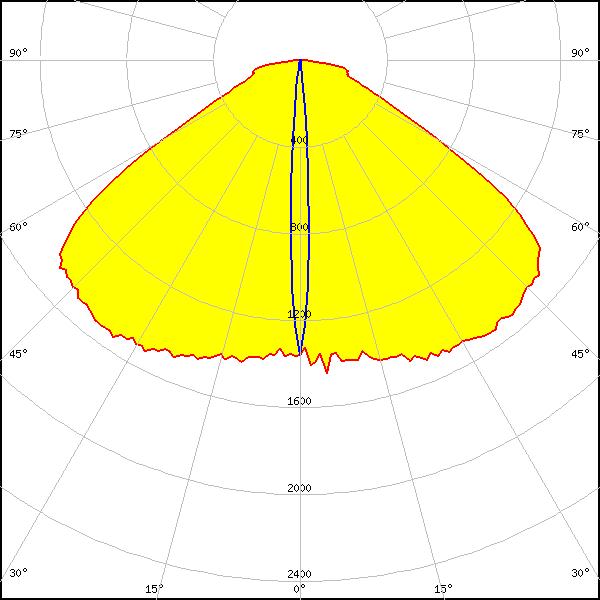

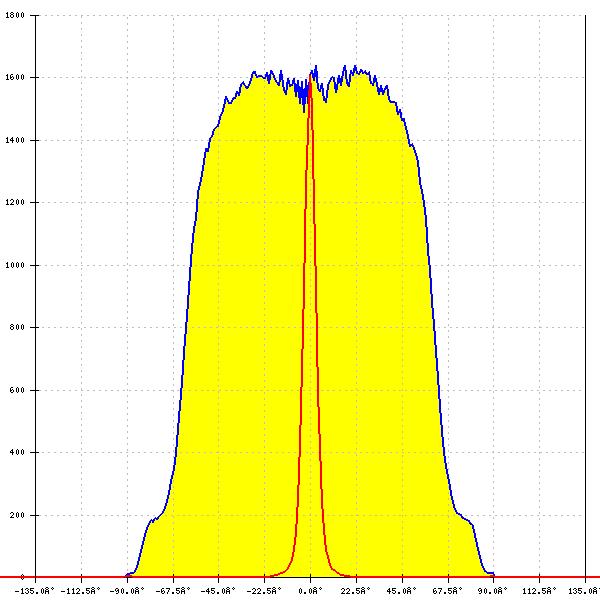

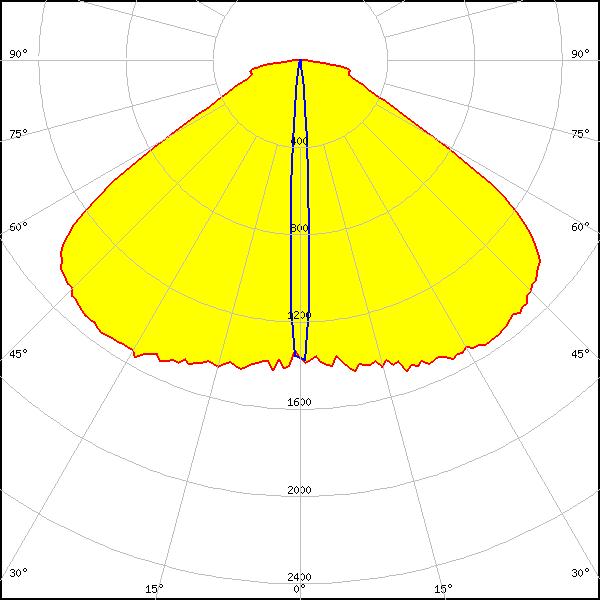

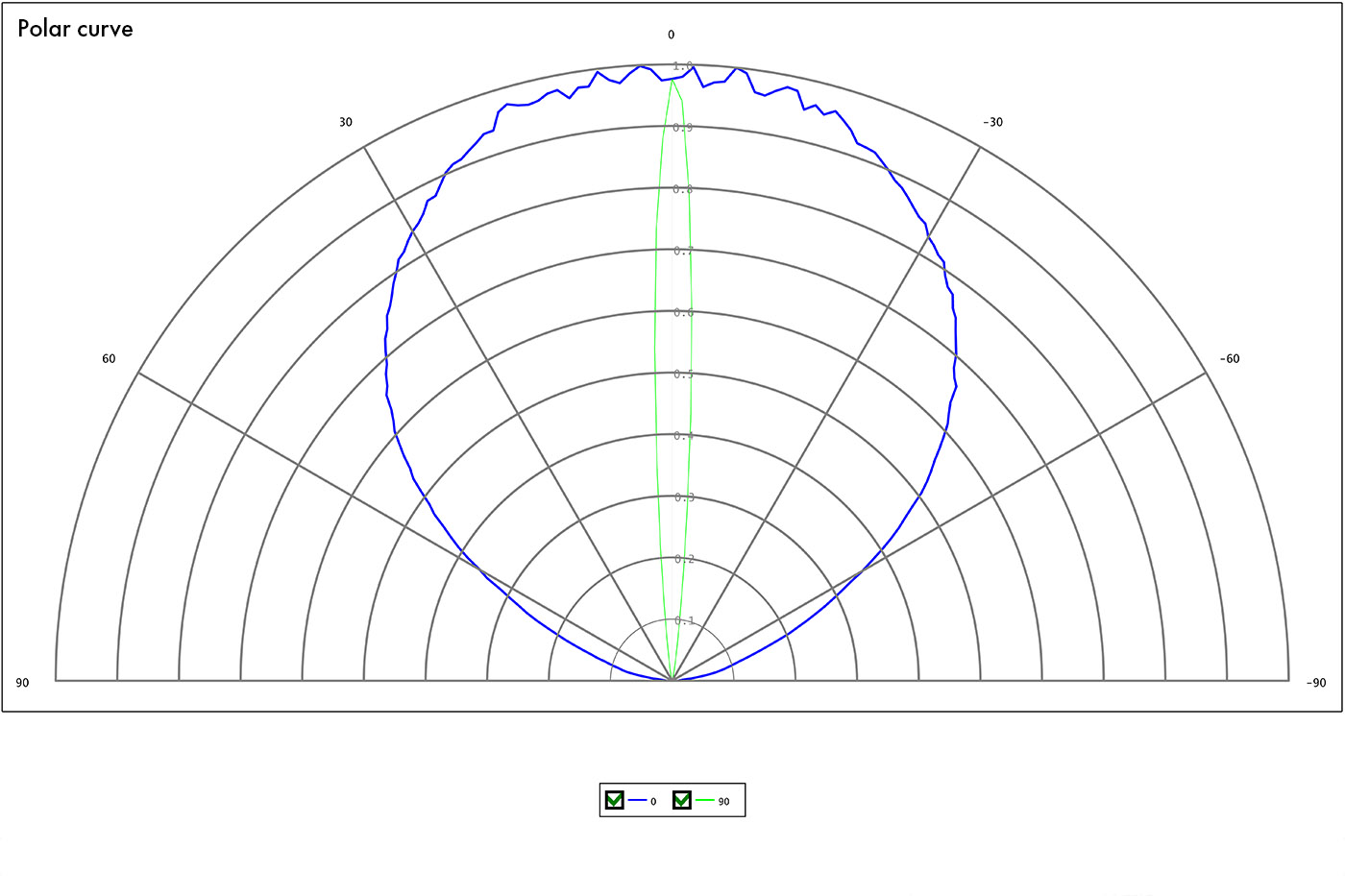

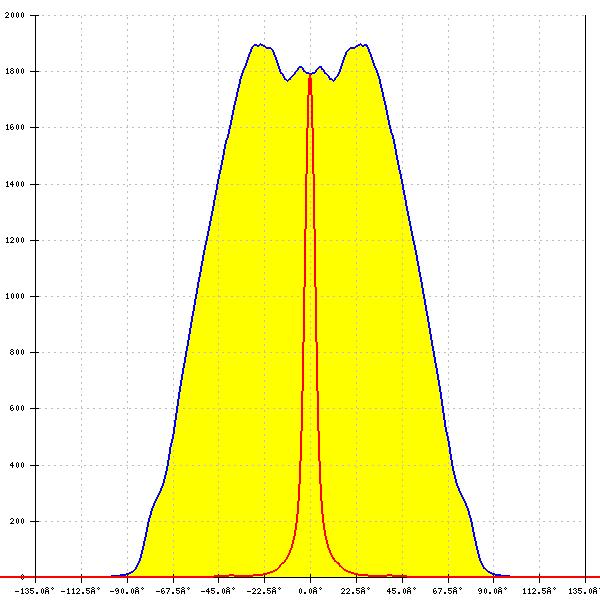

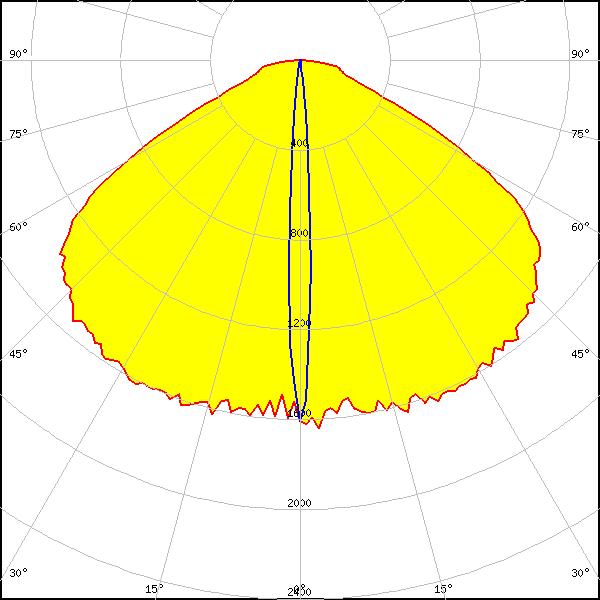

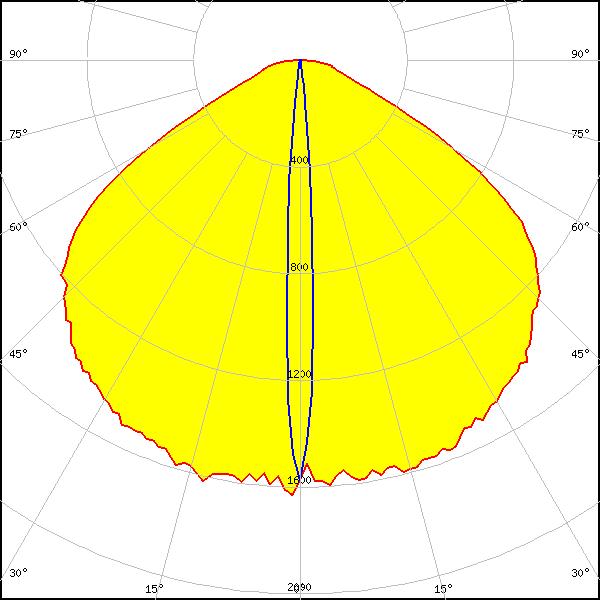

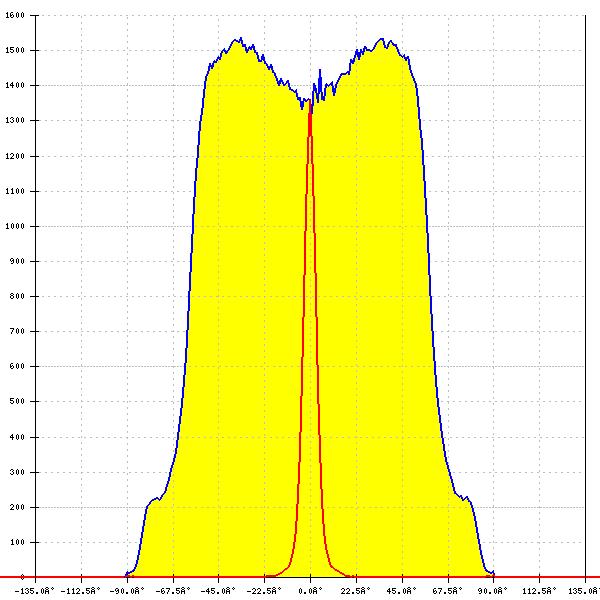

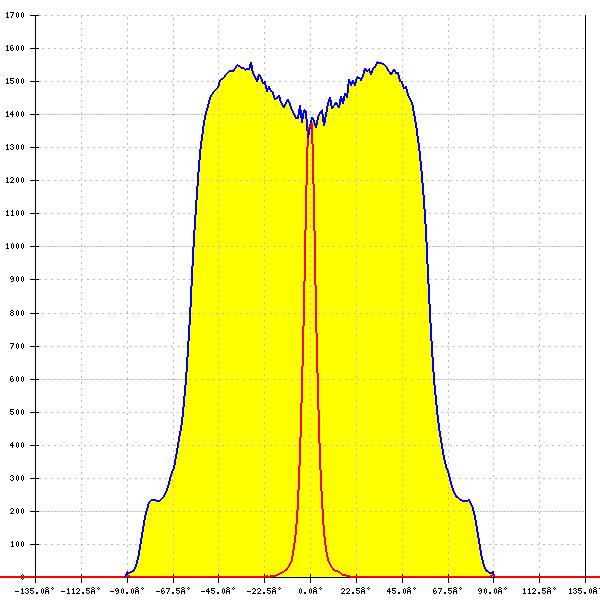

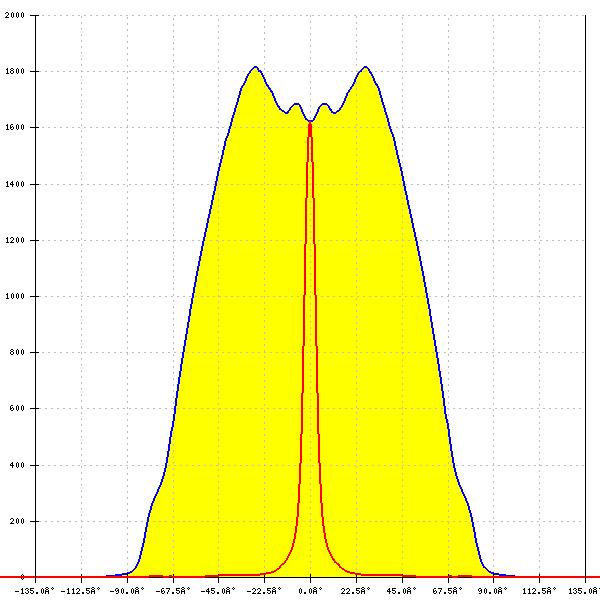

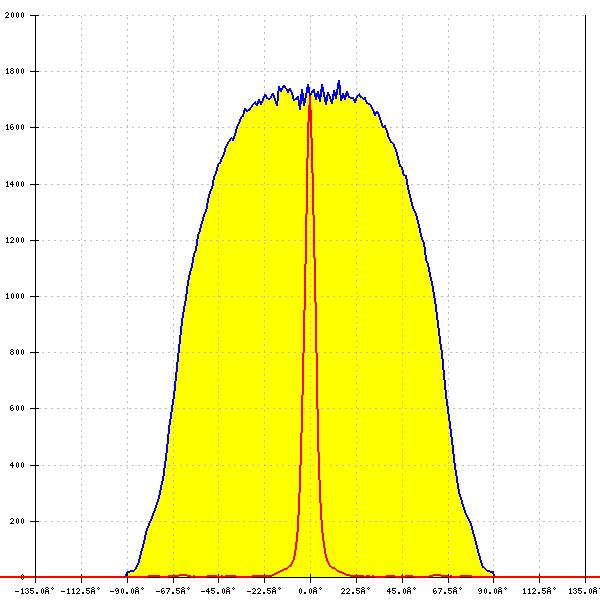

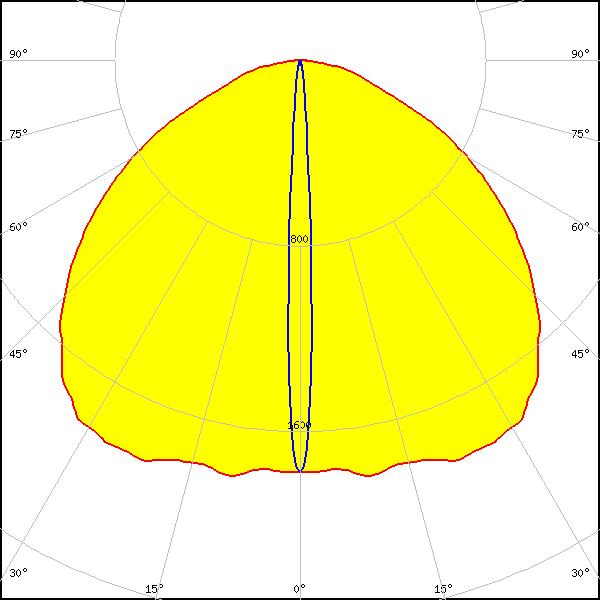

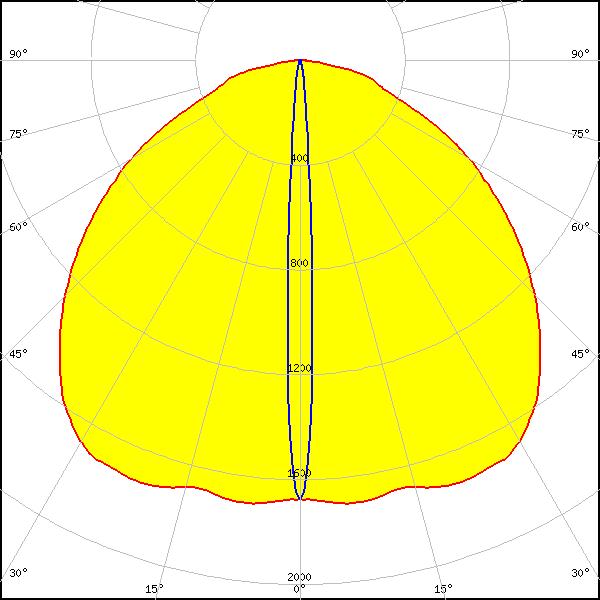

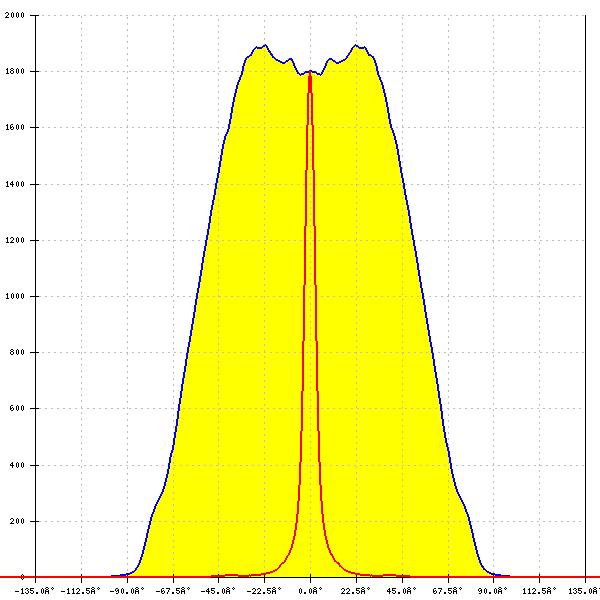

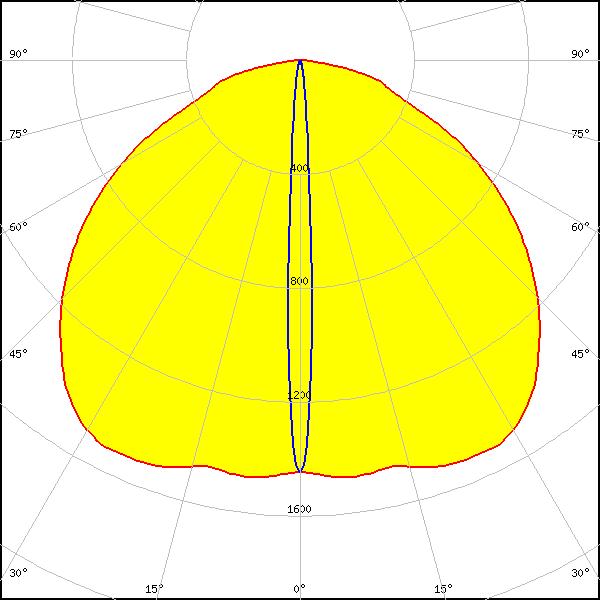

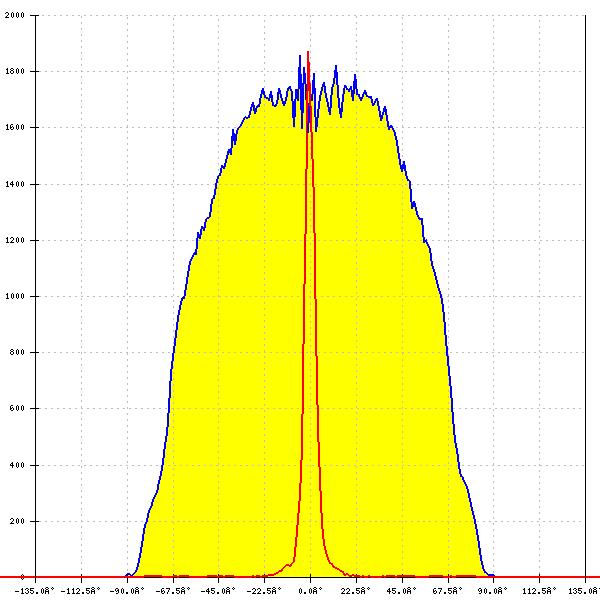

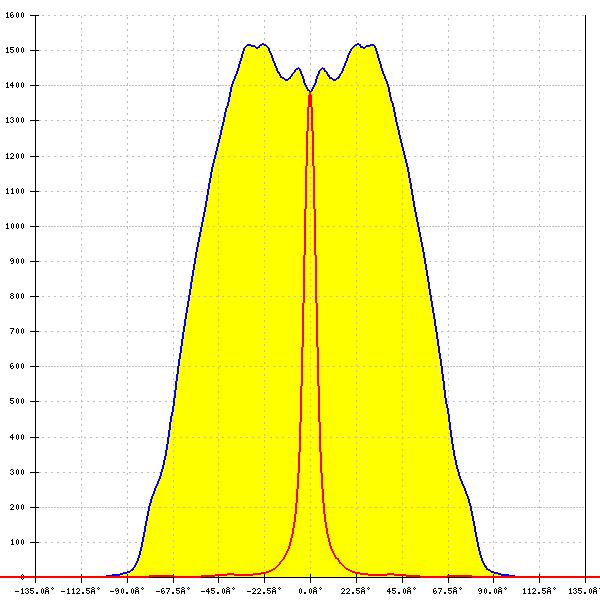

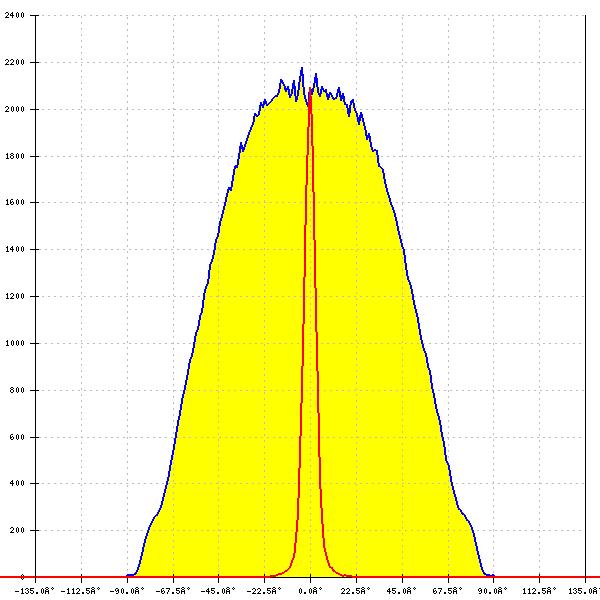

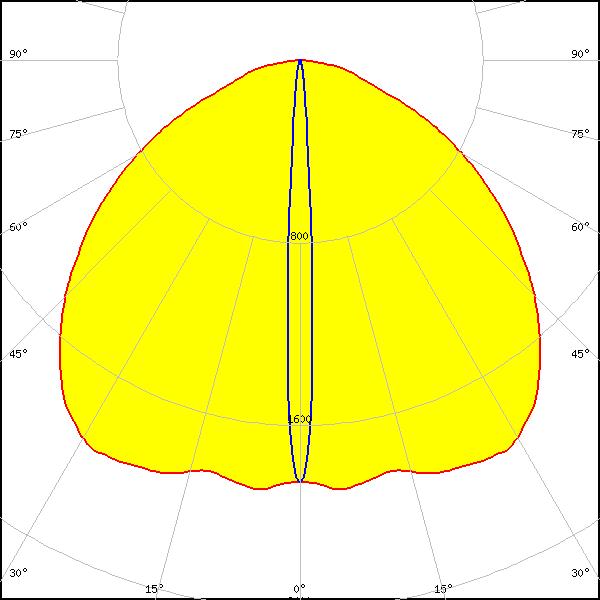

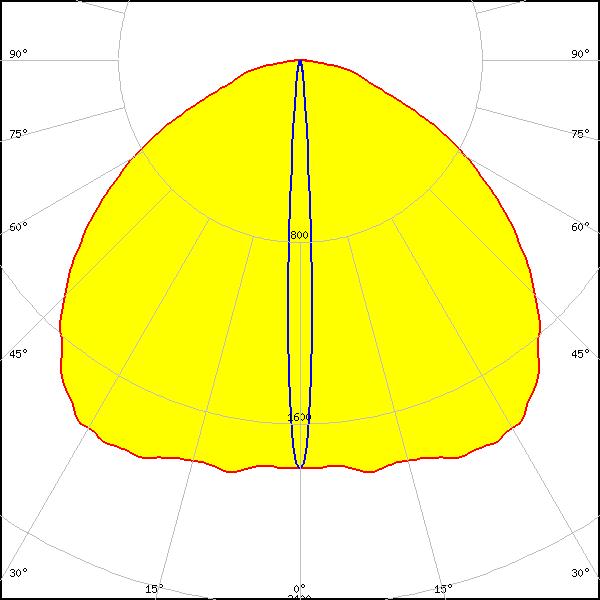

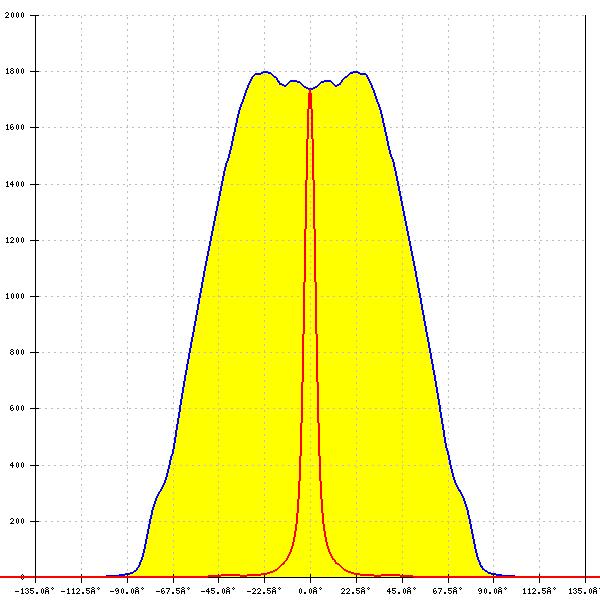

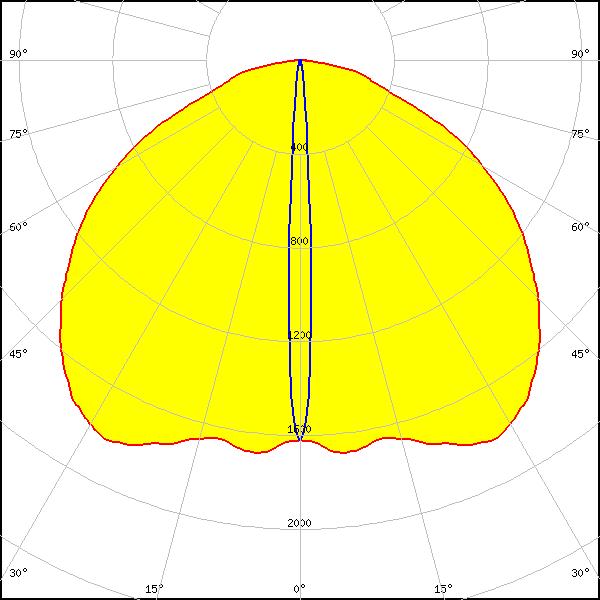

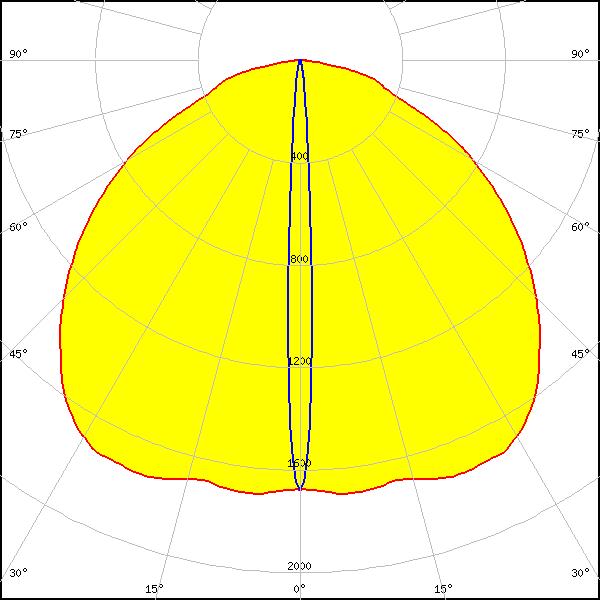

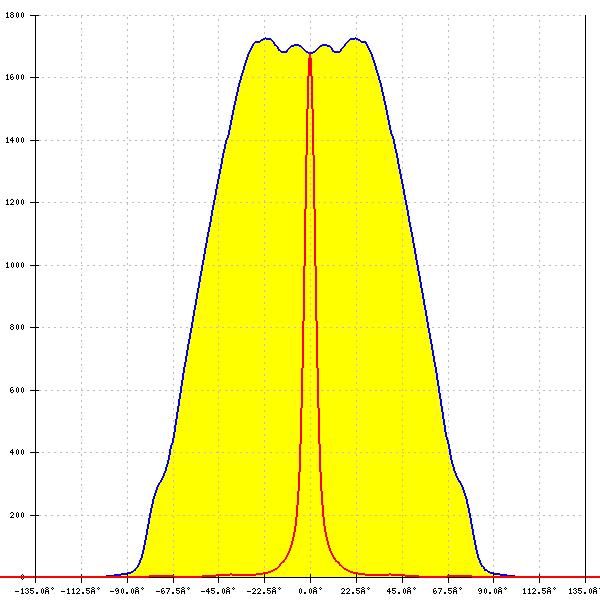

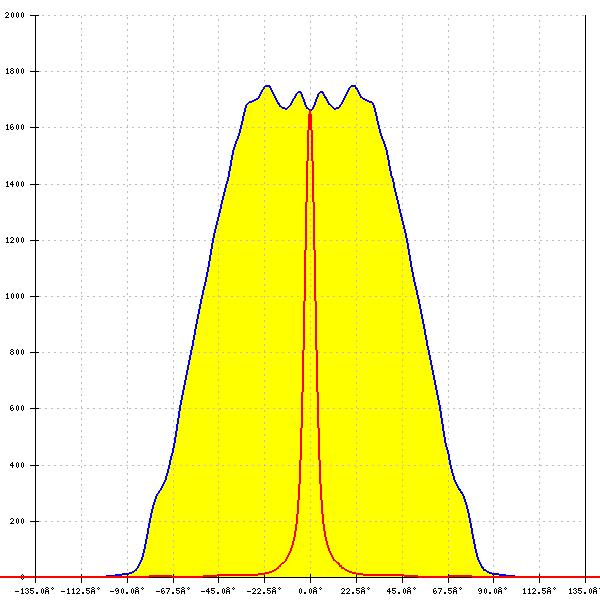

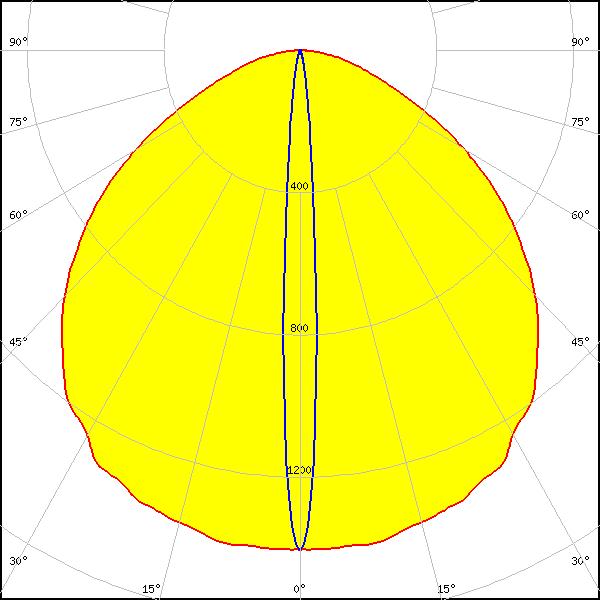

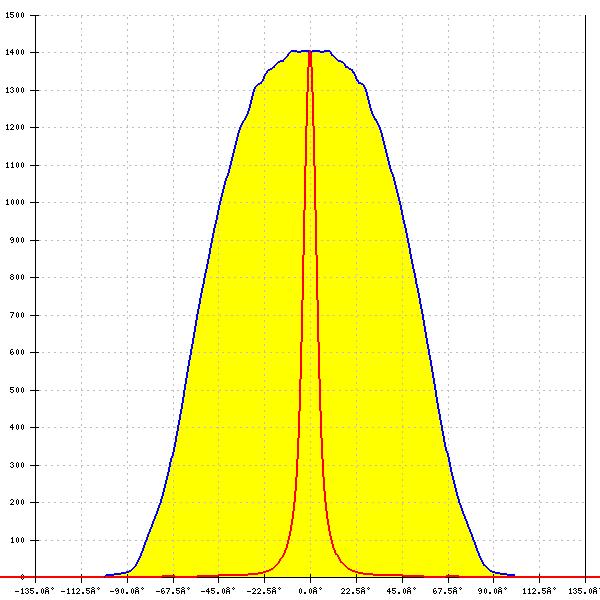

Optical results

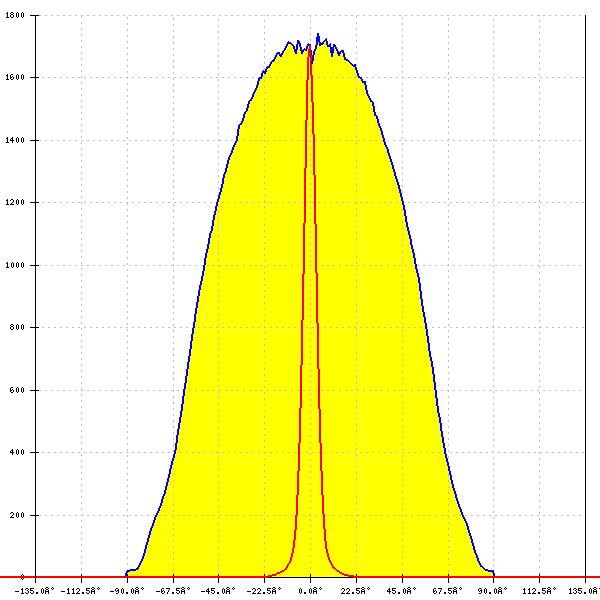

LED:
CSP 2727 (BXCP)
FWHM:
111° + 8°
FWTM:
154° + 14°
Peak intensity:
1.812 cd/lm
Efficiency:
53 %
LEDs/each optic:
6
Light colour/type:
White

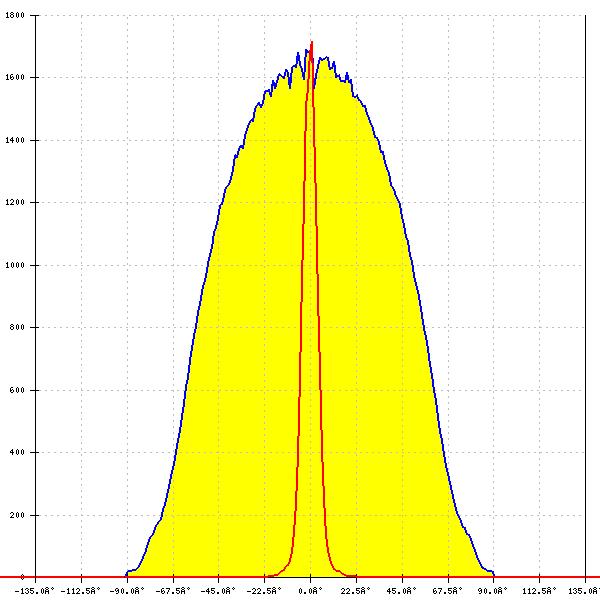

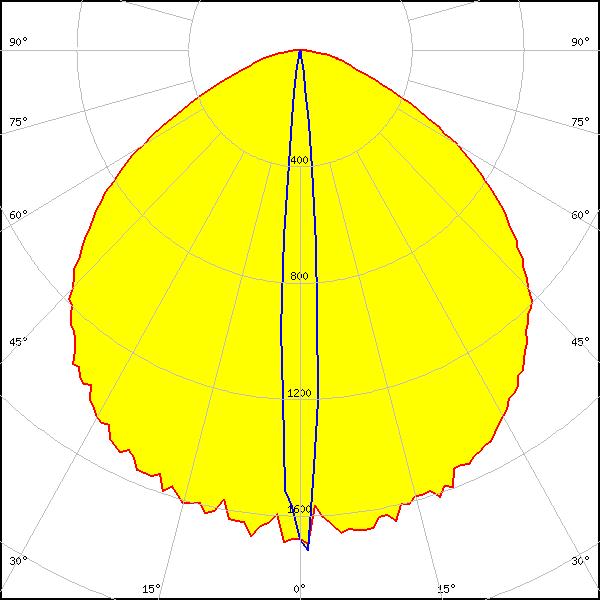

LED:
SMD 3838 RGBW 3V
FWHM:
110° + 8°
FWTM:
150° + 16°
Peak intensity:
1.763 cd/lm
Efficiency:
56 %
LEDs/each optic:
4
Light colour/type:
RGBW

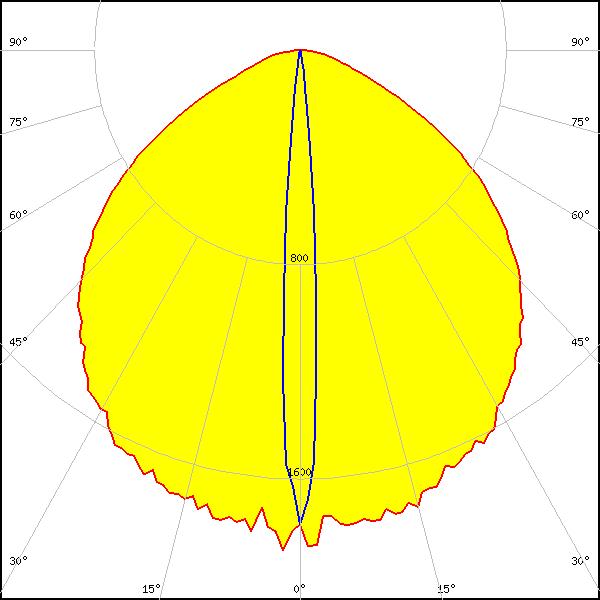

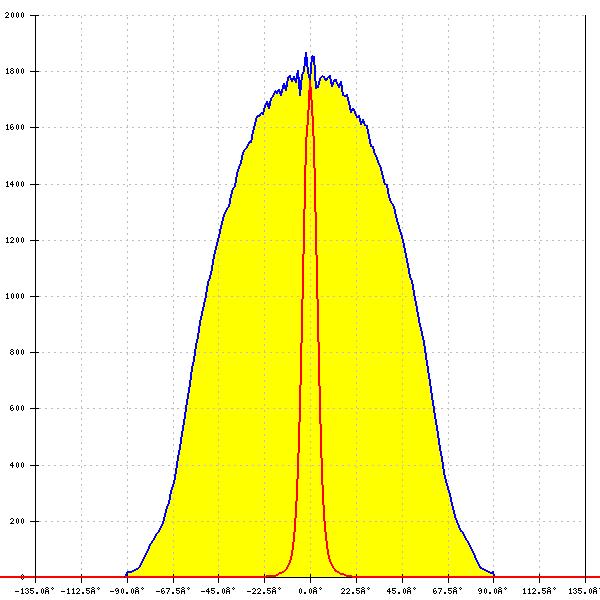

LED:
CLR6A-TKW
FWHM:
106° + 8°
FWTM:
146° + 16°
Peak intensity:
1.914 cd/lm
Efficiency:
56 %
LEDs/each optic:
4
Light colour/type:
RGBW

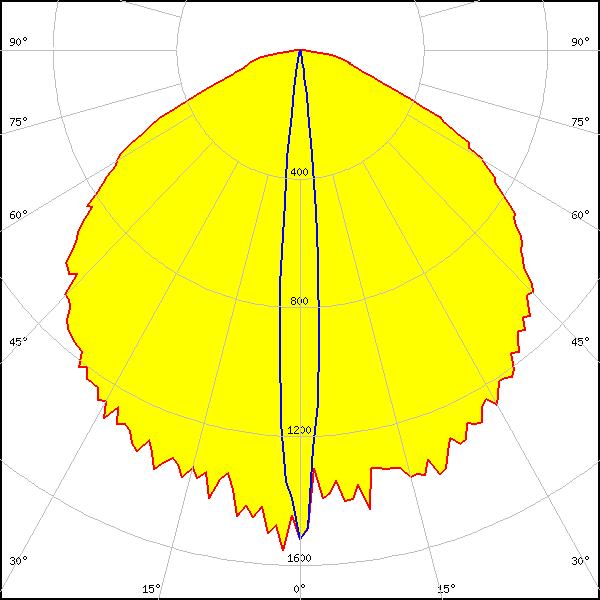

LED:
J Series 5050B 6V K Class
FWHM:
113° + 10°
FWTM:
154° + 18°
Peak intensity:
1.686 cd/lm
Efficiency:
53 %
LEDs/each optic:
1
Light colour/type:
White

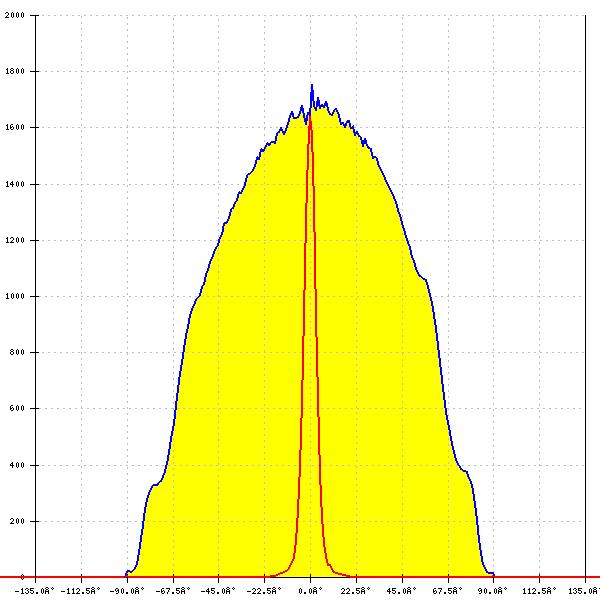

LED:
XB-D
FWHM:
122° + 6°
FWTM:
164° + 14°
Peak intensity:
1.837 cd/lm
Efficiency:
48 %
LEDs/each optic:
4
Light colour/type:
RGBW
LED:
XE-G
FWHM:
119° + 6°
FWTM:
161° + 14°
Peak intensity:
1.913 cd/lm
Efficiency:
52 %
LEDs/each optic:
4
Light colour/type:
RGBW
LED:
XE-G
FWHM:
120° + 6°
FWTM:
164° + 13°
Peak intensity:
2.095 cd/lm
Efficiency:
52 %
LEDs/each optic:
1
Light colour/type:
White

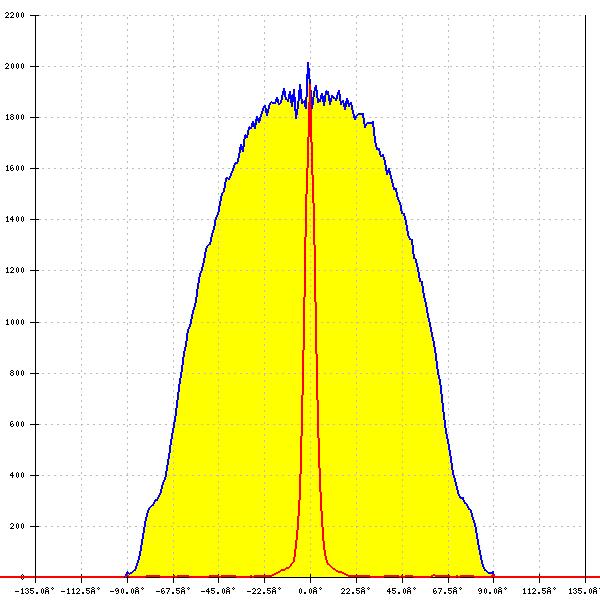

LED:
XE-G
FWHM:
116° + 6°
FWTM:
162° + 12°
Peak intensity:
2.128 cd/lm
Efficiency:
53 %
LEDs/each optic:
4
Light colour/type:
White

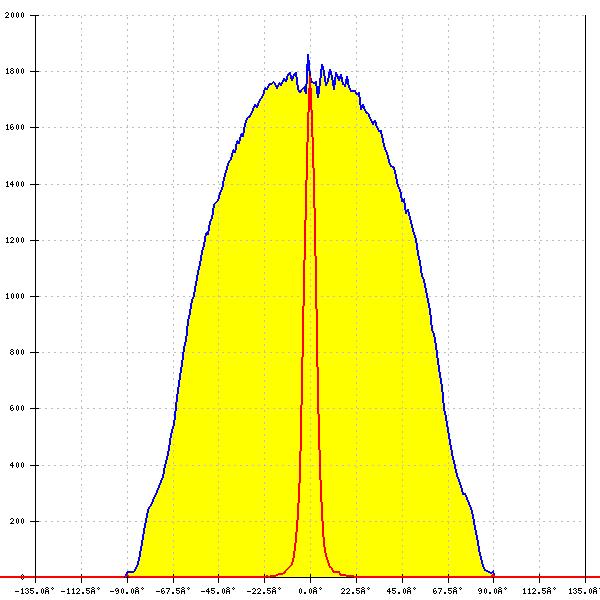

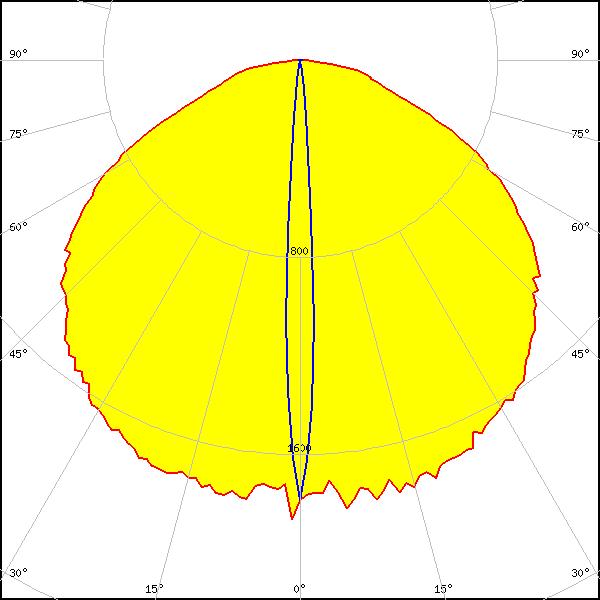

LED:
XE-G
FWHM:
118° + 6°
FWTM:
162° + 13°
Peak intensity:
1.935 cd/lm
Efficiency:
52 %
LEDs/each optic:
6
Light colour/type:
White

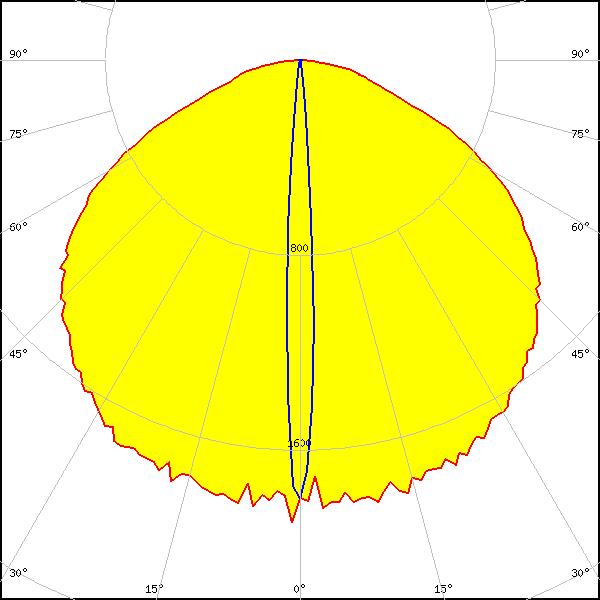

LED:
XE-G
FWHM:
118° + 6°
FWTM:
160° + 14°
Peak intensity:
1.898 cd/lm
Efficiency:
53 %
LEDs/each optic:
6
Light colour/type:
Red

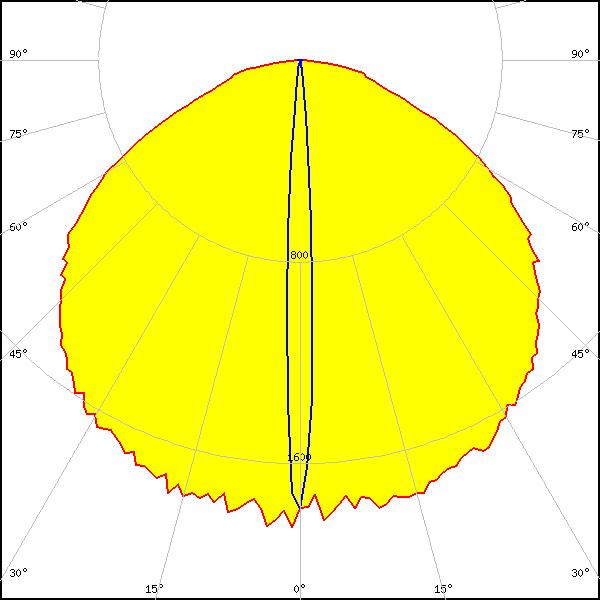

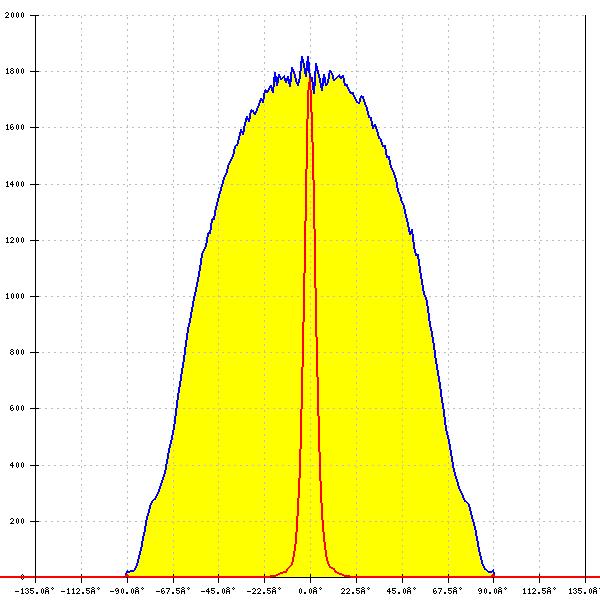

LED:
XE-G
FWHM:
117° + 6°
FWTM:
162° + 14°
Peak intensity:
1.920 cd/lm
Efficiency:
52 %
LEDs/each optic:
7
Light colour/type:
White

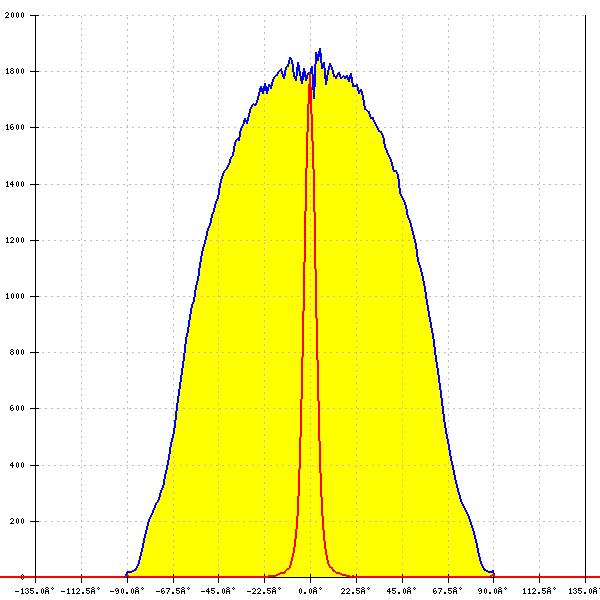

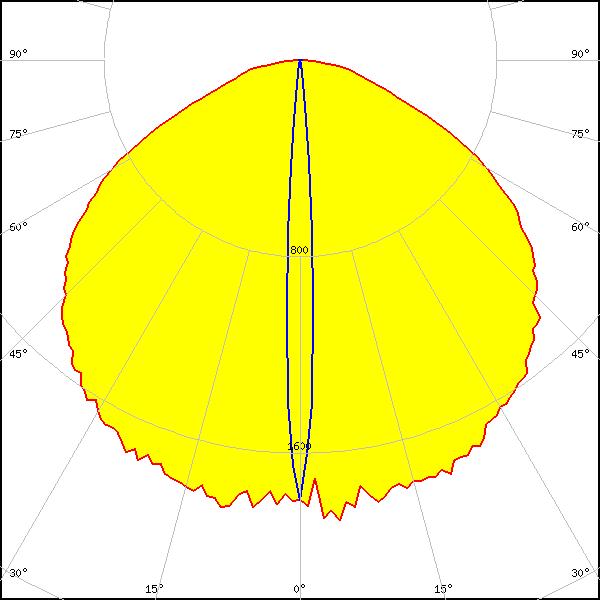

LED:
XE-G
FWHM:
117° + 6°
FWTM:
159° + 14°
Peak intensity:
1.979 cd/lm
Efficiency:
53 %
LEDs/each optic:
7
Light colour/type:
Red

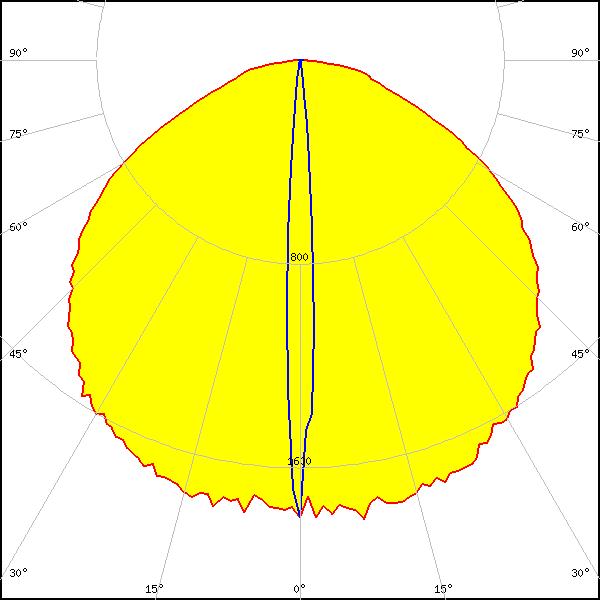

LED:
XE-G
FWHM:
116° + 6°
FWTM:
161° + 14°
Peak intensity:
1.834 cd/lm
Efficiency:
52 %
LEDs/each optic:
5
Light colour/type:
White

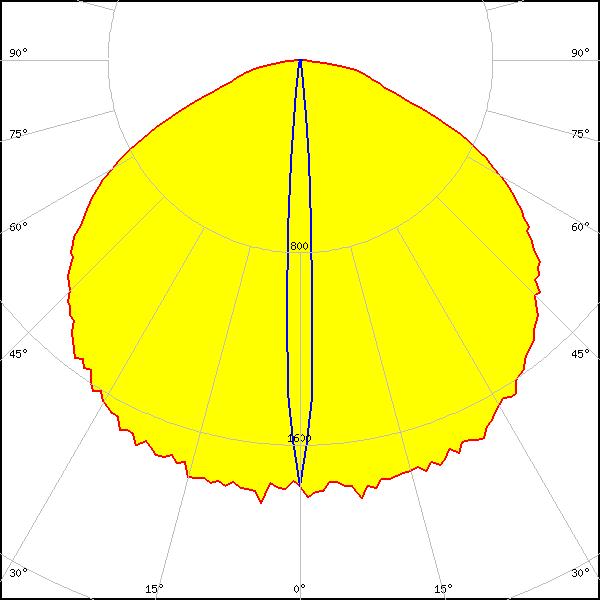

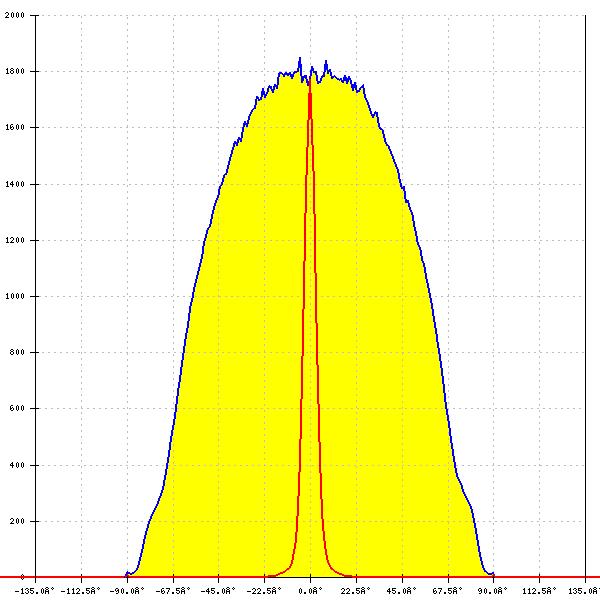

LED:
XE-G
FWHM:
121° + 6°
FWTM:
160° + 14°
Peak intensity:
1.880 cd/lm
Efficiency:
52 %
LEDs/each optic:
3
Light colour/type:
Red

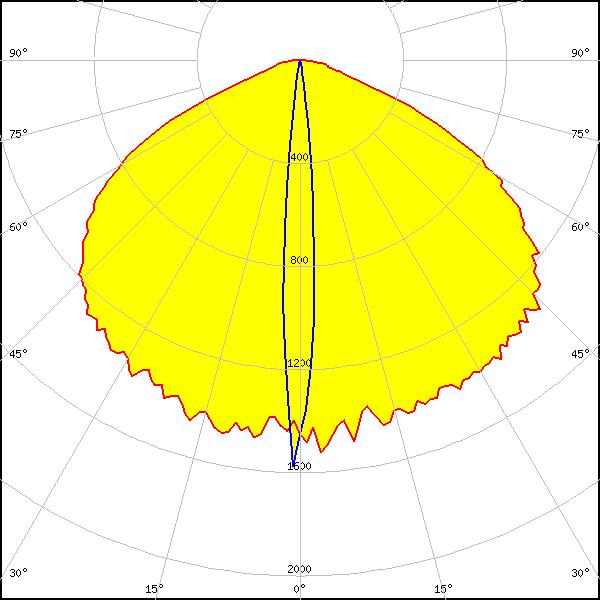

LED:
XM-L RGBW (XMLDCL HD)
FWHM:
123° + 9°
FWTM:
145° + 16°
Peak intensity:
1.646 cd/lm
Efficiency:
54 %
LEDs/each optic:
1
Light colour/type:
RGBW

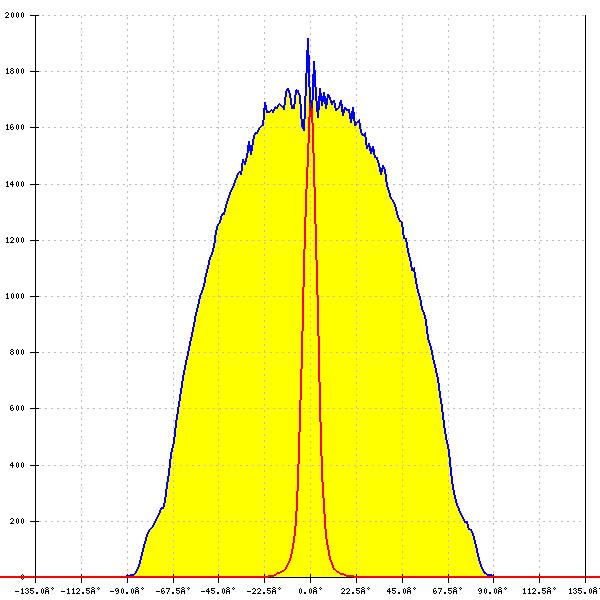

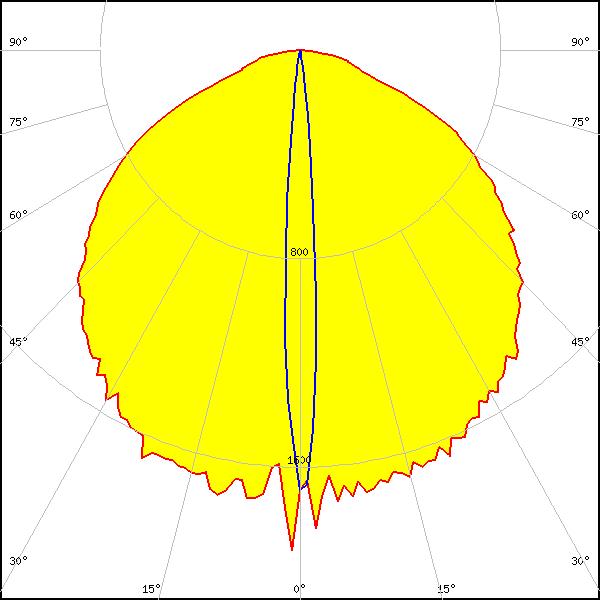

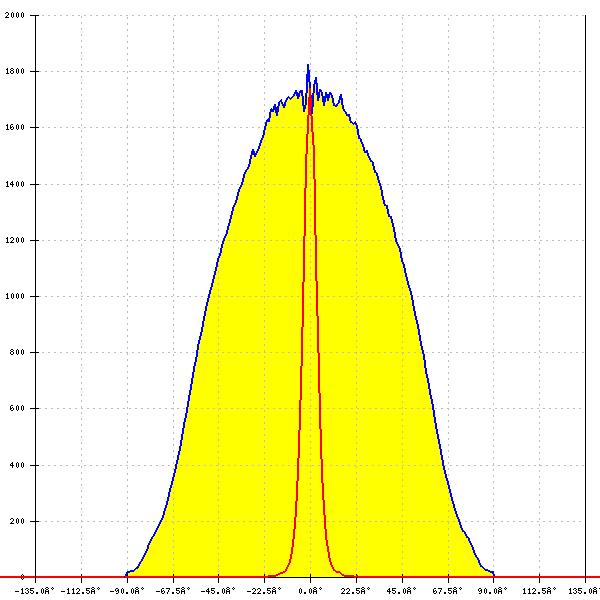

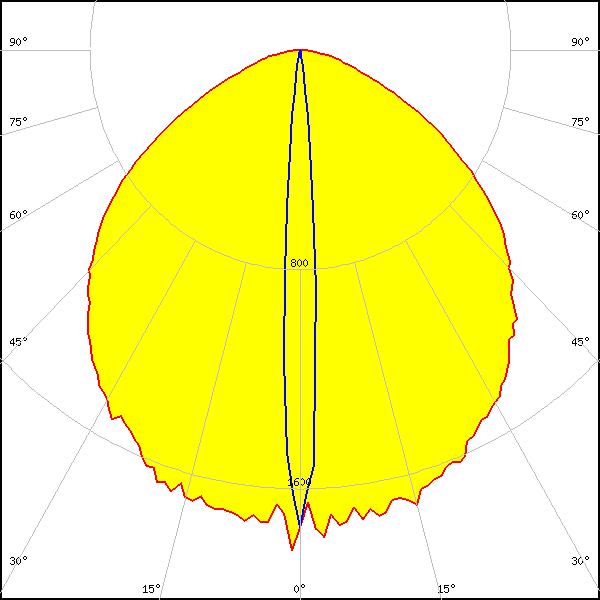

LED:
XM-L RGBW (XMLDCL HI)
FWHM:
104° + 8°
FWTM:
148° + 16°
Peak intensity:
1.825 cd/lm
Efficiency:
56 %
LEDs/each optic:
4
Light colour/type:
RGBW
LED:
XM-L RGBW (XMLDCL HI)
FWHM:
110° + 8°
FWTM:
153° + 15°
Peak intensity:
1.920 cd/lm
Efficiency:
53 %
LEDs/each optic:
1
Light colour/type:
RGBW
LED:
XN-P Color
FWHM:
107° + 8°
FWTM:
144° + 14°
Peak intensity:
2.018 cd/lm
Efficiency:
57 %
LEDs/each optic:
4
Light colour/type:
RGBW
LED:
XP-E2
FWHM:
107° + 6°
FWTM:
158° + 13°
Peak intensity:
2.239 cd/lm
Efficiency:
54 %
LEDs/each optic:
1
Light colour/type:
White

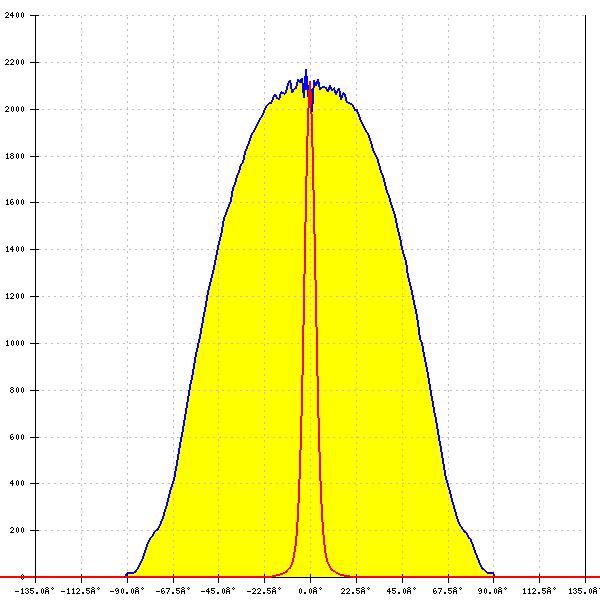

LED:
XP-E2
FWHM:
106° + 6°
FWTM:
148° + 12°
Peak intensity:
2.180 cd/lm
Efficiency:
55 %
LEDs/each optic:
4
Light colour/type:
White

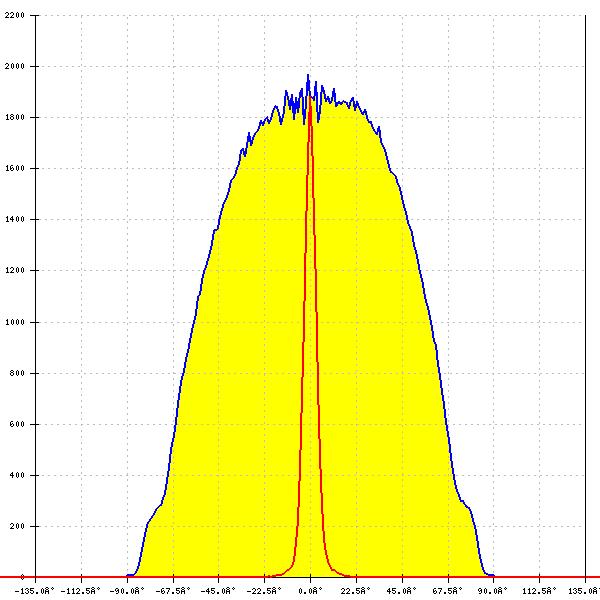

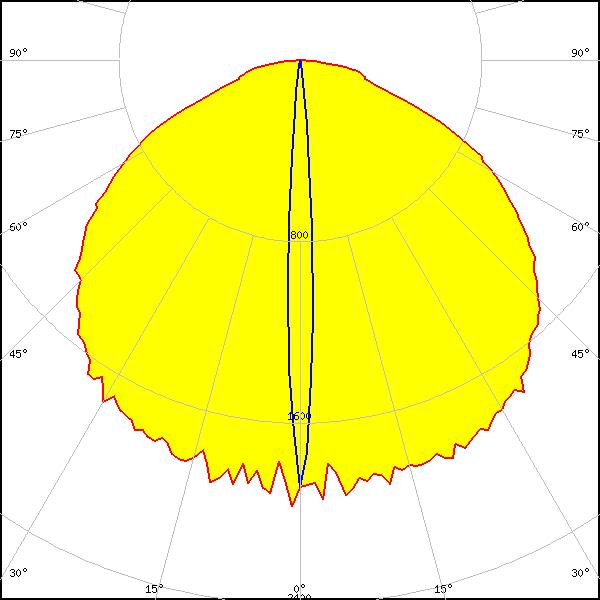

LED:
XP-G2
FWHM:
117° + 6°
FWTM:
161° + 13°
Peak intensity:
2.062 cd/lm
Efficiency:
52 %
LEDs/each optic:
1
Light colour/type:
White

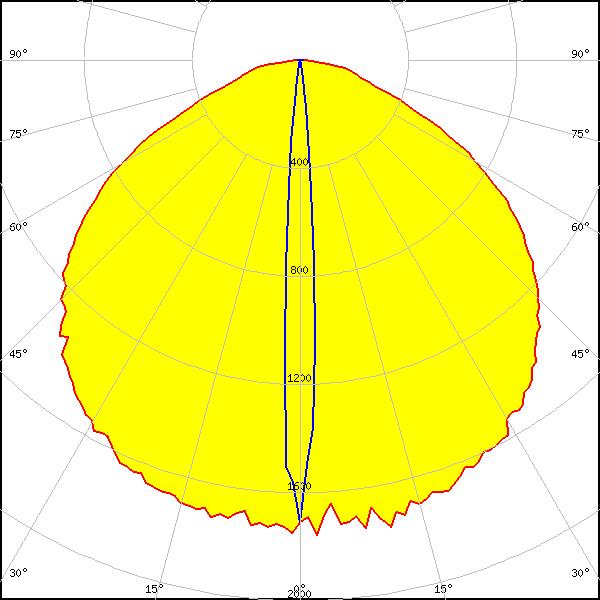

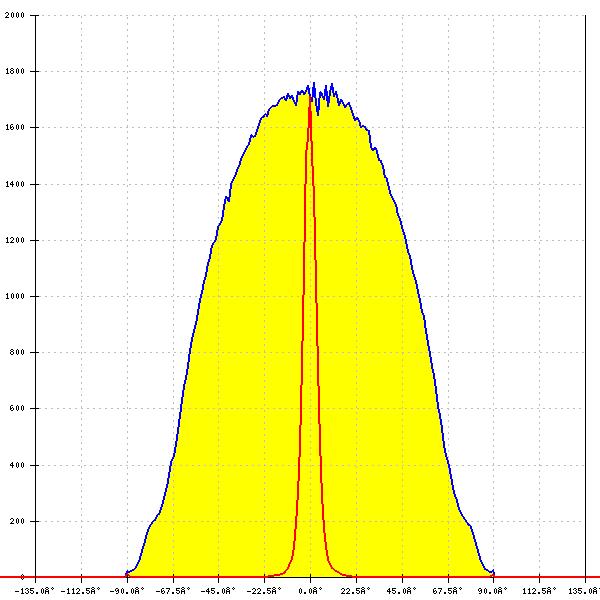

LED:
XP-L RGBW HI
FWHM:
114° + 8°
FWTM:
158° + 14°
Peak intensity:
1.824 cd/lm
Efficiency:
53 %
LEDs/each optic:
4
Light colour/type:
RGBW

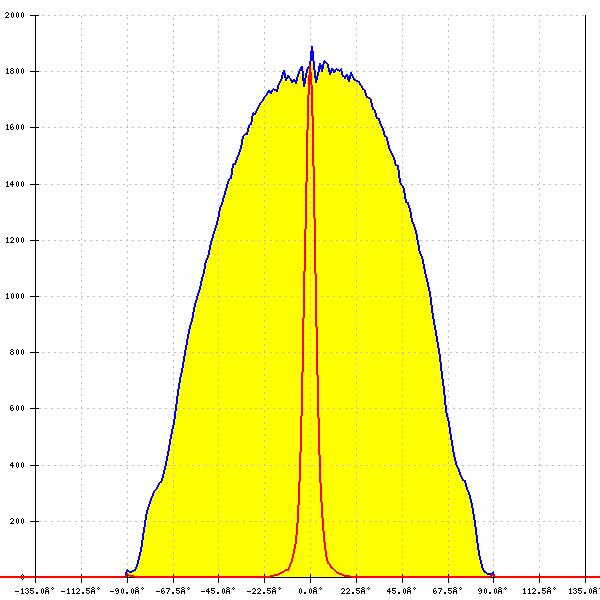

LED:
XQ-E HI
FWHM:
117° + 6°
FWTM:
162° + 13°
Peak intensity:
1.923 cd/lm
Efficiency:
51 %
LEDs/each optic:
4
Light colour/type:
RGBW

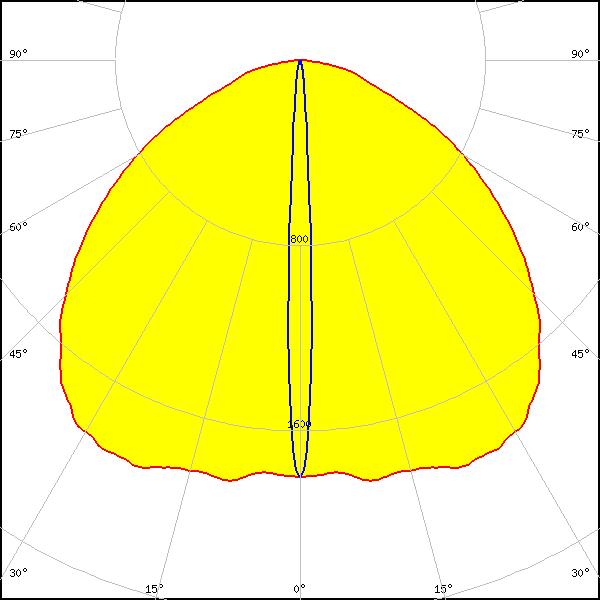

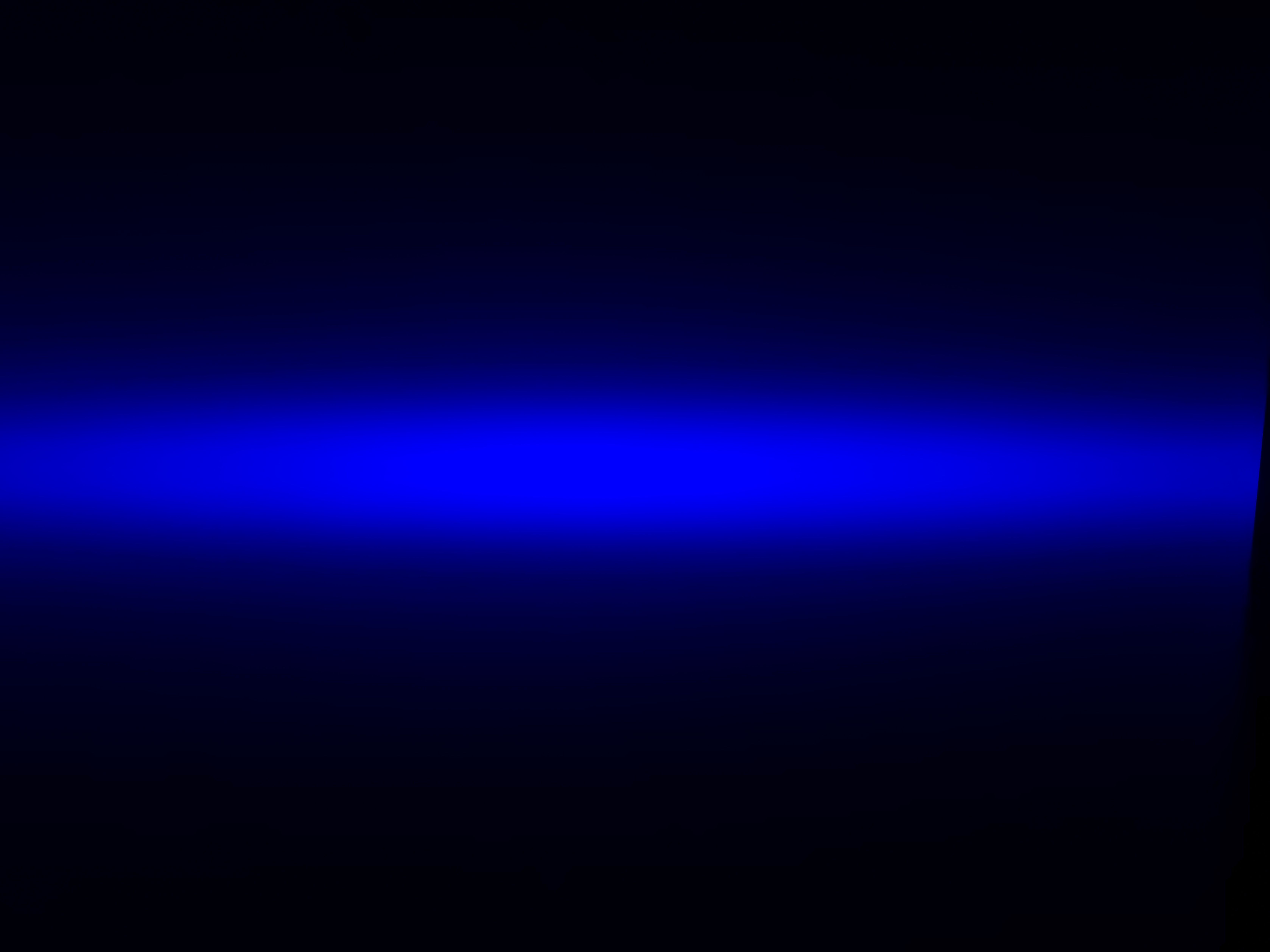

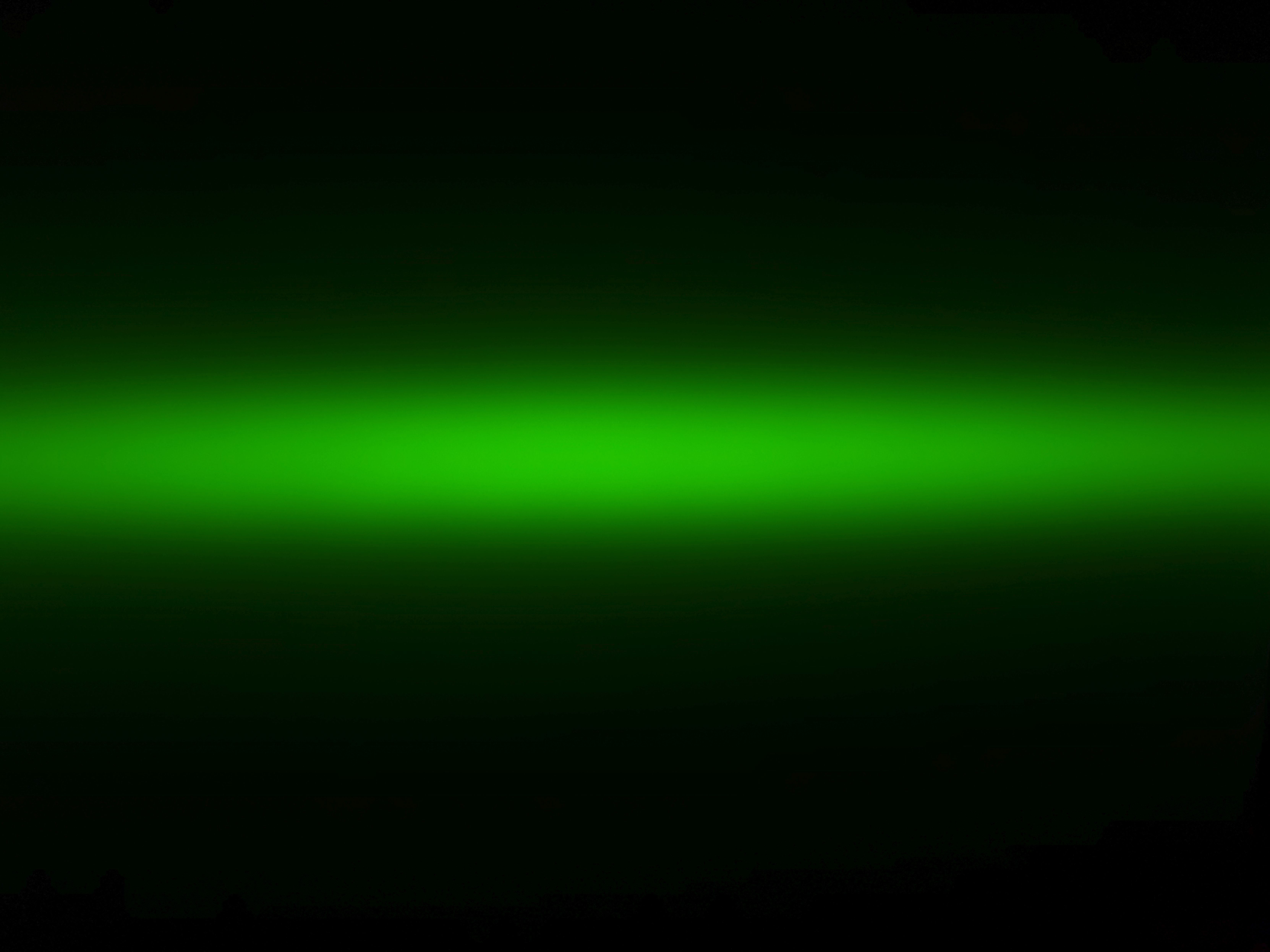

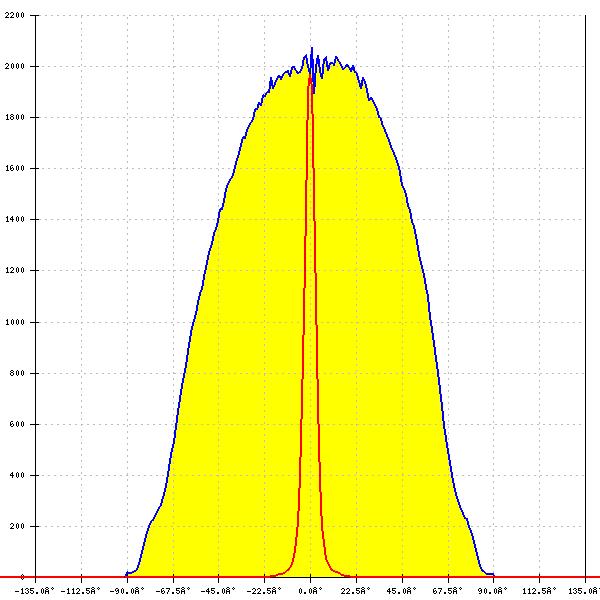

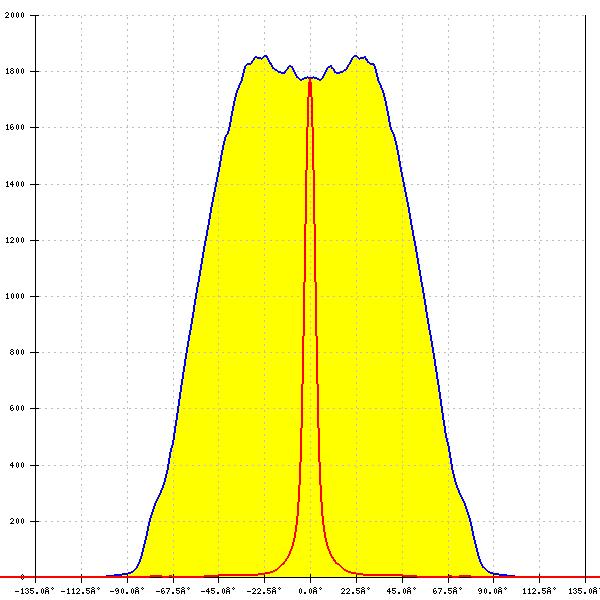

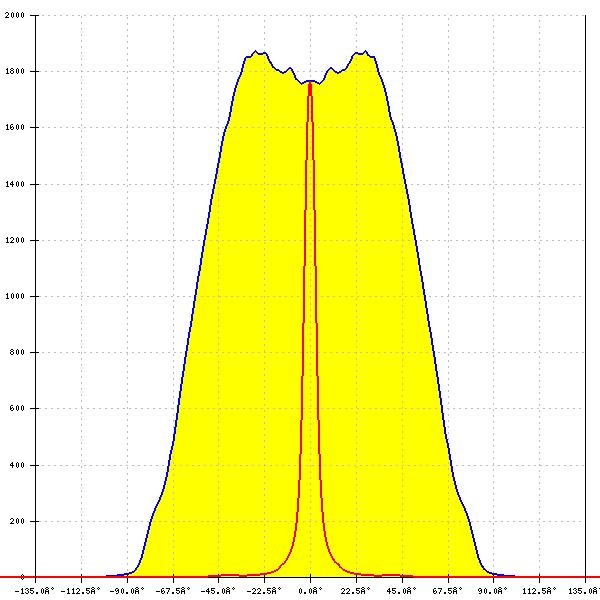

LED:
LUXEON CZ
FWHM:
115° + 6°
FWTM:
157° + 12°
Peak intensity:
2.158 cd/lm
Efficiency:
53 %
LEDs/each optic:
4
Light colour/type:
RGBW

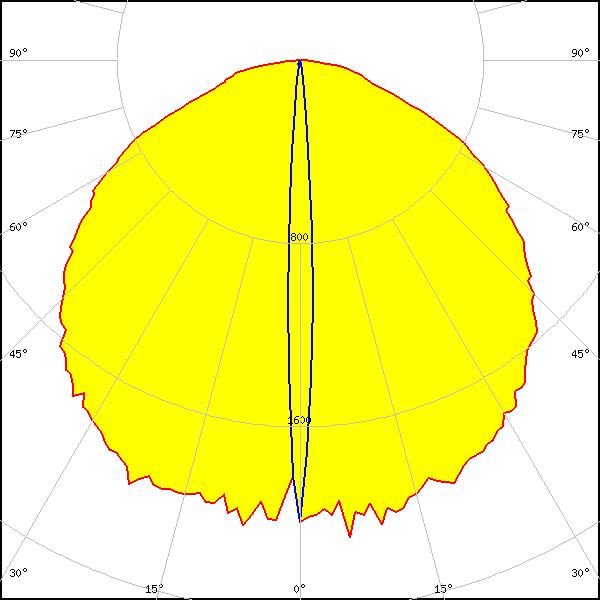

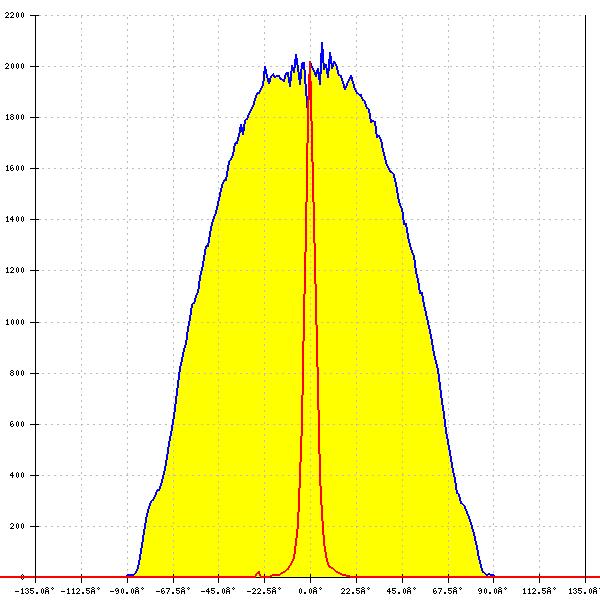

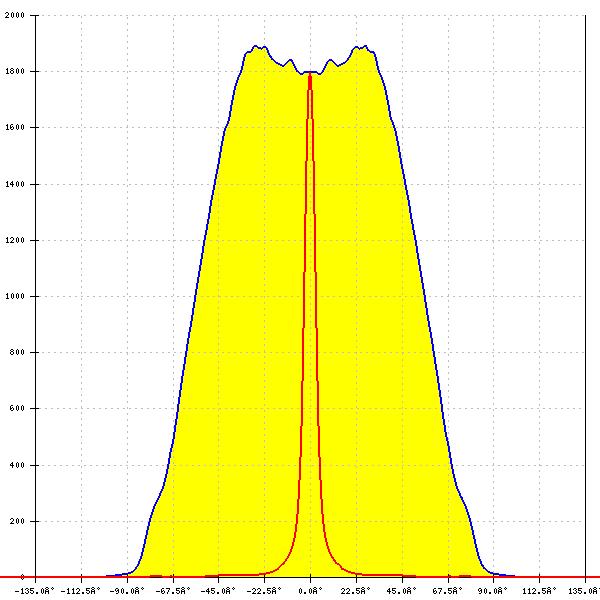

LED:
LUXEON CZ
FWHM:
115° + 6°
FWTM:
160° + 12°
Peak intensity:
2.104 cd/lm
Efficiency:
53 %
LEDs/each optic:
1
Light colour/type:
White

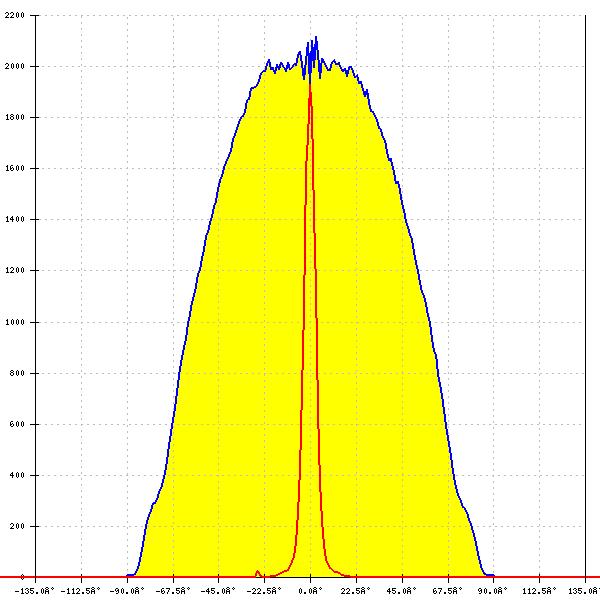

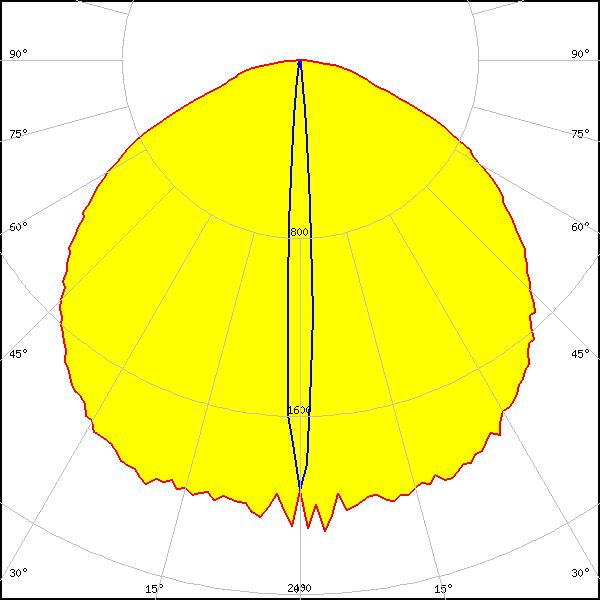

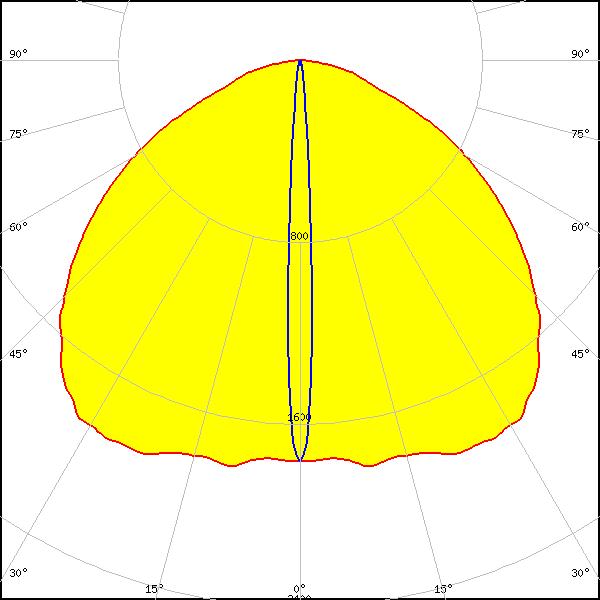

LED:

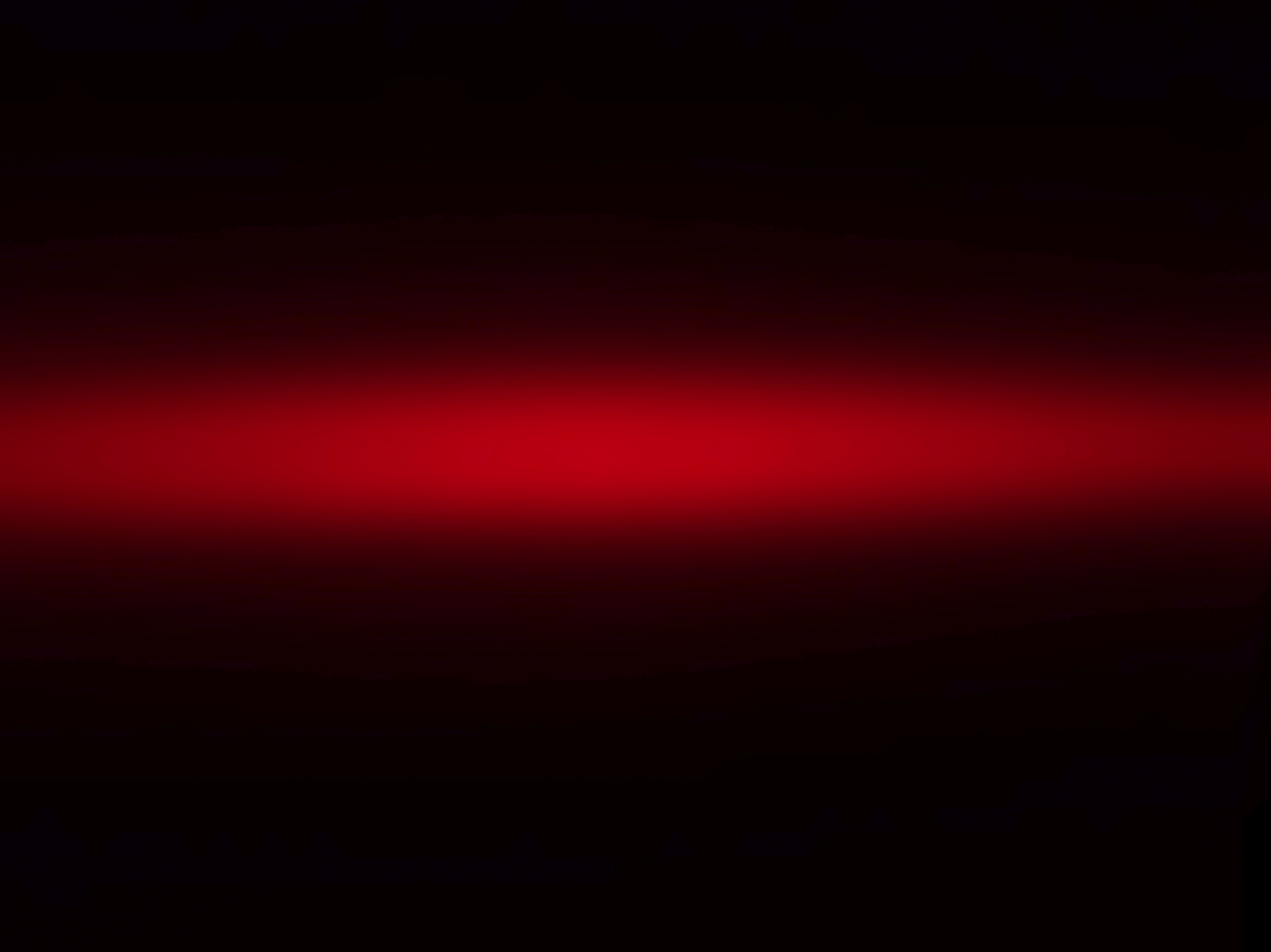

LUXEON CZ
FWHM:
115° + 6°
FWTM:
159° + 13°
Peak intensity:
2.182 cd/lm
Efficiency:
54 %
LEDs/each optic:
1
Light colour/type:
Red

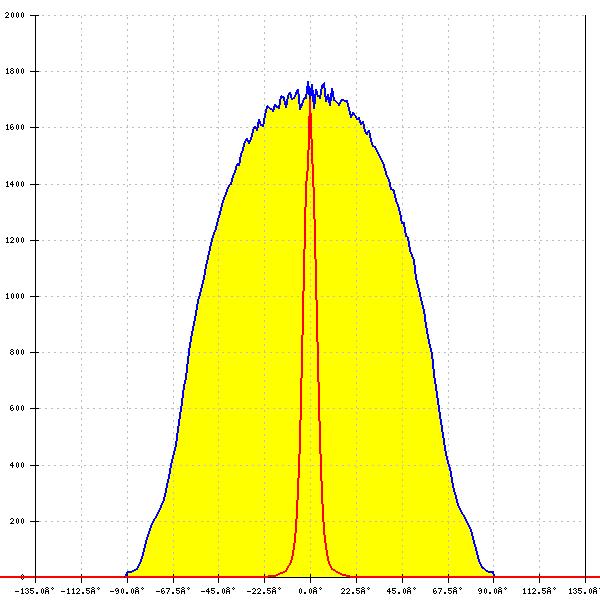

LED:
LUXEON HL4Z
FWHM:
115° + 8°
FWTM:
156° + 14°
Peak intensity:
1.826 cd/lm
Efficiency:
53 %
LEDs/each optic:
4
Light colour/type:
White

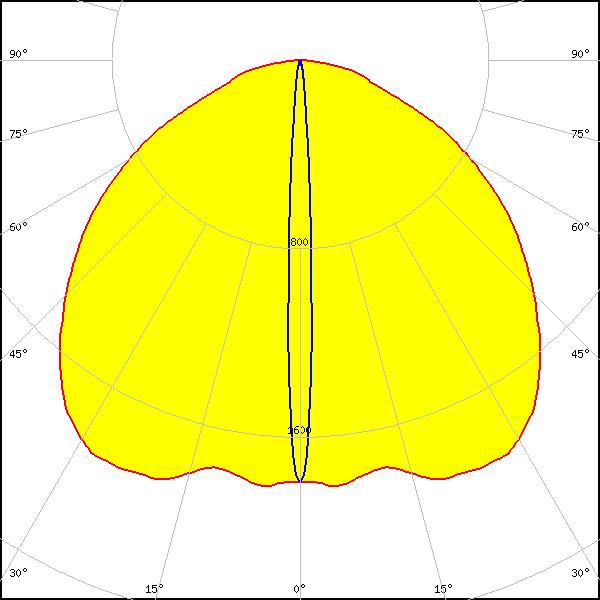

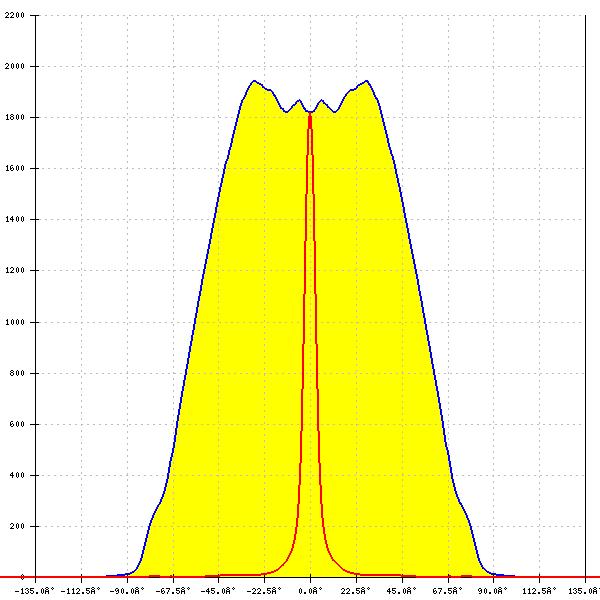

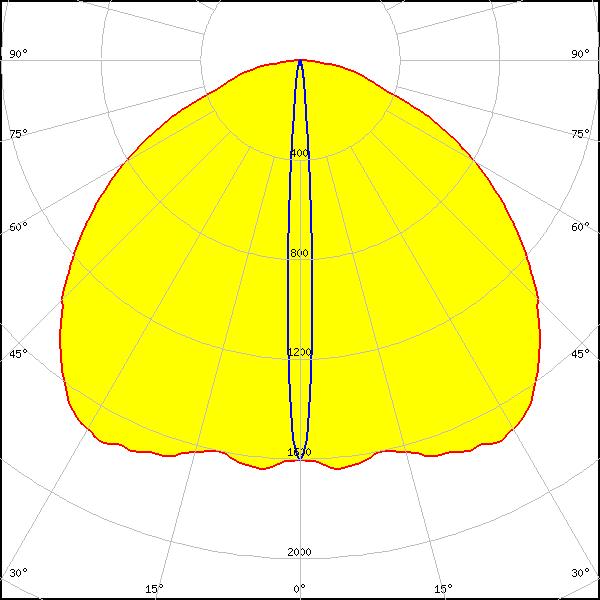

LED:

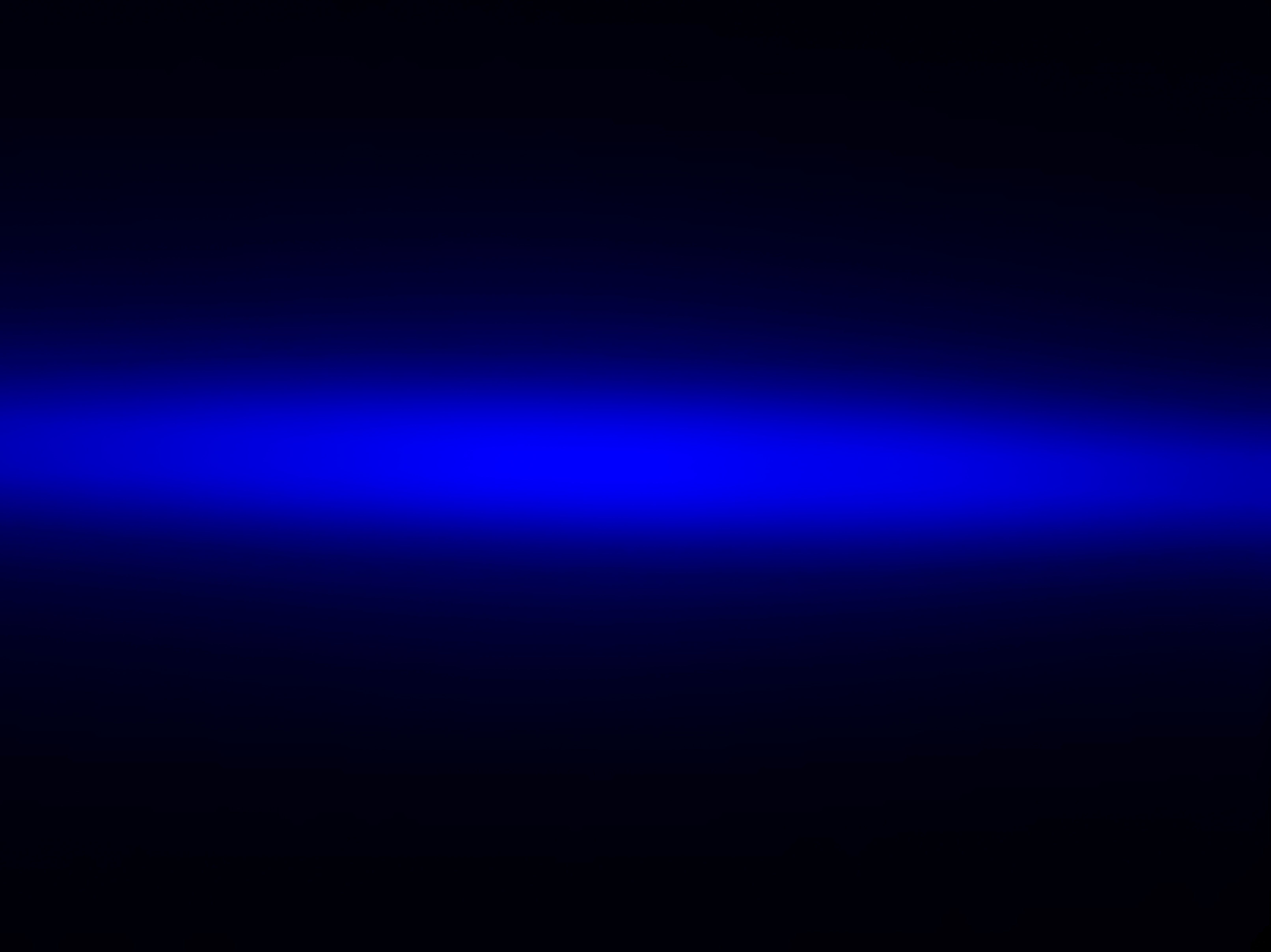

LUXEON Rubix
FWHM:
119° + 5°
FWTM:
161° + 11°
Peak intensity:
2.215 cd/lm
Efficiency:
50 %
LEDs/each optic:
4
Light colour/type:
RGBW

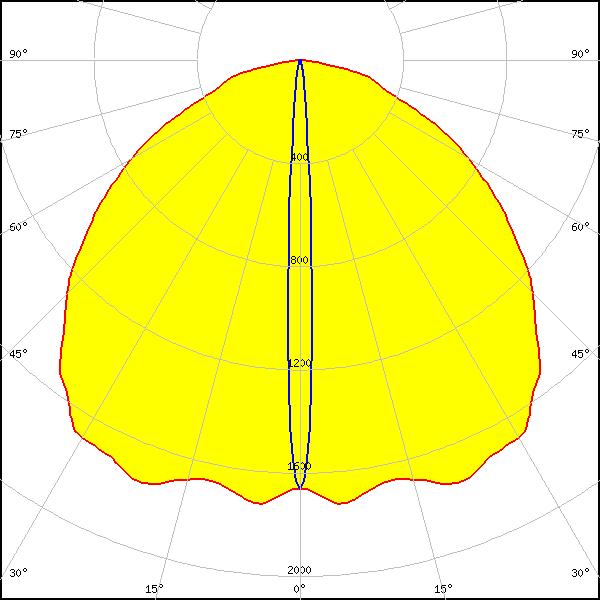

LED:
NCSxE17A
FWHM:
115° + 6°
FWTM:
160° + 12°
Peak intensity:
1.905 cd/lm
Efficiency:
49 %
LEDs/each optic:
4
Light colour/type:
RGBW

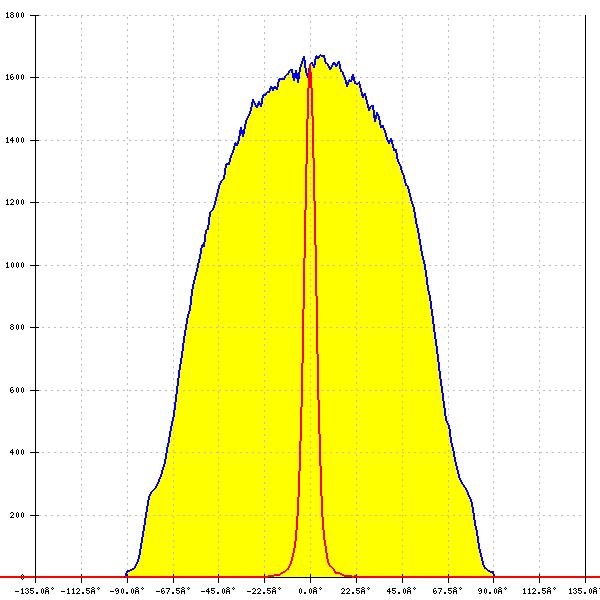

LED:
NCSxx19B
FWHM:
120° + 6°
FWTM:
162° + 14°
Peak intensity:
1.722 cd/lm
Efficiency:
50 %
LEDs/each optic:
4
Light colour/type:
RGBW

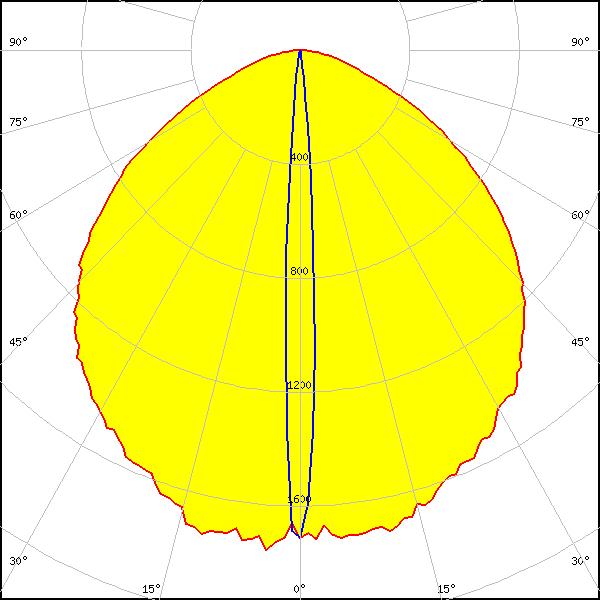

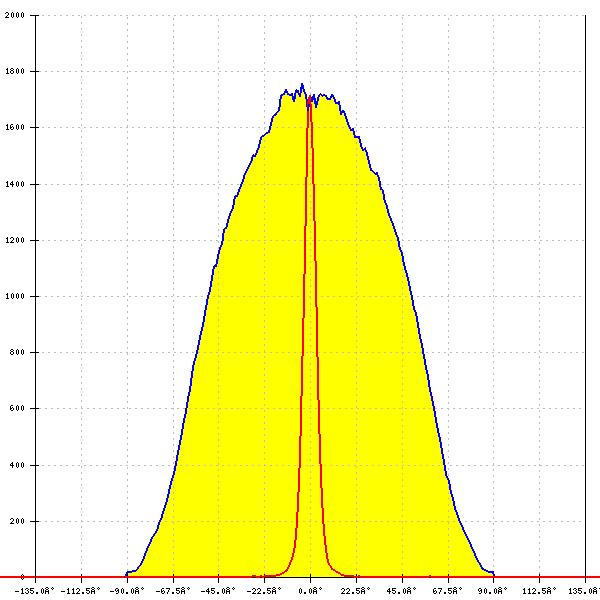

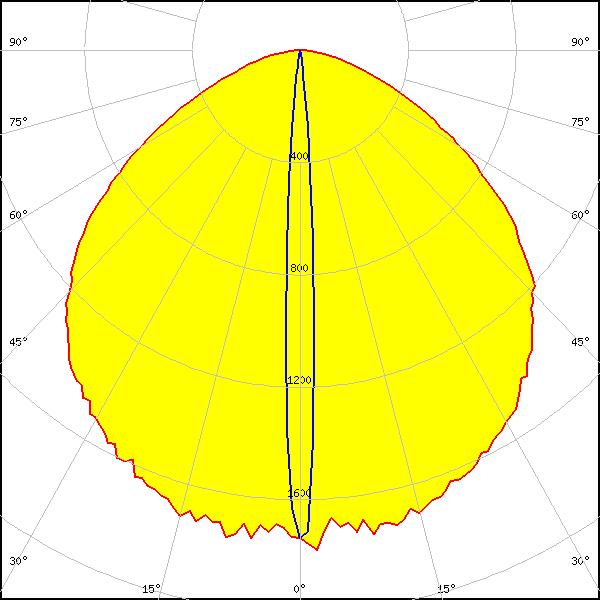

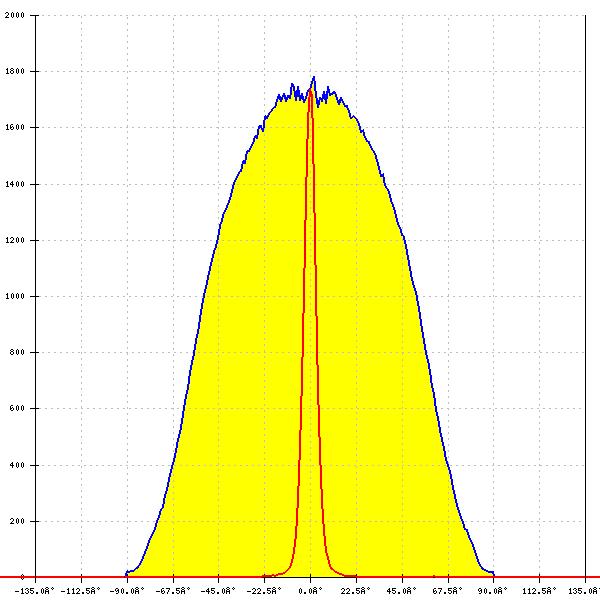

LED:
NVSR219GL-L1
FWHM:
110° + 6°
FWTM:
152° + 14°
Peak intensity:
1.818 cd/lm
Efficiency:
55 %
LEDs/each optic:
6
Light colour/type:
Red
LED:
NVSR219GL-L1
FWHM:
106° + 7°
FWTM:
150° + 14°
Peak intensity:
1.894 cd/lm
Efficiency:
55 %
LEDs/each optic:
7
Light colour/type:
White

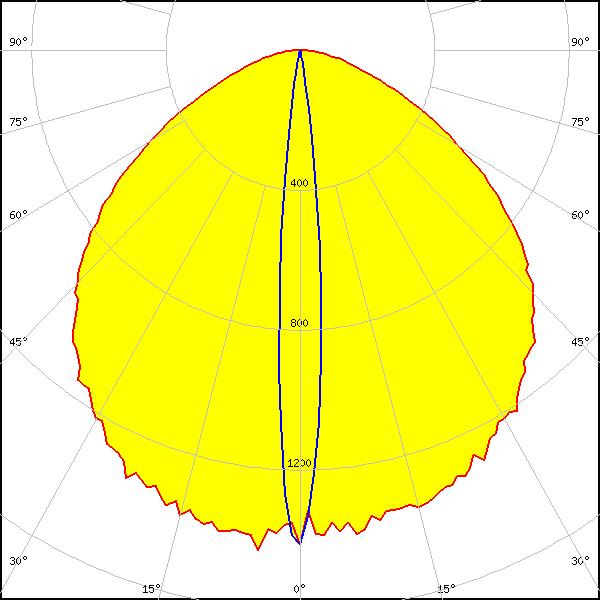

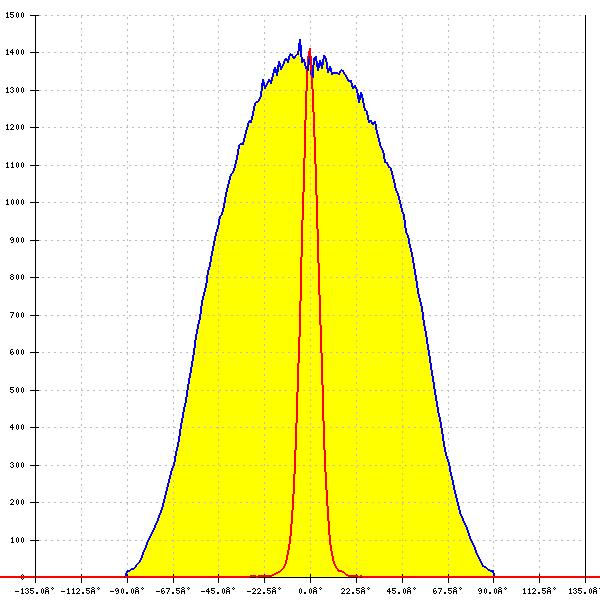

LED:
DURIS E 5050 (GW J9LHS2.4M)
FWHM:
108° + 10°
FWTM:
151° + 18°
Peak intensity:
1.535 cd/lm
Efficiency:
56 %
LEDs/each optic:
4
Light colour/type:
RGBW

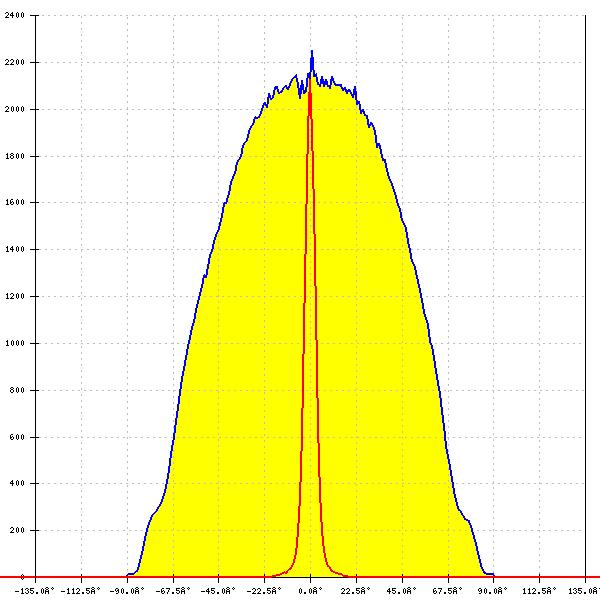

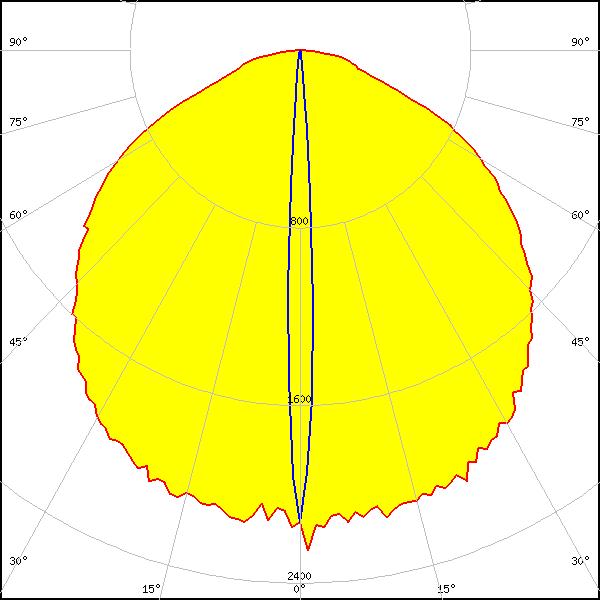

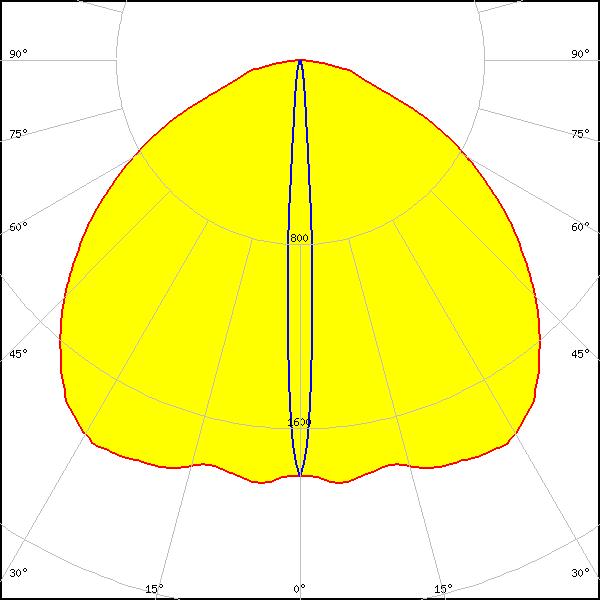

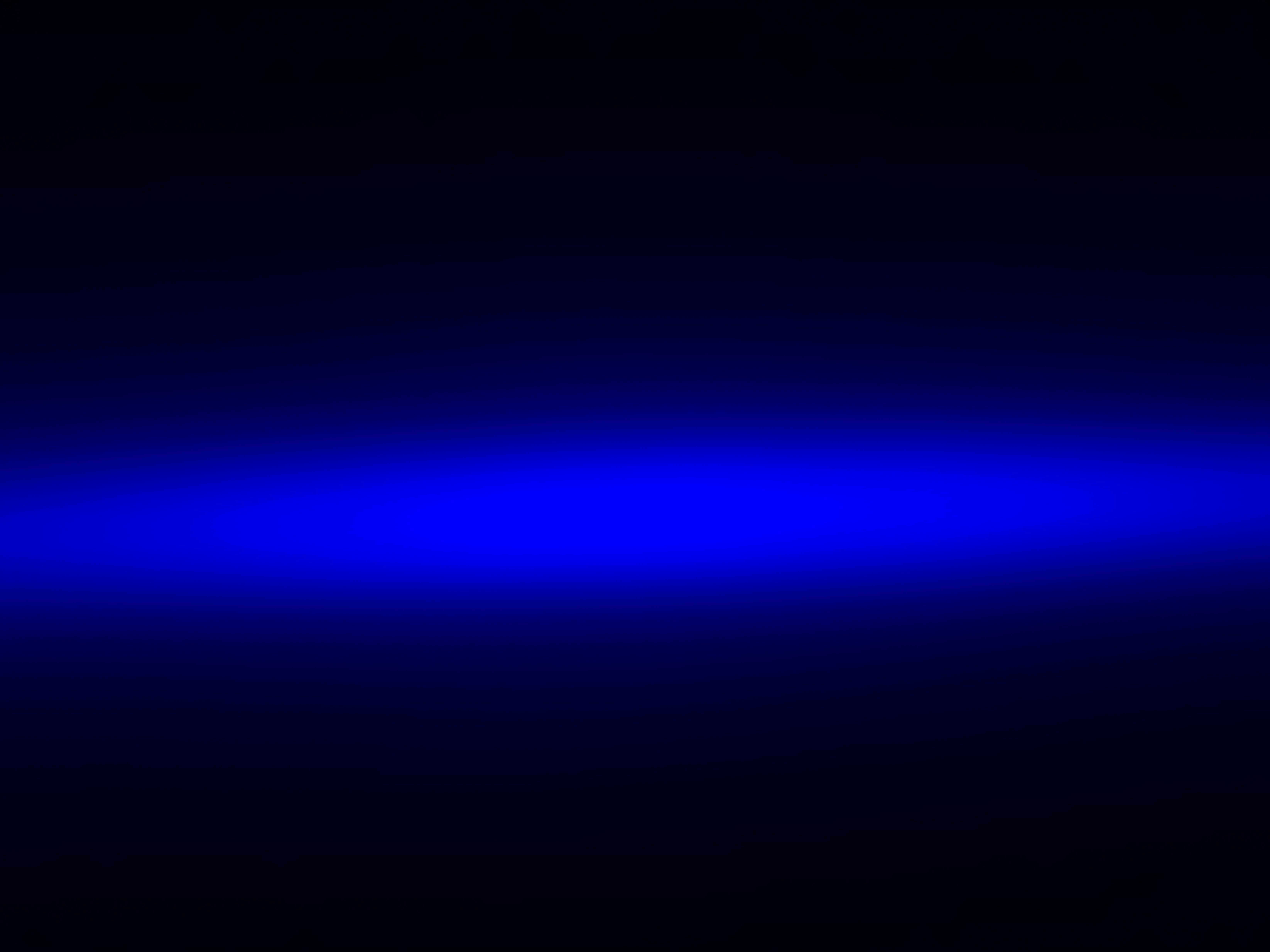

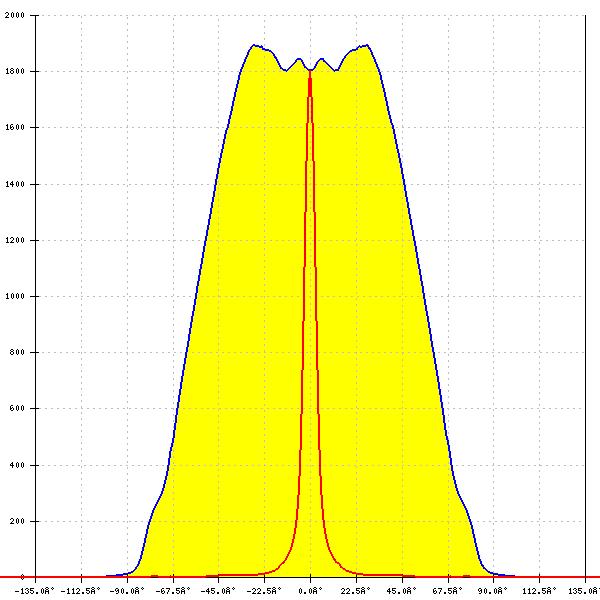

LED:

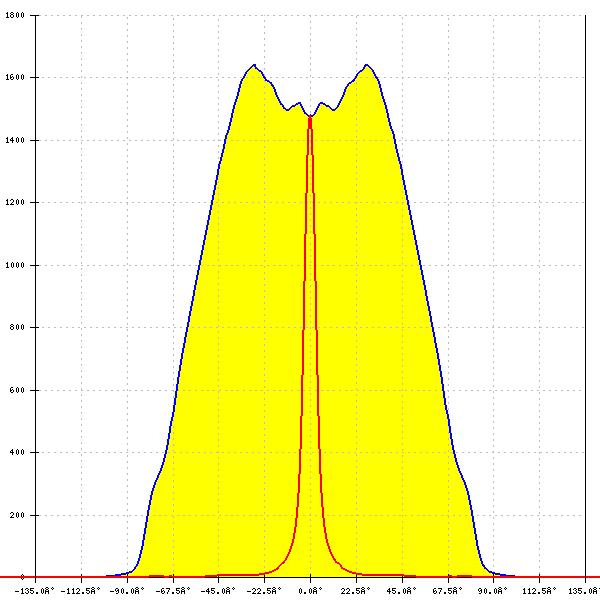

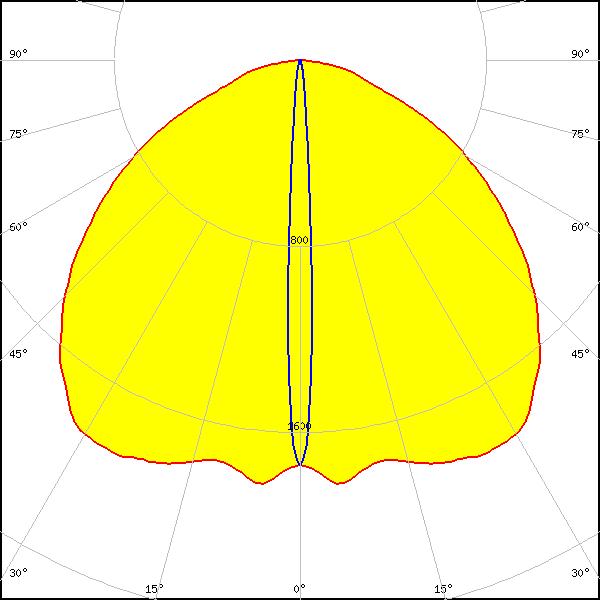

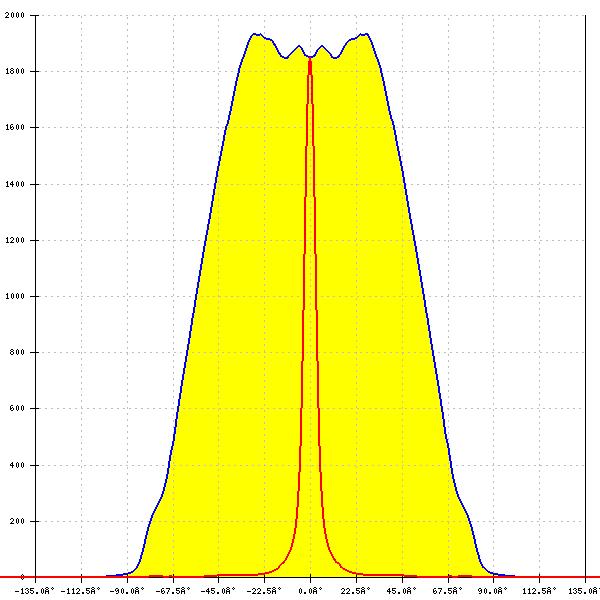

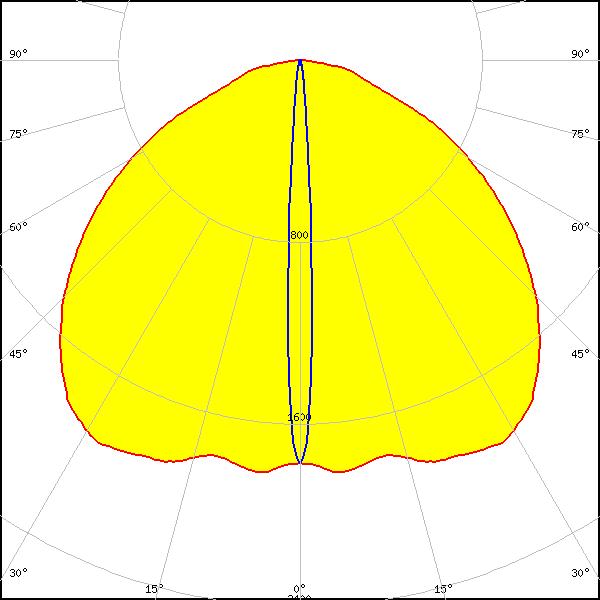

OSLON Pure 1414
FWHM:
112° + 6°
FWTM:
158° + 12°
Peak intensity:
2.257 cd/lm
Efficiency:
53 %
LEDs/each optic:
4
Light colour/type:
RGBW
LED:
OSLON SSL 150
FWHM:
131° + 6°
FWTM:
162° + 12°
Peak intensity:
1.881 cd/lm
Efficiency:
51 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON SSL 150
FWHM:
126° + 6°
FWTM:
159° + 12°
Peak intensity:
1.885 cd/lm
Efficiency:
52 %
LEDs/each optic:
4
Light colour/type:
White
LED:
OSLON SSL 150
FWHM:
137° + 6°
FWTM:
161° + 12°
Peak intensity:
1.620 cd/lm
Efficiency:
49 %
LEDs/each optic:
1
Light colour/type:
Red
LED:
OSLON SSL 150
FWHM:
133° + 6°
FWTM:
157° + 12°
Peak intensity:
1.603 cd/lm
Efficiency:
51 %
LEDs/each optic:
4
Light colour/type:
Red

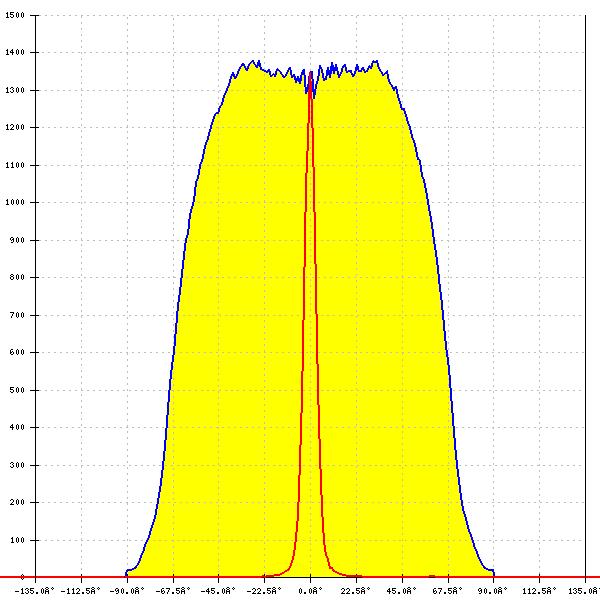

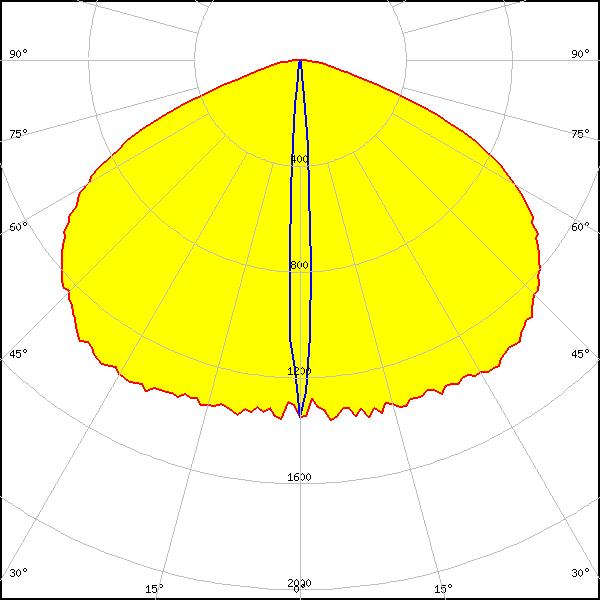

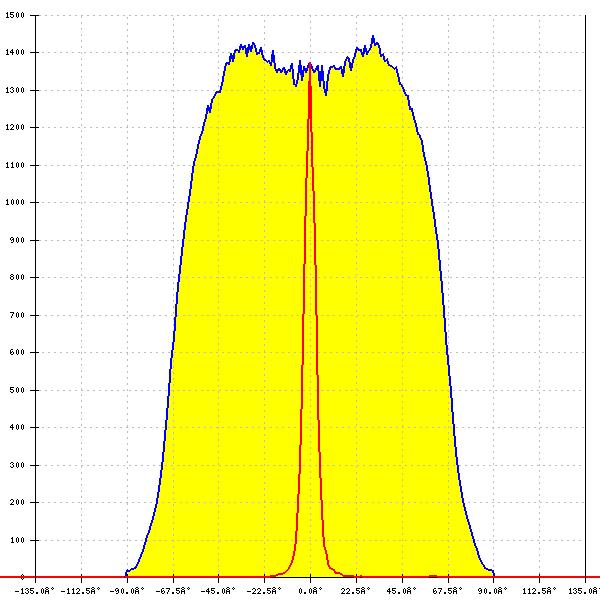

LED:
OSLON SSL 150
FWHM:
132° + 6°
FWTM:
154° + 14°
Peak intensity:
1.461 cd/lm
Efficiency:
51 %
LEDs/each optic:
7
Light colour/type:
Red

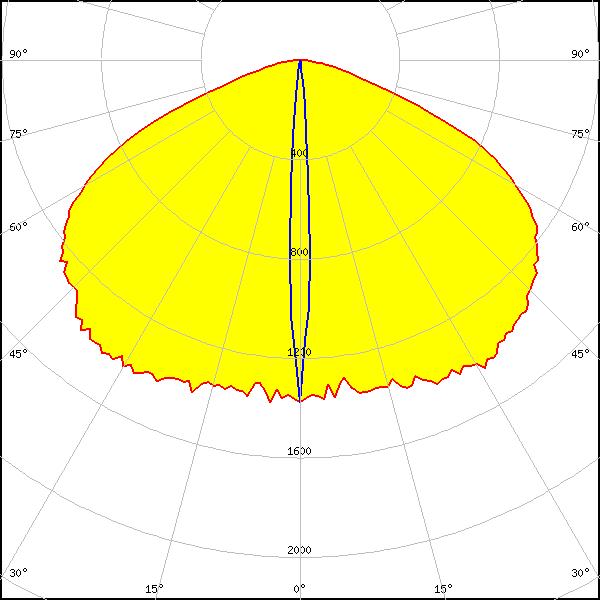

LED:
OSLON SSL 150
FWHM:
132° + 6°
FWTM:
156° + 13°
Peak intensity:
1.453 cd/lm
Efficiency:
51 %
LEDs/each optic:
6
Light colour/type:
Red

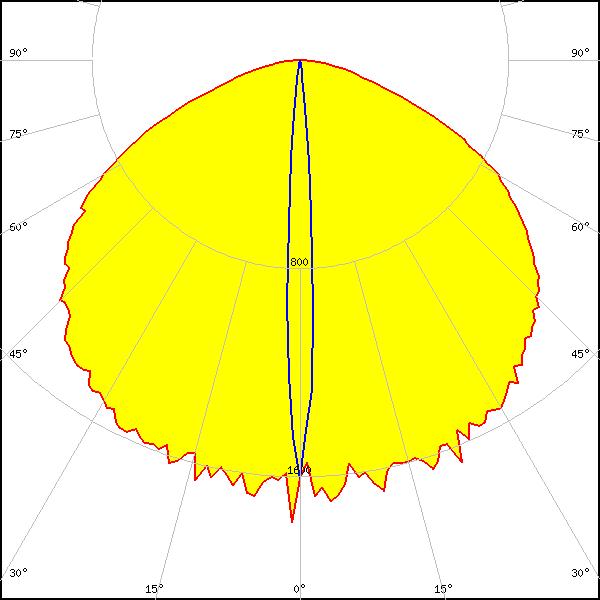

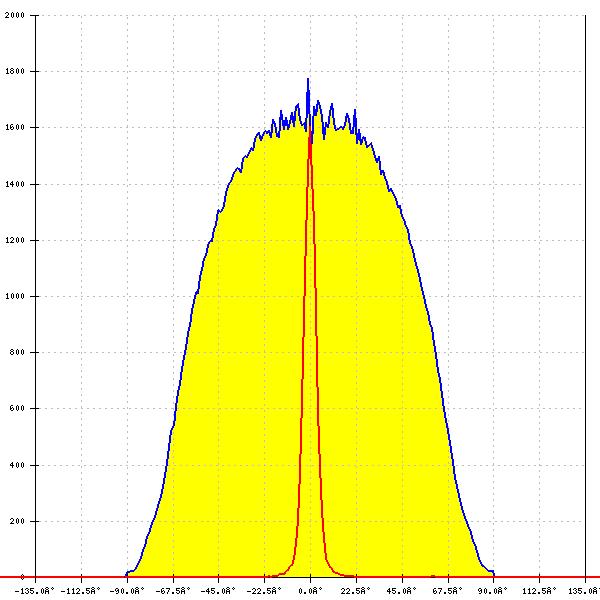

LED:
OSLON SSL 150
FWHM:
119° + 6°
FWTM:
156° + 14°
Peak intensity:
1.775 cd/lm
Efficiency:
52 %
LEDs/each optic:
6
Light colour/type:
White

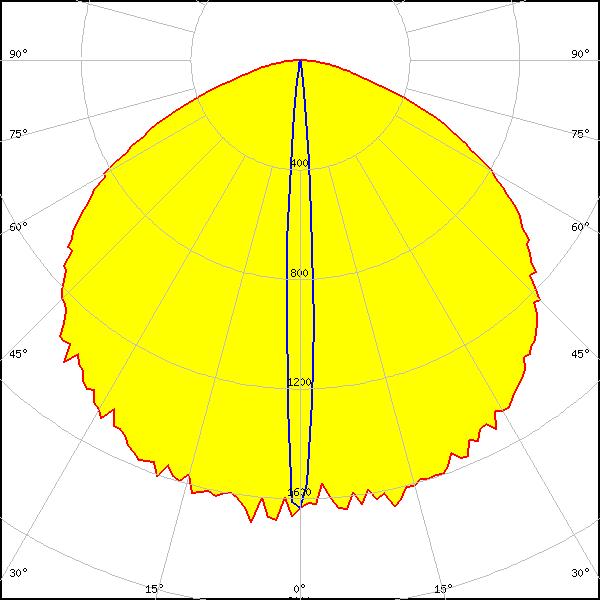

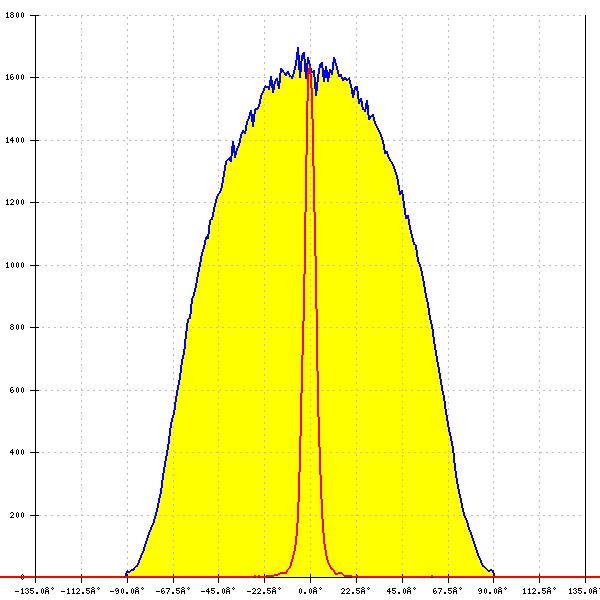

LED:
OSLON SSL 150
FWHM:
118° + 6°
FWTM:
154° + 13°
Peak intensity:
1.768 cd/lm
Efficiency:
53 %
LEDs/each optic:
7
Light colour/type:
White
LED:
OSTAR Stage (S2WN)
FWHM:
108° + 8°
FWTM:
146° + 14°
Peak intensity:
1.911 cd/lm
Efficiency:
56 %
LEDs/each optic:
4
Light colour/type:
RGBW
