    CS19573_AMBER-IP-24-T2-M

    Print

    IESNA Type II (medium) beam with excellent backlight control, illuminance uniformity and cutoff.

    Specification
    • Dimensions:
      173 x  71 mm
    • Height:
      9.14 mm
    • Fastening:
      pin, screw
    • Colour:
      amber
    • Ingress protection classes:
      IP66, IP67
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      120 pcs
    • Box size:
      476 x 273 x 247 mm
    • Box weight:
      6.5 kg
    • MPQ:
      40 pcs
    • MOQ:
      120 pcs
    • MOQ size:
      476 x 273 x 247 mm
    • MOQ weight:
      6.5 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      CS19573_AMBER-IP-24-T2-M
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New beams and products – April 2025

    Application guide

    LEDiL Guide for Urban lighting optics

    Catalogue

    LEDiL Latest products catalogue

    Application area

    Urban lighting with LEDiL optics

    Article

    See the stars in the centre of the city - How to reduce light pollution in urban environments

    News

    Create biologically sustainable lighting with LEDiL AMBER lenses

    Application area

    Outdoor Special Applications

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

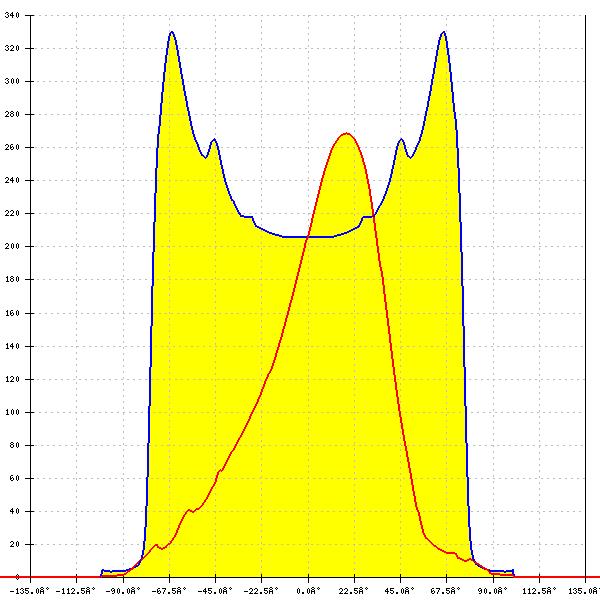

    Optical results

    LED: Duris S8
    FWHM: asymmetric
    Peak intensity: 0.391 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White
    Amount of blue light (380-500 nm): 0.6%
    CCT (LED/with lens)*: 3900 K/ 2400 K

    *the measured CCT with lens doesn’t follow the Black Body Locus line
