    CS19240_AMBER-IP-2X6-T2

    Print

    IESNA Type II (medium) beam applicable for European P-class standard pedestrian lighting and M-class roads

    Specification
    • Dimensions:
      71 x  173 mm
    • Height:
      9.17 mm
    • Fastening:
      screw
    • Colour:
      amber
    • Ingress protection classes:
      IP67
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      120 pcs
    • Box size:
      476 x 273 x 247 mm
    • Box weight:
      7.6 kg
    • MPQ:
      40 pcs
    • MOQ:
      40 pcs
    • MOQ size:
      480 x 280 x 100 mm
    • MOQ weight:
      2.7 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CS19240_AMBER-IP-2X6-T2

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New products – June, 2023

    Application area

    Urban lighting with LEDiL optics

    Application guide

    LEDiL guide for urban lighting optics

    Article

    See the stars in the centre of the city - How to reduce light pollution in urban environments

    News

    Create biologically sustainable lighting with LEDiL AMBER lenses

    Application area

    Outdoor Special Applications

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

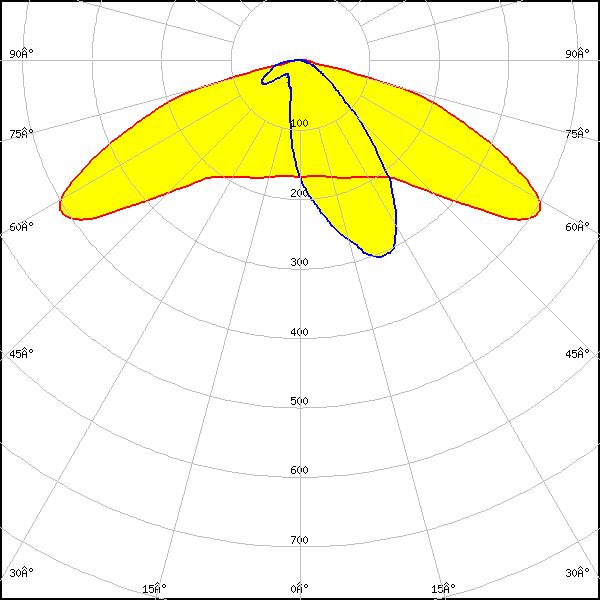

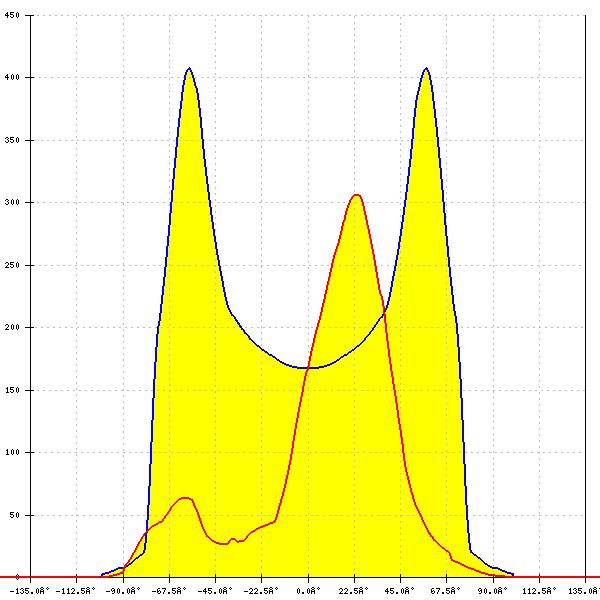

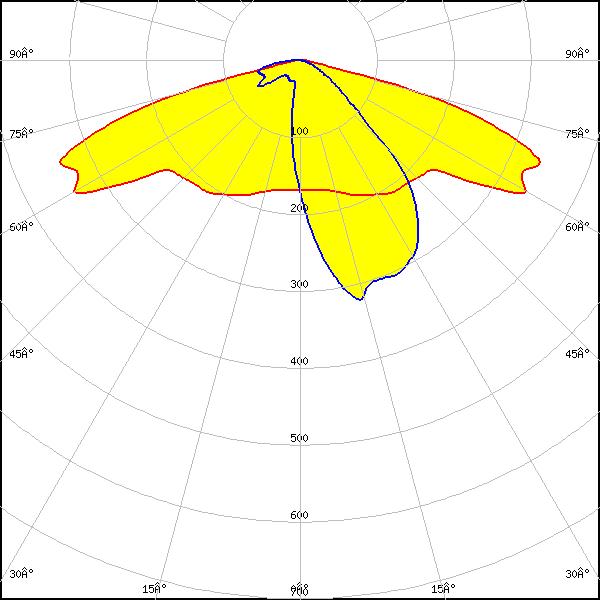

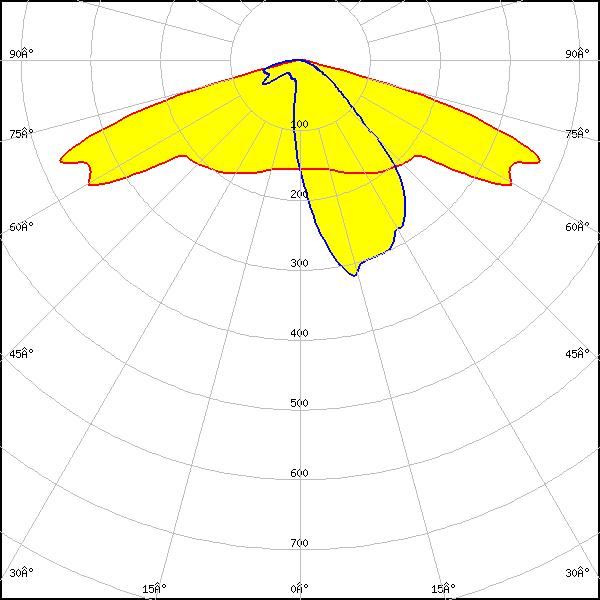

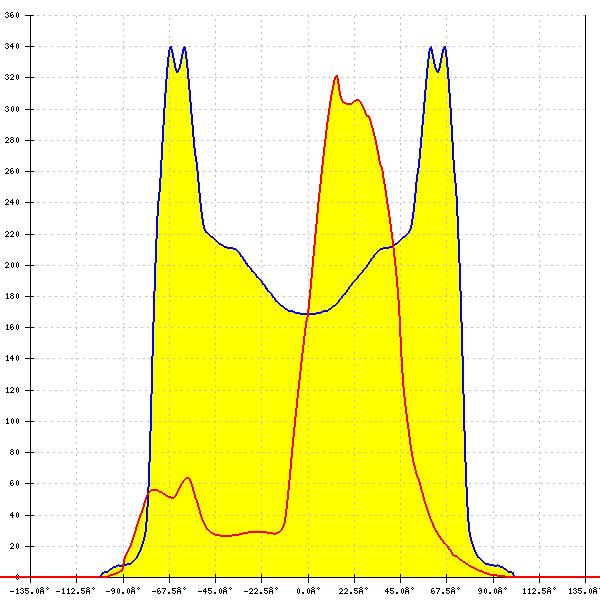

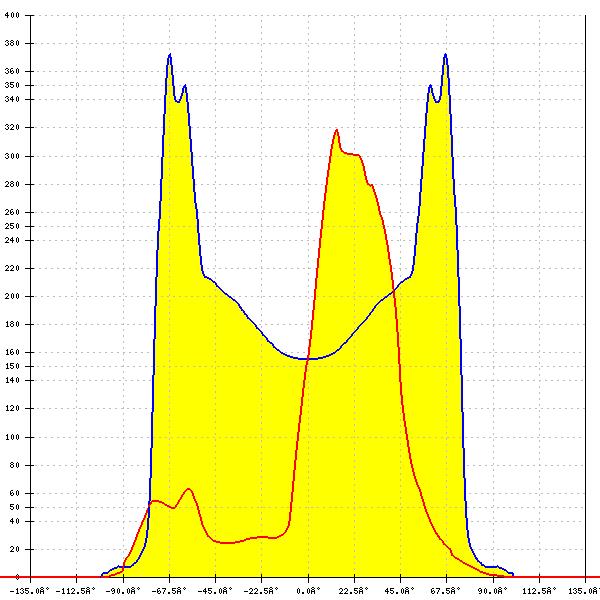

    Optical results

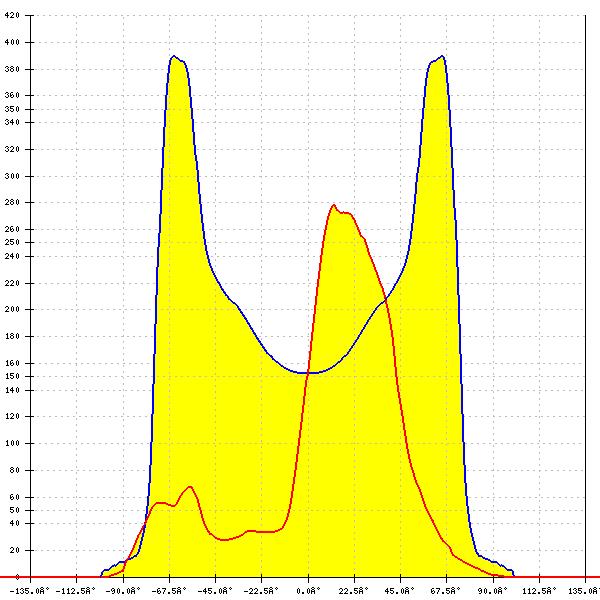

    LED: XP-G3
    FWHM: asymmetric
    Peak intensity: 0.688 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White
    Amount of blue light (380-500 nm): 0.3%
    CCT (LED/with lens)*: 3800 K/ 2200 K

    *the measured CCT with lens doesn’t follow the Black Body Locus line
    LED: LUXEON 5050 HE
    FWHM: asymmetric
    Peak intensity: 0.578 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White
    Amount of blue light (380-500 nm): 0.4%
    CCT (LED/with lens)*: 3800 K/ 2200 K

    *the measured CCT with lens doesn’t follow the Black Body Locus line

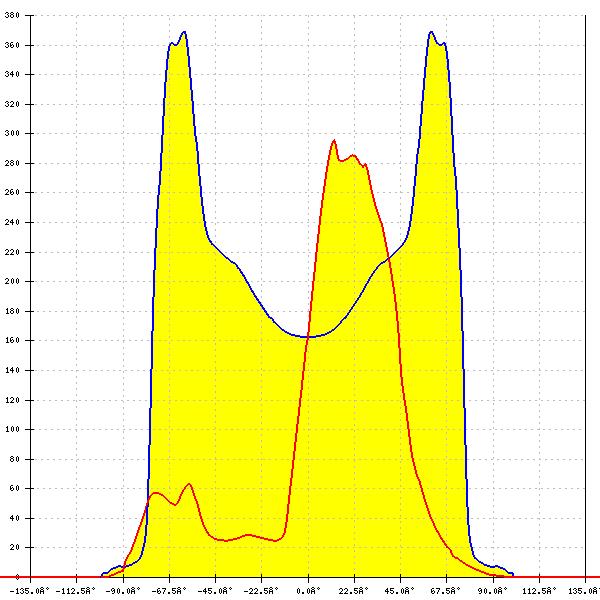

    LED: LUXEON HL2X-D
    FWHM: asymmetric
    Peak intensity: 0.681 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White
    Amount of blue light (380-500 nm): 0.4%
    CCT (LED/with lens)*: 3900 K/ 2300 K

    *the measured CCT with lens doesn’t follow the Black Body Locus line

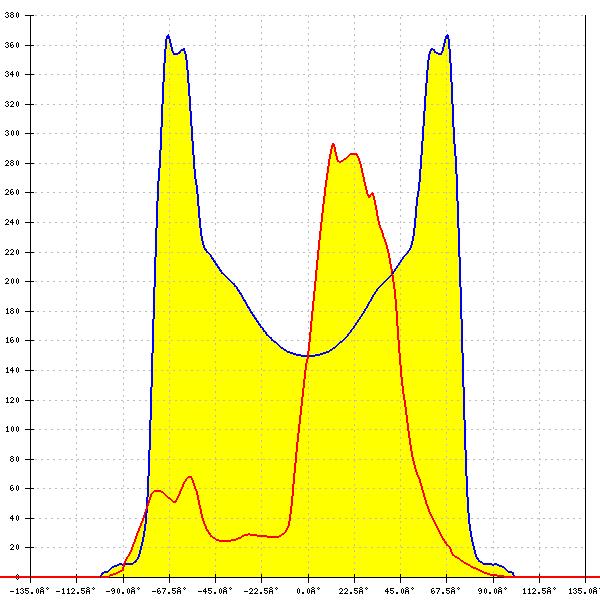

    LED: NVSW219F
    FWHM: asymmetric
    Peak intensity: 0.726 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White
    Amount of blue light (380-500 nm): 0.4%
    CCT (LED/with lens)*: 3800 K/ 2200 K

    *the measured CCT with lens doesn’t follow the Black Body Locus line

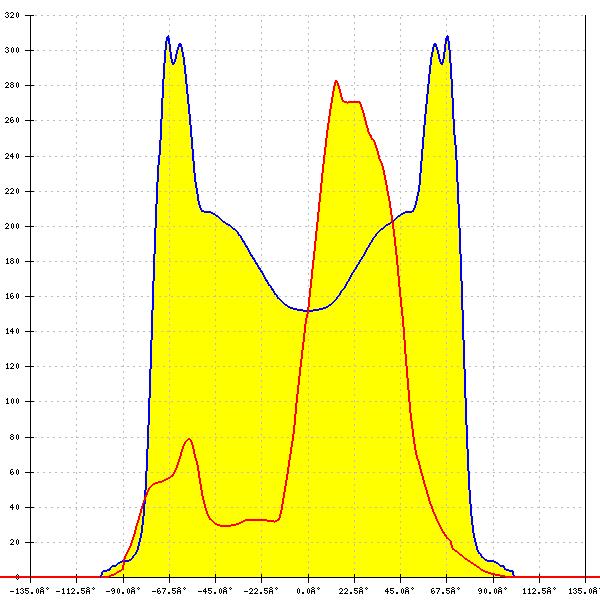

    LED: NVSW519A
    FWHM: asymmetric
    Peak intensity: 0.619 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: White

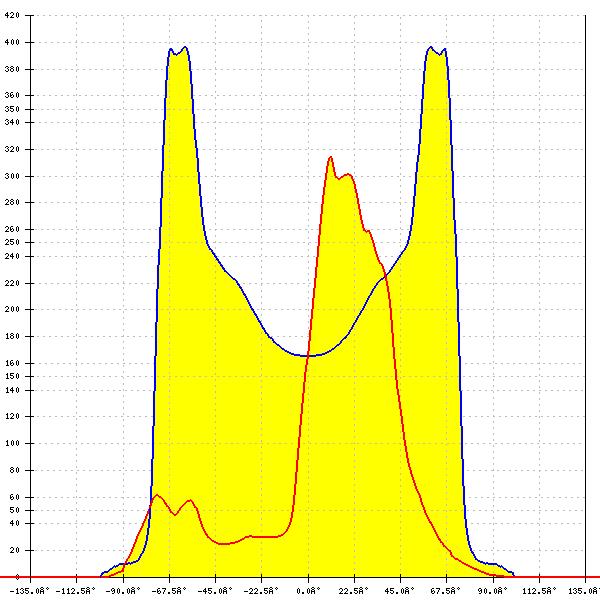

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 0.779 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White
    Amount of blue light (380-500 nm): 0.4%
    CCT (LED/with lens)*: 3900 K/ 2200 K

    *the measured CCT with lens doesn’t follow the Black Body Locus line
    LED: LH502D
    FWHM: asymmetric
    Peak intensity: 0.568 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White
    Amount of blue light (380-500 nm): 0.4%
    CCT (LED/with lens)*: 3800 K/ 2200 K

    *the measured CCT with lens doesn’t follow the Black Body Locus line

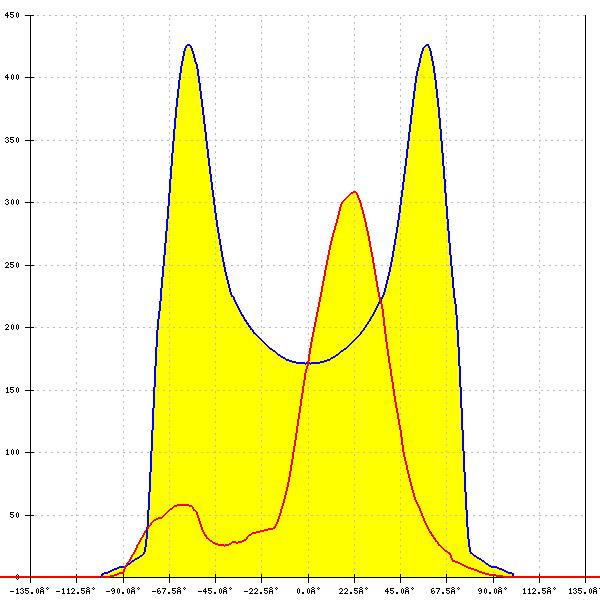

    LED: SEOUL DC 5050 6V
    FWHM: asymmetric
    Peak intensity: 0.550 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White
    Amount of blue light (380-500 nm): 0.4%
    CCT (LED/with lens)*: 3900 K/ 2200 K

    *the measured CCT with lens doesn’t follow the Black Body Locus line
