    CS18284_STRADA-IP-24-T2-M

    Print

    IESNA Type II (medium) beam with excellent backlight control, illuminance uniformity and cutoff.

    Specification
    • Dimensions:
      173 x  71 mm
    • Height:
      9.14 mm
    • Fastening:
      pin, screw
    • Colour:
      clear
    • Ingress protection classes:
      IP66, IP67
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      120 pcs
    • Box size:
      476 x 273 x 247 mm
    • Box weight:
      6.2 kg
    • MPQ:
      40 pcs
    • MOQ:
      120 pcs
    • MOQ size:
      476 x 273 x 247 mm
    • MOQ weight:
      6.2 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      CS18284_STRADA-IP-24-T2-M

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New products – April 13, 2022

    PCN

    Product change notification NR183 - Additional gasket material approved for LEDiL products

    Reference product

    The Oaken sustainability in street lighting

    Application area

    Urban lighting with LEDiL optics

    Application example

    Urban lighting with LEDiL optics

    Application guide

    LEDiL guide for street lighting optics

    News

    STRADA-IP-24 – ME & SCL, making the most versatile even more versatile

    News

    STRADA-IP-24 – Real value for luminaire designers and end-users

    News

    Boost your luminaire efficiency and output with the new STRADA-IP-24 family

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

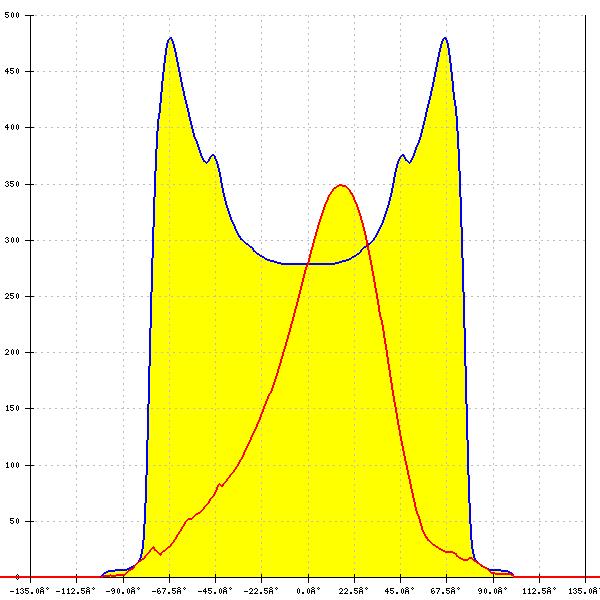

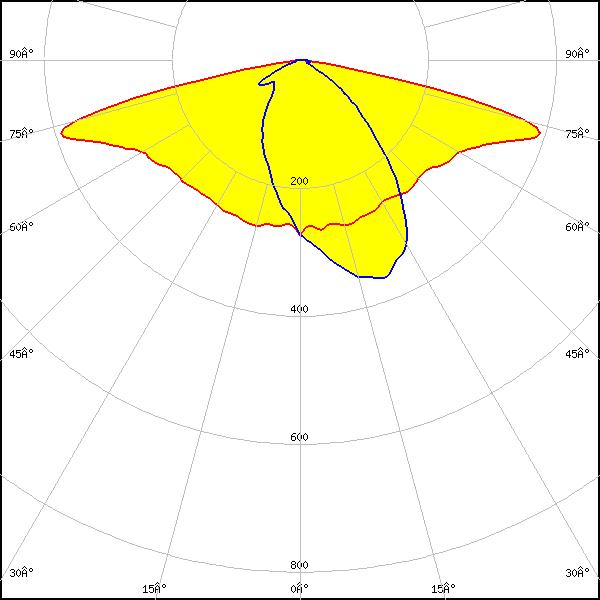

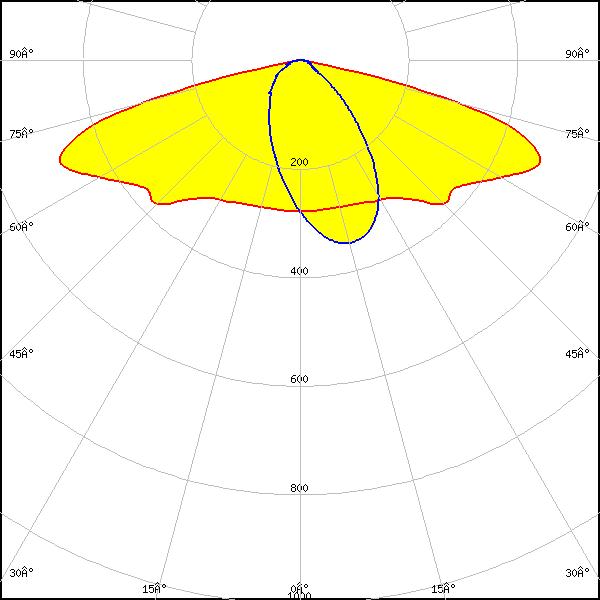

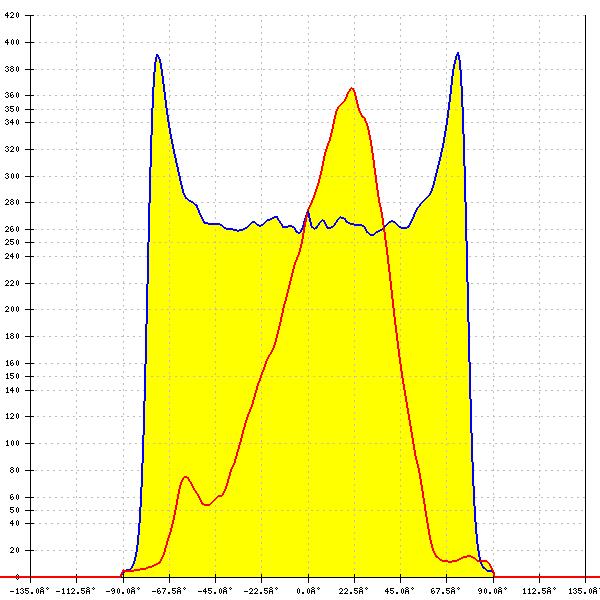

    Optical results

    LED: LIGHT ENGINE STRADA-IP 24 LEDs 147.4 x 46.2 x 1.5
    FWHM: asymmetric
    Peak intensity: 0.541 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Bridgelux SMD 5050
    FWHM: asymmetric
    Peak intensity: 0.445 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050B 6V K Class
    FWHM: asymmetric
    Peak intensity: 0.558 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050C 6V E Class
    FWHM: asymmetric
    Peak intensity: 0.467 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G3
    FWHM: asymmetric
    Peak intensity: 0.482 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

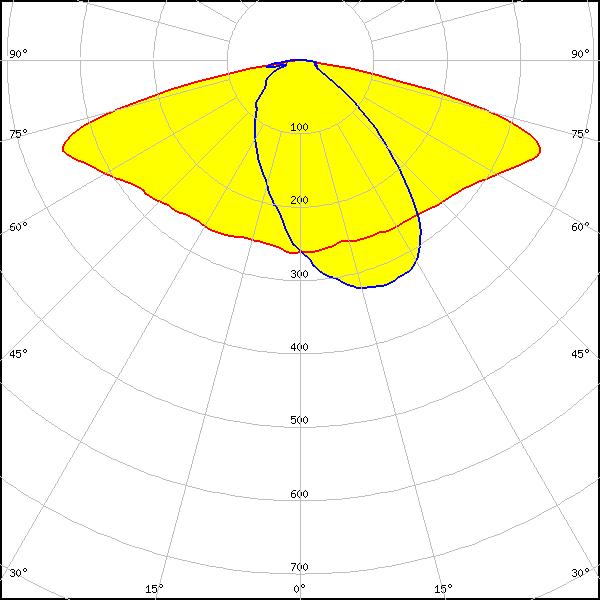

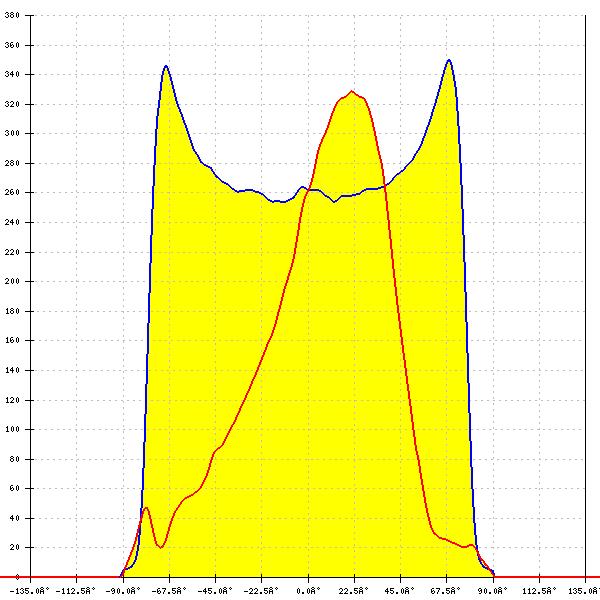

    LED: LUXEON 5050 HE
    FWHM: asymmetric
    Peak intensity: 0.428 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 0.453 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Square LES
    FWHM: asymmetric
    Peak intensity: 0.560 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON XR-5050 HE (L225-xxxx024MLU010)
    FWHM: asymmetric
    Peak intensity: 0.582 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RecLED 147x47mm 5800lm 7x0 5050 STRADA-IP-24 G2
    FWHM: asymmetric
    Peak intensity: 0.434 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NFMW48xA
    FWHM: asymmetric
    Peak intensity: 0.456 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

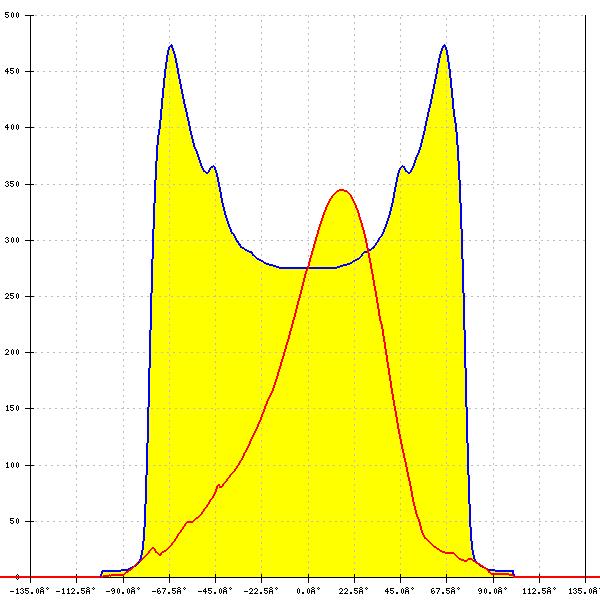

    LED: Duris S8
    FWHM: asymmetric
    Peak intensity: 0.422 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ S 5050
    FWHM: asymmetric
    Peak intensity: 0.449 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RM24 ZP (LH502C)
    FWHM: asymmetric
    Peak intensity: 0.453 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RM24 ZP (LH502D)
    FWHM: asymmetric
    Peak intensity: 0.567 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH502C
    FWHM: asymmetric
    Peak intensity: 0.452 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH502D
    FWHM: asymmetric
    Peak intensity: 0.461 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH508C
    FWHM: asymmetric
    Peak intensity: 0.452 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM301D
    FWHM: asymmetric
    Peak intensity: 0.504 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CHI-VP-10K5-740-36
    FWHM: asymmetric
    Peak intensity: 0.635 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CHIEC-VE-11K4-740-48
    FWHM: asymmetric
    Peak intensity: 0.599 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 5050 6V
    FWHM: asymmetric
    Peak intensity: 0.447 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE 3x8 6000lm HP HE EXC3 OTD
    FWHM: asymmetric
    Peak intensity: 0.578 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
