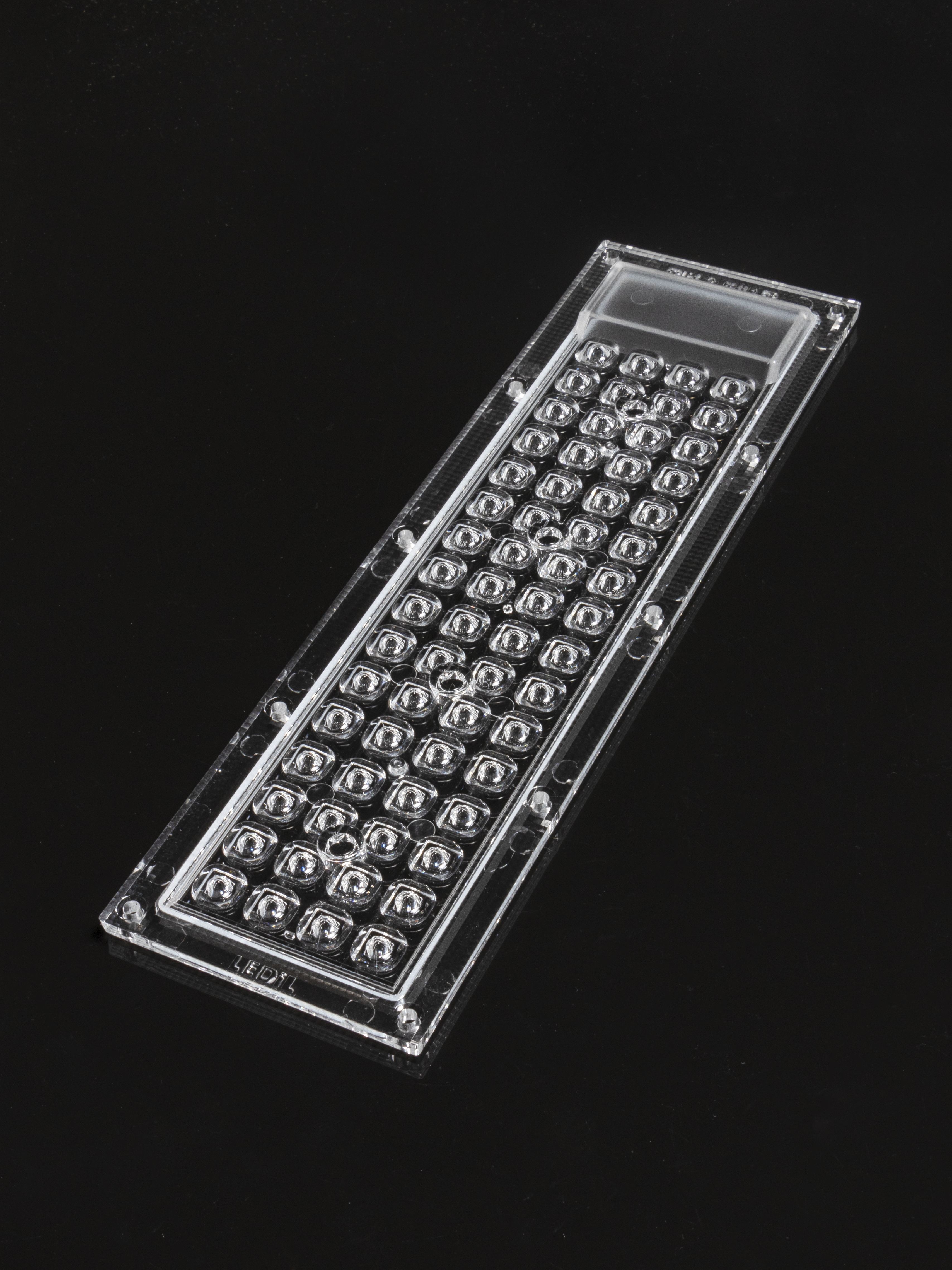

    CS17646_STRADELLA-IP-64-VSM

    Print

    IESNA Type V (square) beam for wide areas lighting such as car parks.

    Specification
    • Dimensions:
      253 x  74 mm
    • Height:
      9.70 mm
    • Fastening:
      screw
    • Colour:
      clear
    • Ingress protection classes:
      IP66, IP67
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      108 pcs
    • Box size:
      476 x 273 x 247 mm
    • Box weight:
      8.8 kg
    • MPQ:
      36 pcs
    • MOQ:
      108 pcs
    • MOQ size:
      476 x 273 x 247 mm
    • MOQ weight:
      8.8 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      CS17646_STRADELLA-IP-64-VSM
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR183 - Additional gasket material approved for LEDiL products

    News

    New products – February 18, 2021

    News

    STRADELLA-IP-64 – New ingress protected mid-power platform

    Application guide

    Guide for Street lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    News

    PRODUCT NEWS - STRADELLA FAMILY

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    Optical results

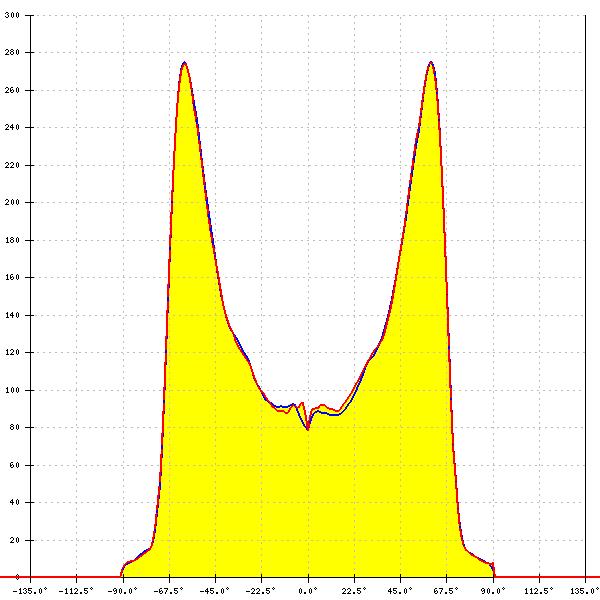

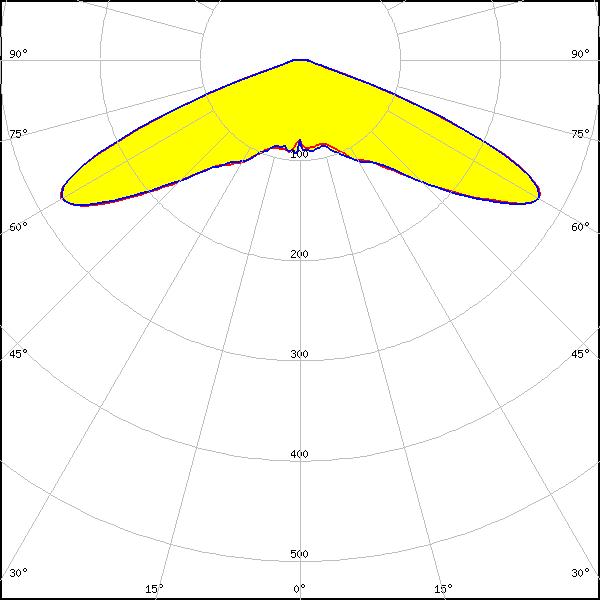

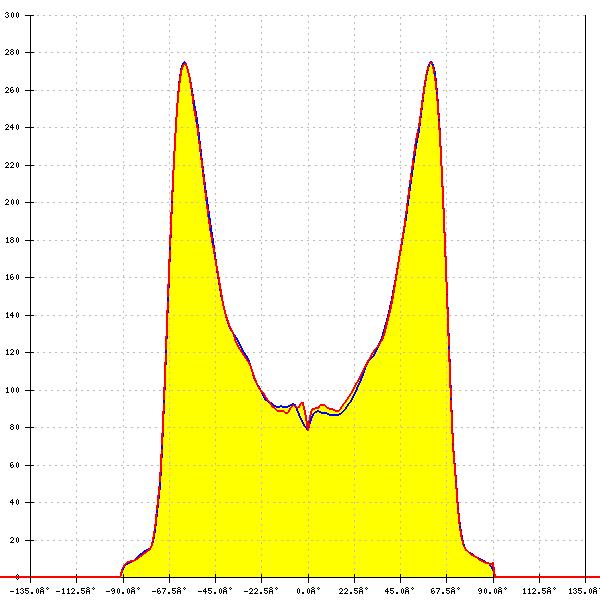

    LED: J Series 2835
    FWHM: asymmetric
    Peak intensity: 0.394 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

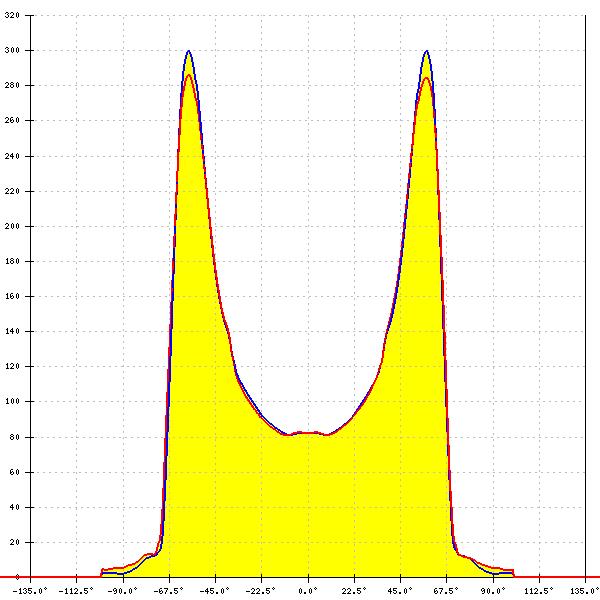

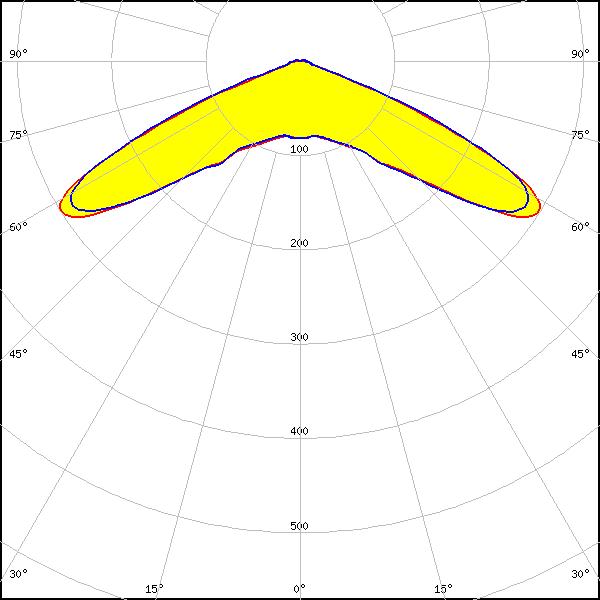

    LED: EHP-223.5x50-1604-xx-70-LS30-06-NTC
    FWHM: asymmetric
    Peak intensity: 0.541 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

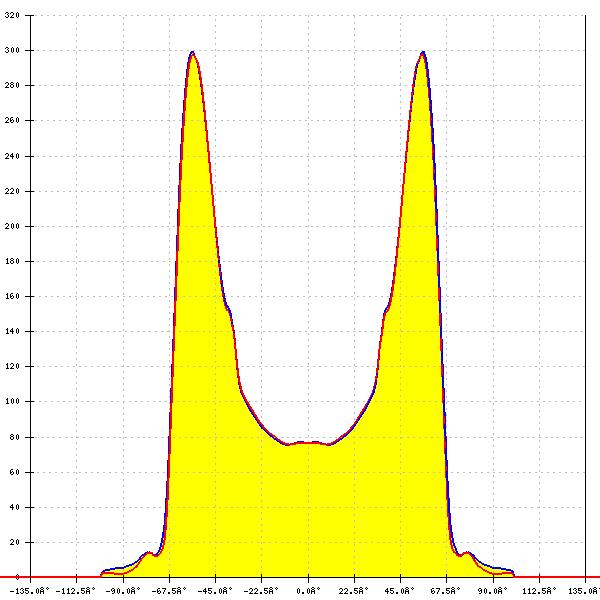

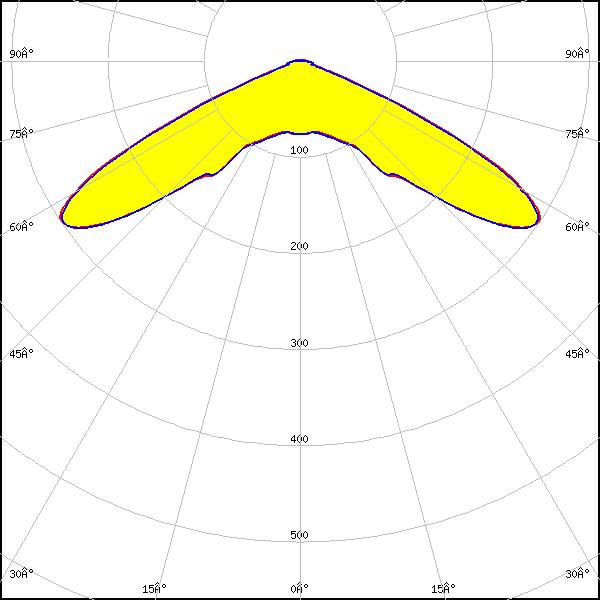

    LED: PrevaLED Brick MP 4x16
    FWHM: 129°
    FWTM: 138°
    Peak intensity: 0.554 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

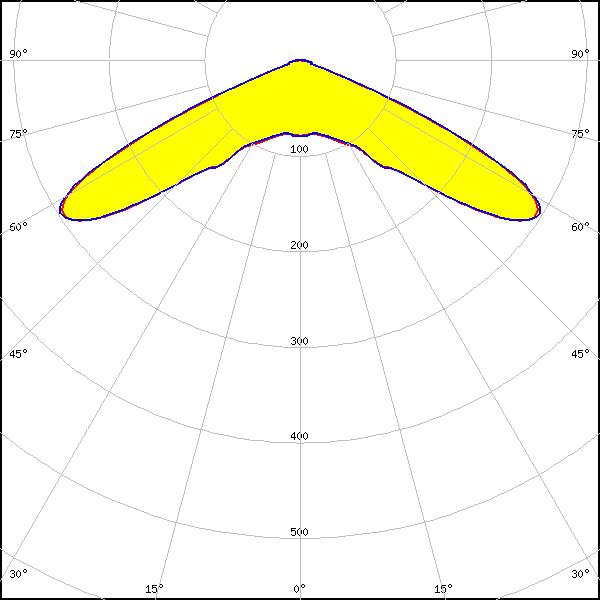

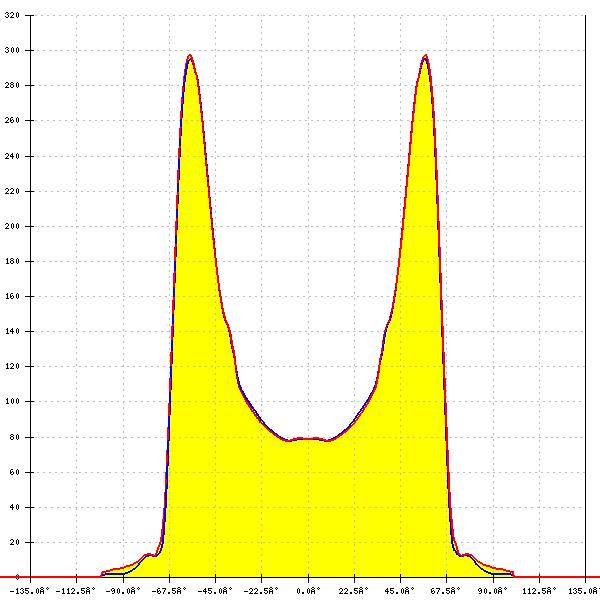

    LED: RecLED 223x50mm 4200lm 4x16 STRADELLA-IP-64
    FWHM: 131°
    FWTM: 140°
    Peak intensity: 0.551 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

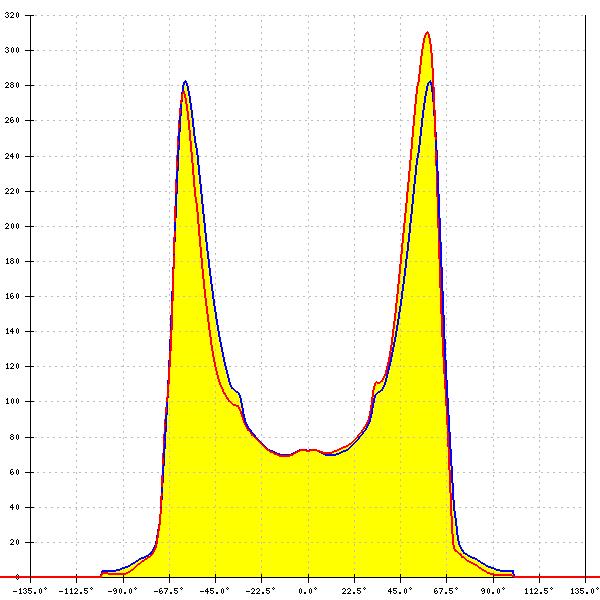

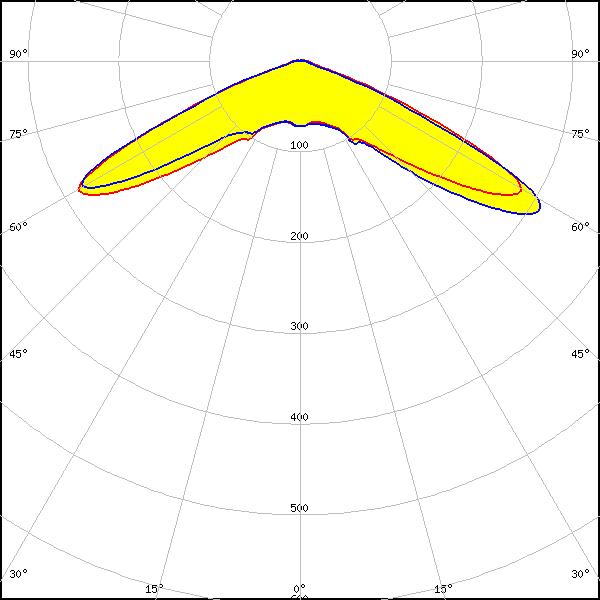

    LED: RecLED 223x50mm 4200lm 8x0 4x16 Opt G1
    FWHM: asymmetric
    Peak intensity: 0.616 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris E 2835
    FWHM: asymmetric
    Peak intensity: 0.521 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

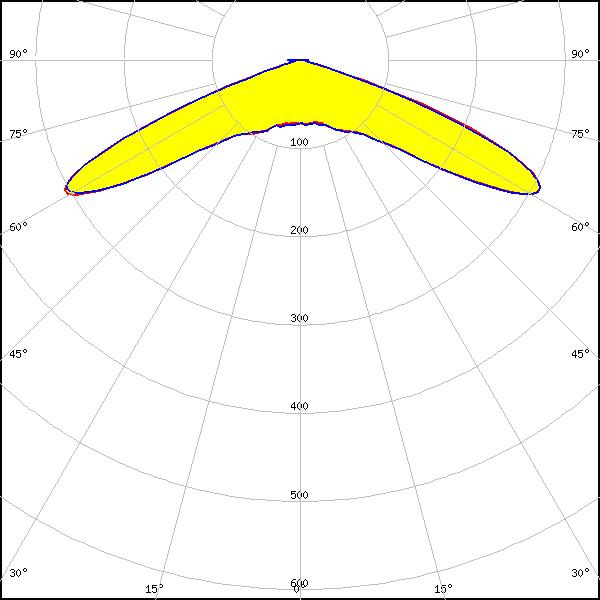

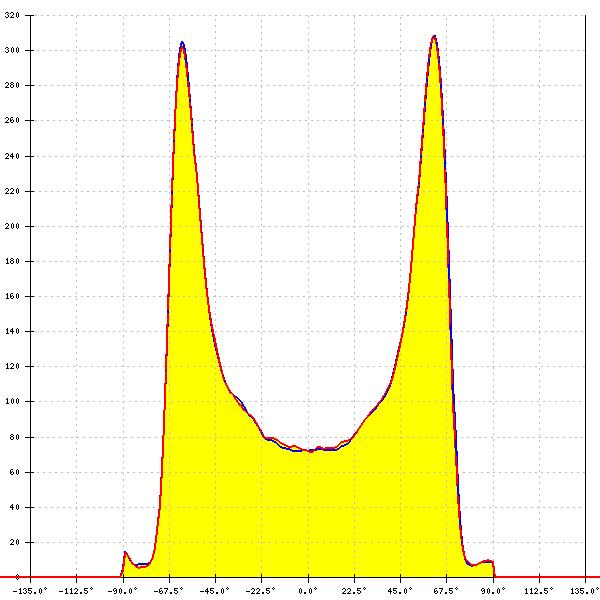

    LED: DURIS S5 (Single chip)
    FWHM: asymmetric
    Peak intensity: 0.553 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

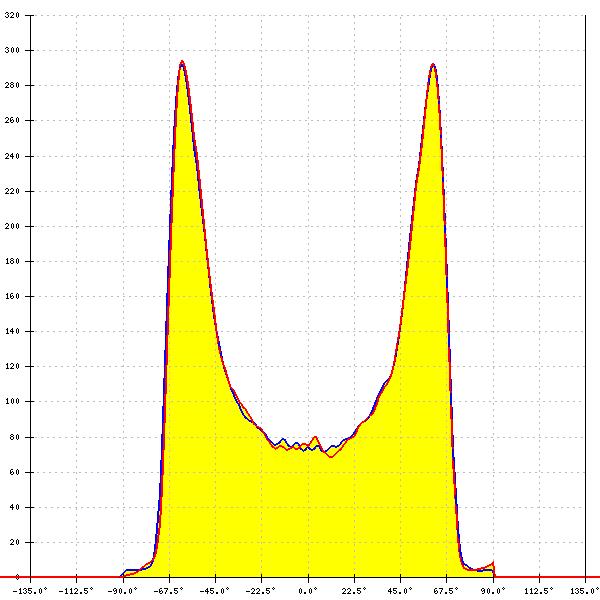

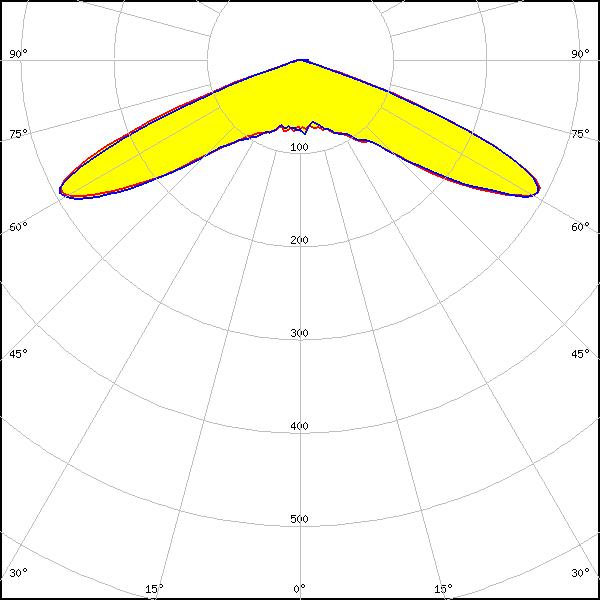

    LED: OSCONIQ C 3030
    FWHM: asymmetric
    Peak intensity: 0.526 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

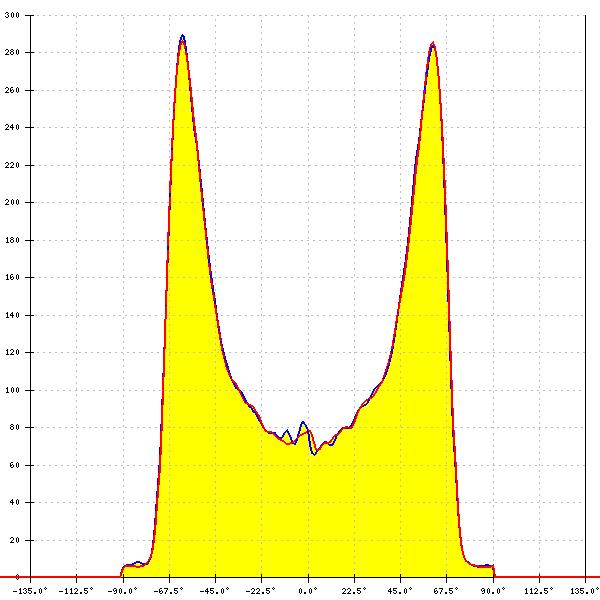

    LED: Fortimo FastFlex LED 4x16 DHE G4
    FWHM: asymmetric
    Peak intensity: 0.528 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

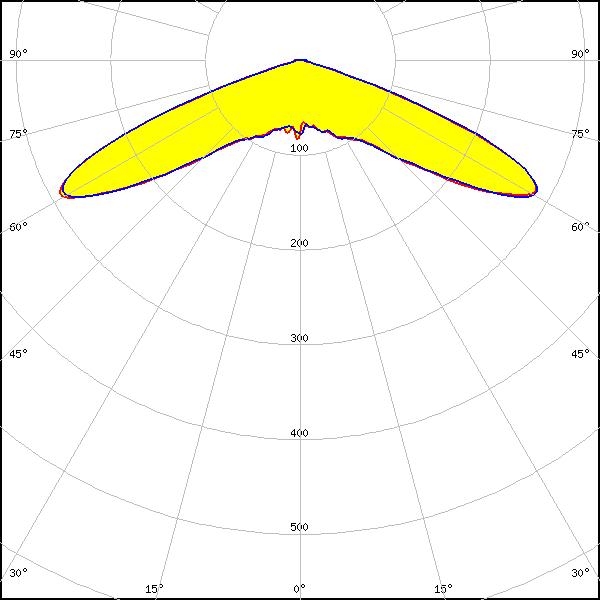

    LED: HiLOM RM64 (LM301B)
    FWHM: asymmetric
    Peak intensity: 0.528 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

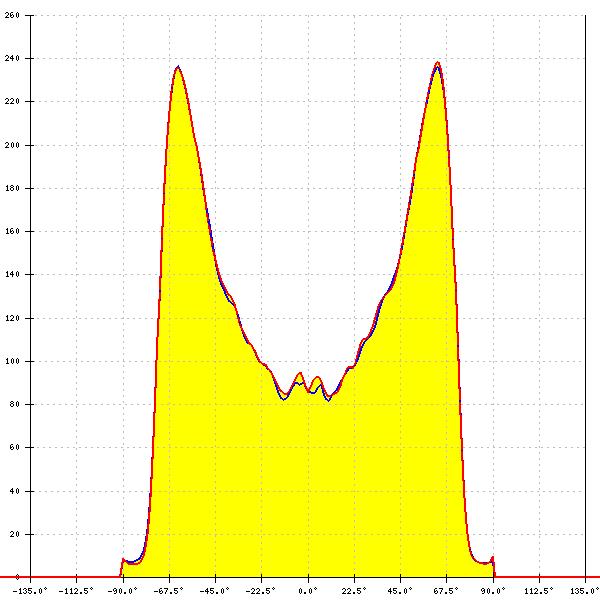

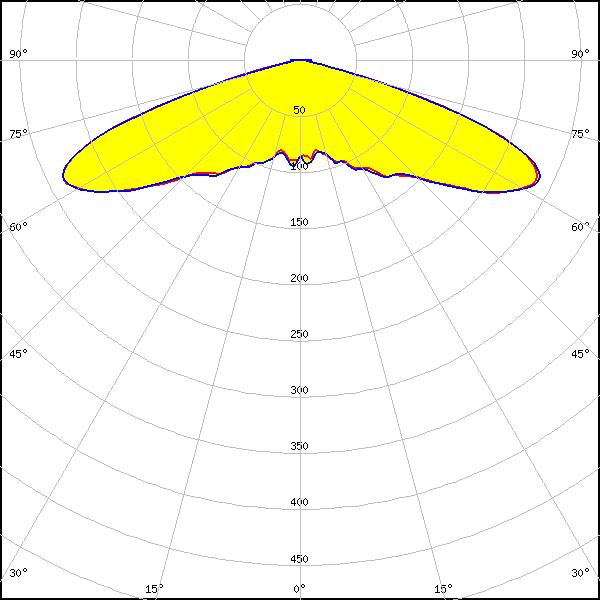

    LED: LH351B
    FWHM: asymmetric
    Peak intensity: 0.374 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

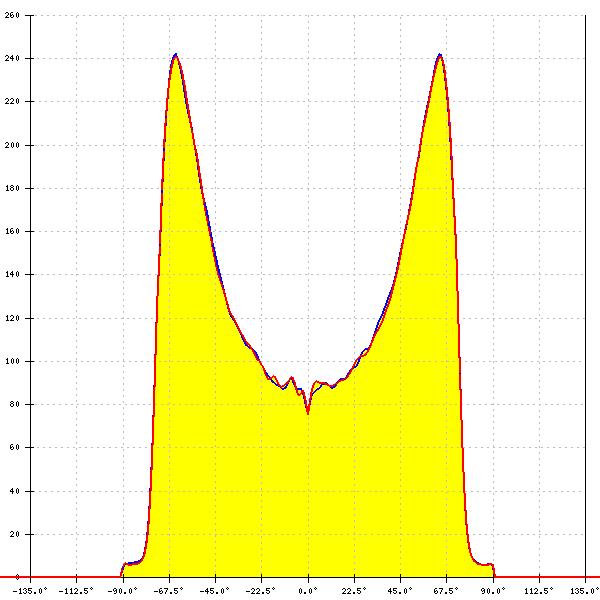

    LED: LH351C
    FWHM: asymmetric
    Peak intensity: 0.389 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

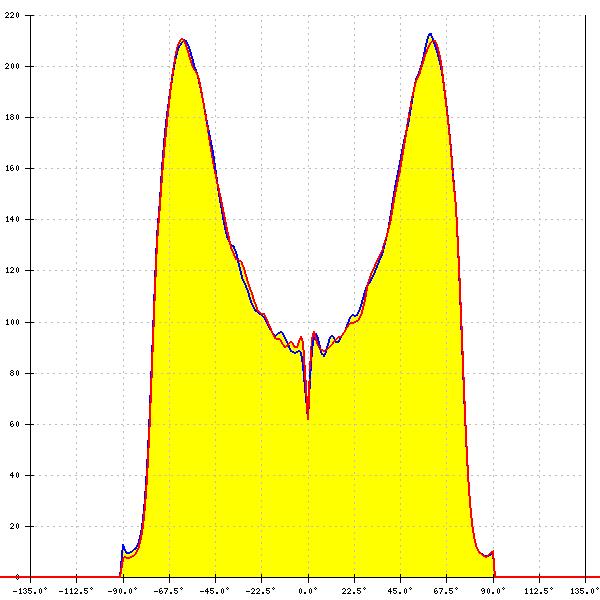

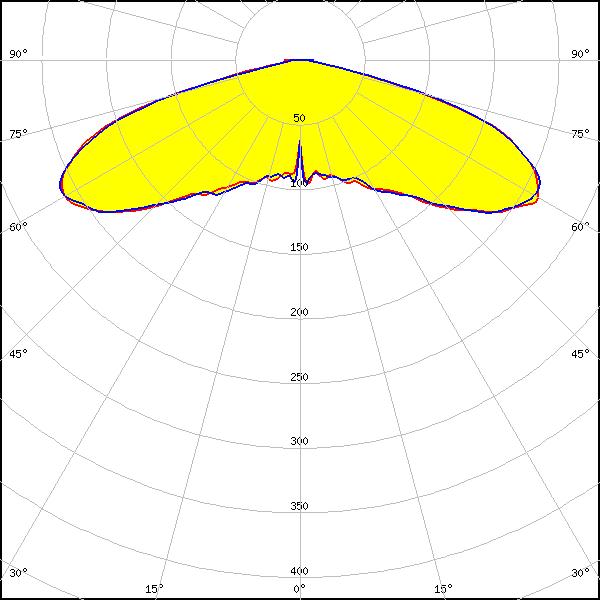

    LED: LH351D
    FWHM: asymmetric
    Peak intensity: 0.297 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM301B
    FWHM: asymmetric
    Peak intensity: 0.528 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

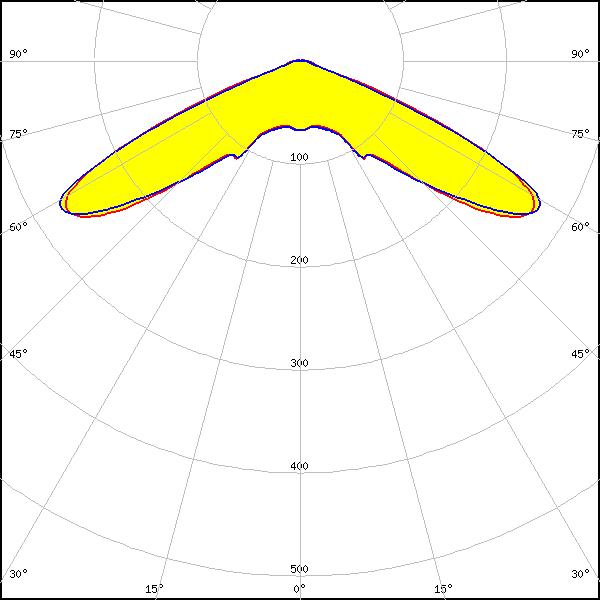

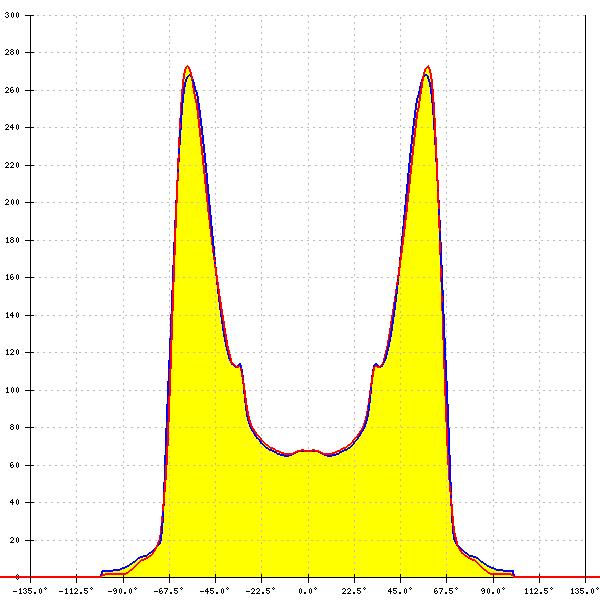

    LED: KAAX-VB-2300-840-48
    FWHM: 132°
    FWTM: 141°
    Peak intensity: 0.546 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE 4x16 4000lm MP ADV2 OTD
    FWHM: asymmetric
    Peak intensity: 0.528 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
