    CS17643_STRADELLA-IP-64-T4-B-PC

    Print

    Wide IESNA Type lV forward-throw beam for wide area lighting like car parks. Variant made from PC.

    Specification
    • Fastening:
      pin, screw
    • Colour:
      clear
    • Ingress protection classes:
      IP66, IP67
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      108 pcs
    • Box size:
      476 x 273 x 247 mm
    • Box weight:
      9.1 kg
    • MPQ:
      36 pcs
    • MOQ:
      108 pcs
    • MOQ size:
      476 x 273 x 247 mm
    • MOQ weight:
      9.1 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      CS17643_STRADELLA-IP-64-T4-B-PC

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New products – September 15, 2022

    Application example

    Parking lot lighting with STRADELLA-IP-64-T4-B

    News

    STRADELLA-IP-64 – New ingress protected mid-power platform

    Application guide

    LEDiL guide for street lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    News

    PRODUCT NEWS - STRADELLA FAMILY

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

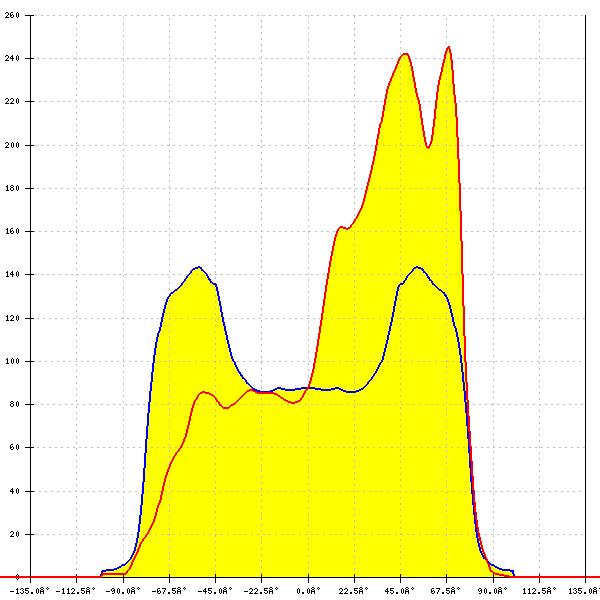

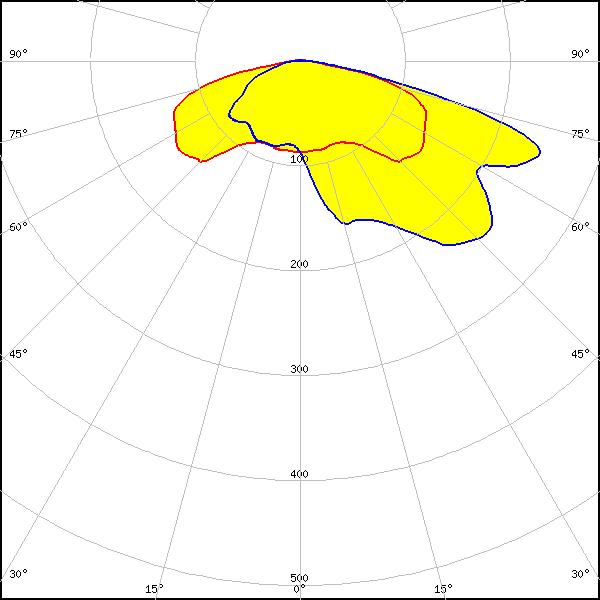

    Optical results

    LED: PrevaLED Brick MP 4x16
    FWHM: asymmetric
    Peak intensity: 0.755 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 4x16 DHE G4
    FWHM: asymmetric
    Peak intensity: 0.644 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White

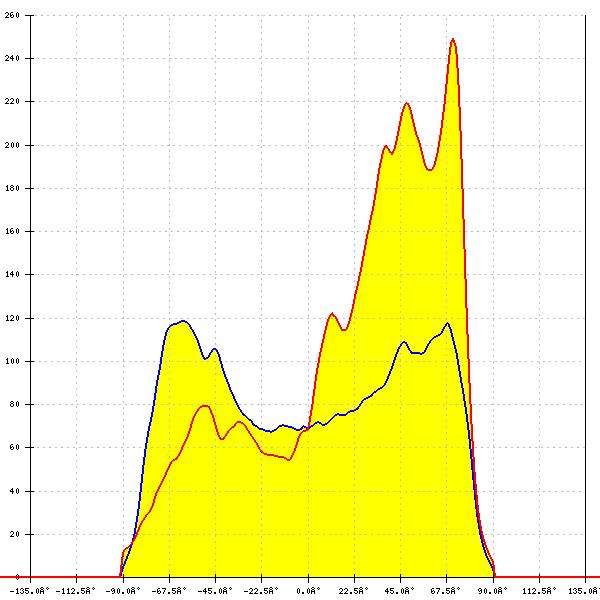

    LED: HiLOM RM64 (LM301B)
    FWHM: asymmetric
    Peak intensity: 0.644 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE 4x16 4000lm MP ADV2 OTD
    FWHM: asymmetric
    Peak intensity: 0.644 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White
