    CS17219_STRADELLA-IP-64-HB-W

    Print

    ~90° spot beam.

    Specification
    • Dimensions:
      74 x  253 mm
    • Height:
      9.20 mm
    • Fastening:
      screw
    • Colour:
      clear
    • Ingress protection classes:
      IP66, IP67
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      108 pcs
    • Box size:
      476 x 273 x 247 mm
    • Box weight:
      9.1 kg
    • MPQ:
      36 pcs
    • MOQ:
      108 pcs
    • MOQ size:
      476 x 273 x 247 mm
    • MOQ weight:
      9.1 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      CS17219_STRADELLA-IP-64-HB-W

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR183 - Additional gasket material approved for LEDiL products

    News

    STRADELLA-IP-64 – New ingress protected mid-power platform

    Application guide

    LEDiL guide for street lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    News

    PRODUCT NEWS - STRADELLA FAMILY

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    Optical results

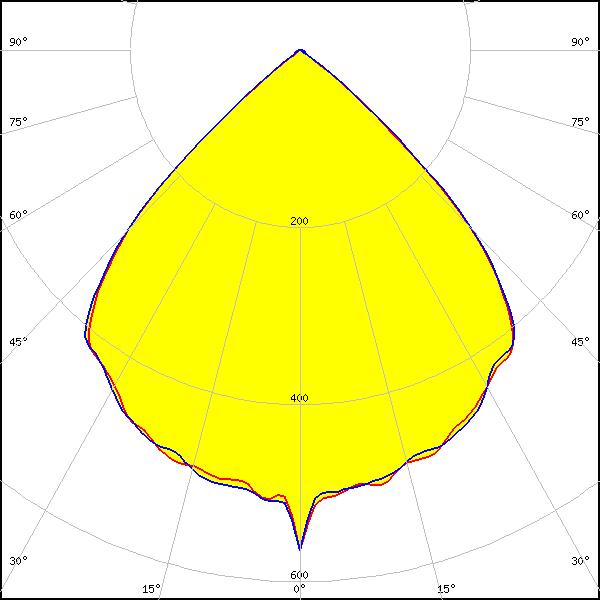

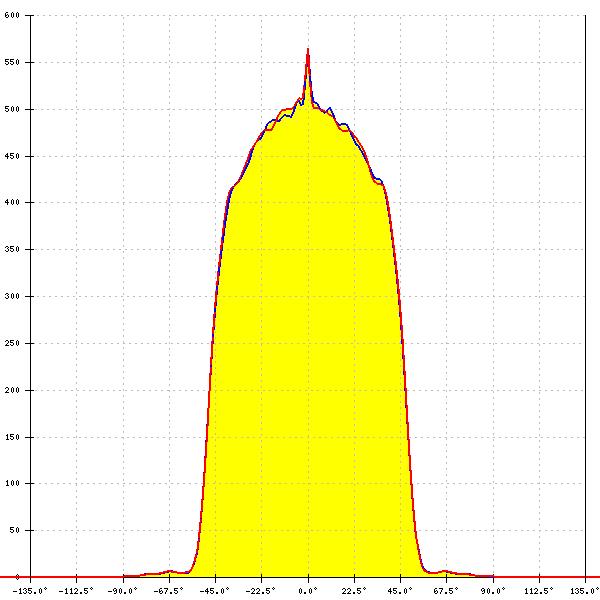

    LED: J Series 2835
    FWHM: 90°
    FWTM: 104°
    Peak intensity: 0.565 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

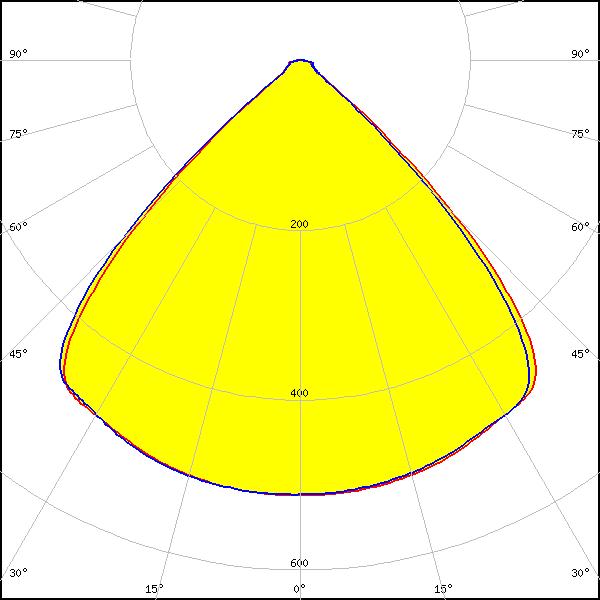

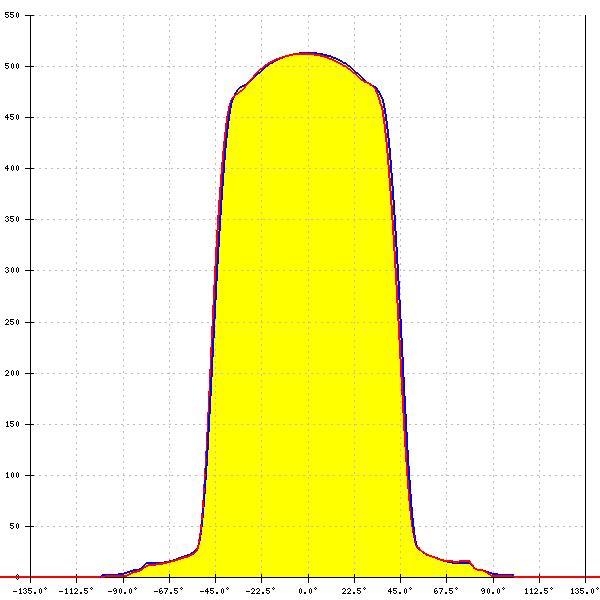

    LED: EHP-223.5x50-1604-xx-70-LS30-06-NTC
    FWHM: 90°
    FWTM: 103°
    Peak intensity: 0.513 cd/lm
    Efficiency: 98 %
    LEDs/each optic: 1
    Light colour/type: White

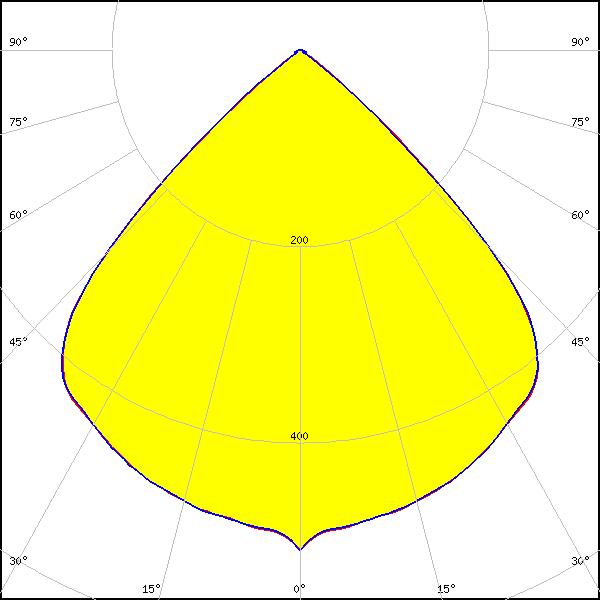

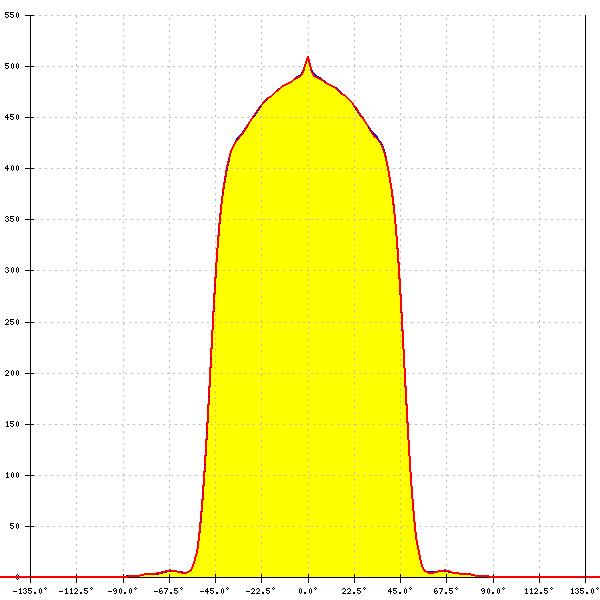

    LED: LUXEON 3030 2D (Round LES)
    FWHM: 92°
    FWTM: 104°
    Peak intensity: 0.509 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

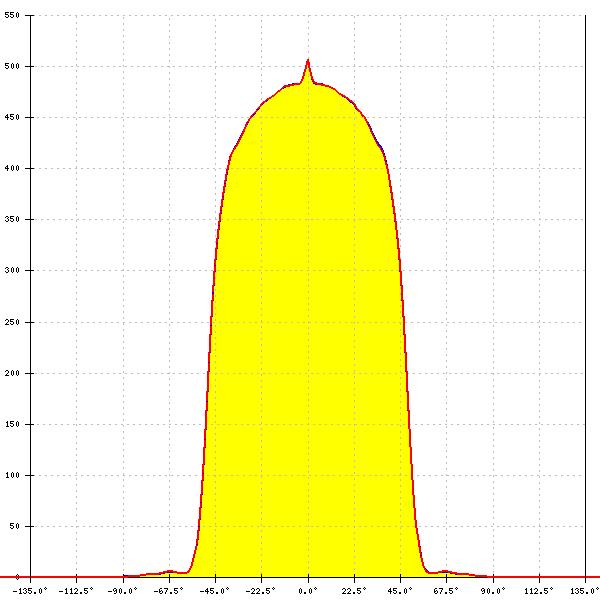

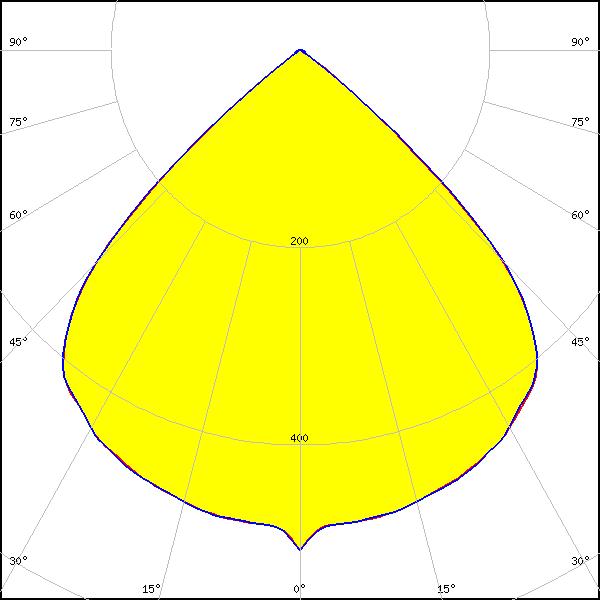

    LED: LUXEON 3030 2D (Square LES)
    FWHM: 94°
    FWTM: 106°
    Peak intensity: 0.507 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

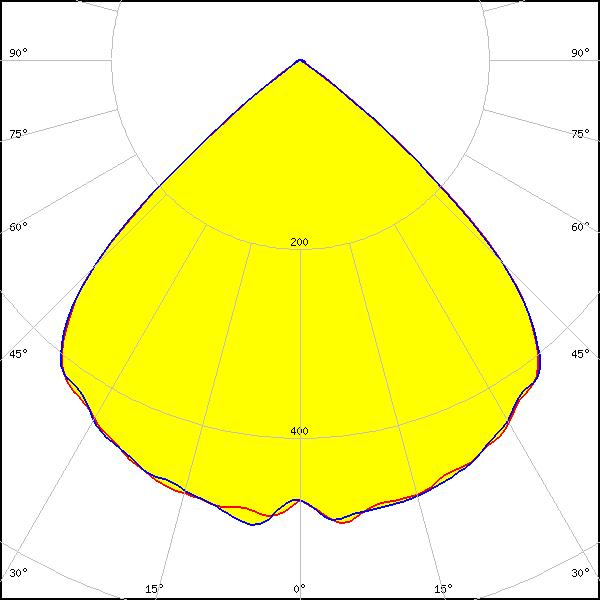

    LED: LUXEON 3030 HE Plus
    FWHM: 94°
    FWTM: 106°
    Peak intensity: 0.510 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

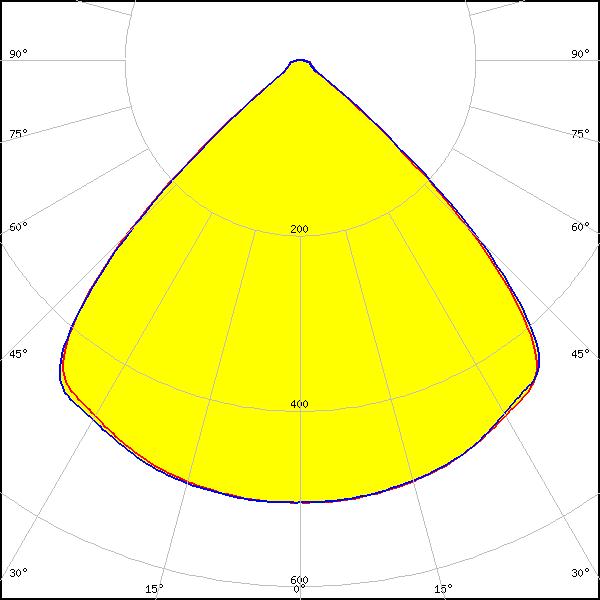

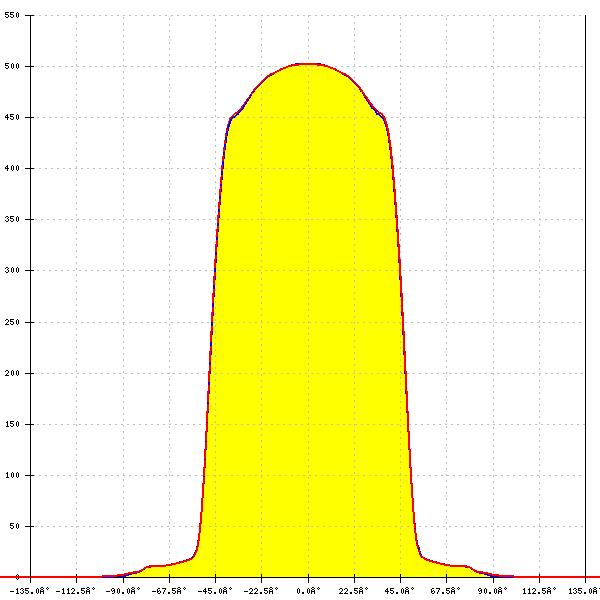

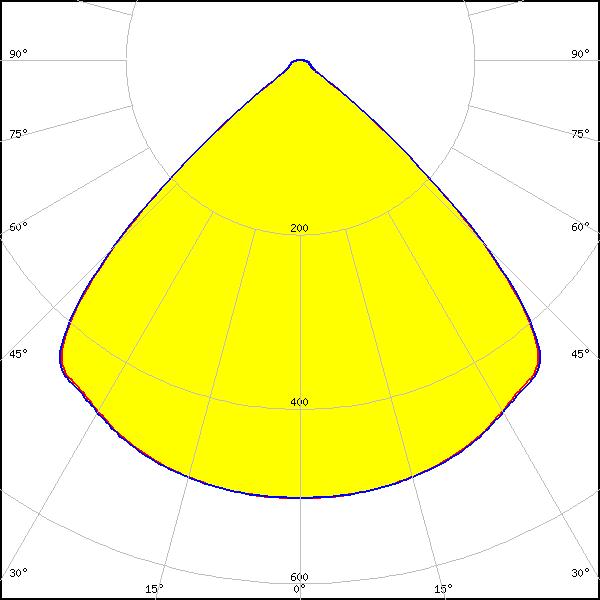

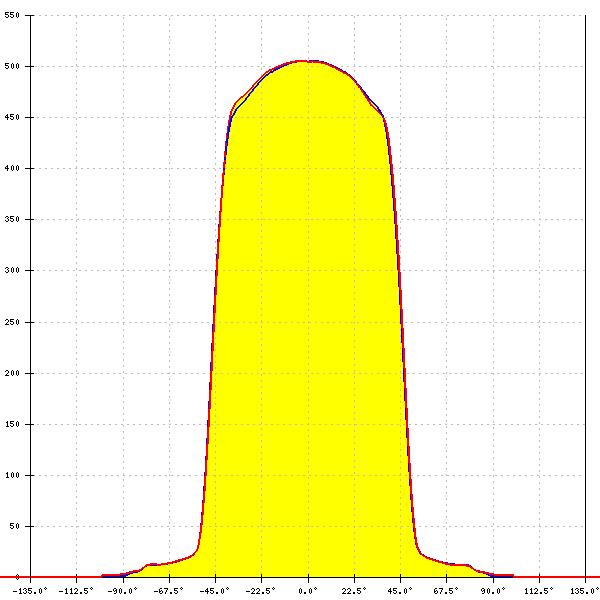

    LED: RecLED 223x50mm 4200lm 8x0 4x16 Opt G1
    FWHM: 91°
    FWTM: 104°
    Peak intensity: 0.505 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

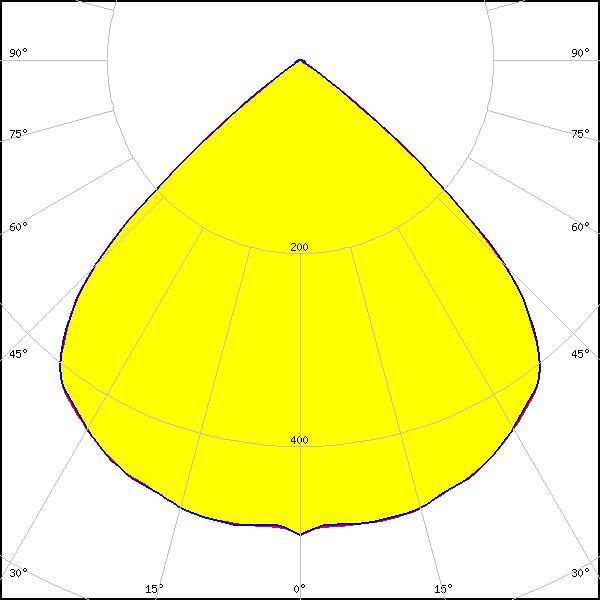

    LED: NF2x757G
    FWHM: 94°
    FWTM: 106°
    Peak intensity: 0.495 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

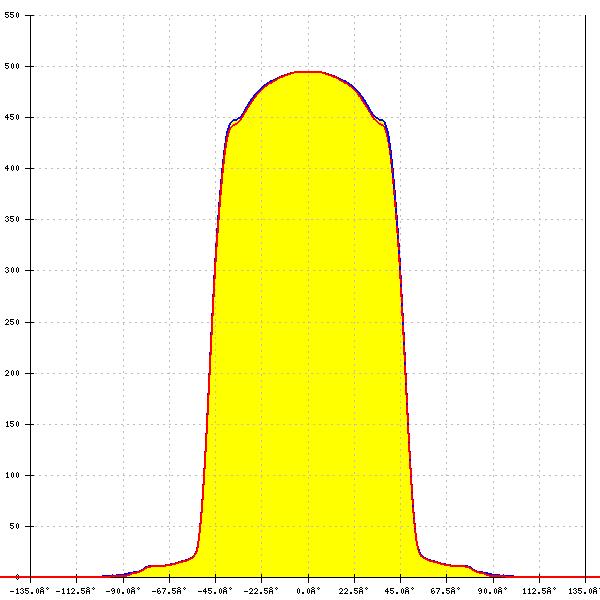

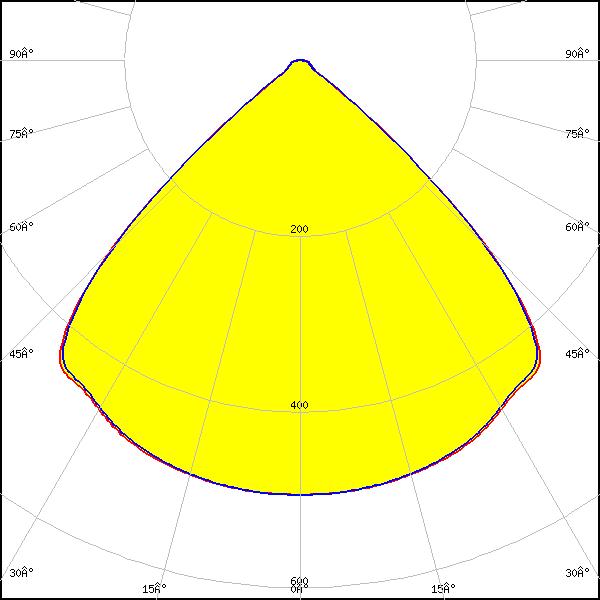

    LED: PrevaLED Brick MP 4x16
    FWHM: 93°
    FWTM: 105°
    Peak intensity: 0.495 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris E 2835
    FWHM: 94°
    FWTM: 106°
    Peak intensity: 0.492 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

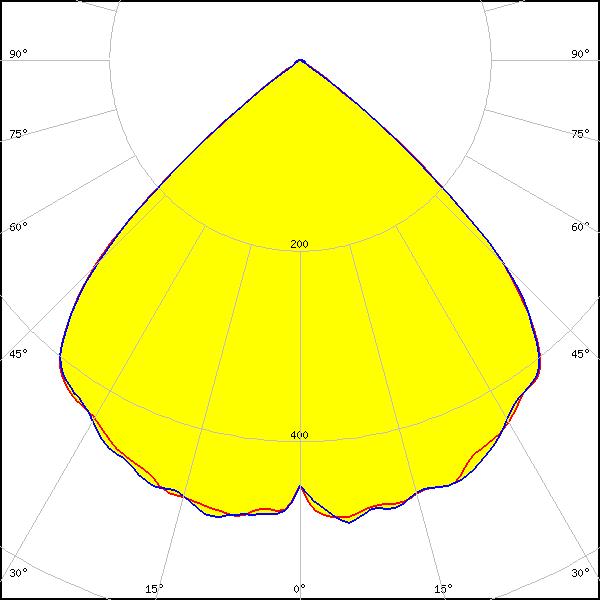

    LED: Duris S5 (2 chip)
    FWHM: 94°
    FWTM: 106°
    Peak intensity: 0.497 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

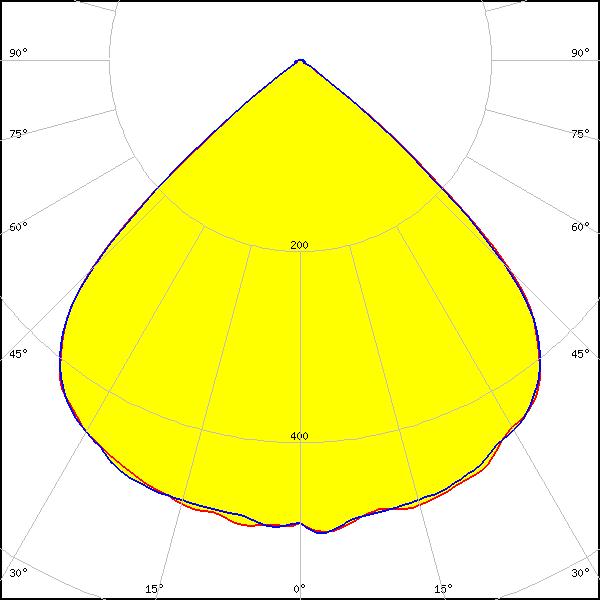

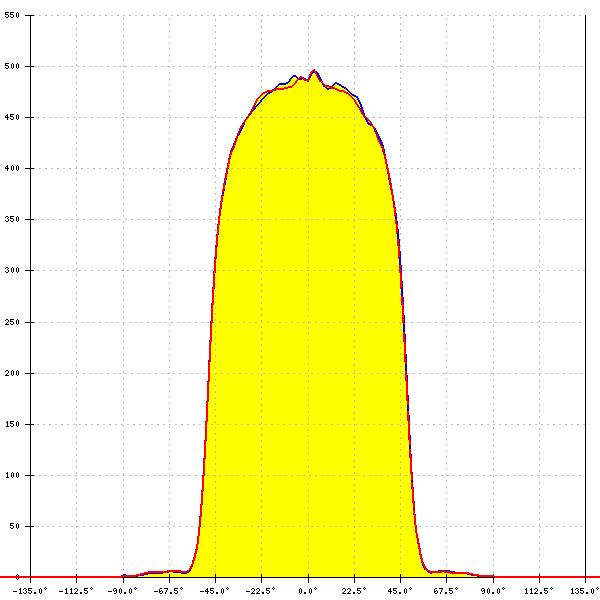

    LED: Duris S5 (Single chip)
    FWHM: 94°
    FWTM: 106°
    Peak intensity: 0.501 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

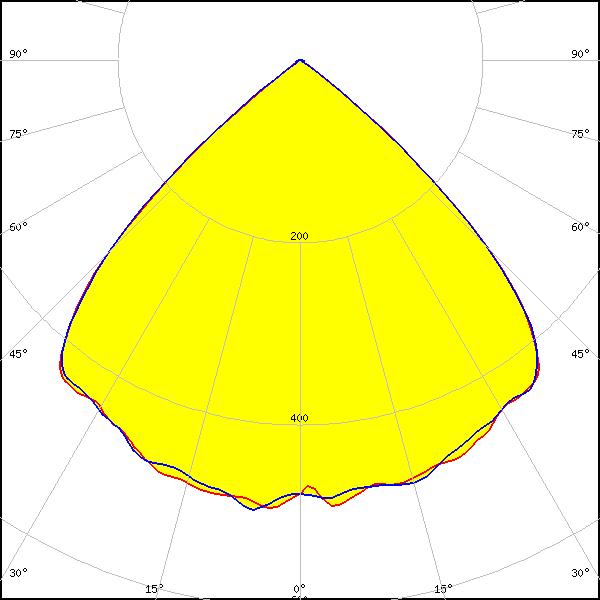

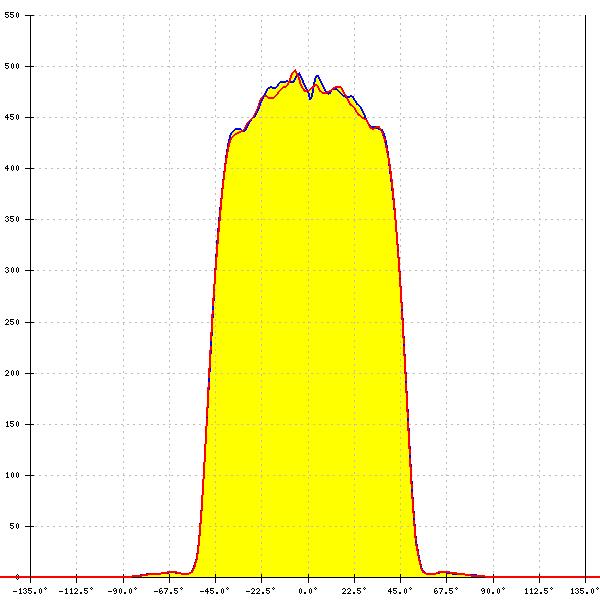

    LED: OSCONIQ C 3030
    FWHM: 93°
    FWTM: 104°
    Peak intensity: 0.506 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

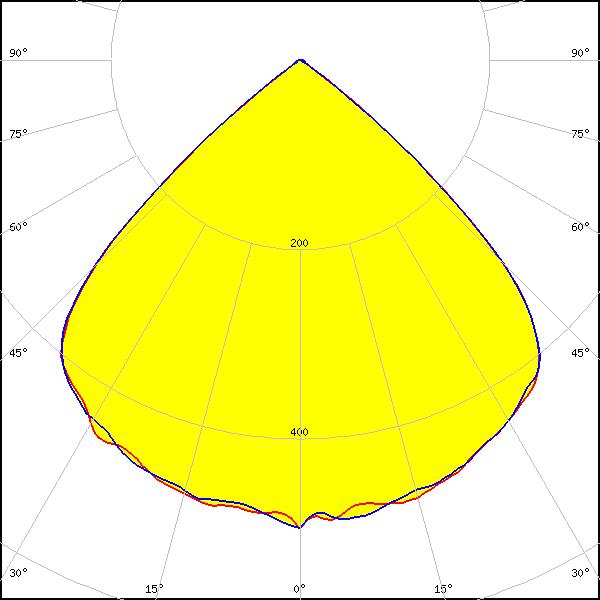

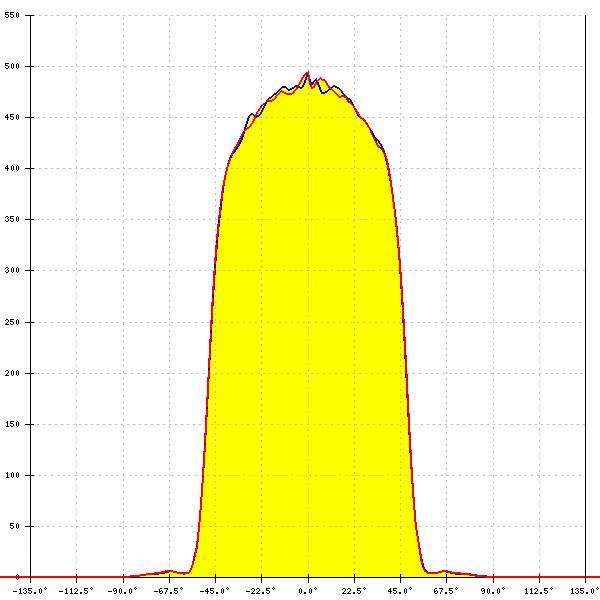

    LED: OSCONIQ S 3030 (QSLR31)
    FWHM: 94°
    FWTM: 106°
    Peak intensity: 0.498 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

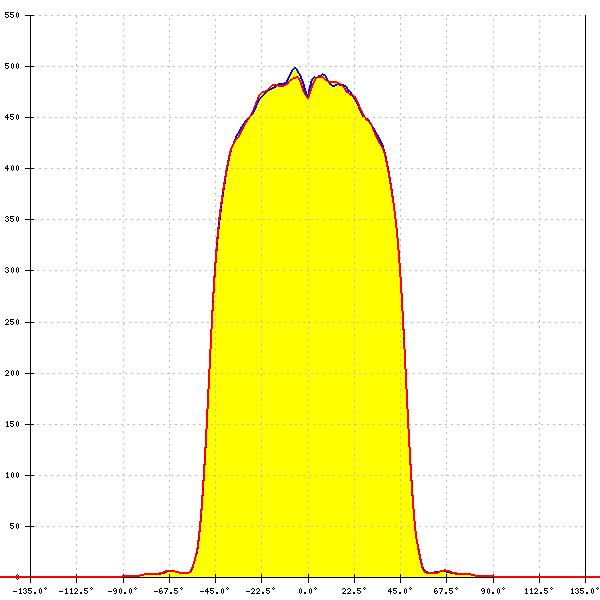

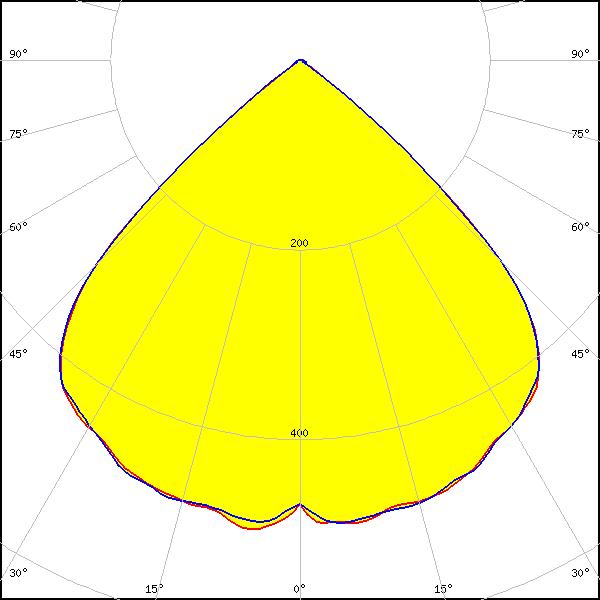

    LED: Fortimo FastFlex LED 4x16 DHE G4
    FWHM: 94°
    FWTM: 106°
    Peak intensity: 0.499 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RM64 (LM301B)
    FWHM: 94°
    FWTM: 106°
    Peak intensity: 0.512 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

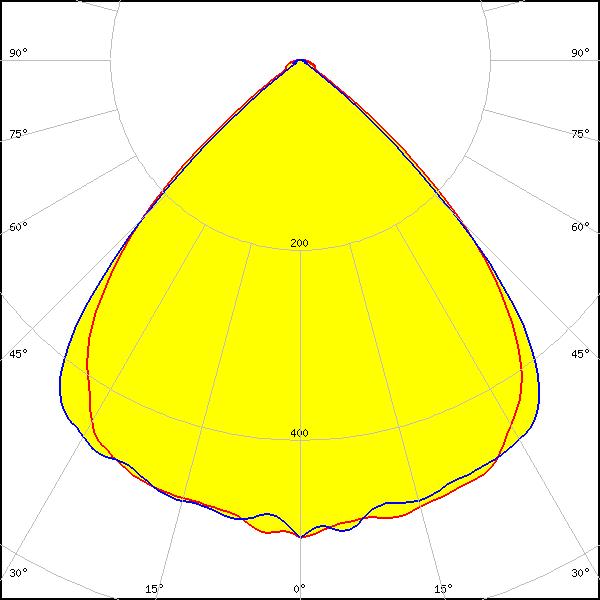

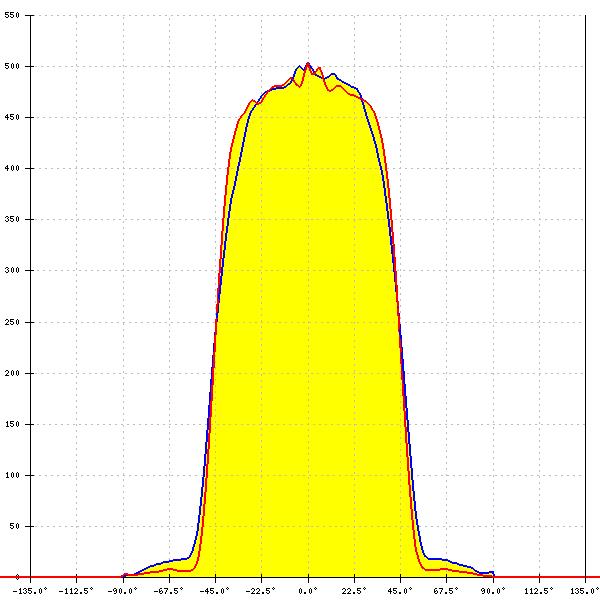

    LED: LH181B
    FWHM: 89°
    FWTM: 105°
    Peak intensity: 0.524 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 2
    Light colour/type: White

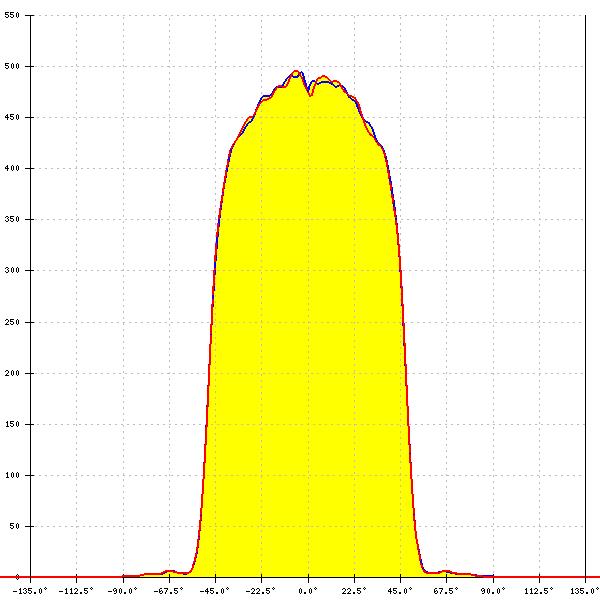

    LED: LM301B
    FWHM: 94°
    FWTM: 106°
    Peak intensity: 0.512 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

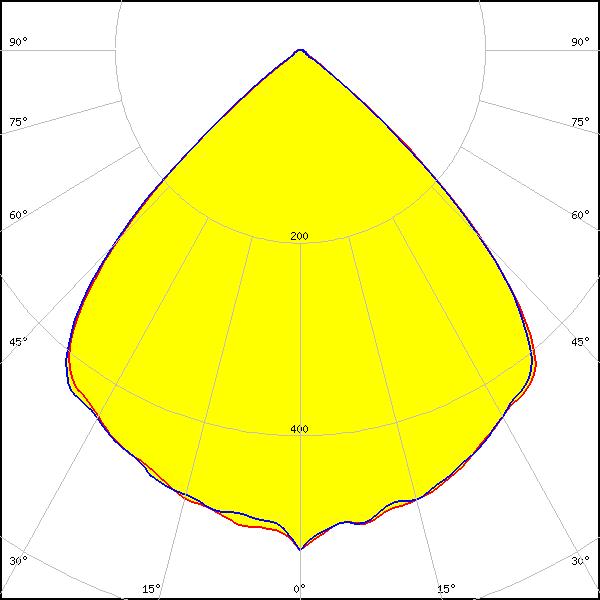

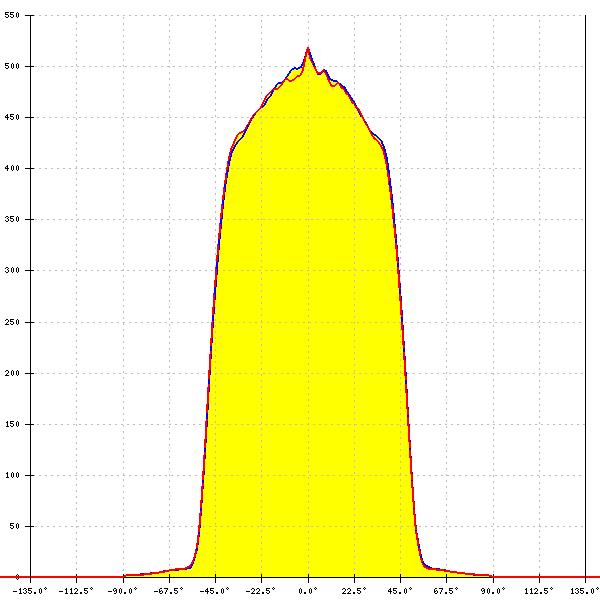

    LED: LM301D
    FWHM: 92°
    FWTM: 106°
    Peak intensity: 0.519 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

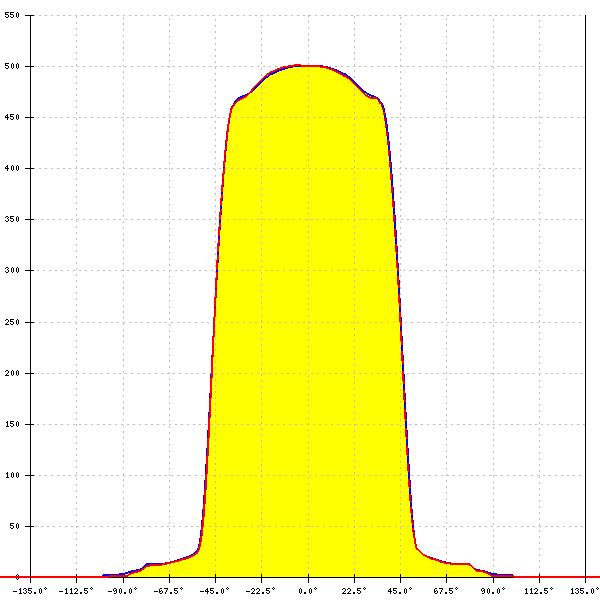

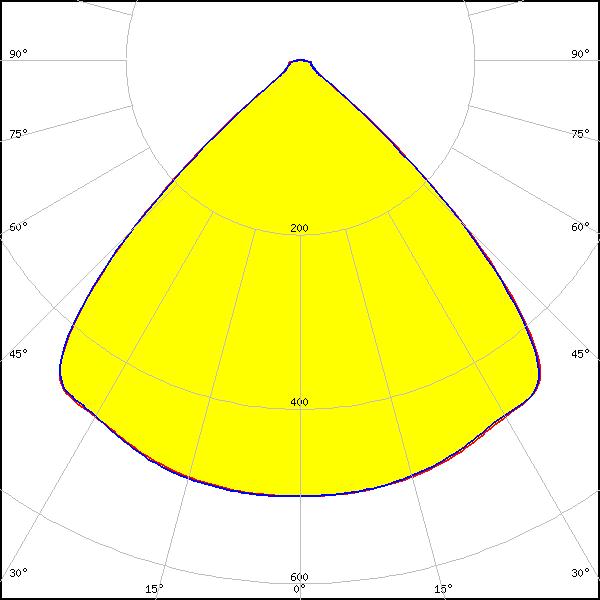

    LED: KAAX-VB-2300-840-48
    FWHM: 91°
    FWTM: 103°
    Peak intensity: 0.501 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

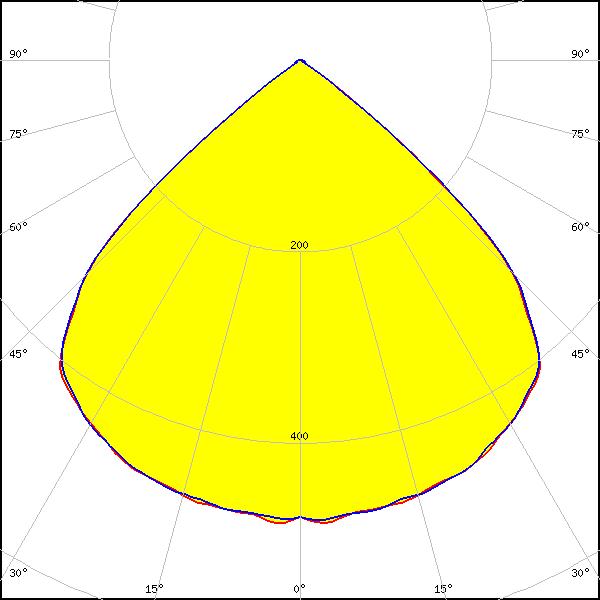

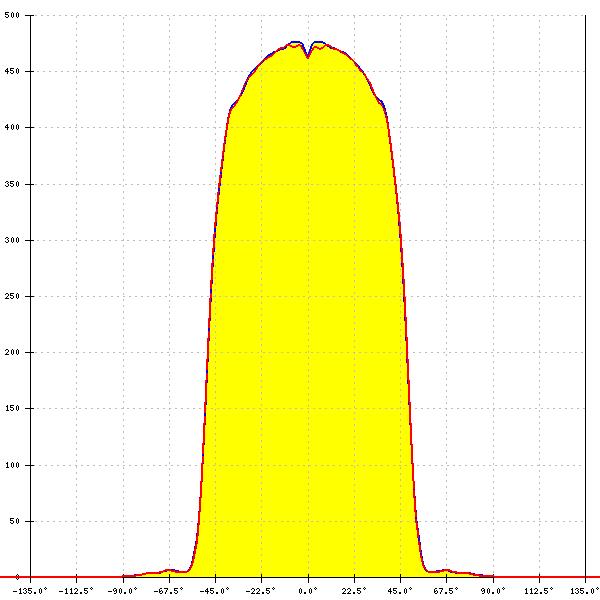

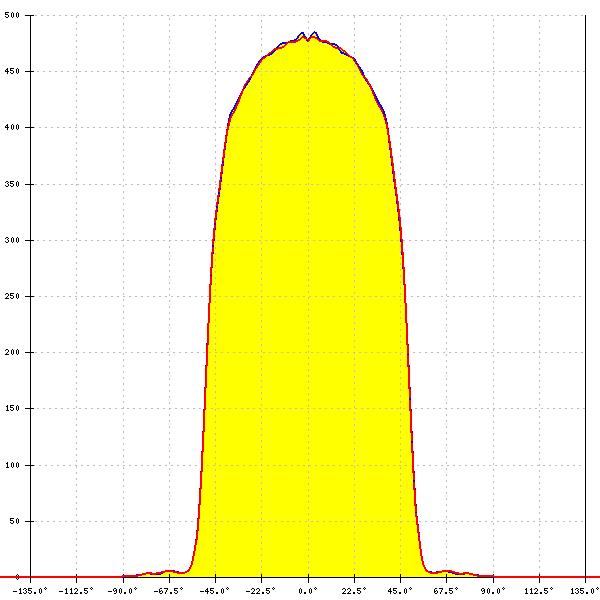

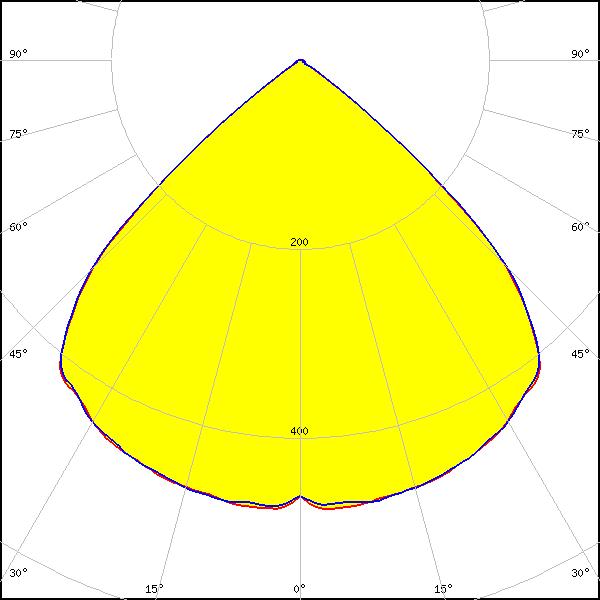

    LED: SEOUL 3030
    FWHM: 96°
    FWTM: 106°
    Peak intensity: 0.490 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 3528
    FWHM: 95°
    FWTM: 106°
    Peak intensity: 0.486 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

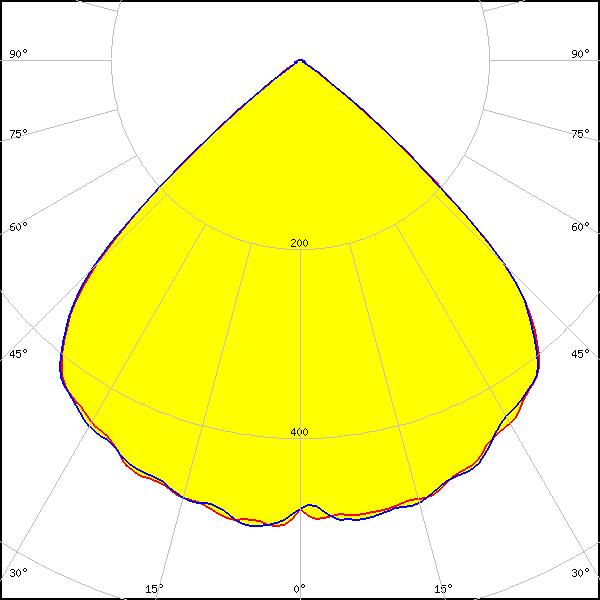

    LED: RLE 4x16 4000lm MP ADV2 OTD
    FWHM: 94°
    FWTM: 106°
    Peak intensity: 0.512 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
