CS17218_STRADELLA-IP-64-HB-M
Print
~60° spot beam.
Component Materials
- STRADELLA-IP-64-HB-MMulti-lensPMMA
- STRADELLA-IP-64-SEALSealSilicone
- Request material files from Tech Support
WARNING: Cancer – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results
LED:
EHP-223.5x50-1604-xx-70-LS30-06-NTC
FWHM:
57°
FWTM:
90°
Peak intensity:
0.996 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

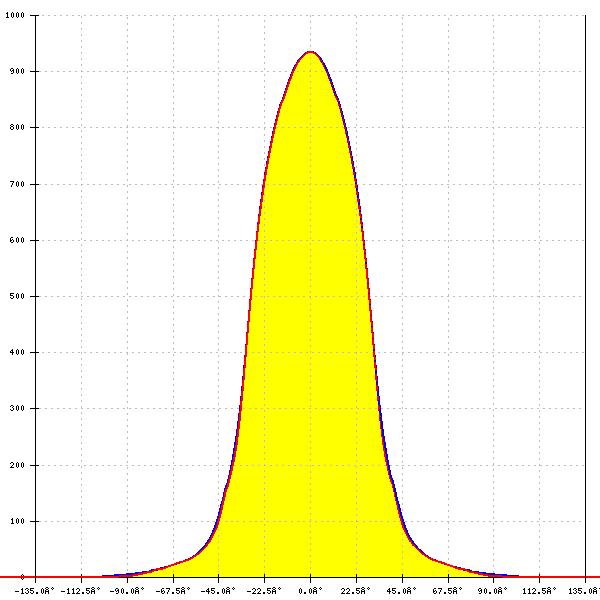

LED:
PrevaLED Brick MP 4x16
FWHM:
60°
FWTM:
91°
Peak intensity:
0.939 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

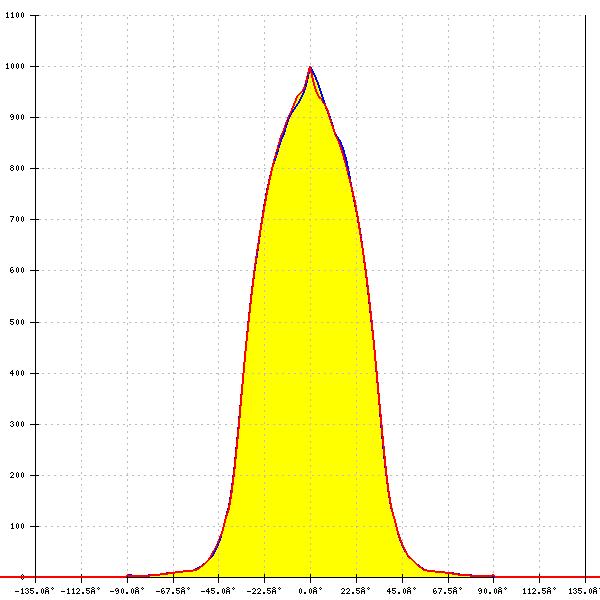

LED:
LUXEON 3030 HE Plus
FWHM:
60°
FWTM:
84°
Peak intensity:
1.001 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

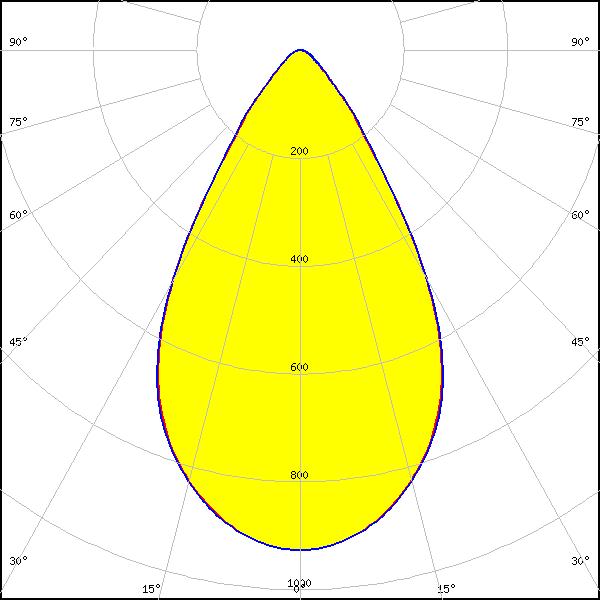

LED:
RecLED 223x50mm 4200lm 8x0 4x16 Opt G1
FWHM:
60°
FWTM:
91°
Peak intensity:
0.955 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris E 2835
FWHM:
60°
FWTM:
84°
Peak intensity:
1.030 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris E 2835
FWHM:
71°
FWTM:
90°
Peak intensity:
0.740 cd/lm
Efficiency:
87 %
LEDs/each optic:
2
Light colour/type:
White
LED:
DURIS S5 (2 chip)
FWHM:
61°
FWTM:
84°
Peak intensity:
0.995 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
DURIS S5 (Single chip)
FWHM:
58°
FWTM:
82°
Peak intensity:
1.110 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

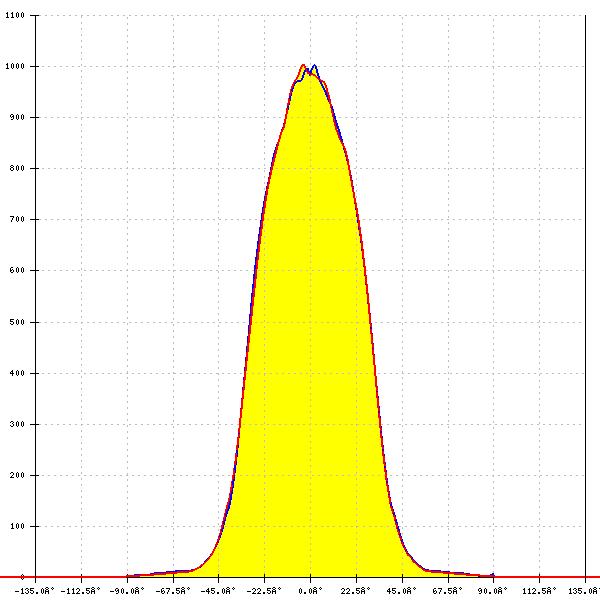

LED:
OSCONIQ C 3030
FWHM:
60°
FWTM:
85°
Peak intensity:
1.013 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 3030 (QSLR31)
FWHM:
61°
FWTM:
84°
Peak intensity:
0.983 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 4x16 DHE G4
FWHM:
60°
FWTM:
83°
Peak intensity:
1.021 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
HiLOM RM64 (LM301B)
FWHM:
60°
FWTM:
84°
Peak intensity:
1.015 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LM301B
FWHM:
60°
FWTM:
83°
Peak intensity:
1.094 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL 3030
FWHM:
63°
FWTM:
84°
Peak intensity:
0.972 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 3528
FWHM:
62°
FWTM:
84°
Peak intensity:
0.995 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE 4x16 4000lm MP ADV2 OTD
FWHM:
60°
FWTM:
84°
Peak intensity:
1.015 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
