CS17149_HB-IP-2X6-G2-W-PC
Print

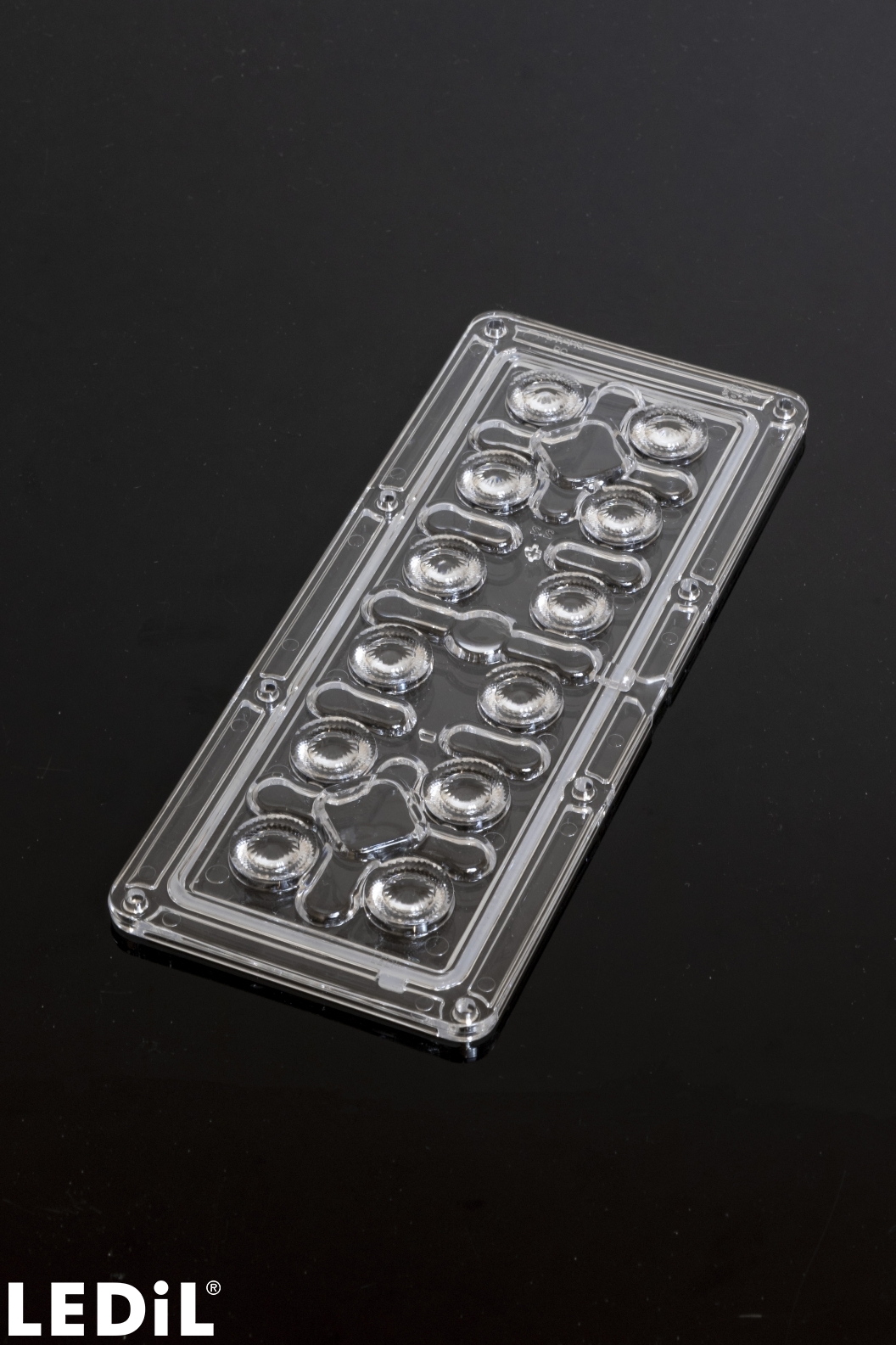

~60° wide beam. Variant made from PC.
Special version that is manufactured to order. Please see the Minimum Order Quantity (MOQ) and contact us.
Specification
-
Dimensions:172 x 71 mm
-
Height:8.20 mm
-
Fastening:pin, screw
-
Colour:clear
-
Ingress protection classes:IP67
-
RoHS and REACH compliant:Yes
Component Materials
- HB-IP-2X6-G2-W-PCMulti-lensPC
- SEAL-IP-2X6-G2SealSilicone
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Ordering information
-
Quantity in box:132 pcs
-
Box size:476 x 273 x 247 mm
-
Box weight:6.2 kg
-
MPQ:132 pcs
-
MOQ:1056 pcs
-
MOQ size:476 x 273 x 247 mm
-
MOQ weight:6.2 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
Related Content
Optical results

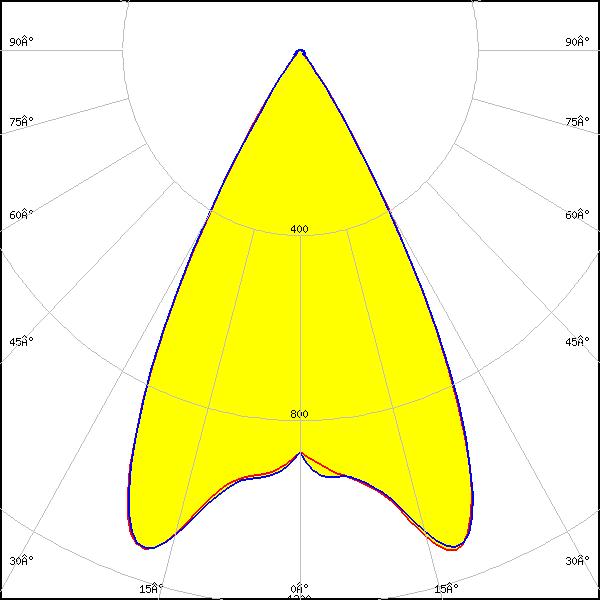

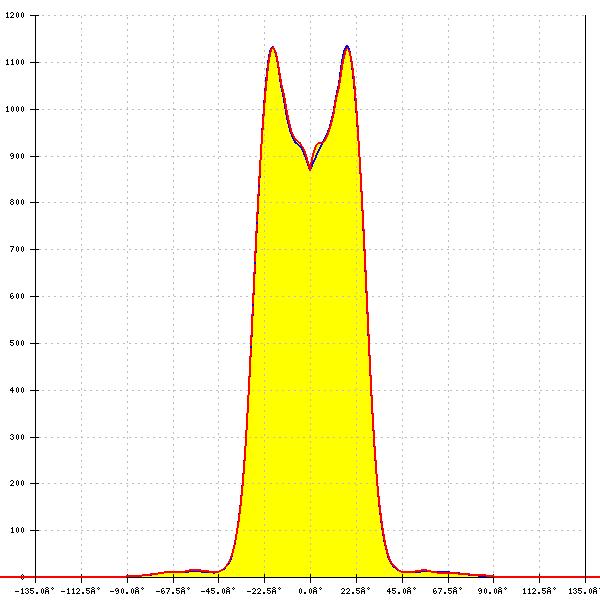

LED:
PrevaLED Brick HP IP 2x6
FWHM:
56°
FWTM:
70°
Peak intensity:
1.170 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

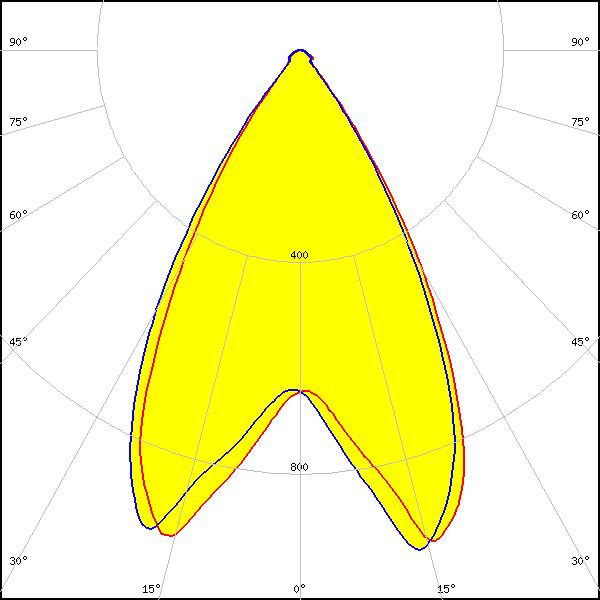

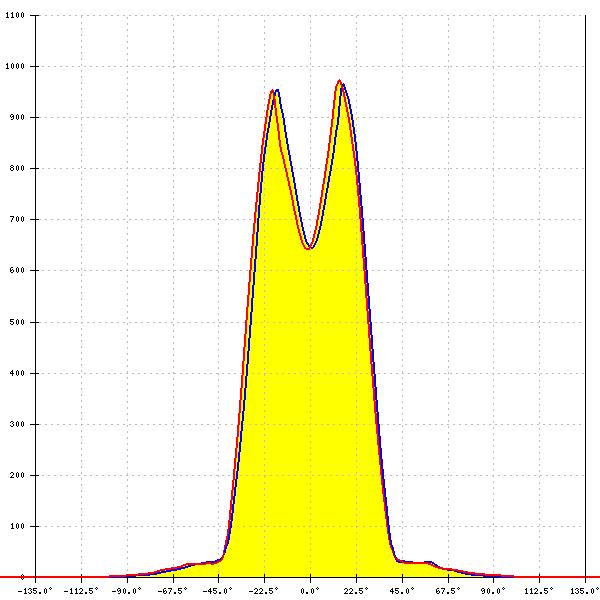

LED:
NVSW519A
FWHM:
60°
FWTM:
78°
Peak intensity:
1.010 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

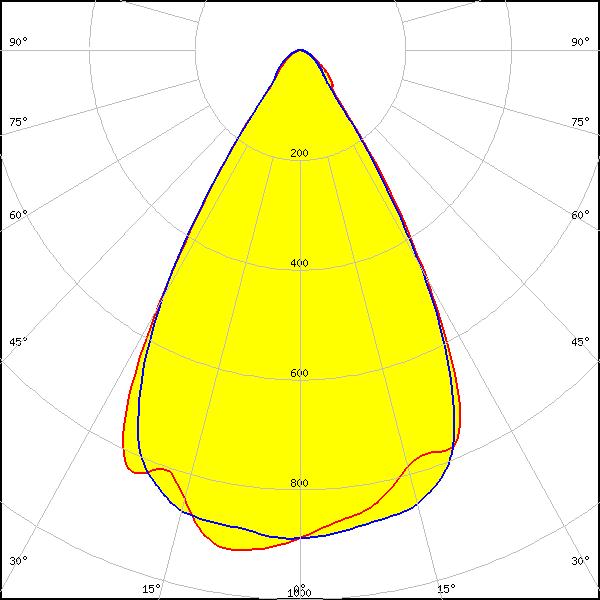

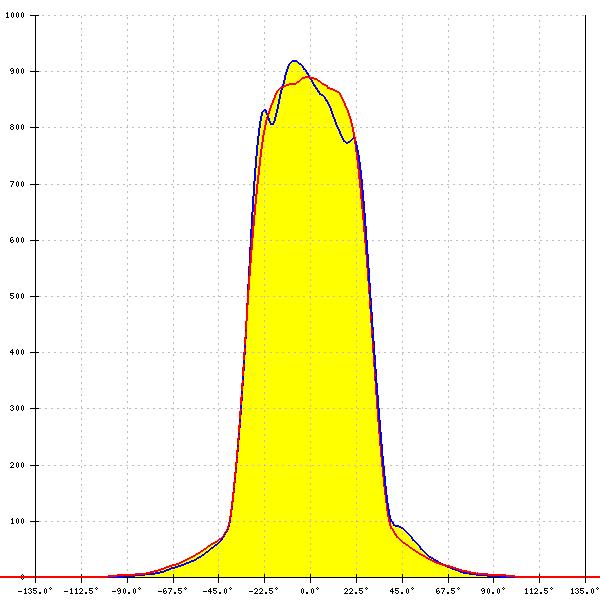

LED:
Duris S8
FWHM:
62°
FWTM:
81°
Peak intensity:
0.919 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
