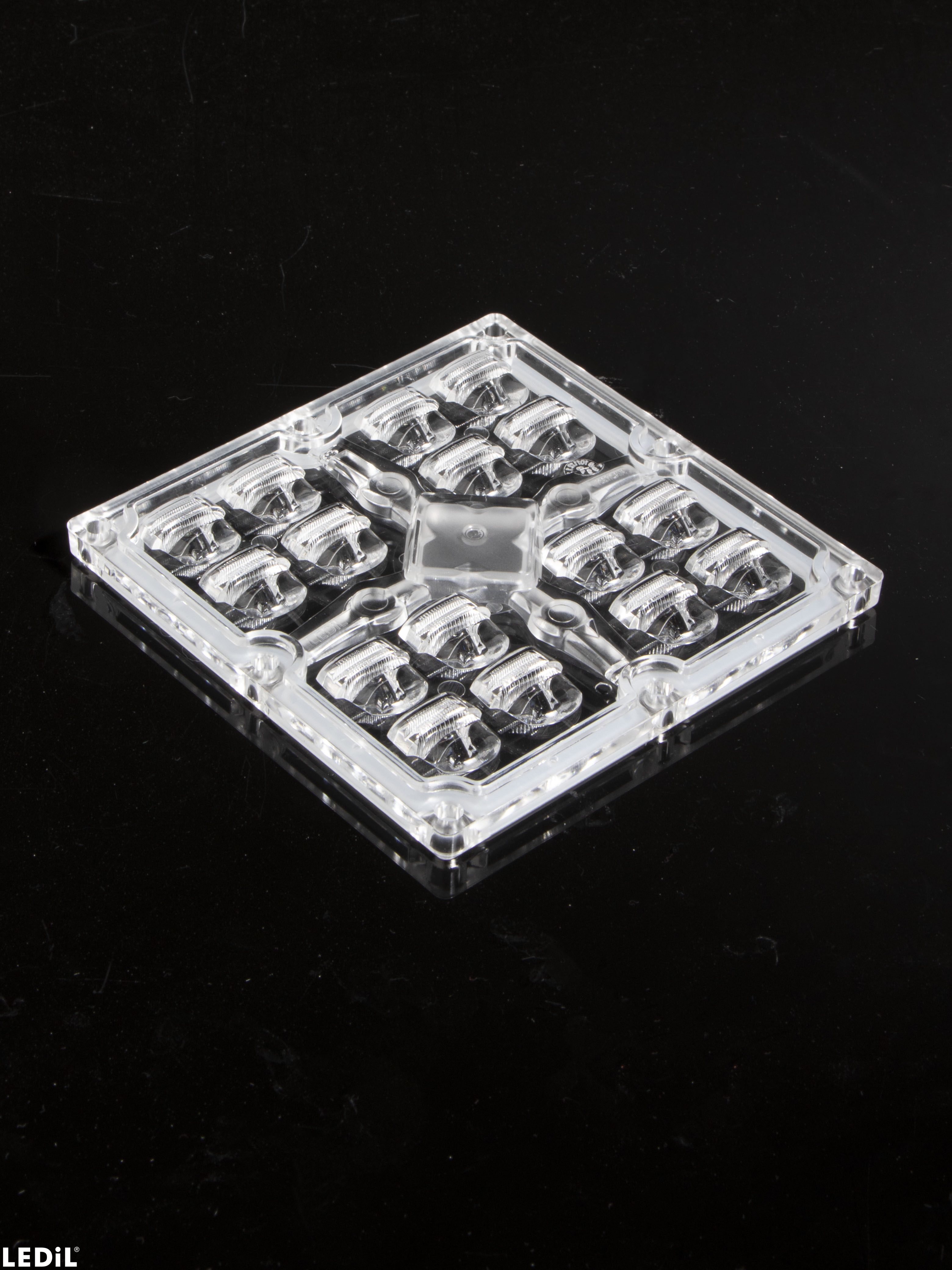

CS17068_STRADA-IP-16MX-T4

Print

IESNA Type IV beam for wider roads and large outdoor area

Specification
  • Dimensions:
    90 x  90 mm
  • Height:
    8.62 mm
  • Fastening:
    screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    156 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    6.7 kg
  • MPQ:
    52 pcs
  • MOQ:
    52 pcs
  • MOQ size:
    480 x 280 x 110 mm
  • MOQ weight:
    2.4 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    CS17068_STRADA-IP-16MX-T4

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

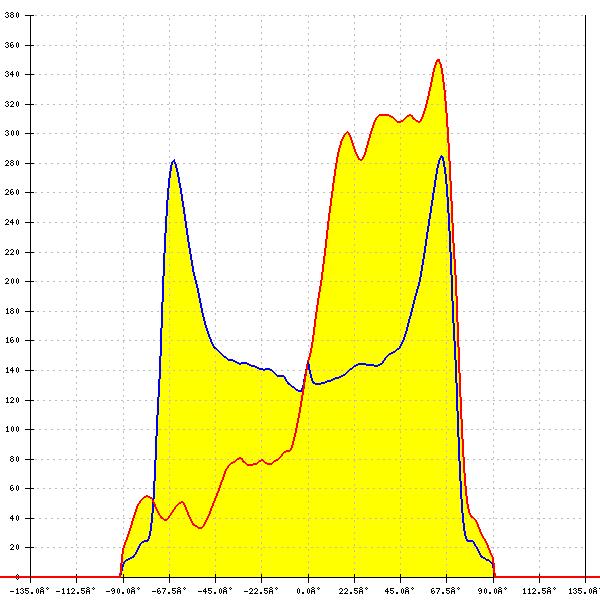

LED: LUXEON HL2Z
FWHM: asymmetric
Peak intensity: 0.502 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

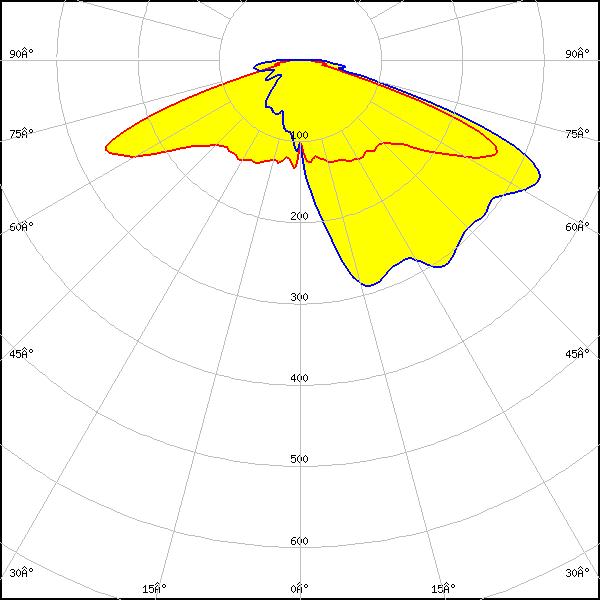

LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 0.479 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

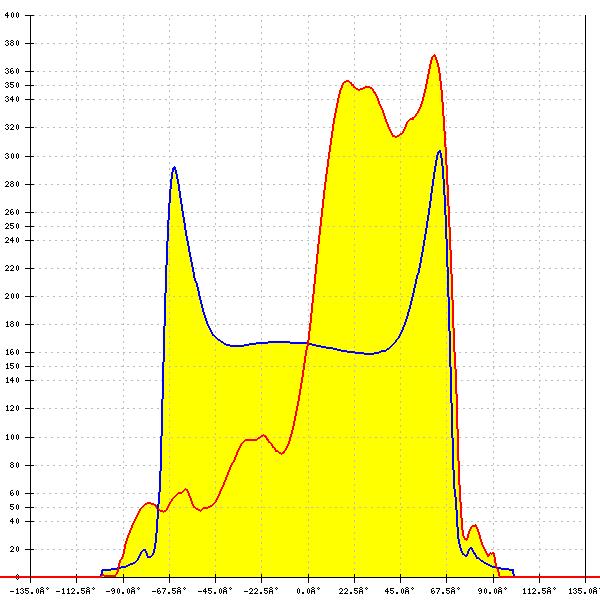

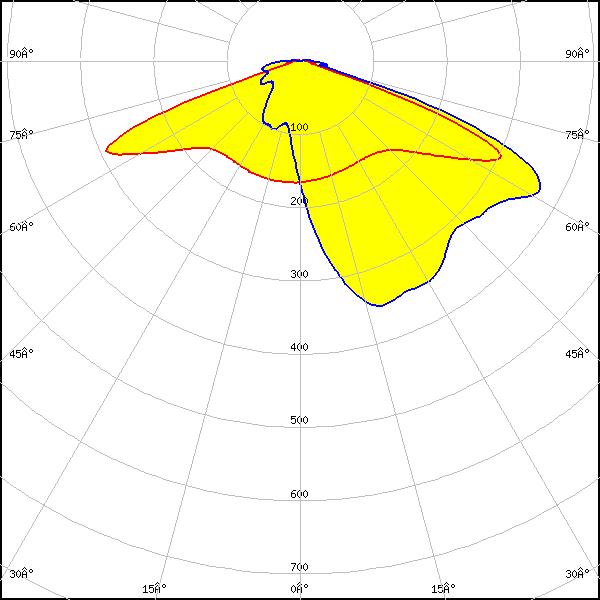

LED: HiLOM SC16 S1 (LH181B)
FWHM: asymmetric
Peak intensity: 0.541 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

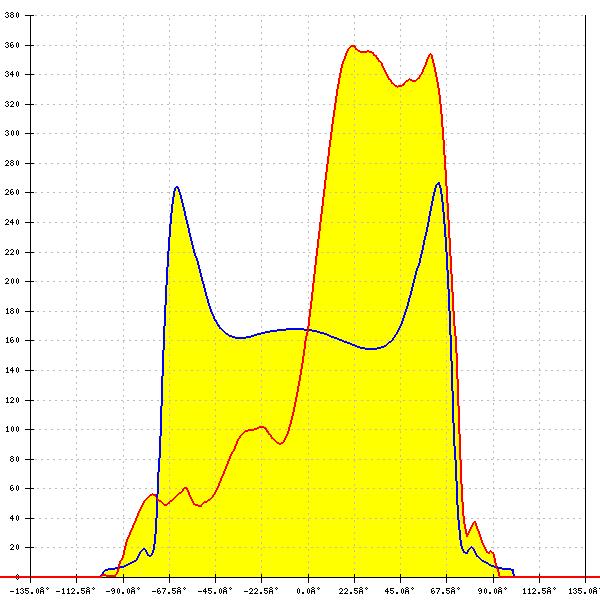

LED: HiLOM SC16 S2 (LH231B)
FWHM: asymmetric
Peak intensity: 0.475 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

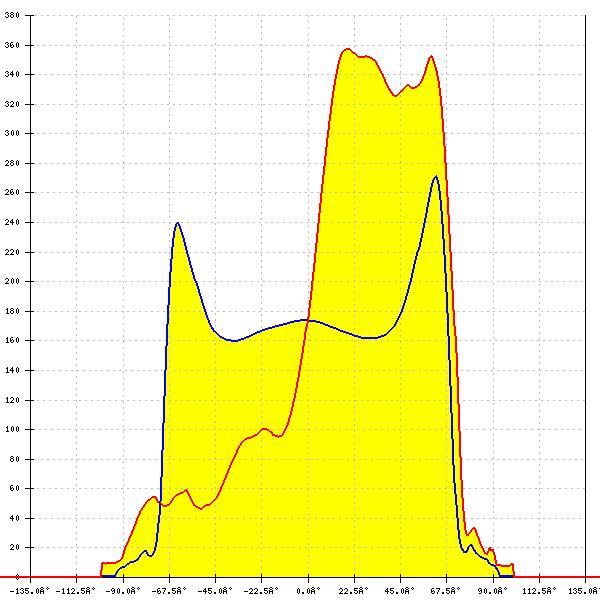

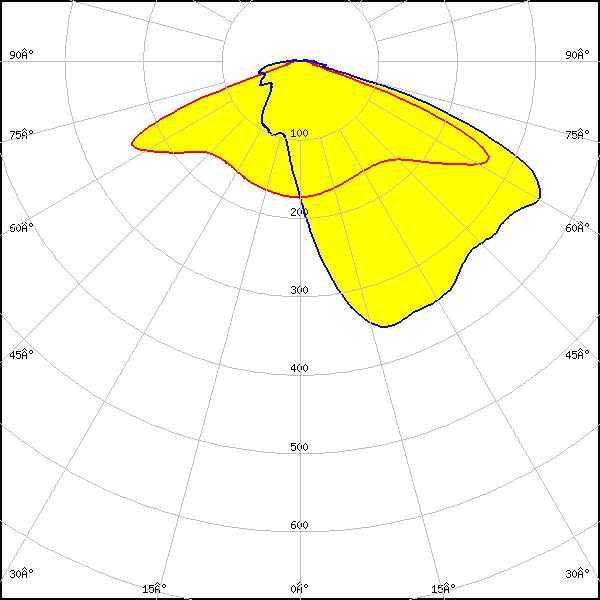

LED: LH231B
FWHM: asymmetric
Peak intensity: 0.519 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

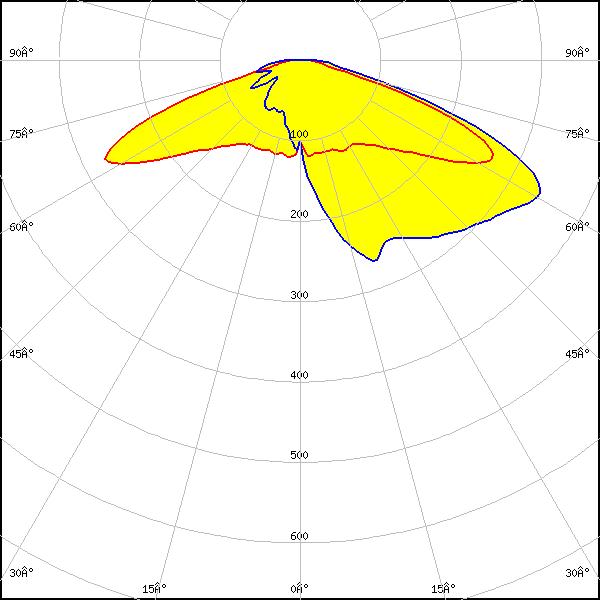

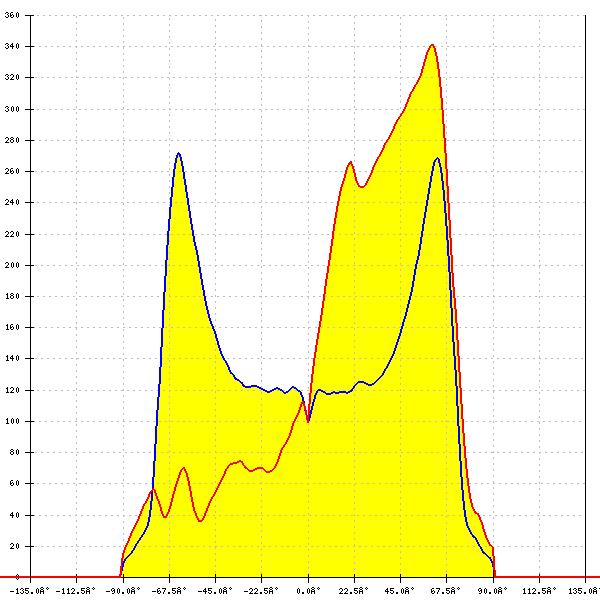

LED: Z8Y22
FWHM: asymmetric
Peak intensity: 0.428 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
