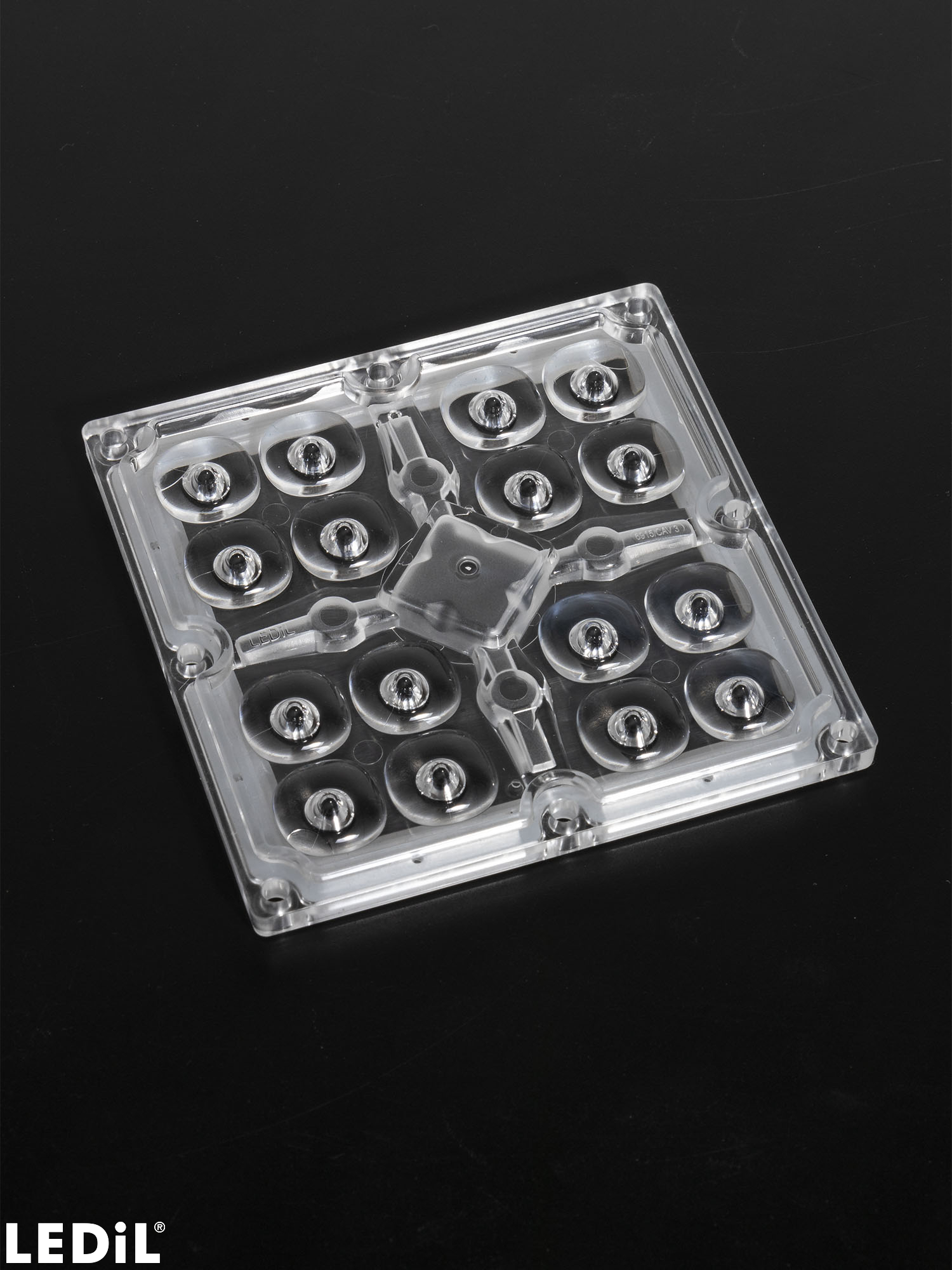

CS16973_STRADA-IP-16MX-VSM
Print
IESNA Type V (square) beam for wide areas lighting such as car parks.
Component Materials
- STRADA-IP-16MX-VSMMulti-lensPMMA
- STRADA-IP-8MX-SEALSealSilicone
- Request material files from Tech Support
WARNING: Cancer – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

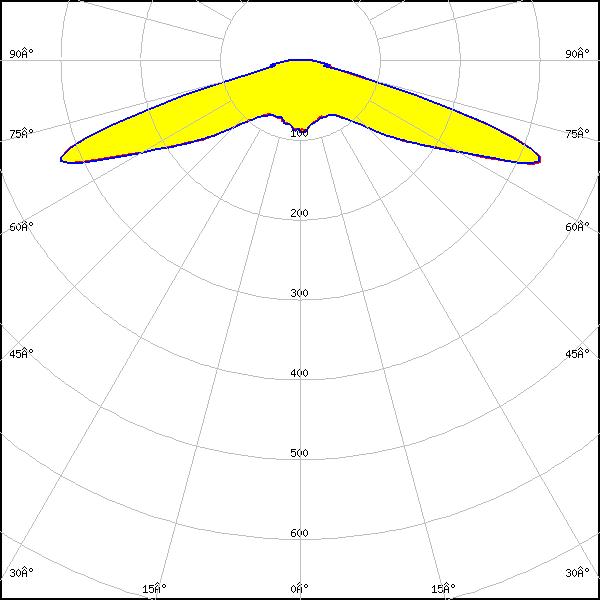

Optical results
LED:
LUXEON HL2Z
FWHM:
146°
FWTM:
166°
Peak intensity:
0.553 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NCSxE17A
FWHM:
146°
FWTM:
154°
Peak intensity:
0.534 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxE21A
FWHM:
140°
FWTM:
162°
Peak intensity:
0.710 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ C 2424
FWHM:
148°
FWTM:
156°
Peak intensity:
0.491 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
HiLOM SC16 S1 (LH181B)
FWHM:
142°
FWTM:
162°
Peak intensity:
0.652 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
HiLOM SC16 S2 (LH231B)
FWHM:
142°
FWTM:
160°
Peak intensity:
0.555 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH181B
FWHM:
146°
FWTM:
156°
Peak intensity:
0.460 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH231B
FWHM:
148°
FWTM:
156°
Peak intensity:
0.430 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z8Y19
FWHM:
139°
FWTM:
165°
Peak intensity:
0.620 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z8Y22
FWHM:
140°
FWTM:
164°
Peak intensity:
0.540 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z8Y22P
FWHM:
154°
FWTM:
175°
Peak intensity:
0.435 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
