CS16925_STRADA-IP-8MX-DWC2-PC

Print

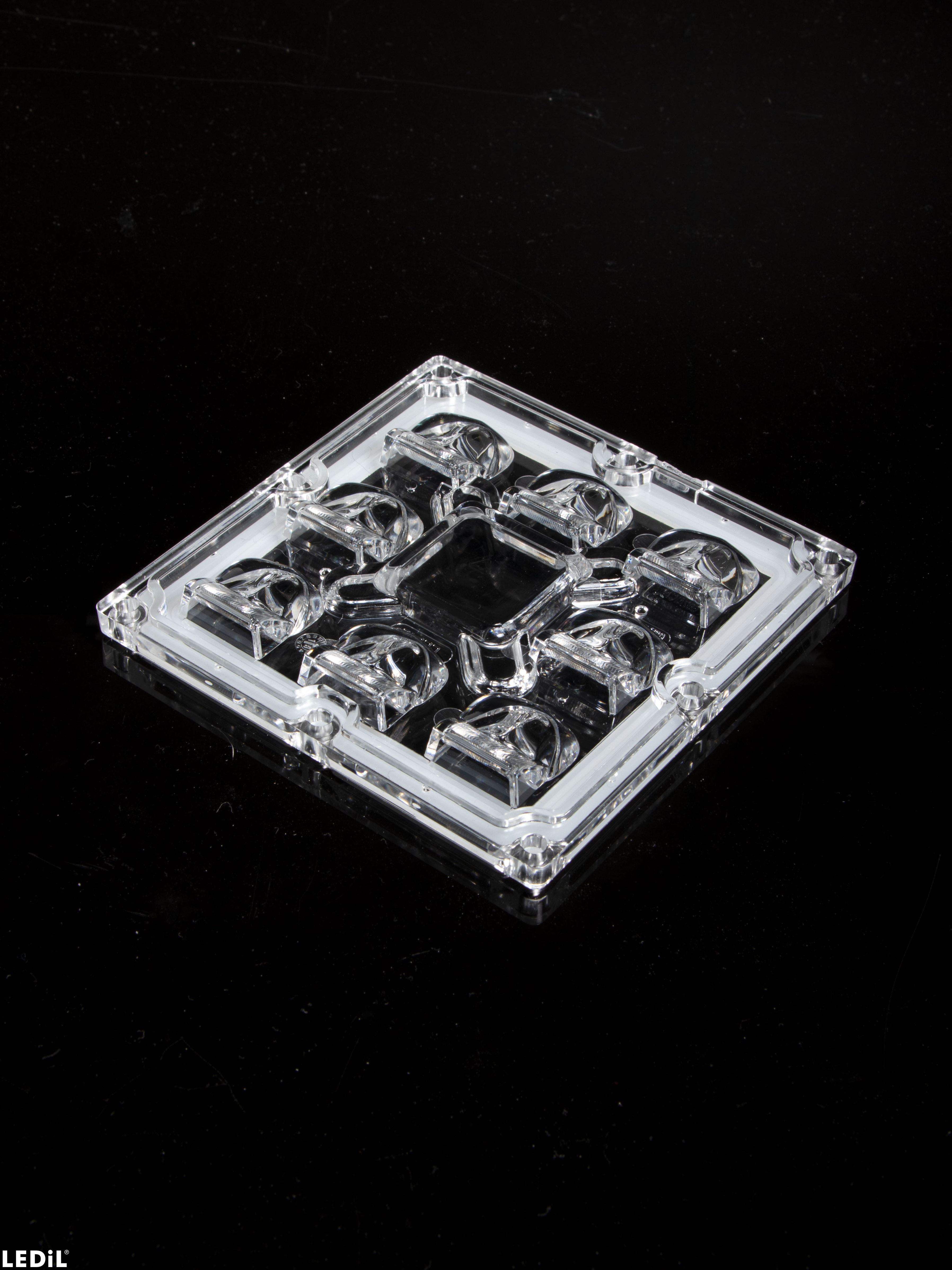

Universal road lighting beam with excellent mixed illuminance and luminance uniformity. Typically IESNA Type II Medium. Variant made from PC.

Specification
  • Dimensions:
    90 x  90 mm
  • Height:
    10.14 mm
  • Fastening:
    screw
  • Colour:
    clear
  • Ingress protection classes:
    IP66, IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    156 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    6.7 kg
  • MPQ:
    52 pcs
  • MOQ:
    52 pcs
  • MOQ size:
    480 x 280 x 110 mm
  • MOQ weight:
    2.4 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CS16925_STRADA-IP-8MX-DWC2-PC

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

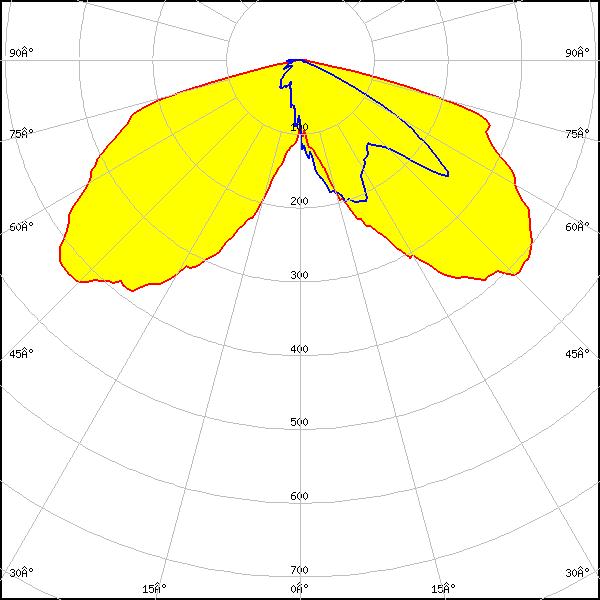

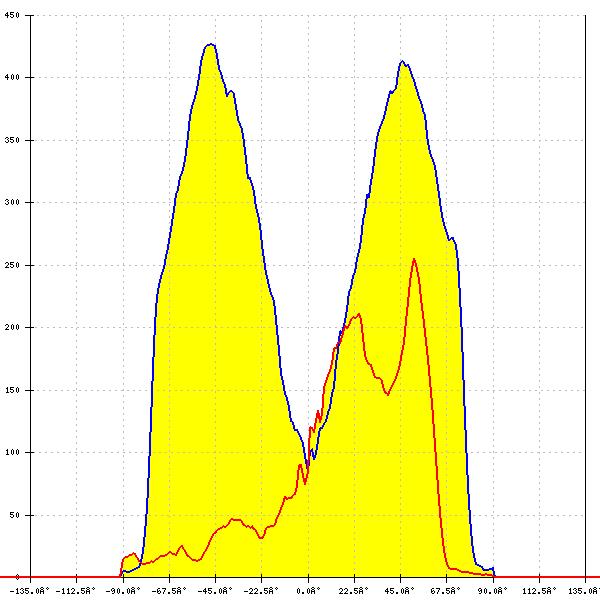

LED: XHP35 HI
FWHM: asymmetric
Peak intensity: 0.642 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

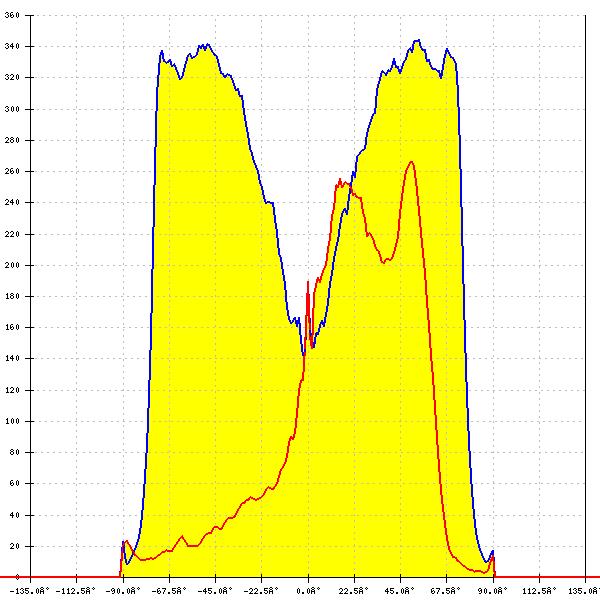

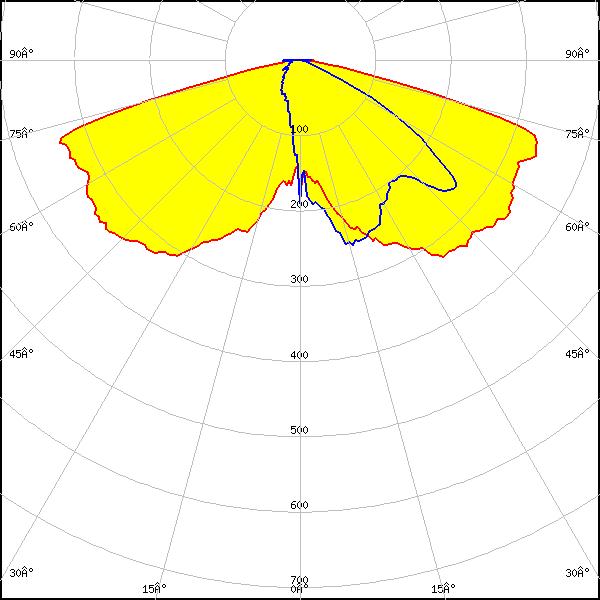

LED: XP-L2
FWHM: asymmetric
Peak intensity: 0.530 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

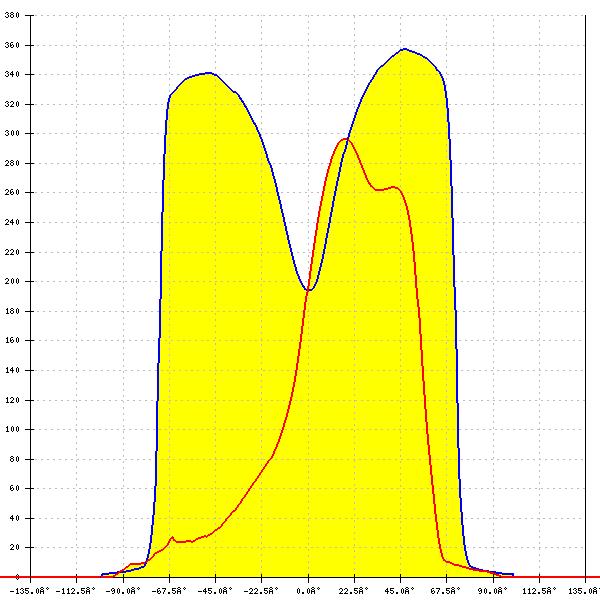

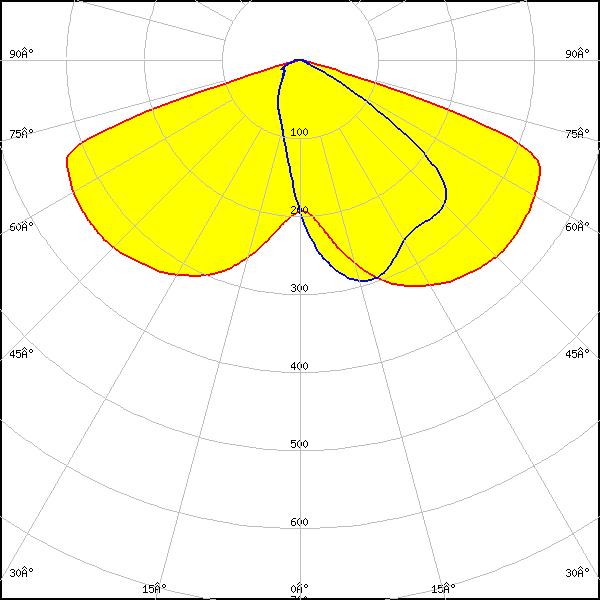

LED: LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.470 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

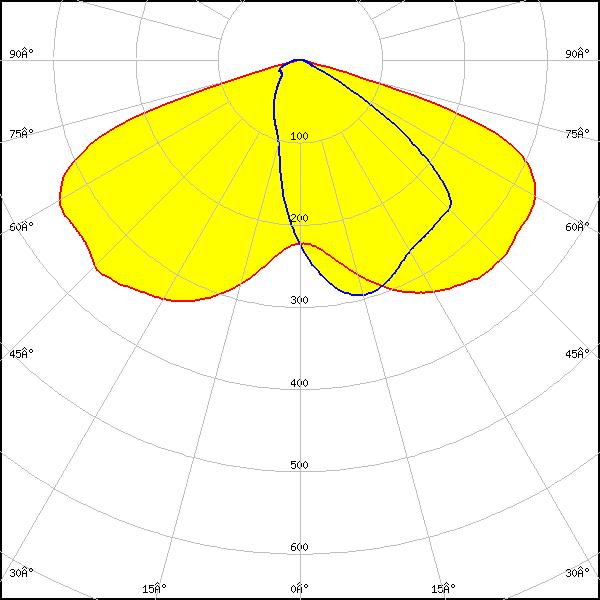

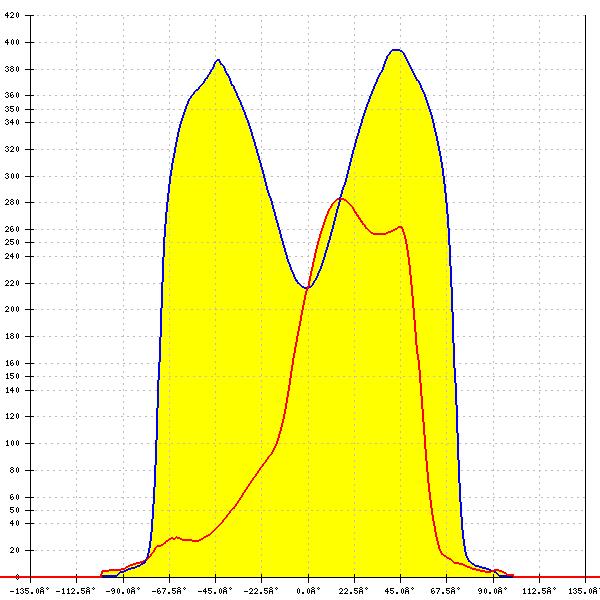

LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 0.441 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

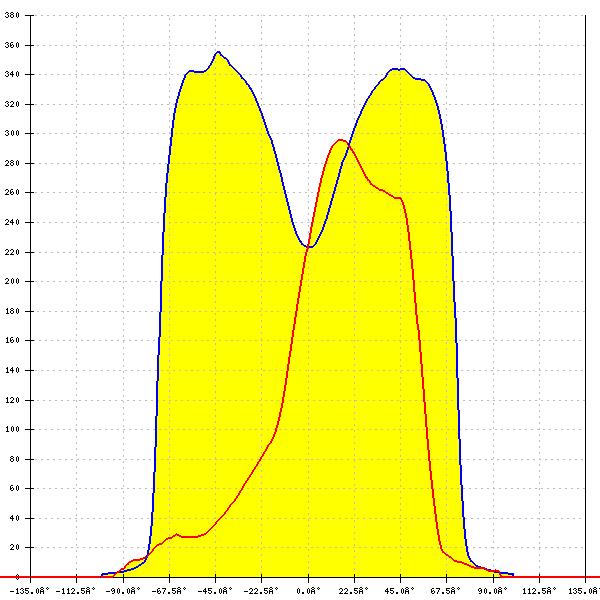

LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 0.492 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

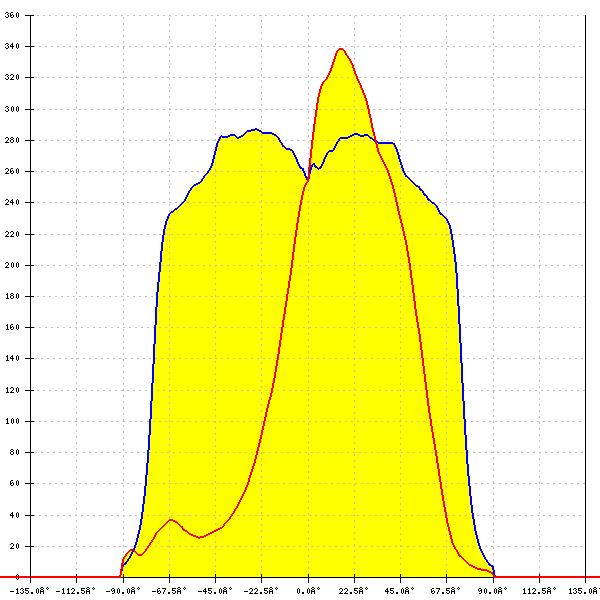

LED: LUXEON 7070
FWHM: asymmetric
Peak intensity: 0.338 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

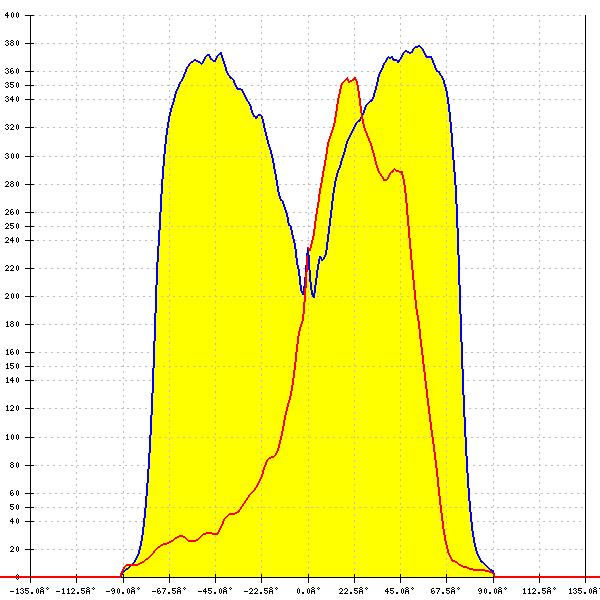

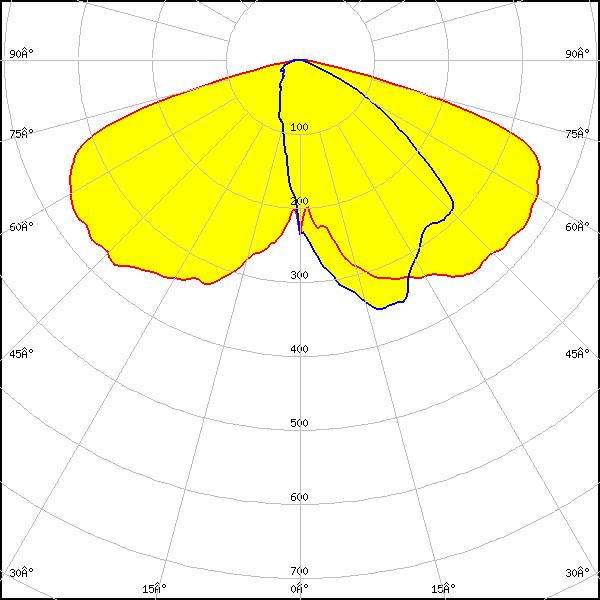

LED: NFMW48xA
FWHM: asymmetric
Peak intensity: 0.456 cd/lm
LEDs/each optic: 1
Light colour/type: White

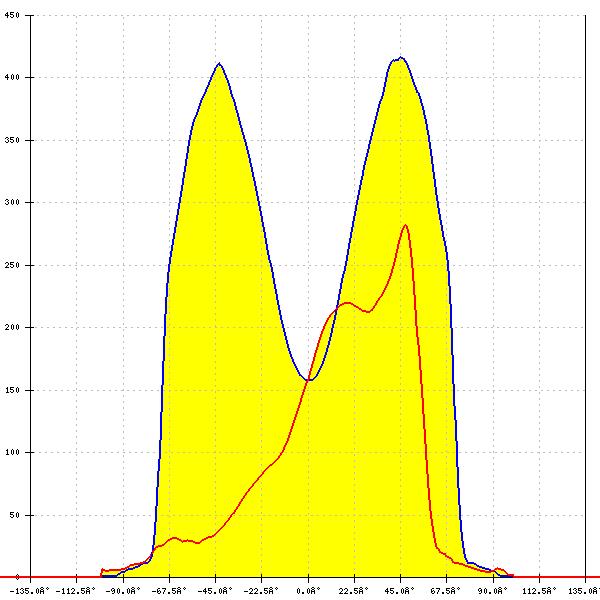

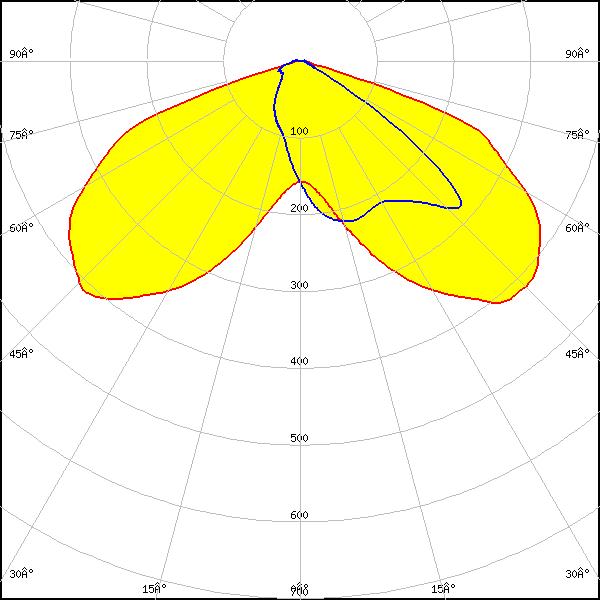

LED: NV4WB35AM
FWHM: asymmetric
Peak intensity: 0.660 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

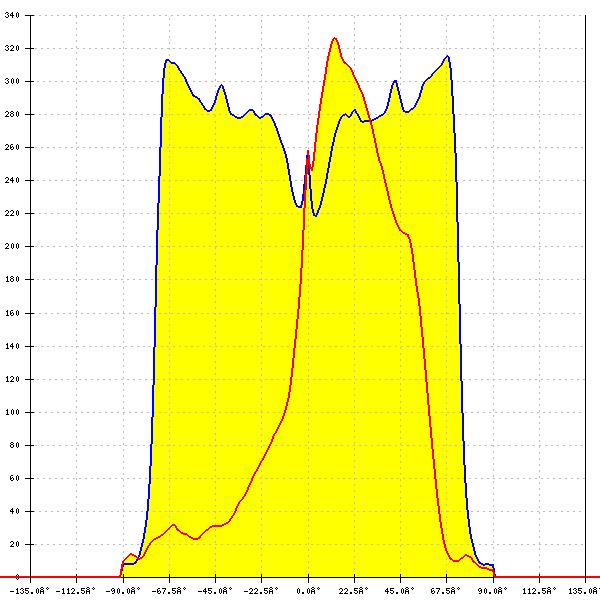

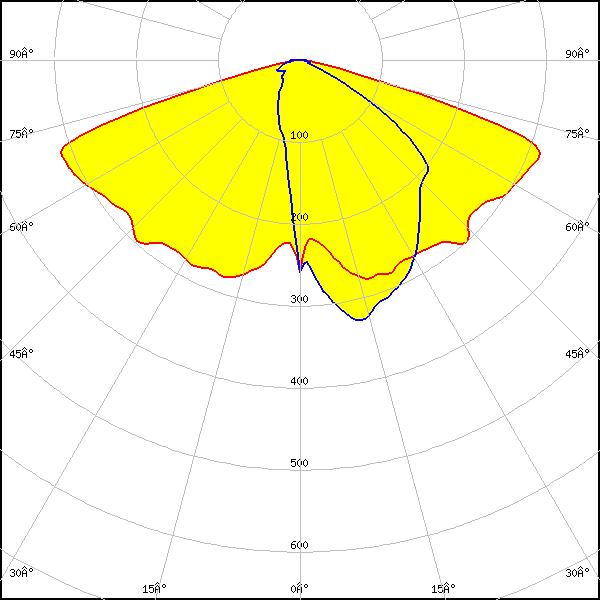

LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 0.365 cd/lm
Efficiency: 84 %
LEDs/each optic: 4
Light colour/type: White

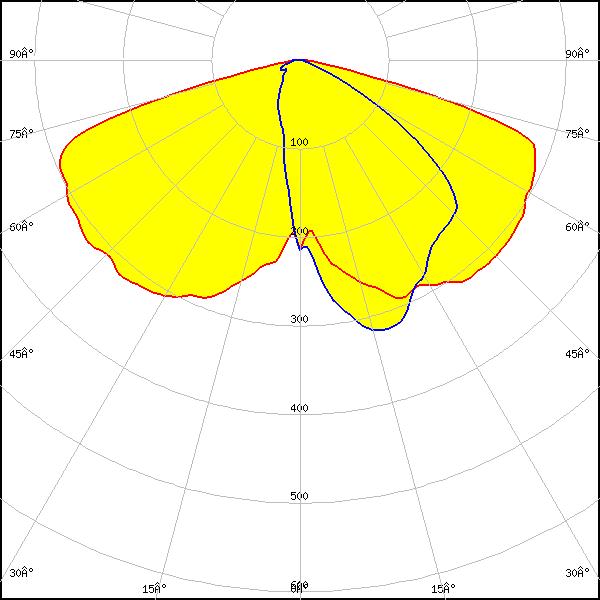

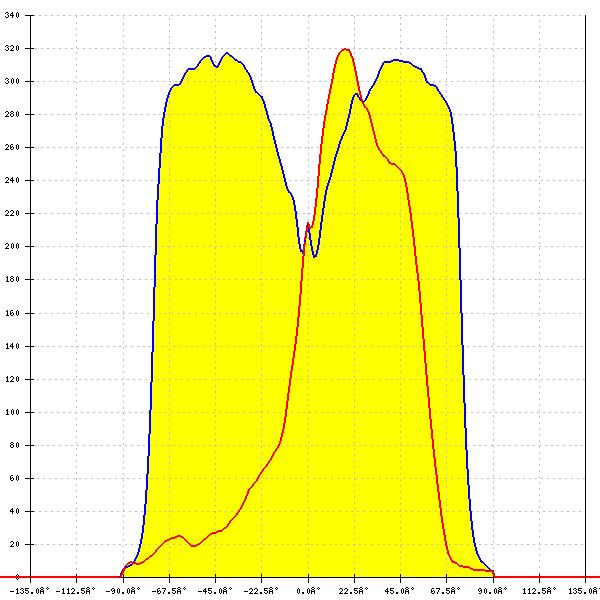

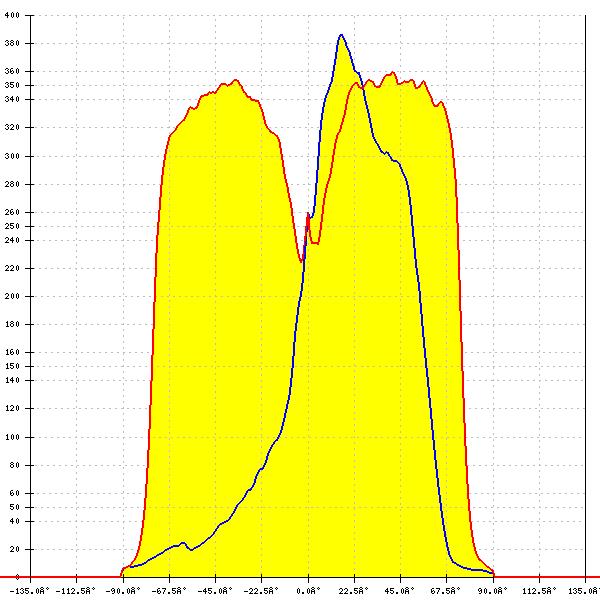

LED: Duris S8
FWHM: 57° + 148°
FWTM: 108° + 160°
Peak intensity: 0.456 cd/lm
LEDs/each optic: 8
Light colour/type: White

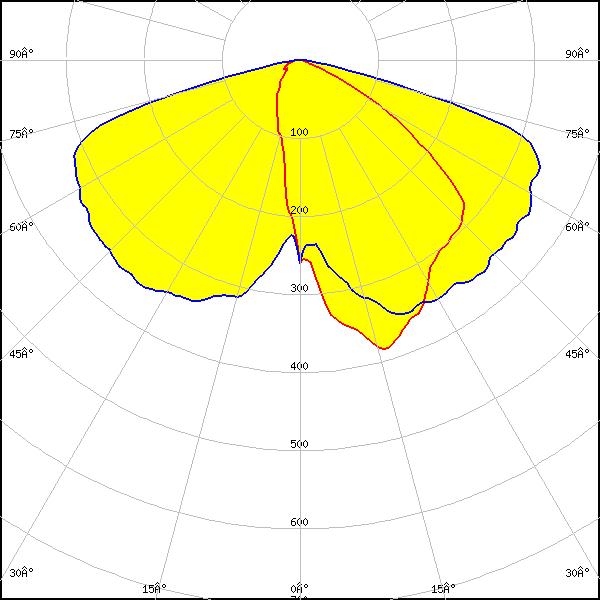

LED: Duris S8
FWHM: asymmetric
Peak intensity: 0.372 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

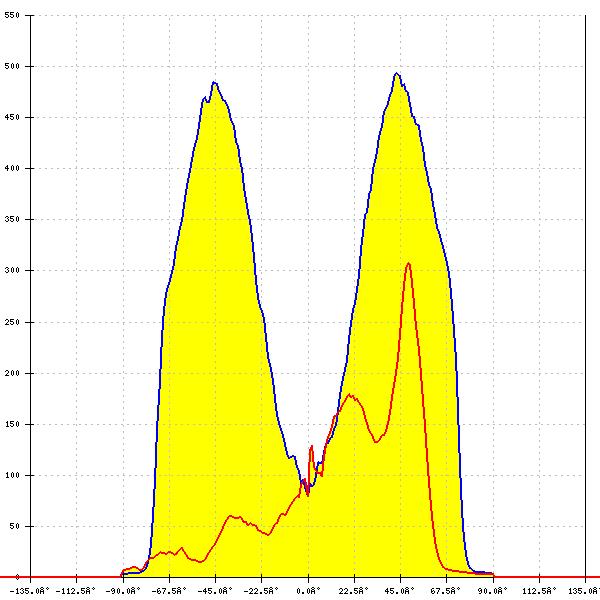

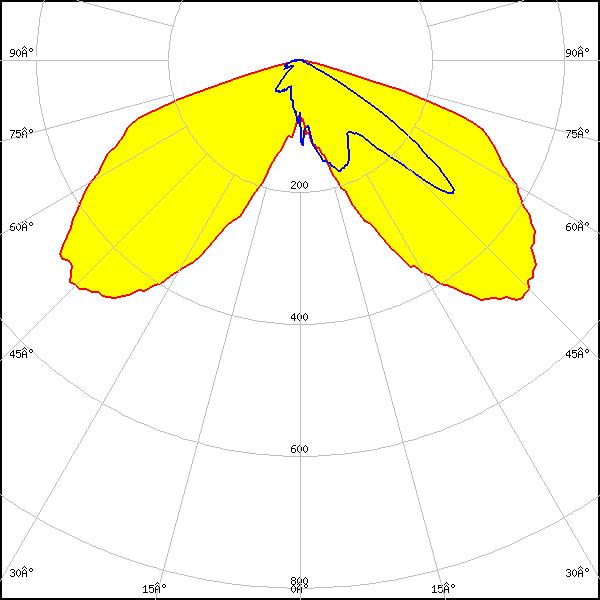

LED: LM28xB Series
FWHM: asymmetric
Peak intensity: 0.814 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

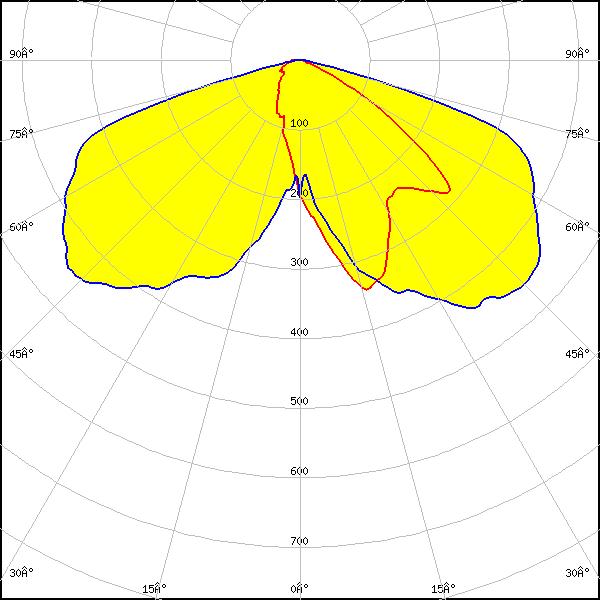

LED: SEOUL DC 5050 6V
FWHM: 58° + 146°
FWTM: 114° + 155°
Peak intensity: 0.555 cd/lm
LEDs/each optic: 1
Light colour/type: White
