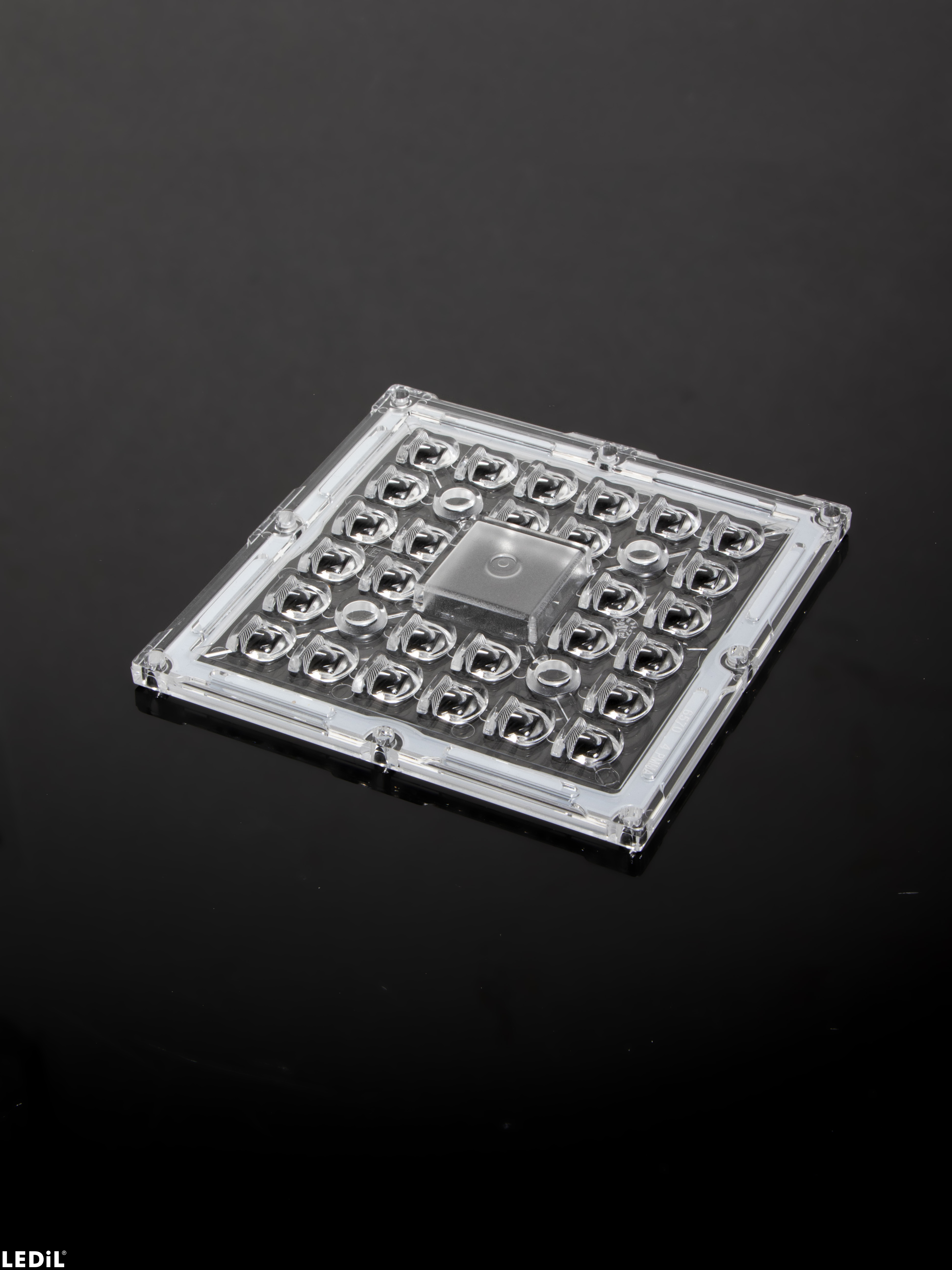

    CS16578_STRADELLA-IP-28-T4B

    Print

    Wide IESNA Type IV forward-throw beam for wide area lighting like car parks.

    Specification
    • Dimensions:
      100 x  100 mm
    • Height:
      9.40 mm
    • Fastening:
      screw
    • Colour:
      clear
    • Ingress protection classes:
      IP66, IP67
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      156 pcs
    • Box size:
      476 x 273 x 247 mm
    • Box weight:
      6.0 kg
    • MPQ:
      78 pcs
    • MOQ:
      78 pcs
    • MOQ size:
      480 x 280 x 130 mm
    • MOQ weight:
      3.1 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CS16578_STRADELLA-IP-28-T4B
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Please note that due to varying asymmetric chip locations the exact source of light is not always located at the center of the LED packet. If maximum uniformity is required LEDiL recommends rotating such LEDs on the PCB in a regular pattern for smoother results.

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    STRADELLA-IP-28

    PCN

    Product change notification NR183 - Additional gasket material approved for LEDiL products

    News

    New street and high bay beams

    News

    PRODUCT NEWS - STRADELLA-IP-28

    Application guide

    Guide for Street lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    News

    PRODUCT NEWS - STRADELLA FAMILY

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

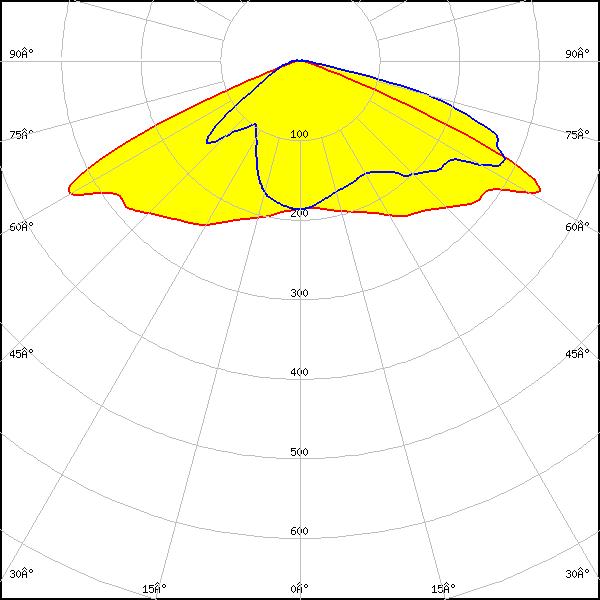

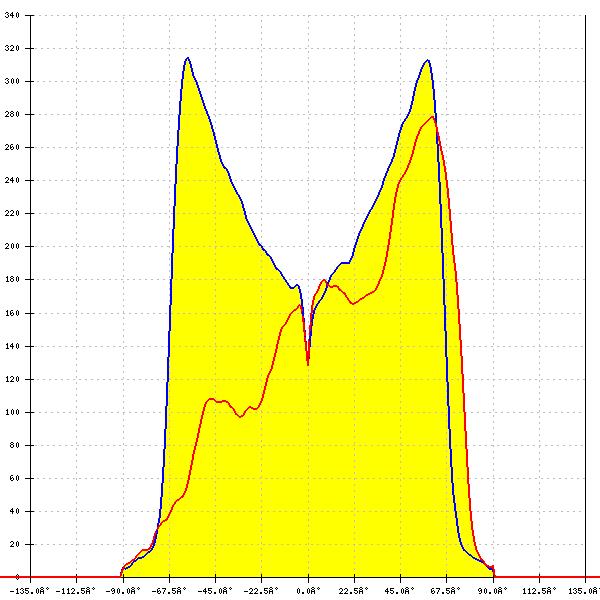

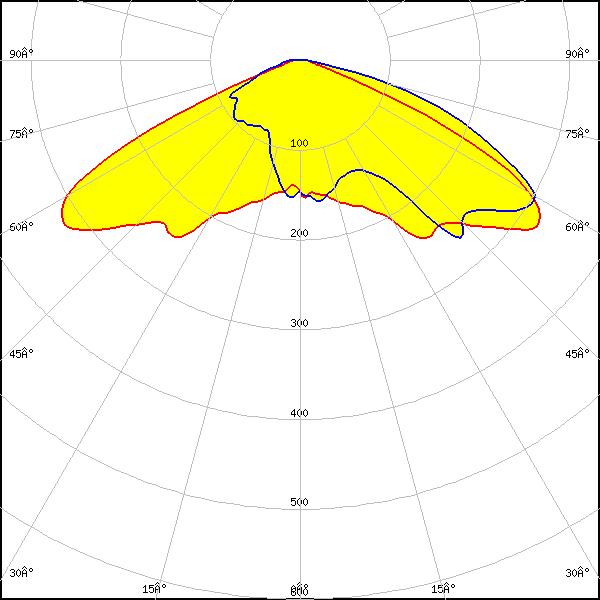

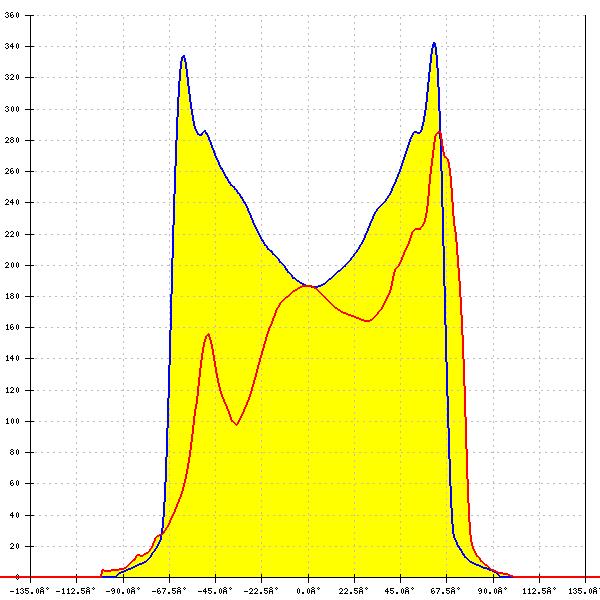

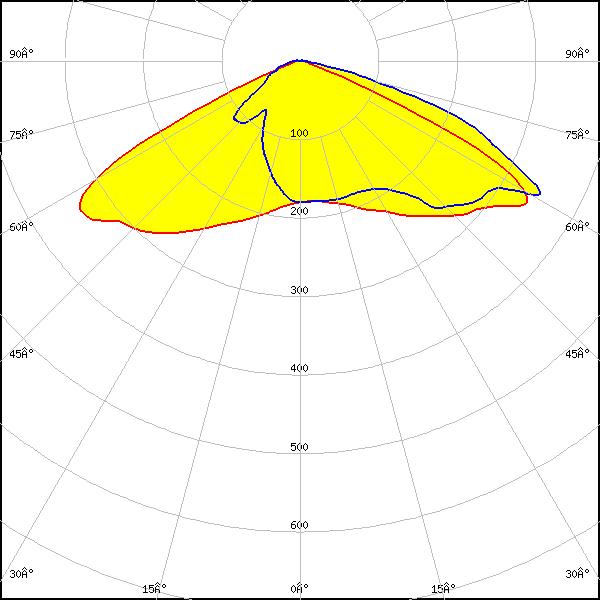

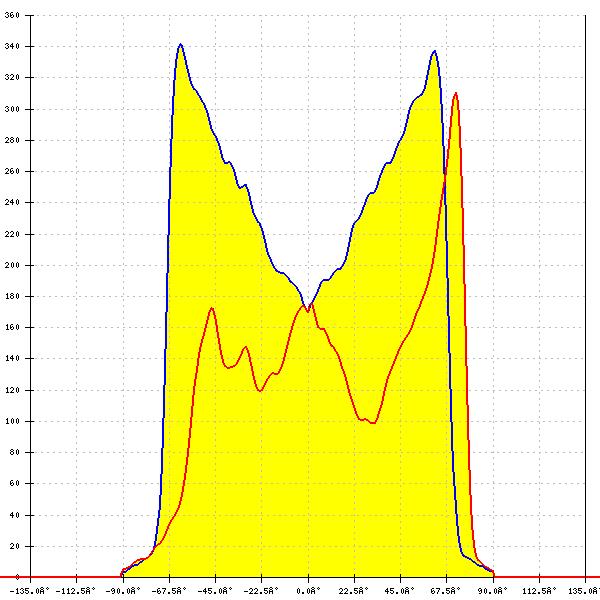

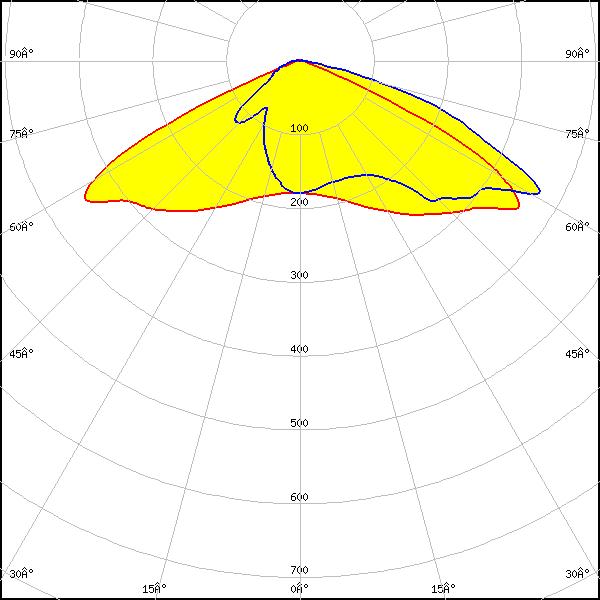

    Optical results

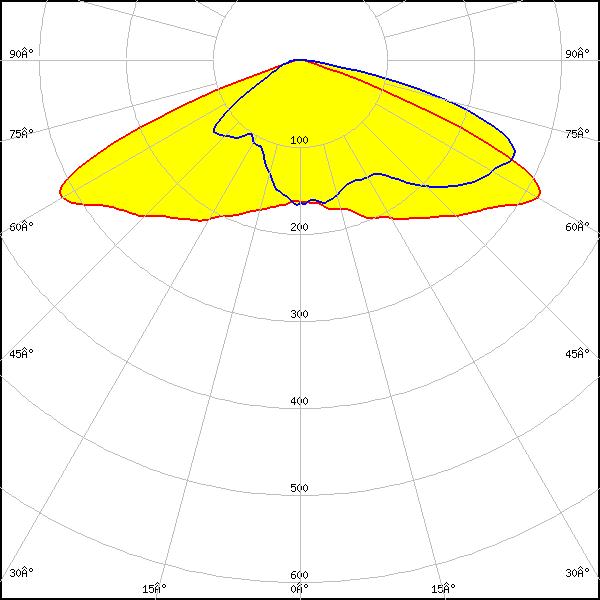

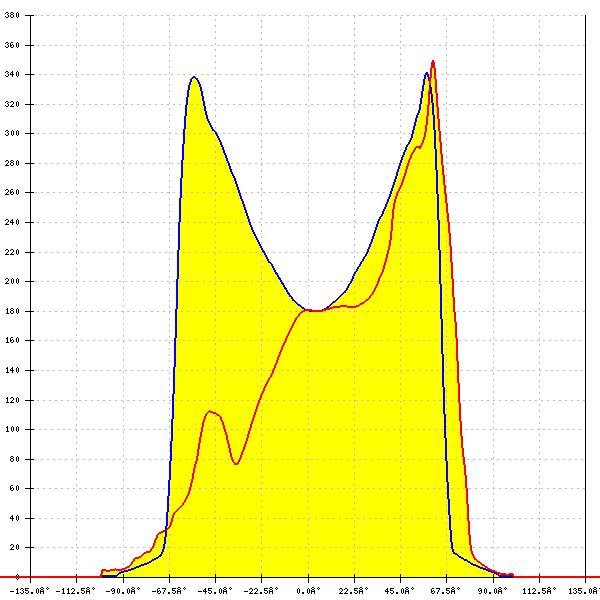

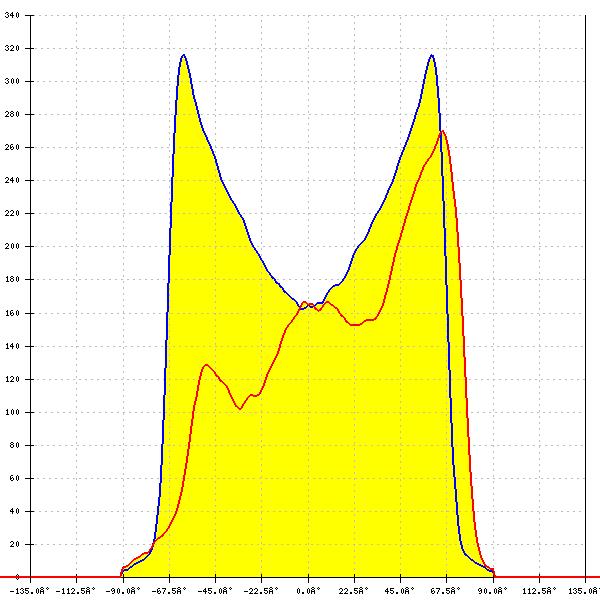

    LED: J Series 3030
    FWHM: asymmetric
    Peak intensity: 0.553 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 3030C
    FWHM: asymmetric
    Peak intensity: 0.470 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

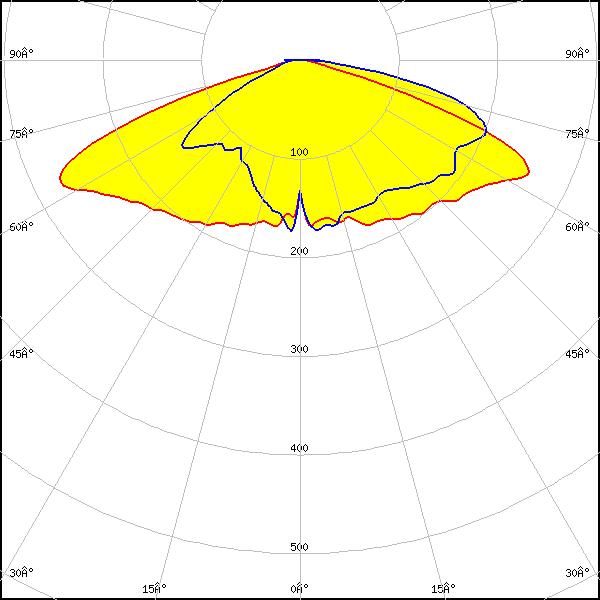

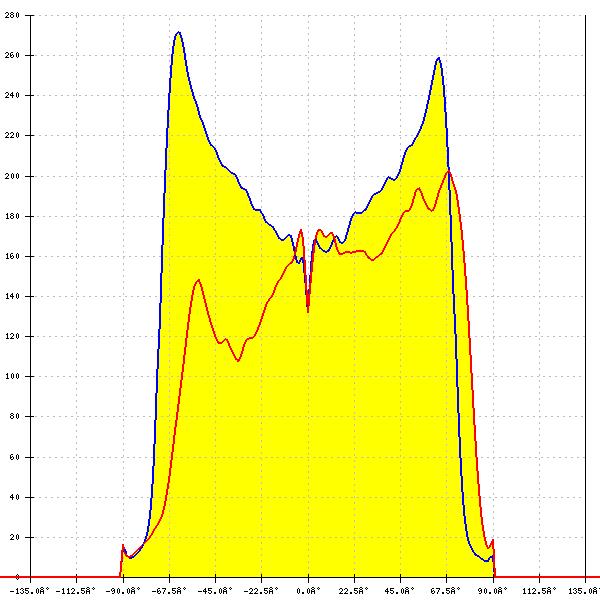

    LED: XP-G3
    FWHM: asymmetric
    Peak intensity: 0.403 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

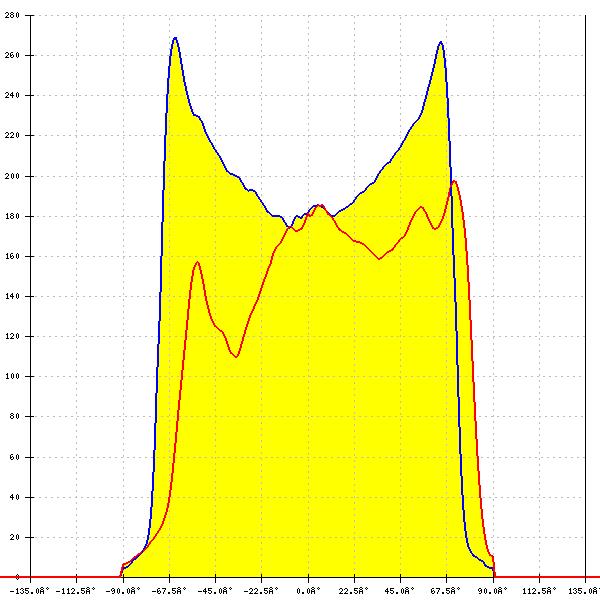

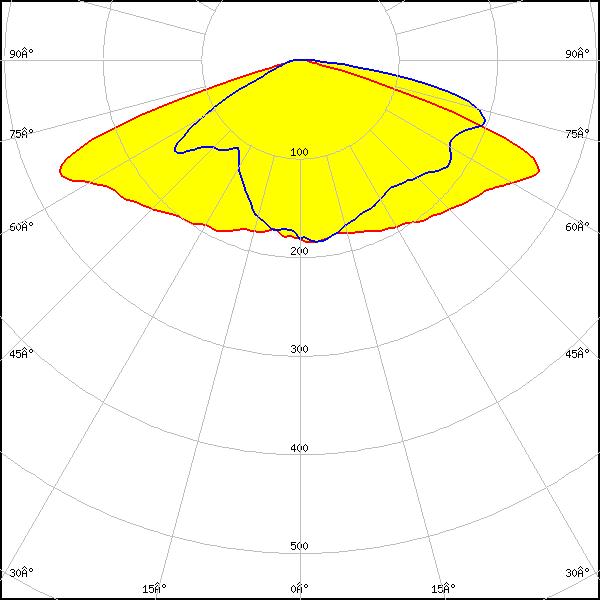

    LED: NVSW219F
    FWHM: asymmetric
    Peak intensity: 0.393 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

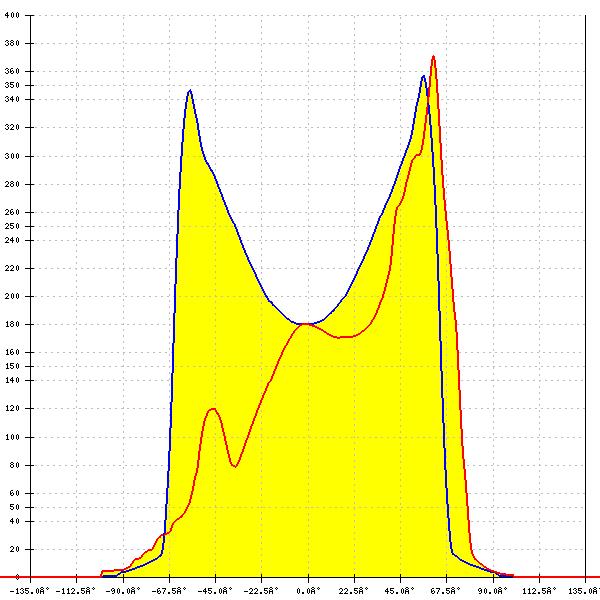

    LED: DURIS S5 (2 chip)
    FWHM: asymmetric
    Peak intensity: 0.528 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

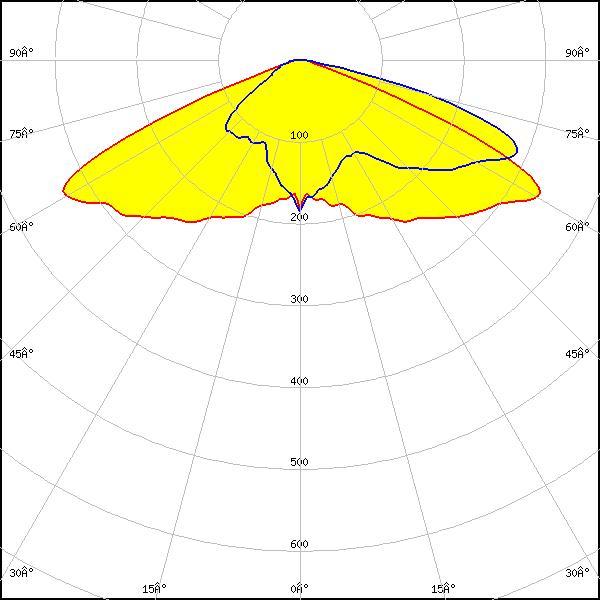

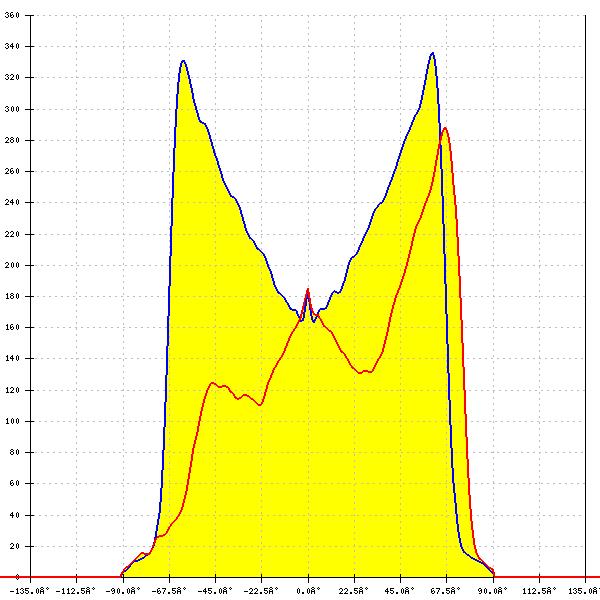

    LED: OSCONIQ C 2424
    FWHM: asymmetric
    Peak intensity: 0.520 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ C 3030
    FWHM: asymmetric
    Peak intensity: 0.472 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

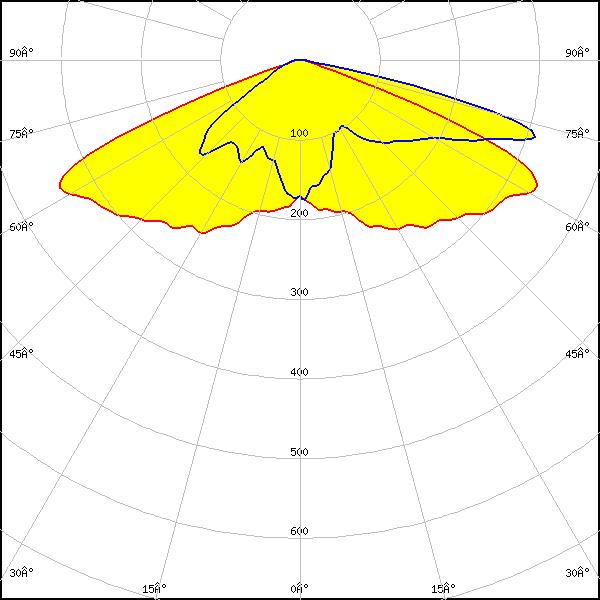

    LED: OSLON Pure 1414
    FWHM: asymmetric
    Peak intensity: 0.675 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 0.594 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH231B
    FWHM: asymmetric
    Peak intensity: 0.428 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

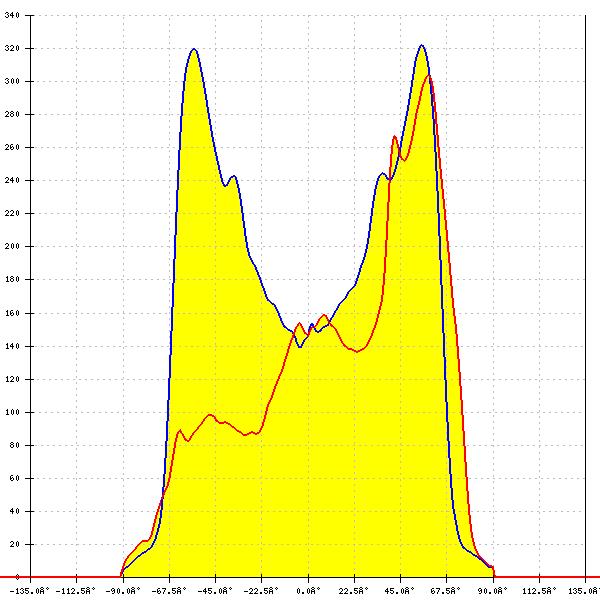

    LED: Z8Y22
