CS15870_STRADA-IP-2X6-T2-L
Print

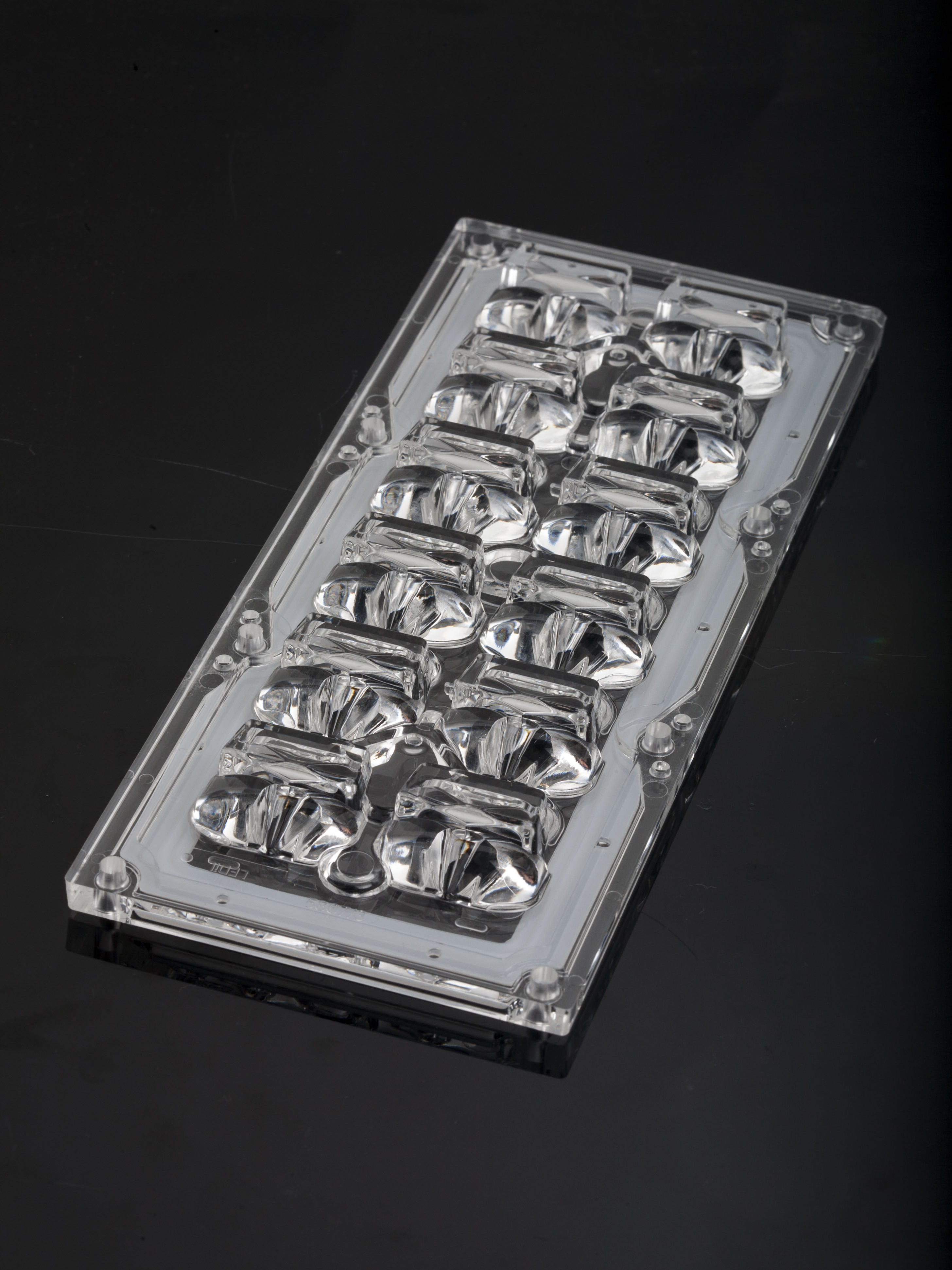

IESNA Type II (medium) beam for long pole distances and up to 8x mounting height. Suitable for European P-class and pathway lighting.
Component Materials
- STRADA-IP-2X6-T2-LMulti-lensPMMA
- 2X6-SEAL25SealSilicone
- Request material files from Tech Support
WARNING: Cancer – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results
LED:
QUICK FLUX 2x6 LED XG xxx G7+
FWHM: asymmetric
Peak intensity:
1.400 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
QUICK FLUX 2x6 LED XT xxx G5
FWHM: asymmetric
Peak intensity:
1.800 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050 Round LES
FWHM: asymmetric
Peak intensity:
0.762 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050B 6V K Class
FWHM: asymmetric
Peak intensity:
0.627 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP50.3 HI
FWHM: asymmetric
Peak intensity:
0.792 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2 HE
FWHM: asymmetric
Peak intensity:
1.196 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G3
FWHM: asymmetric
Peak intensity:
1.400 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

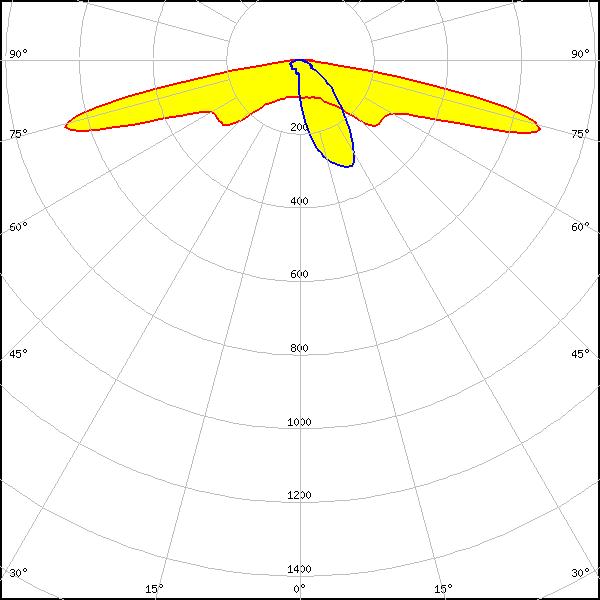

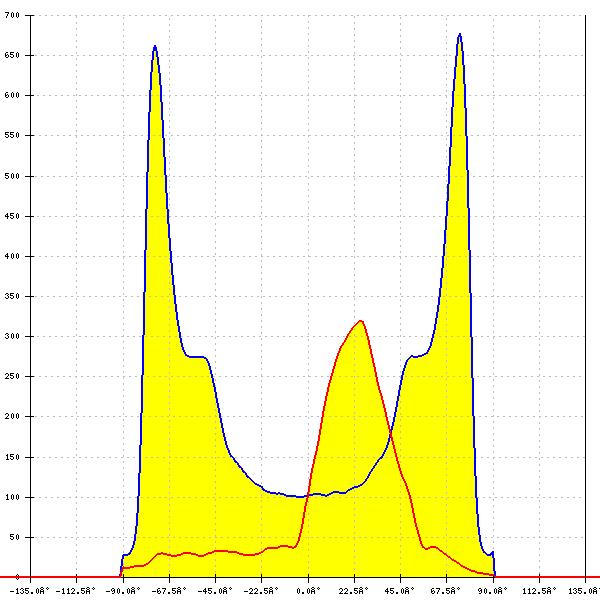

XP-G4
FWHM: asymmetric
Peak intensity:
1.060 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-L2
FWHM: asymmetric
Peak intensity:
0.902 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XT-E
FWHM: asymmetric
Peak intensity:
1.800 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XT-E HE
FWHM: asymmetric
Peak intensity:
1.800 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PrevaLED Brick HP IP 2x6
FWHM: asymmetric
Peak intensity:
1.060 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity:
0.761 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity:
0.617 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity:
0.640 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RecLED 146x45mm 2900lm 730 2x6 IP G1
FWHM: asymmetric
Peak intensity:
1.731 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NV4WB35AM
FWHM: asymmetric
Peak intensity:
0.924 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NV4x144A
FWHM: asymmetric
Peak intensity:
0.482 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW219D
FWHM: asymmetric
Peak intensity:
1.500 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW219F
FWHM: asymmetric
Peak intensity:
1.500 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW319B
FWHM: asymmetric
Peak intensity:
1.200 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW519A
FWHM: asymmetric
Peak intensity:
1.078 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxE21A
FWHM: asymmetric
Peak intensity:
1.324 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S8
FWHM: asymmetric
Peak intensity:
0.820 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 3030
FWHM: asymmetric
Peak intensity:
1.524 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 3737 (3W version)
FWHM: asymmetric
Peak intensity:
0.936 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity:
1.920 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x6 DP G4
FWHM: asymmetric
Peak intensity:
1.600 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x6 DP G5
FWHM: asymmetric
Peak intensity:
1.615 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x6 DPX G4
FWHM: asymmetric
Peak intensity:
1.400 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
HiLOM RH12 (LH351C)
FWHM: asymmetric
Peak intensity:
1.400 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
HiLOM RM12 ZP (LH502C)
FWHM: asymmetric
Peak intensity:
0.711 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH181B
FWHM: asymmetric
Peak intensity:
0.900 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351C
FWHM: asymmetric
Peak intensity:
1.400 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351D
FWHM: asymmetric
Peak intensity:
0.737 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH502C
FWHM: asymmetric
Peak intensity:
0.683 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ROY-S26XPL2 (XP-L2)
FWHM: asymmetric
Peak intensity:
0.902 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XLE-S22C4XTEHE (XT-E HE)
FWHM: asymmetric
Peak intensity:
1.800 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XLE-S26XHP35 (XHP35 HD)
FWHM: asymmetric
Peak intensity:
0.900 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
2x6 5050 module - SMJD-3625012F-XX
FWHM: asymmetric
Peak intensity:
0.608 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 3030C
FWHM: asymmetric
Peak intensity:
1.109 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 5050 6V
FWHM: asymmetric
Peak intensity:
0.594 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M3
FWHM: asymmetric
Peak intensity:
1.347 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

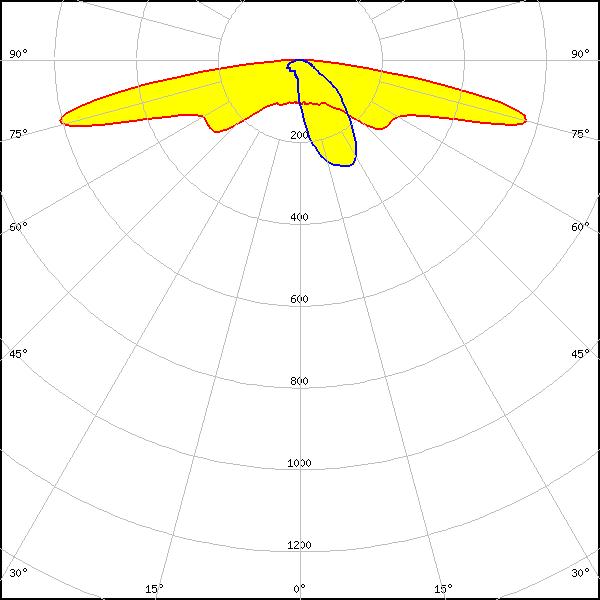

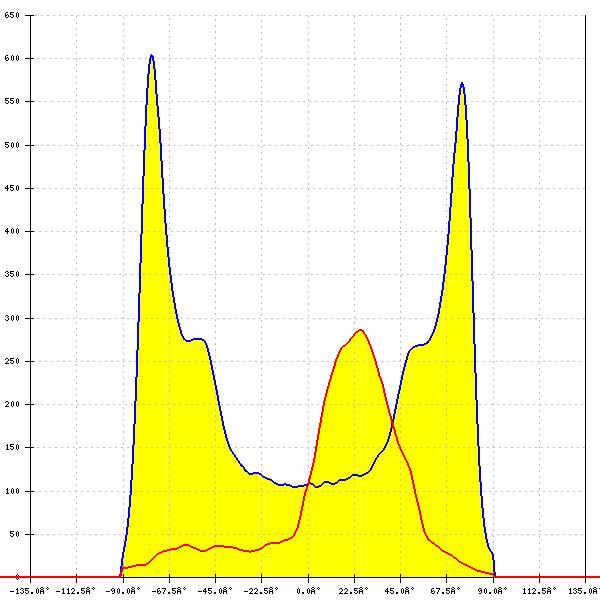

Z5M4
FWHM: asymmetric
Peak intensity:
1.084 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
