CS15769_STRADA-2X2MX-8-T2-S
Print
IESNA Type II (short) beam perfect for high or dense pole setups and European ME roads. Ideal for US car dealership front row lighting. New revision.
Component Materials
- STRADA-2X2MX-8-T2-SMulti-lensPMMA
- STRADA-2X2MX-8-SEALSealSilicone
- Request material files from Tech Support
WARNING: Cancer – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results
LED:

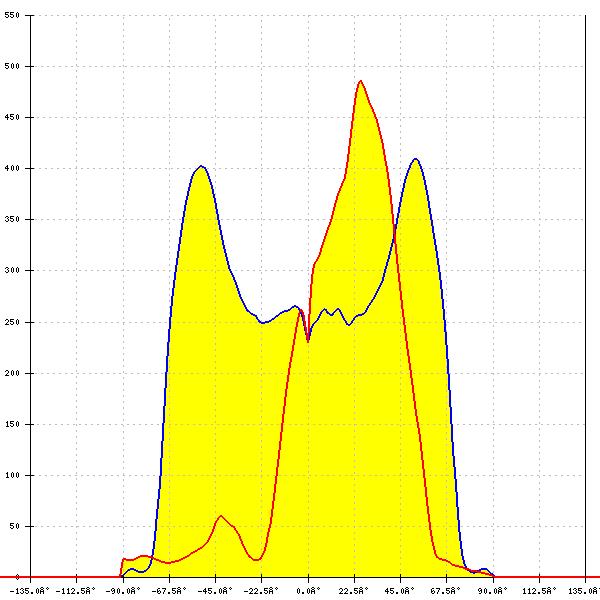

Bridgelux SMD 5050
FWHM: asymmetric
Peak intensity:
0.610 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

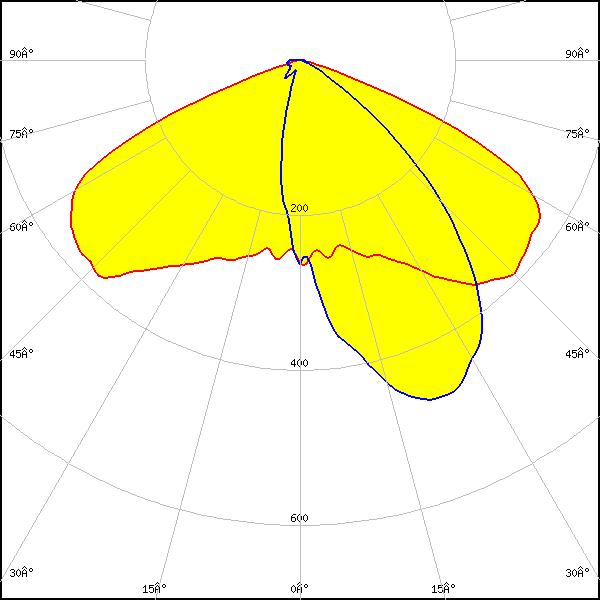

LED:

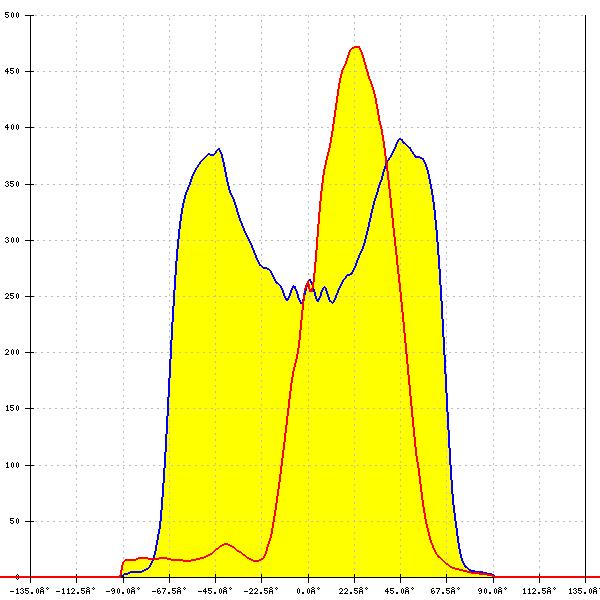

CLU700/701/702/703
Required components:
Bender Wirth: 434 Typ 2x2MX HV
FWHM: asymmetric
Peak intensity:
0.640 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

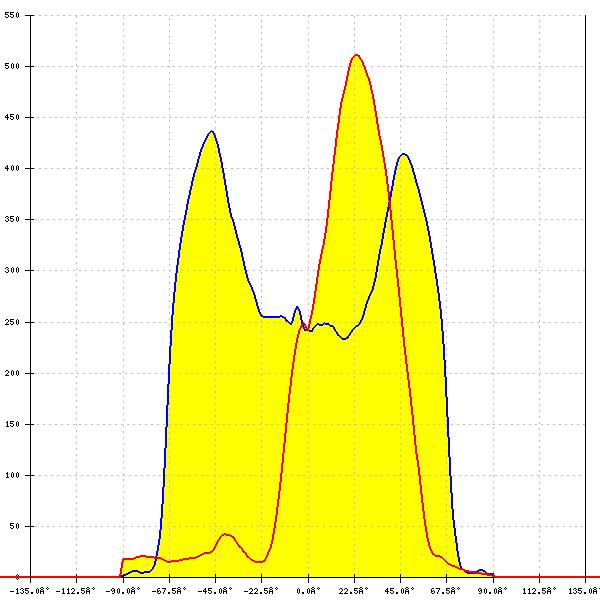

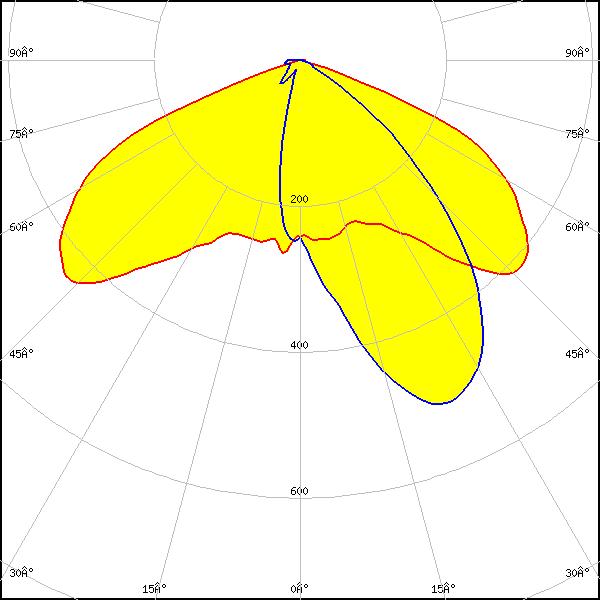

LED:
CMA1303
Required components:
Bender Wirth: 448 Typ 2x2MX HV
FWHM: asymmetric
Peak intensity:
0.670 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

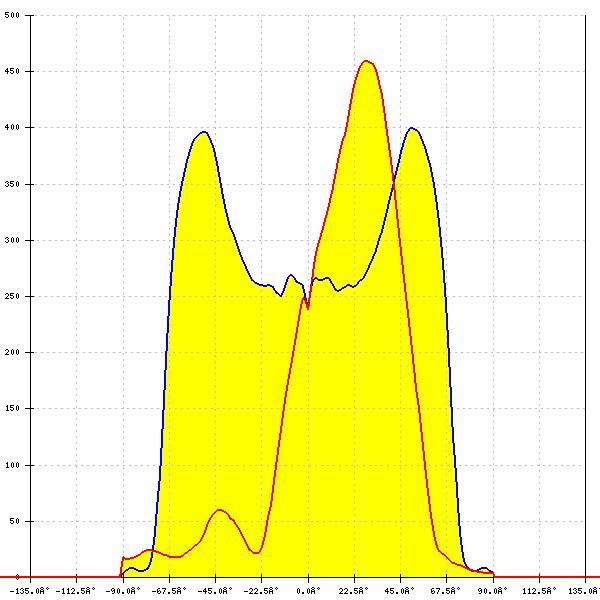

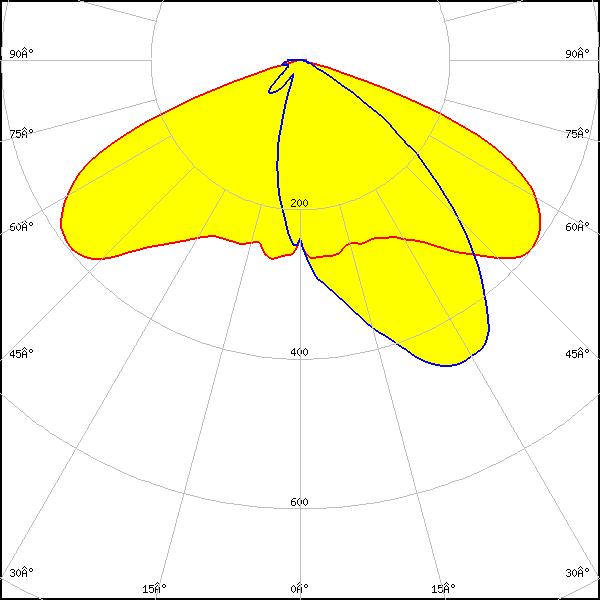

LED:
J Series 7070B K Class
FWHM: asymmetric
Peak intensity:
0.575 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

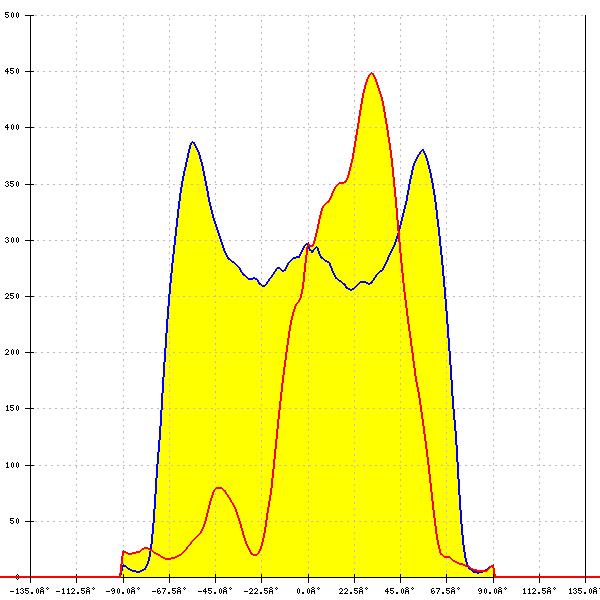

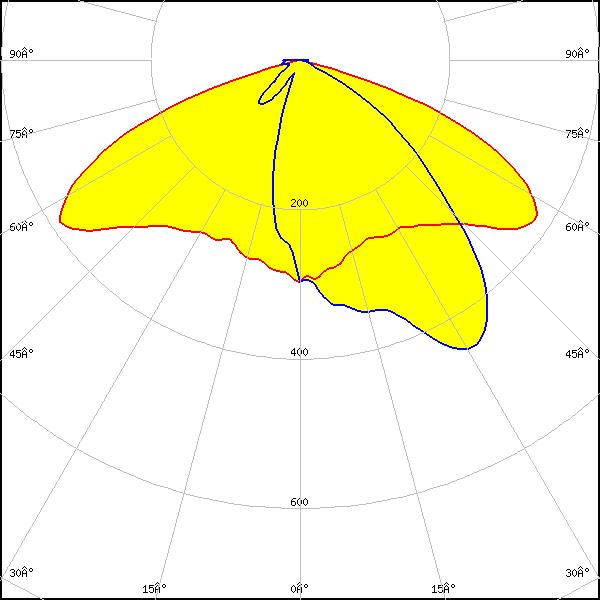

LED:
MHB-A/B
FWHM: asymmetric
Peak intensity:
0.589 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

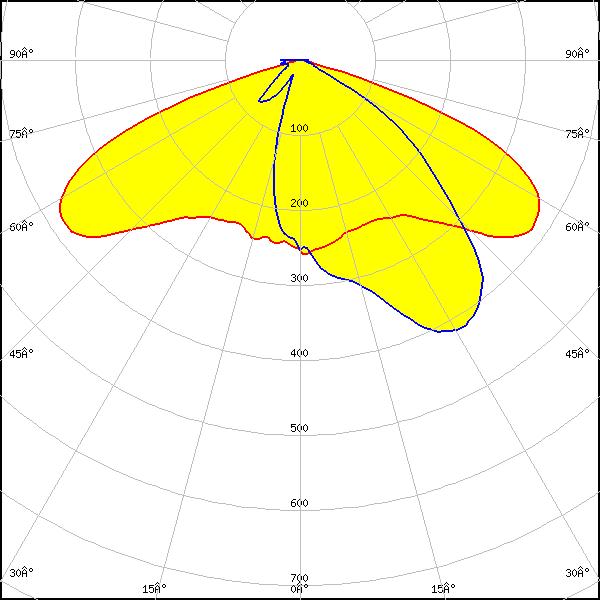

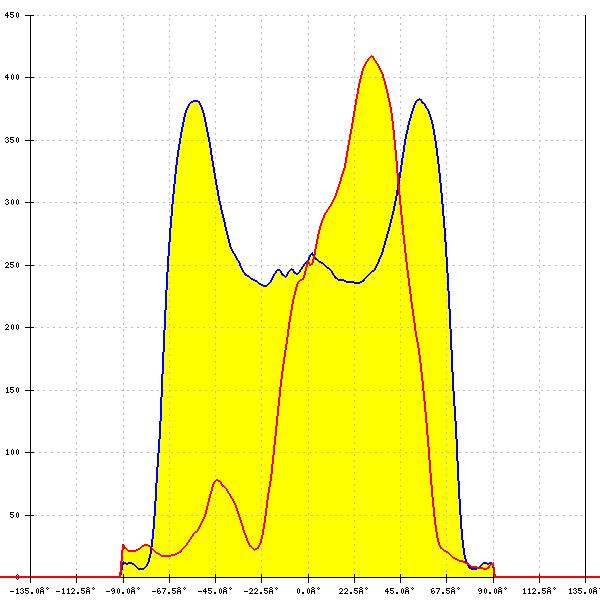

LED:
XHP50.2
FWHM: asymmetric
Peak intensity:
0.594 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

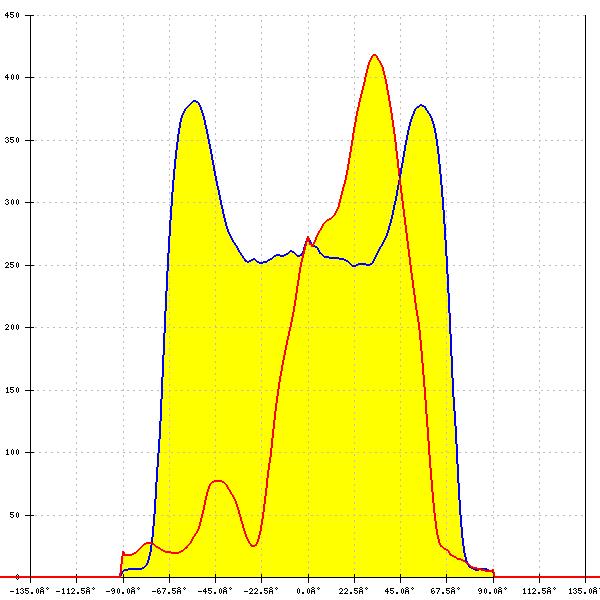

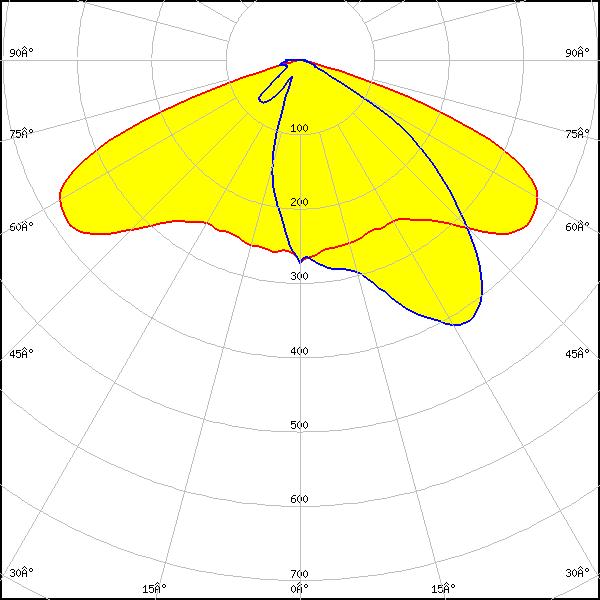

XHP70.3 HD
FWHM: asymmetric
Peak intensity:
0.553 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

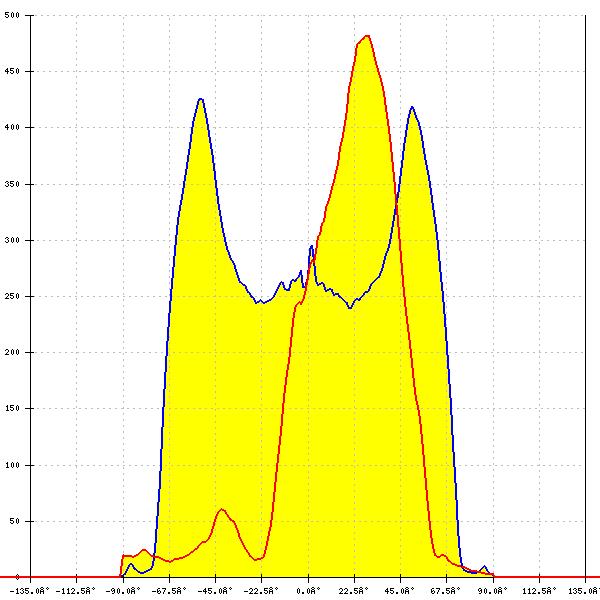

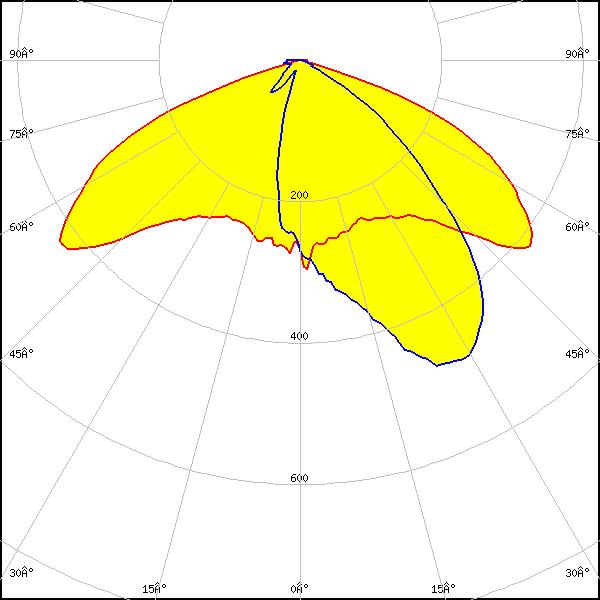

LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity:
0.680 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

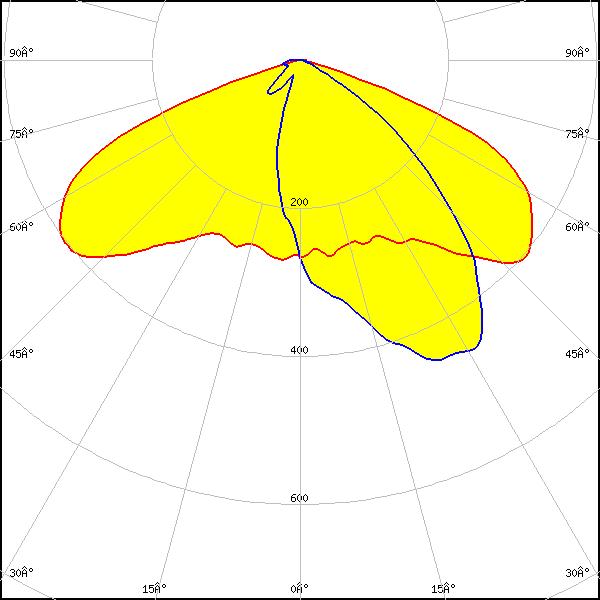

LUXEON 7070
FWHM: asymmetric
Peak intensity:
0.578 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

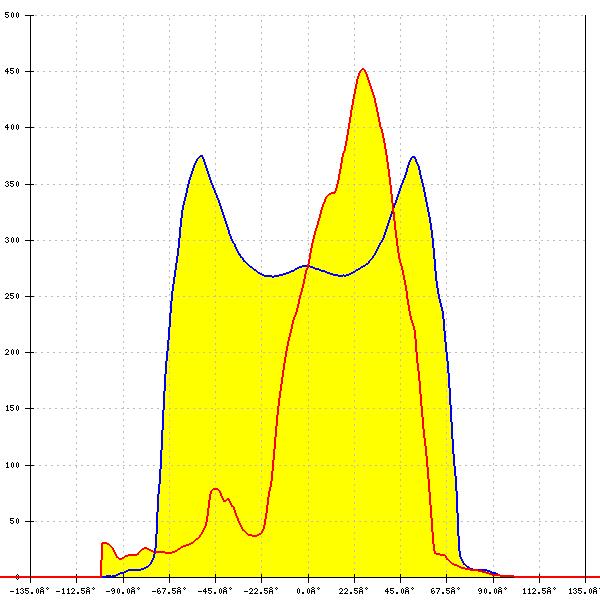

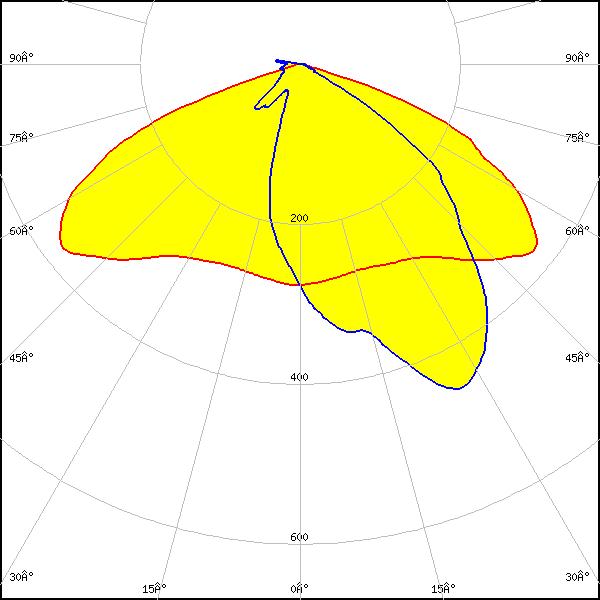

LUXEON M/MX
FWHM: asymmetric
Peak intensity:
0.690 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

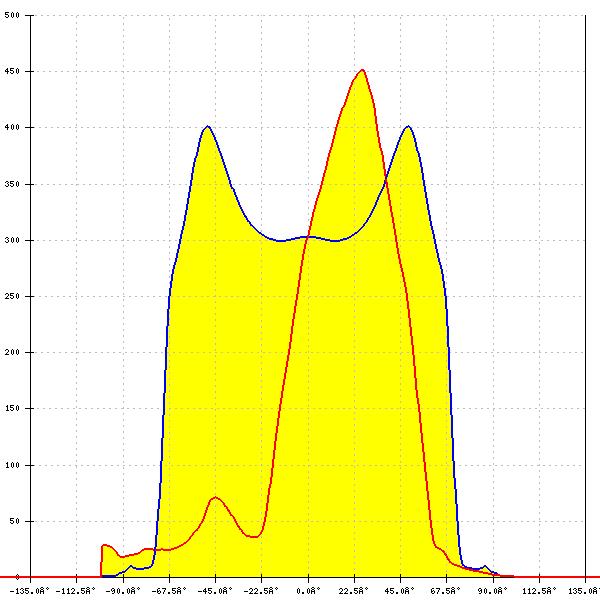

LED:

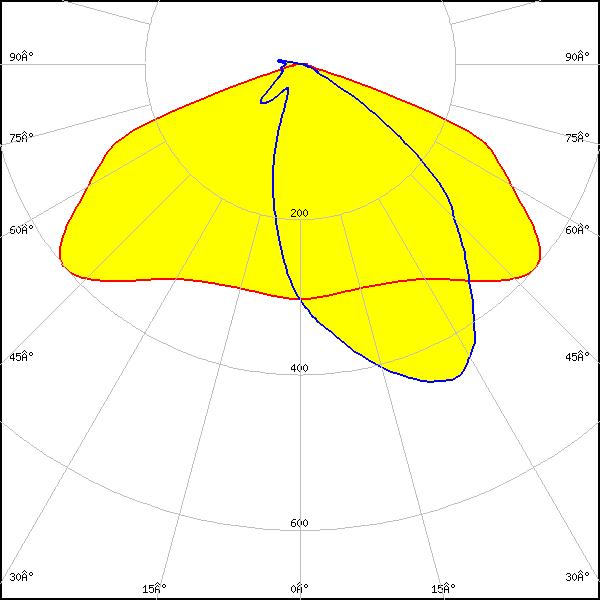

LUXEON XR-7070 (L224-xxxx004MLU010)
FWHM: asymmetric
Peak intensity:
0.575 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

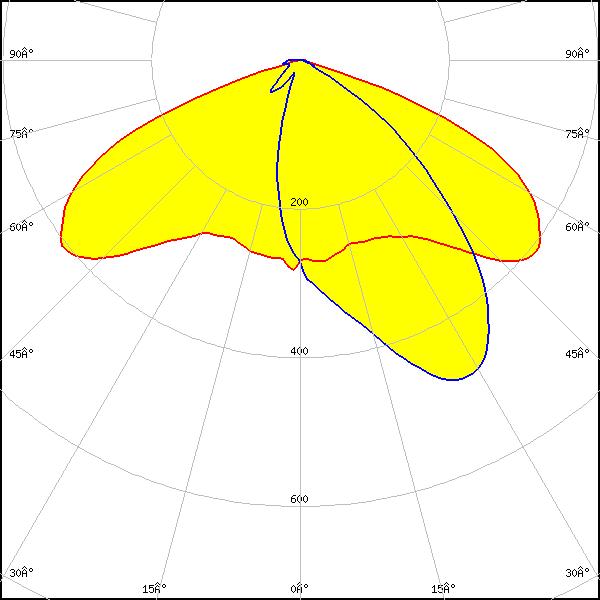

LED:

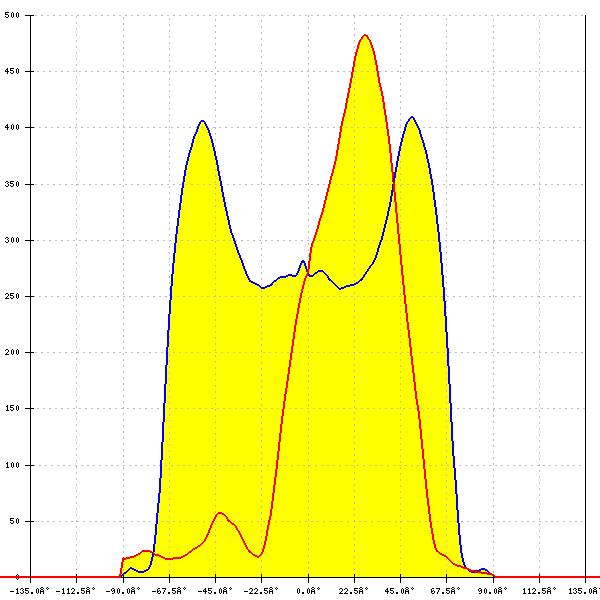

MP 7070
FWHM: asymmetric
Peak intensity:
0.600 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

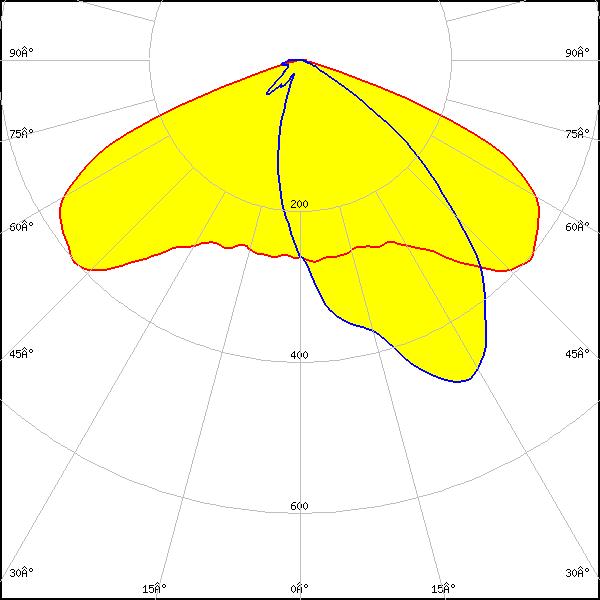

NF2x757G
FWHM: asymmetric
Peak intensity:
0.570 cd/lm
Efficiency:
95 %
LEDs/each optic:
4
Light colour/type:
White

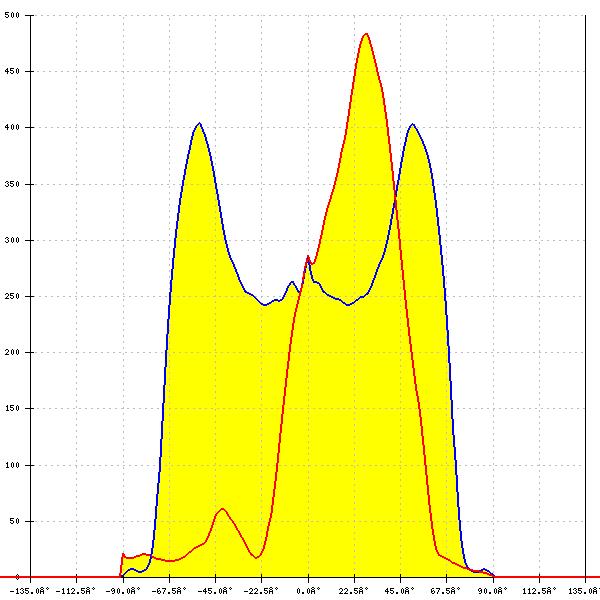

LED:
NFMW48xA
FWHM: asymmetric
Peak intensity:
0.610 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

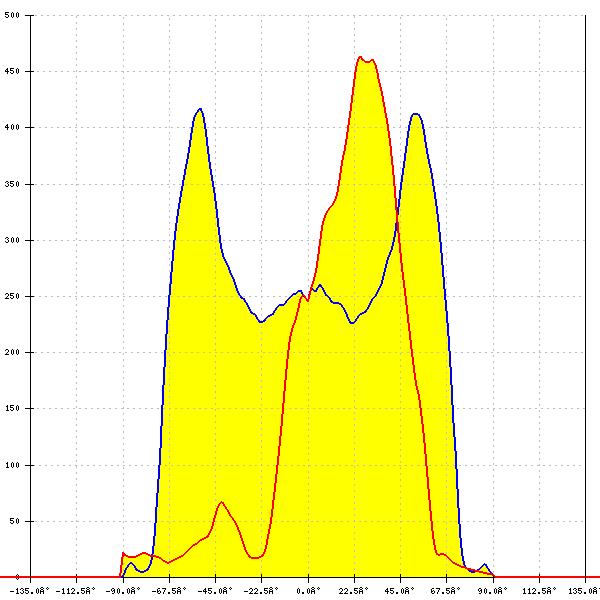

LED:
NV4WB35AM
FWHM: asymmetric
Peak intensity:
0.644 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

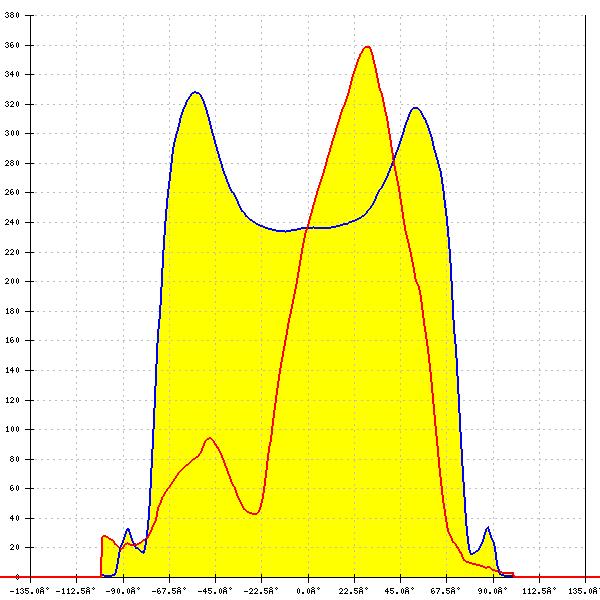

LED:

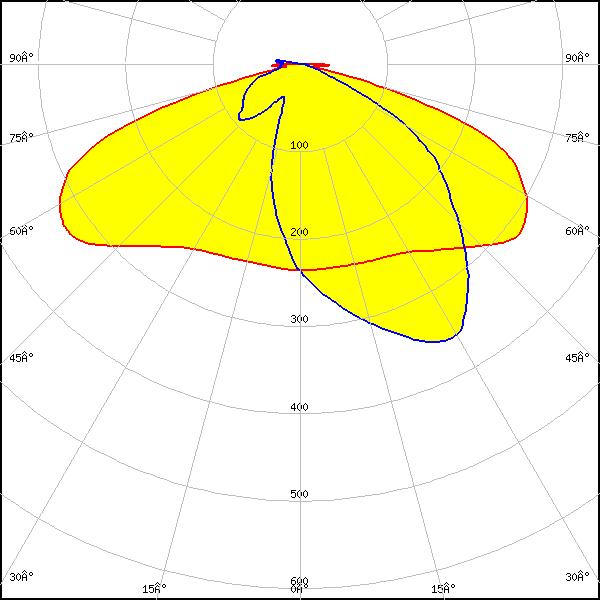

NV9W149AM
FWHM: asymmetric
Peak intensity:
0.540 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

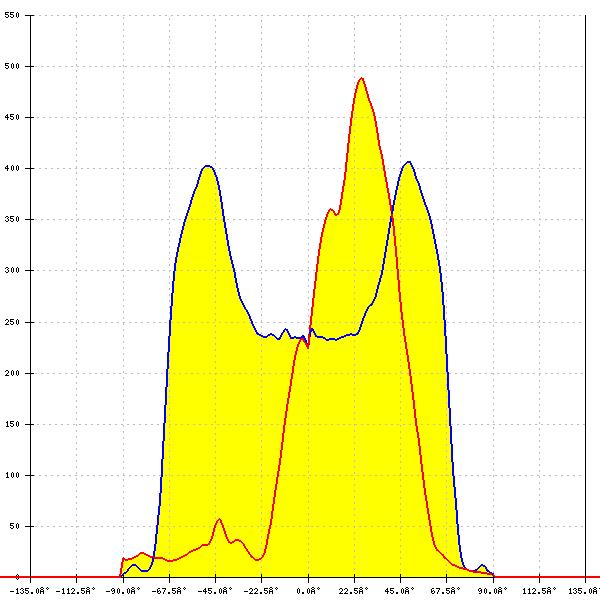

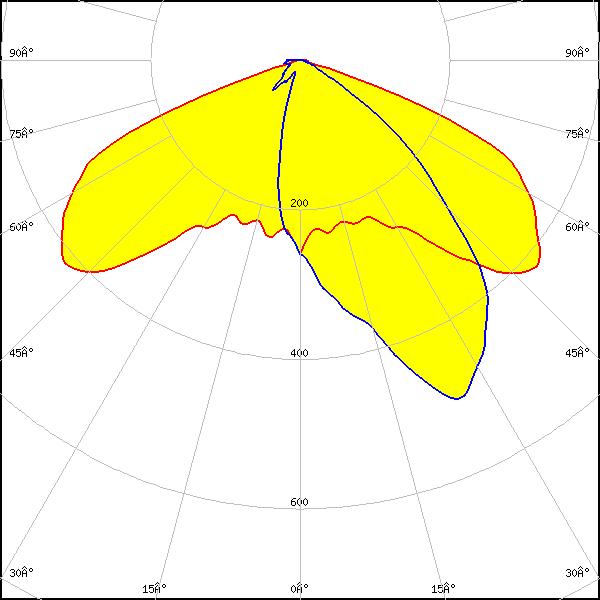

LED:

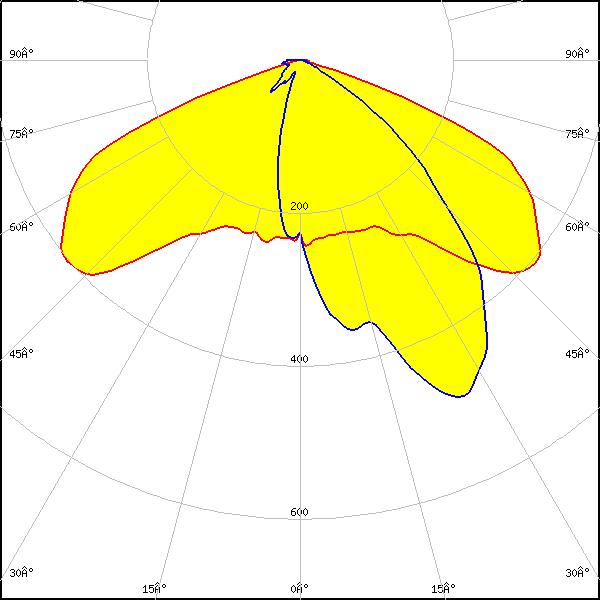

NVSxE21A
FWHM: asymmetric
Peak intensity:
0.634 cd/lm
Efficiency:
95 %
LEDs/each optic:
4
Light colour/type:
White

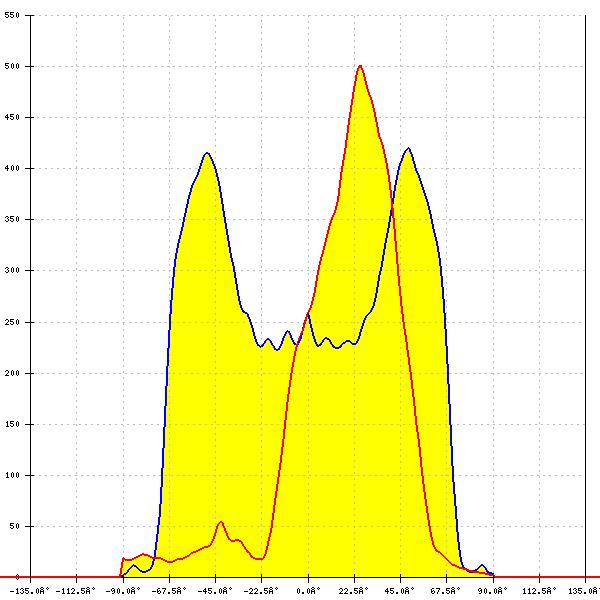

LED:
NVSxE21A
FWHM: asymmetric
Peak intensity:
0.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
White

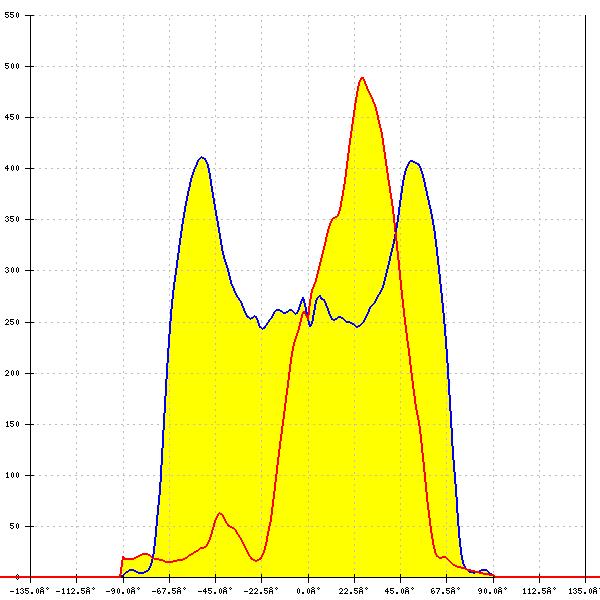

LED:
Duris S8
FWHM: asymmetric
Peak intensity:
0.622 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ C 2424 Gen1
FWHM: asymmetric
Peak intensity:
0.615 cd/lm
Efficiency:
95 %
LEDs/each optic:
4
Light colour/type:
White
LED:
OSCONIQ P 7070
FWHM: asymmetric
Peak intensity:
0.610 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

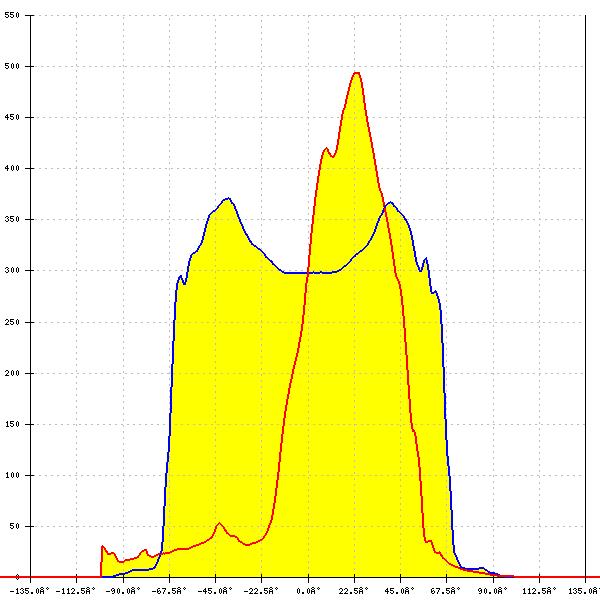

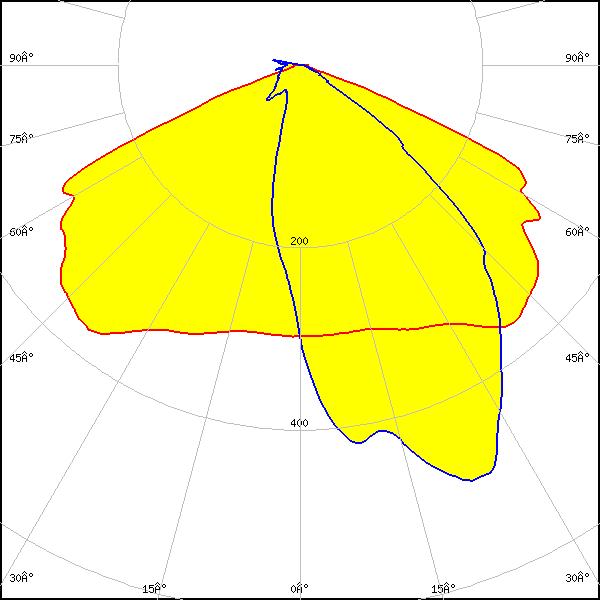

LED:
HiLOM SC16 (LH181B)
FWHM: asymmetric
Peak intensity:
0.810 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH181B
FWHM: asymmetric
Peak intensity:
0.694 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

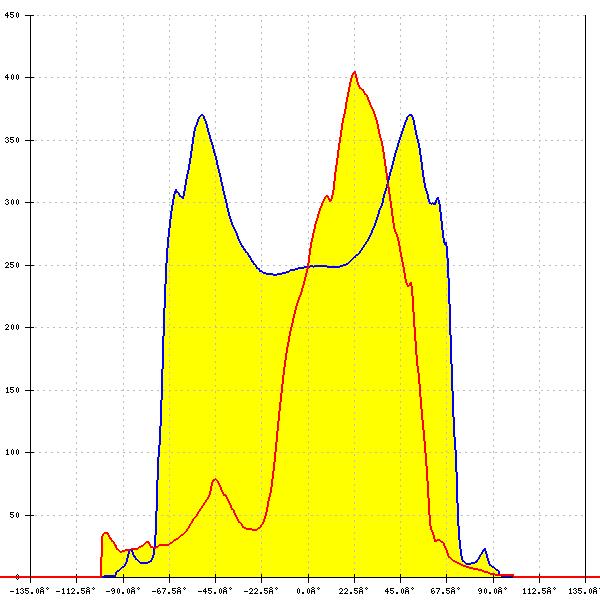

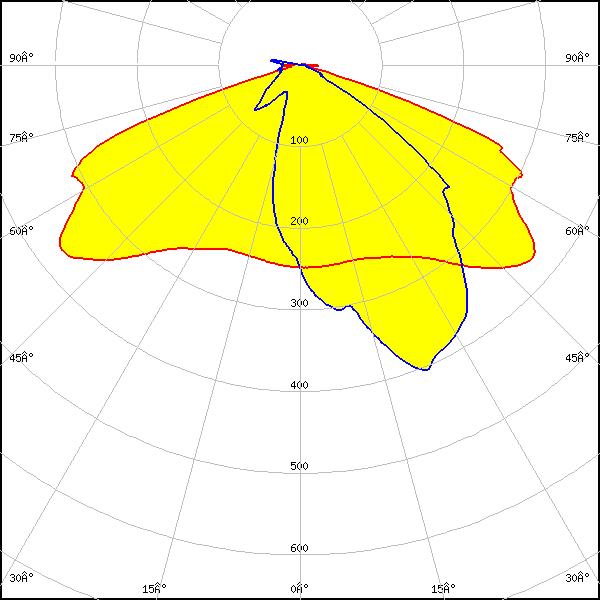

XLE-S22C4XD16 (XD16)
FWHM: asymmetric
Peak intensity:
0.690 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
White

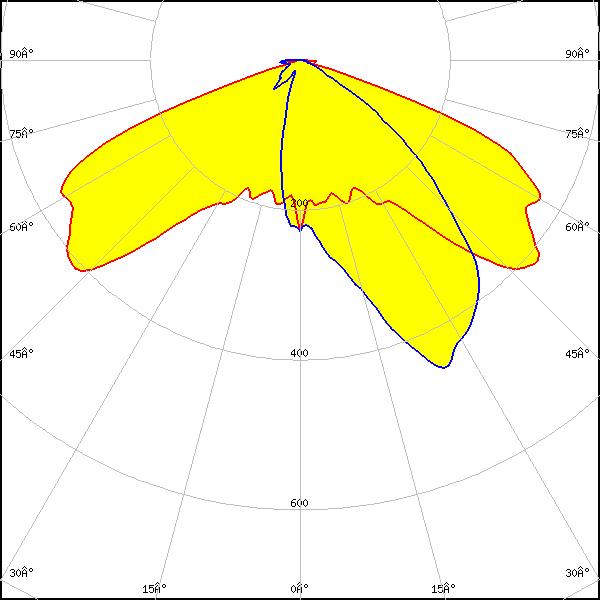

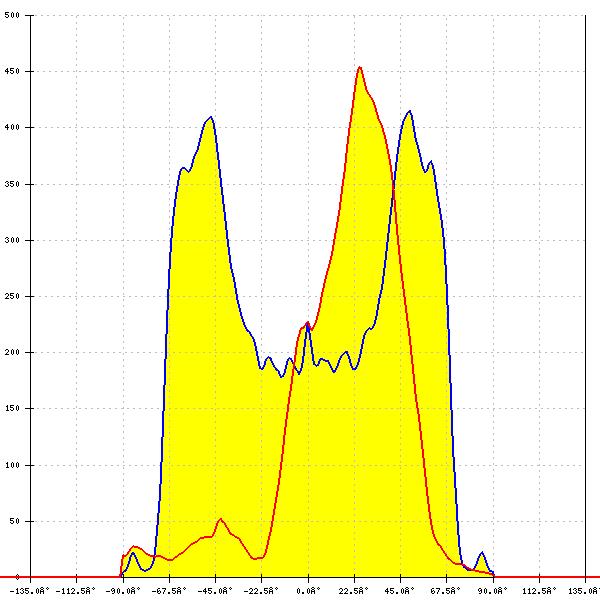

LED:
Z8Y19
FWHM: asymmetric
Peak intensity:
0.695 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
White
LED:

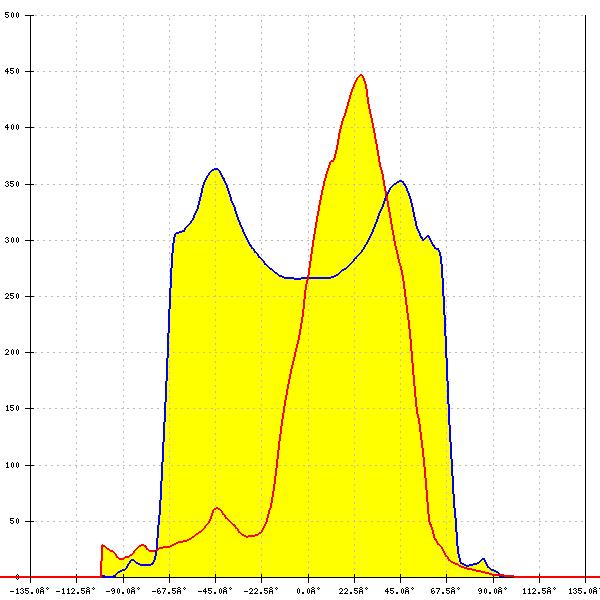

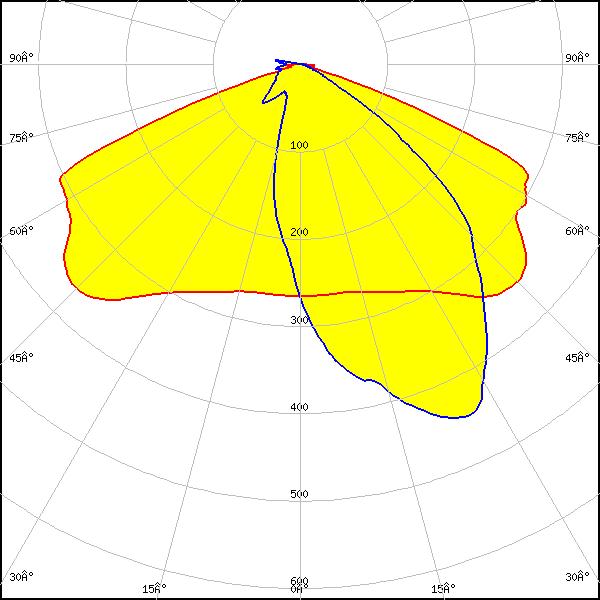

Z8Y22
FWHM: asymmetric
Peak intensity:
0.716 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
White
