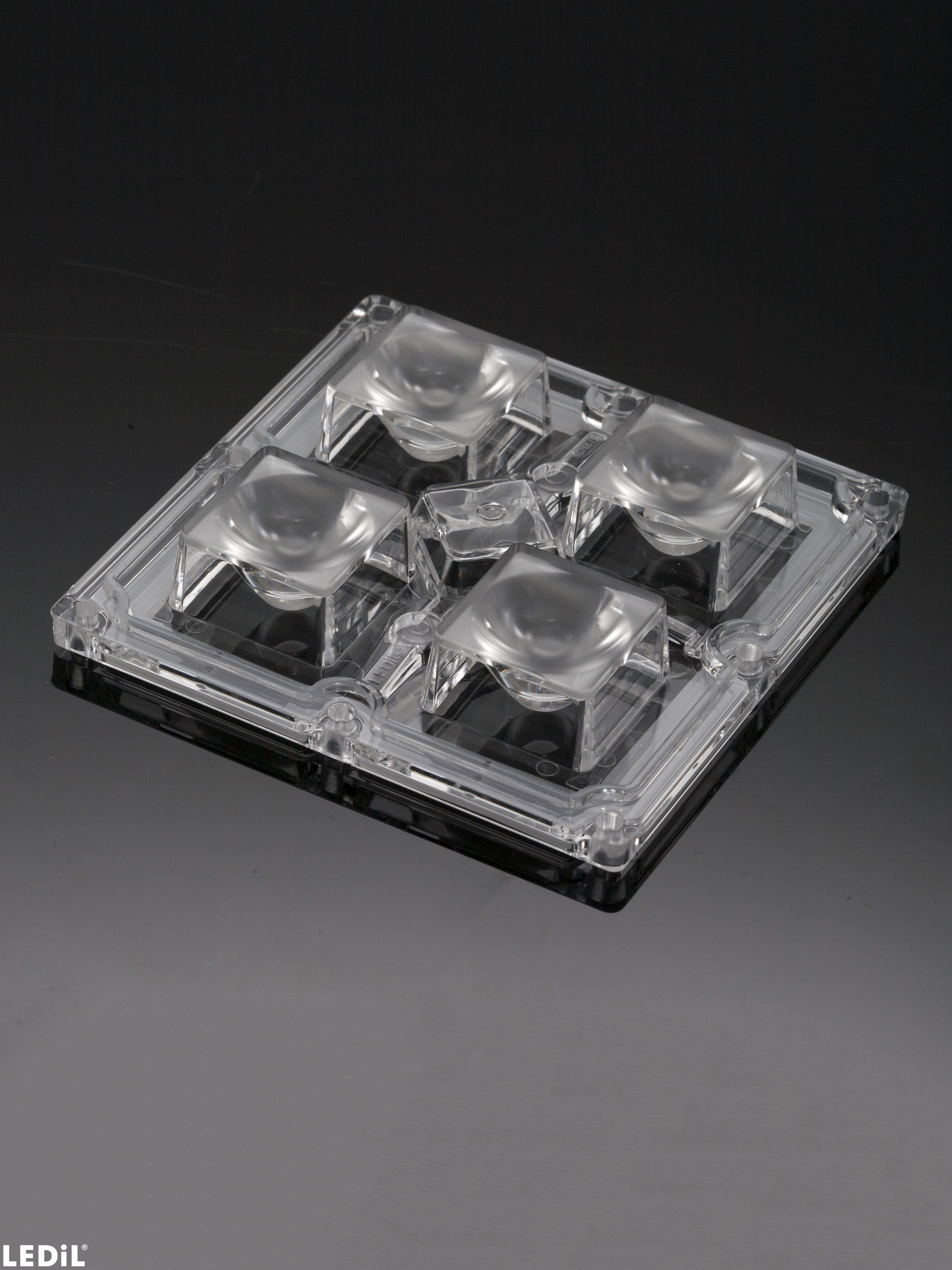

CS15767_HB-2X2MX-8-M
Print
~30° wide beam. New revision.
Component Materials
- HB-2X2MX-8-MMulti-lensPMMA
- STRADA-2X2MX-8-SEALSealSilicone
- Request material files from Tech Support
WARNING: Cancer – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results
LED:
Bridgelux SMD 5050
FWHM:
19°
FWTM:
43°
Peak intensity:
5.320 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU700/701/702/703
Required components:
Bender Wirth: 434 Typ 2x2MX HV
FWHM:
22°
FWTM:
58°
Peak intensity:
2.870 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

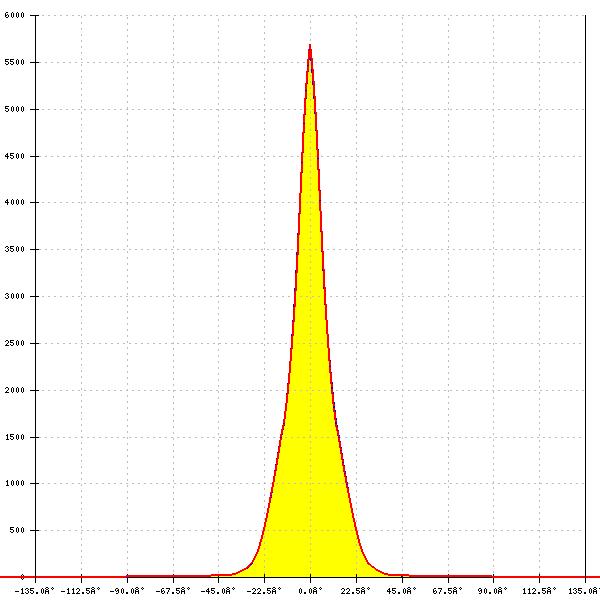

CMA1303
Required components:
Bender Wirth: 448 Typ 2x2MX HV
FWHM:
16°
FWTM:
44°
Peak intensity:
5.688 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
Required components:
Bender Wirth: 441 Typ 2x2MX HV
FWHM:
31°
FWTM:
101°
Peak intensity:
1.200 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

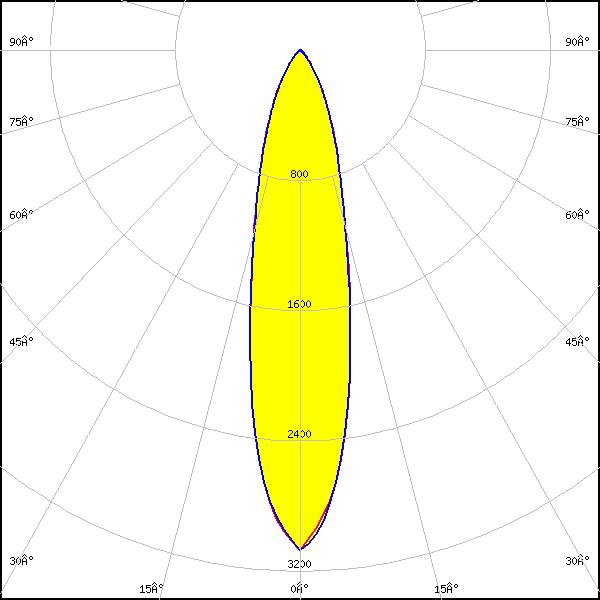

J Series 7070B K Class
FWHM:
24°
FWTM:
58°
Peak intensity:
3.073 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP35 HD
FWHM:
17°
FWTM:
34°
Peak intensity:
6.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP35 HI
FWHM:
14°
FWTM:
30°
Peak intensity:
9.800 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP50.2
FWHM:
22°
FWTM:
44°
Peak intensity:
4.370 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP70.2
FWHM:
30°
FWTM:
62°
Peak intensity:
2.204 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP70.3 HD
FWHM:
28°
FWTM:
56°
Peak intensity:
2.789 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 7070
FWHM:
24°
FWTM:
58°
Peak intensity:
3.175 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON M/MX
FWHM:
25°
FWTM:
52°
Peak intensity:
3.200 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON XR-7070 (L224-xxxx004MLU010)
FWHM:
26°
FWTM:
61°
Peak intensity:
2.472 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

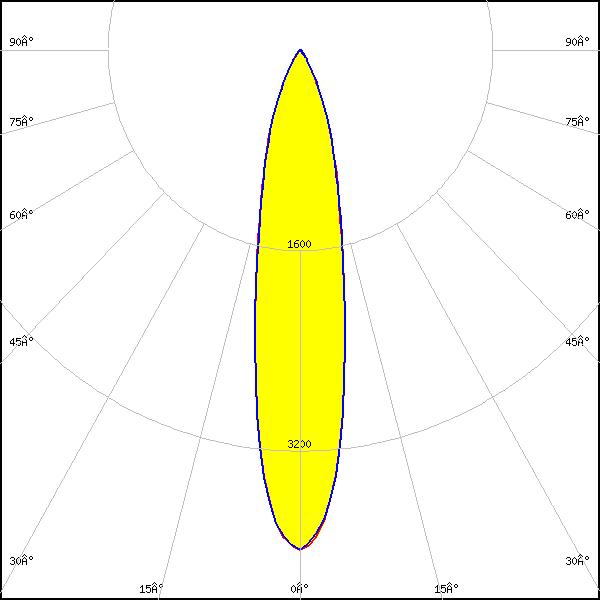

MP 7070
FWHM:
22°
FWTM:
52°
Peak intensity:
3.994 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

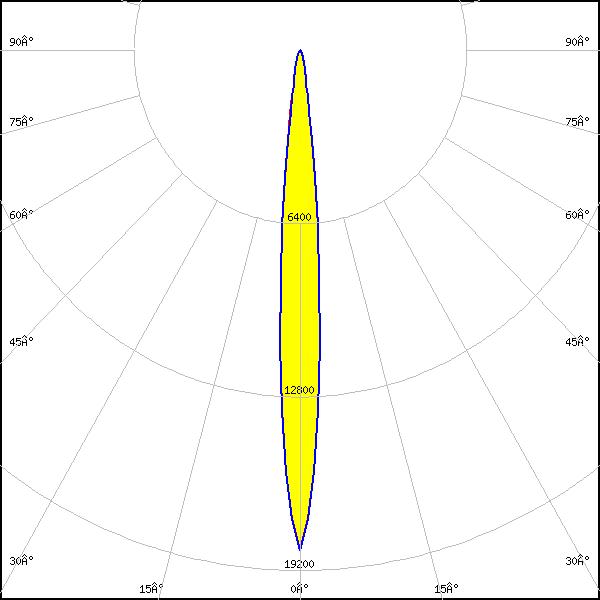

LED:

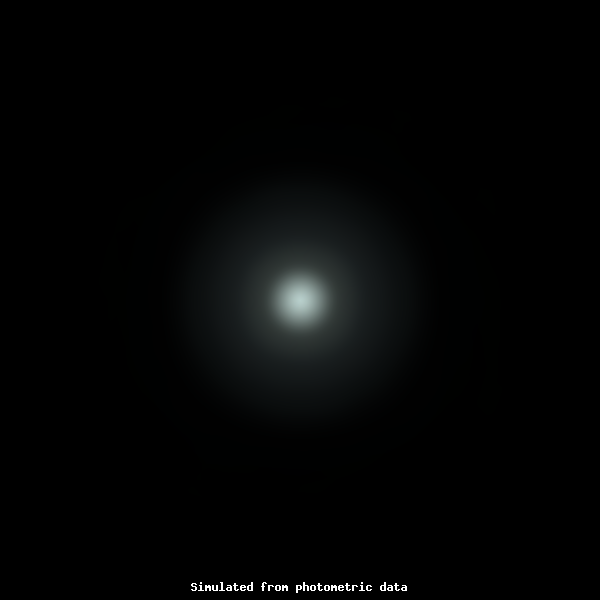

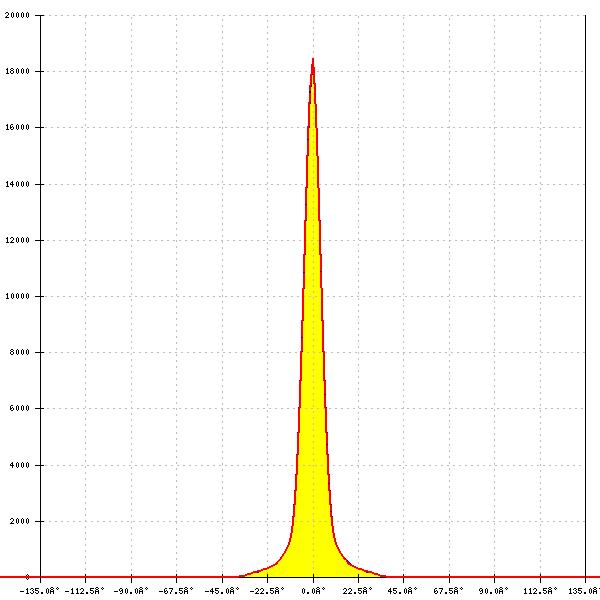

SFT-40 Gen2
FWHM:
10°
FWTM:
20°
Peak intensity:
18.461 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:

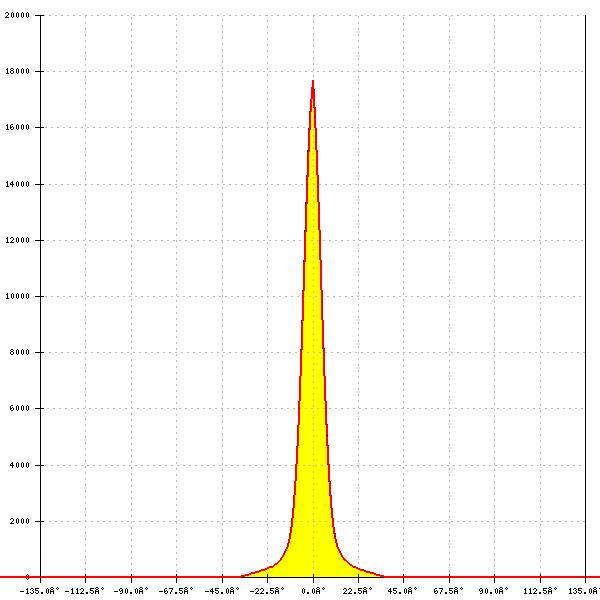

SFT-40-WCS
FWHM:
10°
FWTM:
20°
Peak intensity:
17.689 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

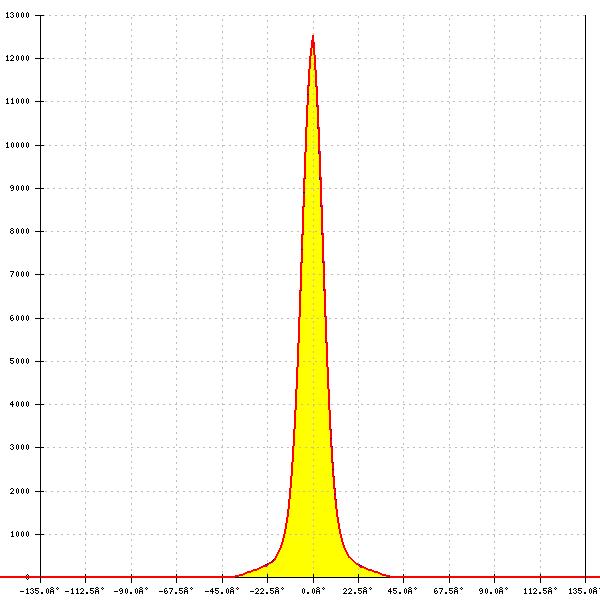

LED:
SFT-70X-WCS
FWHM:
12°
FWTM:
26°
Peak intensity:
12.527 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:

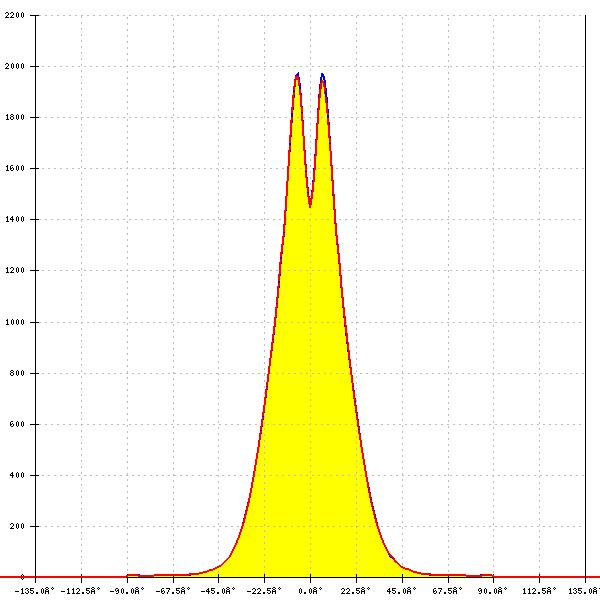

NF2x757G
FWHM:
34°
FWTM:
66°
Peak intensity:
1.987 cd/lm
Efficiency:
97 %
LEDs/each optic:
4
Light colour/type:
White
LED:
NFMW48xA
FWHM:
19°
FWTM:
42°
Peak intensity:
5.530 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NV4WB35AM
FWHM:
16°
FWTM:
34°
Peak intensity:
7.846 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxE21A
FWHM:
14°
FWTM:
28°
Peak intensity:
10.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S10
FWHM:
20°
FWTM:
43°
Peak intensity:
4.900 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ C 2424 Gen1
FWHM:
28°
FWTM:
52°
Peak intensity:
3.287 cd/lm
Efficiency:
97 %
LEDs/each optic:
4
Light colour/type:
White
LED:
HiLOM SC16 (LH181B)
FWHM:
25°
FWTM:
64°
Peak intensity:
1.900 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH181B
FWHM:
14°
FWTM:
28°
Peak intensity:
10.961 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH231B
FWHM:
14°
FWTM:
30°
Peak intensity:
10.028 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XLE-S22C4XD16 (XD16)
FWHM:
23°
FWTM:
50°
Peak intensity:
3.252 cd/lm
Efficiency:
93 %
LEDs/each optic:
4
Light colour/type:
White
LED:

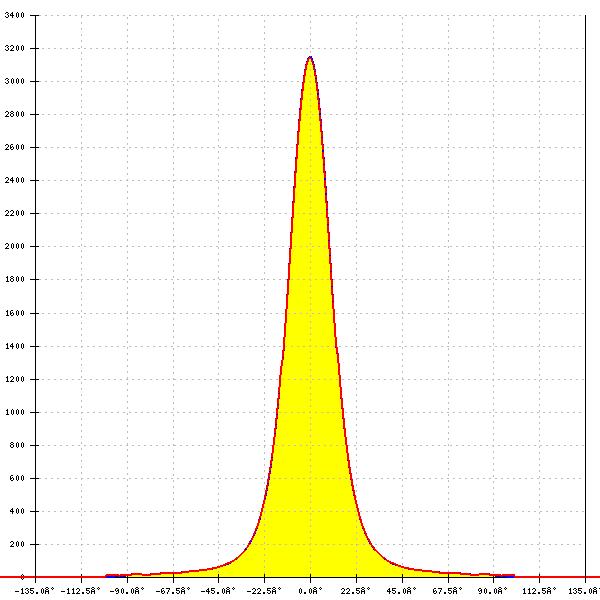

WICOP 5050
FWHM:
24°
FWTM:
51°
Peak intensity:
3.148 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z8Y22
FWHM:
27°
FWTM:
63°
Peak intensity:
2.075 cd/lm
Efficiency:
91 %
LEDs/each optic:
4
Light colour/type:
White
