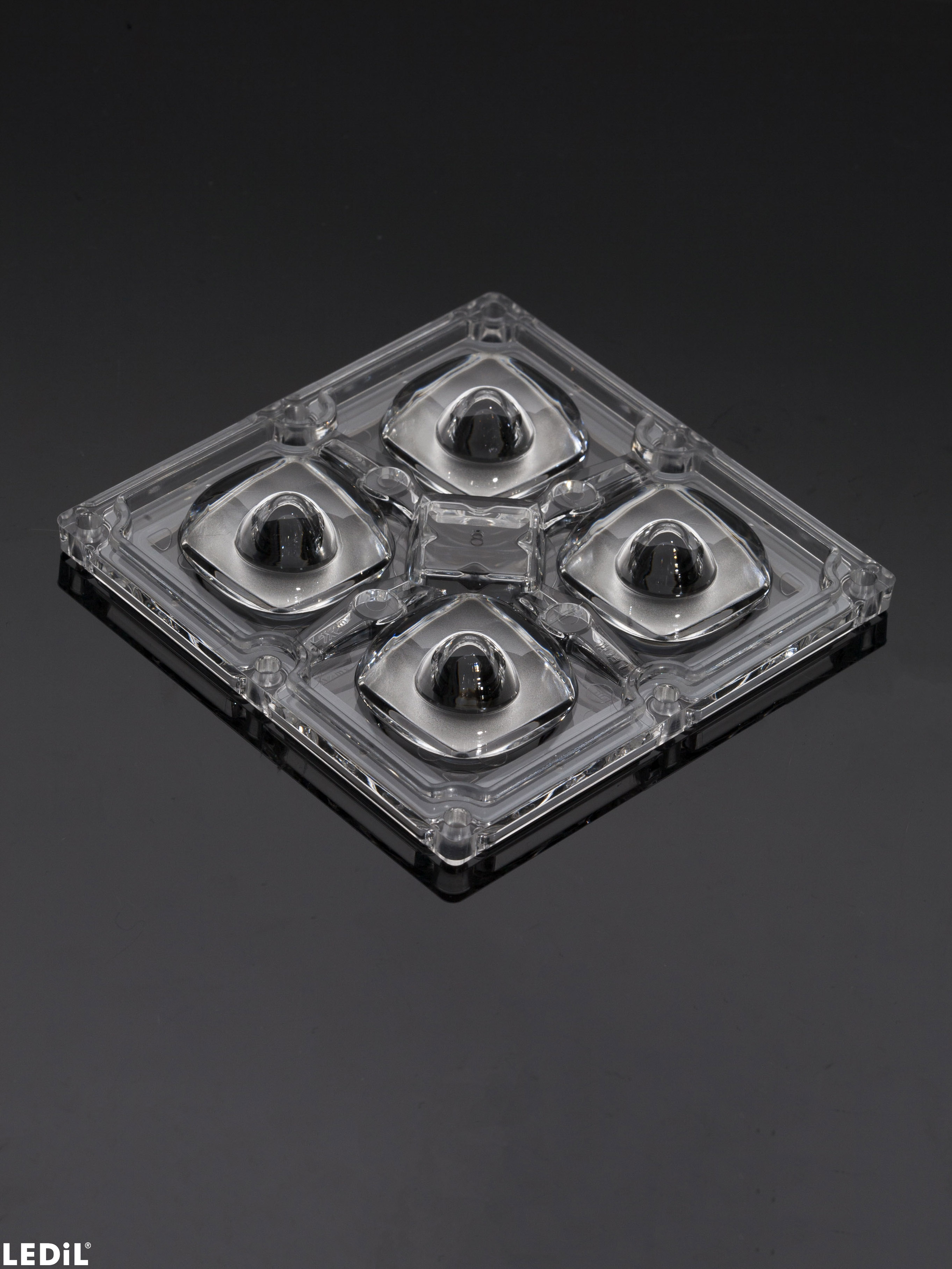

    CS15763_STRADA-2X2MX-8-VSM

    Print

    IESNA Type V (square) for wide areas lighting such as car parks. New revision.

    Specification
    • Dimensions:
      90 x  90 mm
    • Height:
      13.13 mm
    • Fastening:
      screw
    • Colour:
      clear
    • Ingress protection classes:
      IP67
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      156 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      8.6 kg
    • MPQ:
      52 pcs
    • MOQ:
      52 pcs
    • MOQ size:
      480 x 280 x 110 mm
    • MOQ weight:
      3.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CS15763_STRADA-2X2MX-8-VSM
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application guide

    LEDiL Guide for Horticultural lighting

    PCN

    Product change notification NR183 - Additional gasket material approved for LEDiL products

    News

    PRODUCT NEWS - STRADA-2X2MX-VSM

    PCN

    Product change notification NR126.a - EOL notice 190916

    Application example

    Parking lot lighting with STRADA-2X2MX-8-VSM

    Application area

    Horticultural Lighting

    Application guide

    Guide for Street lighting optics

    News

    MX series the ultimate in street area car park and industrial lighting optics

    News

    PRODUCT NEWS - 2X2MX

    News

    PRODUCT NEWS - 2X2MX MODULES

    PCN

    Product change notification NR134.b - Change of packaging methods 200417

    Application guide

    Guide_for_Urban_lighting_optics_2025_v.1.1_WEB

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

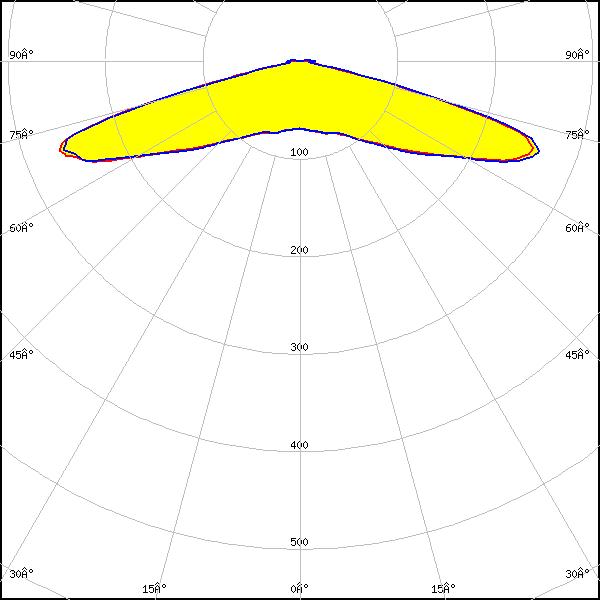

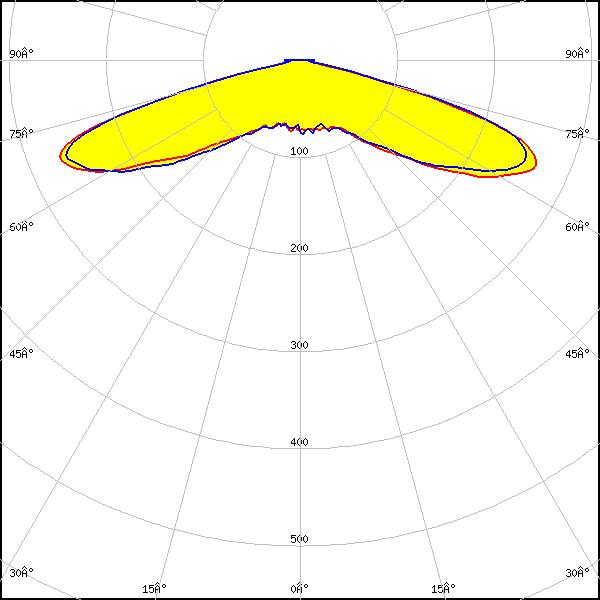

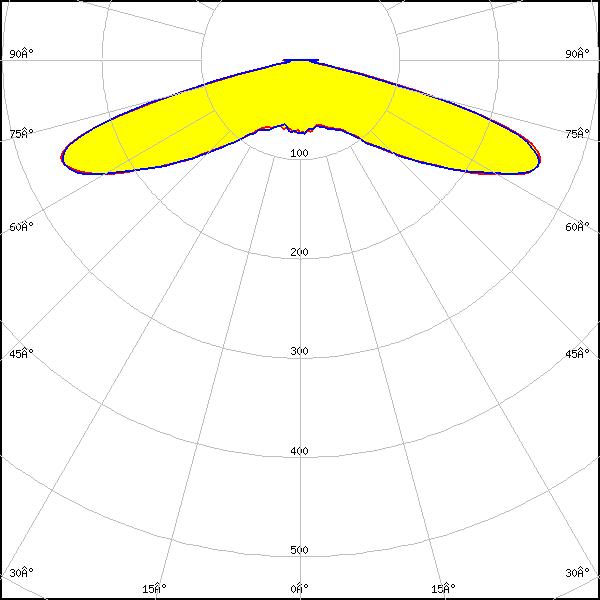

    Optical results

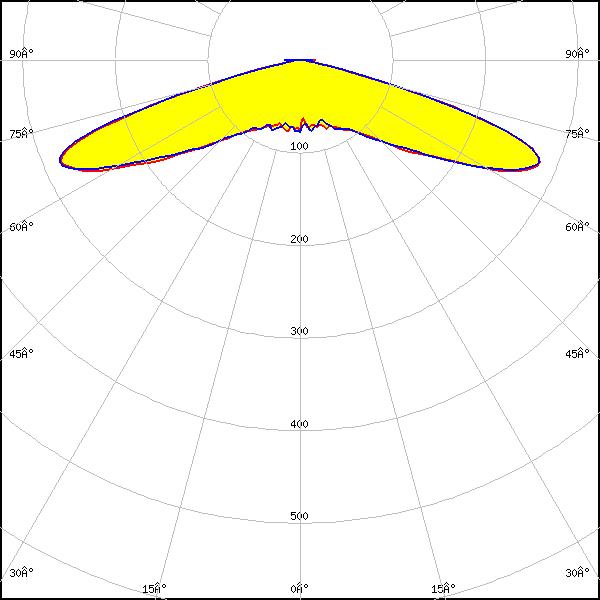

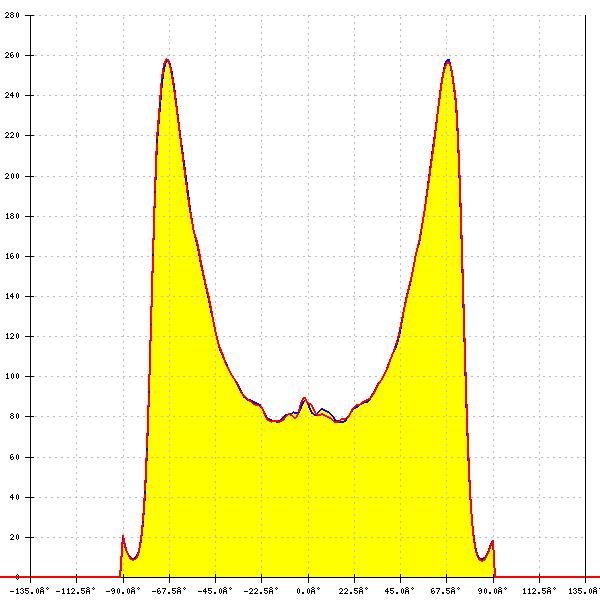

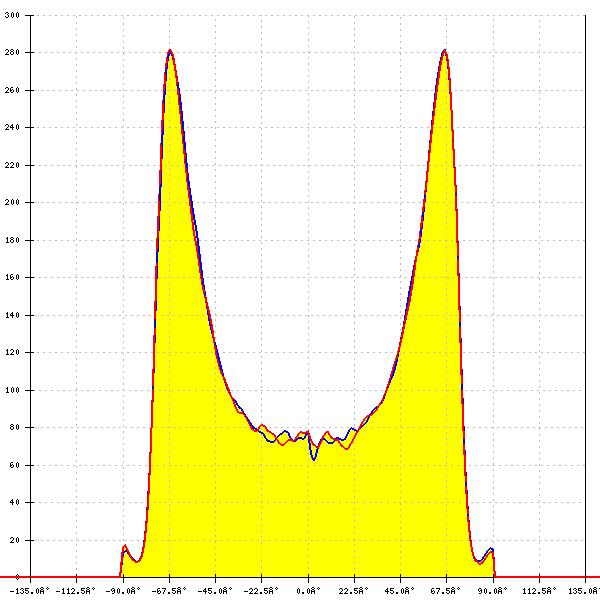

    LED: Bridgelux SMD 5050
    FWHM: asymmetric
    Peak intensity: 0.440 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

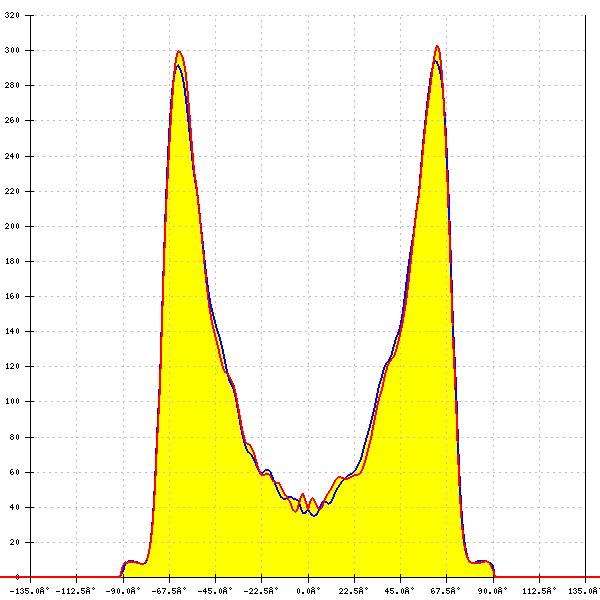

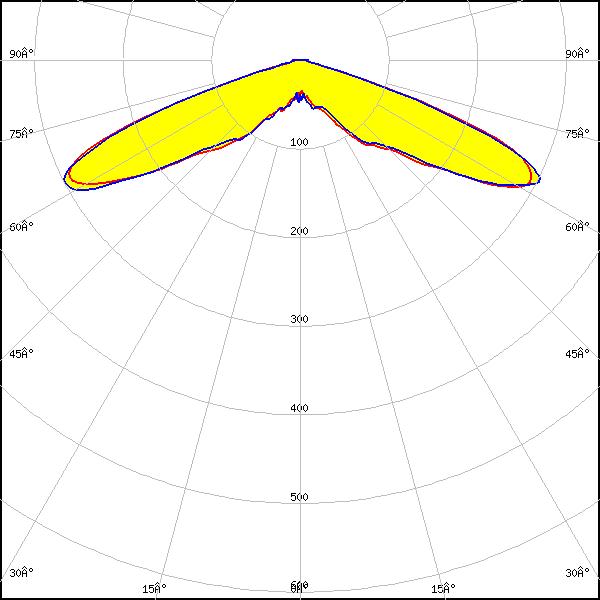

    LED: CLU700/701/702/703
    Required components:
    Bender Wirth: 434 Typ 2x2MX HV
    FWHM: asymmetric
    Peak intensity: 0.460 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

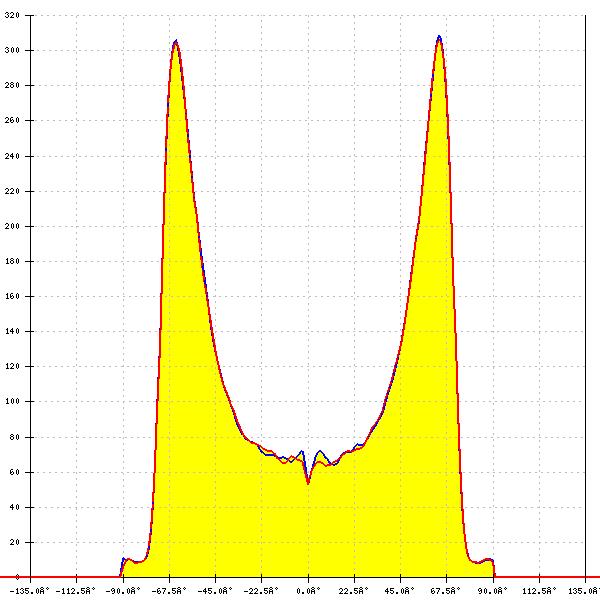

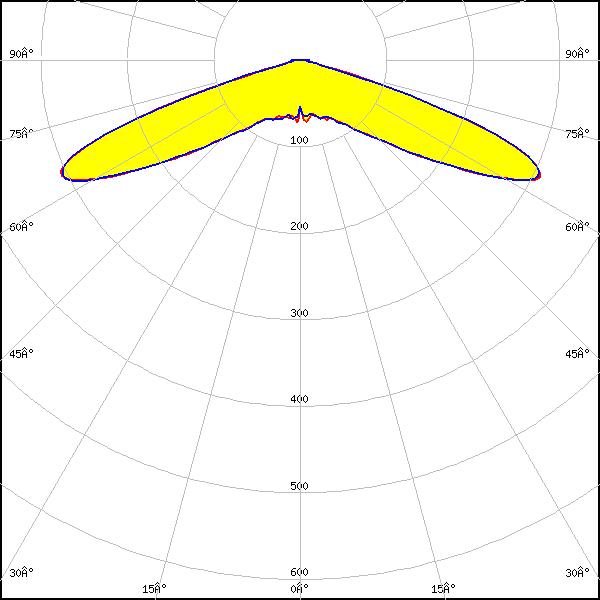

    LED: CMA1303
    Required components:
    Bender Wirth: 488 Typ L4 HV
    FWHM: 142°
    FWTM: 152°
    Peak intensity: 0.487 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

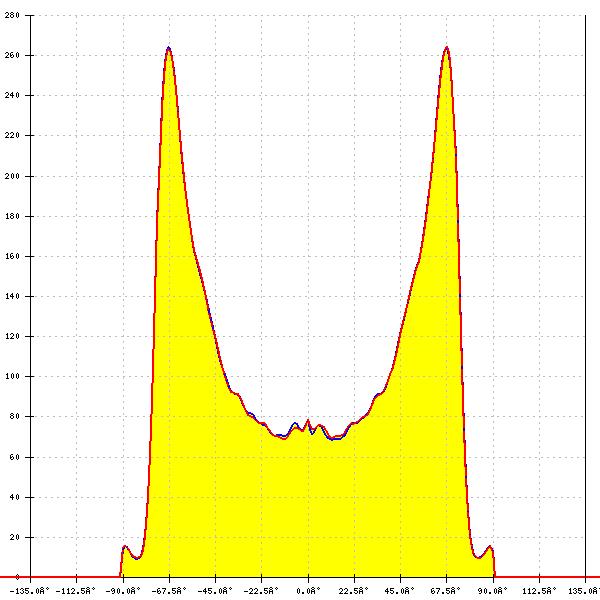

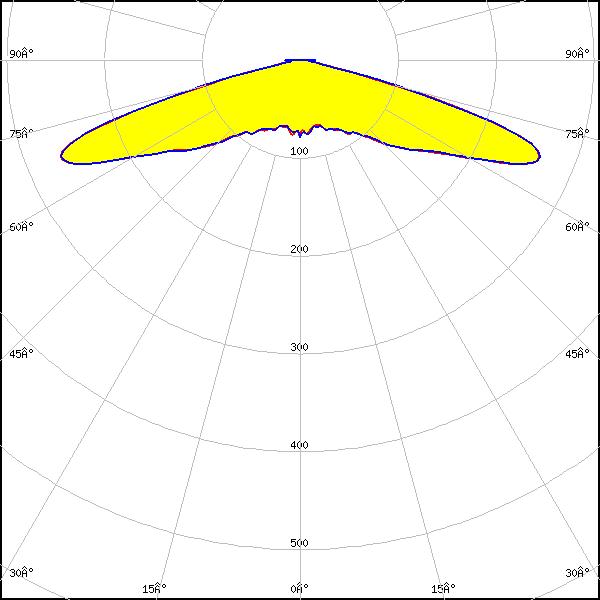

    LED: J Series 5050B 30V K Class
    FWHM: 148°
    FWTM: 158°
    Peak intensity: 0.422 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

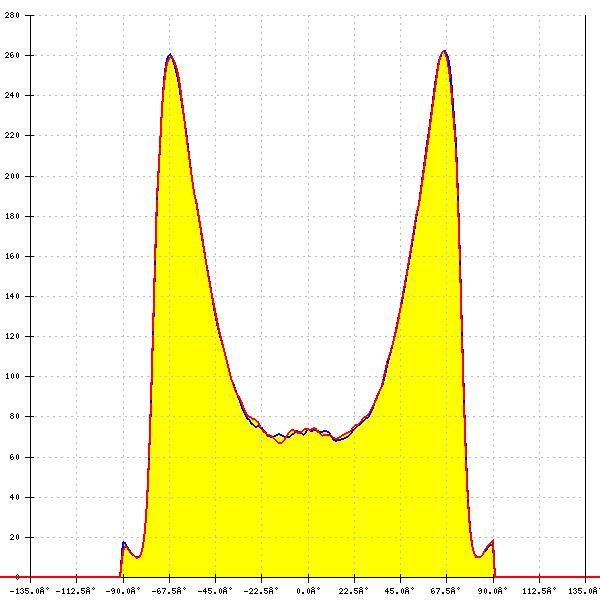

    LED: J Series 7070B K Class
    FWHM: 150°
    FWTM: 158°
    Peak intensity: 0.396 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

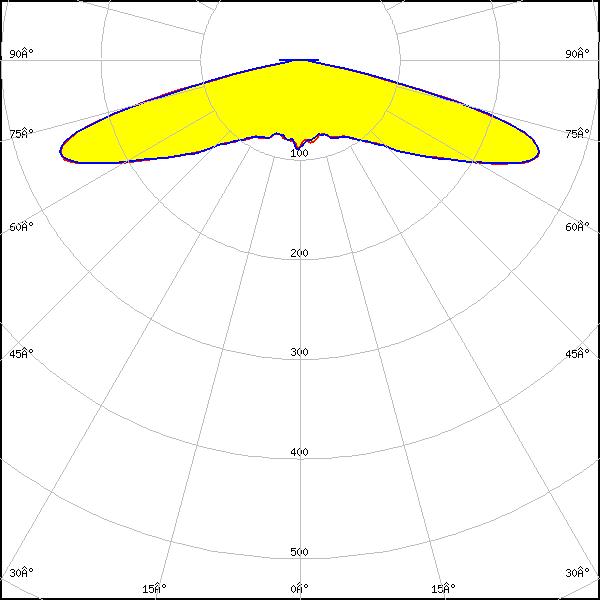

    LED: MHB-A/B
    FWHM: 152°
    FWTM: 160°
    Peak intensity: 0.405 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

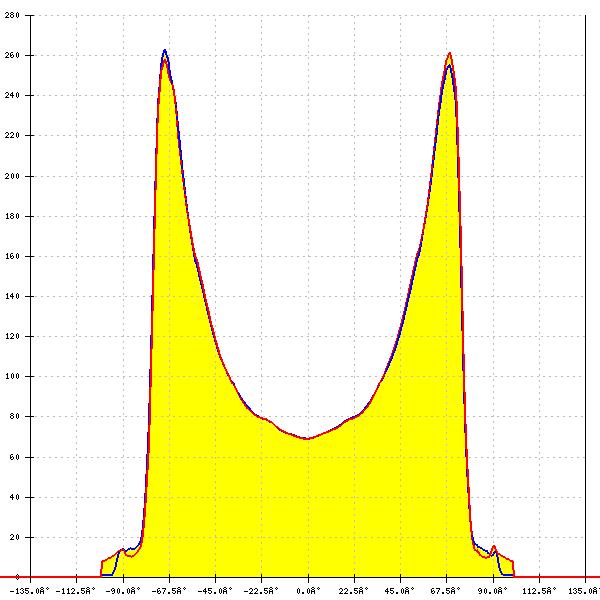

    LED: XHP50.2
    FWHM: 151°
    FWTM: 159°
    Peak intensity: 0.426 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

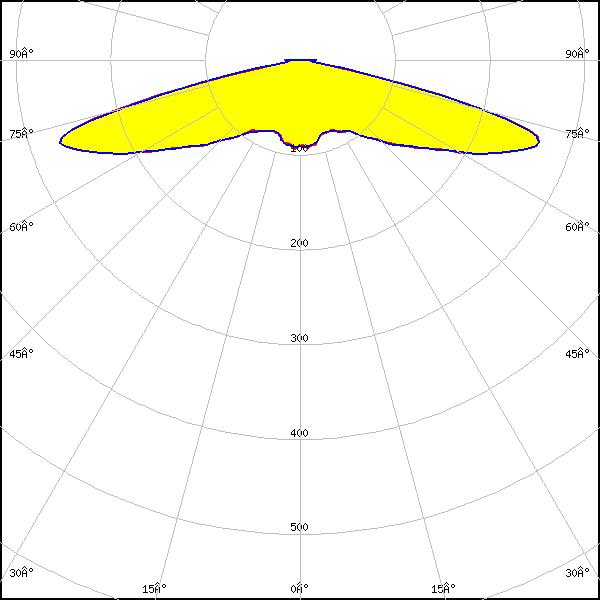

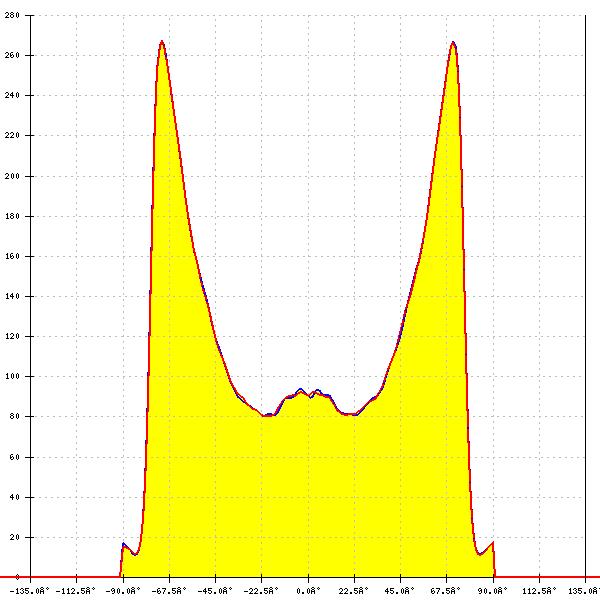

    LED: XHP70.3 HD
    FWHM: 152°
    FWTM: 160°
    Peak intensity: 0.372 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

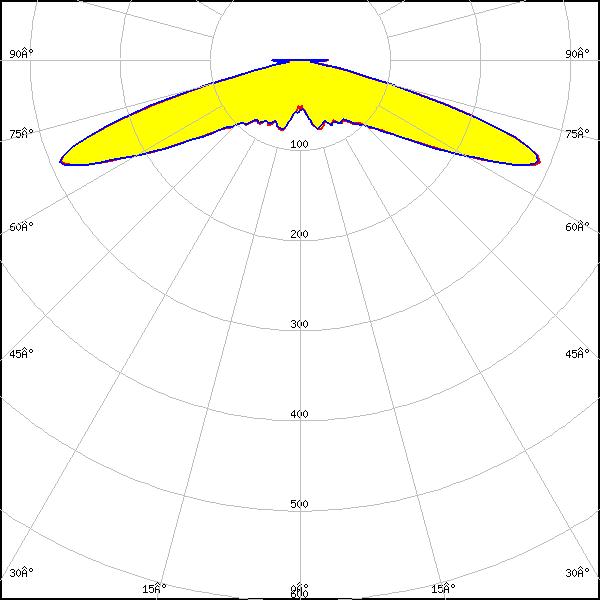

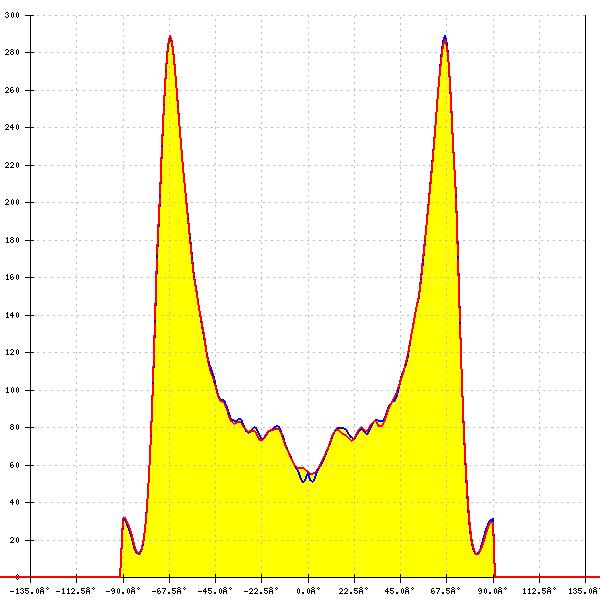

    LED: XT-E
    FWHM: 148°
    FWTM: 180°
    Peak intensity: 0.475 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

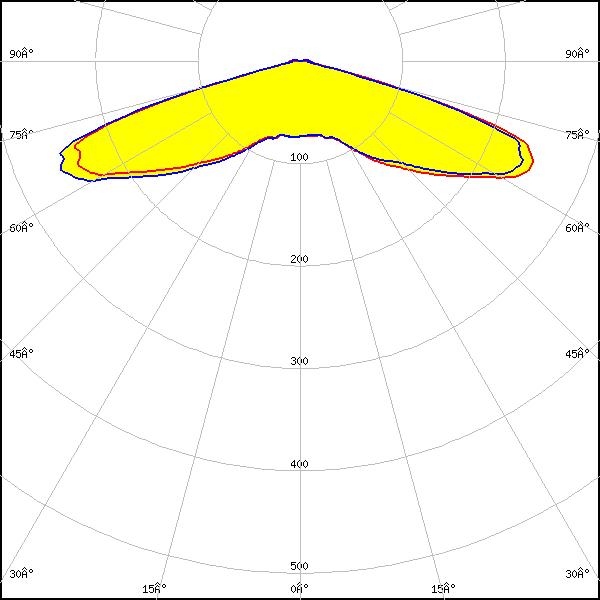

    LED: XT-E HE
    FWHM: 148°
    FWTM: 156°
    Peak intensity: 0.392 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

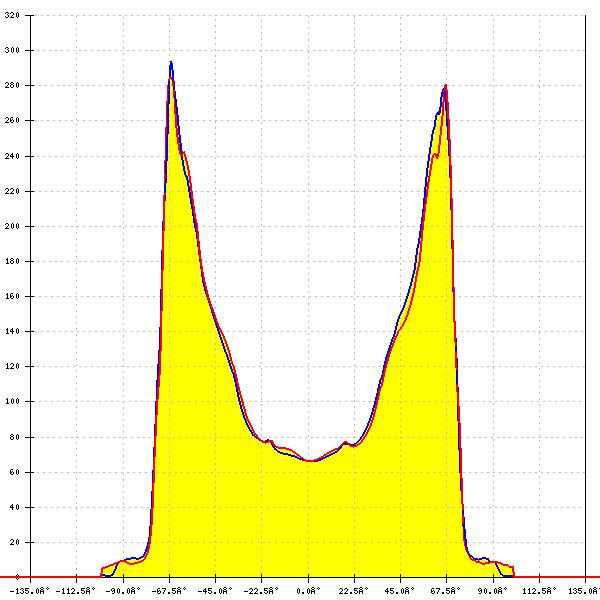

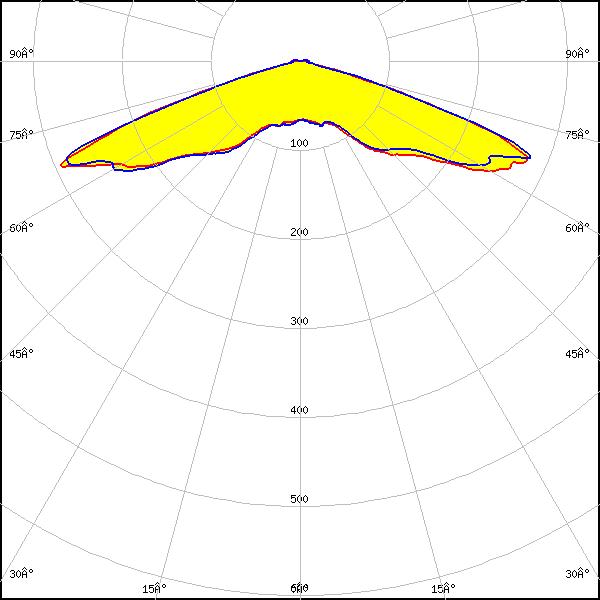

    LED: PrevaLED Brick HP 2x2MX
    FWHM: 145°
    FWTM: 153°
    Peak intensity: 0.430 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 4
    Light colour/type: White

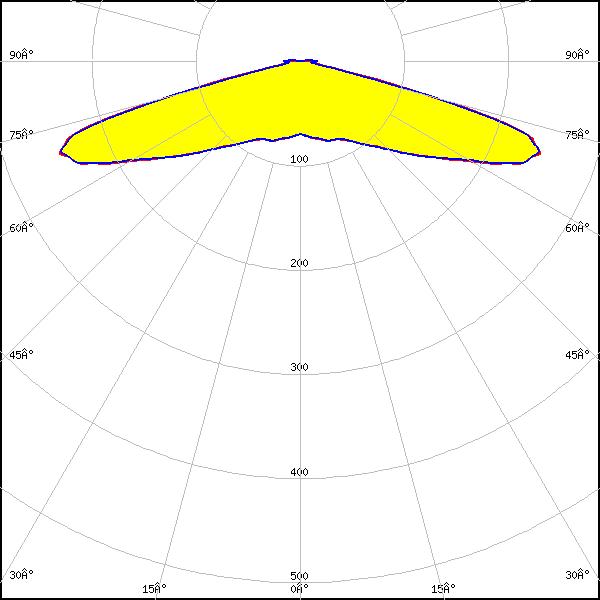

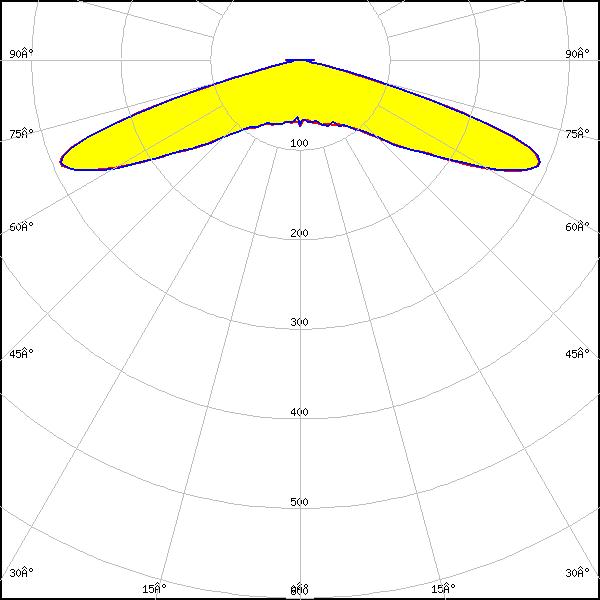

    LED: LUXEON 5050 Round LES
    FWHM: 146°
    FWTM: 154°
    Peak intensity: 0.466 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

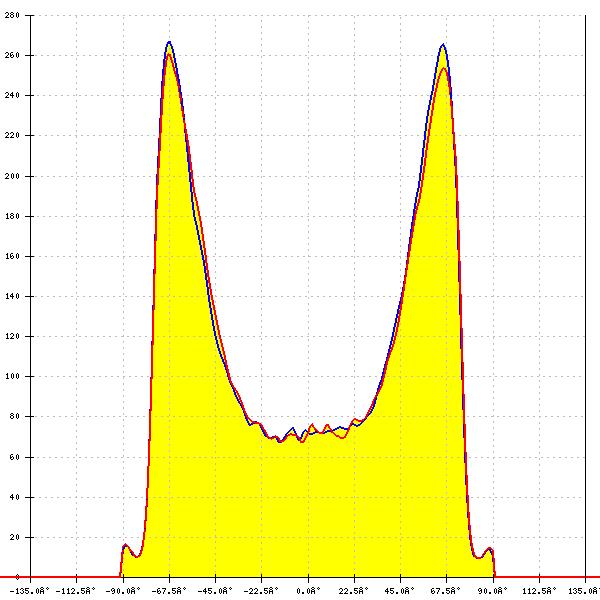

    LED: LUXEON 7070
    FWHM: 150°
    FWTM: 158°
    Peak intensity: 0.401 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

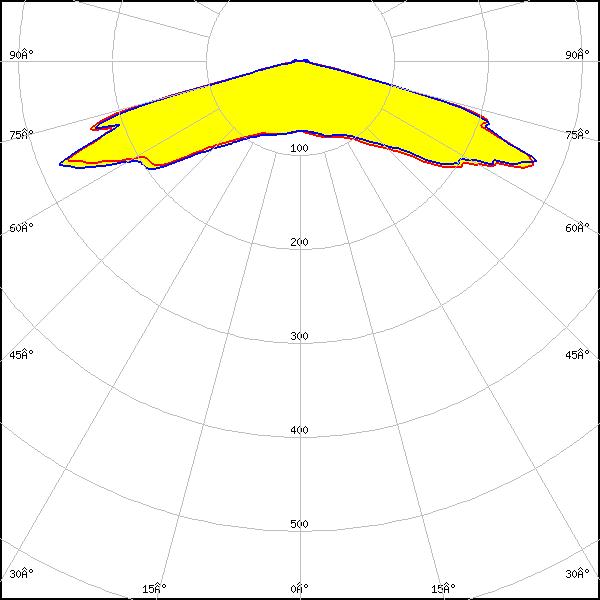

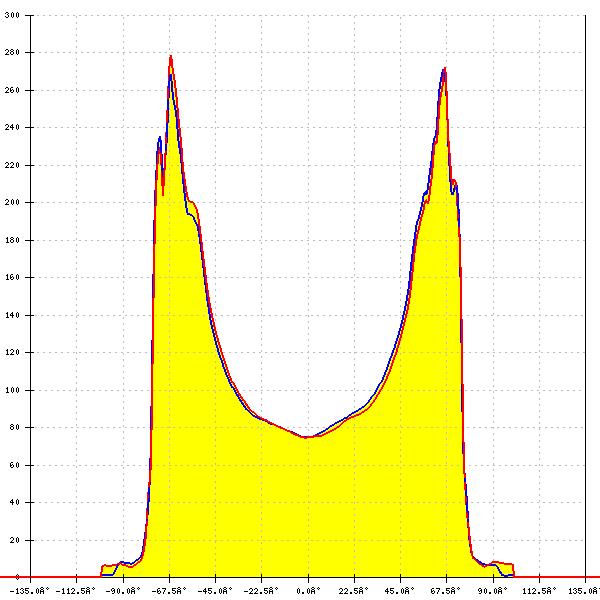

    LED: LUXEON M/MX
    FWHM: asymmetric
    Peak intensity: 0.450 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

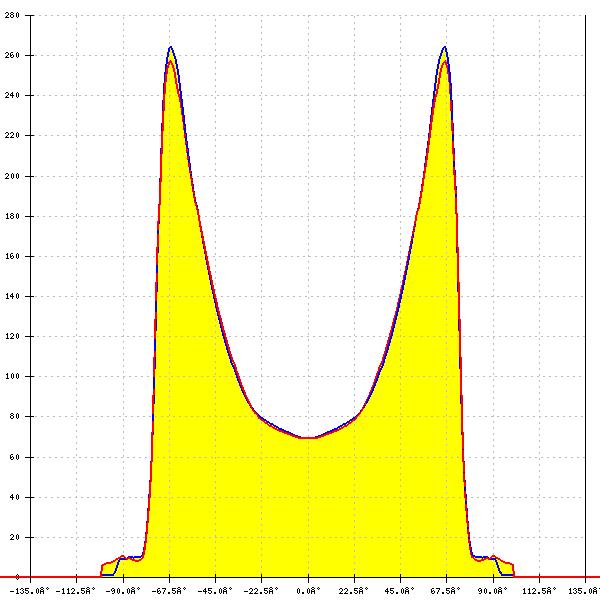

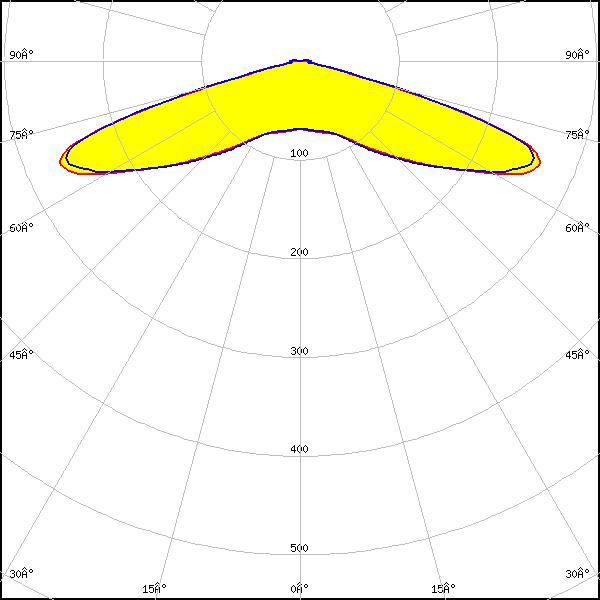

    LED: LUXEON XR-7070 (L224-xxxx004MLU010)
    FWHM: 147°
    FWTM: 156°
    Peak intensity: 0.434 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

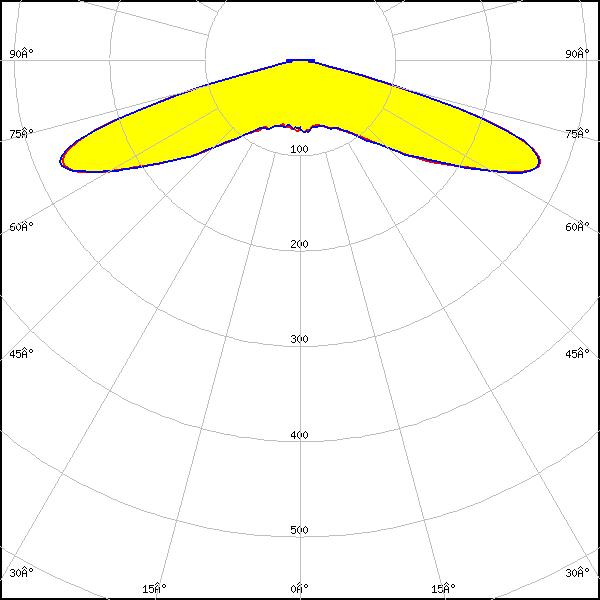

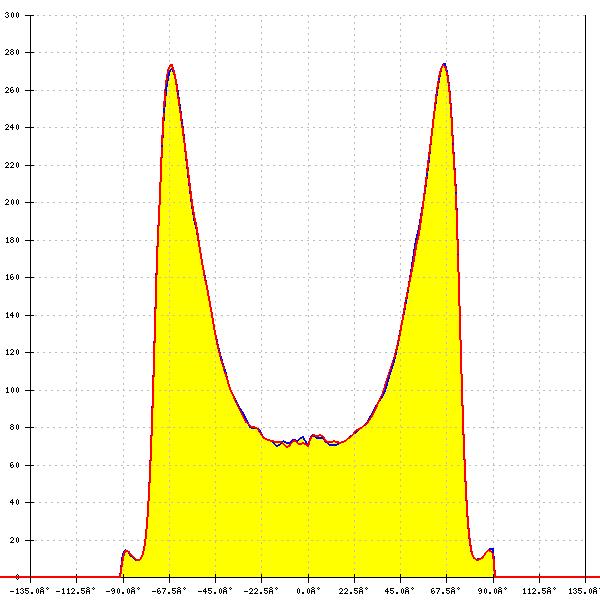

    LED: MP 7070
    FWHM: 148°
    FWTM: 156°
    Peak intensity: 0.418 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

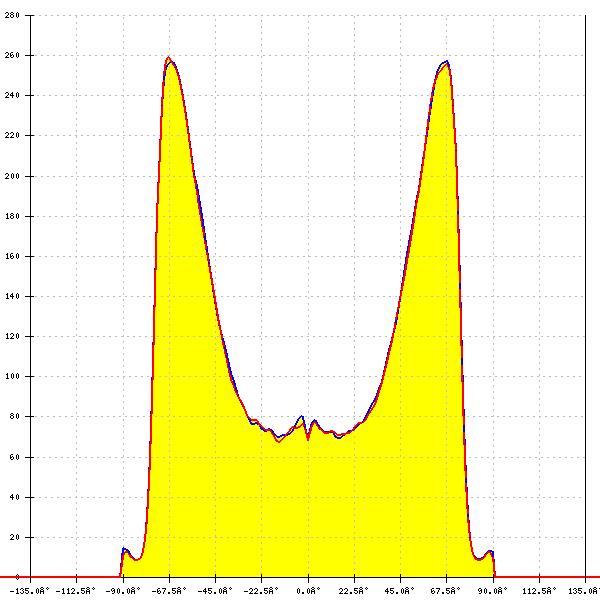

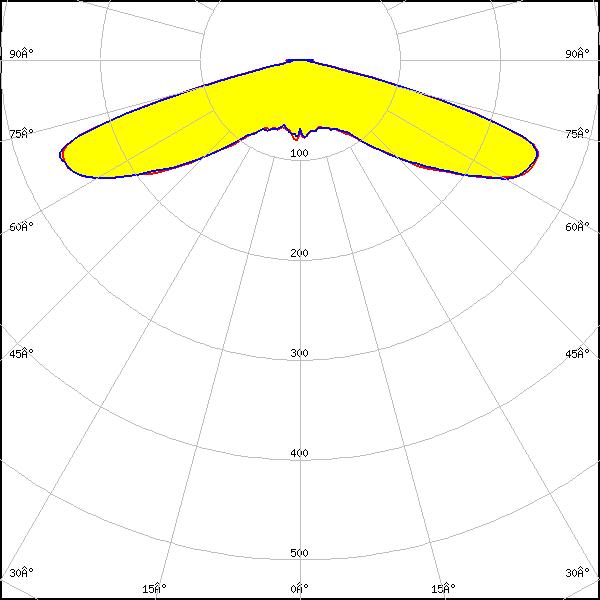

    LED: NF2x757G
    FWHM: 148°
    FWTM: 156°
    Peak intensity: 0.391 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 4
    Light colour/type: White

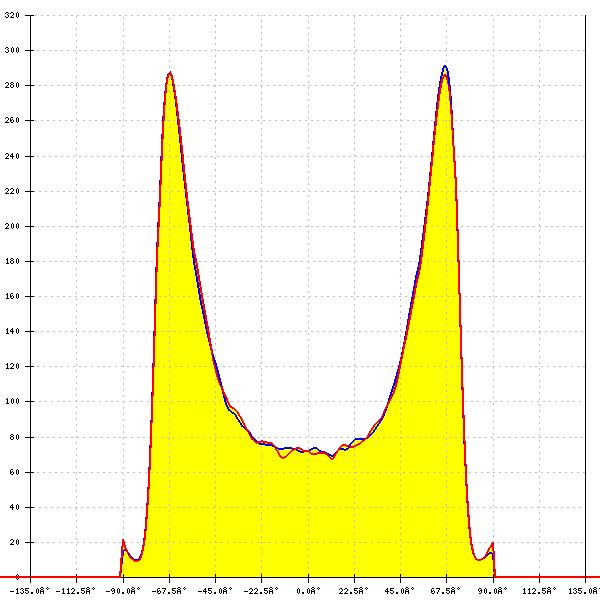

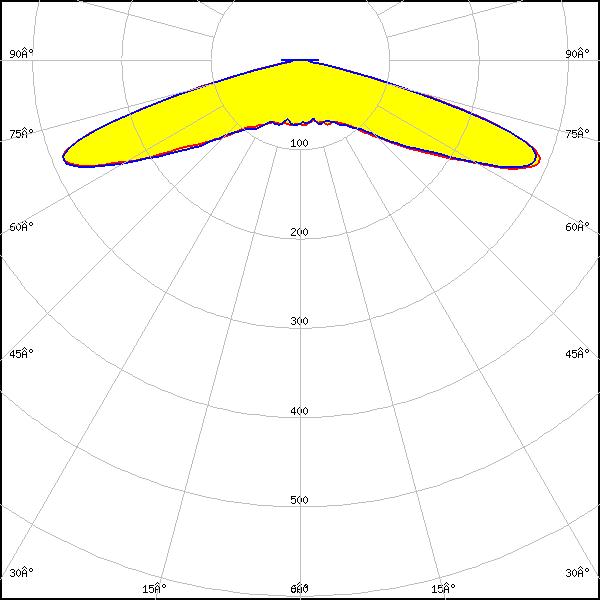

    LED: NFMW48xA
    FWHM: asymmetric
    Peak intensity: 45.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

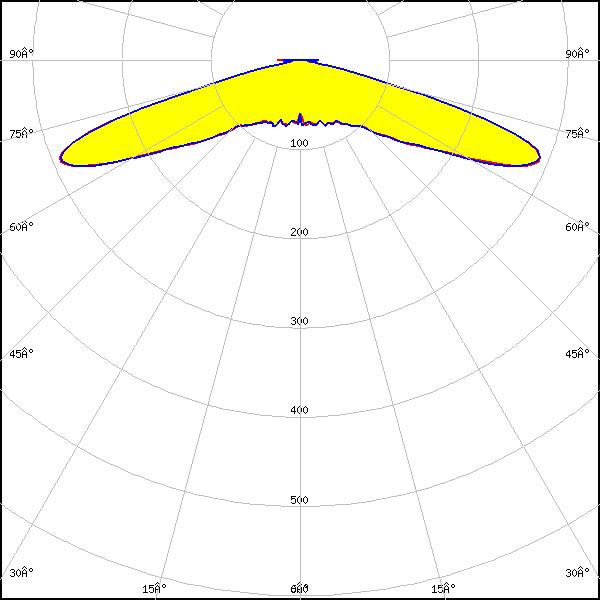

    LED: NV4WB35AM
    FWHM: 148°
    FWTM: 162°
    Peak intensity: 0.479 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

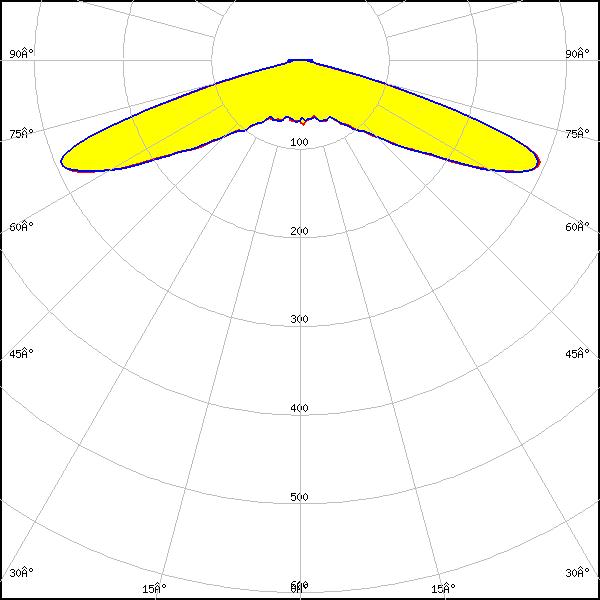

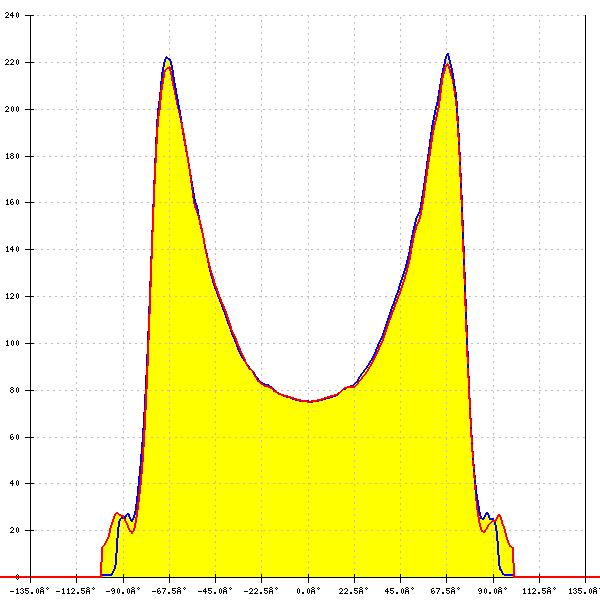

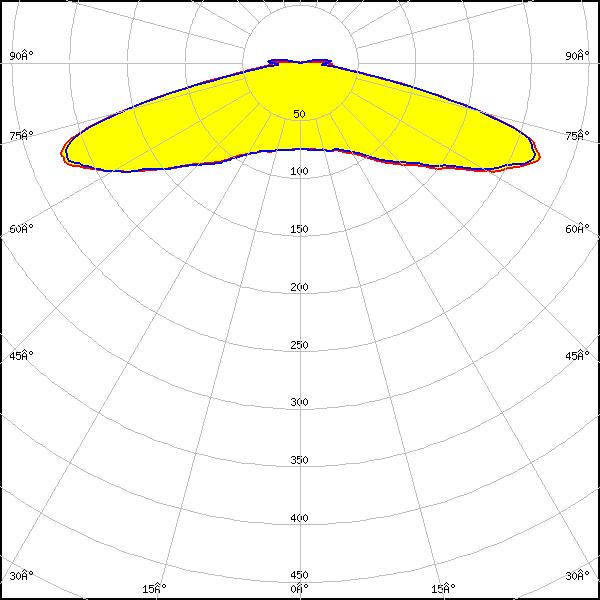

    LED: NV9W149AM
    FWHM: asymmetric
    Peak intensity: 0.480 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

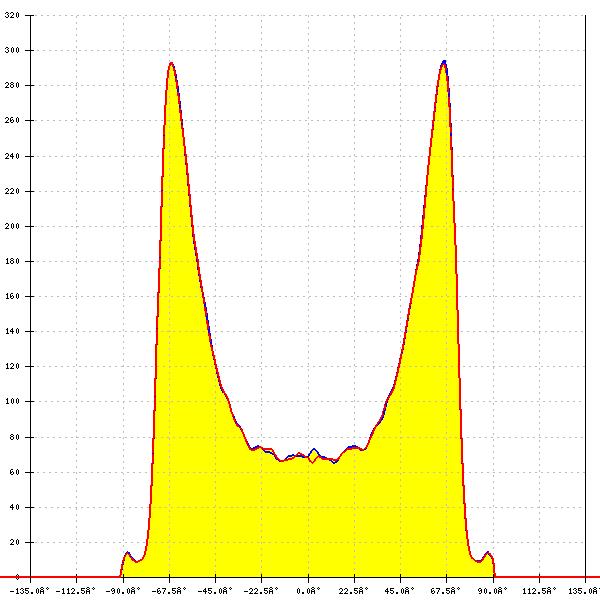

    LED: NVSxE21A
    FWHM: 146°
    FWTM: 154°
    Peak intensity: 0.468 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 4
    Light colour/type: White

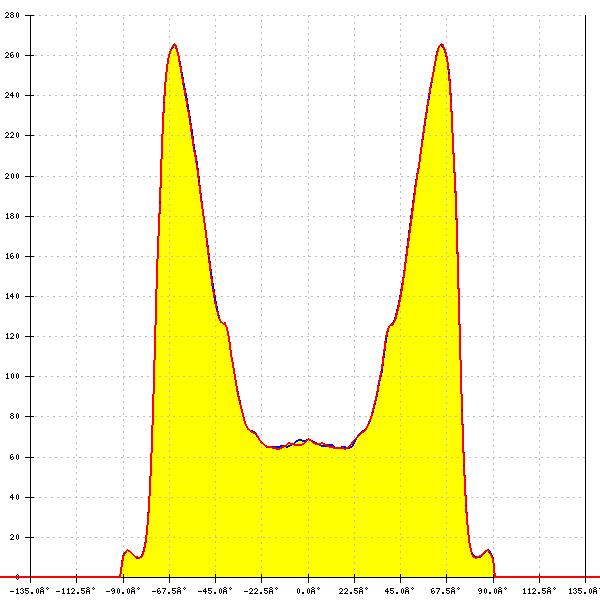

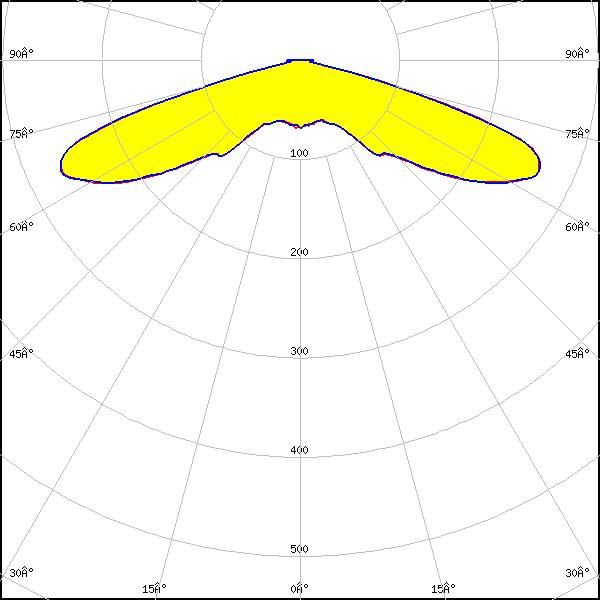

    LED: NVSxE21A
    FWHM: 148°
    FWTM: 156°
    Peak intensity: 0.389 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 9
    Light colour/type: White
    LED: OSCONIQ C 2424 Gen1
    FWHM: 148°
    FWTM: 156°
    Peak intensity: 0.428 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 4
    Light colour/type: White

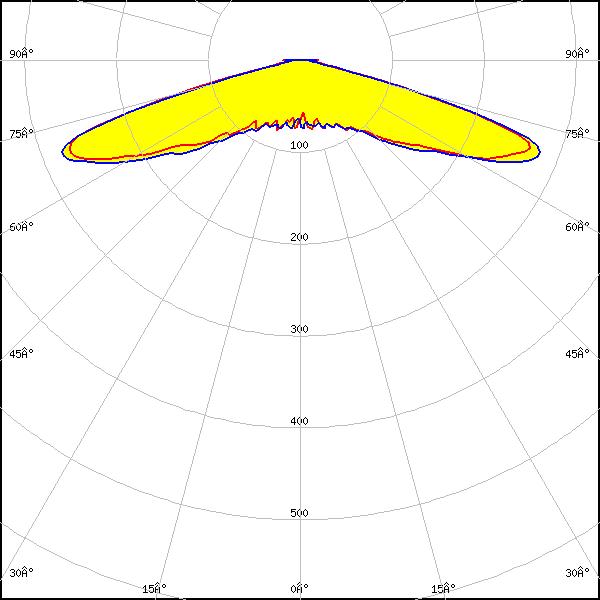

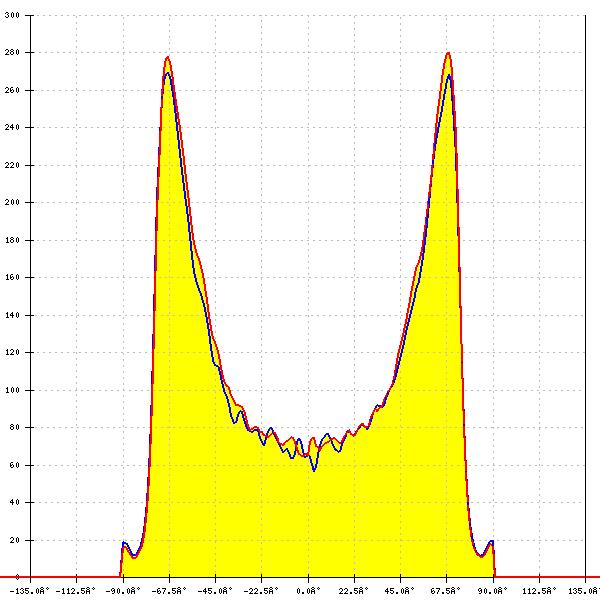

    LED: OSCONIQ P 7070
    FWHM: asymmetric
    Peak intensity: 0.440 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

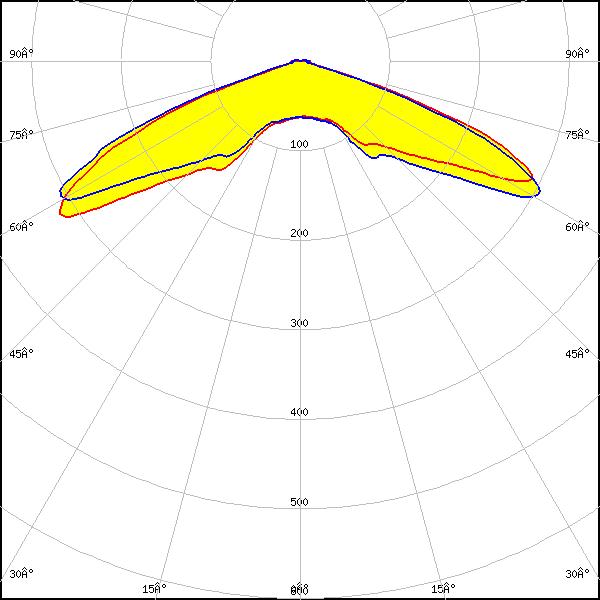

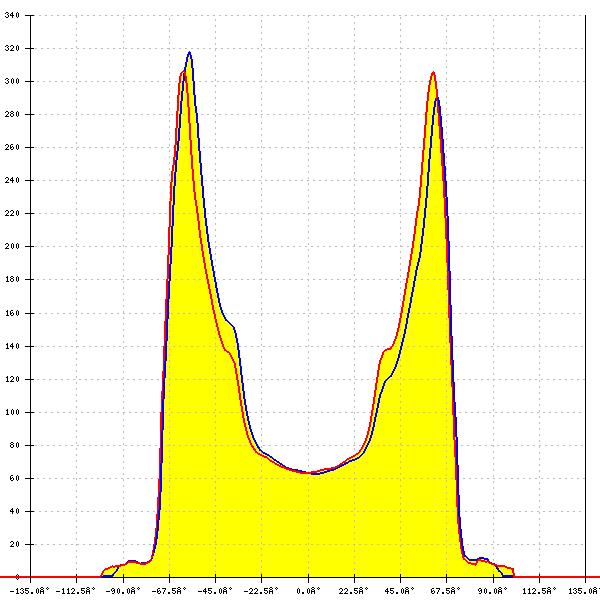

    LED: HiLOM SC16 (LH181B)
    FWHM: 140°
    FWTM: 147°
    Peak intensity: 0.480 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

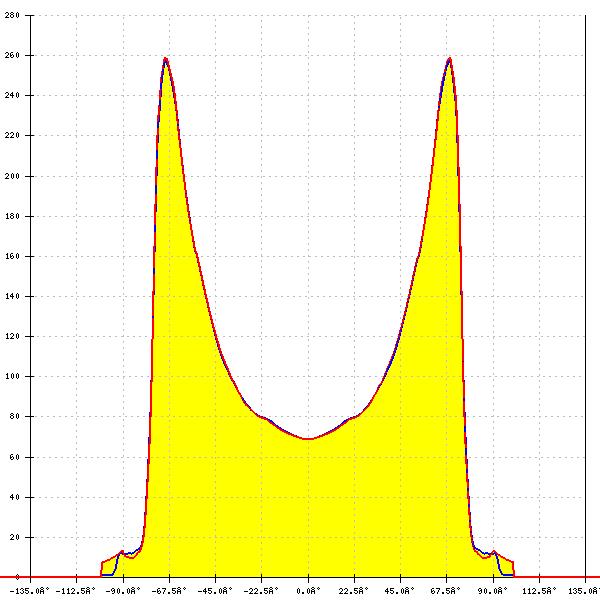

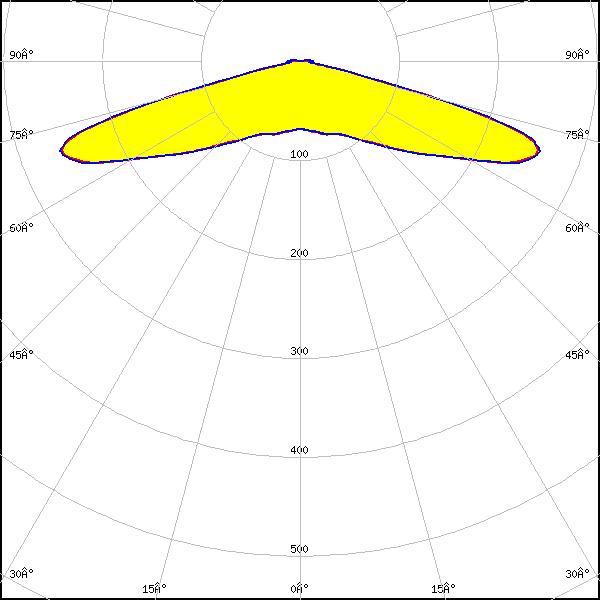

    LED: PAL-LK-4950-740-48
    FWHM: 151° + 151°
    FWTM: 160° + 159°
    Peak intensity: 0.426 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

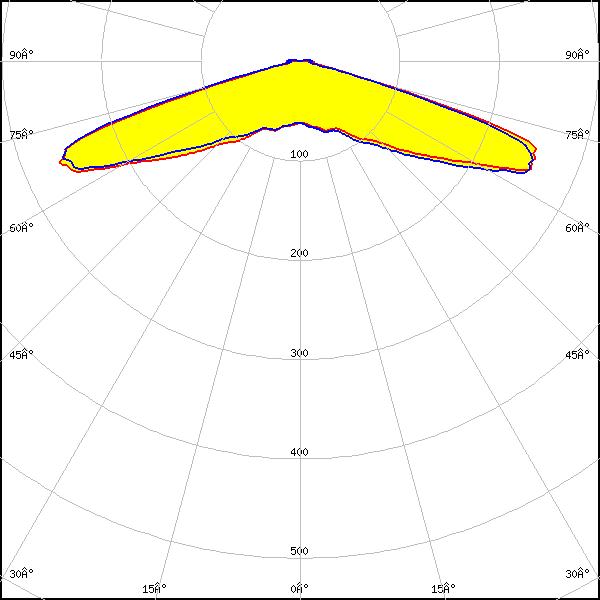

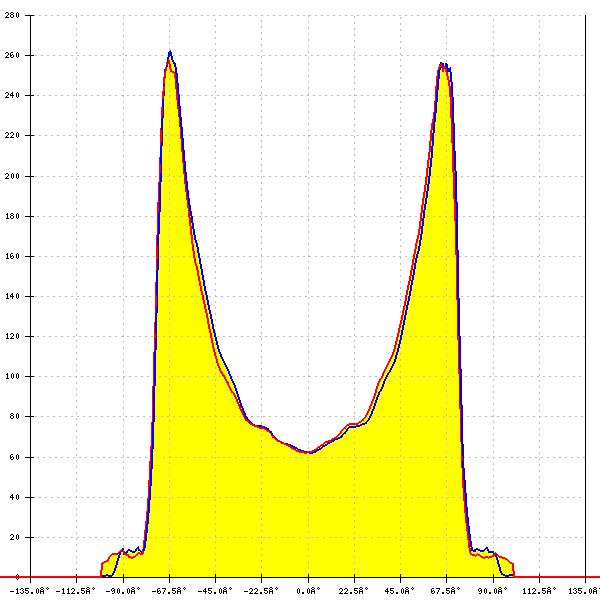

    LED: XLE-S22C4XD16 (XD16)
    FWHM: asymmetric
    Peak intensity: 0.509 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 4
    Light colour/type: White

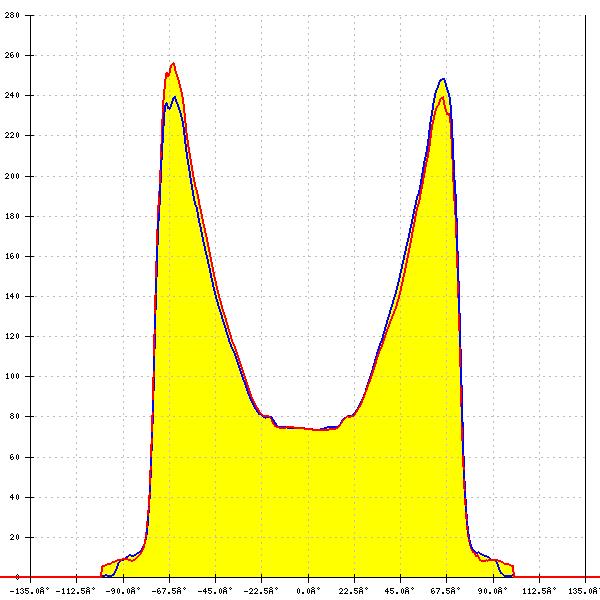

    LED: XLE-S22C4XTEHE (XT-E HE)
    FWHM: 148°
    FWTM: 156°
    Peak intensity: 0.392 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XLE-S22XHP50B (XHP50.2)
    FWHM: 151°
    FWTM: 159°
    Peak intensity: 0.426 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

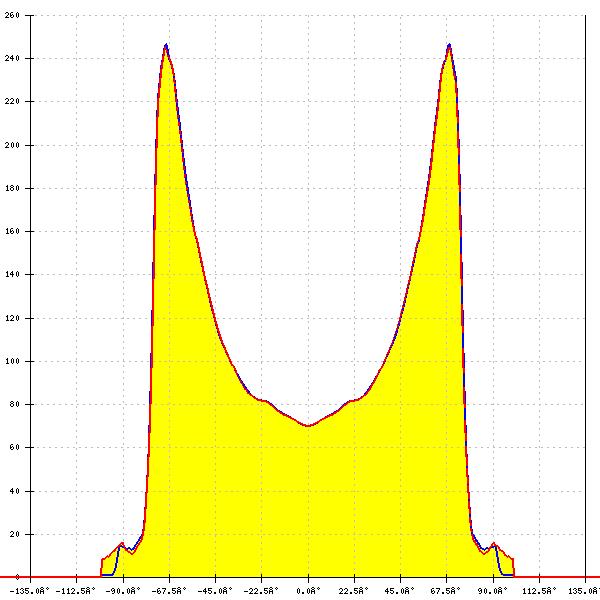

    LED: WICOP 5050
    FWHM: 150°
    FWTM: 159°
    Peak intensity: 0.449 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

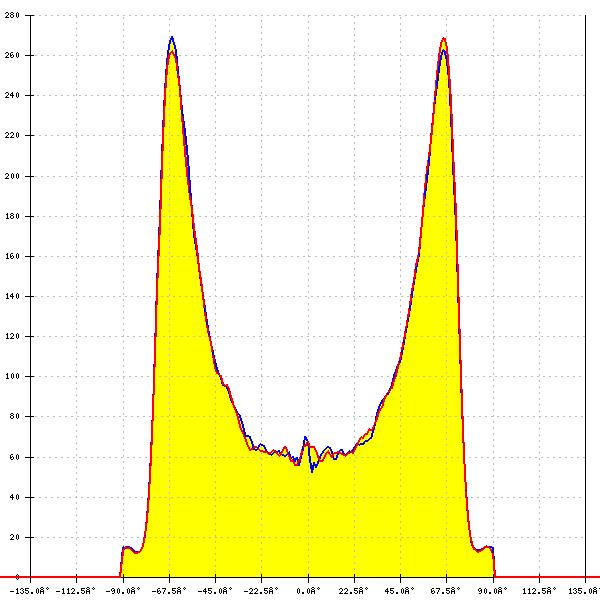

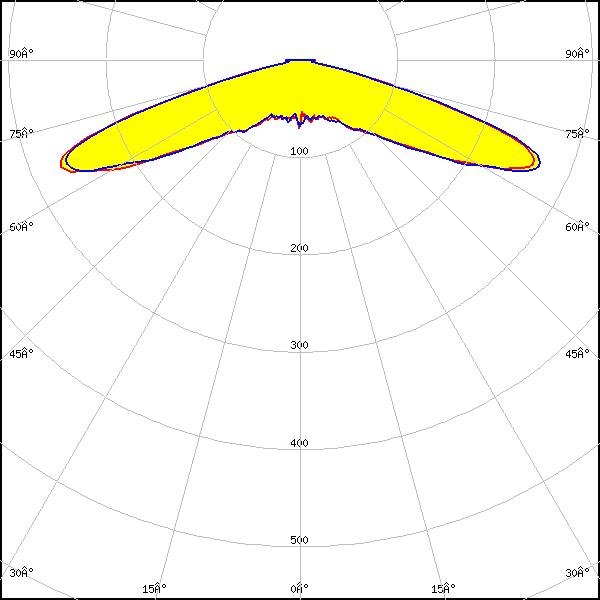

    LED: Z8Y19
    FWHM: asymmetric
    Peak intensity: 0.488 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 4
    Light colour/type: White

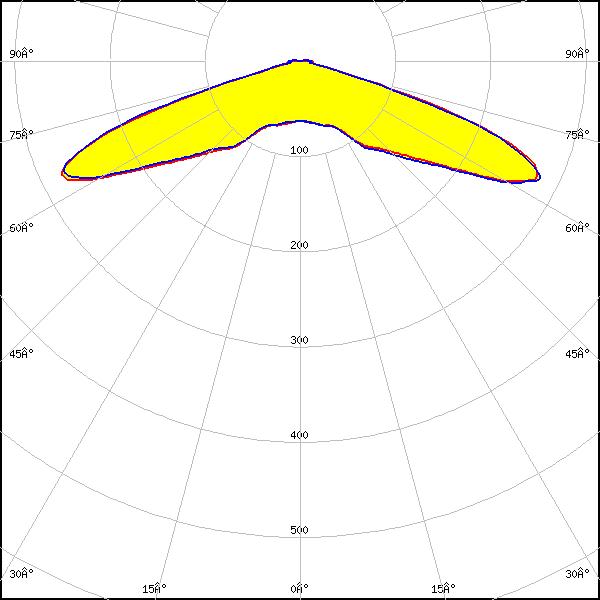

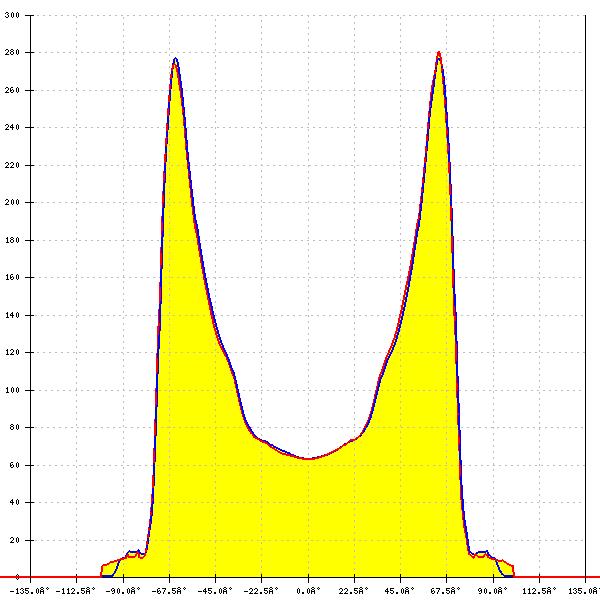

    LED: Z8Y22
    FWHM: asymmetric
    Peak intensity: 0.493 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 4
    Light colour/type: White
