    CS15761_STRADA-2X2MX-8-SCL

    Print

    Type II/III (Long) beam for very wide pole to pole distances. Ideal for pedestrian walkways and residential roads. EN13201 P-classes. New revision.

    Specification
    • Dimensions:
      90 x  90 mm
    • Height:
      13.17 mm
    • Fastening:
      screw
    • Colour:
      clear
    • Ingress protection classes:
      IP67
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      156 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      7.9 kg
    • MPQ:
      52 pcs
    • MOQ:
      52 pcs
    • MOQ size:
      480 x 280 x 110 mm
    • MOQ weight:
      2.8 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CS15761_STRADA-2X2MX-8-SCL
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR183 - Additional gasket material approved for LEDiL products

    News

    PRODUCT NEWS - STRADA-2X2MX-SCL

    PCN

    Product change notification NR126.a - EOL notice 190916

    Application guide

    Guide for Street lighting optics

    News

    MX series the ultimate in street area car park and industrial lighting optics

    News

    PRODUCT NEWS - 2X2MX

    News

    PRODUCT NEWS - 2X2MX MODULES

    PCN

    Product change notification NR134.b - Change of packaging methods 200417

    Application guide

    Guide_for_Urban_lighting_optics_2025_v.1.1_WEB

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    Optical results

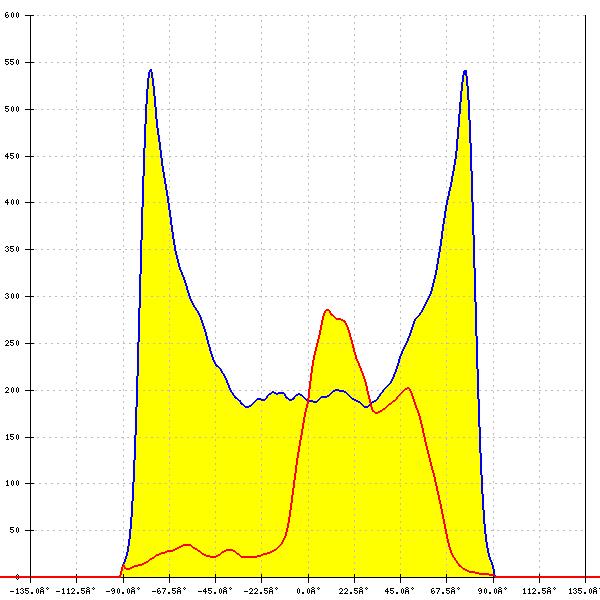

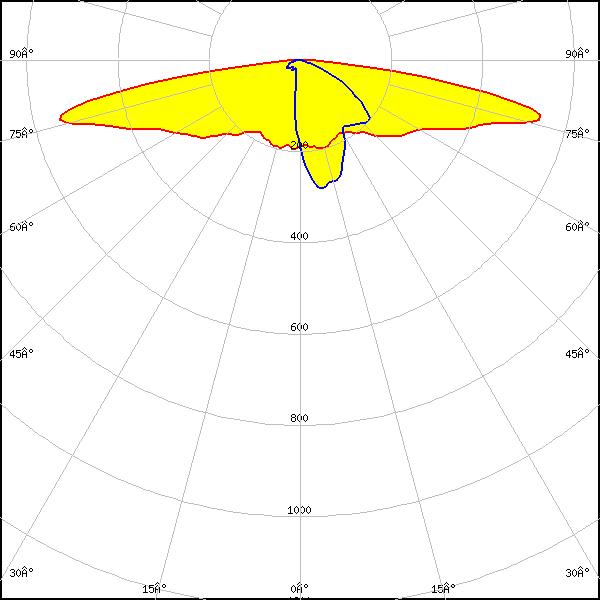

    LED: Bridgelux SMD 5050
    FWHM: asymmetric
    Peak intensity: 0.660 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

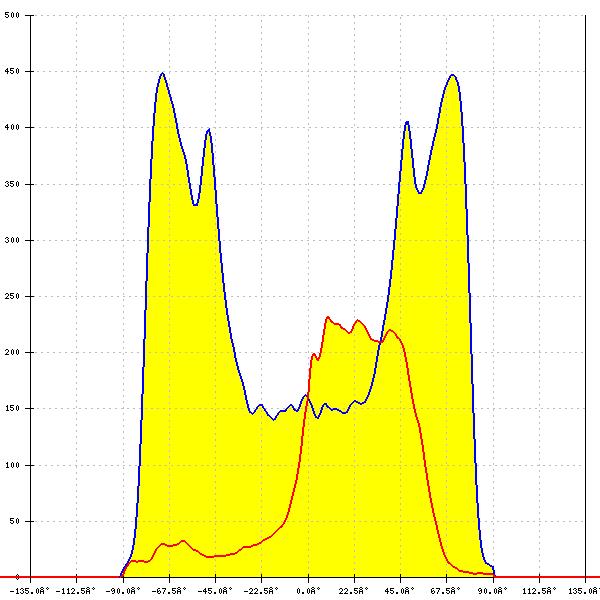

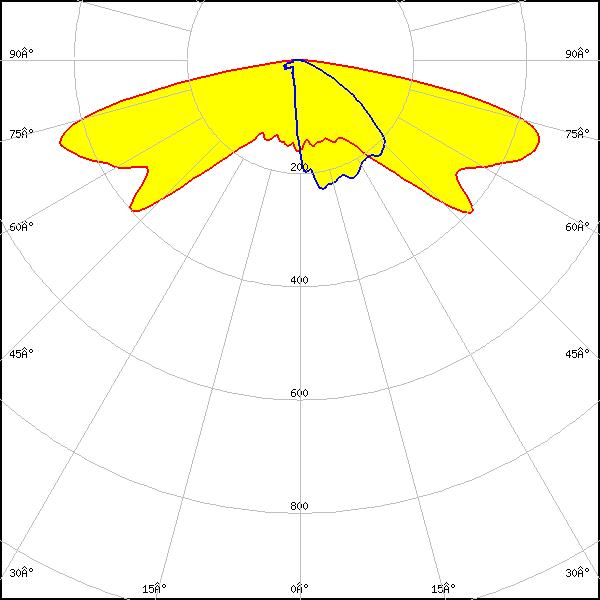

    LED: CLU700/701/702/703
    Required components:
    Bender Wirth: 434 Typ 2x2MX HV
    FWHM: asymmetric
    Peak intensity: 0.570 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

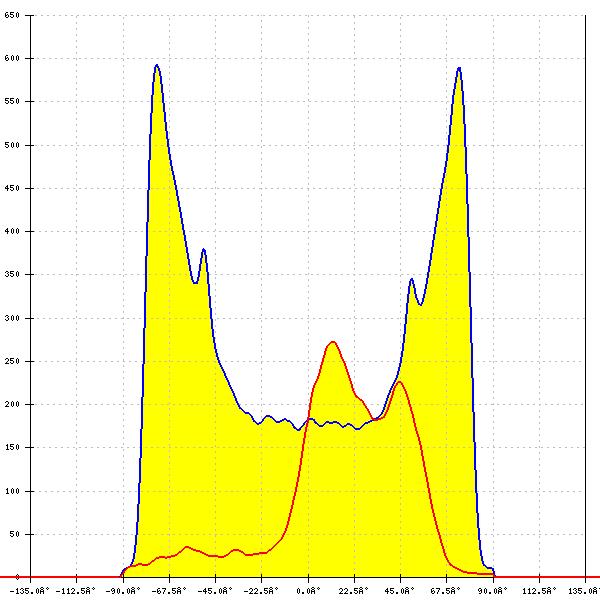

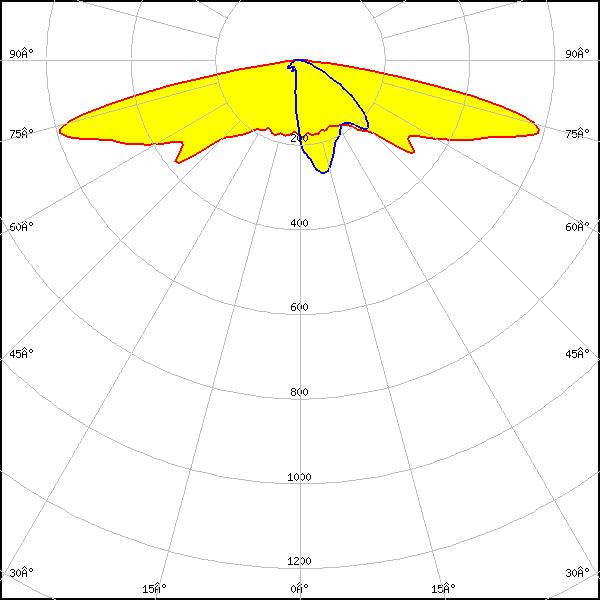

    LED: CMA1303
    Required components:
    Bender Wirth: 488 Typ L4 HV
    FWHM: asymmetric
    Peak intensity: 0.703 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

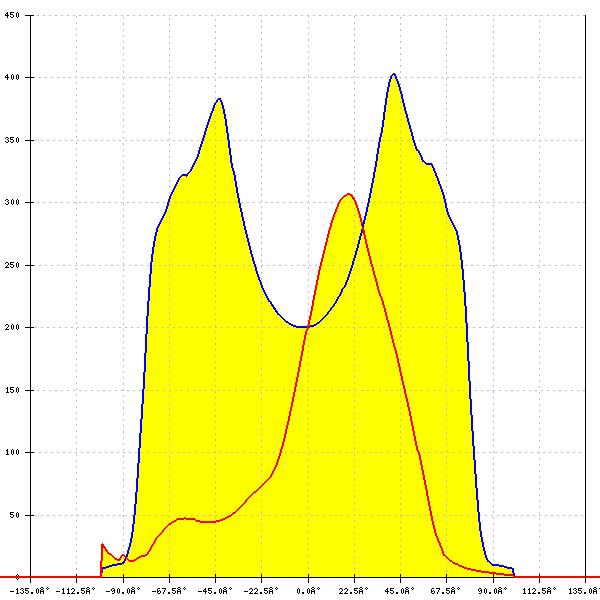

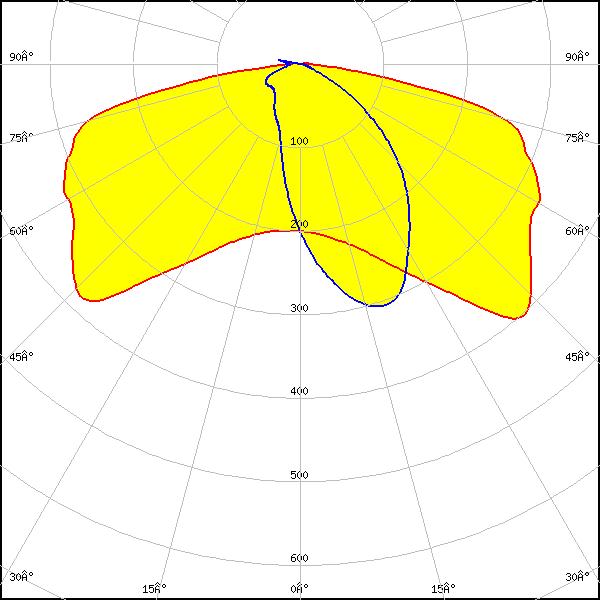

    LED: CXA/B 15xx
    Required components:
    Bender Wirth: 441 Typ 2x2MX HV
    FWHM: asymmetric
    Peak intensity: 0.460 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP50.2
    FWHM: asymmetric
    Peak intensity: 0.782 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

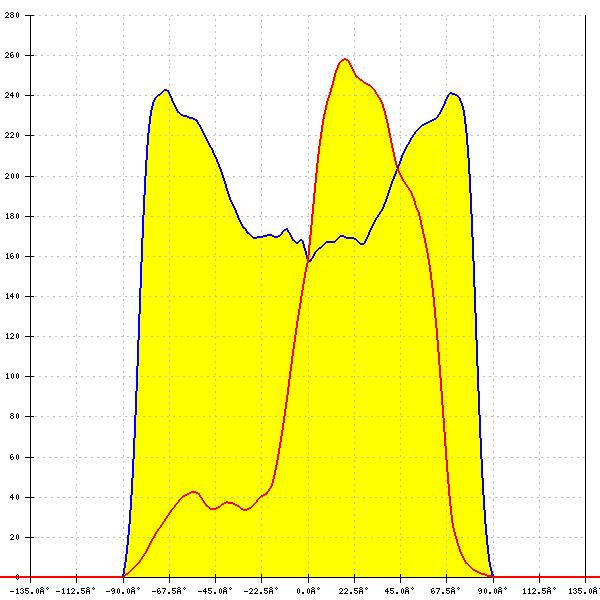

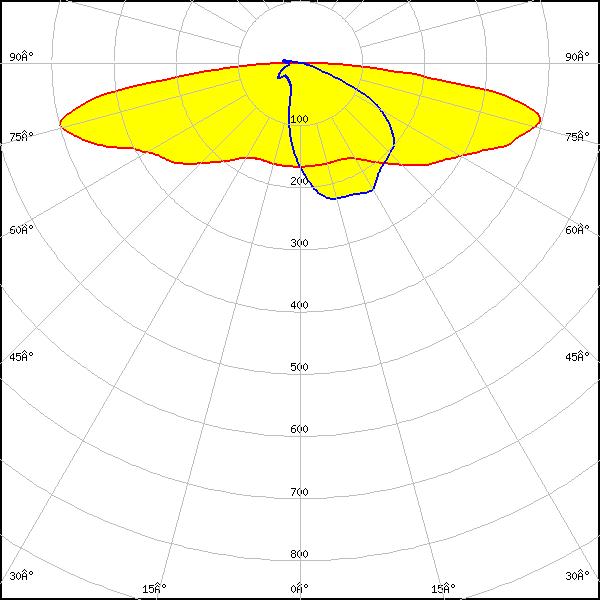

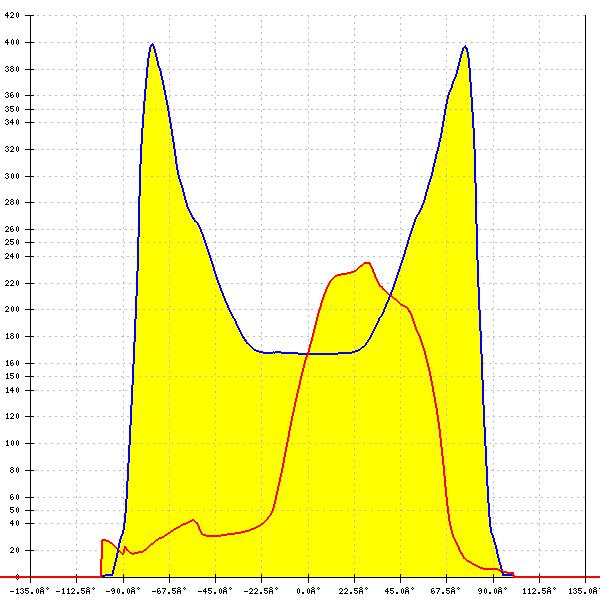

    LED: XHP70.2
    FWHM: asymmetric
    Peak intensity: 0.343 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White

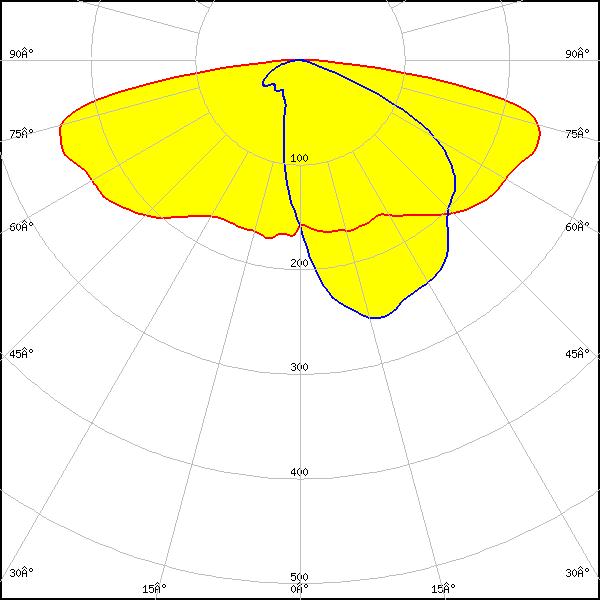

    LED: XHP70.2
    FWHM: asymmetric
    Peak intensity: 0.540 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

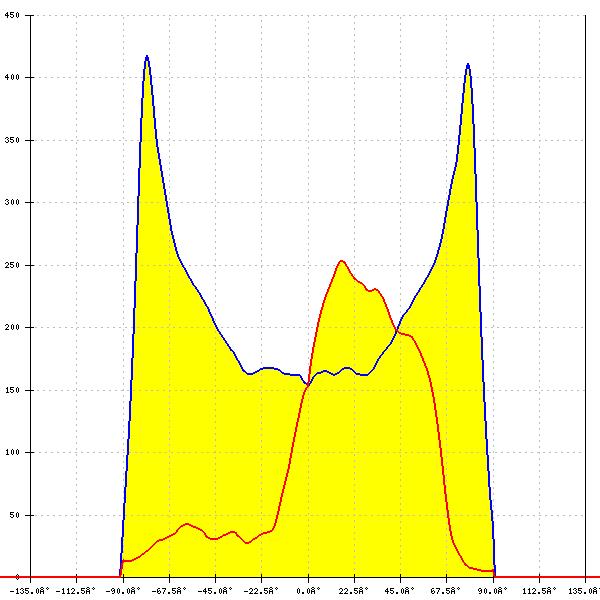

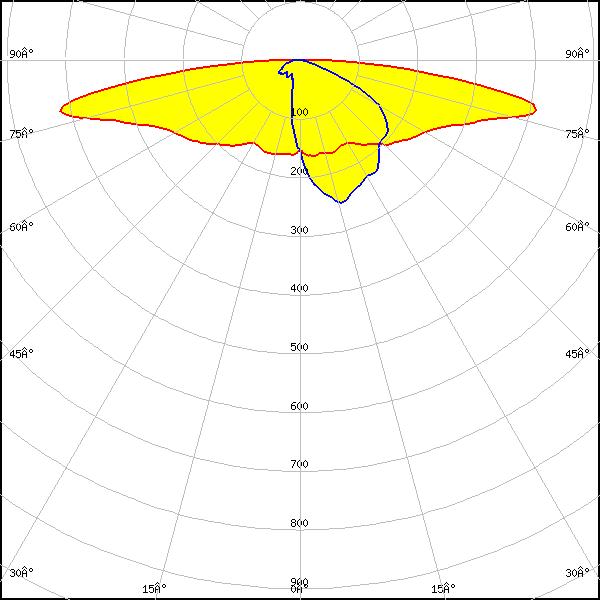

    LED: XHP70.3 HD
    FWHM: asymmetric
    Peak intensity: 0.560 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XT-E HE
    FWHM: asymmetric
    Peak intensity: 0.595 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

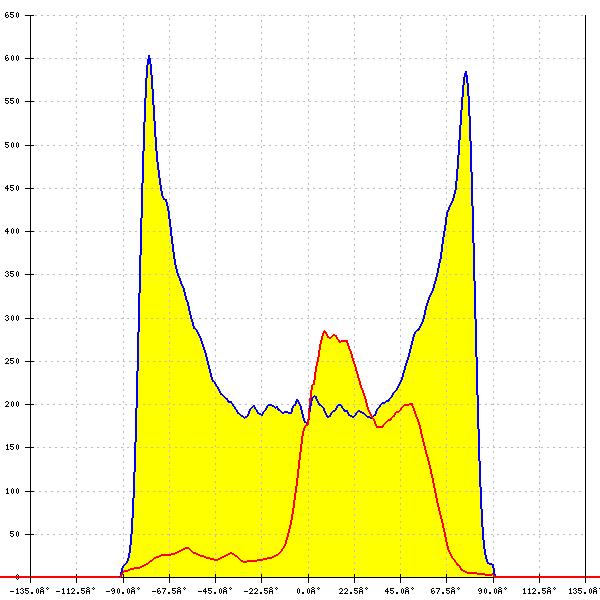

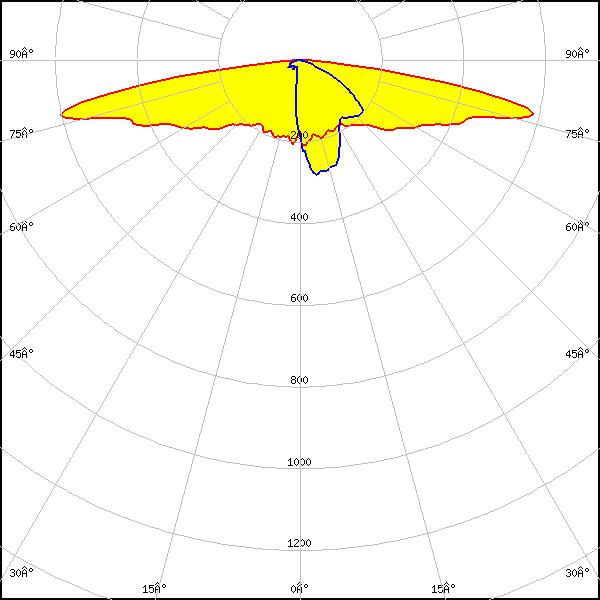

    LED: LUXEON 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 0.810 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

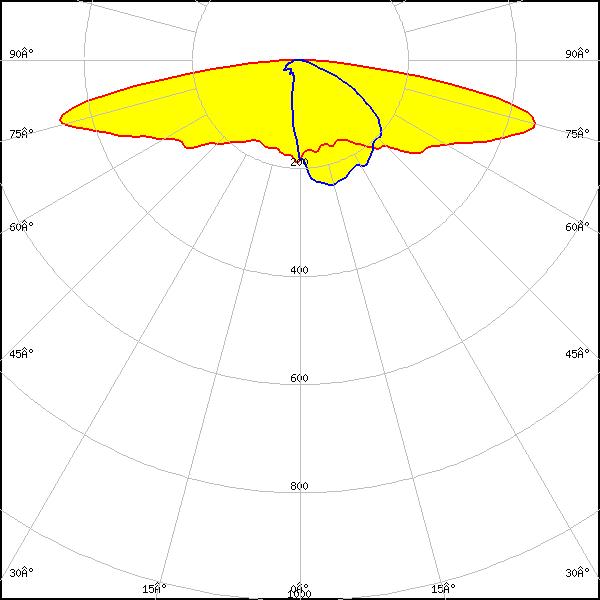

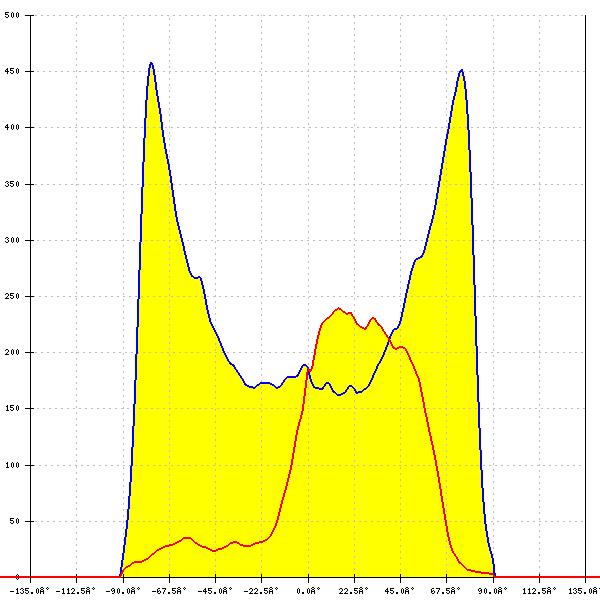

    LED: LUXEON 7070
    FWHM: asymmetric
    Peak intensity: 0.602 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

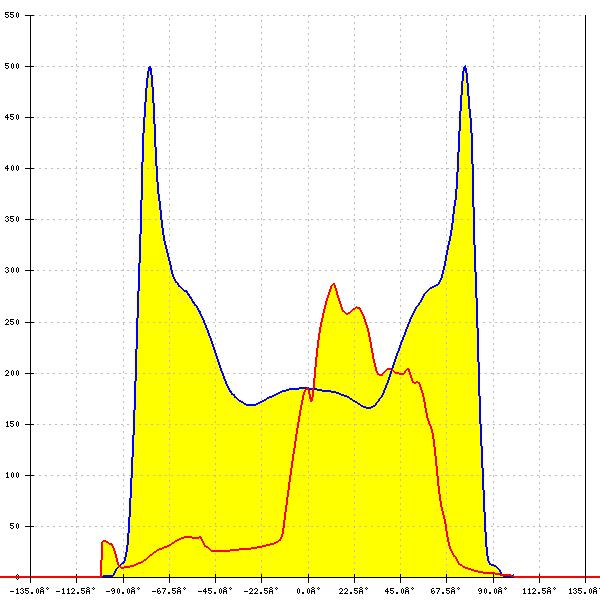

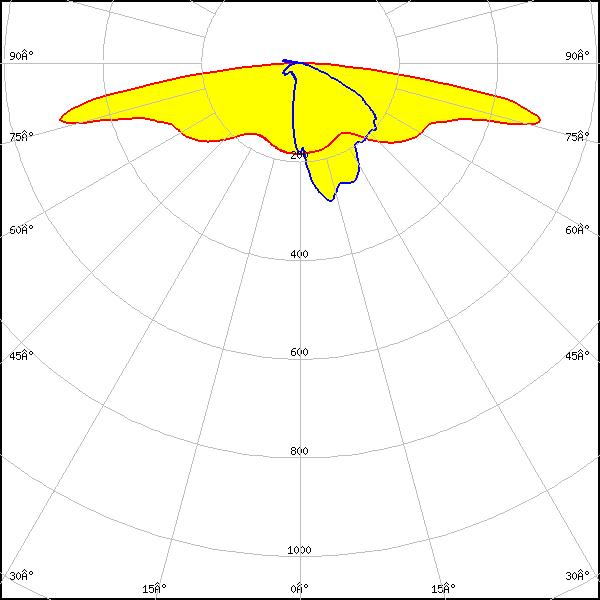

    LED: LUXEON M/MX
    FWHM: asymmetric
    Peak intensity: 0.790 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

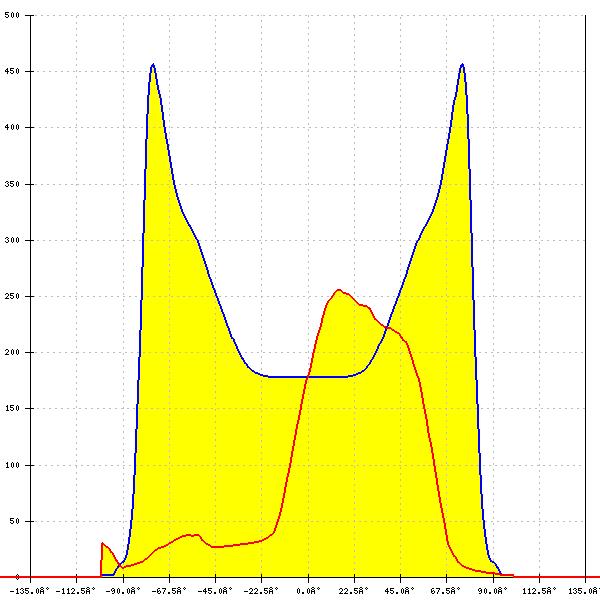

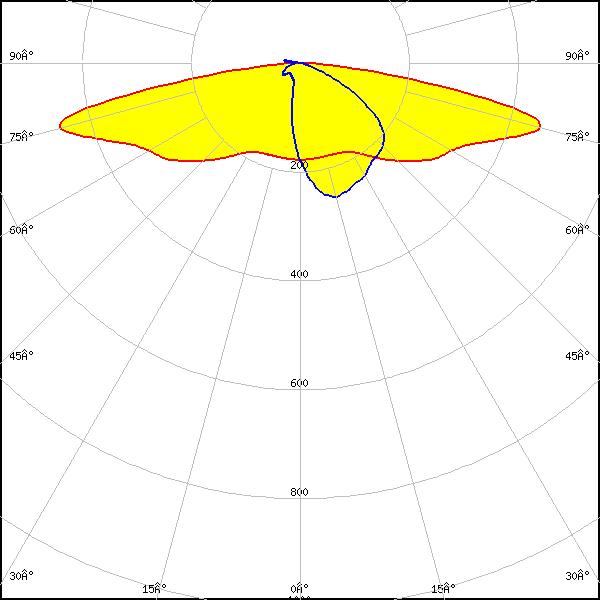

    LED: LUXEON XR-7070 (L224-xxxx004MLU010)
    FWHM: asymmetric
    Peak intensity: 0.655 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

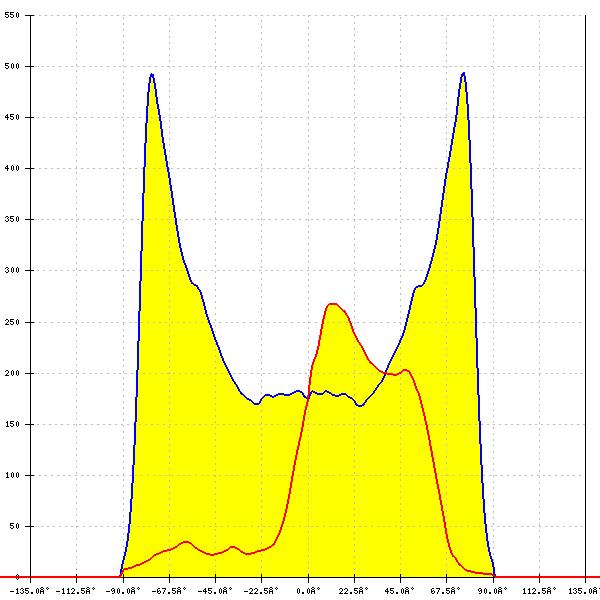

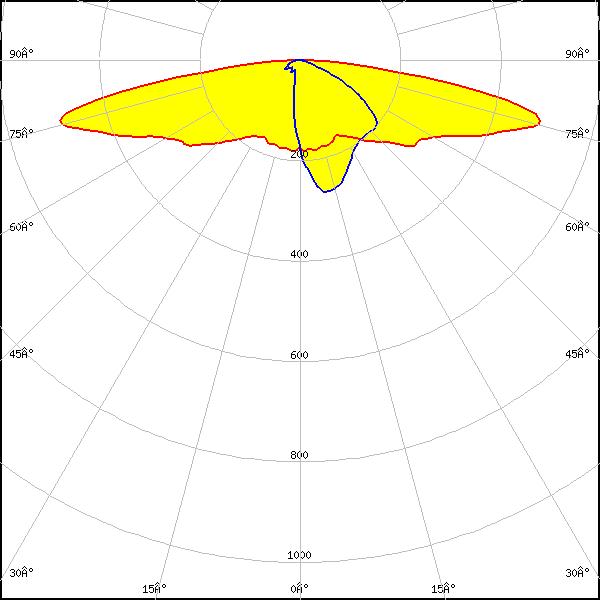

    LED: MP 7070
    FWHM: asymmetric
    Peak intensity: 0.651 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

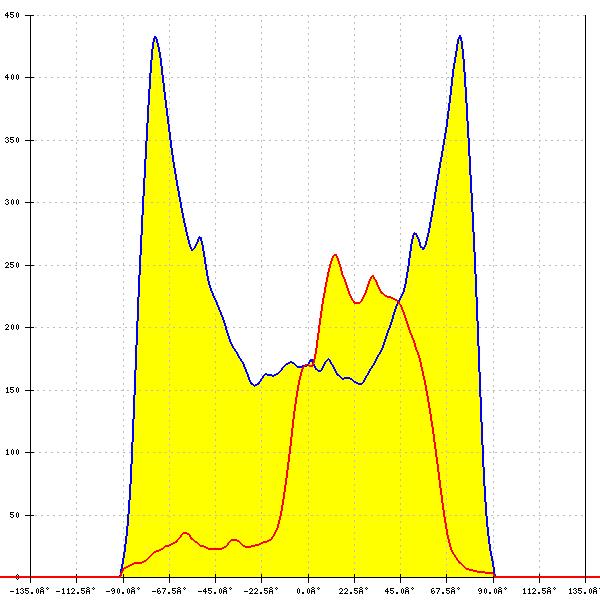

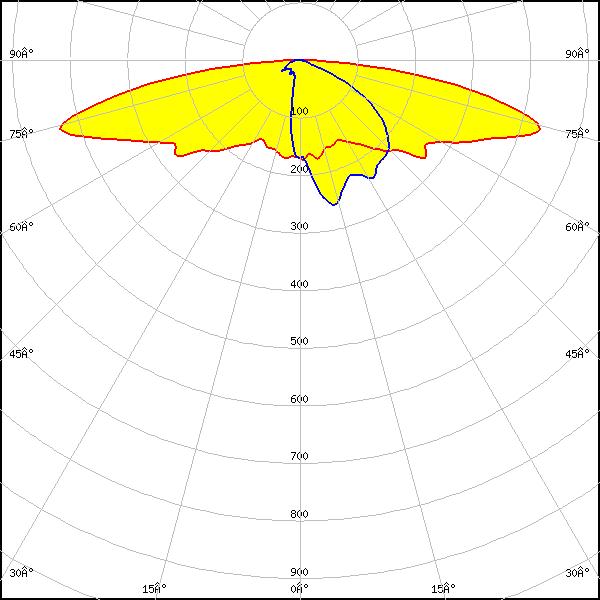

    LED: NF2x757G
    FWHM: asymmetric
    Peak intensity: 0.614 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 4
    Light colour/type: White

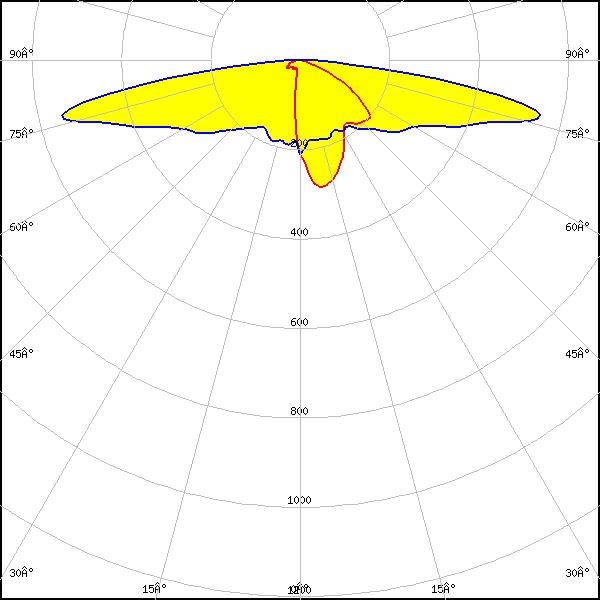

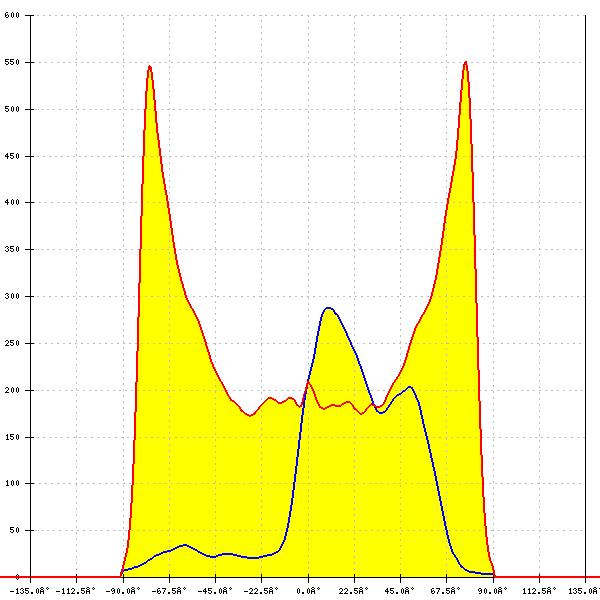

    LED: NFMW48xA
    FWHM: asymmetric
    Peak intensity: 0.660 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

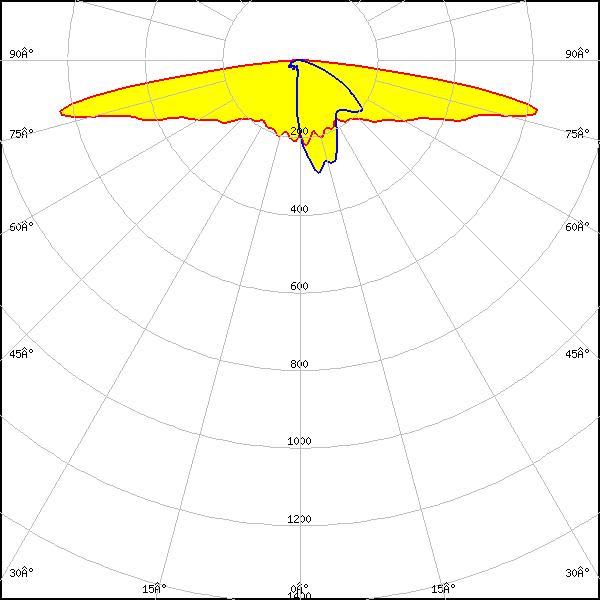

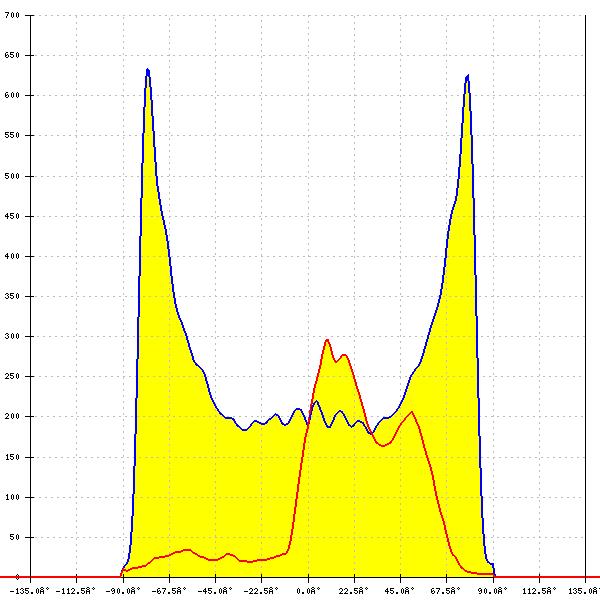

    LED: NV4WB35AM
    FWHM: asymmetric
    Peak intensity: 0.749 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

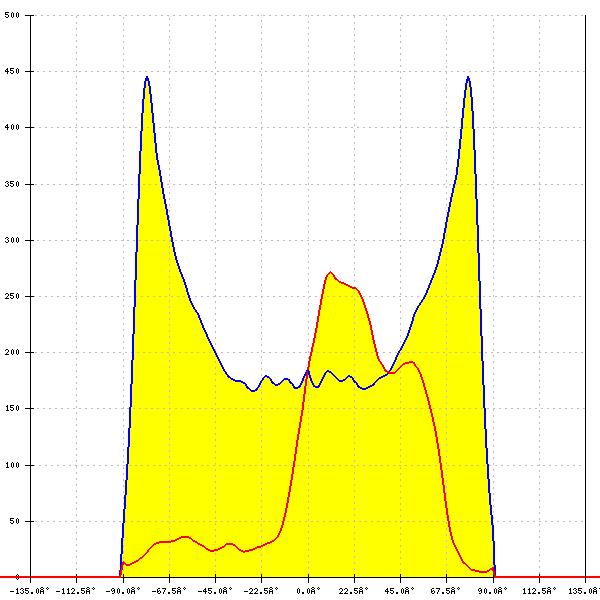

    LED: NV4x144A
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

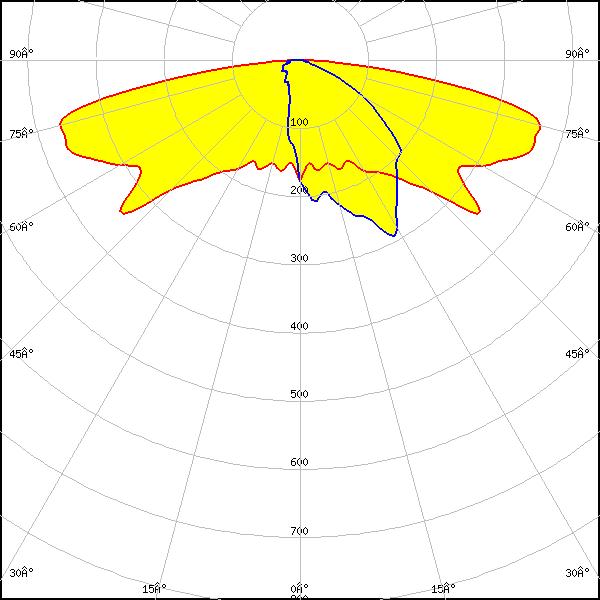

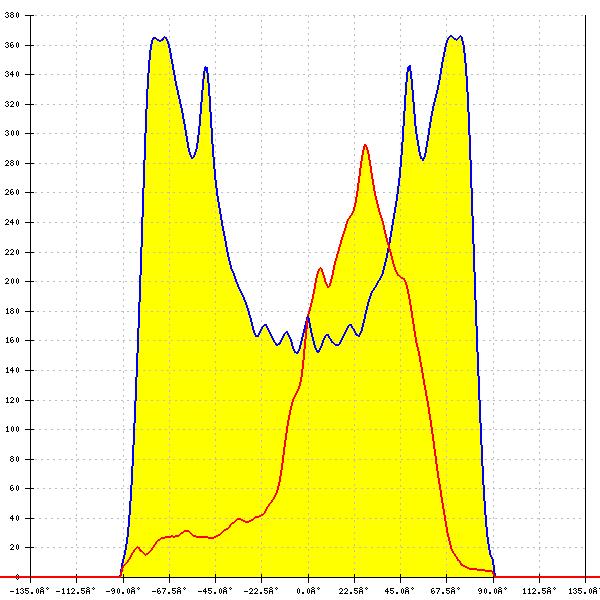

    LED: NVSxE21A
    FWHM: asymmetric
    Peak intensity: 0.502 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 9
    Light colour/type: White

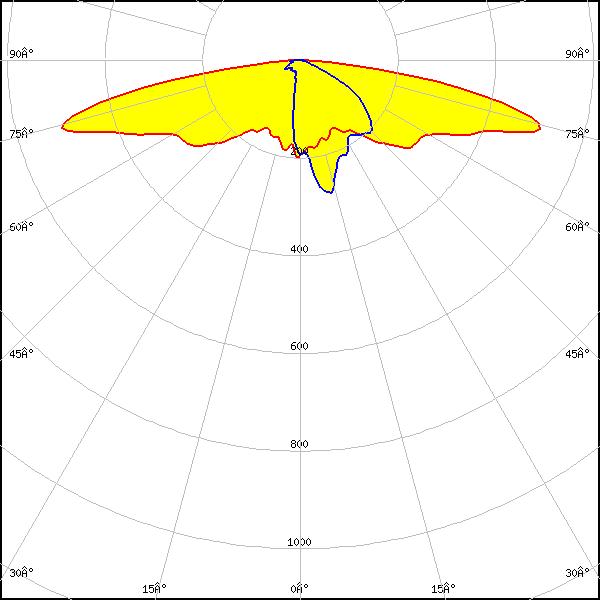

    LED: NVSxE21A
    FWHM: asymmetric
    Peak intensity: 0.689 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 4
    Light colour/type: White

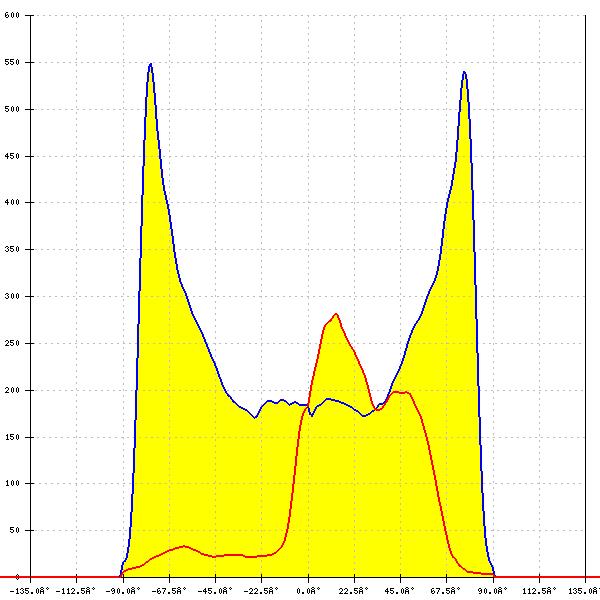

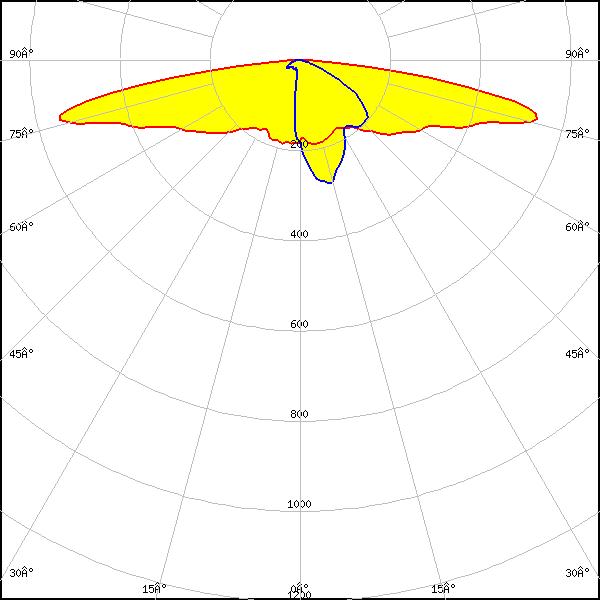

    LED: Duris S8
    FWHM: asymmetric
    Peak intensity: 0.714 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ C 2424 Gen1
    FWHM: asymmetric
    Peak intensity: 0.725 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 4
    Light colour/type: White

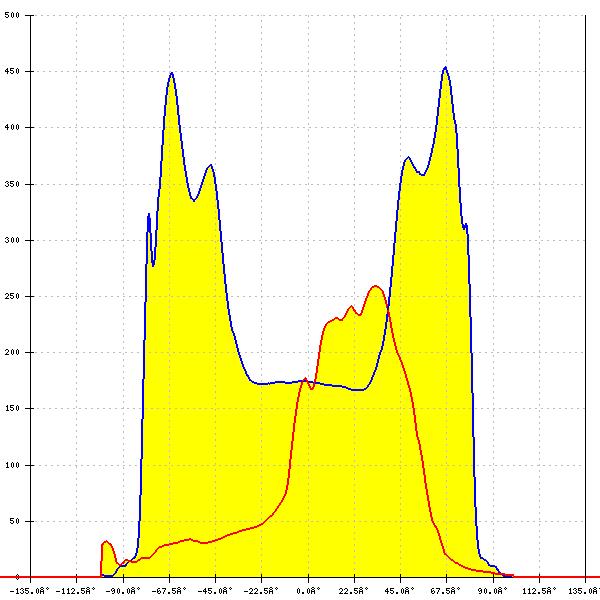

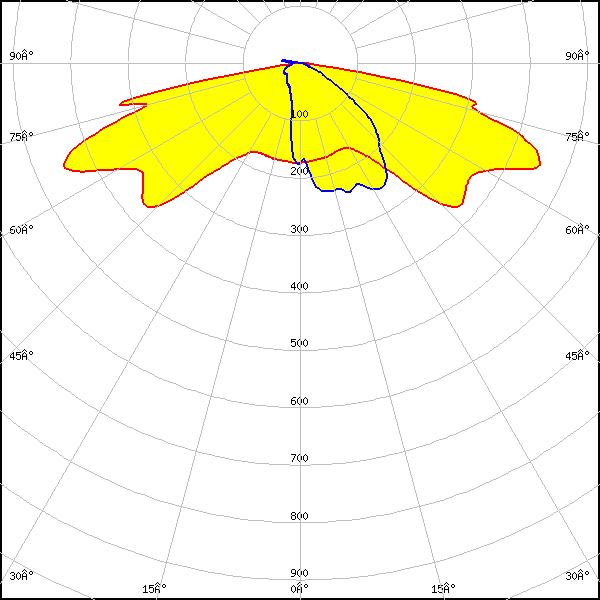

    LED: HiLOM SC16 (LH181B)
    FWHM: asymmetric
    Peak intensity: 0.710 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

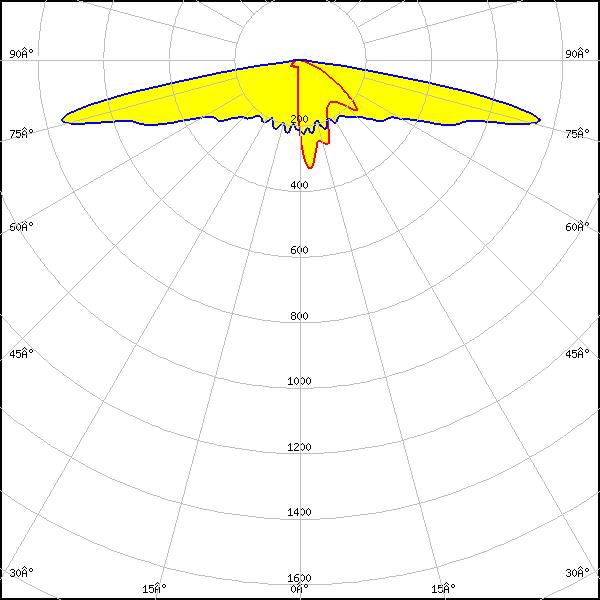

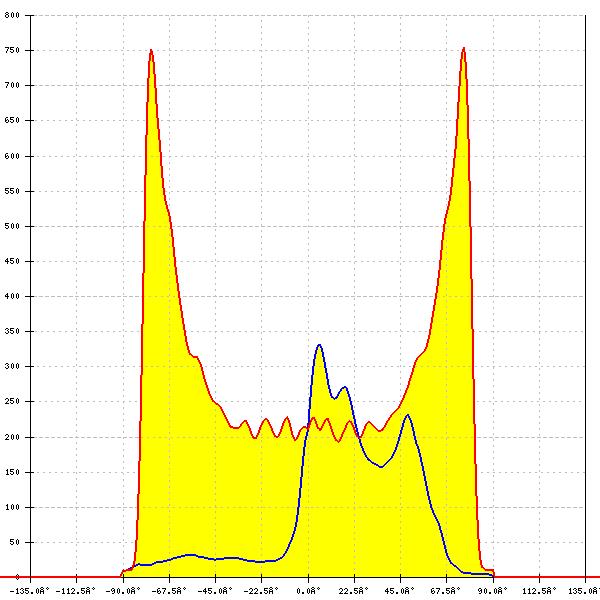

    LED: LH181B
    FWHM: asymmetric
    Peak intensity: 0.761 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PAL-LK-4950-740-48
    FWHM: asymmetric
    Peak intensity: 0.782 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

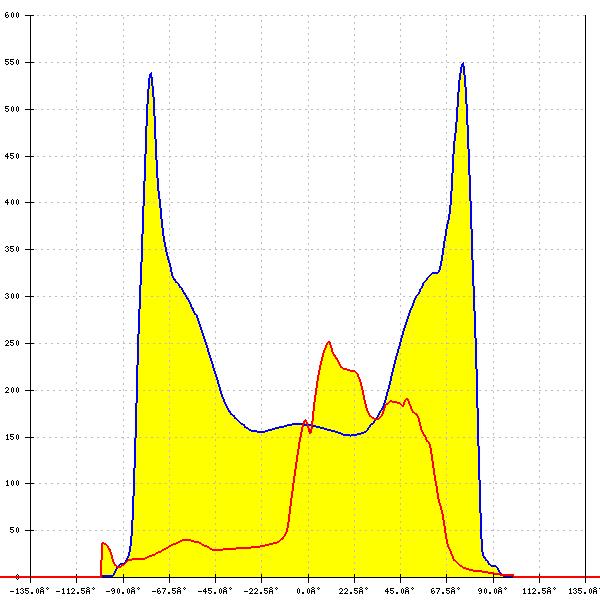

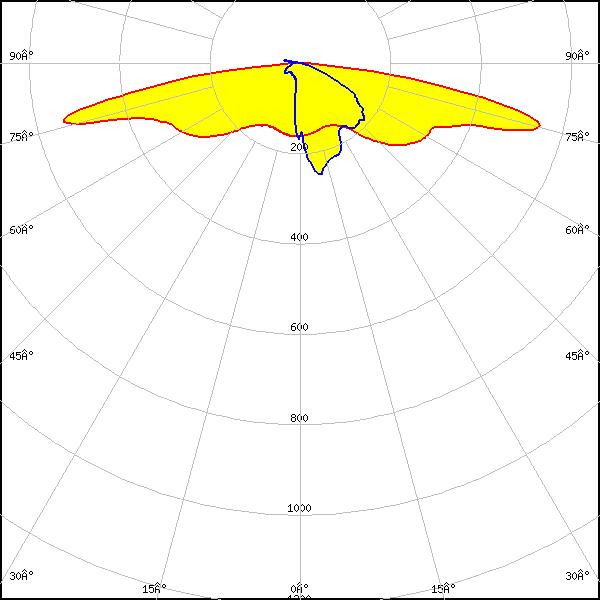

    LED: XLE-S22C4XD16 (XD16)
    FWHM: asymmetric
    Peak intensity: 0.971 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 4
    Light colour/type: White

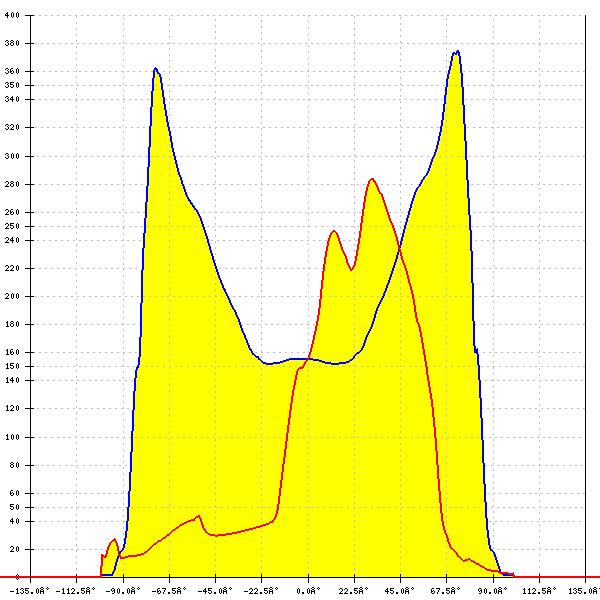

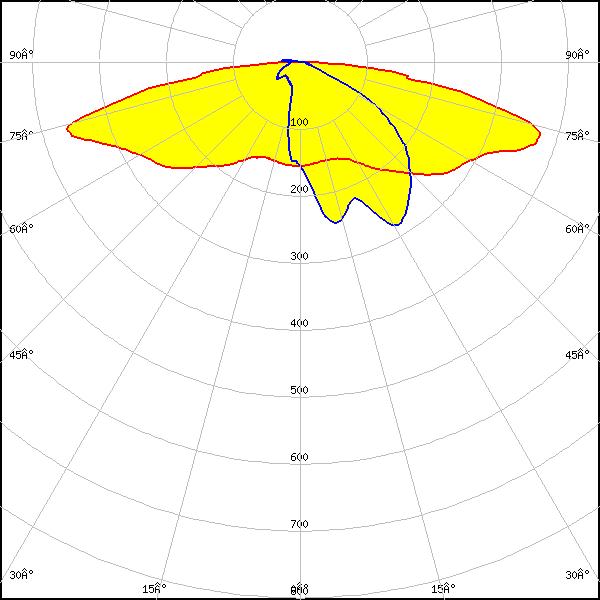

    LED: XLE-S22C4XTEHE (XT-E HE)
    FWHM: asymmetric
    Peak intensity: 0.595 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

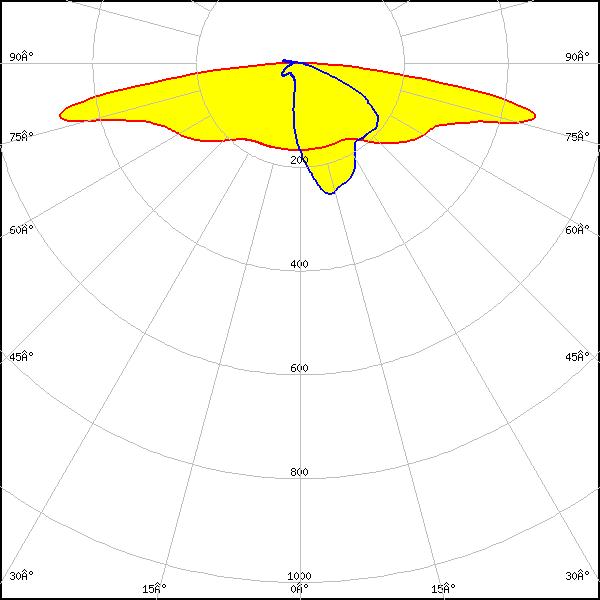

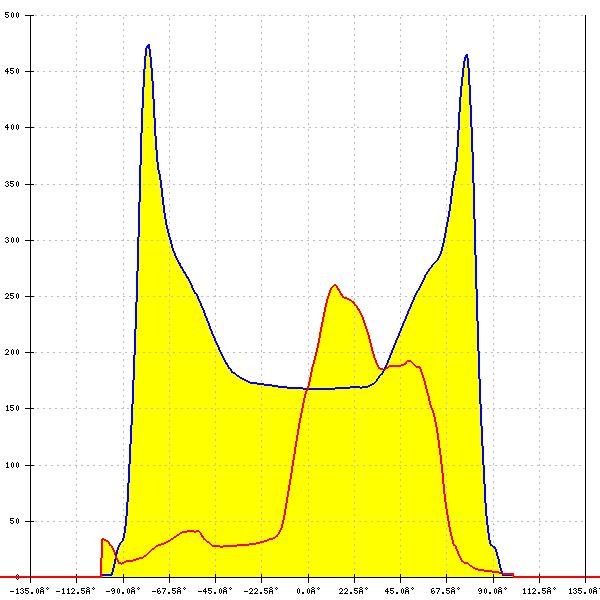

    LED: XLE-S22XHP50B (XHP50.2)
    FWHM: asymmetric
    Peak intensity: 0.782 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

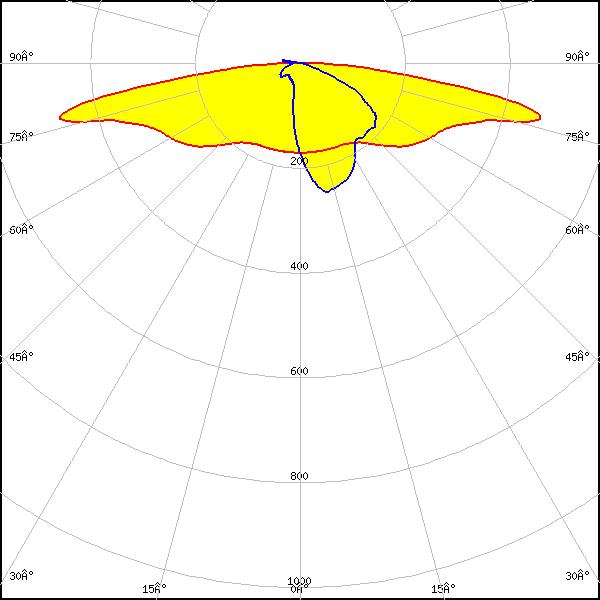

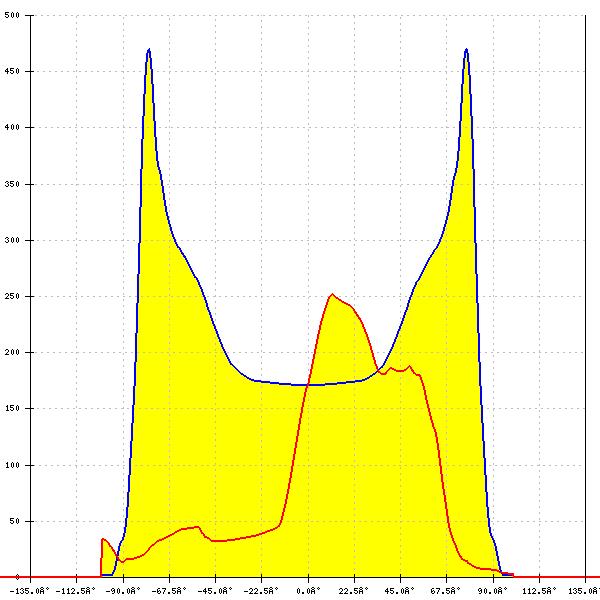

    LED: WICOP 5050
    FWHM: asymmetric
    Peak intensity: 0.830 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

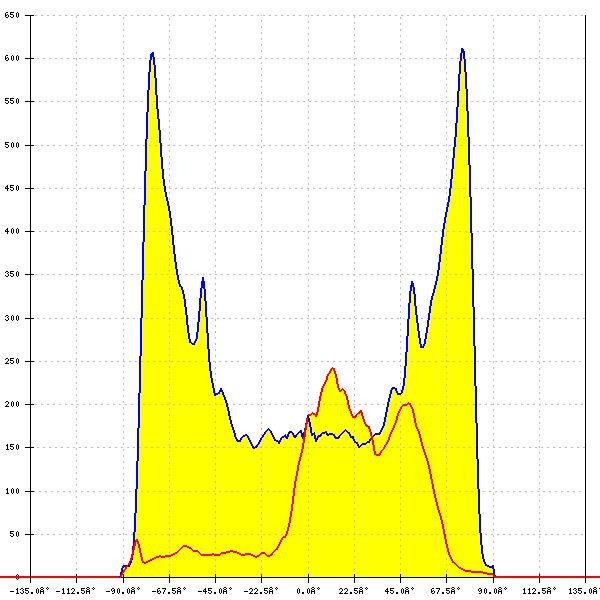

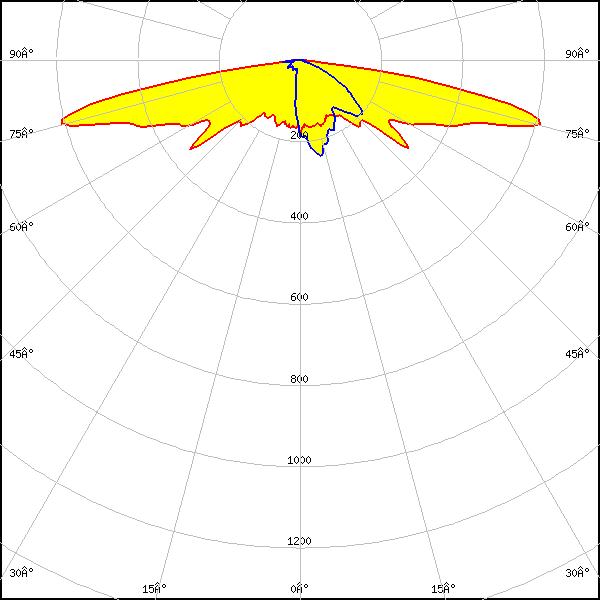

    LED: Z8Y19
    FWHM: asymmetric
    Peak intensity: 0.829 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 4
    Light colour/type: White

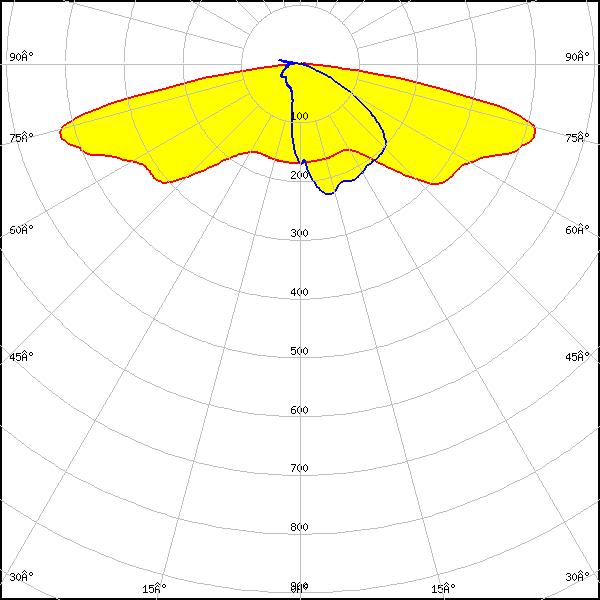

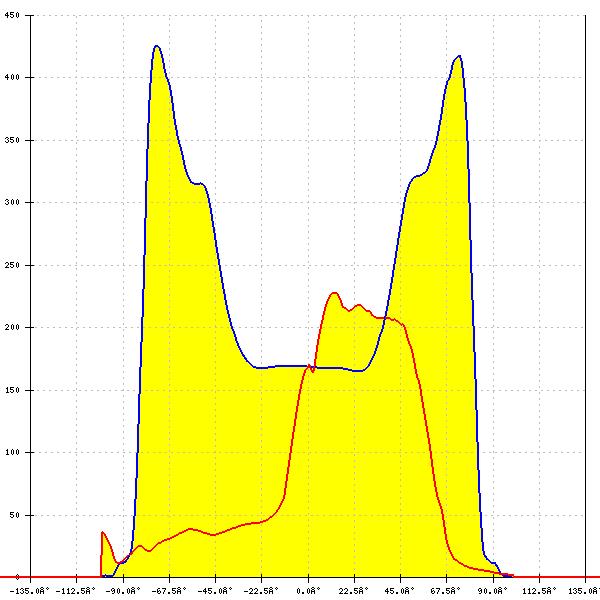

    LED: Z8Y22
    FWHM: asymmetric
    Peak intensity: 0.675 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 4
    Light colour/type: White
