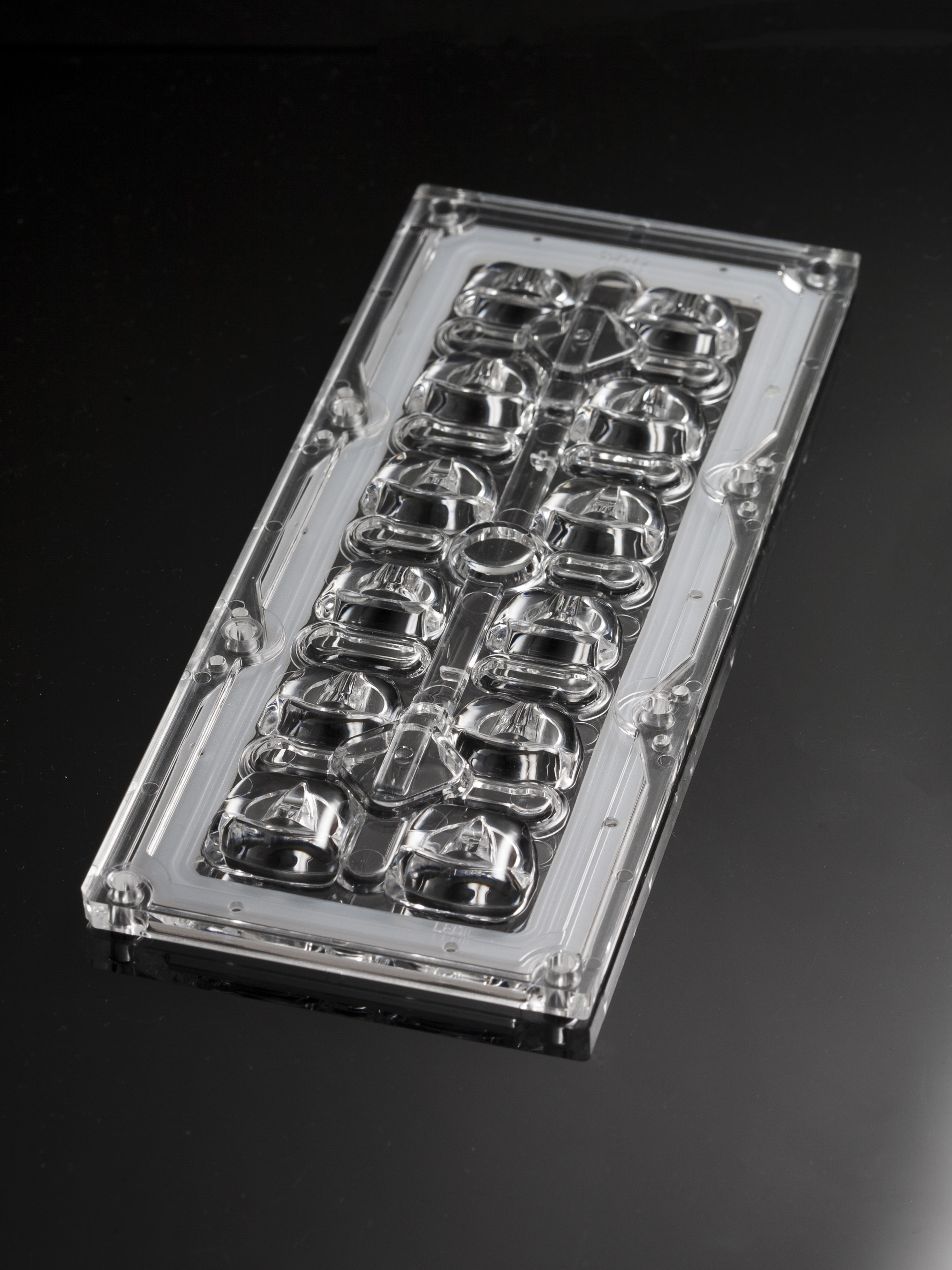

CS15671_STRADA-IP-2X6-DWC-B
Print
Universal road lighting (IESNA Type II Medium) beam with excellent mixed illuminance, luminance uniformity and minimized backlight.
Component Materials
- STRADA-IP-2X6-DWC-BMulti-lensPMMA
- 2X6-SEAL25SealSilicone
- Request material files from Tech Support
WARNING: Cancer – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

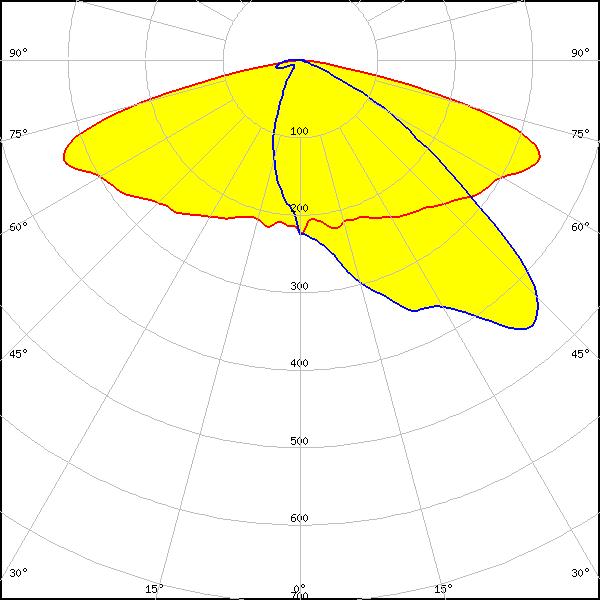

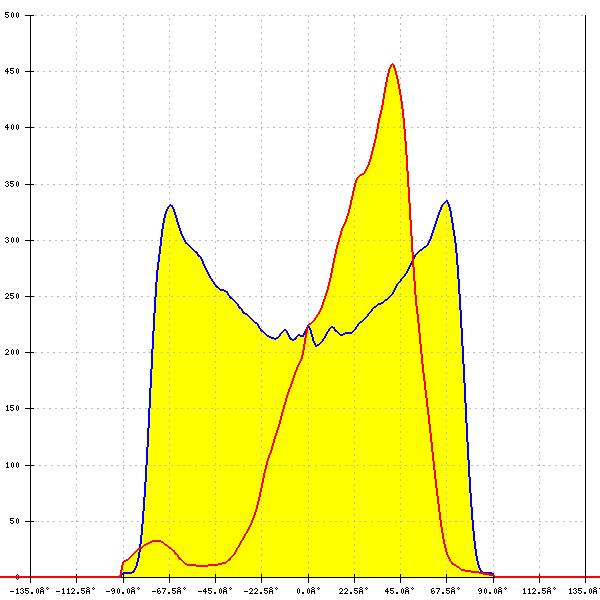

Optical results
LED:
Bridgelux SMD 5050
FWHM: asymmetric
Peak intensity:
0.470 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
QUICK FLUX 2x6 LED XG xxx G7+
FWHM: asymmetric
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
QUICK FLUX 2x6 LED XT xxx G5
FWHM: asymmetric
Peak intensity:
0.560 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050B 6V K Class
FWHM: asymmetric
Peak intensity:
0.419 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2
FWHM: asymmetric
Peak intensity:
0.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2 HE
FWHM: asymmetric
Peak intensity:
0.395 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G3
FWHM: asymmetric
Peak intensity:
0.400 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-L2
FWHM: asymmetric
Peak intensity:
0.428 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XT-E
FWHM: asymmetric
LEDs/each optic:
1
Light colour/type:
White
LED:
XT-E HE
FWHM: asymmetric
Peak intensity:
0.580 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PrevaLED Brick HP IP 2x6
FWHM: asymmetric
Peak intensity:
0.493 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity:
0.450 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity:
0.391 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON V2
FWHM: asymmetric
Peak intensity:
0.530 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

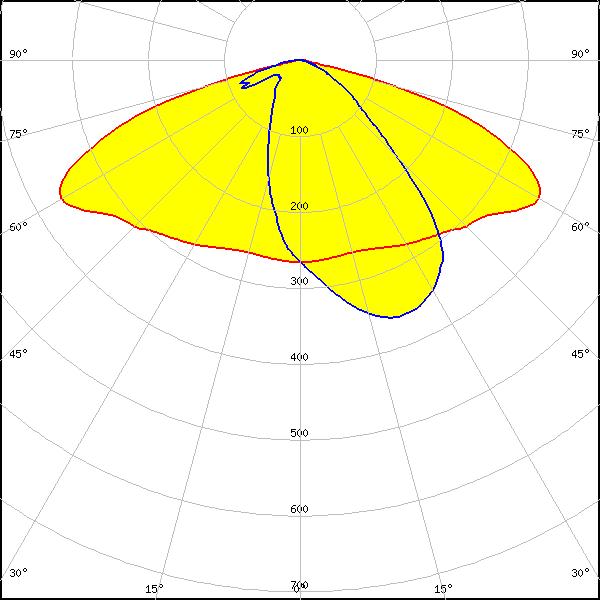

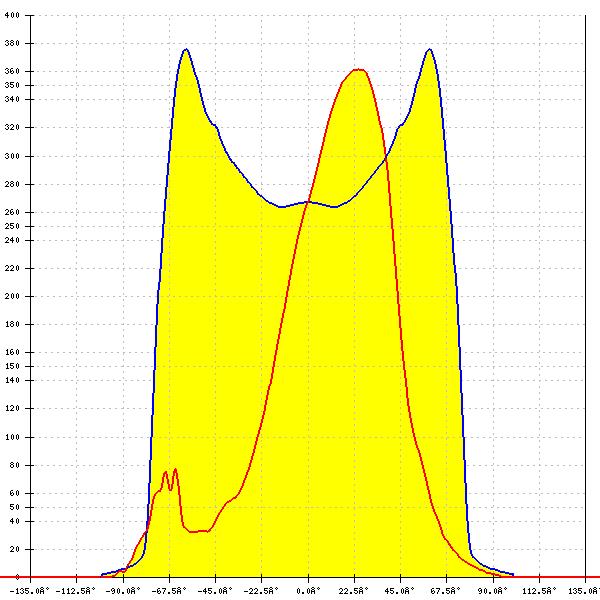

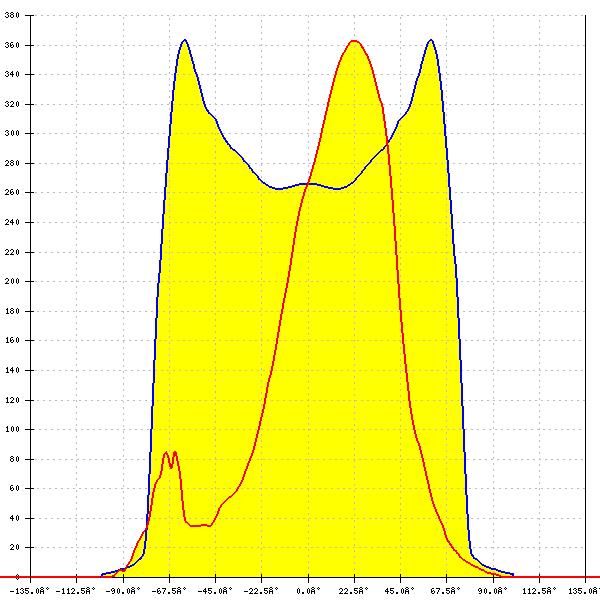

RecLED 146x45mm 2900lm 730 2x6 IP G1
FWHM: asymmetric
Peak intensity:
0.589 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NV4WB35AM
FWHM: asymmetric
Peak intensity:
0.340 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW219F
FWHM: asymmetric
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW3x9A
FWHM: asymmetric
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW519A
FWHM: asymmetric
Peak intensity:
0.470 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxE21A
FWHM: asymmetric
Peak intensity:
0.601 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S8
FWHM: asymmetric
Peak intensity:
0.403 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 3737 (3W version)
FWHM: asymmetric
Peak intensity:
0.405 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity:
0.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x6 DP HE
FWHM: asymmetric
Peak intensity:
0.470 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
HiLOM RH12 (LH351C)
FWHM: asymmetric
Peak intensity:
0.520 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
HiLOM RM12 ZP (LH502C)
FWHM: asymmetric
Peak intensity:
0.472 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351B
FWHM: asymmetric
Peak intensity:
0.429 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351D
FWHM: asymmetric
Peak intensity:
0.360 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH502D
FWHM: asymmetric
Peak intensity:
0.408 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ROY-S26XPL2 (XP-L2)
FWHM: asymmetric
Peak intensity:
0.428 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XLE-S22C4XTEHE (XT-E HE)
FWHM: asymmetric
Peak intensity:
0.580 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
2x6 5050 module - SMJD-3625012F-XX
FWHM: asymmetric
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SMJQ-D36W12Mx
FWHM: asymmetric
Peak intensity:
0.570 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SMJQ-D36W12Px
FWHM: asymmetric
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

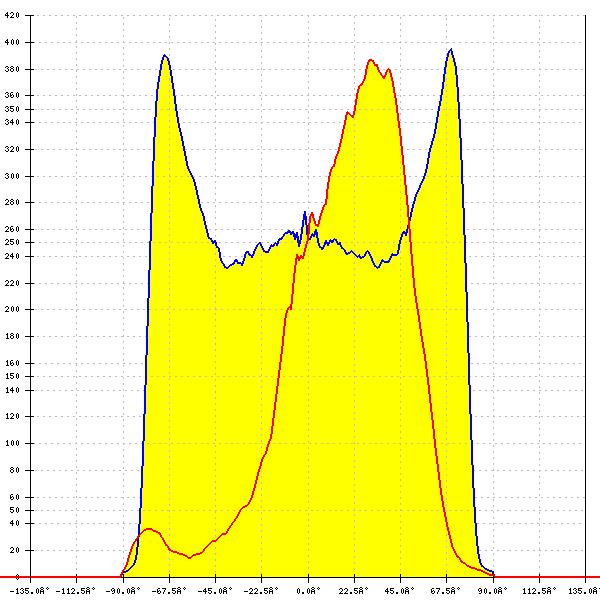

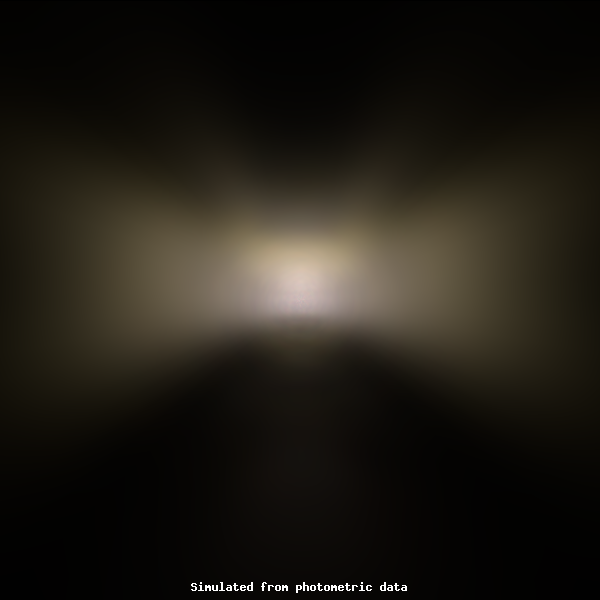

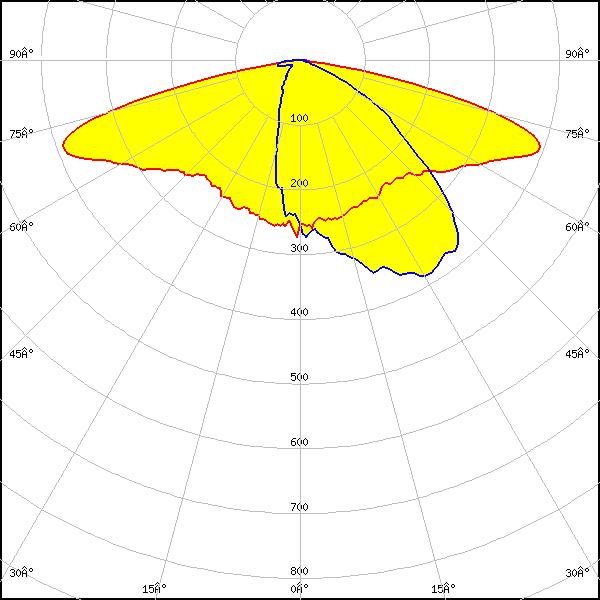

Z5M1/Z5M2
FWHM: asymmetric
Peak intensity:
0.520 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M3
FWHM: asymmetric
Peak intensity:
0.502 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M3-E1
FWHM: asymmetric
Peak intensity:
0.446 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M4
FWHM: asymmetric
Peak intensity:
0.482 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z8Y22
FWHM: asymmetric
Peak intensity:
0.570 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE 2x6 3000lm HP EXC2 OTD
FWHM: asymmetric
Peak intensity:
0.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE 2x6 4500lm HP HE EXC3 OTD Z19
FWHM: asymmetric
Peak intensity:
0.484 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
