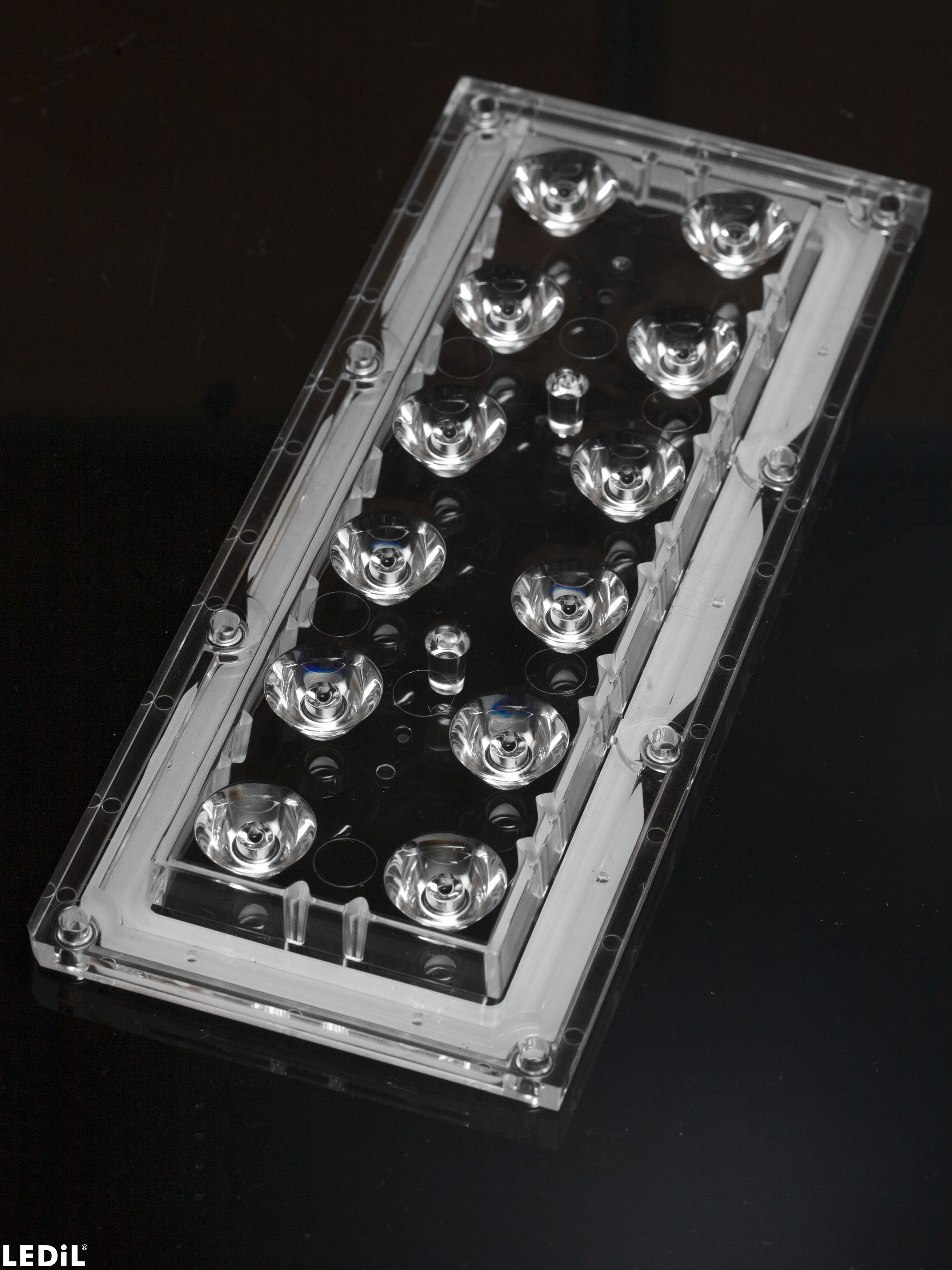

CS14895_HB-IP-2X6-RS
Print
~20° spot beam
Component Materials
- HB-IP-2X6-RSMulti-lensPMMA
- 2X6-SEAL25SealSilicone
- Request material files from Tech Support
WARNING: Cancer – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

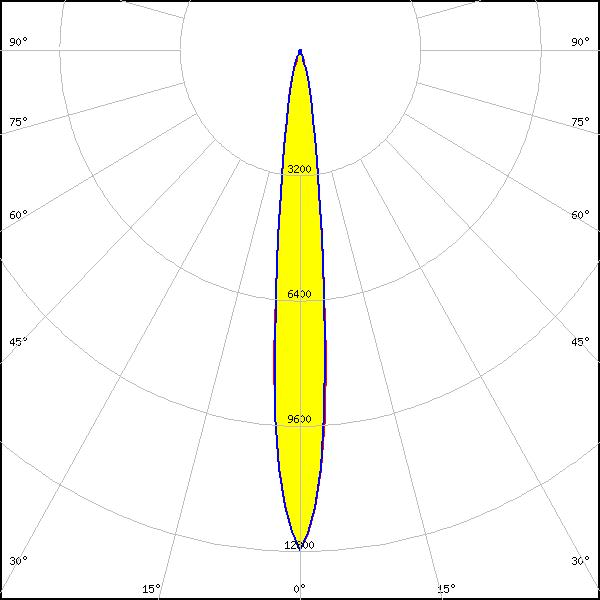

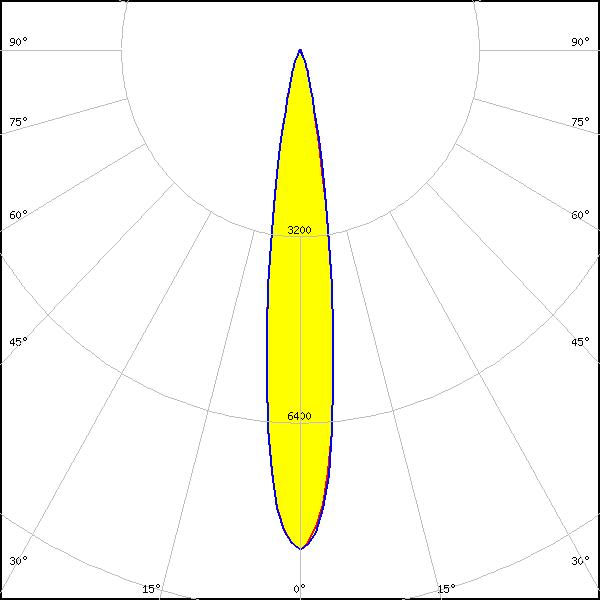

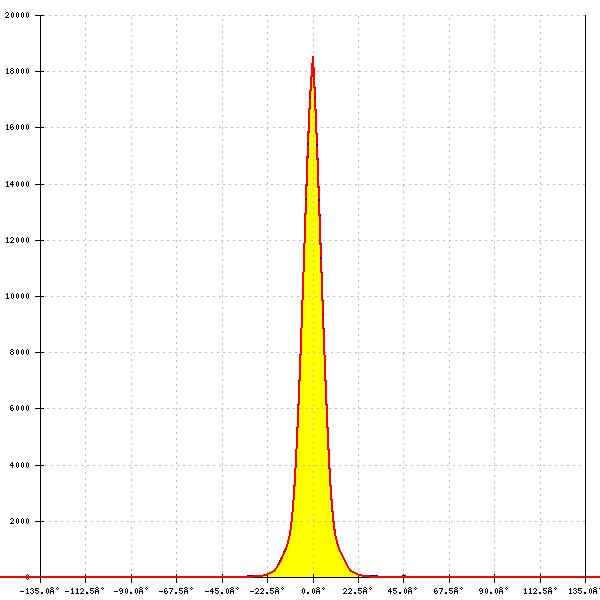

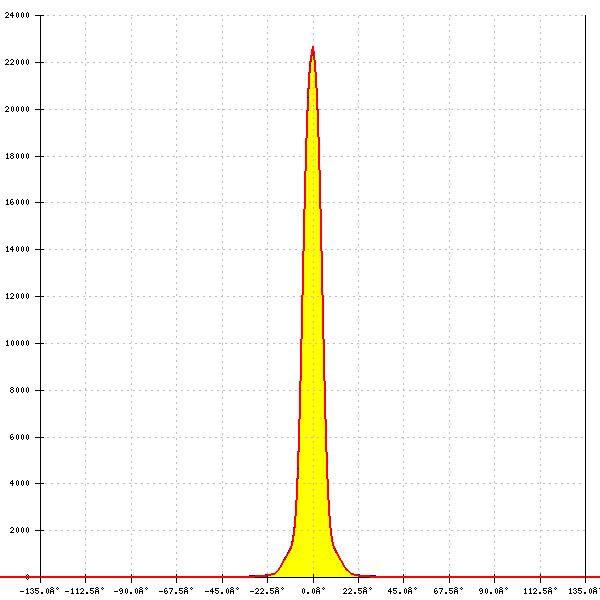

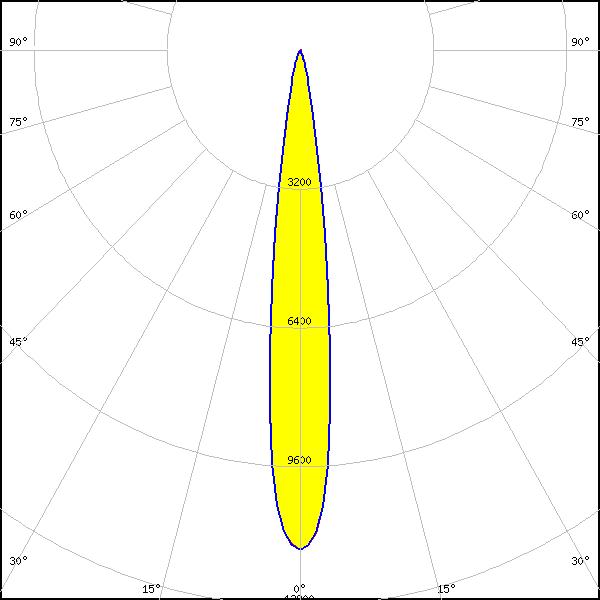

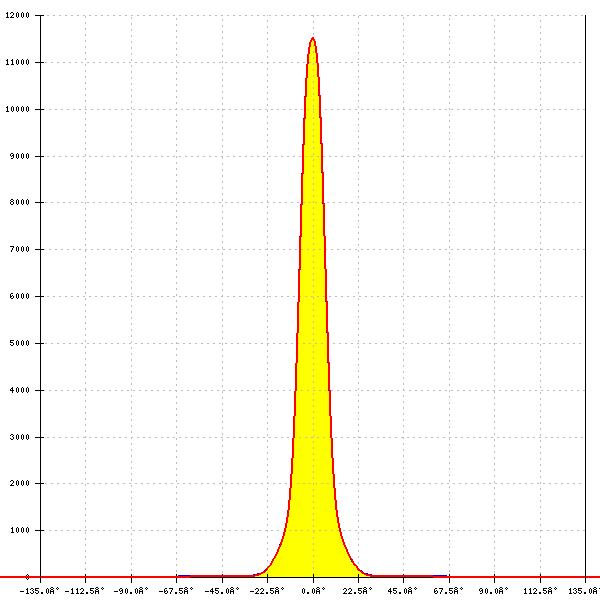

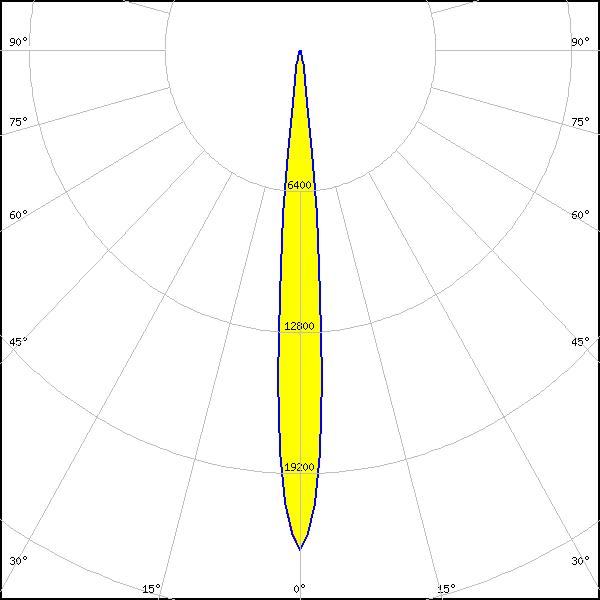

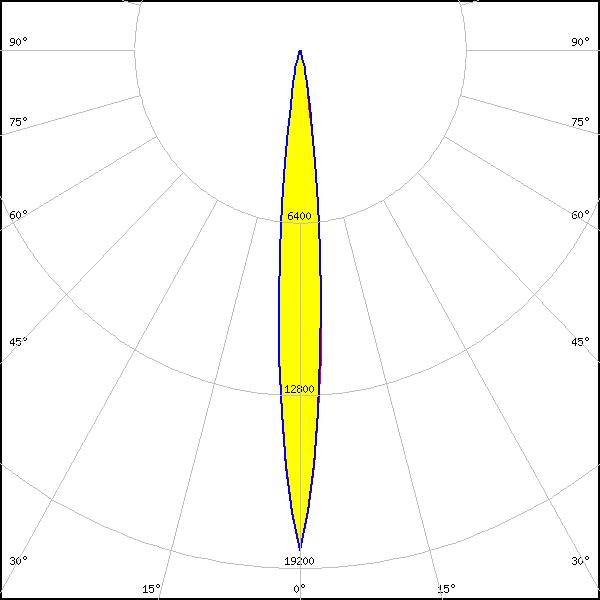

Optical results
LED:

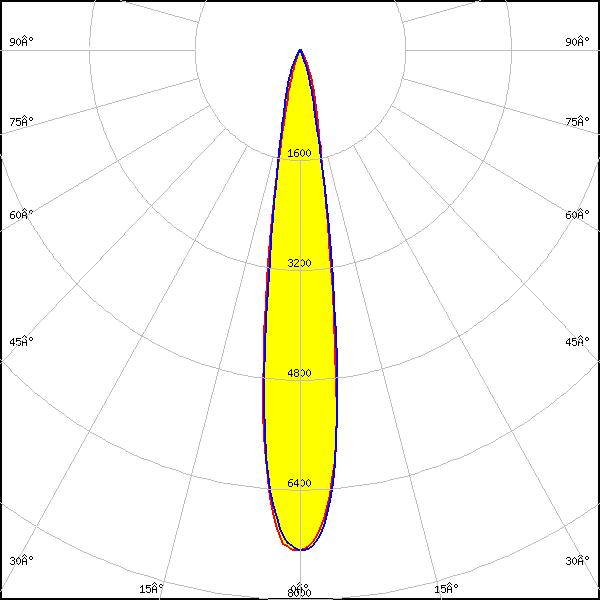

QUICK FLUX 2x6 LED XG xxx G7+
FWHM:
16°
FWTM:
33°
Peak intensity:
7.300 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

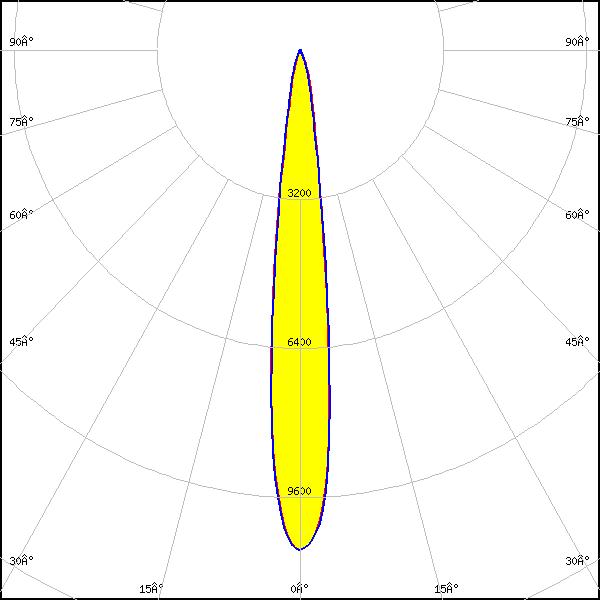

QUICK FLUX 2x6 LED XT xxx G5
FWHM:
13°
FWTM:
26°
Peak intensity:
10.700 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050 Round LES
FWHM:
25°
FWTM:
51°
Peak intensity:
3.370 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

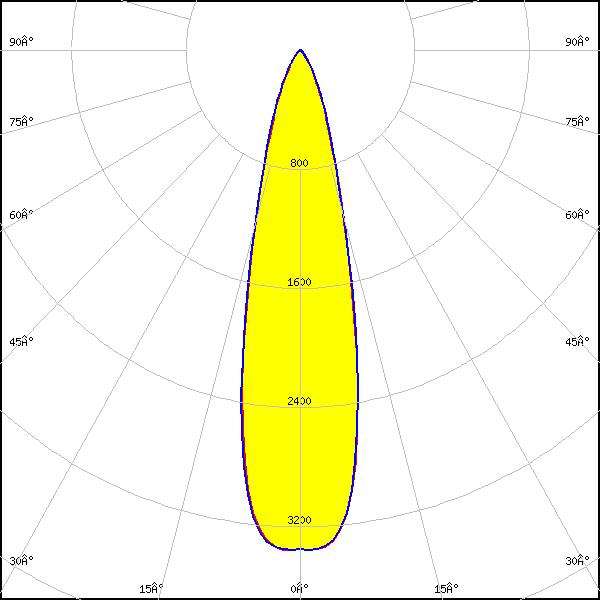

J Series 5050B 6V K Class
FWHM:
24°
FWTM:
52°
Peak intensity:
3.203 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

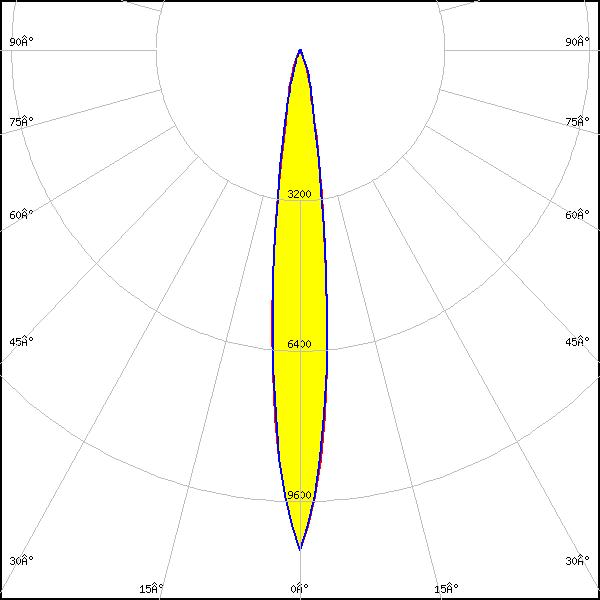

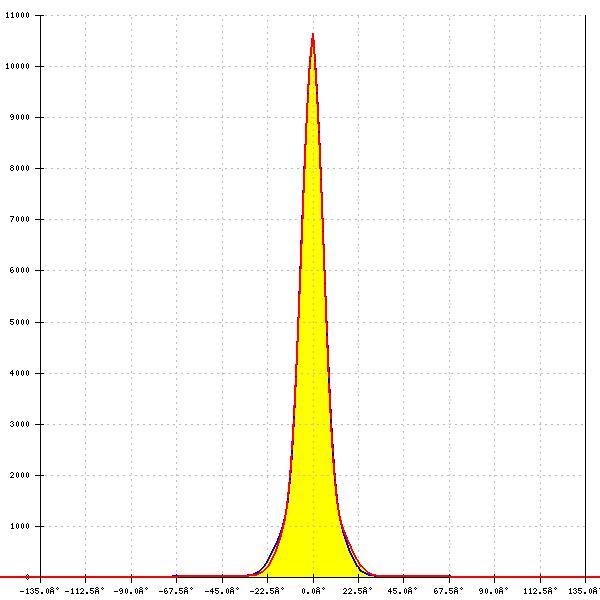

XB-H
FWHM:
12°
FWTM:
28°
Peak intensity:
10.639 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

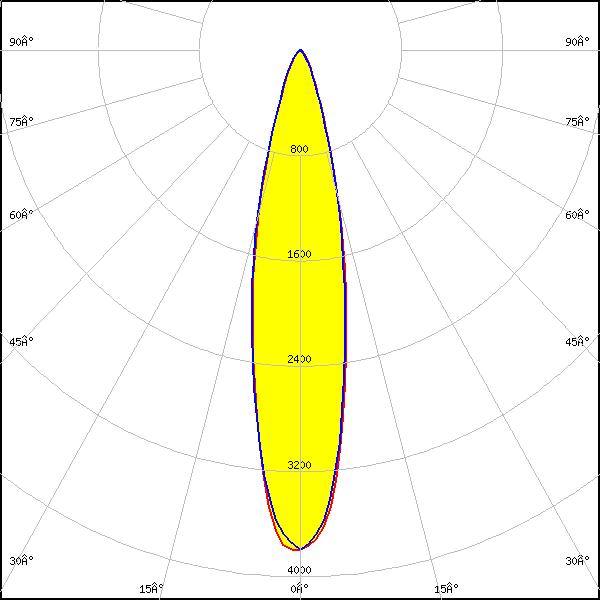

XHP35 HD
FWHM:
22°
FWTM:
46°
Peak intensity:
3.800 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

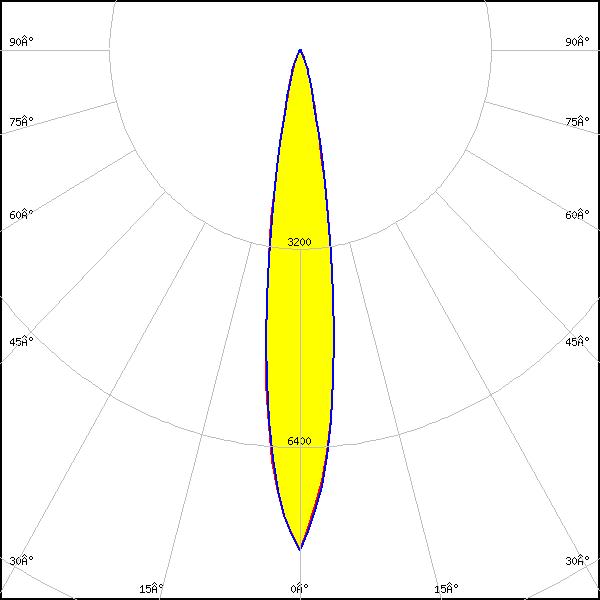

LED:

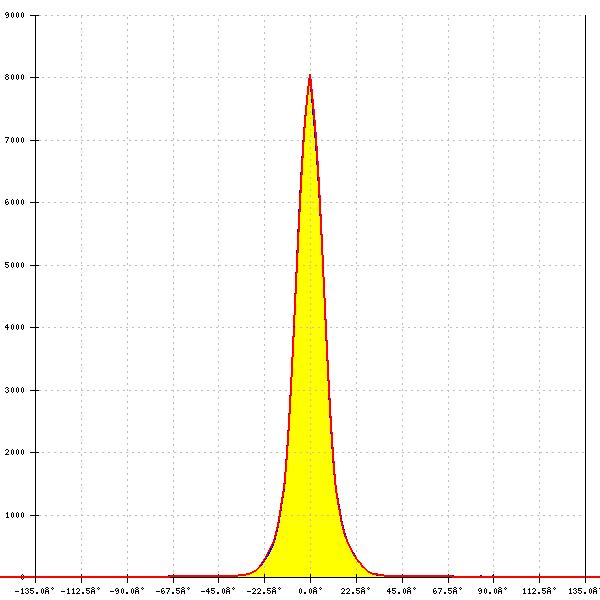

XHP35 HI
FWHM:
16°
FWTM:
32°
Peak intensity:
8.050 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

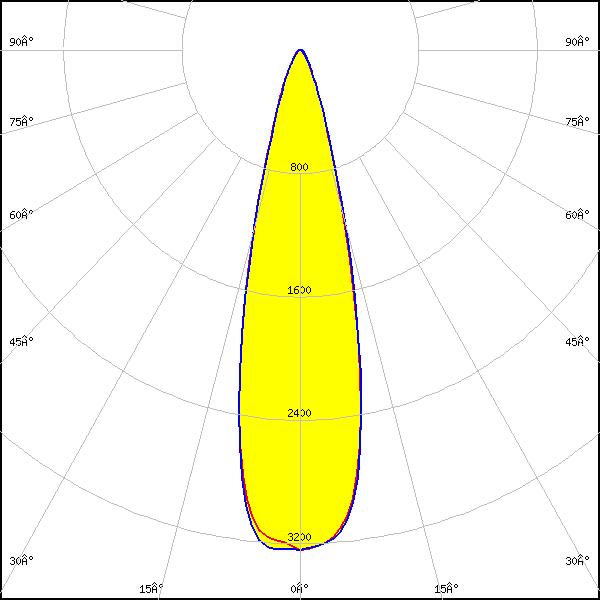

LED:
XHP35.2 HD
FWHM:
26°
FWTM:
48°
Peak intensity:
3.278 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

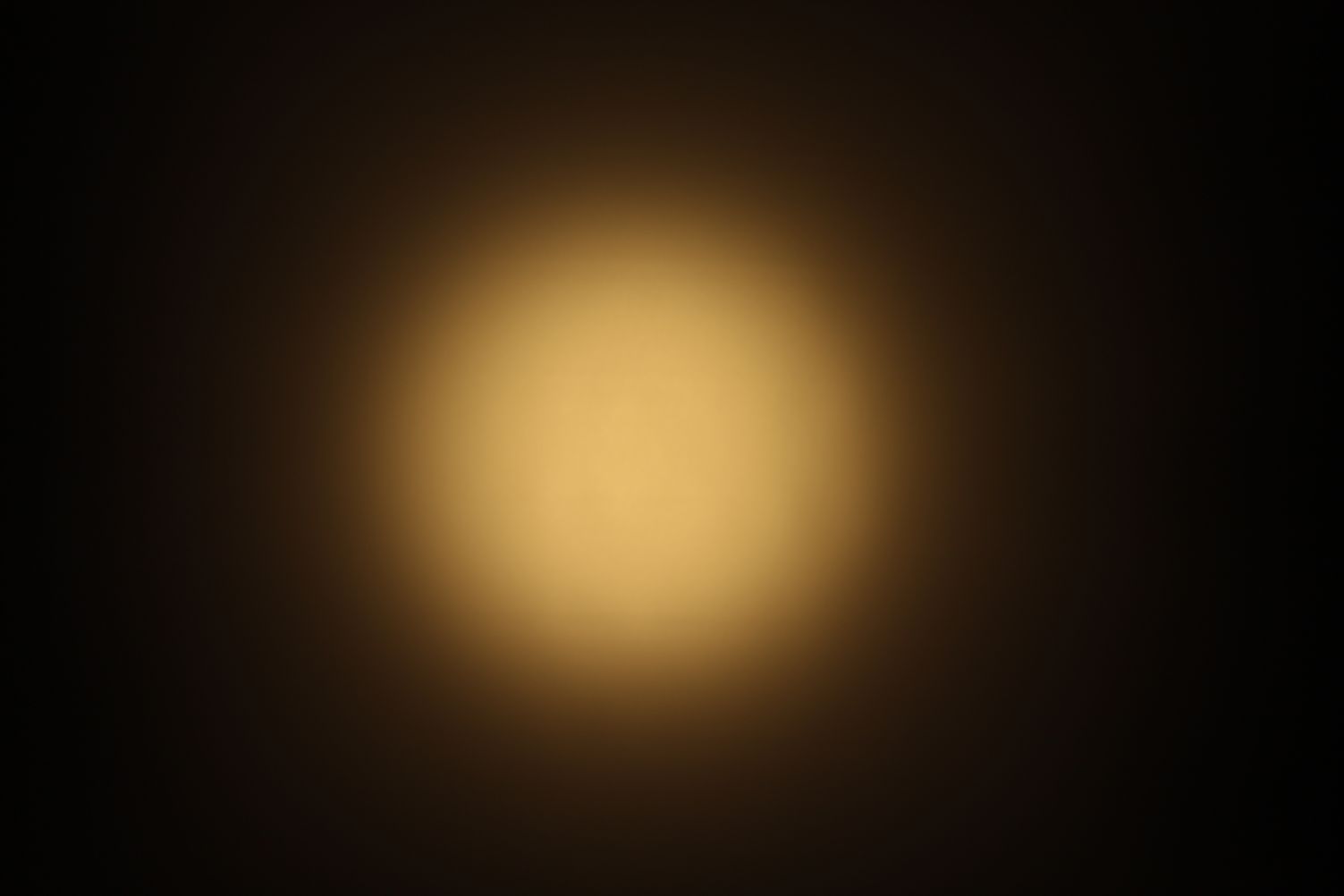

LED:

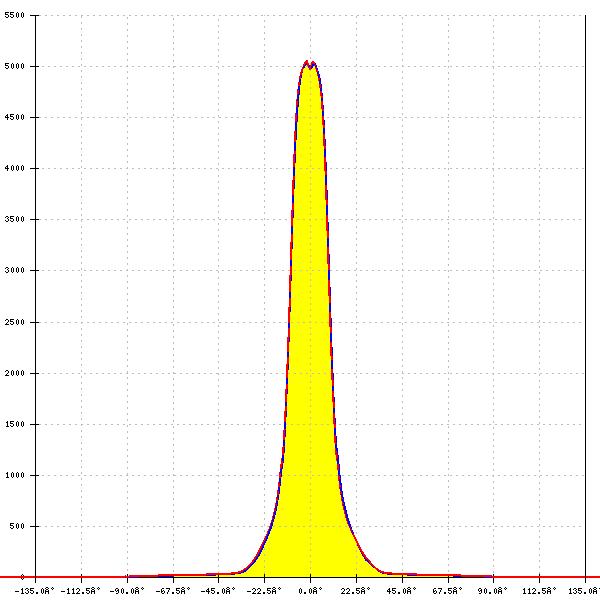

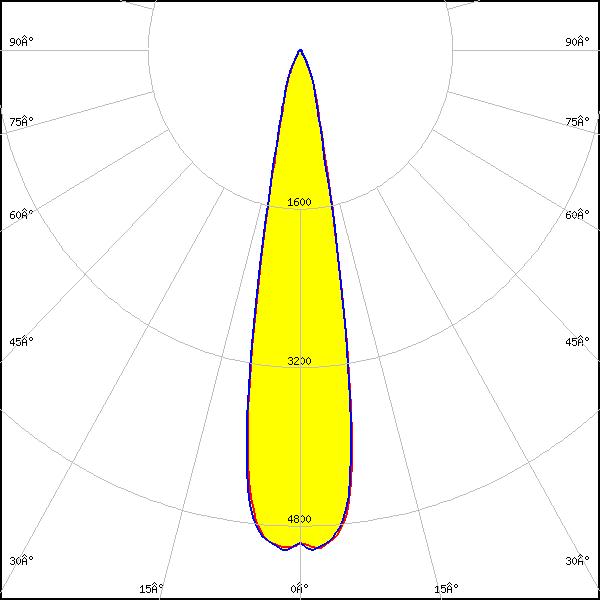

XM-L
FWHM:
21°
FWTM:
38°
Peak intensity:
5.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

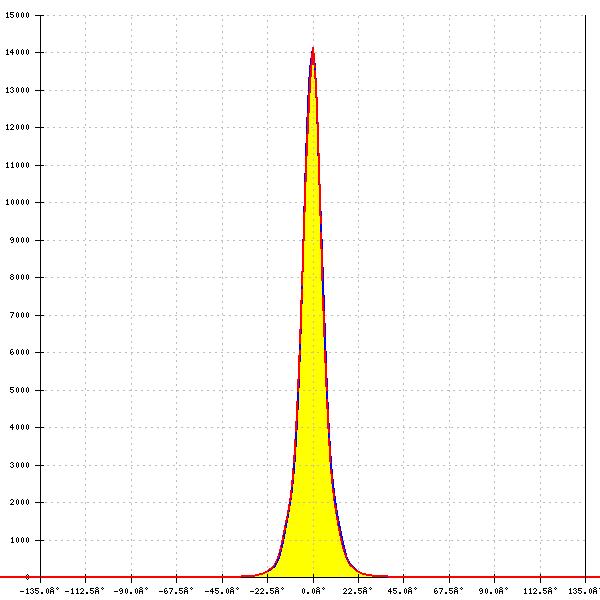

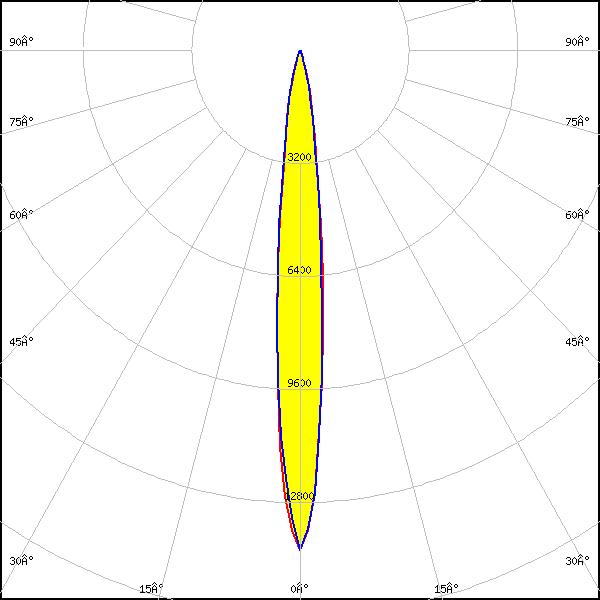

XP-E2
FWHM:
11°
FWTM:
26°
Peak intensity:
14.100 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2
FWHM:
13°
FWTM:
27°
Peak intensity:
10.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

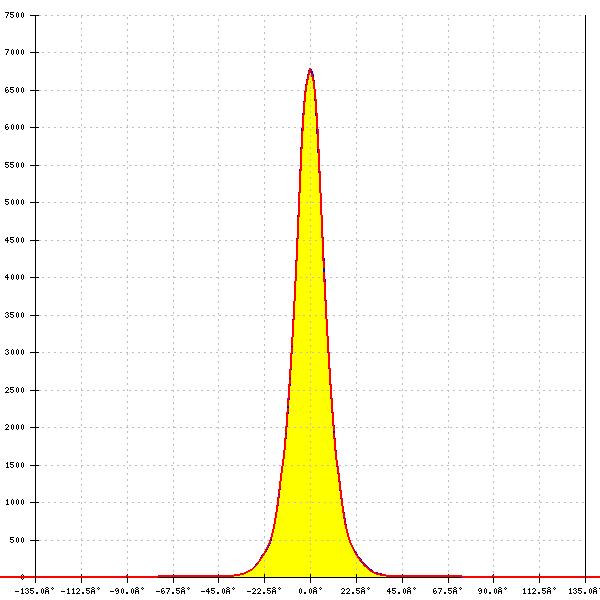

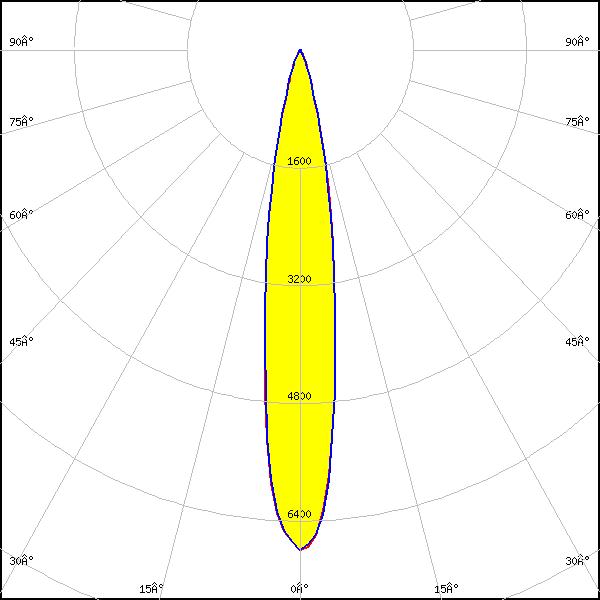

XP-G2 HE
FWHM:
17°
FWTM:
35°
Peak intensity:
6.859 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

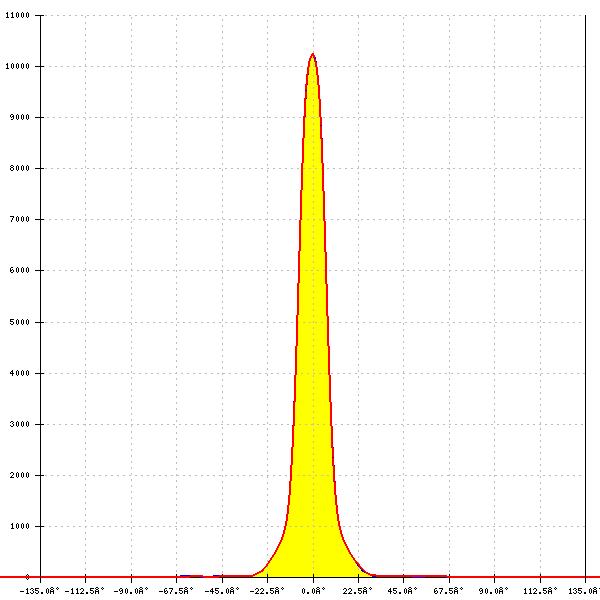

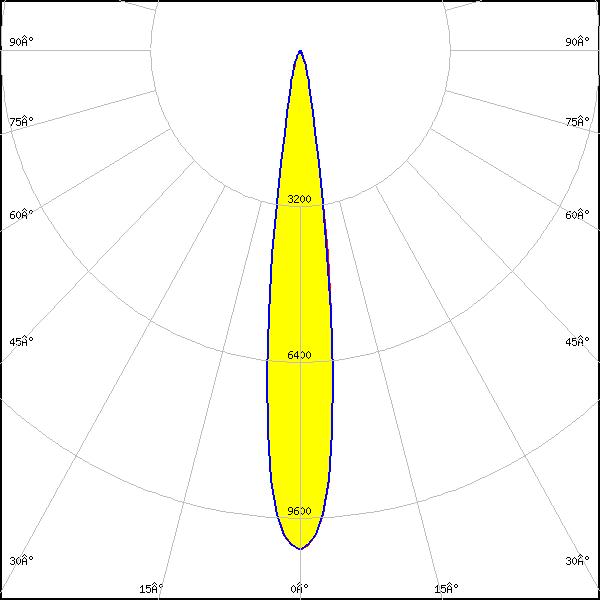

XP-G4
FWHM:
14°
FWTM:
26°
Peak intensity:
10.261 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

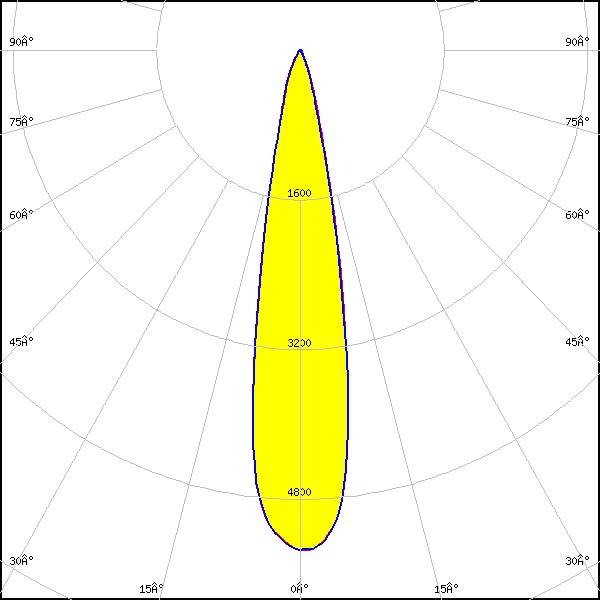

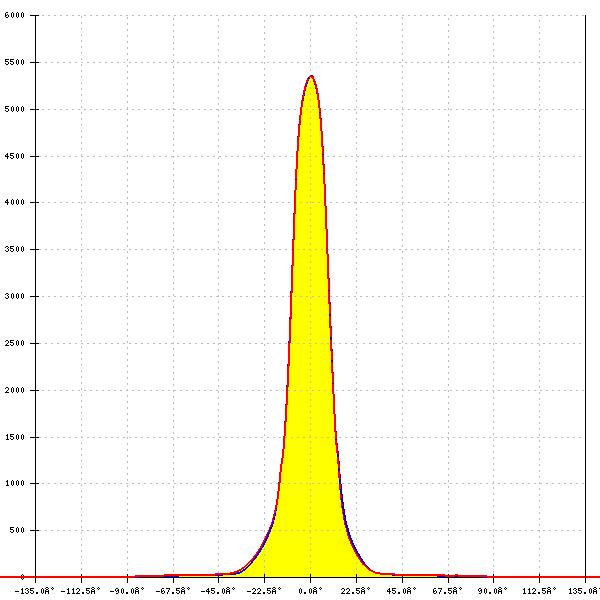

XP-L HD
FWHM:
20°
FWTM:
37°
Peak intensity:
5.400 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

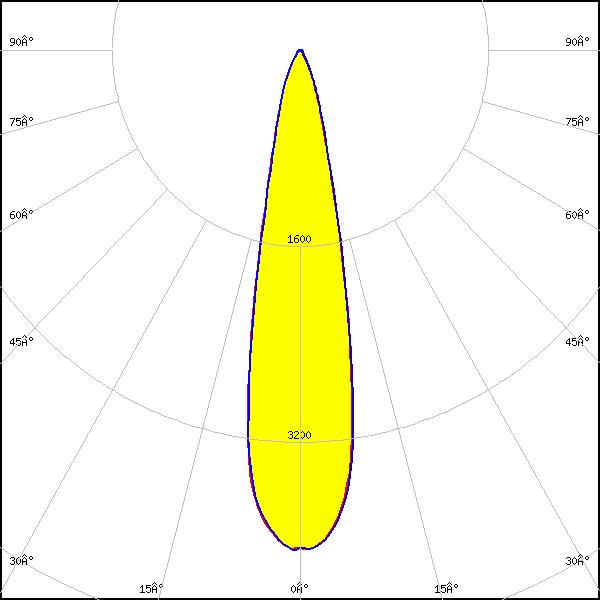

XP-L2
FWHM:
22°
FWTM:
43°
Peak intensity:
4.100 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

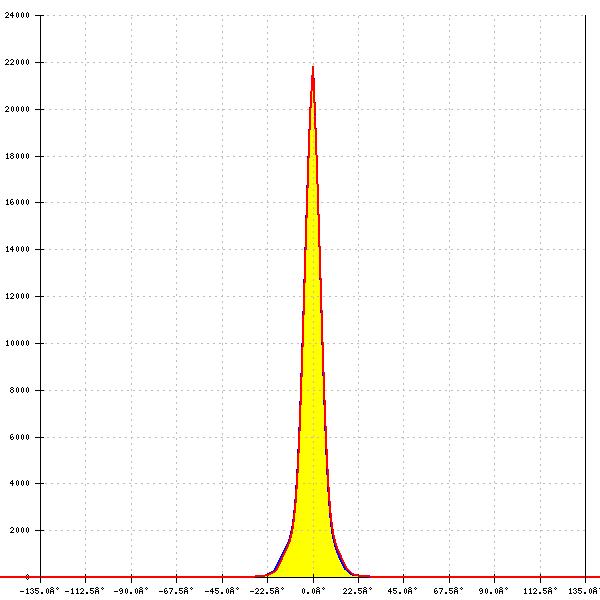

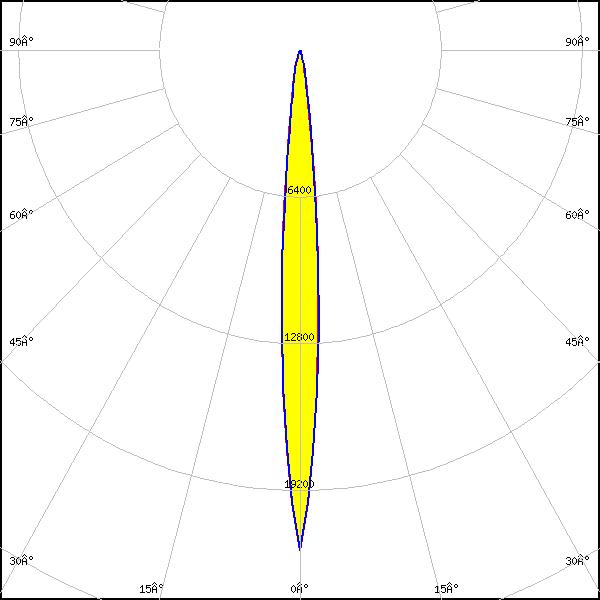

XQ-E HD
FWHM:
8°
FWTM:
19°
Peak intensity:
21.814 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XT-E HE
FWHM:
13°
FWTM:
26°
Peak intensity:
11.200 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

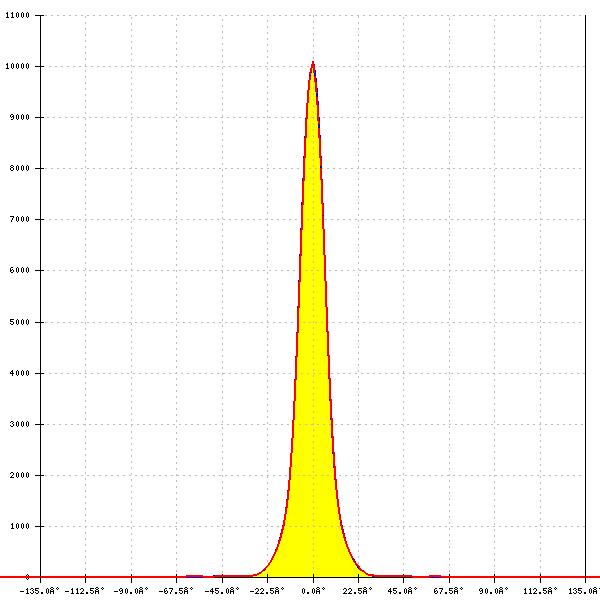

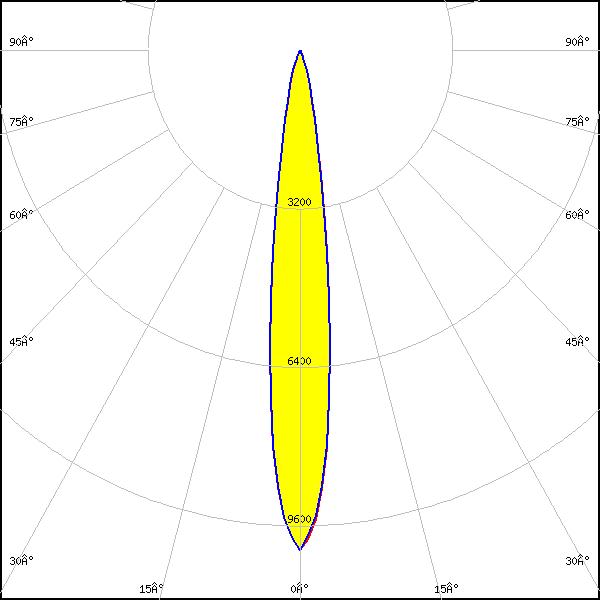

PrevaLED Brick HP IP 2x6
FWHM:
14°
FWTM:
28°
Peak intensity:
10.092 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

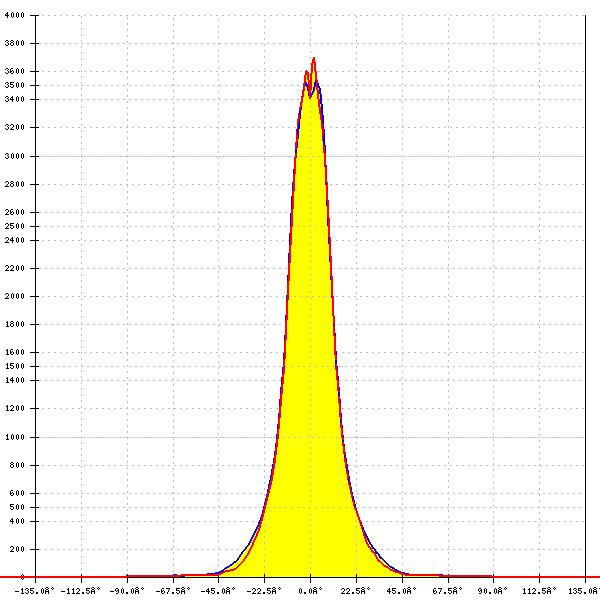

LED:

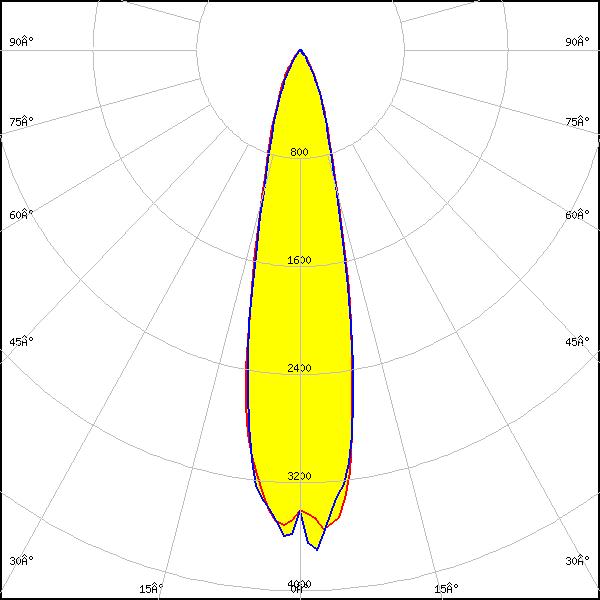

LUXEON 5050 Round LES
FWHM:
23°
FWTM:
50°
Peak intensity:
3.740 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

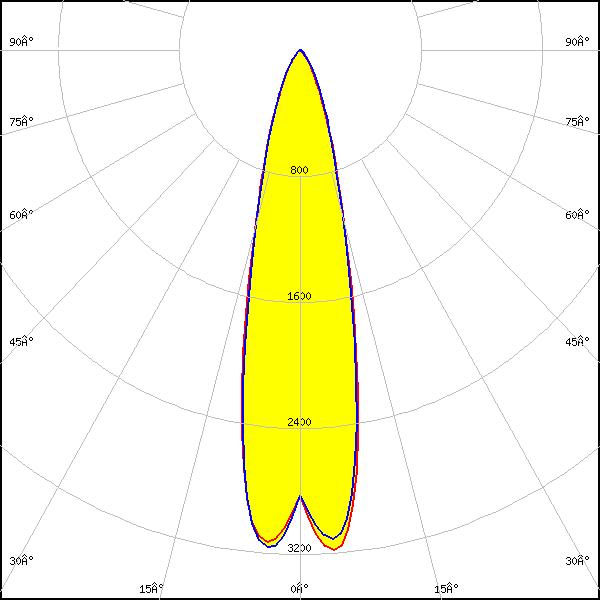

LED:

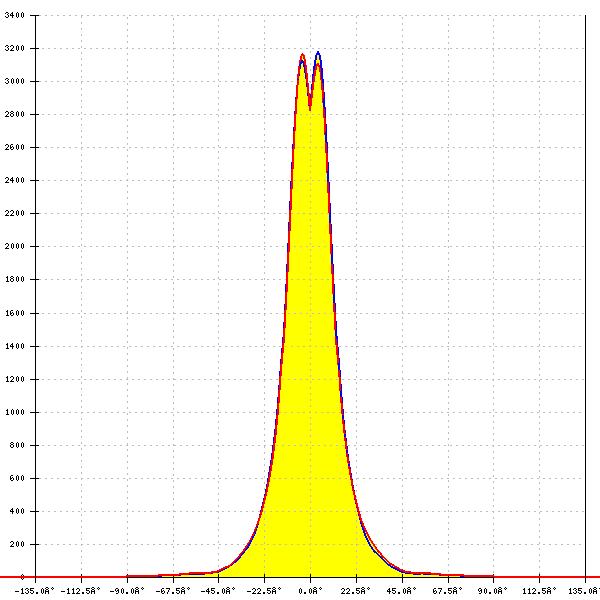

LUXEON 5050 Square LES
FWHM:
25°
FWTM:
52°
Peak intensity:
3.181 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON C
FWHM:
10°
FWTM:
23°
Peak intensity:
17.313 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
Cyan
LED:

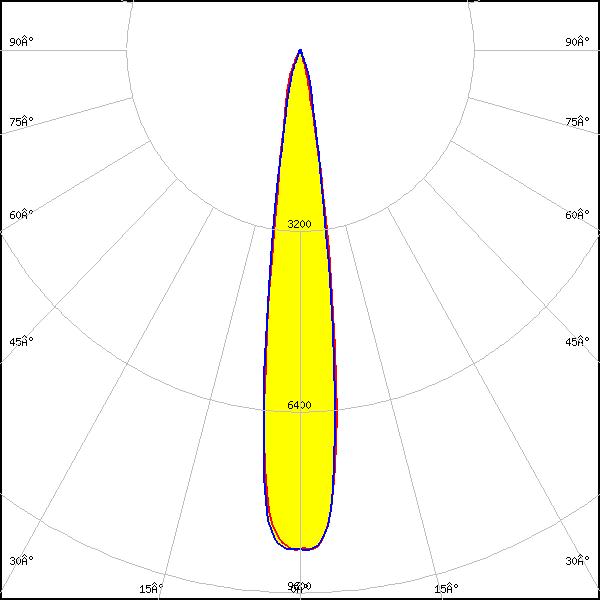

LUXEON T
FWHM:
15°
FWTM:
29°
Peak intensity:
8.800 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

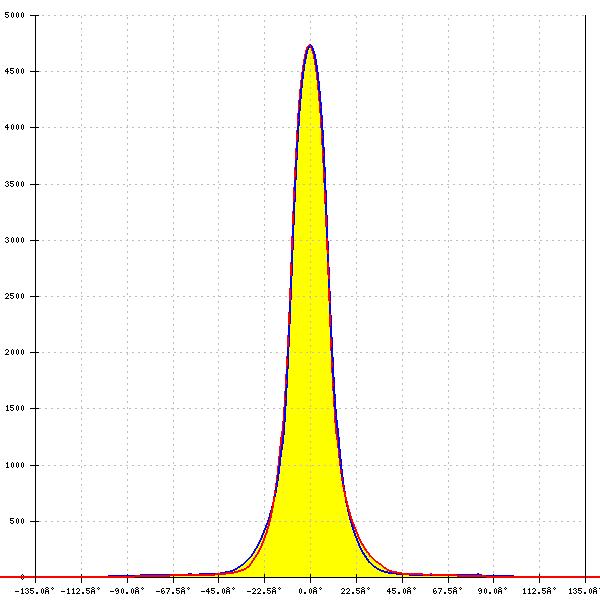

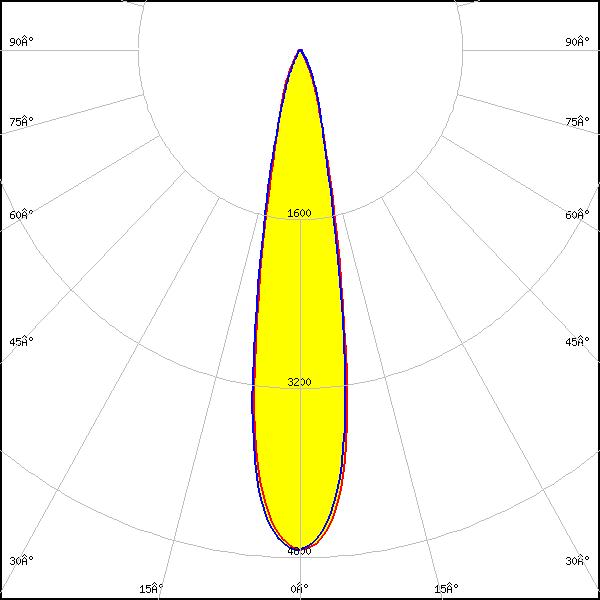

LED:
LUXEON V
FWHM:
20°
FWTM:
41°
Peak intensity:
4.700 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

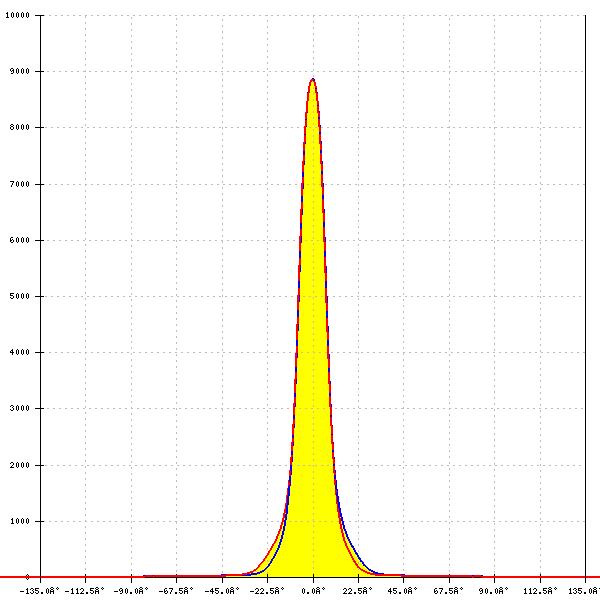

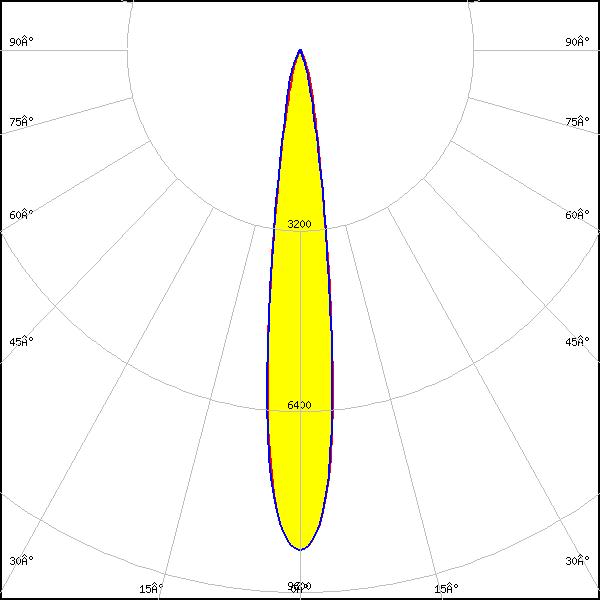

LED:
LUXEON V2
FWHM:
15°
FWTM:
30°
Peak intensity:
8.900 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

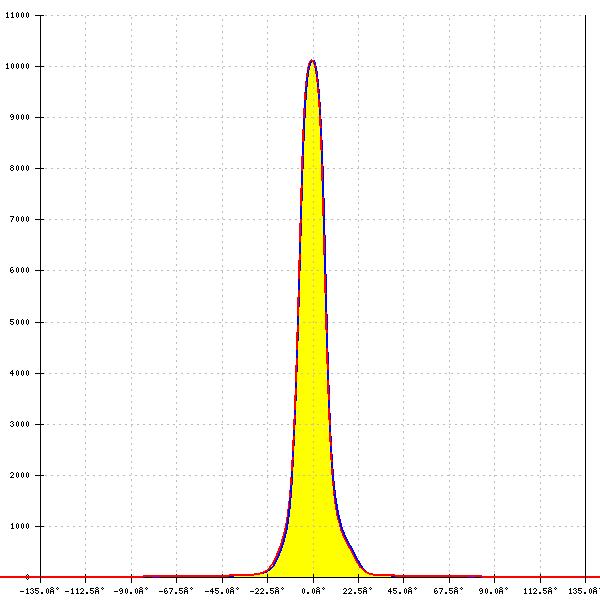

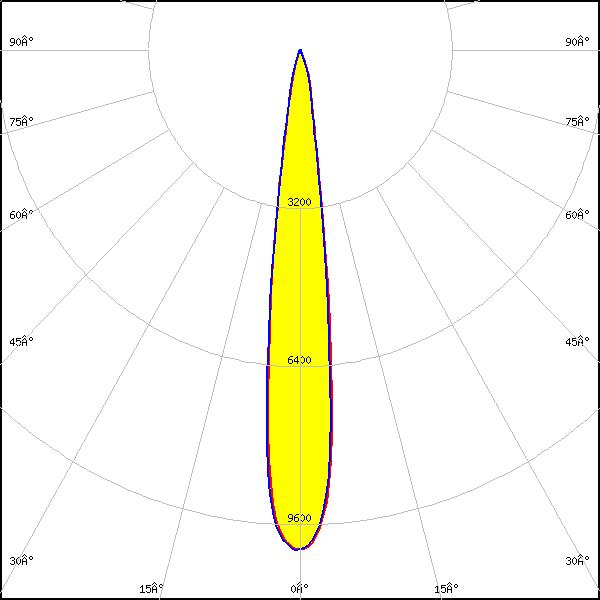

LUXEON XR-TX (L2T0-xxxx012M0000)
FWHM:
14°
FWTM:
27°
Peak intensity:
10.120 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

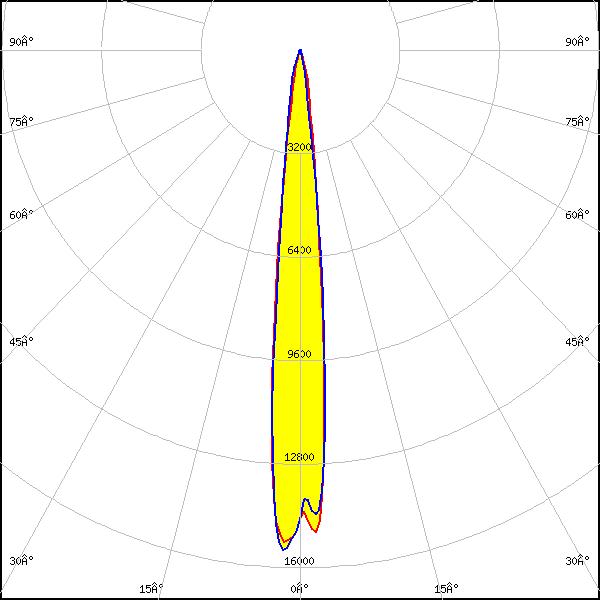

LED:

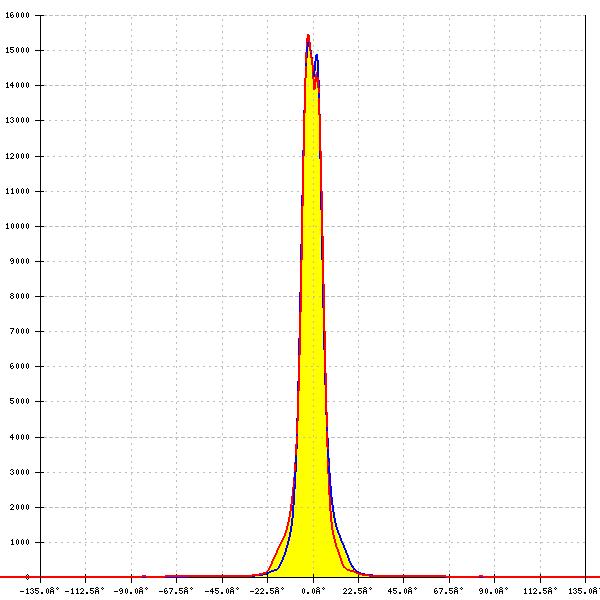

SST-10-B130
FWHM:
12°
FWTM:
22°
Peak intensity:
15.561 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
Deep Red
LED:

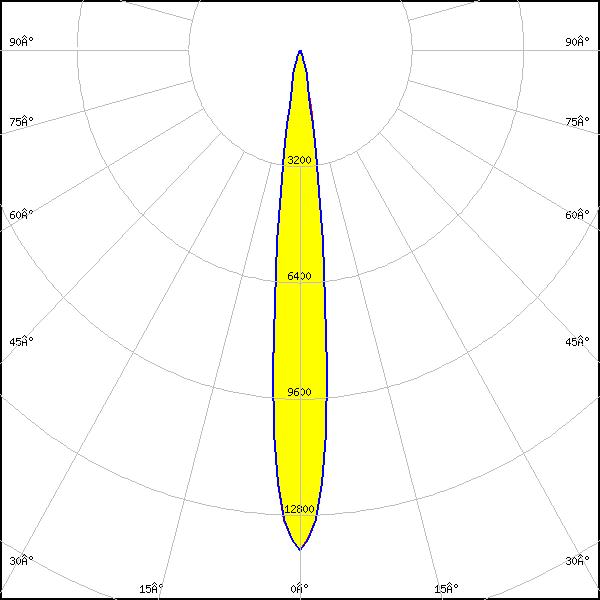

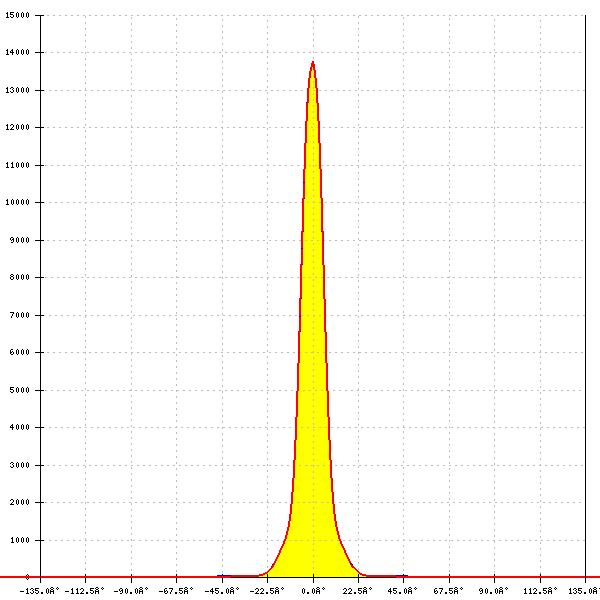

SST-20 Gen2
FWHM:
12°
FWTM:
24°
Peak intensity:
13.763 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

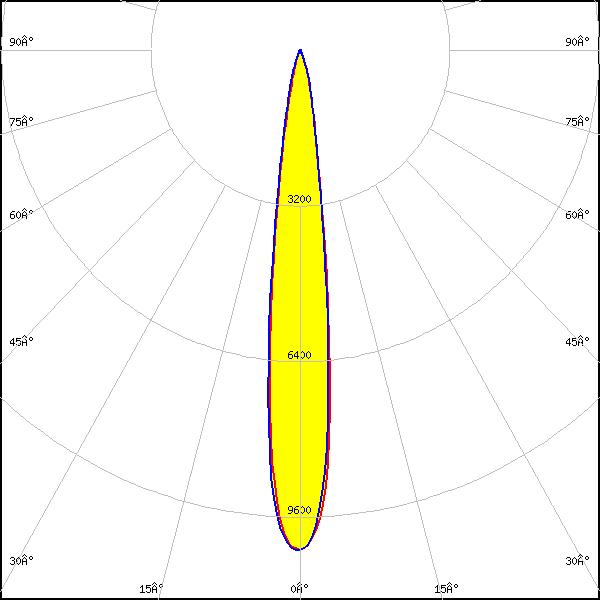

LED:

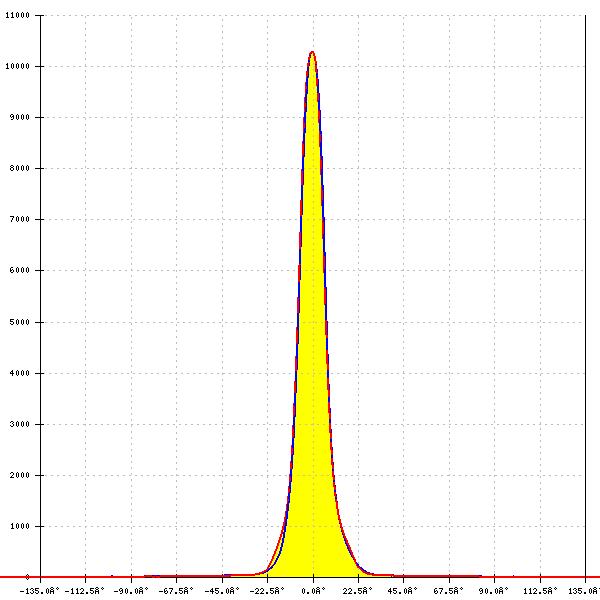

RecLED 146x45mm 2900lm 730 2x6 IP G1
FWHM:
14°
FWTM:
27°
Peak intensity:
10.282 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

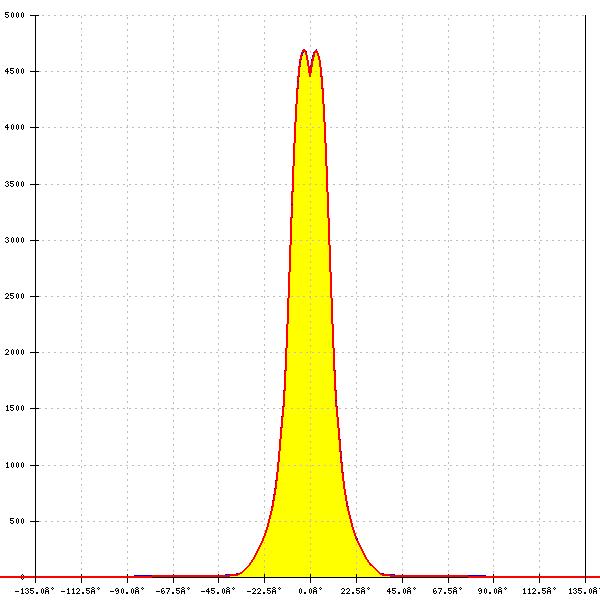

LED:

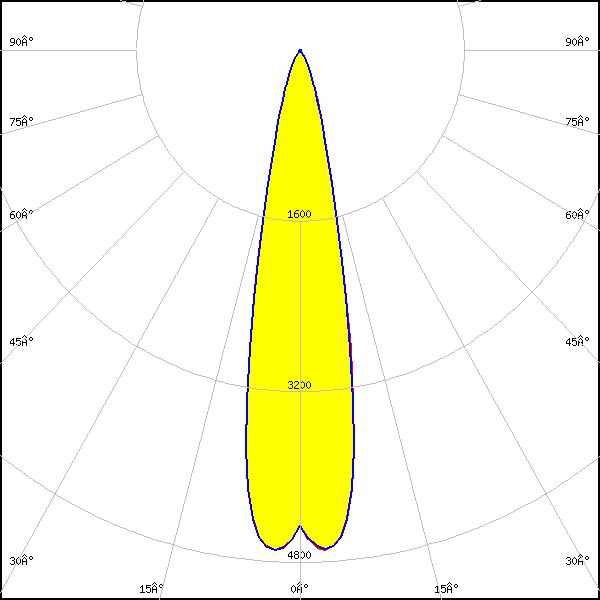

NV4WB35AM
FWHM:
22°
FWTM:
40°
Peak intensity:
4.802 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

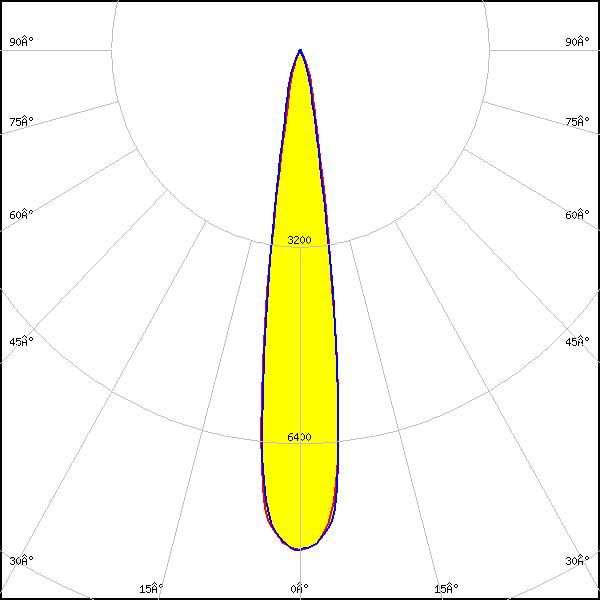

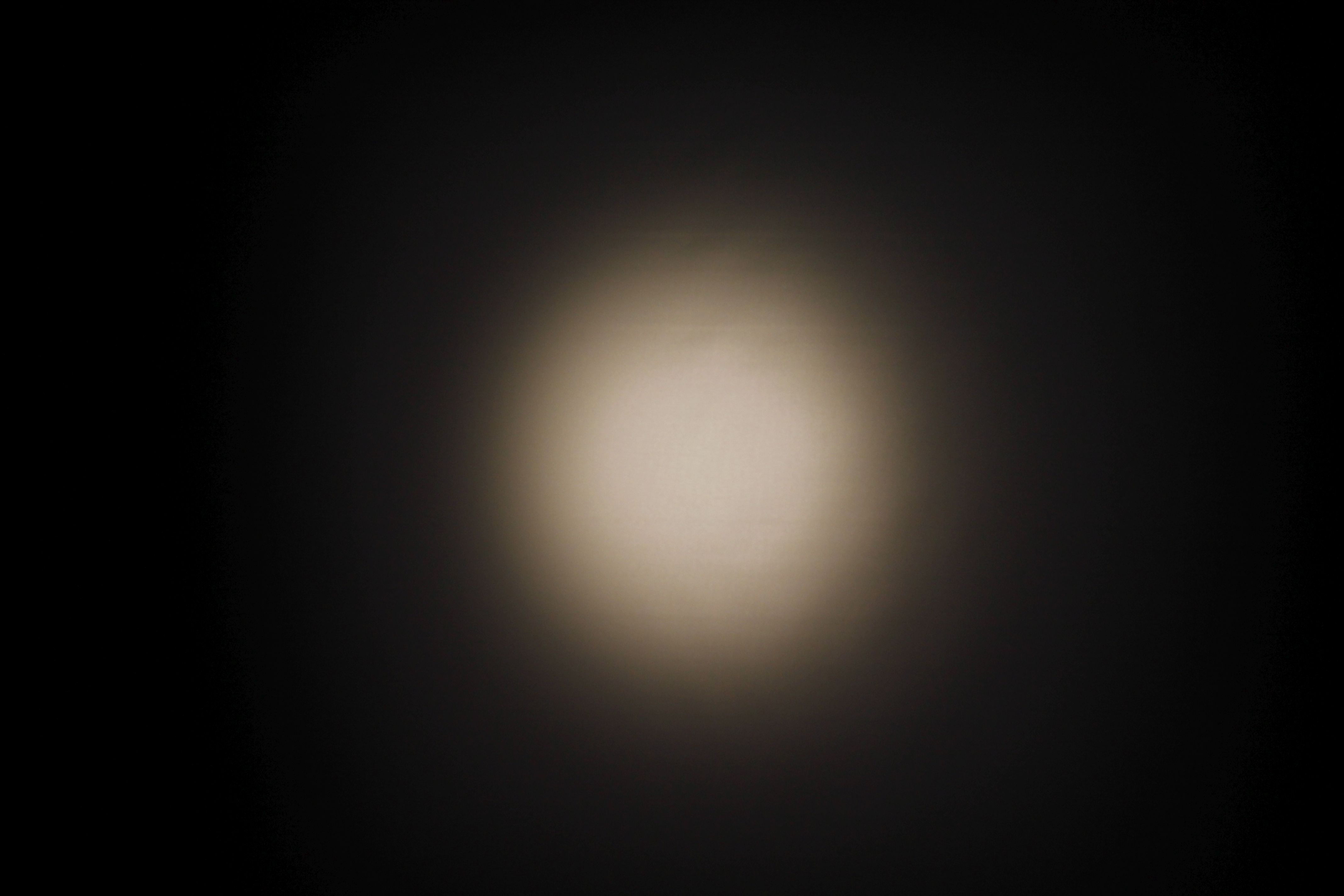

LED:
NVSW219D
FWHM:
16°
FWTM:
30°
Peak intensity:
8.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

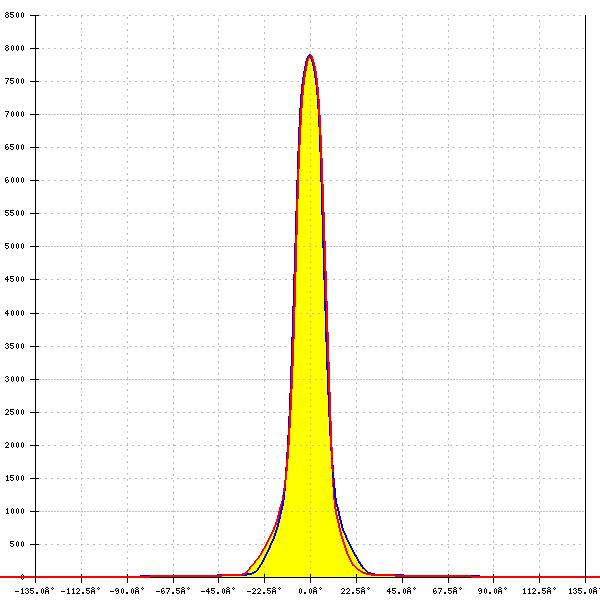

LED:

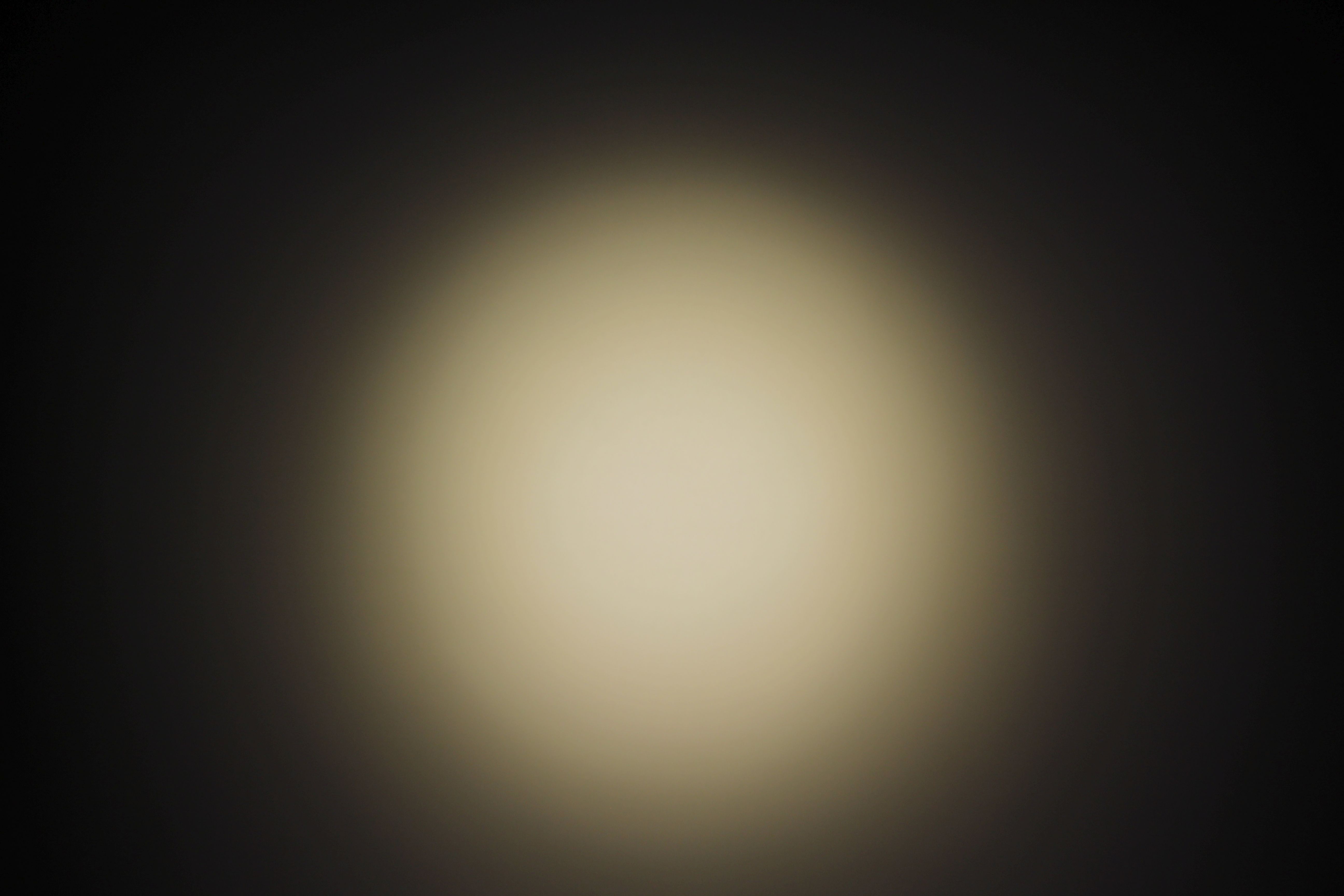

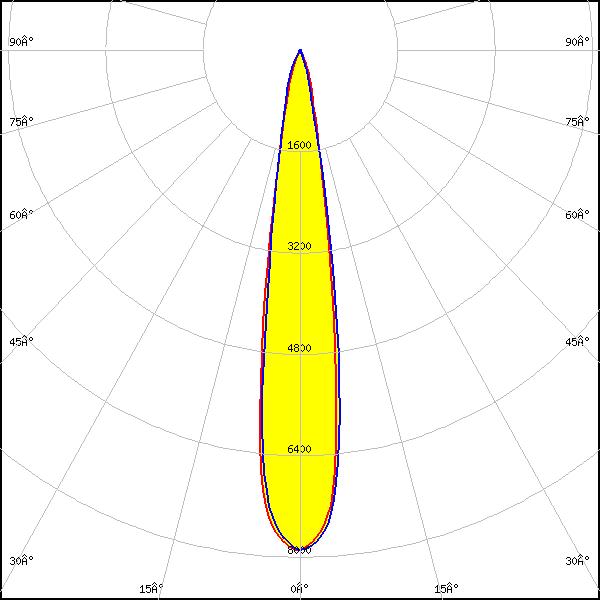

NVSW219F
FWHM:
16°
FWTM:
31°
Peak intensity:
94.000 cd/lm
Efficiency:
8 %
LEDs/each optic:
1
Light colour/type:
White
LED:

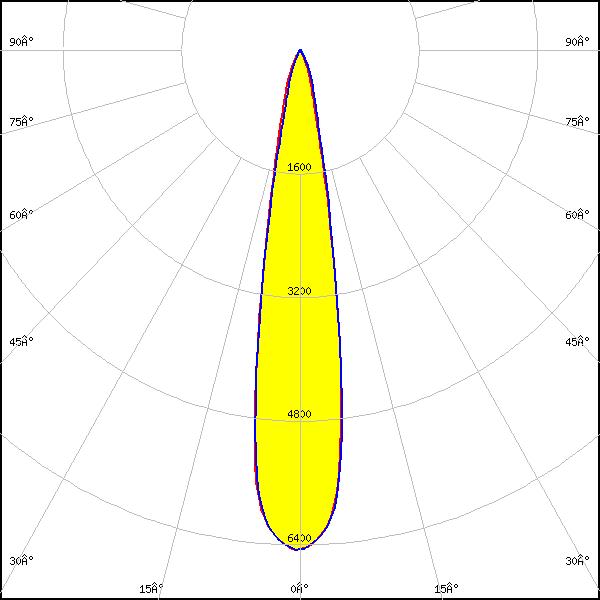

NVSW319B
FWHM:
18°
FWTM:
34°
Peak intensity:
6.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

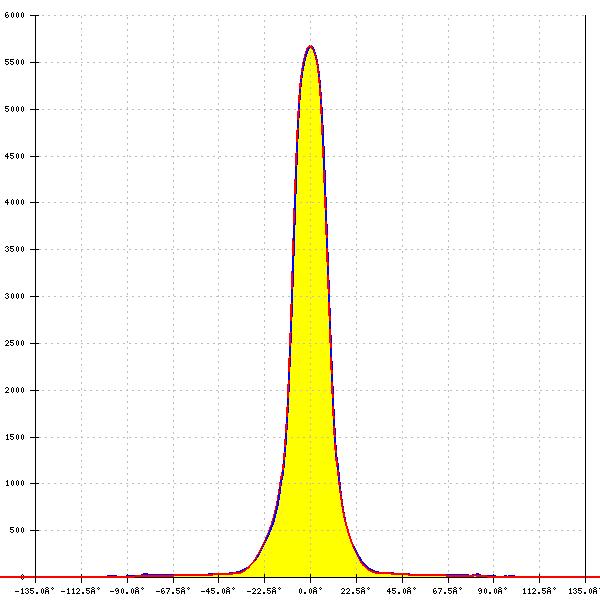

NVSW3x9A
FWHM:
19°
FWTM:
36°
Peak intensity:
5.700 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

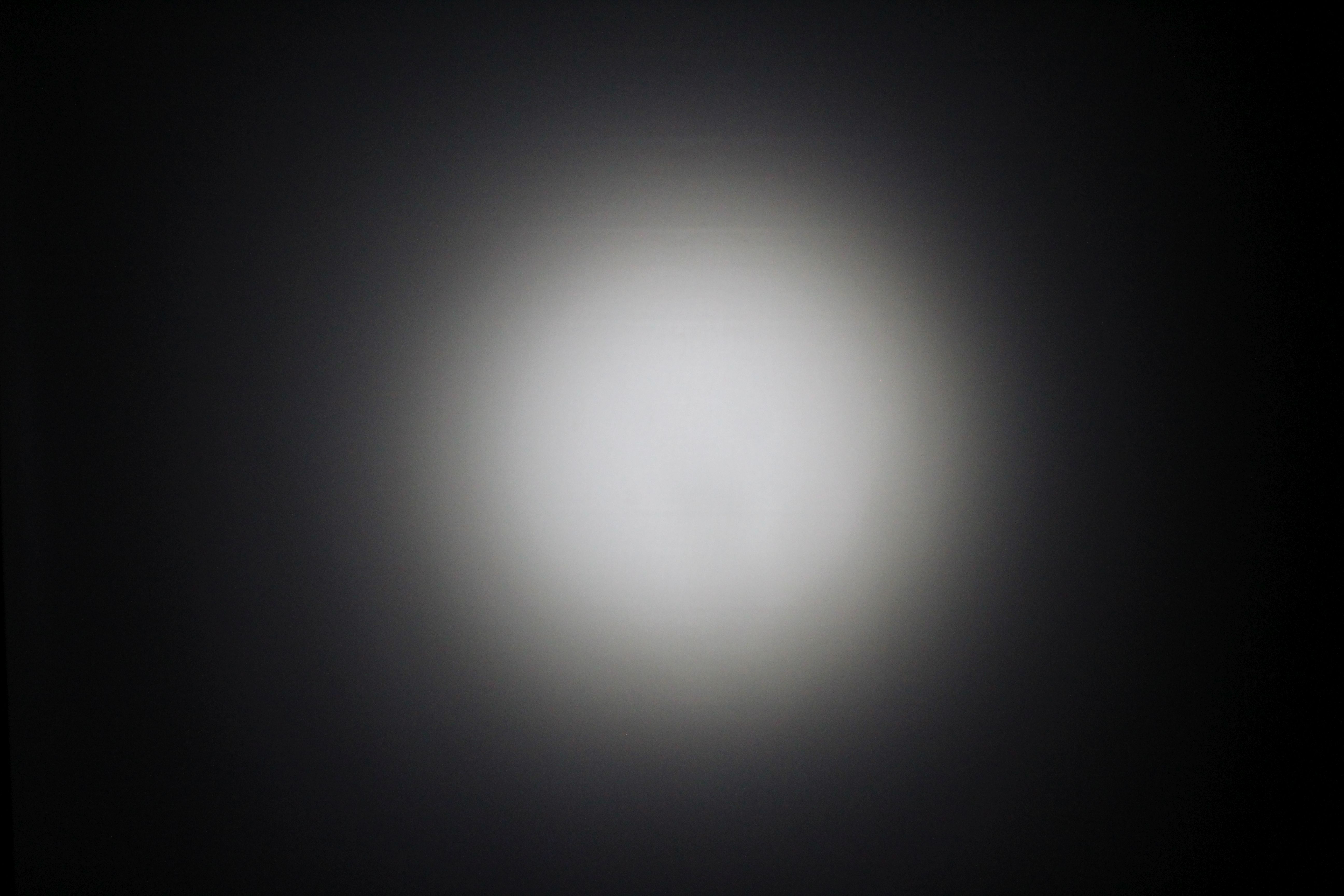

LED:

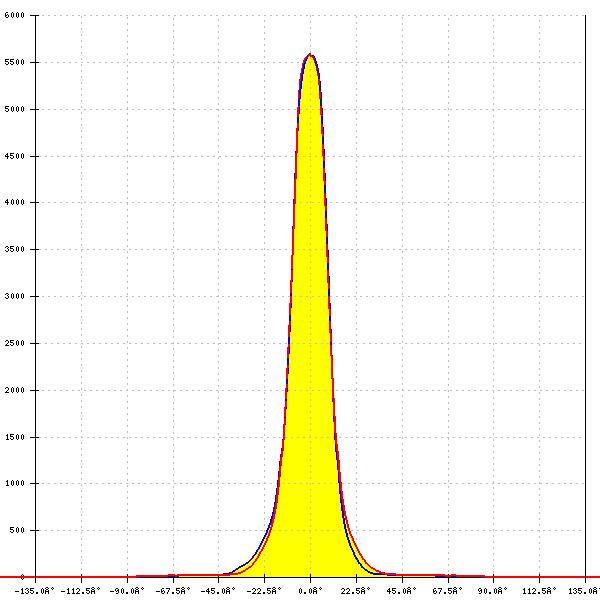

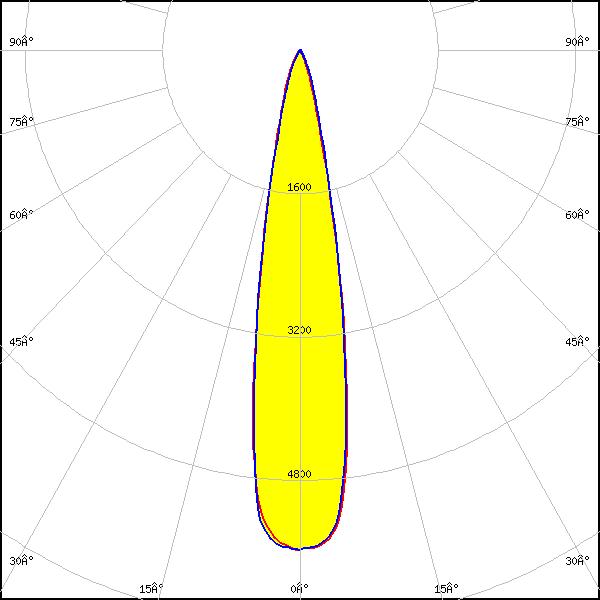

NVSW519A
FWHM:
20°
FWTM:
37°
Peak intensity:
5.581 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

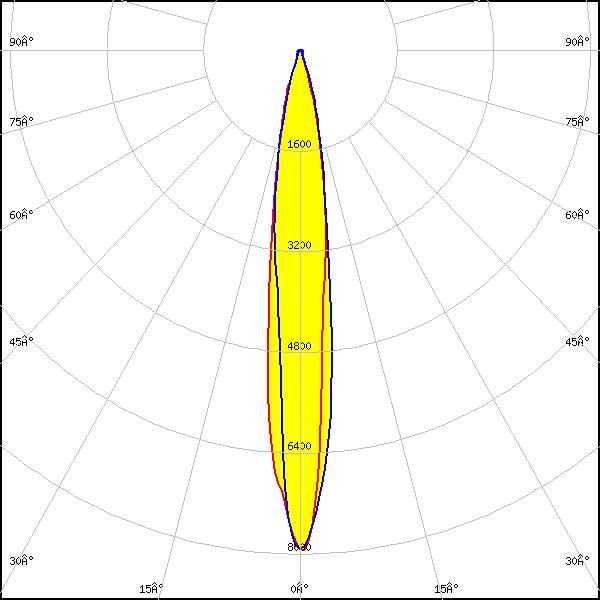

NVSxE21A
FWHM:
13°
FWTM:
33°
Peak intensity:
7.950 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19B/NVSxx19C
FWHM:
16°
FWTM:
32°
Peak intensity:
7.200 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

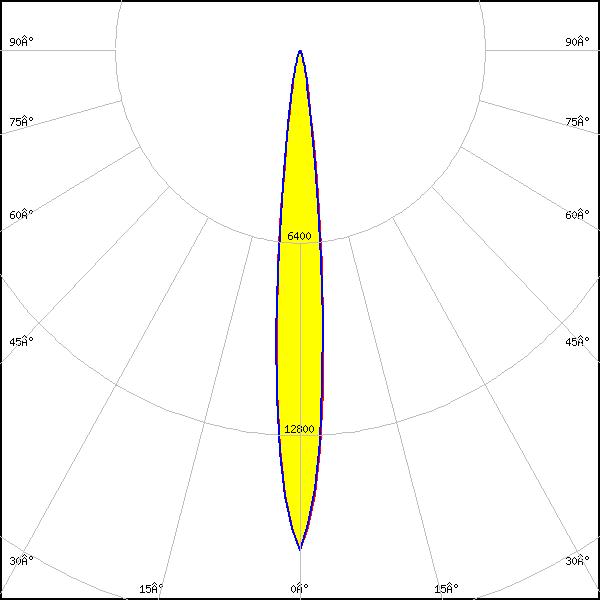

LED:
OSCONIQ C 2424
FWHM:
11°
FWTM:
22°
Peak intensity:
16.611 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

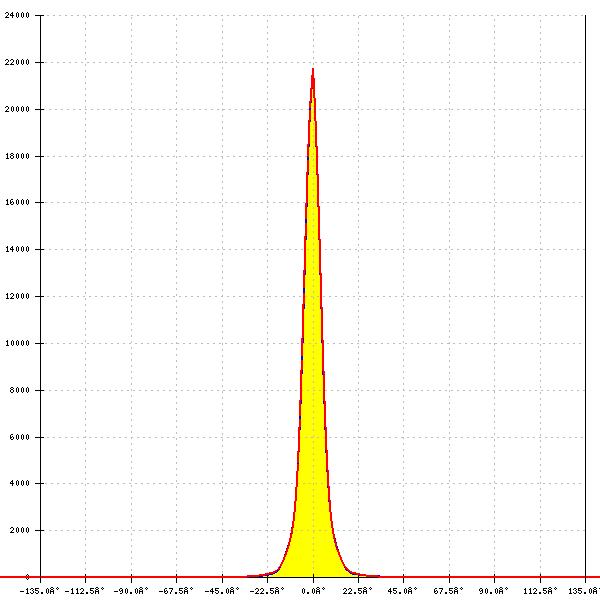

LED:

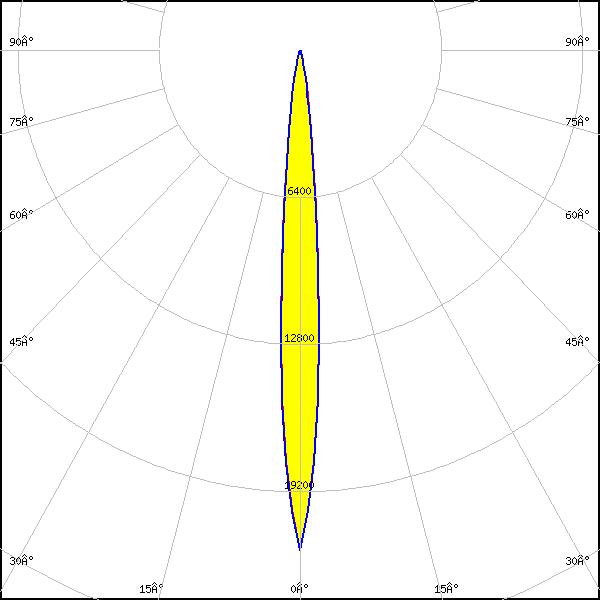

OSCONIQ P 3030
FWHM:
9°
FWTM:
20°
Peak intensity:
21.753 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 3737 (2W version)
FWHM:
12°
FWTM:
25°
Peak intensity:
13.000 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 3737 (3W version)
FWHM:
19°
FWTM:
37°
Peak intensity:
6.050 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

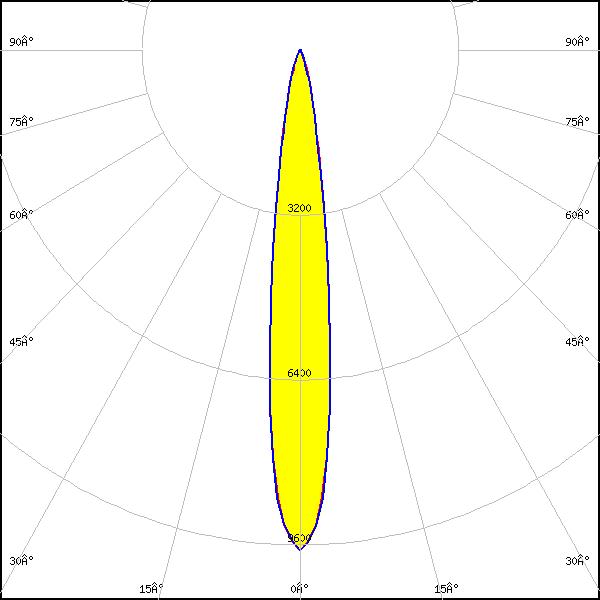

OSCONIQ P 3737 Flat
FWHM:
14°
FWTM:
30°
Peak intensity:
9.708 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

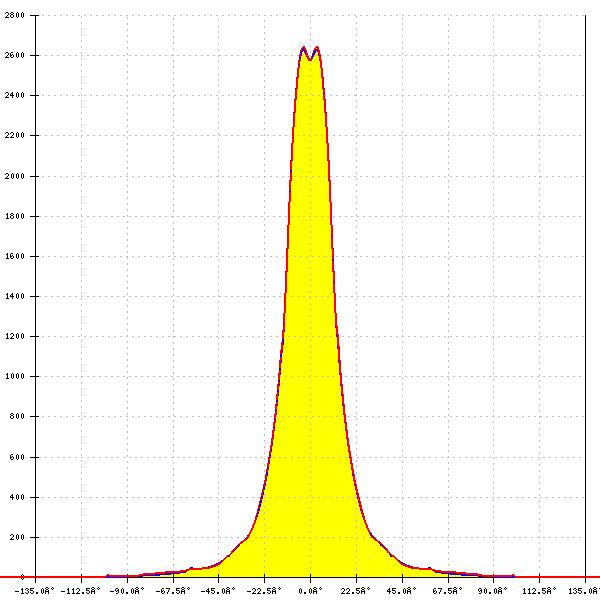

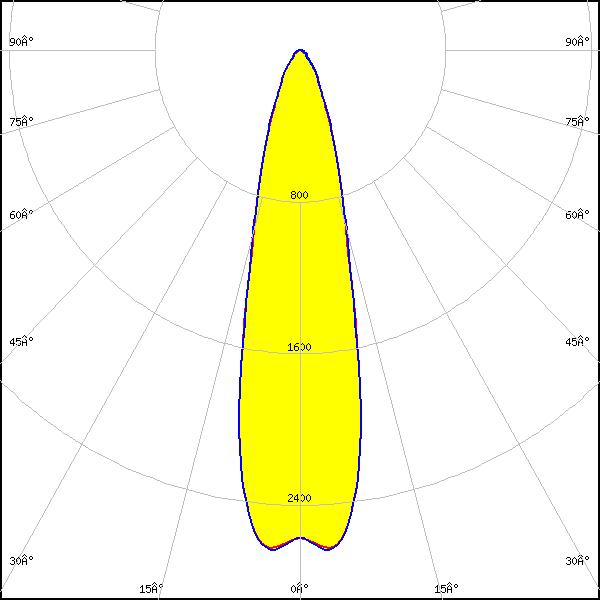

OSCONIQ S 5050 (Q9LR32)
FWHM:
26°
FWTM:
55°
Peak intensity:
2.724 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

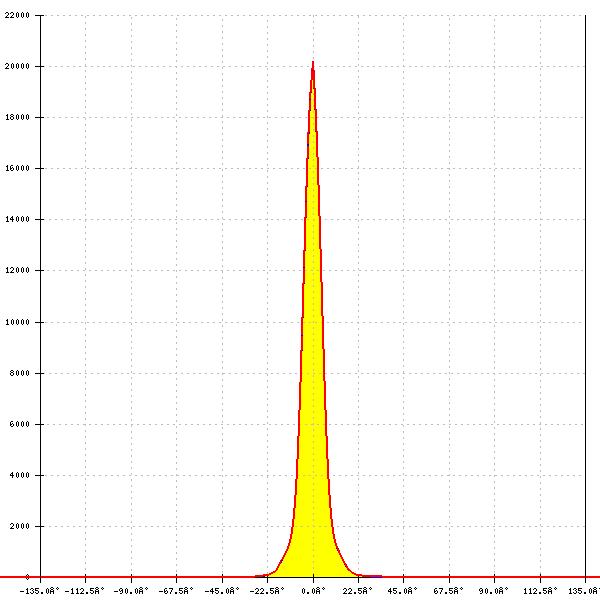

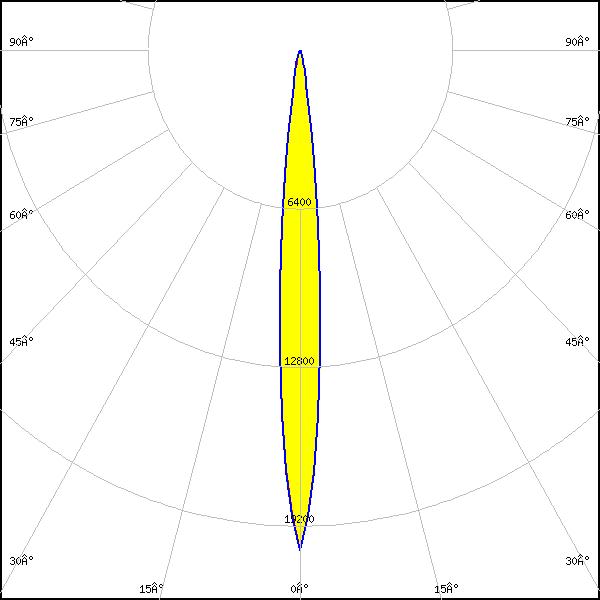

OSLON Square CSSRM2/CSSRM3
FWHM:
10°
FWTM:
20°
Peak intensity:
20.180 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
Far Red
LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
13°
FWTM:
24°
Peak intensity:
12.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

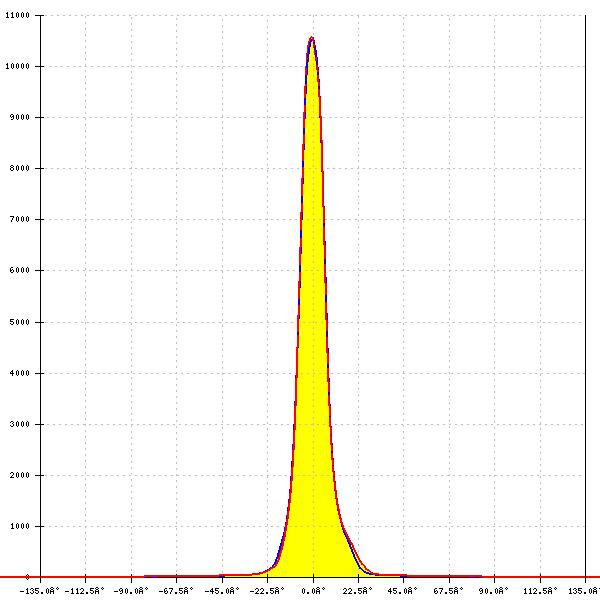

LED:

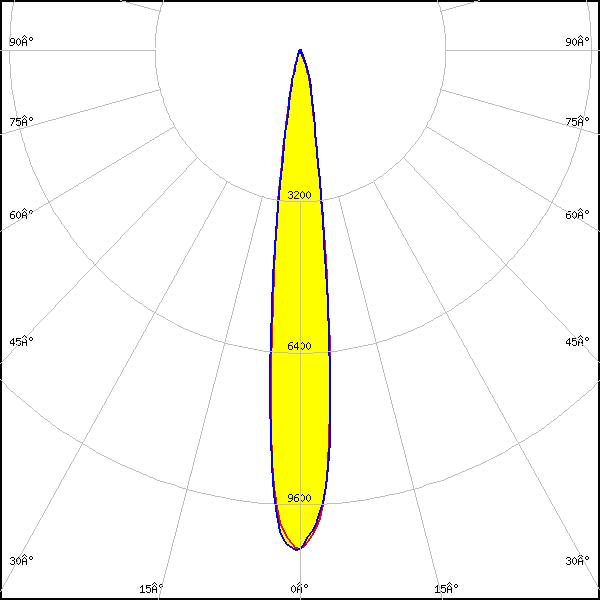

Fortimo FastFlex LED 2x6 DP G4
FWHM:
13°
FWTM:
27°
Peak intensity:
10.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x6 DP G5
FWHM:
14°
FWTM:
26°
Peak intensity:
10.352 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

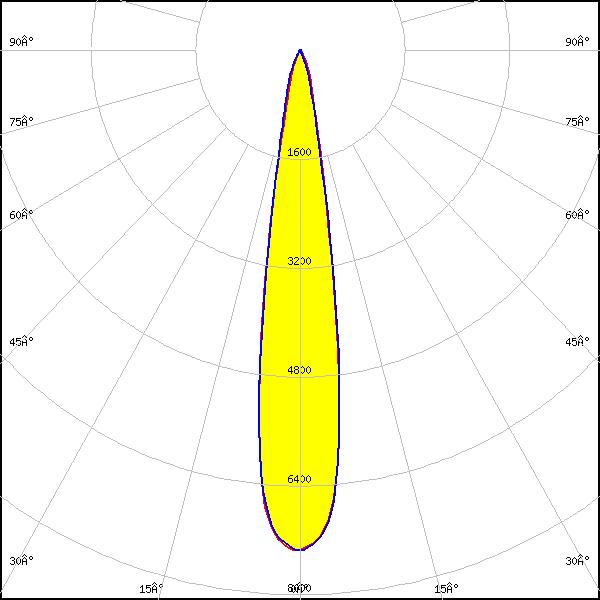

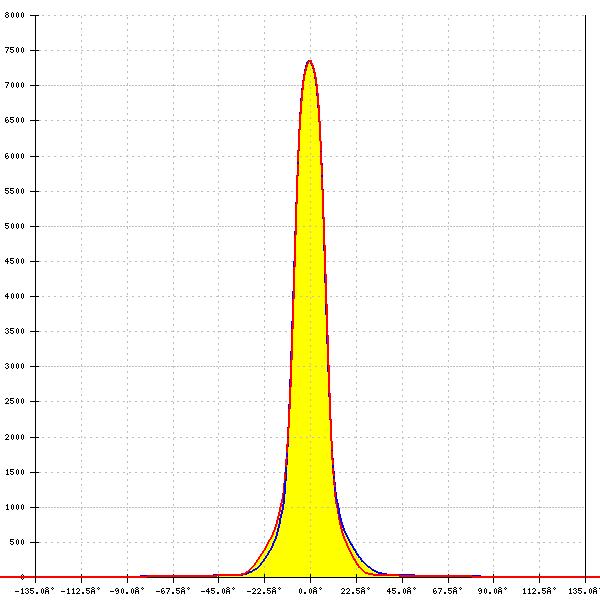

HiLOM RH12 (LH351C)
FWHM:
17°
FWTM:
31°
Peak intensity:
7.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

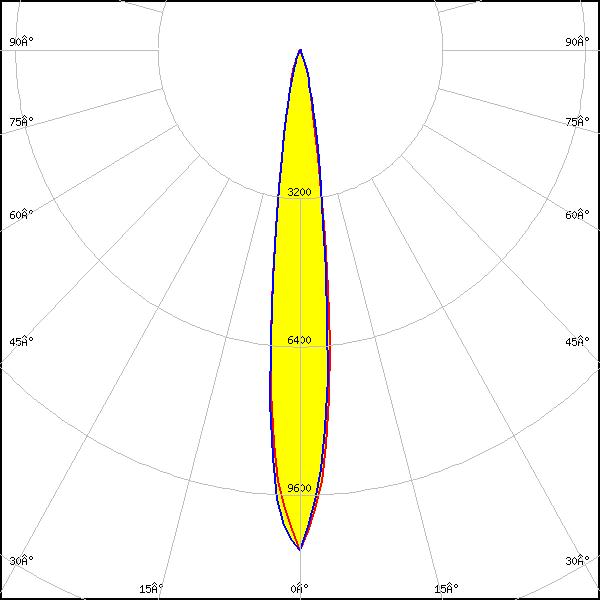

LED:
LH181B
FWHM:
13°
FWTM:
28°
Peak intensity:
10.800 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

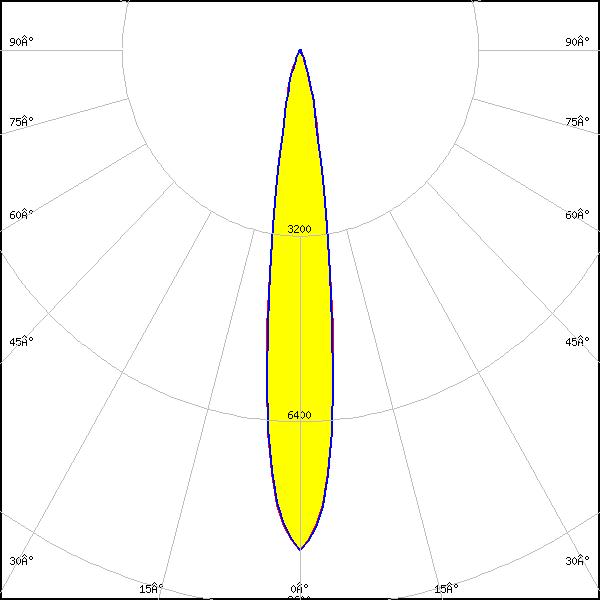

LH231B
FWHM:
16°
FWTM:
32°
Peak intensity:
8.619 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

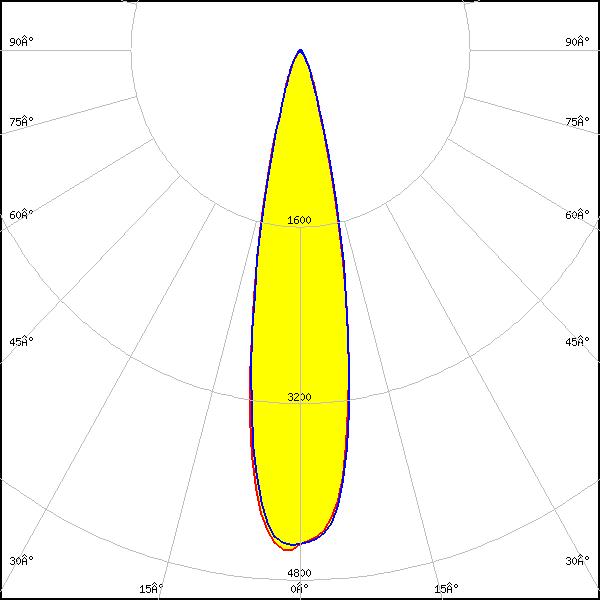

LH351D
FWHM:
22°
FWTM:
40°
Peak intensity:
4.550 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

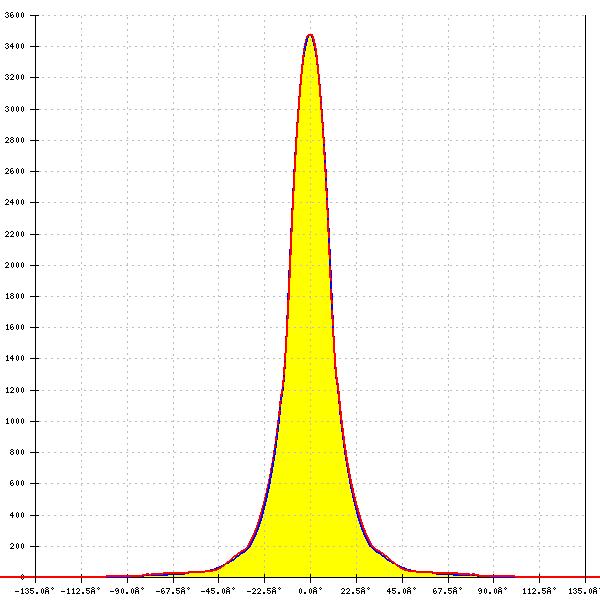

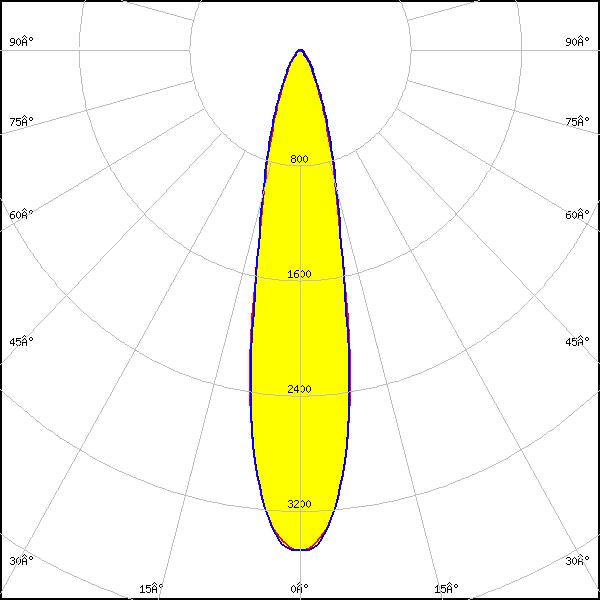

BALAM-VP-5250-750-36
FWHM:
22°
FWTM:
50°
Peak intensity:
3.580 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

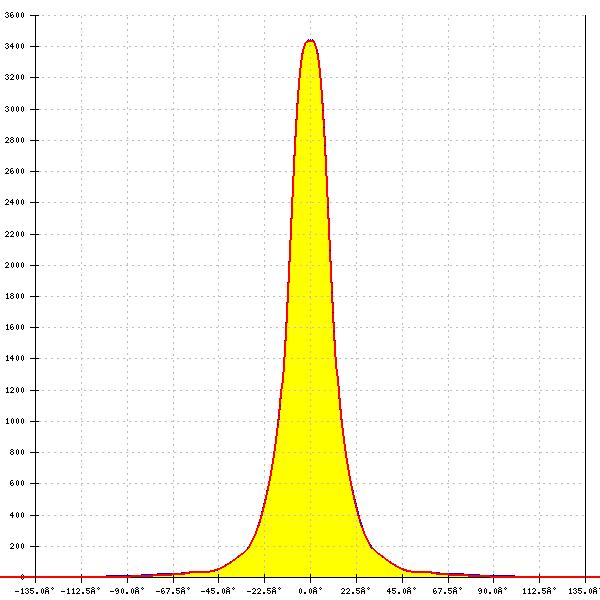

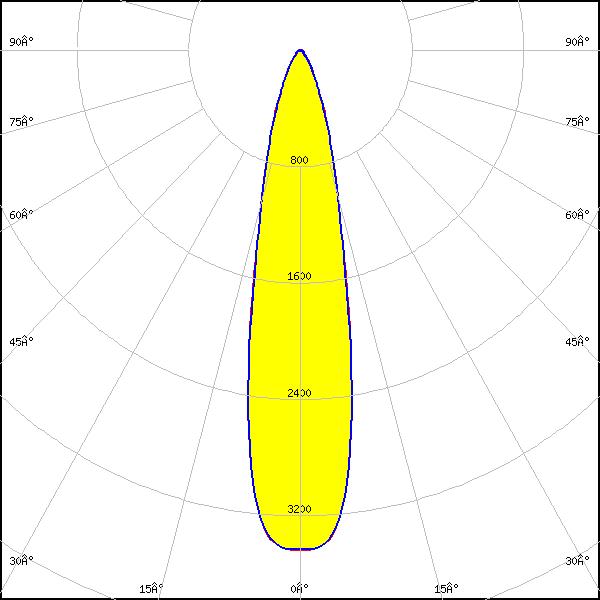

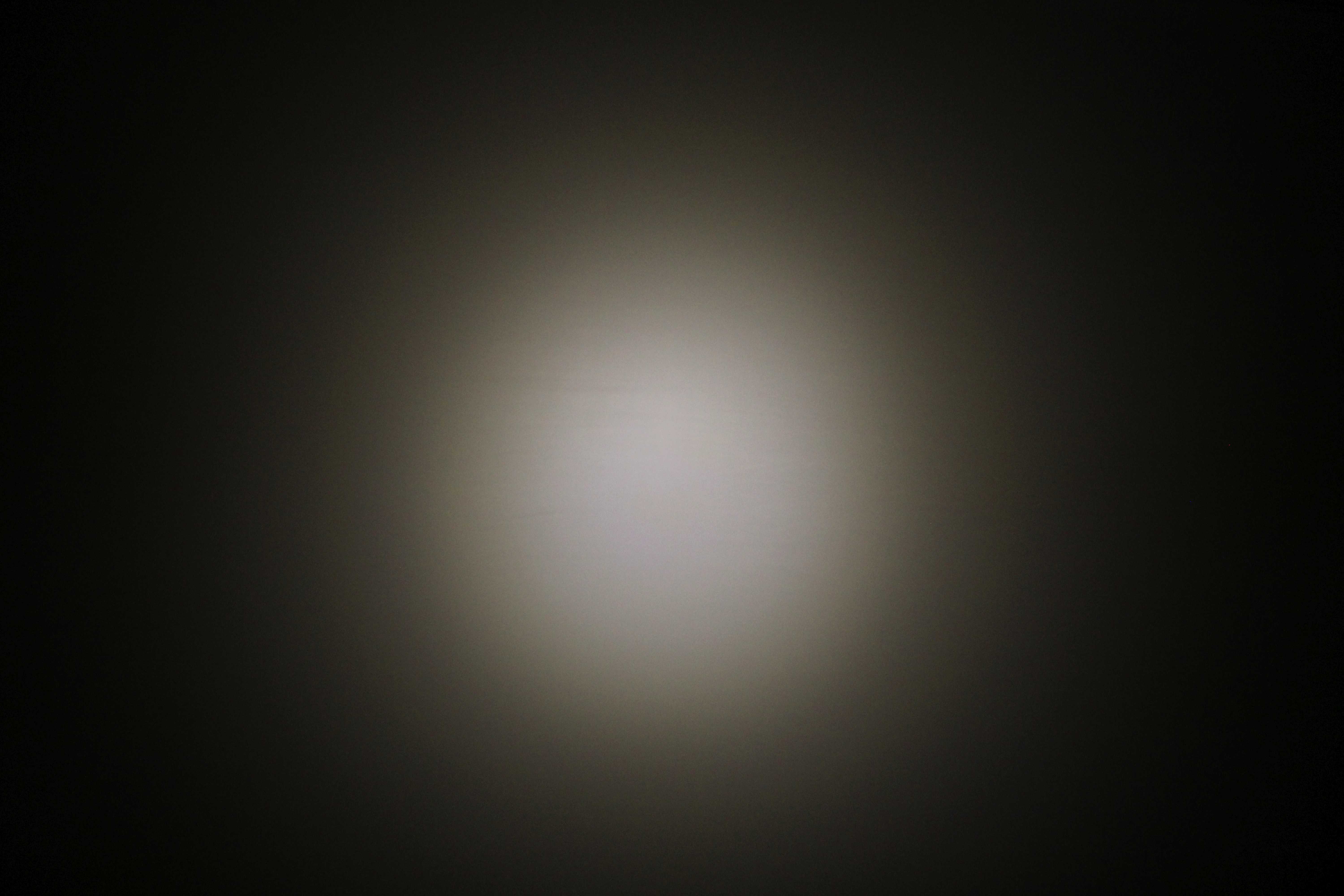

BALAMEC-VE-5700-740-36
FWHM:
23°
FWTM:
50°
Peak intensity:
3.458 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

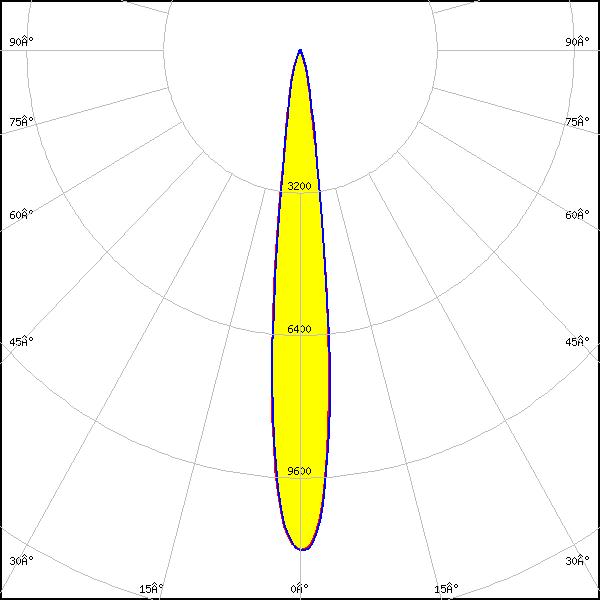

XLE-S22C4XTEHE (XT-E HE)
FWHM:
13°
FWTM:
26°
Peak intensity:
11.200 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

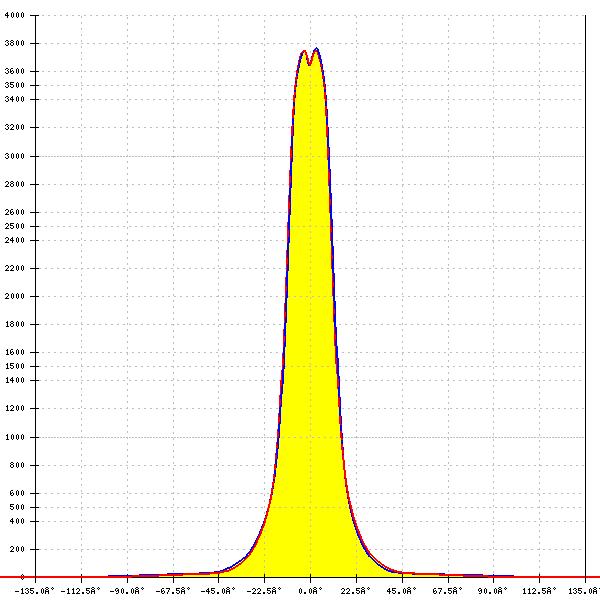

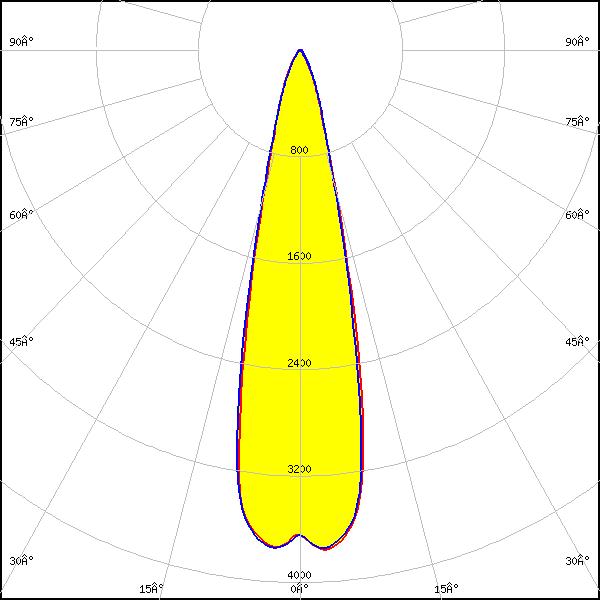

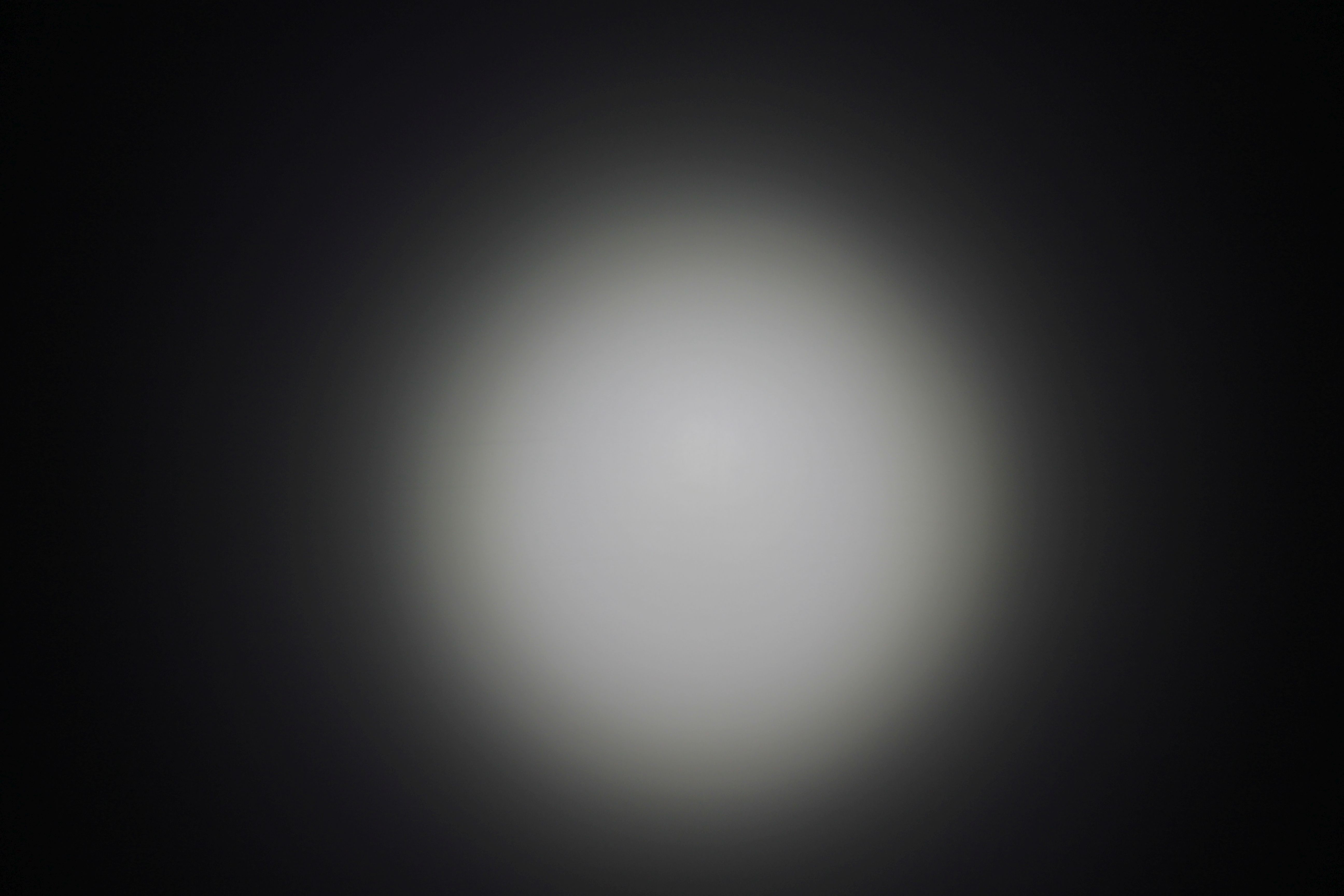

XLE-S26XHP35 (XHP35 HD)
FWHM:
24°
FWTM:
45°
Peak intensity:
3.800 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

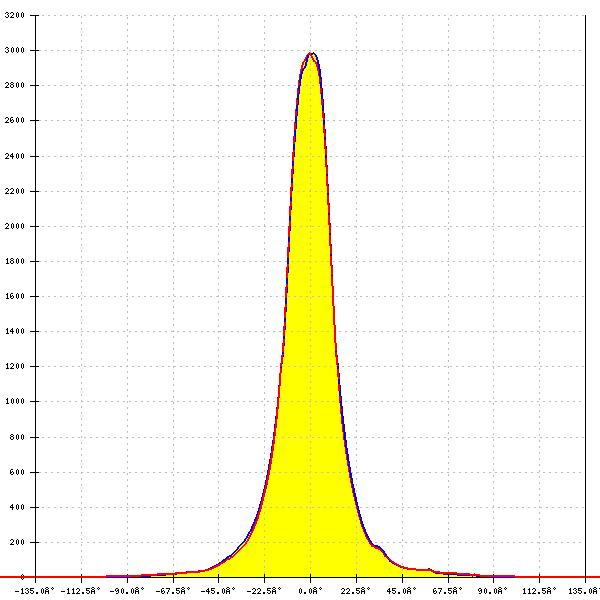

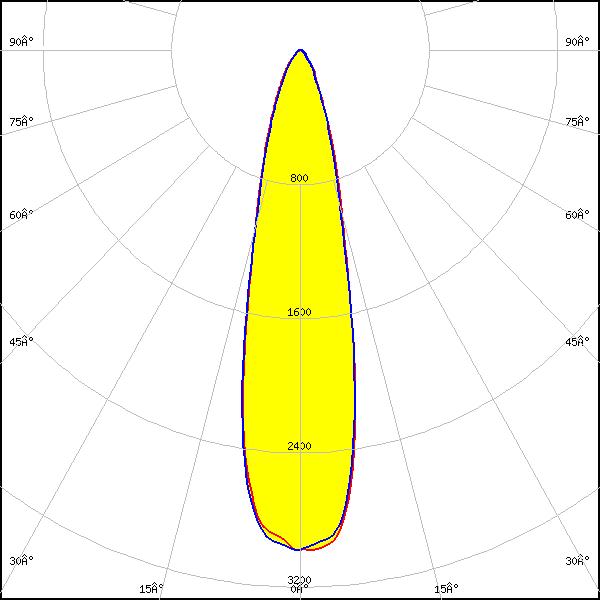

LED:
2x6 5050 module - SMJD-3625012F-XX
FWHM:
24°
FWTM:
53°
Peak intensity:
3.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

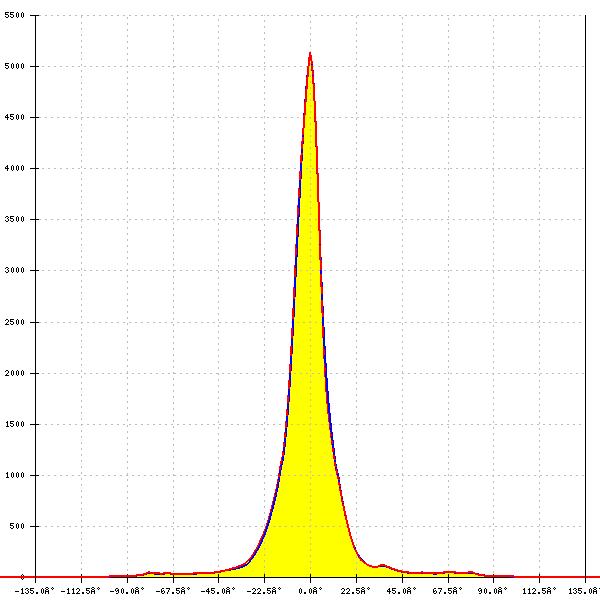

LED:

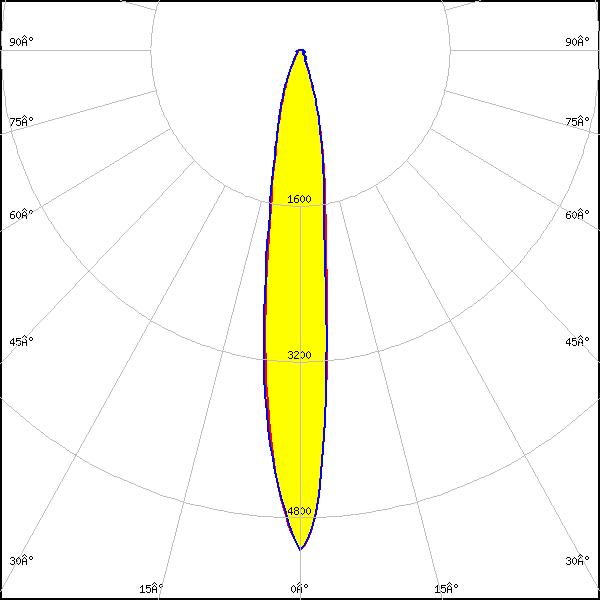

SMJQ-D36W12Mx
FWHM:
15°
FWTM:
39°
Peak intensity:
5.100 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

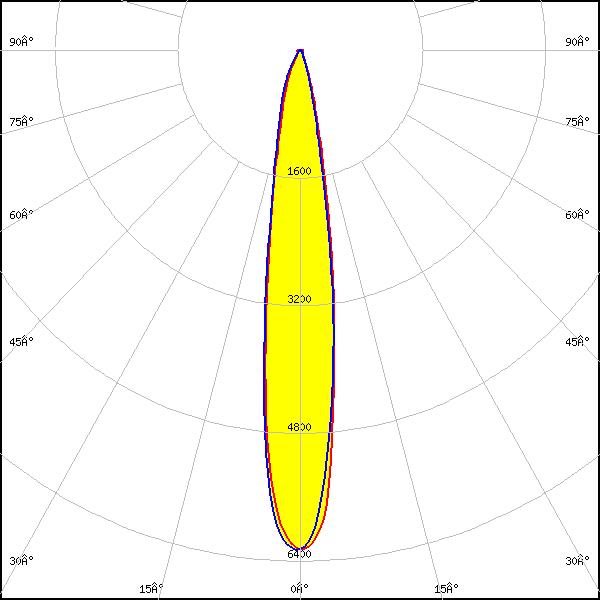

LED:

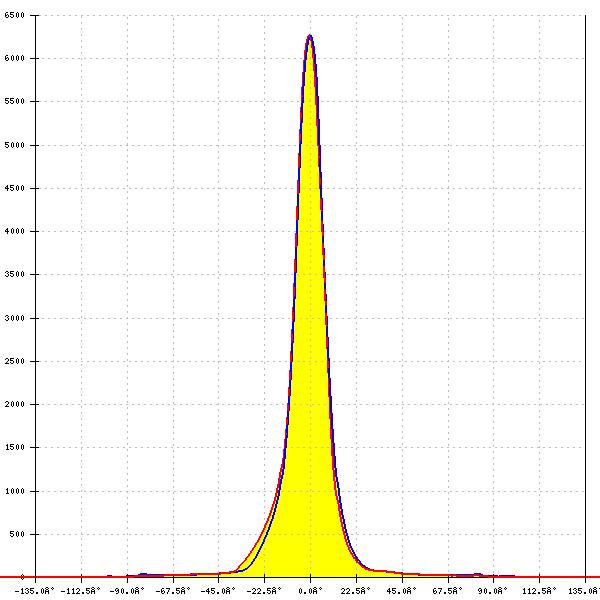

SMJQ-D36W12Px
FWHM:
16°
FWTM:
36°
Peak intensity:
6.300 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

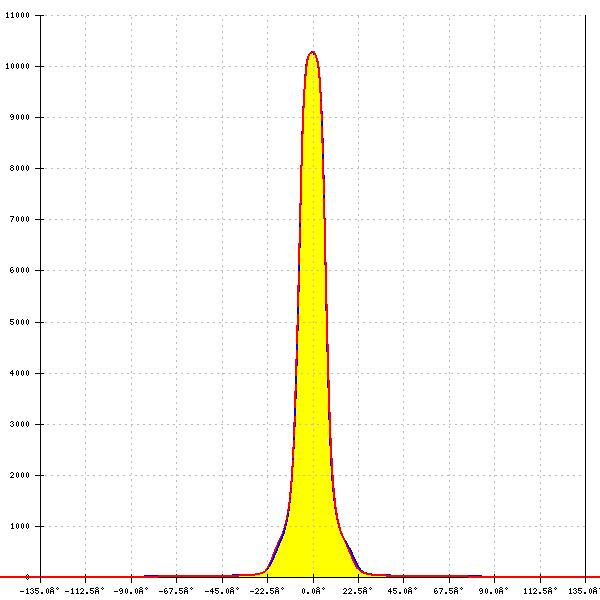

LED:

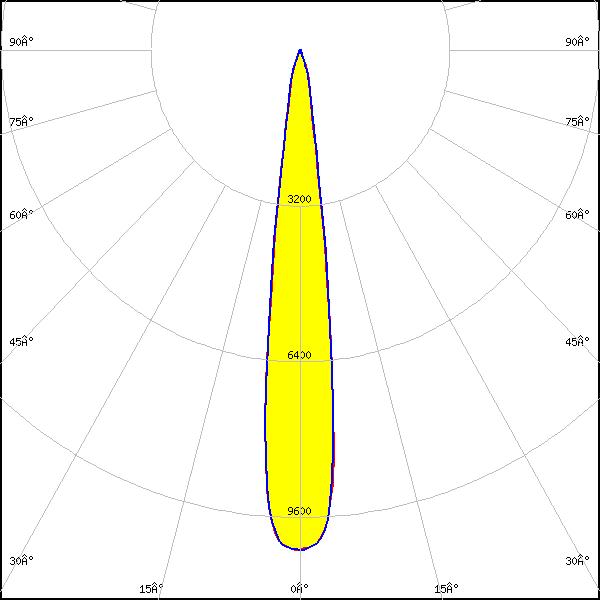

Z5M1/Z5M2
FWHM:
14°
FWTM:
26°
Peak intensity:
10.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

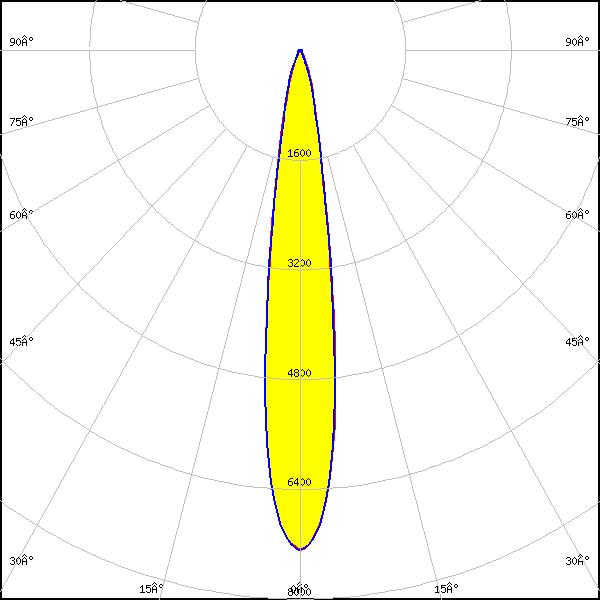

LED:
Z5M3
FWHM:
16°
FWTM:
33°
Peak intensity:
7.290 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

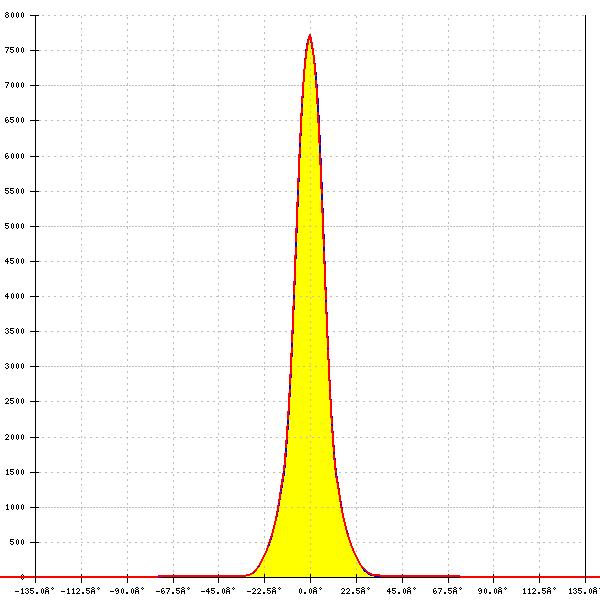

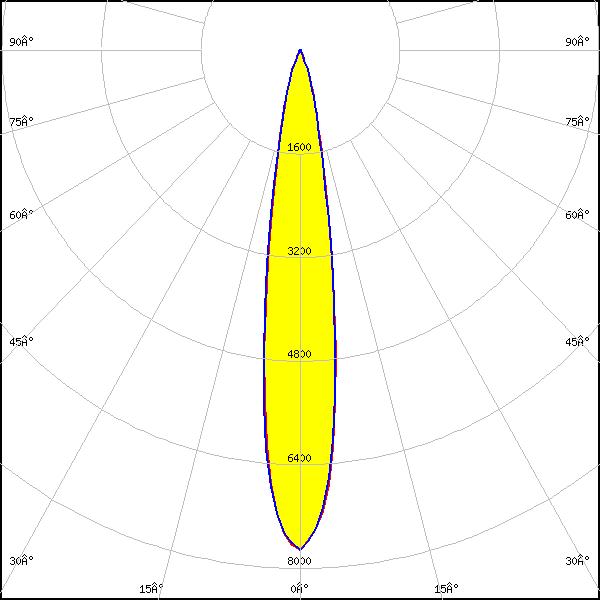

Z5M4
FWHM:
16°
FWTM:
34°
Peak intensity:
7.723 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z8Y22
FWHM:
15°
FWTM:
39°
Peak intensity:
5.100 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

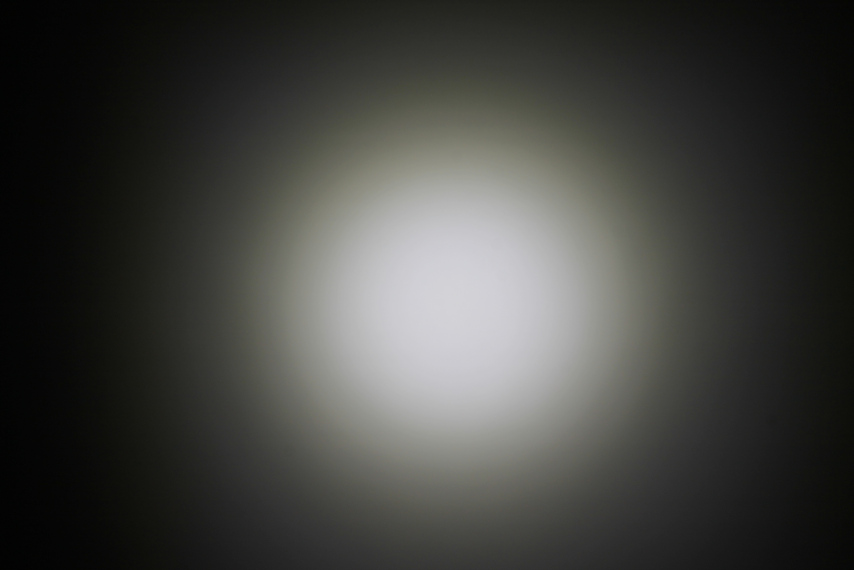

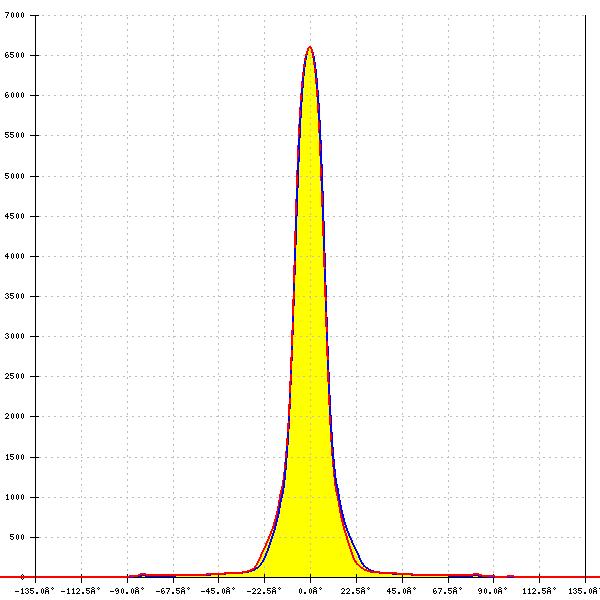

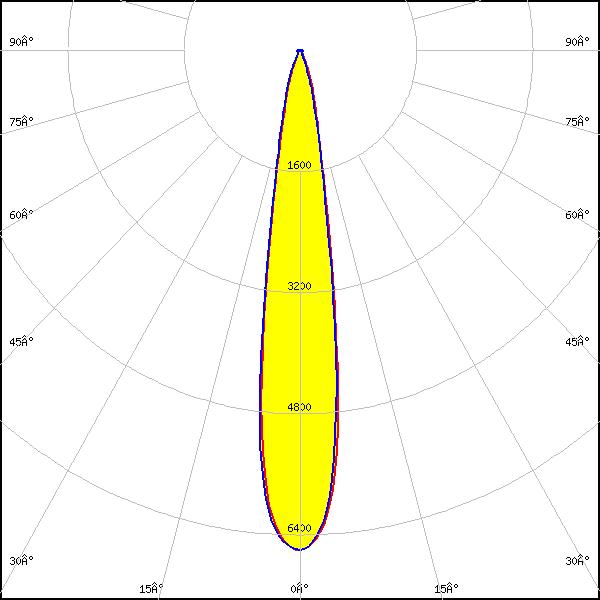

Z8Y22P
FWHM:
17°
FWTM:
34°
Peak intensity:
6.600 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

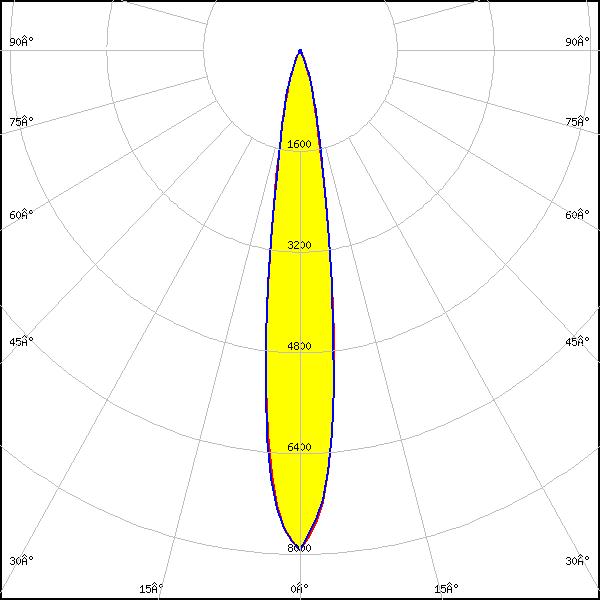

Z8Y22T
FWHM:
15°
FWTM:
33°
Peak intensity:
7.940 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

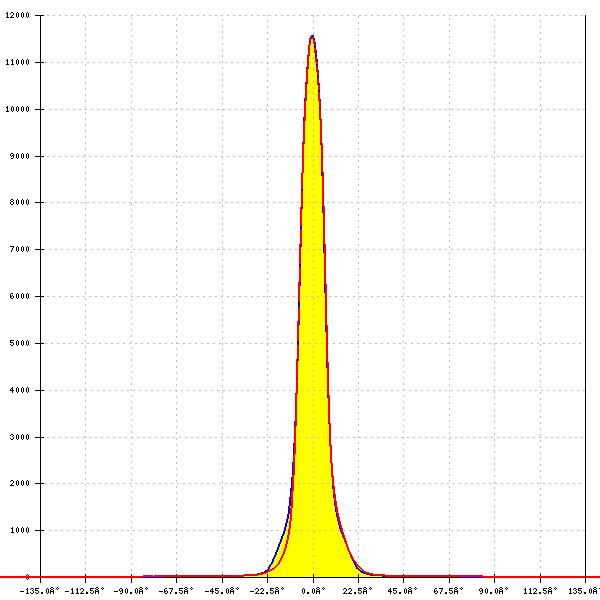

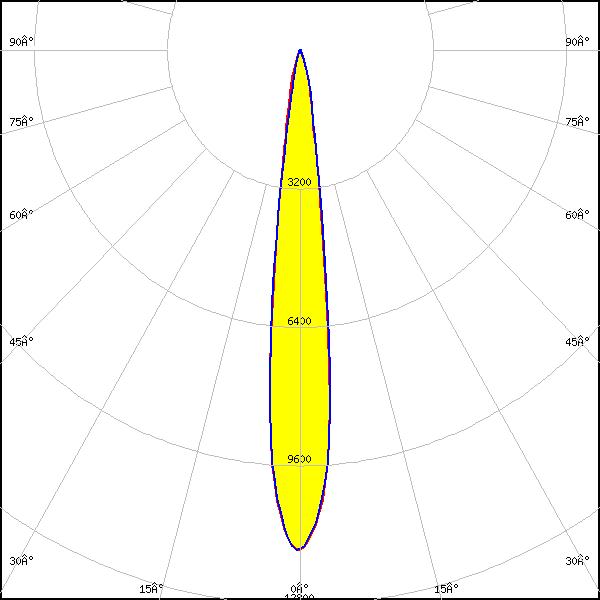

RLE 2x6 3000lm HP EXC2 OTD
FWHM:
13°
FWTM:
25°
Peak intensity:
11.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

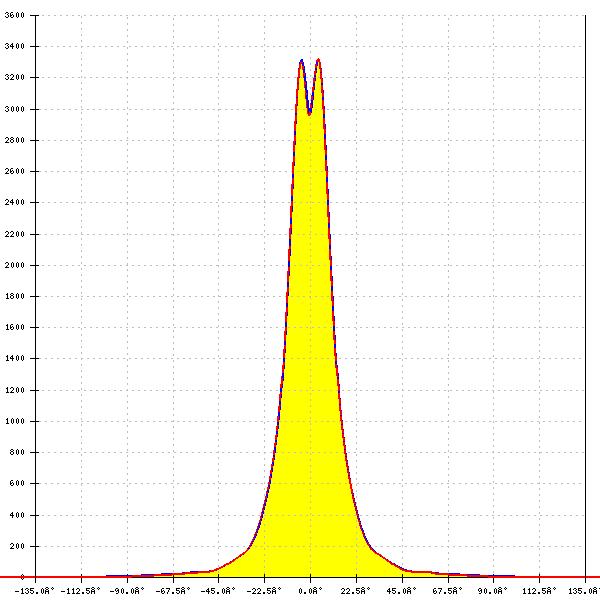

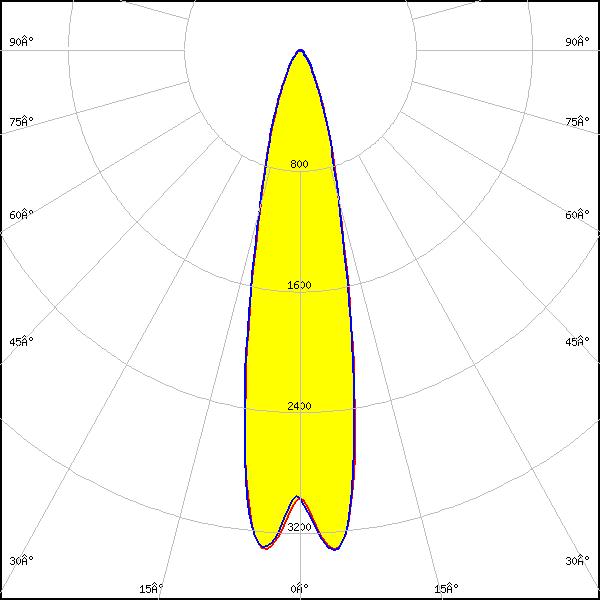

LED:
RLE 2x6 4500lm HP HE EXC3 OTD Z19
FWHM:
24°
FWTM:
50°
Peak intensity:
3.352 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
