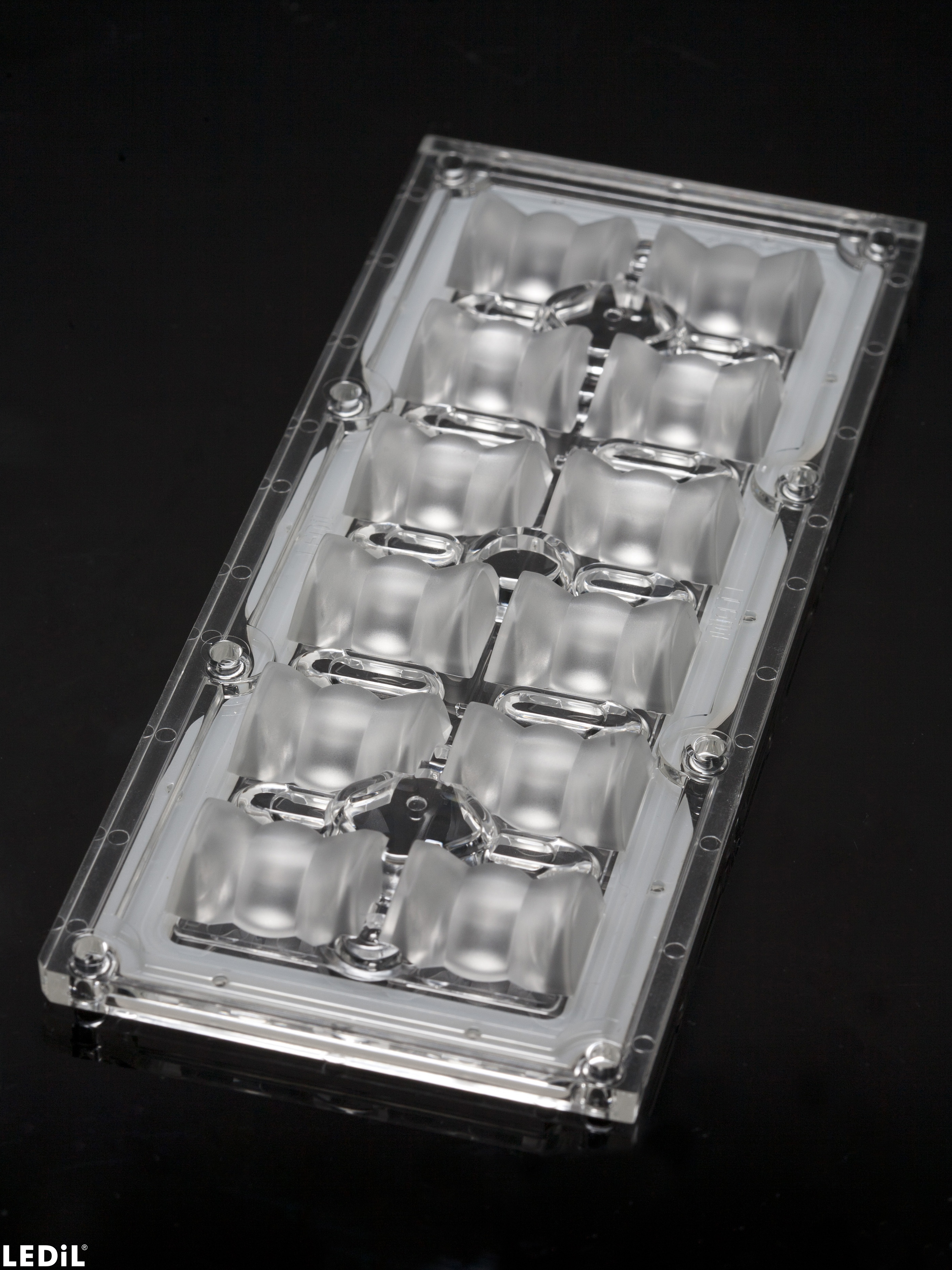

CS14597_HB-IP-2X6-O
Print
~30° + 115° oval beam
Component Materials
- HB-IP-2X6-OMulti-lensPMMA
- 2X6-SEAL25SealSilicone
- Request material files from Tech Support
WARNING: Cancer – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

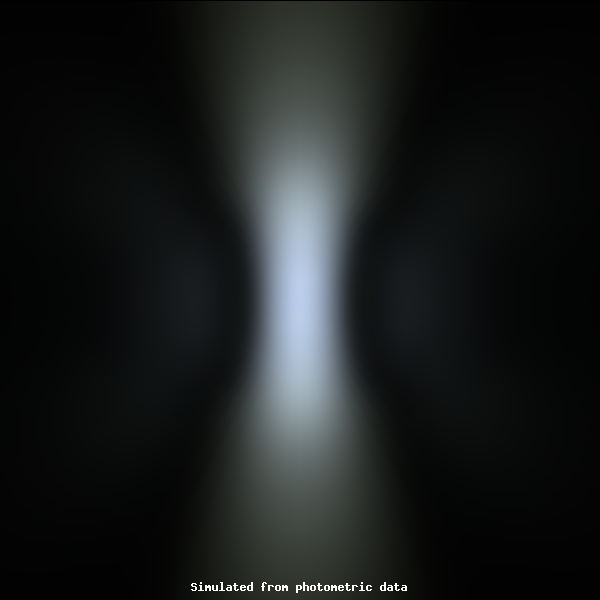

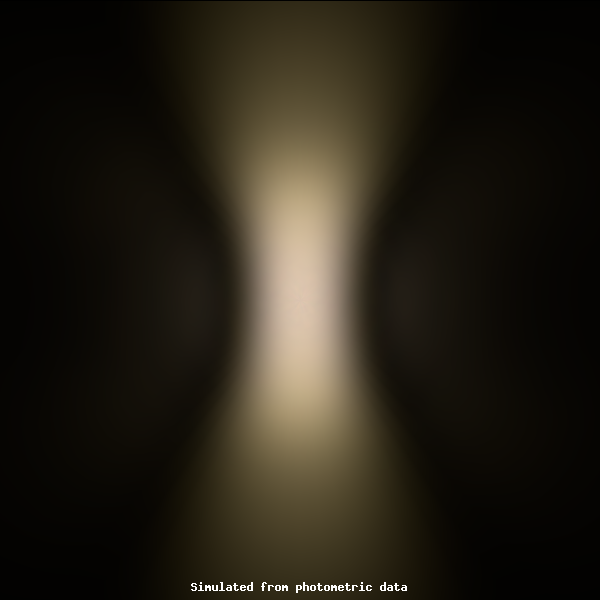

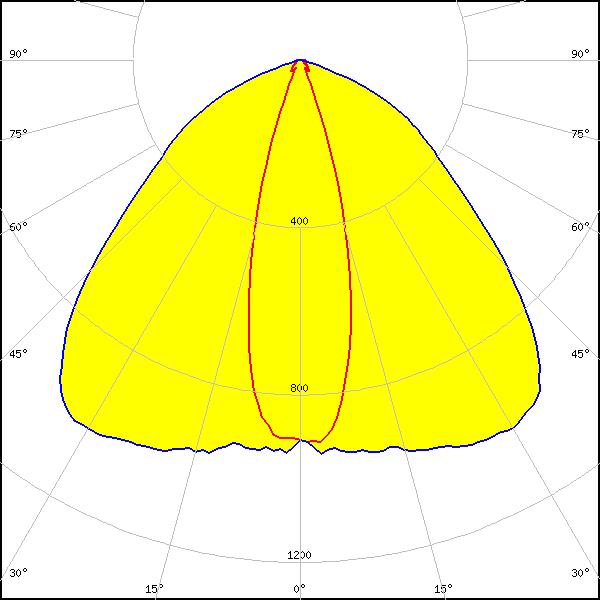

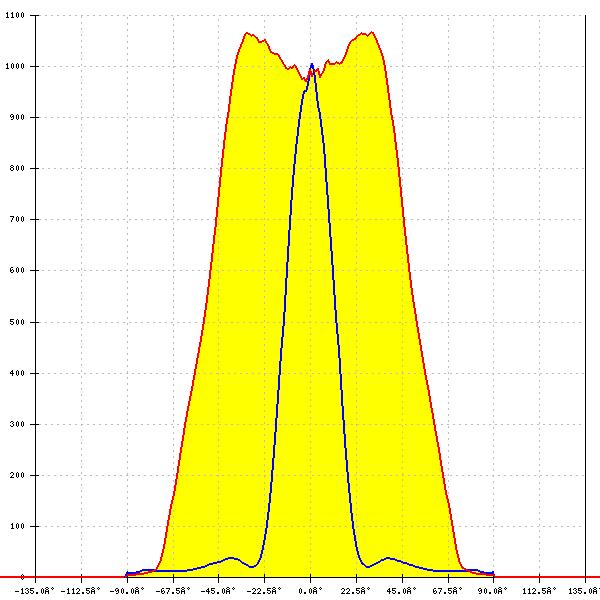

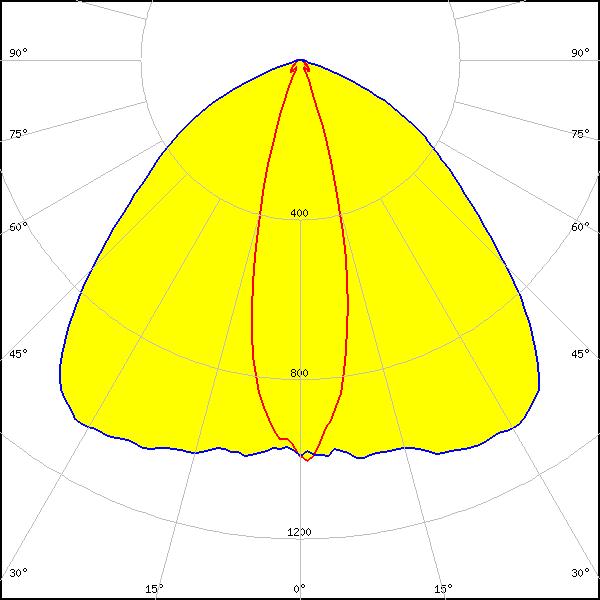

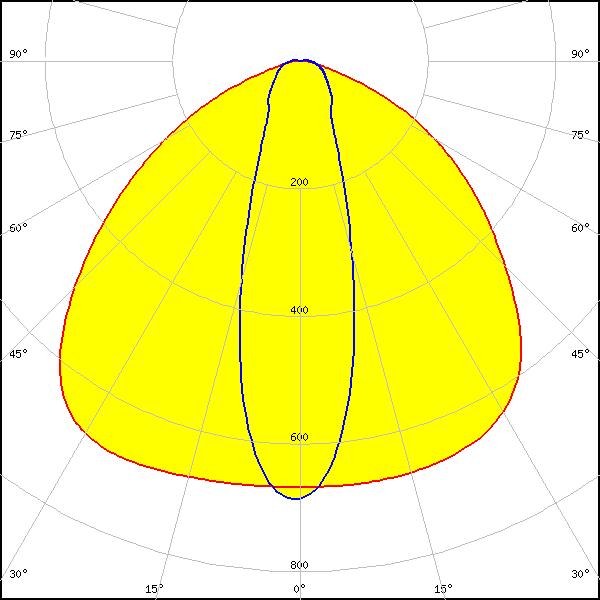

Optical results
LED:

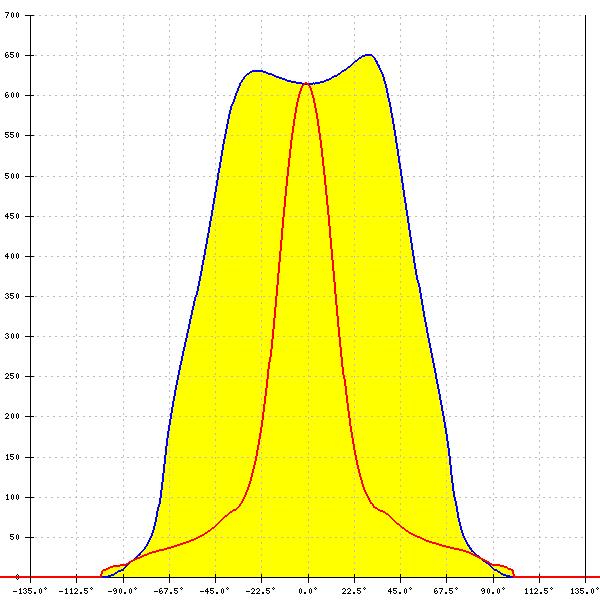

QUICK FLUX 2x6 LED XG xxx G7+
FWHM:
116° + 32°
FWTM:
149° + 92°
Peak intensity:
0.650 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

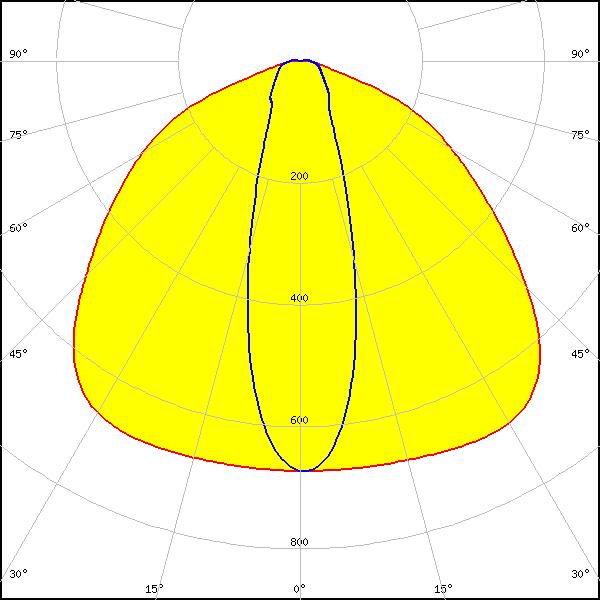

LED:

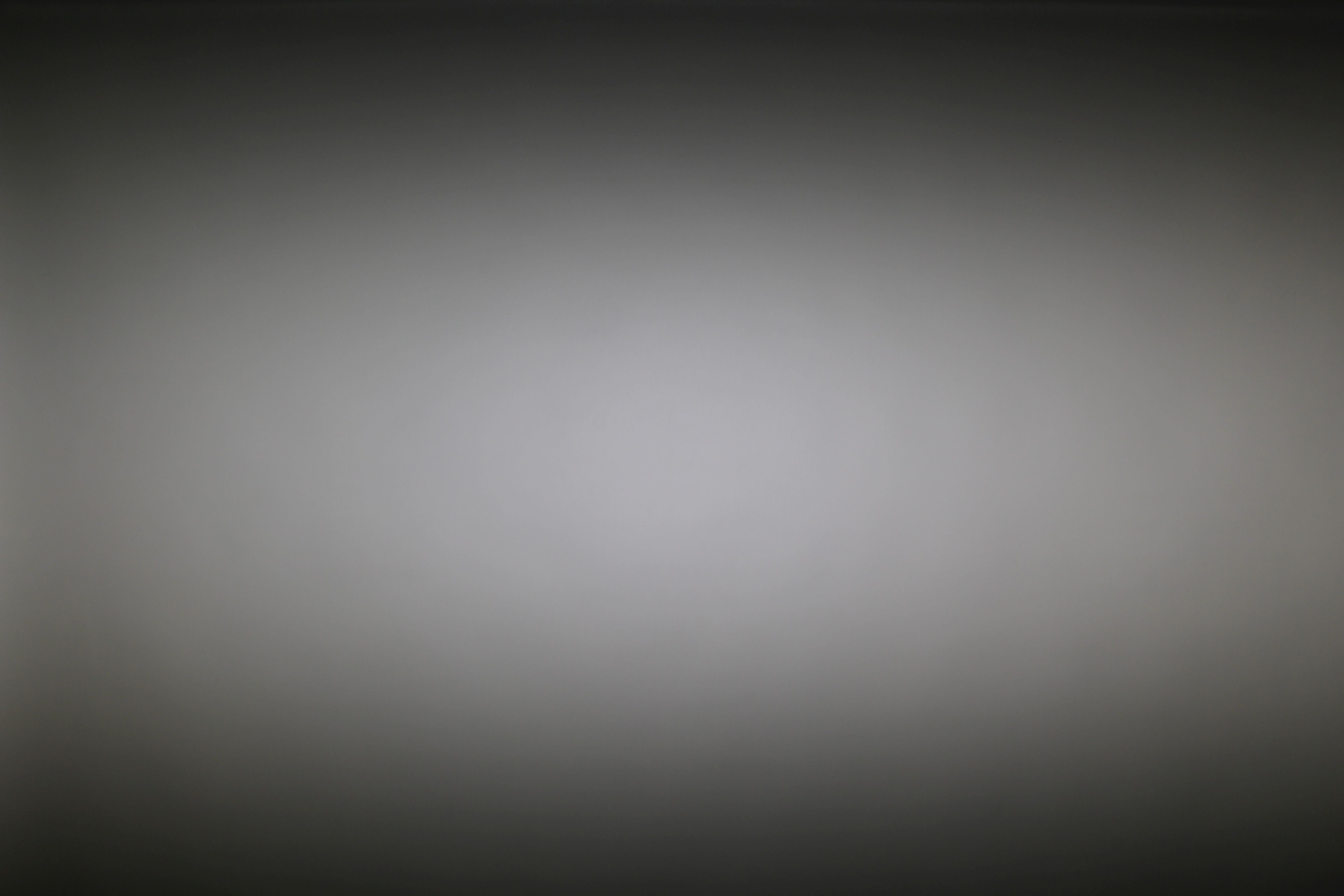

QUICK FLUX 2x6 LED XT xxx G5
FWHM:
113° + 30°
FWTM:
148° + 87°
Peak intensity:
0.690 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

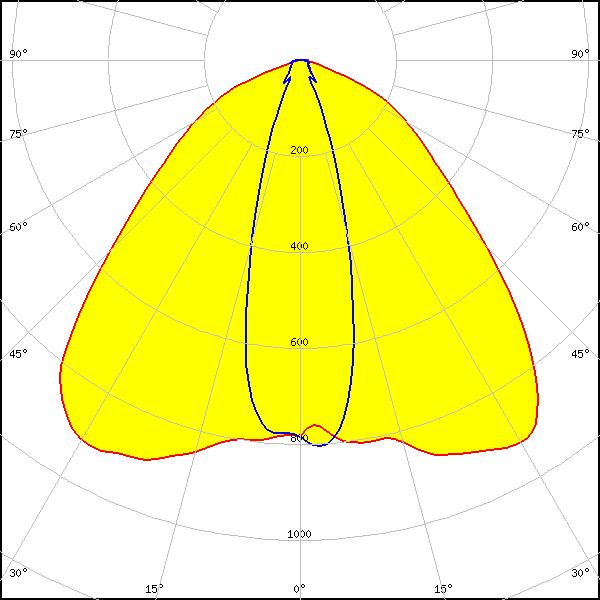

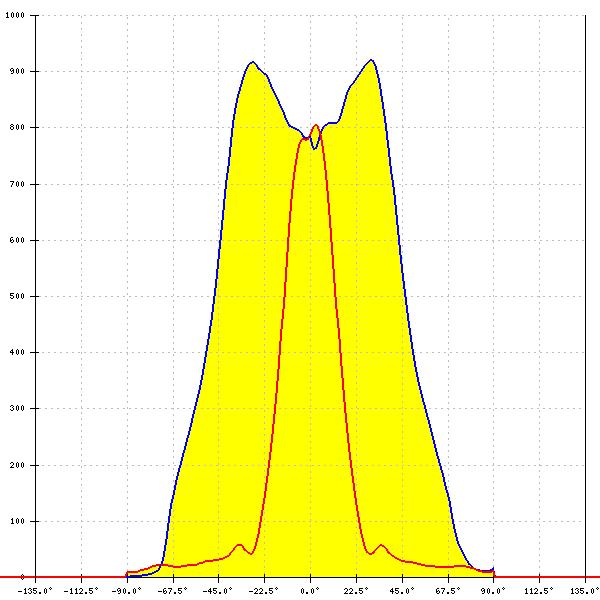

J Series 5050 Round LES
FWHM:
29° + 96°
FWTM:
50° + 141°
Peak intensity:
0.920 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

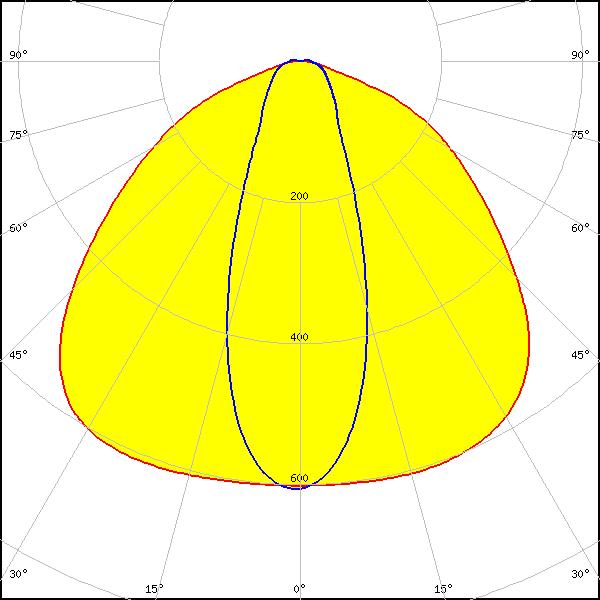

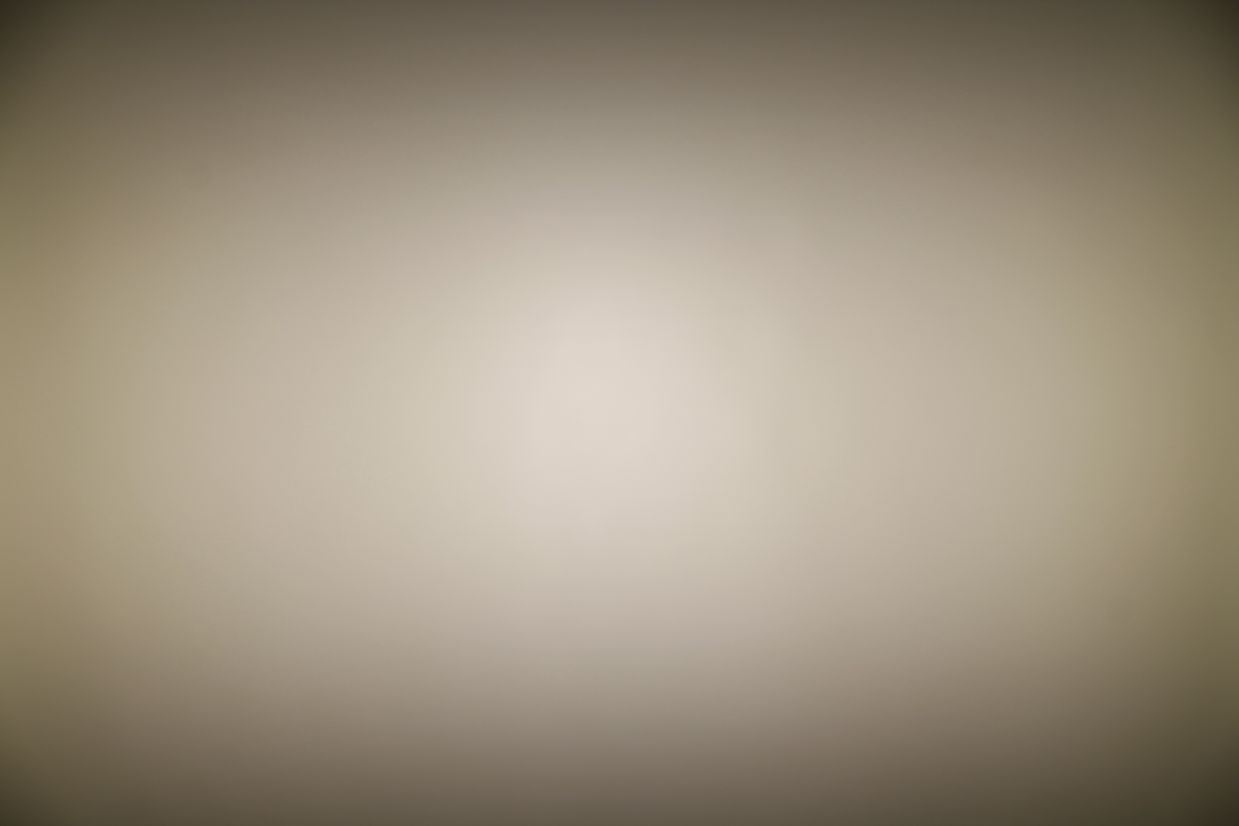

XM-L
FWHM:
36° + 110°
FWTM:
96° + 147°
Peak intensity:
0.610 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

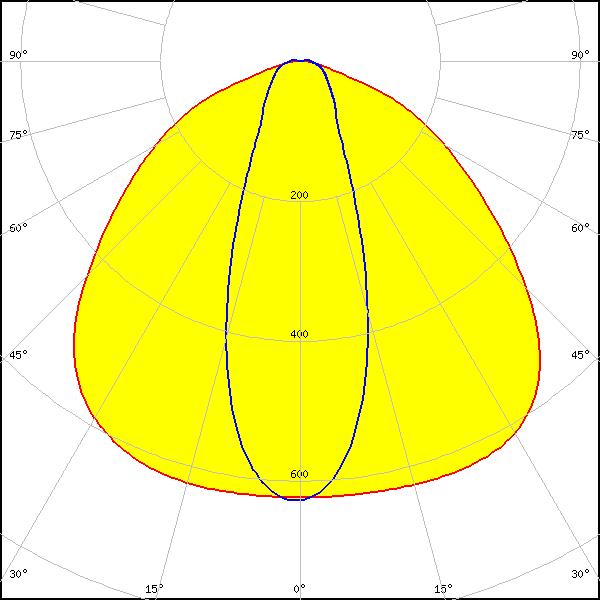

XM-L2
FWHM:
36° + 108°
FWTM:
92° + 147°
Peak intensity:
0.630 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

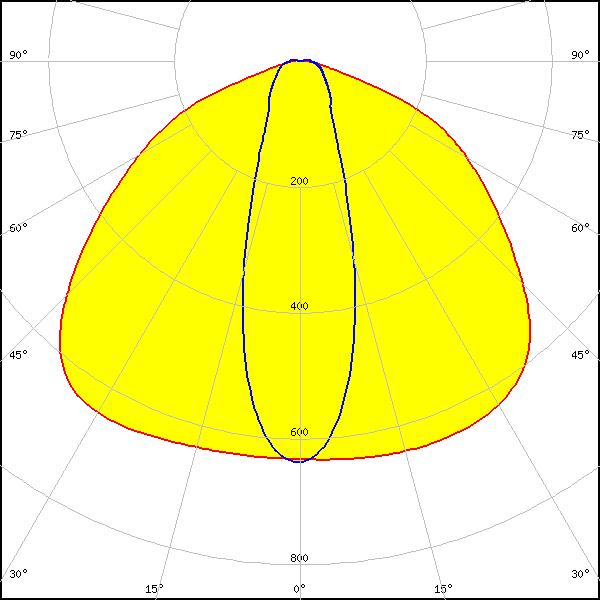

LED:
XP-G
FWHM:
31° + 117°
FWTM:
91° + 149°
Peak intensity:
0.650 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2
FWHM:
32° + 116°
FWTM:
91° + 149°
Peak intensity:
0.660 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

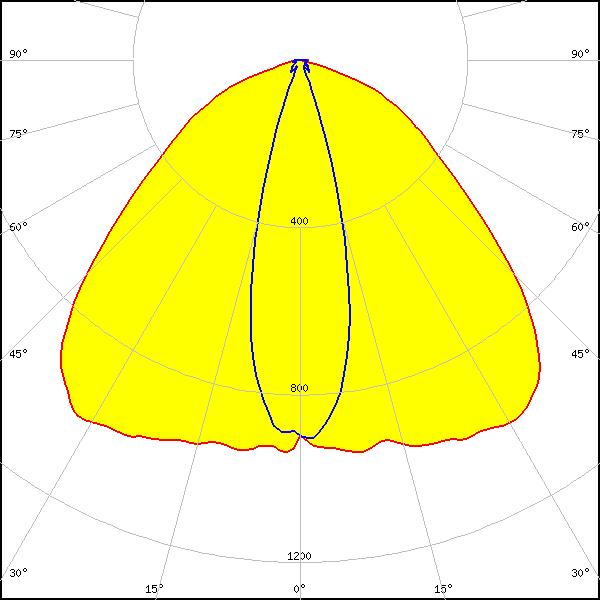

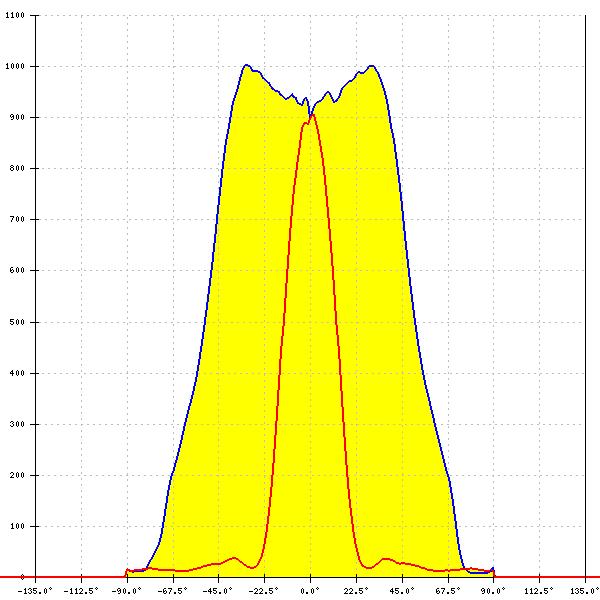

LED:
XP-G2 HE
FWHM:
103° + 28°
FWTM:
144° + 42°
Peak intensity:
1.003 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G3
FWHM:
33° + 119°
FWTM:
100° + 150°
Peak intensity:
0.630 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

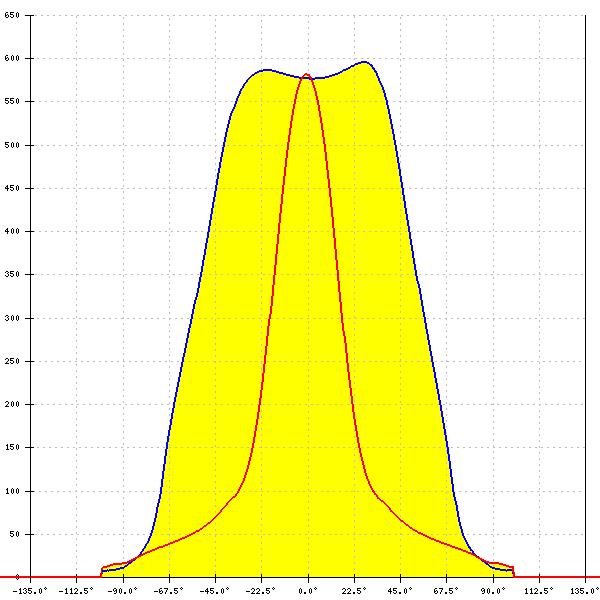

LED:
XP-L HD
FWHM:
36° + 115°
FWTM:
100° + 149°
Peak intensity:
0.600 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

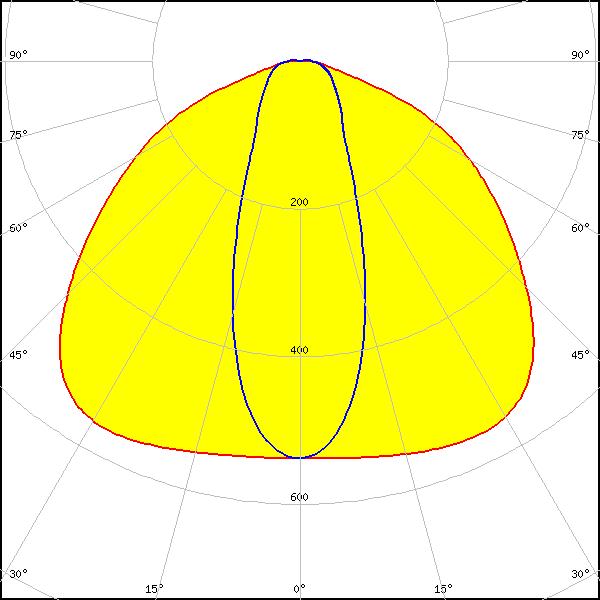

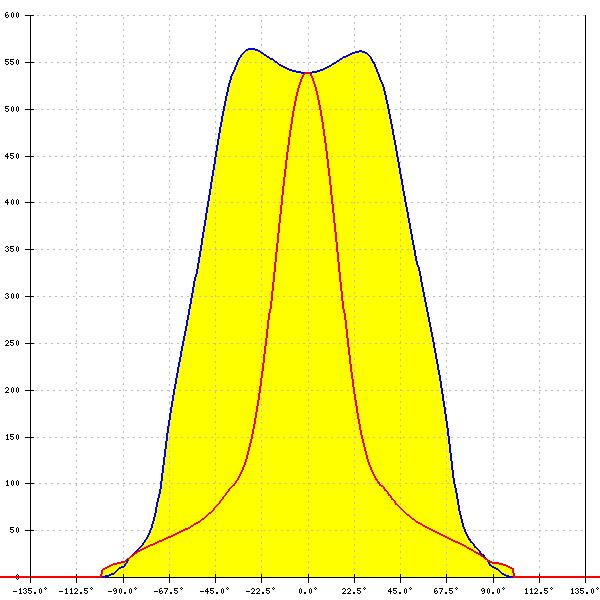

LED:
XP-L2
FWHM:
118° + 38°
FWTM:
151° + 114°
Peak intensity:
0.560 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

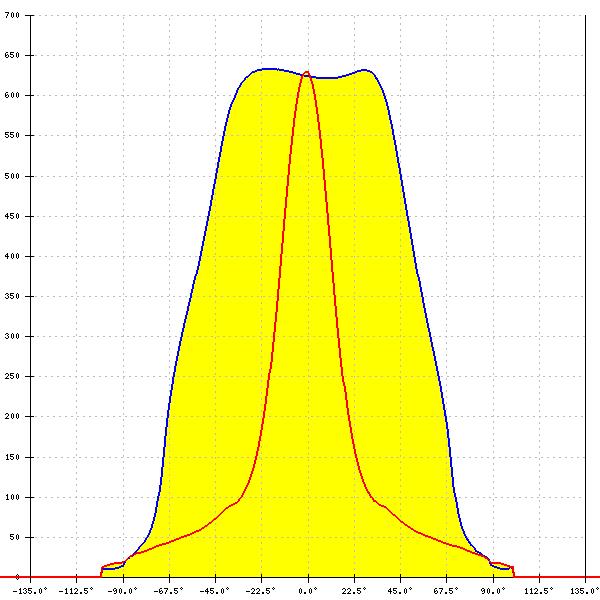

LED:

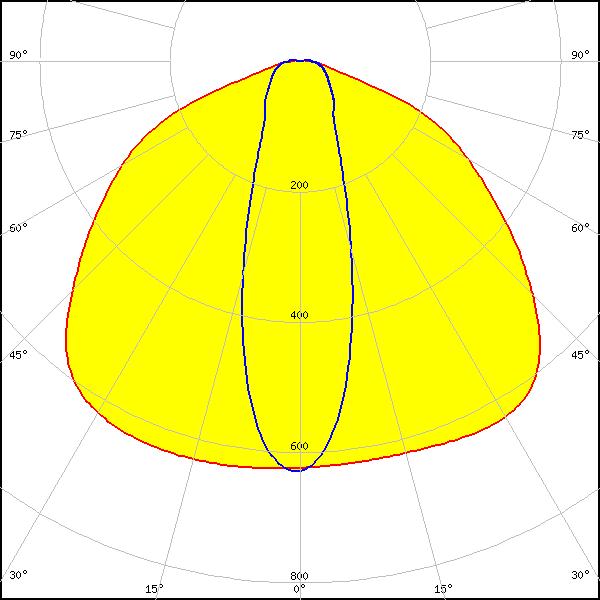

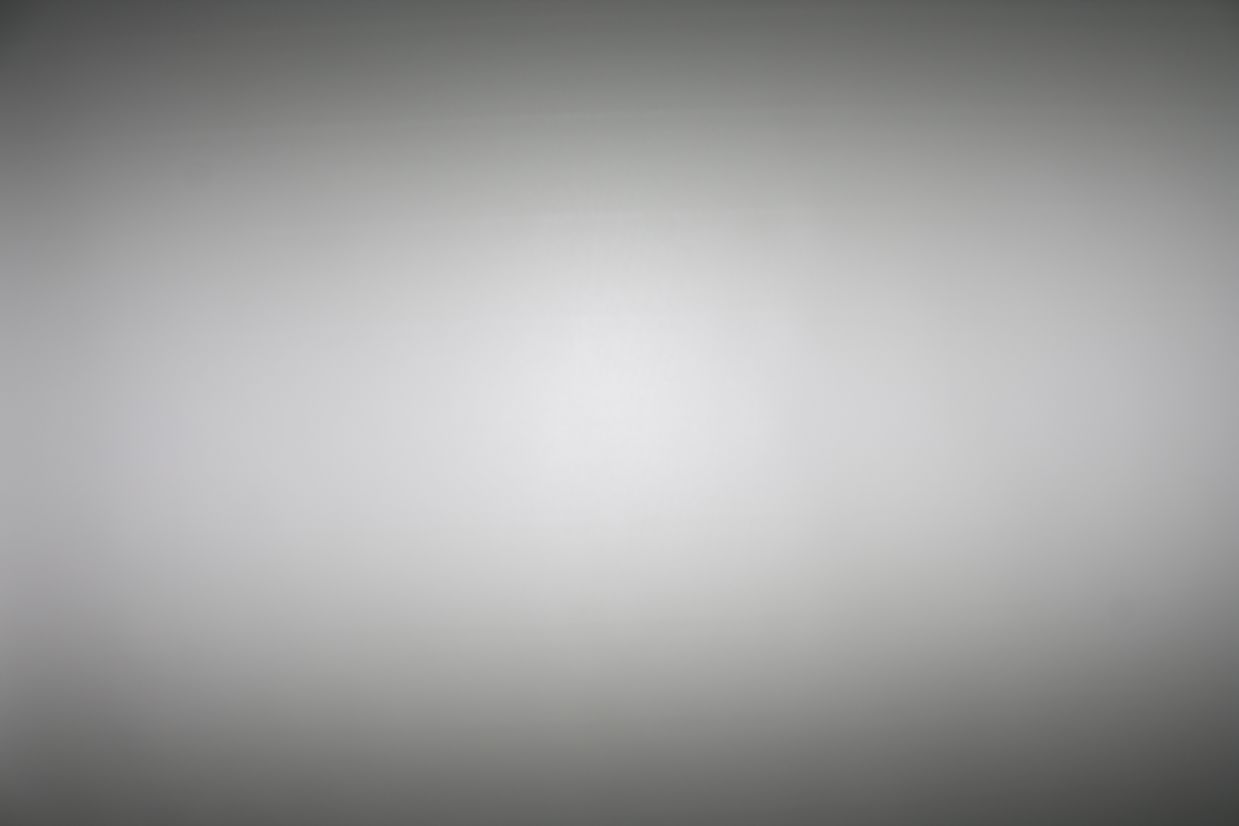

XT-E
FWHM:
31° + 119°
FWTM:
99° + 151°
Peak intensity:
0.630 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XT-E HE
FWHM:
112° + 29°
FWTM:
147° + 85°
Peak intensity:
0.700 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

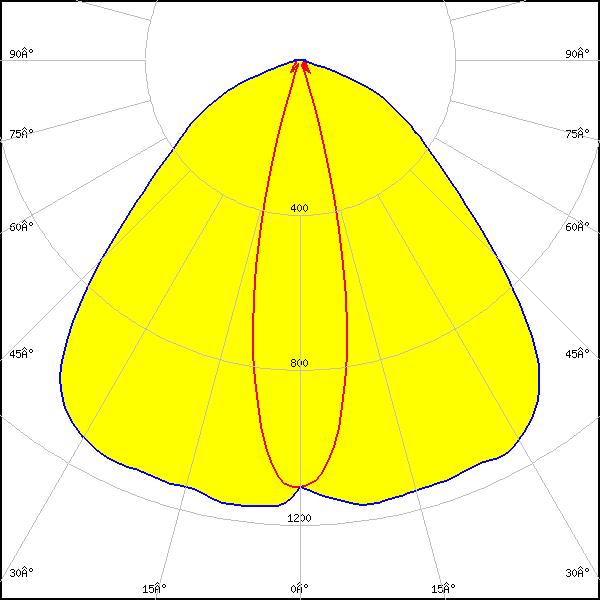

LED:
PrevaLED Brick HP IP 2x6
FWHM:
24° + 97°
FWTM:
36° + 141°
Peak intensity:
1.165 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

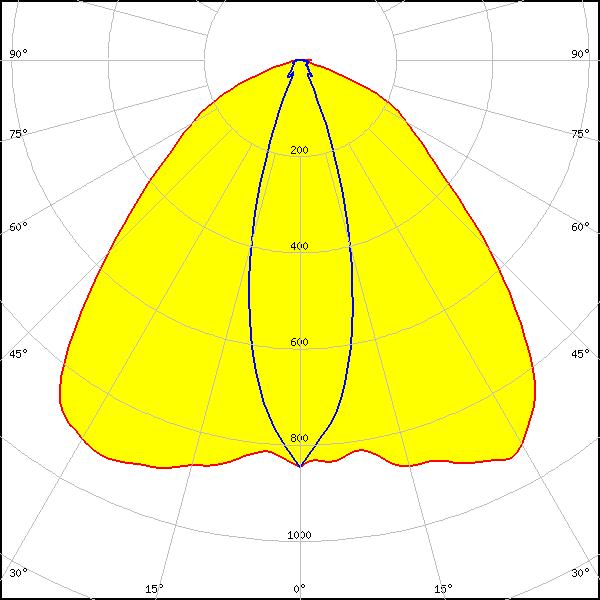

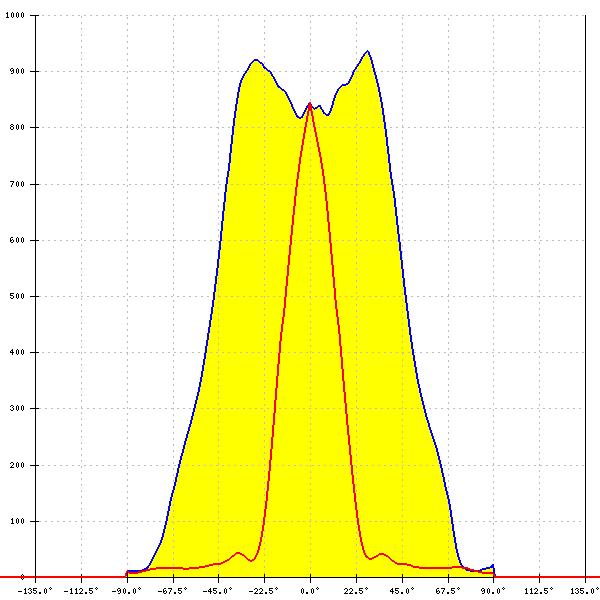

LED:
LUXEON 5050 Round LES
FWHM:
34° + 96°
FWTM:
61° + 141°
Peak intensity:
0.940 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

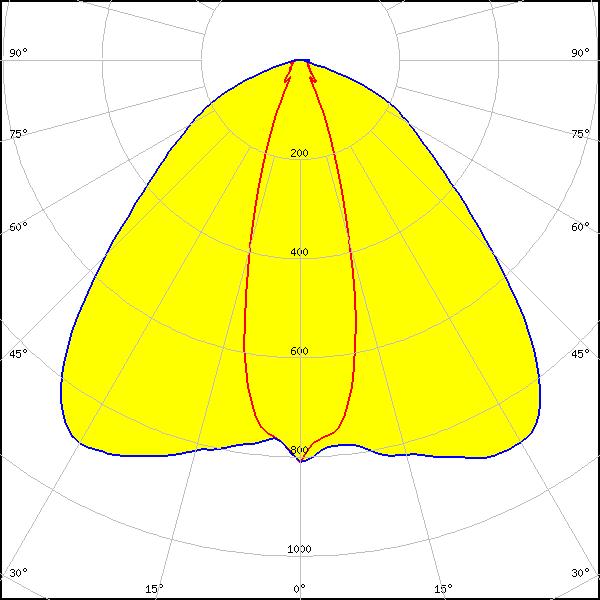

LED:

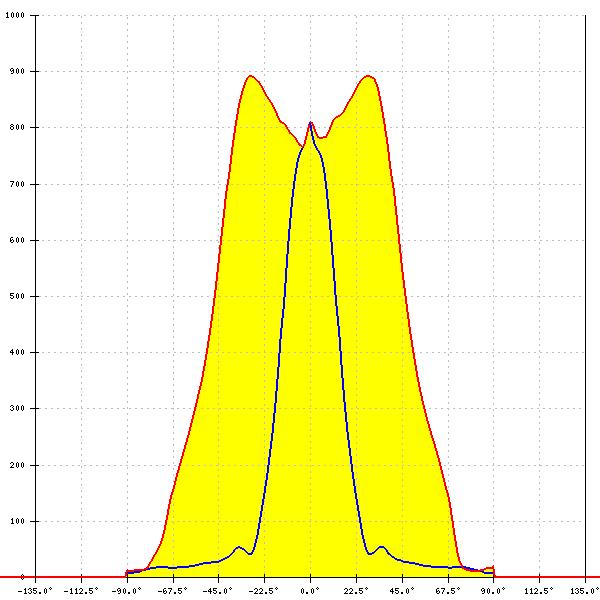

LUXEON 5050 Square LES
FWHM:
30° + 98°
FWTM:
52° + 141°
Peak intensity:
0.892 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

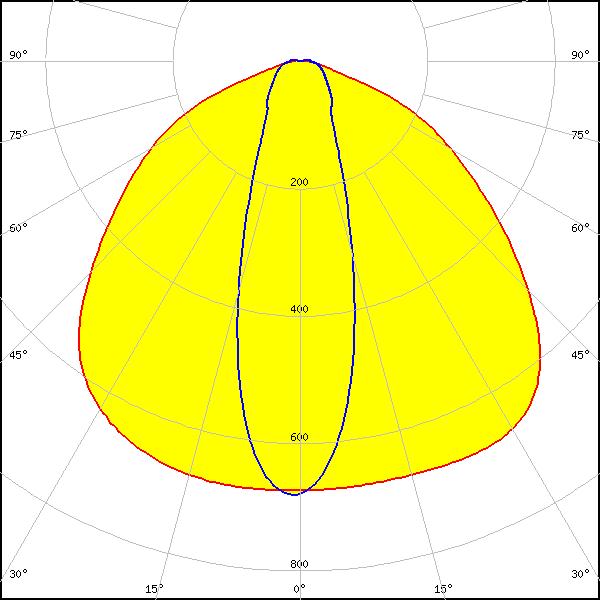

LUXEON R
FWHM:
30° + 109°
FWTM:
89° + 147°
Peak intensity:
0.680 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

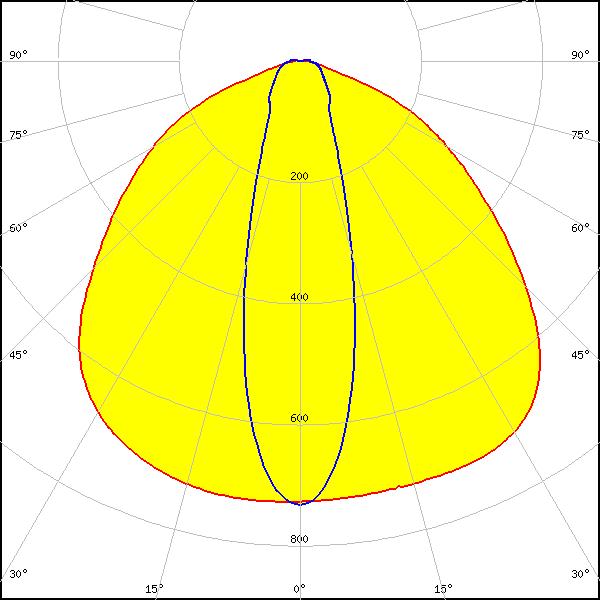

LED:

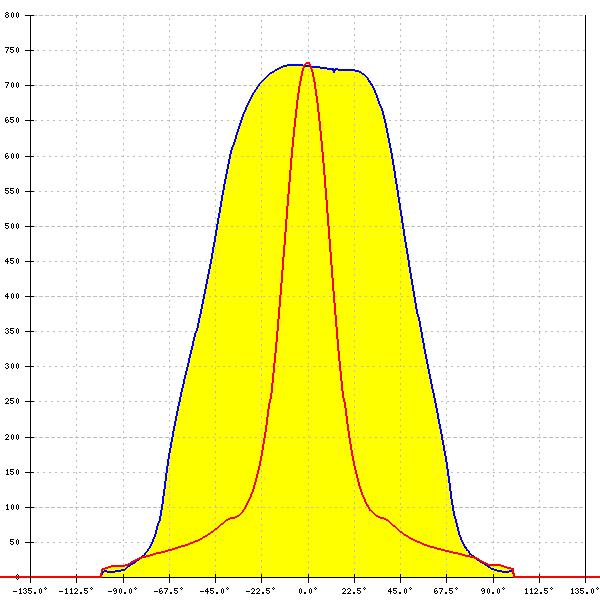

LUXEON Rebel
FWHM:
28° + 107°
FWTM:
84° + 145°
Peak intensity:
0.730 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

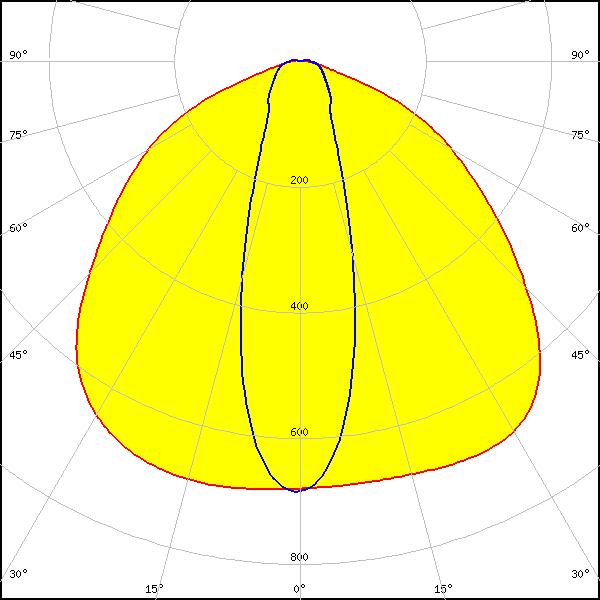

LED:
LUXEON Rebel ES
FWHM:
30° + 110°
FWTM:
88° + 146°
Peak intensity:
0.690 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

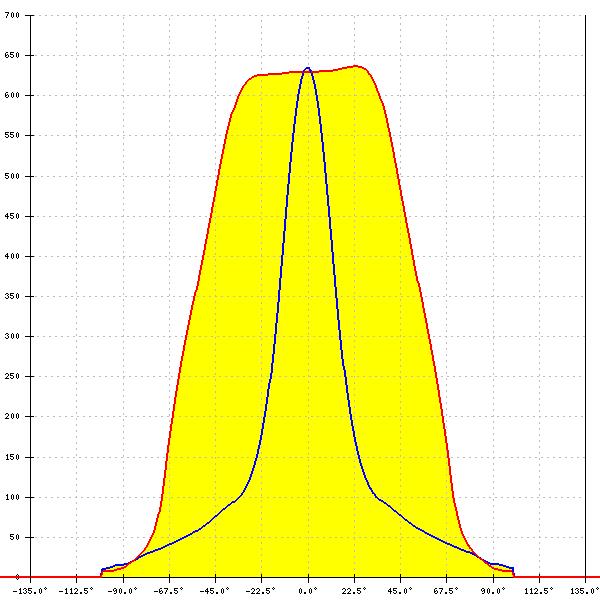

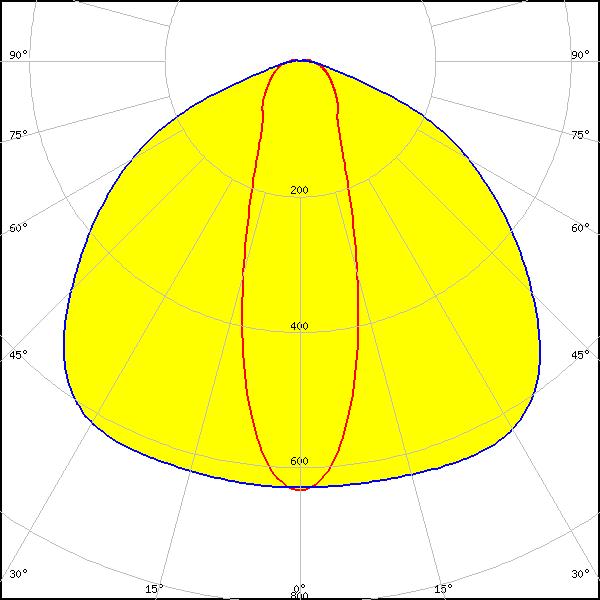

LED:
LUXEON T
FWHM:
32° + 115°
FWTM:
103° + 148°
Peak intensity:
0.630 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

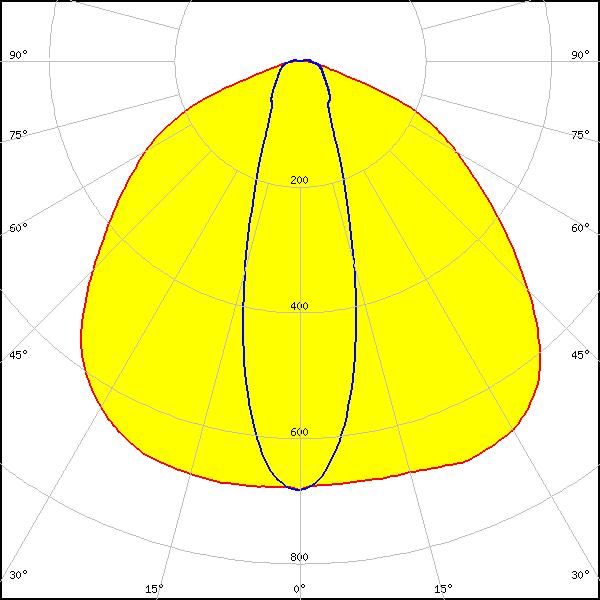

LED:
LUXEON TX
FWHM:
30° + 111°
FWTM:
84° + 147°
Peak intensity:
0.690 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

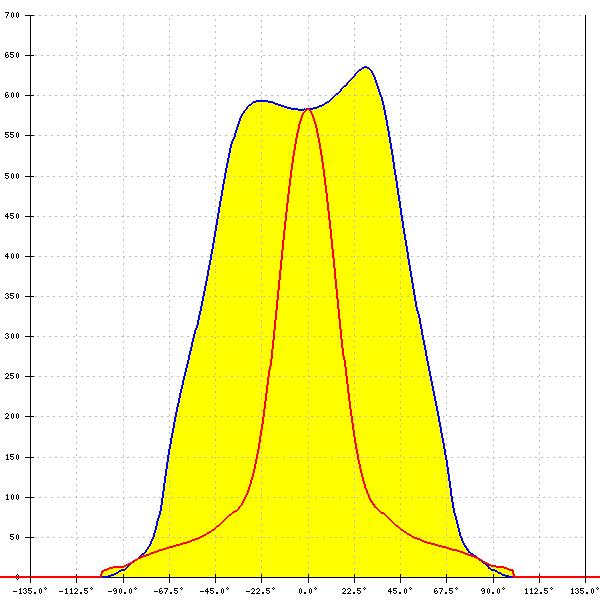

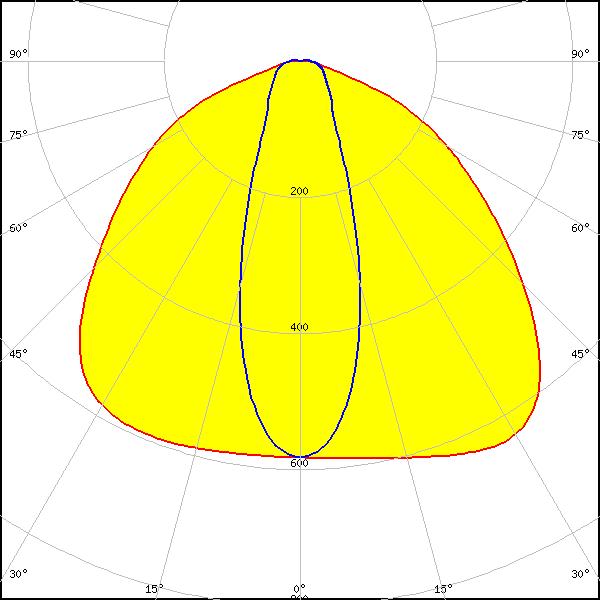

LED:
LUXEON V
FWHM:
112° + 34°
FWTM:
147° + 92°
Peak intensity:
0.600 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

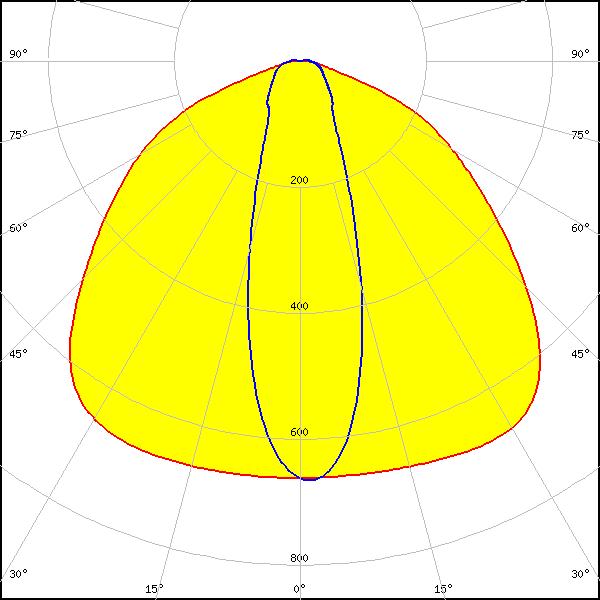

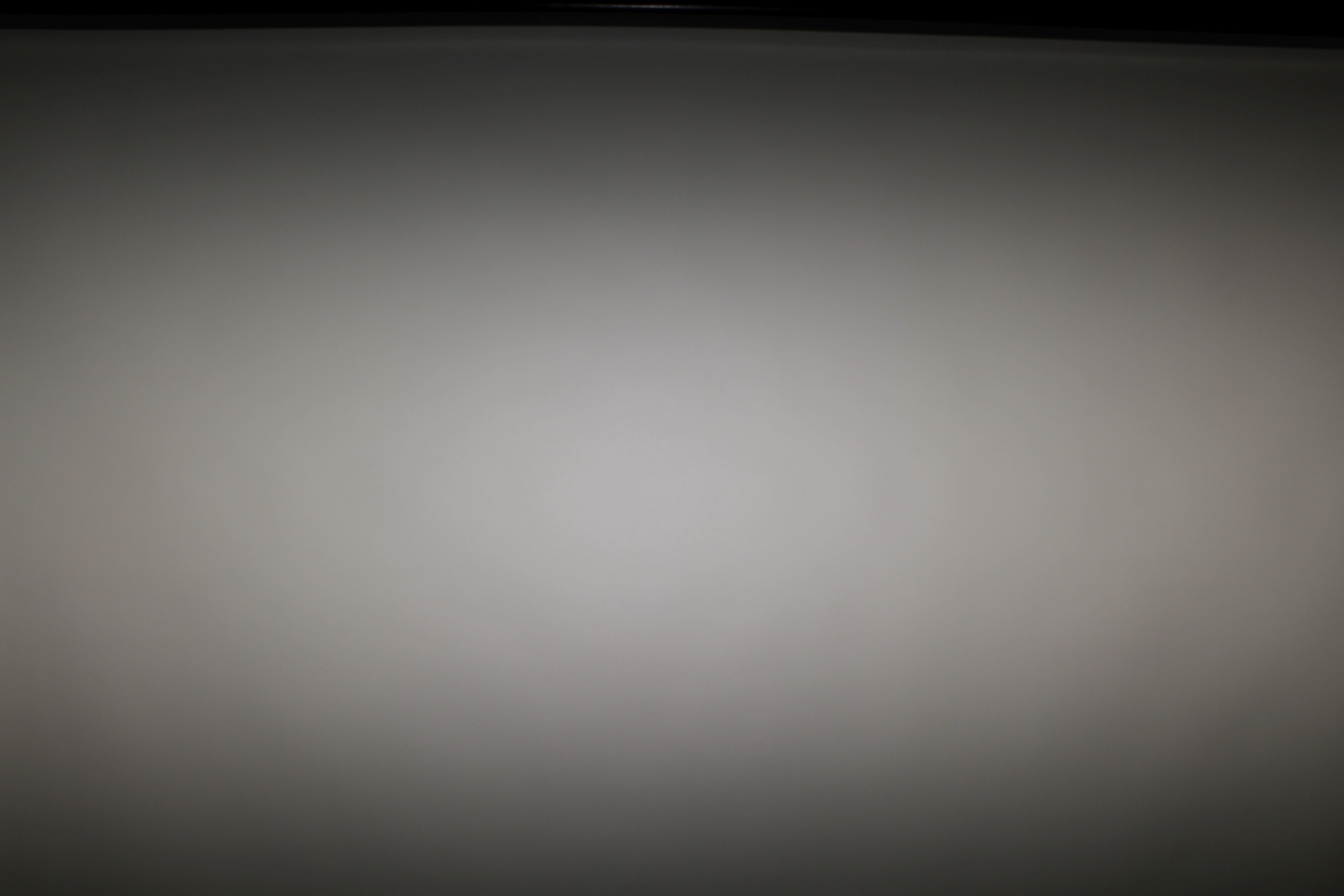

LUXEON V2
FWHM:
113° + 31°
FWTM:
147° + 91°
Peak intensity:
0.700 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

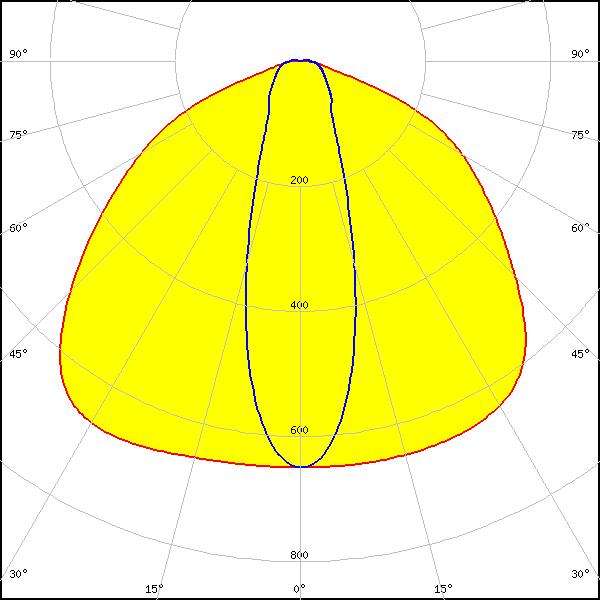

LED:
LUXEON XR-TX (L2T0-xxxx012M0000)
FWHM:
30° + 115°
FWTM:
92° + 148°
Peak intensity:
0.670 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

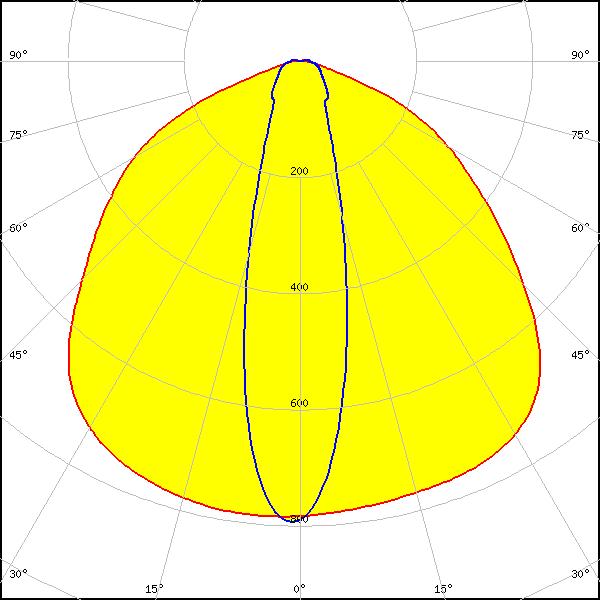

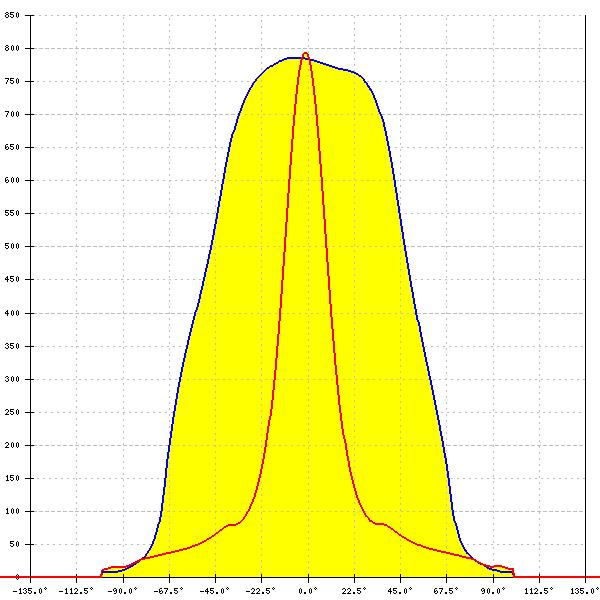

LED:

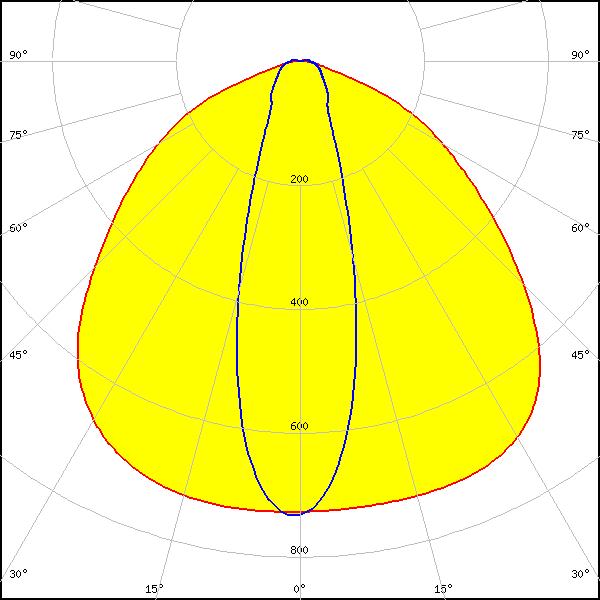

LUXEON Z ES
FWHM:
25° + 108°
FWTM:
73° + 145°
Peak intensity:
0.790 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

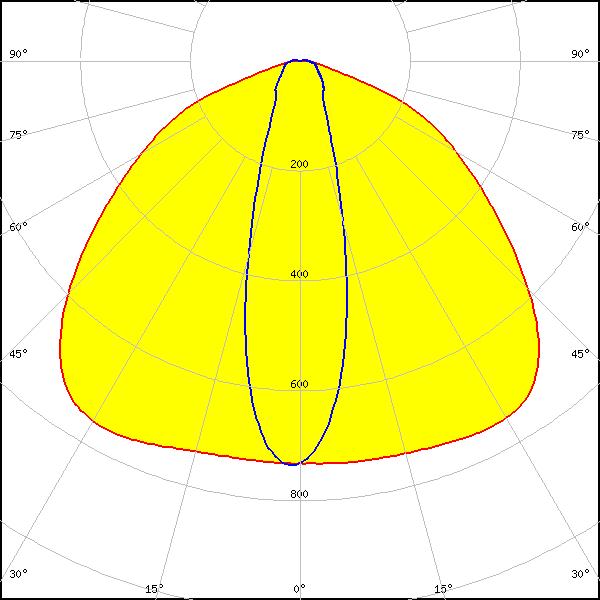

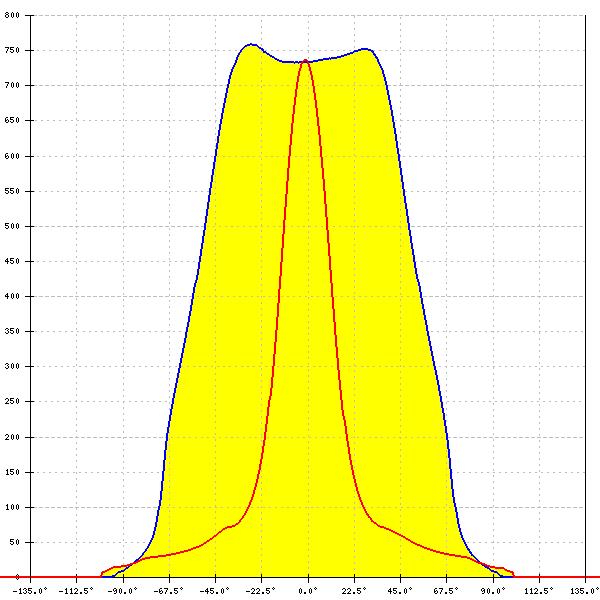

LED:
SST-10-B130
FWHM:
114° + 28°
FWTM:
147° + 70°
Peak intensity:
0.758 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
Deep Red

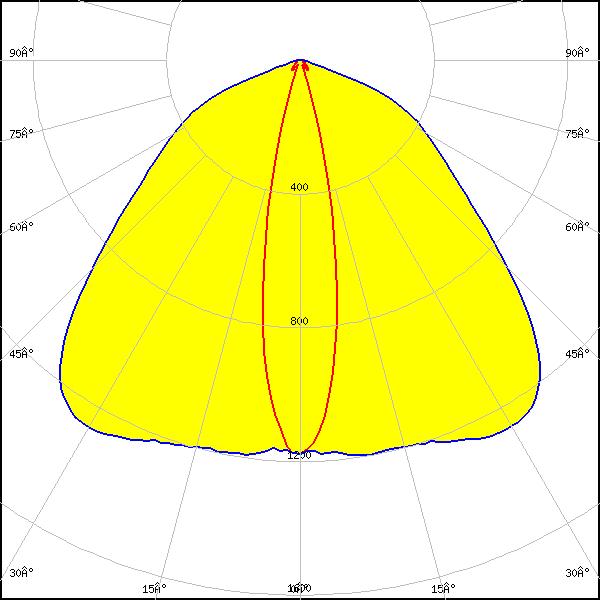

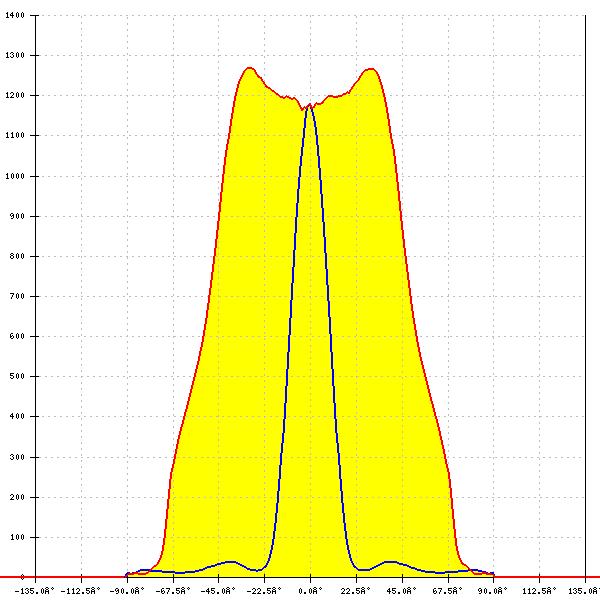

LED:
SST-20 Gen2
FWHM:
20° + 102°
FWTM:
34° + 142°
Peak intensity:
1.269 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

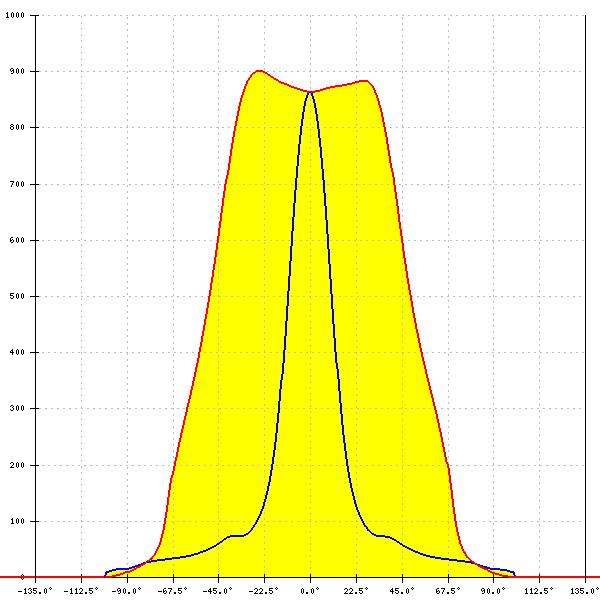

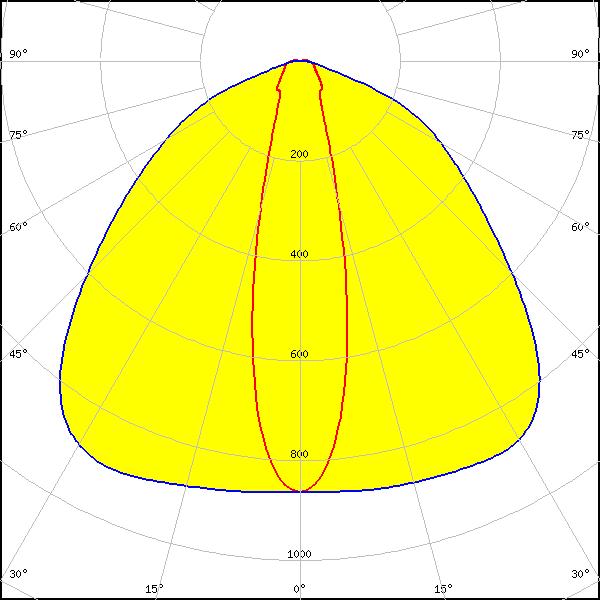

RecLED 146x45mm 2900lm 730 2x6 IP G1
FWHM:
24° + 104°
FWTM:
57° + 144°
Peak intensity:
0.901 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

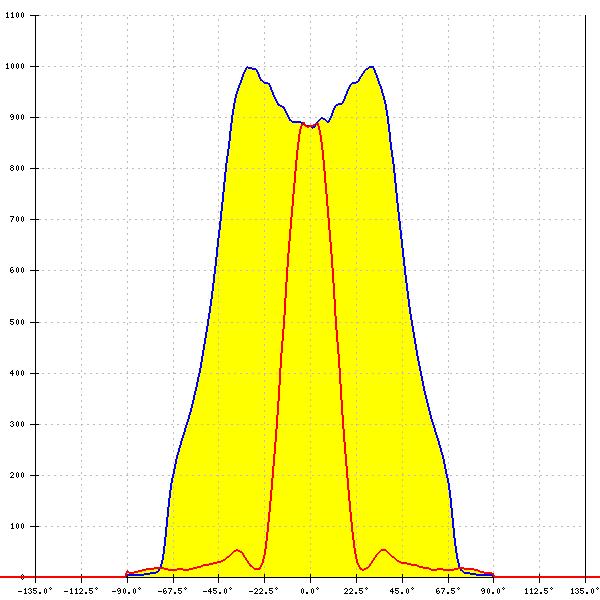

LED:

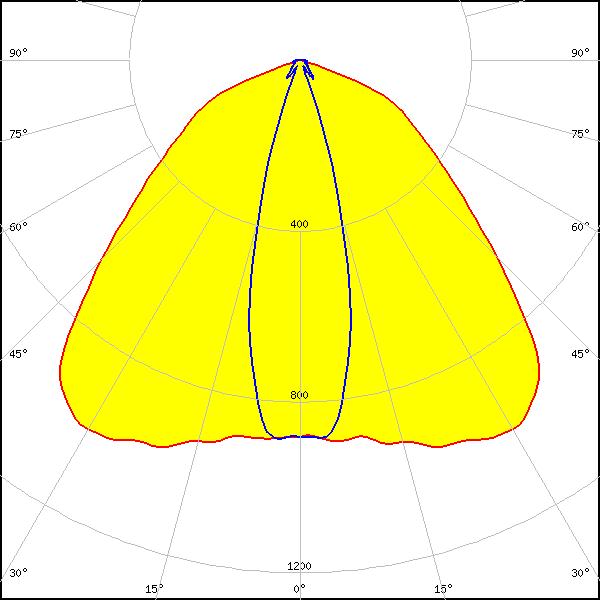

NV4WB35AM
FWHM:
100° + 28°
FWTM:
140° + 42°
Peak intensity:
0.998 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

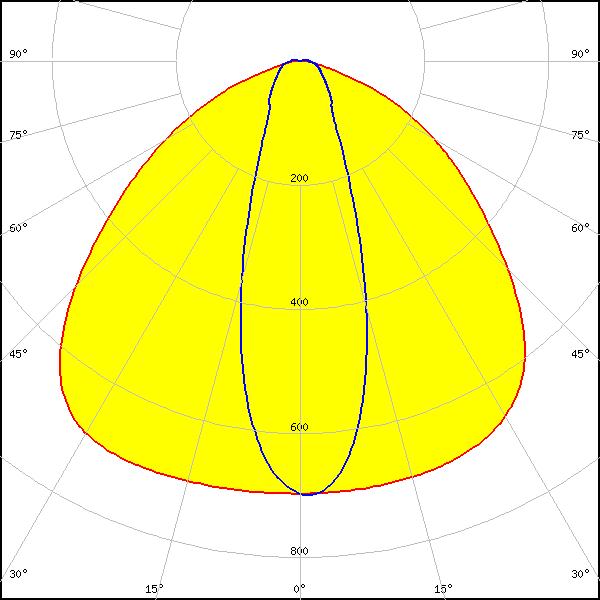

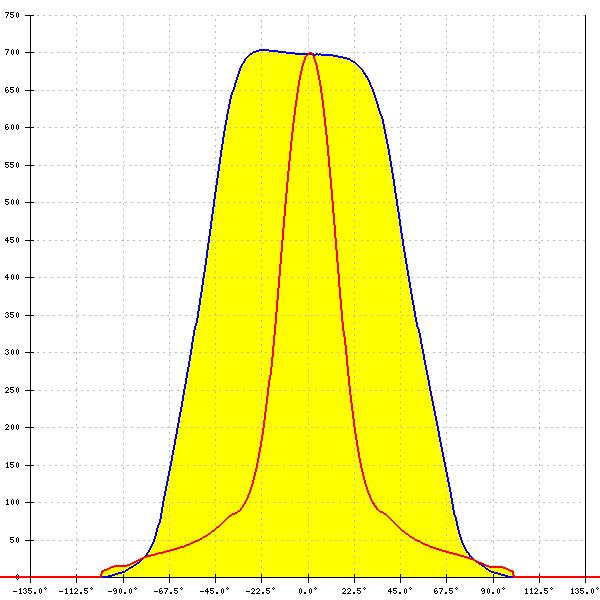

LED:
NVSW219D
FWHM:
106° + 32°
FWTM:
145° + 85°
Peak intensity:
0.700 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

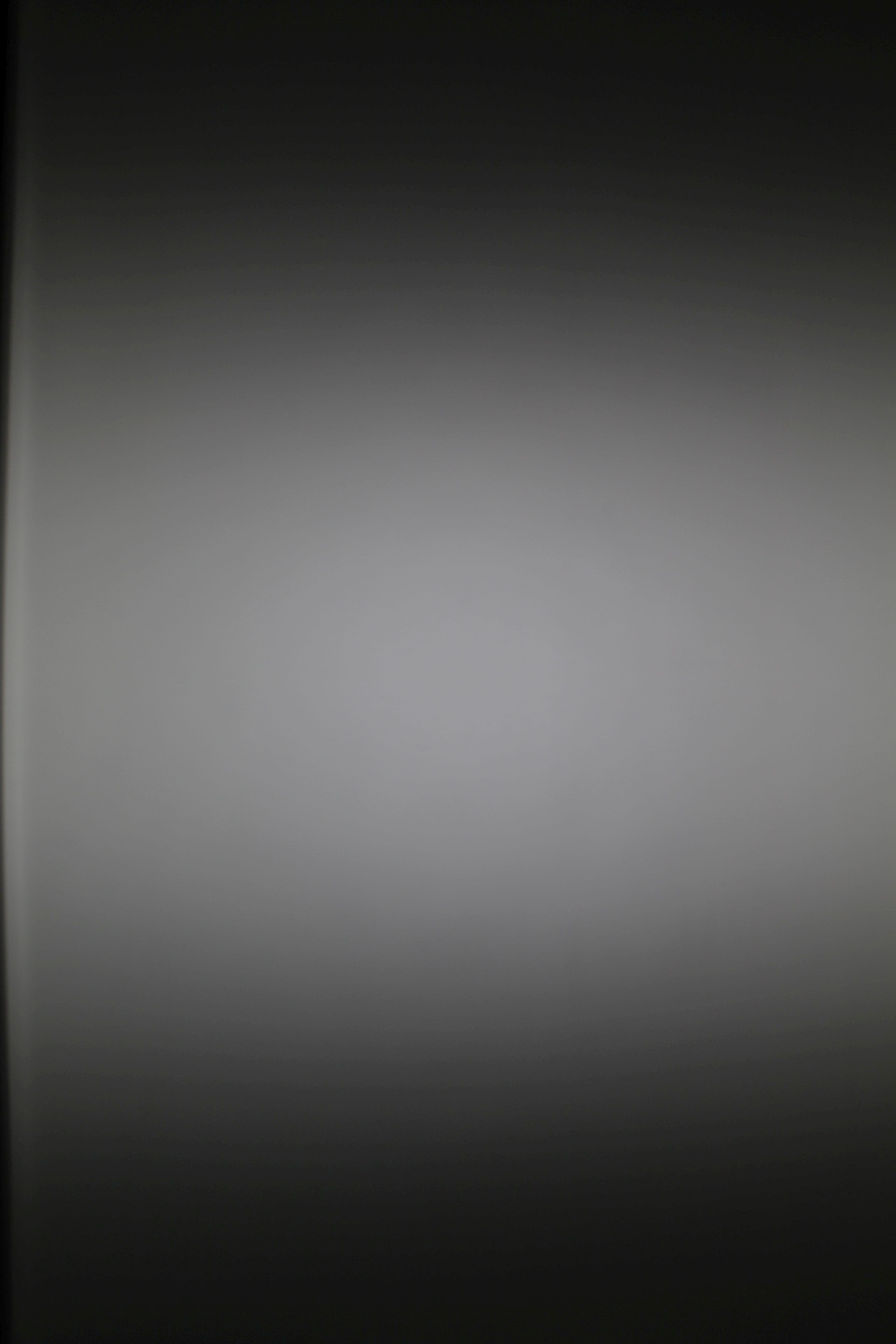

NVSW219F
FWHM:
112° + 32°
FWTM:
147° + 88°
Peak intensity:
0.700 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

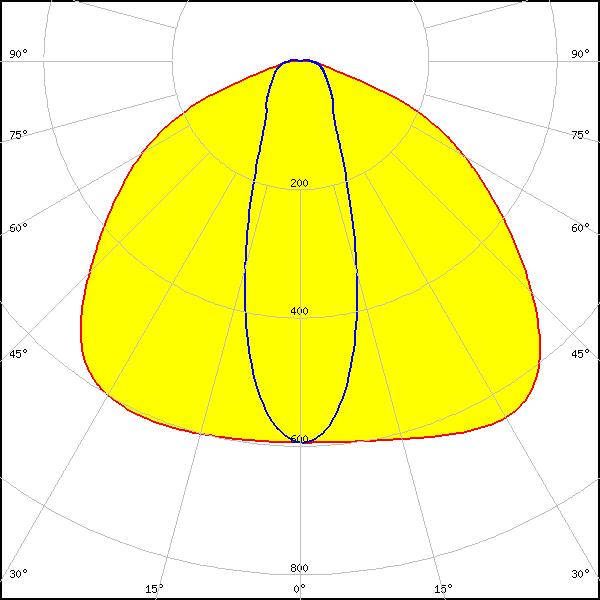

LED:

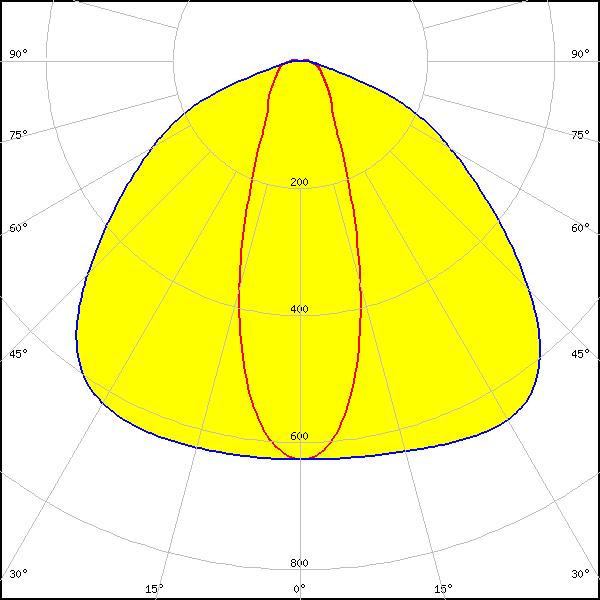

NVSW319B
FWHM:
34° + 113°
FWTM:
91° + 148°
Peak intensity:
0.650 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW3x9A
FWHM:
119° + 33°
FWTM:
149° + 100°
Peak intensity:
0.640 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

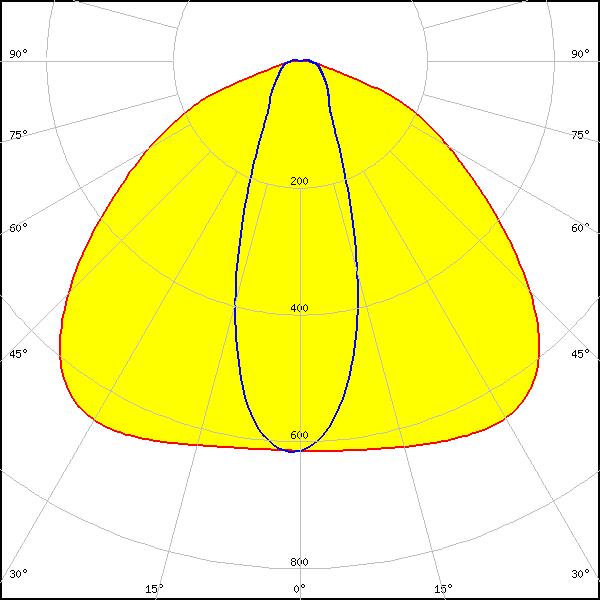

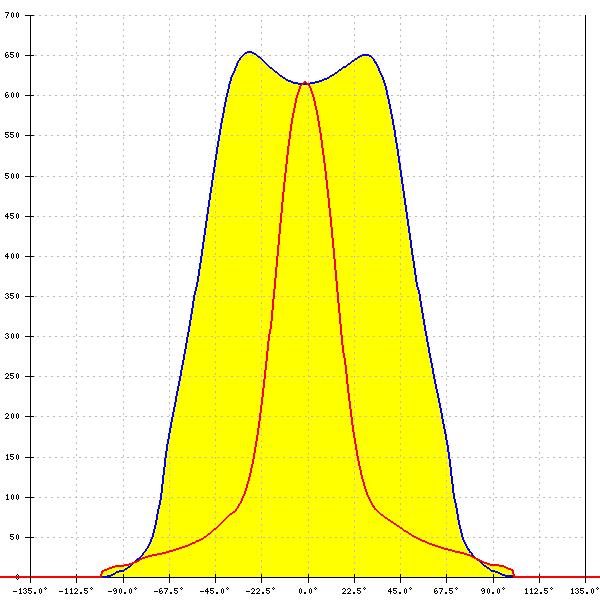

NVSW519A
FWHM:
113° + 35°
FWTM:
147° + 90°
Peak intensity:
0.654 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

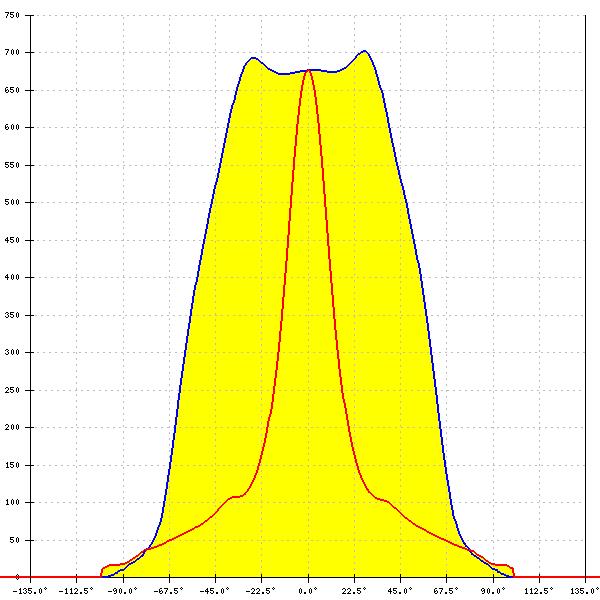

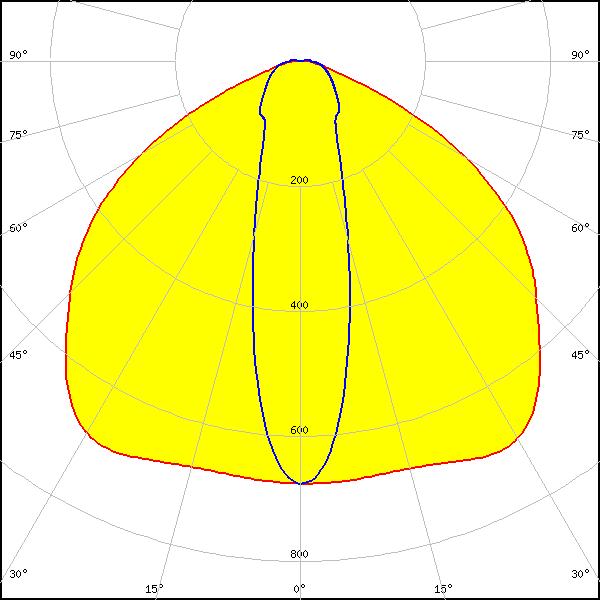

LED:
NVSxE21A
FWHM:
26° + 116°
FWTM:
107° + 145°
Peak intensity:
0.700 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

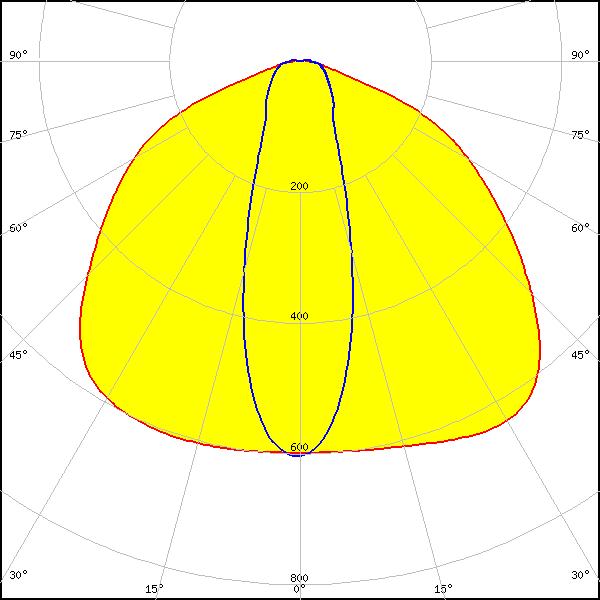

NVSxx19B/NVSxx19C
FWHM:
114° + 32°
FWTM:
148° + 93°
Peak intensity:
0.670 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19B/NVSxx19C
FWHM:
31° + 116°
FWTM:
100° + 149°
Peak intensity:
0.630 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

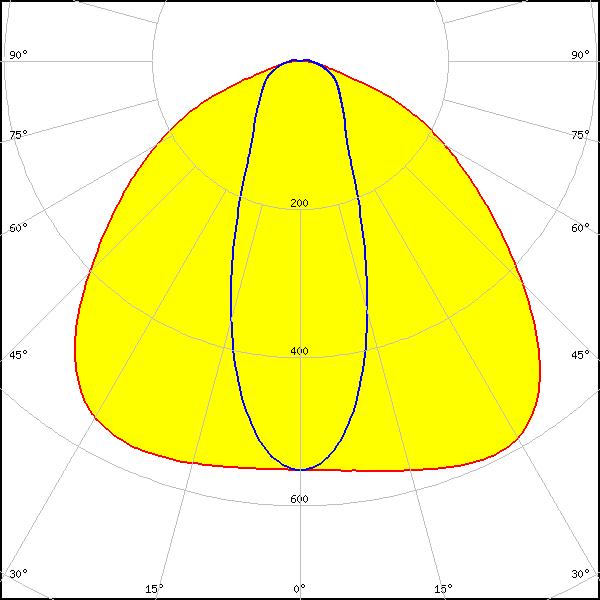

Duris S8
FWHM:
111° + 38°
FWTM:
148° + 121°
Peak intensity:
0.920 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

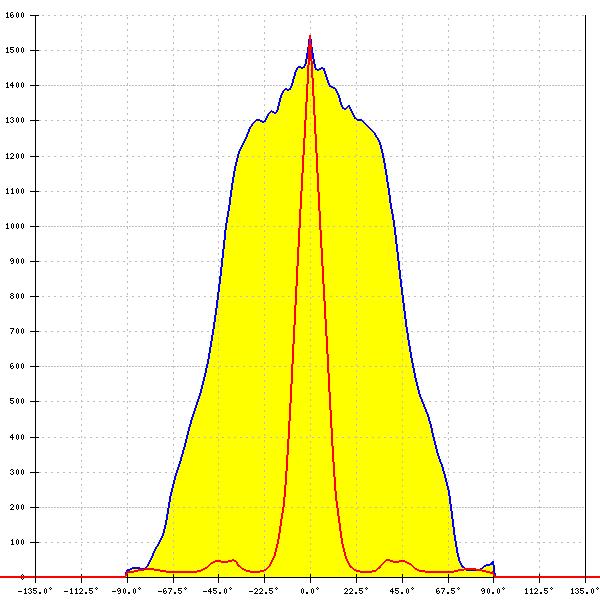

LED:

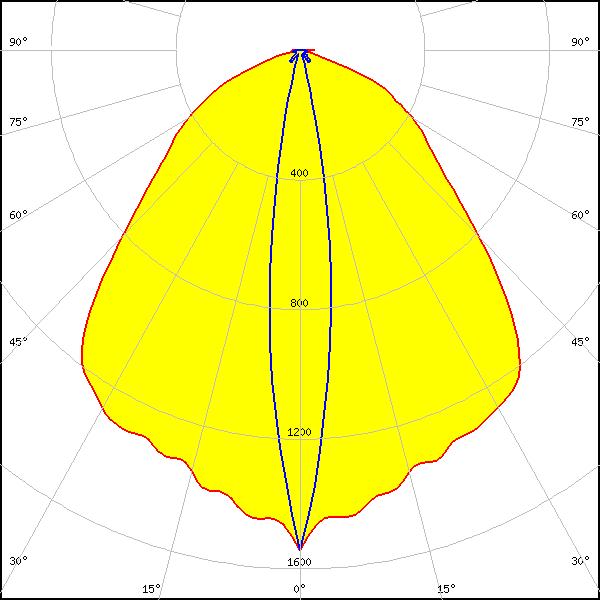

OSCONIQ P 3030
FWHM:
92° + 14°
FWTM:
141° + 28°
Peak intensity:
1.543 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

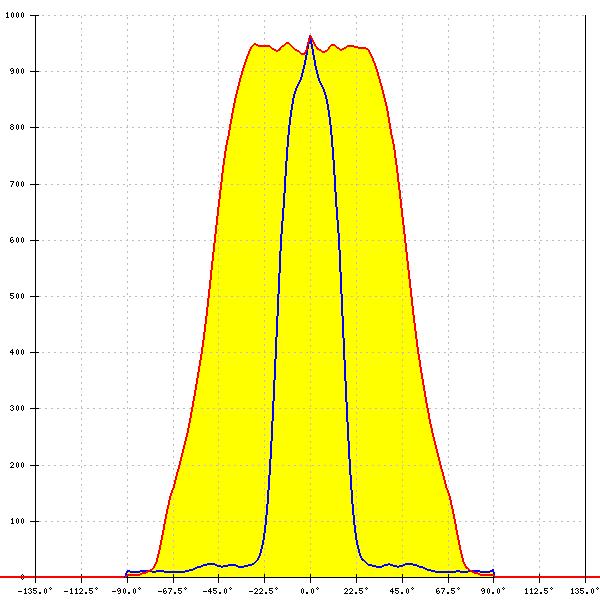

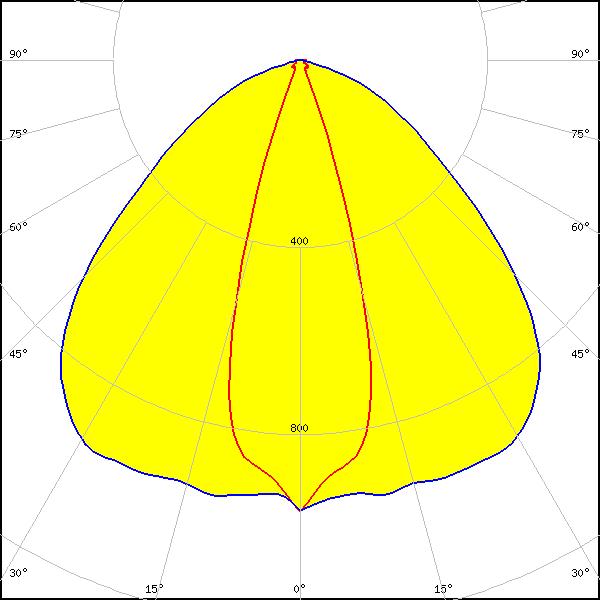

OSCONIQ P 3737 (2W version)
FWHM:
32° + 100°
FWTM:
44° + 142°
Peak intensity:
0.964 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 3737 (3W version)
FWHM:
27° + 100°
FWTM:
44° + 143°
Peak intensity:
1.020 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

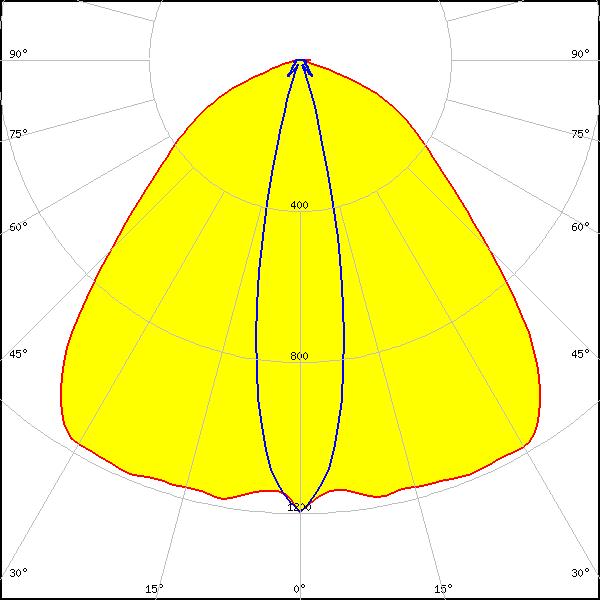

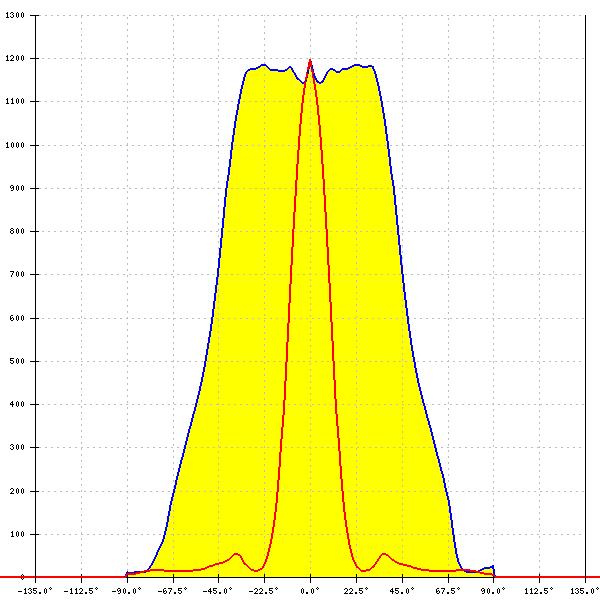

OSCONIQ P 3737 Flat
FWHM:
96° + 22°
FWTM:
140° + 36°
Peak intensity:
1.198 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
110° + 29°
FWTM:
146° + 86°
Peak intensity:
0.720 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

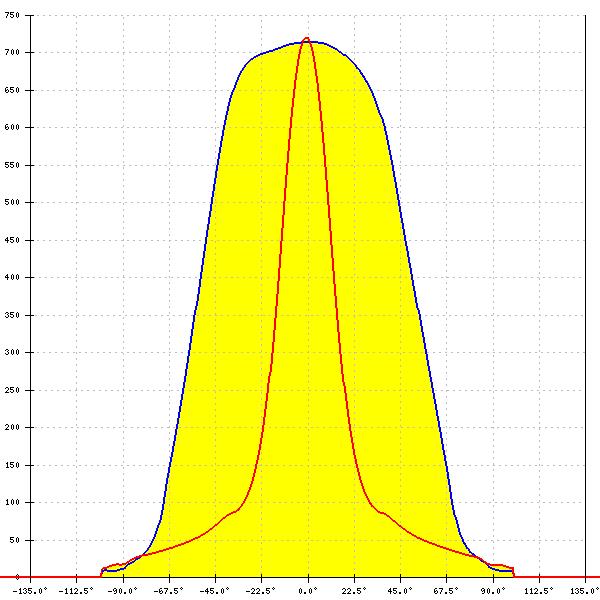

LED:

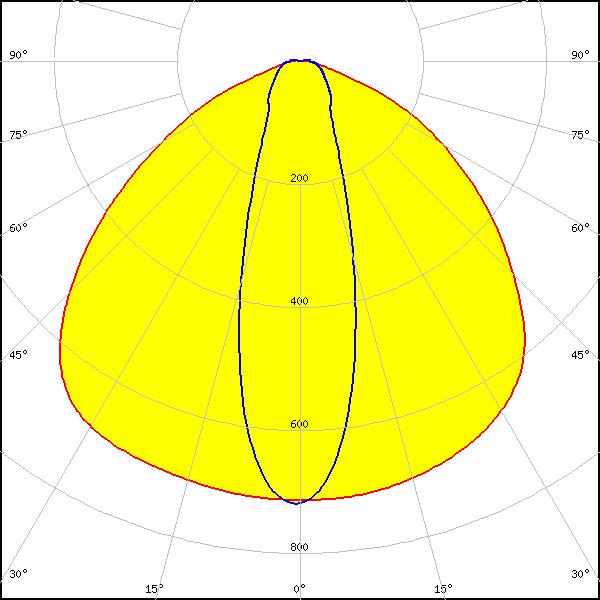

OSLON Square EC
FWHM:
30° + 108°
FWTM:
87° + 145°
Peak intensity:
0.720 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

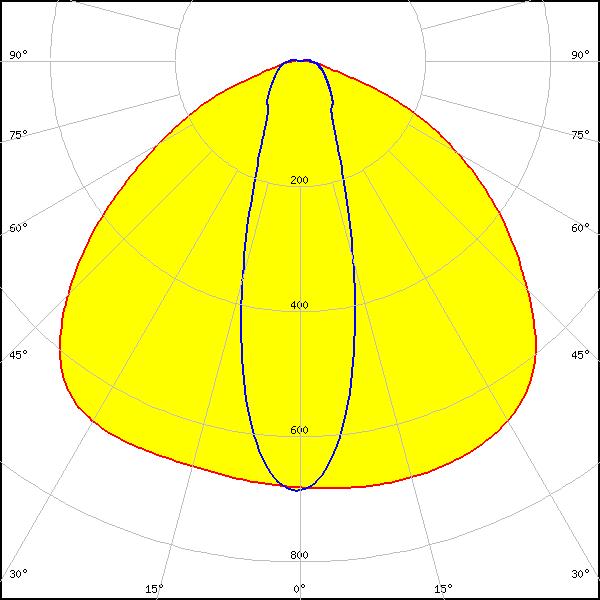

LED:

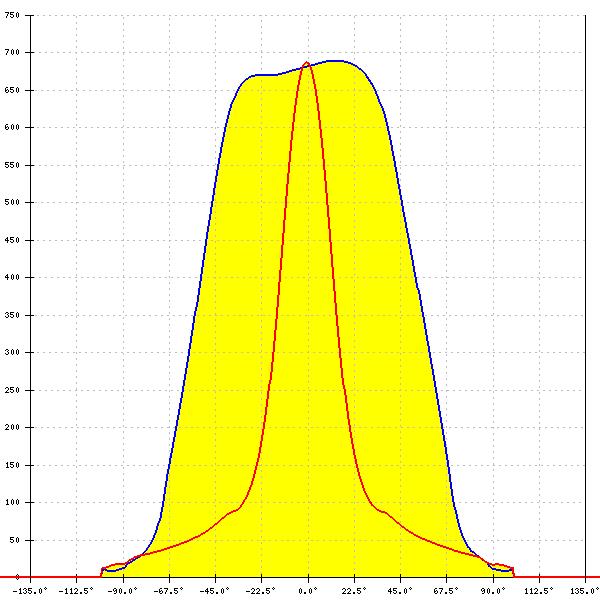

OSLON Square PC
FWHM:
30° + 111°
FWTM:
91° + 146°
Peak intensity:
0.690 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

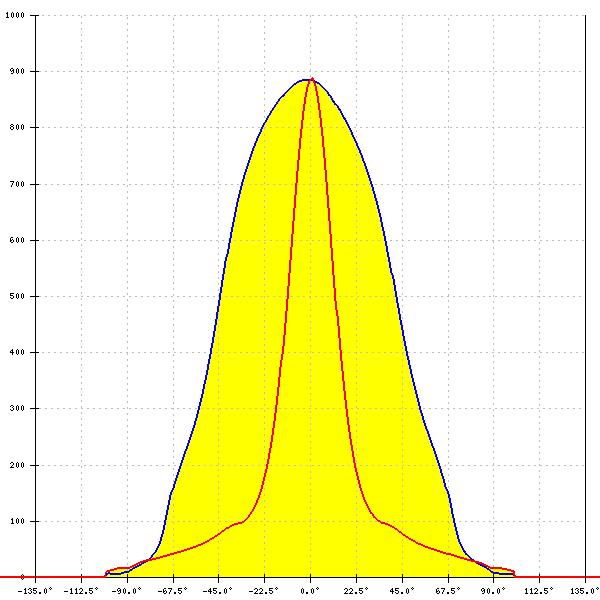

LED:

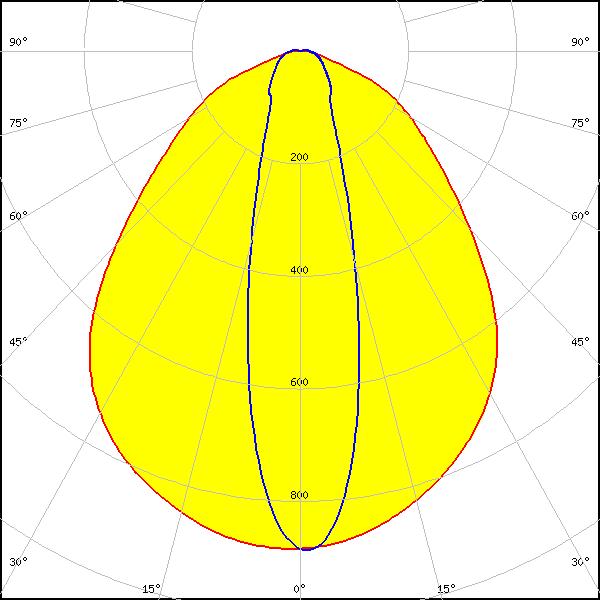

OSLON SSL 80
FWHM:
26° + 92°
FWTM:
81° + 143°
Peak intensity:
0.890 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

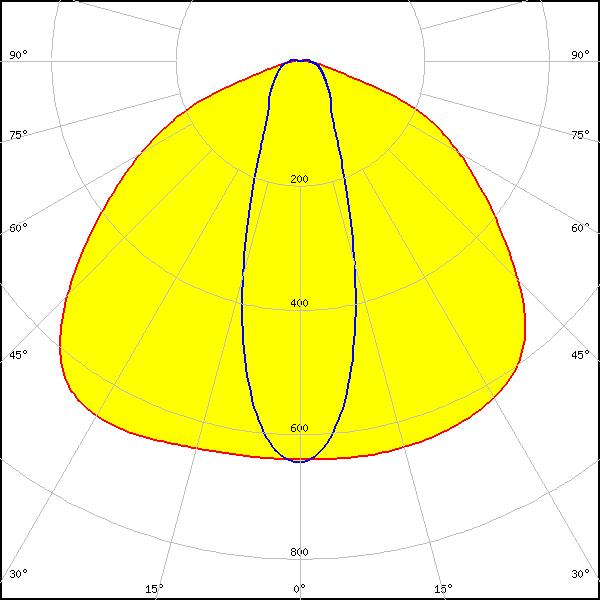

Fortimo FastFlex LED 2x6 DP G4
FWHM:
32° + 116°
FWTM:
91° + 149°
Peak intensity:
0.660 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x6 DP G5
FWHM:
108° + 29°
FWTM:
145° + 72°
Peak intensity:
0.768 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

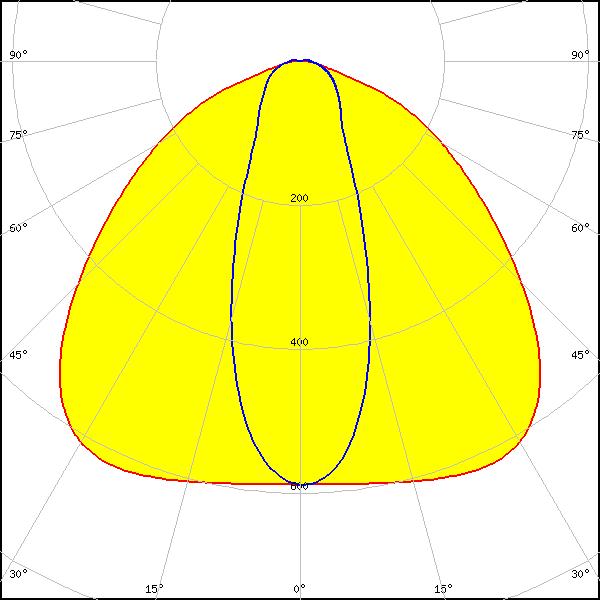

LED:
Fortimo FastFlex LED 2x6 DP HE
FWHM:
106° + 37°
FWTM:
146° + 110°
Peak intensity:
0.627 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

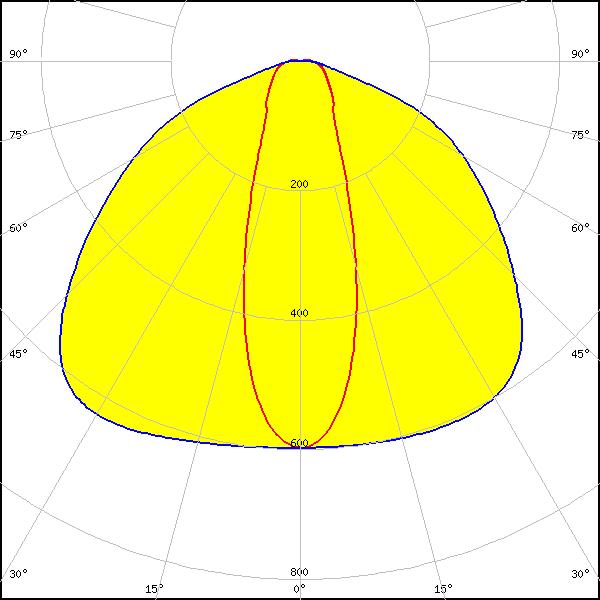

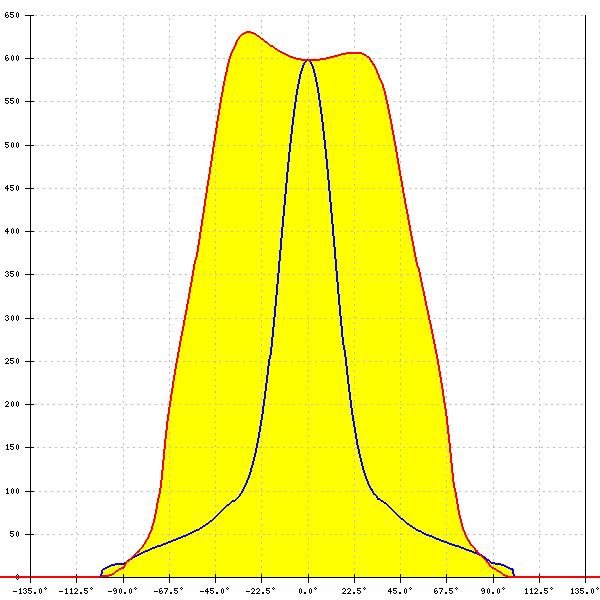

Fortimo FastFlex LED 2x6 DPX G4
FWHM:
33° + 119°
FWTM:
100° + 150°
Peak intensity:
0.630 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

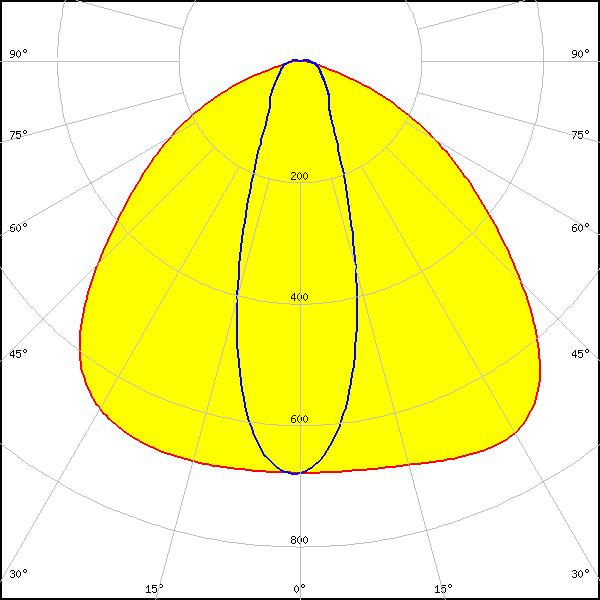

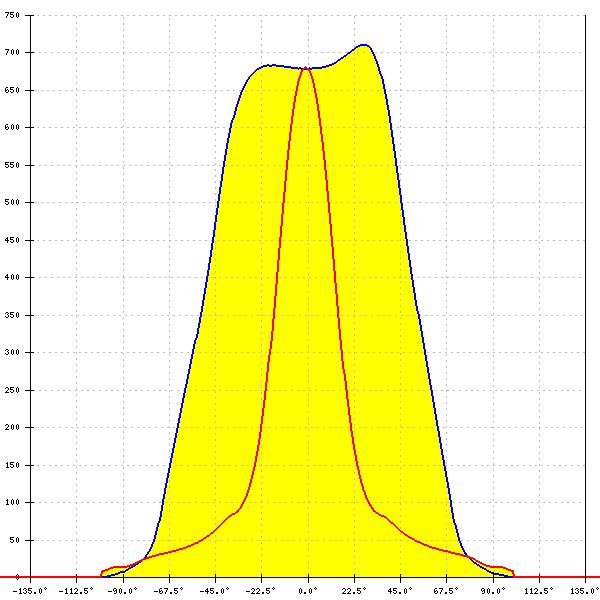

LED:
HiLOM RH12 (LH351C)
FWHM:
107° + 32°
FWTM:
145° + 85°
Peak intensity:
0.710 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

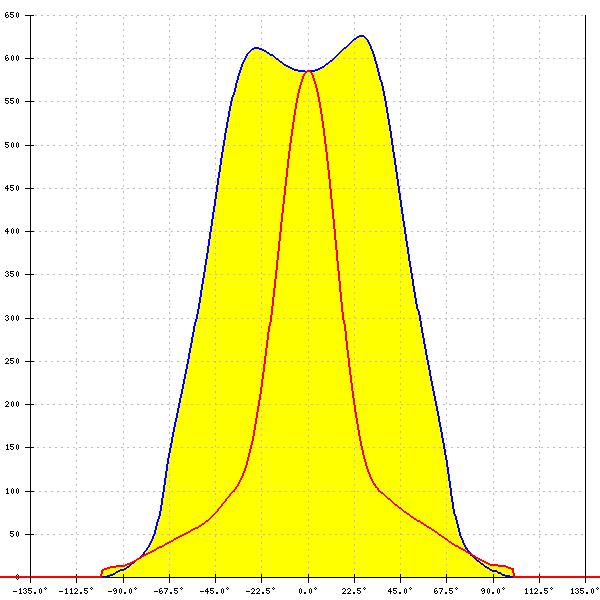

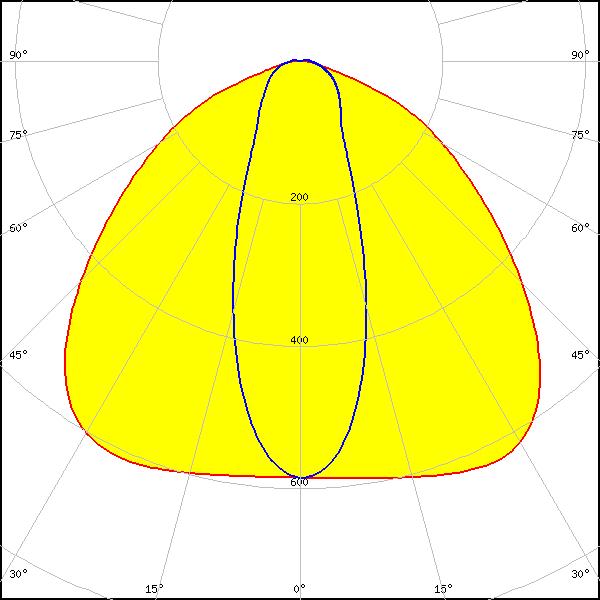

HiLOM RM12 ZP (LH502C)
FWHM:
107° + 37°
FWTM:
146° + 111°
Peak intensity:
0.626 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

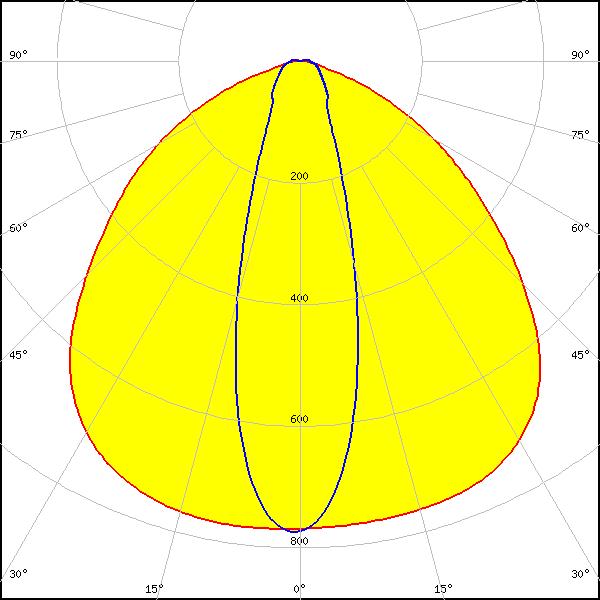

LED:

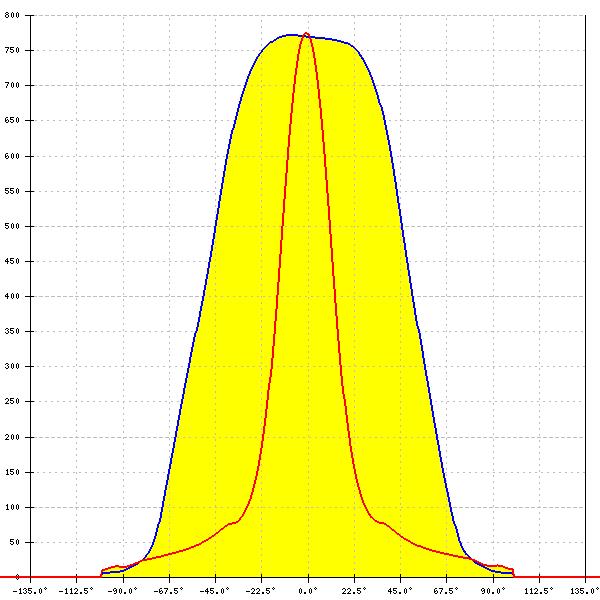

LH351Z
FWHM:
29° + 104°
FWTM:
70° + 144°
Peak intensity:
0.770 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

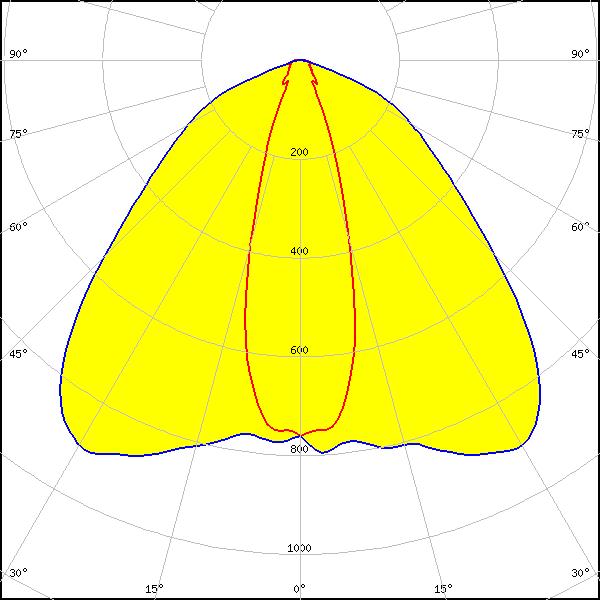

LED:
LH502D
FWHM:
30° + 98°
FWTM:
52° + 140°
Peak intensity:
0.902 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

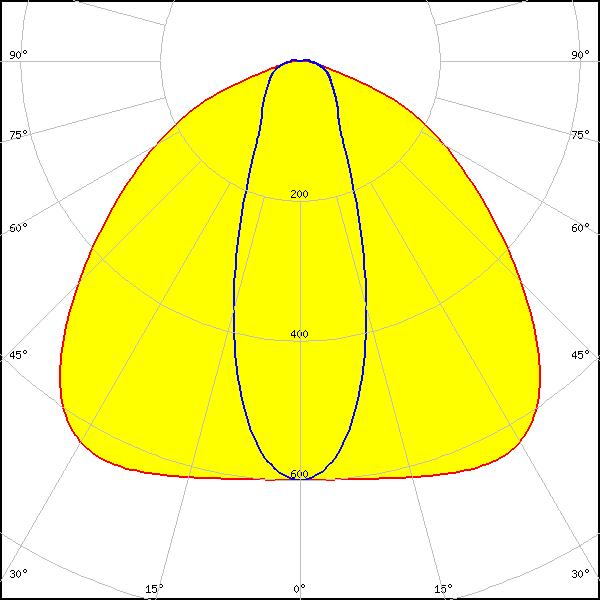

LED:
BALAM-VP-5250-750-36
FWHM: asymmetric
Peak intensity:
0.644 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

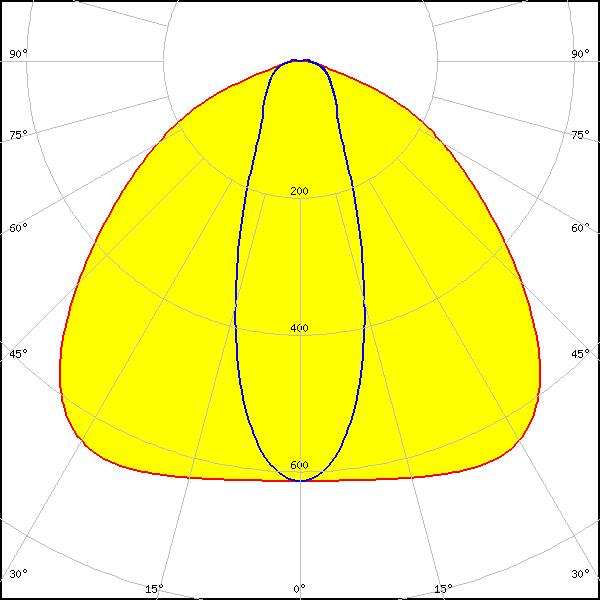

LED:
BALAMEC-VE-5700-740-36
FWHM:
107° + 35°
FWTM:
145° + 100°
Peak intensity:
0.650 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

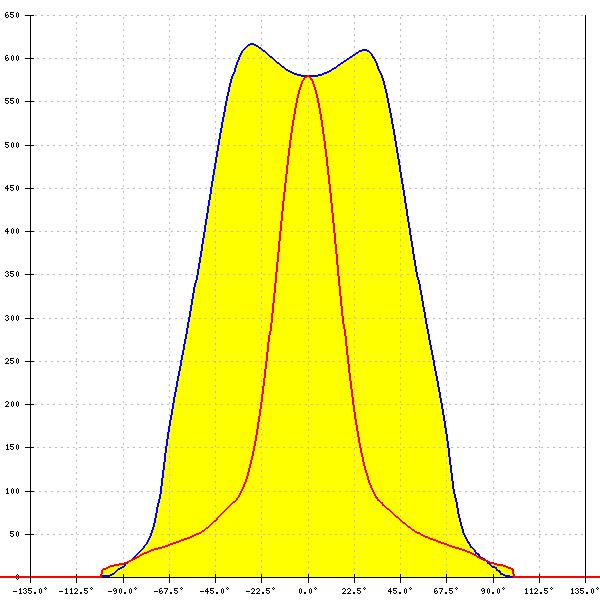

ROY-S26XPL2 (XP-L2)
FWHM:
116° + 36°
FWTM:
150° + 98°
Peak intensity:
0.616 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

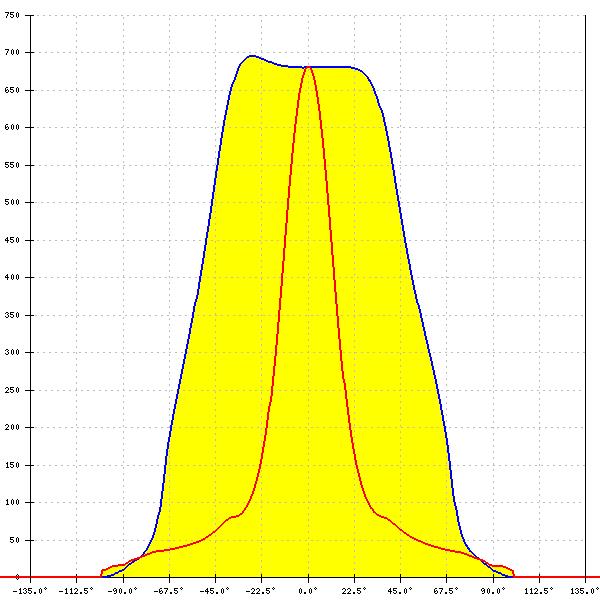

LED:

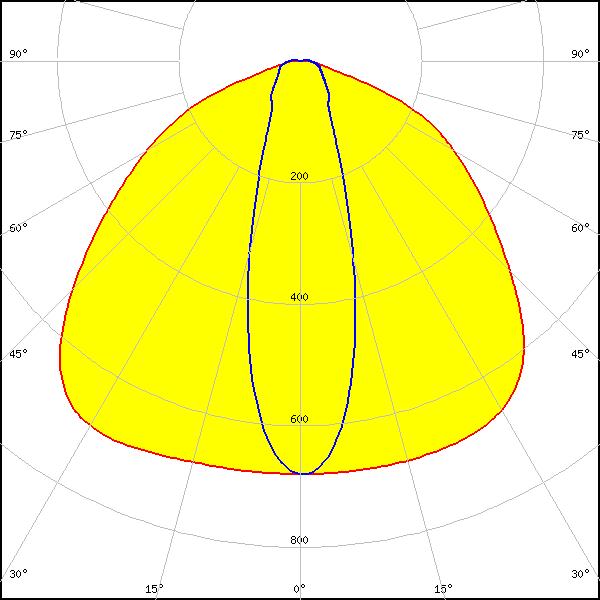

XLE-S22C4XTEHE (XT-E HE)
FWHM:
112° + 29°
FWTM:
147° + 85°
Peak intensity:
0.700 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

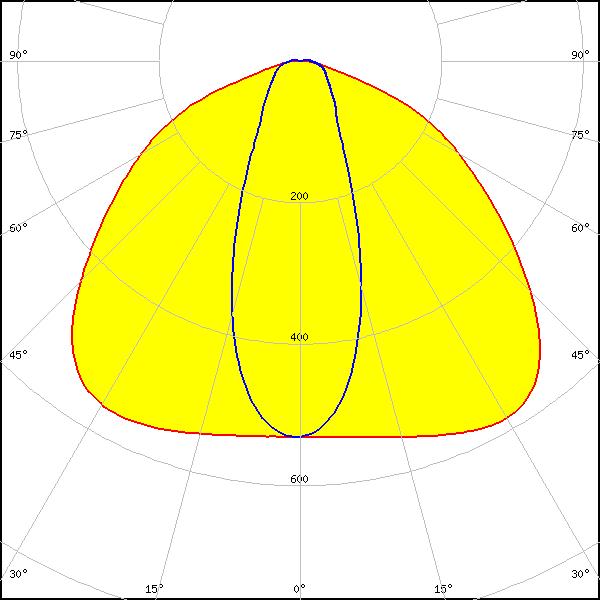

LED:

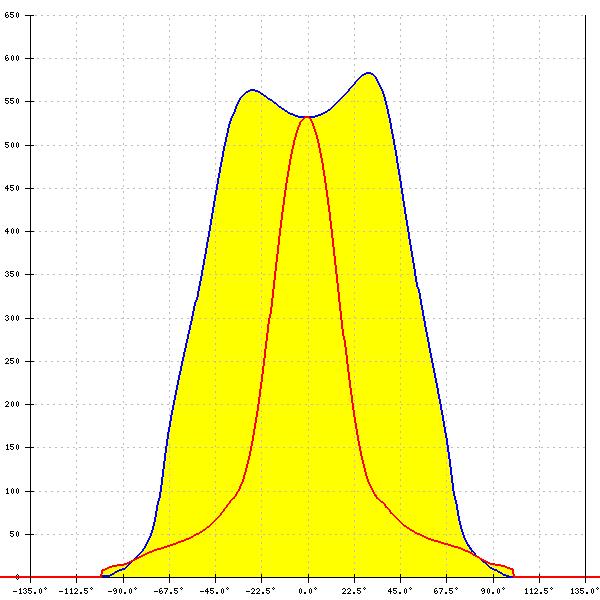

XLE-S26XHP35 (XHP35 HD)
FWHM:
118° + 38°
FWTM:
151° + 103°
Peak intensity:
0.600 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

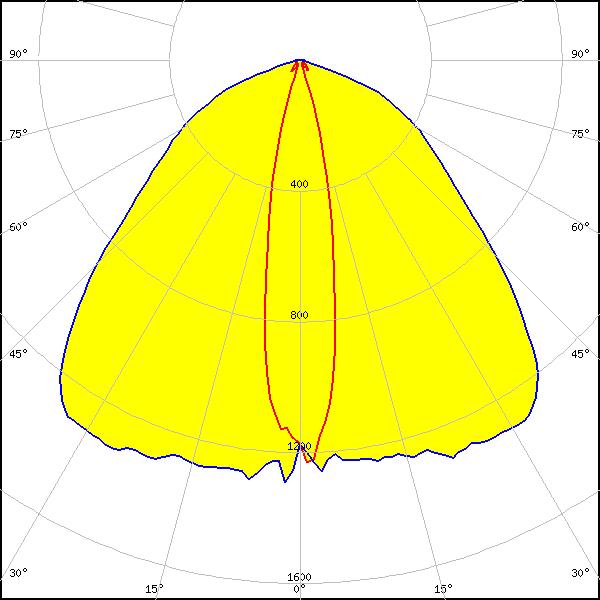

LED:

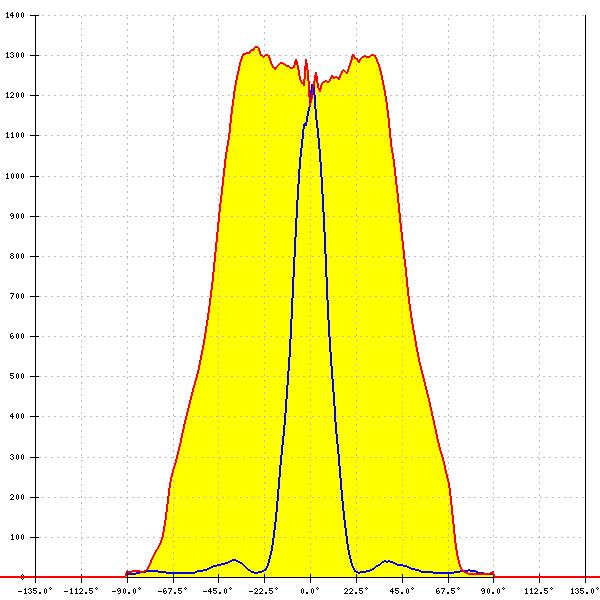

SEOUL DC 3528
FWHM:
20° + 99°
FWTM:
36° + 142°
Peak intensity:
1.300 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

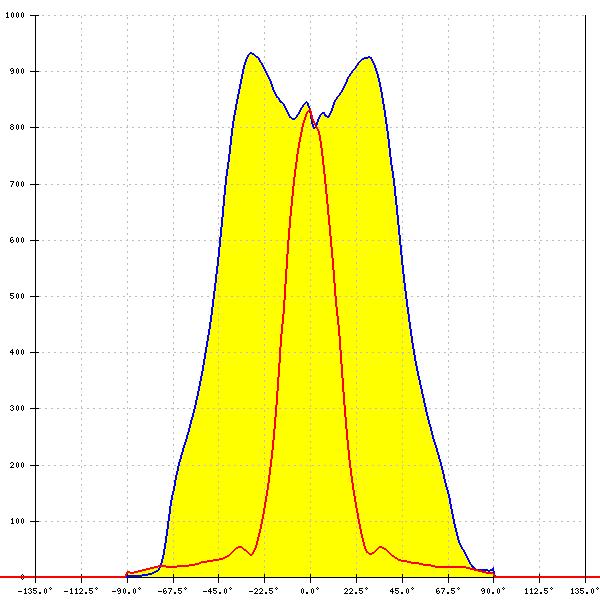

LED:

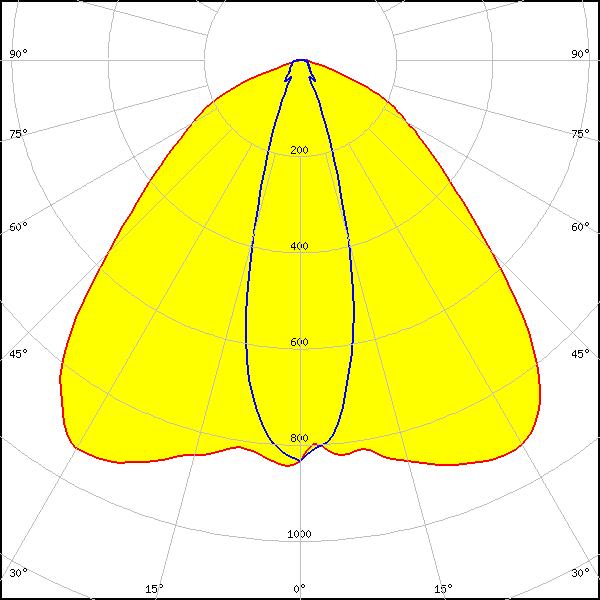

SEOUL DC 5050 6V
FWHM:
97° + 29°
FWTM:
142° + 49°
Peak intensity:
0.930 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

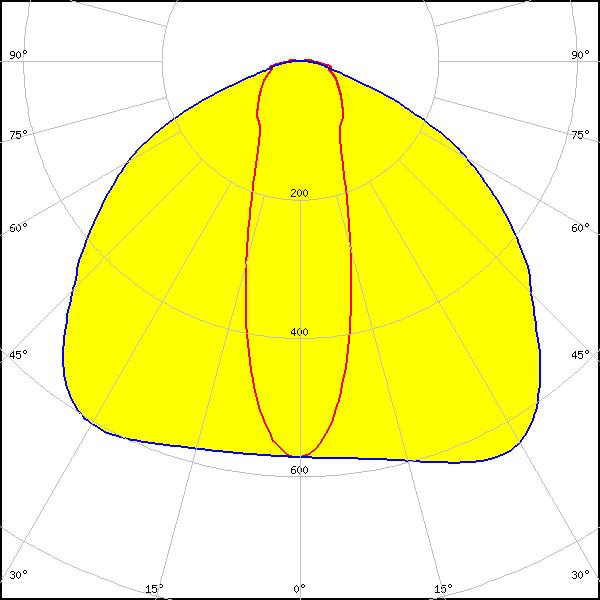

LED:

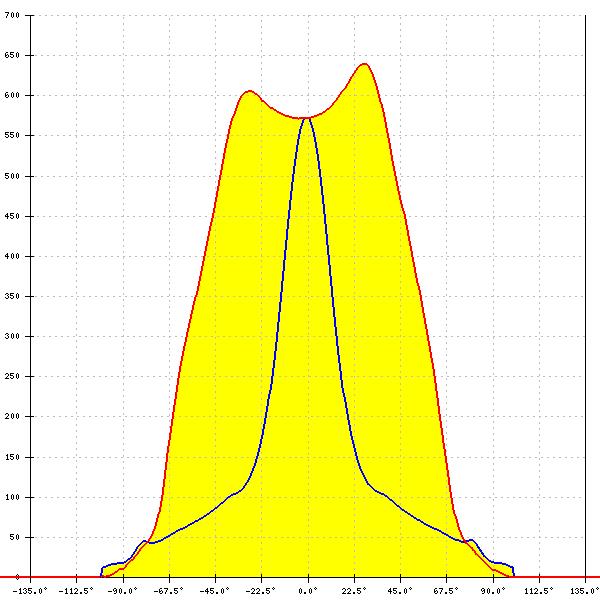

SMJQ-D36W12Mx
FWHM:
30° + 119°
FWTM:
128° + 149°
Peak intensity:
0.640 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

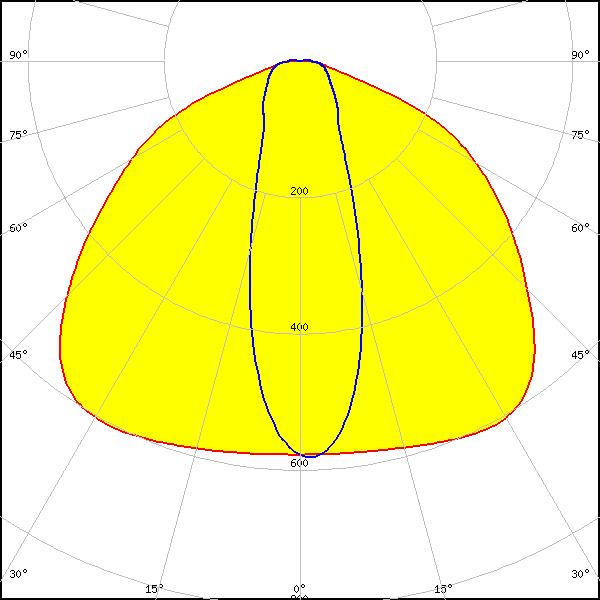

SMJQ-D36W12Px
FWHM:
121° + 32°
FWTM:
151° + 108°
Peak intensity:
0.610 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

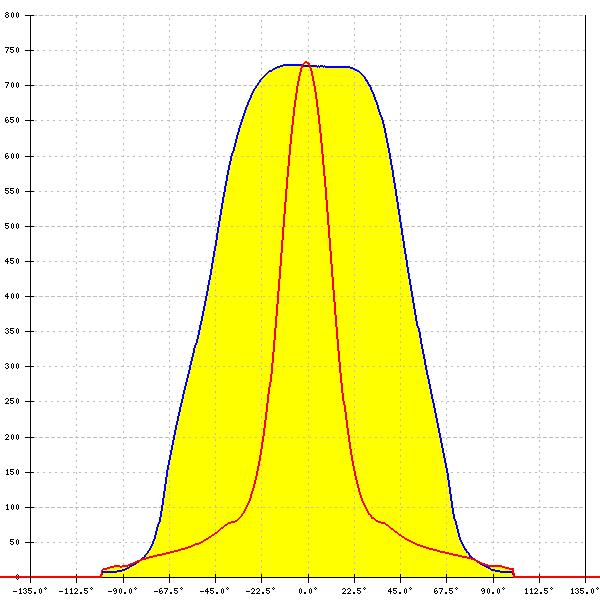

LED:
Z5M1/Z5M2
FWHM:
29° + 105°
FWTM:
79° + 145°
Peak intensity:
0.730 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

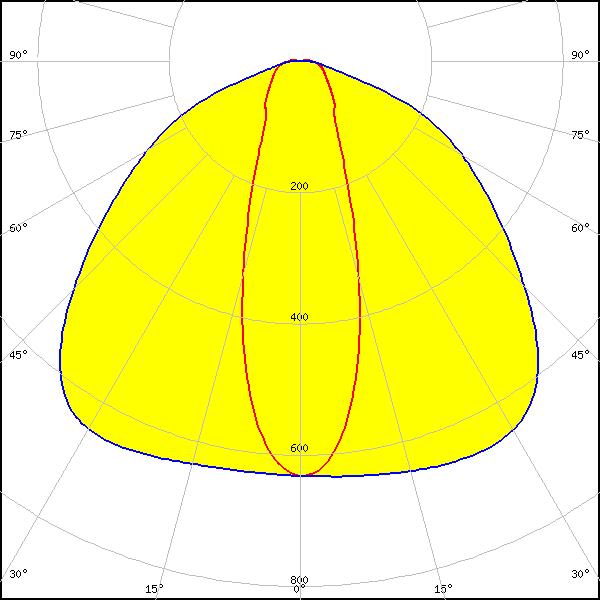

LED:
Z5M3
FWHM:
32° + 111°
FWTM:
96° + 148°
Peak intensity:
0.656 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

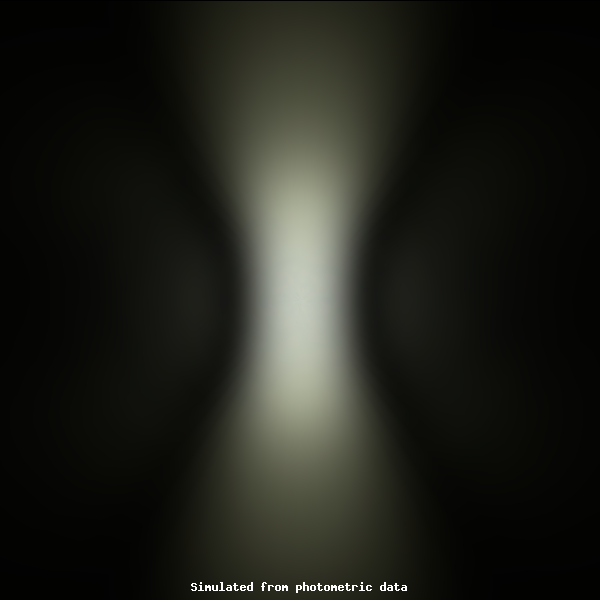

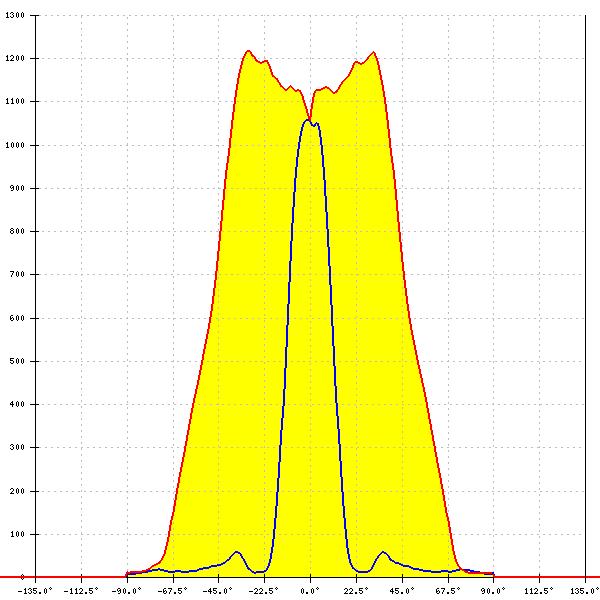

LED:
Z5M4
FWHM:
24° + 98°
FWTM:
34° + 136°
Peak intensity:
1.216 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M4-E1
FWHM:
26° + 102°
FWTM:
42° + 138°
Peak intensity:
1.066 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M4-E2
FWHM:
28° + 102°
FWTM:
46° + 140°
Peak intensity:
1.017 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z8Y22
FWHM:
30° + 119°
FWTM:
128° + 149°
Peak intensity:
0.640 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

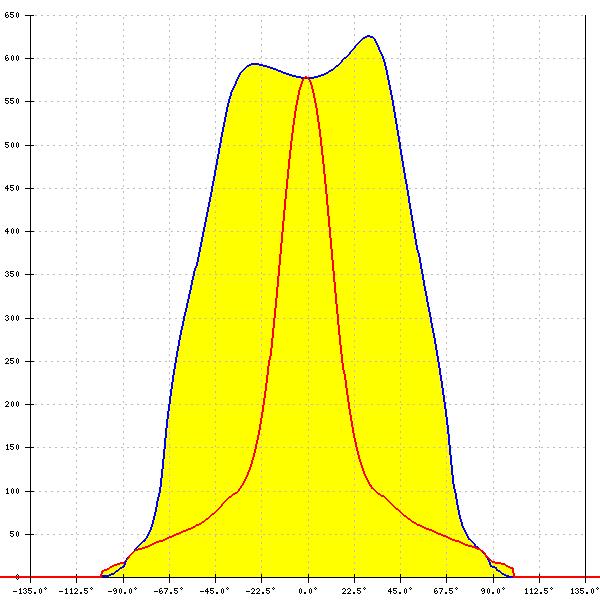

LED:
Z8Y22P
FWHM:
122° + 32°
FWTM:
151° + 111°
Peak intensity:
0.630 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

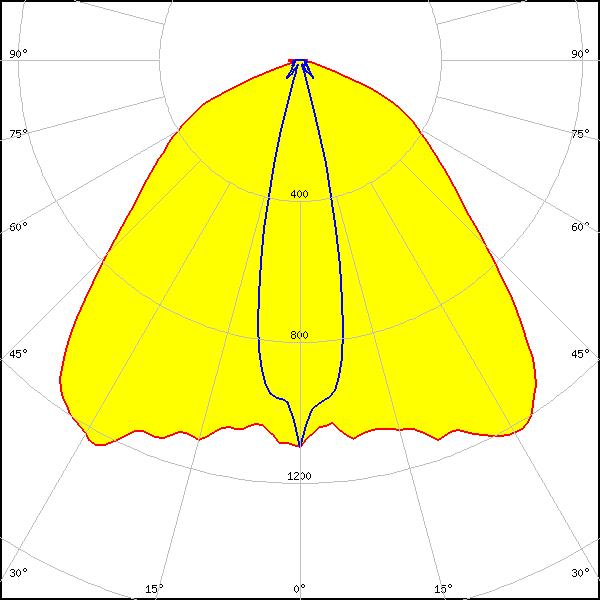

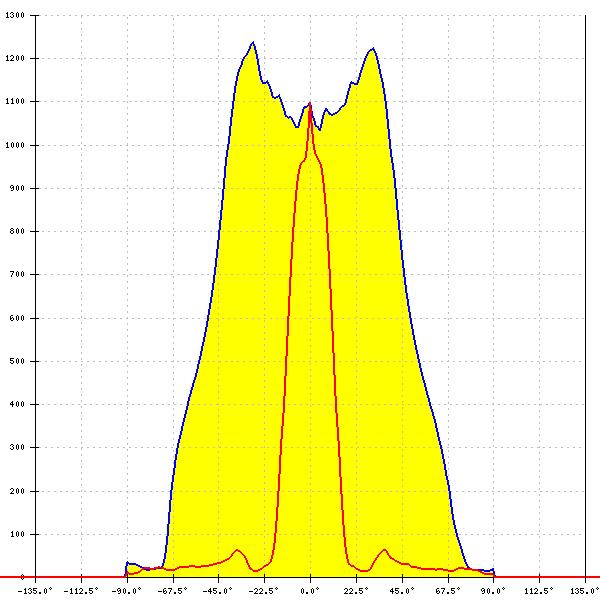

LED:
Z8Y22T
FWHM:
97° + 21°
FWTM:
141° + 32°
Peak intensity:
1.240 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

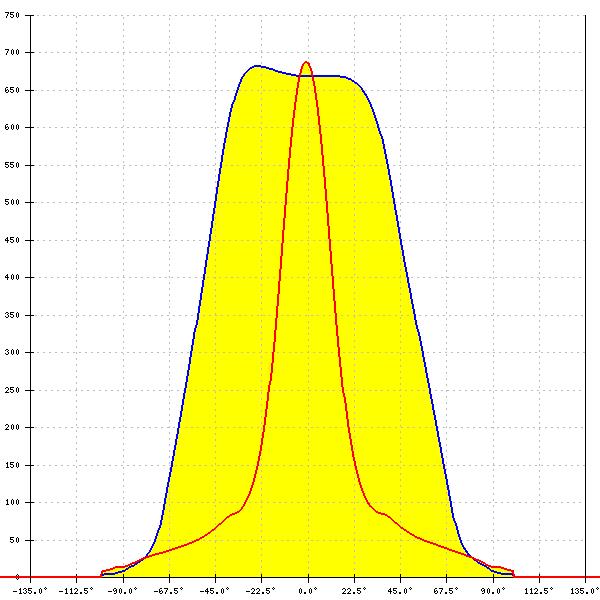

TL1L4
FWHM:
29° + 107°
FWTM:
88° + 144°
Peak intensity:
0.690 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

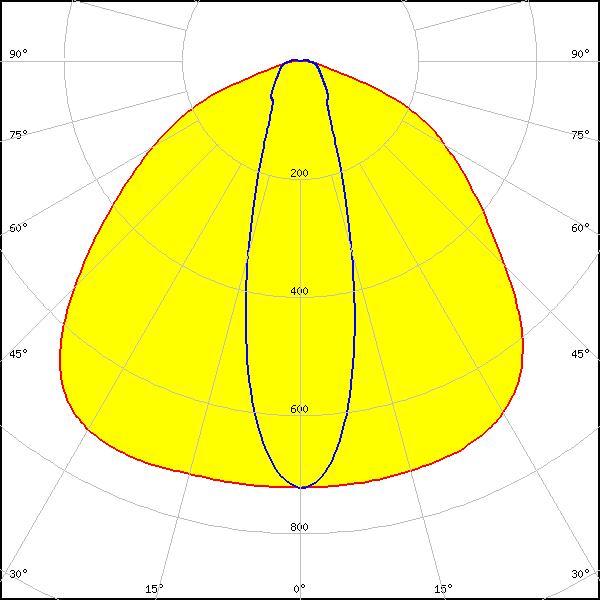

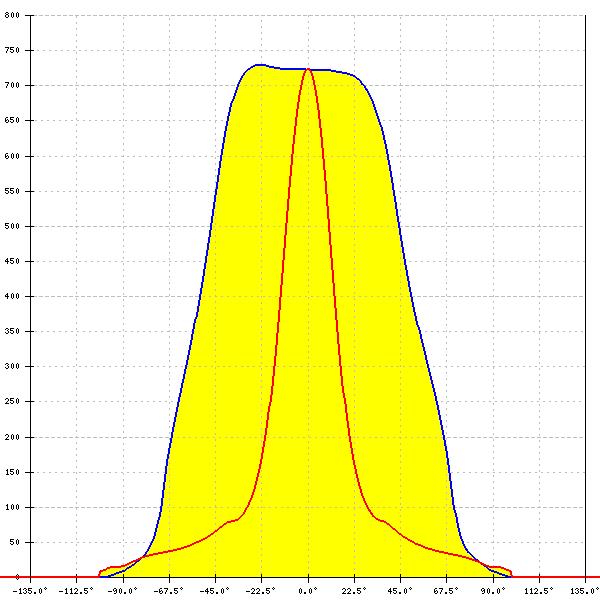

LED:
RLE 2x6 3000lm HP EXC2 OTD
FWHM:
108° + 29°
FWTM:
146° + 82°
Peak intensity:
0.730 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
