CP19517_VERONICA-MAXI50-D

~6° spot beam

Specification

Dimensions:

48 mm
Height:

25.90 mm
Fastening:

socket
Colour:

black
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Component Materials

VERONICA-MAXI50-D
Single lens
PMMA
VERONICA-MAXI50-HLD
Holder
PC-ABS
VERONICA-MAXI50-D-SUBLENS
Sublens
PMMA
Request material files from Tech Support

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information

Quantity in box:

256 pcs
Box size:

476 x 273 x 247 mm
Box weight:

9.7 kg
MPQ:

32 pcs
MOQ:

256 pcs
MOQ size:

476 x 273 x 247 mm
MOQ weight:

9.7 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
Request a 3D mechanical model

Request a 3D mechanical model: CP19517_VERONICA-MAXI50-D

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PRODUCT NAME(S):

CP19517_VERONICA-MAXI50-D

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

FIND A DISTRIBUTOR

ORDER ONLINE

Related Content

User and installation guide

General guide to LEDiL optics

News

New beams and products – January 2025

Catalogue

LEDiL Latest products catalogue Q1 2025

Application guide

Guide_for_Urban_lighting_optics_2025_v.1.1_WEB

Application example

Architectural tree lighting with VERONICA-MAXI50

Application guide

Guide for Architectural lighting optics

News

Paint with light – VERONICA-MAXI

News

New beams and products - September 2024

Application area

Urban lighting with LEDiL optics

Application example

Urban lighting with LEDiL optics

PCN

Product change notification NR196 - Additional Optical PMMA material grade approved

PCN

Product change notification NR178 - Additional PMMA material approved

PCN

Product change notification NR174 - Additional PMMA material approved

AVAILABLE LEDiL ACCESSORIES

VERONICA-MAXI-SOCKET-IP

Socket with silicone seal for VERONICA-MAXI50 lenses. Compatible with up to 7070 size LED packages or clusters of LEDs with max diameter of 8.2 mm.

VERONICA-MAXI50-SOCKET2

Socket for VERONICA-MAXI50 lenses. Compatible with up to 7070 size LED packages or clusters of LEDs with max diameter of 8.2 mm.

Optical results

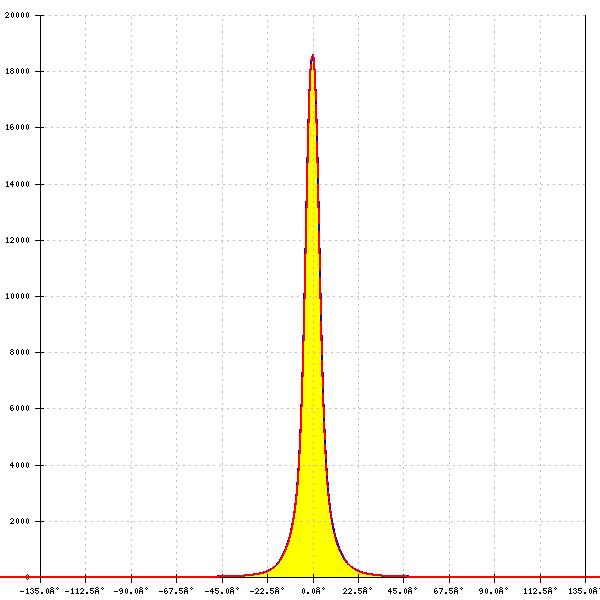

LED: XHP35 HI

Required components:

CS19026_VERONICA-MAXI-SOCKET-IP

FWHM: 8°

FWTM: 20°

Peak intensity: 18.617 cd/lm

Efficiency: 86 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

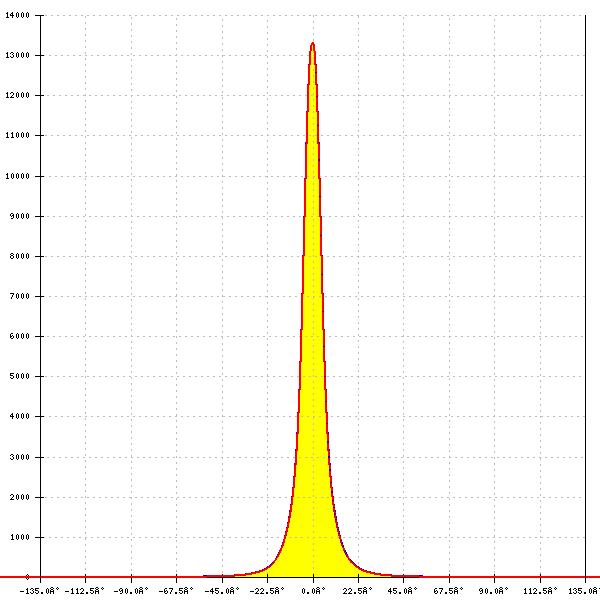

LED: XHP50.3 HI

Required components:

CS19026_VERONICA-MAXI-SOCKET-IP

FWHM: 10°

FWTM: 24°

Peak intensity: 13.333 cd/lm

Efficiency: 86 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

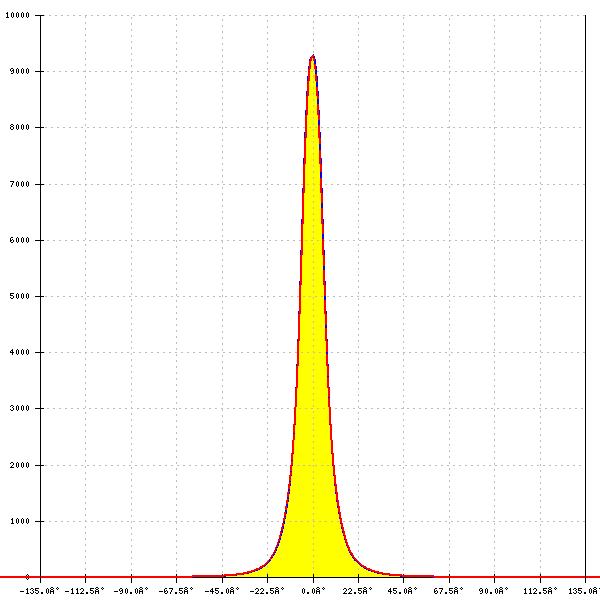

LED: XHP70.3 HI

Required components:

CS19026_VERONICA-MAXI-SOCKET-IP

FWHM: 13°

FWTM: 29°

Peak intensity: 9.291 cd/lm

Efficiency: 86 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

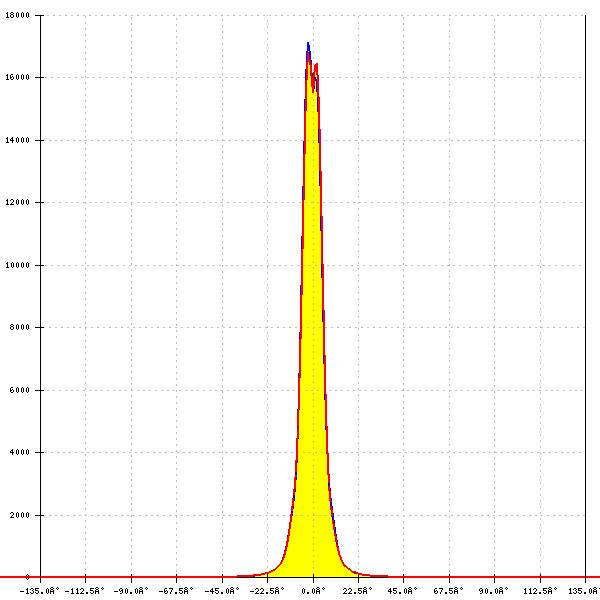

LED: XM-L RGBW (XMLDCL HD)

Required components:

C18911_VERONICA-MAXI50-SOCKET

FWHM: 11°

FWTM: 22°

Peak intensity: 18.386 cd/lm

Efficiency: 89 %

LEDs/each optic: 1

Light colour/type: RGBW

Datasheet

Light distribution files

LED: XN-P Color

FWHM: 7°

FWTM: 15°

Peak intensity: 31.292 cd/lm

Efficiency: 88 %

LEDs/each optic: 1

Light colour/type: RGBW

Datasheet

Light distribution files

LED: XP-E2

Required components:

CS19026_VERONICA-MAXI-SOCKET-IP

FWHM: 8°

FWTM: 18°

Peak intensity: 26.452 cd/lm

Efficiency: 88 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: XP-G2

Required components:

CS19026_VERONICA-MAXI-SOCKET-IP

FWHM: 8°

FWTM: 18°

Peak intensity: 24.572 cd/lm

Efficiency: 88 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

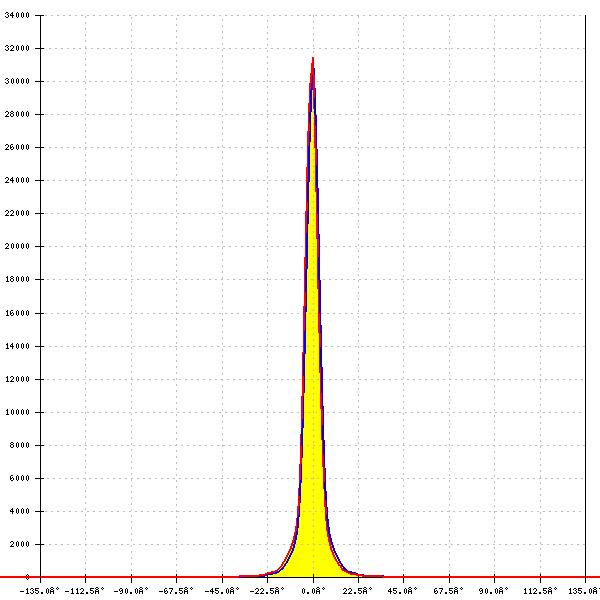

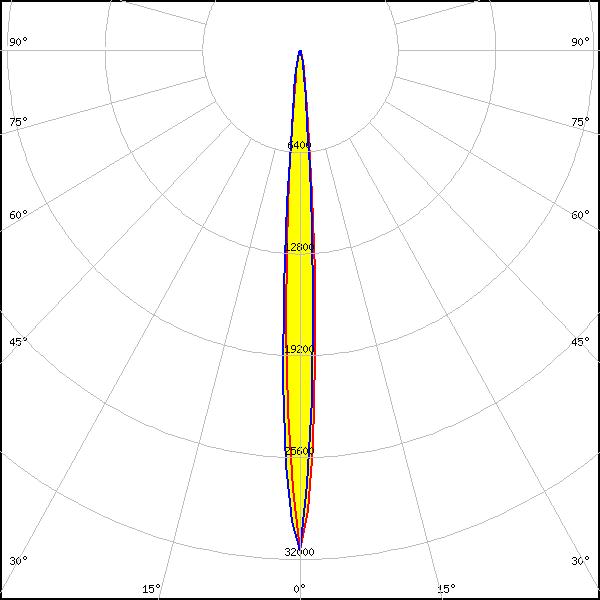

LED: SBM-40 HC

FWHM: 7°

FWTM: 15°

Peak intensity: 31.444 cd/lm

Efficiency: 89 %

LEDs/each optic: 1

Light colour/type: RGBL

Datasheet

Light distribution files

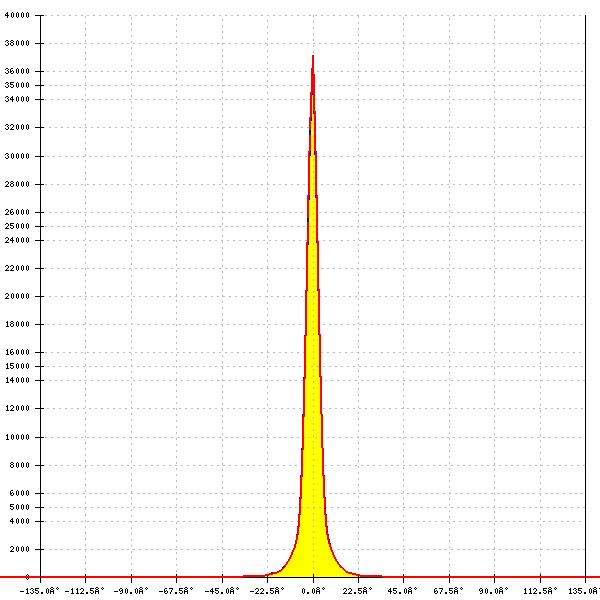

LED: SFT-40 Gen2

FWHM: 6°

FWTM: 14°

Peak intensity: 37.187 cd/lm

Efficiency: 88 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

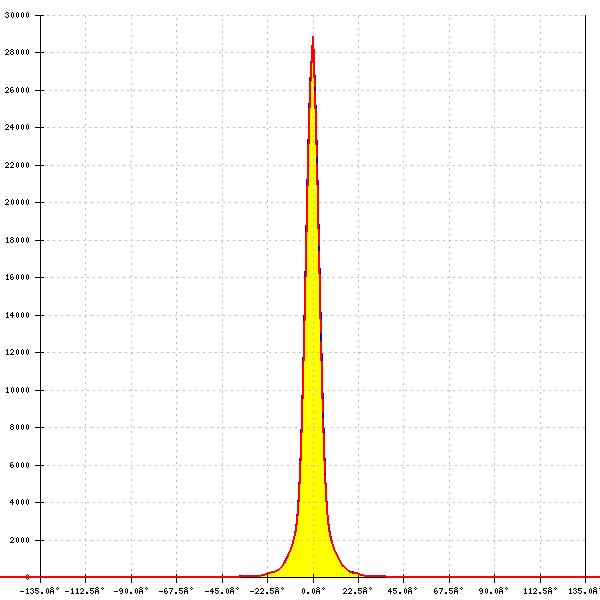

LED: SFT-70X-WCS

FWHM: 8°

FWTM: 16°

Peak intensity: 28.893 cd/lm

Efficiency: 87 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: NV4WB35AM

FWHM: 10°

FWTM: 20°

Peak intensity: 19.493 cd/lm

Efficiency: 86 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: NVSW719AC

FWHM: 6°

FWTM: 14°

Peak intensity: 34.323 cd/lm

Efficiency: 87 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

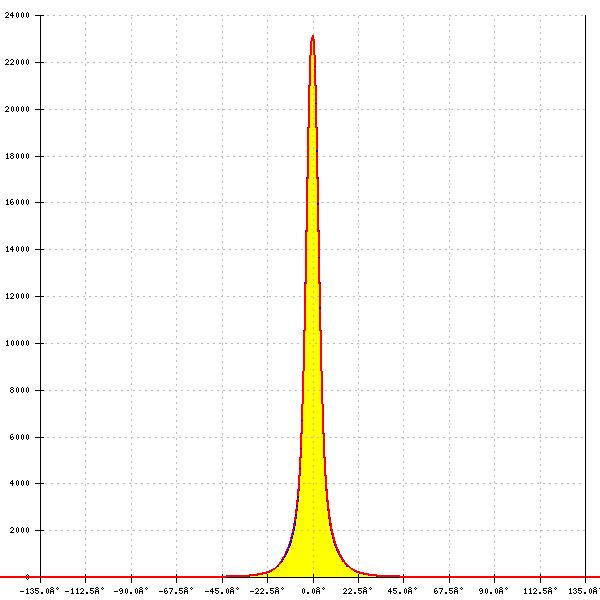

LED: OSTAR Stage (S2WN)

Required components:

CS19026_VERONICA-MAXI-SOCKET-IP

FWHM: 7°

FWTM: 17°

Peak intensity: 23.155 cd/lm

Efficiency: 87 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: WICOP 5050

FWHM: 14°

FWTM: 26°

Peak intensity: 11.411 cd/lm

Efficiency: 84 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files
