CP19440_LEILA-Y-SC2-M

Print

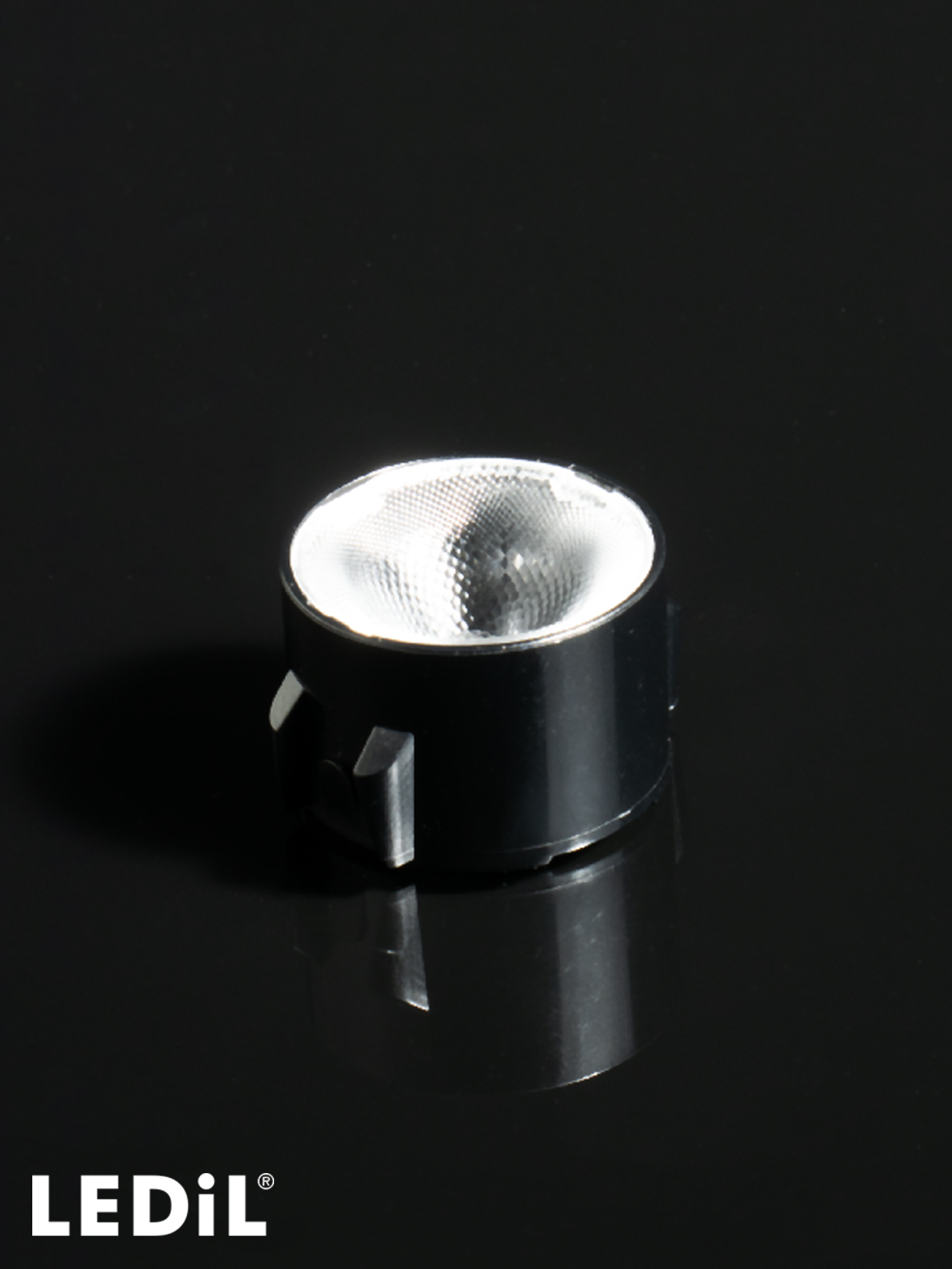

~25° medium beam. Assembly with black SC2-holder

Specification
  • Dimensions:
    22 mm
  • Height:
    14.80 mm
  • Fastening:
    clips
  • Colour:
    black
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    1632 pcs
  • Box size:
    480 x 280 x 165 mm
  • Box weight:
    6.1 kg
  • MPQ:
    204 pcs
  • MOQ:
    204 pcs
  • MOQ size:
    480 x 280 x 40 mm
  • MOQ weight:
    0.9 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CP19440_LEILA-Y-SC2-M

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

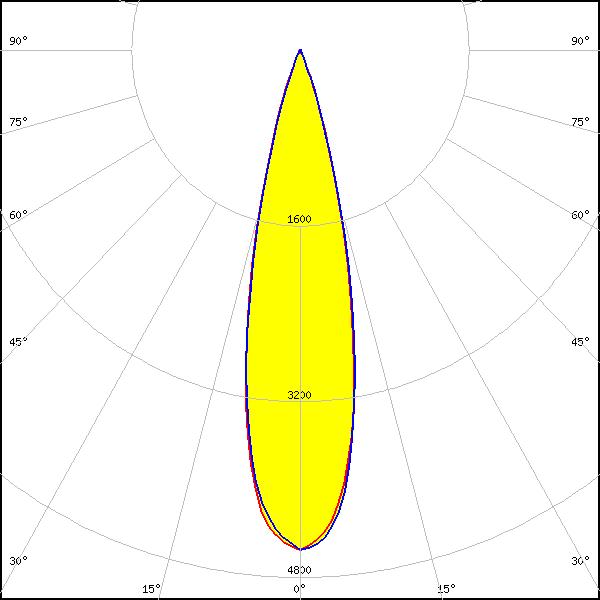

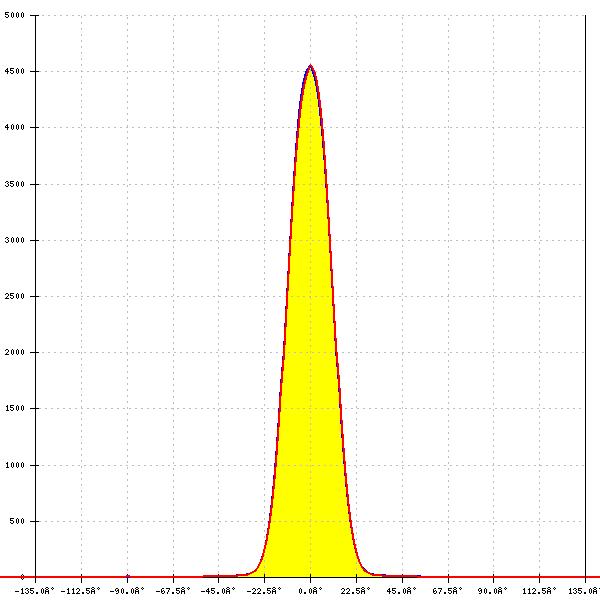

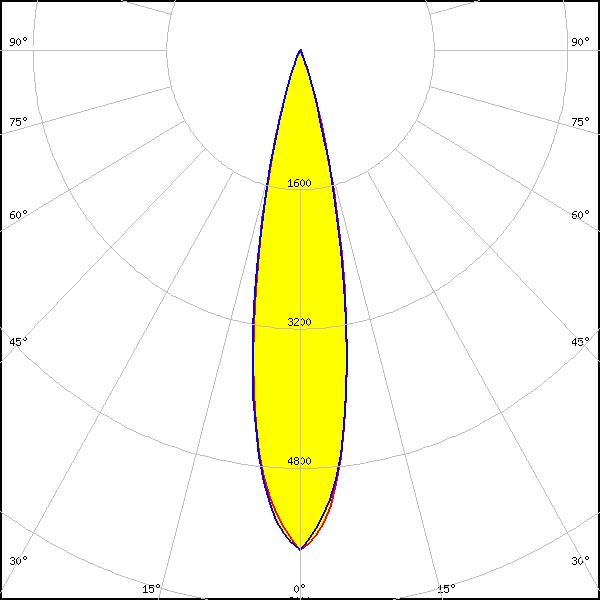

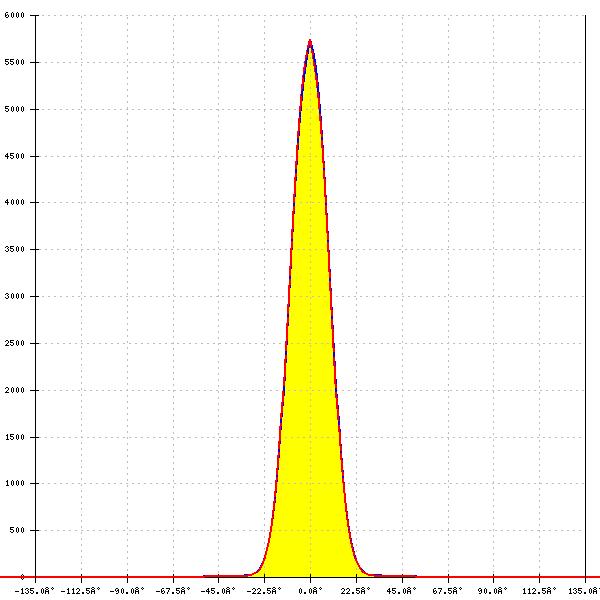

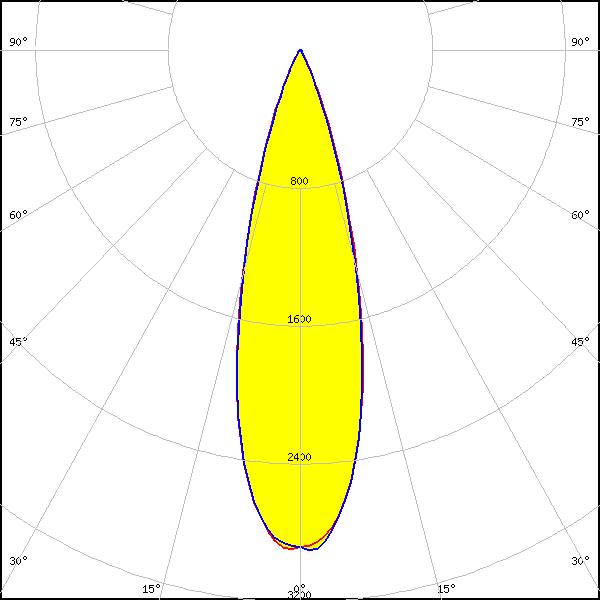

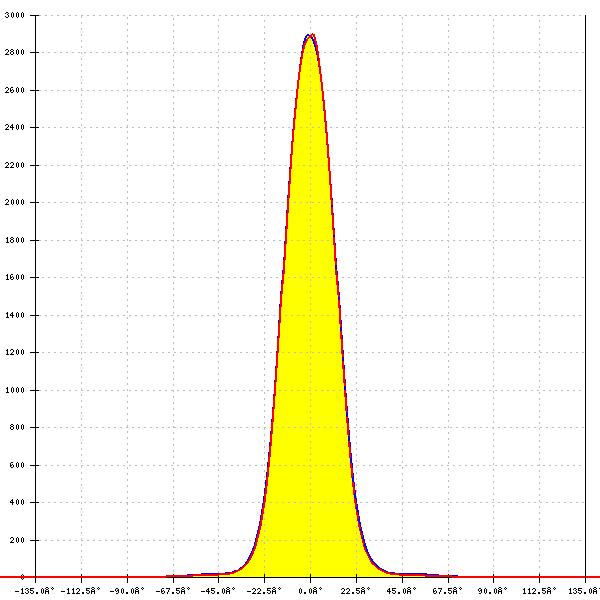

Optical results

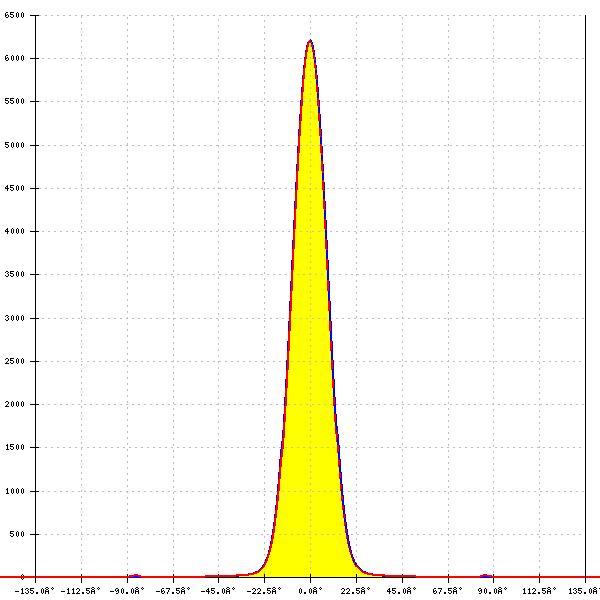

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 20°
FWTM: 35°
Peak intensity: 6.211 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
