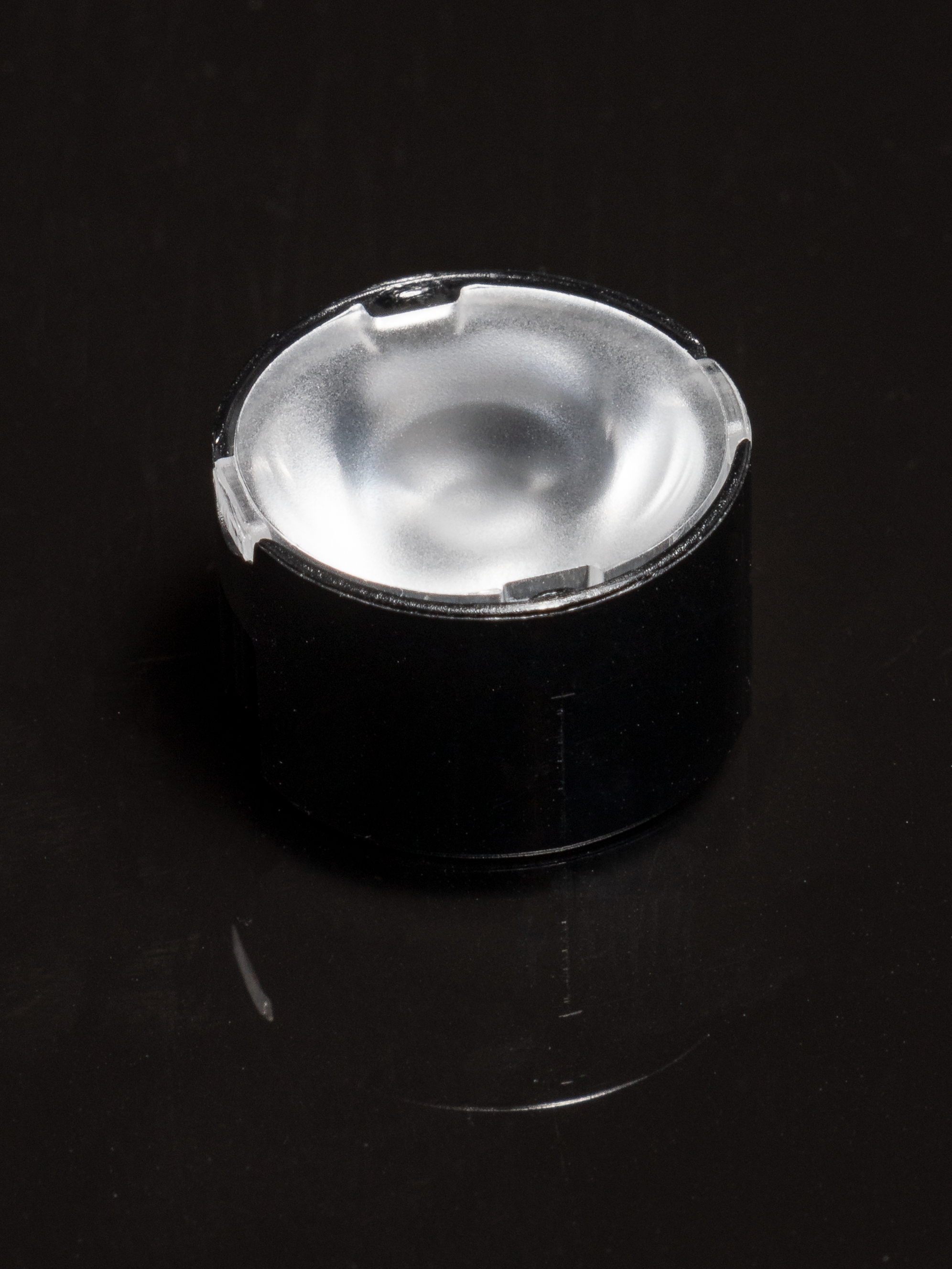

CP17597_TINA-SC-W
Print~45° wide beam
												Specification


											-
														Dimensions:16 mm
 -
														Height:9.90 mm
 -
														Fastening:solder clip
 -
														Colour:black
 -
														RoHS and REACH compliant:Yes

												Component Materials


											- TINA2-W-XPSingle lensPMMA
 - TINA-SC-HLDHolderPC
 - Request material files from Tech Support

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
												Ordering information


											-
														Quantity in box:2400 pcs
 -
														Box size:300 x 250 x 250 mm
 -
														Box weight:5.0 kg
 -
														MPQ:240 pcs
 -
														MOQ:240 pcs
 -
														MOQ size:300 x 260 x 40 mm
 -
														MOQ weight:0.7 kg

												Documents


											- Family datasheet
 - Product datasheet
 - 2D mechanical drawing
 - Request a 3D mechanical model
 - PCB drawing

Related Content
AVAILABLE LEDiL ACCESSORIES

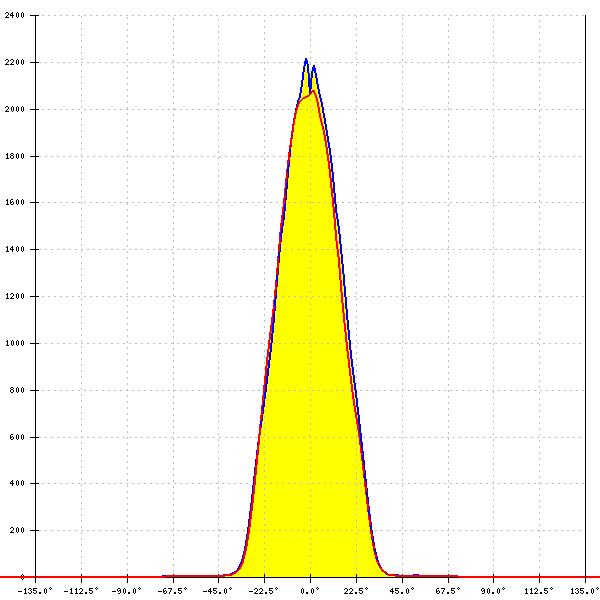

Optical results

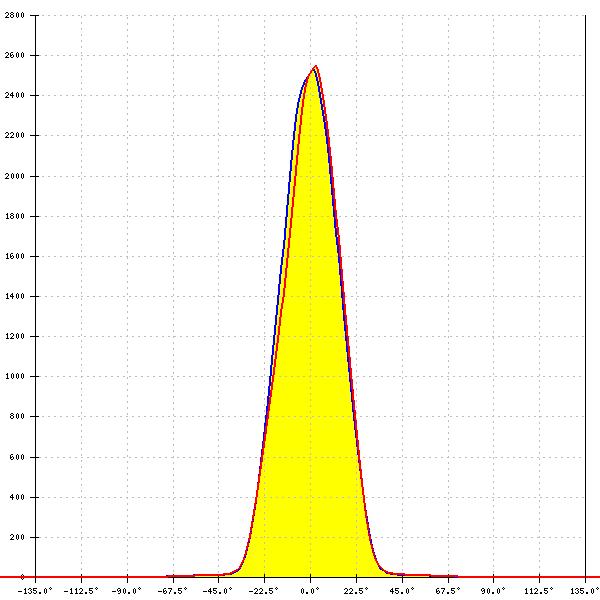

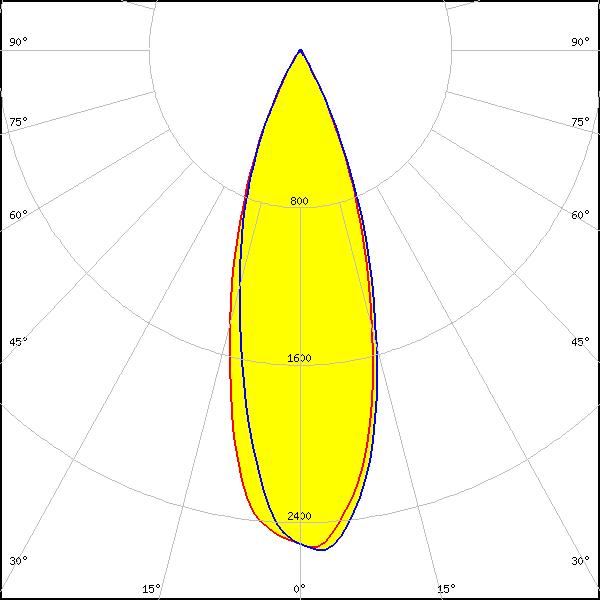

																								LED:
													J Series 2835



																																																FWHM:
													34°
												FWTM:
													58°


																								Peak intensity:
													2.572 cd/lm

																								Efficiency:
													91 %

																										LEDs/each optic:
													1

																								Light colour/type:
													White

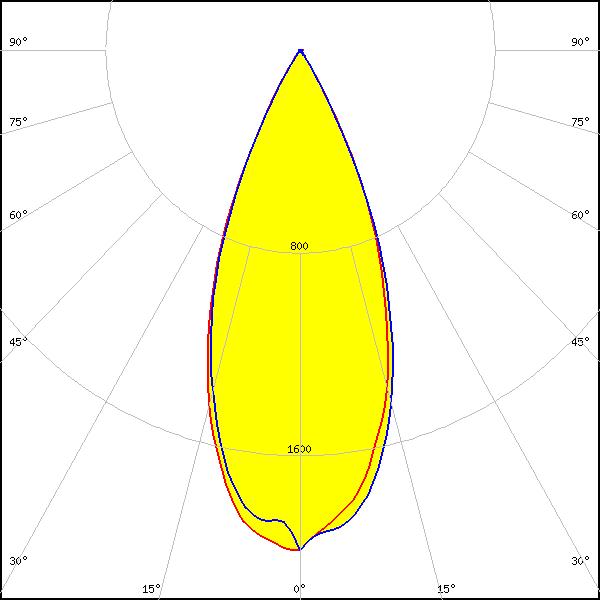

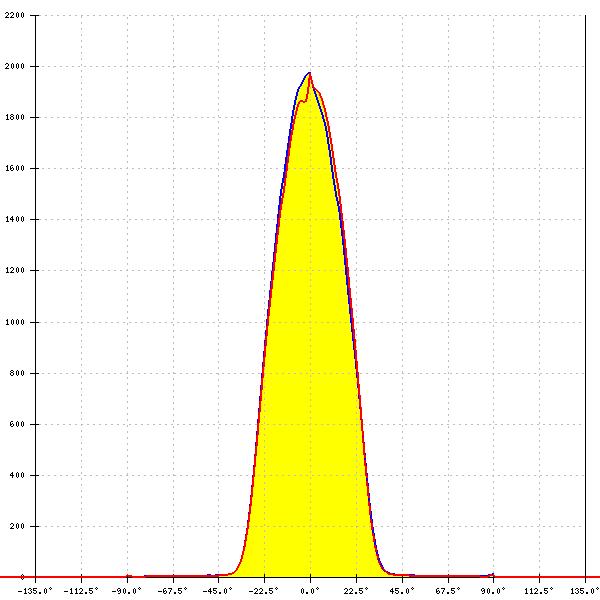

																								LED:
													XP-L HI



																																																FWHM:
													42°
												FWTM:
													62°


																								Peak intensity:
													1.974 cd/lm

																								Efficiency:
													93 %

																										LEDs/each optic:
													1

																								Light colour/type:
													White

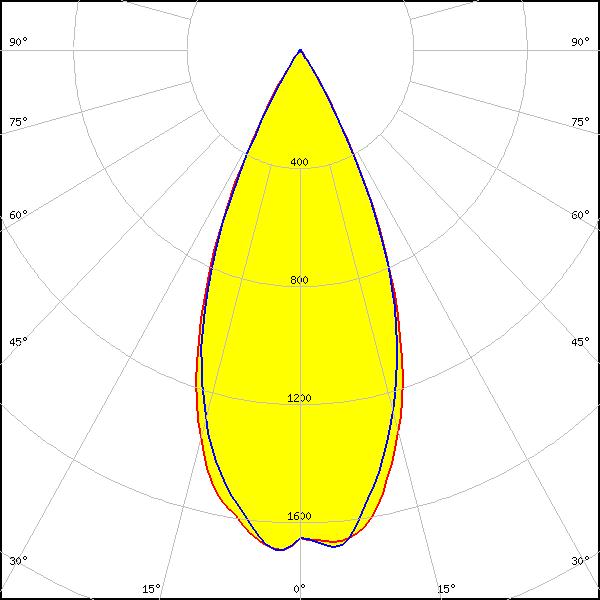

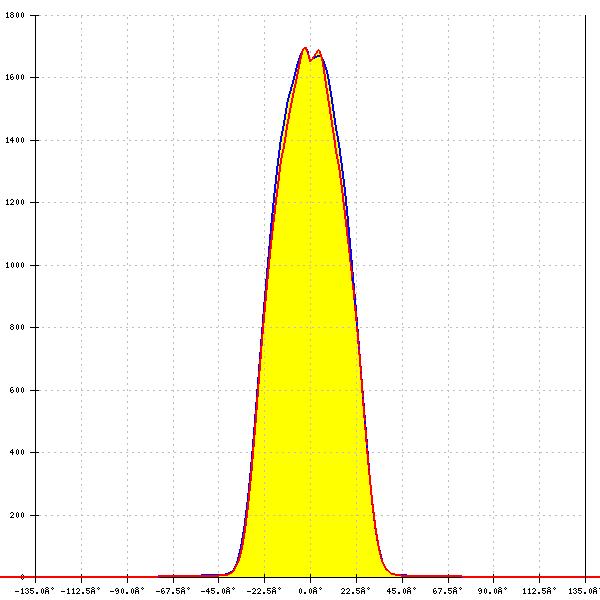

																								LED:
													OSLON Square CSSRM2/CSSRM3



																																																FWHM:
													45°
												FWTM:
													64°


																								Peak intensity:
													1.744 cd/lm

																								Efficiency:
													91 %

																										LEDs/each optic:
													1

																								Light colour/type:
													White

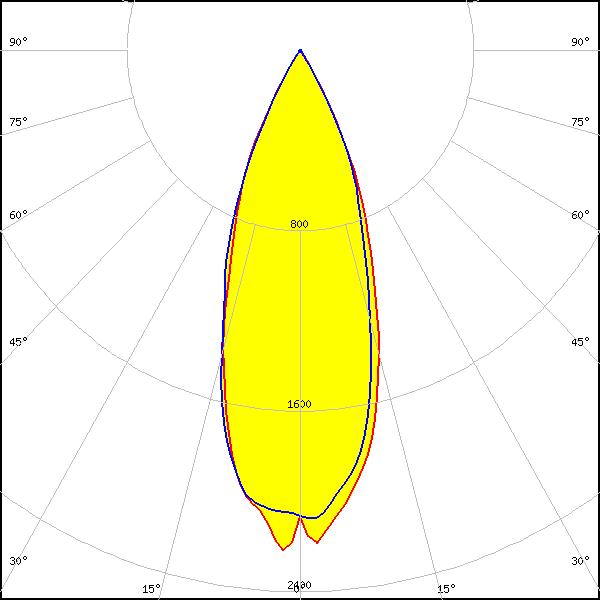

																								LED:
													OSLON SSL 80



																																																FWHM:
													36°
												FWTM:
													60°


																								Peak intensity:
													2.270 cd/lm

																								Efficiency:
													89 %

																										LEDs/each optic:
													1

																								Light colour/type:
													Far Red

																							Are we missing optical results for a certain LED?
							SEND A MESSAGE
							Are we missing optical results for a certain LED?
							SEND A MESSAGE
