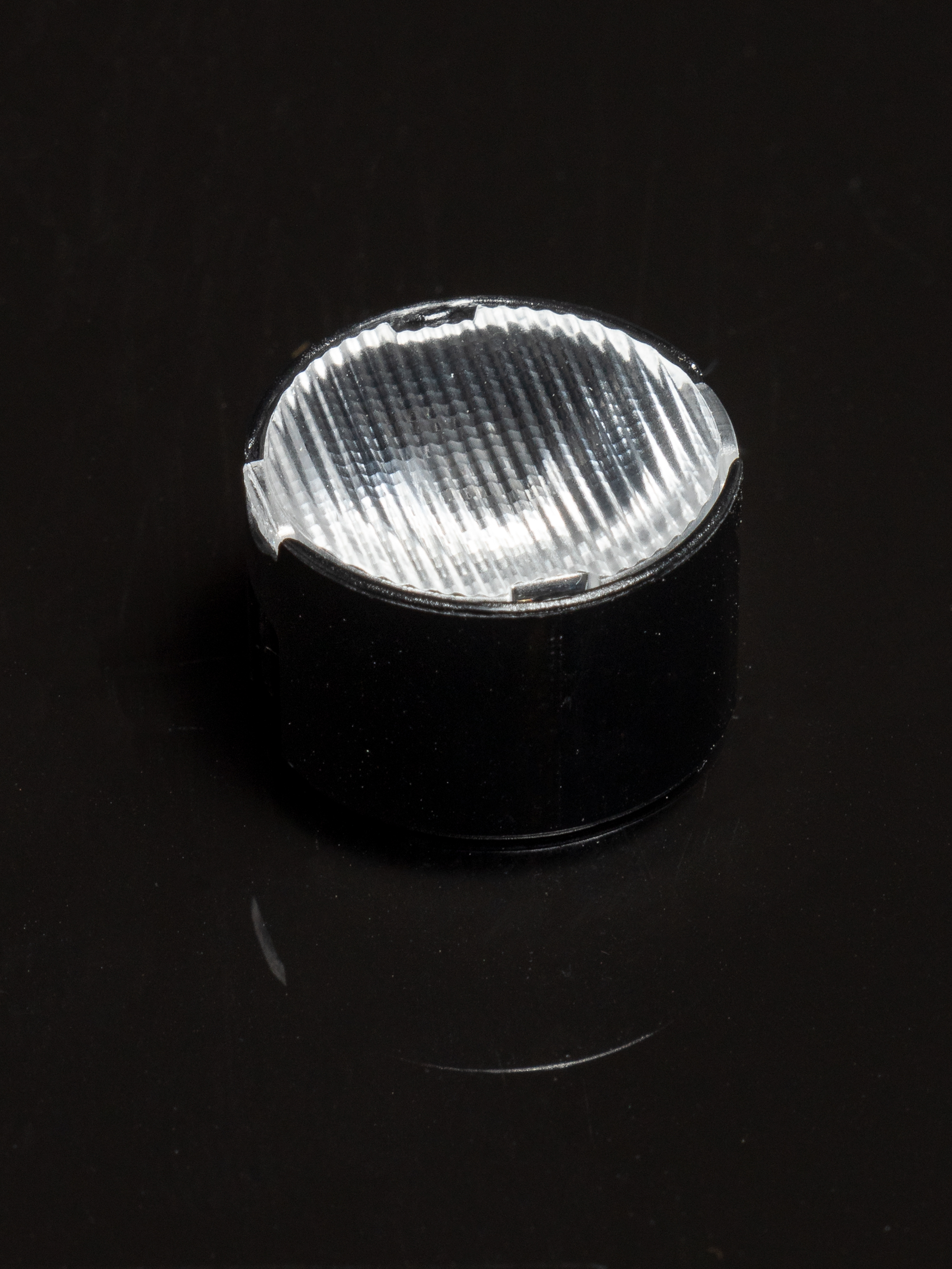

CP17596_TINA-SC-O
Print
~35° + 15° oval beam
Materials
- TINA2-XP-O, Single lens, PMMA
- TINA-SC-HLD, Holder, PC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

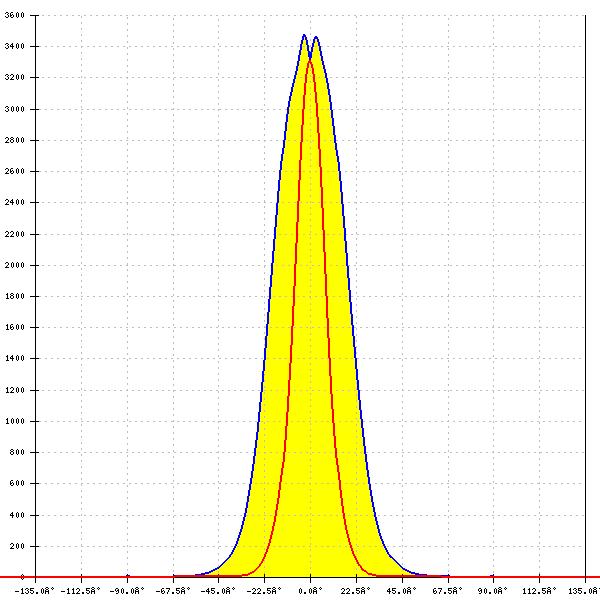

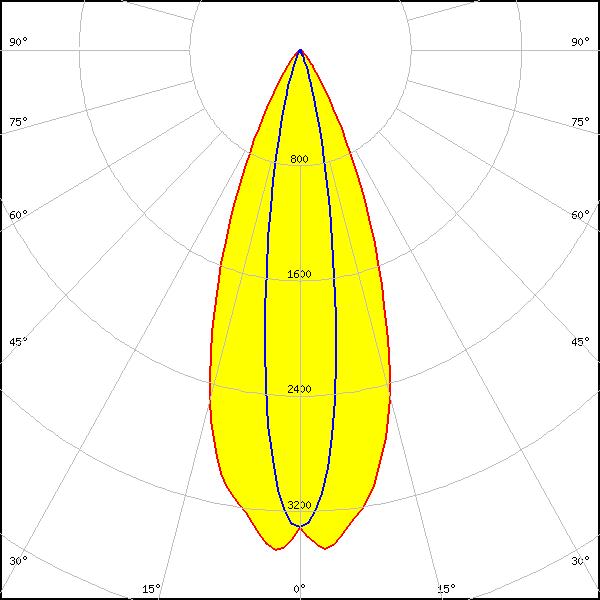

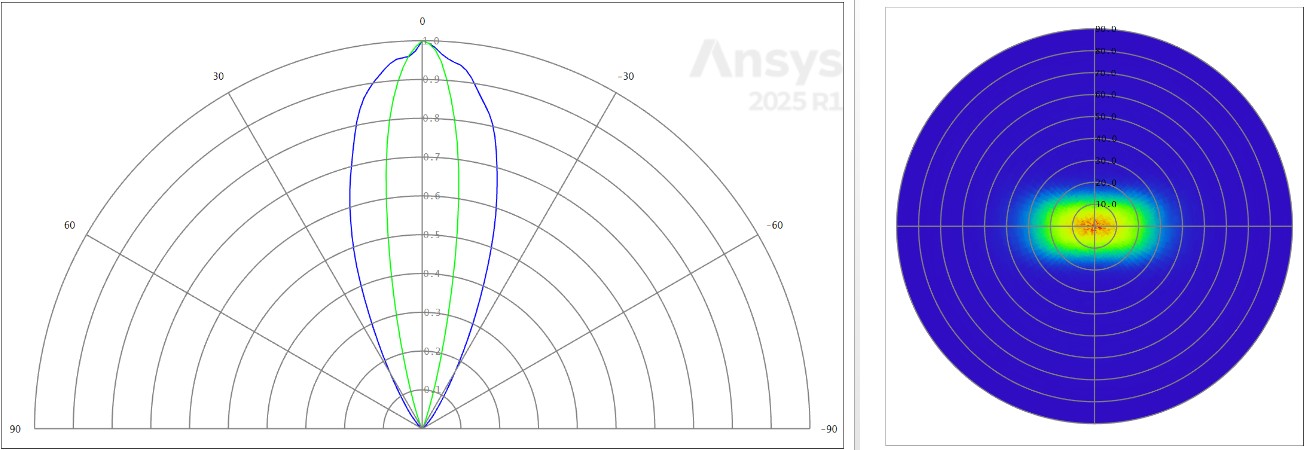

Optical results

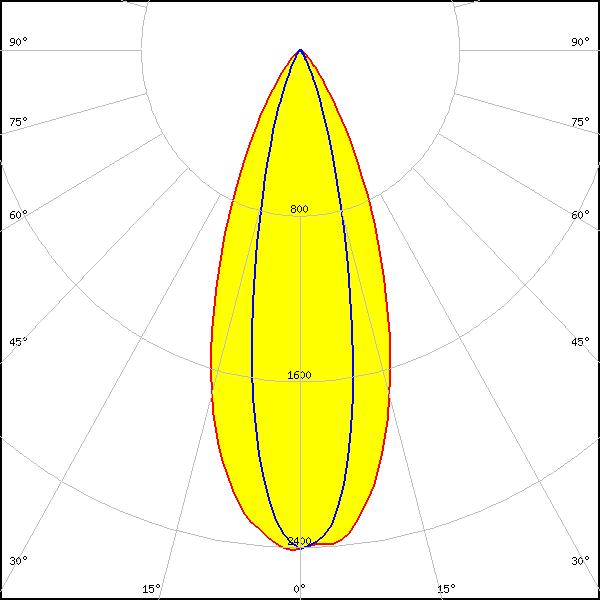

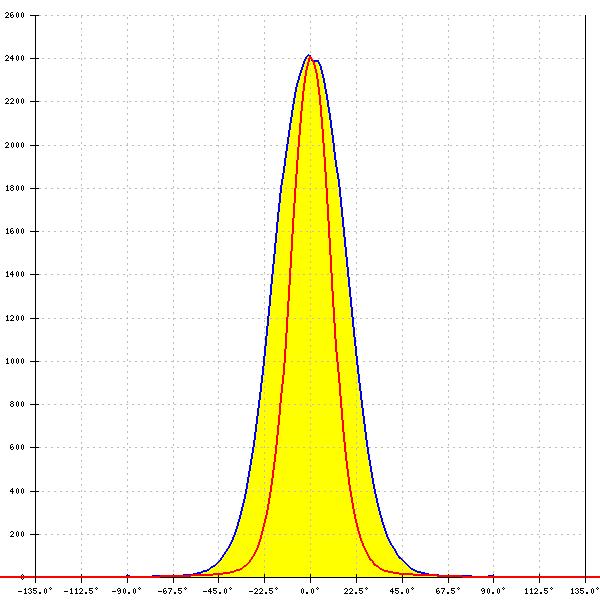

LED:
CLR6A-TKW
FWHM:
41° + 23°
FWTM:
72° + 45°
Peak intensity:
2.419 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
RGBW
LED:

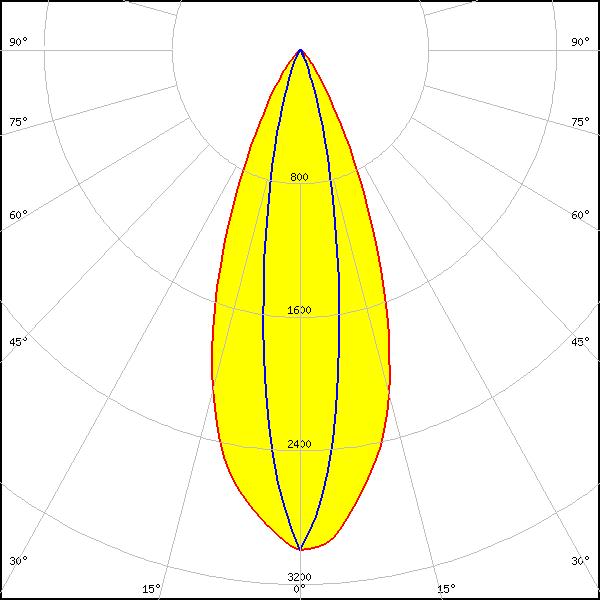

J Series 2835
FWHM:
40° + 18°
FWTM:
68° + 39°
Peak intensity:
2.997 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

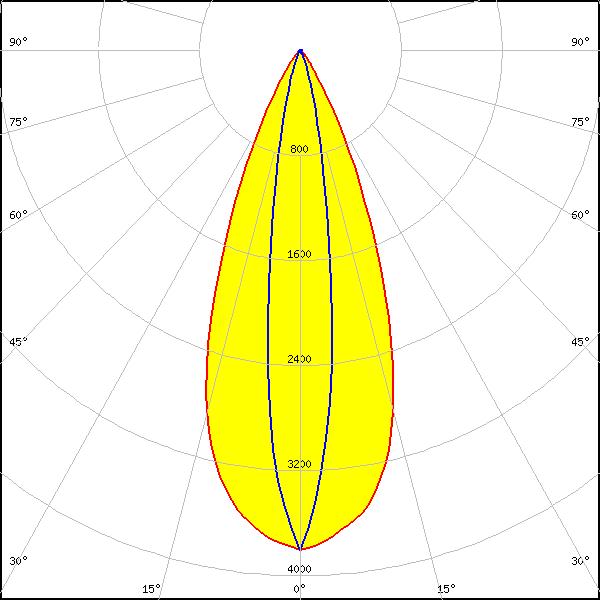

LED:
XP-L HI
FWHM:
40° + 16°
FWTM:
64° + 32°
Peak intensity:
3.806 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

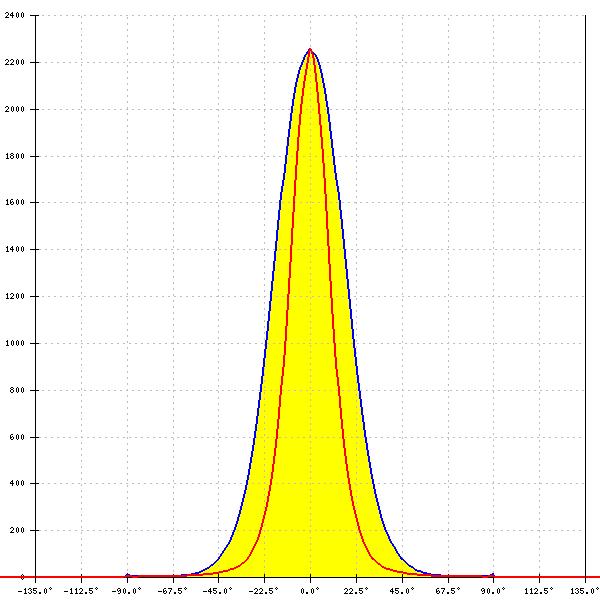

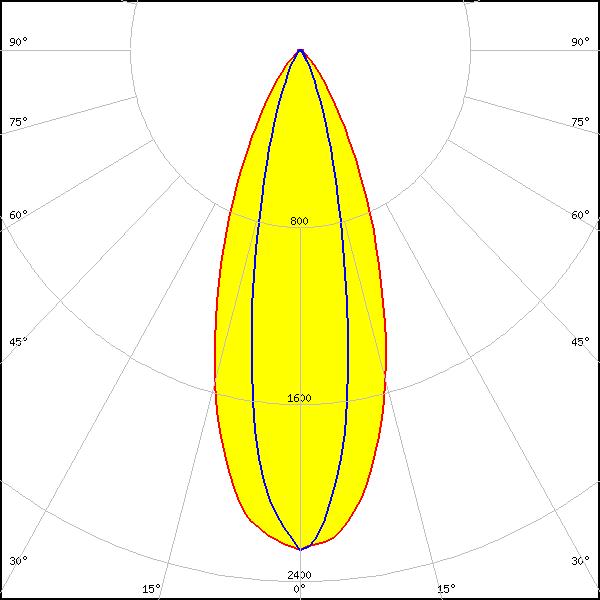

XP-L2
FWHM:
40° + 22°
FWTM:
72° + 47°
Peak intensity:
2.274 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

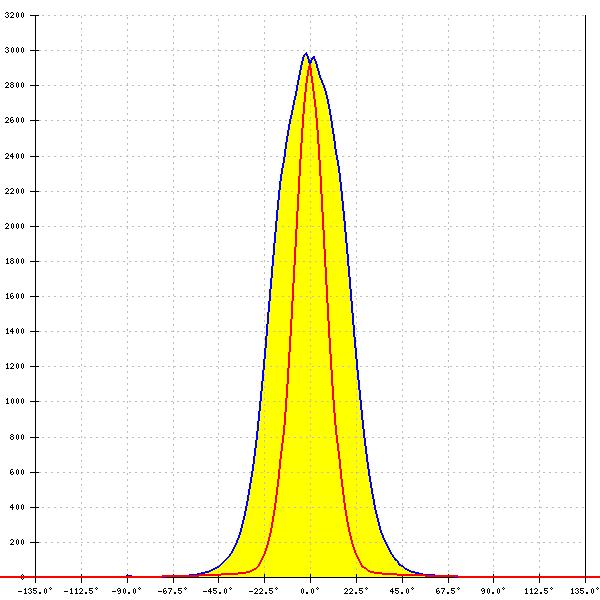

LED:
LM302D
FWHM:
41° + 18°
FWTM:
67° + 38°
Peak intensity:
2.997 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
