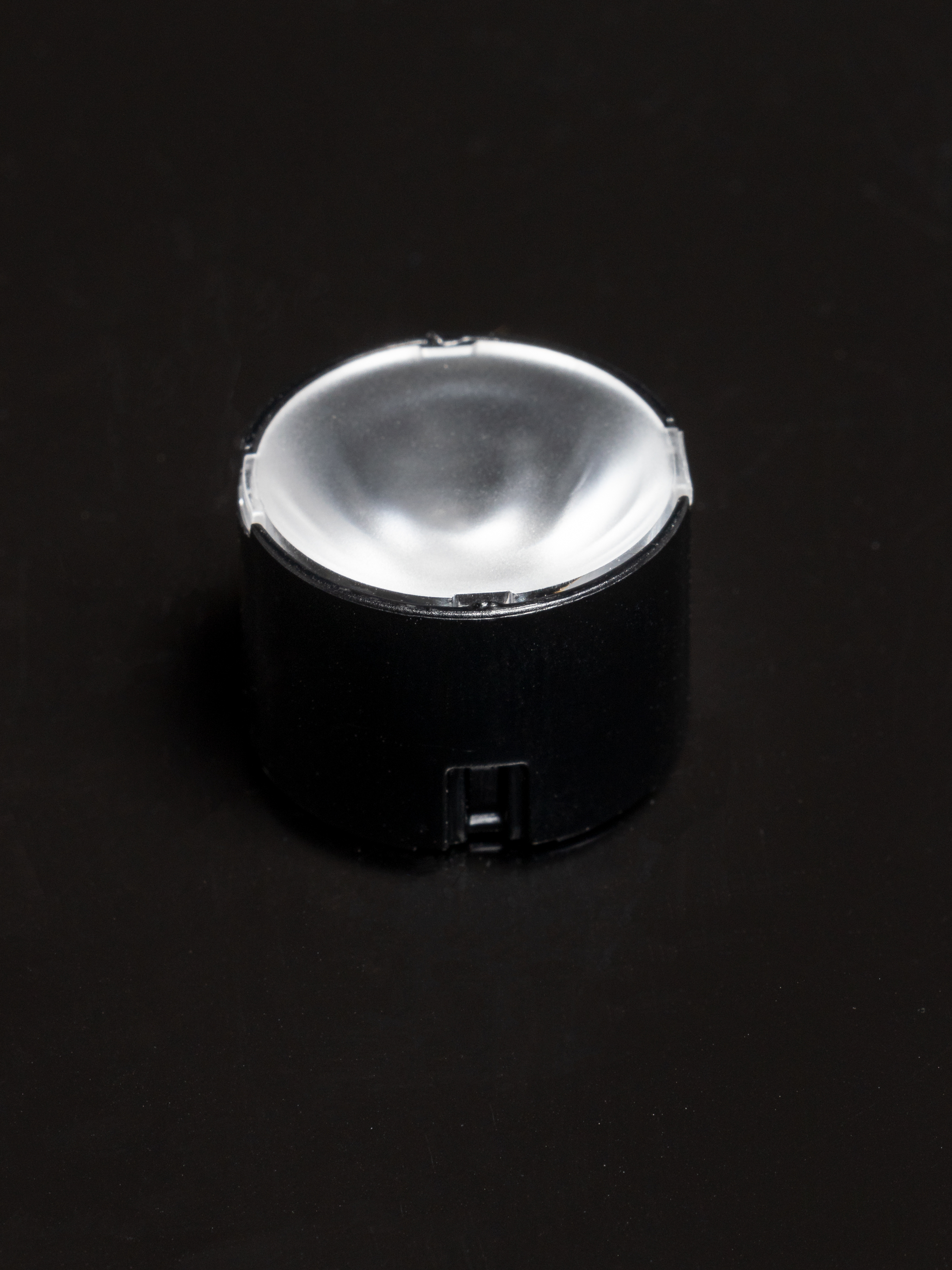

CP17588_LEILA-SC-D

Print

~14° diffused spot beam

Specification
  • Dimensions:
    22 mm
  • Height:
    14.80 mm
  • Fastening:
    clips
  • Colour:
    black
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    1680 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    7.7 kg
  • MPQ:
    112 pcs
  • MOQ:
    336 pcs
  • MOQ size:
    480 x 280 x 70 mm
  • MOQ weight:
    1.6 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    CP17588_LEILA-SC-D

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

LED: CLR6A-TKW
FWHM: 14°
FWTM: 34°
Peak intensity: 8.333 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: RGBW
LED: XP-G3
FWHM: 12°
FWTM: 24°
Peak intensity: 15.431 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON C
FWHM: 10°
FWTM: 21°
Peak intensity: 19.421 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ P 3737 (3W version)
FWHM: 14°
FWTM: 32°
Peak intensity: 9.573 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square CSSRM2/CSSRM3
FWHM: 14°
FWTM: 32°
Peak intensity: 8.109 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON SSL 150
FWHM: 13°
FWTM: 30°
Peak intensity: 9.797 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: Z5M4
FWHM: 12°
FWTM: 30°
Peak intensity: 9.920 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
