CP16634_CARMEN-50-M-C-WHT
Print

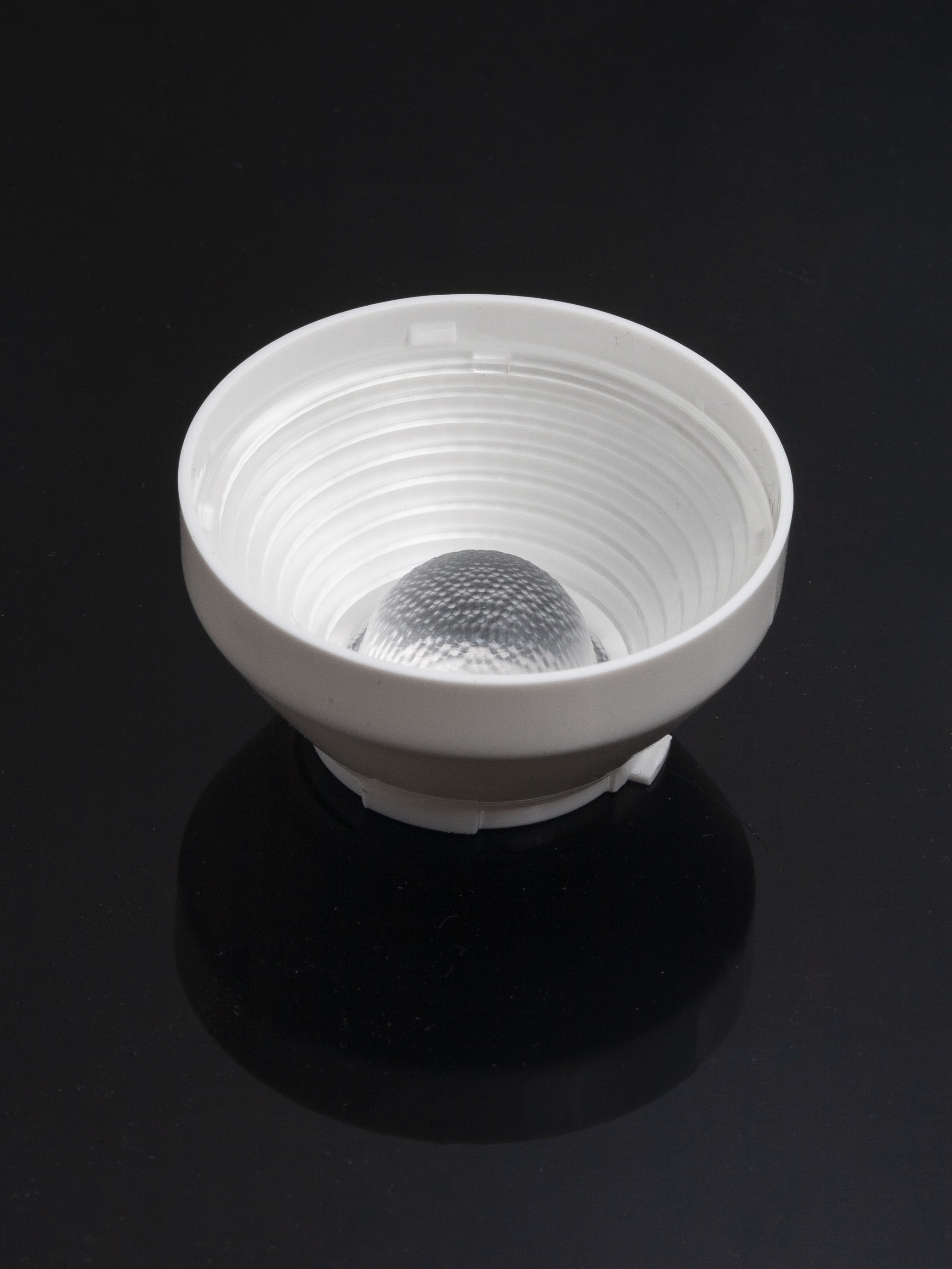

~35° spot beam. Assembly with holder C compatible with LEDiL HEKLA. White version.
Component Materials
- CARMEN-50-MSingle lensPMMA
- CARMEN-50-HLD-C-WHTHolderPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results
LED:
Vesta DTW 13mm (21W)
LES size: 14.0 mm
Required components:
FWHM:
57°
FWTM:
92°
Peak intensity:
0.805 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Vesta TW 6mm DP
LES size: 6.3 mm
Required components:
FWHM:
33°
FWTM:
57°
Peak intensity:
2.045 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta TW 9mm (9W) DP
LES size: 10.3 mm
Required components:
FWHM:
42°
FWTM:
70°
Peak intensity:
1.336 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
36°
FWTM:
60°
Peak intensity:
2.100 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU710/711
LES size: 8.5 mm
Required components:
FWHM:
42°
FWTM:
69°
Peak intensity:
1.496 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU7B2
LES size: 3.3 mm
Required components:
FWHM:
34°
FWTM:
56°
Peak intensity:
2.410 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMU15xx
LES size: 14.5 mm
Required components:
FWHM:
62°
FWTM:
89°
Peak intensity:
0.831 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 13xx
LES size: 6.0 mm
Required components:
FWHM:
37°
FWTM:
61°
Peak intensity:
2.000 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB - HD S01H4
LES size: 4.5 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
31°
FWTM:
53°
Peak intensity:
2.459 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB - HD S02H6
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
31°
FWTM:
54°
Peak intensity:
2.378 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB - HD S04H9
LES size: 9.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
41°
FWTM:
67°
Peak intensity:
1.519 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB M02 / M03 (Gen2)
LES size: 9.0 mm
Required components:
Bender Wirth: 641a Hekla
FWHM:
39°
FWTM:
64°
Peak intensity:
1.654 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB S01 (Gen2)
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
31°
FWTM:
52°
Peak intensity:
2.502 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXM-3
LES size: 3.5 mm
Required components:
FWHM:
33°
FWTM:
55°
Peak intensity:
2.488 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXM-4
LES size: 4.5 mm
Required components:
FWHM:
34°
FWTM:
57°
Peak intensity:
2.272 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC010T (Tunable White)
LES size: 9.8 mm
Required components:
FWHM:
41°
FWTM:
70°
Peak intensity:
1.337 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
MJT COB LES 6
LES size: 6.0 mm
Required components:
FWHM:
36°
FWTM:
57°
Peak intensity:
2.436 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 9.8
LES size: 9.8 mm
Required components:
FWHM:
45°
FWTM:
69°
Peak intensity:
1.526 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XOB 6 mm
LES size: 6.0 mm
Required components:
FWHM:
37°
FWTM:
61°
Peak intensity:
1.931 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XOB 9.8 mm
LES size: 9.8 mm
Required components:
FWHM:
45°
FWTM:
73°
Peak intensity:
1.379 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
