CP16109_CARMEN-50-W-C
Print

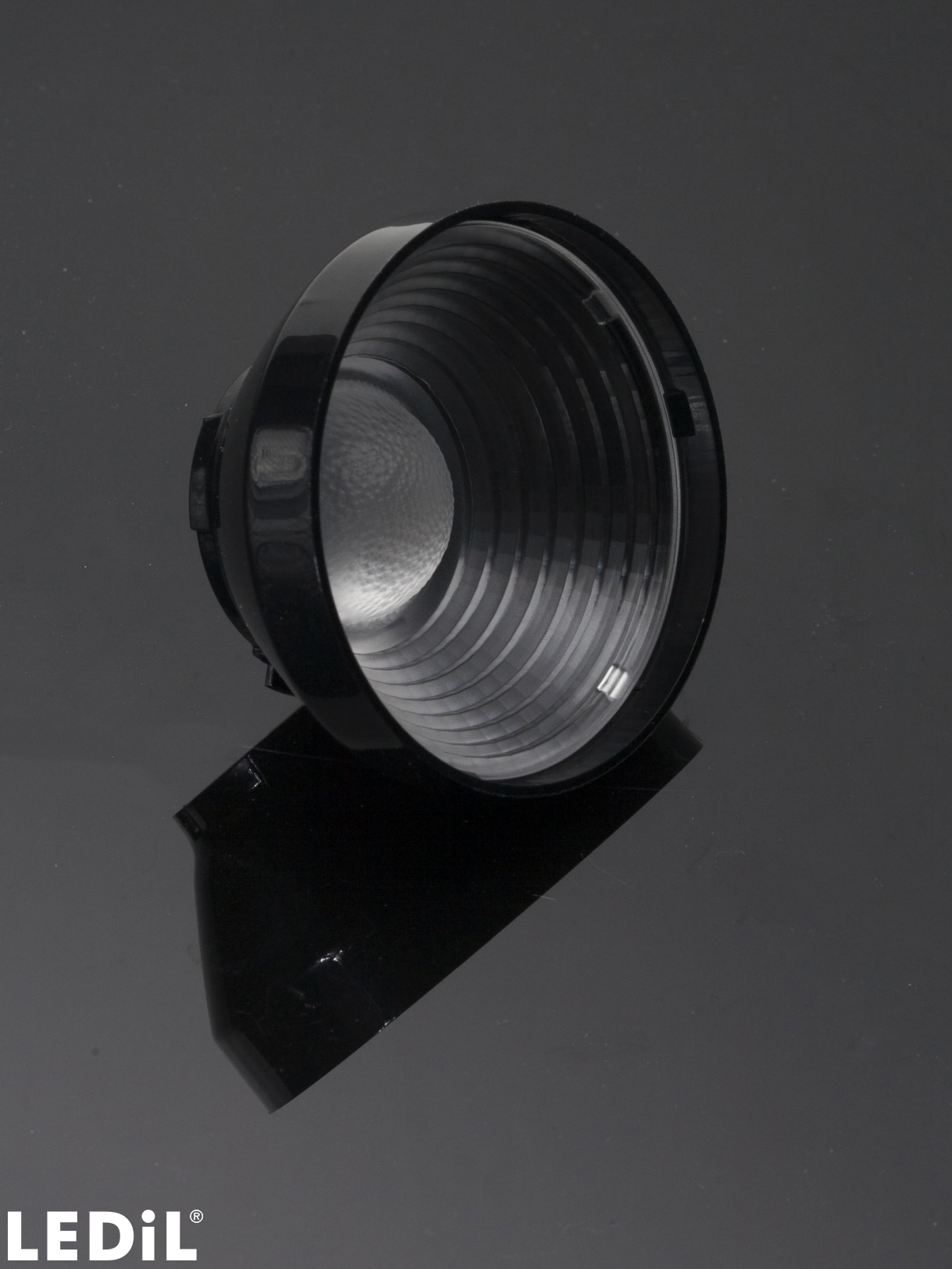

~55° wide beam. Assembly with holder C compatible with LEDiL HEKLA.
Materials
- CARMEN-50-W, Single lens, PMMA
- CARMEN-50-HLD-C, Holder, PC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

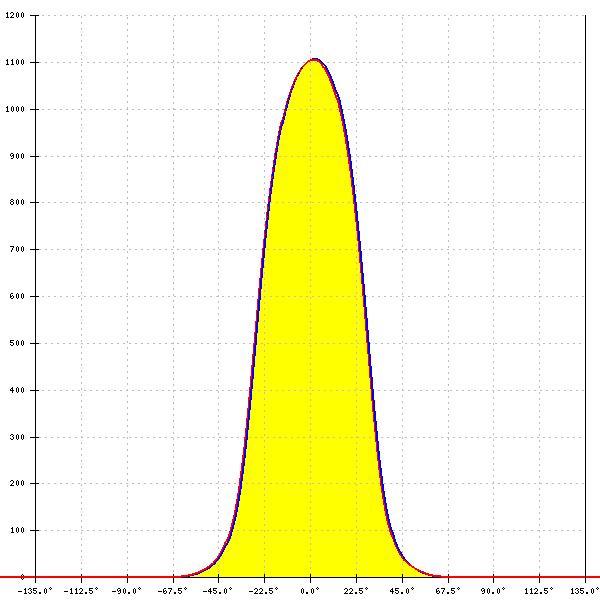

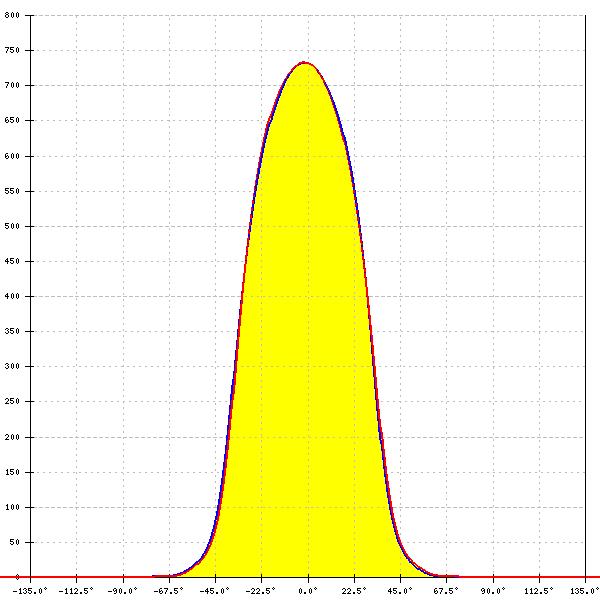

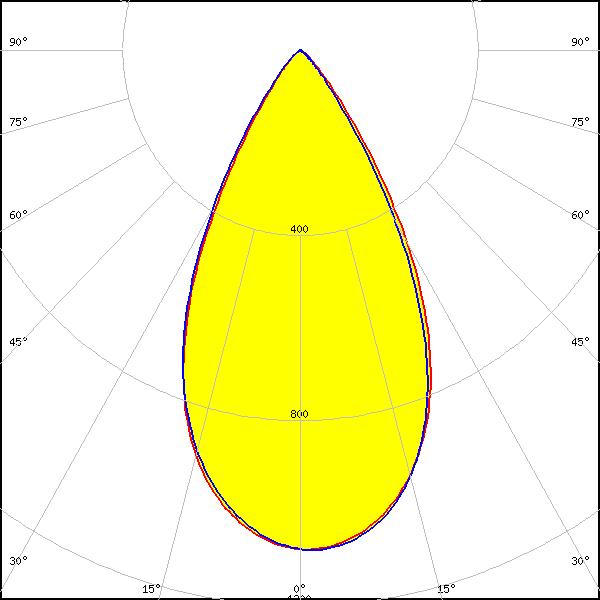

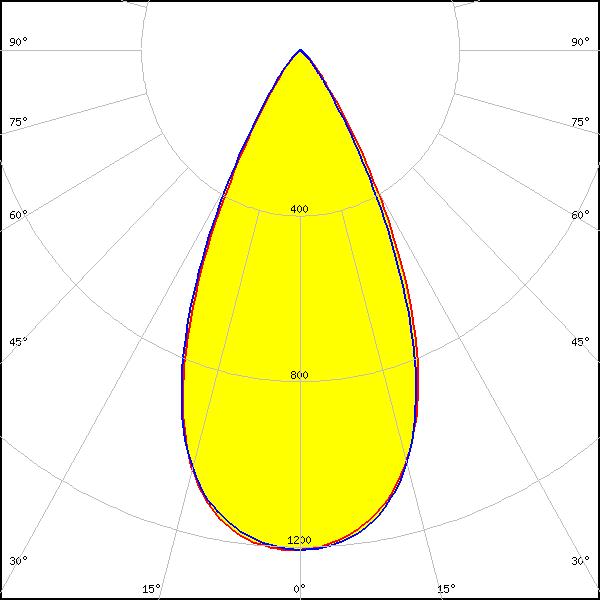

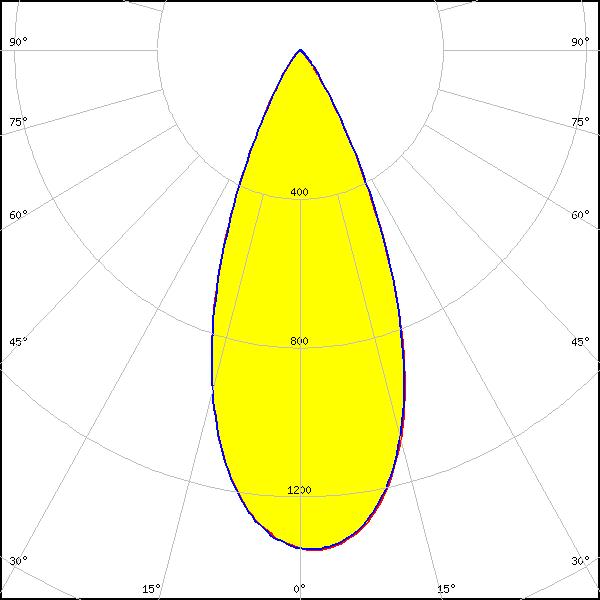

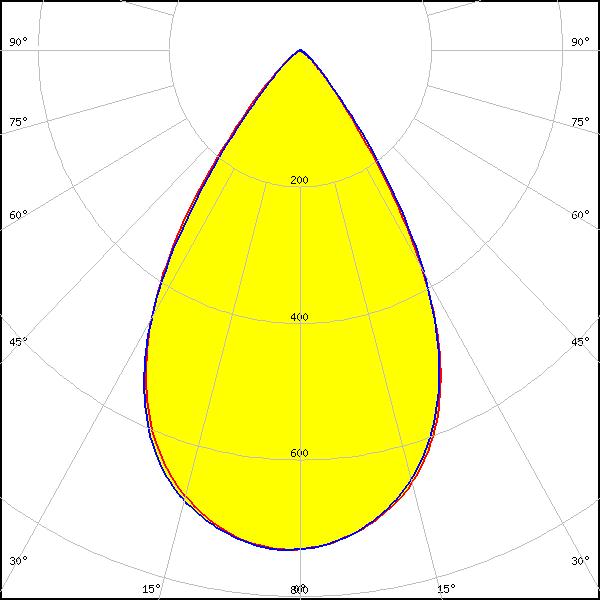

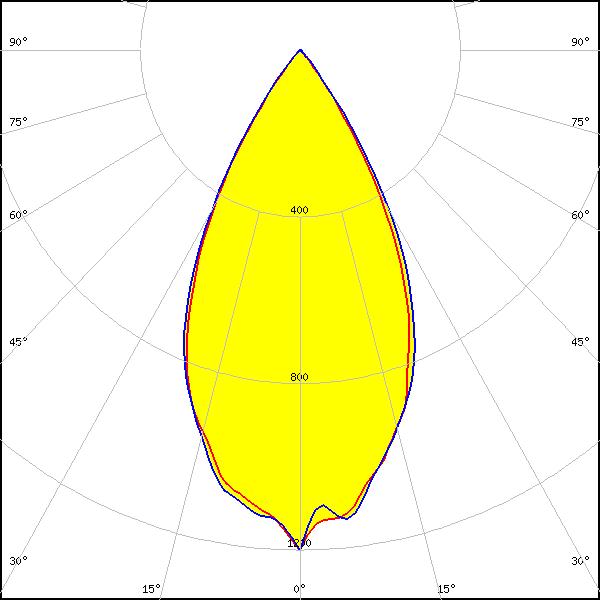

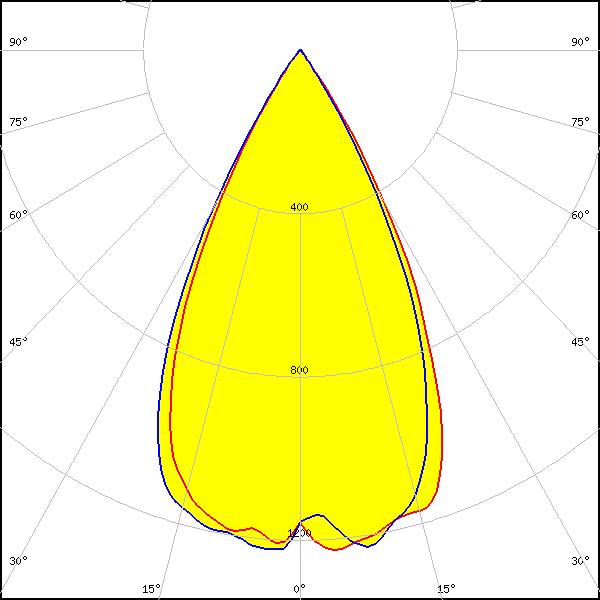

Optical results

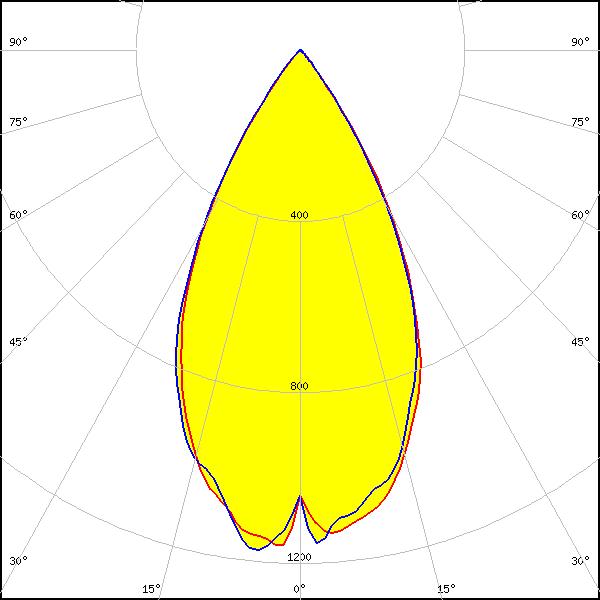

LED:

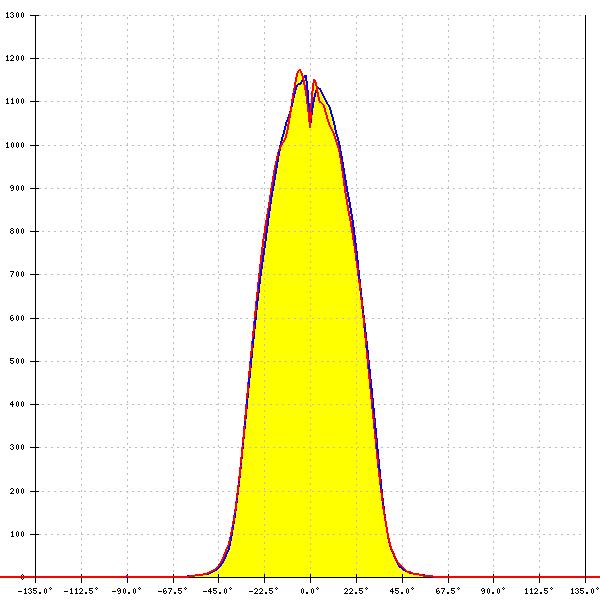

V10 Gen7
LES size: 10.2 mm
Required components:
FWHM:
54°
FWTM:
76°
Peak intensity:
1.174 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

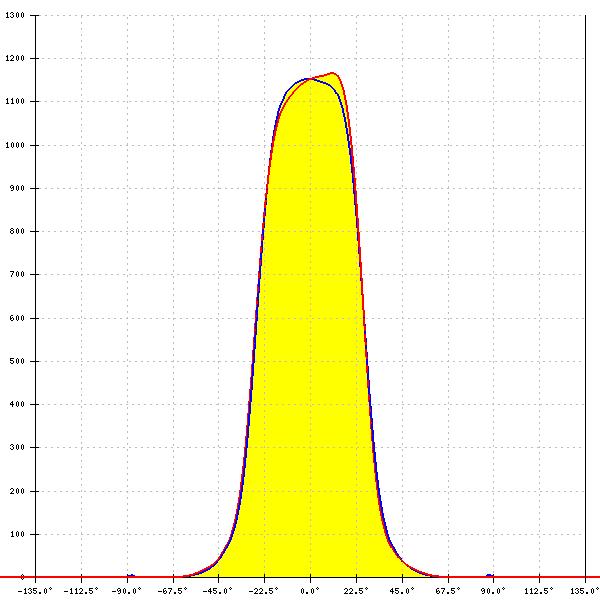

V4 HD Gen 7
LES size: 5.2 mm
Required components:
FWHM:
54°
FWTM:
75°
Peak intensity:
1.170 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

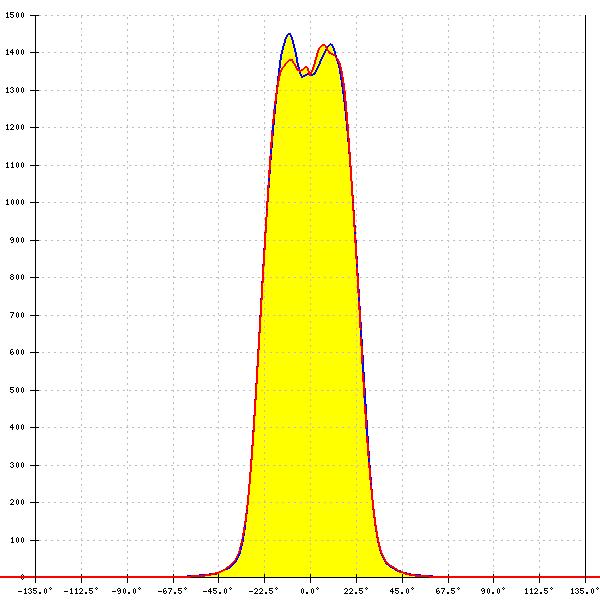

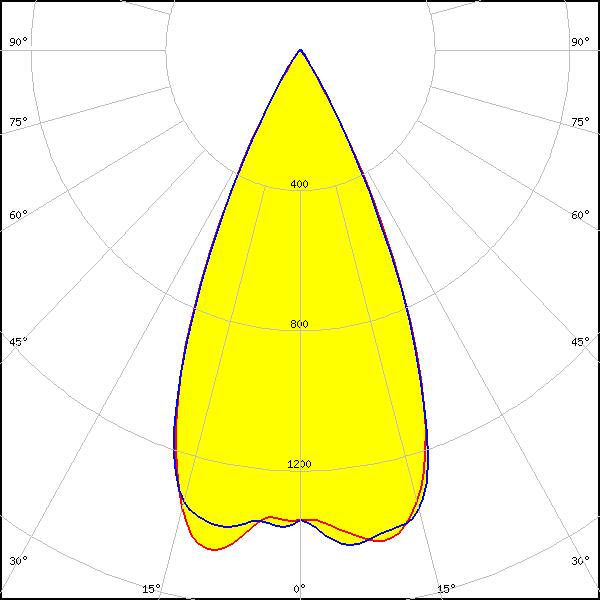

V6 Gen6
LES size: 6.0 mm
Required components:
FWHM:
46°
FWTM:
63°
Peak intensity:
1.450 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

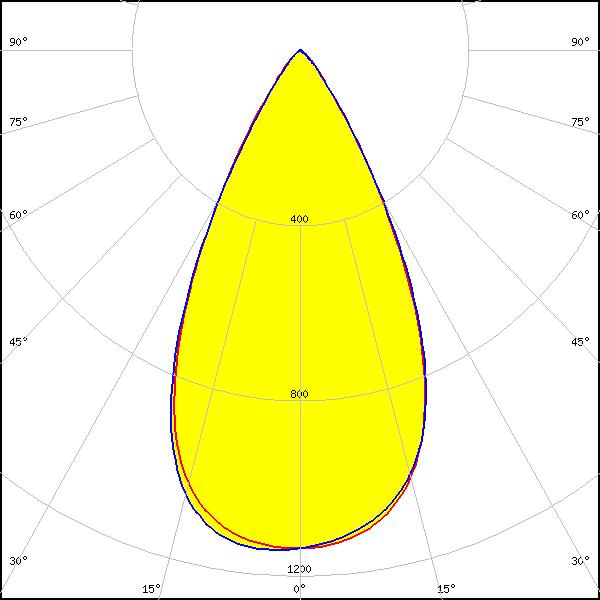

V6 HD Gen 7
LES size: 7.0 mm
Required components:
FWHM:
53°
FWTM:
76°
Peak intensity:
1.140 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

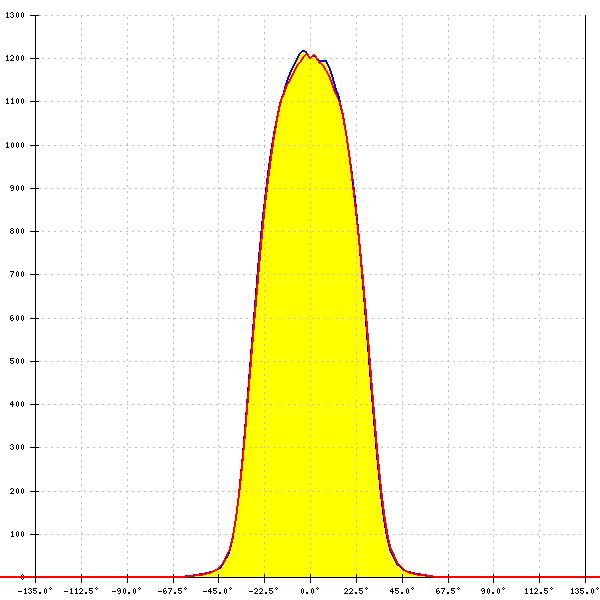

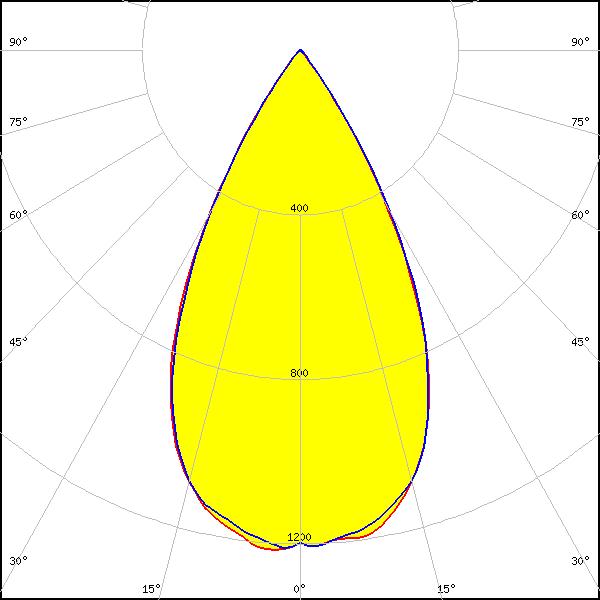

V8 Gen7
LES size: 8.1 mm
Required components:
FWHM:
54°
FWTM:
74°
Peak intensity:
1.228 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

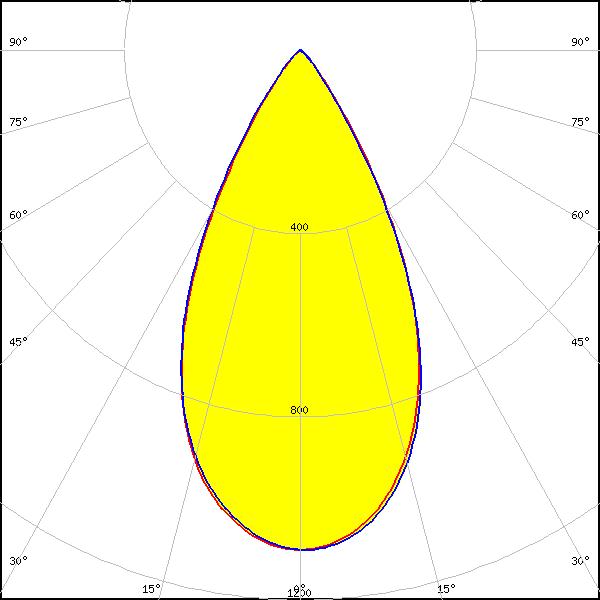

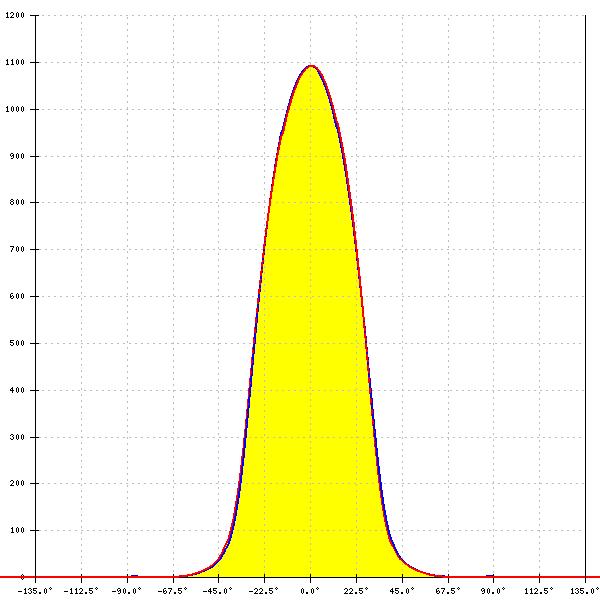

LED:
V9 HD Gen7
LES size: 9.2 mm
Required components:
FWHM:
53°
FWTM:
76°
Peak intensity:
1.100 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:

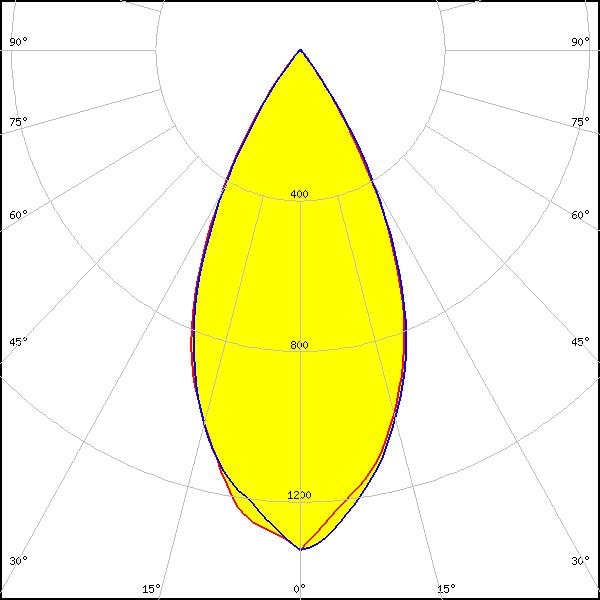

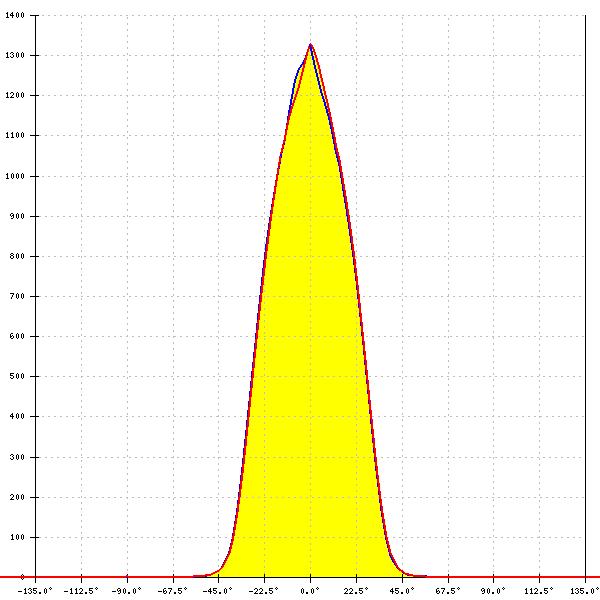

VERO10
LES size: 9.9 mm
Required components:
FWHM:
49°
FWTM:
73°
Peak intensity:
1.330 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

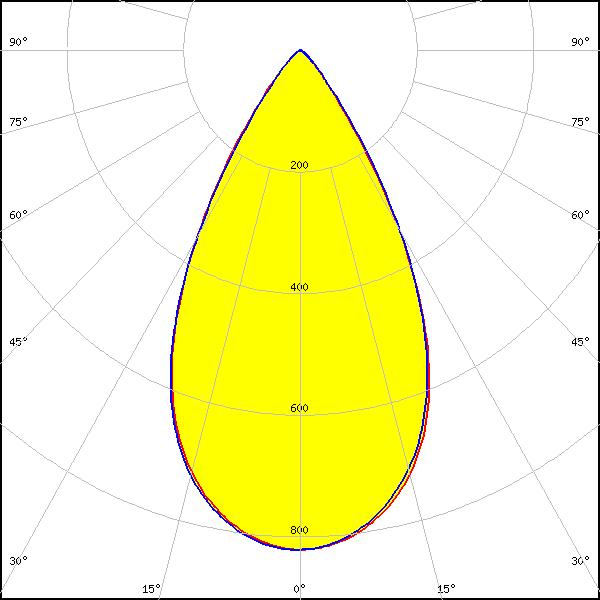

LED:

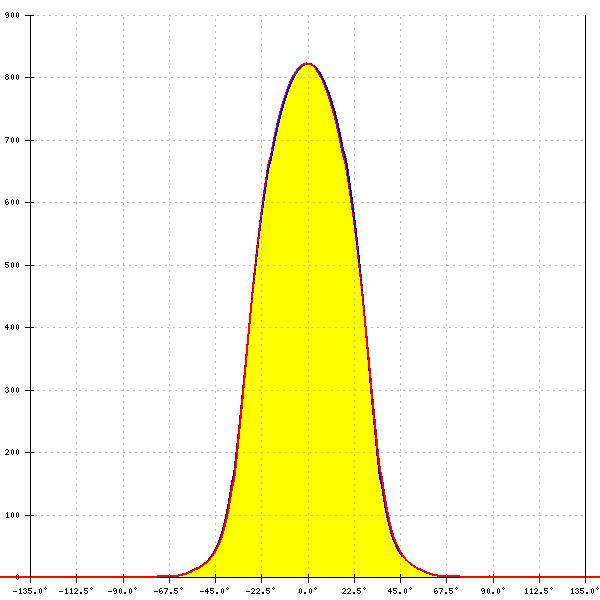

VERO13
LES size: 13.4 mm
Required components:
FWHM:
56°
FWTM:
80°
Peak intensity:
0.822 cd/lm
Efficiency:
68 %
LEDs/each optic:
1
Light colour/type:
White

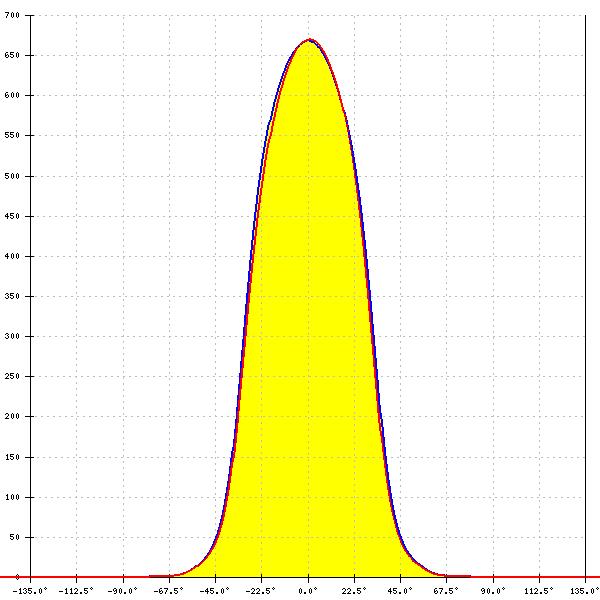

LED:

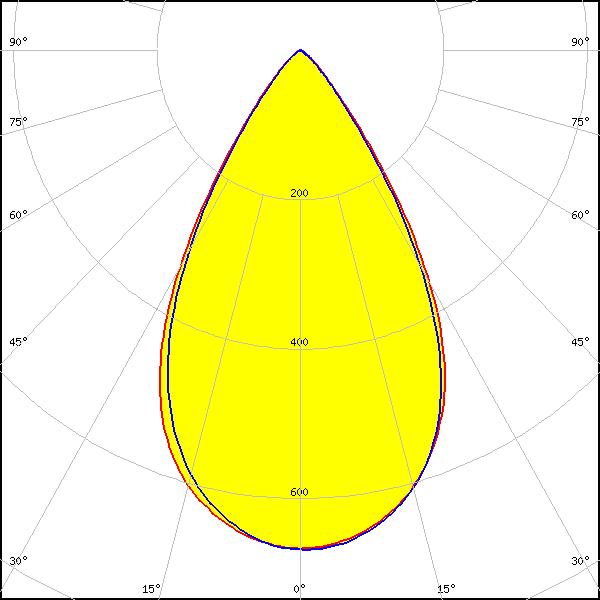

Vesta DTW 13mm (21W)
LES size: 14.0 mm
Required components:
FWHM:
60°
FWTM:
85°
Peak intensity:
0.670 cd/lm
Efficiency:
62 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:

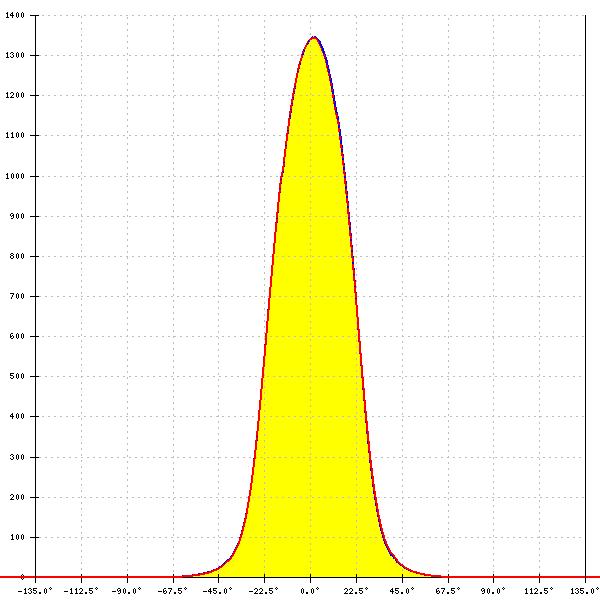

Vesta TW 6mm DP
LES size: 6.3 mm
Required components:
FWHM:
43°
FWTM:
67°
Peak intensity:
1.349 cd/lm
Efficiency:
71 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta TW 9mm (9W) DP
LES size: 10.0 mm
Required components:
FWHM:
48°
FWTM:
73°
Peak intensity:
1.056 cd/lm
Efficiency:
68 %
LEDs/each optic:
1
Light colour/type:
White
LED:

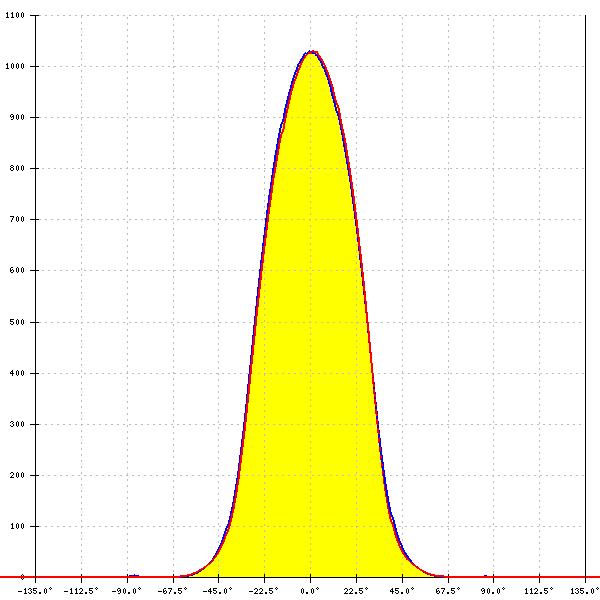

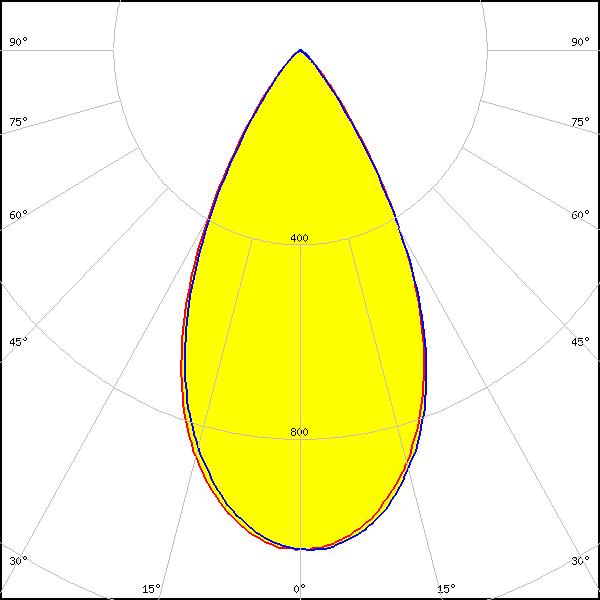

CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
54°
FWTM:
81°
Peak intensity:
1.000 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:

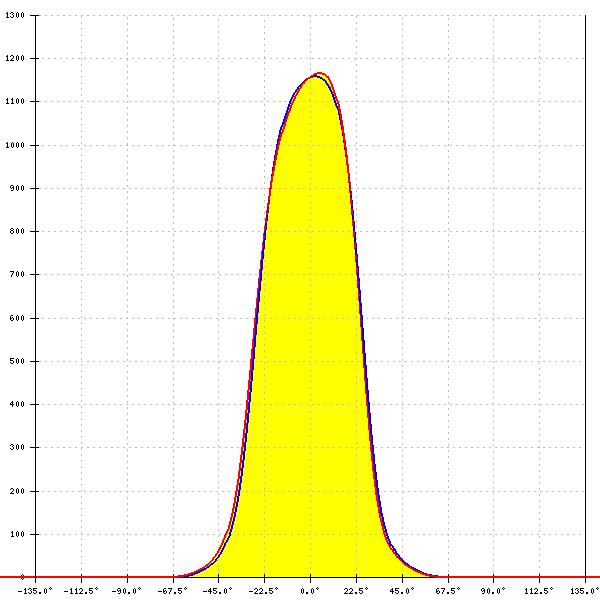

CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
52°
FWTM:
76°
Peak intensity:
1.200 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

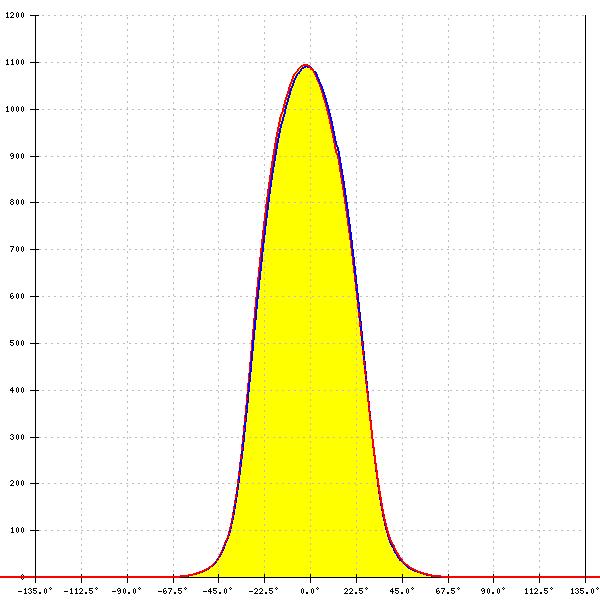

LED:

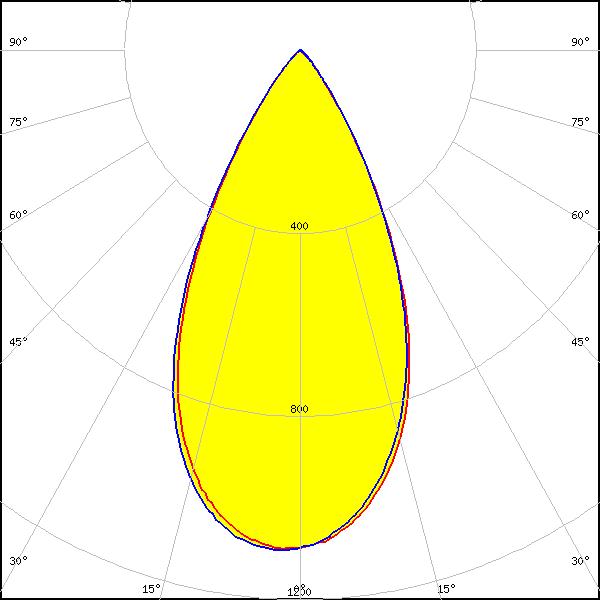

CLU710/711
LES size: 8.5 mm
Required components:
FWHM:
52°
FWTM:
77°
Peak intensity:
1.095 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White

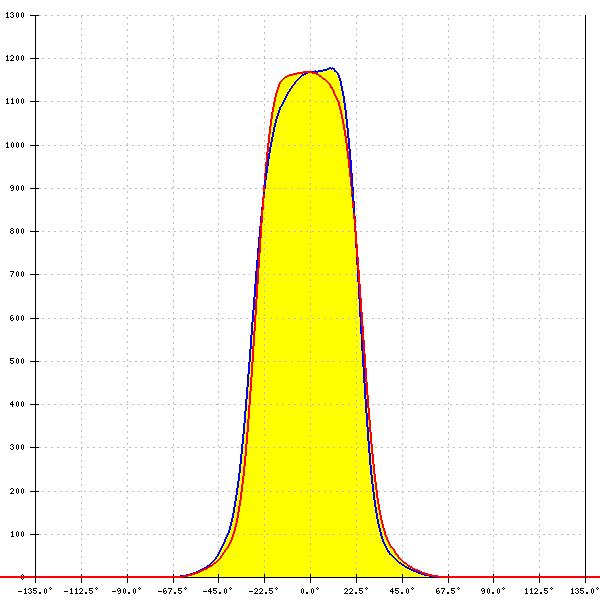

LED:

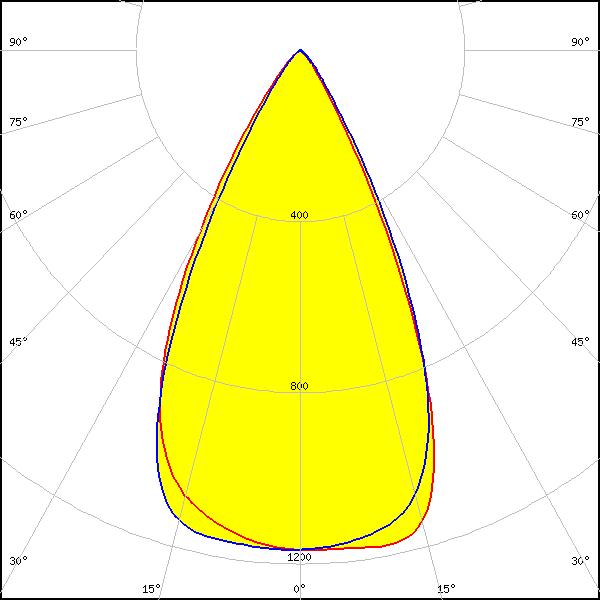

CLU7A2/7A3
LES size: 4.2 mm
Required components:
FWHM:
53°
FWTM:
73°
Peak intensity:
1.200 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

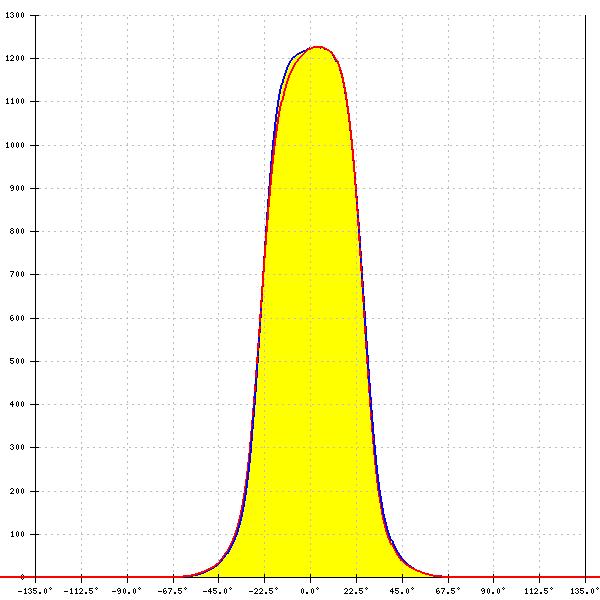

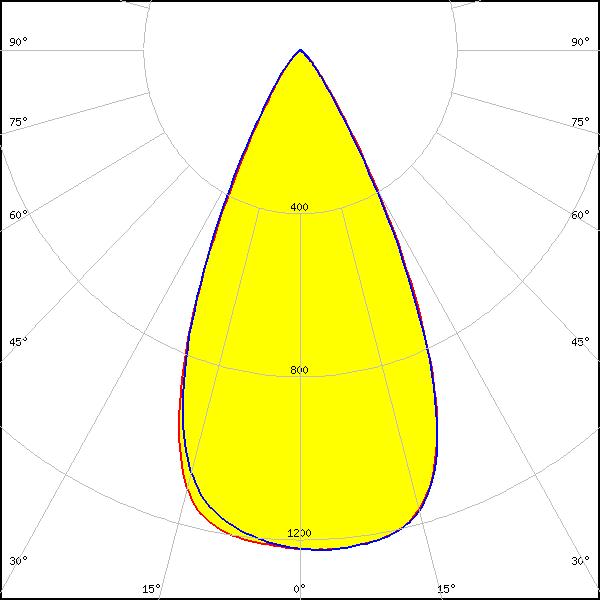

CLU7B2
LES size: 3.3 mm
Required components:
FWHM:
51°
FWTM:
72°
Peak intensity:
1.231 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

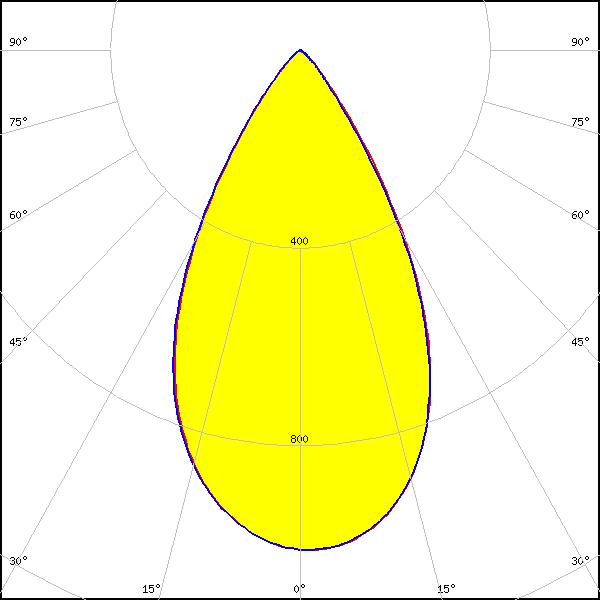

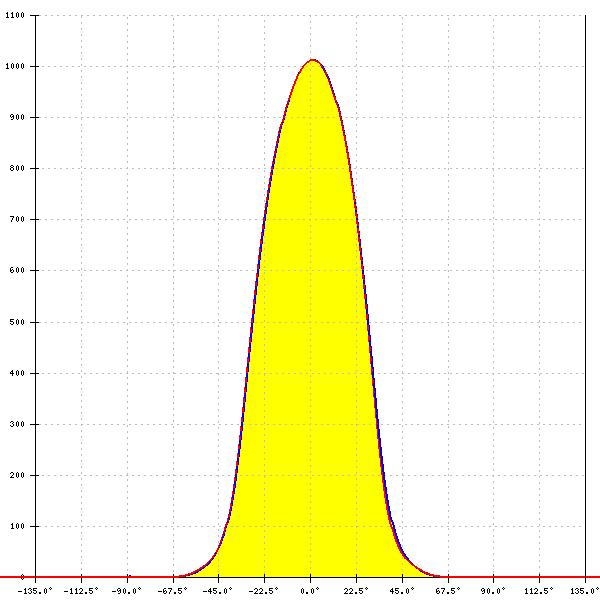

CMA1516
LES size: 9.0 mm
Required components:
FWHM:
57°
FWTM:
81°
Peak intensity:
1.000 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

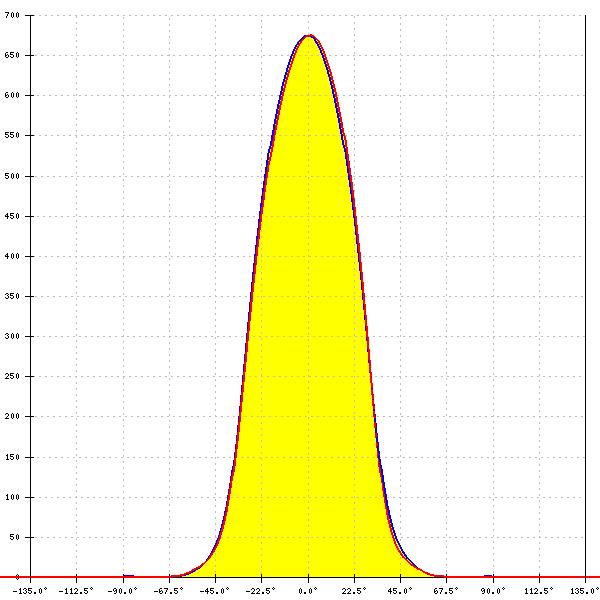

LED:

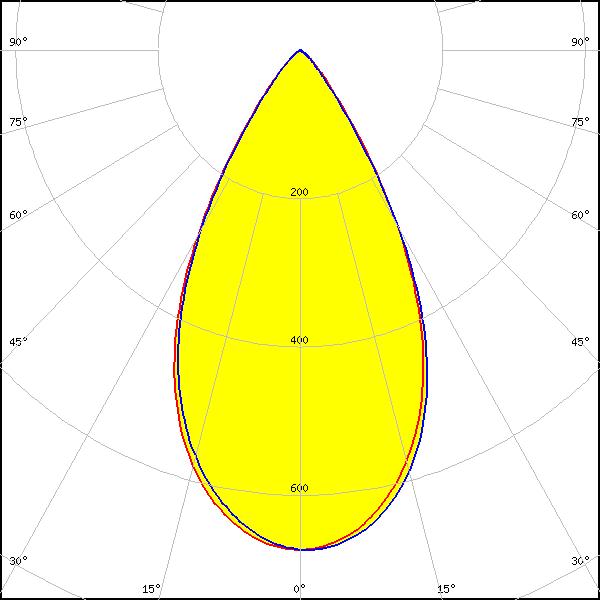

CMT14xx
LES size: 9.8 mm
Required components:
FWHM:
55°
FWTM:
81°
Peak intensity:
0.700 cd/lm
Efficiency:
54 %
LEDs/each optic:
1
Light colour/type:
White

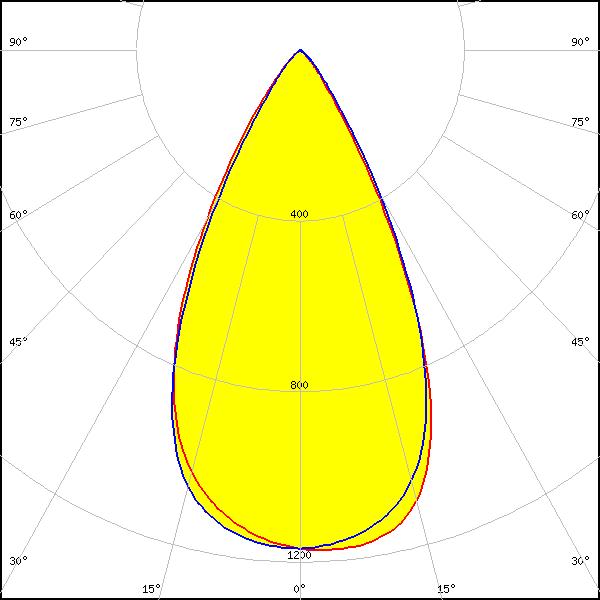

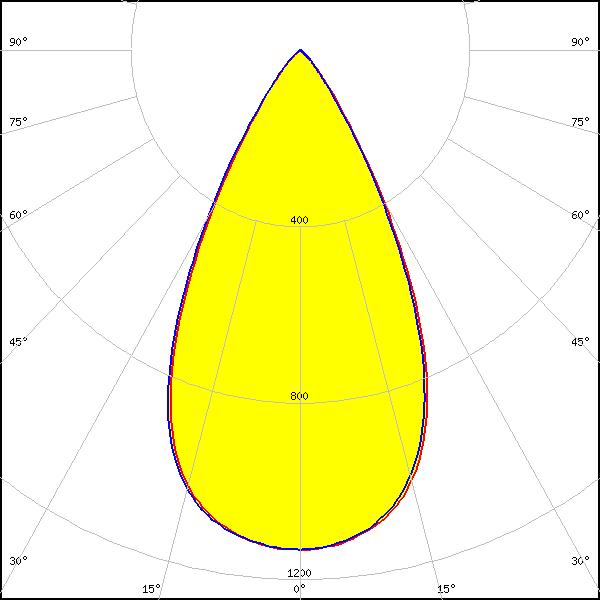

LED:
CXA/B 13xx
LES size: 6.0 mm
Required components:
FWHM:
54°
FWTM:
76°
Peak intensity:
1.200 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

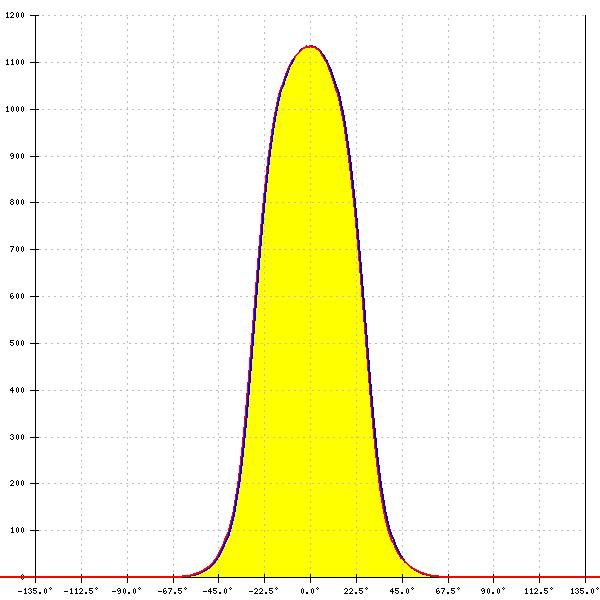

LED:
CXA/B 13xx
LES size: 6.0 mm
Required components:
FWHM:
54°
FWTM:
77°
Peak intensity:
1.100 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

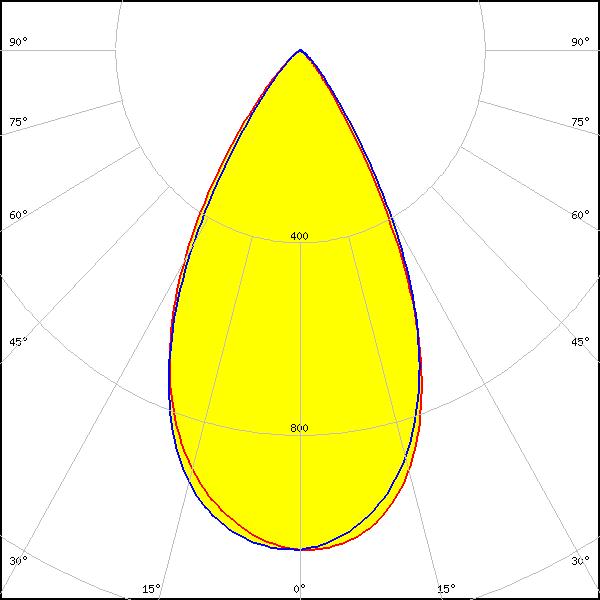

LED:

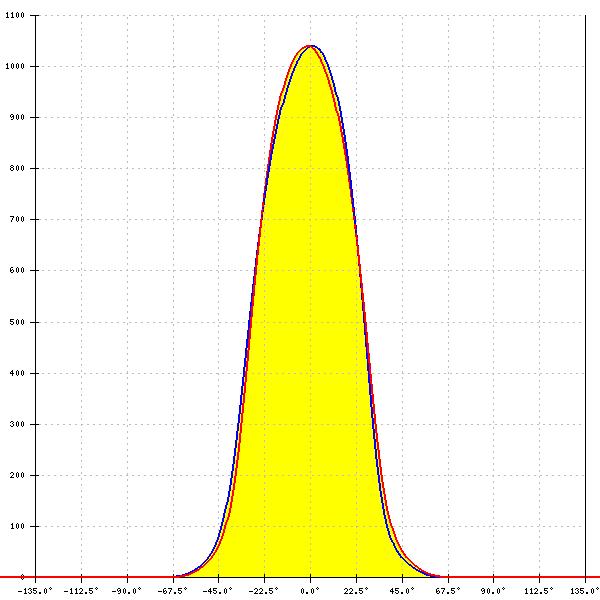

CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
56°
FWTM:
81°
Peak intensity:
1.000 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

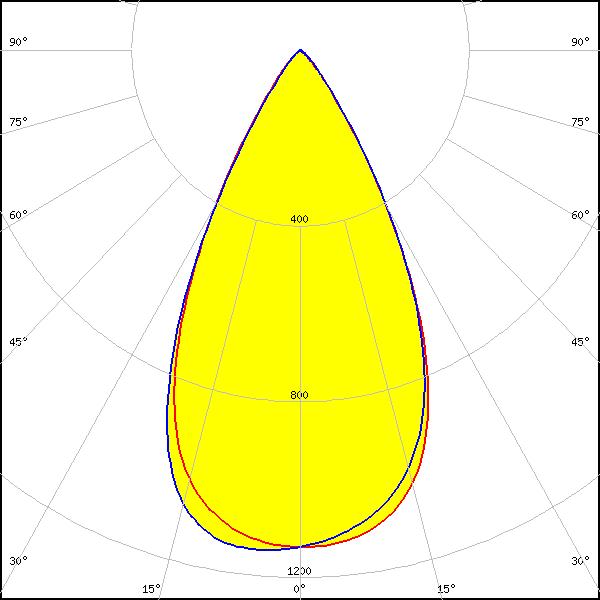

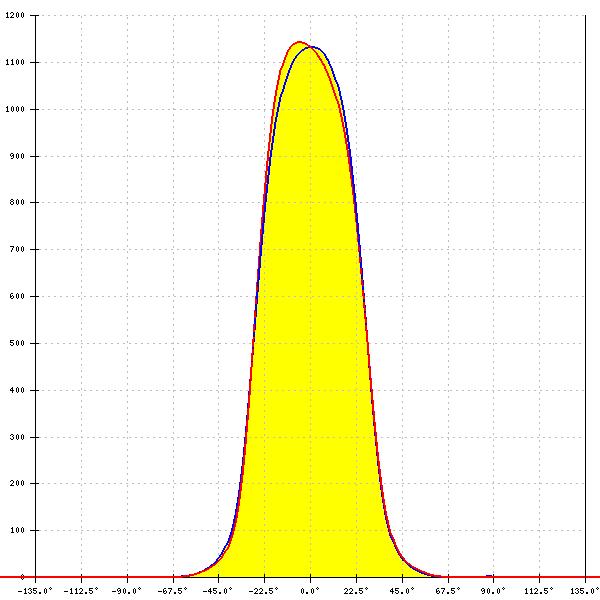

LUXEON CoB 1202HD
LES size: 6.5 mm
Required components:
FWHM:
54°
FWTM:
76°
Peak intensity:
1.140 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

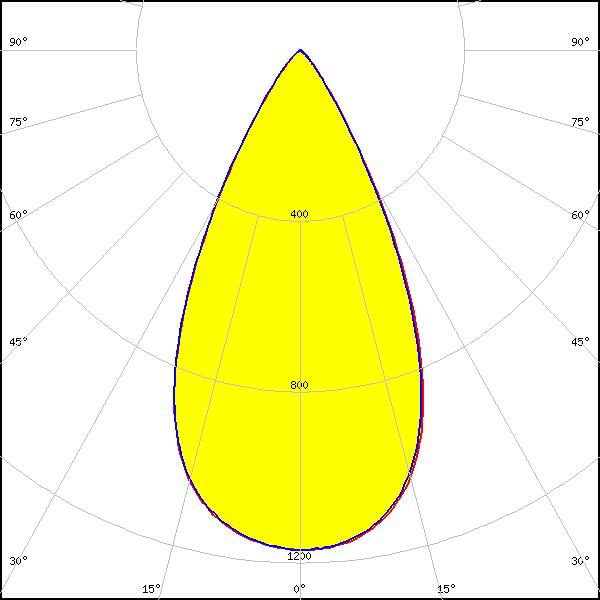

LED:

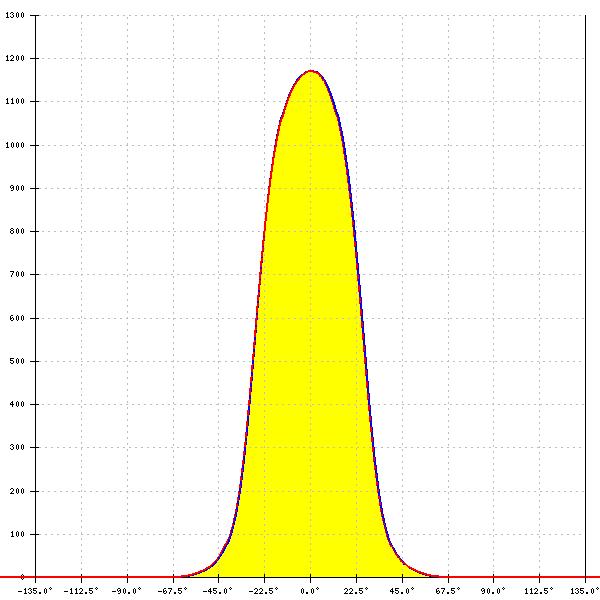

LUXEON CoB 1202s
LES size: 6.5 mm
Required components:
FWHM:
52°
FWTM:
75°
Peak intensity:
1.200 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

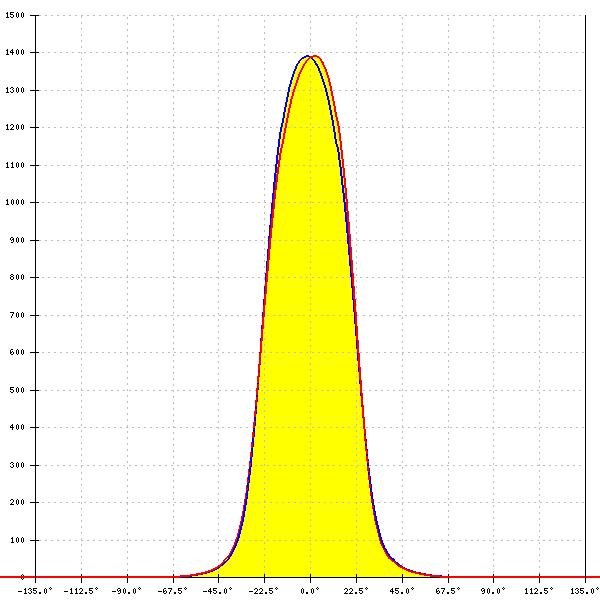

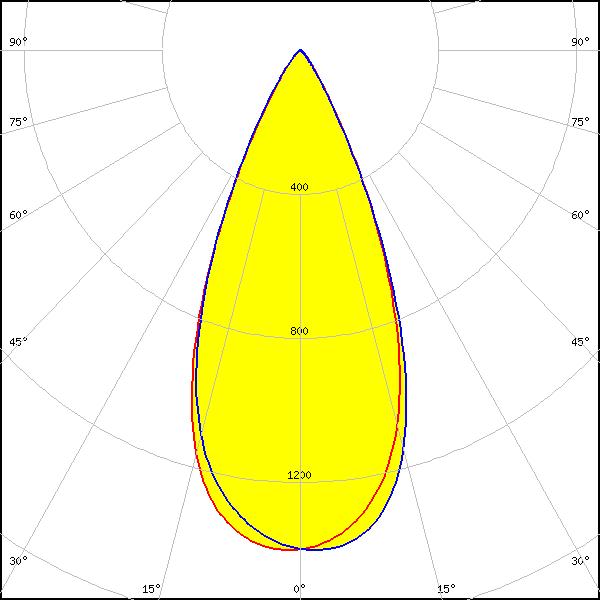

LUXEON CX Plus CoB - HD S01H4
LES size: 4.5 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
45°
FWTM:
67°
Peak intensity:
1.393 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:

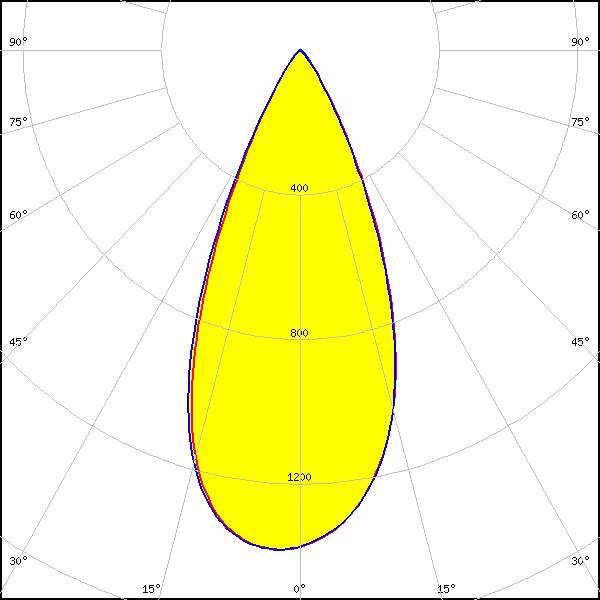

LUXEON CX Plus CoB - HD S02H6
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
45°
FWTM:
68°
Peak intensity:
1.393 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:

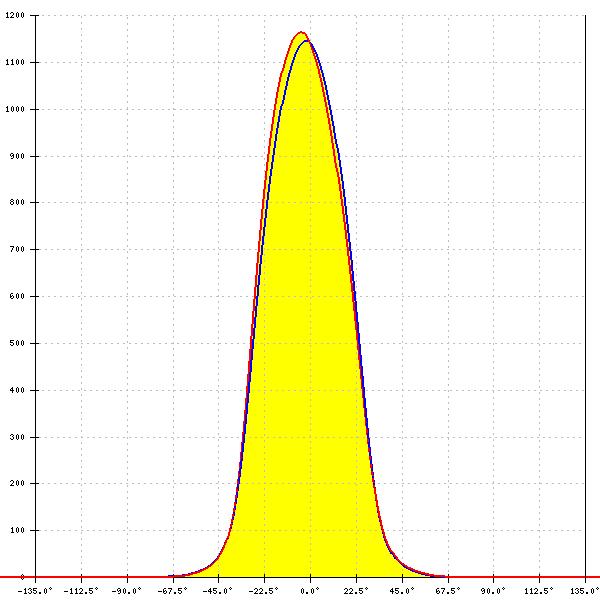

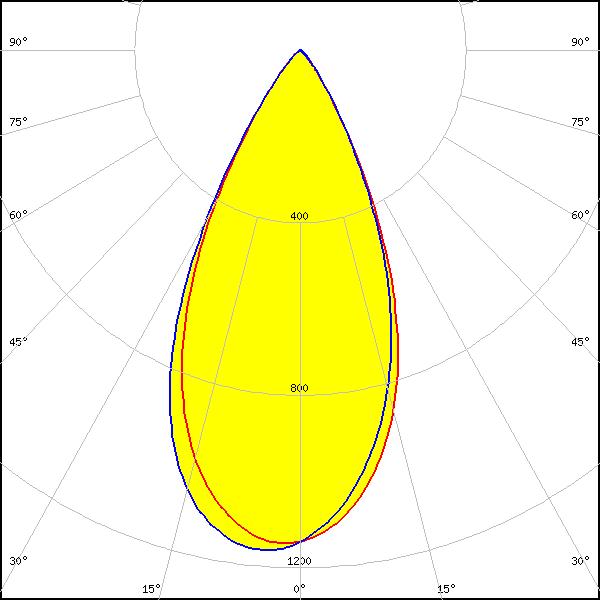

LUXEON CX Plus CoB - HD S04H9
LES size: 9.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
49°
FWTM:
74°
Peak intensity:
1.170 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White
LED:

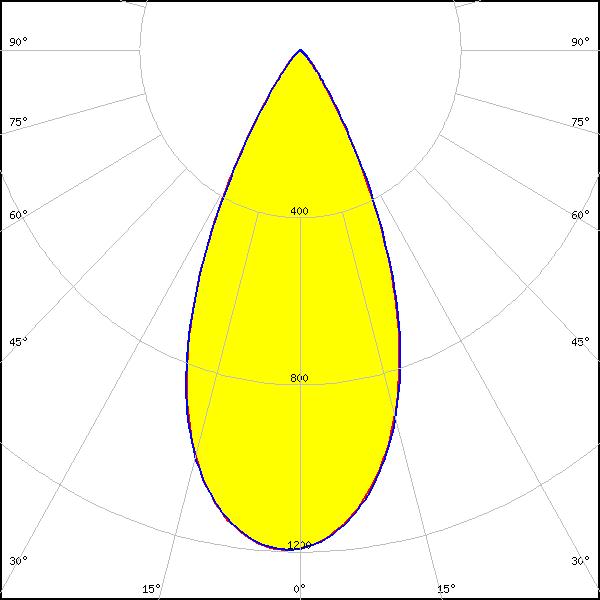

LUXEON CX Plus CoB M02 / M03 (Gen2)
LES size: 9.0 mm
Required components:
Bender Wirth: 641a Hekla
FWHM:
48°
FWTM:
72°
Peak intensity:
1.199 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White
LED:

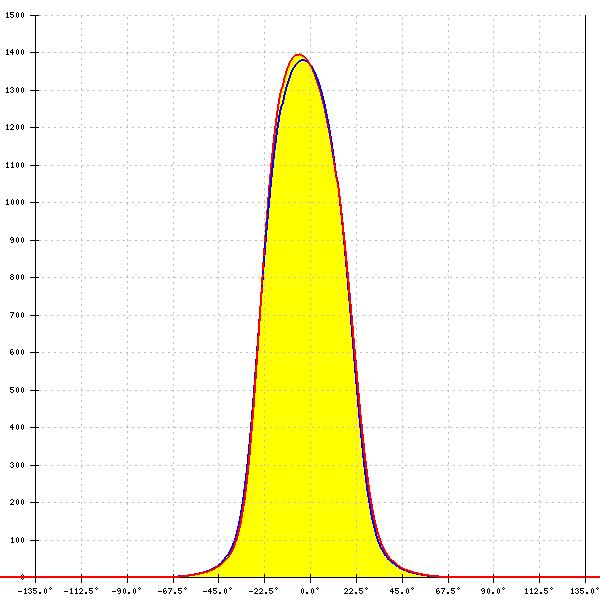

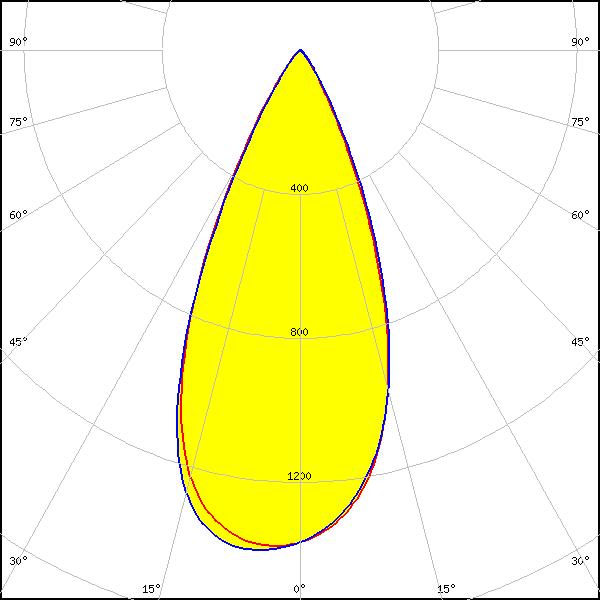

LUXEON CX Plus CoB S01 (Gen2)
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
45°
FWTM:
67°
Peak intensity:
1.405 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White

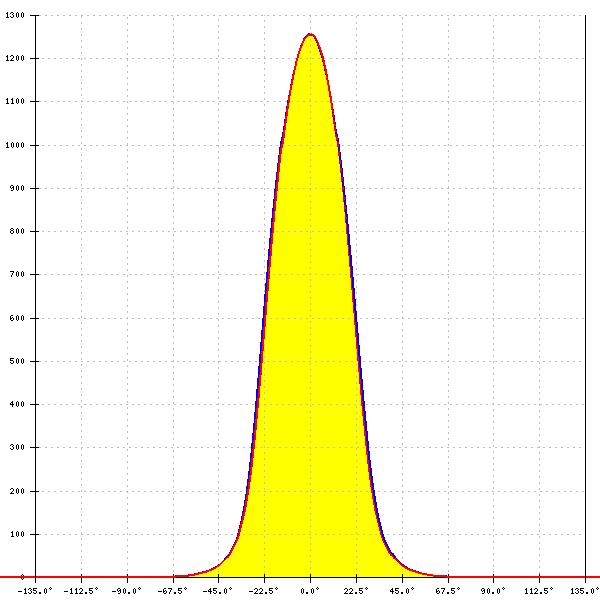

LED:

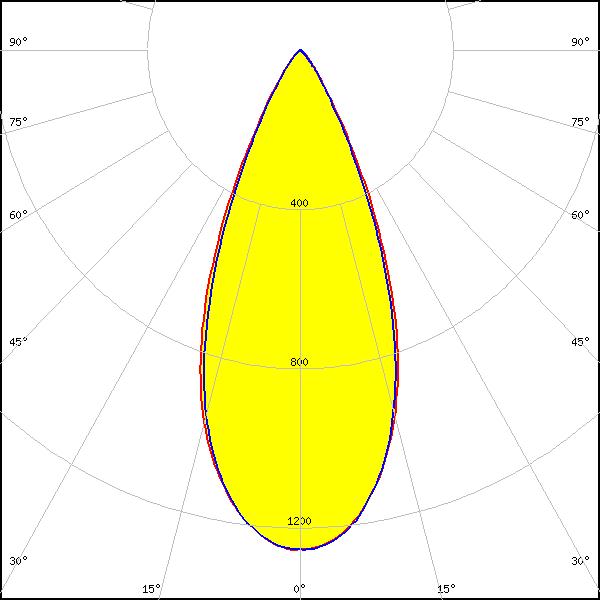

CDM-6 (Dim-To-Warm)
LES size: 6.8 mm
Required components:
FWHM:
44°
FWTM:
68°
Peak intensity:
1.300 cd/lm
Efficiency:
68 %
LEDs/each optic:
1
Light colour/type:
White

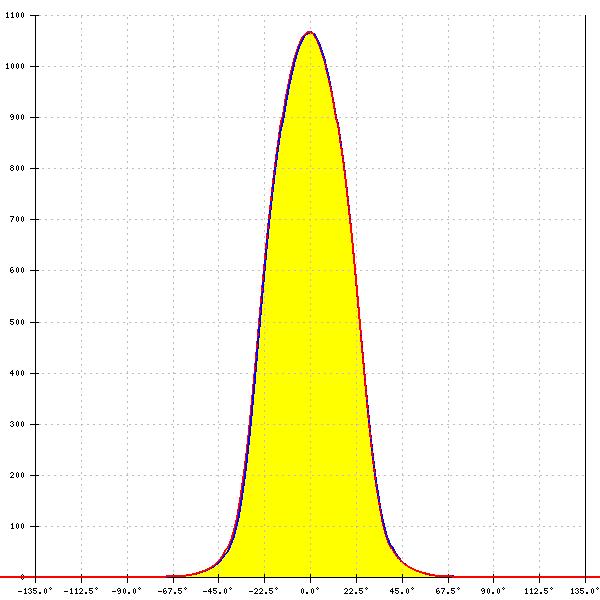

LED:

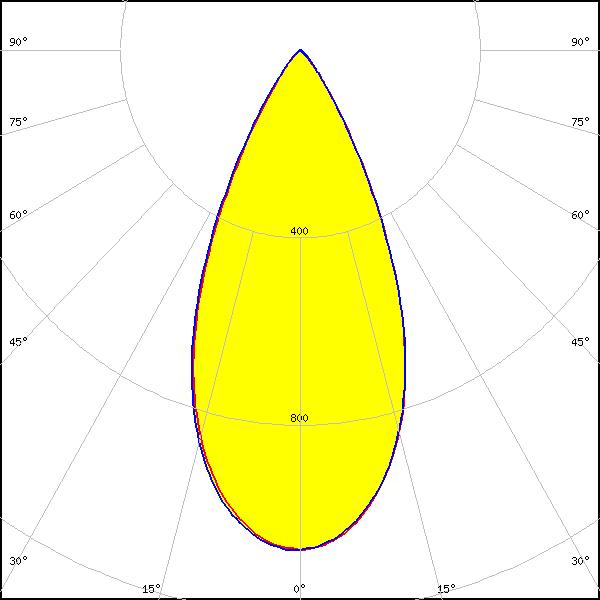

CDM-9 (Dim-To-Warm)
LES size: 9.5 mm
Required components:
FWHM:
48°
FWTM:
72°
Peak intensity:
1.100 cd/lm
Efficiency:
67 %
LEDs/each optic:
1
Light colour/type:
White

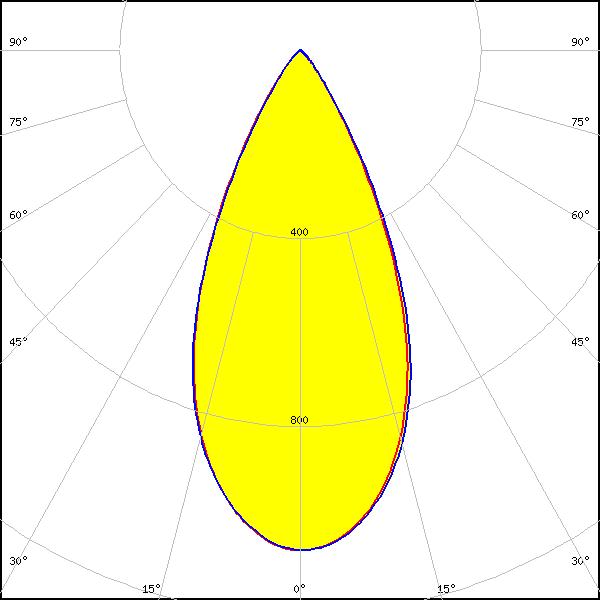

LED:

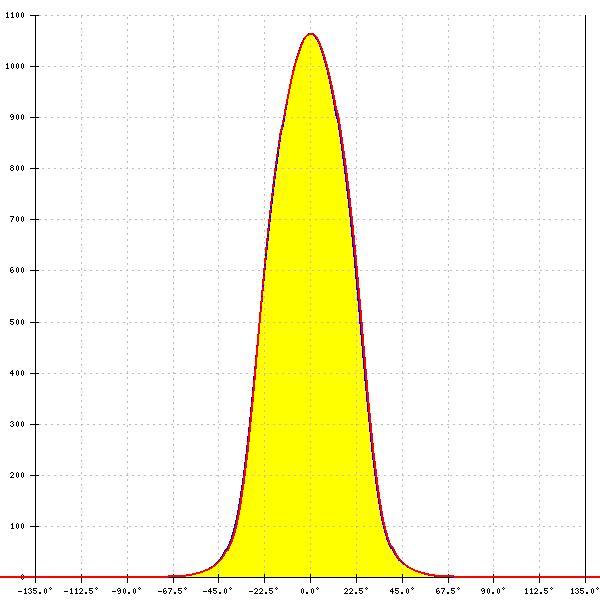

CTM-9 (Tunable White)
LES size: 9.5 mm
Required components:
FWHM:
48°
FWTM:
72°
Peak intensity:
1.000 cd/lm
Efficiency:
67 %
LEDs/each optic:
1
Light colour/type:
White

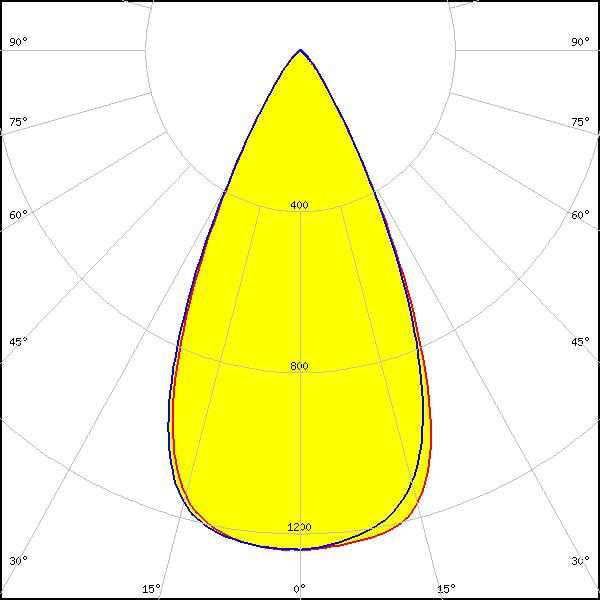

LED:

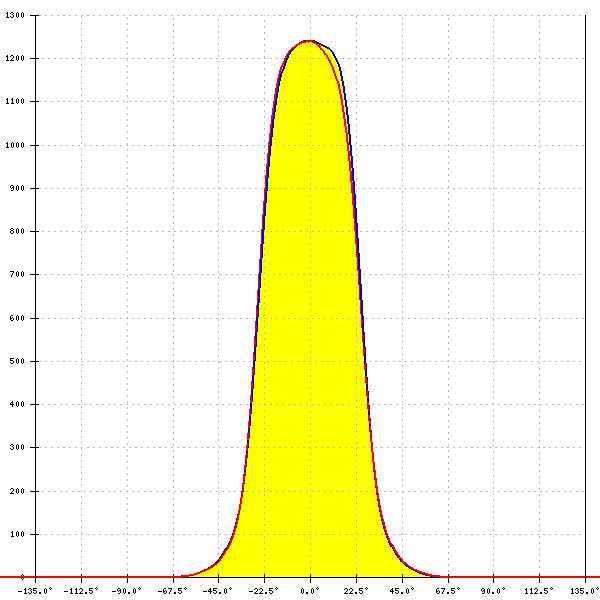

CXM-3
LES size: 3.5 mm
Required components:
FWHM:
51°
FWTM:
73°
Peak intensity:
1.241 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

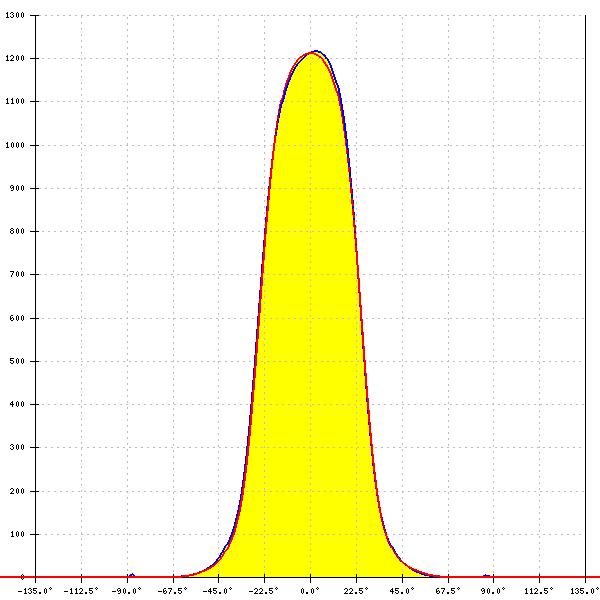

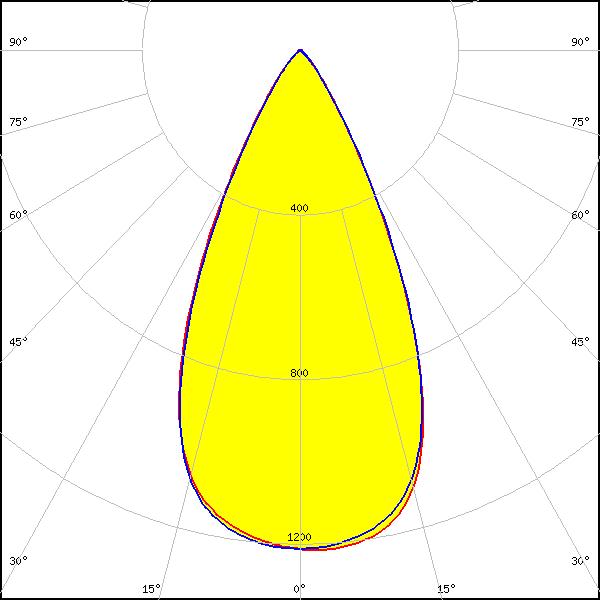

LED:
CXM-4
LES size: 4.5 mm
Required components:
FWHM:
50°
FWTM:
73°
Peak intensity:
1.216 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

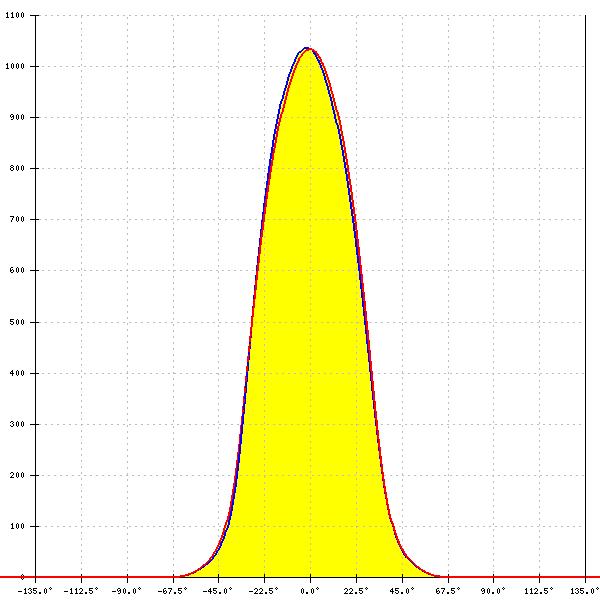

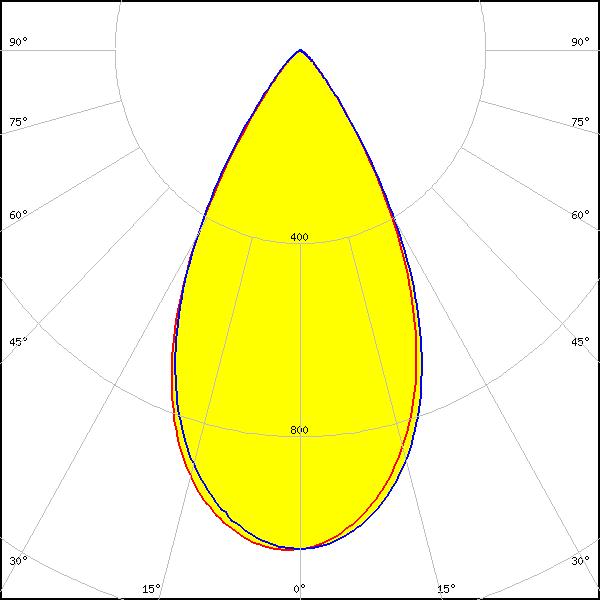

CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM:
55°
FWTM:
81°
Peak intensity:
1.000 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM:
65°
FWTM:
87°
Peak intensity:
0.838 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
FWHM:
62°
FWTM:
81°
Peak intensity:
0.979 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB S-Type (LES 6)
LES size: 5.9 mm
Required components:
FWHM:
48°
FWTM:
67°
Peak intensity:
1.379 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB S-Type (LES 7)
LES size: 6.7 mm
Required components:
FWHM:
53°
FWTM:
78°
Peak intensity:
1.100 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

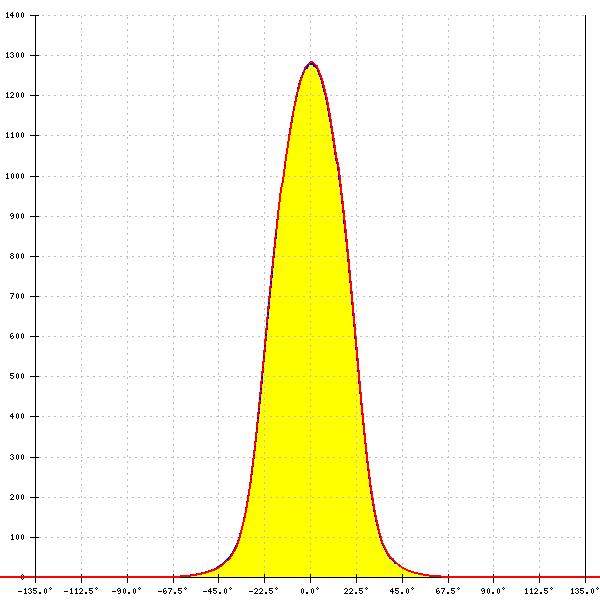

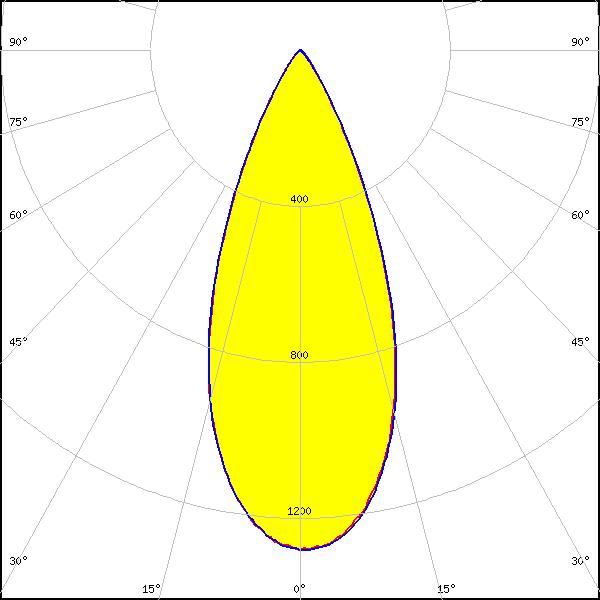

NJCWL024Z-V1MT: COB L-Type Tunable White
LES size: 7.0 mm
Required components:
FWHM:
42°
FWTM:
67°
Peak intensity:
1.300 cd/lm
Efficiency:
66 %
LEDs/each optic:
1
Light colour/type:
White
LED:

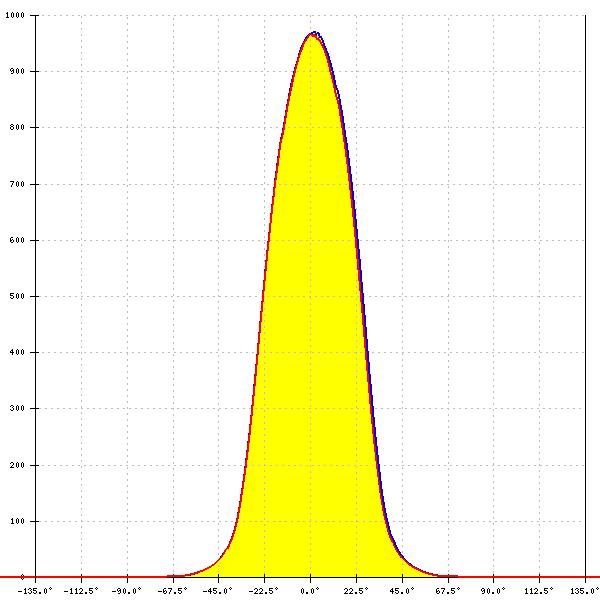

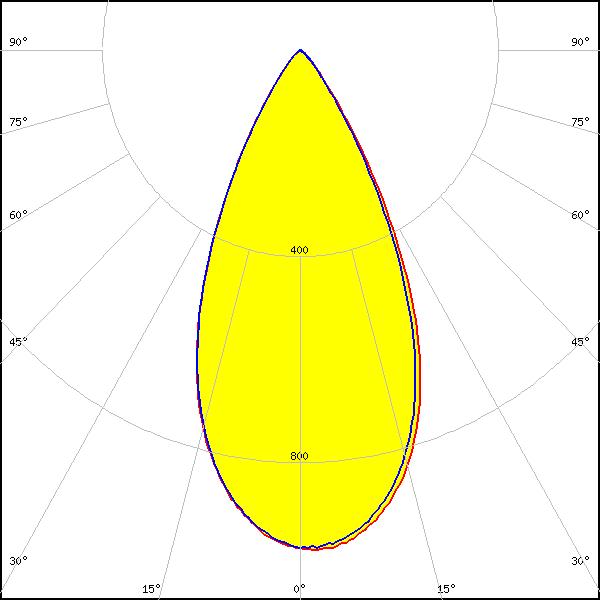

NVCWJ024Z-V1MT: COB J-Type Tunable White
LES size: 10.6 mm
Required components:
FWHM:
49°
FWTM:
74°
Peak intensity:
0.970 cd/lm
Efficiency:
65 %
LEDs/each optic:
1
Light colour/type:
White

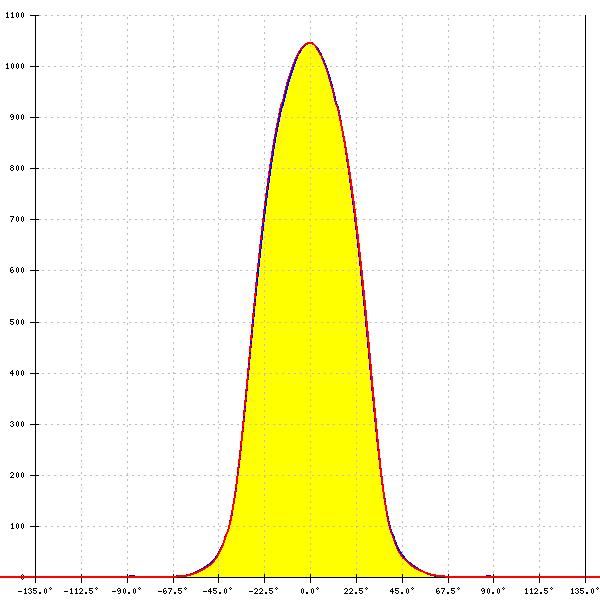

LED:

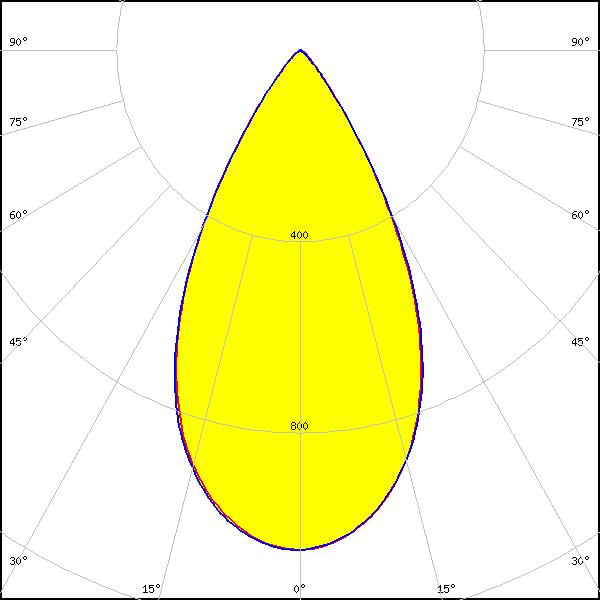

Fortimo SLM L09 CoB
LES size: 9.0 mm
Required components:
FWHM:
55°
FWTM:
79°
Peak intensity:
1.050 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC003D / LC006D / LC009D / LC013D
LES size: 9.8 mm
Required components:
FWHM:
56°
FWTM:
82°
Peak intensity:
1.000 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

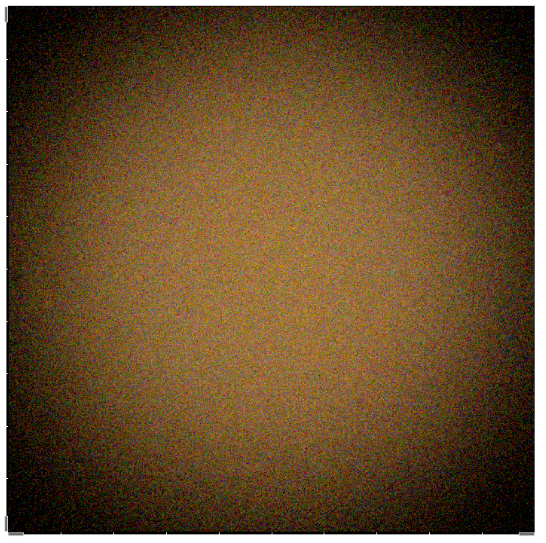

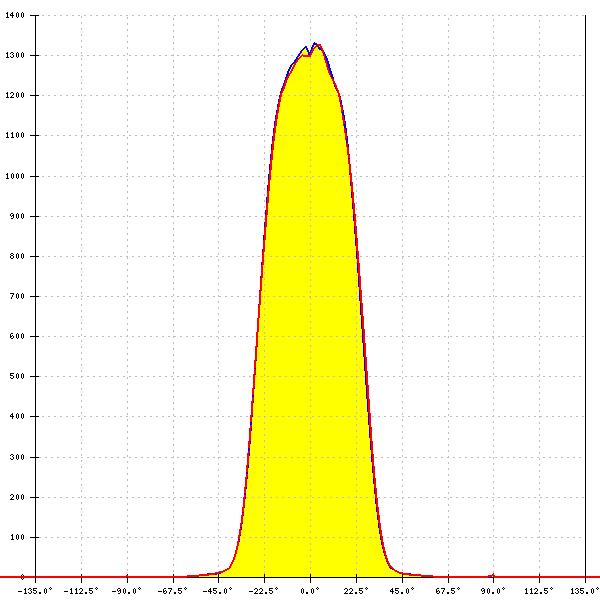

LED:

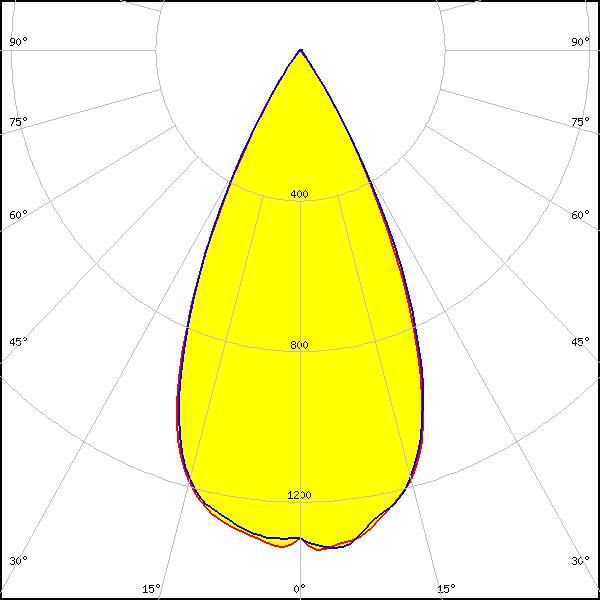

LC010C
LES size: 6.0 mm
Required components:
FWHM:
51°
FWTM:
68°
Peak intensity:
1.341 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

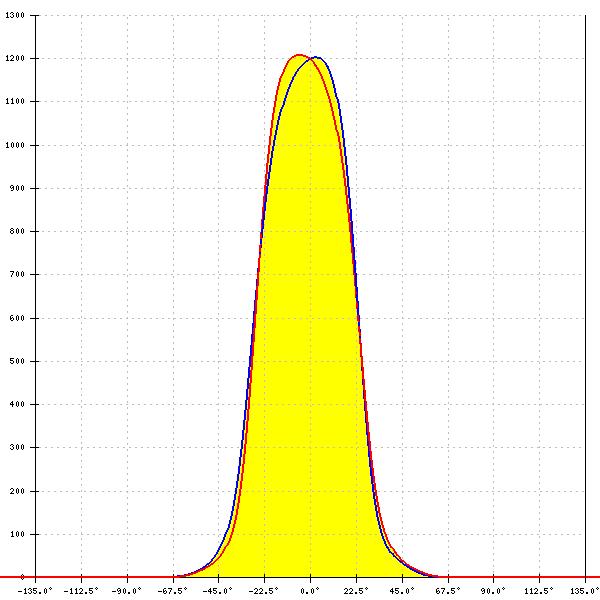

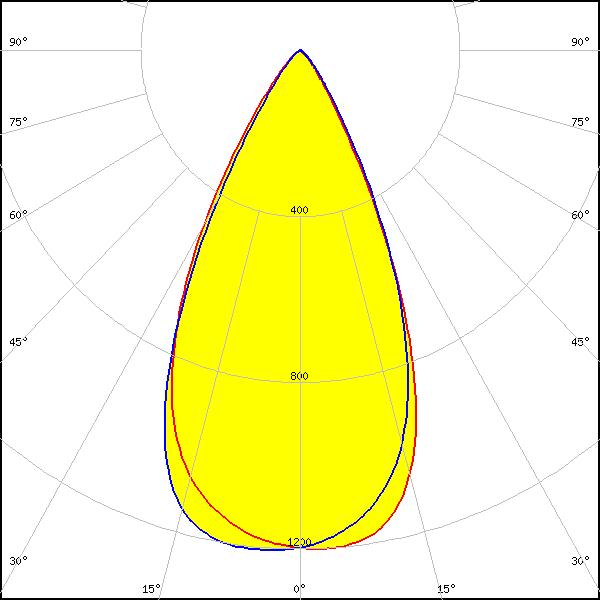

LC010C G2
LES size: 6.0 mm
Required components:
FWHM:
51°
FWTM:
74°
Peak intensity:
1.200 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

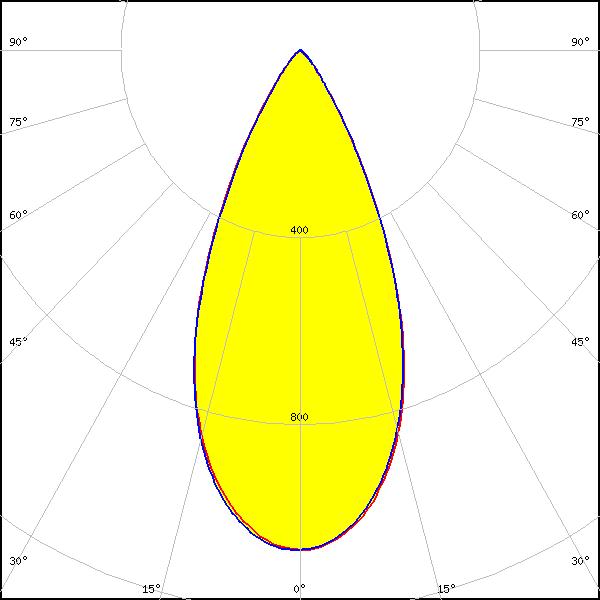

LED:

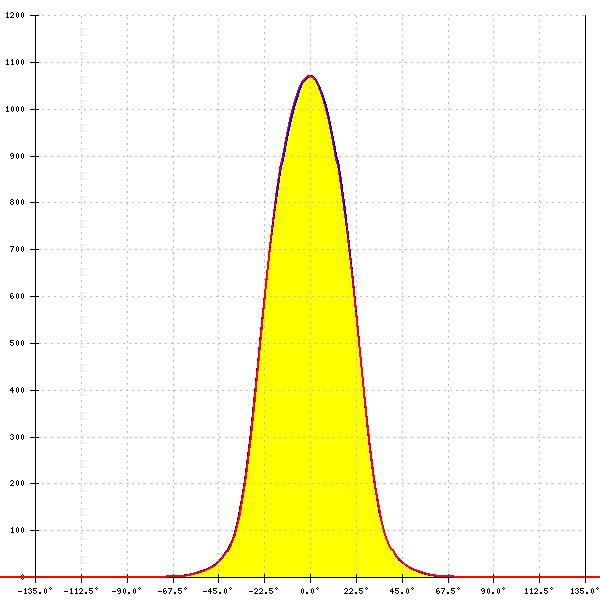

LC010T (Tunable White)
LES size: 9.8 mm
Required components:
FWHM:
47°
FWTM:
72°
Peak intensity:
1.070 cd/lm
Efficiency:
67 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:

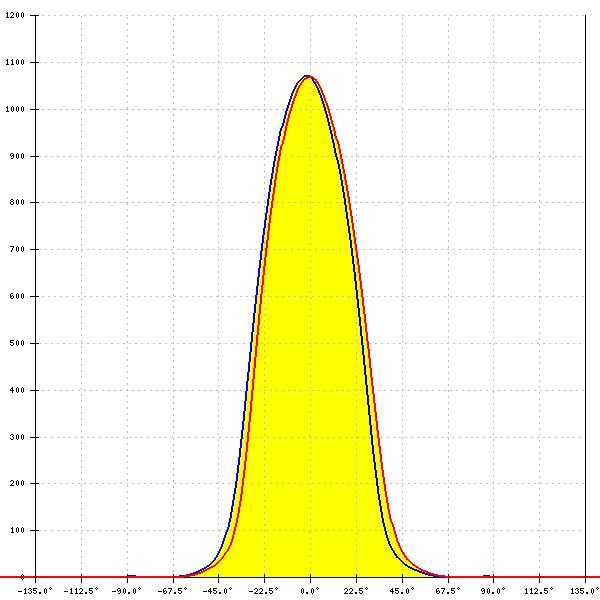

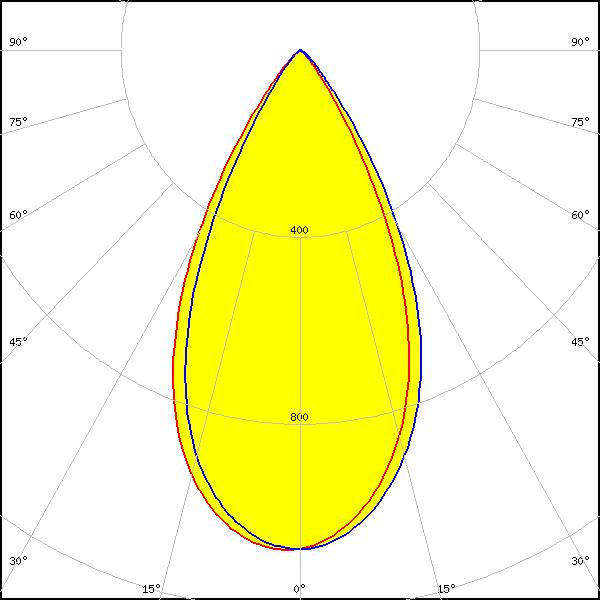

LC020C G2
LES size: 8.5 mm
Required components:
FWHM:
53°
FWTM:
77°
Peak intensity:
1.100 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

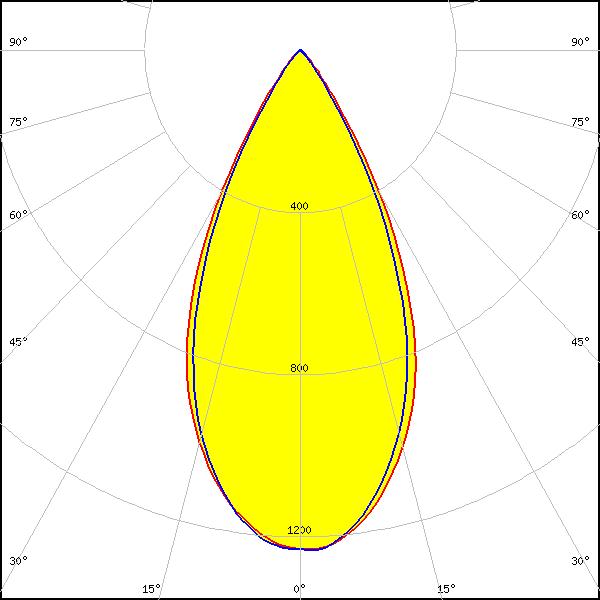

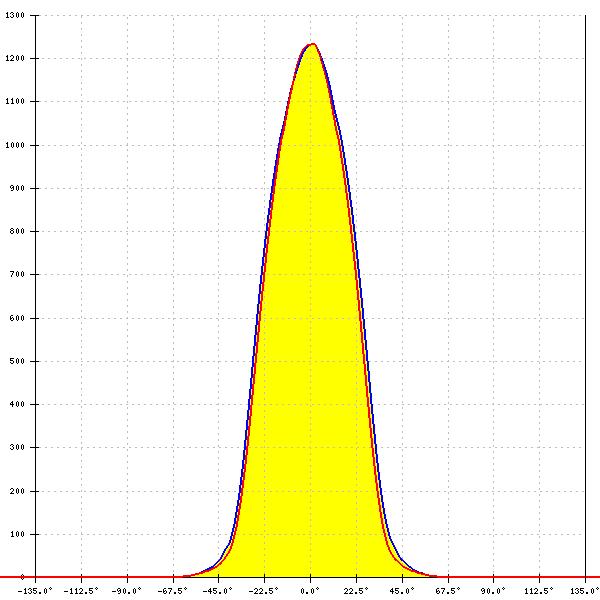

LED:
LH231B
LES size: 0.0 mm
Required components:
FWHM:
50°
FWTM:
73°
Peak intensity:
1.235 cd/lm
Efficiency:
82 %
LEDs/each optic:
7
Light colour/type:
White
LED:
MJT COB LES 6
LES size: 6.0 mm
Required components:
FWHM:
53°
FWTM:
70°
Peak intensity:
1.267 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 9.8
LES size: 9.8 mm
Required components:
FWHM:
53°
FWTM:
75°
Peak intensity:
1.201 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:

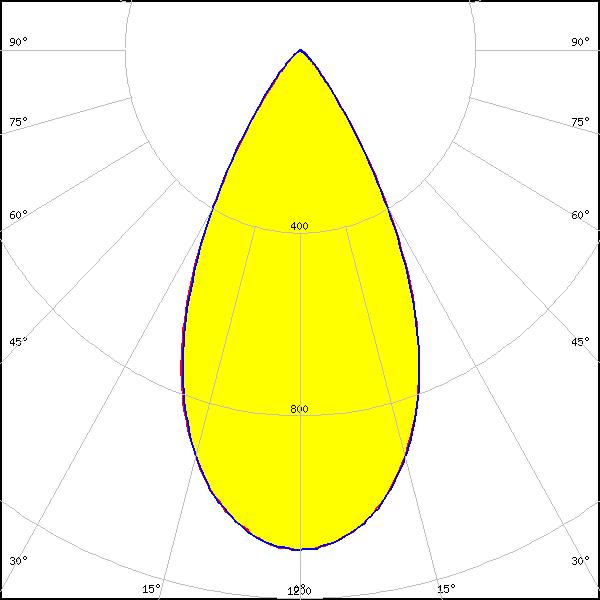

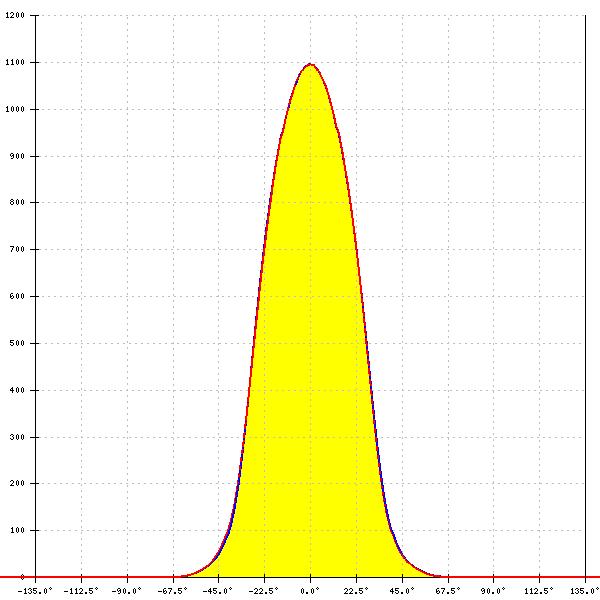

SLE G7 LES09
LES size: 9.0 mm
Required components:
FWHM:
53°
FWTM:
79°
Peak intensity:
1.100 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES13
LES size: 13.0 mm
Required components:
FWHM:
64°
FWTM:
87°
Peak intensity:
0.730 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XOB 6 mm
LES size: 6.0 mm
Required components:
FWHM:
50°
FWTM:
73°
Peak intensity:
1.208 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

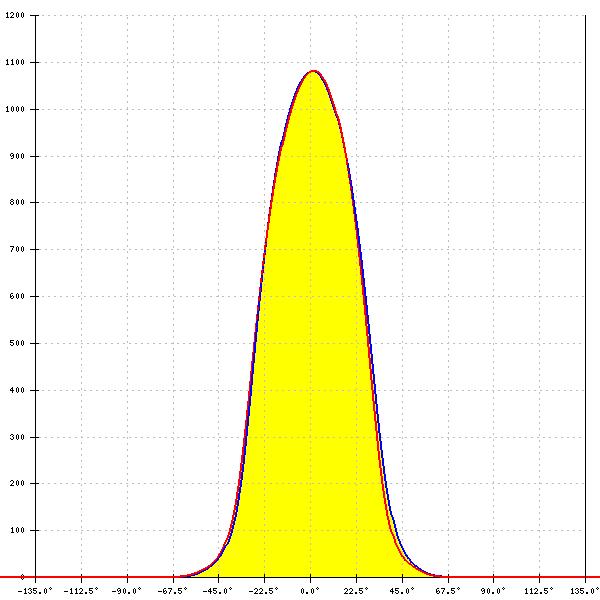

LED:
XOB 9.8 mm
LES size: 9.8 mm
Required components:
FWHM:
54°
FWTM:
79°
Peak intensity:
1.100 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

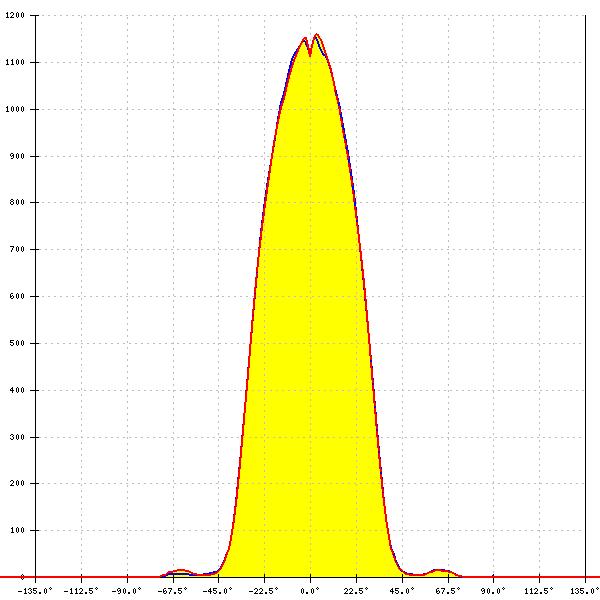

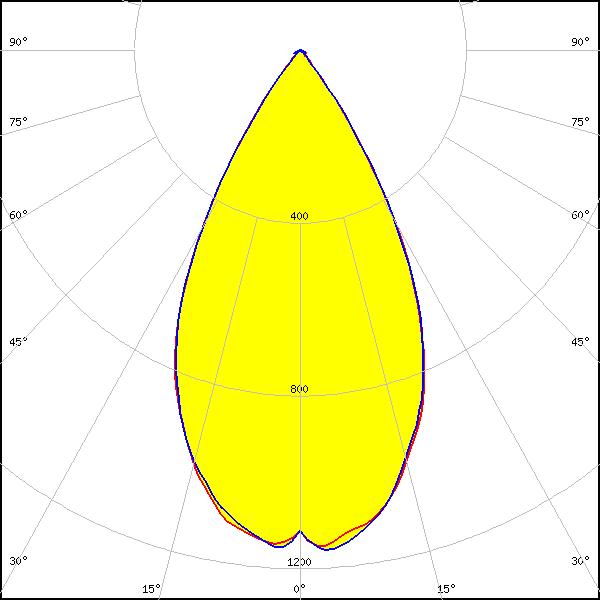

LED:
XTM - 9mm LES
LES size: 9.0 mm
Required components:
FWHM:
55°
FWTM:
76°
Peak intensity:
1.200 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
