CP16107_CARMEN-50-S-C
Print

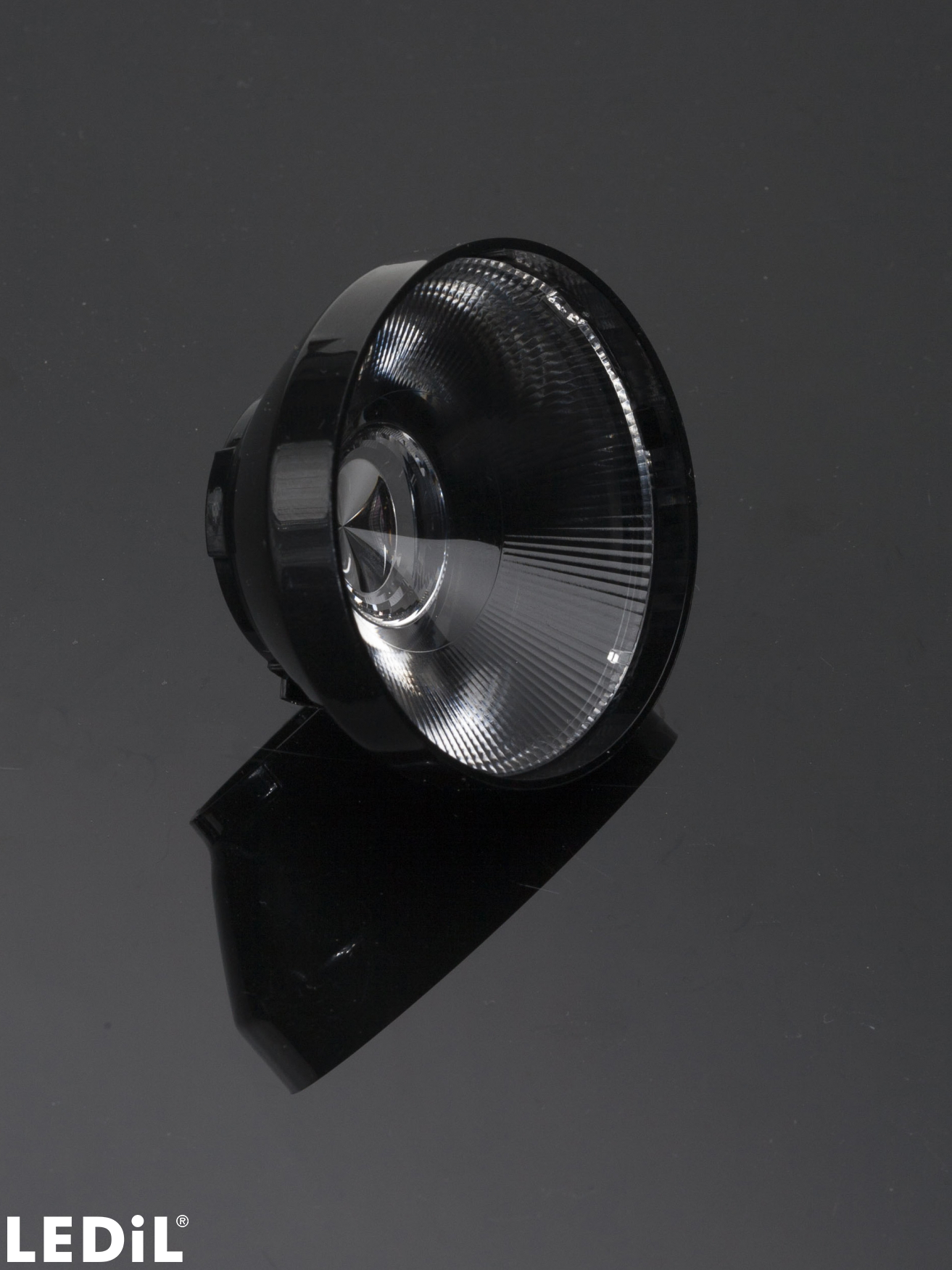

~24° spot beam. Assembly with holder C compatible with LEDiL HEKLA.
Materials
- CARMEN-50-S, Single lens, PMMA
- CARMEN-50-HLD-C, Holder, PC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results

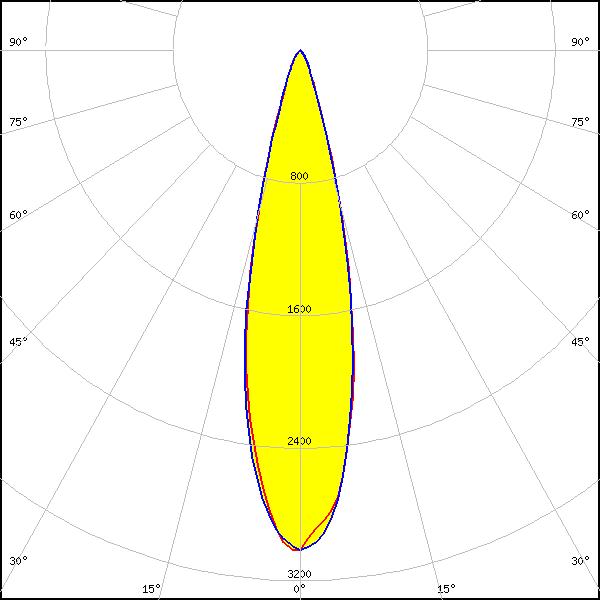

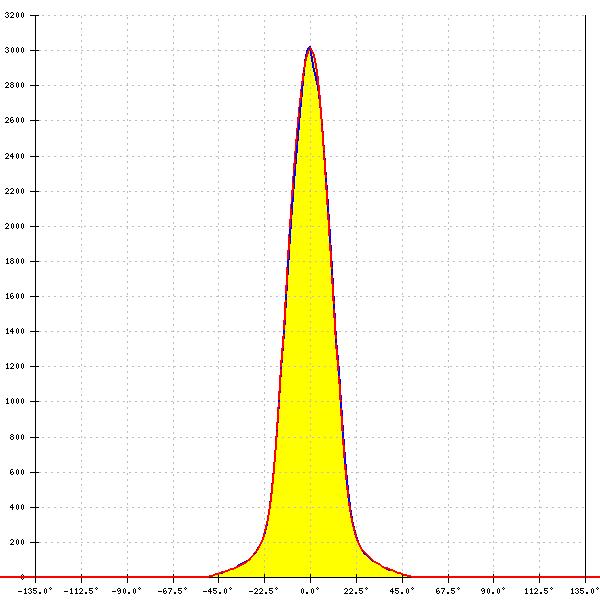

LED:
V10 Gen7
LES size: 10.2 mm
Required components:
FWHM:
24°
FWTM:
42°
Peak intensity:
3.057 cd/lm
Efficiency:
65 %
LEDs/each optic:
1
Light colour/type:
White

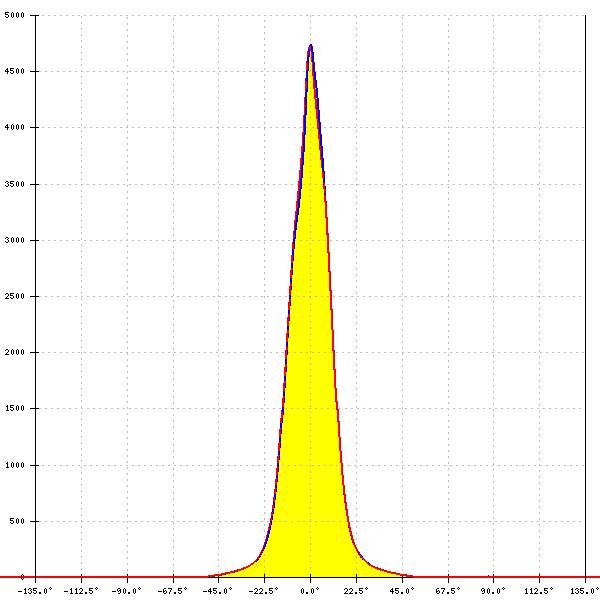

LED:

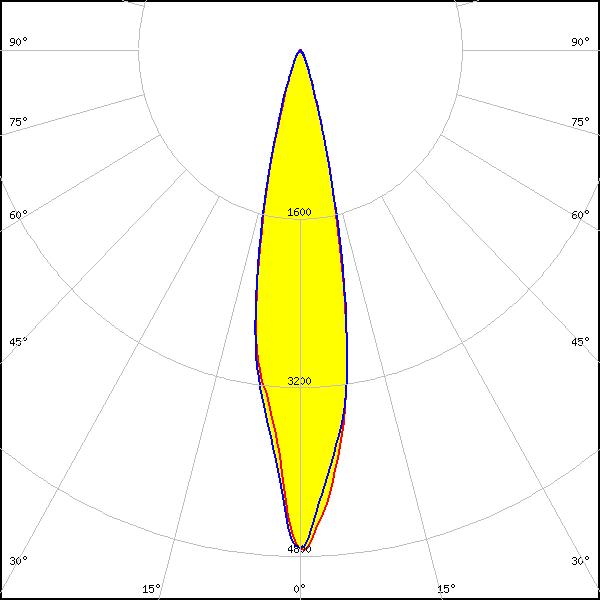

V4 HD Gen 7
LES size: 5.2 mm
Required components:
FWHM:
21°
FWTM:
38°
Peak intensity:
4.700 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:

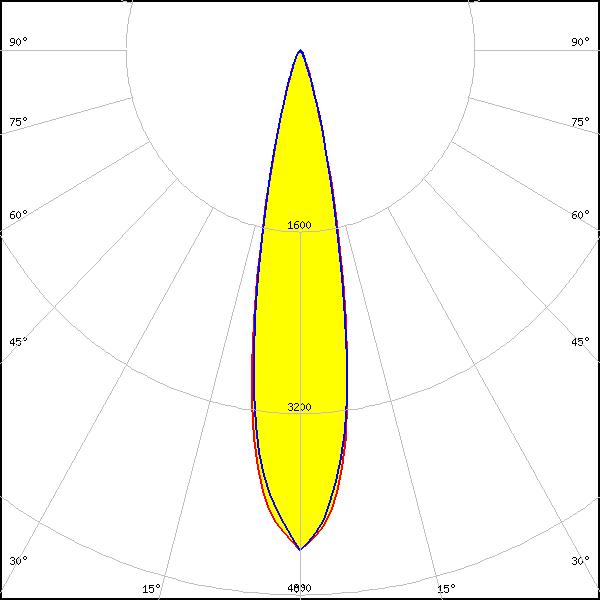

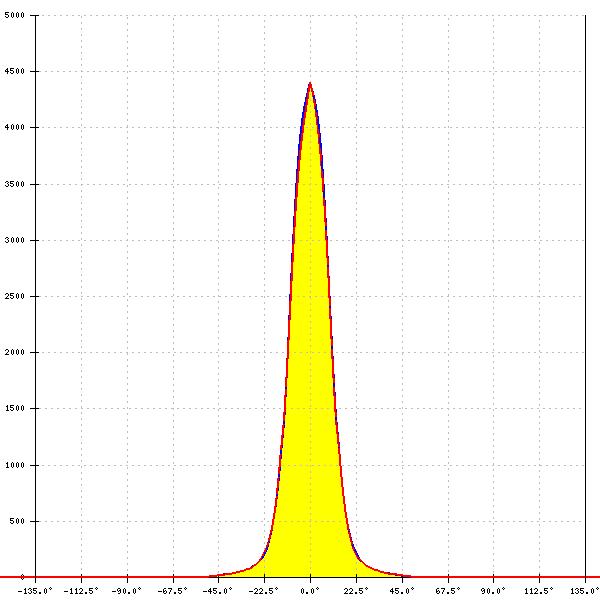

V6 Gen6
LES size: 6.0 mm
Required components:
FWHM:
21°
FWTM:
37°
Peak intensity:
4.400 cd/lm
Efficiency:
71 %
LEDs/each optic:
1
Light colour/type:
White
LED:

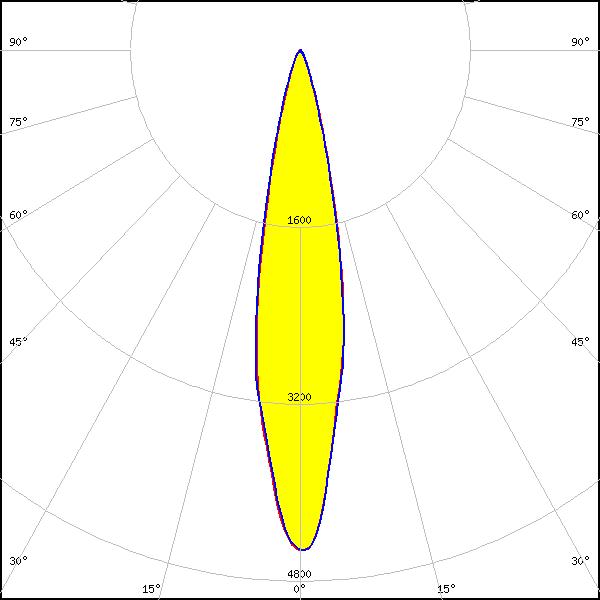

V6 HD Gen 7
LES size: 7.0 mm
Required components:
FWHM:
20°
FWTM:
38°
Peak intensity:
4.500 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White

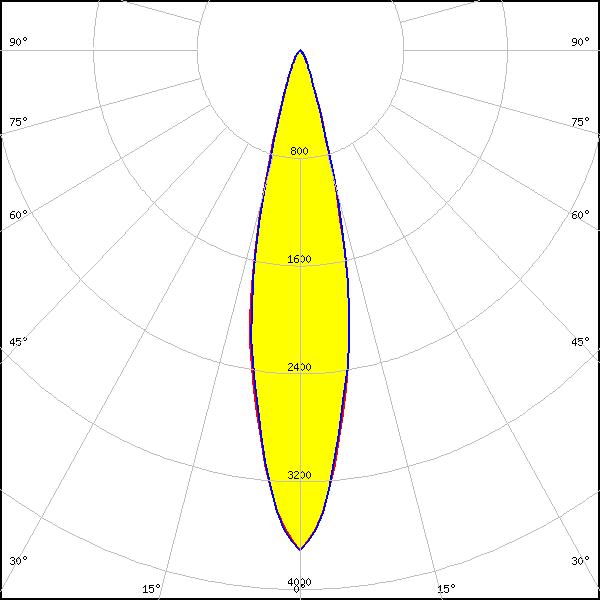

LED:

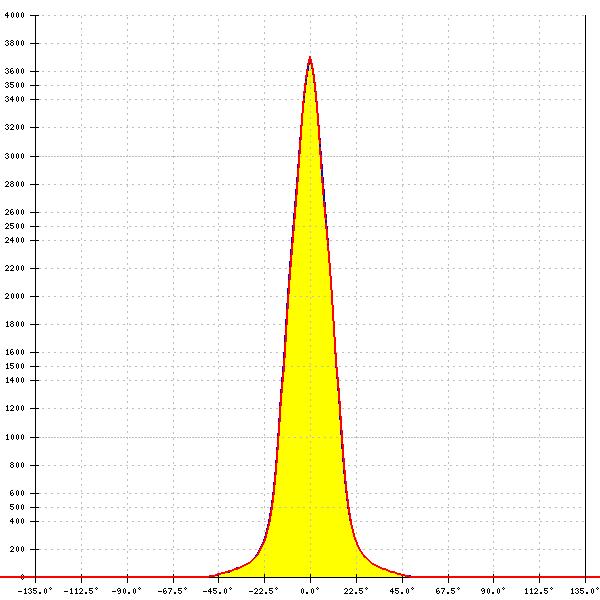

V8 Gen7
LES size: 8.1 mm
Required components:
FWHM:
24°
FWTM:
40°
Peak intensity:
3.711 cd/lm
Efficiency:
71 %
LEDs/each optic:
1
Light colour/type:
White

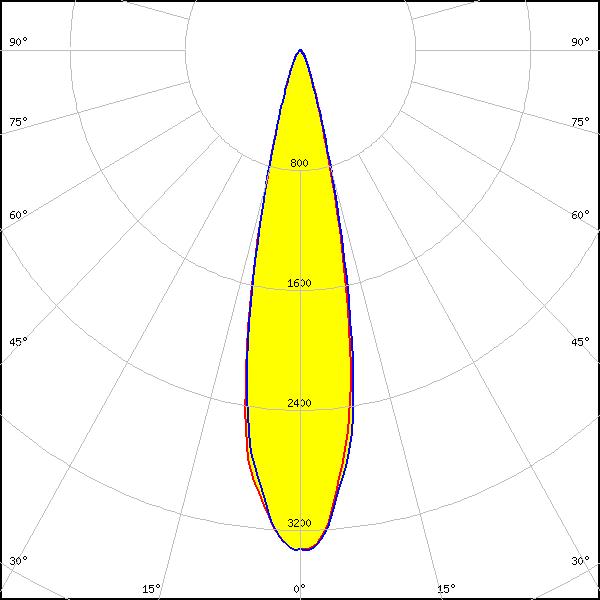

LED:

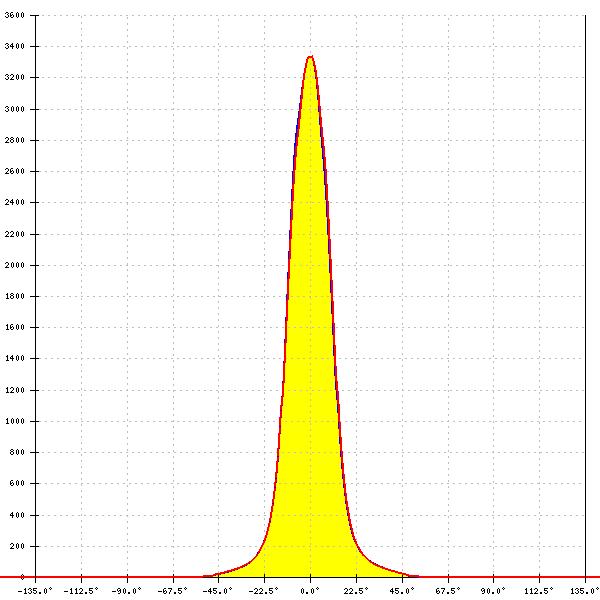

V9 HD Gen7
LES size: 9.2 mm
Required components:
FWHM:
23°
FWTM:
40°
Peak intensity:
3.300 cd/lm
Efficiency:
65 %
LEDs/each optic:
1
Light colour/type:
White
LED:

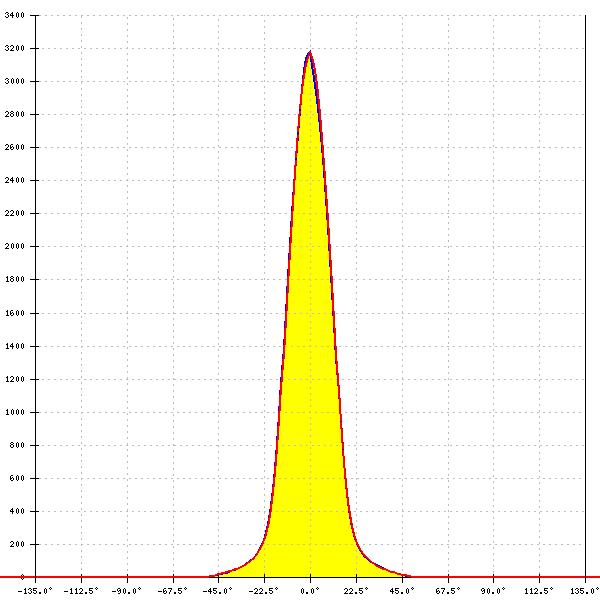

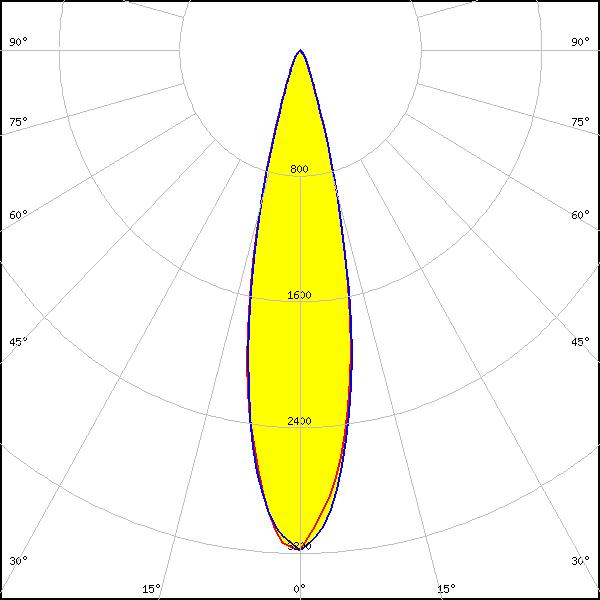

VERO10
LES size: 9.9 mm
Required components:
FWHM:
24°
FWTM:
41°
Peak intensity:
3.180 cd/lm
Efficiency:
64 %
LEDs/each optic:
1
Light colour/type:
White
LED:

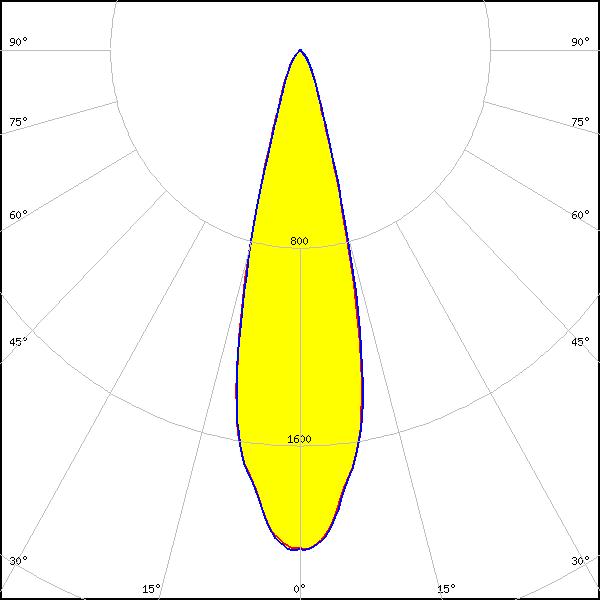

VERO13
LES size: 13.4 mm
Required components:
FWHM:
27°
FWTM:
46°
Peak intensity:
2.027 cd/lm
Efficiency:
53 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta TW 6mm DP
LES size: 6.3 mm
Required components:
FWHM:
15°
FWTM:
31°
Peak intensity:
5.749 cd/lm
Efficiency:
63 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta TW 9mm (9W) DP
LES size: 10.0 mm
Required components:
FWHM:
22°
FWTM:
37°
Peak intensity:
3.203 cd/lm
Efficiency:
55 %
LEDs/each optic:
1
Light colour/type:
White
LED:

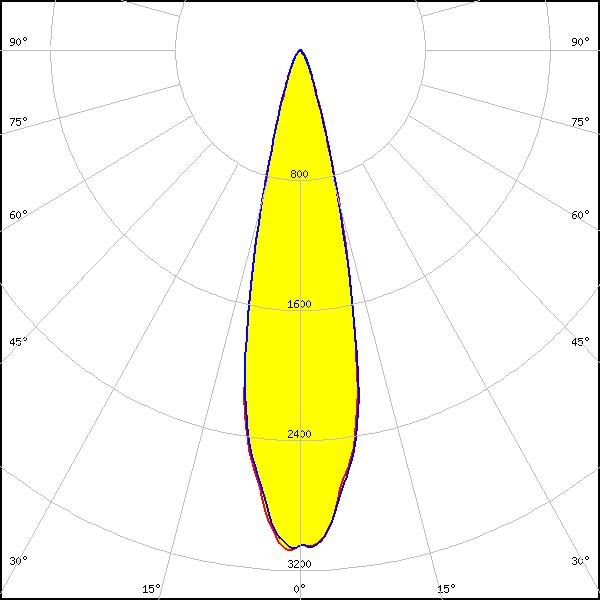

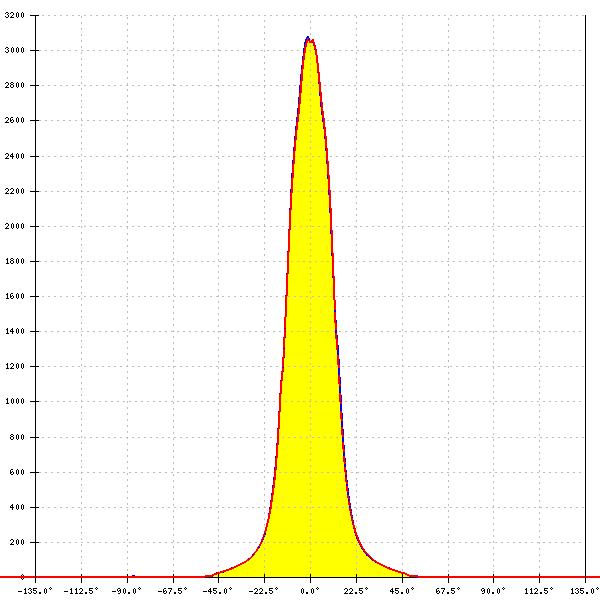

CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
24°
FWTM:
42°
Peak intensity:
3.100 cd/lm
Efficiency:
66 %
LEDs/each optic:
1
Light colour/type:
White

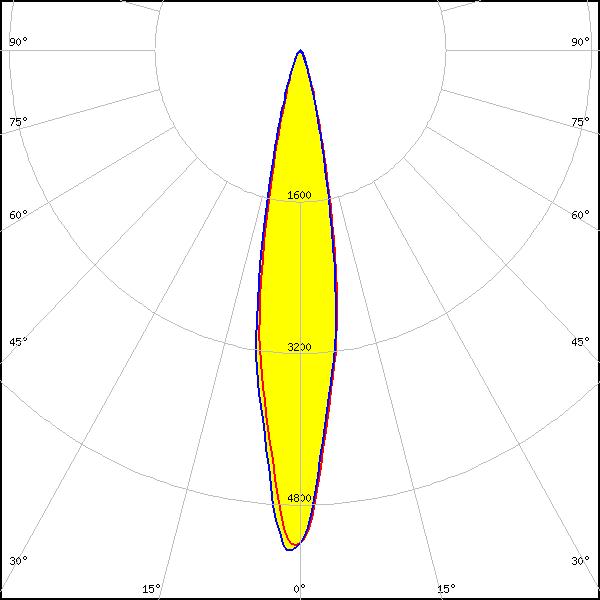

LED:

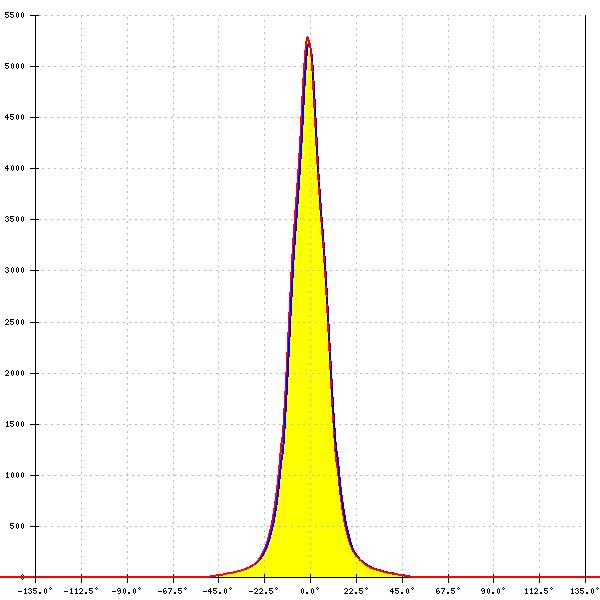

CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
19°
FWTM:
35°
Peak intensity:
5.300 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White
LED:

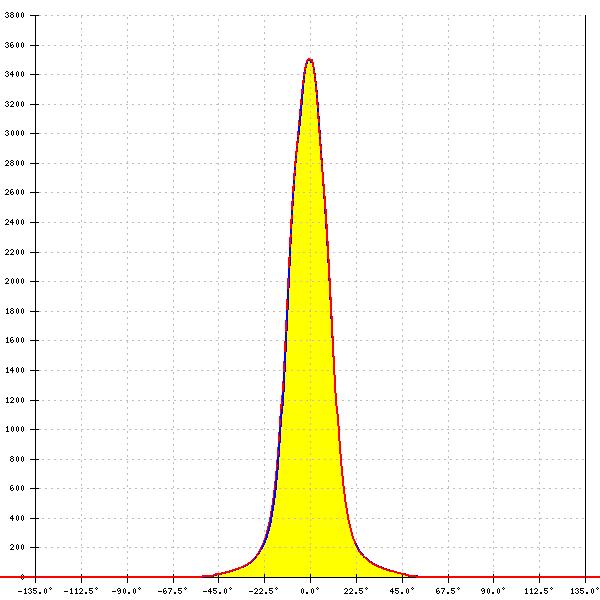

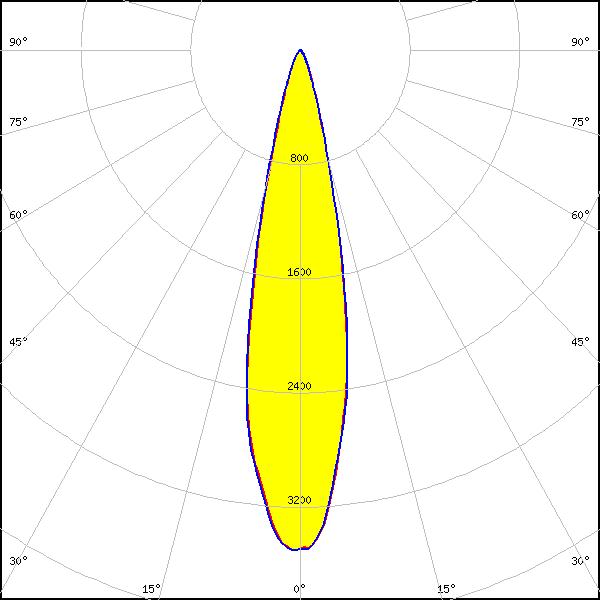

CLU710/711
LES size: 8.5 mm
Required components:
FWHM:
22°
FWTM:
39°
Peak intensity:
3.506 cd/lm
Efficiency:
65 %
LEDs/each optic:
1
Light colour/type:
White
LED:

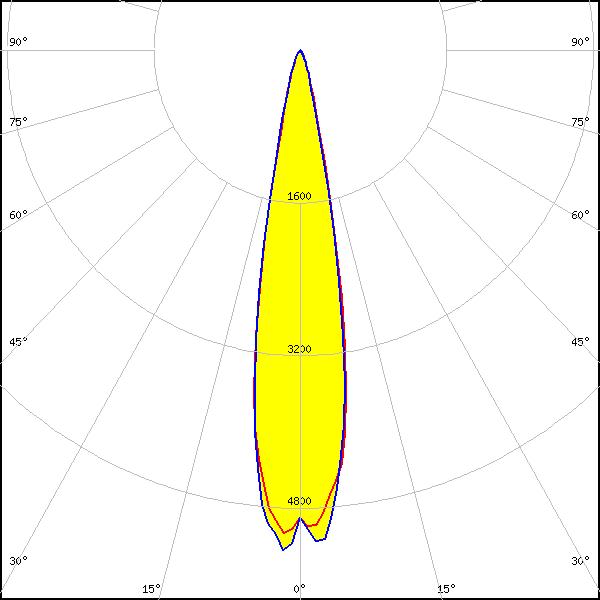

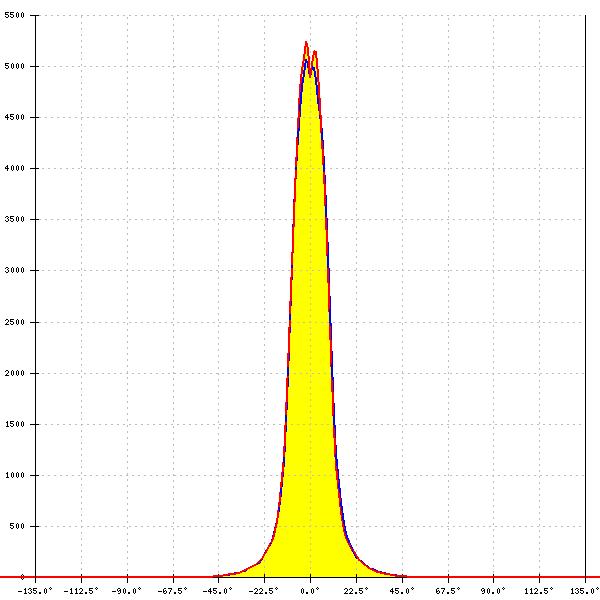

CHA0304
LES size: 3.3 mm
Required components:
FWHM:
20°
FWTM:
33°
Peak intensity:
5.419 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White

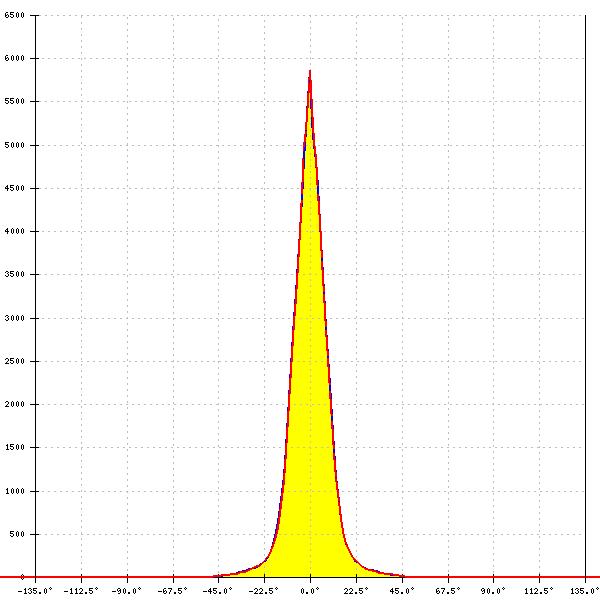

LED:

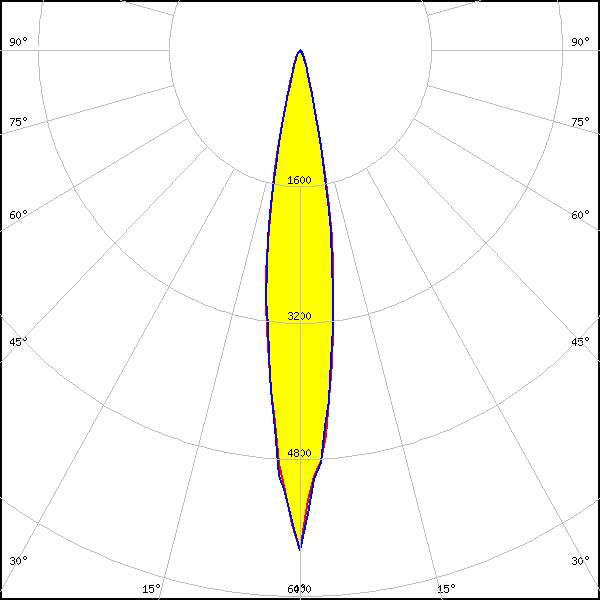

CHA0612
LES size: 6.0 mm
Required components:
FWHM:
16°
FWTM:
31°
Peak intensity:
5.866 cd/lm
Efficiency:
66 %
LEDs/each optic:
1
Light colour/type:
White

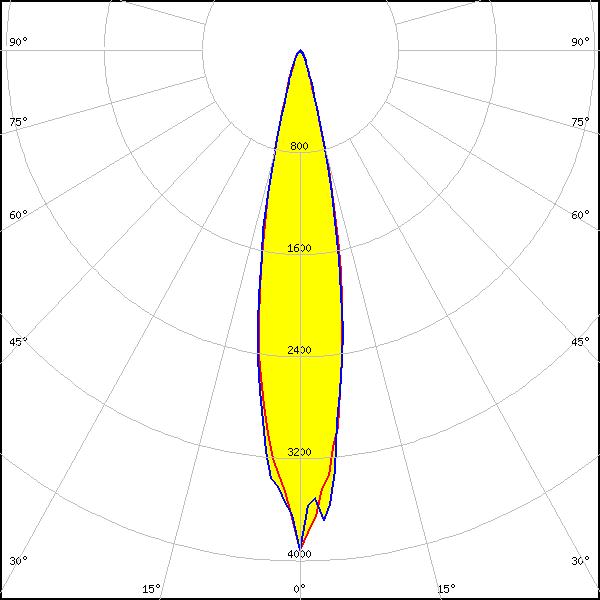

LED:

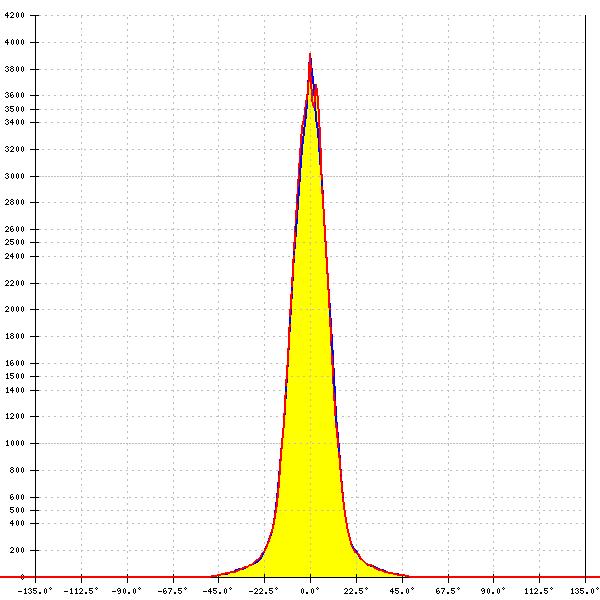

CHA0825
LES size: 8.5 mm
Required components:
FWHM:
20°
FWTM:
36°
Peak intensity:
3.917 cd/lm
Efficiency:
60 %
LEDs/each optic:
1
Light colour/type:
White

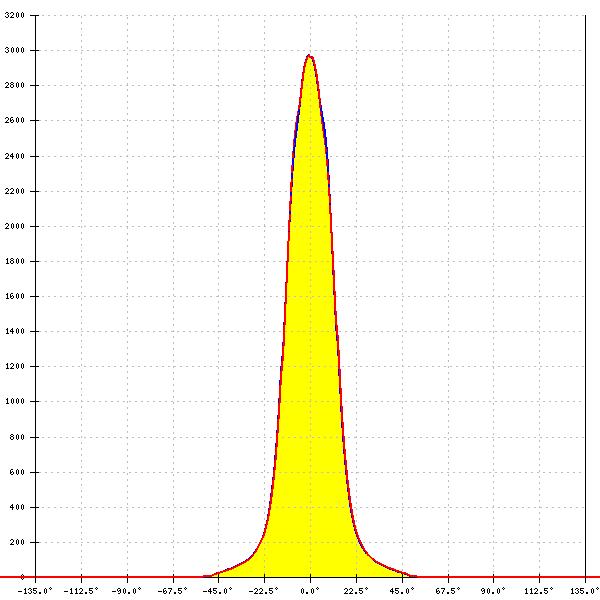

LED:

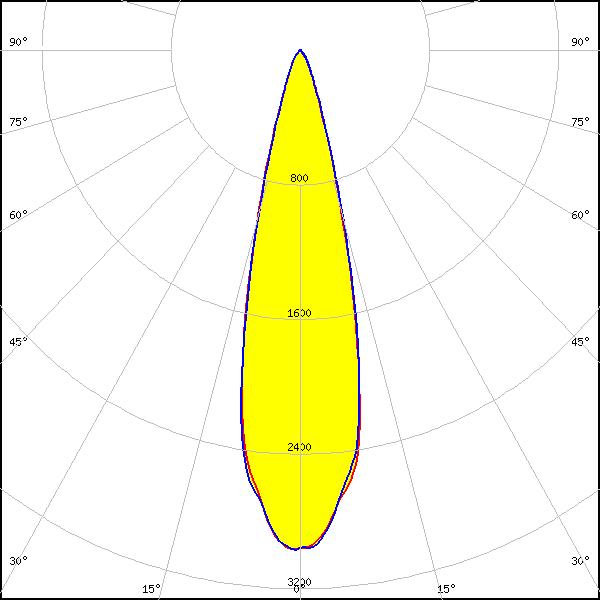

CMA1516
LES size: 9.0 mm
Required components:
FWHM:
25°
FWTM:
43°
Peak intensity:
3.000 cd/lm
Efficiency:
68 %
LEDs/each optic:
1
Light colour/type:
White

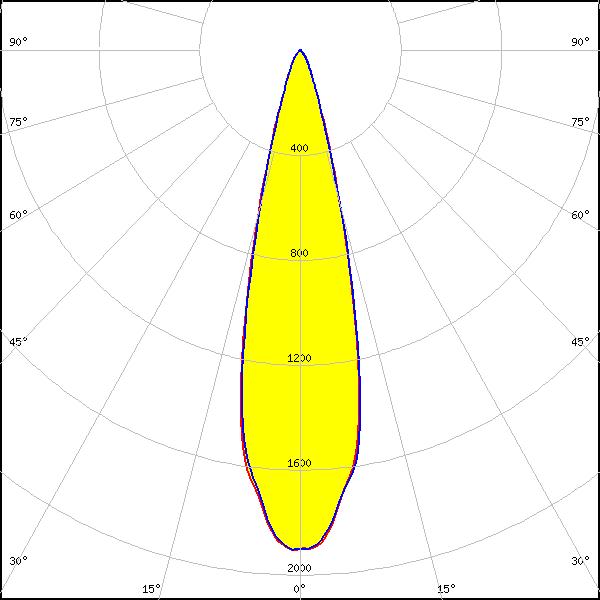

LED:
CMT14xx
LES size: 9.8 mm
Required components:
FWHM:
25°
FWTM:
43°
Peak intensity:
1.900 cd/lm
Efficiency:
44 %
LEDs/each optic:
1
Light colour/type:
White
LED:

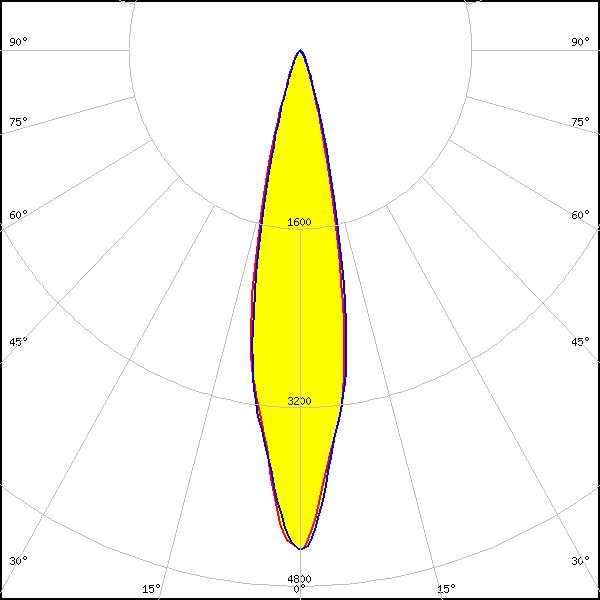

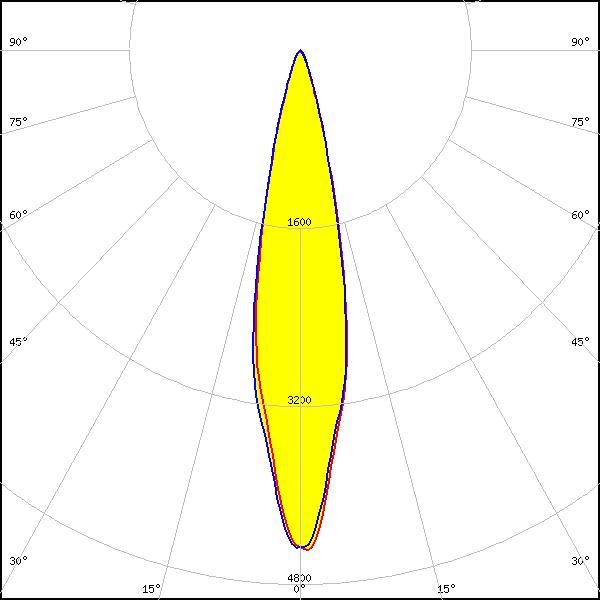

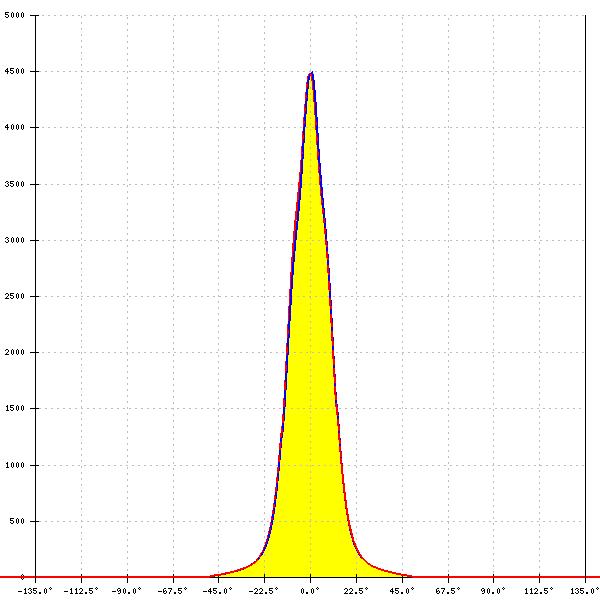

CXA/B 13xx
LES size: 6.0 mm
Required components:
FWHM:
22°
FWTM:
39°
Peak intensity:
4.500 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 13xx
LES size: 6.0 mm
Required components:
FWHM:
21°
FWTM:
39°
Peak intensity:
4.500 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White
LED:

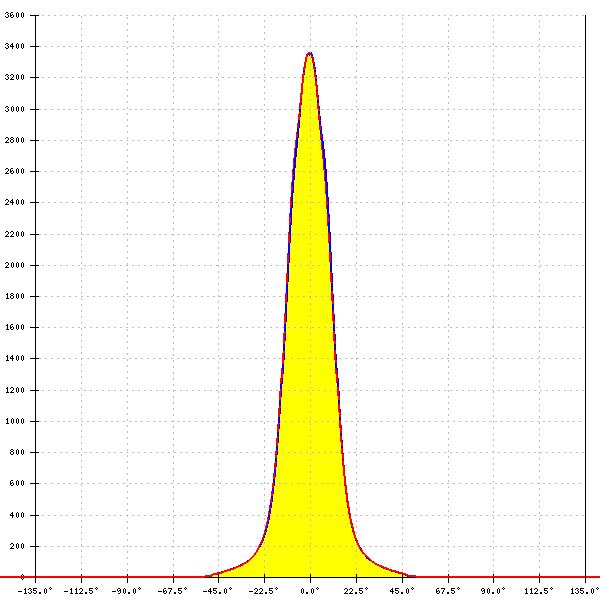

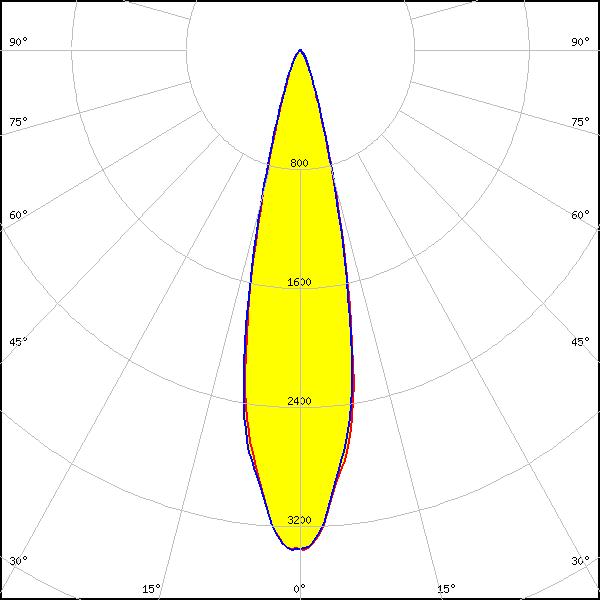

CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
24°
FWTM:
41°
Peak intensity:
3.400 cd/lm
Efficiency:
69 %
LEDs/each optic:
1
Light colour/type:
White
LED:

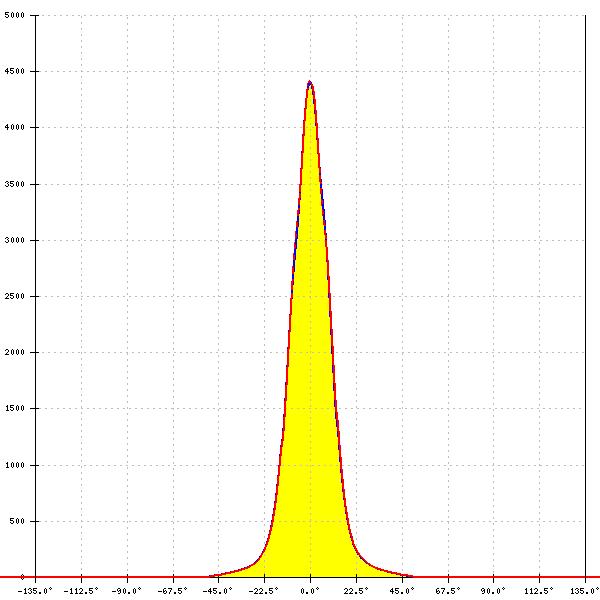

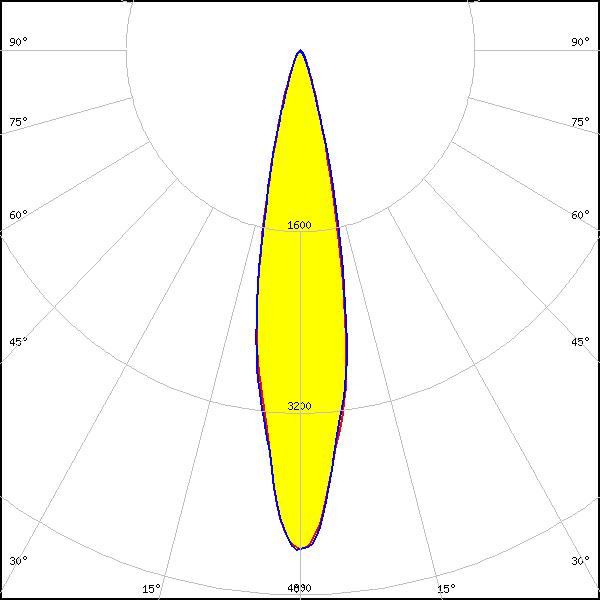

LUXEON CoB 1202HD
LES size: 6.5 mm
Required components:
FWHM:
21°
FWTM:
38°
Peak intensity:
4.400 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White

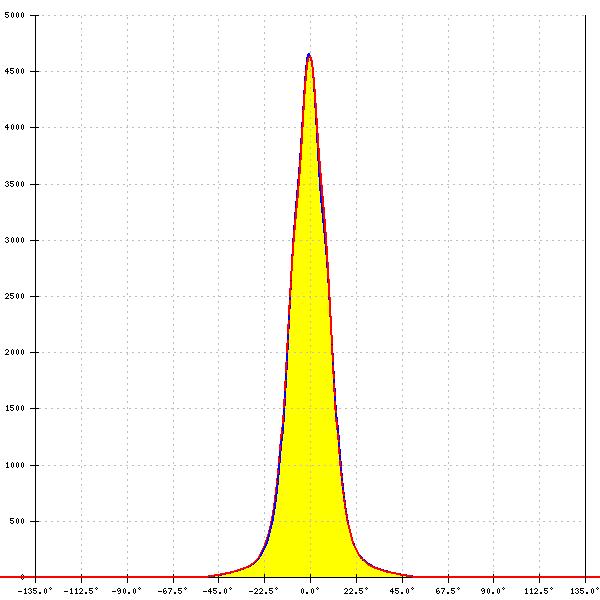

LED:
LUXEON CoB 1202s
LES size: 6.5 mm
Required components:
FWHM:
21°
FWTM:
38°
Peak intensity:
4.700 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

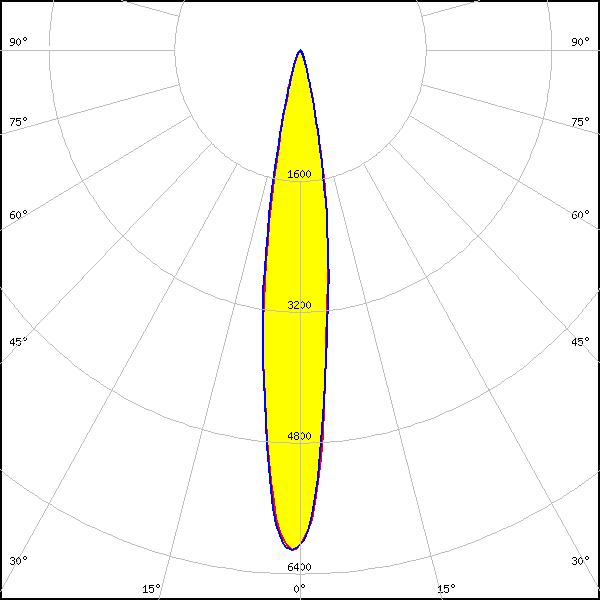

LED:

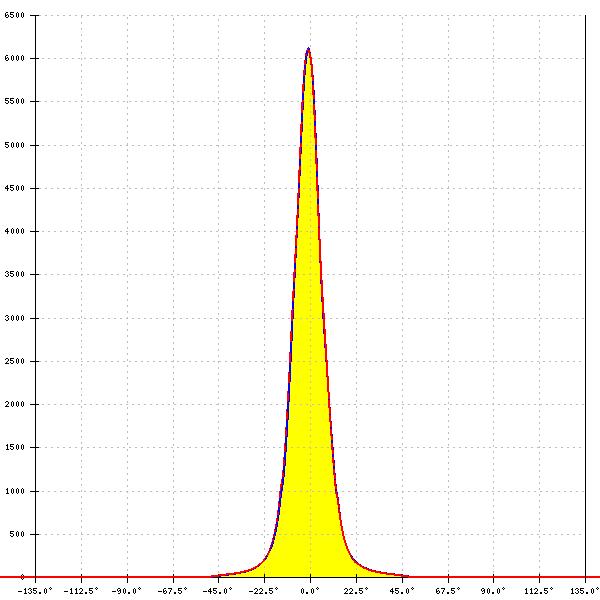

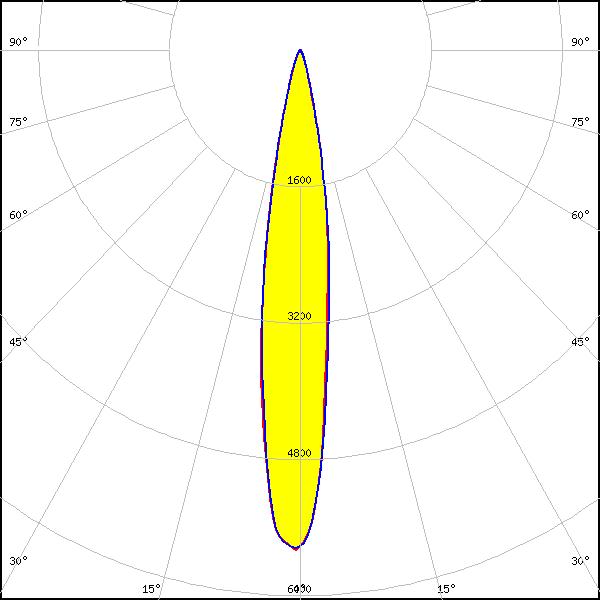

LUXEON CX Plus CoB - HD S01H4
LES size: 4.5 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
16°
FWTM:
32°
Peak intensity:
6.147 cd/lm
Efficiency:
68 %
LEDs/each optic:
1
Light colour/type:
White
LED:

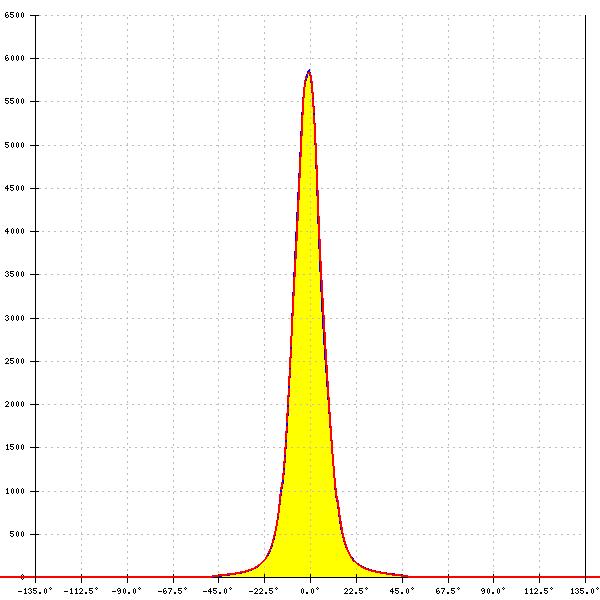

LUXEON CX Plus CoB - HD S02H6
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
16°
FWTM:
32°
Peak intensity:
5.867 cd/lm
Efficiency:
67 %
LEDs/each optic:
1
Light colour/type:
White

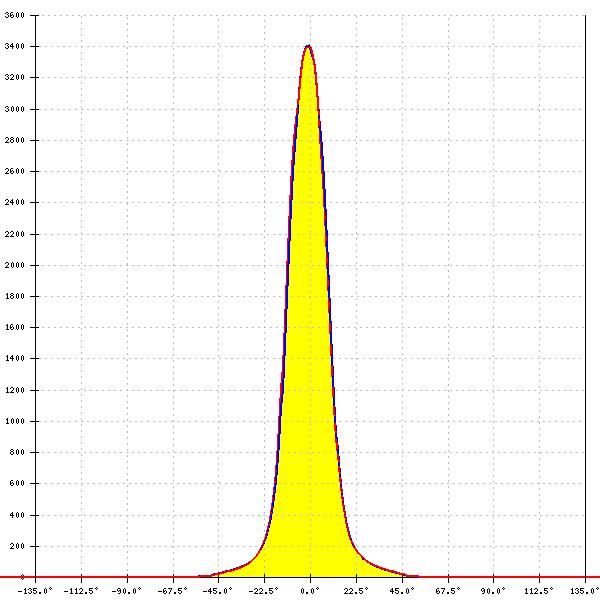

LED:
LUXEON CX Plus CoB - HD S04H9
LES size: 9.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
22°
FWTM:
38°
Peak intensity:
3.411 cd/lm
Efficiency:
61 %
LEDs/each optic:
1
Light colour/type:
White

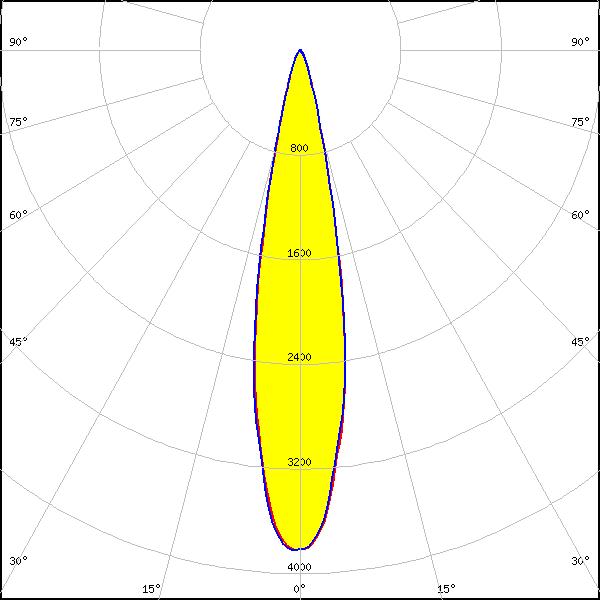

LED:

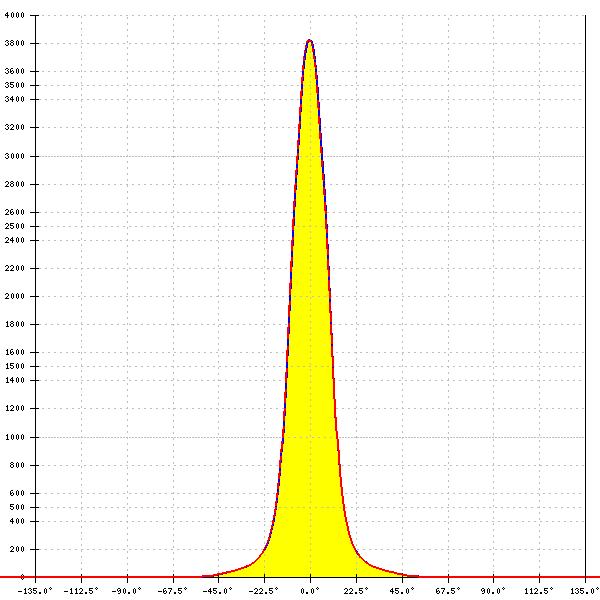

LUXEON CX Plus CoB M02 / M03 (Gen2)
LES size: 9.0 mm
Required components:
Bender Wirth: 641a Hekla
FWHM:
20°
FWTM:
36°
Peak intensity:
3.822 cd/lm
Efficiency:
61 %
LEDs/each optic:
1
Light colour/type:
White
LED:

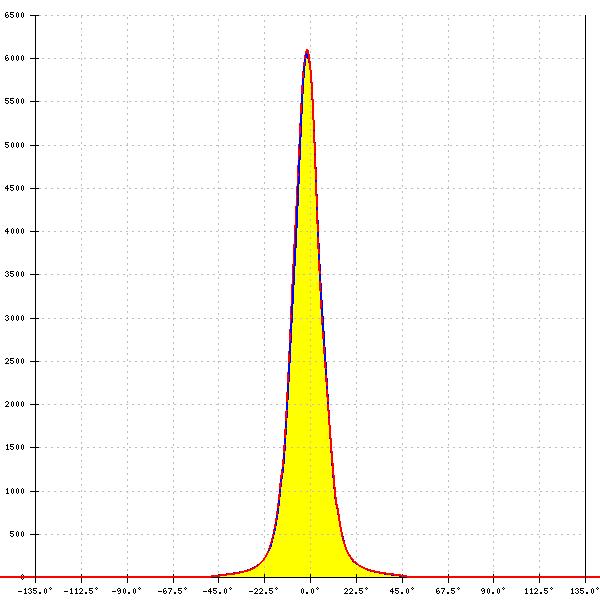

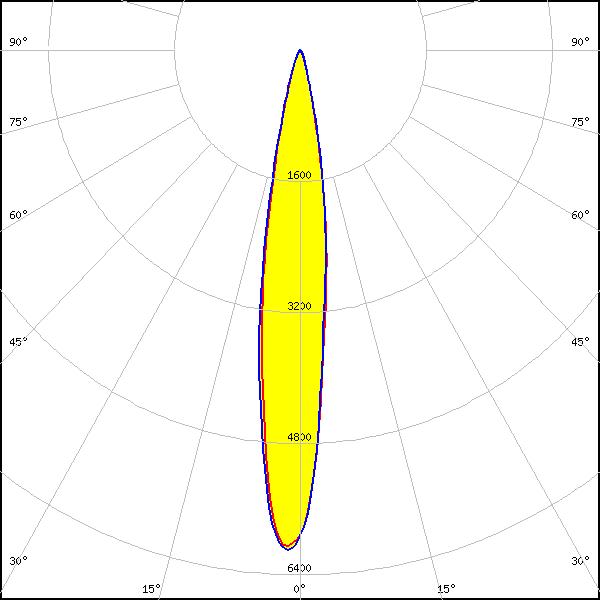

LUXEON CX Plus CoB S01 (Gen2)
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
15°
FWTM:
31°
Peak intensity:
6.184 cd/lm
Efficiency:
68 %
LEDs/each optic:
1
Light colour/type:
White
LED:

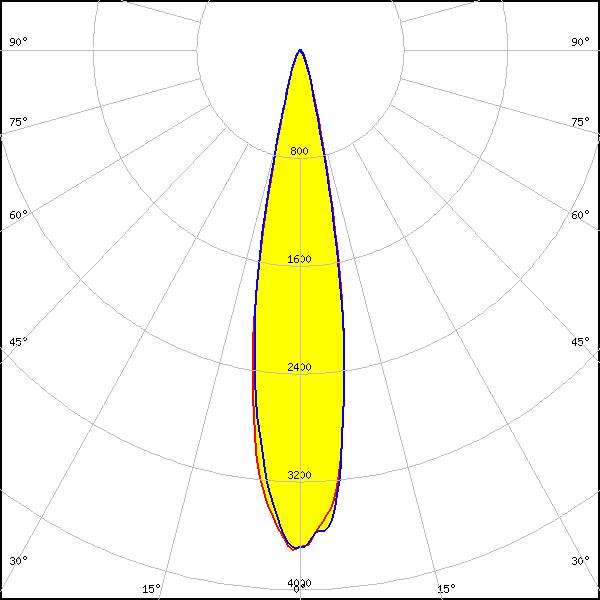

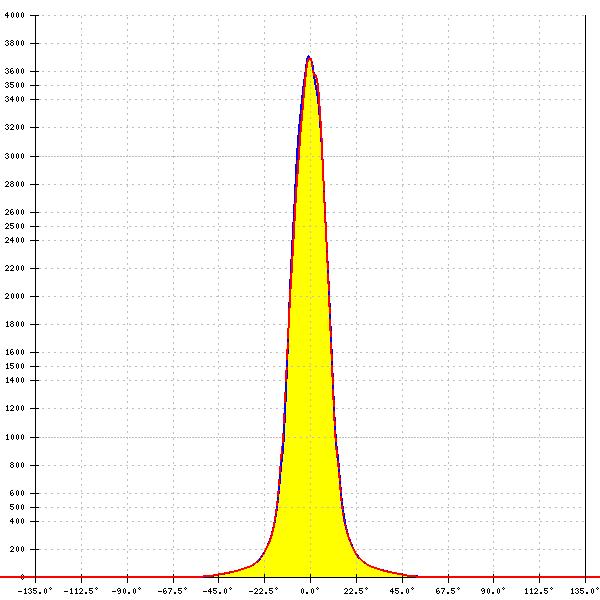

CDM-9 (Dim-To-Warm)
LES size: 9.5 mm
Required components:
FWHM:
21°
FWTM:
35°
Peak intensity:
3.700 cd/lm
Efficiency:
57 %
LEDs/each optic:
1
Light colour/type:
White

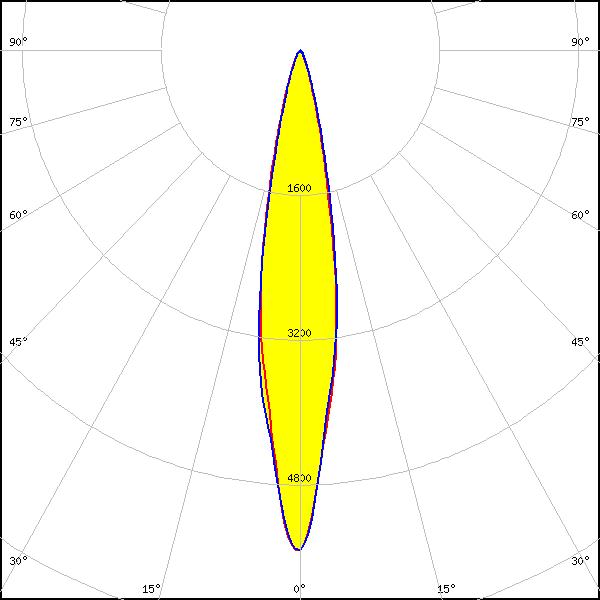

LED:
CXM-4
LES size: 4.5 mm
Required components:
FWHM:
18°
FWTM:
35°
Peak intensity:
5.522 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White
LED:

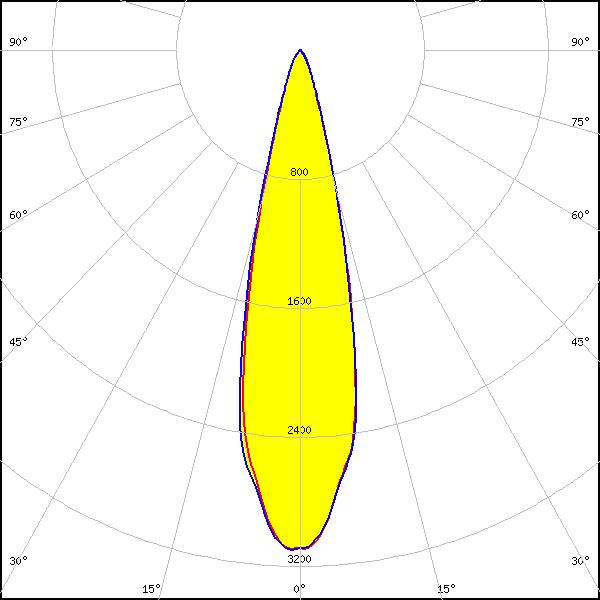

CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM:
24°
FWTM:
42°
Peak intensity:
3.100 cd/lm
Efficiency:
67 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB S-Type (LES 6)
LES size: 5.9 mm
Required components:
FWHM:
30°
FWTM:
50°
Peak intensity:
2.058 cd/lm
Efficiency:
62 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB S-Type (LES 7)
LES size: 6.7 mm
Required components:
FWHM:
22°
FWTM:
39°
Peak intensity:
4.100 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White
LED:

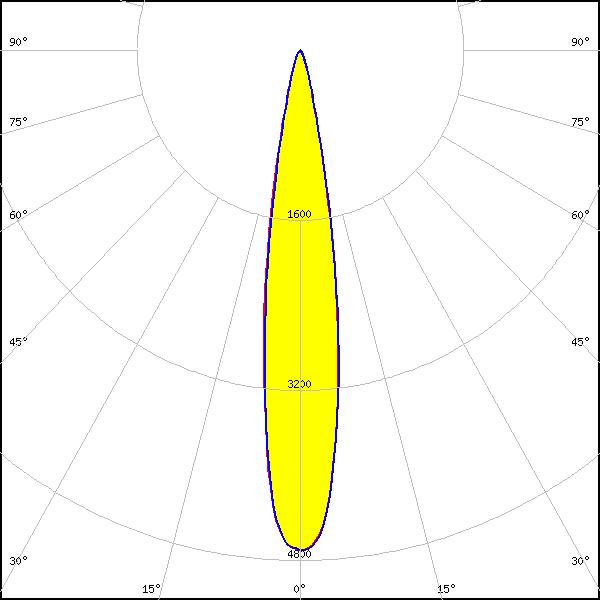

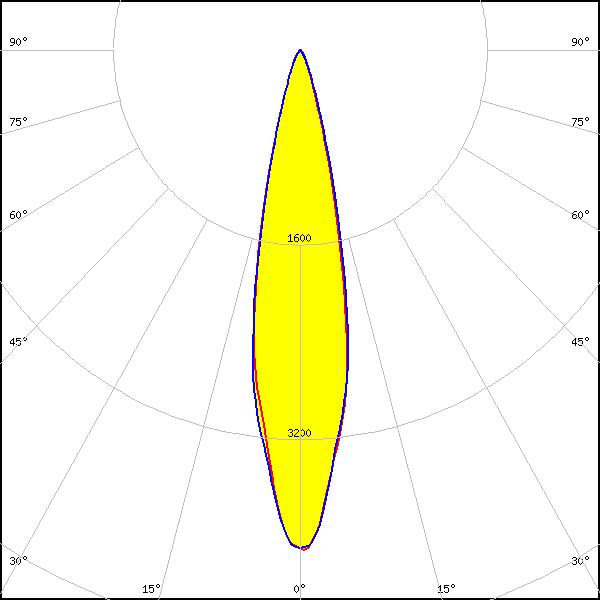

NJCWL024Z-V1MT: COB L-Type Tunable White
LES size: 7.0 mm
Required components:
FWHM:
17°
FWTM:
31°
Peak intensity:
4.700 cd/lm
Efficiency:
56 %
LEDs/each optic:
1
Light colour/type:
White
LED:

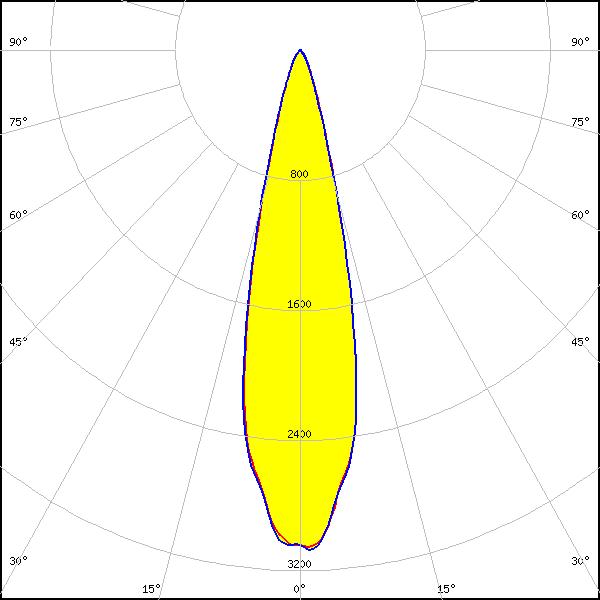

Fortimo SLM L09 CoB
LES size: 9.0 mm
Required components:
FWHM:
24°
FWTM:
41°
Peak intensity:
3.100 cd/lm
Efficiency:
65 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC003D / LC006D / LC009D / LC013D
LES size: 9.8 mm
Required components:
FWHM:
25°
FWTM:
43°
Peak intensity:
3.000 cd/lm
Efficiency:
67 %
LEDs/each optic:
1
Light colour/type:
White
LED:

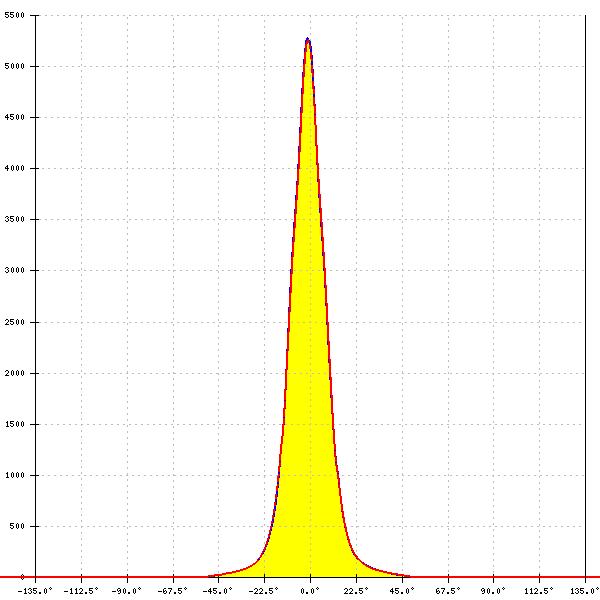

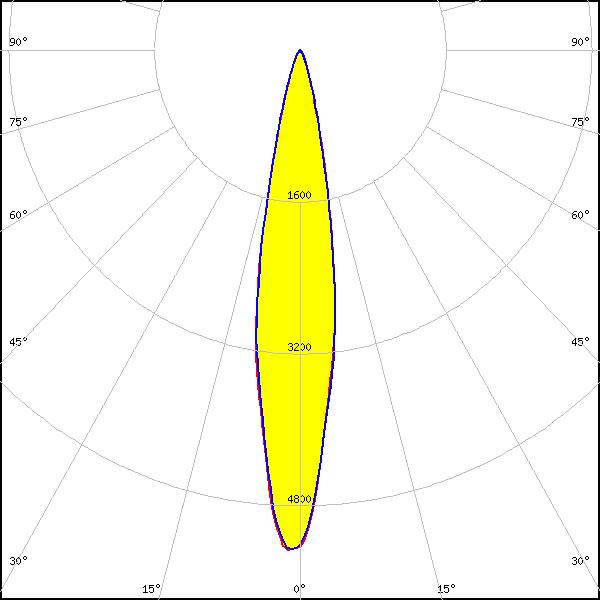

LC010C G2
LES size: 6.0 mm
Required components:
FWHM:
19°
FWTM:
35°
Peak intensity:
5.300 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White

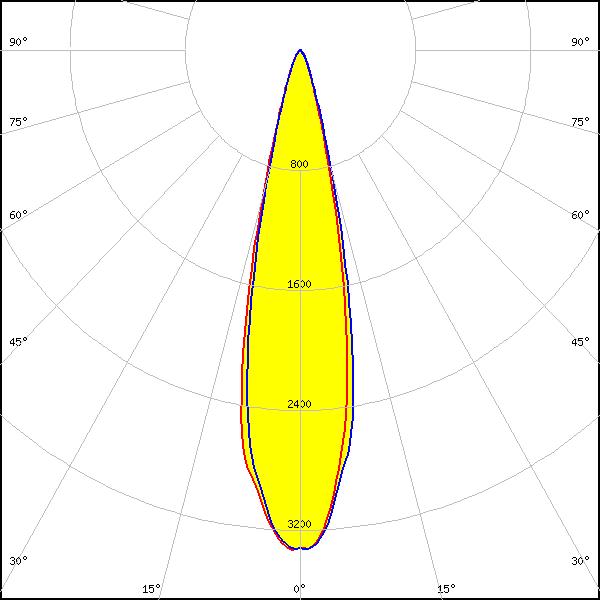

LED:
LC020C G2
LES size: 8.5 mm
Required components:
FWHM:
23°
FWTM:
40°
Peak intensity:
3.300 cd/lm
Efficiency:
65 %
LEDs/each optic:
1
Light colour/type:
White
LED:

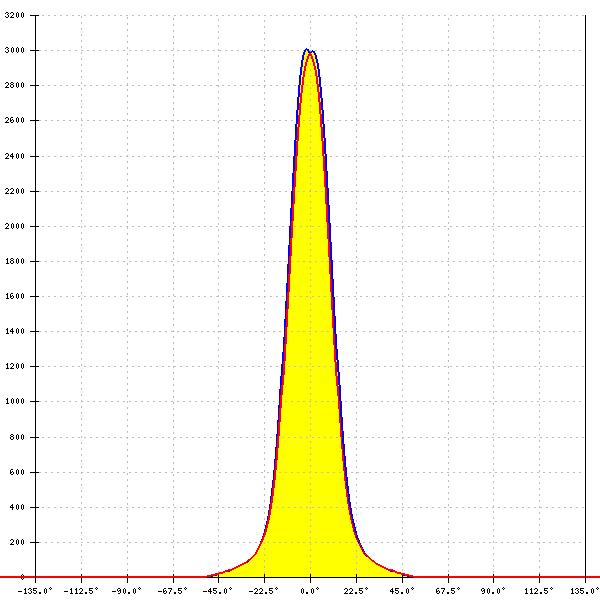

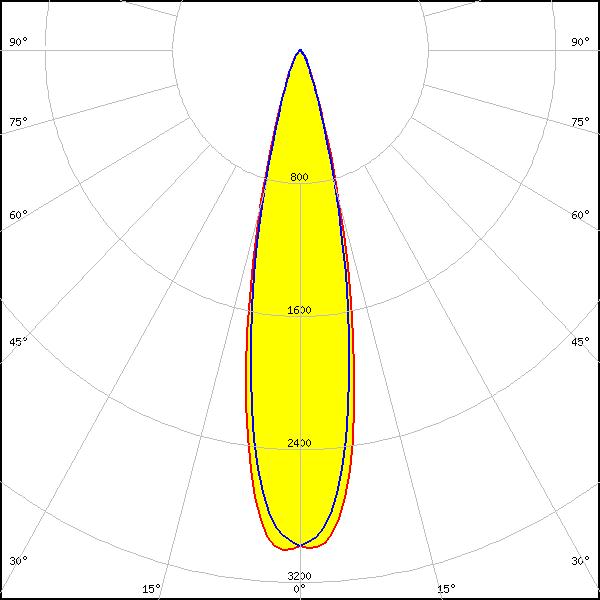

LH231B
LES size: 0.0 mm
Required components:
FWHM:
23°
FWTM:
42°
Peak intensity:
3.017 cd/lm
Efficiency:
63 %
LEDs/each optic:
7
Light colour/type:
White

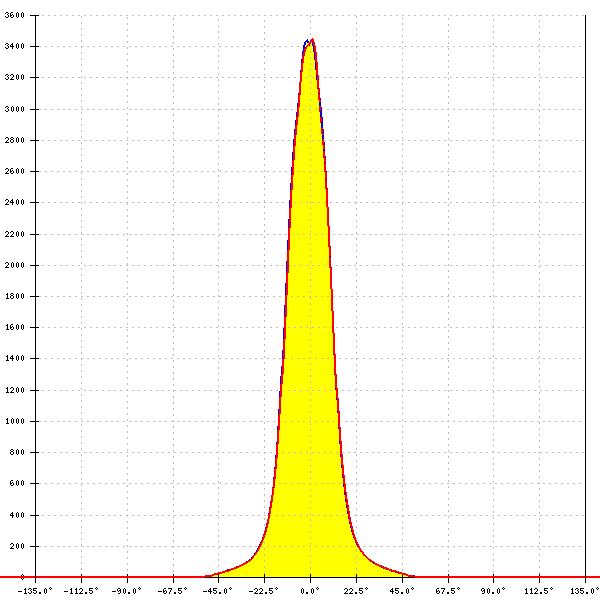

LED:

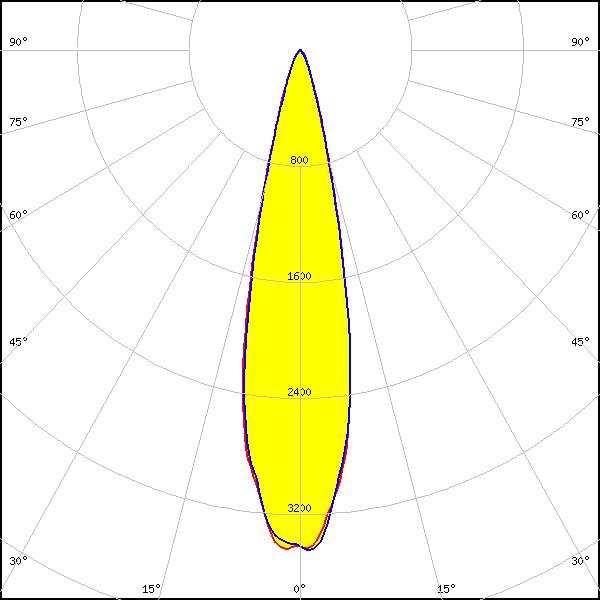

SLE G7 LES09
LES size: 9.0 mm
Required components:
FWHM:
23°
FWTM:
41°
Peak intensity:
3.500 cd/lm
Efficiency:
69 %
LEDs/each optic:
1
Light colour/type:
White
LED:

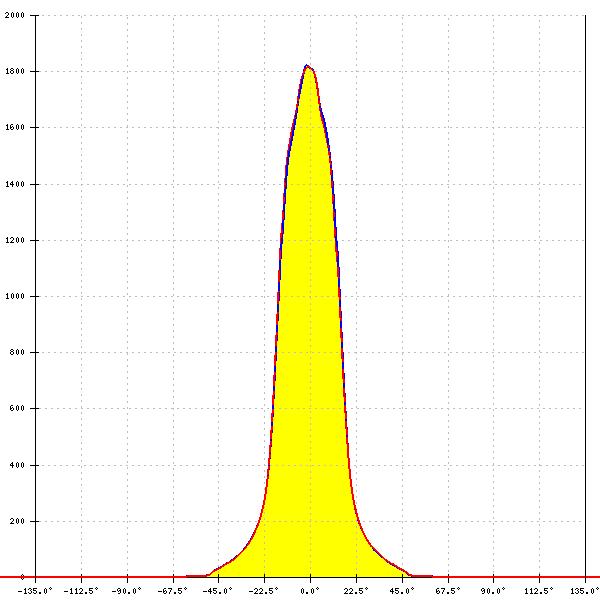

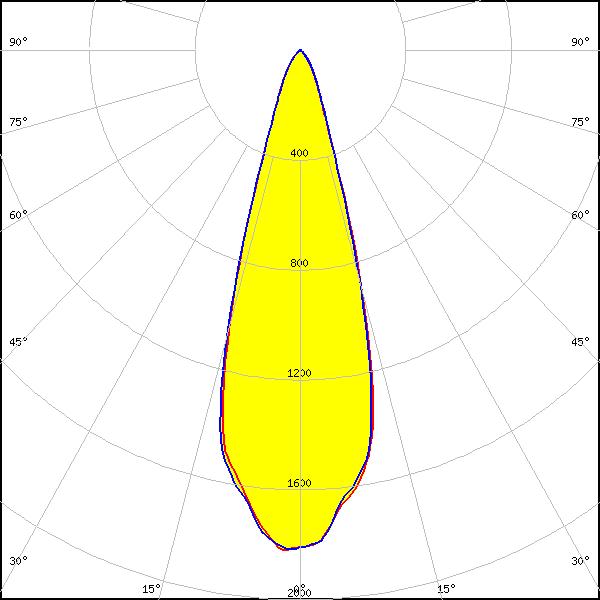

SLE G7 LES13
LES size: 13.0 mm
Required components:
FWHM:
31°
FWTM:
51°
Peak intensity:
1.800 cd/lm
Efficiency:
58 %
LEDs/each optic:
1
Light colour/type:
White

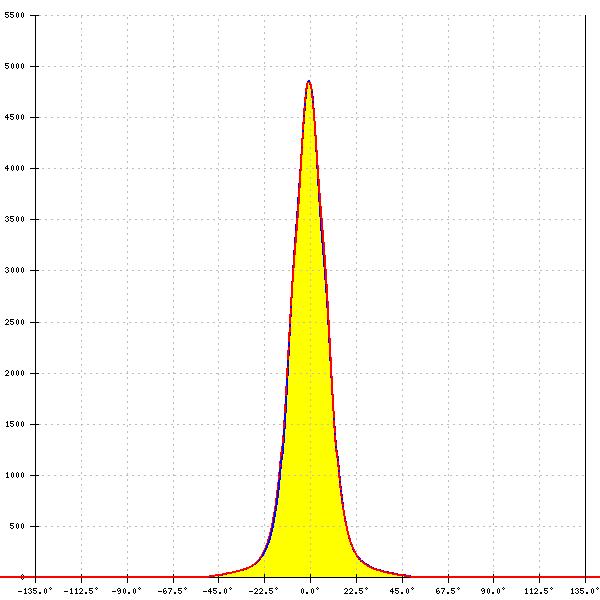

LED:

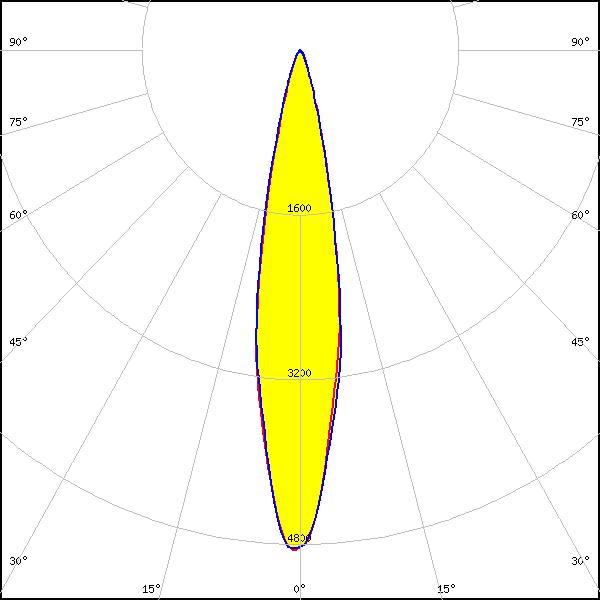

XOB 6 mm
LES size: 6.0 mm
Required components:
FWHM:
19°
FWTM:
36°
Peak intensity:
4.870 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White

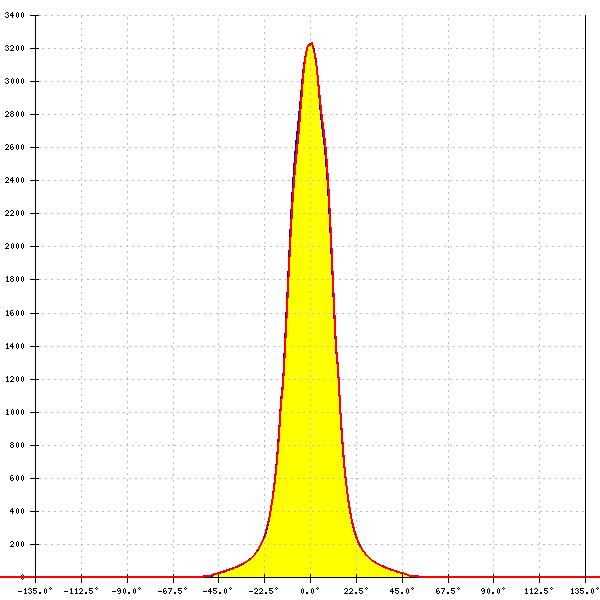

LED:

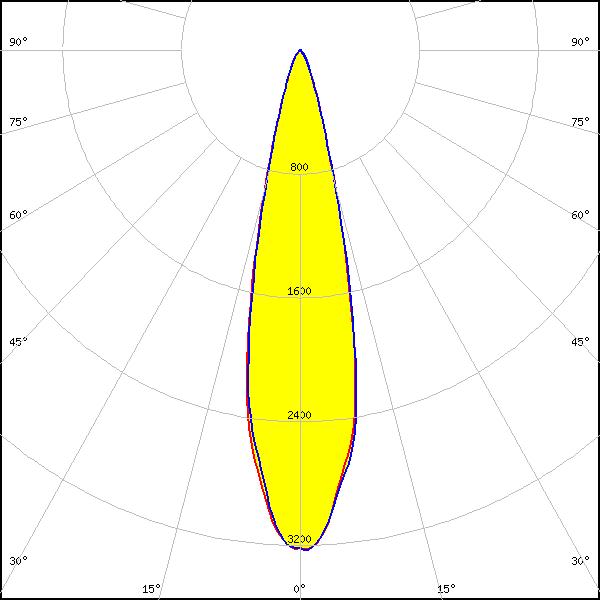

XOB 9.8 mm
LES size: 9.8 mm
Required components:
FWHM:
24°
FWTM:
42°
Peak intensity:
3.232 cd/lm
Efficiency:
67 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XTM - 9mm LES
LES size: 9.0 mm
Required components:
FWHM:
25°
FWTM:
43°
Peak intensity:
3.000 cd/lm
Efficiency:
67 %
LEDs/each optic:
1
Light colour/type:
White
