CP15776_CARMEN-W-C
Print

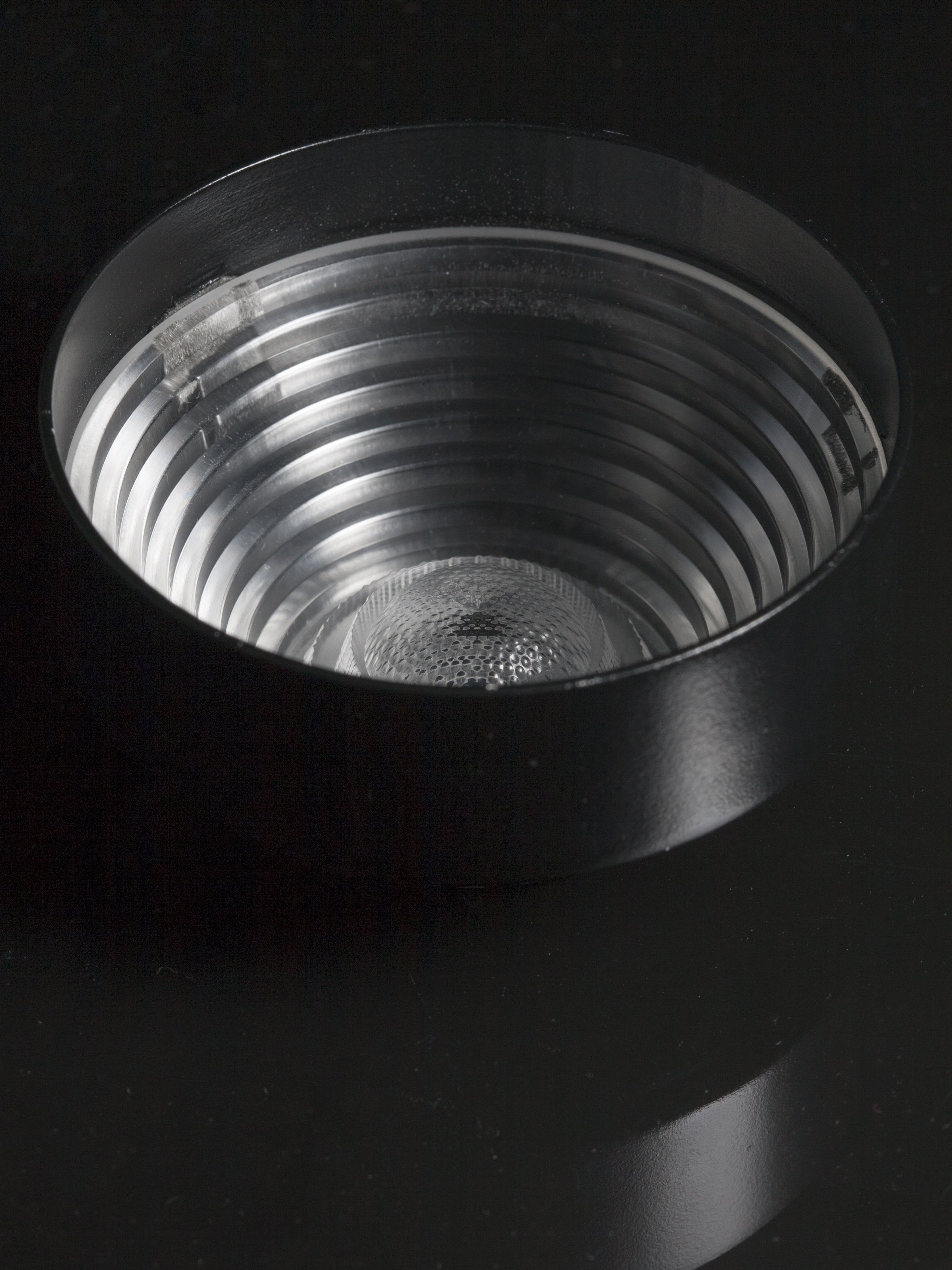

~55° wide beam. Assembly with holder C compatible with LEDiL HEKLA.
Component Materials
- CARMEN-WSingle lensPMMA
- CARMEN-HLD-CHolderPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

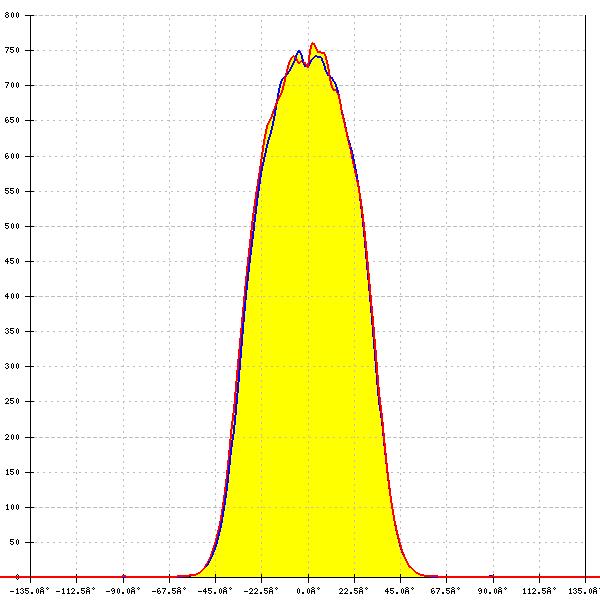

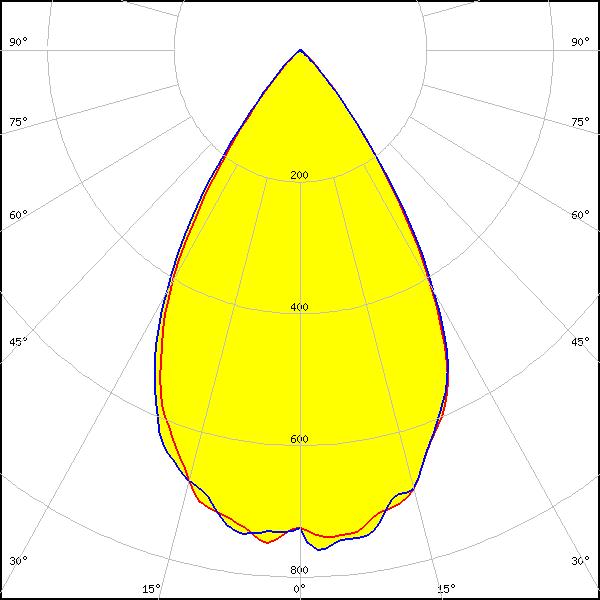

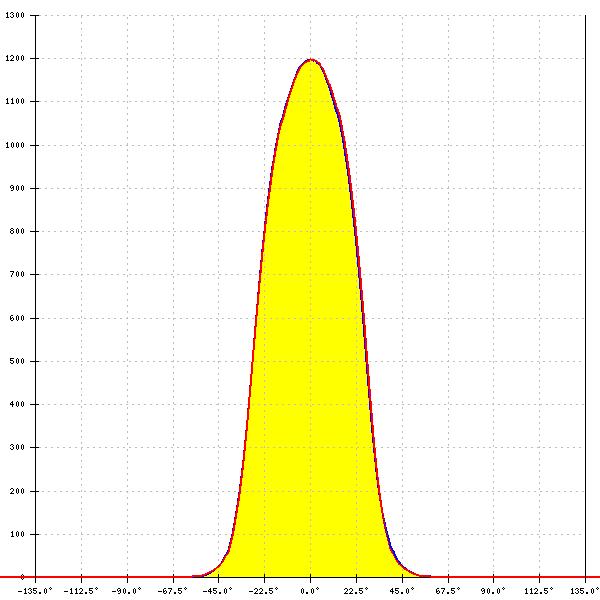

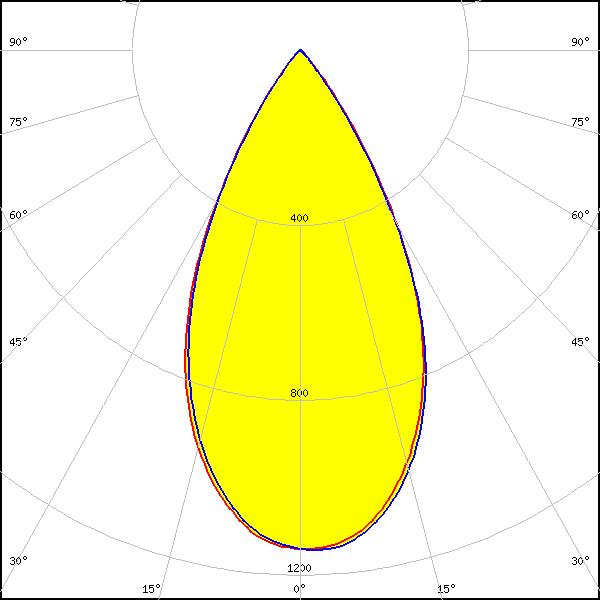

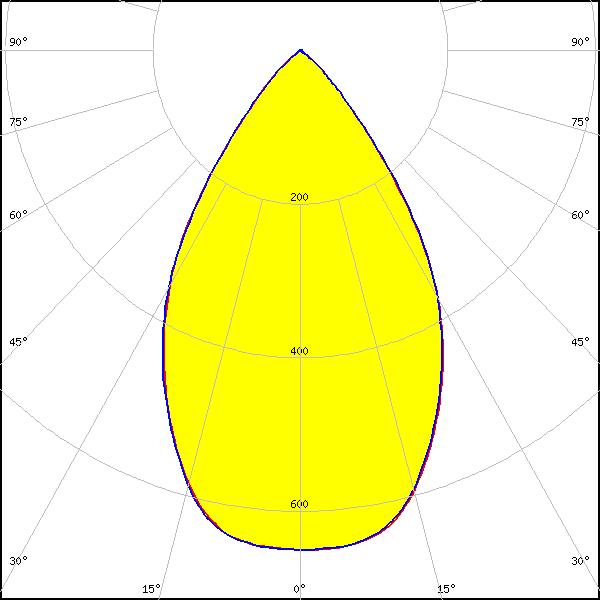

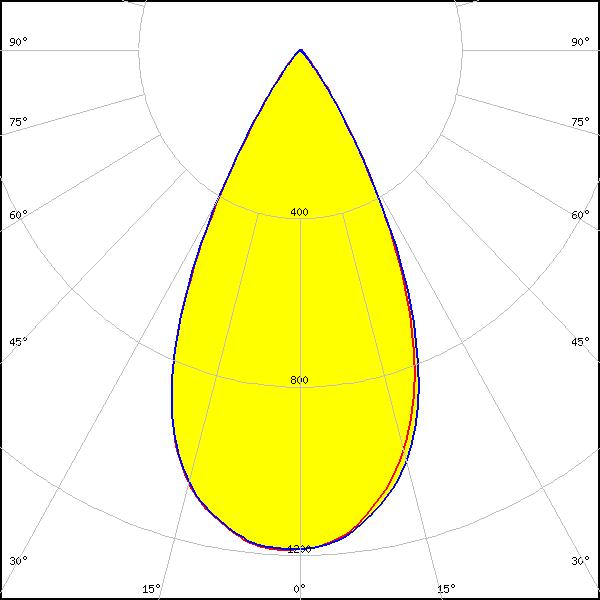

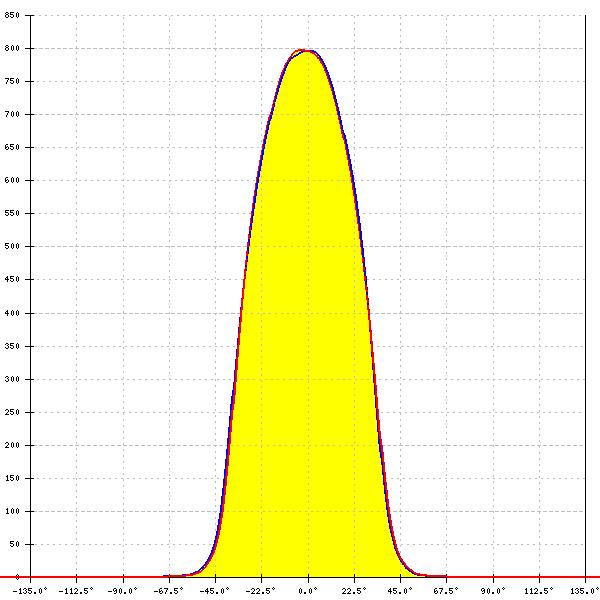

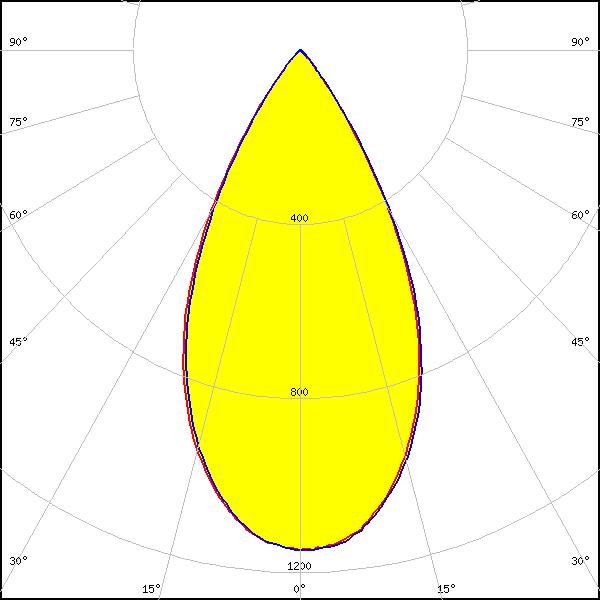

Optical results

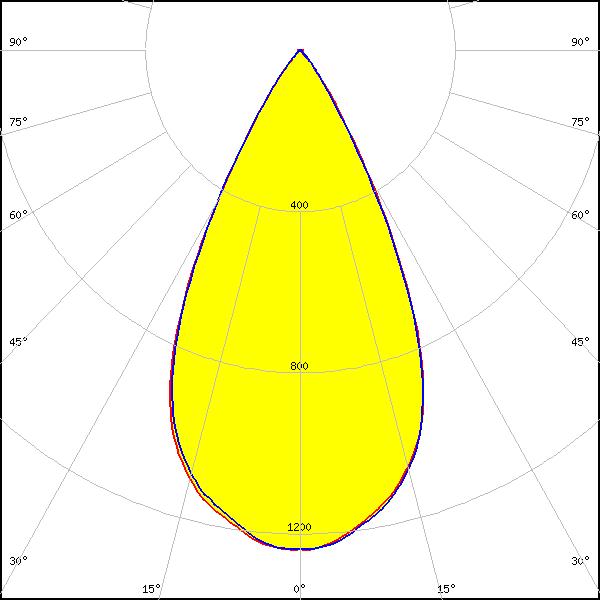

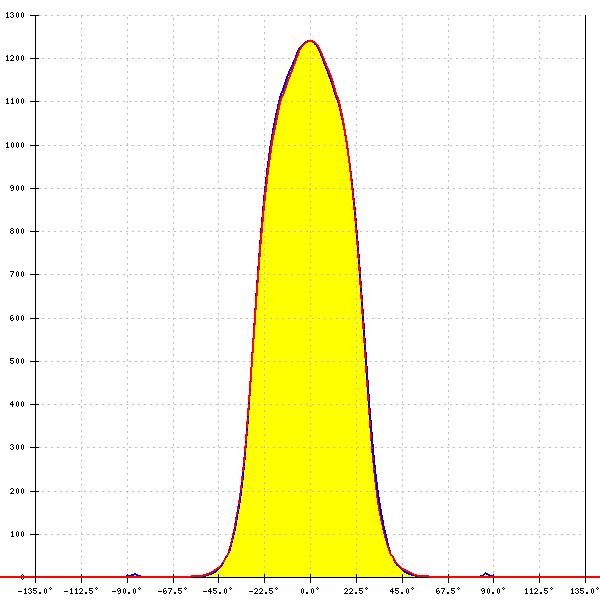

LED:
V4 HD Gen 7
LES size: 5.2 mm
Required components:
FWHM:
52°
FWTM:
72°
Peak intensity:
1.200 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

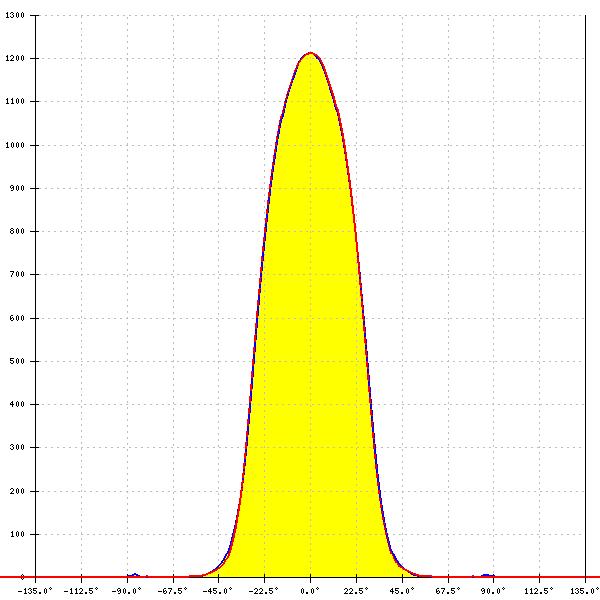

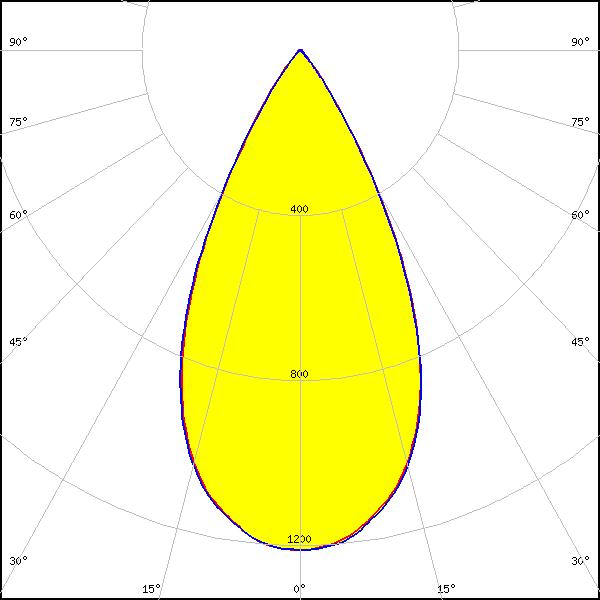

LED:
V6 HD Gen 7
LES size: 7.0 mm
Required components:
FWHM:
52°
FWTM:
73°
Peak intensity:
1.200 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

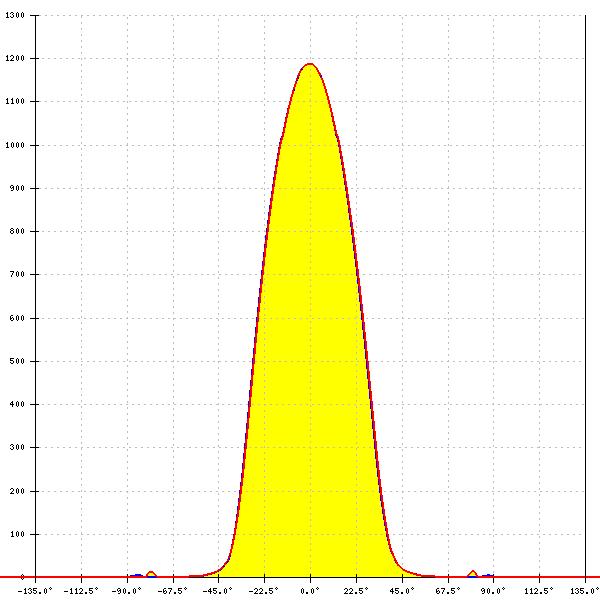

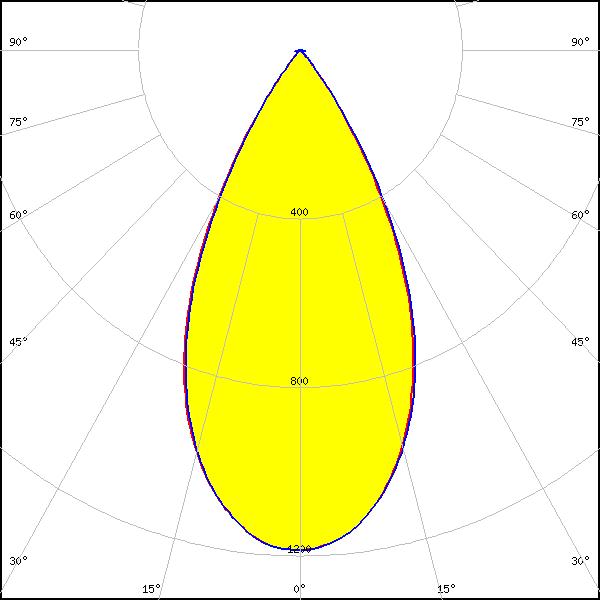

LED:
V9 HD Gen7
LES size: 9.2 mm
Required components:
FWHM:
52°
FWTM:
74°
Peak intensity:
1.190 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:

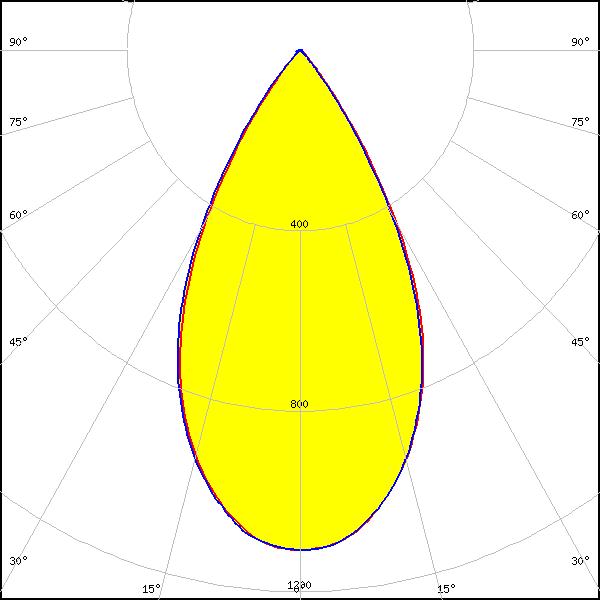

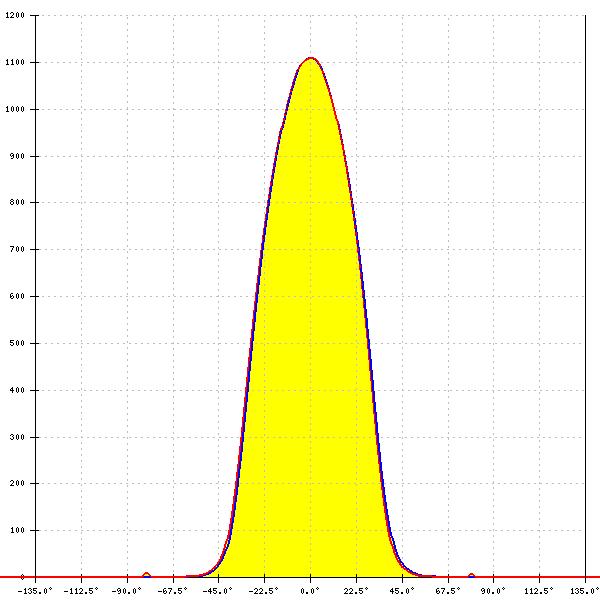

VERO10
LES size: 9.9 mm
FWHM:
55°
FWTM:
78°
Peak intensity:
6.900 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

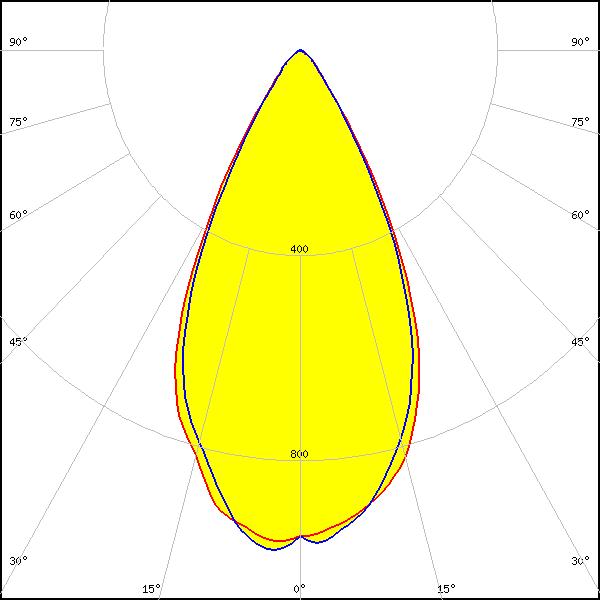

LED:

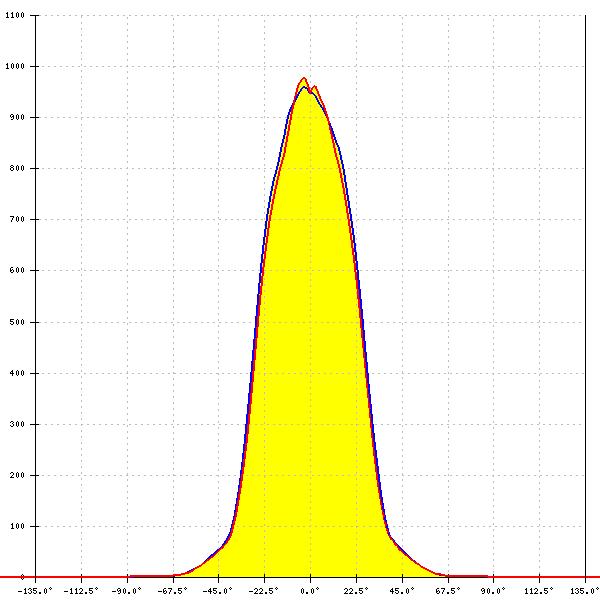

VERO13
LES size: 13.4 mm
Required components:
FWHM:
52°
FWTM:
76°
Peak intensity:
0.976 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White

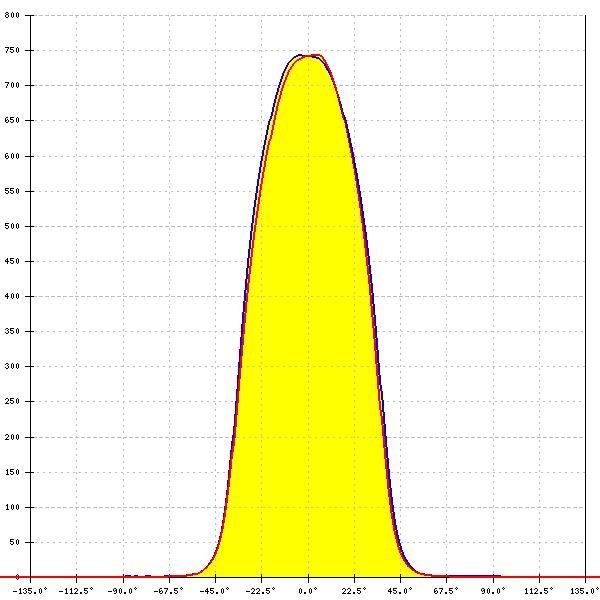

LED:

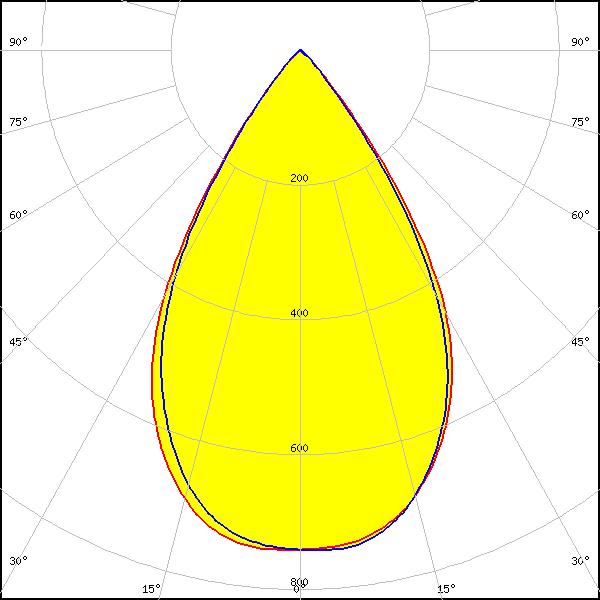

Vesta DTW 13mm (21W)
LES size: 14.0 mm
Required components:
FWHM:
64°
FWTM:
84°
Peak intensity:
0.745 cd/lm
Efficiency:
70 %
LEDs/each optic:
1
Light colour/type:
Tunable White

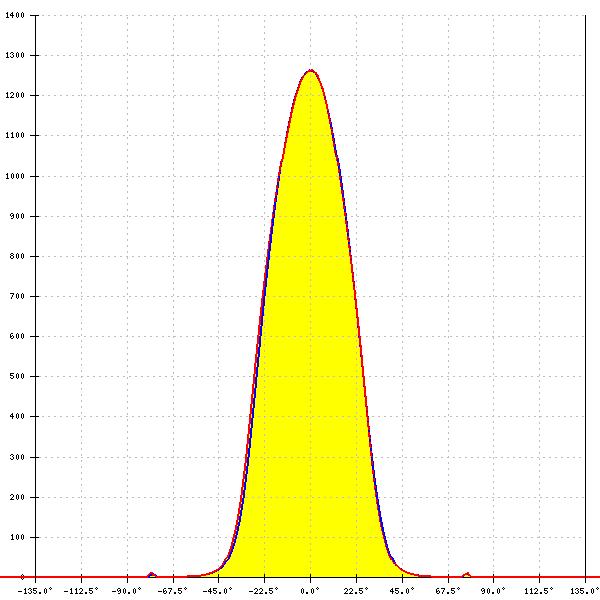

LED:

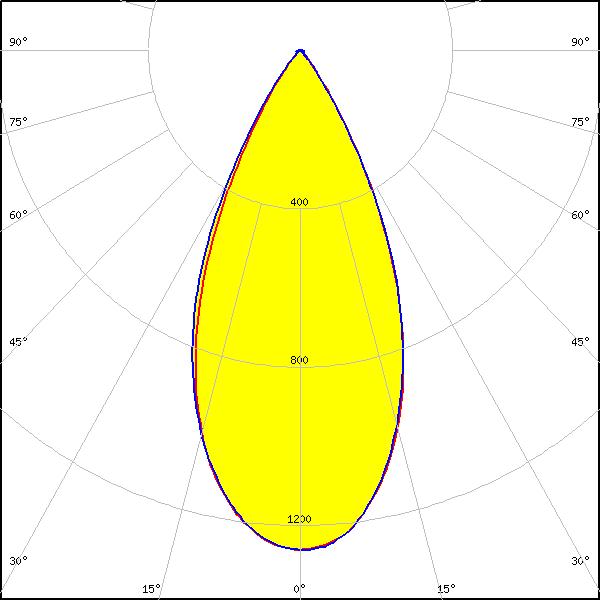

Vesta DTW 9mm (4W/6W/12W)
LES size: 9.3 mm
Required components:
FWHM:
48°
FWTM:
71°
Peak intensity:
1.300 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta TW 6mm DP
LES size: 6.3 mm
Required components:
FWHM:
50°
FWTM:
72°
Peak intensity:
1.269 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

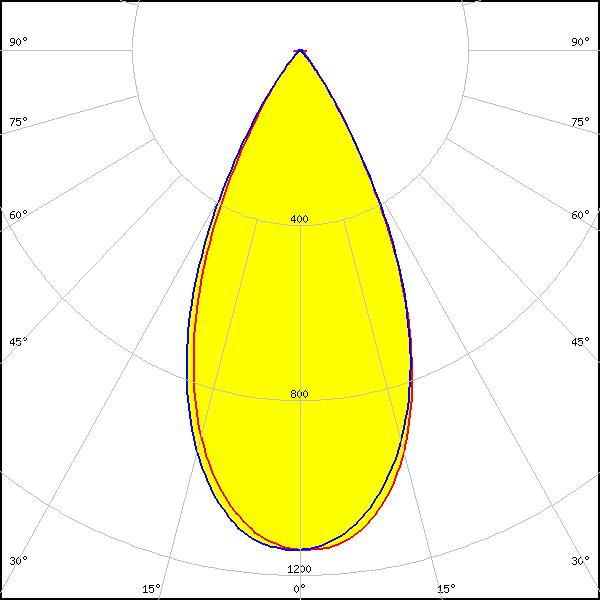

LED:

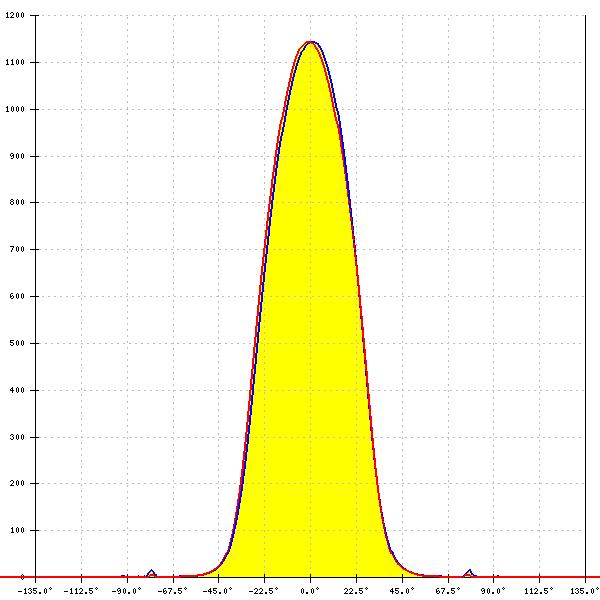

Vesta TW 9mm (12W) CSP
LES size: 9.8 mm
Required components:
FWHM:
50°
FWTM:
73°
Peak intensity:
1.100 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta TW 9mm (9W) DP
LES size: 10.3 mm
Required components:
FWHM:
52°
FWTM:
75°
Peak intensity:
1.115 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

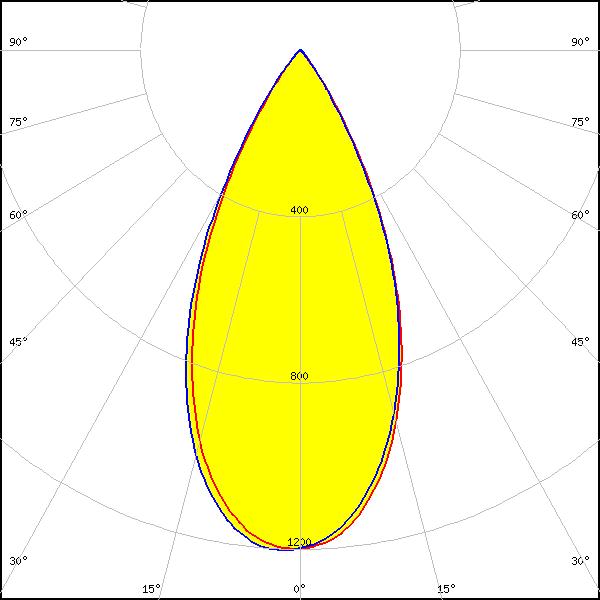

LED:

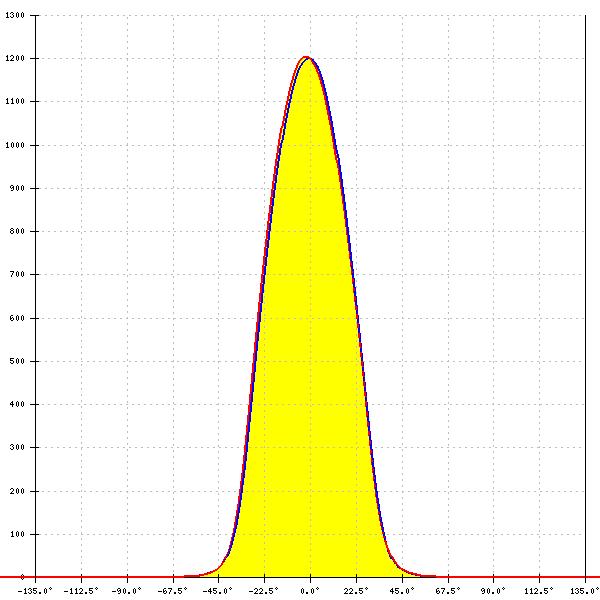

CLC020 Series (Dim-To-Warm)
LES size: 9.8 mm
Required components:
FWHM:
48°
FWTM:
72°
Peak intensity:
1.200 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White
LED:

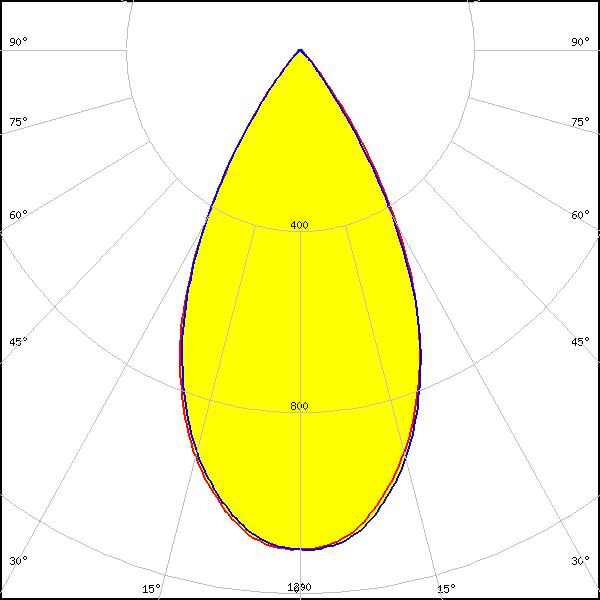

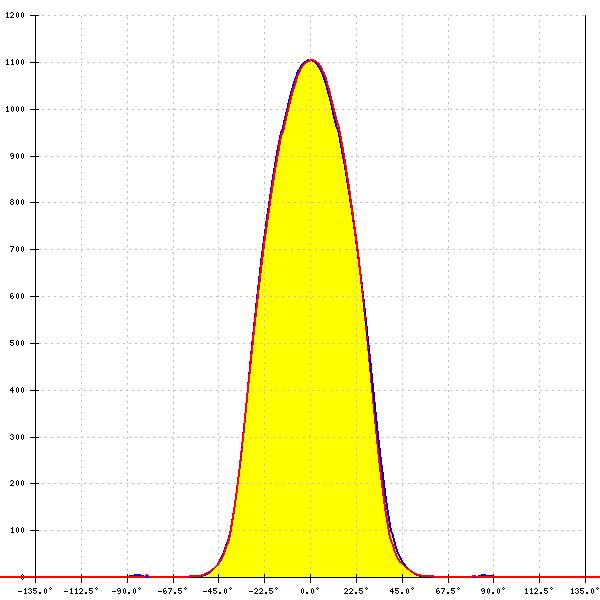

CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
54°
FWTM:
78°
Peak intensity:
1.100 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

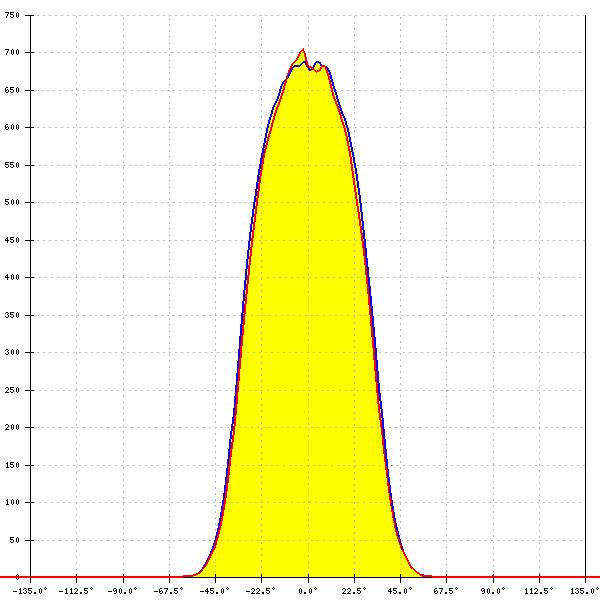

LED:

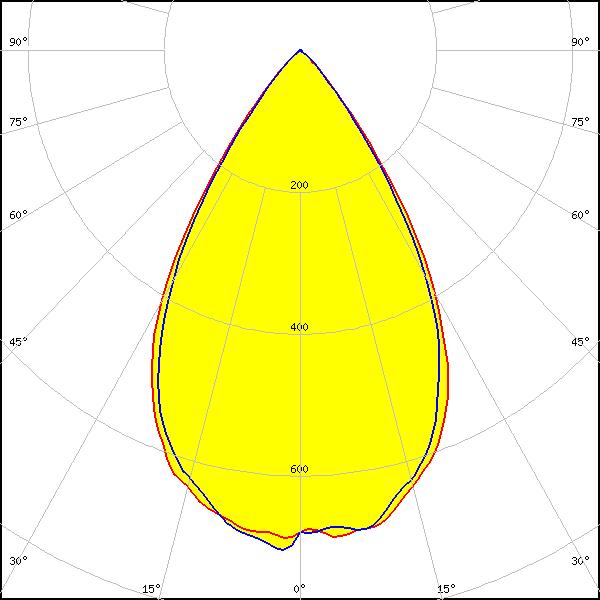

CLU03x
LES size: 14.5 mm
Required components:
FWHM:
63°
FWTM:
85°
Peak intensity:
0.712 cd/lm
Efficiency:
66 %
LEDs/each optic:
1
Light colour/type:
White

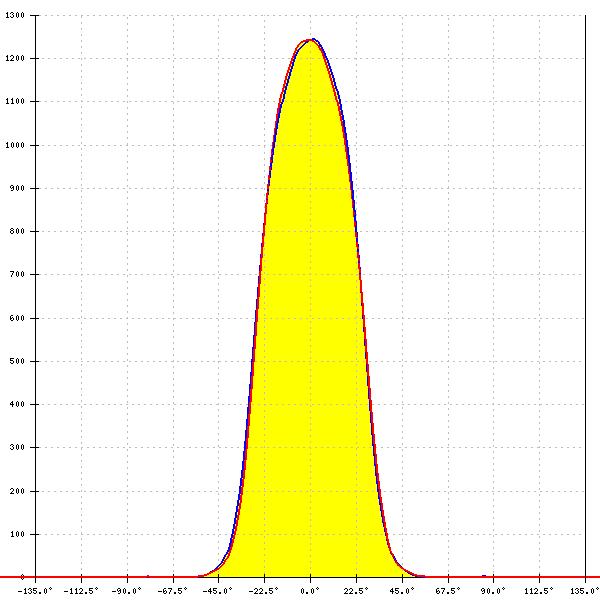

LED:

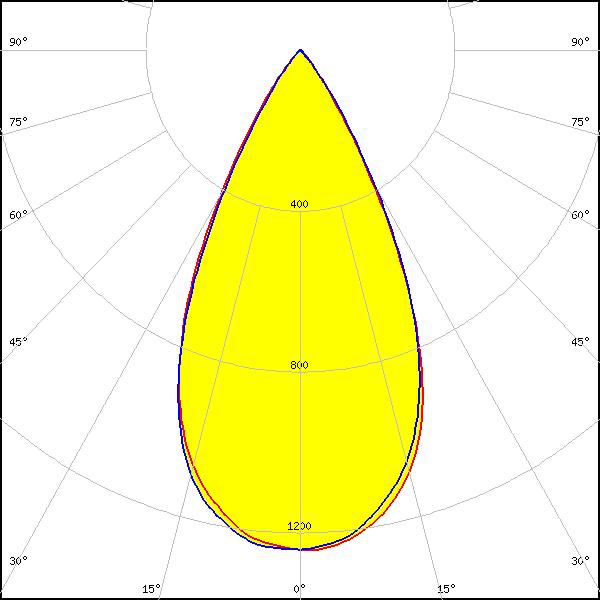

CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
52°
FWTM:
74°
Peak intensity:
1.200 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

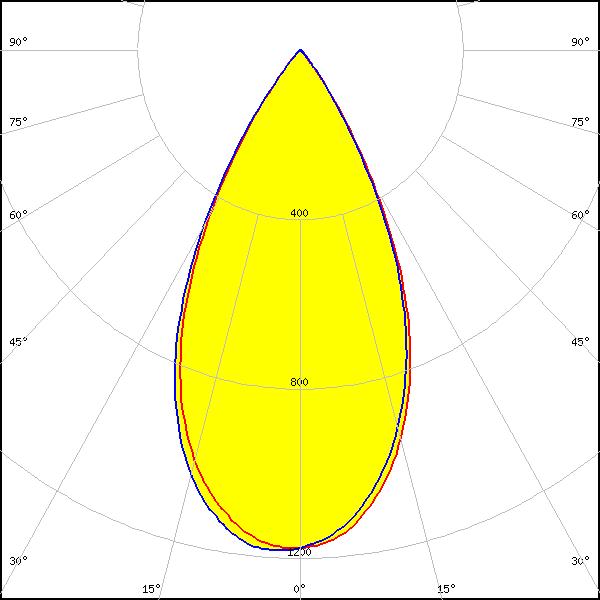

LED:
CLU710/711
LES size: 8.5 mm
Required components:
FWHM:
52°
FWTM:
75°
Peak intensity:
1.183 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:

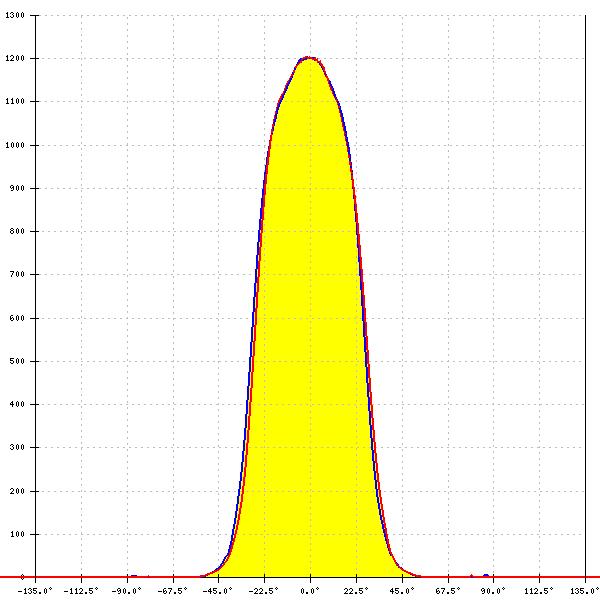

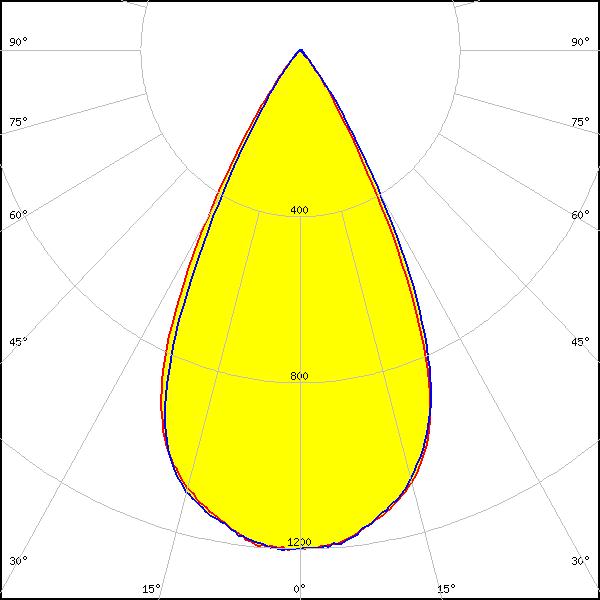

CLU7A2/7A3
LES size: 4.2 mm
Required components:
FWHM:
54°
FWTM:
73°
Peak intensity:
1.200 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

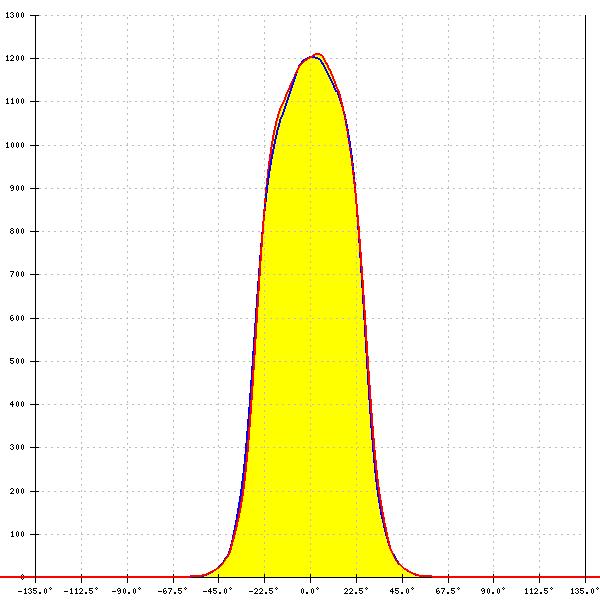

LED:

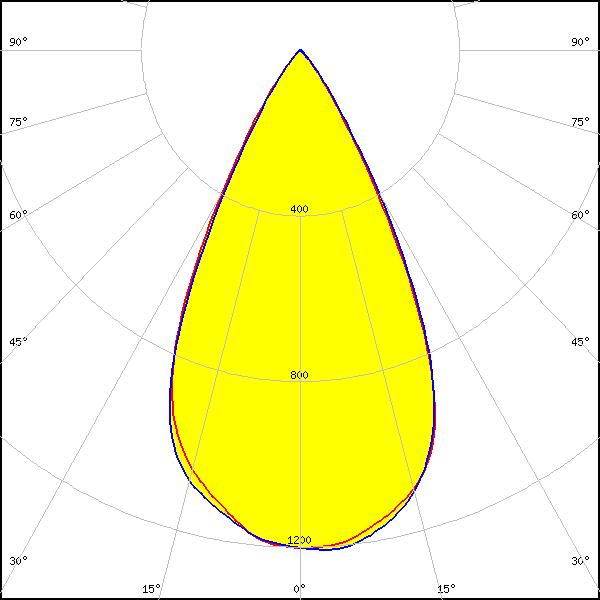

CLU7B2
LES size: 3.3 mm
FWHM:
53°
FWTM:
73°
Peak intensity:
1.210 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

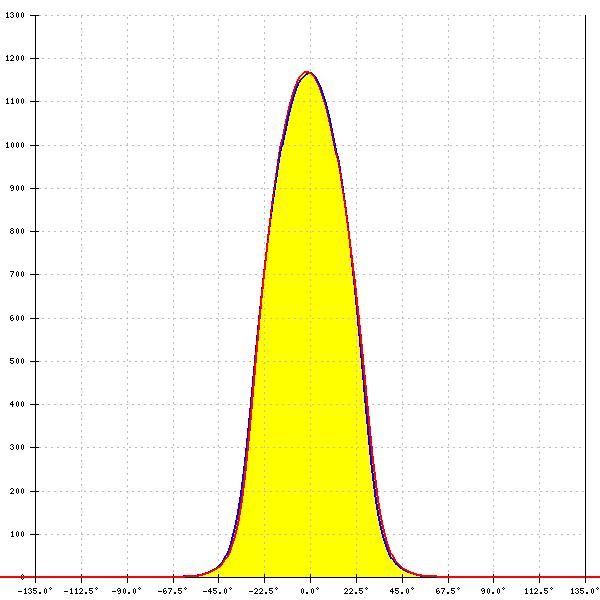

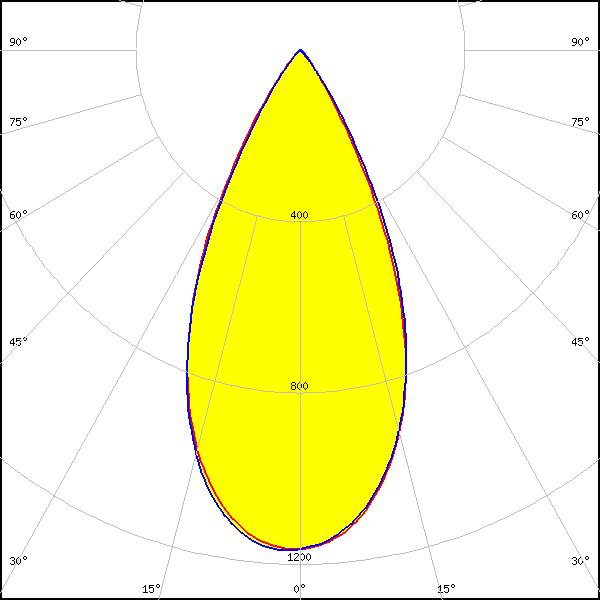

LCN-C01B (Tunable White)
LES size: 10.9 mm
Required components:
FWHM:
49°
FWTM:
72°
Peak intensity:
1.200 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White

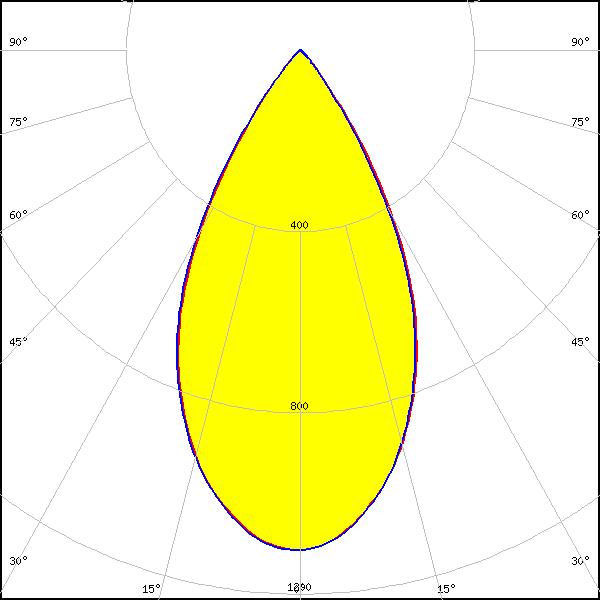

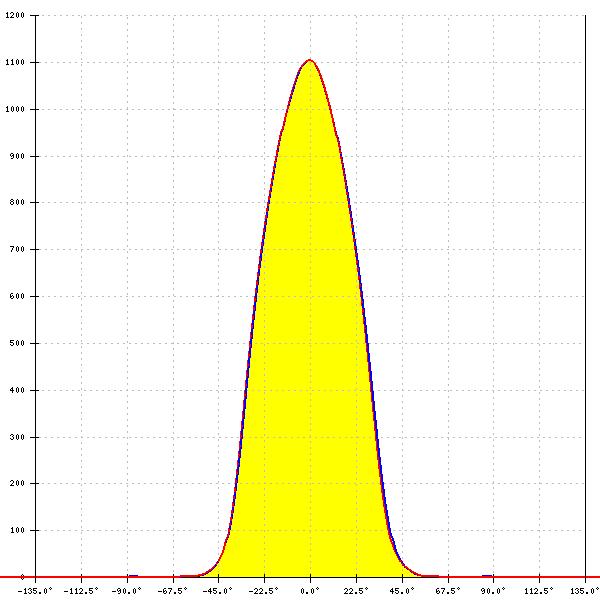

LED:
CMA1516
LES size: 9.0 mm
Required components:
FWHM:
55°
FWTM:
78°
Peak intensity:
1.100 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

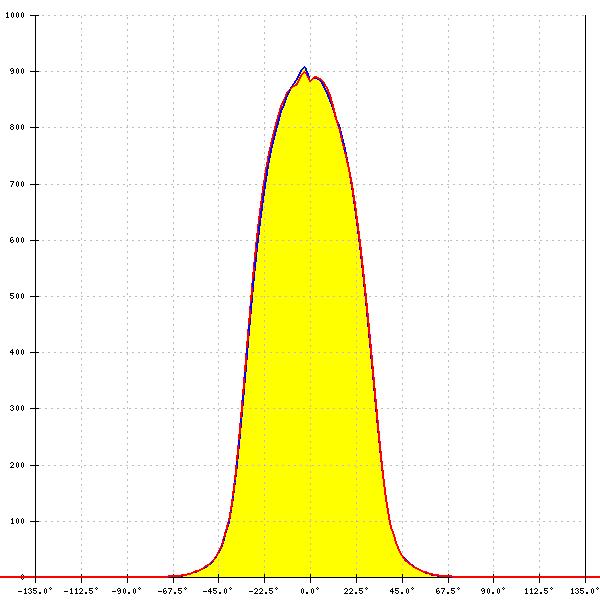

LED:

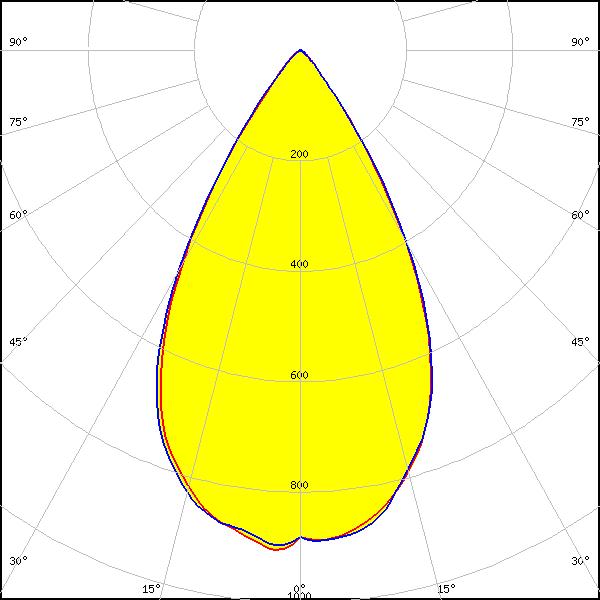

CMA1825
LES size: 12.0 mm
FWHM:
59°
FWTM:
80°
Peak intensity:
0.916 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

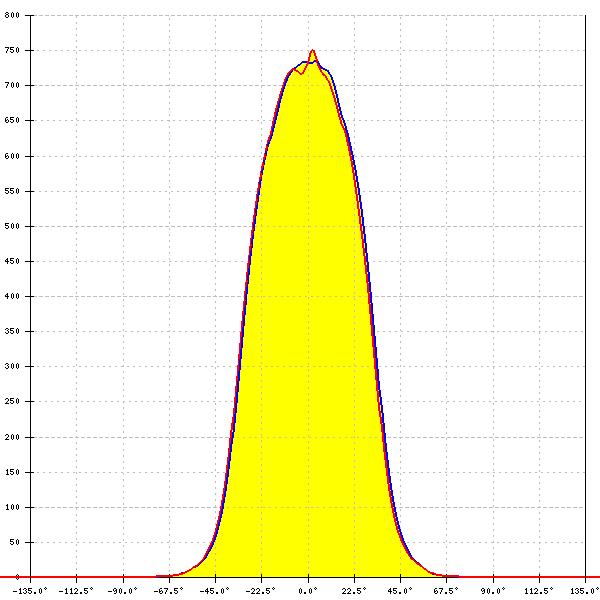

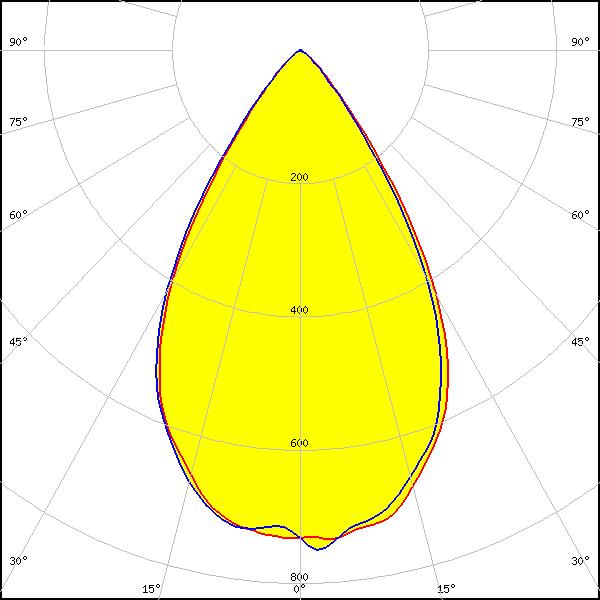

LED:
CMA1840
LES size: 14.0 mm
FWHM:
62°
FWTM:
87°
Peak intensity:
0.754 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White

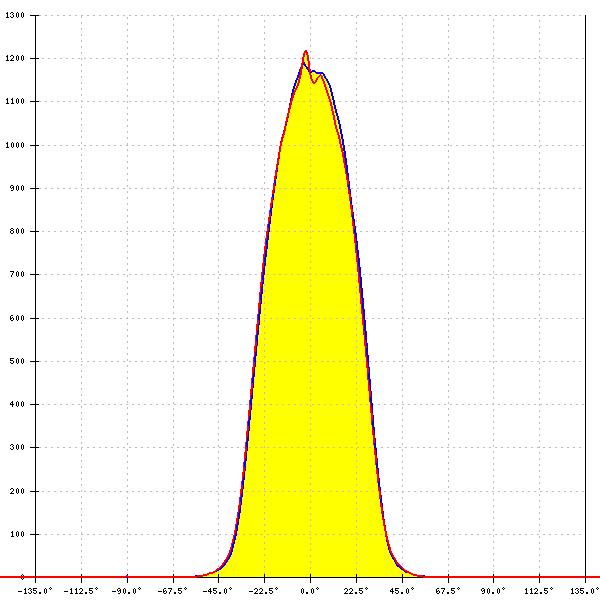

LED:

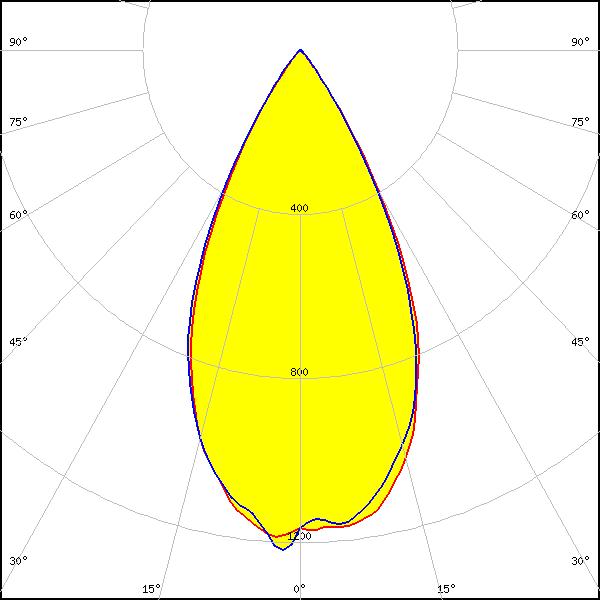

CMT14xx
LES size: 9.8 mm
Required components:
FWHM:
52°
FWTM:
73°
Peak intensity:
1.220 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

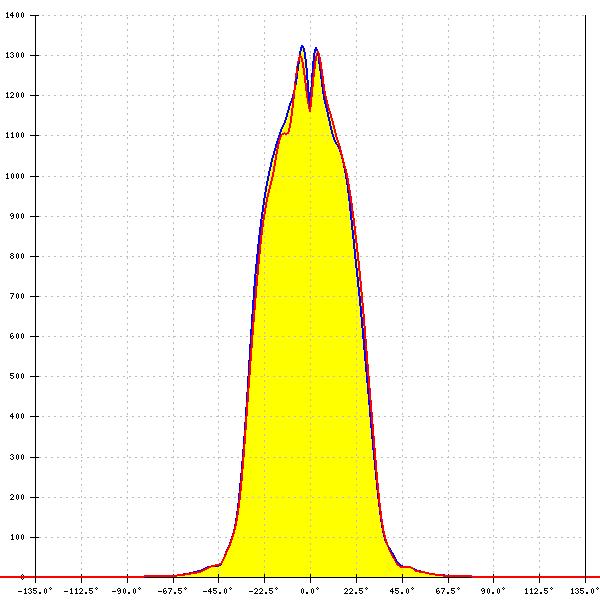

LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
54°
FWTM:
73°
Peak intensity:
1.365 cd/lm
LEDs/each optic:
1
Light colour/type:
White

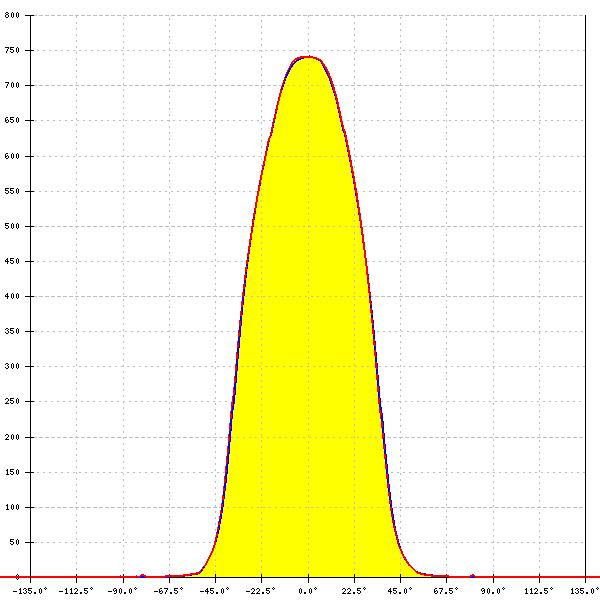

LED:

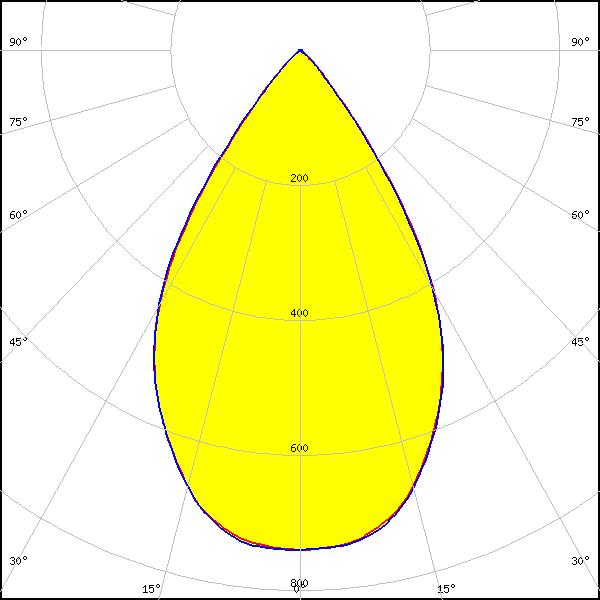

LUXEON CX Plus CoB L08 (Gen2)
LES size: 14.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM:
64°
FWTM:
85°
Peak intensity:
0.741 cd/lm
Efficiency:
71 %
LEDs/each optic:
1
Light colour/type:
White
LED:

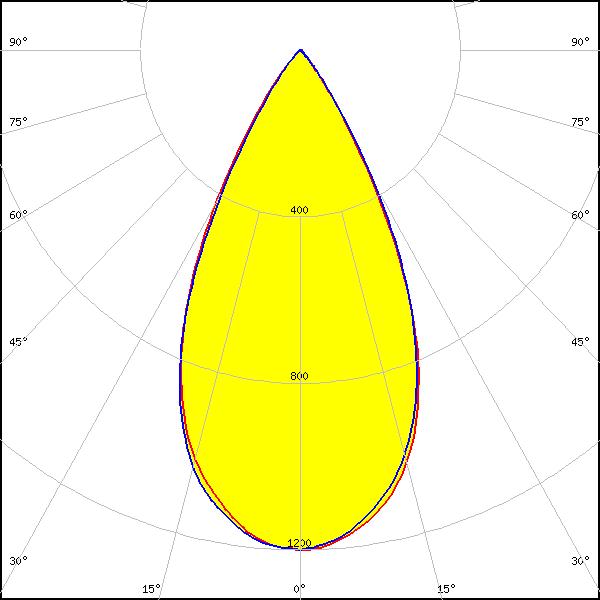

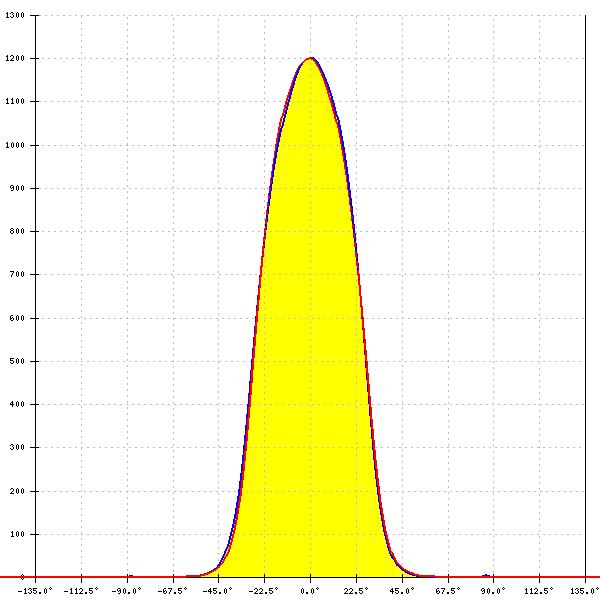

LUXEON CoB 1202HD
LES size: 6.5 mm
Required components:
FWHM:
52°
FWTM:
74°
Peak intensity:
1.200 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

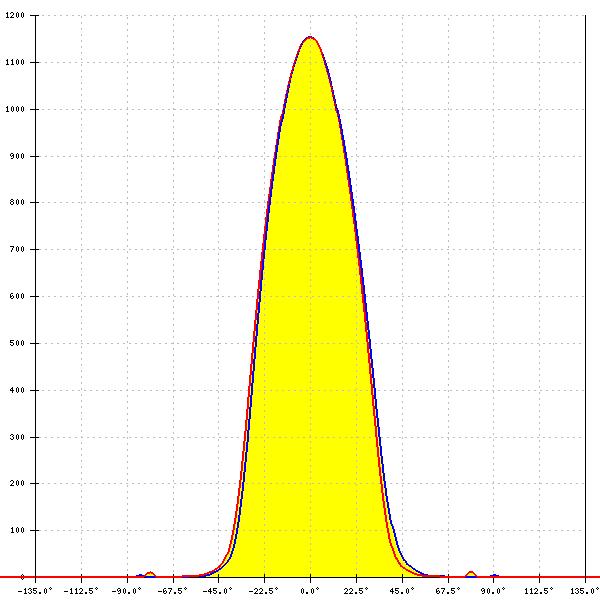

LED:

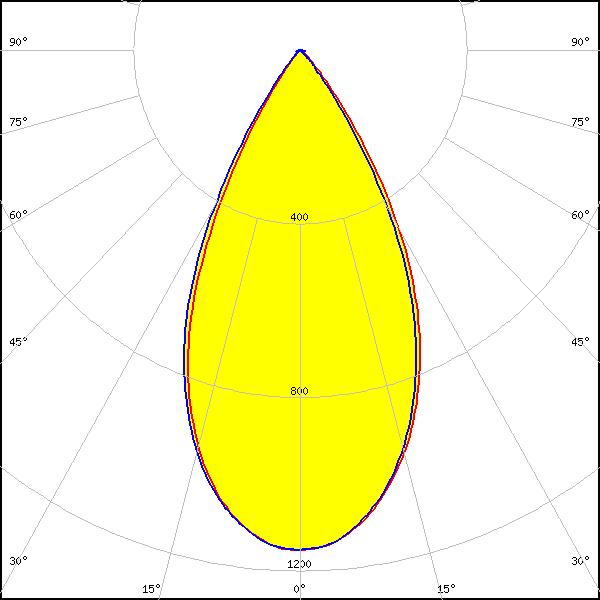

LUXEON CoB 1204HD
LES size: 9.0 mm
Required components:
FWHM:
53°
FWTM:
75°
Peak intensity:
1.150 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:

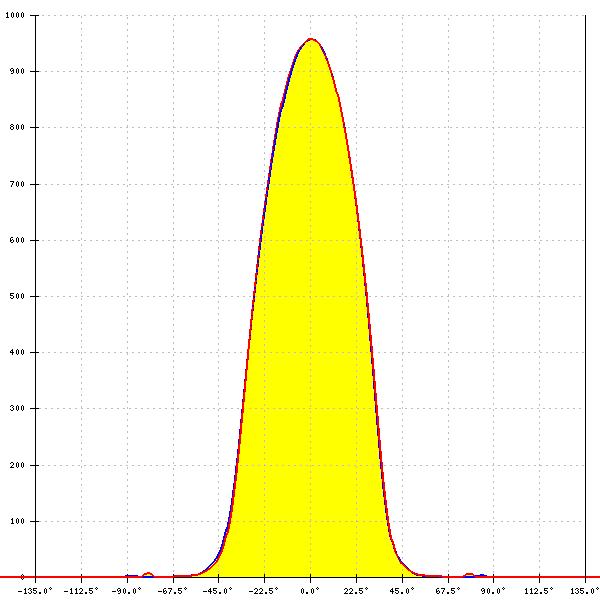

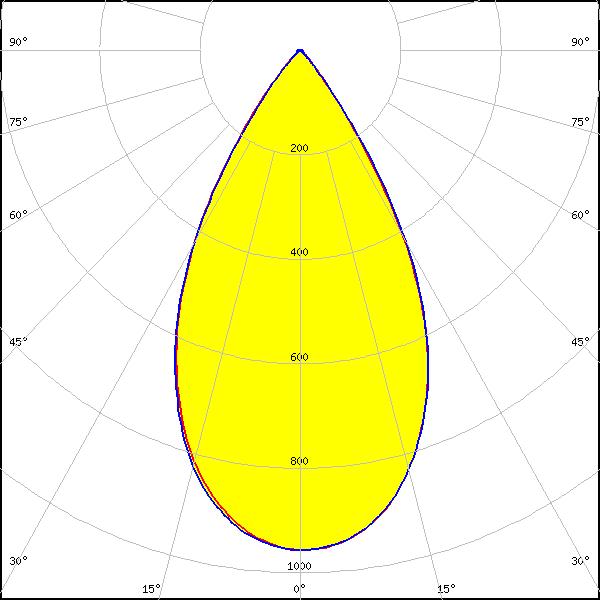

LUXEON CoB 1205HD
LES size: 11.0 mm
Required components:
FWHM:
56°
FWTM:
79°
Peak intensity:
1.000 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White

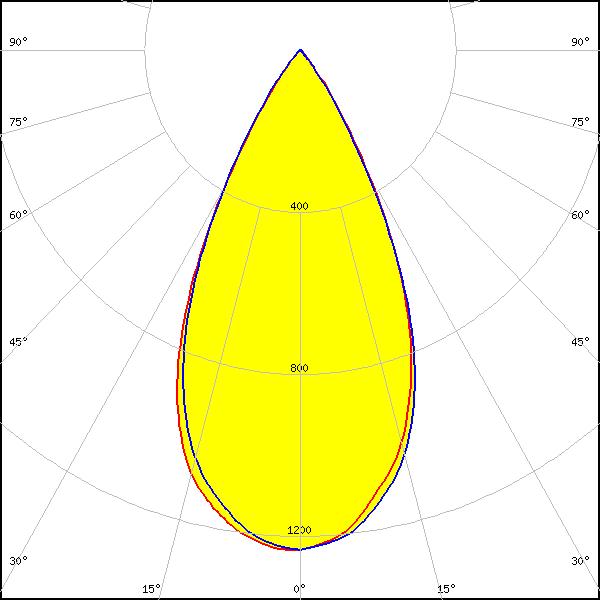

LED:
LUXEON CX Plus CoB - HD S01H4
LES size: 4.5 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
51°
FWTM:
73°
Peak intensity:
1.246 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB - HD S02H6
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
51°
FWTM:
73°
Peak intensity:
1.235 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:

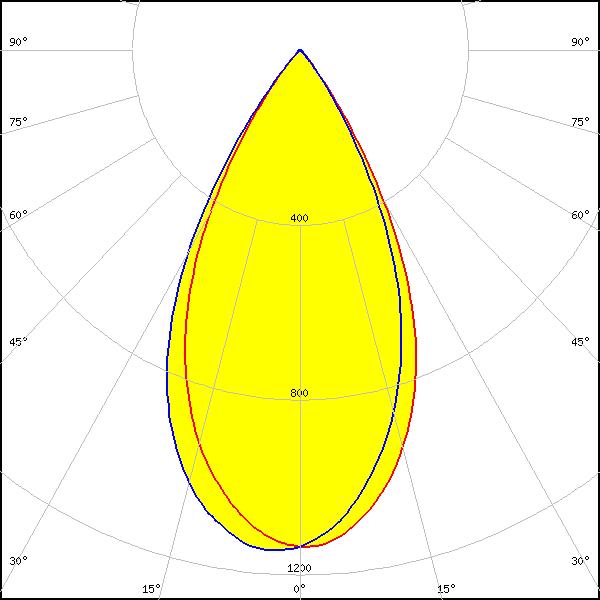

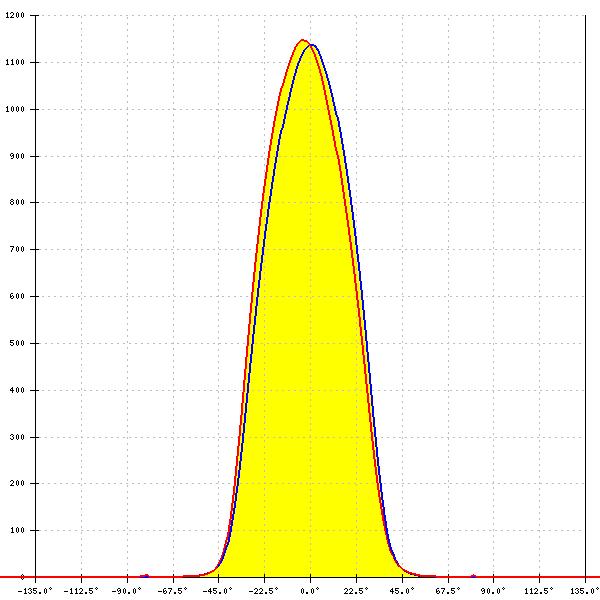

LUXEON CX Plus CoB - HD S04H9
LES size: 9.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
53°
FWTM:
76°
Peak intensity:
1.146 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB L04 / L05 (Gen2)
LES size: 12.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM:
57°
FWTM:
80°
Peak intensity:
0.946 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White
LED:

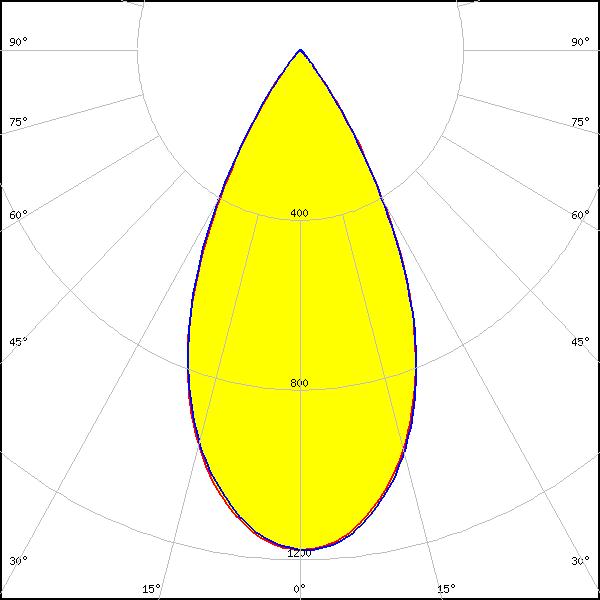

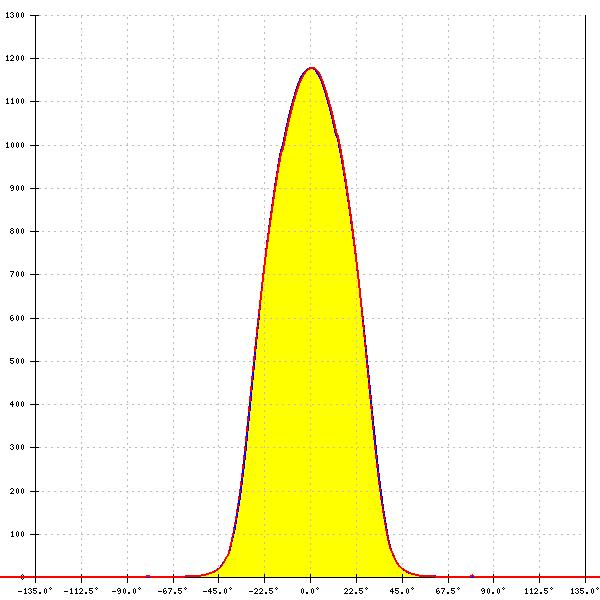

LUXEON CX Plus CoB M02 / M03 (Gen2)
LES size: 9.0 mm
Required components:
Bender Wirth: 641a Hekla
FWHM:
52°
FWTM:
75°
Peak intensity:
1.178 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:

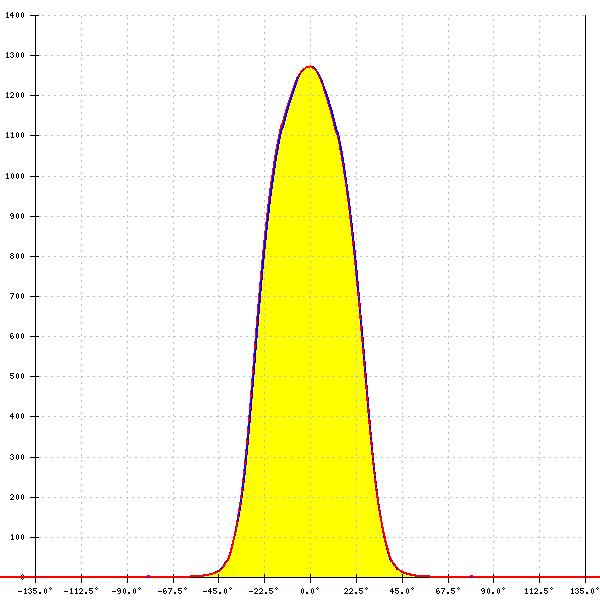

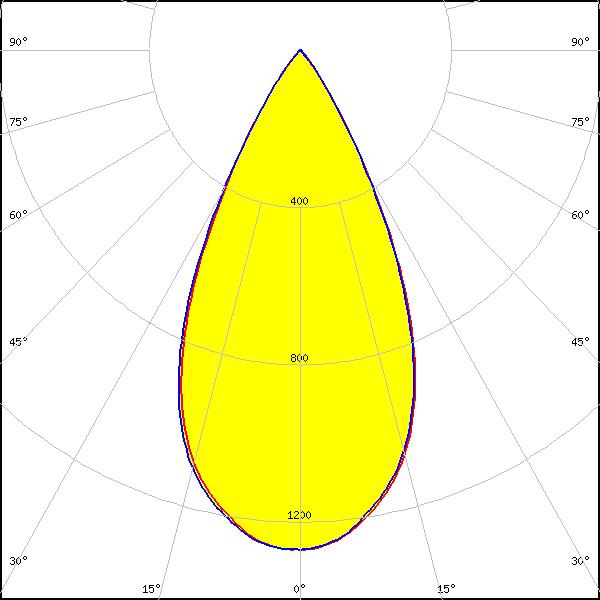

LUXEON CX Plus CoB S01 (Gen2)
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
51°
FWTM:
72°
Peak intensity:
1.272 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

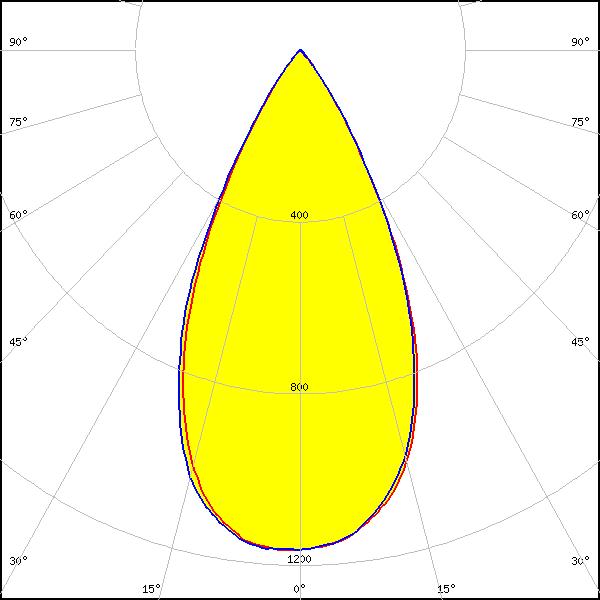

LED:

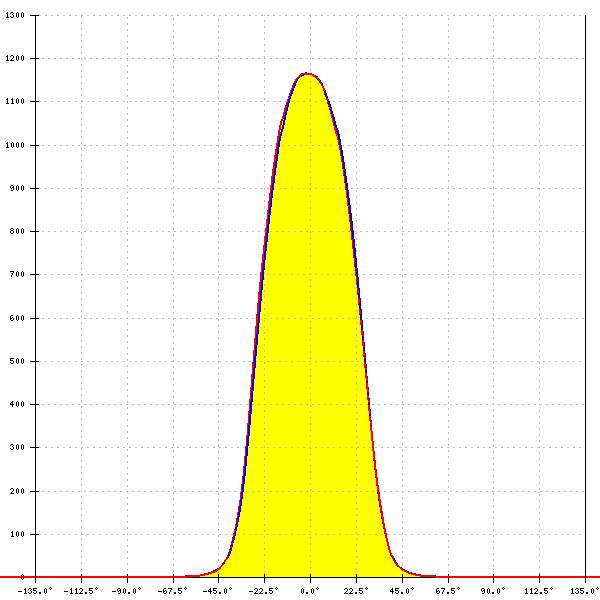

CDM-6 (Dim-To-Warm)
LES size: 6.8 mm
Required components:
FWHM:
51°
FWTM:
73°
Peak intensity:
1.200 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White

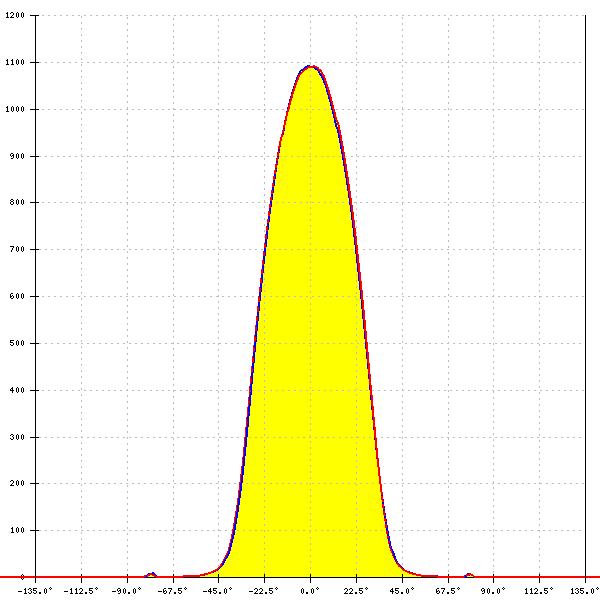

LED:

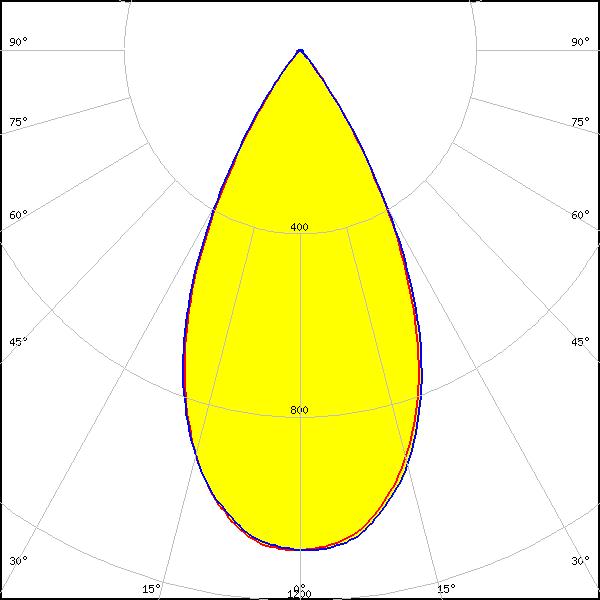

CDM-9 (Dim-To-Warm)
LES size: 9.5 mm
Required components:
FWHM:
53°
FWTM:
75°
Peak intensity:
1.100 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

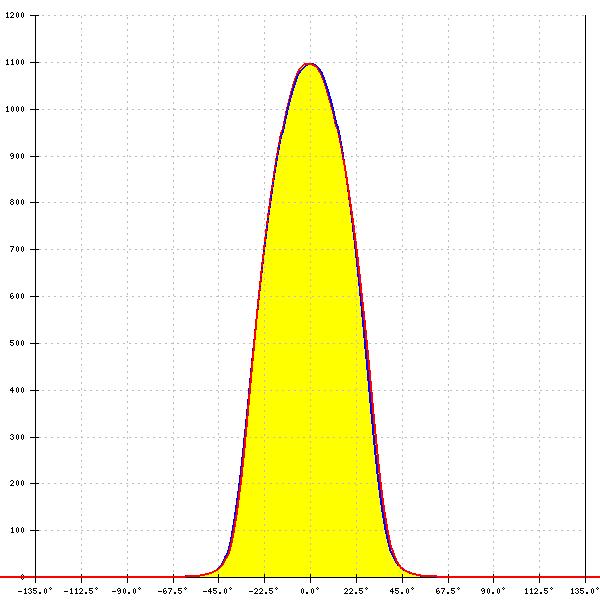

LED:

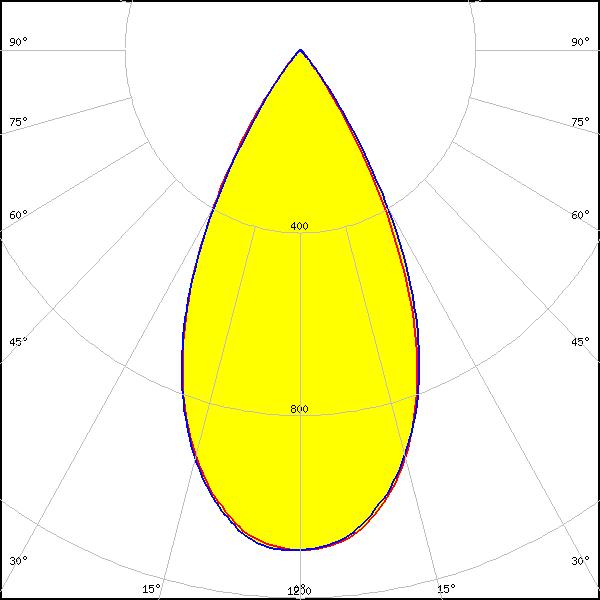

CTM-9 (Tunable White)
LES size: 9.5 mm
Required components:
FWHM:
53°
FWTM:
75°
Peak intensity:
1.100 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:

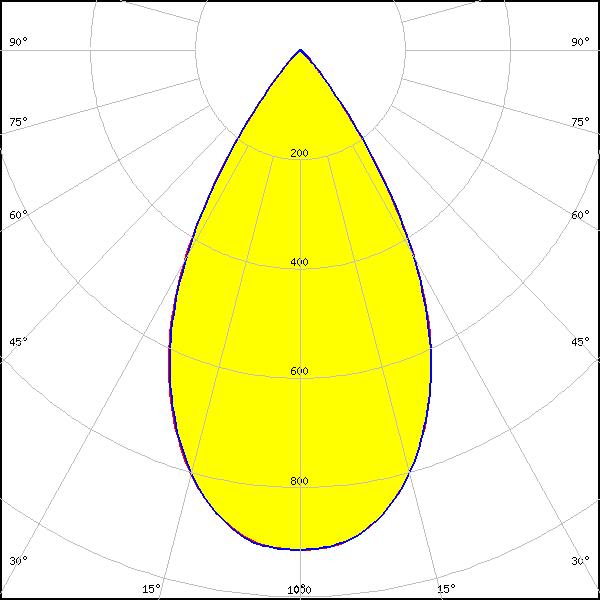

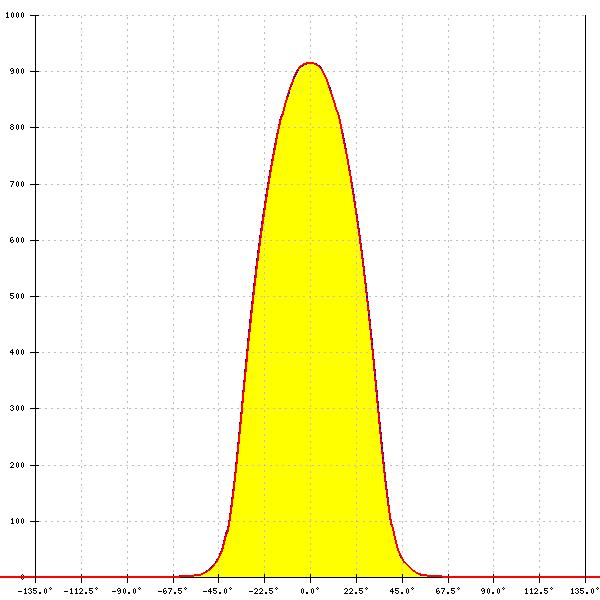

CxM-11 (19x19)
LES size: 11.7 mm
Required components:
FWHM:
58°
FWTM:
81°
Peak intensity:
0.915 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White
LED:

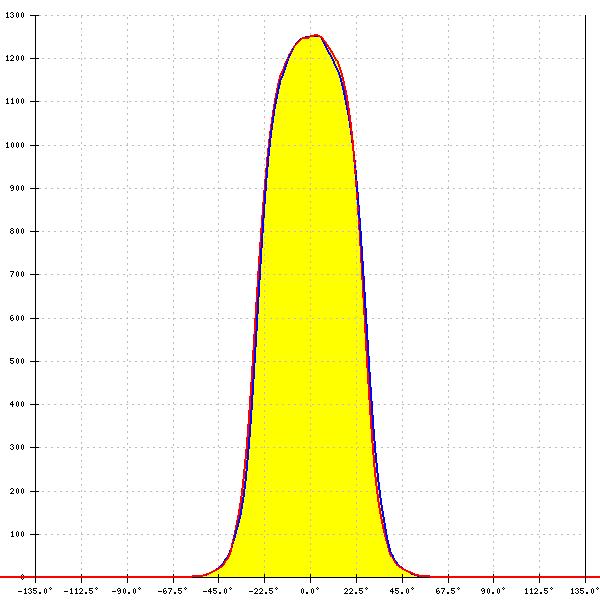

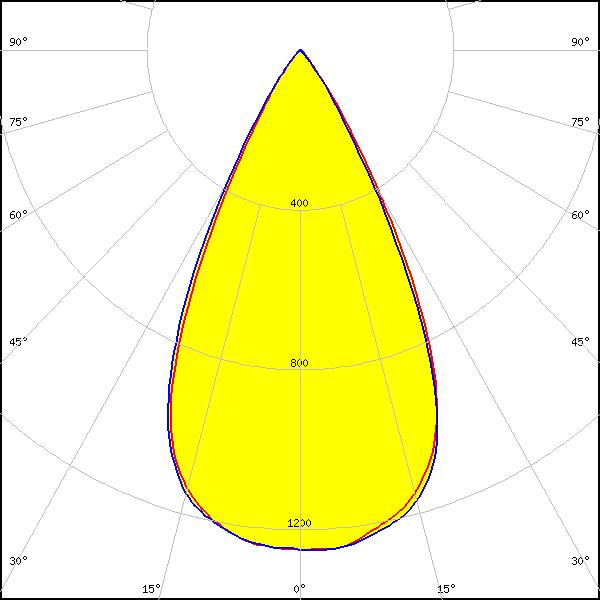

CXM-3
LES size: 3.5 mm
Required components:
FWHM:
53°
FWTM:
72°
Peak intensity:
1.254 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

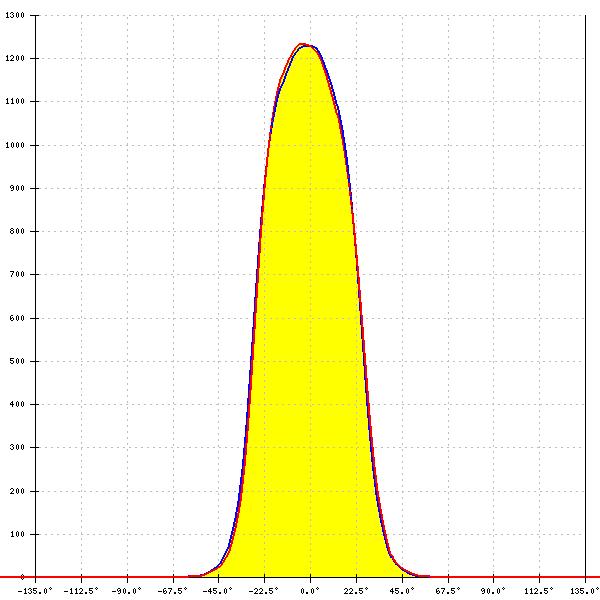

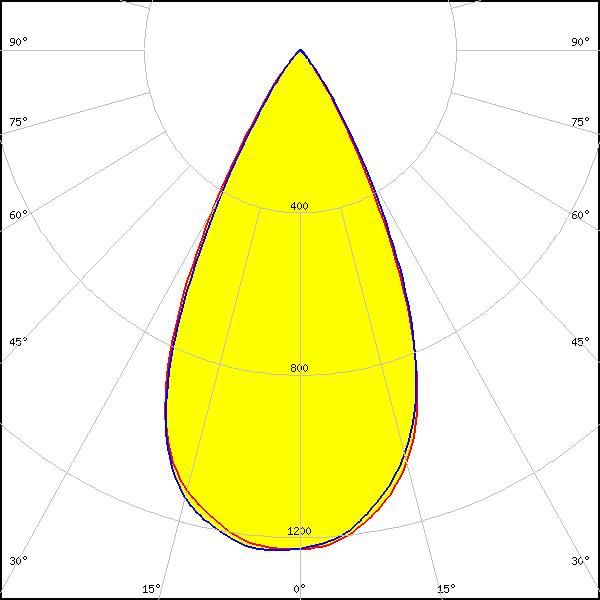

CXM-4
LES size: 4.5 mm
Required components:
FWHM:
52°
FWTM:
73°
Peak intensity:
1.235 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

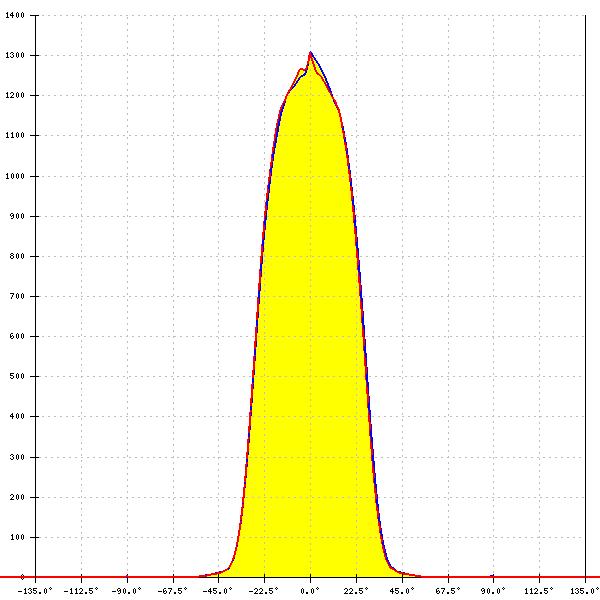

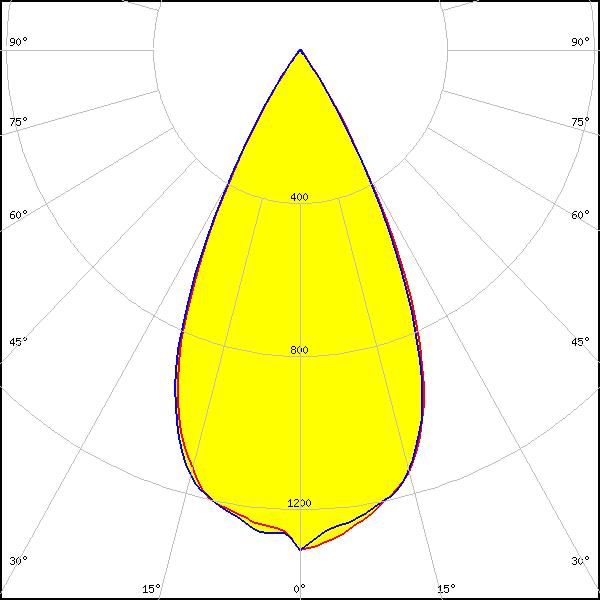

CxM-6 (13.5x13.5)
LES size: 6.3 mm
Required components:
FWHM:
52°
FWTM:
69°
Peak intensity:
1.309 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

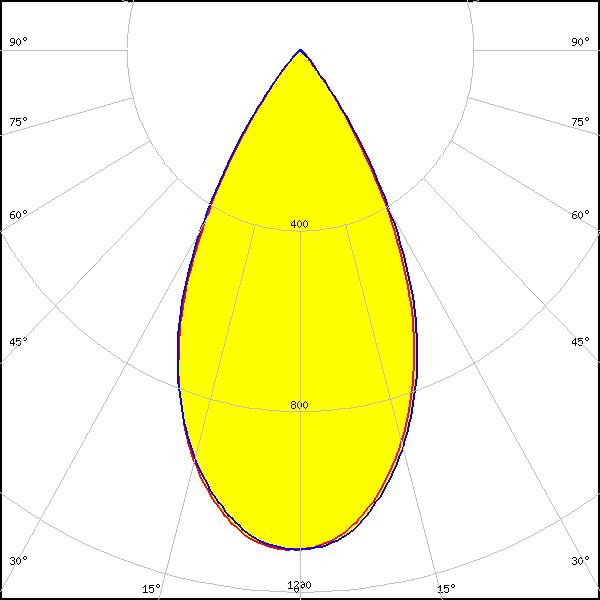

LED:

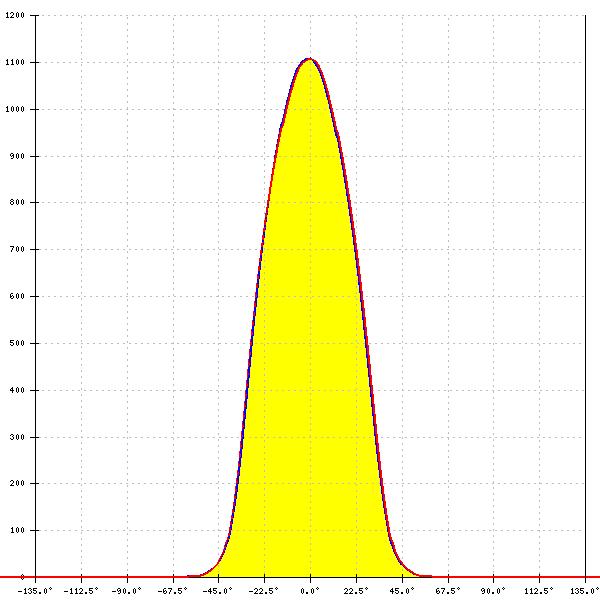

CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM:
53°
FWTM:
77°
Peak intensity:
1.100 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB T-Type
LES size: 5.9 mm
Required components:
FWHM:
54°
FWTM:
69°
Peak intensity:
1.200 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

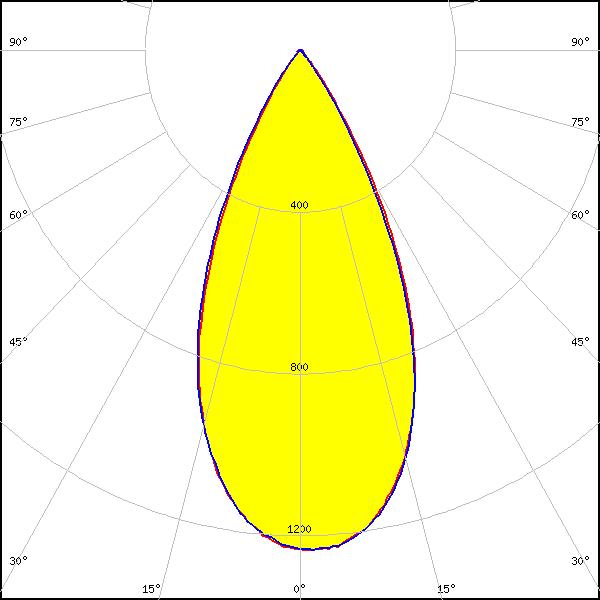

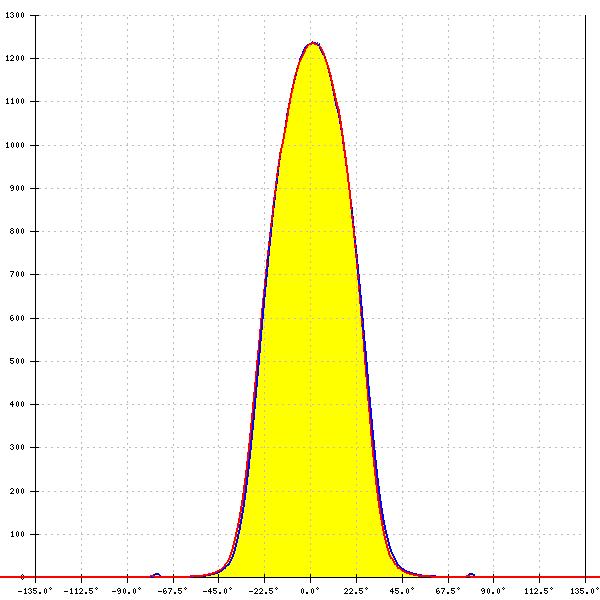

NJCWL024Z-V1MT: COB L-Type Tunable White
LES size: 7.0 mm
Required components:
FWHM:
48°
FWTM:
71°
Peak intensity:
1.240 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White

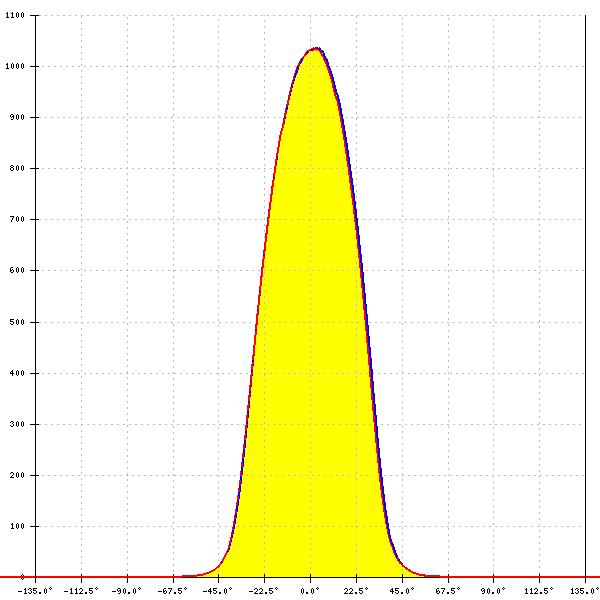

LED:

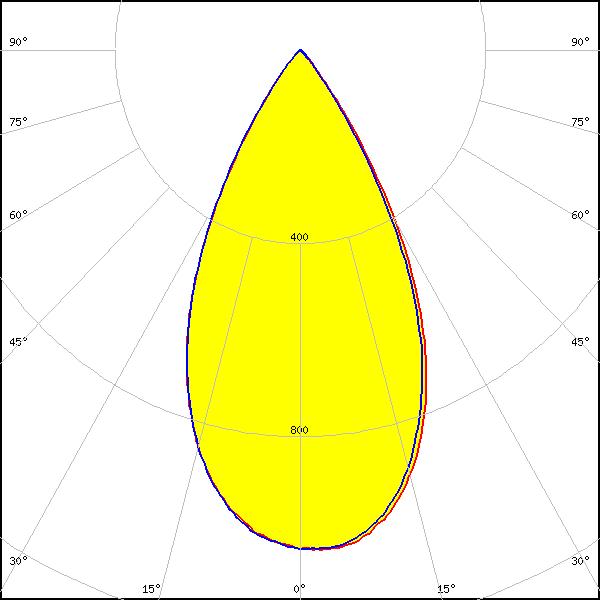

NVCWJ024Z-V1MT: COB J-Type Tunable White
LES size: 10.6 mm
Required components:
FWHM:
53°
FWTM:
76°
Peak intensity:
1.000 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White

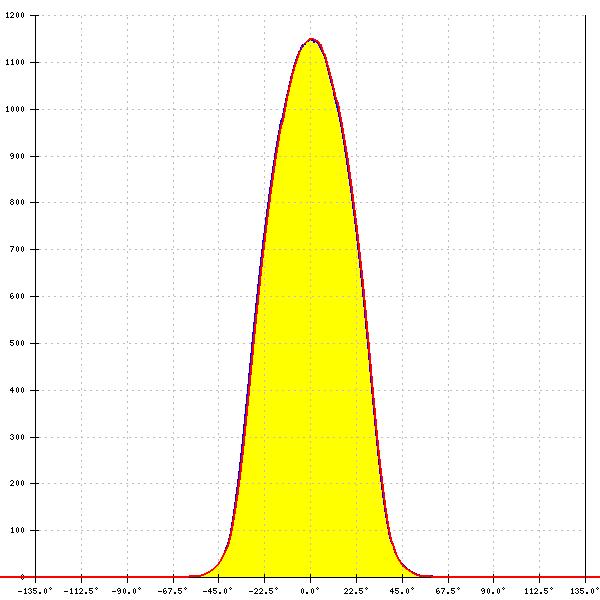

LED:

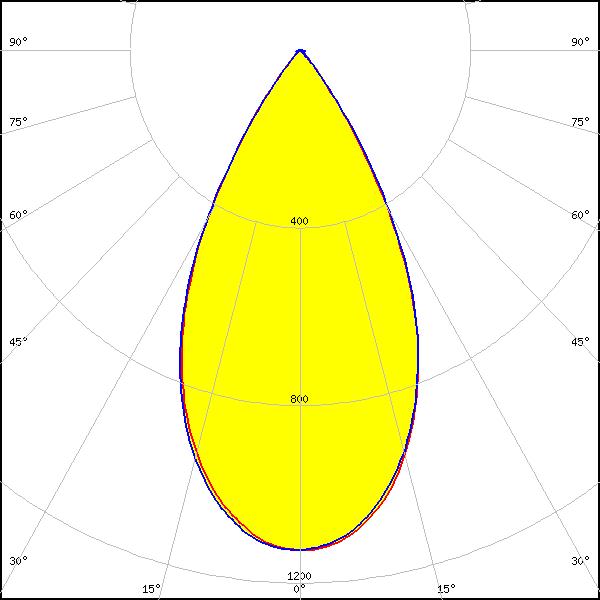

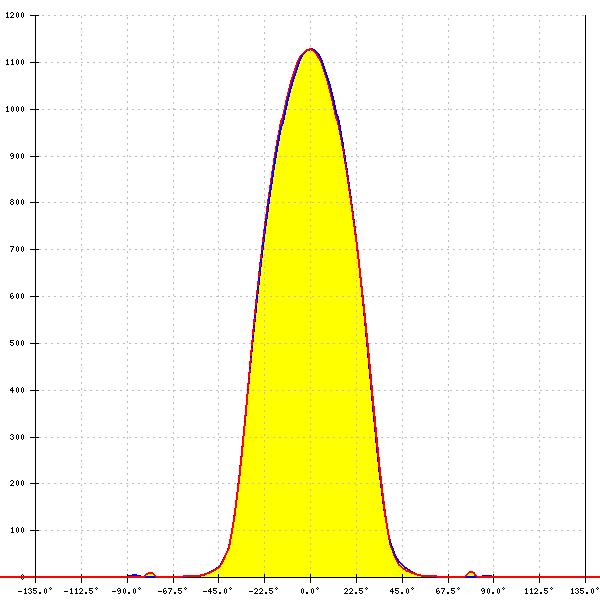

Fortimo SLM L09 CoB
LES size: 9.0 mm
Required components:
FWHM:
54°
FWTM:
76°
Peak intensity:
1.130 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC003D / LC006D / LC009D / LC013D
LES size: 9.8 mm
Required components:
FWHM:
55°
FWTM:
78°
Peak intensity:
1.100 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

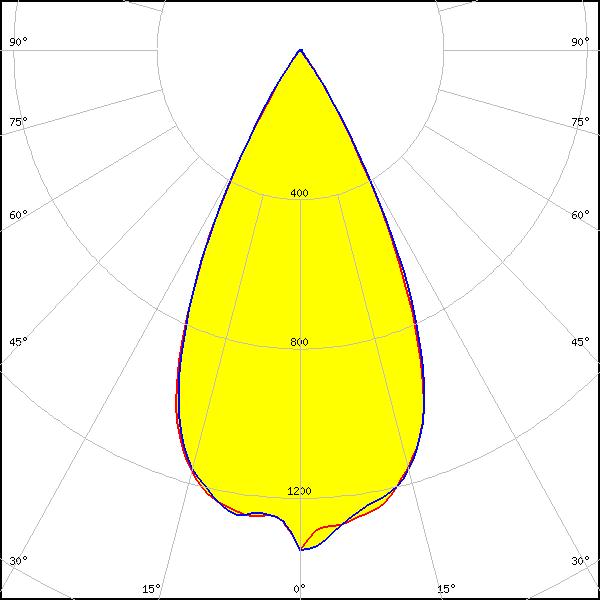

LC010C
LES size: 6.0 mm
Required components:
FWHM:
51°
FWTM:
68°
Peak intensity:
1.342 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

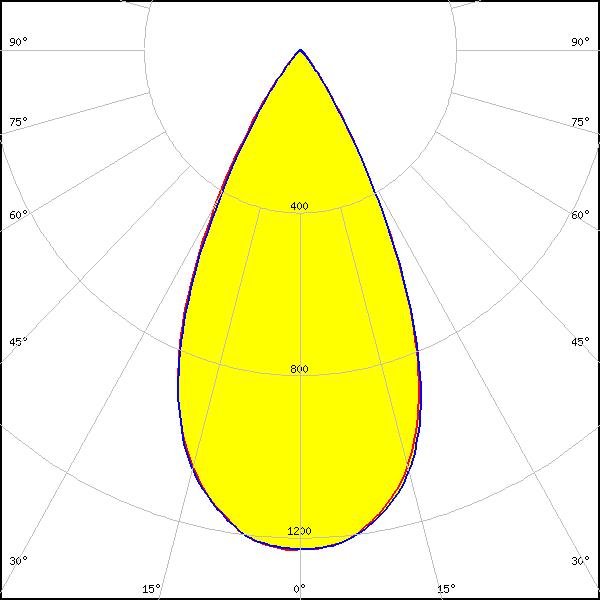

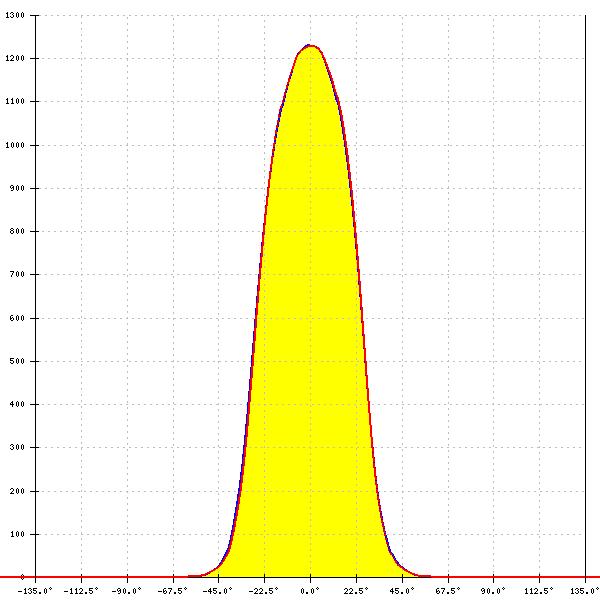

LED:
LC010C G2
LES size: 6.0 mm
Required components:
FWHM:
52°
FWTM:
74°
Peak intensity:
1.200 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

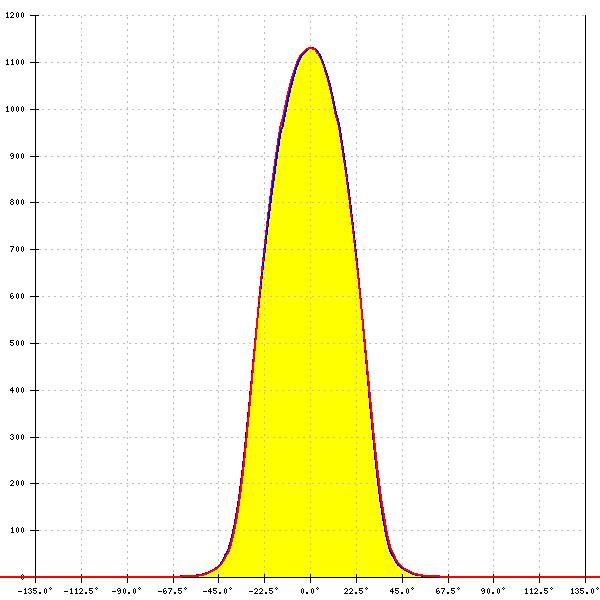

LED:

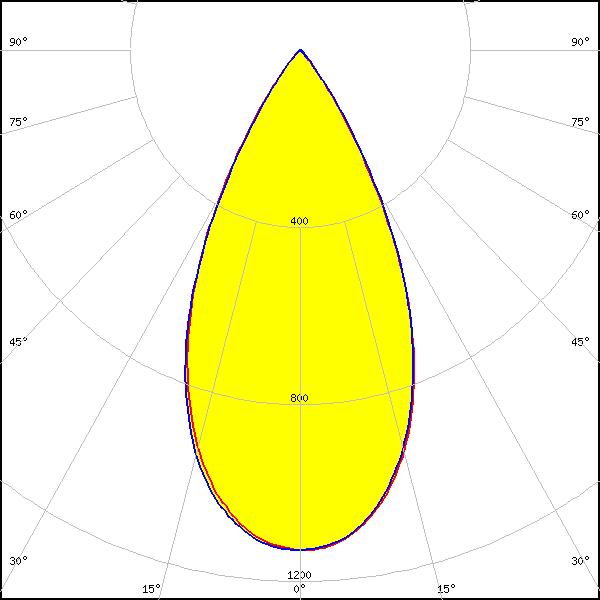

LC010T (Tunable White)
LES size: 9.8 mm
Required components:
FWHM:
51°
FWTM:
74°
Peak intensity:
1.130 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
Tunable White

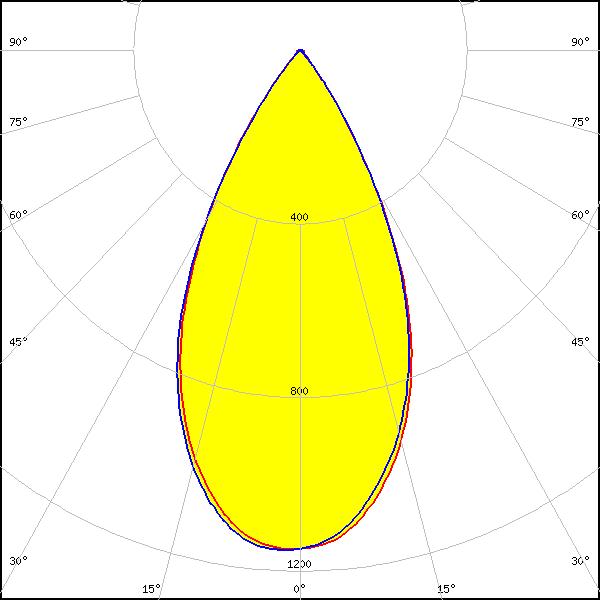

LED:

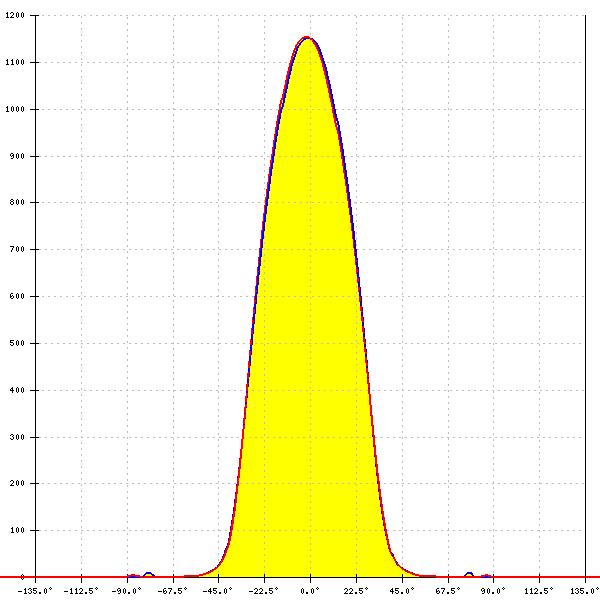

LC020C G2
LES size: 8.5 mm
Required components:
FWHM:
52°
FWTM:
75°
Peak intensity:
1.200 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 6
LES size: 6.0 mm
Required components:
FWHM:
52°
FWTM:
73°
Peak intensity:
1.200 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

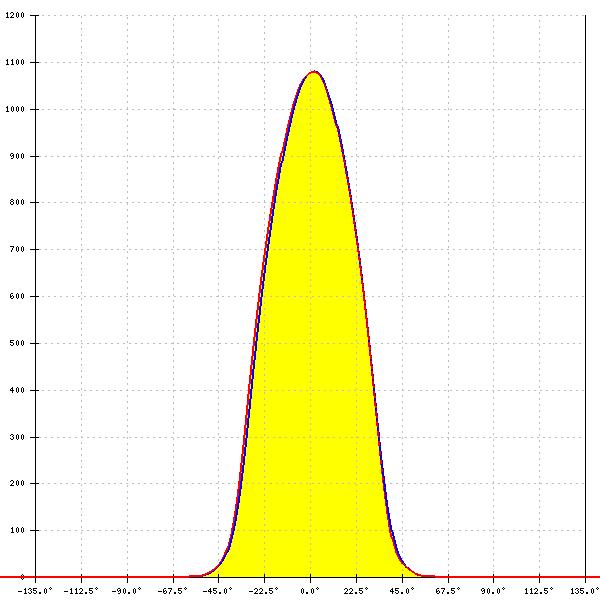

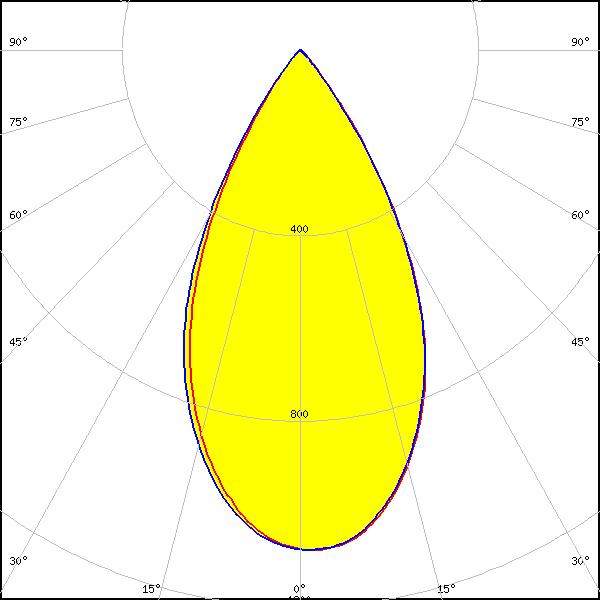

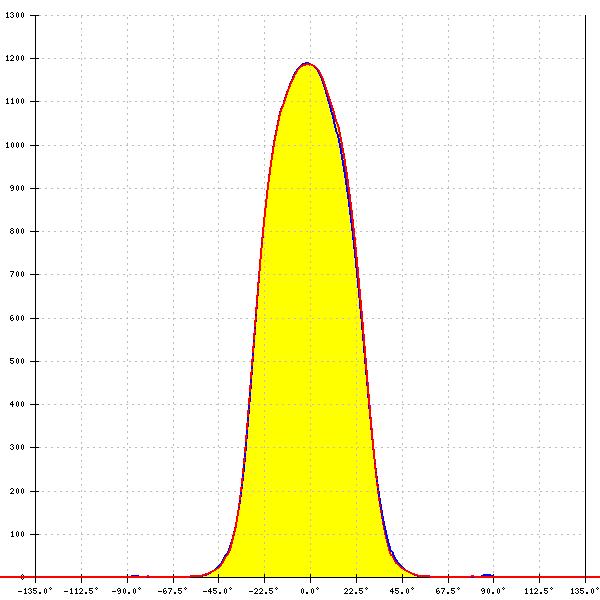

LED:
MJT COB LES 9.8
LES size: 9.8 mm
Required components:
FWHM:
54°
FWTM:
77°
Peak intensity:
1.100 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES09
LES size: 9.0 mm
Required components:
FWHM:
53°
FWTM:
77°
Peak intensity:
1.100 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

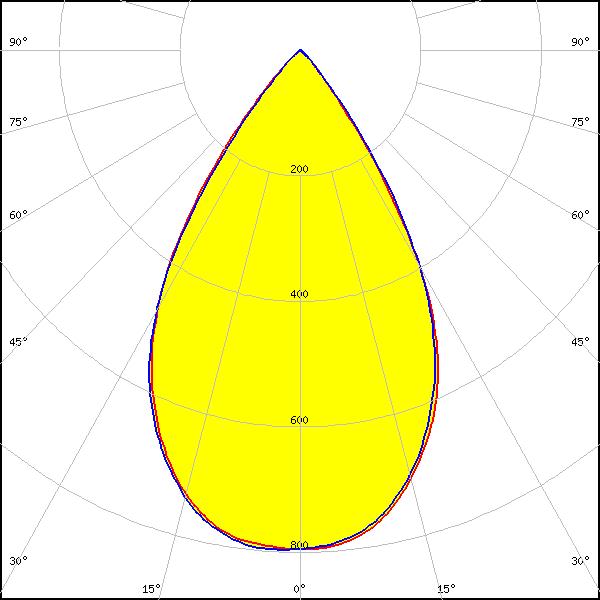

LED:
SLE G7 LES13
LES size: 13.0 mm
Required components:
FWHM:
63°
FWTM:
83°
Peak intensity:
0.800 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White

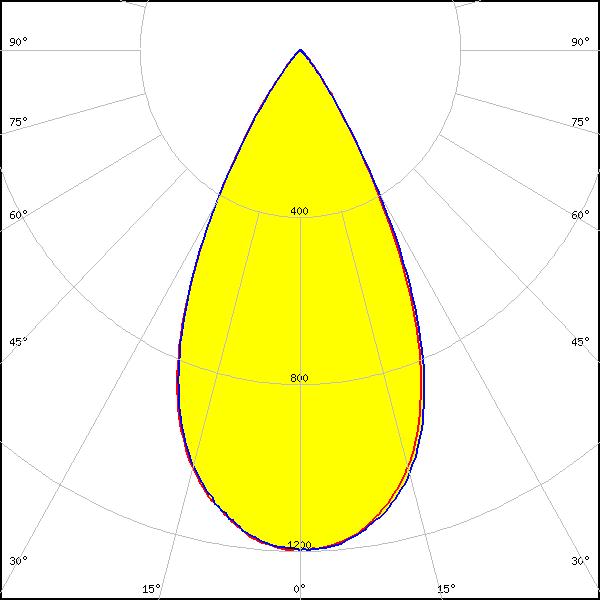

LED:
XOB 6 mm
LES size: 6.0 mm
Required components:
FWHM:
53°
FWTM:
74°
Peak intensity:
1.197 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

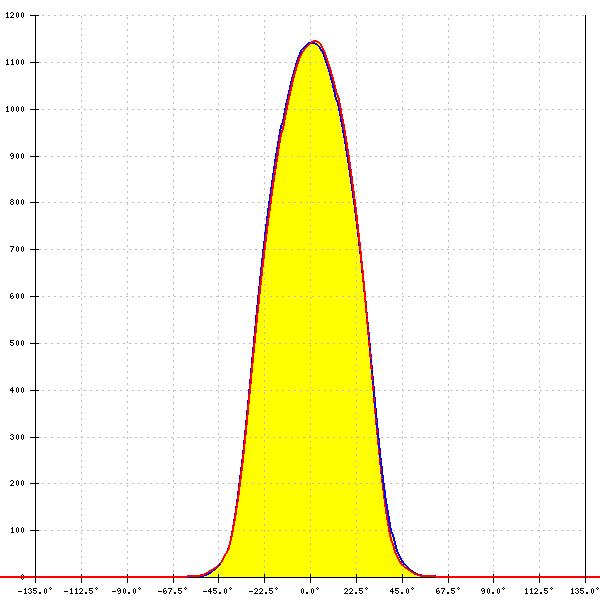

LED:
XOB 9.8 mm
LES size: 9.8 mm
Required components:
FWHM:
53°
FWTM:
77°
Peak intensity:
1.144 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

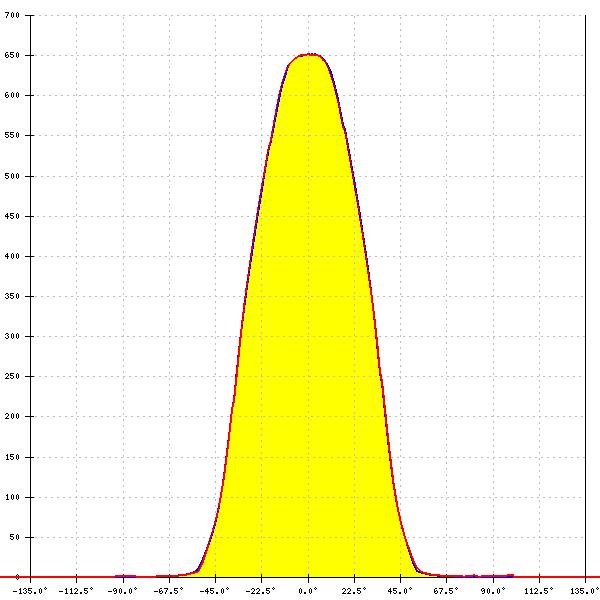

LED:
XTM - 19mm LES
LES size: 19.0 mm
Required components:
FWHM:
64°
FWTM:
91°
Peak intensity:
0.650 cd/lm
Efficiency:
66 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
