CP15774_CARMEN-S-C
Print

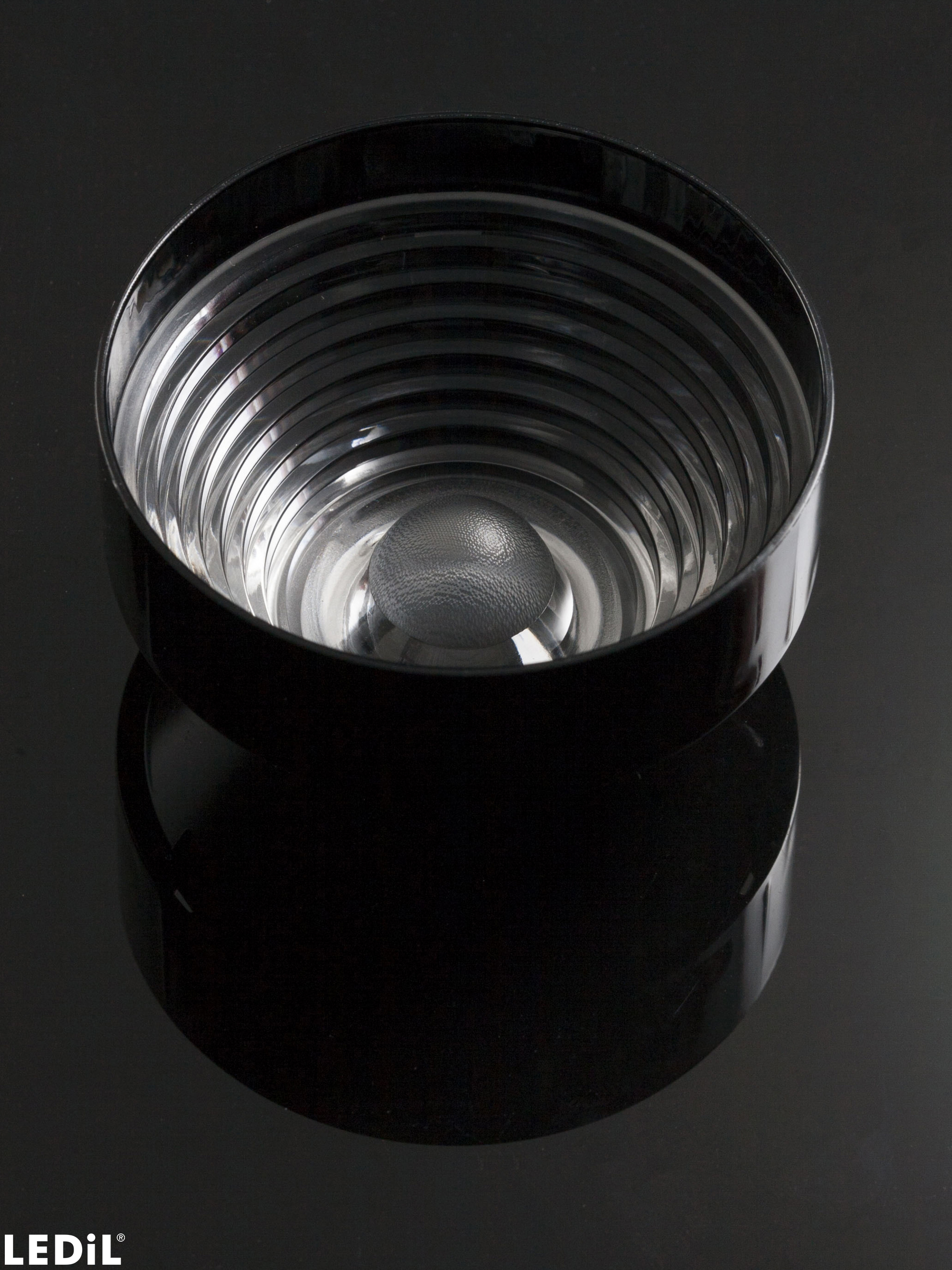

~14° spot beam. Assembly with holder C compatible with LEDiL HEKLA.
Materials
- CARMEN-S, Single lens, PMMA
- CARMEN-HLD-C, Holder, PC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

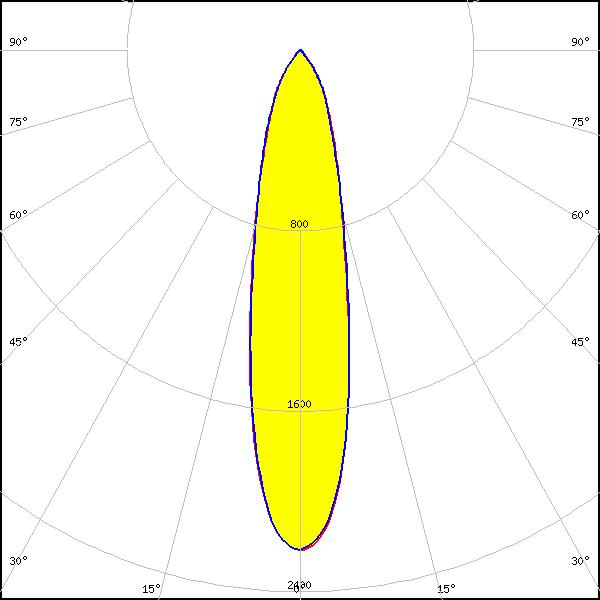

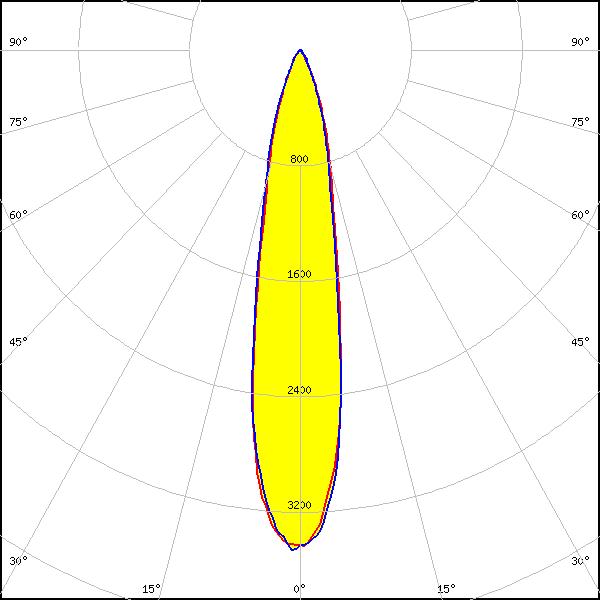

Optical results

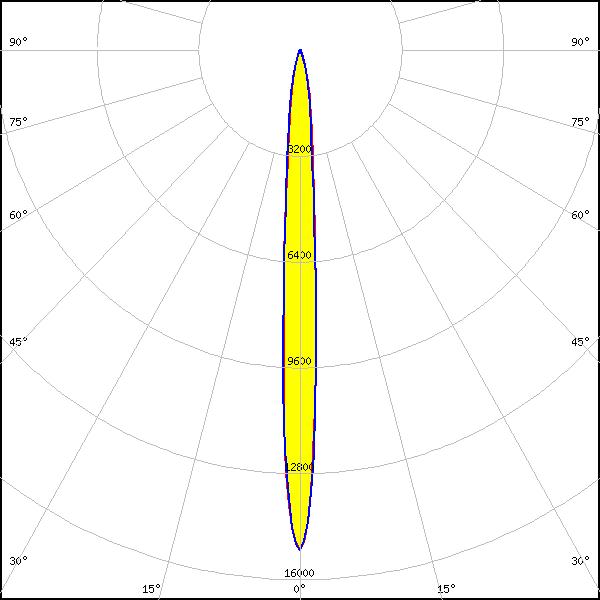

LED:
V4 HD Gen 7
LES size: 5.2 mm
Required components:
FWHM:
8°
FWTM:
23°
Peak intensity:
15.000 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White

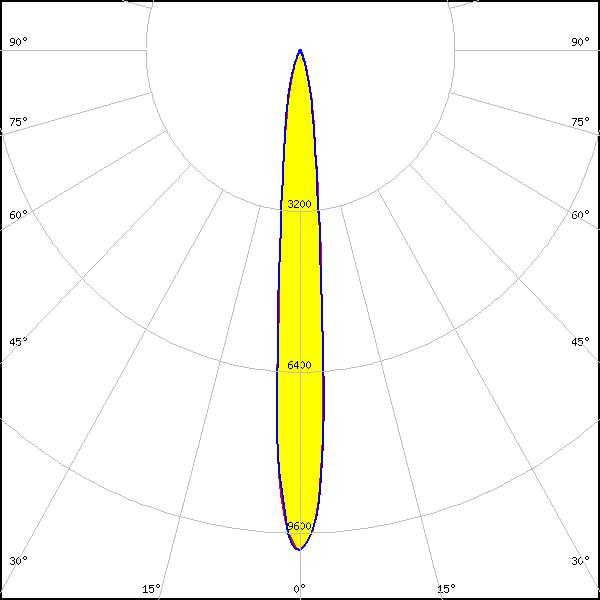

LED:
V6 HD Gen 7
LES size: 7.0 mm
Required components:
FWHM:
10°
FWTM:
28°
Peak intensity:
9.900 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

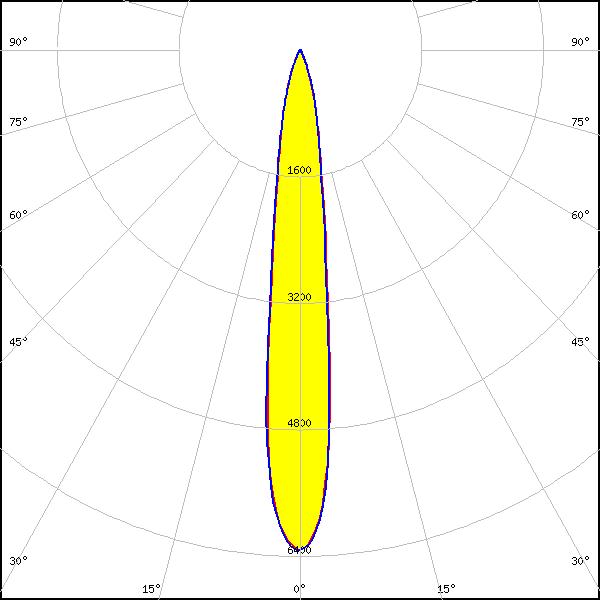

LED:
V9 HD Gen7
LES size: 9.2 mm
Required components:
FWHM:
14°
FWTM:
34°
Peak intensity:
6.300 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White
LED:

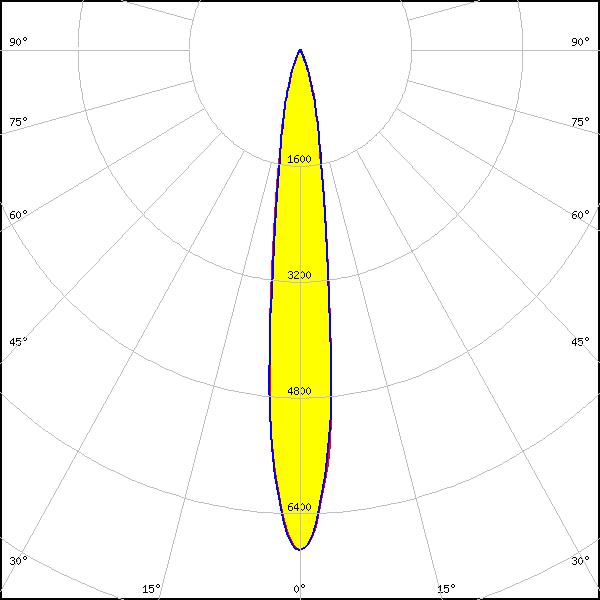

VERO10
LES size: 9.9 mm
Required components:
FWHM:
14°
FWTM:
34°
Peak intensity:
6.900 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White
LED:

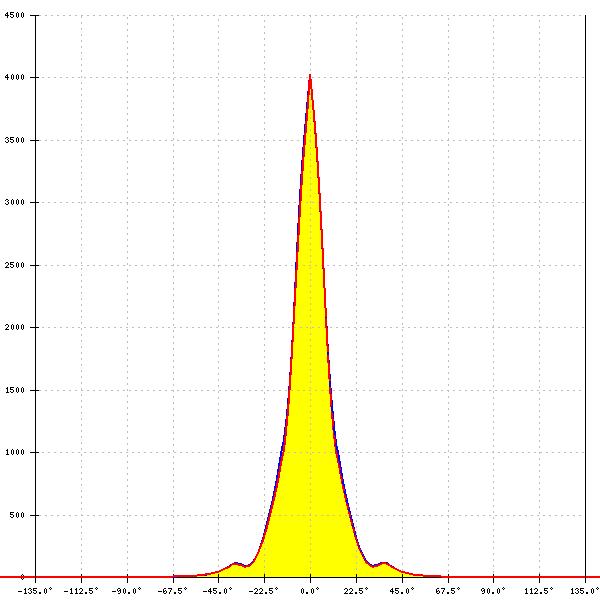

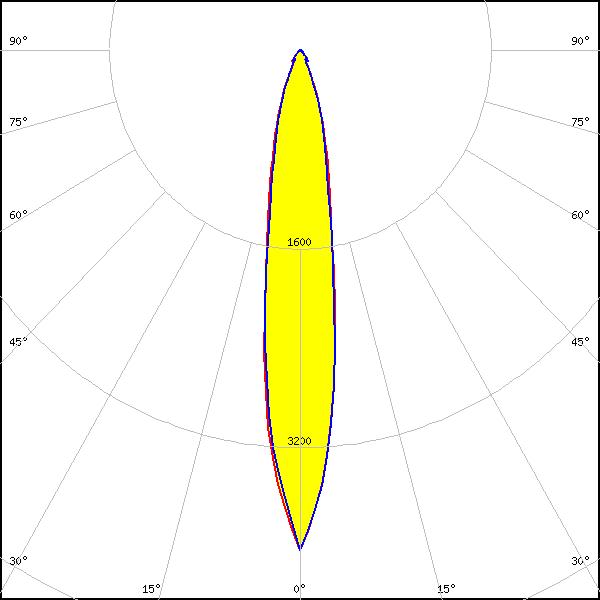

VERO13
LES size: 13.4 mm
Required components:
FWHM:
16°
FWTM:
42°
Peak intensity:
4.026 cd/lm
Efficiency:
70 %
LEDs/each optic:
1
Light colour/type:
White

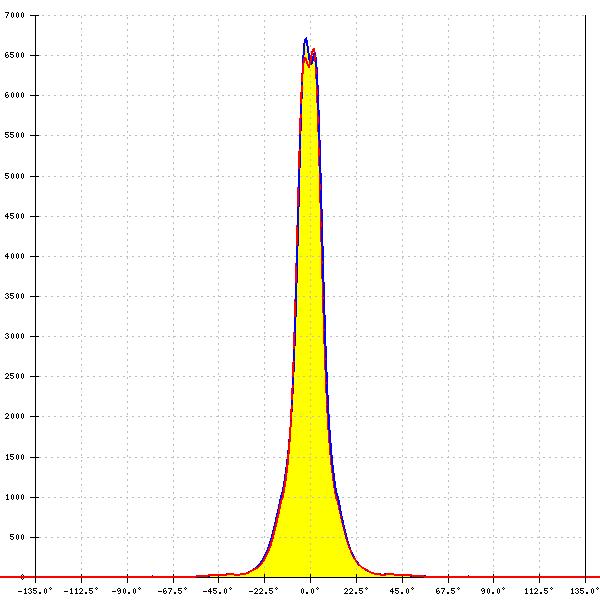

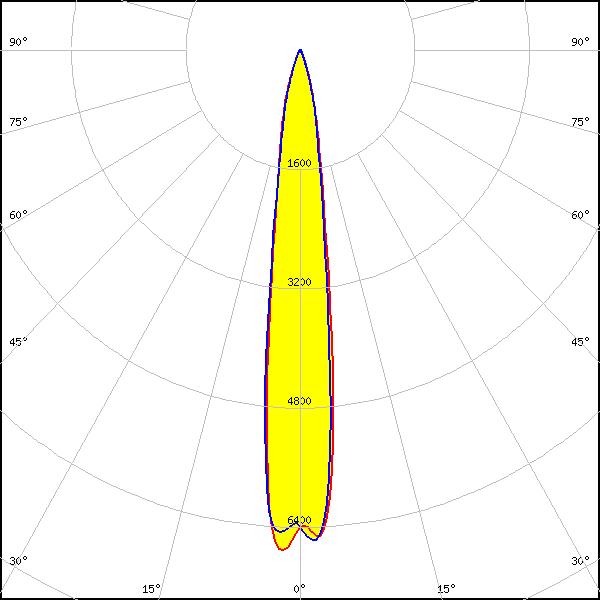

LED:
Vesta DTW 9mm (4W/6W/12W)
LES size: 9.3 mm
Required components:
FWHM:
14°
FWTM:
33°
Peak intensity:
6.800 cd/lm
Efficiency:
71 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta TW 6mm DP
LES size: 6.3 mm
Required components:
FWHM:
11°
FWTM:
27°
Peak intensity:
10.549 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta TW 9mm (9W) DP
LES size: 10.0 mm
Required components:
FWHM:
15°
FWTM:
36°
Peak intensity:
5.715 cd/lm
Efficiency:
71 %
LEDs/each optic:
1
Light colour/type:
White

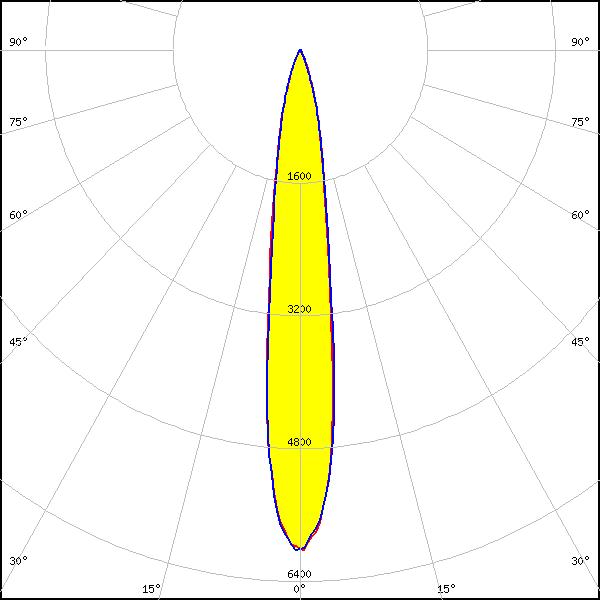

LED:

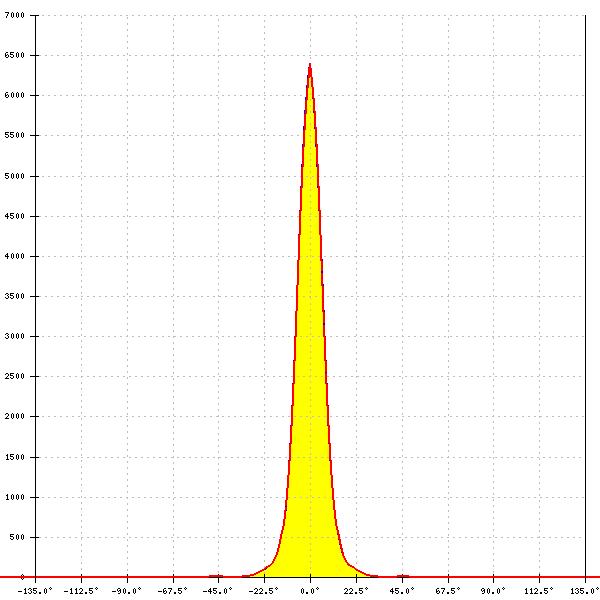

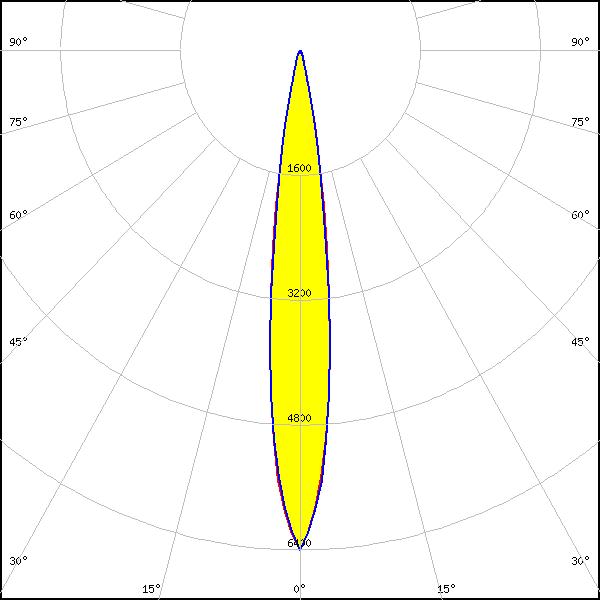

CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
14°
FWTM:
26°
Peak intensity:
6.407 cd/lm
Efficiency:
50 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
15°
FWTM:
36°
Peak intensity:
6.000 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
LED:

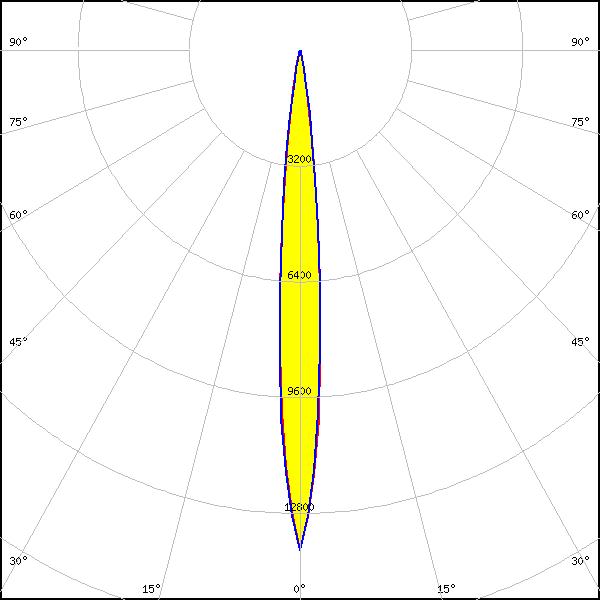

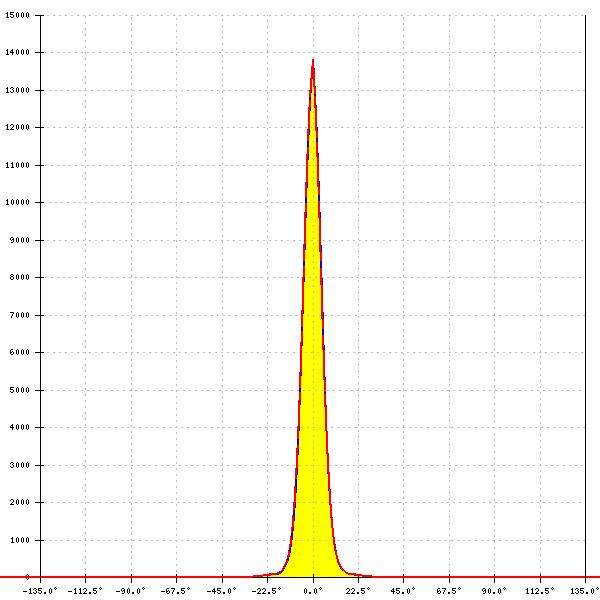

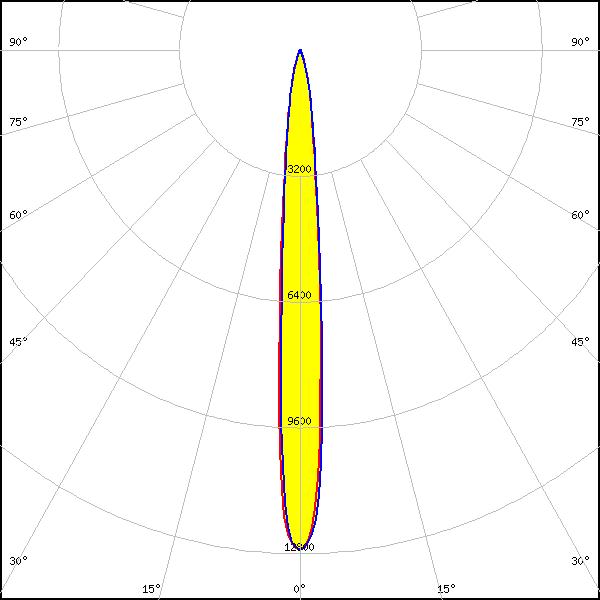

CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
10°
FWTM:
19°
Peak intensity:
13.820 cd/lm
Efficiency:
54 %
LEDs/each optic:
1
Light colour/type:
White

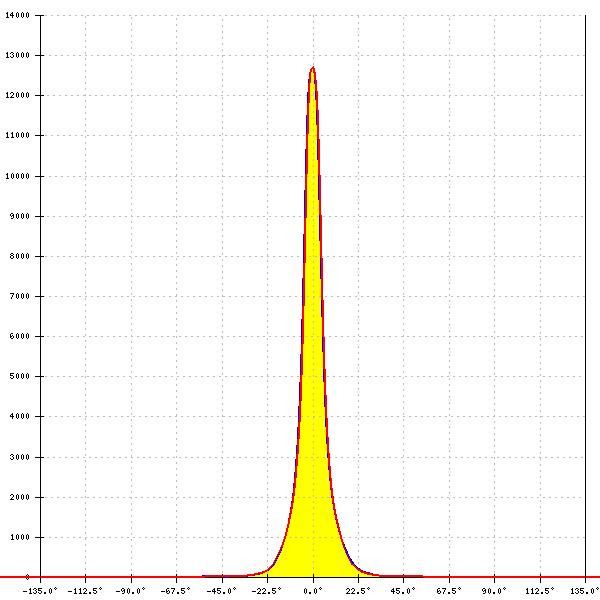

LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
10°
FWTM:
25°
Peak intensity:
12.700 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:

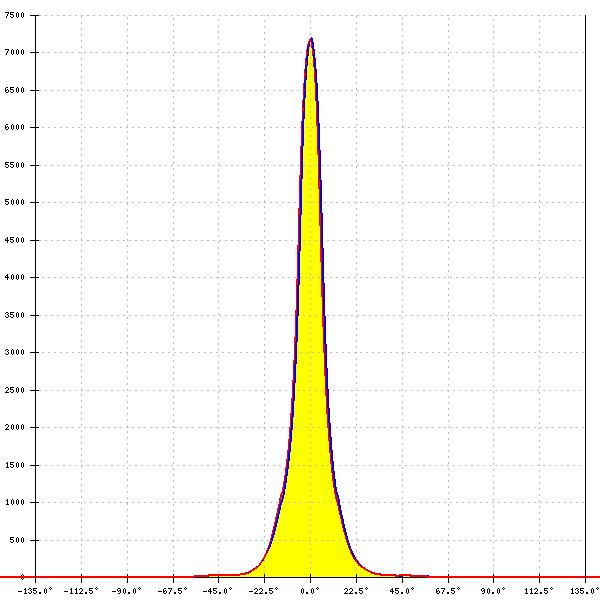

CLU710/711
LES size: 8.5 mm
Required components:
FWHM:
13°
FWTM:
33°
Peak intensity:
7.198 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White

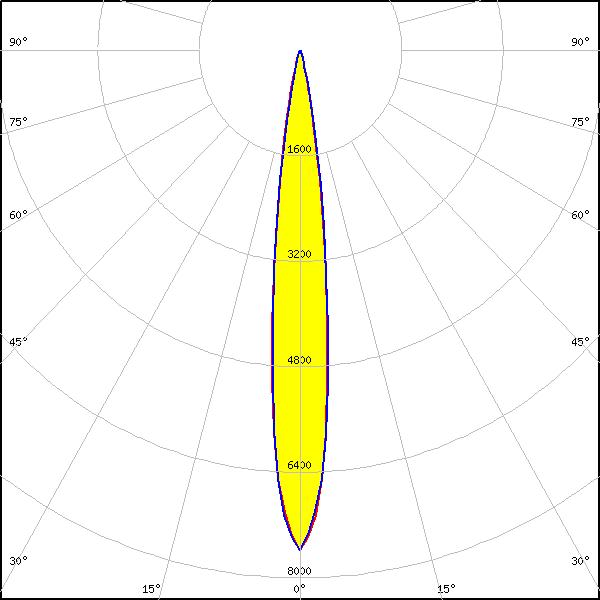

LED:

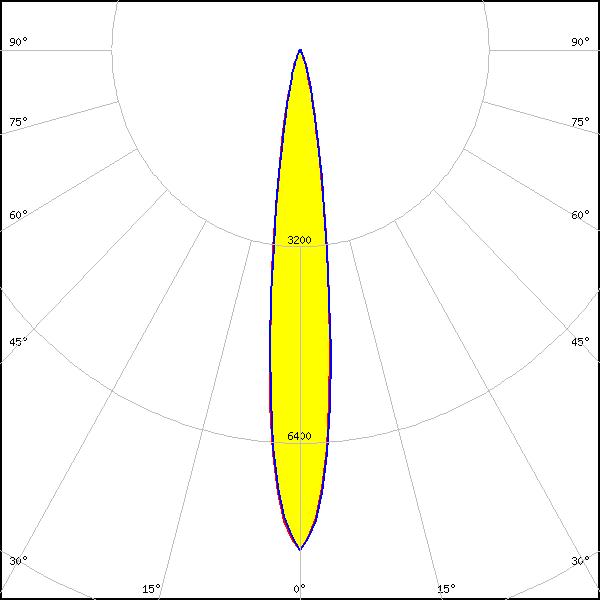

CLU712/713
LES size: 8.5 mm
Required components:
FWHM:
14°
FWTM:
30°
Peak intensity:
8.146 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

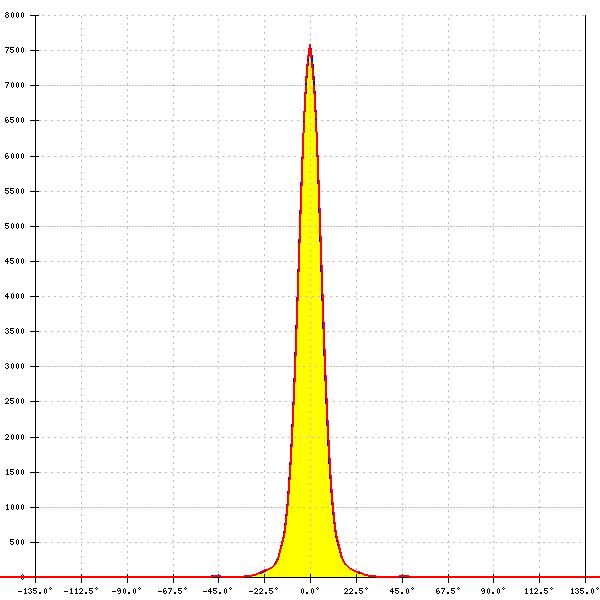

LED:
CLU712/713
LES size: 8.5 mm
Required components:
FWHM:
12°
FWTM:
24°
Peak intensity:
7.583 cd/lm
Efficiency:
51 %
LEDs/each optic:
1
Light colour/type:
White

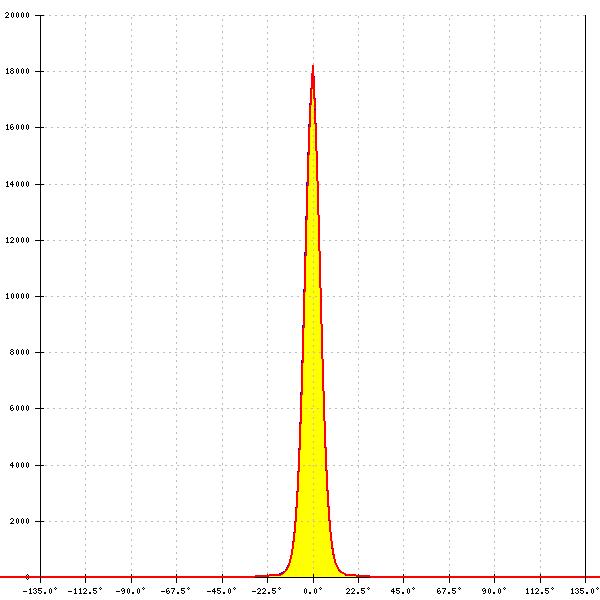

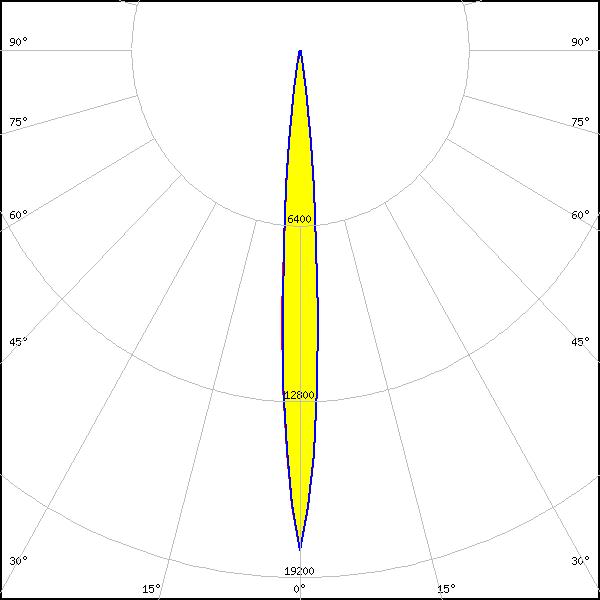

LED:

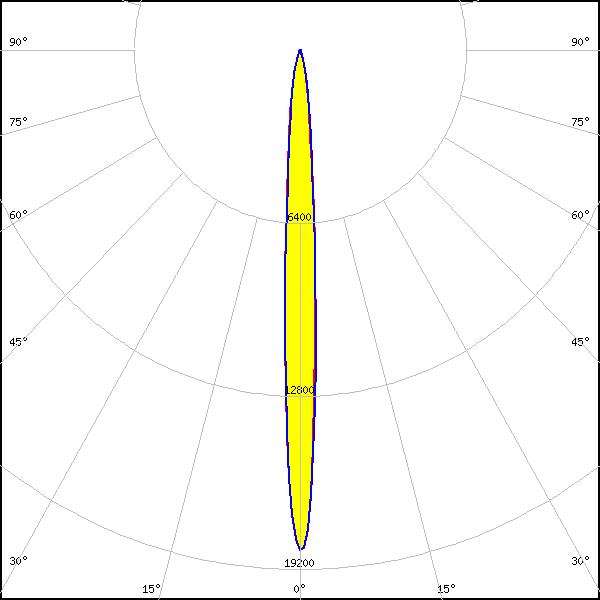

CLU7A2/7A3
LES size: 4.2 mm
Required components:
FWHM:
8°
FWTM:
16°
Peak intensity:
18.211 cd/lm
Efficiency:
55 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU7A2/7A3
LES size: 4.2 mm
Required components:
FWHM:
7°
FWTM:
20°
Peak intensity:
18.500 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:

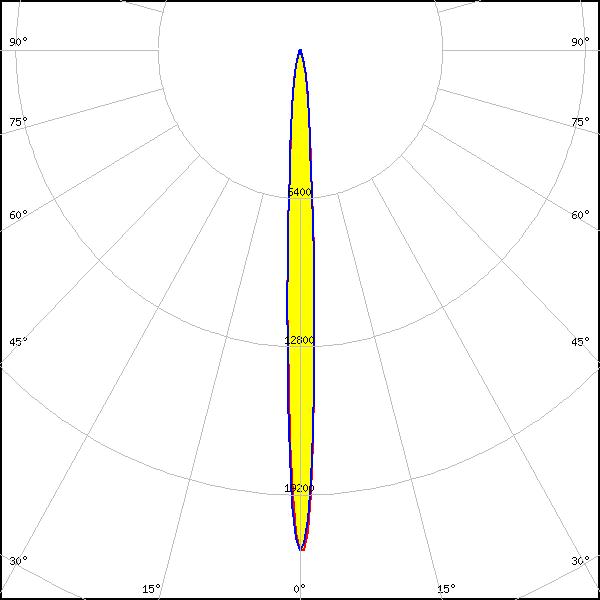

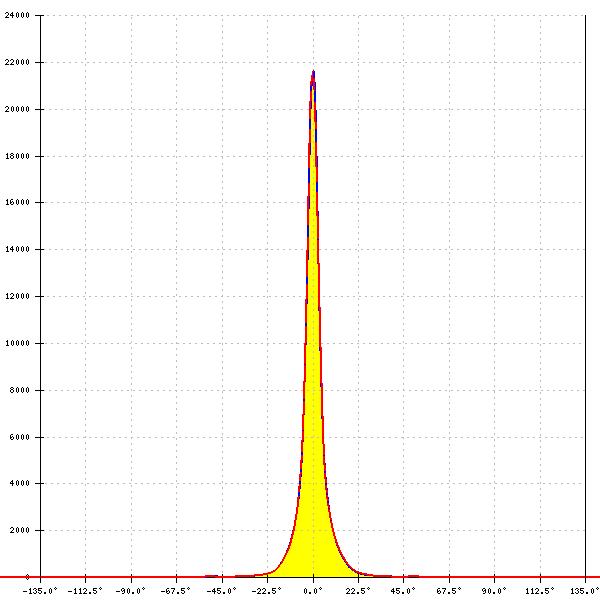

CLU7B2
LES size: 3.3 mm
Required components:
FWHM:
6°
FWTM:
19°
Peak intensity:
21.669 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

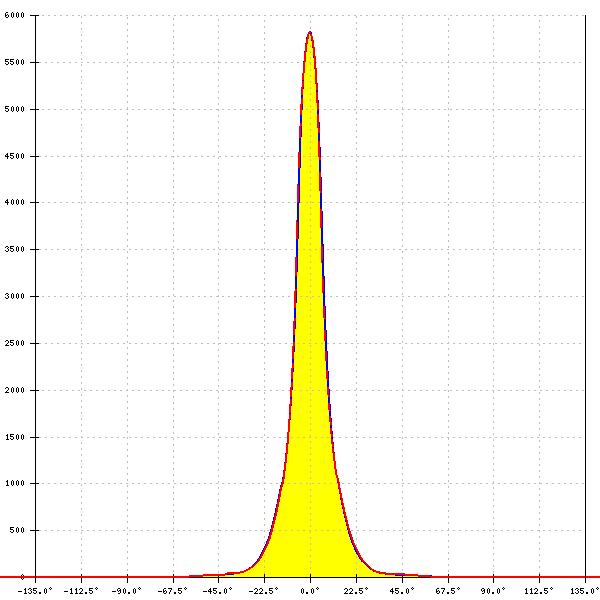

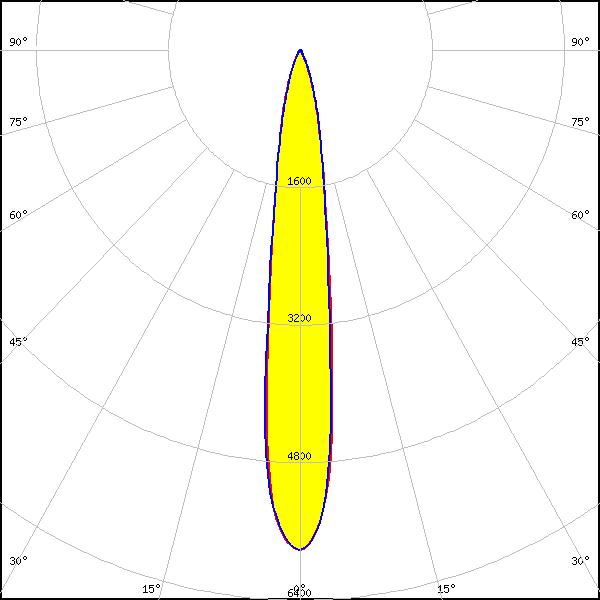

LED:
CMA1516
LES size: 9.0 mm
Required components:
FWHM:
14°
FWTM:
36°
Peak intensity:
5.800 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White
LED:

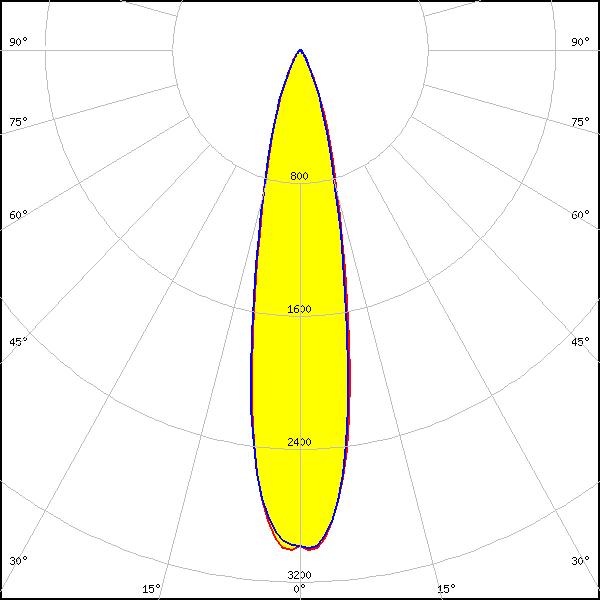

CMA1840
LES size: 14.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM:
22°
FWTM:
47°
Peak intensity:
3.012 cd/lm
Efficiency:
66 %
LEDs/each optic:
1
Light colour/type:
White
LED:

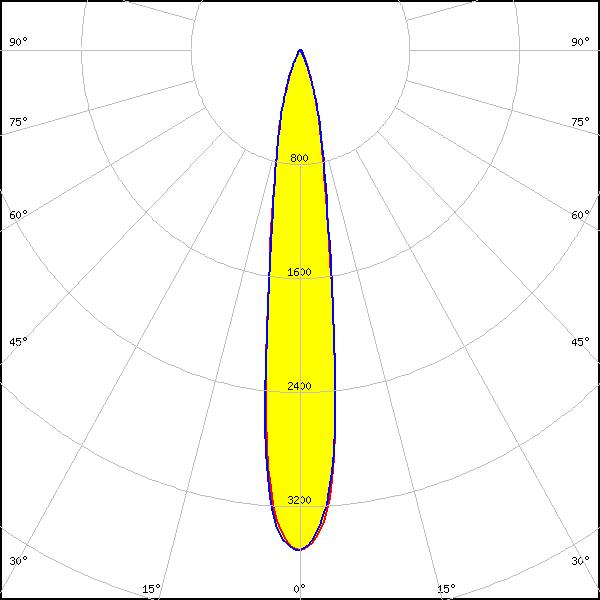

CMT14xx
LES size: 9.8 mm
Required components:
FWHM:
15°
FWTM:
37°
Peak intensity:
3.500 cd/lm
Efficiency:
48 %
LEDs/each optic:
1
Light colour/type:
White

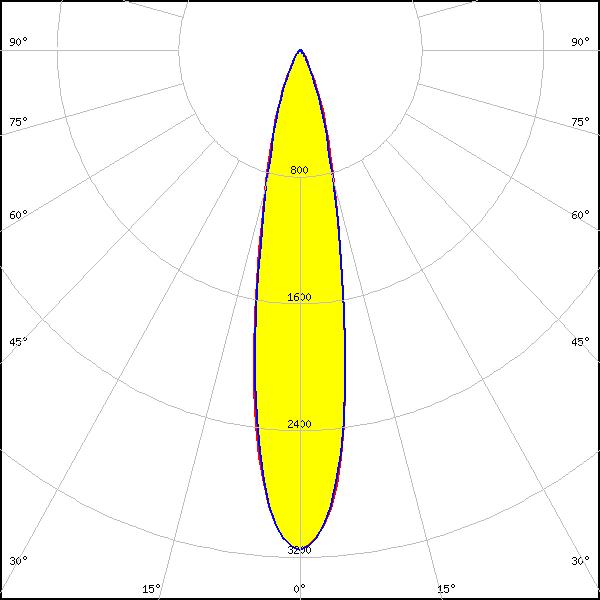

LED:
CMU15xx
LES size: 14.5 mm
Required components:
FWHM:
21°
FWTM:
46°
Peak intensity:
3.157 cd/lm
Efficiency:
65 %
LEDs/each optic:
1
Light colour/type:
White

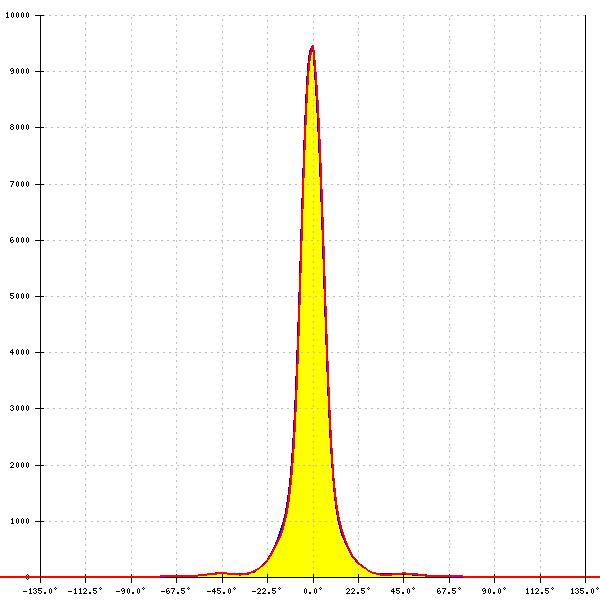

LED:

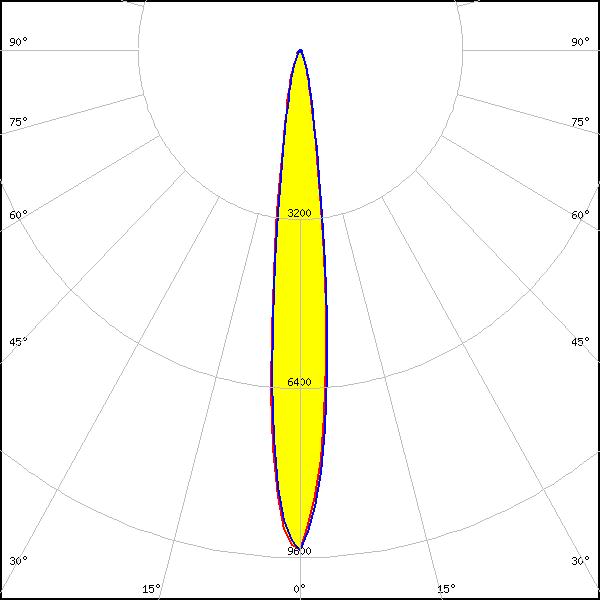

CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
13°
FWTM:
28°
Peak intensity:
9.460 cd/lm
LEDs/each optic:
1
Light colour/type:
White
LED:

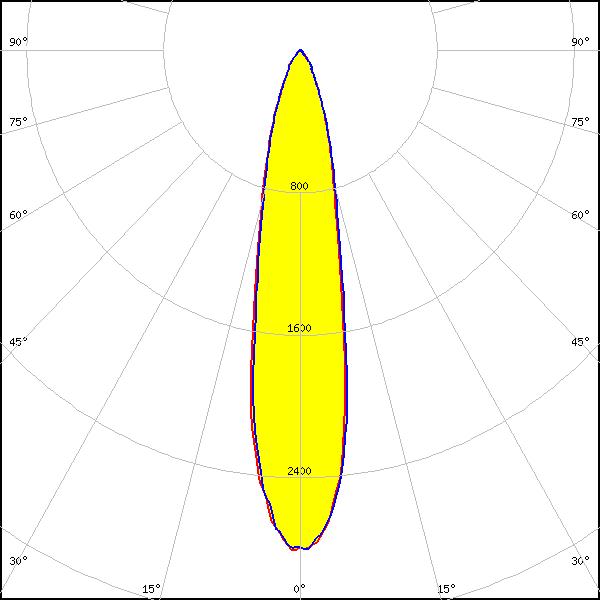

LUXEON CX Plus CoB L08 (Gen2)
LES size: 14.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM:
21°
FWTM:
50°
Peak intensity:
2.808 cd/lm
Efficiency:
67 %
LEDs/each optic:
1
Light colour/type:
White
LED:

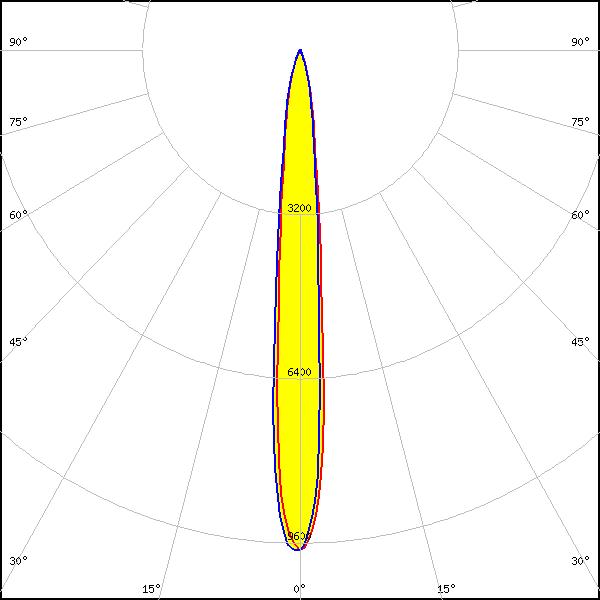

LUXEON CoB 1202HD
LES size: 6.5 mm
Required components:
FWHM:
10°
FWTM:
28°
Peak intensity:
9.800 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

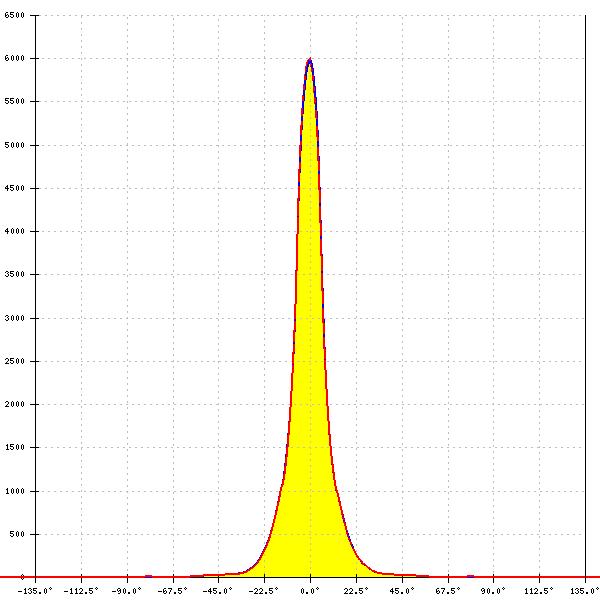

LED:

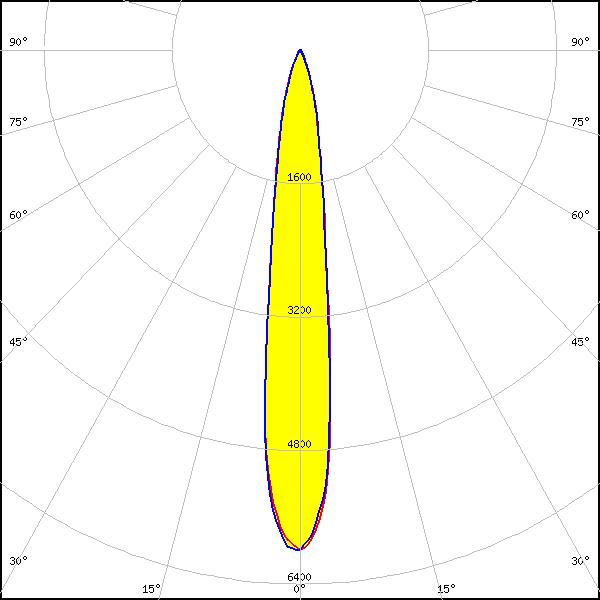

LUXEON CoB 1204HD
LES size: 9.0 mm
Required components:
FWHM:
14°
FWTM:
35°
Peak intensity:
6.000 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White
LED:

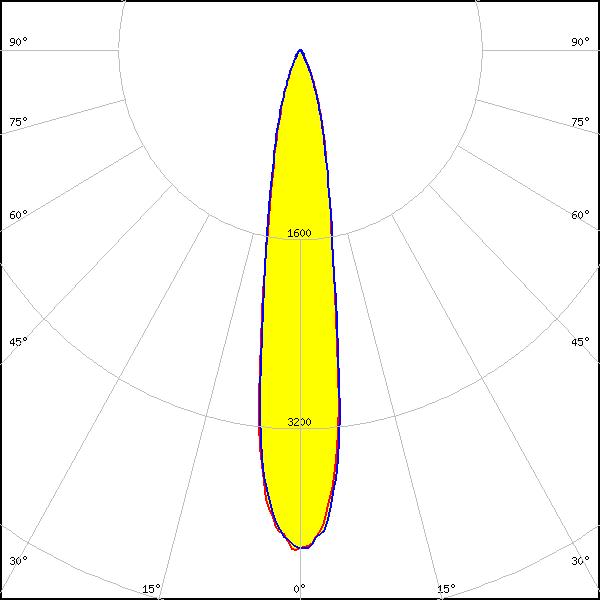

LUXEON CoB 1205HD
LES size: 11.0 mm
Required components:
FWHM:
17°
FWTM:
41°
Peak intensity:
4.200 cd/lm
Efficiency:
69 %
LEDs/each optic:
1
Light colour/type:
White

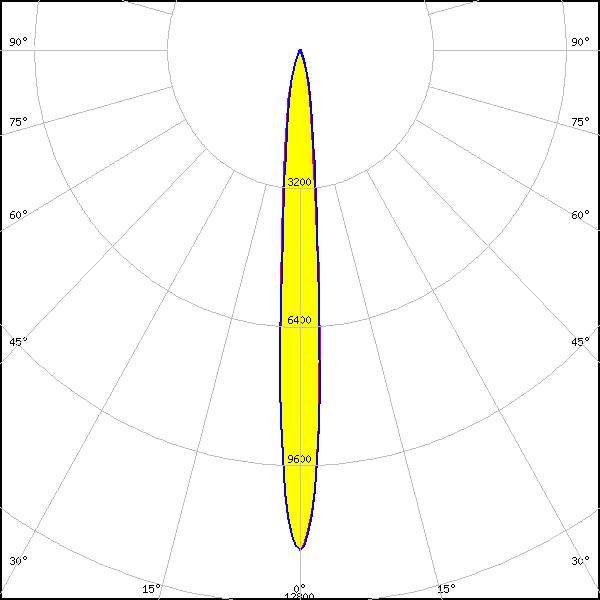

LED:
LUXEON CX Plus CoB - HD S01H4
LES size: 4.5 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
9°
FWTM:
26°
Peak intensity:
11.555 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

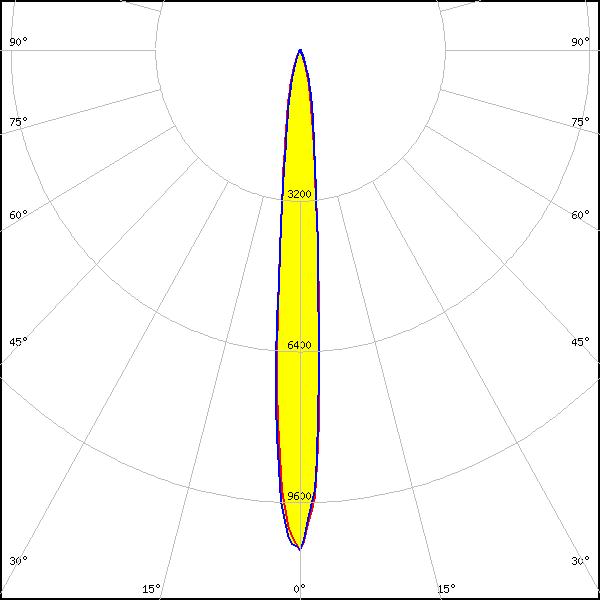

LED:
LUXEON CX Plus CoB - HD S02H6
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
10°
FWTM:
26°
Peak intensity:
10.613 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White
LED:

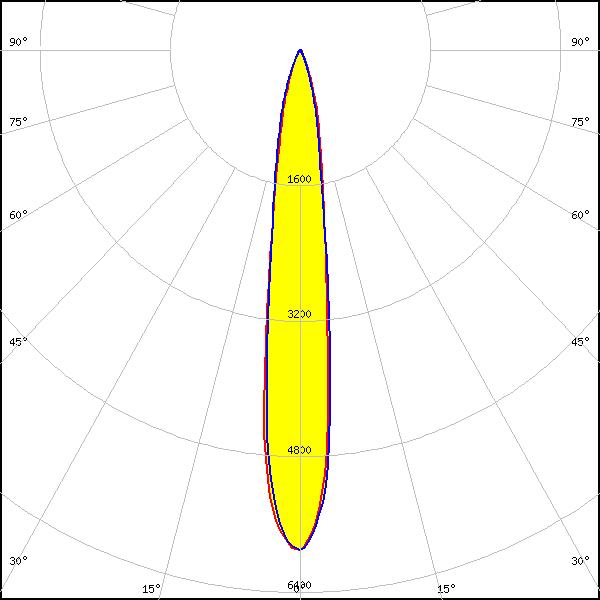

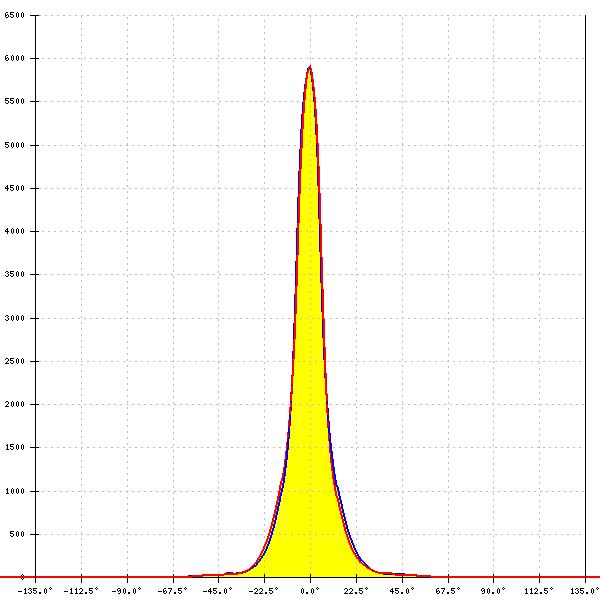

LUXEON CX Plus CoB - HD S04H9
LES size: 9.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
14°
FWTM:
36°
Peak intensity:
5.904 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB L04 / L05 (Gen2)
LES size: 12.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM:
18°
FWTM:
42°
Peak intensity:
4.103 cd/lm
Efficiency:
69 %
LEDs/each optic:
1
Light colour/type:
White

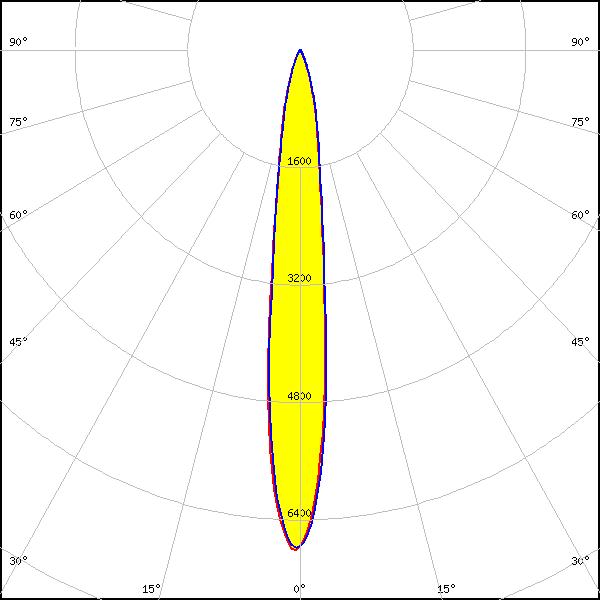

LED:
LUXEON CX Plus CoB M02 / M03 (Gen2)
LES size: 9.0 mm
Required components:
Bender Wirth: 641a Hekla
FWHM:
13°
FWTM:
33°
Peak intensity:
6.819 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White

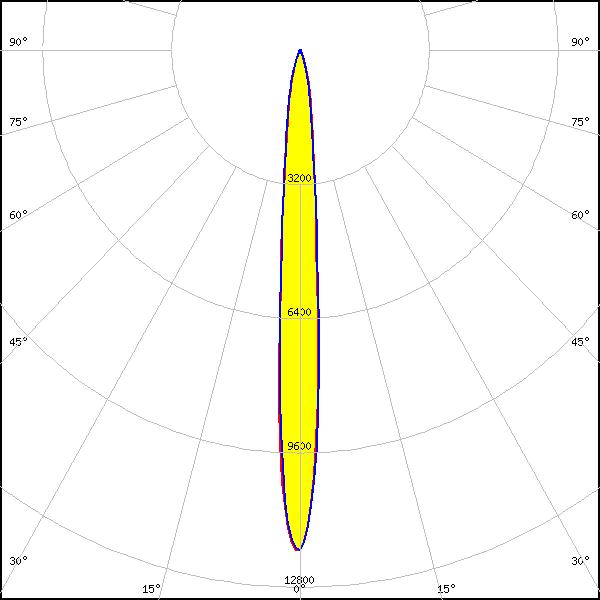

LED:

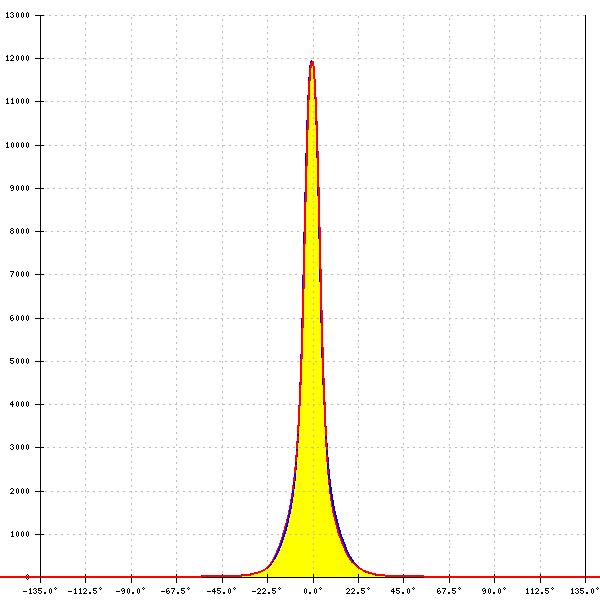

LUXEON CX Plus CoB S01 (Gen2)
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
9°
FWTM:
25°
Peak intensity:
11.927 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White

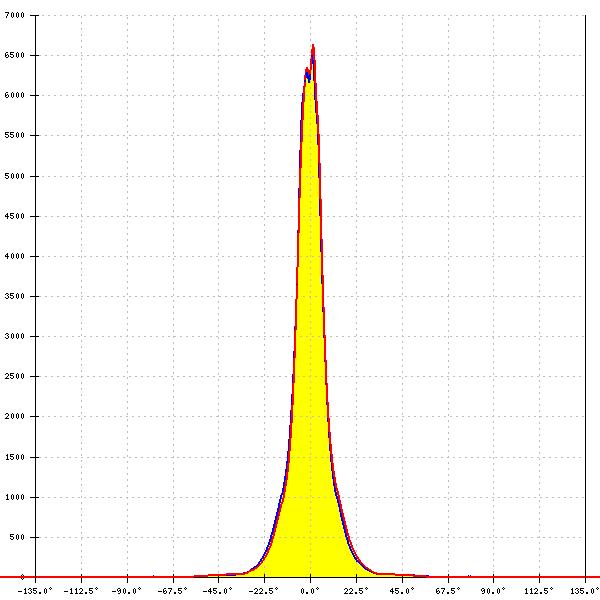

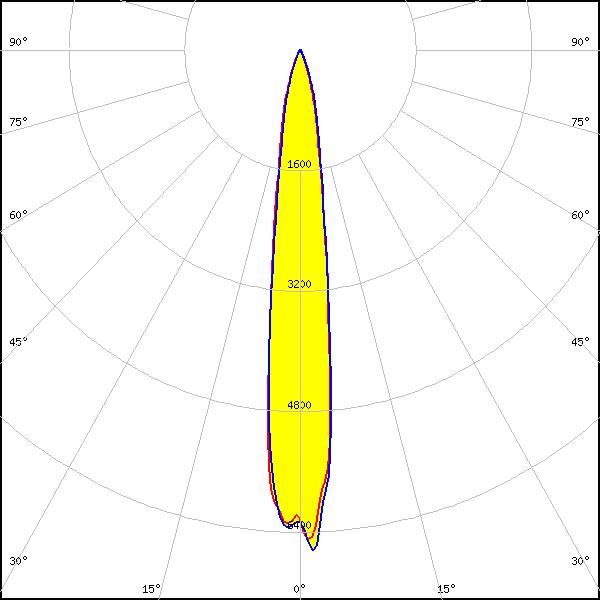

LED:
CDM-9 (Dim-To-Warm)
LES size: 9.5 mm
Required components:
FWHM:
14°
FWTM:
33°
Peak intensity:
6.700 cd/lm
Efficiency:
71 %
LEDs/each optic:
1
Light colour/type:
White

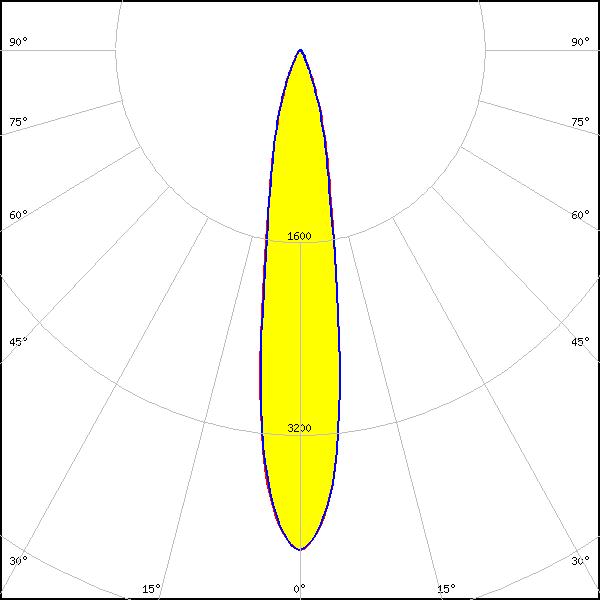

LED:

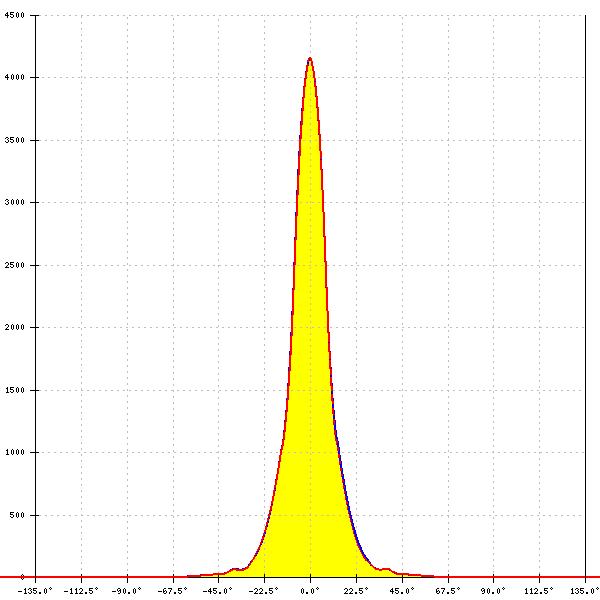

CxM-11 (19x19)
LES size: 11.7 mm
Required components:
FWHM:
18°
FWTM:
42°
Peak intensity:
4.161 cd/lm
Efficiency:
70 %
LEDs/each optic:
1
Light colour/type:
White
LED:

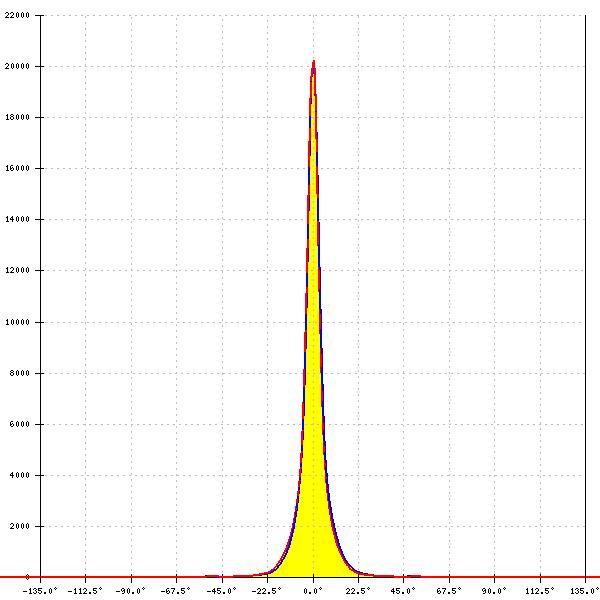

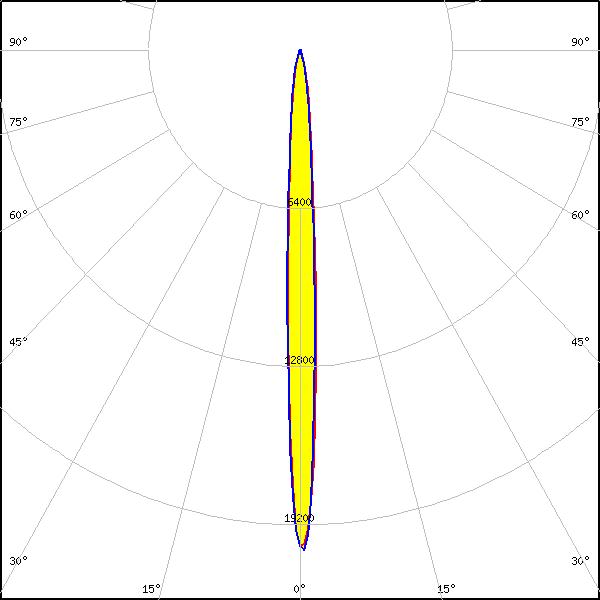

CXM-3
LES size: 3.5 mm
Required components:
FWHM:
7°
FWTM:
19°
Peak intensity:
20.239 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

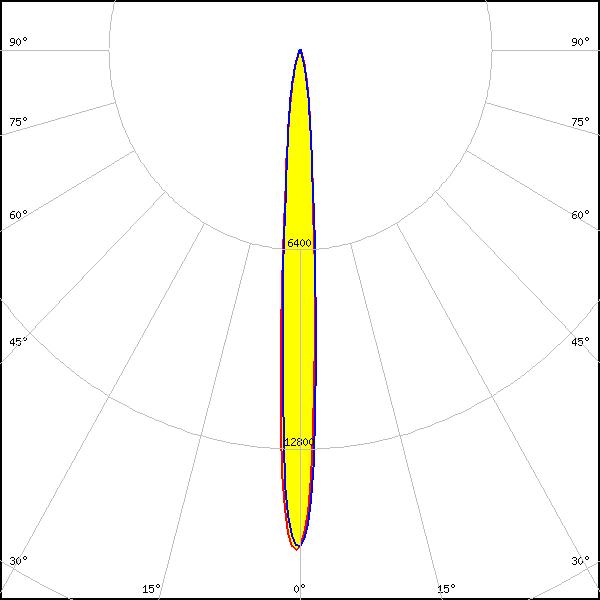

LED:
CXM-4
LES size: 4.5 mm
Required components:
FWHM:
8°
FWTM:
22°
Peak intensity:
16.046 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White

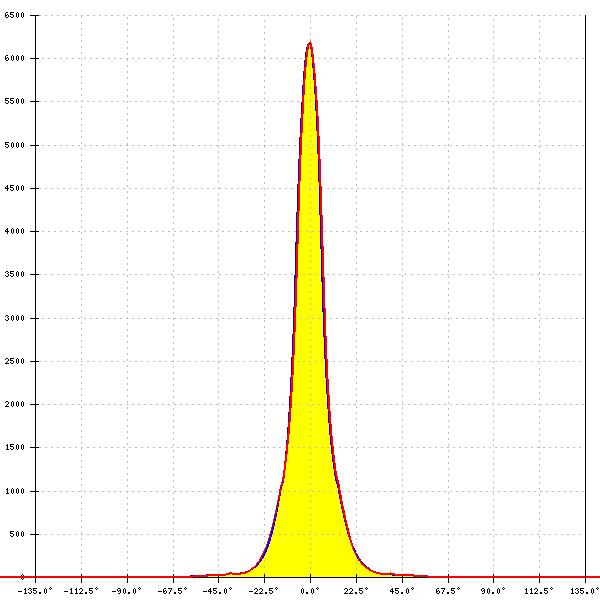

LED:

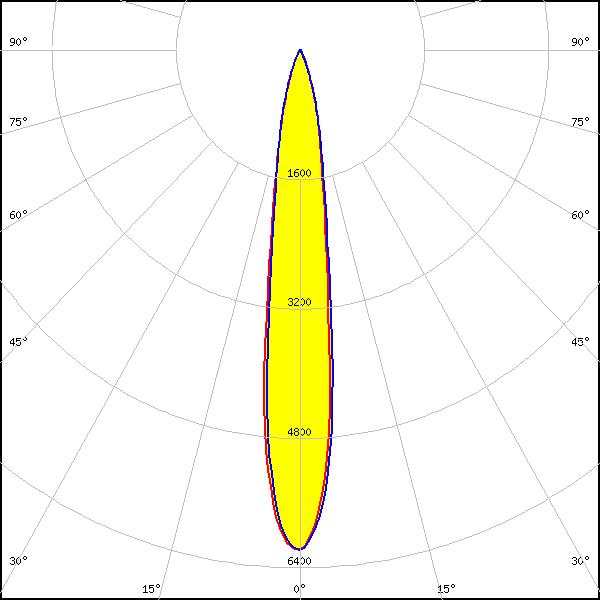

CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM:
15°
FWTM:
35°
Peak intensity:
6.200 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB T-Type
LES size: 5.9 mm
Required components:
FWHM:
11°
FWTM:
24°
Peak intensity:
12.740 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White

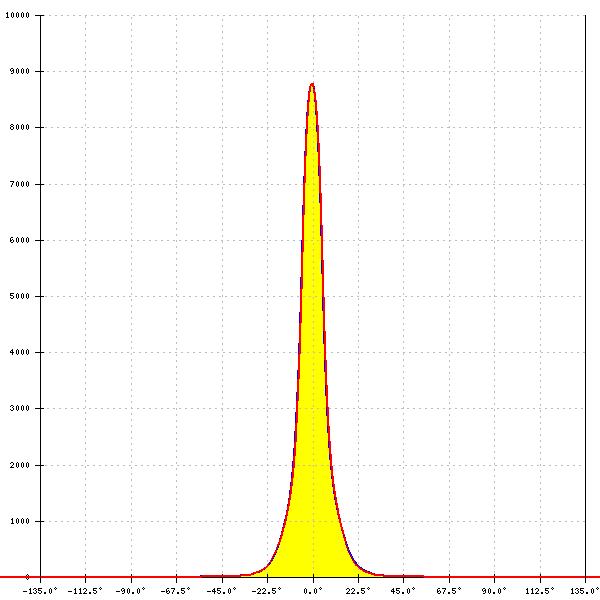

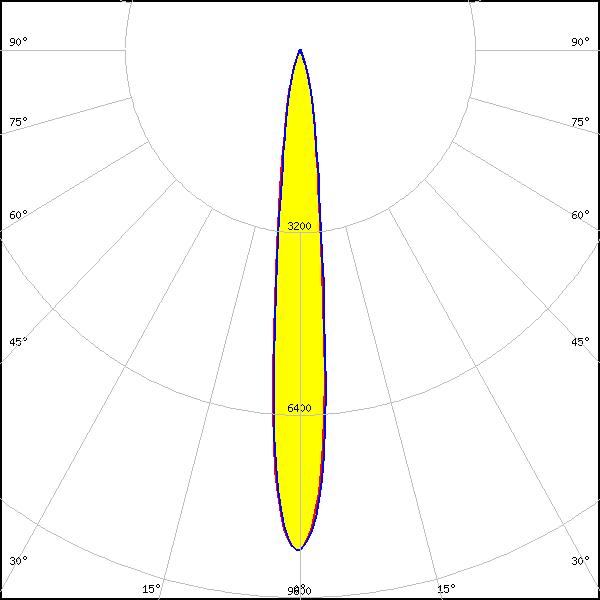

LED:
NJCWL024Z-V1MT: COB L-Type Tunable White
LES size: 7.0 mm
Required components:
FWHM:
12°
FWTM:
29°
Peak intensity:
8.800 cd/lm
Efficiency:
71 %
LEDs/each optic:
1
Light colour/type:
White

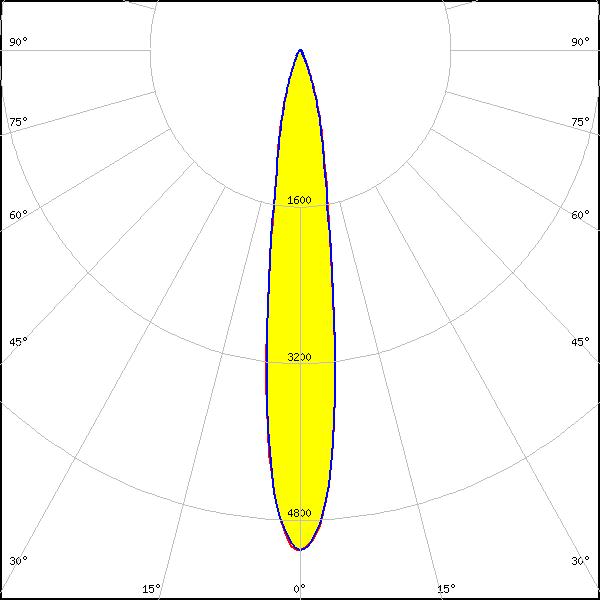

LED:
NVCWJ024Z-V1MT: COB J-Type Tunable White
LES size: 10.6 mm
Required components:
FWHM:
16°
FWTM:
37°
Peak intensity:
5.100 cd/lm
Efficiency:
69 %
LEDs/each optic:
1
Light colour/type:
White

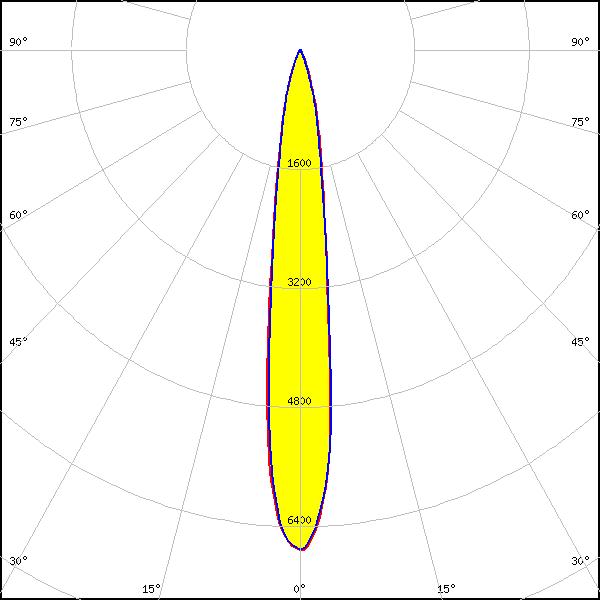

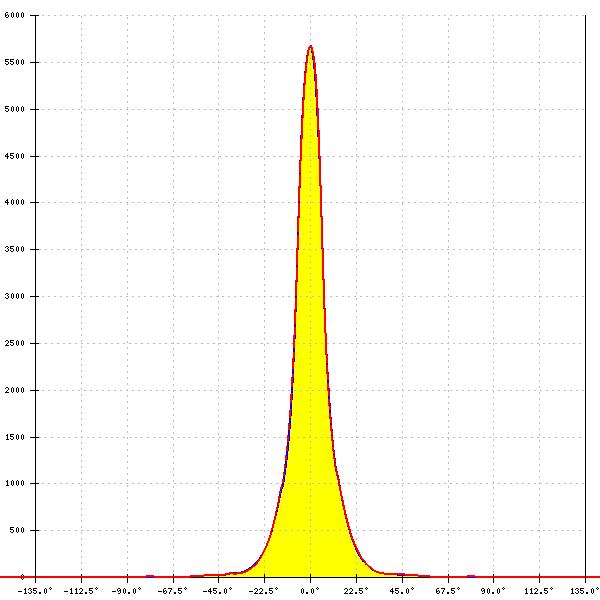

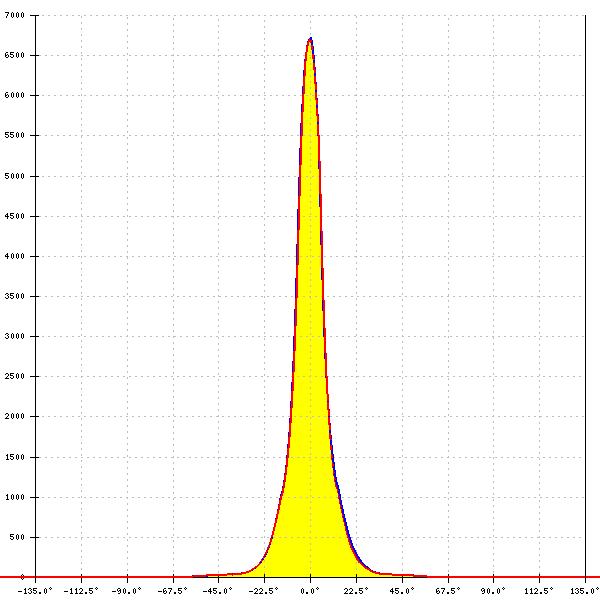

LED:

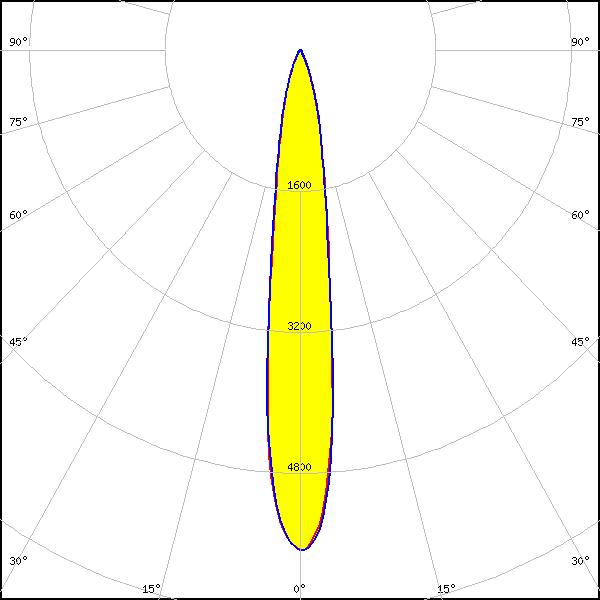

Fortimo SLM L09 CoB
LES size: 9.0 mm
Required components:
FWHM:
15°
FWTM:
36°
Peak intensity:
5.700 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White

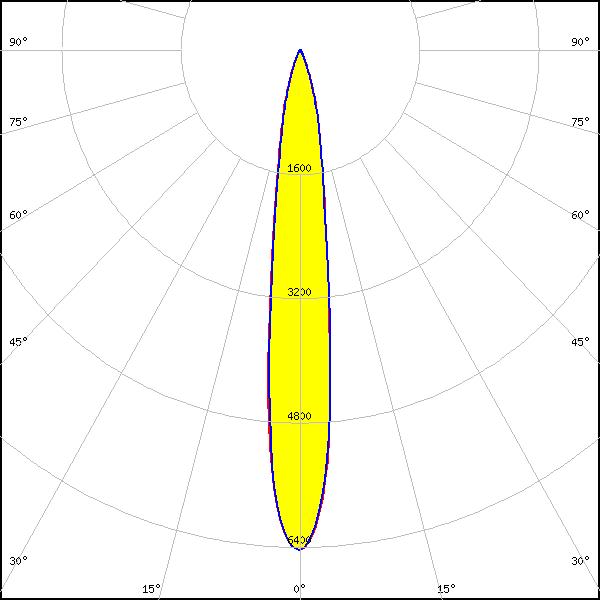

LED:
LC003D / LC006D / LC009D / LC013D
LES size: 9.8 mm
Required components:
FWHM:
15°
FWTM:
36°
Peak intensity:
6.000 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
LED:

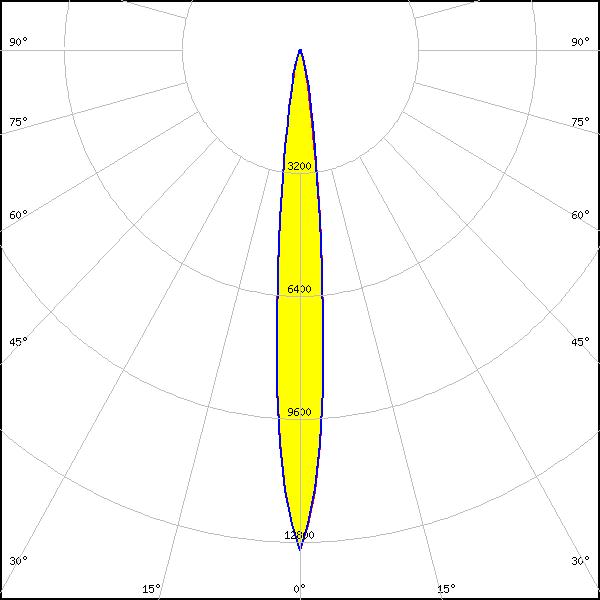

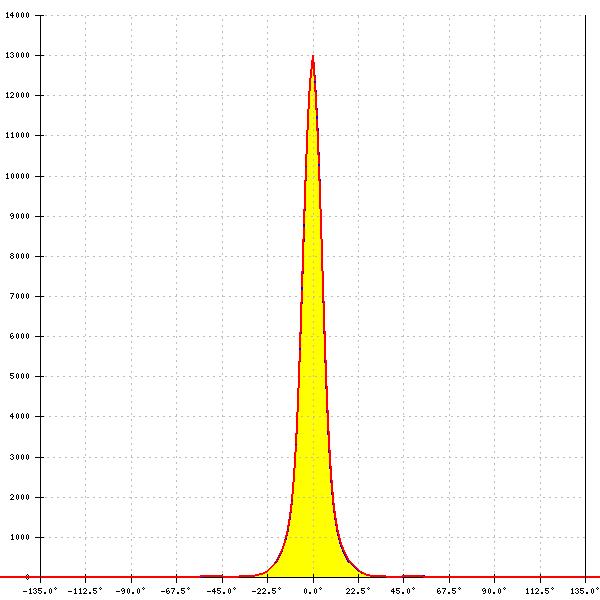

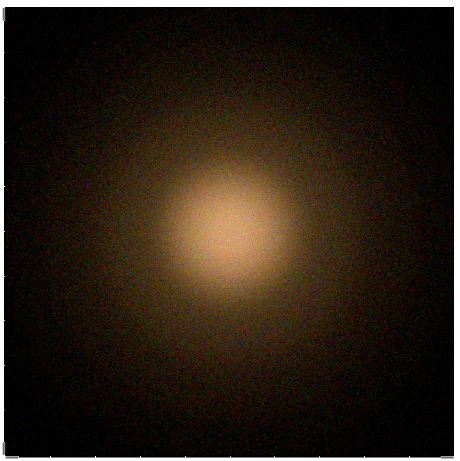

LC010C
LES size: 6.0 mm
Required components:
FWHM:
11°
FWTM:
24°
Peak intensity:
13.013 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White

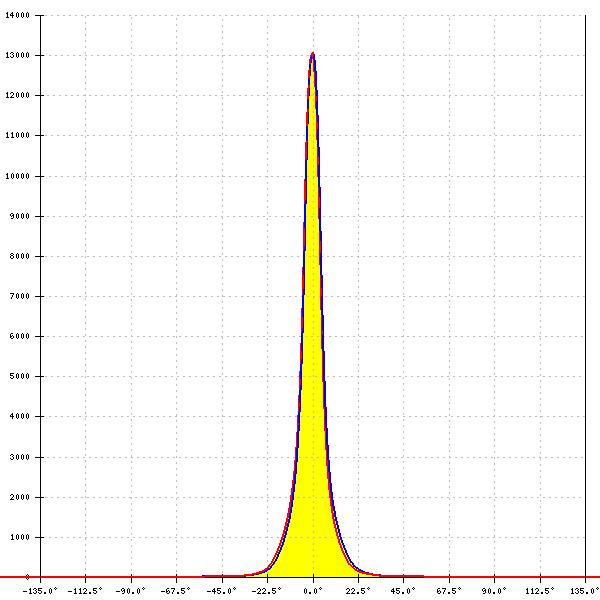

LED:

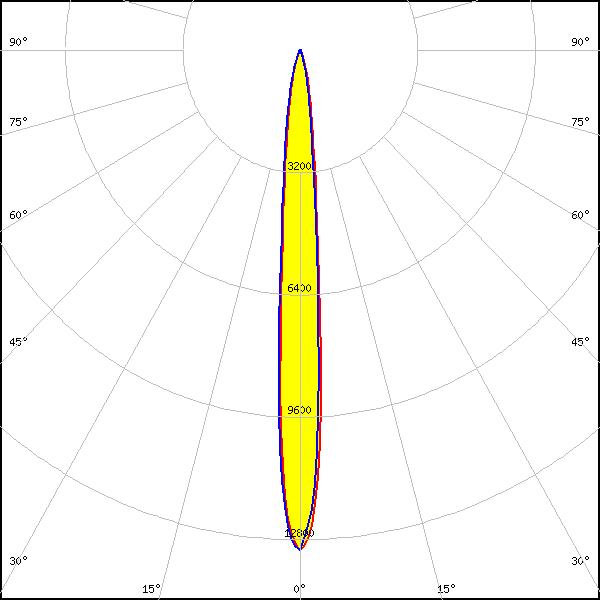

LC010C G2
LES size: 6.0 mm
Required components:
FWHM:
9°
FWTM:
24°
Peak intensity:
13.100 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:

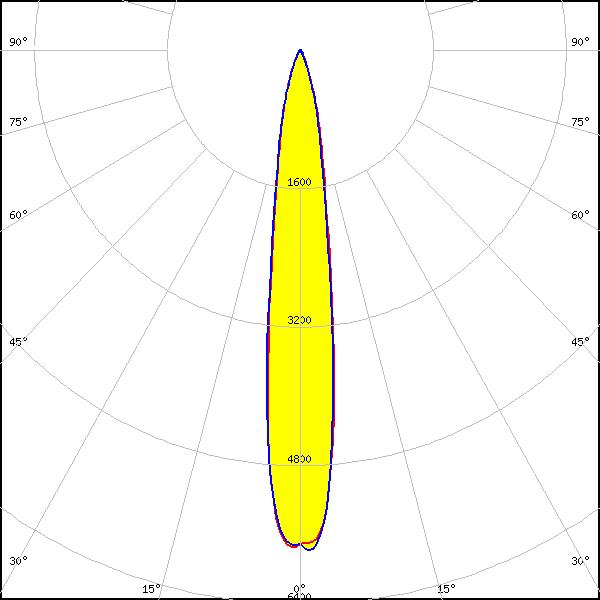

LC010T (Tunable White)
LES size: 9.8 mm
Required components:
FWHM:
15°
FWTM:
35°
Peak intensity:
5.794 cd/lm
Efficiency:
71 %
LEDs/each optic:
1
Light colour/type:
Tunable White

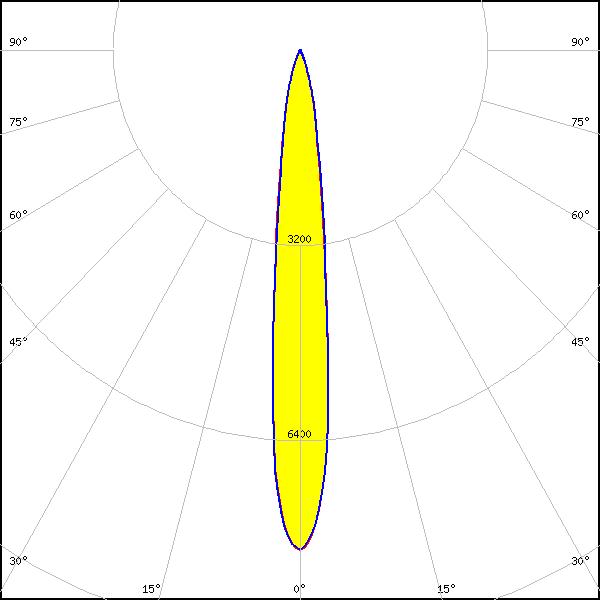

LED:
LC020C
LES size: 8.0 mm
Required components:
FWHM:
12°
FWTM:
31°
Peak intensity:
8.200 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC020C G2
LES size: 8.5 mm
Required components:
FWHM:
14°
FWTM:
33°
Peak intensity:
6.900 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White

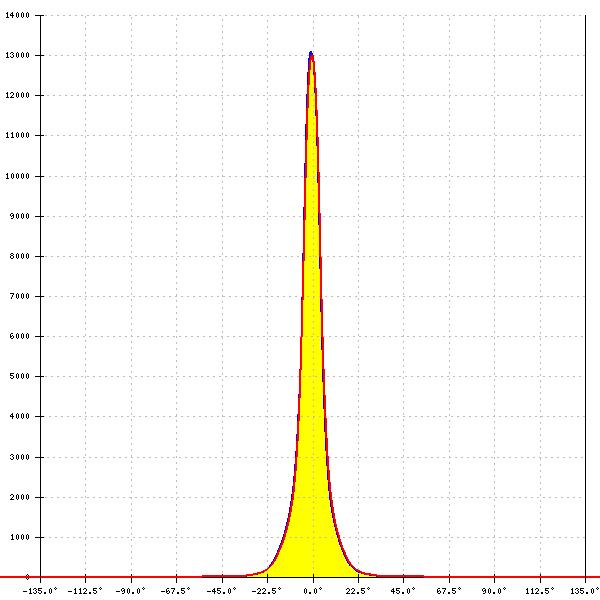

LED:

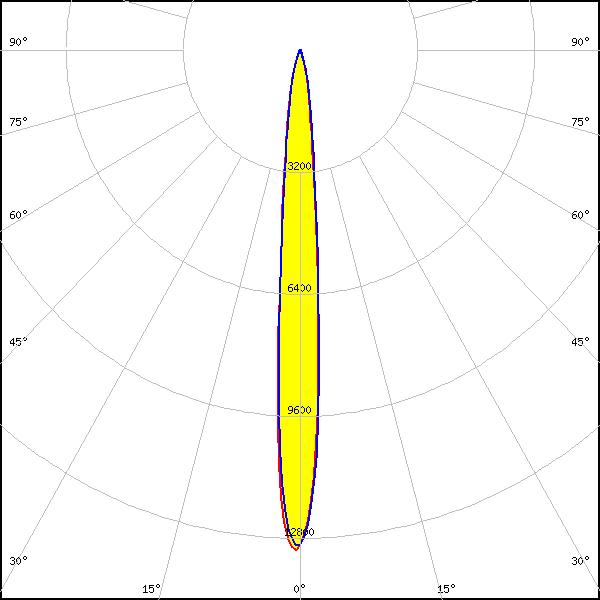

MJT COB LES 6
LES size: 6.0 mm
Required components:
FWHM:
9°
FWTM:
23°
Peak intensity:
13.100 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White
LED:

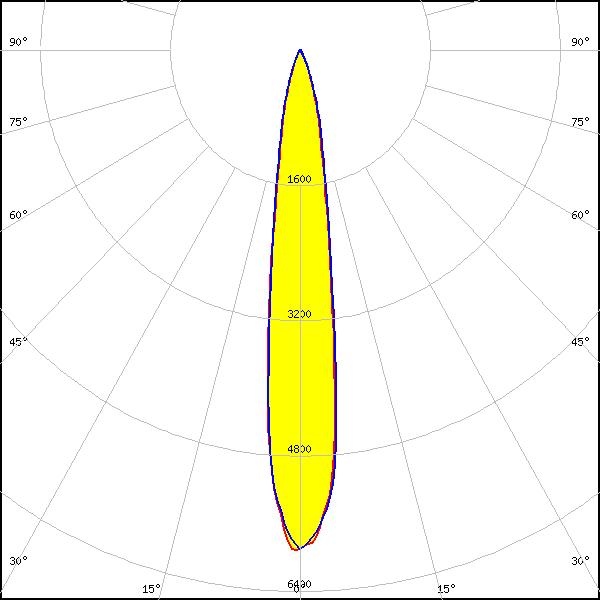

MJT COB LES 9.8
LES size: 9.8 mm
Required components:
FWHM:
15°
FWTM:
35°
Peak intensity:
5.900 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES09
LES size: 9.0 mm
Required components:
FWHM:
14°
FWTM:
34°
Peak intensity:
6.700 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES13
LES size: 13.0 mm
Required components:
FWHM:
20°
FWTM:
45°
Peak intensity:
3.500 cd/lm
Efficiency:
69 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XOB 6 mm
LES size: 6.0 mm
Required components:
FWHM:
10°
FWTM:
26°
Peak intensity:
11.379 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XOB 9.8 mm
LES size: 9.8 mm
Required components:
FWHM:
14°
FWTM:
35°
Peak intensity:
6.440 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XTM - 19mm LES
LES size: 19.0 mm
Required components:
FWHM:
23°
FWTM:
60°
Peak intensity:
2.200 cd/lm
Efficiency:
66 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
