CP15341_FLORENTINA-HLD-O-WAS

Oval beam for wall-washing

Specification

Dimensions:

19 x 287 mm
Height:

9.70 mm
Fastening:

screw
Colour:

black
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Component Materials

TINA2-O-WAS
Single lens
PMMA
FLORENTINA-HLD
Holder
PC
Request material files from Tech Support

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information

Quantity in box:

160 pcs
Box size:

398 x 298 x 140 mm
Box weight:

3.0 kg
MPQ:

16 pcs
MOQ:

32 pcs
MOQ size:

400 x 300 x 50 mm
MOQ weight:

1.0 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
Request a 3D mechanical model

Request a 3D mechanical model: CP15341_FLORENTINA-HLD-O-WAS

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PRODUCT NAME(S):

CP15341_FLORENTINA-HLD-O-WAS

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

FIND A DISTRIBUTOR

ORDER ONLINE

Related Content

User and installation guide

General guide to LEDiL optics

PCN

Product change notification NR146 - Change of Florentina holder designs

PCN

Product change notification NR196 - Additional Optical PMMA material grade approved

PCN

Product change notification NR178 - Additional PMMA material approved

PCN

Product change notification NR174 - Additional PMMA material approved

Compatibility guide

FLORENTINA Assemblies

Application guide

Guide for Office Lighting Optics

News

Effective fashion retail lighting

Article

Understanding the standards but aiming higher

Article

Stylish yet functional LED office lighting

News

PRODUCT NEWS - FLORENTINA-OPEN

Application area

Indoor Architectural Lighting

Application area

Office Lighting

Application area

Retail Lighting

AVAILABLE LEDiL ACCESSORIES

FLORENCE-1R-CLIP-A

Installation clip for fastening FLORENCE-1R optics or FLORENTINA-HLD with a 40 mm wide PCB

FLORENCE-1R-CLIP-B

Installation clip for fastening FLORENCE-1R optics or FLORENTINA-HLD to extrusion profiles

FLORENTINA-SHD

Black shade for FLORENTINA (12X1) assemblies

FLORENCE-1R-CLIP-C

Installation clip for fastening FLORENCE-1R optics or FLORENTINA-HLD with a 24 mm wide PCB

FLORENTINA-SHD-WHT

White shade for FLORENTINA (12X1) assemblies

Optical results

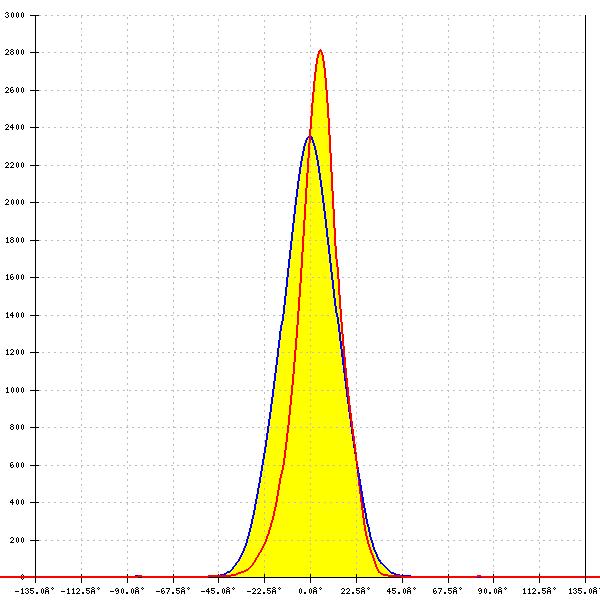

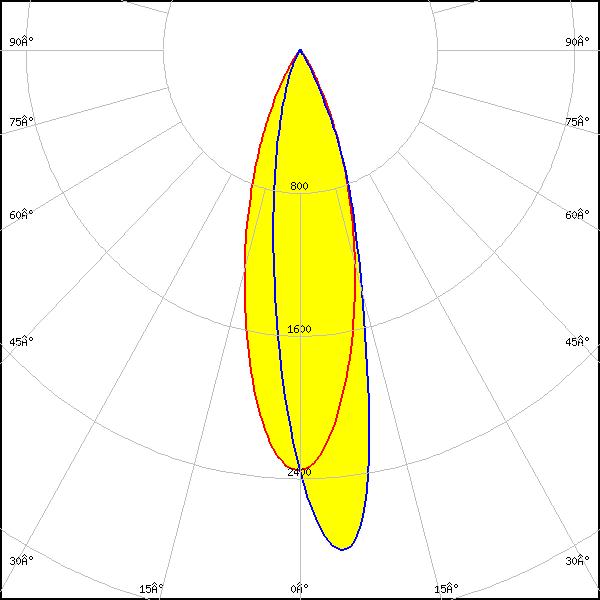

LED: QUICK FLUX LED FL-XG 1x12 xxx

Required components:

C14446_FLORENTINA-SHD

FWHM: asymmetric

Peak intensity: 2.800 cd/lm

Efficiency: 74 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

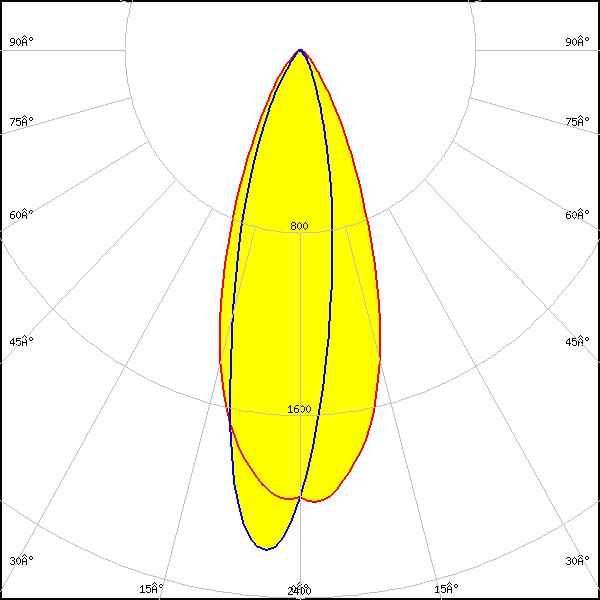

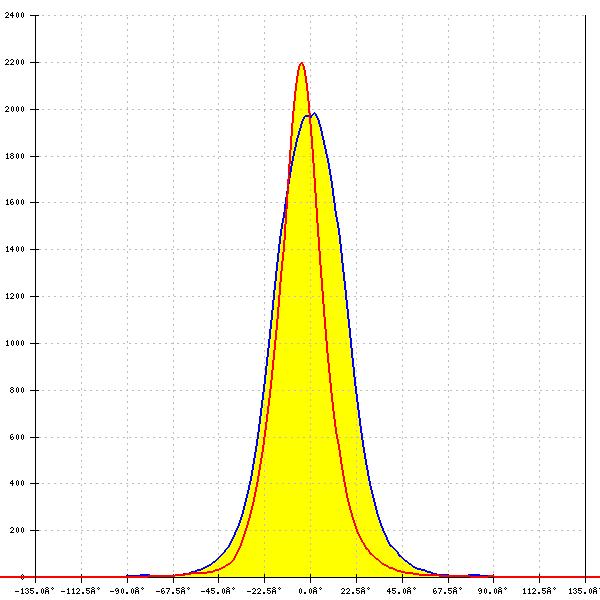

LED: J Series 3030

FWHM: asymmetric

Peak intensity: 2.217 cd/lm

Efficiency: 84 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

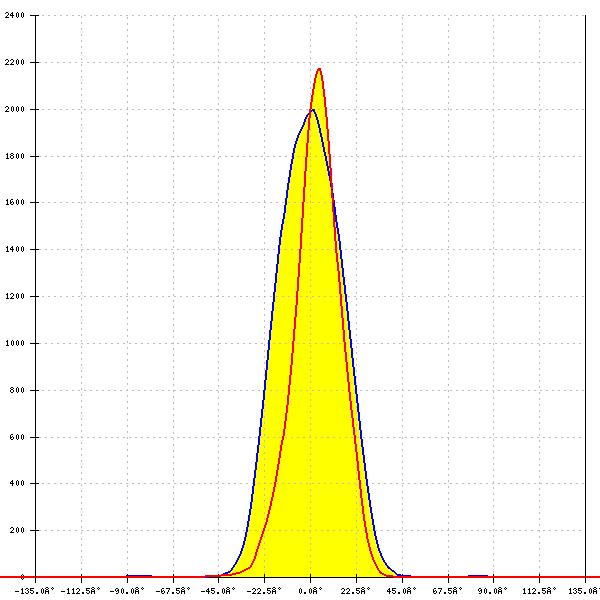

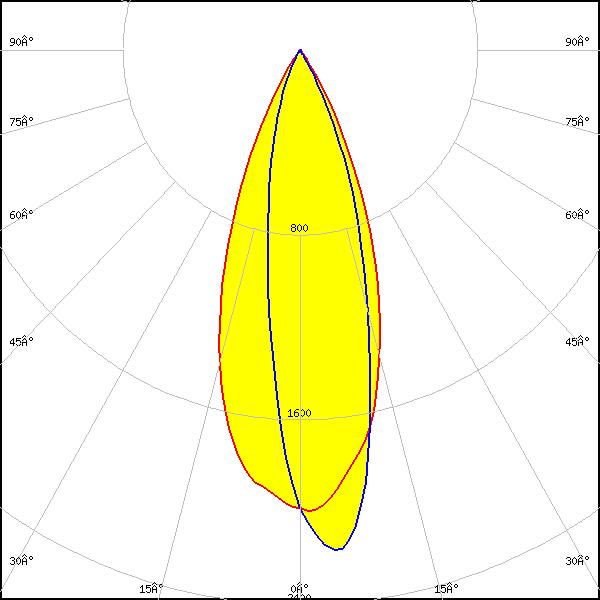

LED: J Series 3030

Required components:

C14446_FLORENTINA-SHD

FWHM: asymmetric

Peak intensity: 2.201 cd/lm

Efficiency: 72 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

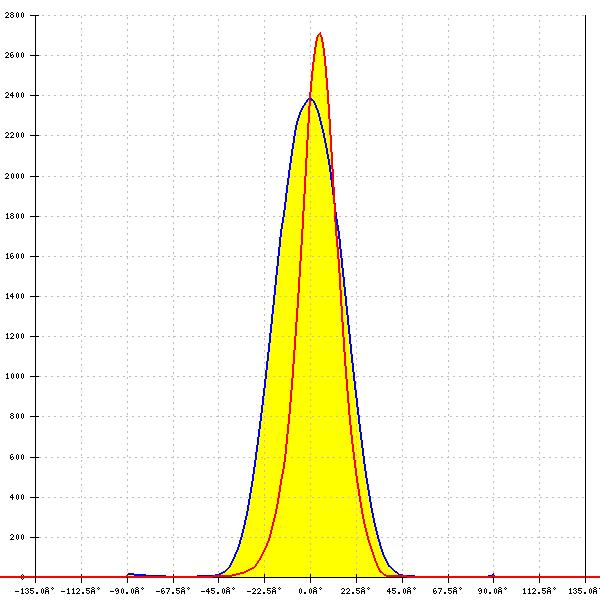

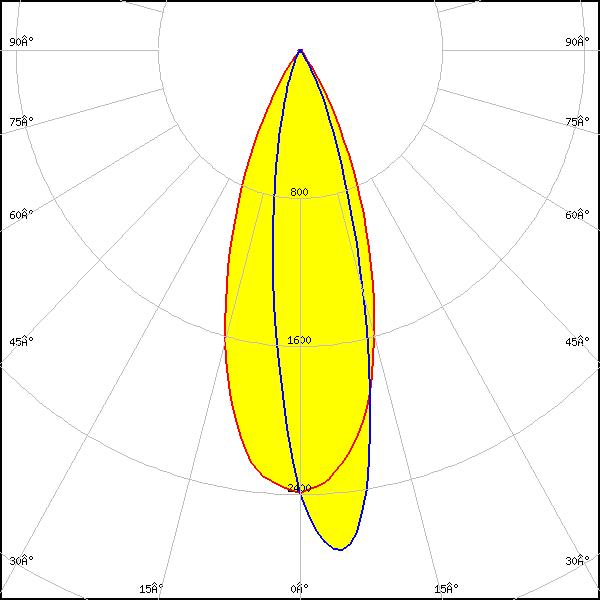

LED: XP-G3

Required components:

C14446_FLORENTINA-SHD

FWHM: asymmetric

Peak intensity: 2.720 cd/lm

Efficiency: 83 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

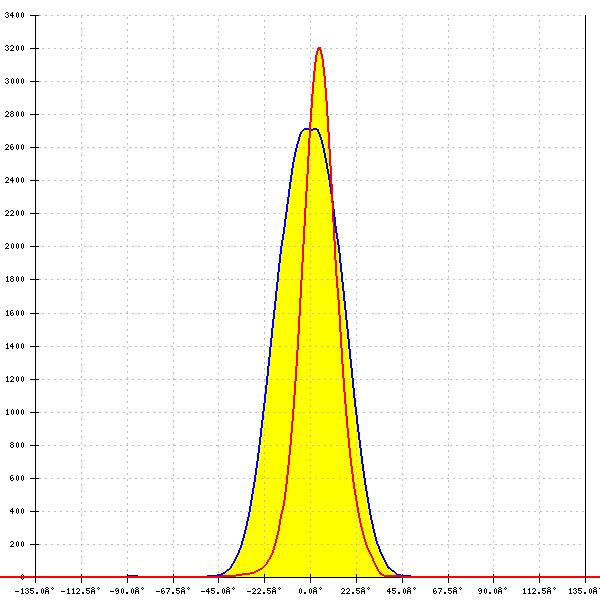

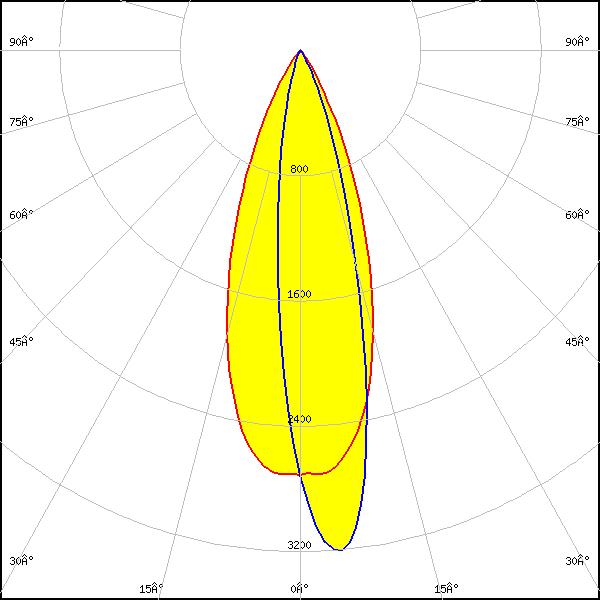

LED: XP-G4

Required components:

C14446_FLORENTINA-SHD

FWHM: asymmetric

Peak intensity: 3.216 cd/lm

Efficiency: 87 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

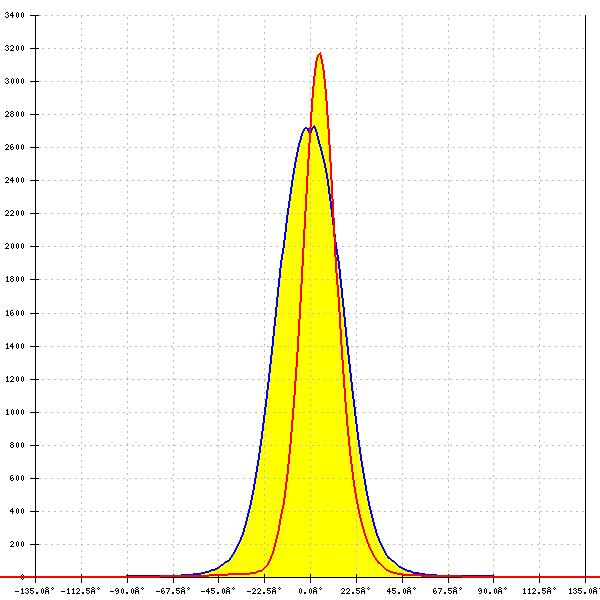

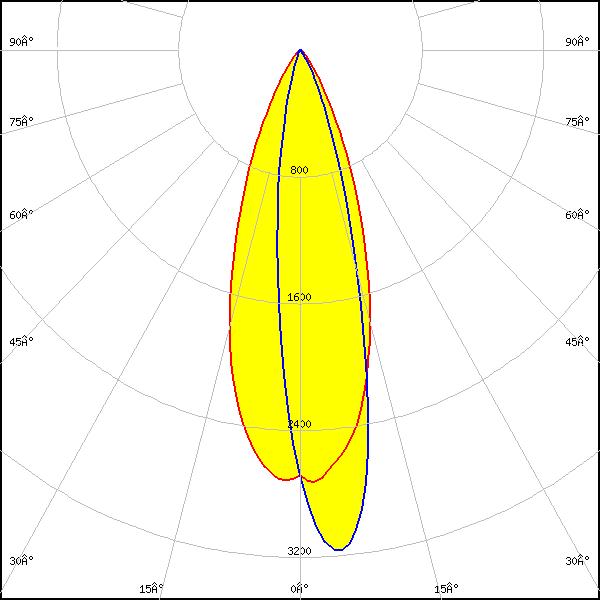

LED: LUXEON HL2X

FWHM: asymmetric

Peak intensity: 3.170 cd/lm

Efficiency: 90 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

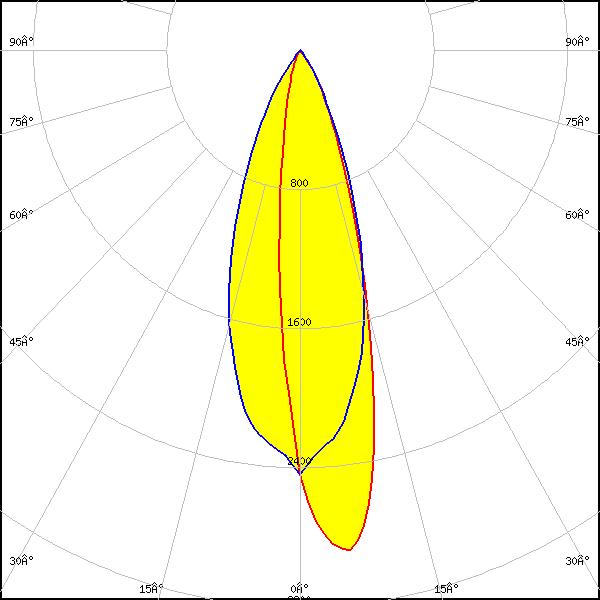

LED: NF2W757G-MT (Tunable White)

Required components:

C14446_FLORENTINA-SHD

FWHM: asymmetric

Peak intensity: 2.906 cd/lm

Efficiency: 82 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

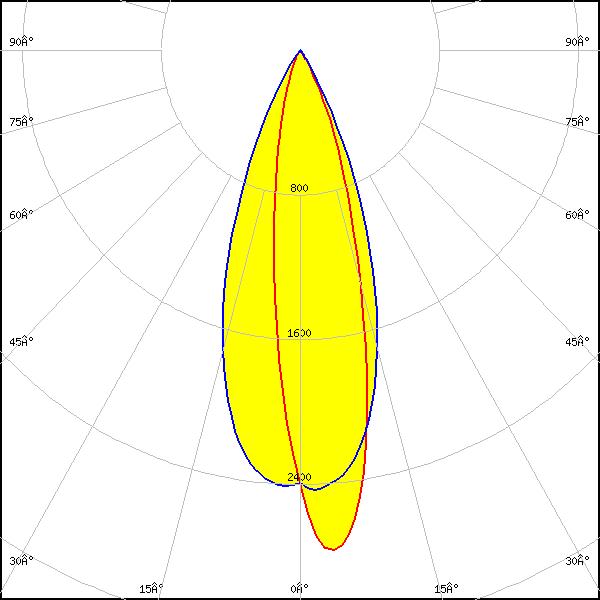

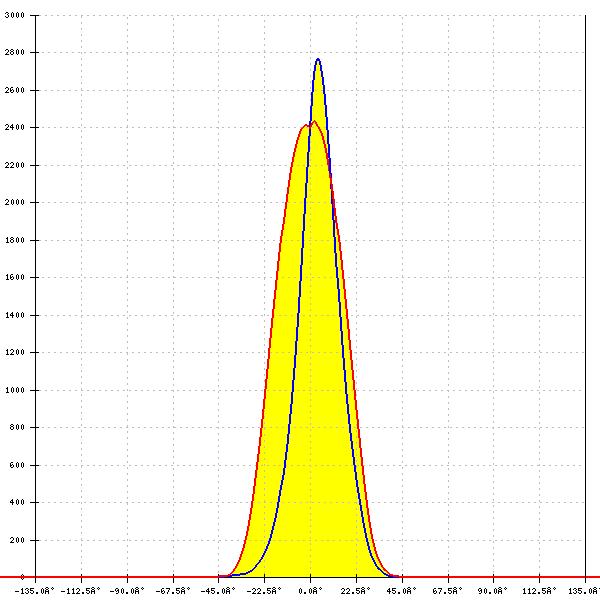

LED: Duris E 2835

Required components:

C14446_FLORENTINA-SHD

FWHM: asymmetric

Peak intensity: 2.788 cd/lm

Efficiency: 80 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

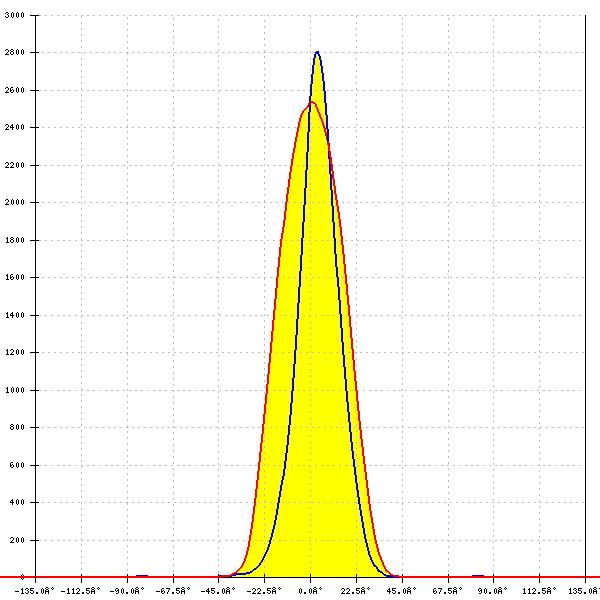

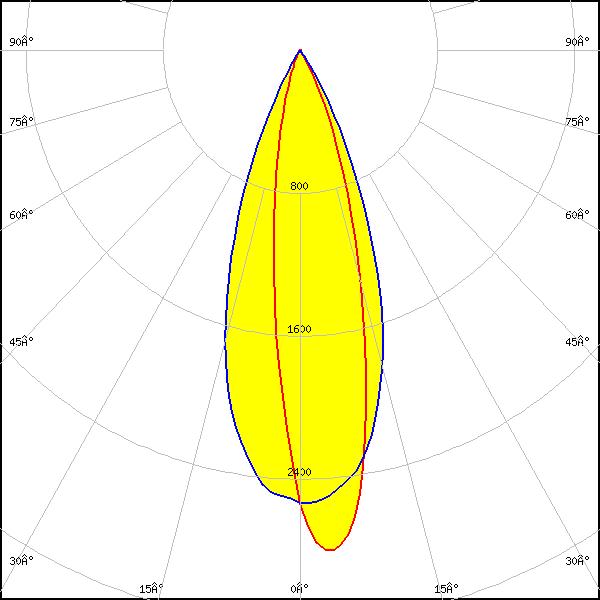

LED: DURIS S5 (2 chip)

Required components:

C14446_FLORENTINA-SHD

FWHM: asymmetric

Peak intensity: 2.815 cd/lm

Efficiency: 80 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

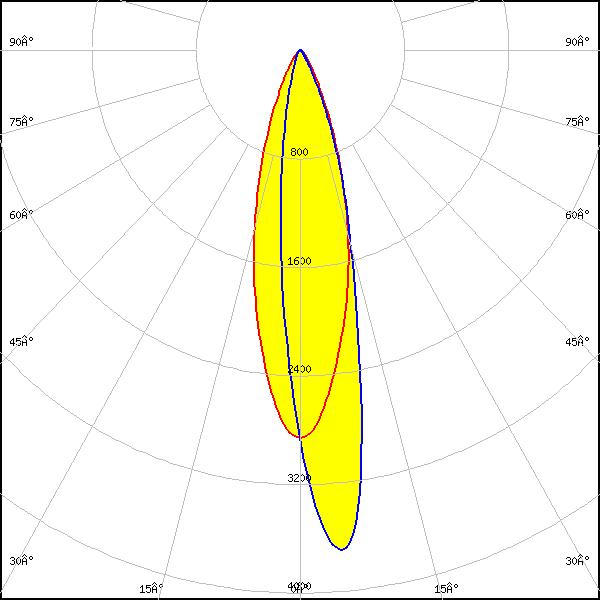

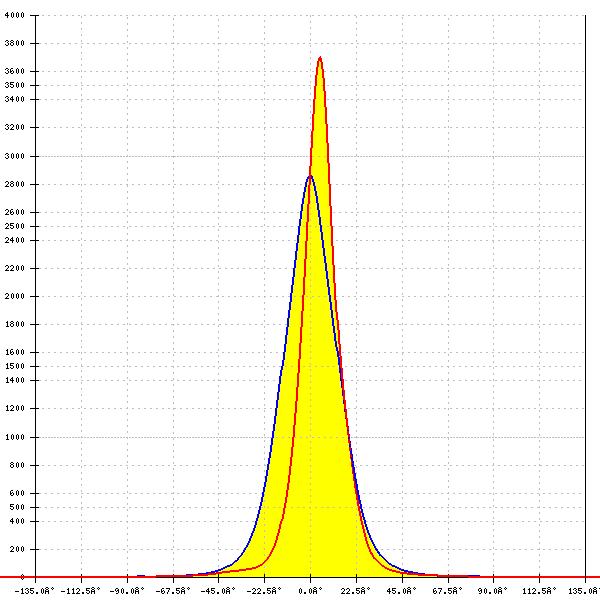

LED: OSLON Square EC

Required components:

C14446_FLORENTINA-SHD

FWHM: asymmetric

Peak intensity: 3.700 cd/lm

Efficiency: 84 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files
