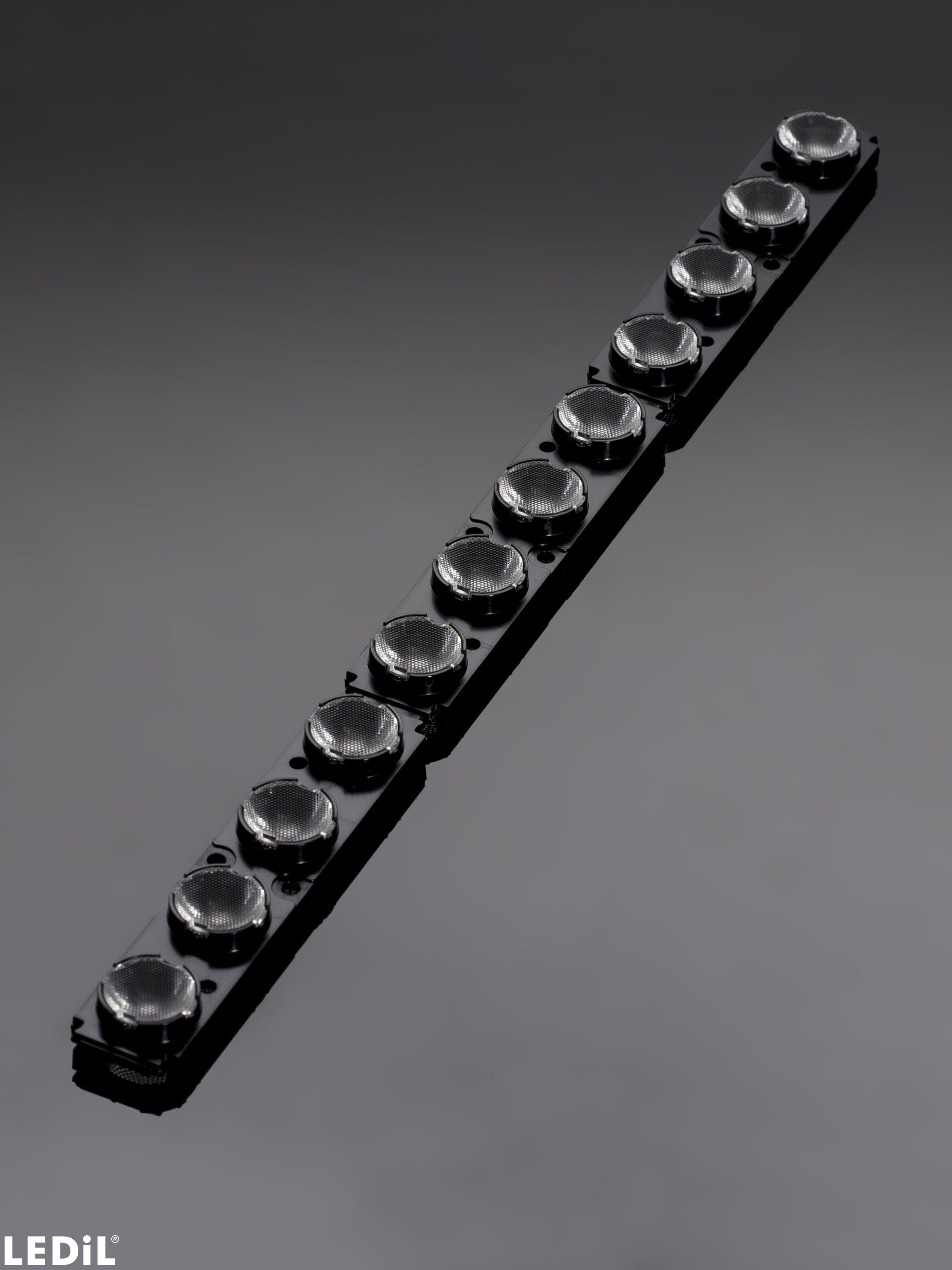

CP14994_FLORENTINA-HLD-M
Print
~30° medium beam
Component Materials
- TINA2-XP-MSingle lensPMMA
- FLORENTINA-HLDHolderPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results

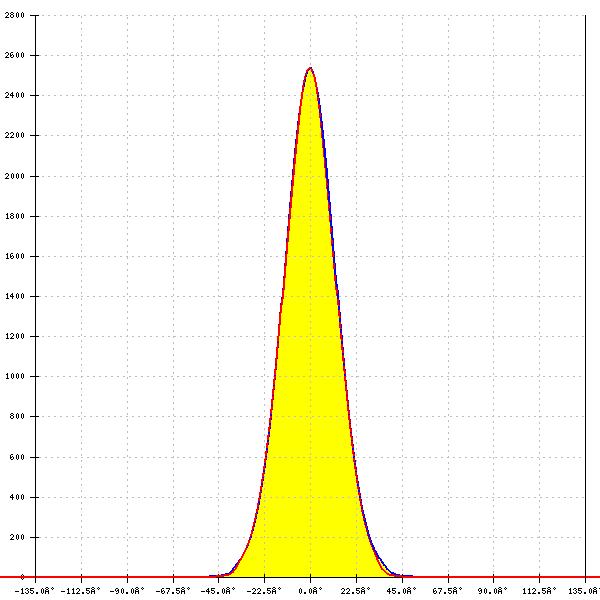

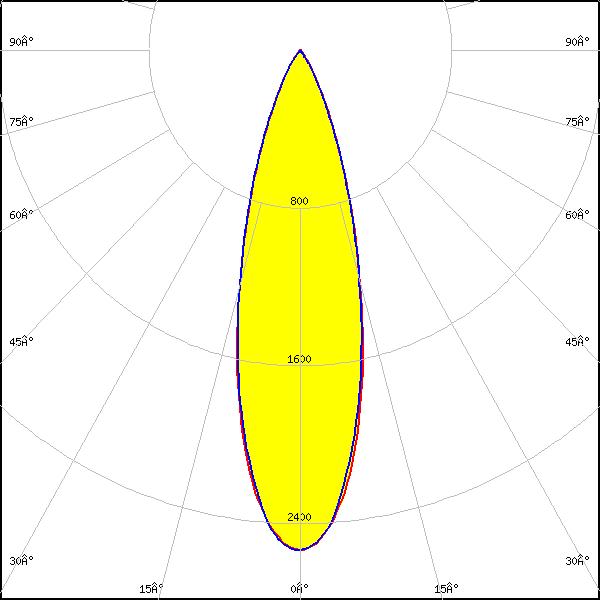

LED:
QUICK FLUX LED FL-XG 1x12 xxx
Required components:
FWHM:
29°
FWTM:
55°
Peak intensity:
2.500 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

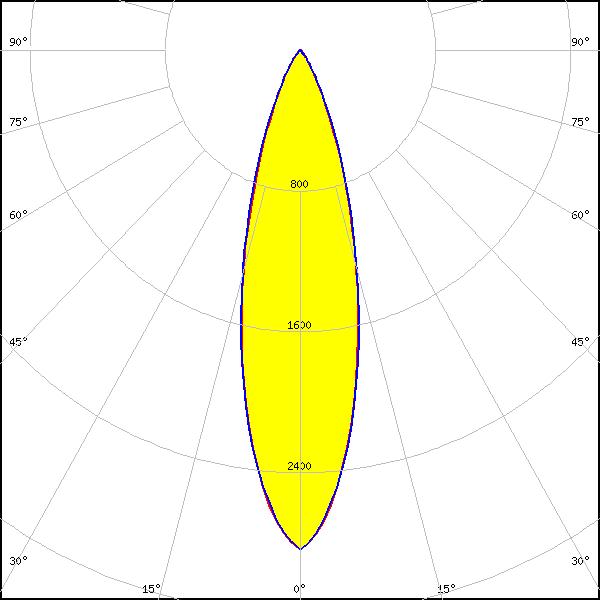

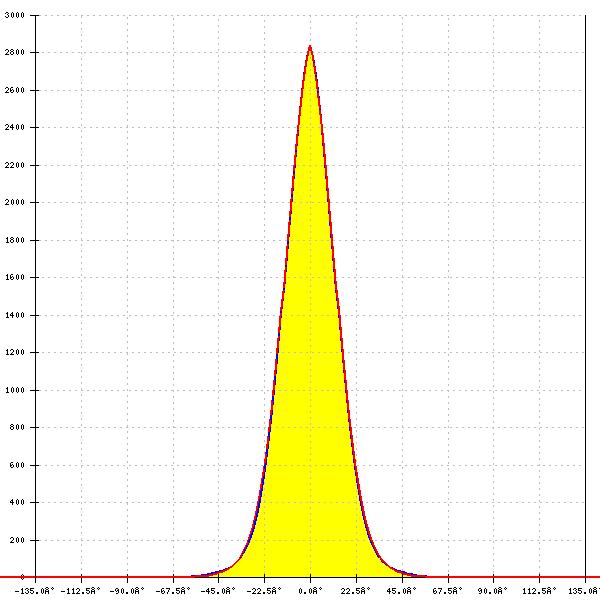

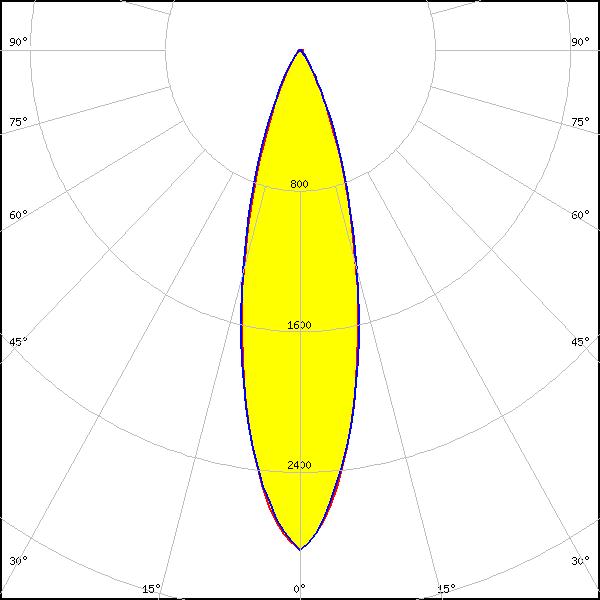

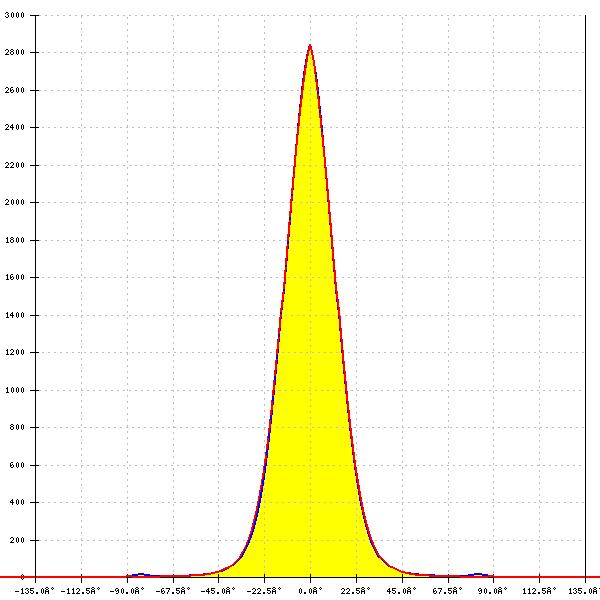

LED:
J Series 3030
FWHM:
29°
FWTM:
56°
Peak intensity:
2.823 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 3030
Required components:
FWHM:
28°
FWTM:
54°
Peak intensity:
2.776 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

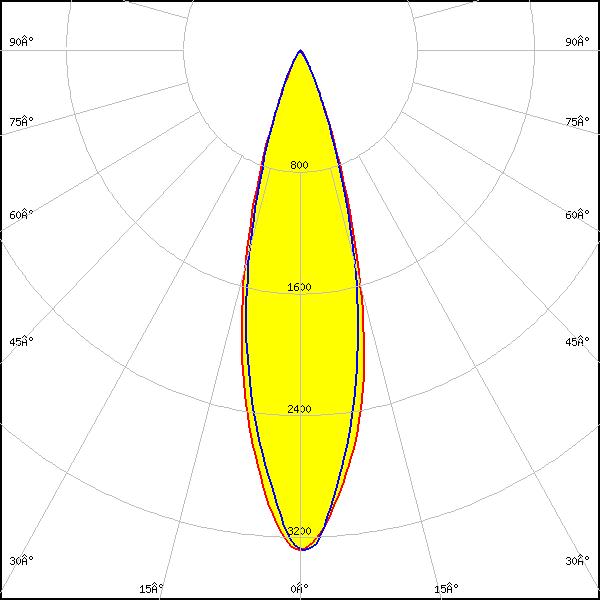

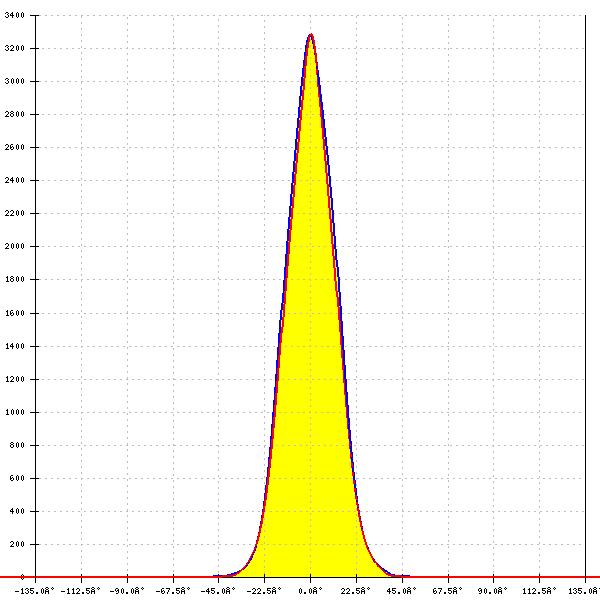

LED:
XP-E2
Required components:
FWHM:
29°
FWTM:
49°
Peak intensity:
3.280 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

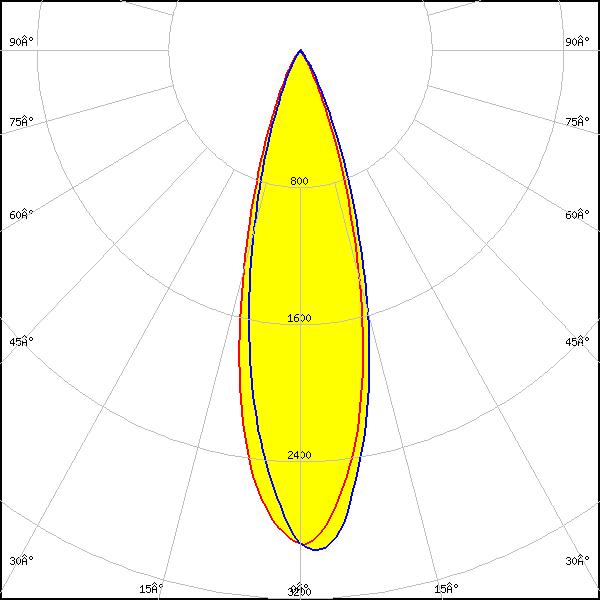

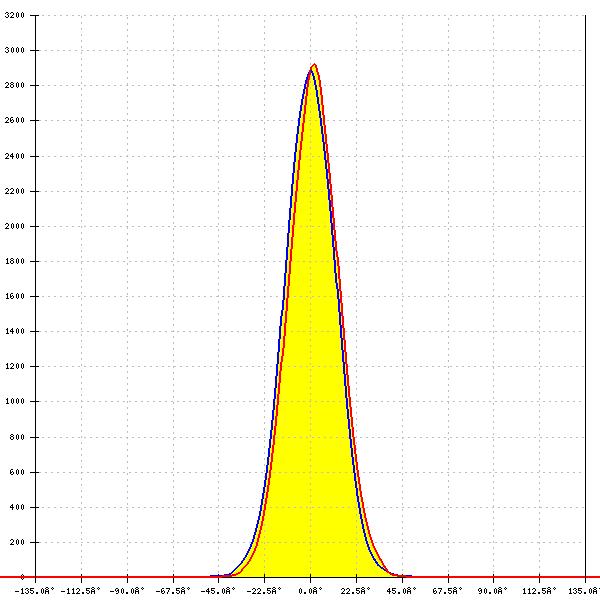

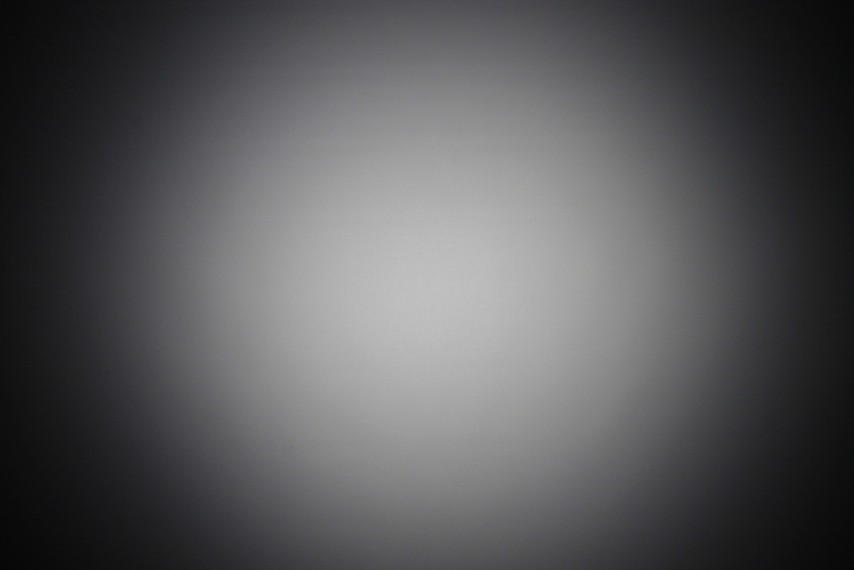

LED:
XP-G2
Required components:
FWHM:
29°
FWTM:
52°
Peak intensity:
2.900 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

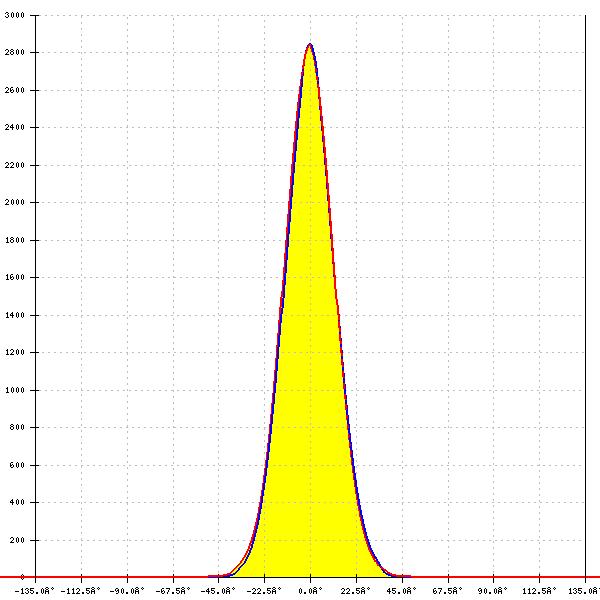

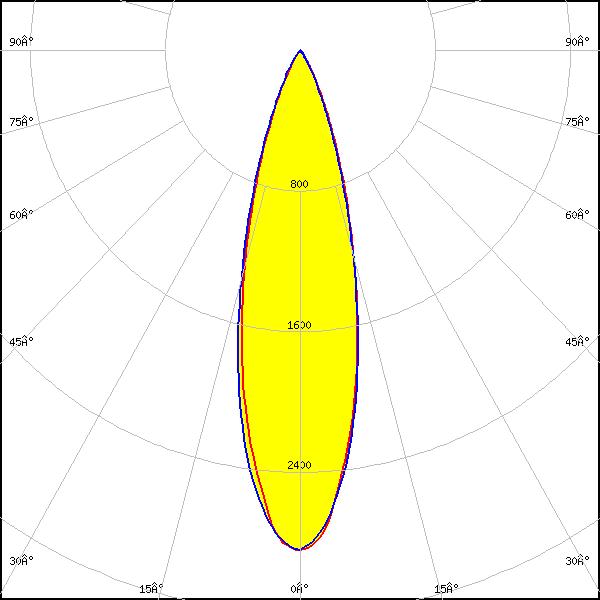

LED:
LUXEON Rebel ES
Required components:
FWHM:
28°
FWTM:
52°
Peak intensity:
2.800 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White

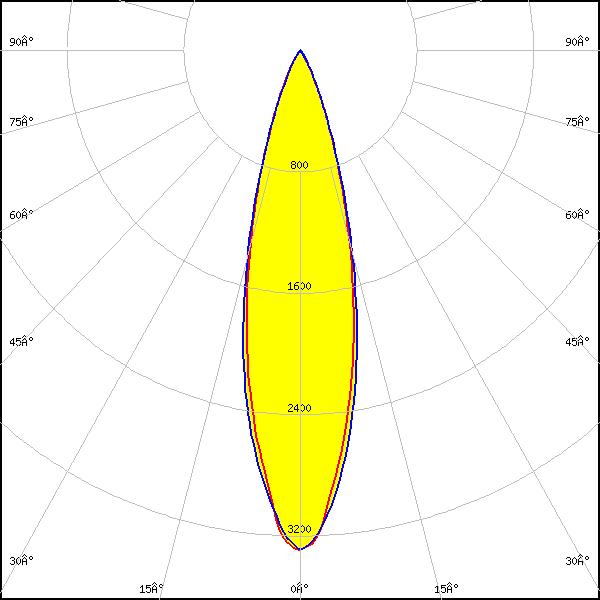

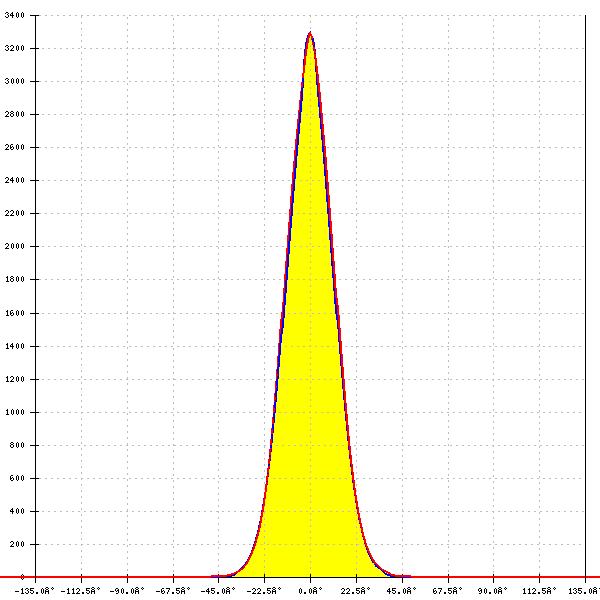

LED:
LUXEON Rebel Plus
Required components:
FWHM:
26°
FWTM:
49°
Peak intensity:
3.300 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

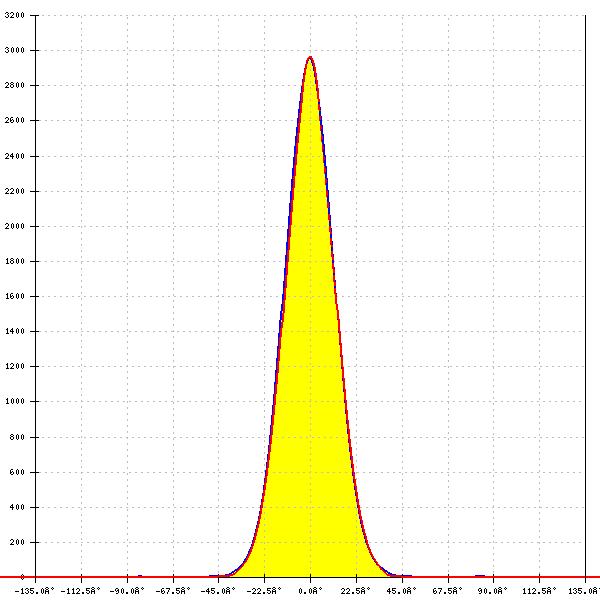

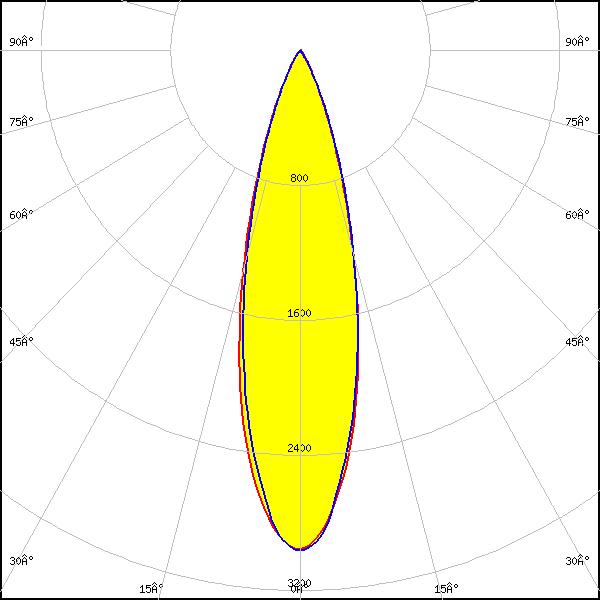

LED:
LUXEON TX
Required components:
FWHM:
28°
FWTM:
51°
Peak intensity:
3.000 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

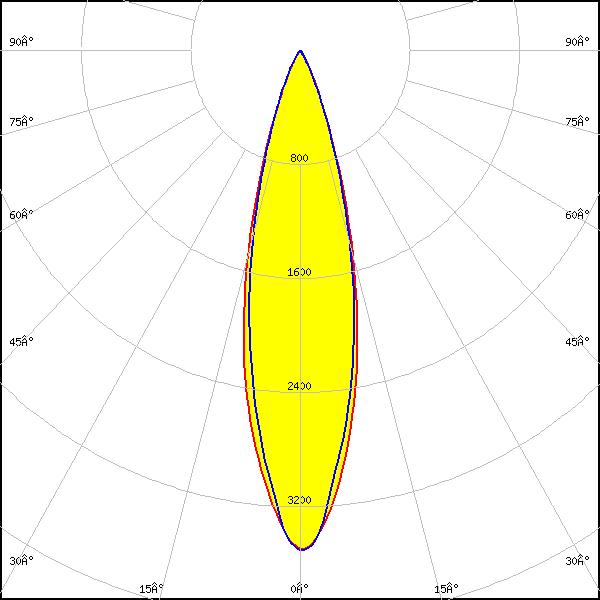

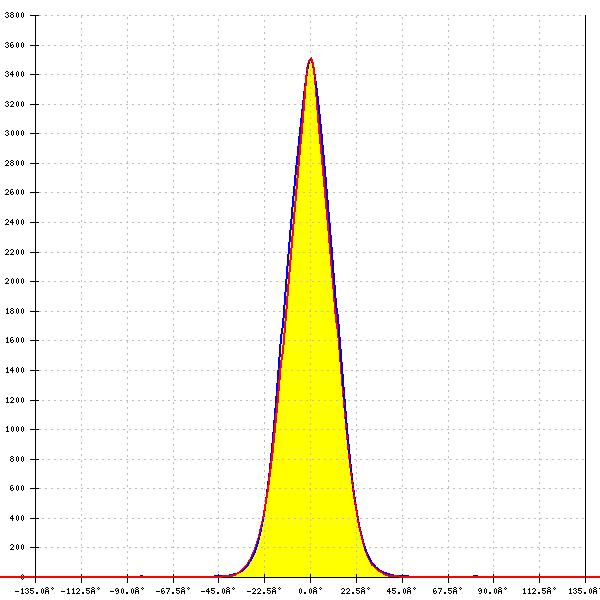

LED:
LUXEON Z ES
Required components:
FWHM:
26°
FWTM:
48°
Peak intensity:
3.500 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

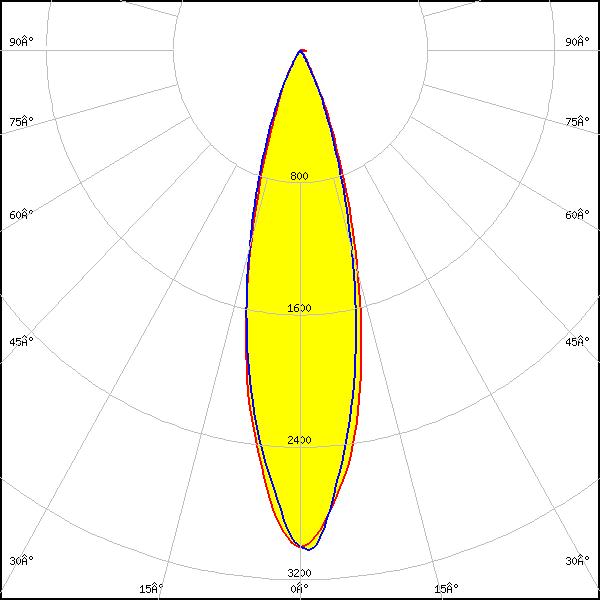

LED:
NCSxE17A
Required components:
FWHM:
27°
FWTM:
50°
Peak intensity:
3.000 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

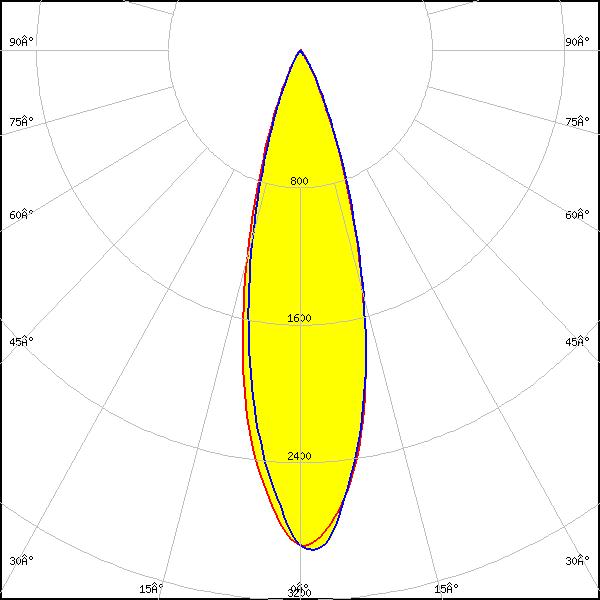

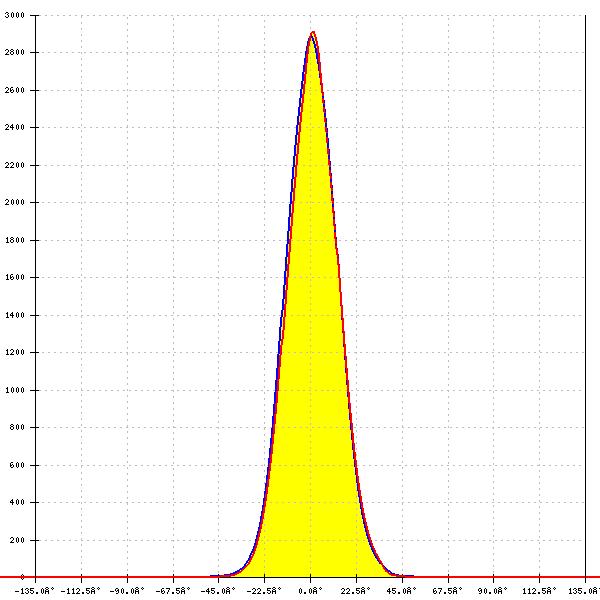

LED:
NCSxx19B
Required components:
FWHM:
28°
FWTM:
51°
Peak intensity:
2.900 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

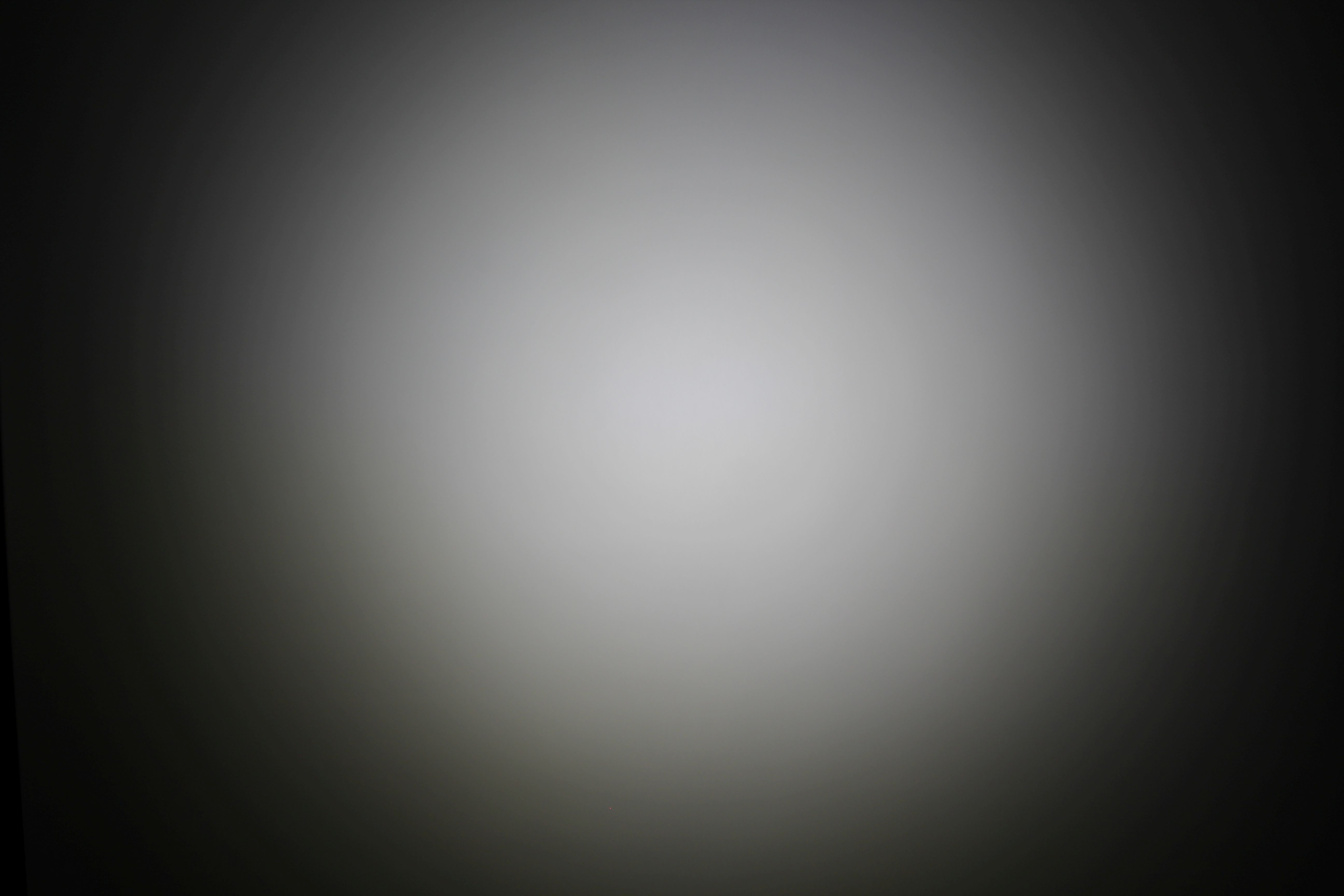

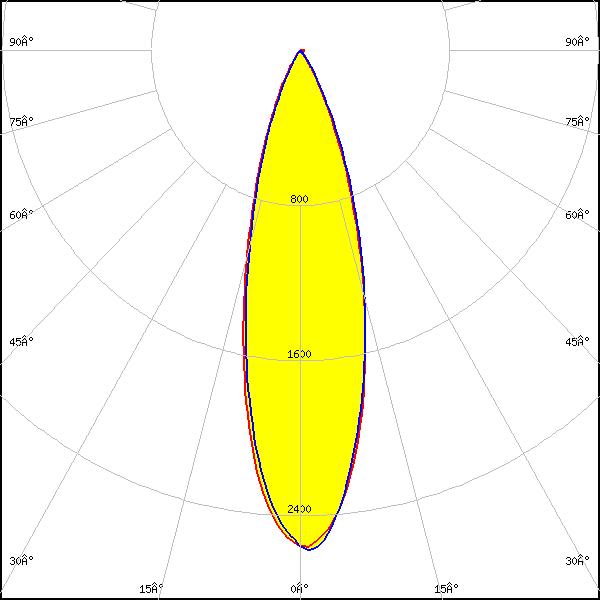

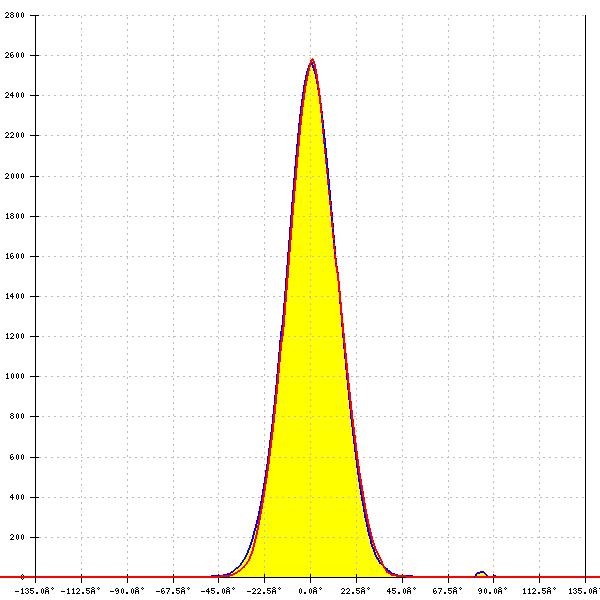

LED:
NF2x757G
Required components:
FWHM:
29°
FWTM:
54°
Peak intensity:
2.600 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

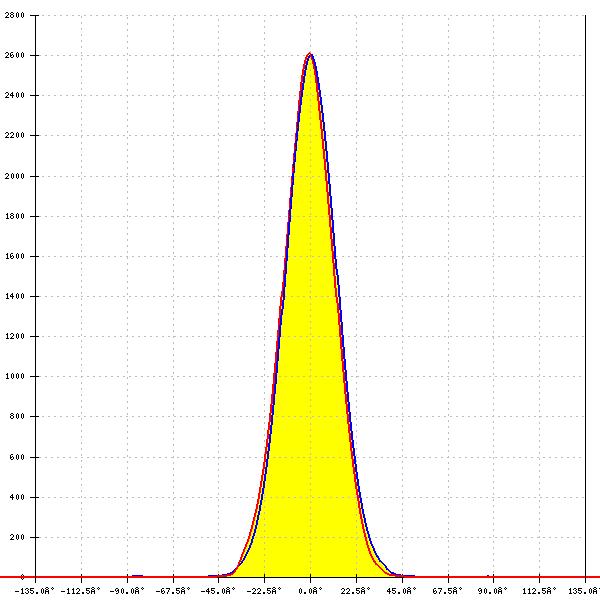

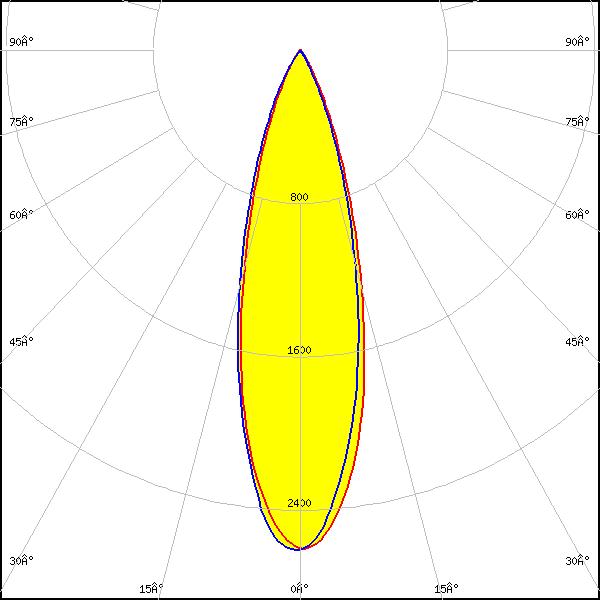

LED:
NVSxx19B/NVSxx19C
Required components:
FWHM:
29°
FWTM:
54°
Peak intensity:
2.600 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NWSx229A
Required components:
FWHM:
30°
FWTM:
60°
Peak intensity:
2.290 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

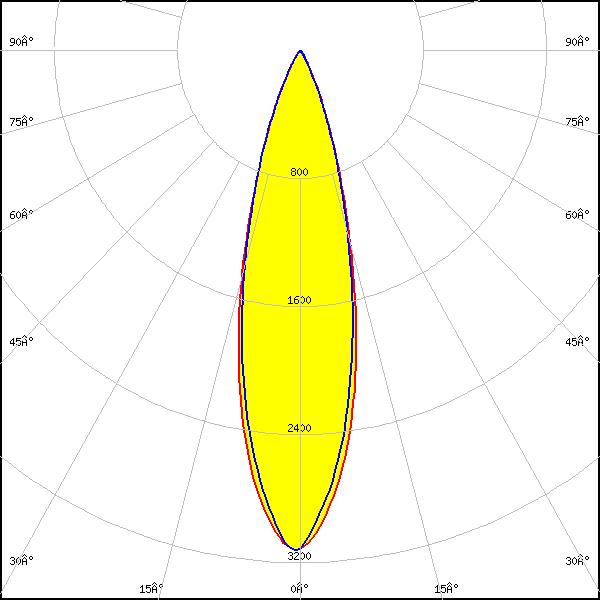

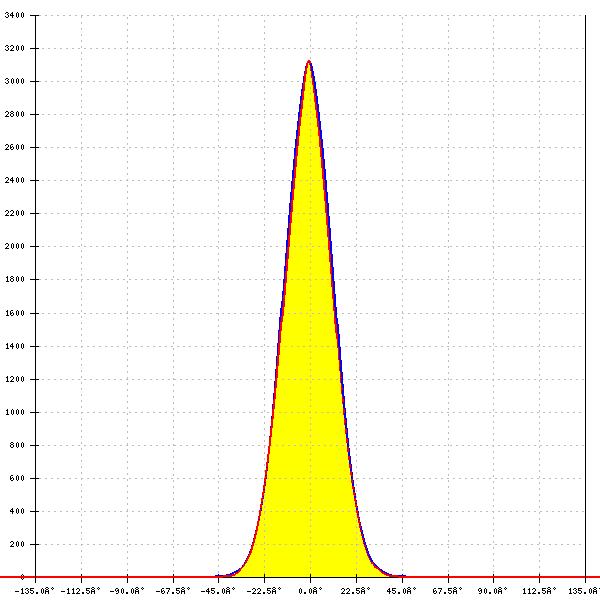

LED:
DURIS S5 (Single chip)
Required components:
FWHM:
27°
FWTM:
50°
Peak intensity:
3.100 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

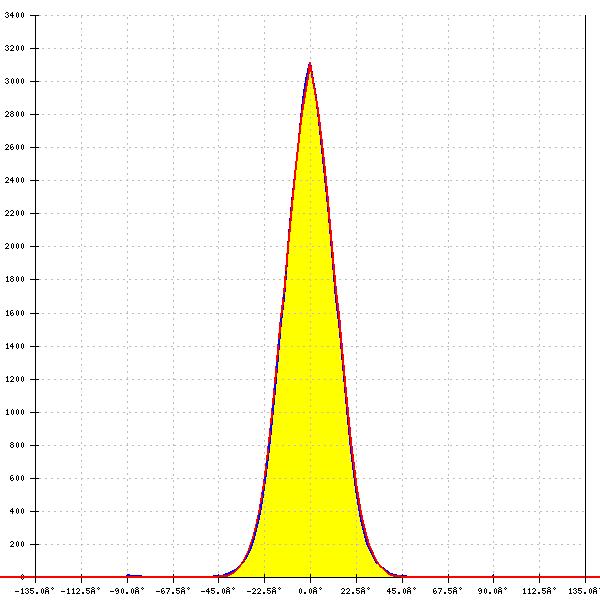

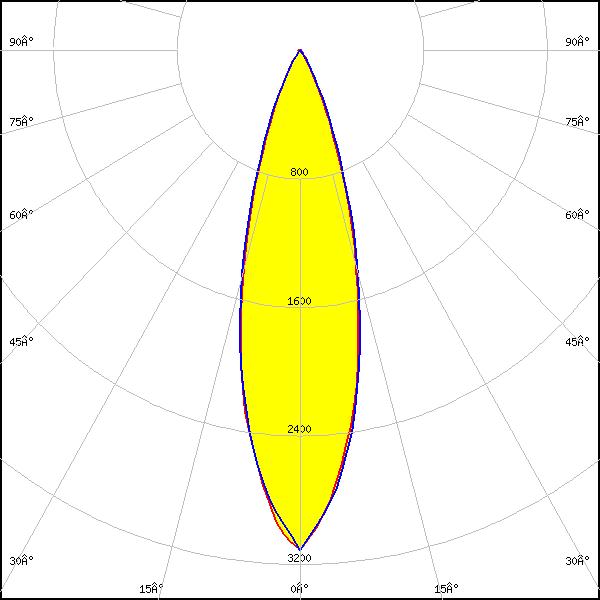

LED:
OSLON Square CSSRM2/CSSRM3
Required components:
FWHM:
28°
FWTM:
52°
Peak intensity:
3.113 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

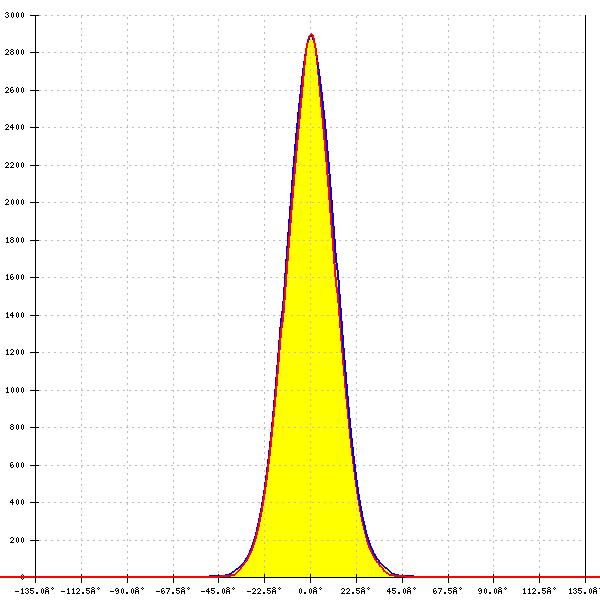

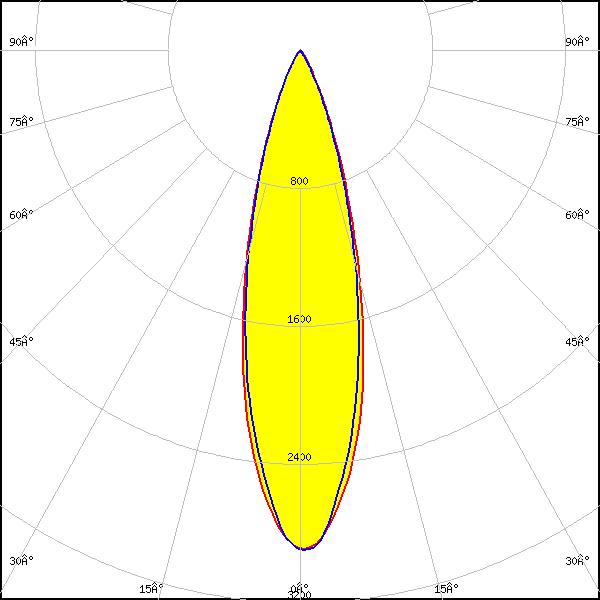

LED:
OSLON Square EC
Required components:
FWHM:
28°
FWTM:
51°
Peak intensity:
2.900 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White

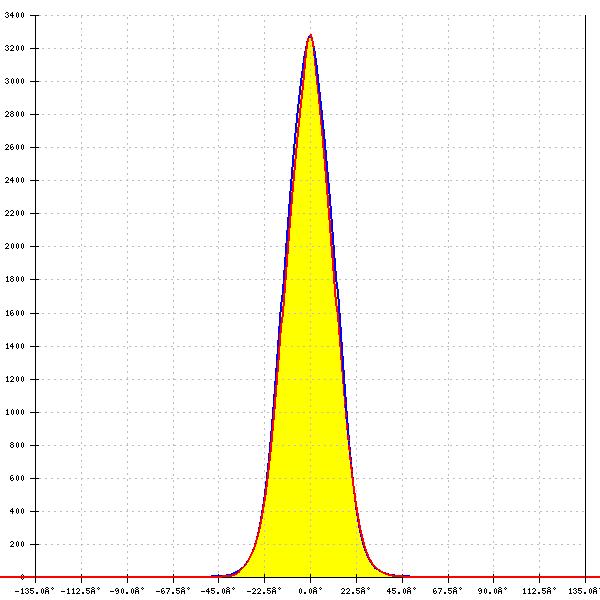

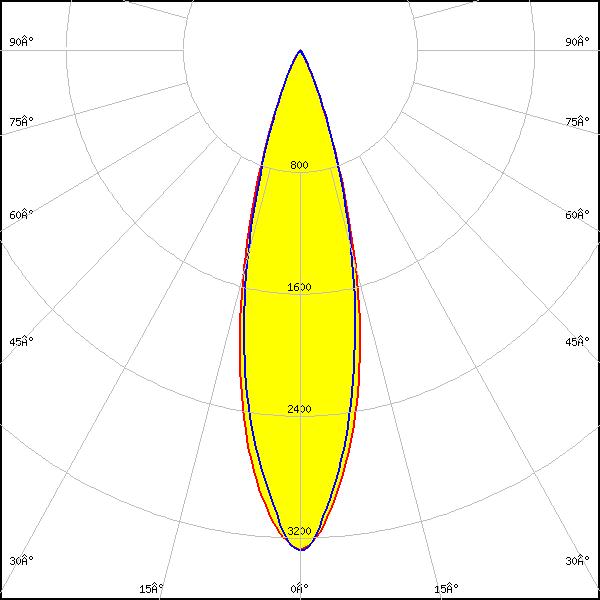

LED:
OSLON SSL 150
Required components:
FWHM:
28°
FWTM:
48°
Peak intensity:
3.300 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

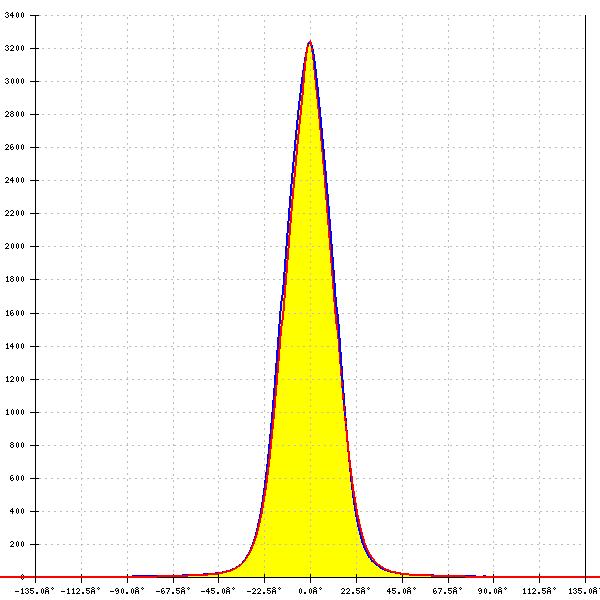

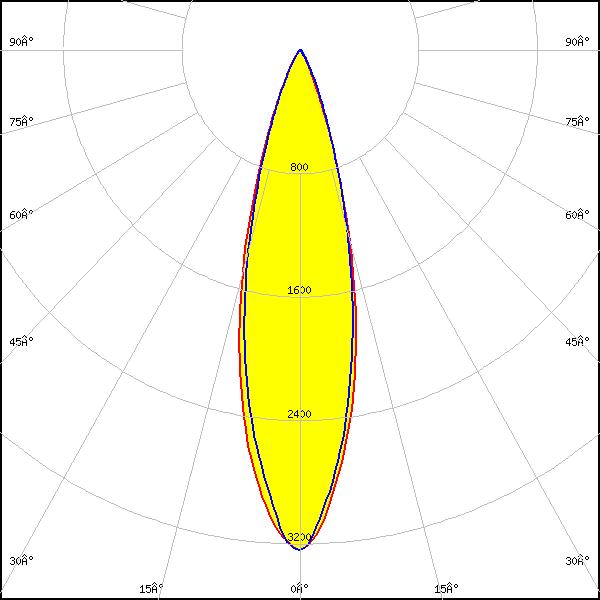

LED:
OSLON SSL 150
FWHM:
27°
FWTM:
49°
Peak intensity:
3.200 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

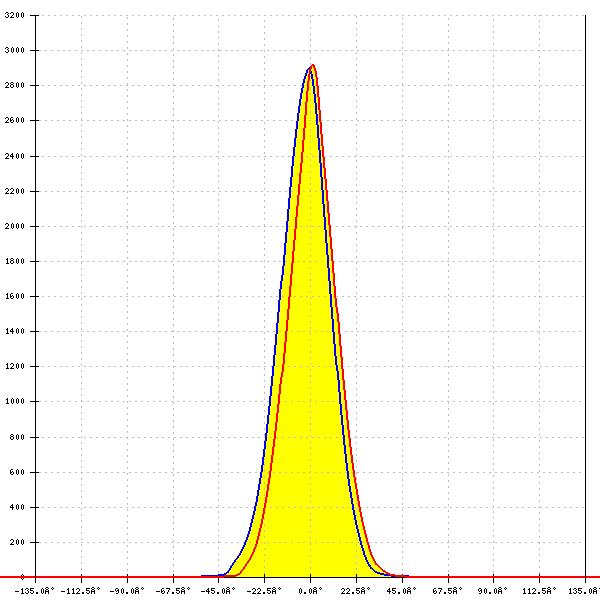

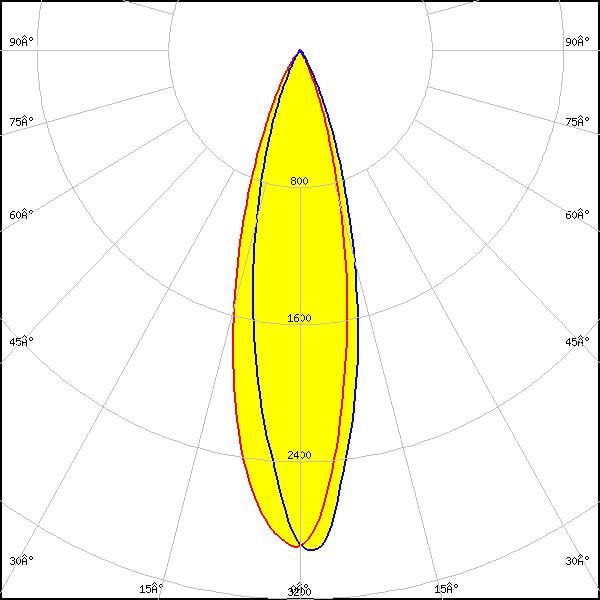

LED:
OSLON SSL 80
Required components:
FWHM:
26°
FWTM:
51°
Peak intensity:
2.930 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White

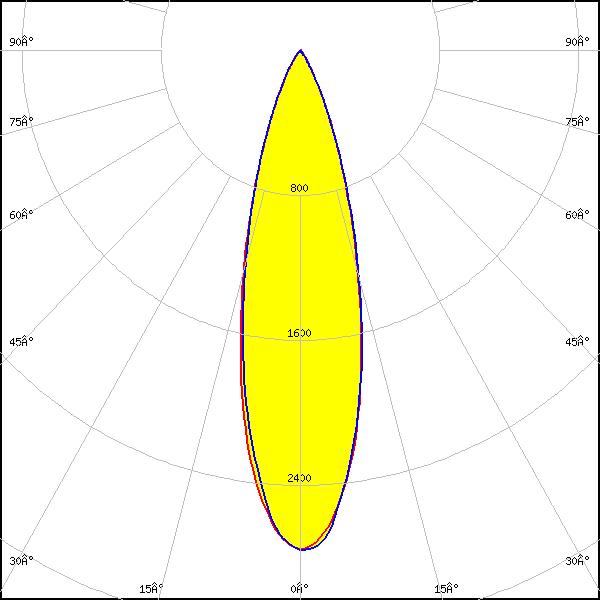

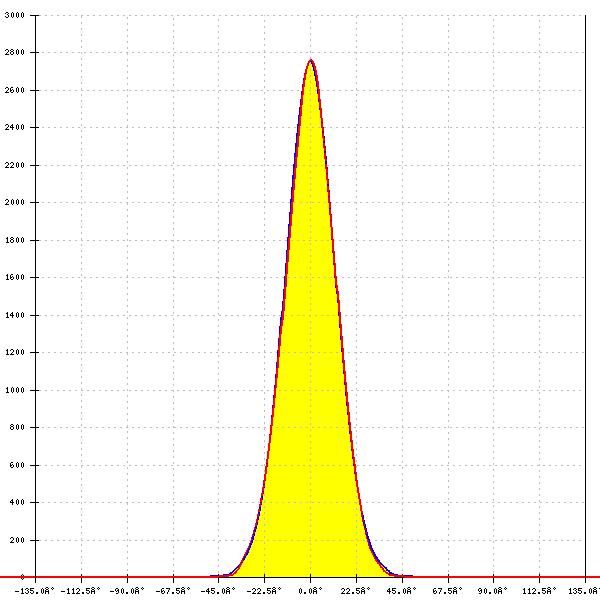

LED:
LH351B
Required components:
FWHM:
28°
FWTM:
53°
Peak intensity:
2.770 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

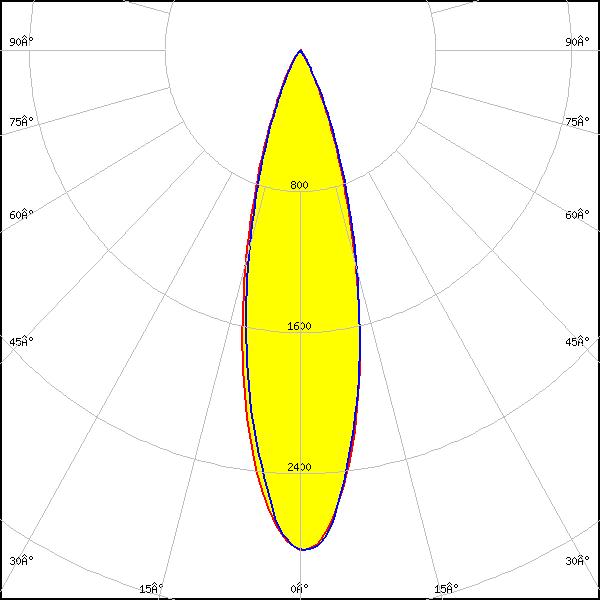

LED:
TL1L4
Required components:
FWHM:
27°
FWTM:
52°
Peak intensity:
2.840 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White
