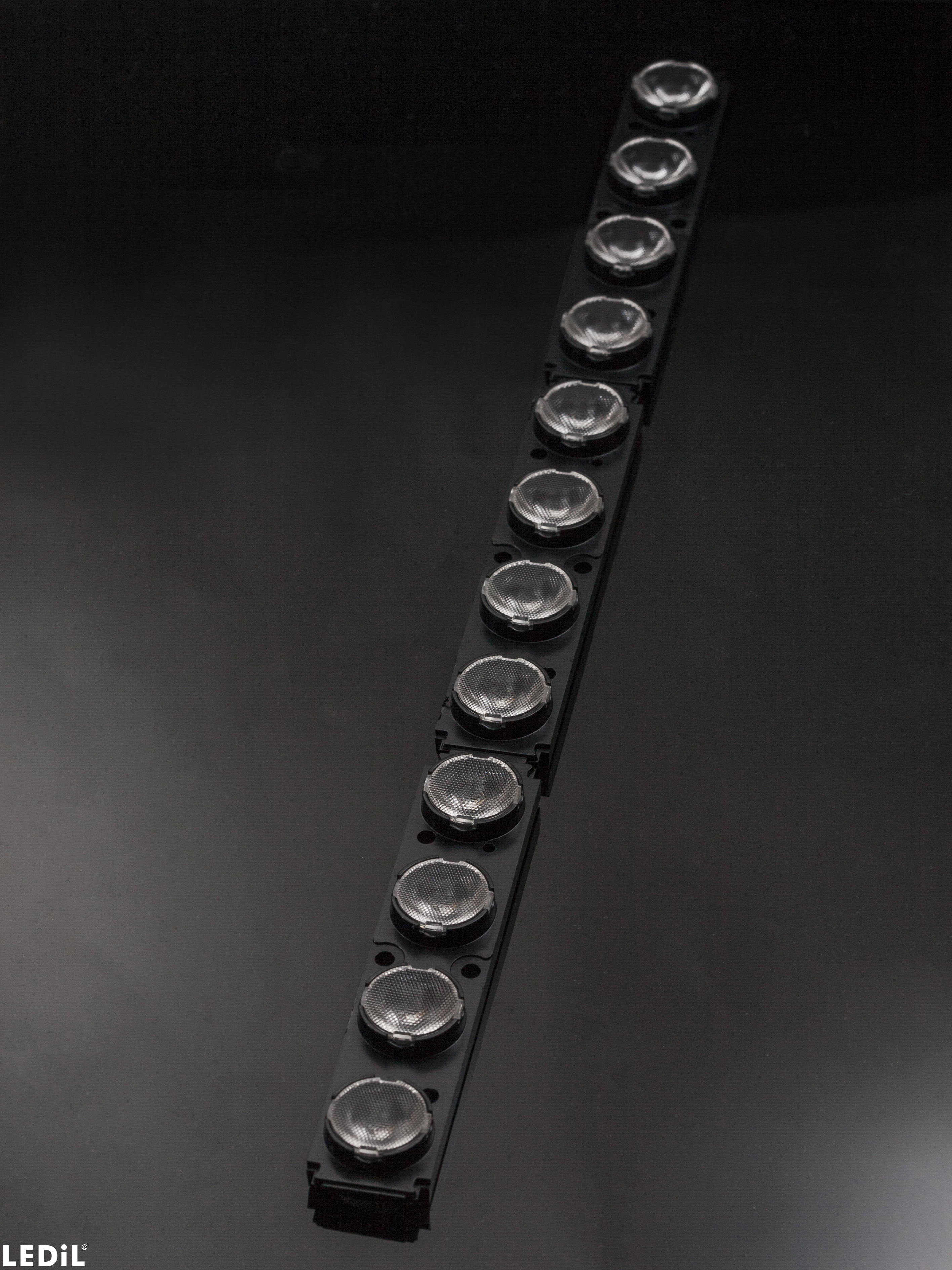

CP14993_FLORENTINA-HLD-SS
Print
~16° smooth spot beam
Materials
- TINA2-SS, Single lens, PMMA
- FLORENTINA-HLD, Holder, PC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results
LED:

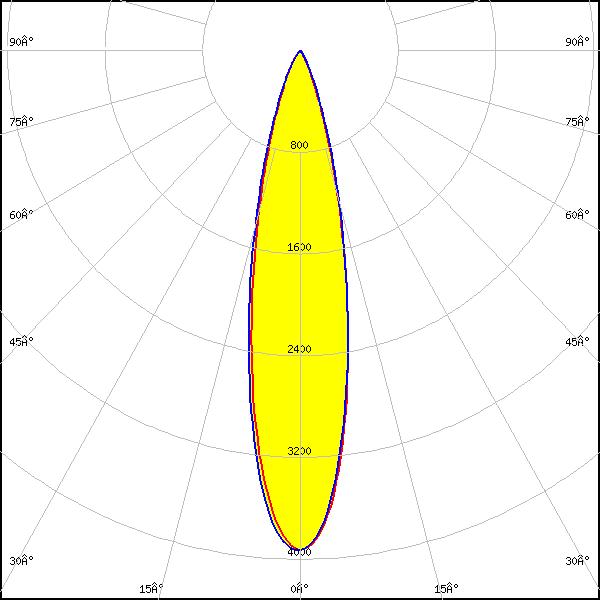

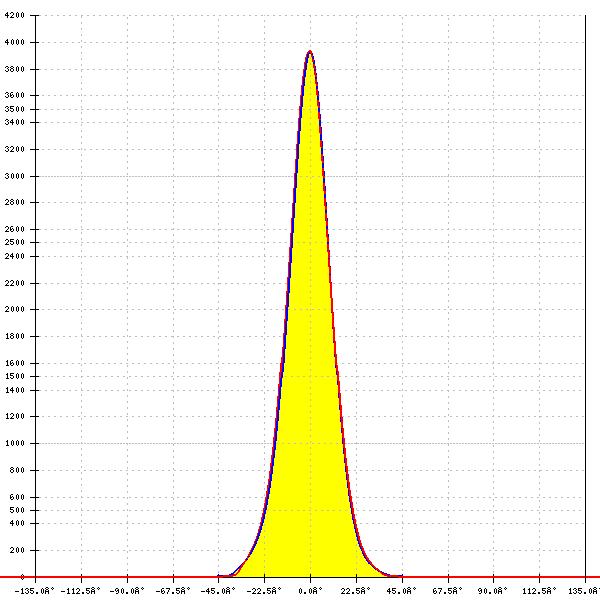

QUICK FLUX LED FL-XG 1x12 xxx
Required components:
FWHM:
23°
FWTM:
46°
Peak intensity:
3.900 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 3030
FWHM:
26°
FWTM:
50°
Peak intensity:
3.415 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

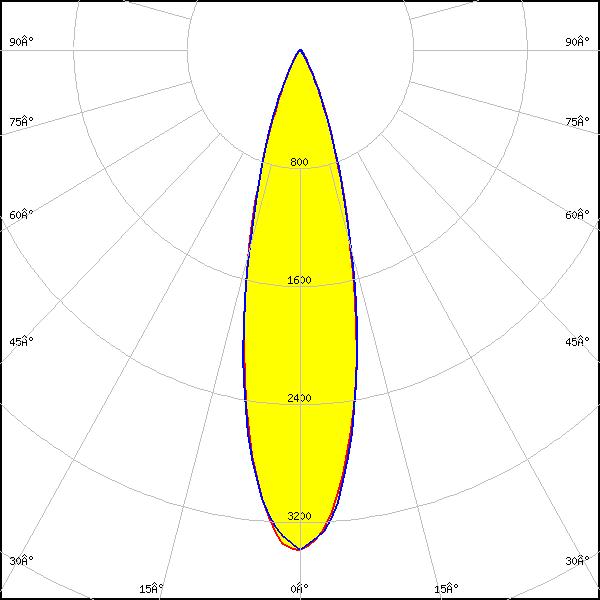

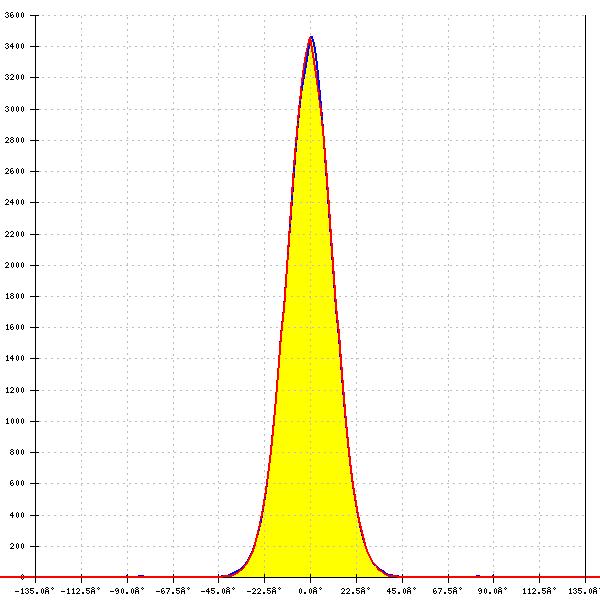

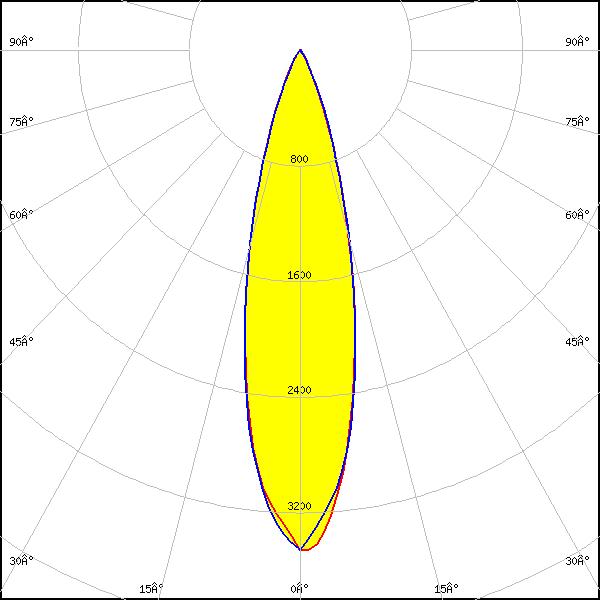

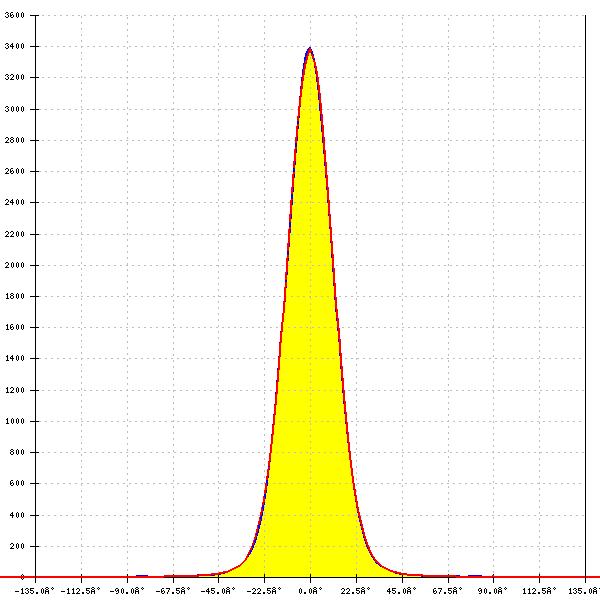

LED:
J Series 3030
Required components:
FWHM:
26°
FWTM:
48°
Peak intensity:
3.459 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

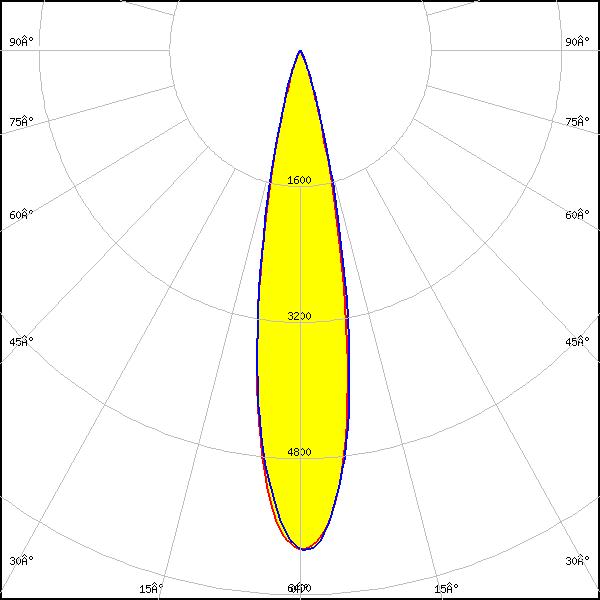

XP-E2
Required components:
FWHM:
21°
FWTM:
36°
Peak intensity:
5.880 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

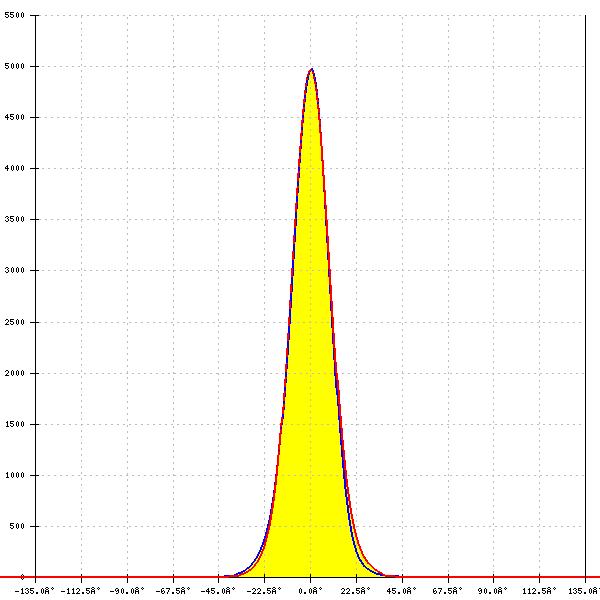

LED:

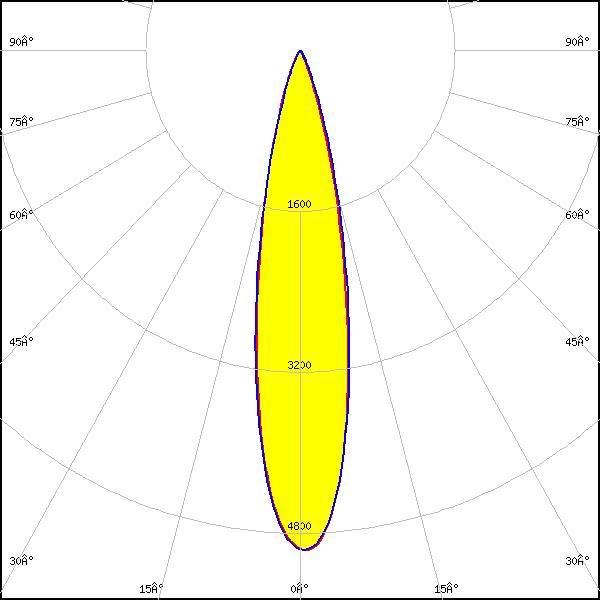

XP-G2
Required components:
FWHM:
22°
FWTM:
41°
Peak intensity:
5.000 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

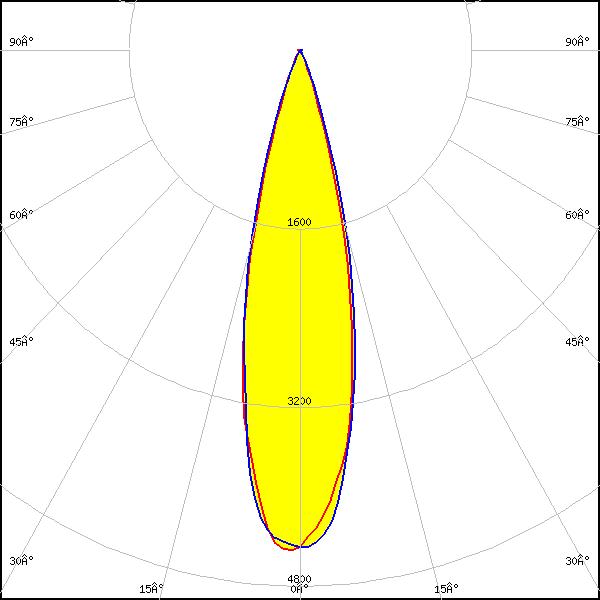

LED:

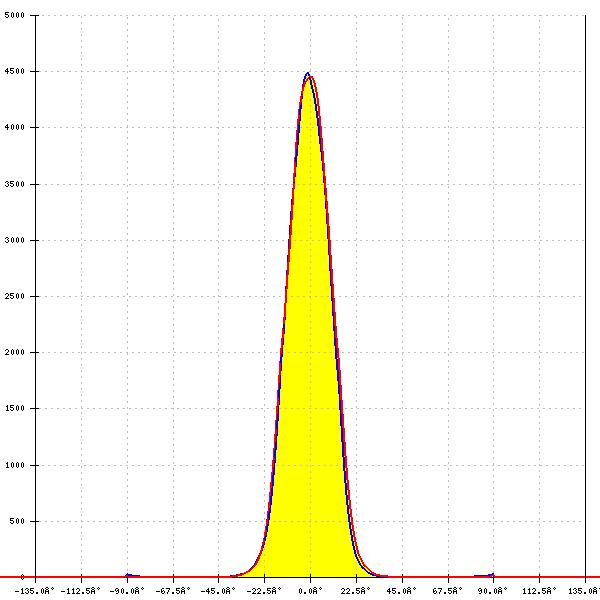

XQ-E HD
Required components:
FWHM:
25°
FWTM:
41°
Peak intensity:
4.600 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

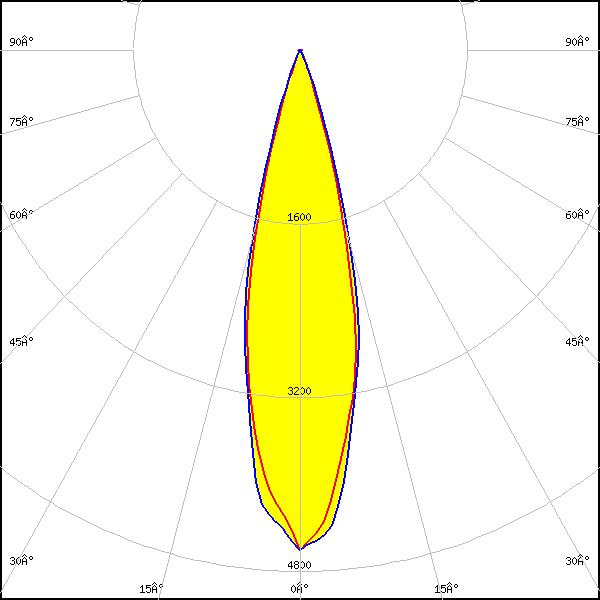

LED:

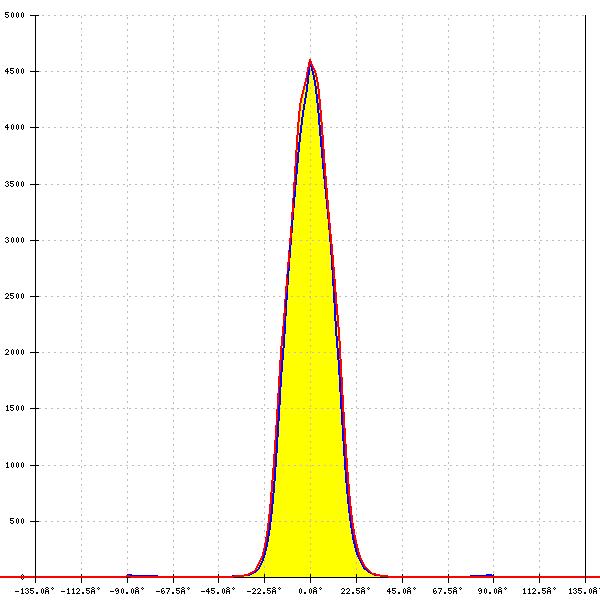

XQ-E HI
Required components:
FWHM:
26°
FWTM:
40°
Peak intensity:
4.700 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

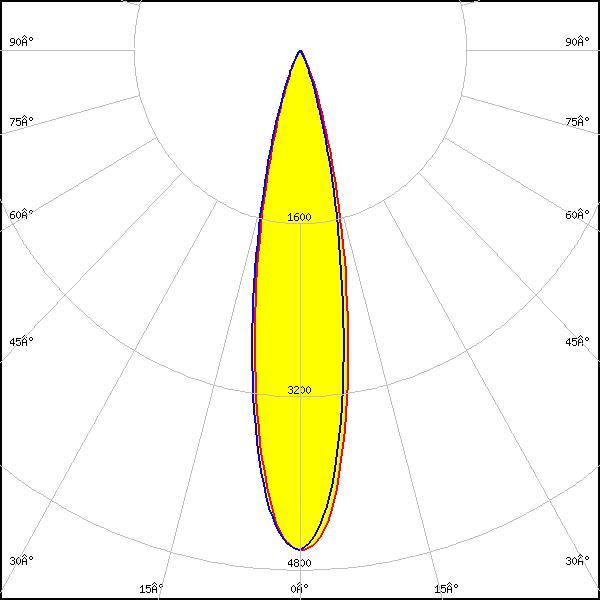

LUXEON Rebel ES
Required components:
FWHM:
22°
FWTM:
42°
Peak intensity:
4.600 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

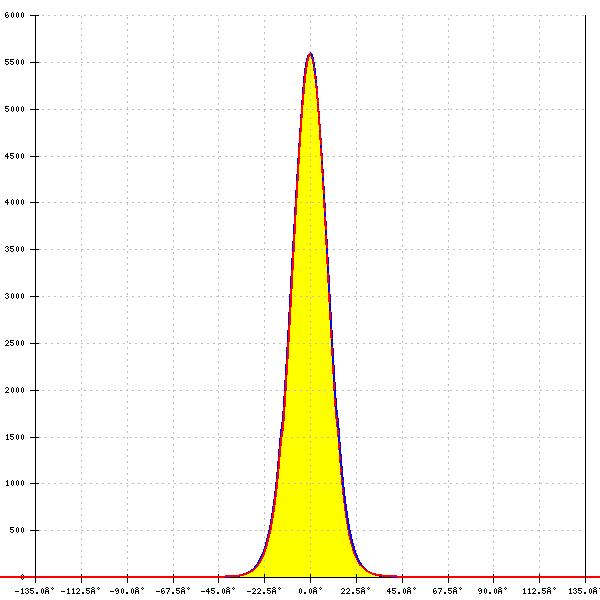

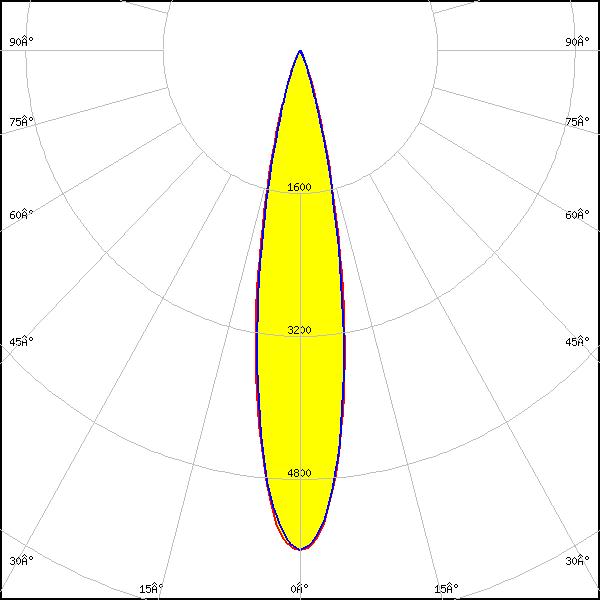

LED:
LUXEON Rebel Plus
Required components:
FWHM:
20°
FWTM:
38°
Peak intensity:
5.600 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

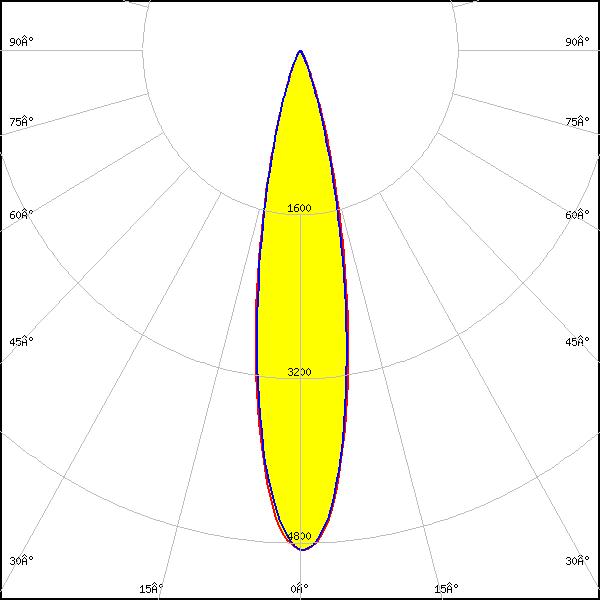

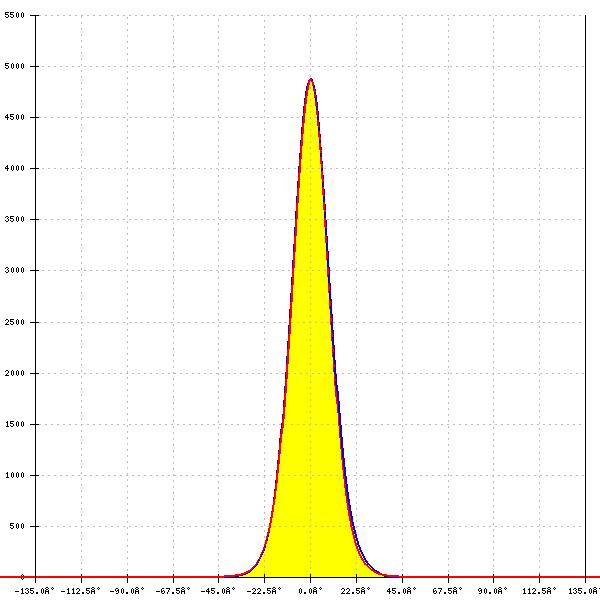

LED:
LUXEON TX
Required components:
FWHM:
21°
FWTM:
41°
Peak intensity:
4.900 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

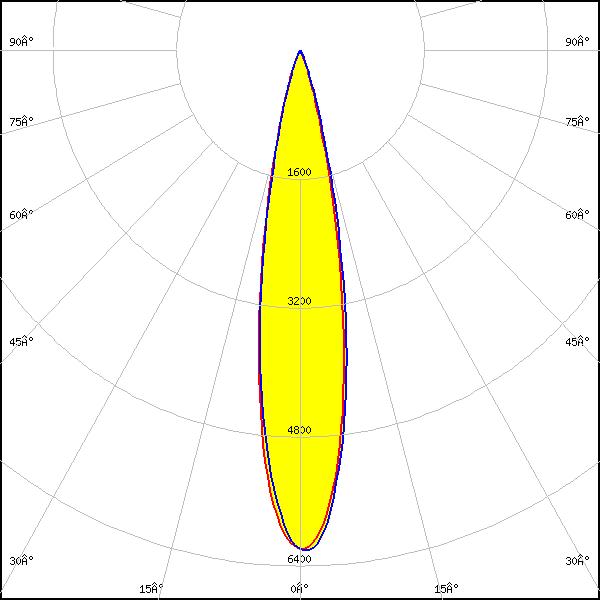

LUXEON Z ES
Required components:
FWHM:
20°
FWTM:
36°
Peak intensity:
6.200 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

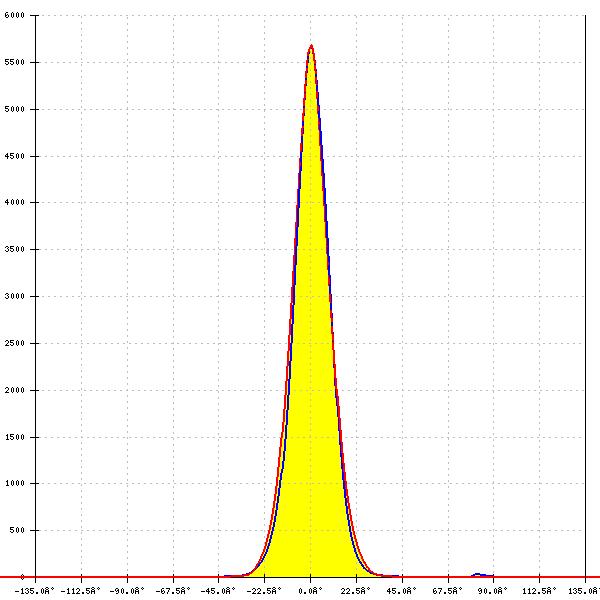

LED:

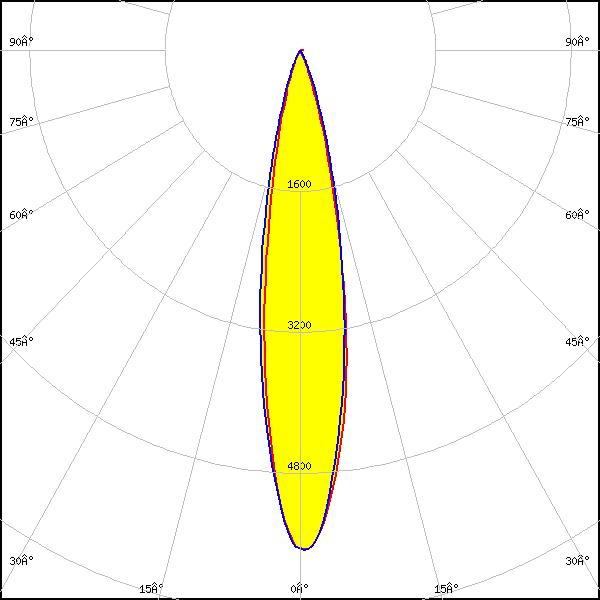

NCSxE17A
Required components:
FWHM:
20°
FWTM:
38°
Peak intensity:
5.700 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

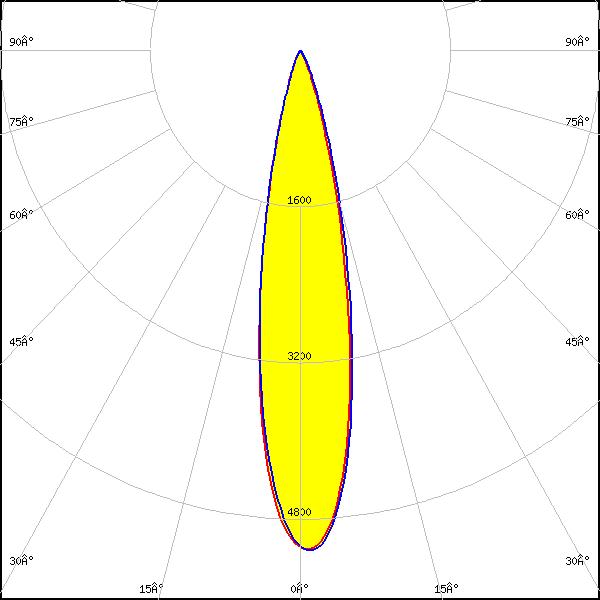

LED:
NCSxx19B
Required components:
FWHM:
21°
FWTM:
39°
Peak intensity:
5.100 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

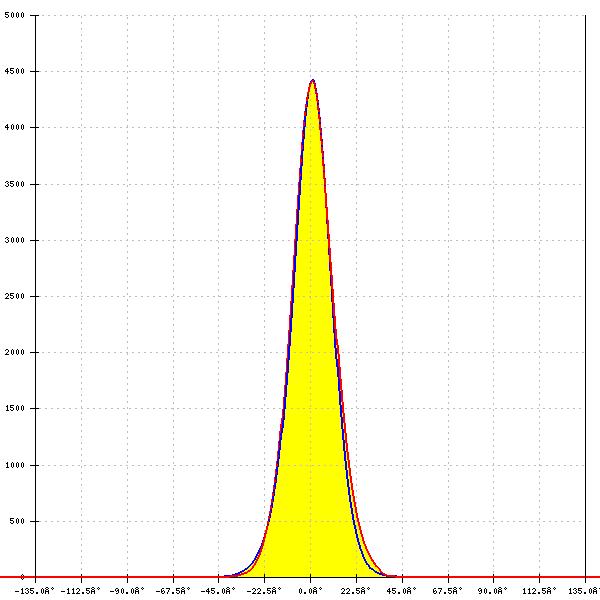

NF2x757G
Required components:
FWHM:
22°
FWTM:
44°
Peak intensity:
4.500 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

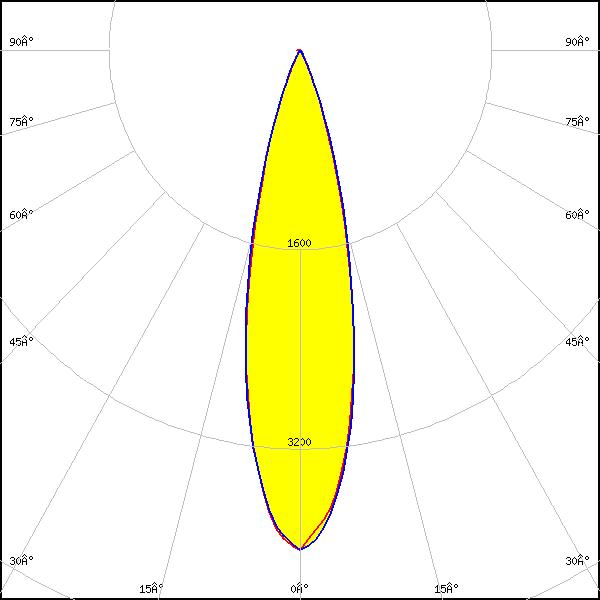

LED:

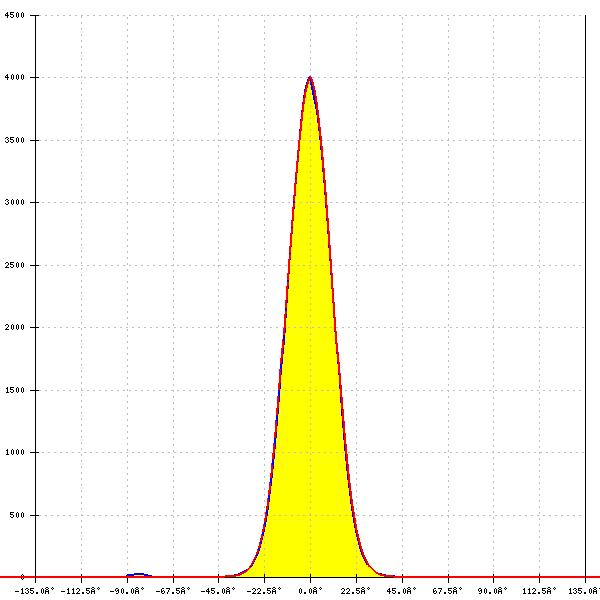

NVSxE21A
Required components:
FWHM:
25°
FWTM:
45°
Peak intensity:
4.900 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

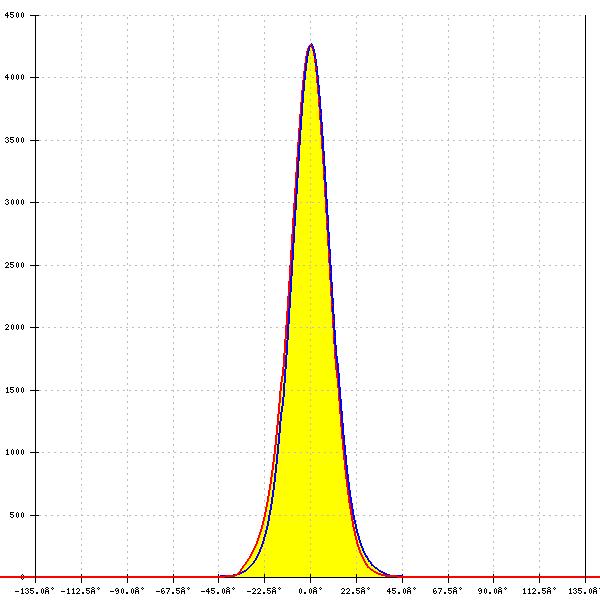

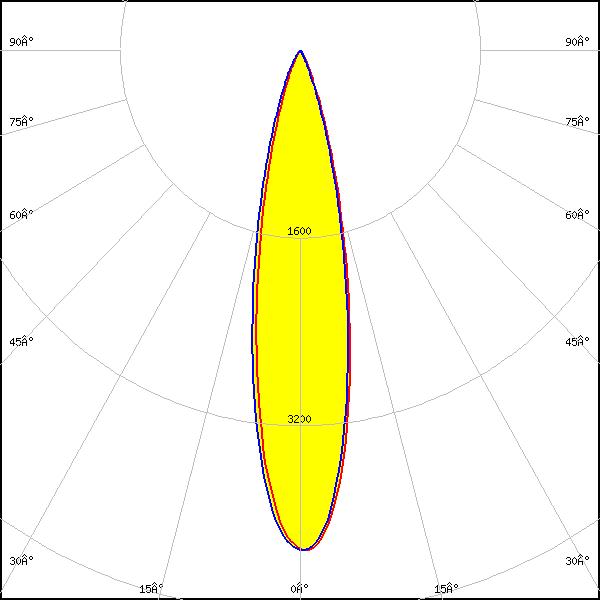

NVSxx19B/NVSxx19C
Required components:
FWHM:
22°
FWTM:
43°
Peak intensity:
4.270 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

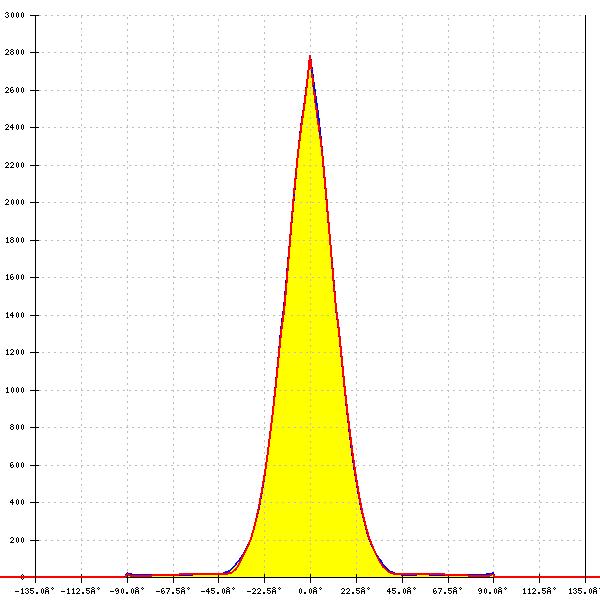

LED:

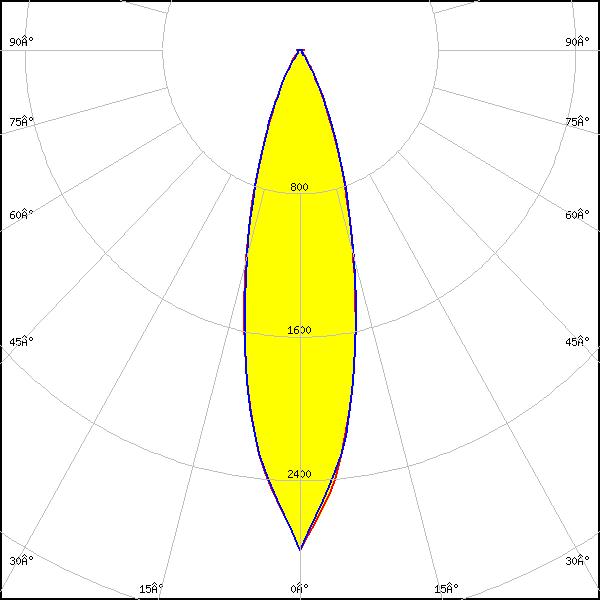

NWSx229A
Required components:
FWHM:
27°
FWTM:
54°
Peak intensity:
2.790 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

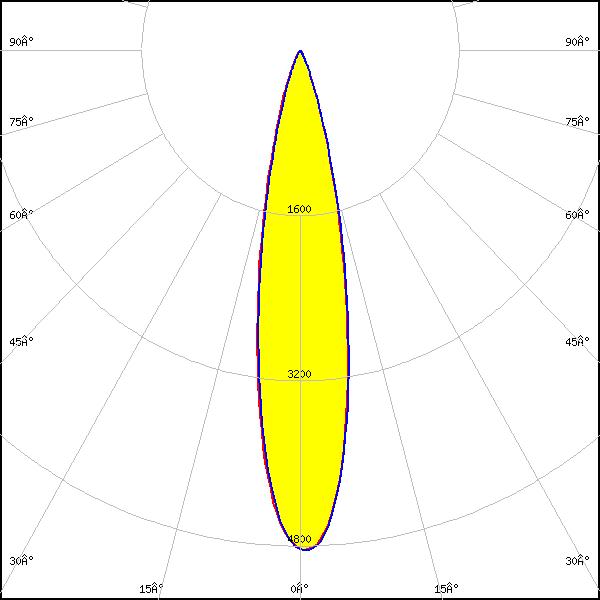

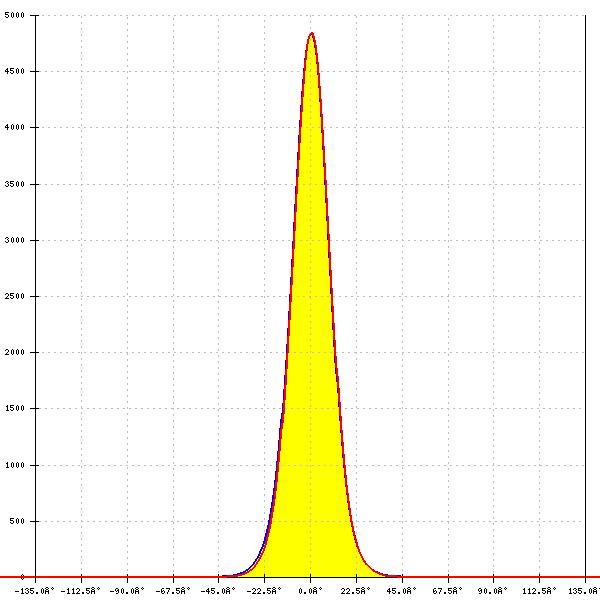

OSLON Square EC
Required components:
FWHM:
21°
FWTM:
40°
Peak intensity:
4.850 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

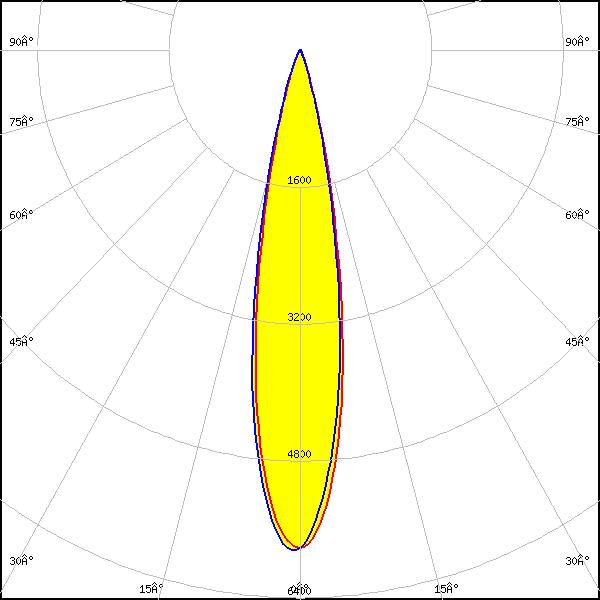

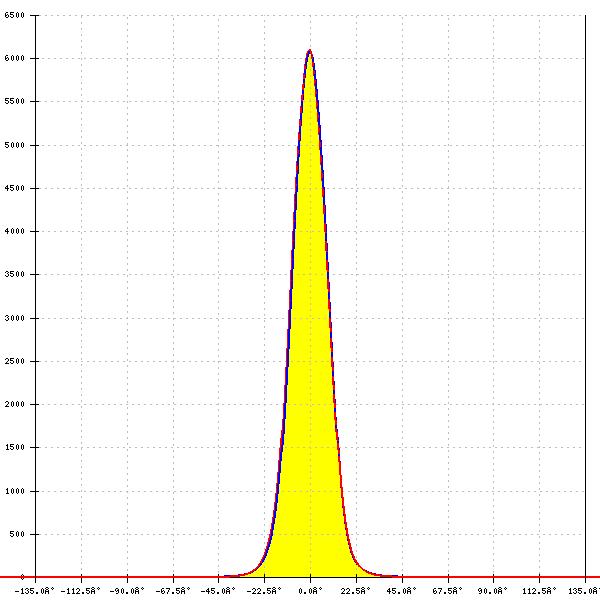

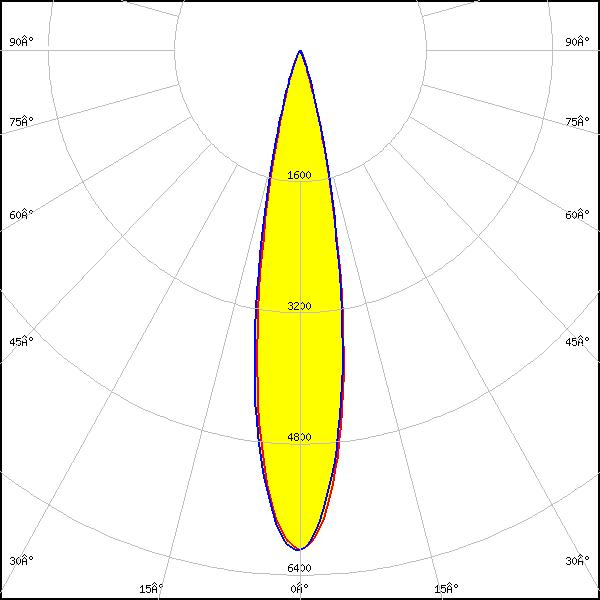

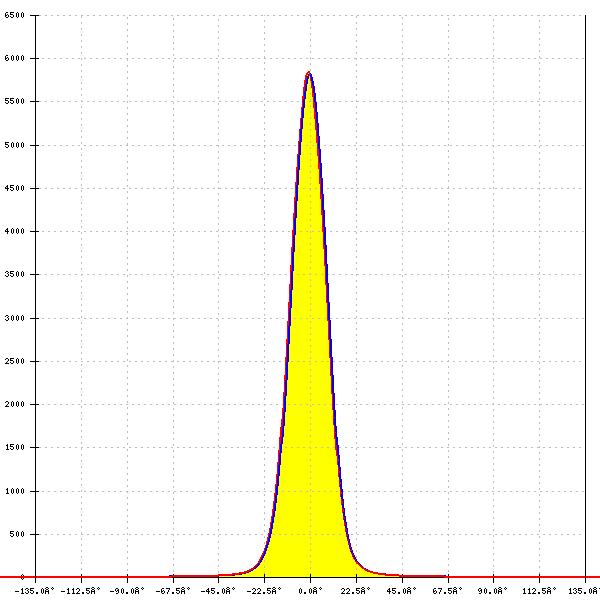

OSLON SSL 150
Required components:
FWHM:
20°
FWTM:
35°
Peak intensity:
6.100 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON SSL 150
FWHM:
20°
FWTM:
36°
Peak intensity:
5.800 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

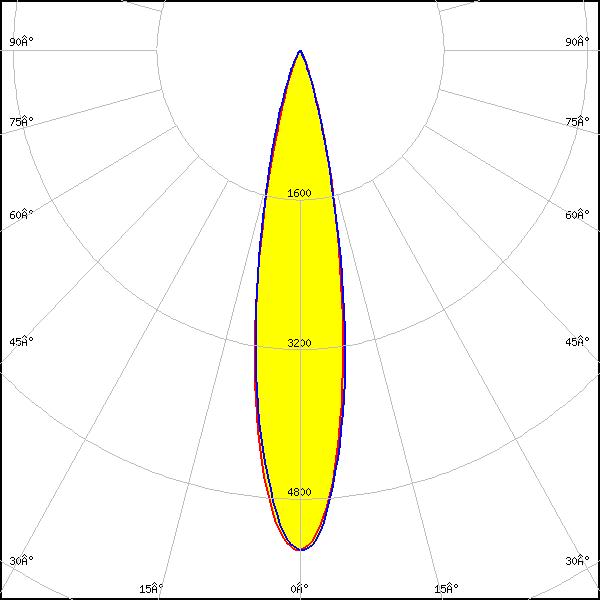

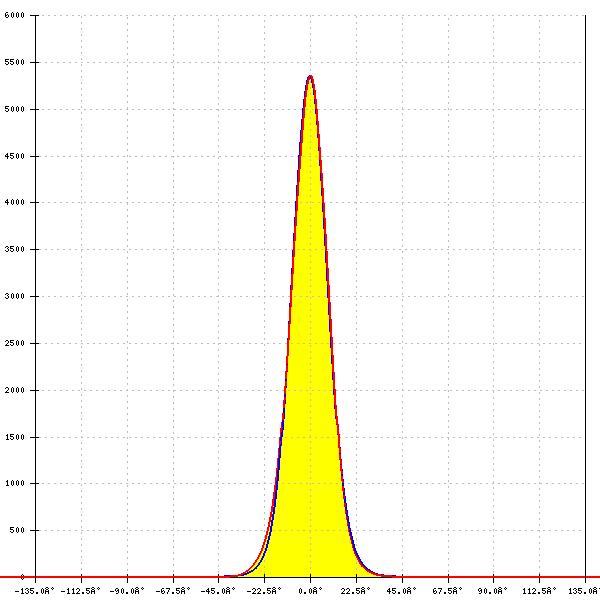

OSLON SSL 80
Required components:
FWHM:
20°
FWTM:
38°
Peak intensity:
5.360 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

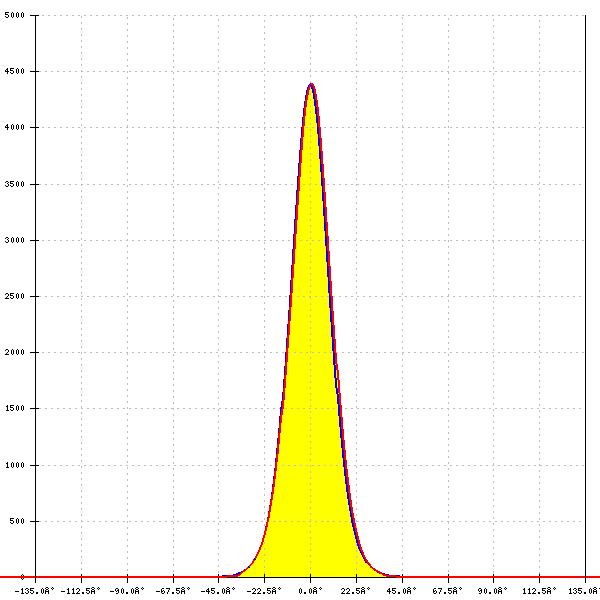

LED:

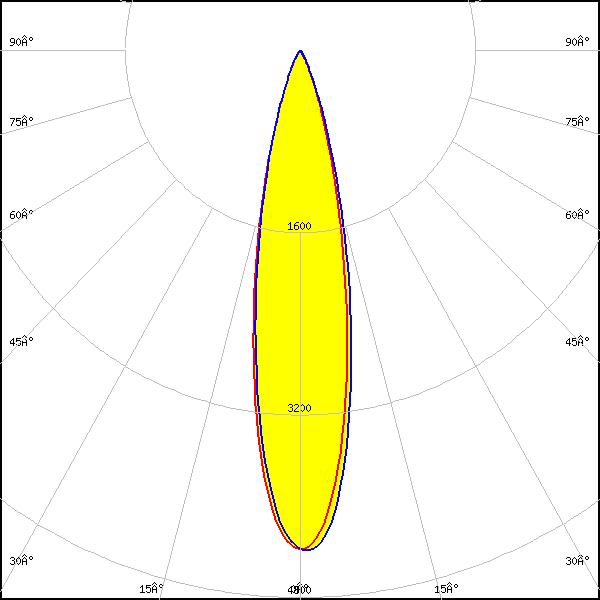

LH351B
Required components:
FWHM:
22°
FWTM:
43°
Peak intensity:
4.390 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

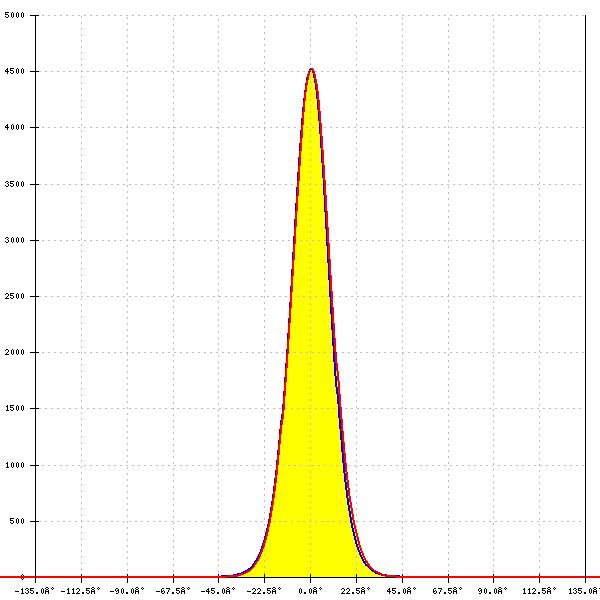

LED:

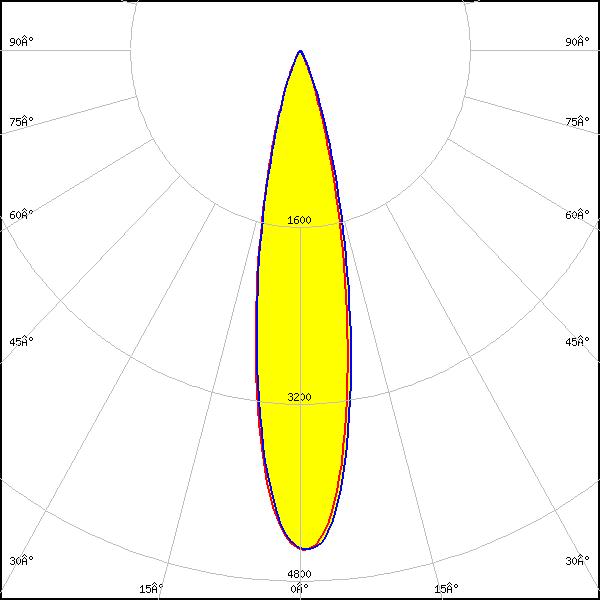

TL1L4
Required components:
FWHM:
22°
FWTM:
42°
Peak intensity:
4.520 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
