DAISY-7X1-CRV-WW

Print

~80° wide beam

This product consists of multiple parts that need to be ordered separately. See ordering information.

Specification
  • Dimensions:
    200 x  200 mm
  • Height:
    20.40 mm
  • Fastening:
    clips
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Shade
    1 pcs
  • Assembly
    7 pcs
  • Shade

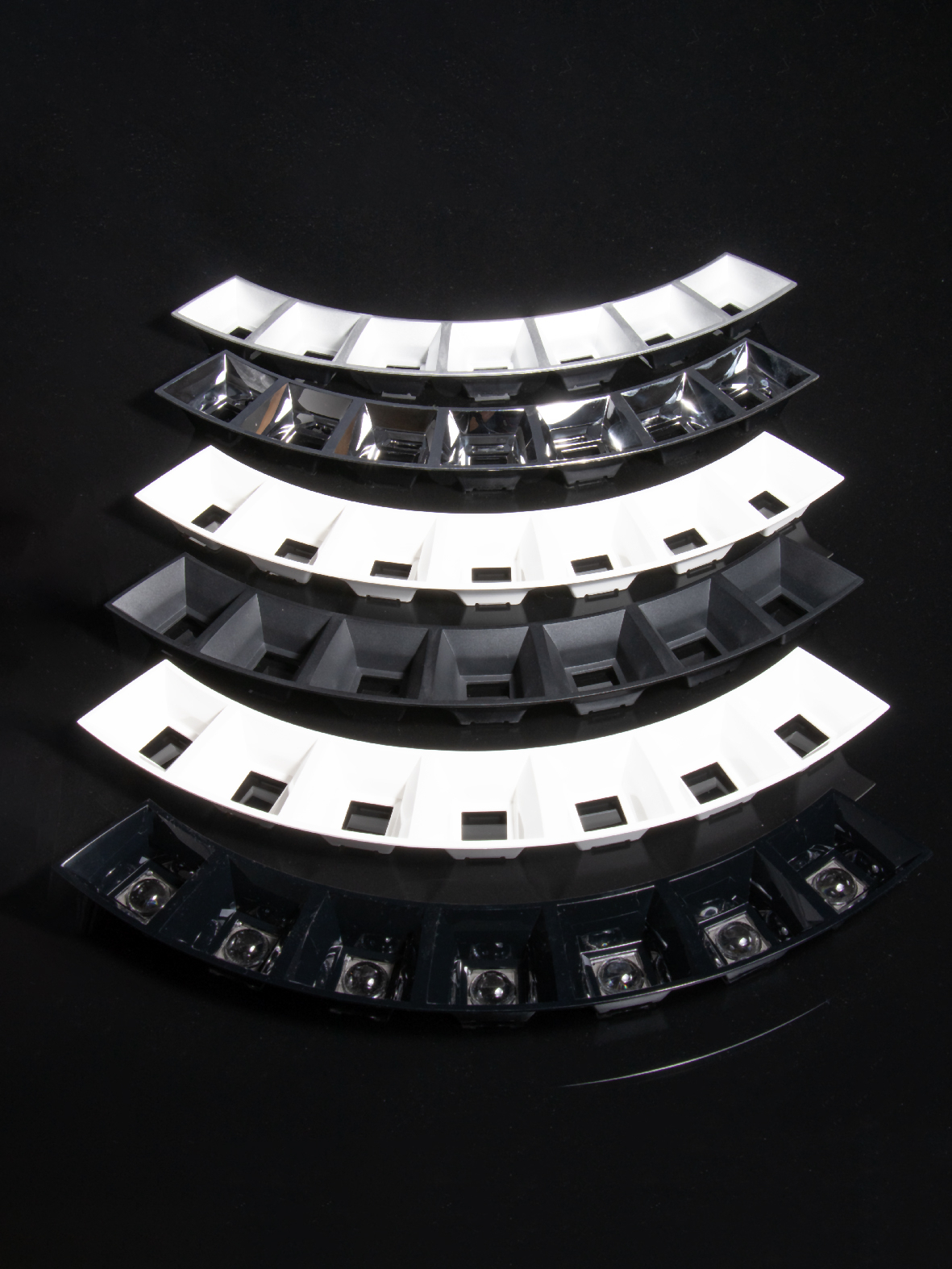

  • C19053_DAISY-7X1-SHD-CRV
    black
  • C19054_DAISY-7X1-SHD-CRV-WHT
    white
  • C19055_DAISY-7X1-SHD-CRV-MATT
    black
  • C19056_DAISY-7X1-SHD-CRV-MET
    metal
  • C19057_DAISY-7X1-SHD-CRV-MET-MATT
    metal
  • Quantity in box:
    72 pcs
  • Box size:
    400 x 300 x 300 mm
  • Box weight:
    3.80 kg
  • MPQ:
    72 pcs
  • MOQ:
    288 pcs
  • MOQ Size:
    400 x 300 x 300 mm
  • MOQ Weight:
    3.80 kg
  • Assembly
  • CA19071_DAISY-1X1-WW
  • Quantity in box:
    2016 pcs
  • Box size:
    400 x 300 x 300 mm
  • Box weight:
    3.70 kg
  • MPQ:
    112 pcs
  • MOQ:
    112 pcs
  • MOQ Size:
    400 x 300 x 50 mm
  • MOQ Weight:
    0.50 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    C19053_DAISY-7X1-SHD-CRV
    CA19071_DAISY-1X1-WW

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

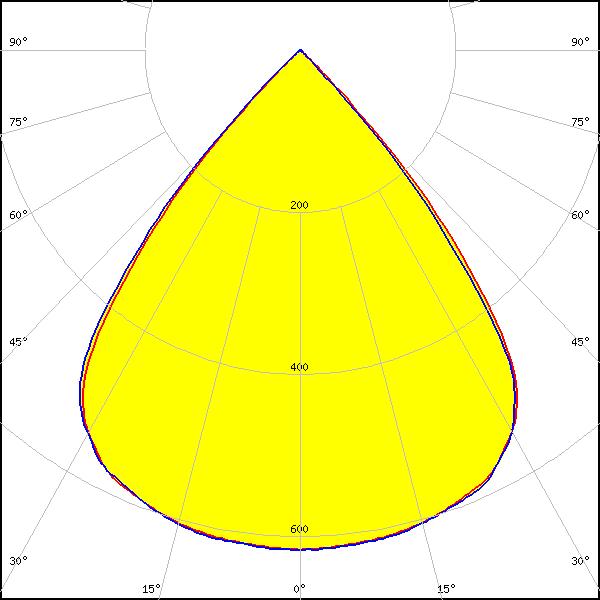

Optical results

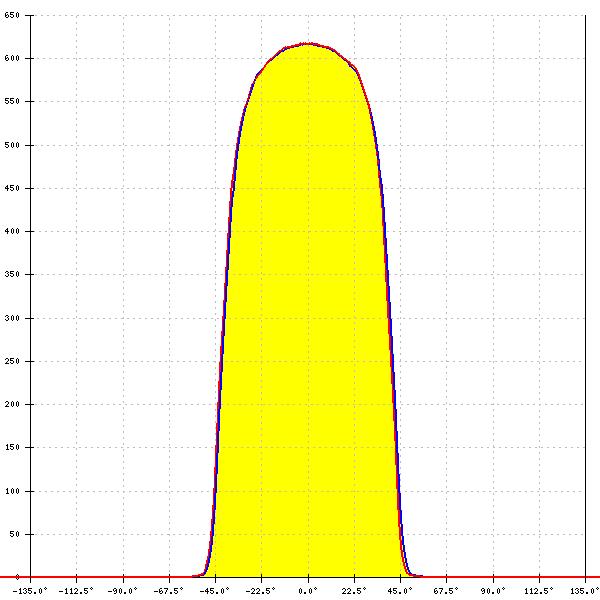

LED: RdLED 1/4 RING 1100lm 4C 42V DAISY-7X1-CRV G1
Required components:
C19053_DAISY-7X1-SHD-CRV
FWHM: 80°
FWTM: 91°
Peak intensity: 0.618 cd/lm
Efficiency: 87 %
LEDs/each optic: 4
Light colour/type: White
LED: RdLED 1/4 RING 1100lm 4C 42V DAISY-7X1-CRV G1
Required components:

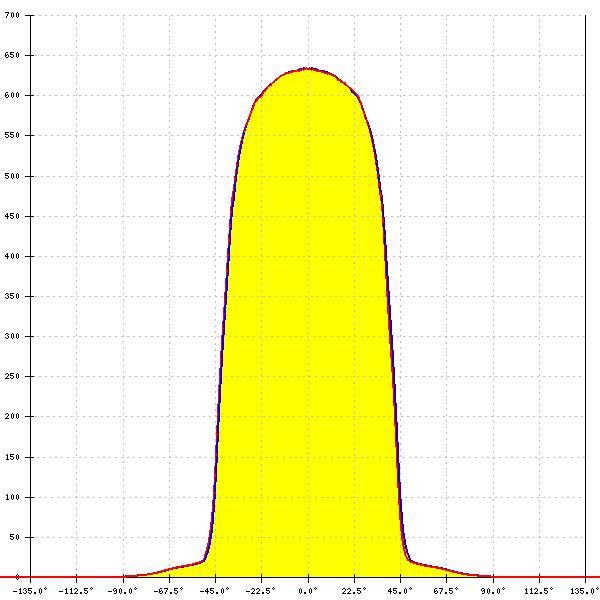

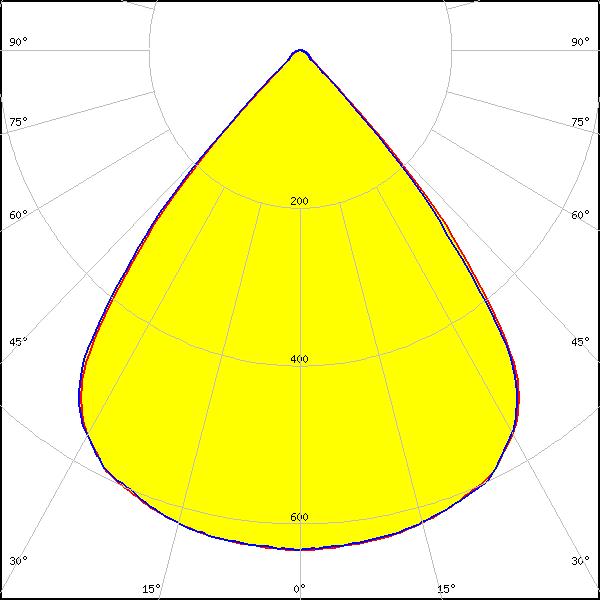

C19054_DAISY-7X1-SHD-CRV-WHT
FWHM: 81°
FWTM: 93°
Peak intensity: 0.634 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White
LED: RdLED 1/4 RING 1100lm 4C 42V DAISY-7X1-CRV G1
Required components:

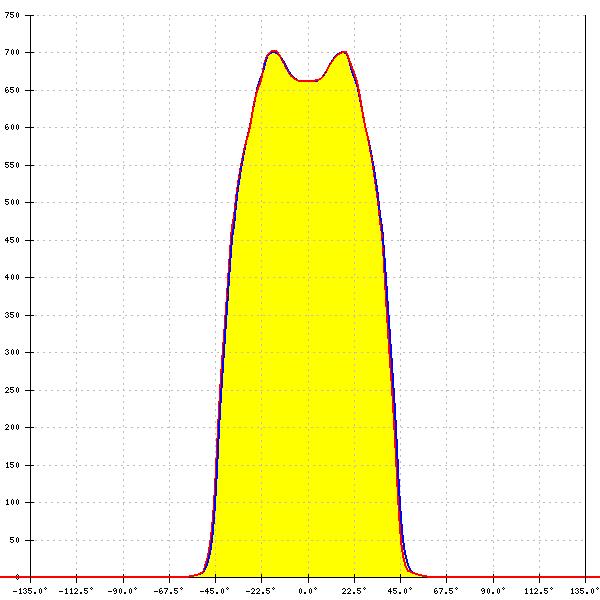

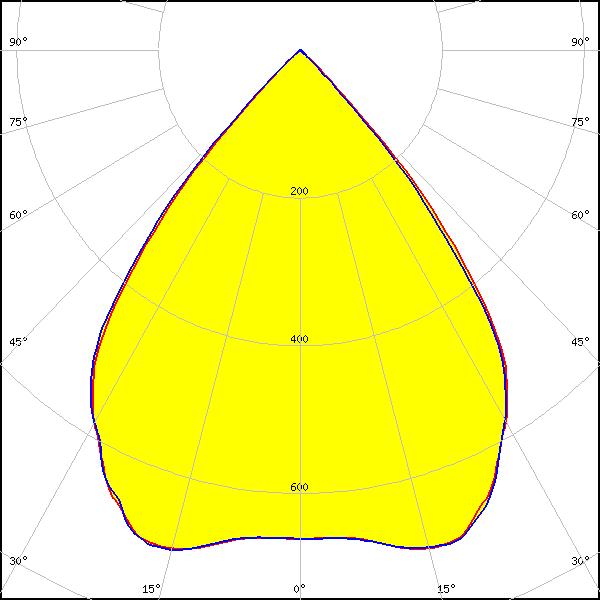

C19056_DAISY-7X1-SHD-CRV-MET
FWHM: 78°
FWTM: 92°
Peak intensity: 0.714 cd/lm
Efficiency: 95 %
LEDs/each optic: 4
Light colour/type: White

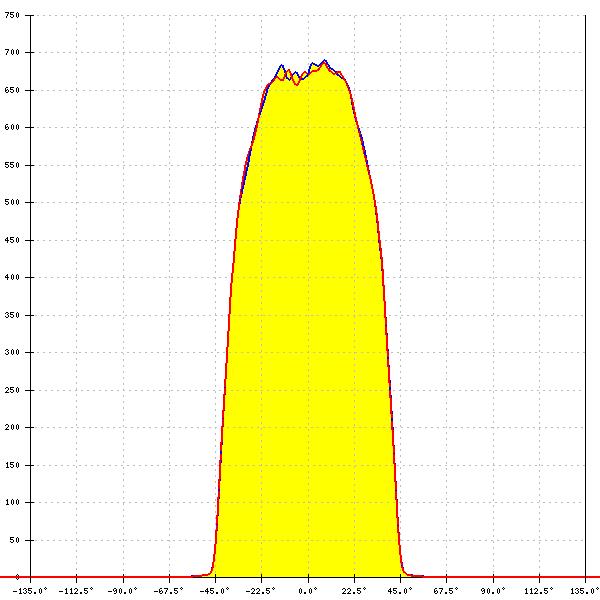

LED: LM28xB Series
Required components:

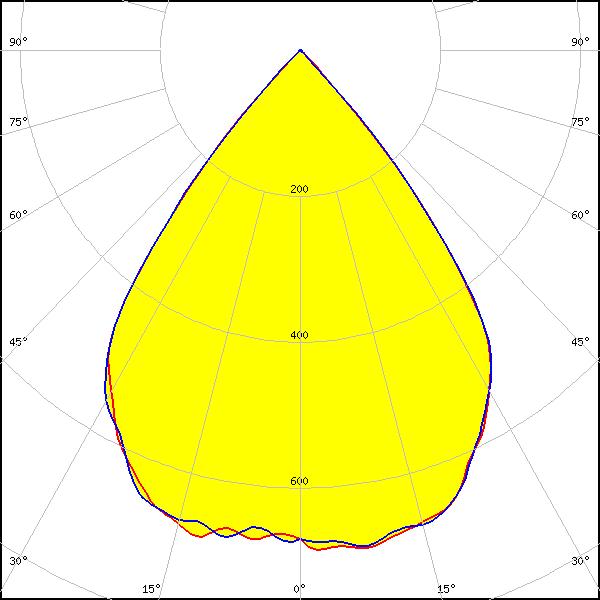

C19055_DAISY-7X1-SHD-CRV-MATT
FWHM: 76°
FWTM: 88°
Peak intensity: 0.705 cd/lm
Efficiency: 89 %
LEDs/each optic: 4
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
