DAISY-7X1-BW
Print

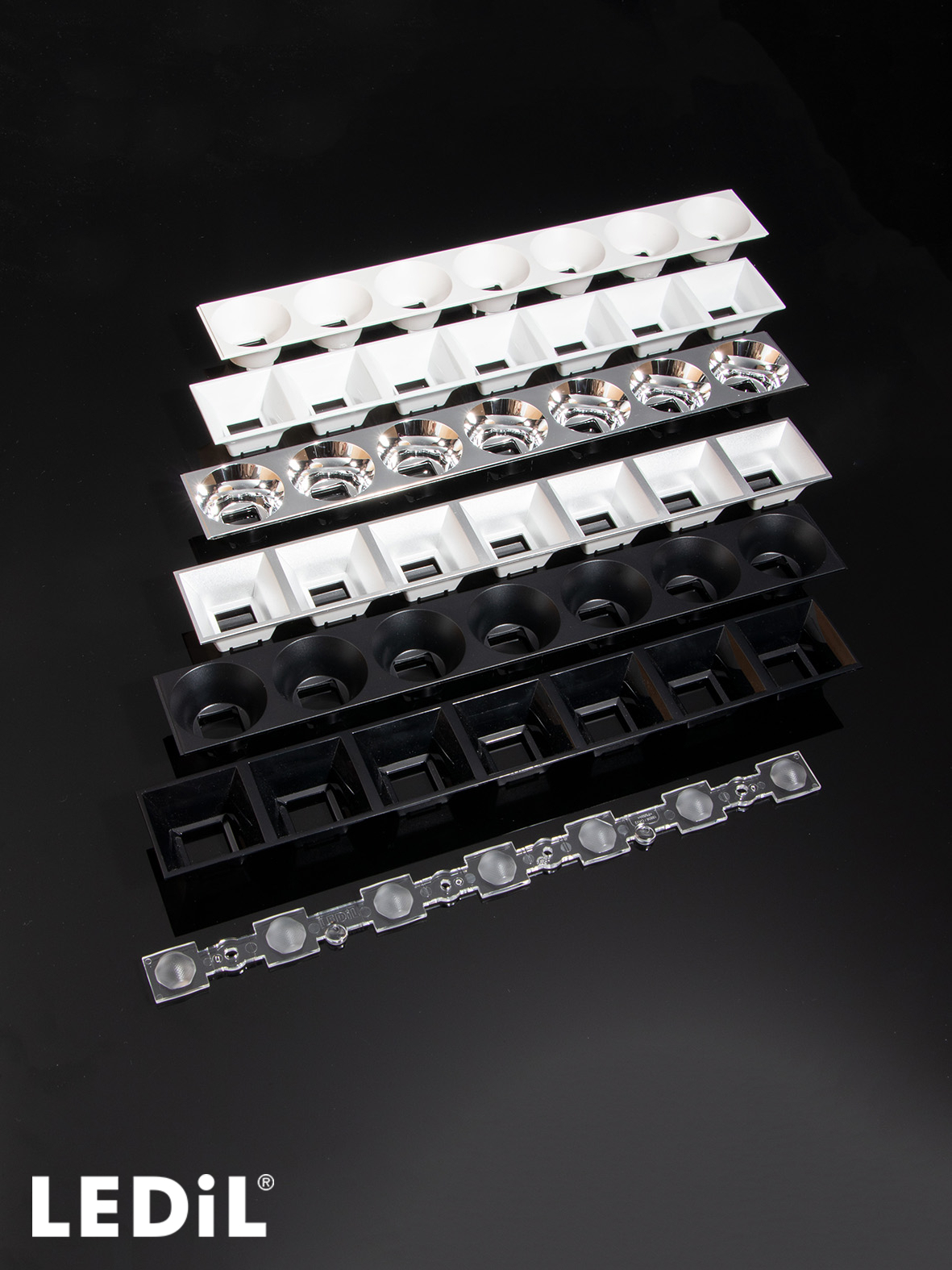

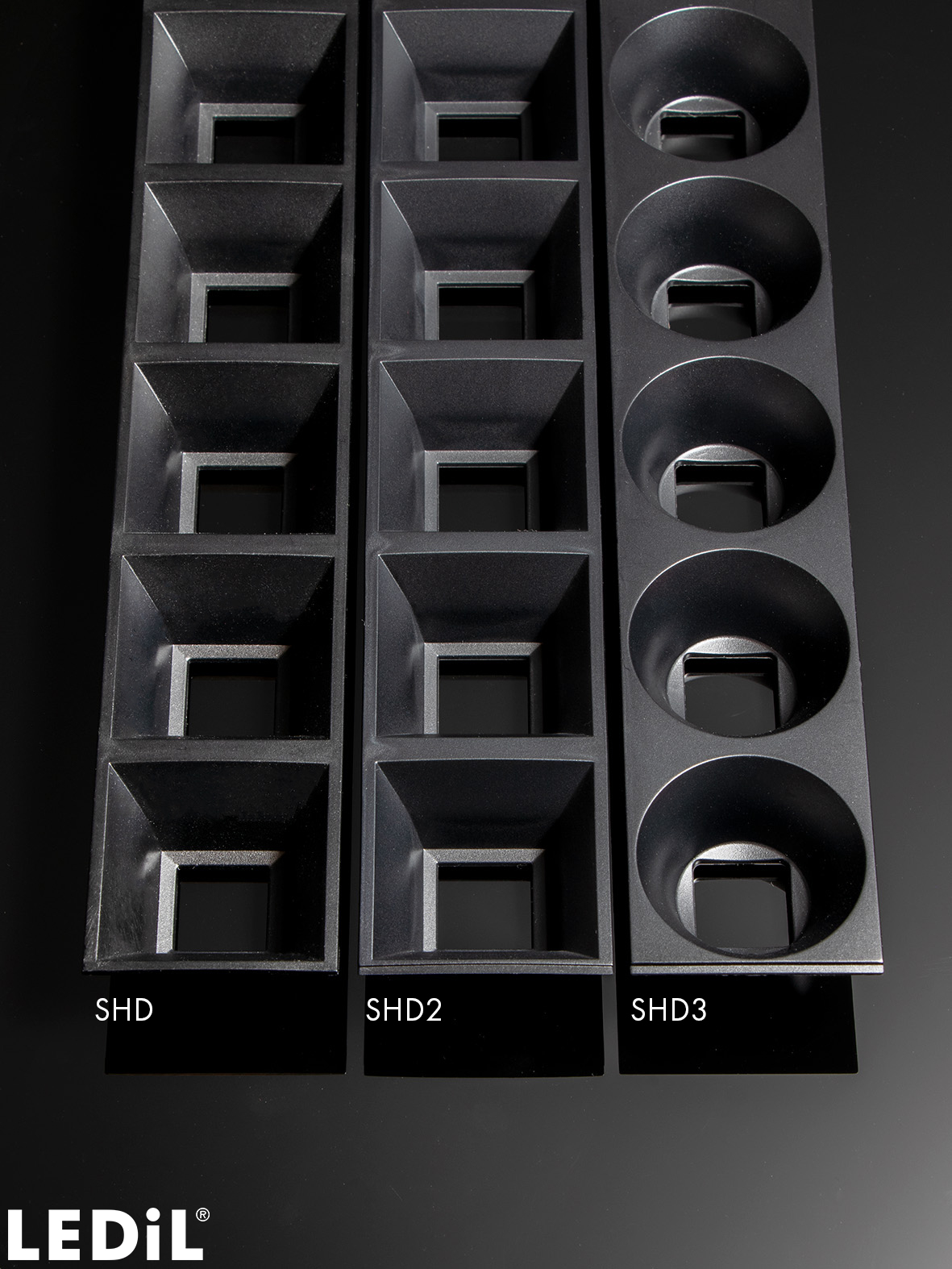

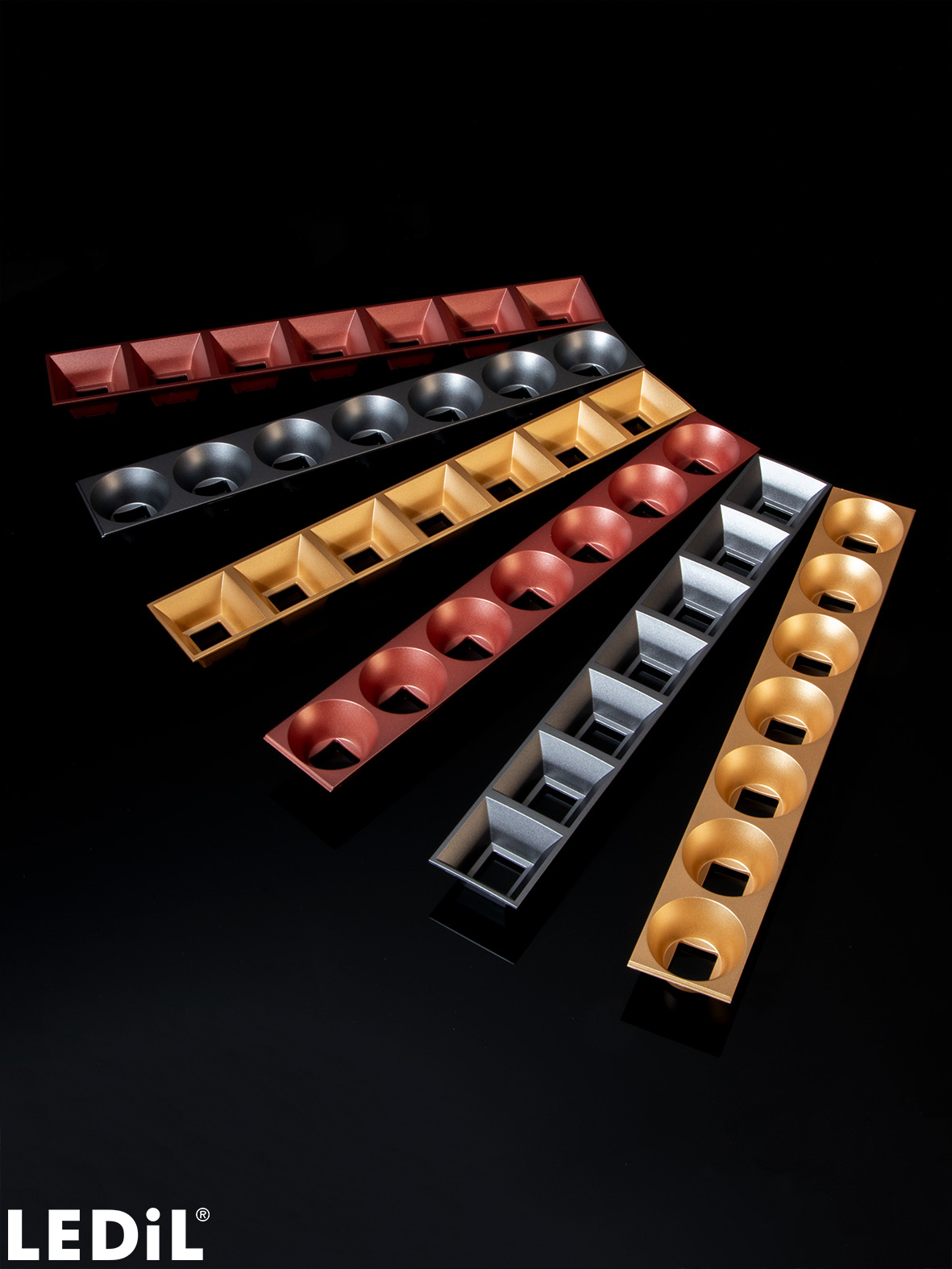

~80° batwing beam. Choose SHD with no lips or SHD2 with narrow lips and square openings. SHD3 with narrow lips and round openings.
This product consists of multiple parts that need to be ordered separately. See ordering information.
Component Materials
- DAISY-7X1-SHDShadePC
- DAISY-7X1-SHD-WHTShadePC
- DAISY-7X1-SHD-MATTShadePC
- DAISY-7X1-SHD-WHT-MATTShadePC
- DAISY-7X1-SHD-METShadePC
- DAISY-7X1-SHD-MET-MATTShadePC
- DAISY-7X1-BWMulti-lensPMMA
- DAISY-7X1-SHD3ShadePC
- DAISY-7X1-SHD3-MATTShadePC
- DAISY-7X1-SHD3-WHTShadePC
- DAISY-7X1-SHD3-WHT-MATTShadePC
- DAISY-7X1-SHD3-METShadePC
- DAISY-7X1-SHD3-MET-MATTShadePC
- DAISY-7X1-SHD-MATT-REDShadePC
- DAISY-7X1-SHD-MATT-GRShadePC
- DAISY-7X1-SHD-MATT-GLDShadePC
- DAISY-7X1-SHD3-MATT-GRShadePC
- DAISY-7X1-SHD3-MATT-REDShadePC
- DAISY-7X1-SHD3-MATT-GLDShadePC
- DAISY-7X1-SHD2ShadePC
- DAISY-7X1-SHD2-MATTShadePC-ABS
- DAISY-7X1-SHD2-WHTShadePC
- DAISY-7X1-SHD2-MATT-WHTShadePC
- DAISY-7X1-SHD2-METShadePC
- DAISY-7X1-SHD2-MET-MATTShadePC-ABS
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results
LED:

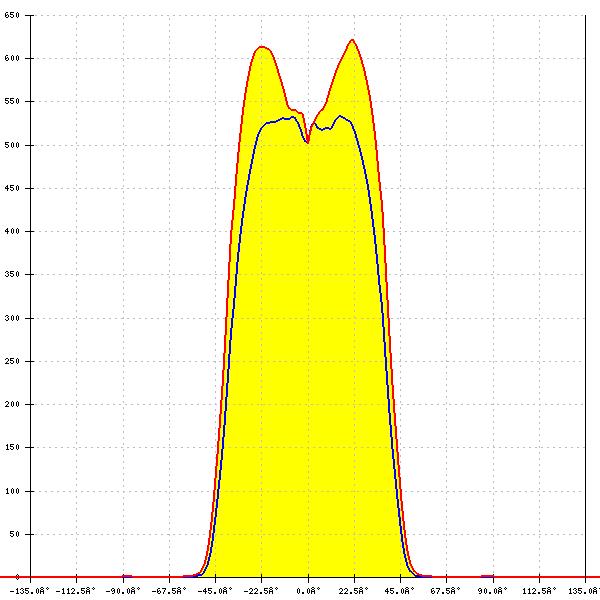

LUXEON 2835 Architectural
Required components:
C16872_DAISY-7X1-SHD
FWHM:
75° + 78°
FWTM:
92° + 94°
Peak intensity:
0.637 cd/lm
Efficiency:
89 %
LEDs/each optic:
4
Light colour/type:
White
LED:
LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
Required components:
C16872_DAISY-7X1-SHD
FWHM:
78°
FWTM:
94°
Peak intensity:
0.589 cd/lm
Efficiency:
87 %
LEDs/each optic:
2
Light colour/type:
White
LED:
LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM:
78°
FWTM:
94°
Peak intensity:
0.588 cd/lm
Efficiency:
87 %
LEDs/each optic:
2
Light colour/type:
White
LED:

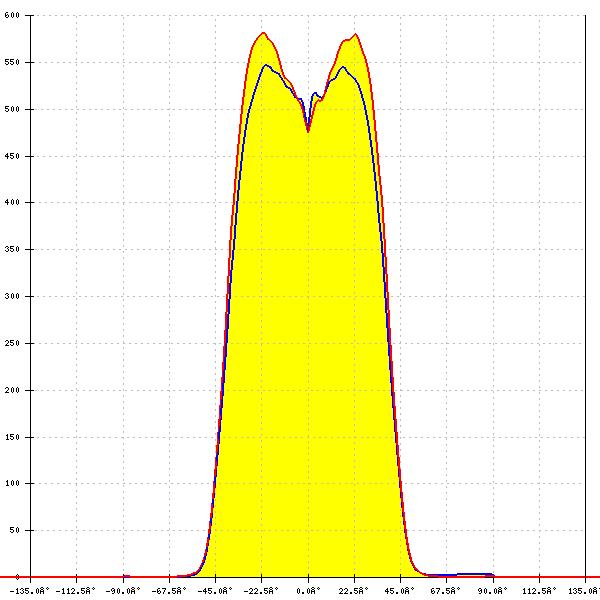

LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM:
78°
FWTM:
94°
Peak intensity:
0.619 cd/lm
Efficiency:
90 %
LEDs/each optic:
2
Light colour/type:
White
LED:
LinLED 280x28mm 1100lm 8x0 2C 42V DAISY-7X1 G1
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM:
77°
FWTM:
94°
Peak intensity:
0.614 cd/lm
Efficiency:
90 %
LEDs/each optic:
4
Light colour/type:
White
LED:

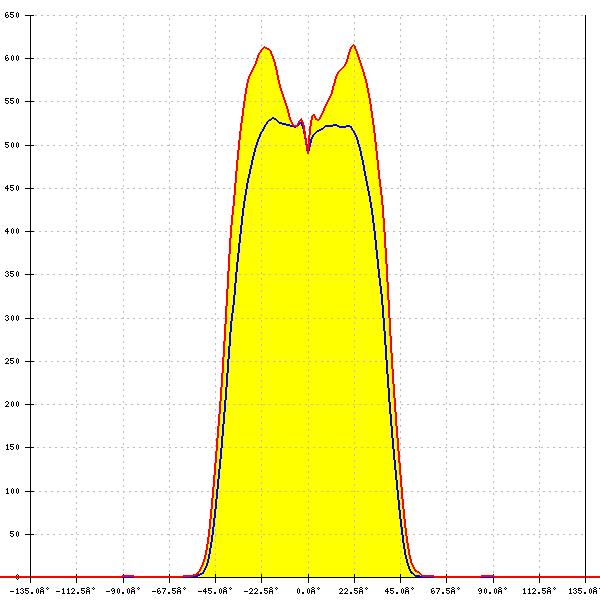

Duris E 2835
Required components:
C16872_DAISY-7X1-SHD
FWHM:
76° + 79°
FWTM:
92° + 96°
Peak intensity:
0.620 cd/lm
Efficiency:
88 %
LEDs/each optic:
4
Light colour/type:
White
LED:

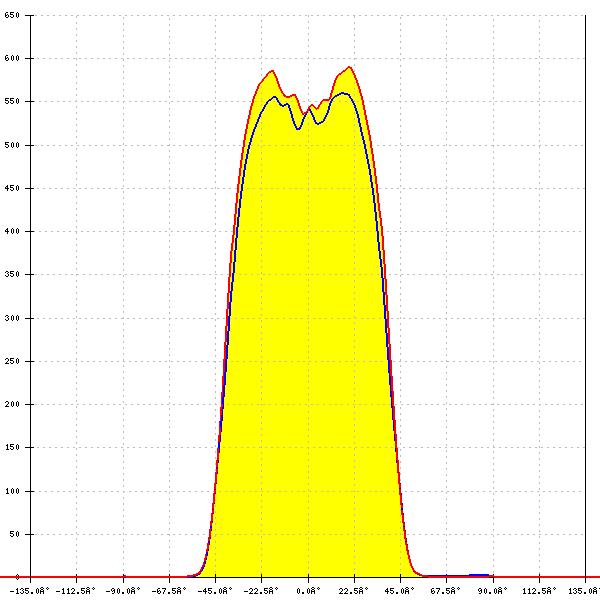

Duris E 2835
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM:
77°
FWTM:
94°
Peak intensity:
0.612 cd/lm
Efficiency:
88 %
LEDs/each optic:
4
Light colour/type:
White
LED:

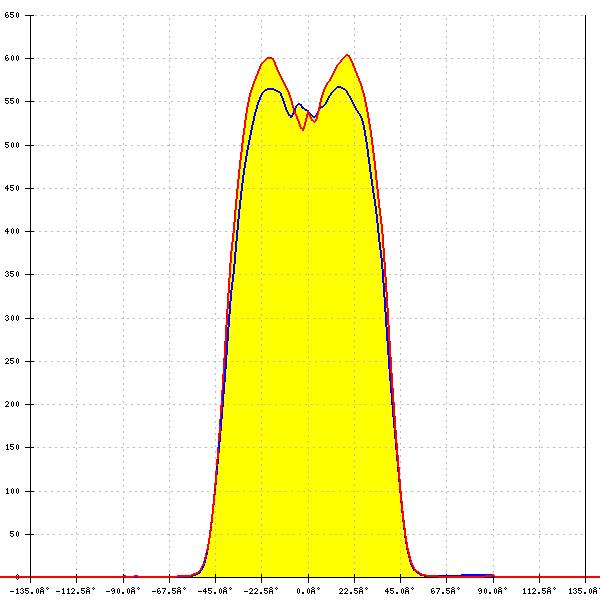

Duris E 2835
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM:
77°
FWTM:
94°
Peak intensity:
0.631 cd/lm
Efficiency:
90 %
LEDs/each optic:
4
Light colour/type:
White

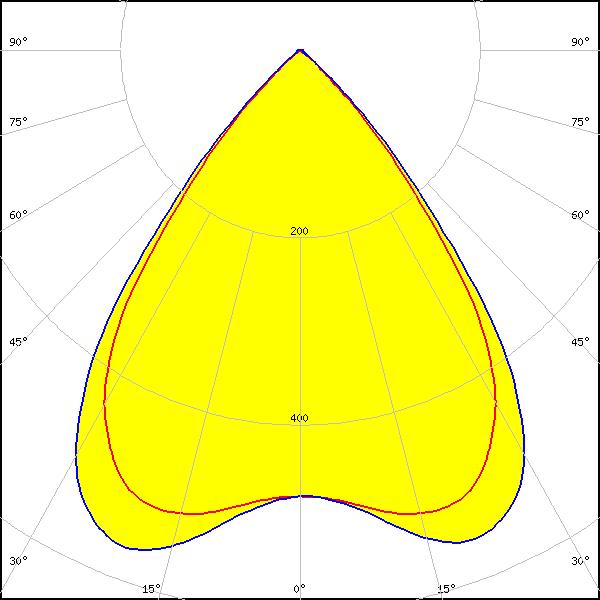

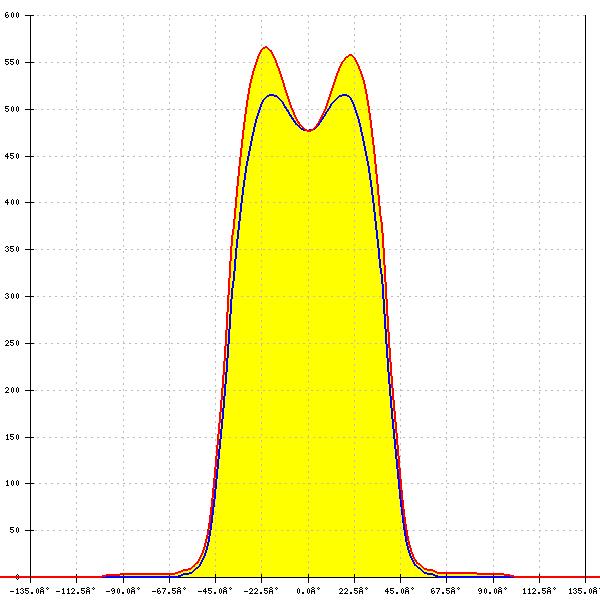

LED:
LLE 24x140mm 400lm 8x0 LVD ADV1
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: asymmetric
Peak intensity:
0.627 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

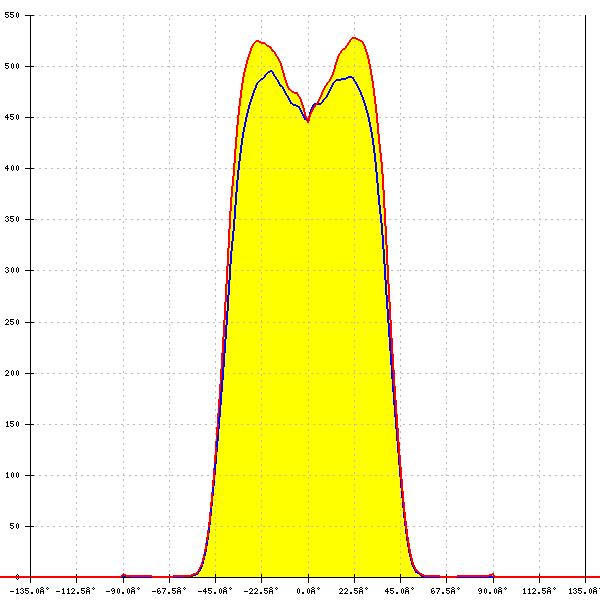

LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: asymmetric
Peak intensity:
0.567 cd/lm
Efficiency:
86 %
LEDs/each optic:
4
Light colour/type:
White
LED:
LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: asymmetric
Peak intensity:
0.593 cd/lm
Efficiency:
89 %
LEDs/each optic:
4
Light colour/type:
White

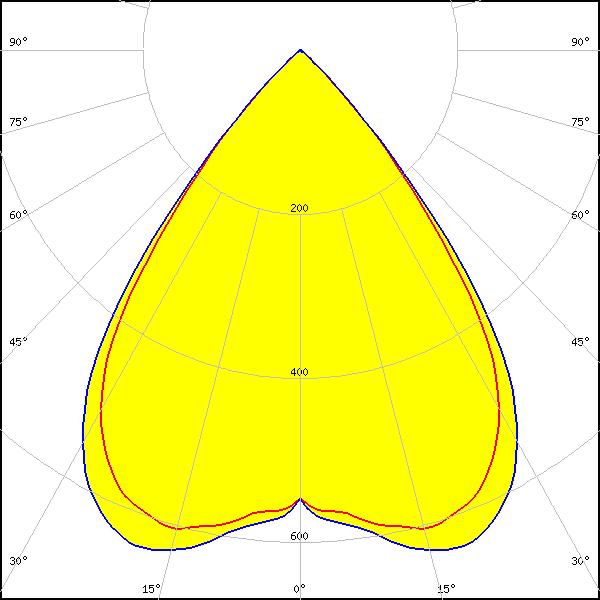

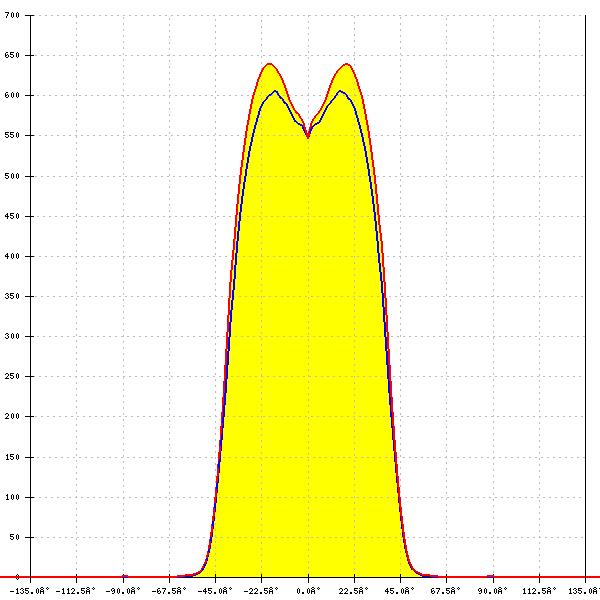

LED:
LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C18409_DAISY-7X1-SHD-MET-MATT
FWHM: asymmetric
Peak intensity:
0.674 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
White

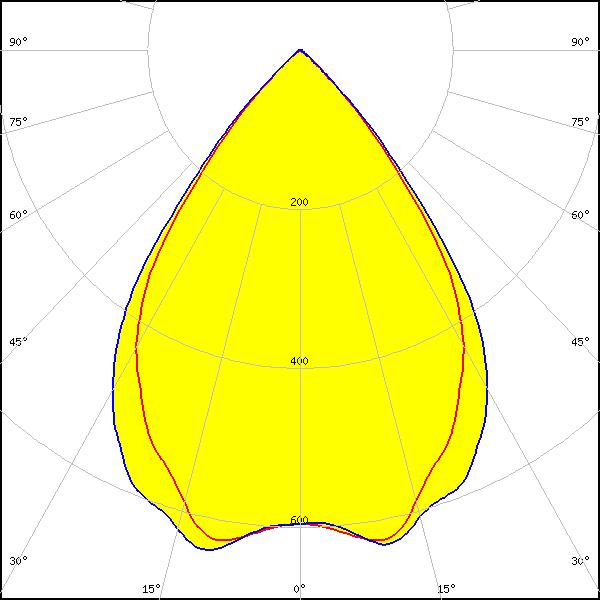

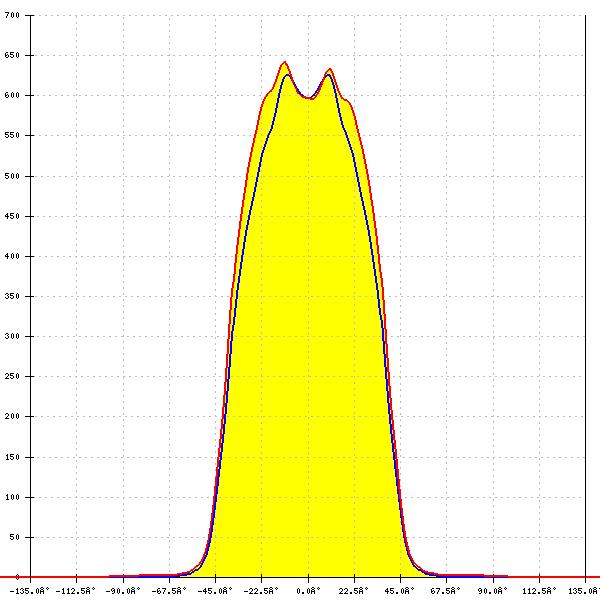

LED:
LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C19641_DAISY-7X1-SHD3-MET
FWHM: asymmetric
Peak intensity:
0.698 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LLE 24x280mm 750lm x27-x65 LVD ADV1
Required components:
C16872_DAISY-7X1-SHD
FWHM: asymmetric
Peak intensity:
0.530 cd/lm
Efficiency:
78 %
LEDs/each optic:
4
Light colour/type:
Tunable White
