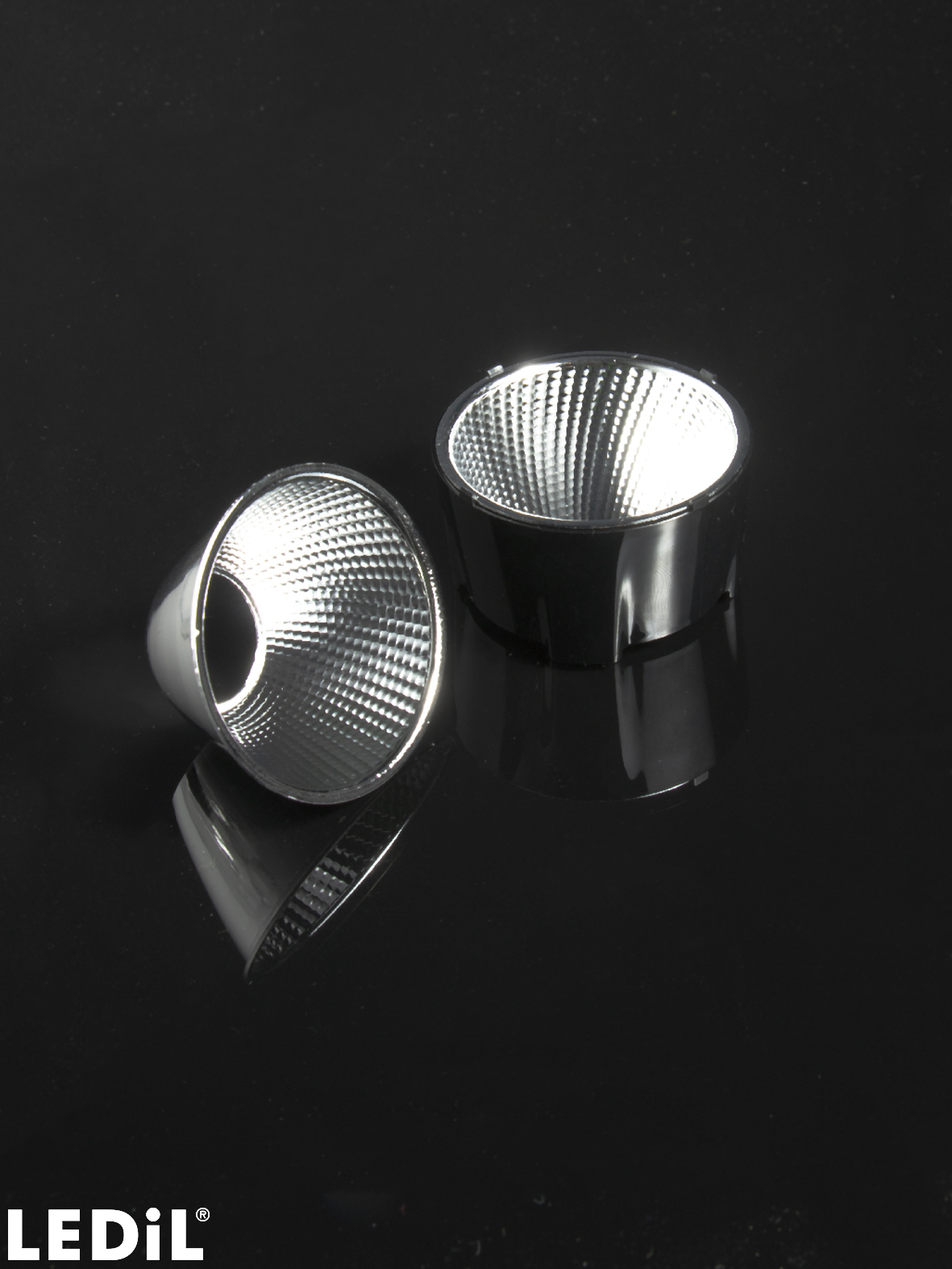

ADELY-50-M

~24° medium beam

This product consists of multiple parts that need to be ordered separately. See ordering information.

Dimensions:

50 mm
Height:

28.10 mm
Fastening:

clips, socket
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Quantities for one set:
Reflector
1 pcs
Holder
1 pcs

Reflector
C18892_ADELY-50-M
metal
Quantity in box:
1600 pcs
Box size:
370 x 300 x 310 mm
Box weight:
12.90 kg
MPQ:
80 pcs
MOQ:
80 pcs
MOQ Size:
310 x 230 x 100 mm
MOQ Weight:
0.80 kg
Holder
C18691_YASMEEN-50-HLD2-C
black
C18694_YASMEEN-50-HLD2-B
black
Quantity in box:
500 pcs
Box size:
400 x 300 x 300 mm
Box weight:
3.70 kg
MPQ:
10 pcs
MOQ:
60 pcs
MOQ Size:
320 x 230 x 70 mm
MOQ Weight:
0.70 kg

Family datasheet
Product datasheet
2D mechanical drawing
Request a 3D mechanical model

REQUEST SAMPLES

WHERE TO BUY

ORDER ONLINE

HEKLA-RZ-LENS

Colour mixing sublens for HEKLA-SOCKETS and HEKLA-G2 connectors

HEKLA-G2-J

Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

HEKLA-G2-I

Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

HEKLA-G2-H

Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

HEKLA-G2-D

Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

HEKLA-G2-C

Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

HEKLA-SOCKET-K

Version compatible with Bender+Wirth Typ L8

HEKLA-SOCKET-A

Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

HEKLA-SOCKET-I

Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

HEKLA-SOCKET-H

Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

HEKLA-SOCKET-G

Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

HEKLA-SOCKET-F

Version compatible with Bridgelux VERO10

HEKLA-SOCKET-D

Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

HEKLA-SOCKET-C

Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

HEKLA-SOCKET-B

Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

HEKLA-SOCKET-J

Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

HEKLA-SOCKET-VERO18

Version compatible with Bridgelux VERO18, VERO13 and Bender & Wirth 4xx Typ L1.

HEKLA-SOCKET-E

Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

Show less

LED: V10 Gen 8-9

LES size: 10.0 mm

FWHM: 23°

FWTM: 56°

Peak intensity: 3.449 cd/lm

Efficiency: 88 %

LEDs/each optic: 1

Light colour/type: White

DATASHEET Light distribution files

MEASURED

LED: CLU700/701/702/703

LES size: 6.0 mm

Required components:

F17435_HEKLA-G2-C

FWHM: 22°

FWTM: 42°

Peak intensity: 4.077 cd/lm

Efficiency: 89 %
