    DAISY-7X1-M-D

    Print

    ~35° wide beam. Variant with diffused lenses. Choose SHD with no lips or SHD2 with narrow lips and square openings. SHD3 with narrow lips and round openings.

    This product consists of multiple parts that need to be ordered separately. See ordering information.

    Specification
    • Dimensions:
      280 x  40 mm
    • Height:
      20.30 mm
    • Fastening:
      pin, screw, clips
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

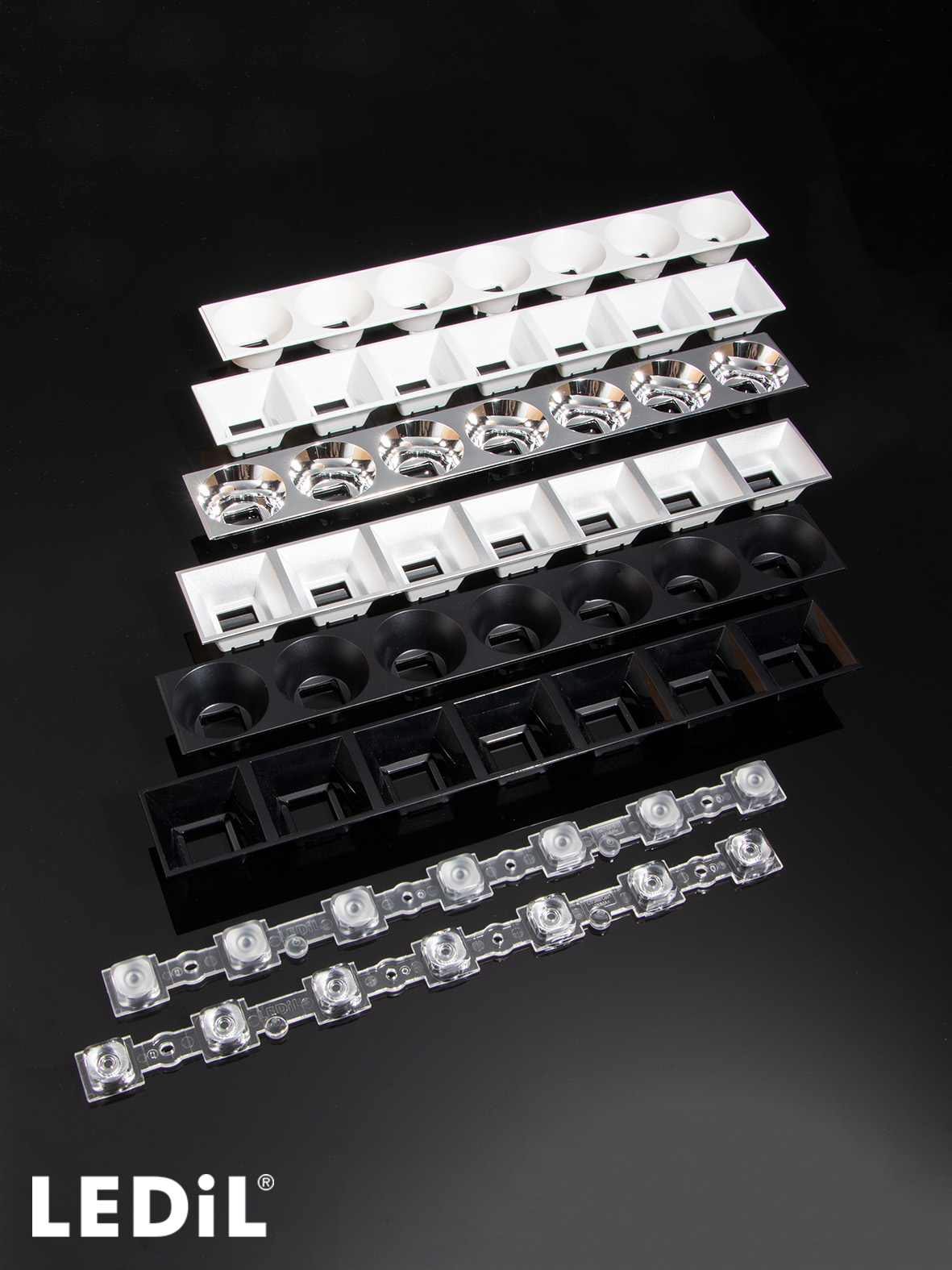

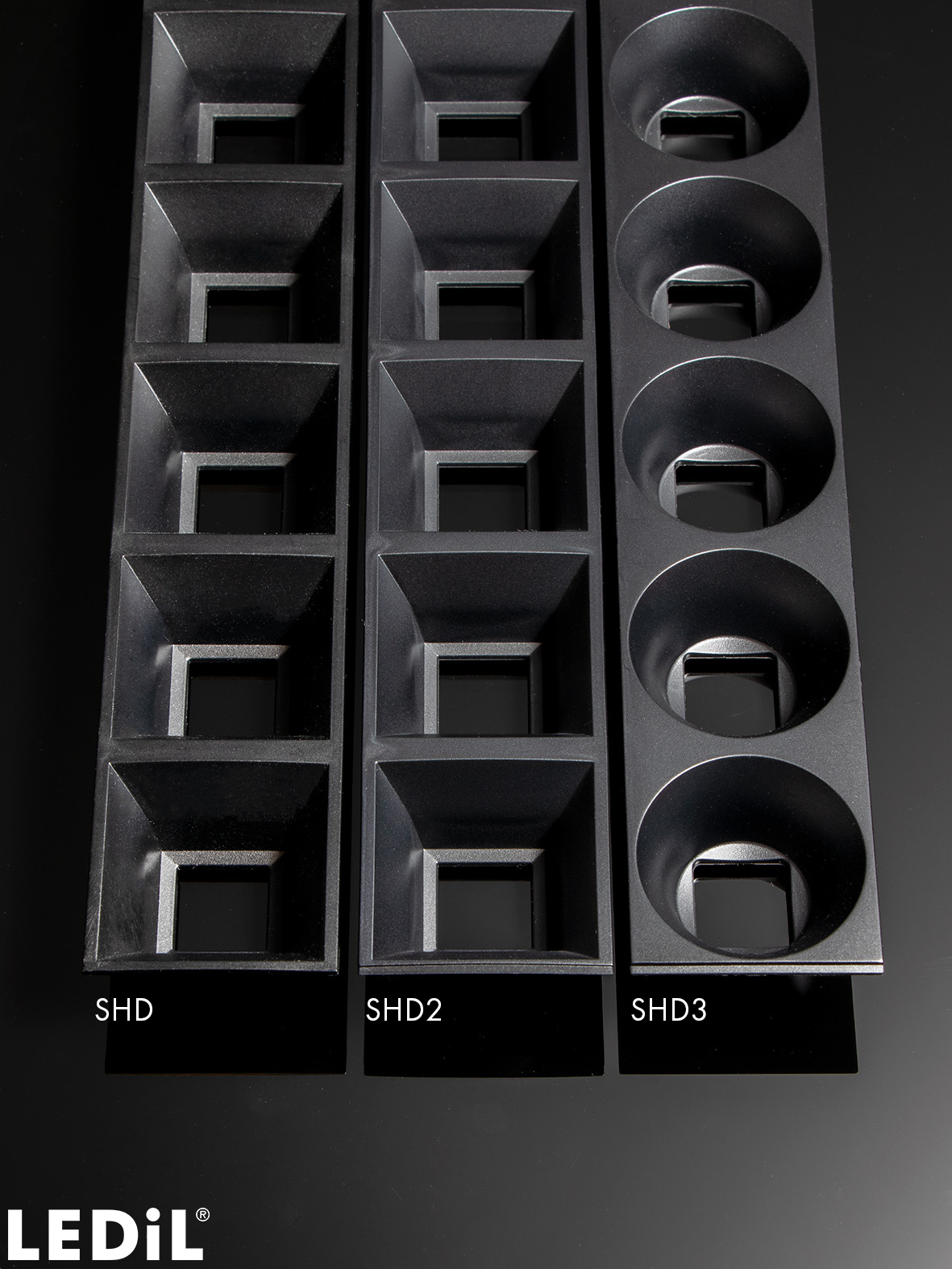

    Component Materials
    • DAISY-7X1-SHD
      Shade
      PC
    • DAISY-7X1-SHD-WHT
      Shade
      PC
    • DAISY-7X1-SHD-MATT
      Shade
      PC
    • DAISY-7X1-SHD-WHT-MATT
      Shade
      PC
    • DAISY-7X1-M-D
      Linear lens
      PMMA
    • DAISY-7X1-SHD-MET
      Shade
      PC
    • DAISY-7X1-SHD-MET-MATT
      Shade
      PC
    • DAISY-7X1-SHD3
      Shade
      PC
    • DAISY-7X1-SHD3-MATT
      Shade
      PC
    • DAISY-7X1-SHD3-WHT
      Shade
      PC
    • DAISY-7X1-SHD3-WHT-MATT
      Shade
      PC
    • DAISY-7X1-SHD3-MET
      Shade
      PC
    • DAISY-7X1-SHD3-MET-MATT
      Shade
      PC

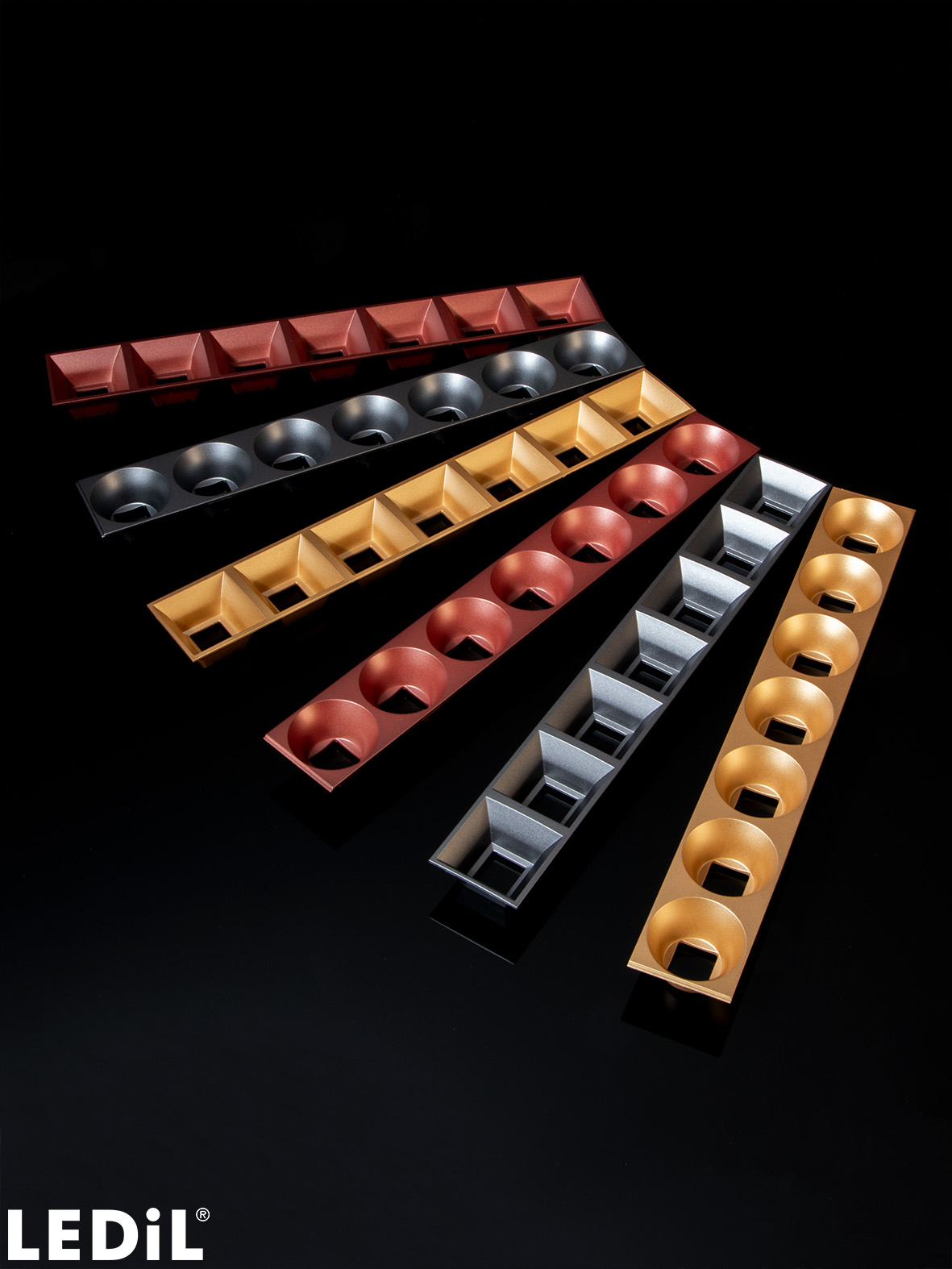

    • DAISY-7X1-SHD-MATT-RED
      Shade
      PC
    • DAISY-7X1-SHD-MATT-GR
      Shade
      PC
    • DAISY-7X1-SHD-MATT-GLD
      Shade
      PC
    • DAISY-7X1-SHD3-MATT-GR
      Shade
      PC
    • DAISY-7X1-SHD3-MATT-RED
      Shade
      PC
    • DAISY-7X1-SHD3-MATT-GLD
      Shade
      PC
    • DAISY-7X1-SHD2
      Shade
      PC
    • DAISY-7X1-SHD2-MATT
      Shade
      PC-ABS
    • DAISY-7X1-SHD2-WHT
      Shade
      PC
    • DAISY-7X1-SHD2-MATT-WHT
      Shade
      PC
    • DAISY-7X1-SHD2-MET
      Shade
      PC
    • DAISY-7X1-SHD2-MET-MATT
      Shade
      PC-ABS
    • Request material files from Tech Support

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantities for one set:
    • Linear lens
      1 pcs
    • Shade
      1 pcs
    • Linear lens
    • C18143_DAISY-7X1-M-D
    • Quantity in box:
      312 pcs
    • Box size:
      400 x 300 x 300 mm
    • Box weight:
      6.40 kg
    • MPQ:
      24 pcs
    • MOQ:
      312 pcs
    • MOQ Size:
      400 x 300 x 300 mm
    • MOQ Weight:
      6.40 kg
    • Shade
    • C16872_DAISY-7X1-SHD
      black,gloss
    • C16876_DAISY-7X1-SHD-WHT
      white,gloss
    • C17051_DAISY-7X1-SHD-MATT
      black,matt
    • C17225_DAISY-7X1-SHD-WHT-MATT
      white,matt
    • C18167_DAISY-7X1-SHD-MET
      metal,gloss
    • C18409_DAISY-7X1-SHD-MET-MATT
      metal,matt
    • C19312_DAISY-7X1-SHD3
      black,gloss
    • C19313_DAISY-7X1-SHD3-MATT
      black,matt
    • C19314_DAISY-7X1-SHD3-WHT
      white,gloss
    • C19315_DAISY-7X1-SHD3-WHT-MATT
      white,matt
    • C19641_DAISY-7X1-SHD3-MET
      metal,gloss
    • C19642_DAISY-7X1-SHD3-MET-MATT
      metal,matt
    • C19763_DAISY-7X1-SHD-MATT-RED
      red,matt
    • C19764_DAISY-7X1-SHD-MATT-GR
      grey,matt
    • C19852_DAISY-7X1-SHD-MATT-GLD
      gold,matt
    • C19853_DAISY-7X1-SHD3-MATT-GR
      grey,matt
    • C19854_DAISY-7X1-SHD3-MATT-RED
      red,matt
    • C19855_DAISY-7X1-SHD3-MATT-GLD
      gold,matt
    • L20010_DAISY-7X1-SHD2
      black,gloss
    • L20011_DAISY-7X1-SHD2-MATT
      black,matt
    • L20012_DAISY-7X1-SHD2-WHT
      white,gloss
    • L20013_DAISY-7X1-SHD2-MATT-WHT
      white,matt
    • L20014_DAISY-7X1-SHD2-MET
      metal,gloss
    • L20015_DAISY-7X1-SHD2-MET-MATT
      metal,matt
    • Quantity in box:
      156 pcs
    • Box size:
      595 x 360 x 230 mm
    • Box weight:
      7.10 kg
    • MPQ:
      24 pcs
    • MOQ:
      312 pcs
    • MOQ Size:
      595 x 360 x 230 mm
    • MOQ Weight:
      7.10 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      C18143_DAISY-7X1-M-D
      C16872_DAISY-7X1-SHD
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    LEDiL’s elegant Dark Light optic DAISY is a perfect solution for premium class office lighting

    News

    New products – August 12, 2021

    PCN

    Product change notification NR173 - Change of product coating method and ordering code

    News

    New products – May 19, 2021

    News

    New beams and products – April 2025

    News

    New beams and products – August 2024

    News

    New beams and products – May 2024

    News

    Square or round, it’s all about your preference

    Reference product

    SG Armaturen Yggdrasil luminaire

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR 195 - Change of Minimum order quantity in DAISY-7X1 family

    PCN

    Product change notification NR191 - Additional PC material approved

    News

    New products – January, 2023

    PCN

    Product change notification NR178 - Additional PMMA material approved

    News

    The future of light is dark – LEDiL DAISY

    Application example

    Wall-washing with DAISY-7X1-WAS

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Reference product

    serio-HITOS pendant luminaire

    News

    New Products 2020-1-9

    News

    New Products 2019-11-07

    News

    New Products - 2019-08-27

    News

    New Products 2019-06-13

    News

    DAISY the linear solution for premium class office lighting

    Luminaire, example

    Troffer luminaires with DAISY-7X1

    Catalogue

    LEDiL Latest products catalogue

    Application guide

    LEDiL Guide for Retail Lighting Optics

    Application guide

    Guide for Office Lighting Optics

    News

    Transforming workspaces with DAISY

    News

    The perfect office worker just got smaller, DAISY-MINI-FT-D

    News

    DAISY-MINI-3X1 – where modularity and flexibility meet

    News

    Meet the perfect office worker, DAISY-7X1-FT-D

    Application example

    Surface uniformity with DAISY-MINI-WWW-D

    News

    DAISY – the definitive LEDiL Dark Light family for indoor lighting

    Reference product

    BEA luminaire

    News

    DAISY diffused lenses

    News

    Effective fashion retail lighting

    News

    DAISY optics deliver elegant, human centric lighting

    Application example

    Retail lighting with DAISY and ILONA

    Article

    Understanding the standards but aiming higher

    News

    NEW PRODUCTS - 2018-11-23

    Article

    Invest in people invest in office lighting

    Article

    Stylish yet functional LED office lighting

    News

    DAISY – Brilliance without the glare

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    Application area

    Retail Lighting

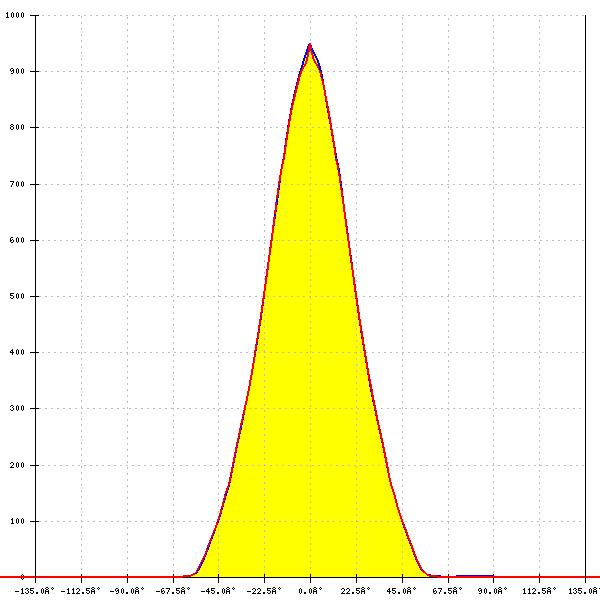

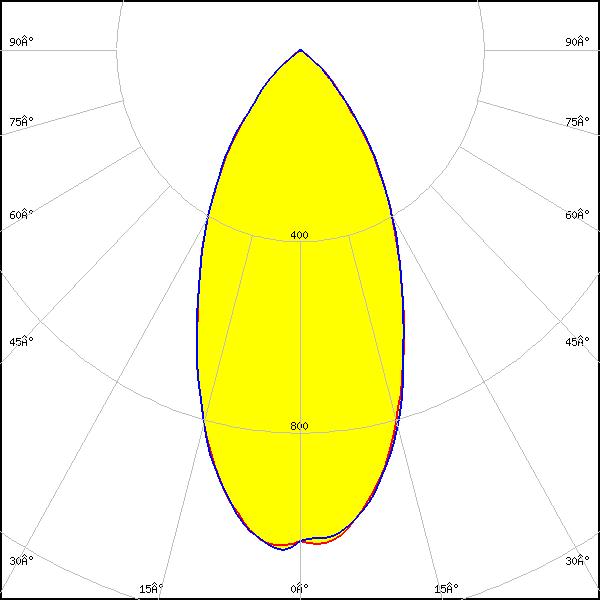

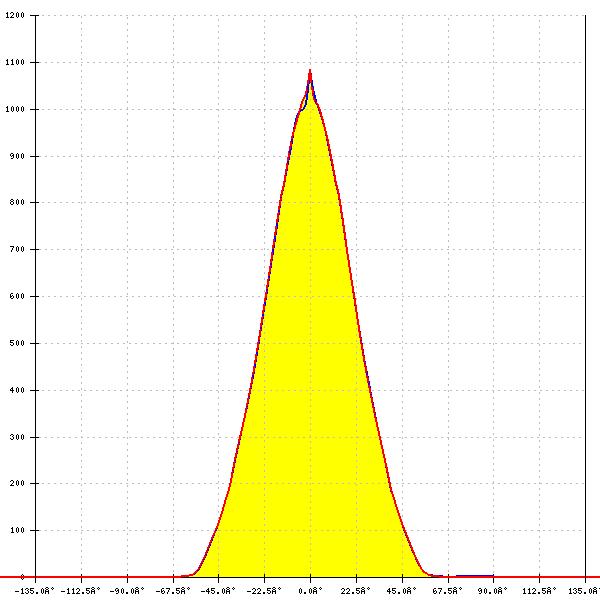

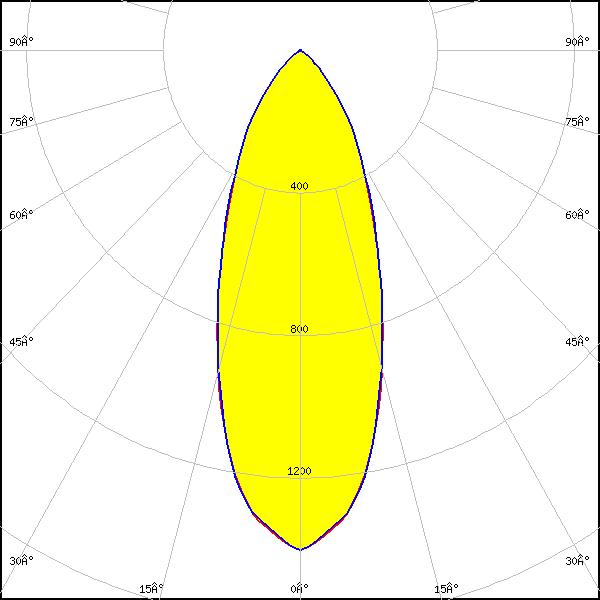

    Optical results

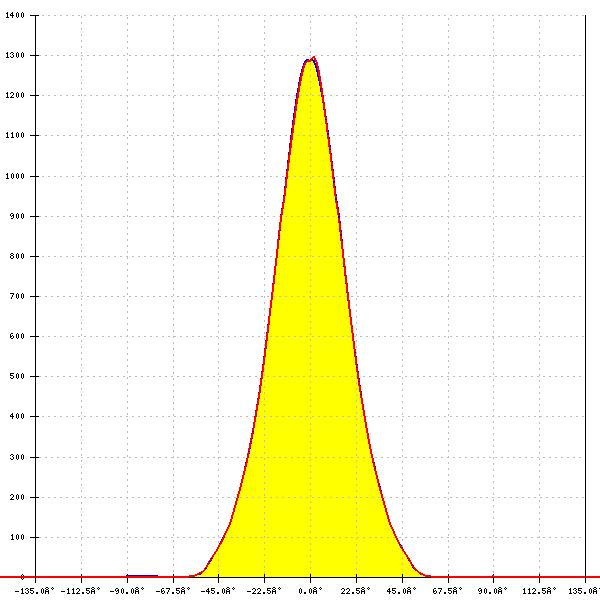

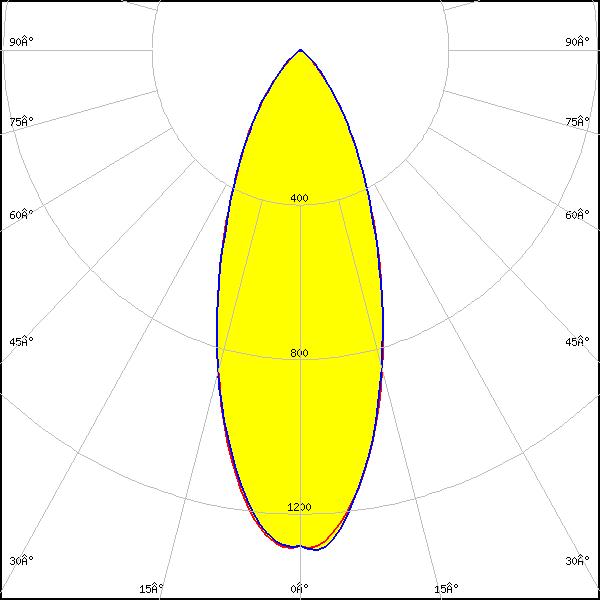

    LED: LUXEON 2835 Architectural
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 40°
    FWTM: 80°
    Peak intensity: 1.297 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White

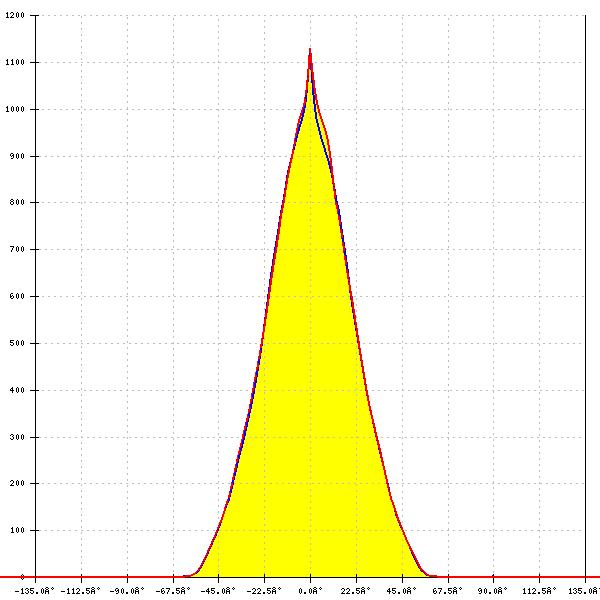

    LED: LUXEON 2835 Architectural
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 43°
    FWTM: 88°
    Peak intensity: 1.130 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 2
    Light colour/type: White

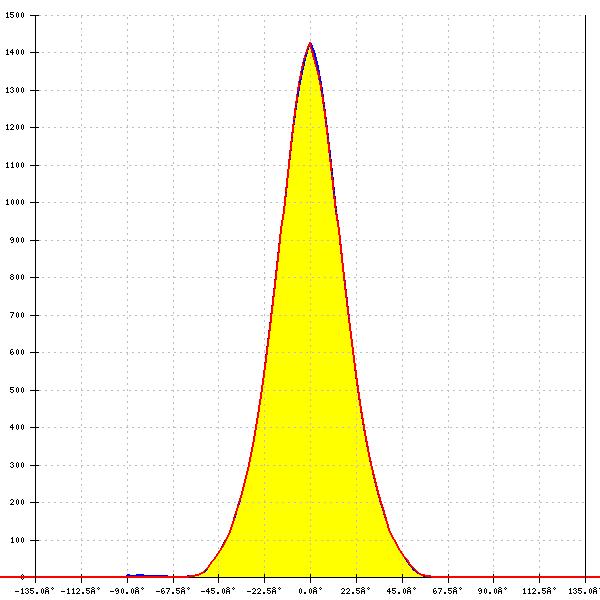

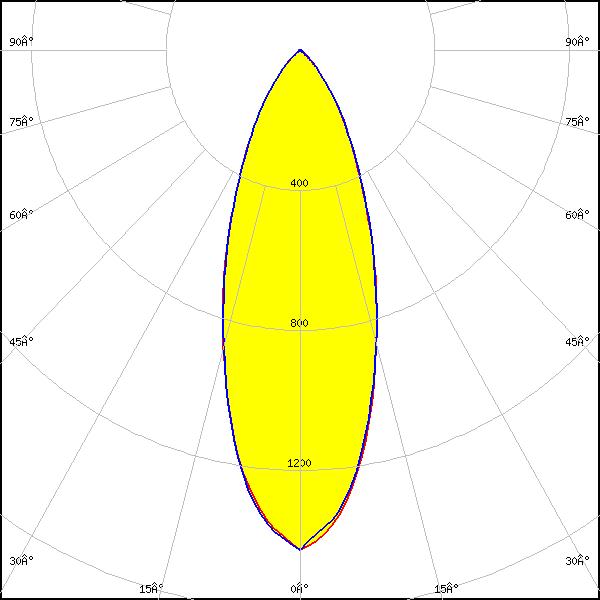

    LED: LUXEON 3020
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 37°
    FWTM: 76°
    Peak intensity: 1.429 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White

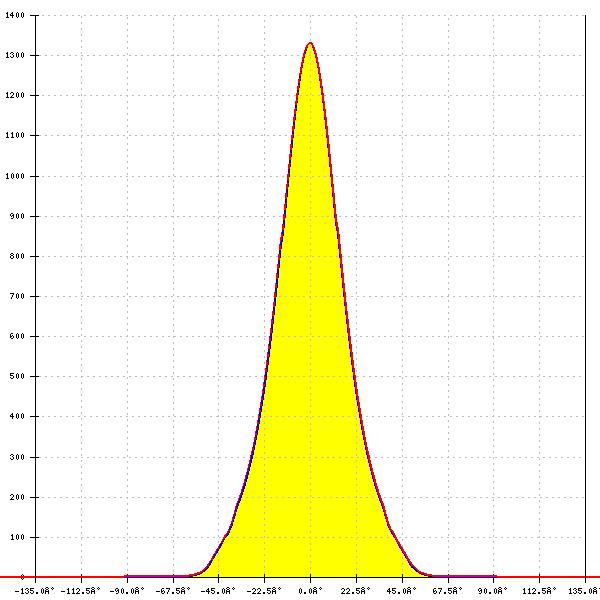

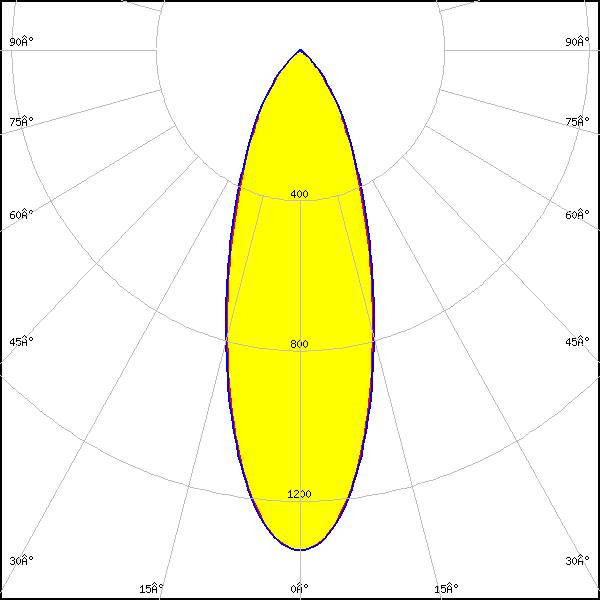

    LED: LinLED 280x28mm 1600lm 840 4C 21V DAISY 7x1(ZT25)
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 35°
    FWTM: 77°
    Peak intensity: 1.331 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White

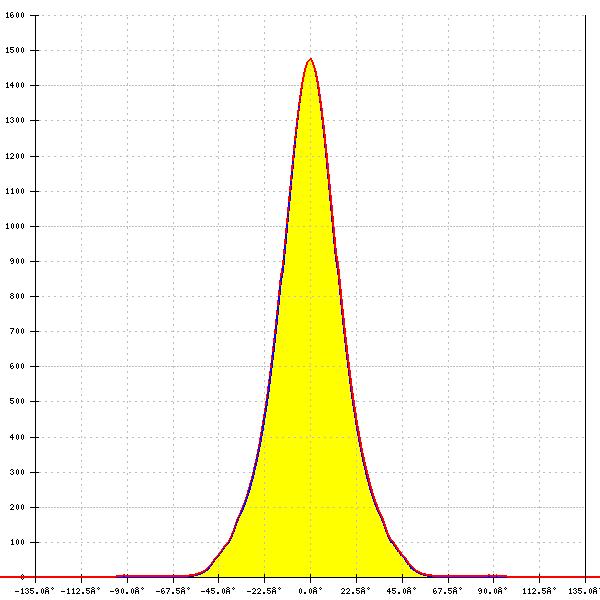

    LED: NCSxE17A
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: 32°
    FWTM: 74°
    Peak intensity: 1.474 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: White

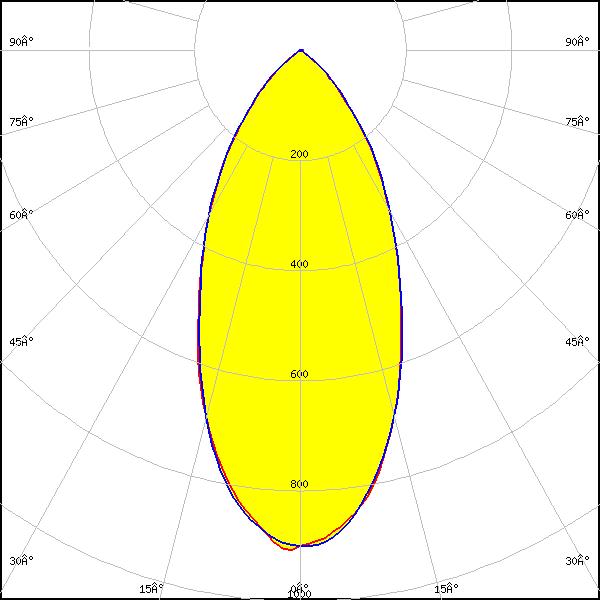

    LED: NF2W757G-MT (Tunable White)
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 50°
    FWTM: 94°
    Peak intensity: 0.909 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 2
    Light colour/type: Tunable White

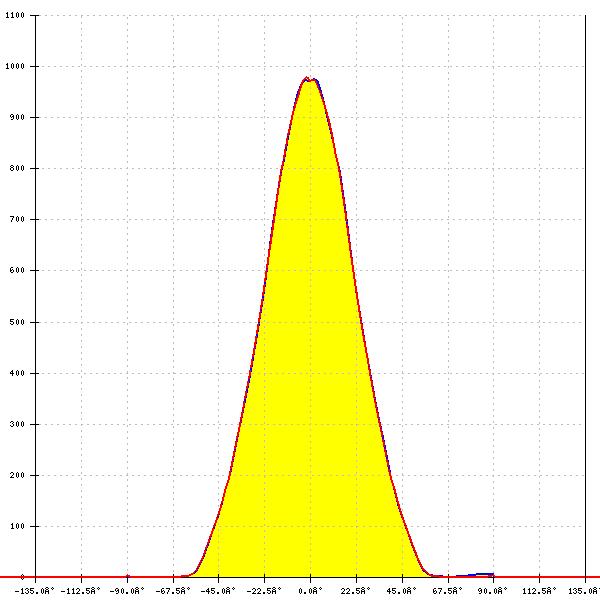

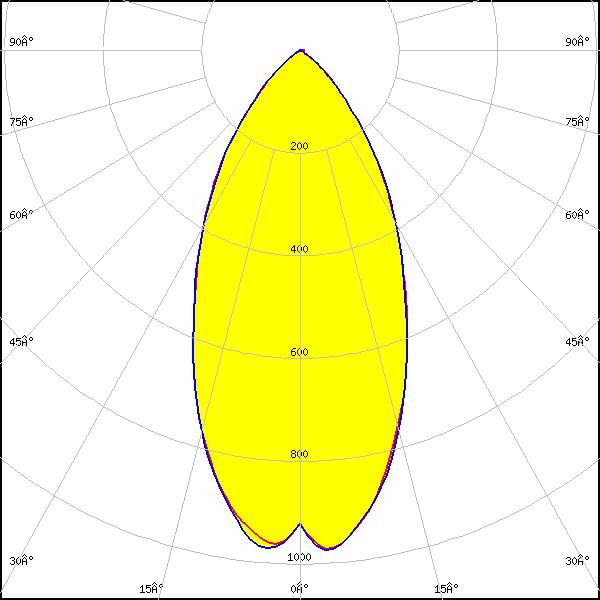

    LED: NF2W757G-MT (Tunable White)
    Required components:
    C16876_DAISY-7X1-SHD-WHT
    FWHM: 51°
    FWTM: 94°
    Peak intensity: 0.989 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 2
    Light colour/type: Tunable White

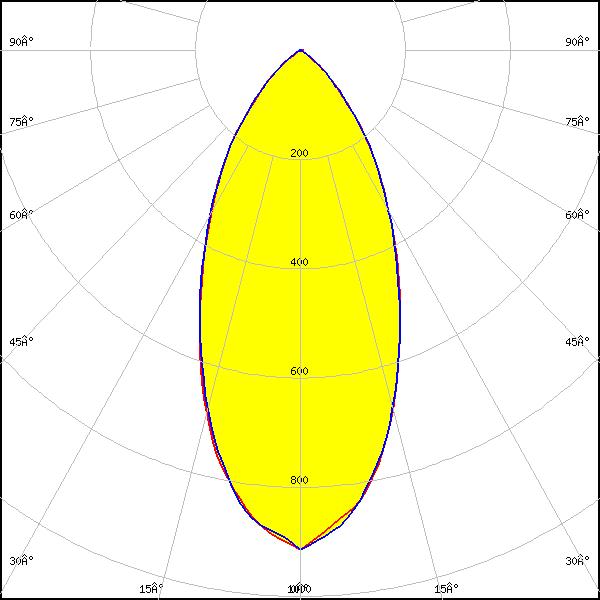

    LED: NF2W757G-MT (Tunable White)
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: 48°
    FWTM: 94°
    Peak intensity: 0.916 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 2
    Light colour/type: Tunable White

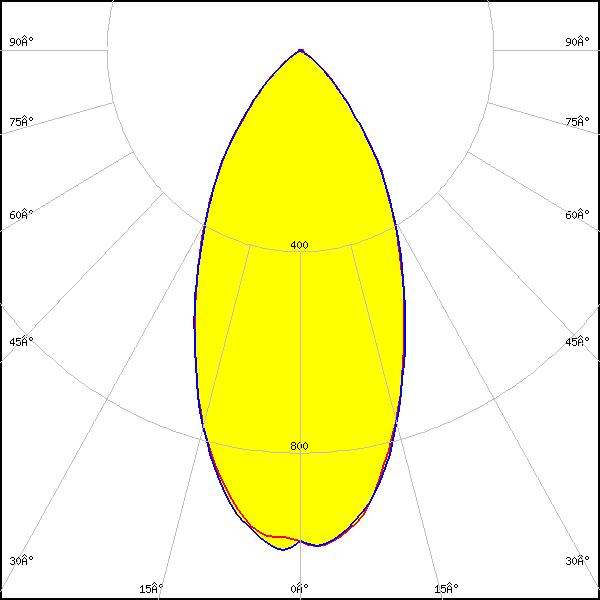

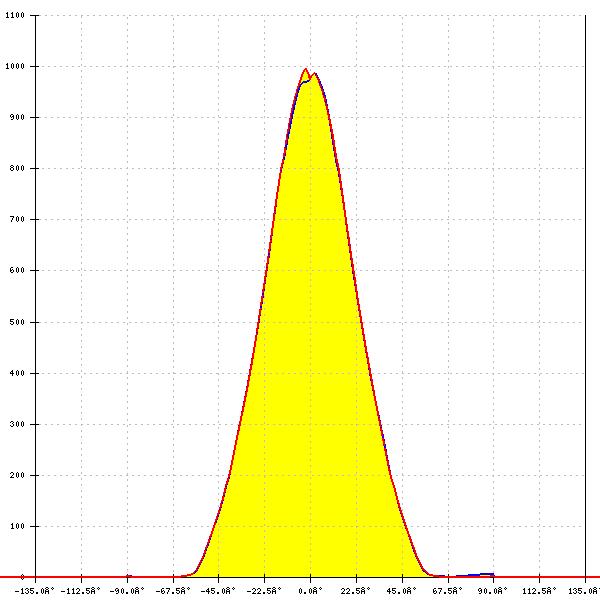

    LED: NF2W757G-MT (Tunable White)
    Required components:
    C17225_DAISY-7X1-SHD-WHT-MATT
    FWHM: 50°
    FWTM: 94°
    Peak intensity: 0.996 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 2
    Light colour/type: Tunable White

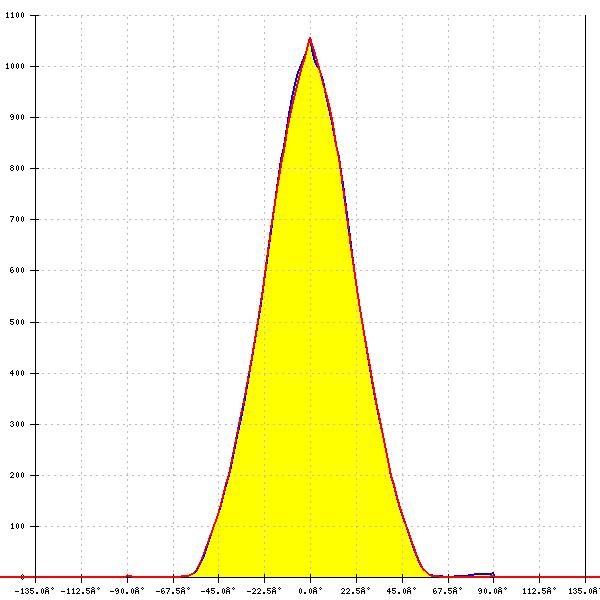

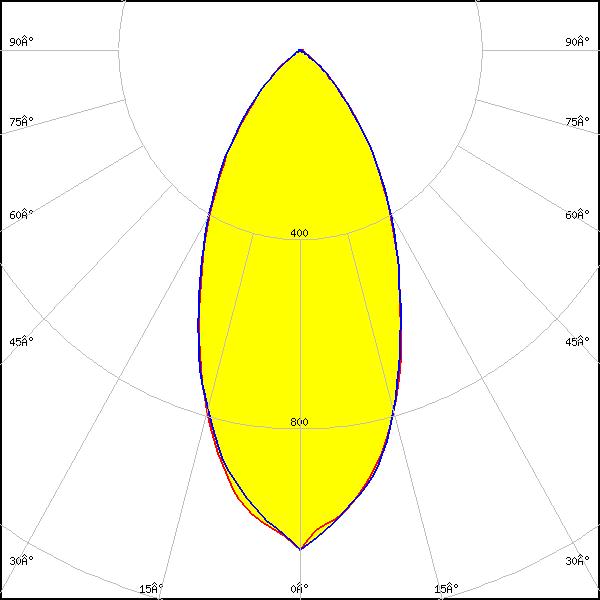

    LED: NF2W757G-MT (Tunable White)
    Required components:
    C18167_DAISY-7X1-SHD-MET
    FWHM: 48°
    FWTM: 94°
    Peak intensity: 1.057 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 2
    Light colour/type: Tunable White

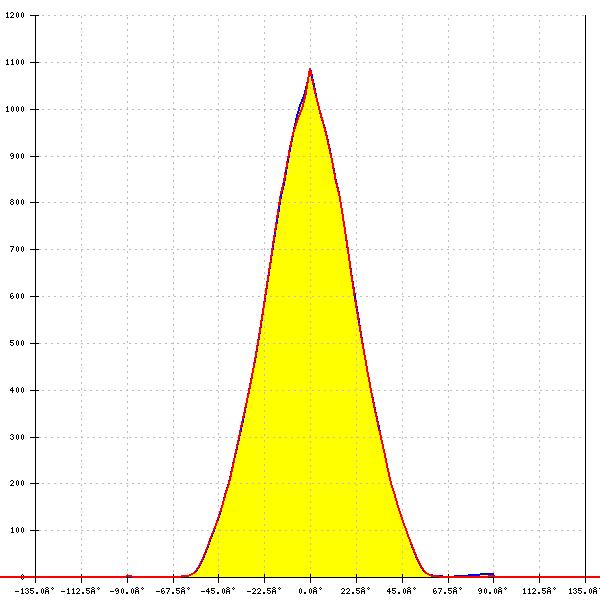

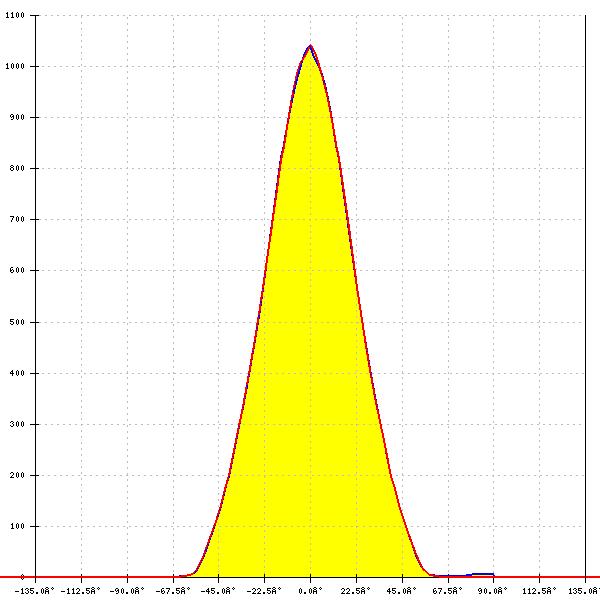

    LED: NF2W757G-MT (Tunable White)
    Required components:
    C17533_DAISY-7X1-SHD-MET-MATT
    FWHM: 48°
    FWTM: 92°
    Peak intensity: 1.088 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 2
    Light colour/type: Tunable White

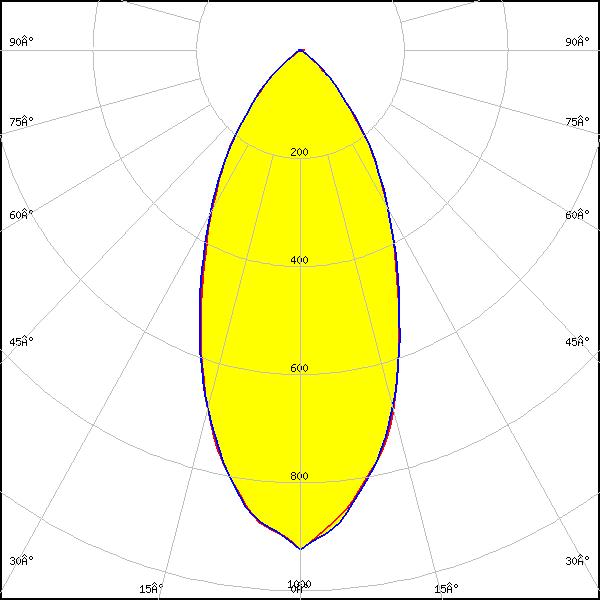

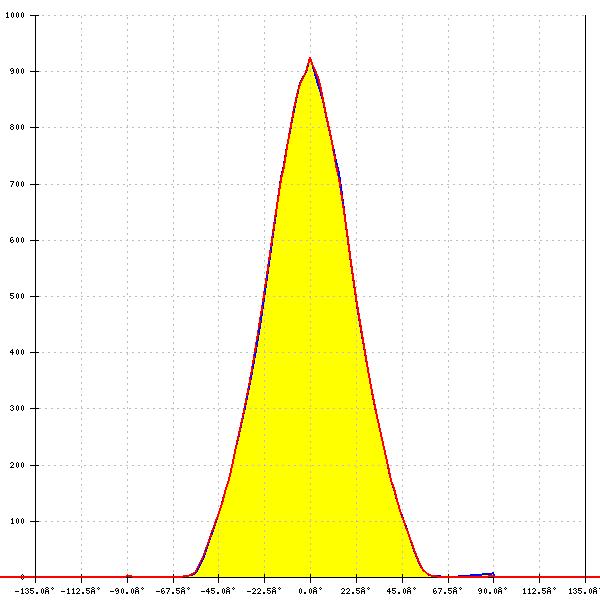

    LED: NF2W757H
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 48°
    FWTM: 94°
    Peak intensity: 0.925 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 2
    Light colour/type: White

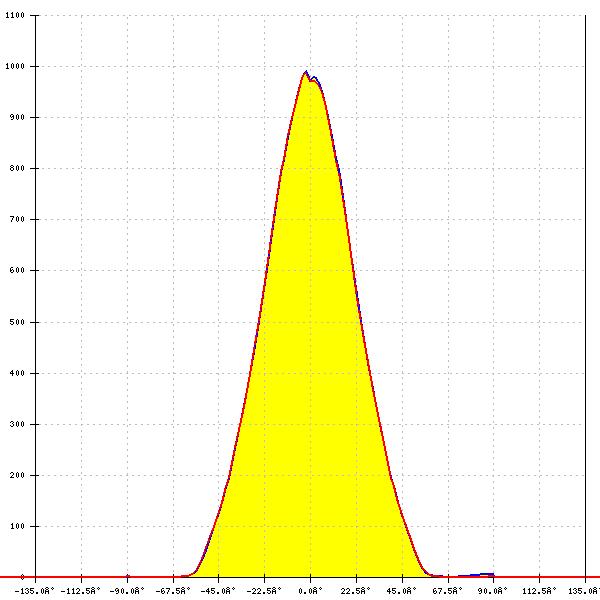

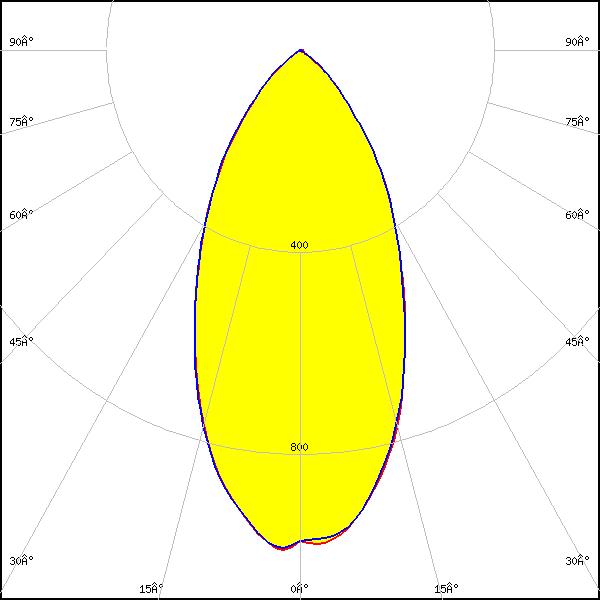

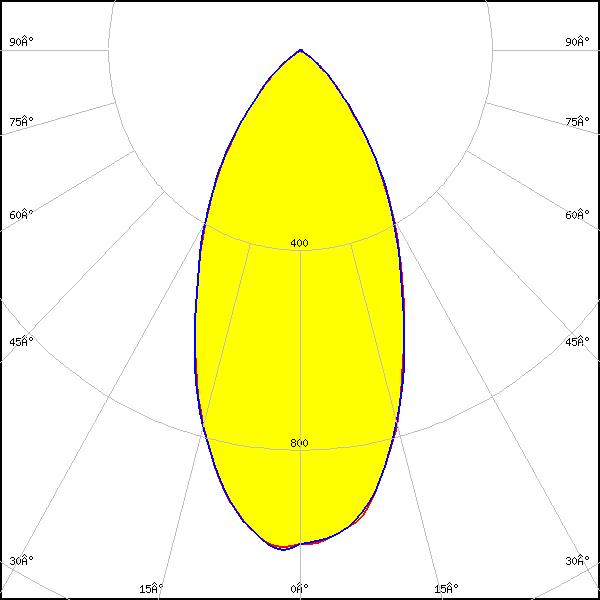

    LED: NF2W757H
    Required components:
    C16876_DAISY-7X1-SHD-WHT
    FWHM: 50°
    FWTM: 94°
    Peak intensity: 0.991 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 2
    Light colour/type: White

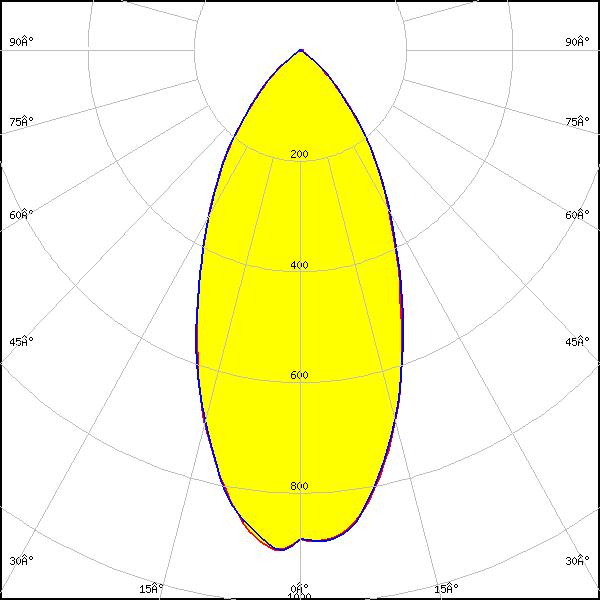

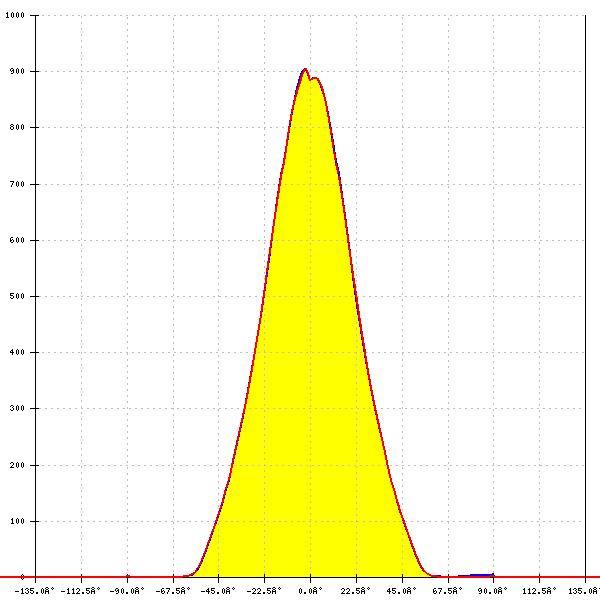

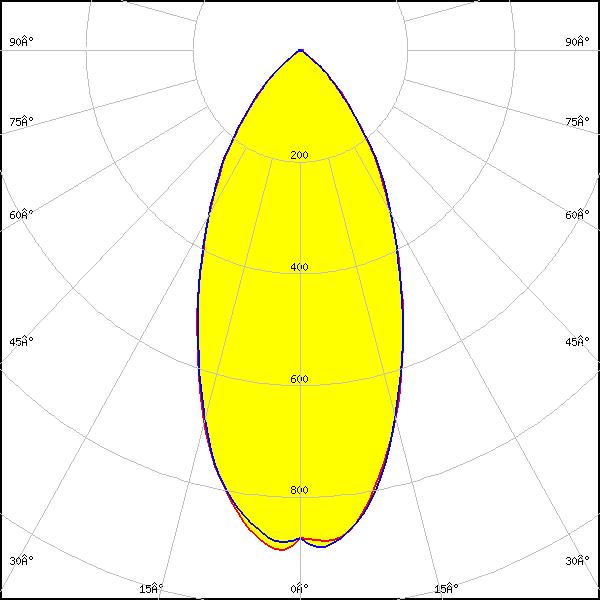

    LED: NF2W757H
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: 50°
    FWTM: 94°
    Peak intensity: 0.897 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 2
    Light colour/type: White

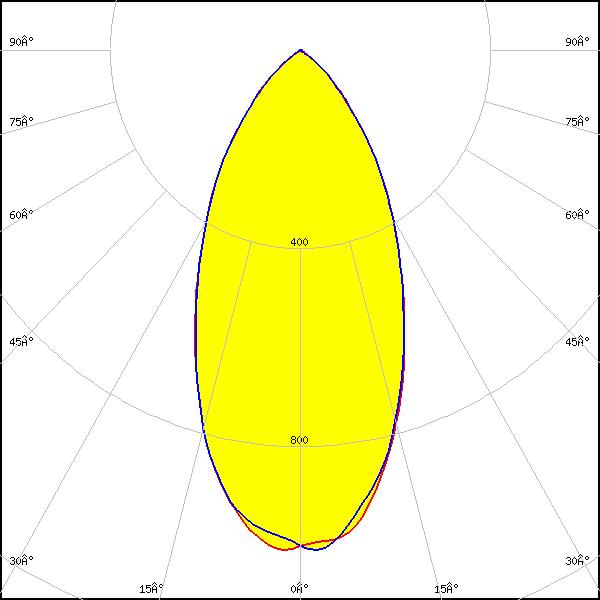

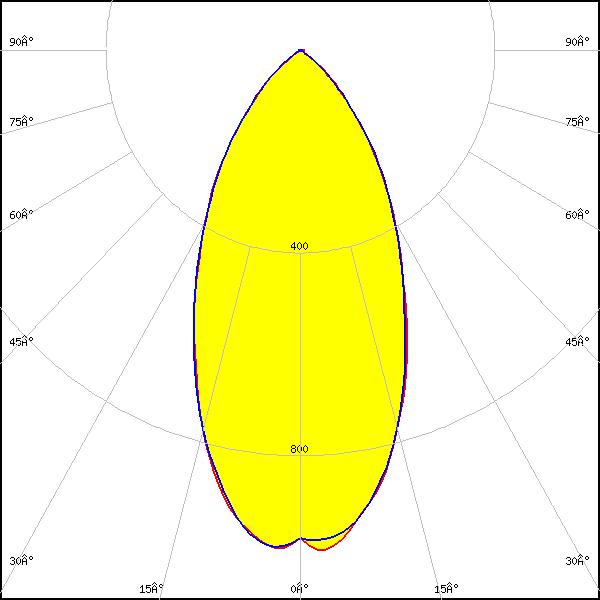

    LED: NF2W757H
    Required components:
    C17225_DAISY-7X1-SHD-WHT-MATT
    FWHM: 51°
    FWTM: 94°
    Peak intensity: 0.991 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 2
    Light colour/type: White

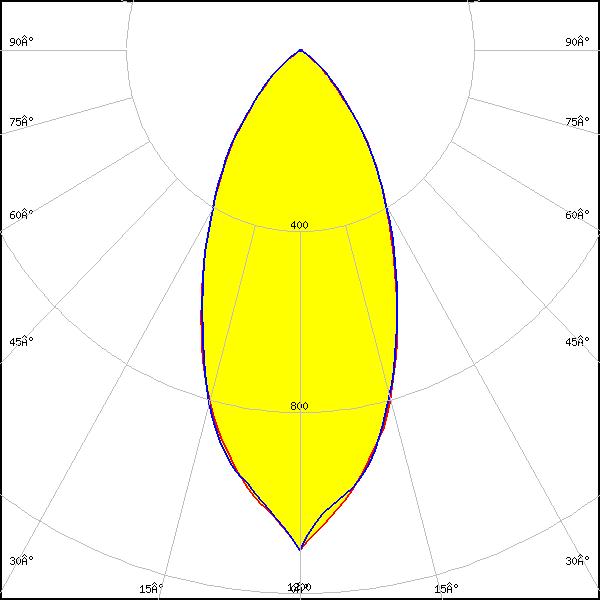

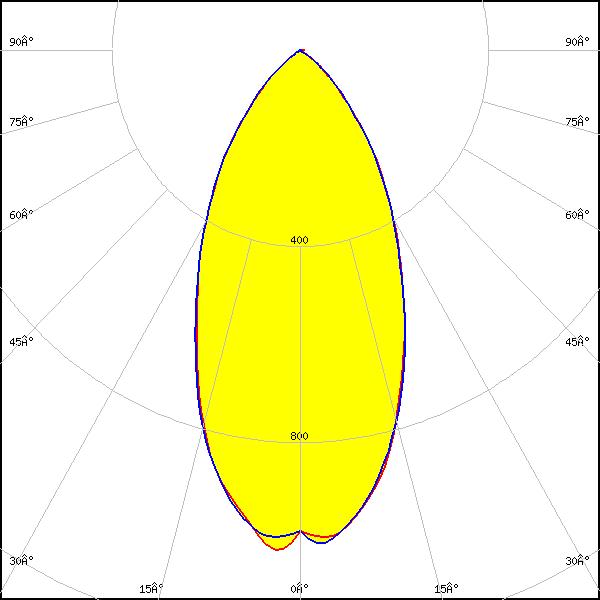

    LED: NF2W757H
    Required components:
    C18167_DAISY-7X1-SHD-MET
    FWHM: 50°
    FWTM: 94°
    Peak intensity: 1.033 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 2
    Light colour/type: White

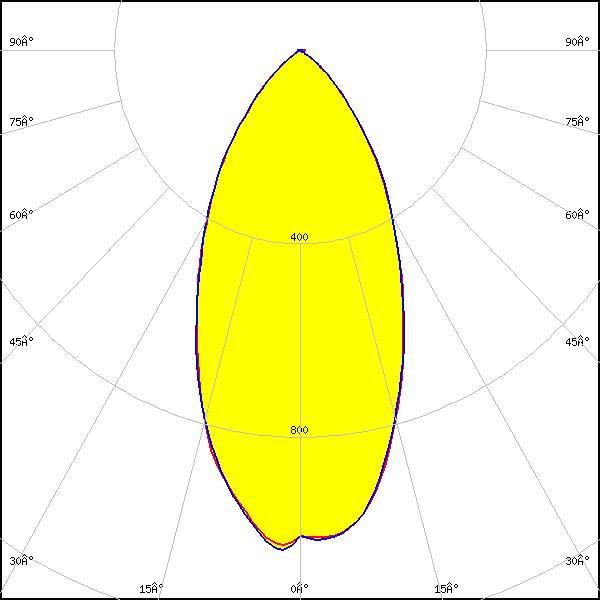

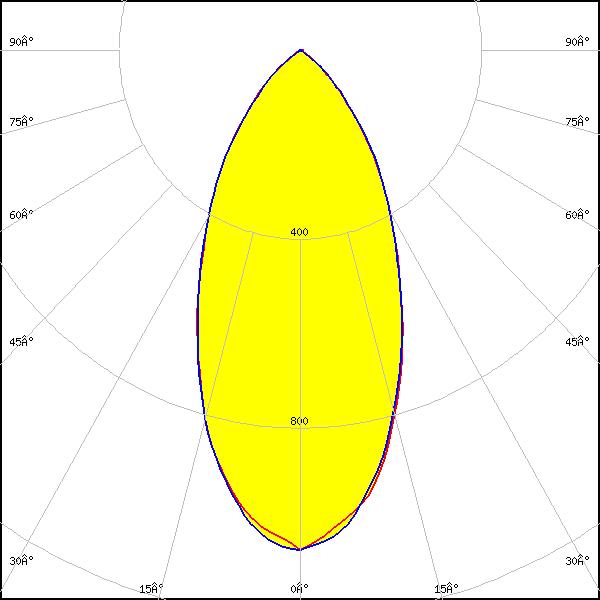

    LED: NF2W757H
    Required components:
    C17533_DAISY-7X1-SHD-MET-MATT
    FWHM: 50°
    FWTM: 94°
    Peak intensity: 1.038 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 2
    Light colour/type: White

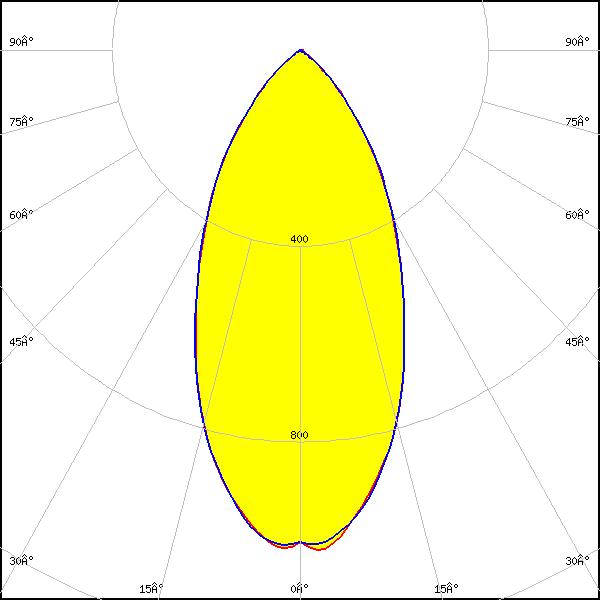

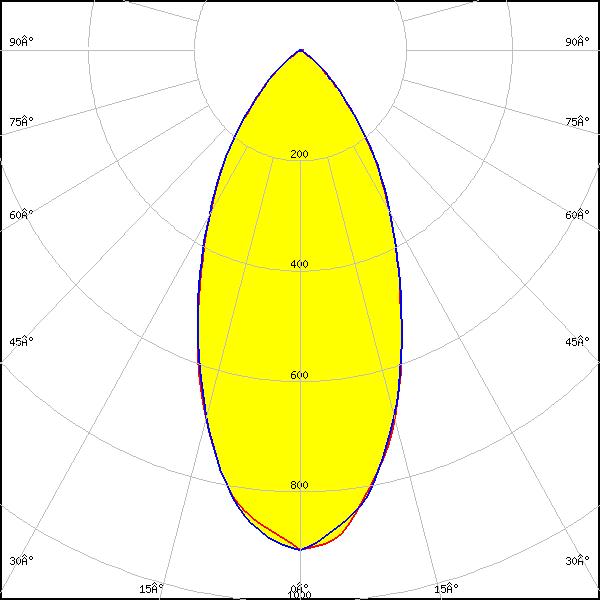

    LED: NF2x757G
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 48°
    FWTM: 93°
    Peak intensity: 0.908 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: NF2x757G
    Required components:
    C16876_DAISY-7X1-SHD-WHT
    FWHM: 52°
    FWTM: 94°
    Peak intensity: 0.990 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 2
    Light colour/type: White

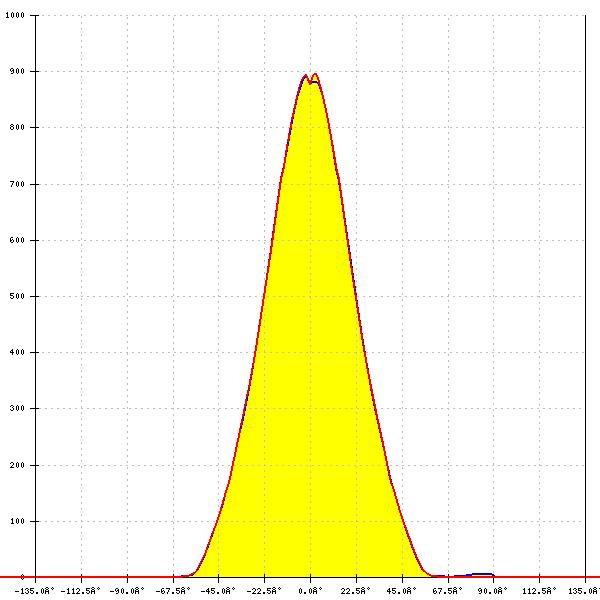

    LED: NF2x757G
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: 50°
    FWTM: 94°
    Peak intensity: 0.903 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 2
    Light colour/type: White

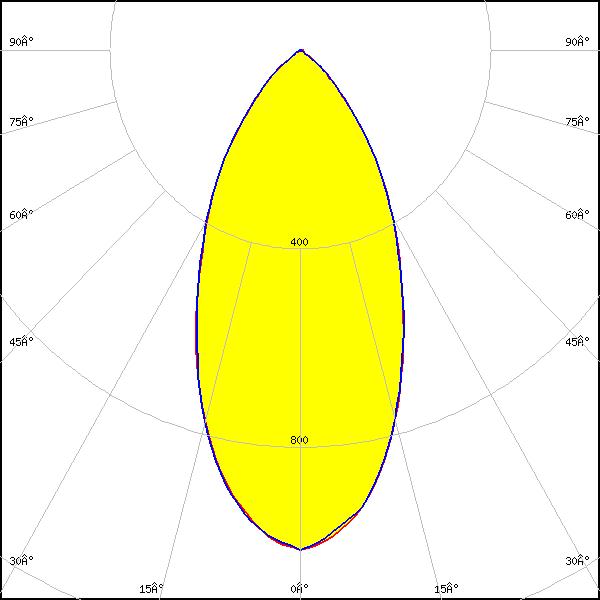

    LED: NF2x757G
    Required components:
    C17225_DAISY-7X1-SHD-WHT-MATT
    FWHM: 50°
    FWTM: 94°
    Peak intensity: 1.012 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: NF2x757G
    Required components:
    C18167_DAISY-7X1-SHD-MET
    FWHM: 50°
    FWTM: 94°
    Peak intensity: 1.028 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: NF2x757G
    Required components:
    C17533_DAISY-7X1-SHD-MET-MATT
    FWHM: 50°
    FWTM: 94°
    Peak intensity: 1.044 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: NFSW757H
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 48°
    FWTM: 93°
    Peak intensity: 0.941 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: NFSW757H
    Required components:
    C16876_DAISY-7X1-SHD-WHT
    FWHM: 50°
    FWTM: 94°
    Peak intensity: 1.007 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: NFSW757H
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: 50°
    FWTM: 94°
    Peak intensity: 0.917 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: NFSW757H
    Required components:
    C17225_DAISY-7X1-SHD-WHT-MATT
    FWHM: 50°
    FWTM: 94°
    Peak intensity: 1.023 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: NFSW757H
    Required components:
    C18167_DAISY-7X1-SHD-MET
    FWHM: 48°
    FWTM: 92°
    Peak intensity: 1.105 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: NFSW757H
    Required components:
    C17533_DAISY-7X1-SHD-MET-MATT
    FWHM: 50°
    FWTM: 94°
    Peak intensity: 1.060 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 2
    Light colour/type: White

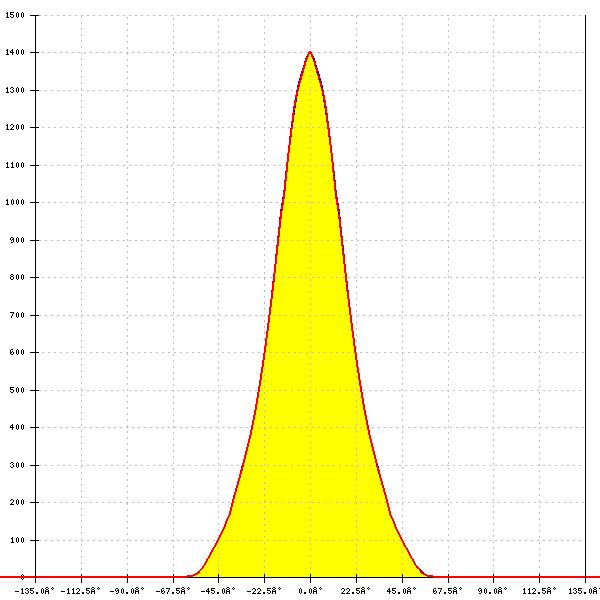

    LED: LM28xB Series
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: 40°
    FWTM: 82°
    Peak intensity: 1.403 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 2
    Light colour/type: White

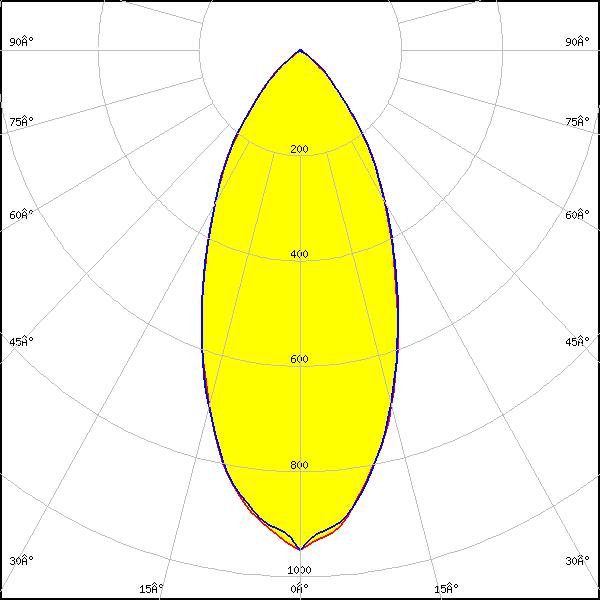

    LED: LM301Z Plus
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: 48°
    FWTM: 92°
    Peak intensity: 0.950 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: LM301Z Plus
    Required components:
    C17225_DAISY-7X1-SHD-WHT-MATT
    FWHM: 48°
    FWTM: 92°
    Peak intensity: 1.084 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: LM301Z Plus
    Required components:
    C18167_DAISY-7X1-SHD-MET
    FWHM: 50°
    FWTM: 92°
    Peak intensity: 1.070 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 2
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
