ZOE-30-ZOOM

Print

∅30 mm zoomable lens with infinitely adjustable beam from 13 to 42 degrees

This product consists of multiple parts that need to be ordered separately. See ordering information.

Specification
  • Dimensions:
    32 mm
  • Height:
    20.27 mm
  • Fastening:
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Single lens
    1 pcs
  • Sublens
    1 pcs
  • Single lens
  • C17716_ZOE-30-ZOOM
    clear
  • Quantity in box:
    1560 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    12.10 kg
  • MPQ:
    104 pcs
  • MOQ:
    104 pcs
  • MOQ Size:
    480 x 280 x 40 mm
  • MOQ Weight:
    0.90 kg
  • Sublens
  • C17717_ZOE-30-ZOOM-SUB
    clear
  • Quantity in box:
    1560 pcs
  • Box size:
    480 x 280 x 115 mm
  • Box weight:
    3.60 kg
  • MPQ:
    104 pcs
  • MOQ:
    104 pcs
  • MOQ Size:
    480 x 280 x 20 mm
  • MOQ Weight:
    0.50 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C17716_ZOE-30-ZOOM
    C17717_ZOE-30-ZOOM-SUB

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

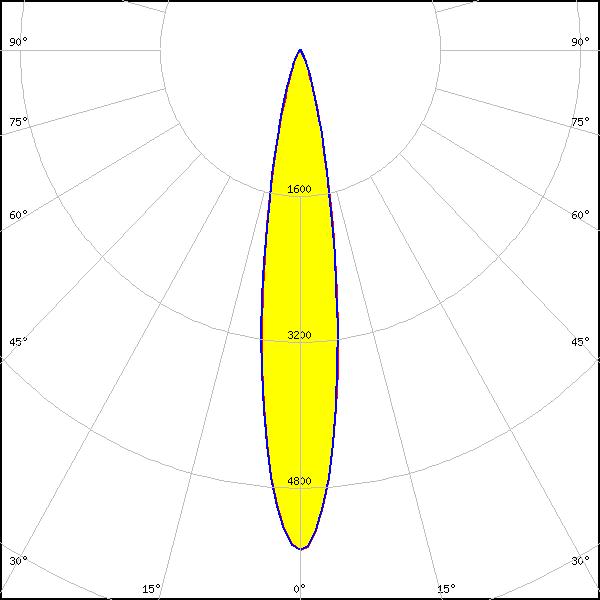

LED: XHP35 HD
FWHM: 18° - 40°
FWTM: 37° - 67°
Peak intensity: 5.500 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

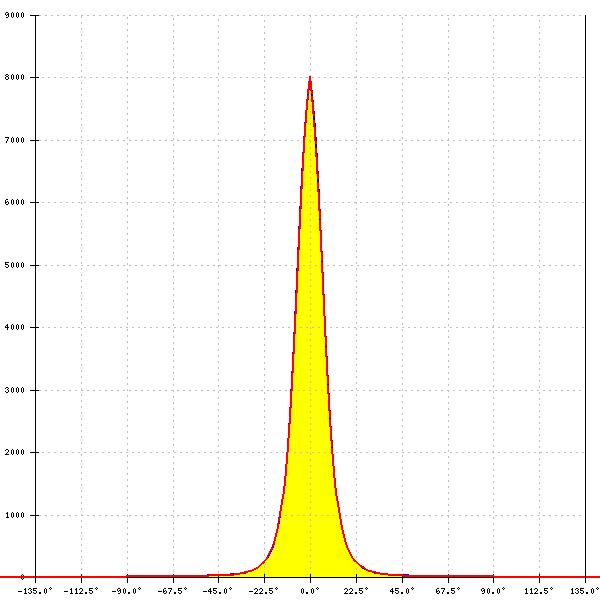

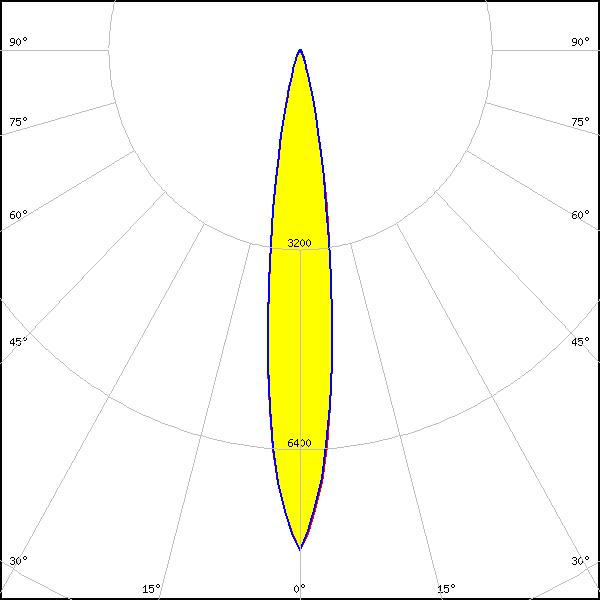

LED: XHP35.2 HI
FWHM: 16° - 38°
FWTM: 31° - 62°
Peak intensity: 8.019 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

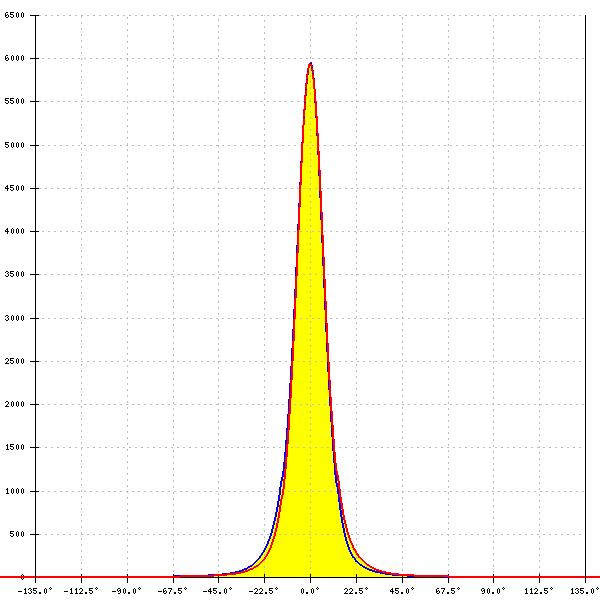

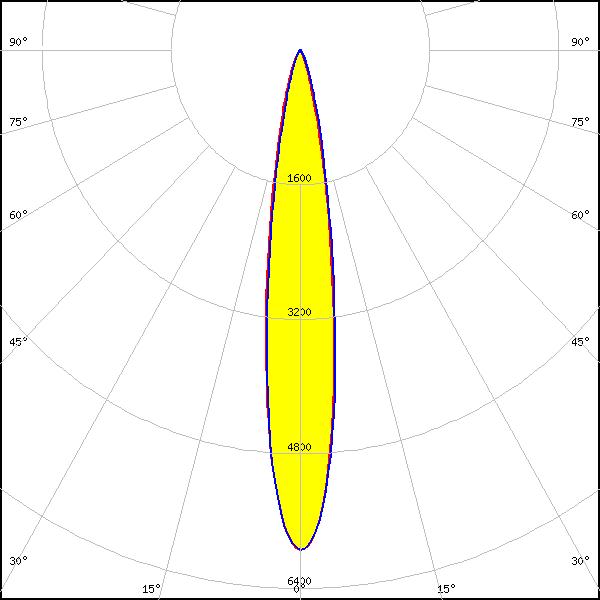

LED: XHP50.3 HI
FWHM: 16° - 43°
FWTM: 34° - 67°
Peak intensity: 5.948 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White

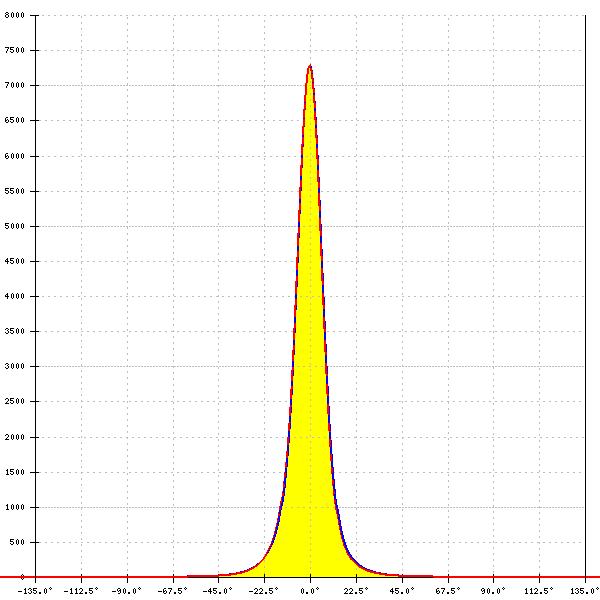

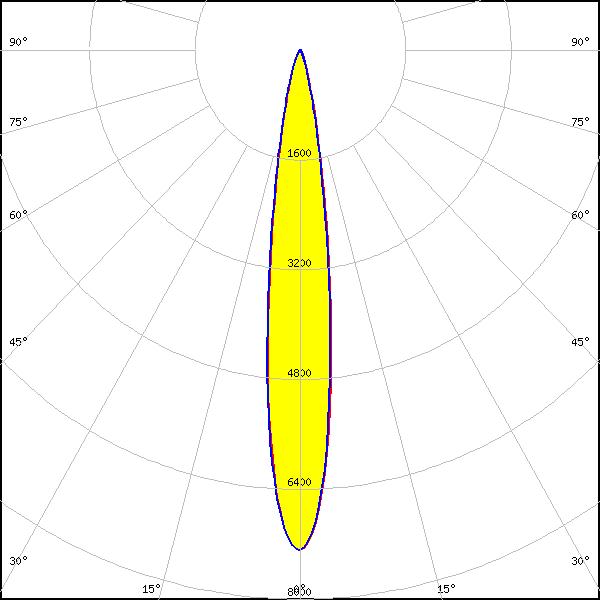

LED: XM-L3
FWHM: 15° - 43°
FWTM: 31° - 64°
Peak intensity: 7.290 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White

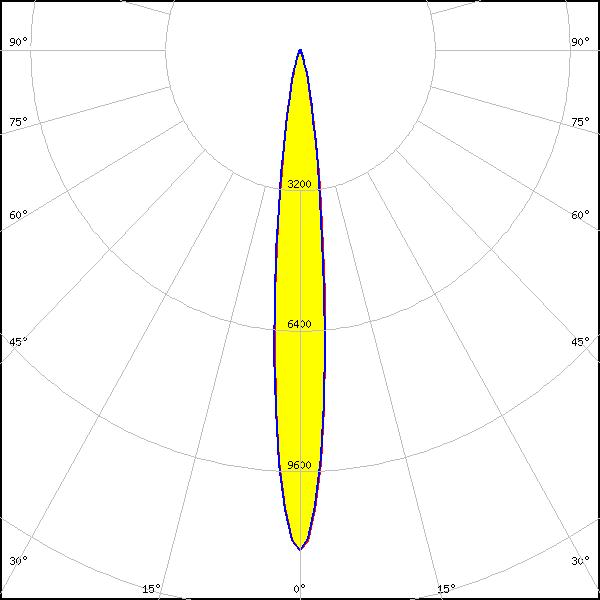

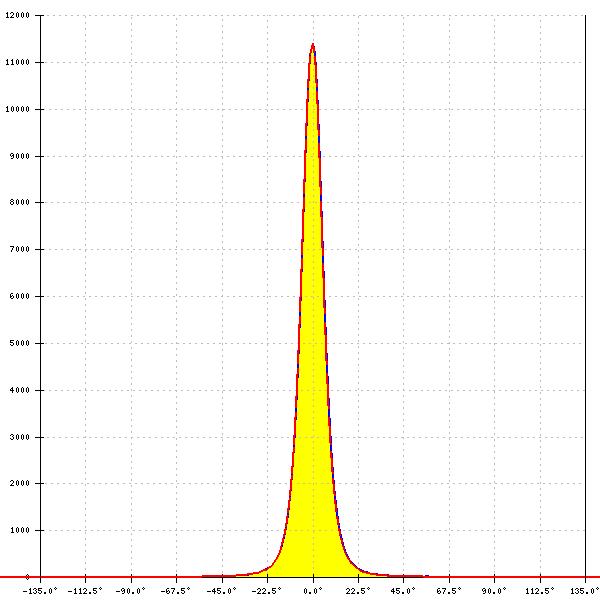

LED: XP-L HI
FWHM: 12° - 40°
FWTM: 26° - 63°
Peak intensity: 11.400 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

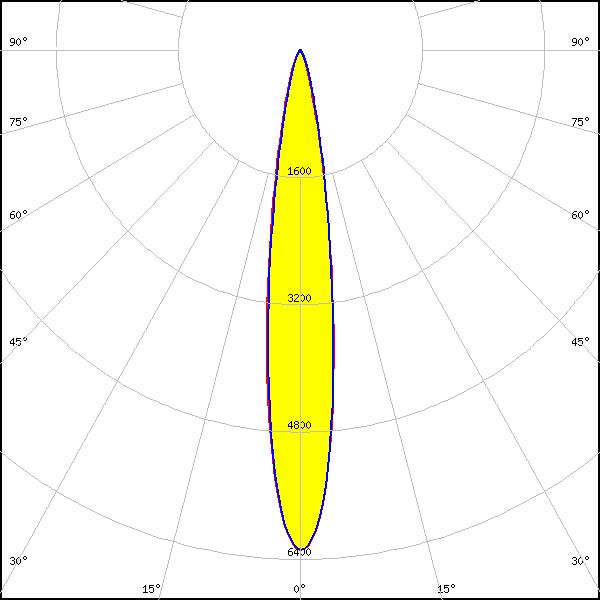

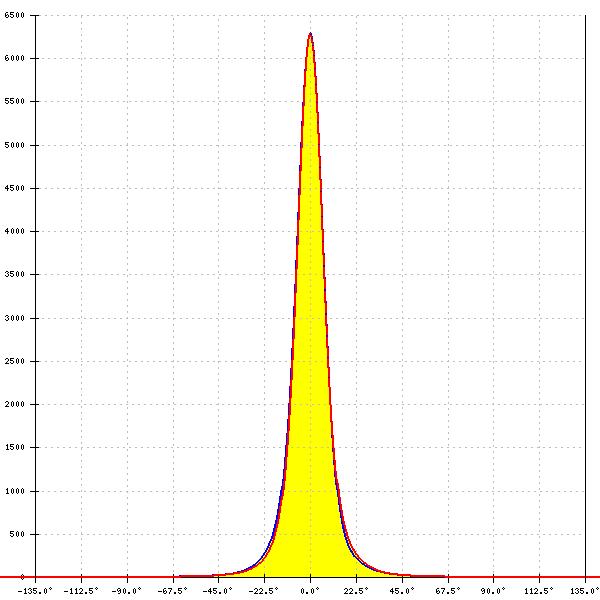

LED: XP-L2
FWHM: 16° - 43°
FWTM: 32° - 66°
Peak intensity: 6.289 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White

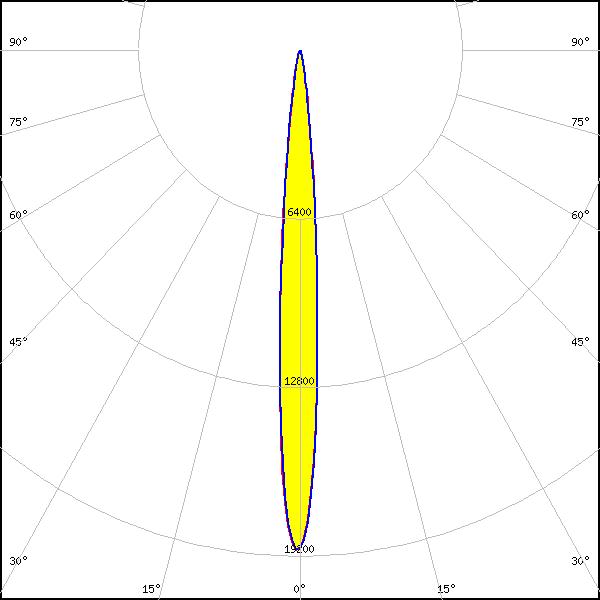

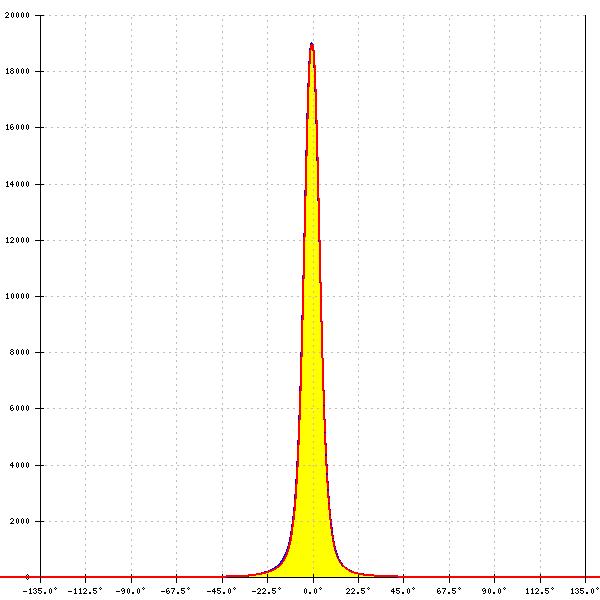

LED: XP-P
FWHM: 9° - 40°
FWTM: 19° - 57°
Peak intensity: 18.987 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

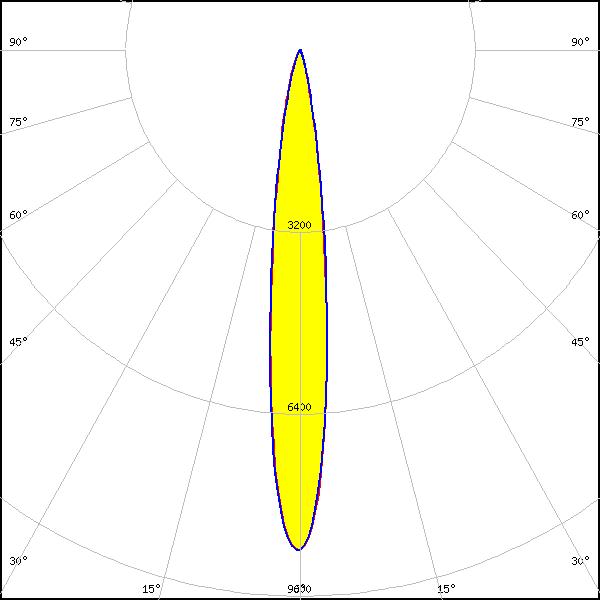

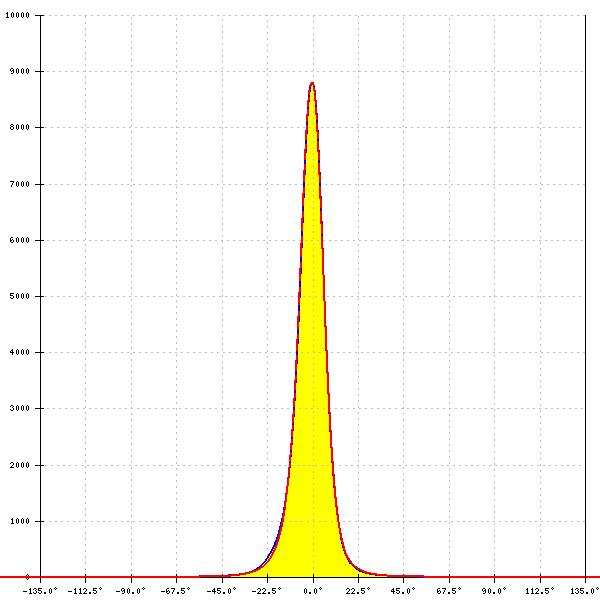

LED: LUXEON HL2X
FWHM: 14° - 42°
FWTM: 29° - 61°
Peak intensity: 8.799 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

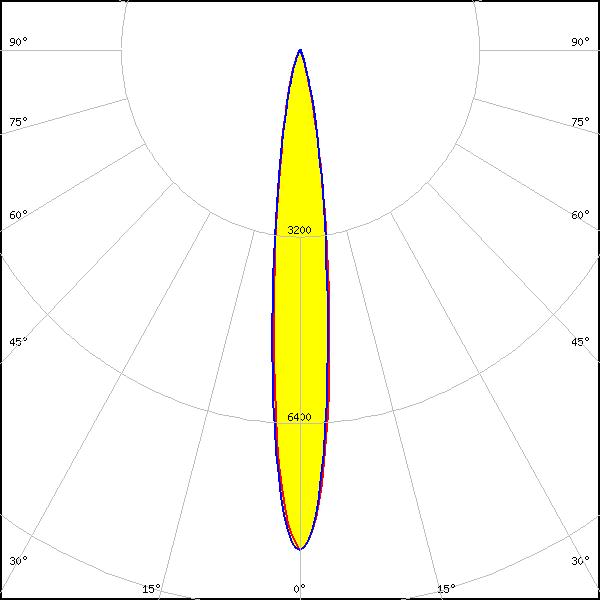

LED: LUXEON HL2Z
FWHM: 13° - 41°
FWTM: 29° - 61°
Peak intensity: 8.576 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White
LED: SST-40
FWHM: 16° - 40°
FWTM: 34° - 66°
Peak intensity: 6.764 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

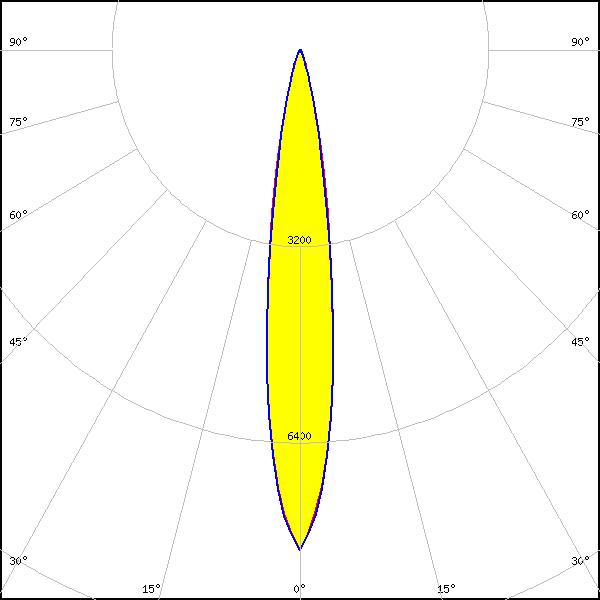

LED: NV4WB35AM
FWHM: 16° - 38°
FWTM: 30° - 60°
Peak intensity: 8.151 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

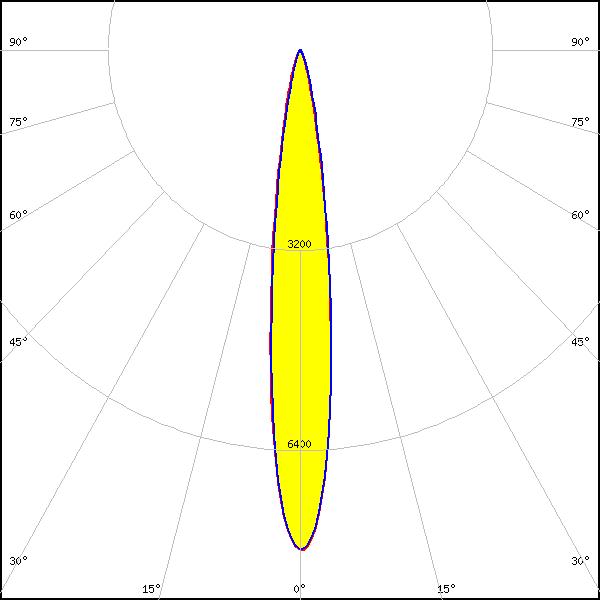

LED: NVSW319B
FWHM: 14° - 43°
FWTM: 30° - 64°
Peak intensity: 7.997 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

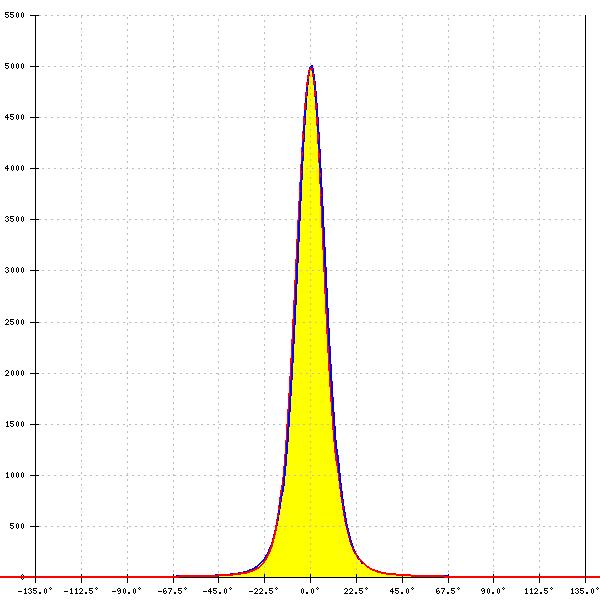

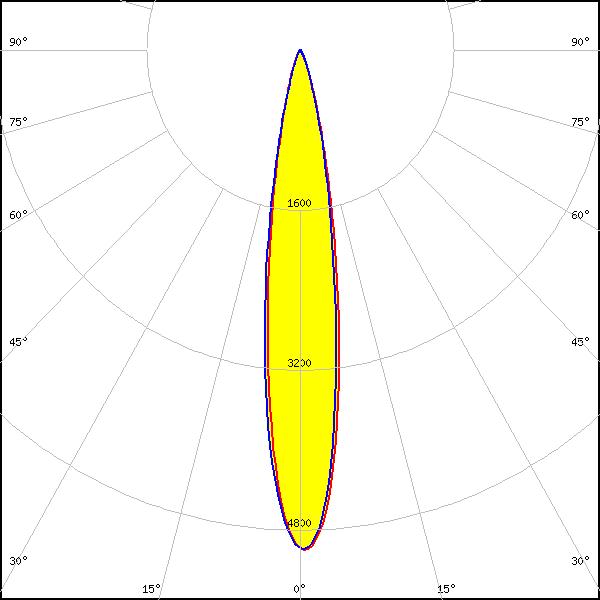

LED: NVSW519A
FWHM: 17° - 43°
FWTM: 35° - 65°
Peak intensity: 5.031 cd/lm
Efficiency: 68 %
LEDs/each optic: 1
Light colour/type: White

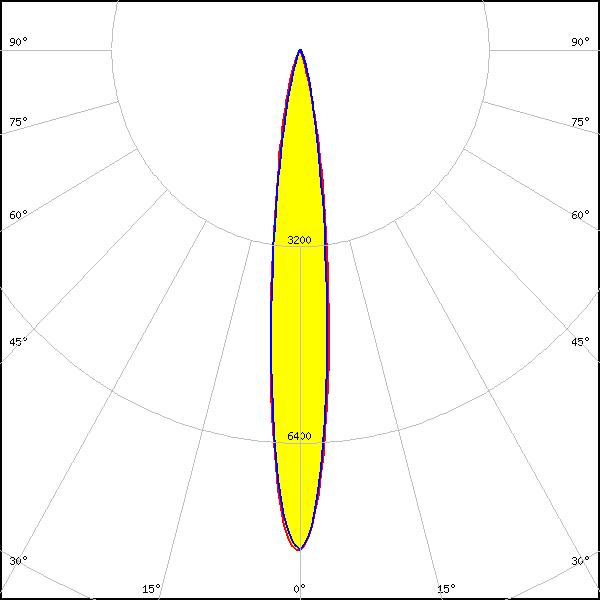

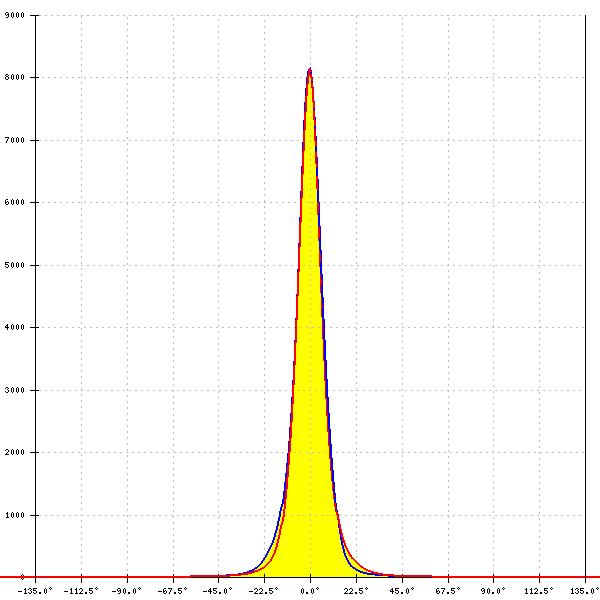

LED: NVSxE21A
FWHM: 14° - 41°
FWTM: 29° - 63°
Peak intensity: 8.143 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White

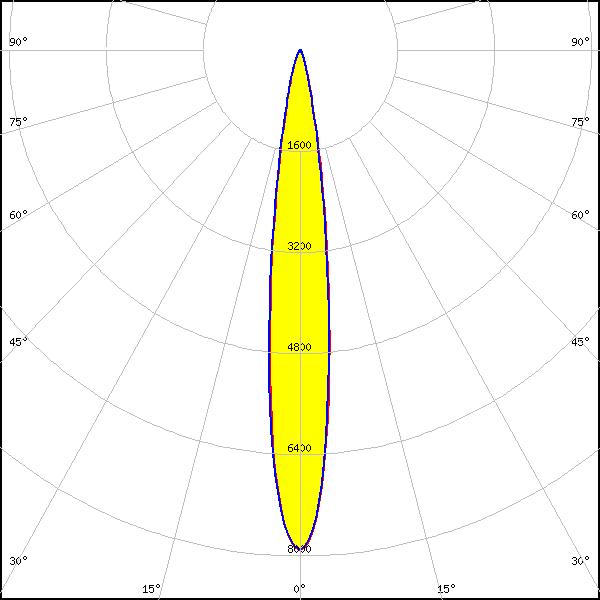

LED: OSCONIQ P 3737 (3W version)
FWHM: 14° - 42°
FWTM: 30° - 63°
Peak intensity: 7.914 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White

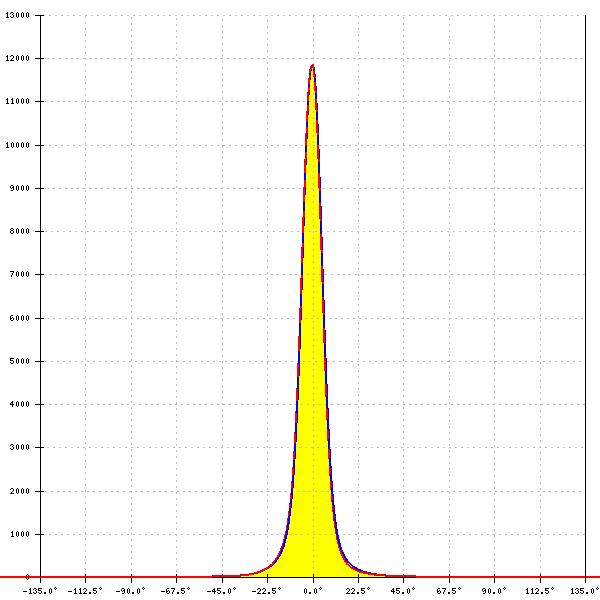

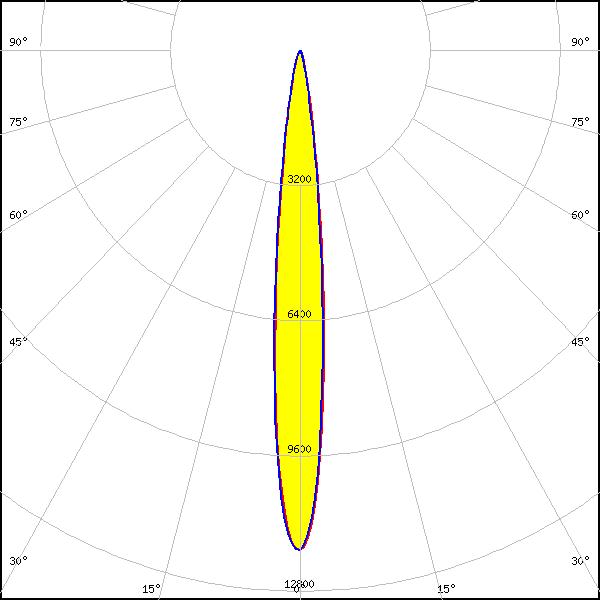

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 12° - 41°
FWTM: 24° - 60°
Peak intensity: 11.835 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White

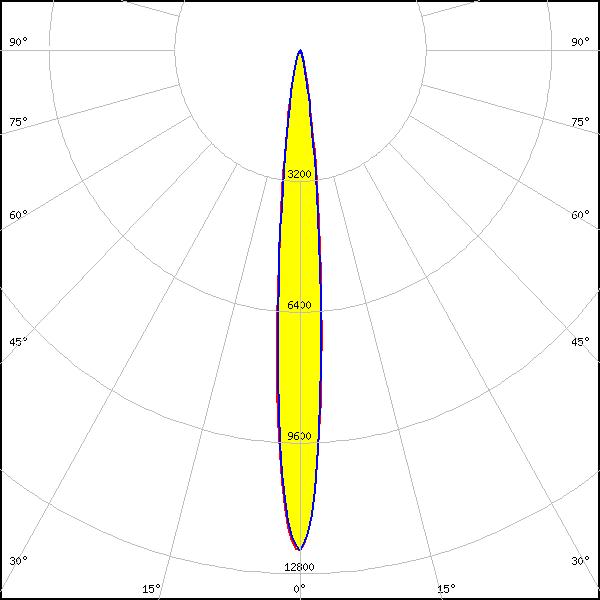

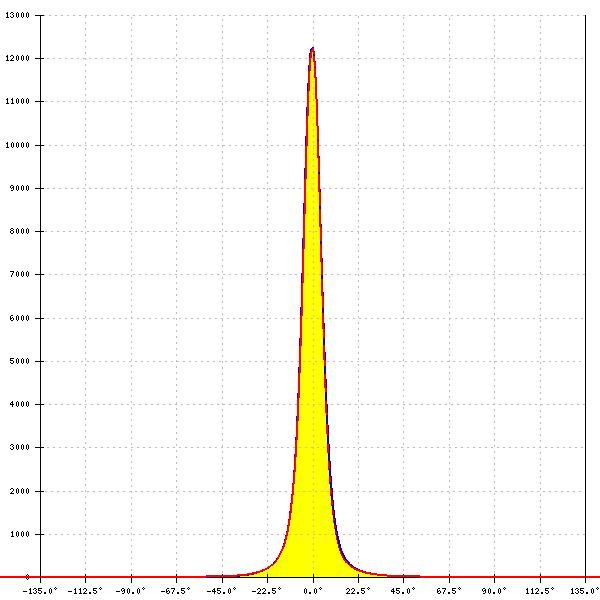

LED: OSLON Square Flat
FWHM: 10° - 41°
FWTM: 23° - 61°
Peak intensity: 12.227 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White
