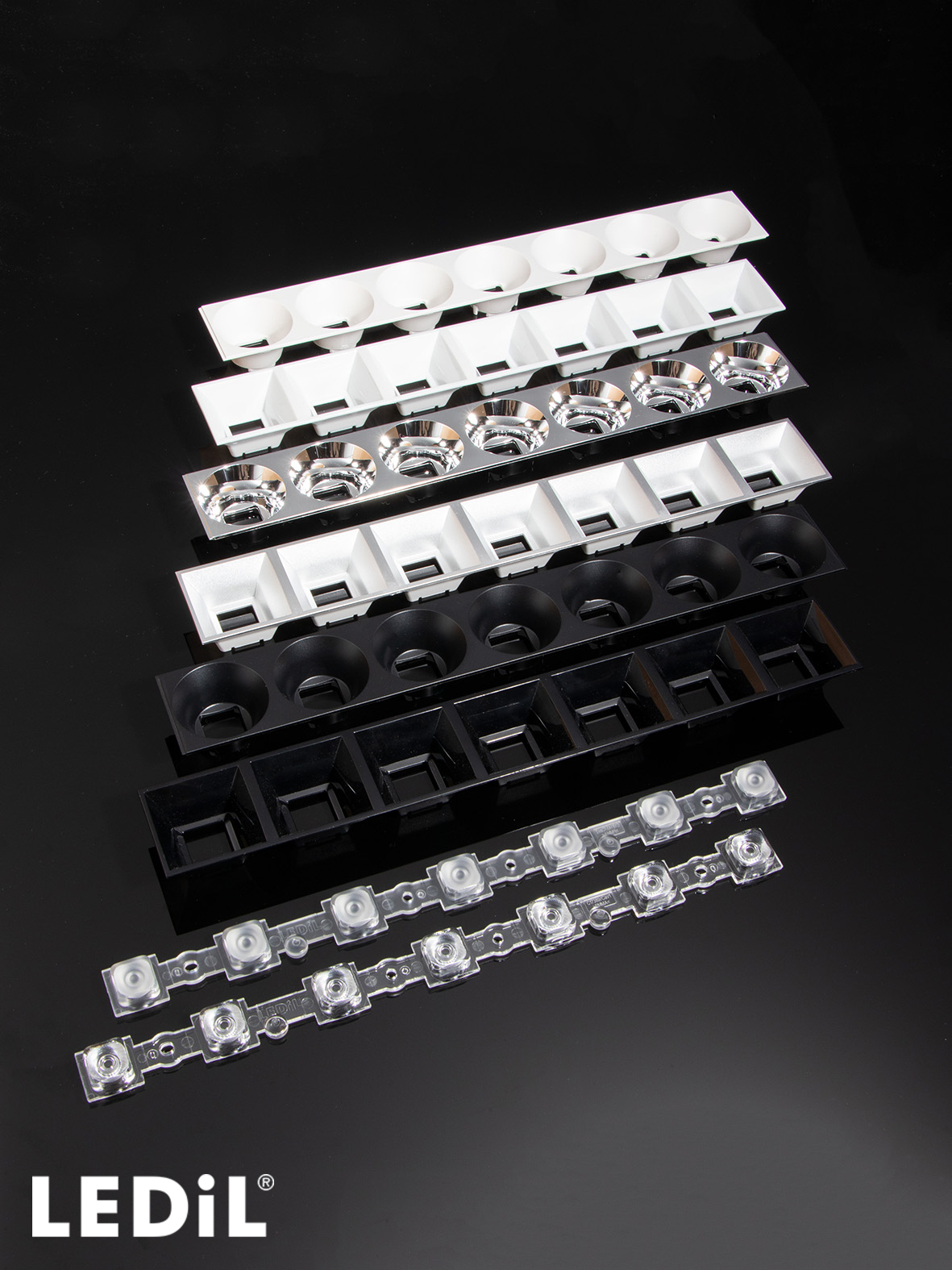

DAISY-7X1-M

Print

~35° wide beam

This product consists of multiple parts that need to be ordered separately. See ordering information.

Specification
  • Dimensions:
    280 x  40 mm
  • Height:
    20.30 mm
  • Fastening:
    pin, screw, clips
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Linear lens
    1 pcs
  • Shade
    1 pcs
  • Linear lens
  • C17389_DAISY-7X1-M
    clear
  • Quantity in box:
    312 pcs
  • Box size:
    400 x 300 x 300 mm
  • Box weight:
    6.30 kg
  • MPQ:
    24 pcs
  • MOQ:
    312 pcs
  • MOQ Size:
    400 x 300 x 300 mm
  • MOQ Weight:
    6.30 kg

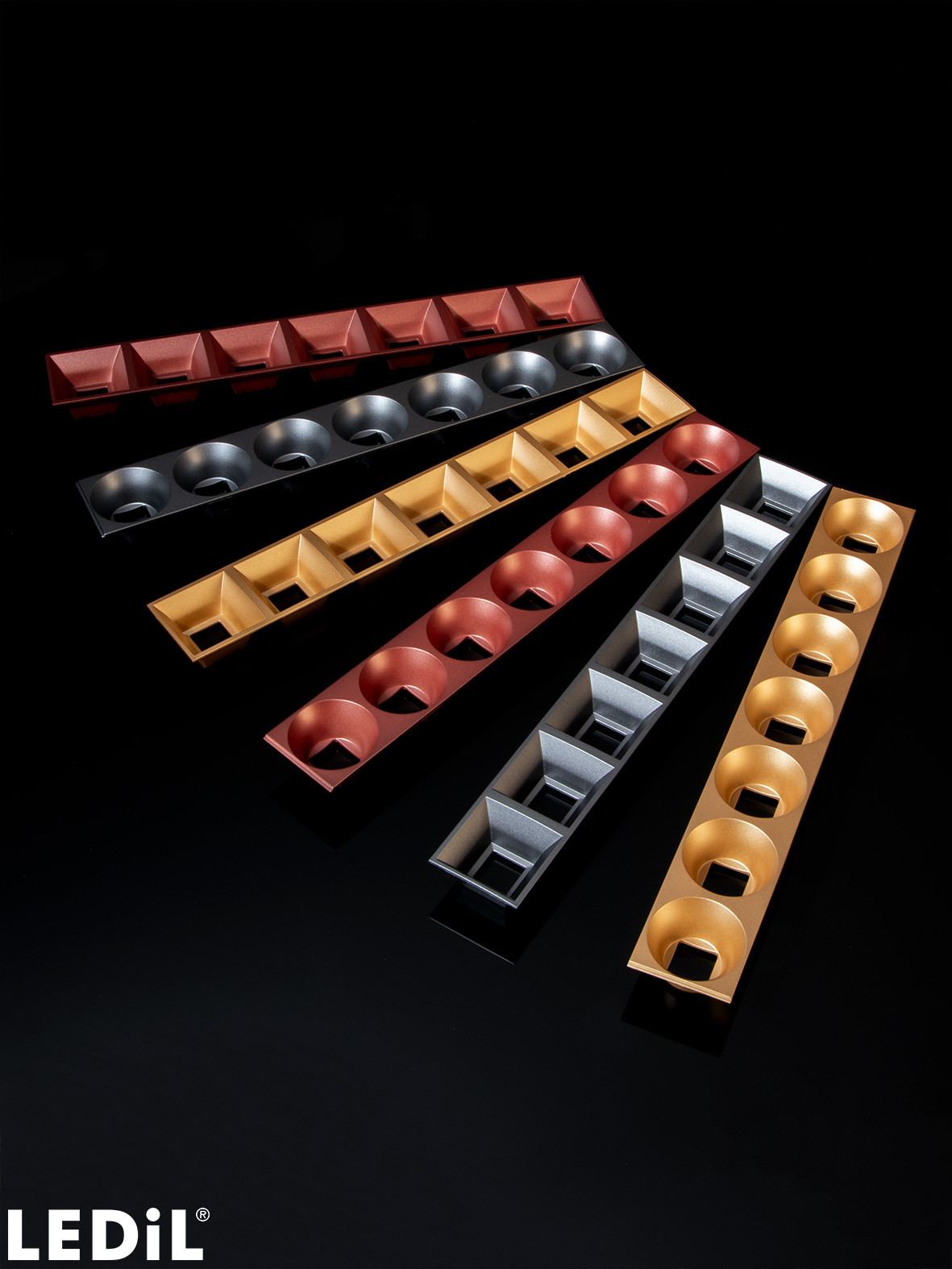

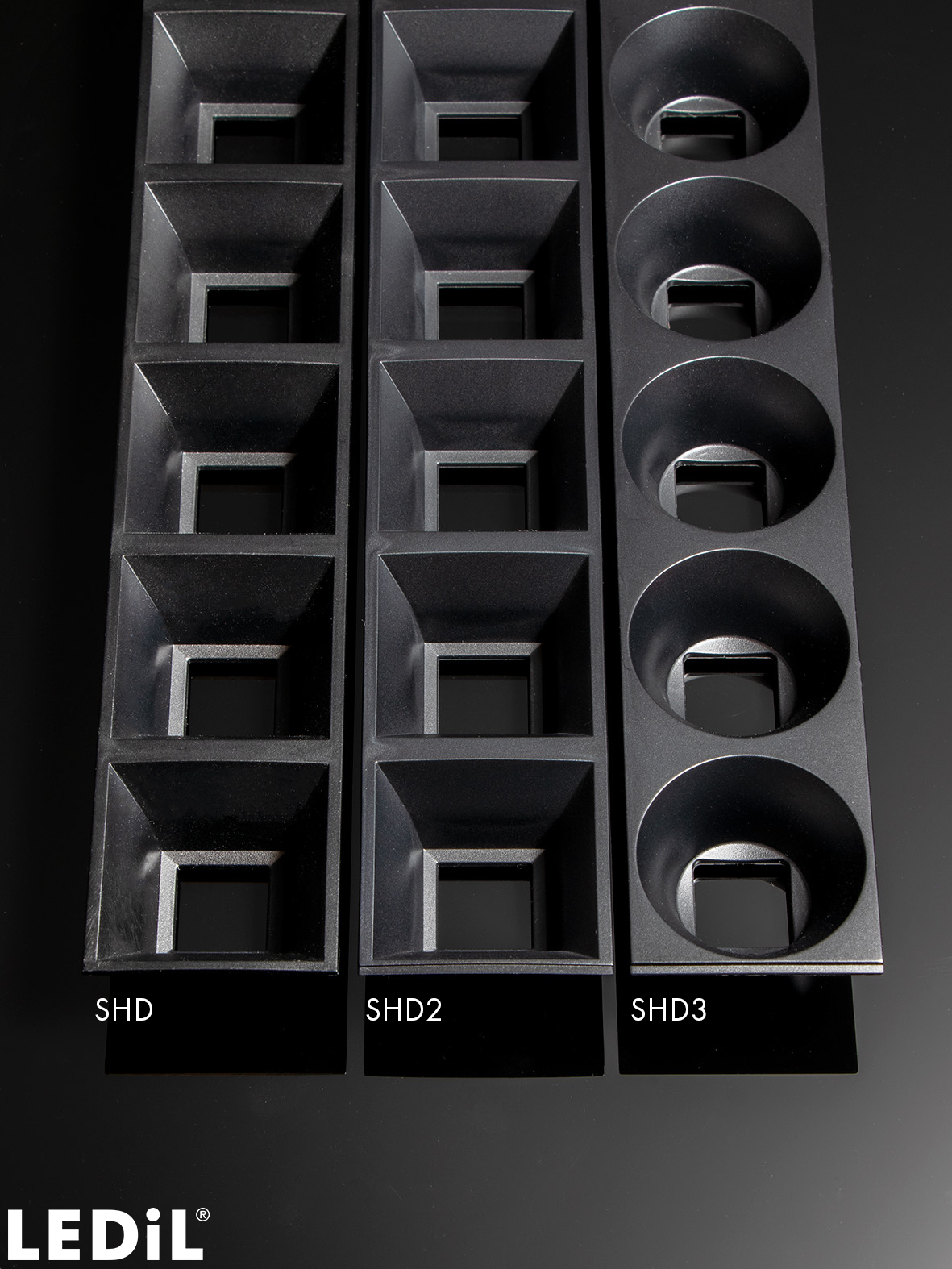

  • Shade
  • C16872_DAISY-7X1-SHD
    black,gloss
  • C16876_DAISY-7X1-SHD-WHT
    white,gloss
  • C17051_DAISY-7X1-SHD-MATT
    black,matt
  • C17225_DAISY-7X1-SHD-WHT-MATT
    white,matt
  • C18167_DAISY-7X1-SHD-MET
    metal,gloss
  • C18409_DAISY-7X1-SHD-MET-MATT
    metal,matt
  • Quantity in box:
    156 pcs
  • Box size:
    595 x 360 x 230 mm
  • Box weight:
    7.10 kg
  • MPQ:
    24 pcs
  • MOQ:
    312 pcs
  • MOQ Size:
    595 x 360 x 230 mm
  • MOQ Weight:
    7.10 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    C17389_DAISY-7X1-M
    C16872_DAISY-7X1-SHD

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Related Content

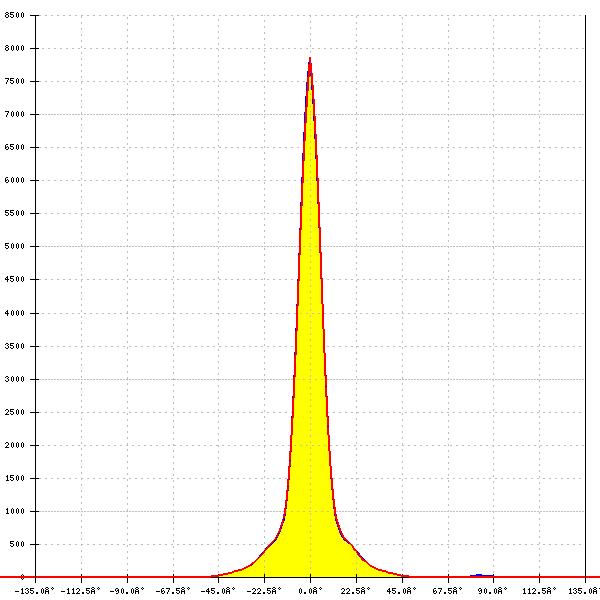

Optical results

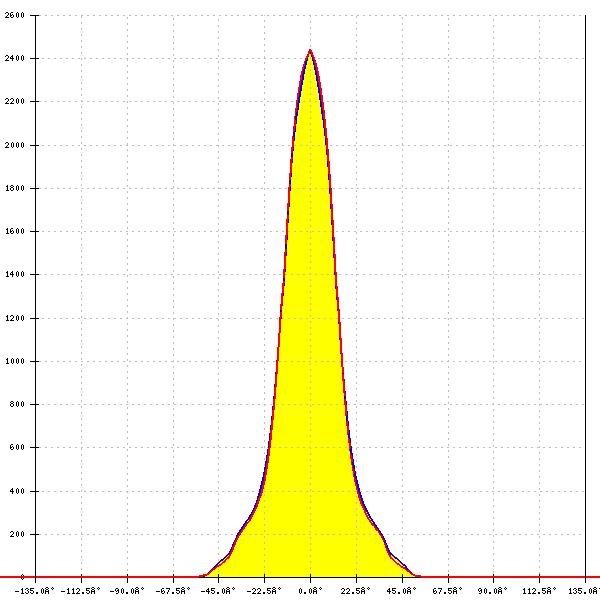

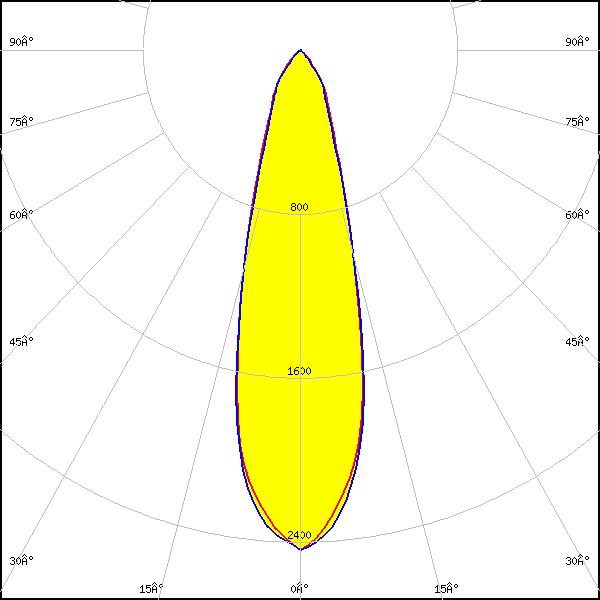

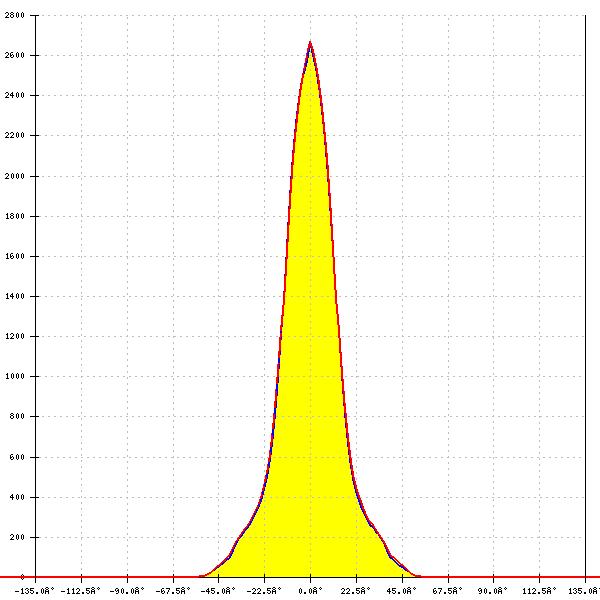

LED: J Series 5050 Round LES
Required components:
C16872_DAISY-7X1-SHD
FWHM: 26°
FWTM: 58°
Peak intensity: 2.671 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

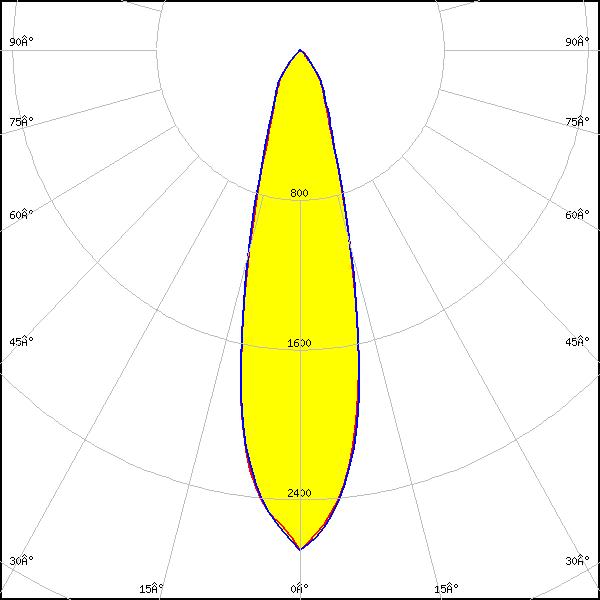

LED: J Series 5050 Round LES
Required components:
C16872_DAISY-7X1-SHD
FWHM: 28°
FWTM: 64°
Peak intensity: 2.525 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

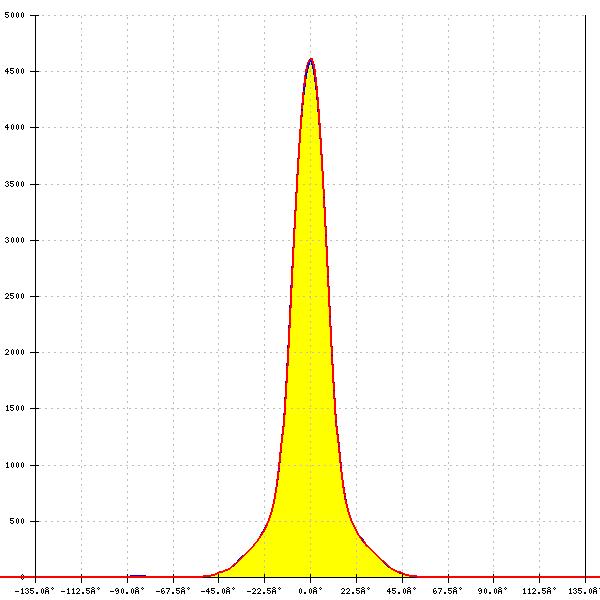

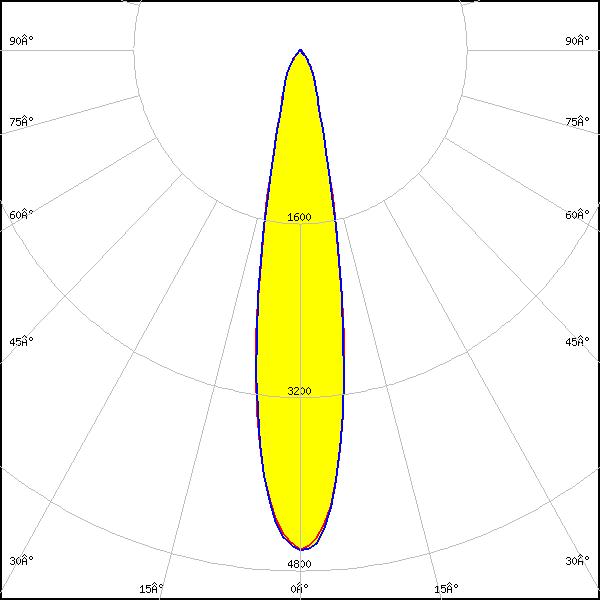

LED: LUXEON 2835 Line
Required components:
C16872_DAISY-7X1-SHD
FWHM: 20°
FWTM: 42°
Peak intensity: 4.615 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

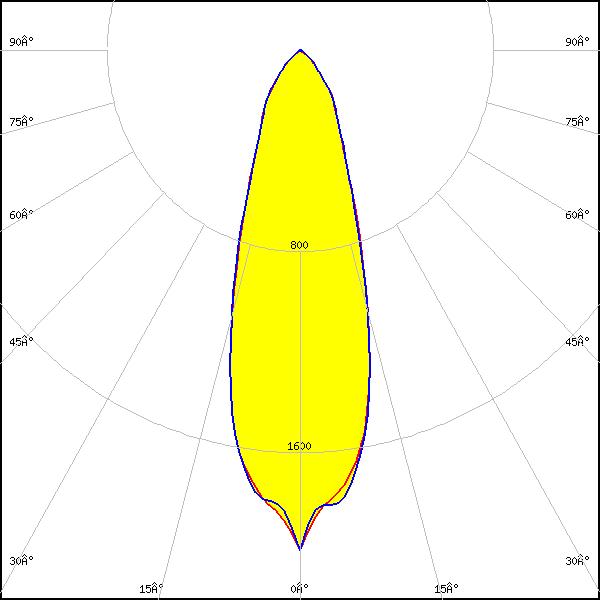

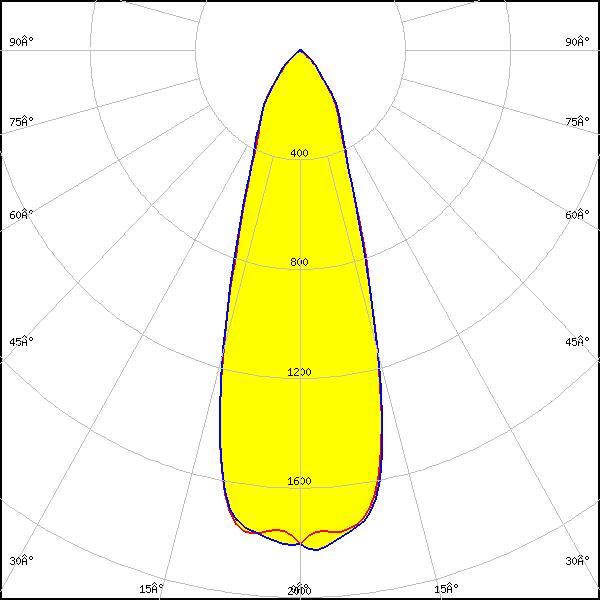

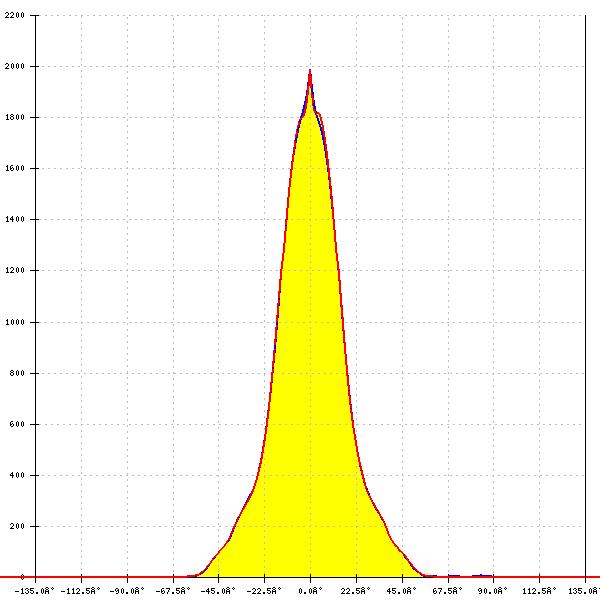

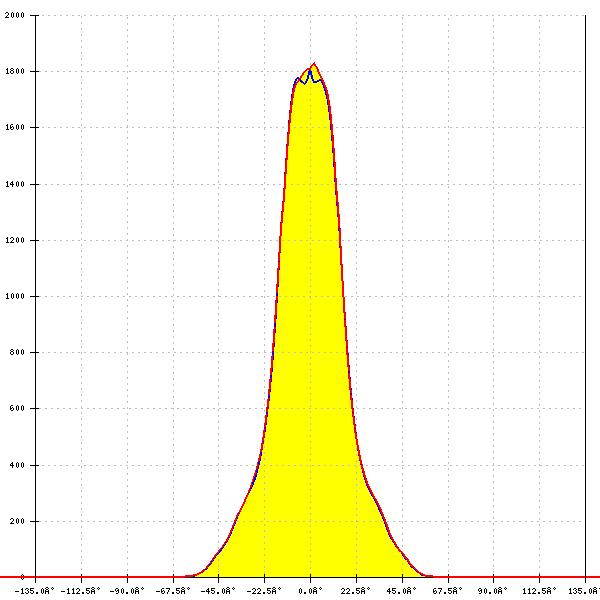

LED: LUXEON 2835 Line
Required components:
C16872_DAISY-7X1-SHD
FWHM: 34°
FWTM: 76°
Peak intensity: 1.859 cd/lm
Efficiency: 88 %
LEDs/each optic: 2
Light colour/type: White

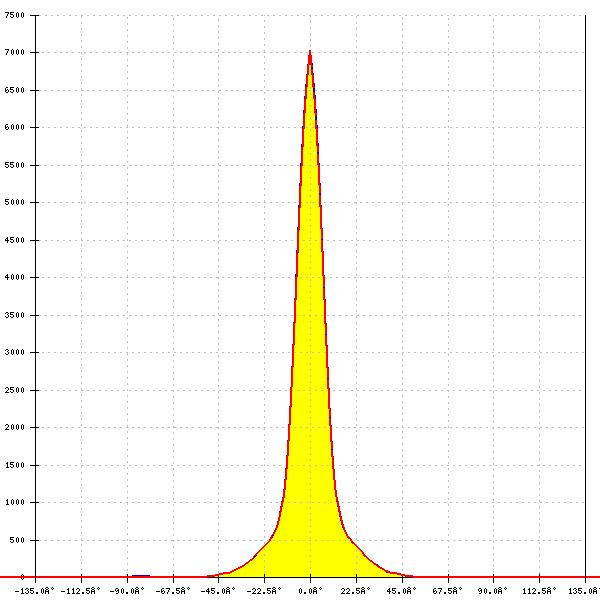

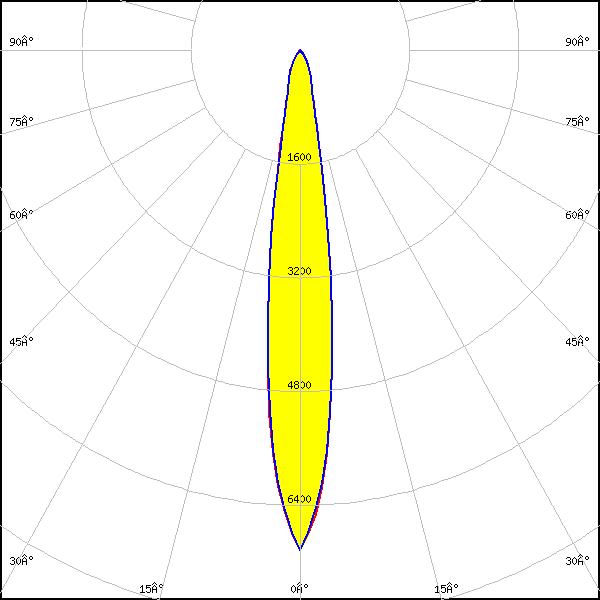

LED: LUXEON 3020
Required components:
C16872_DAISY-7X1-SHD
FWHM: 16°
FWTM: 32°
Peak intensity: 7.033 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

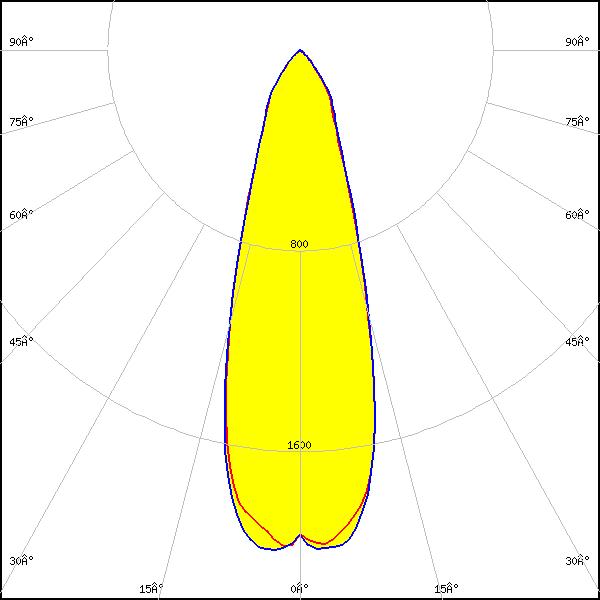

LED: LUXEON 5050 Square LES
Required components:
C16872_DAISY-7X1-SHD
FWHM: 28°
FWTM: 62°
Peak intensity: 2.447 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

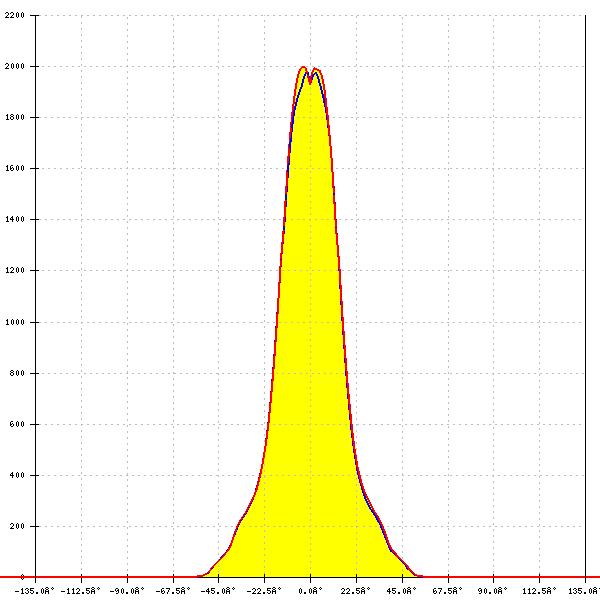

LED: LUXEON 5050 Square LES
Required components:
C16872_DAISY-7X1-SHD
FWHM: 32°
FWTM: 72°
Peak intensity: 2.021 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

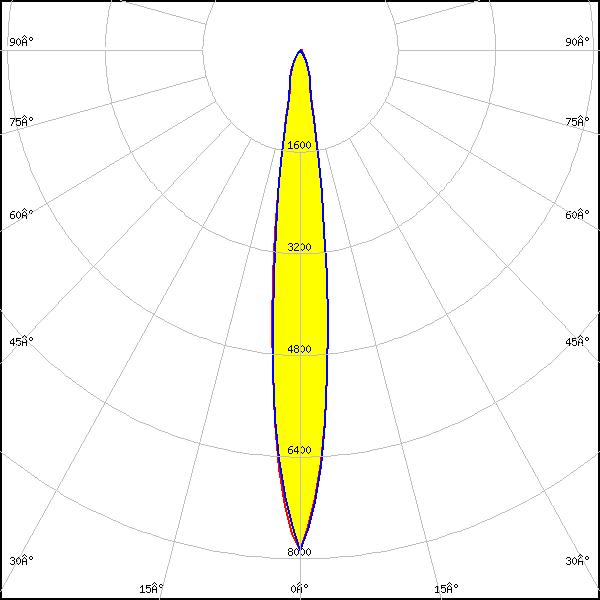

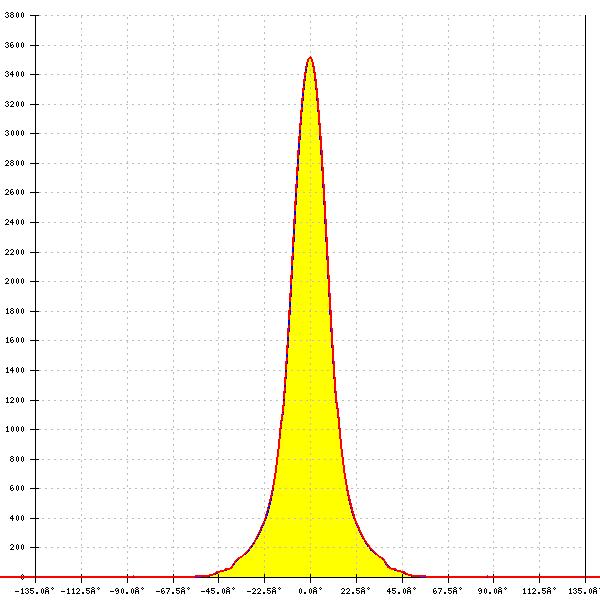

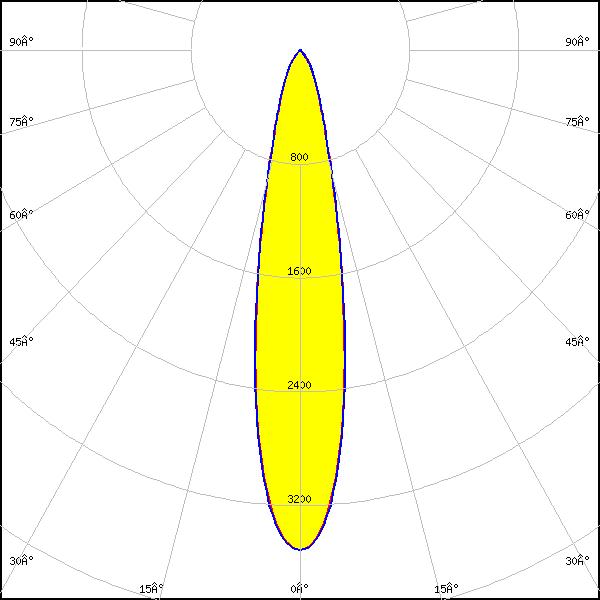

LED: LinLED 280x28mm 1600lm 840 4C 21V DAISY 7x1(ZT25)
Required components:
C16872_DAISY-7X1-SHD
FWHM: 21°
FWTM: 46°
Peak intensity: 3.522 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White

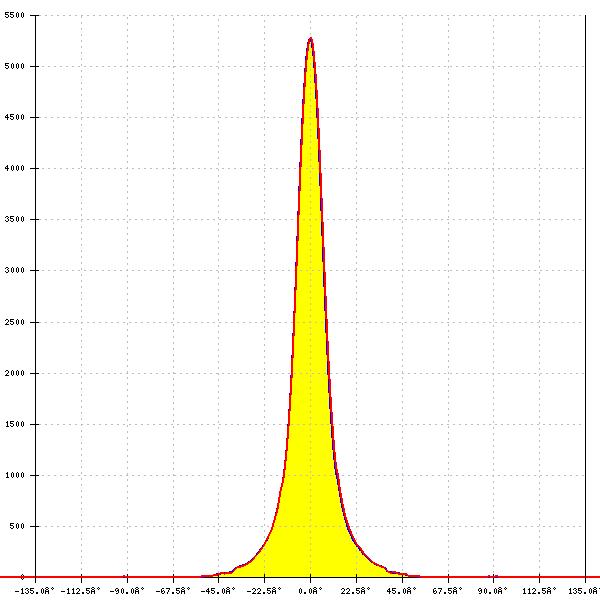

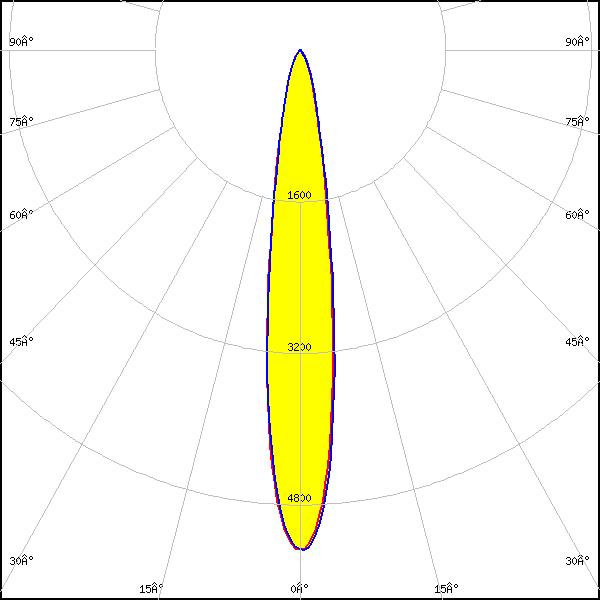

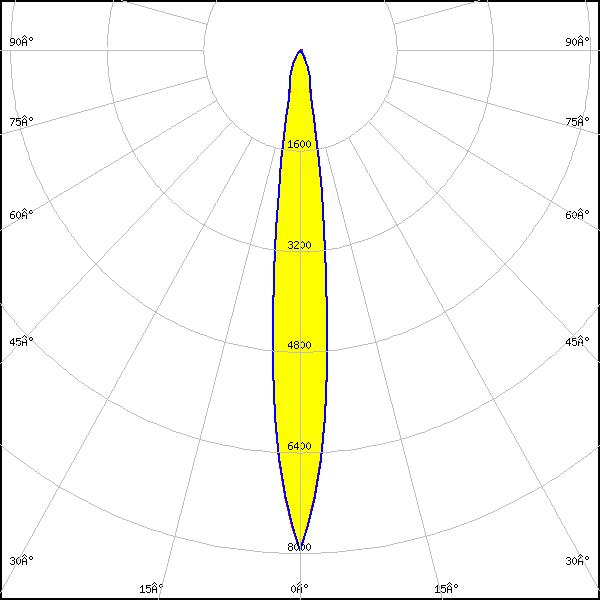

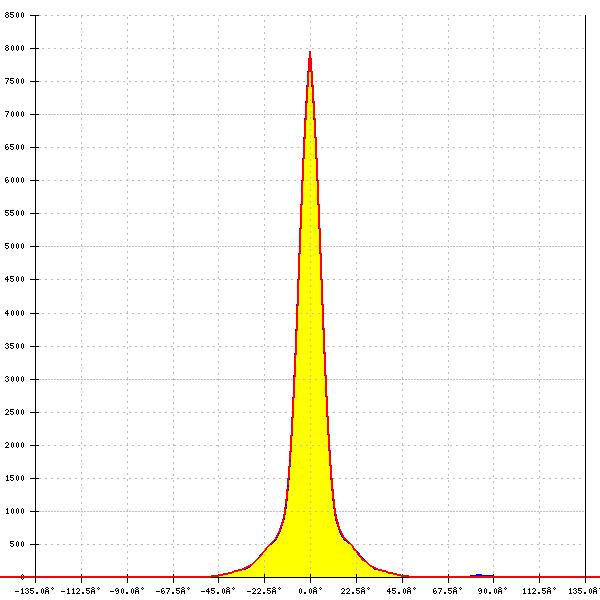

LED: NCSxE17A
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 16°
FWTM: 36°
Peak intensity: 5.290 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White

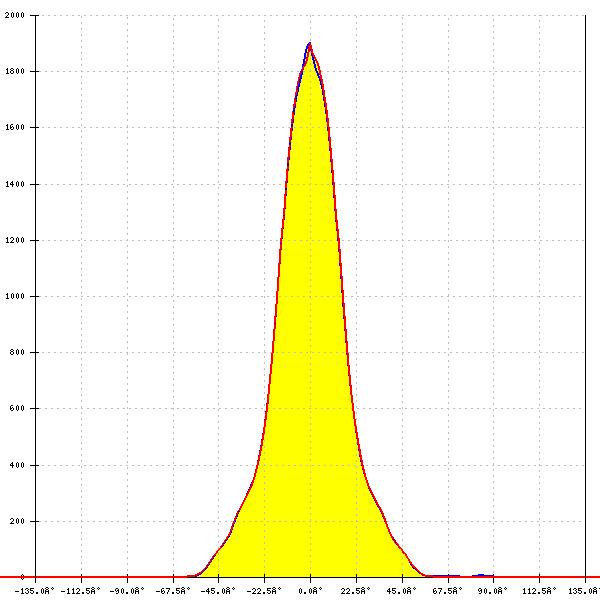

LED: Duris S8
Required components:
C16872_DAISY-7X1-SHD
FWHM: 33° + 34°
FWTM: 72° + 72°
Peak intensity: 1.865 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

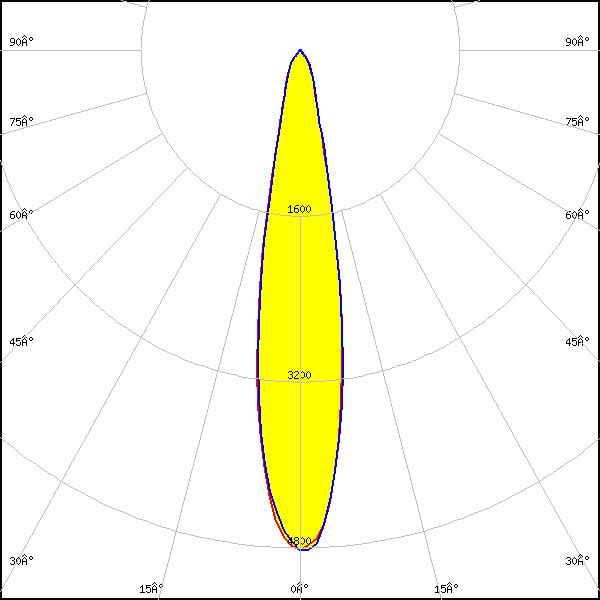

LED: LH231B
Required components:
C16872_DAISY-7X1-SHD
FWHM: 20°
FWTM: 39°
Peak intensity: 4.840 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

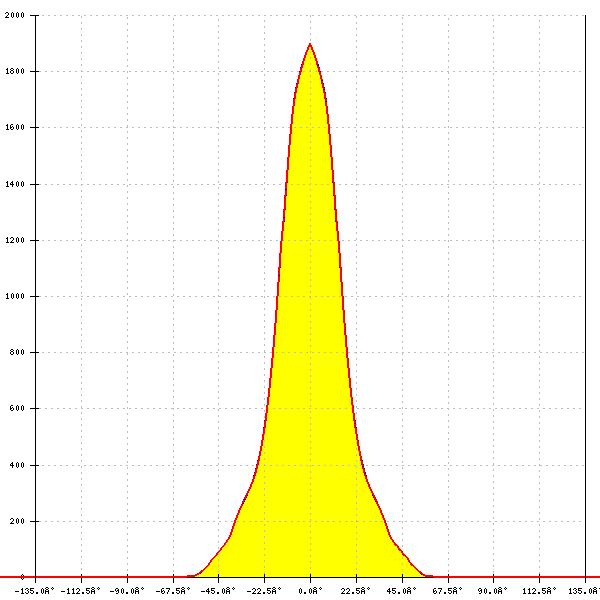

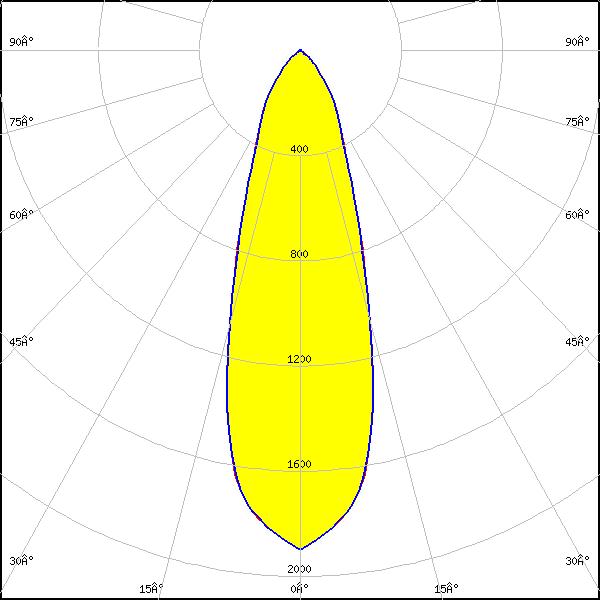

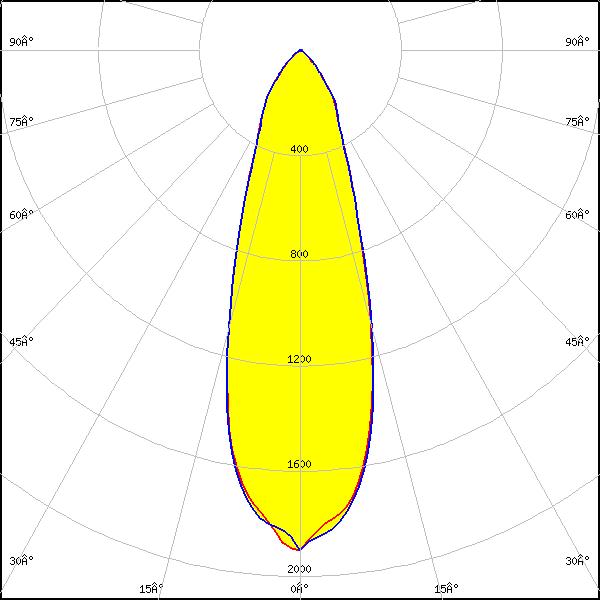

LED: LM28xB Series
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 32°
FWTM: 74°
Peak intensity: 1.901 cd/lm
Efficiency: 88 %
LEDs/each optic: 2
Light colour/type: White

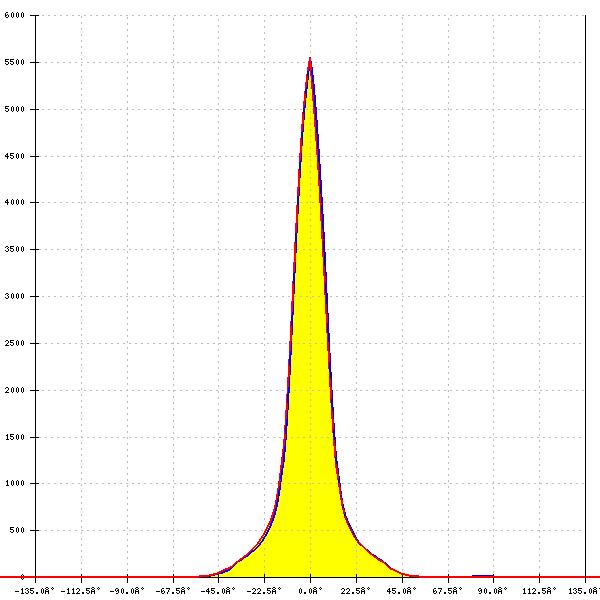

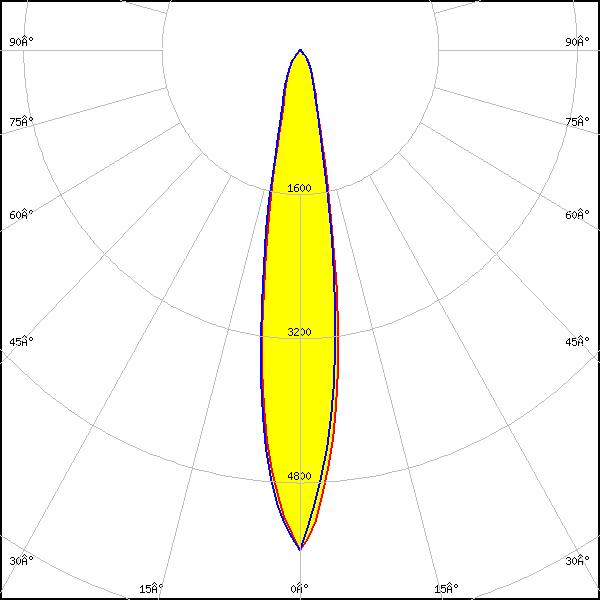

LED: LM28xB Series
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 18°
FWTM: 39°
Peak intensity: 5.549 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

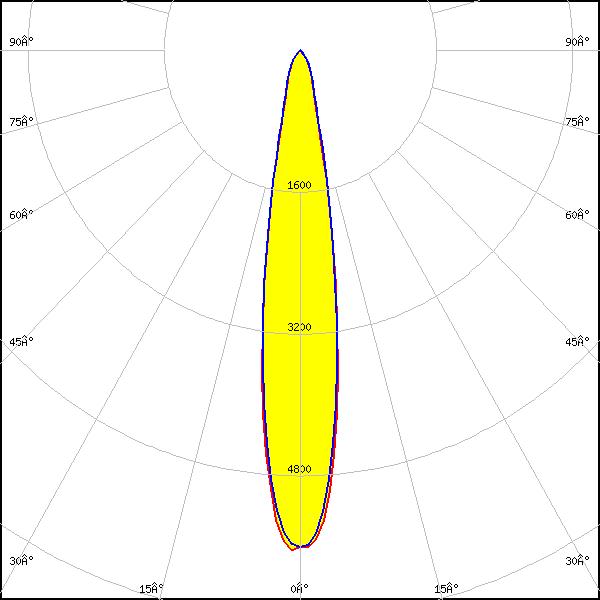

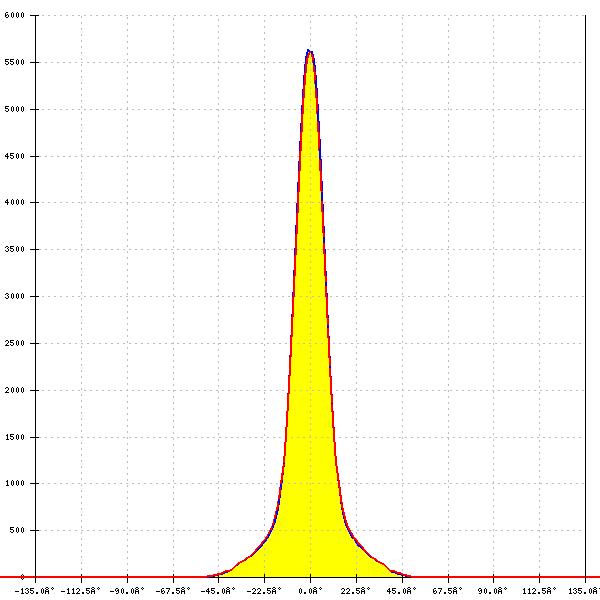

LED: LM28xB Series
Required components:
C16872_DAISY-7X1-SHD
FWHM: 18°
FWTM: 36°
Peak intensity: 5.651 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

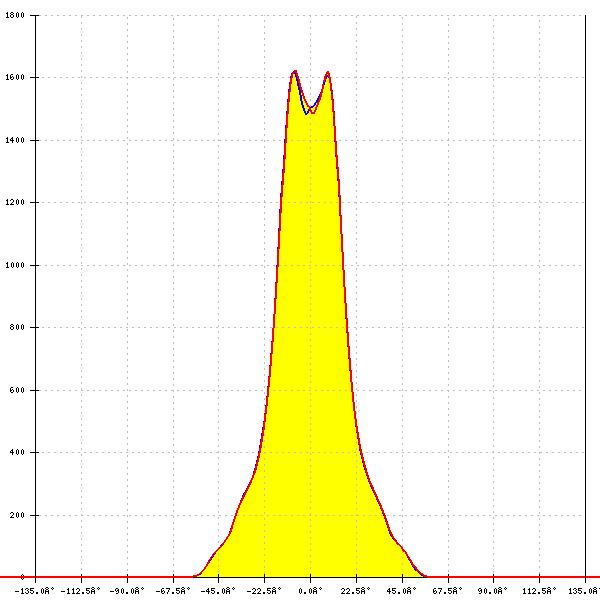

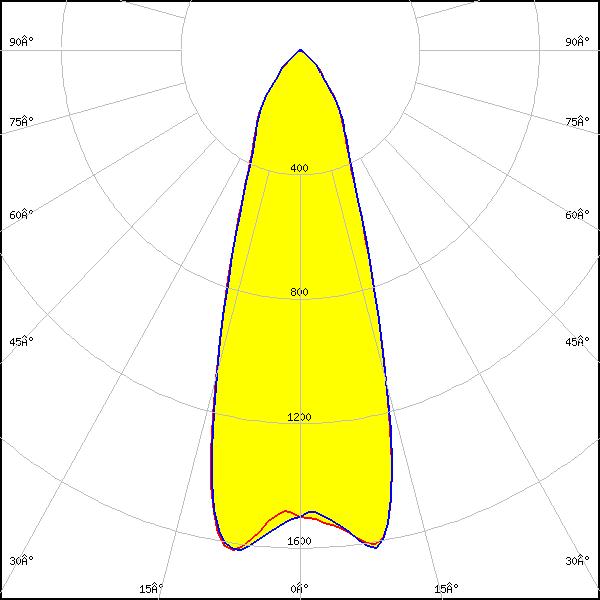

LED: LM28xB Series
Required components:
C16872_DAISY-7X1-SHD
FWHM: 36°
FWTM: 78°
Peak intensity: 1.625 cd/lm
Efficiency: 84 %
LEDs/each optic: 2
Light colour/type: White
