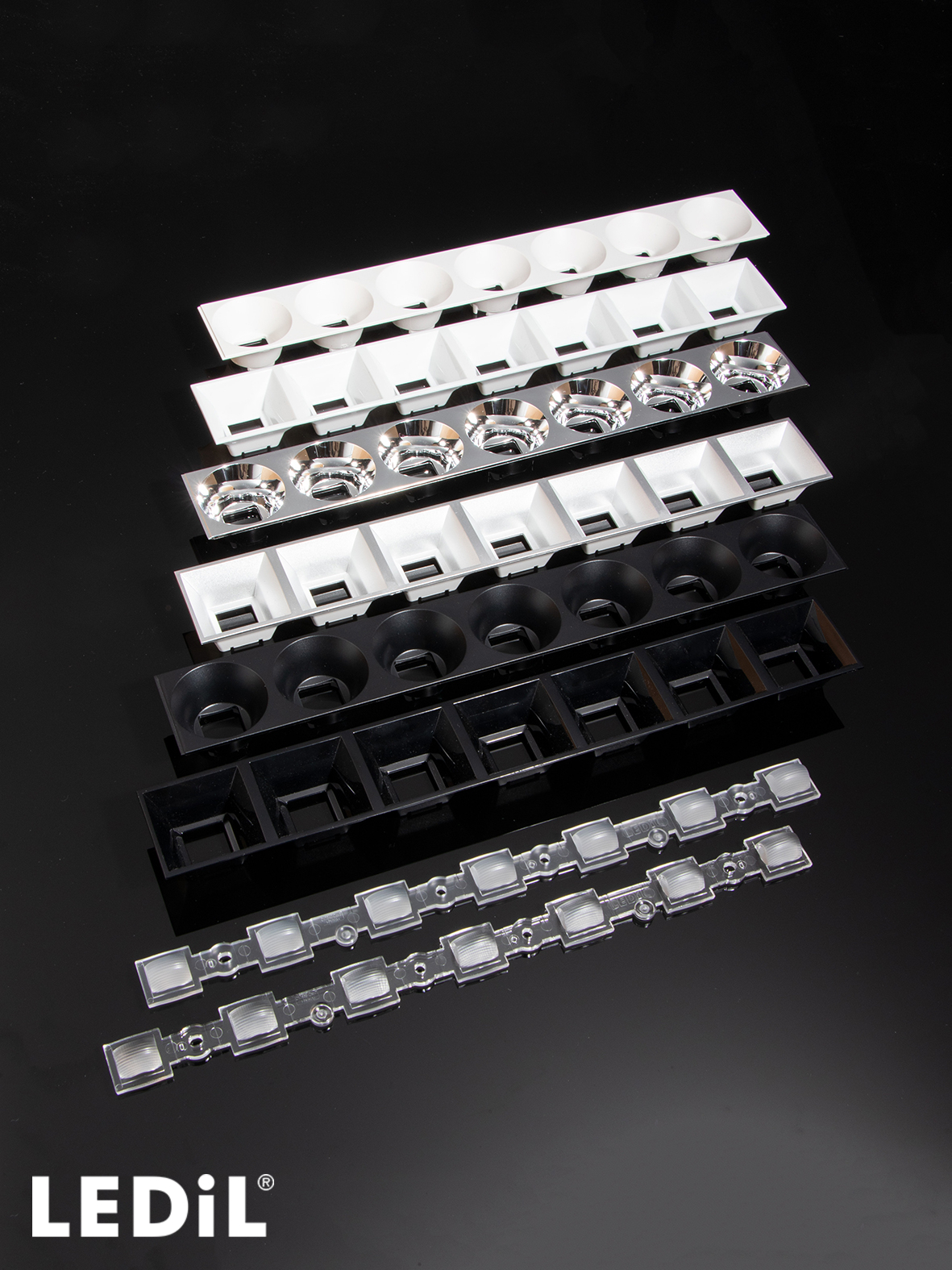

DAISY-7X1-O-D
Print
~25 + 70° oval beam. Variant with diffused lenses.
This product consists of multiple parts that need to be ordered separately. See ordering information.
Materials
- Linear lens
- C17540_DAISY-7X1-O-DPMMA
- Request material files from Tech Support

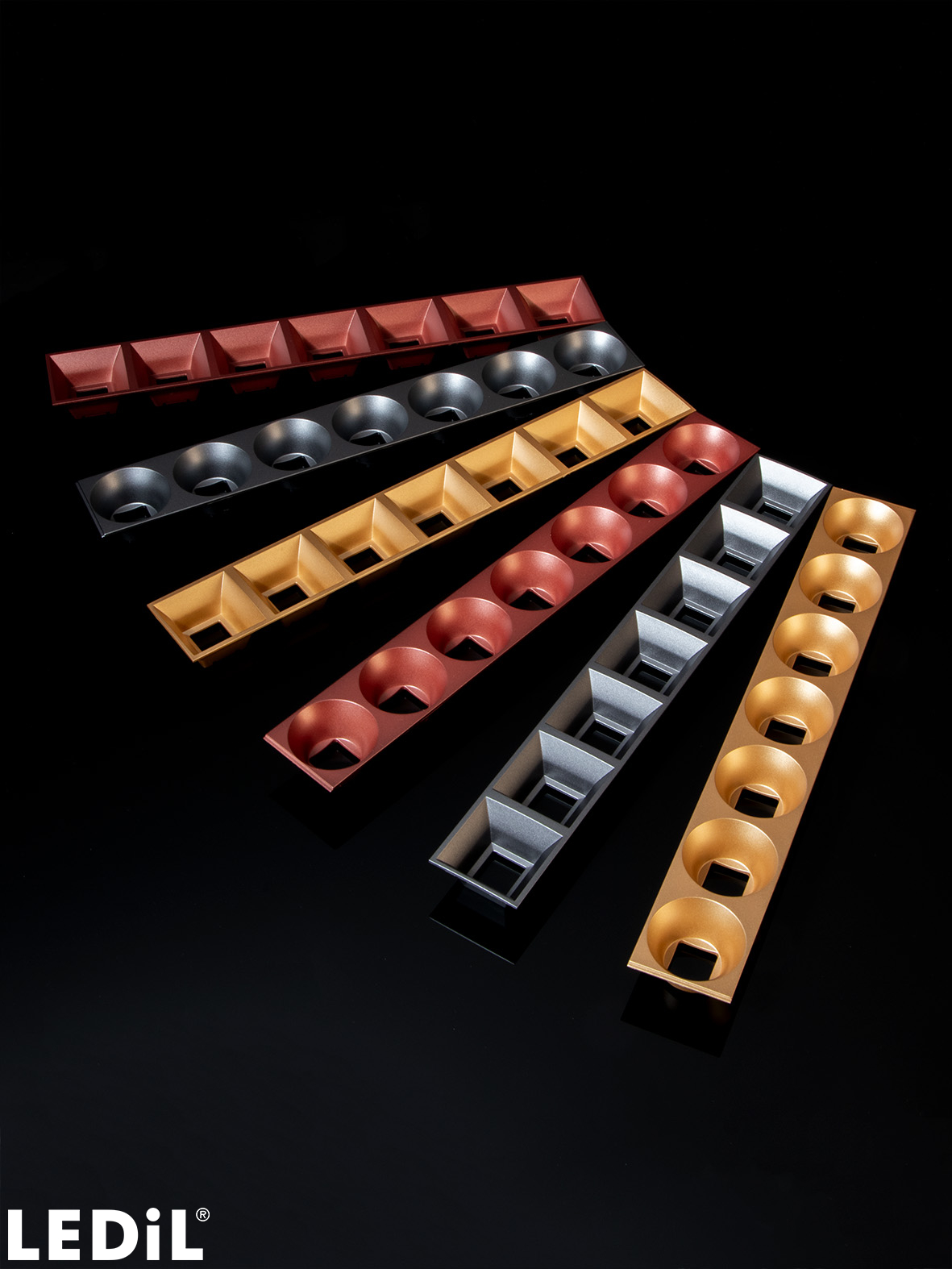

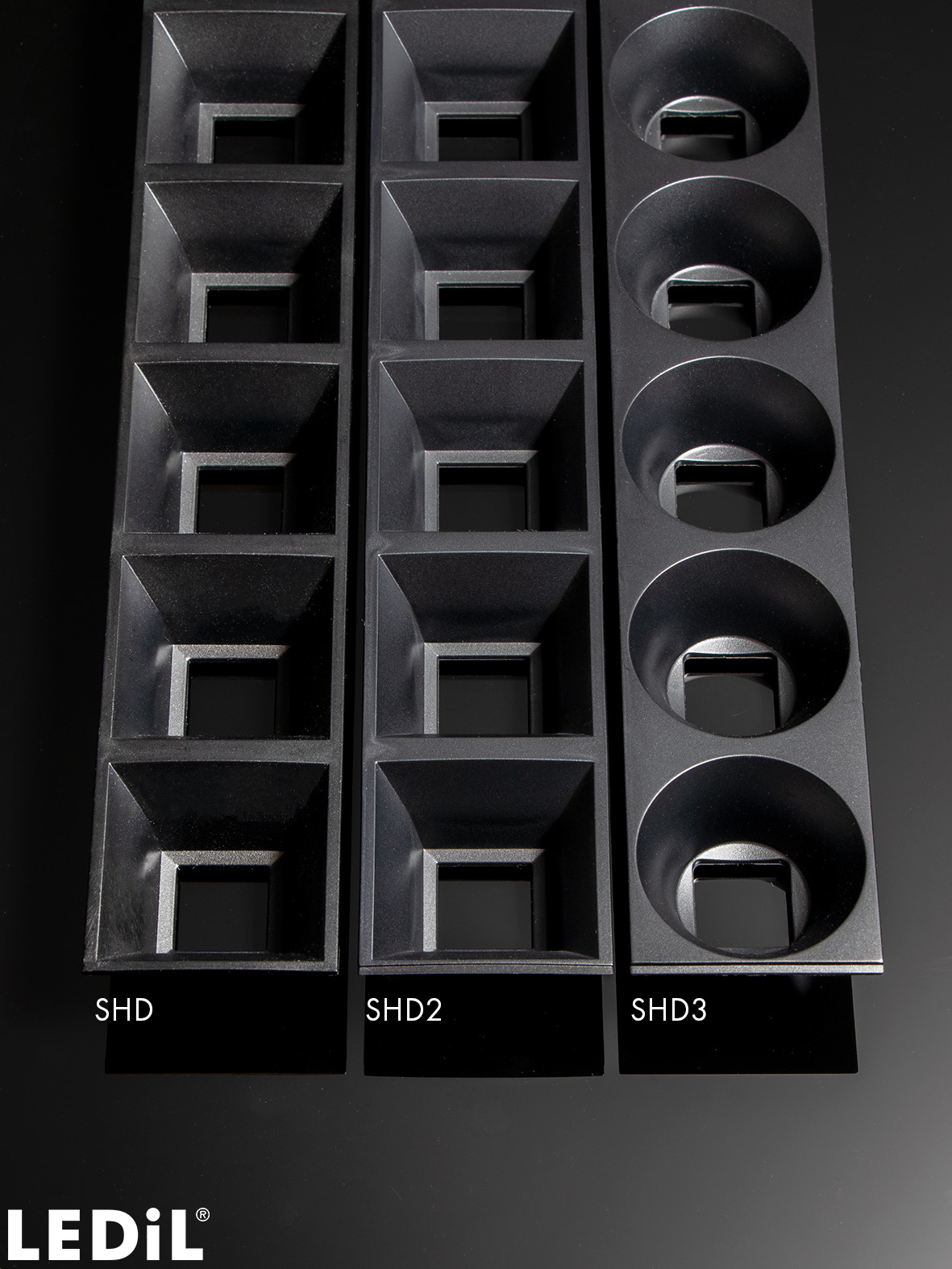

- Shade
- C16872_DAISY-7X1-SHDPC
- C16876_DAISY-7X1-SHD-WHTPC
- C17051_DAISY-7X1-SHD-MATTPC
- C17225_DAISY-7X1-SHD-WHT-MATTPC
- C18167_DAISY-7X1-SHD-METPC
- C18409_DAISY-7X1-SHD-MET-MATTPC
- C19312_DAISY-7X1-SHD3PC
- C19313_DAISY-7X1-SHD3-MATTPC
- C19314_DAISY-7X1-SHD3-WHTPC
- C19315_DAISY-7X1-SHD3-WHT-MATTPC
- C19641_DAISY-7X1-SHD3-METPC
- C19642_DAISY-7X1-SHD3-MET-MATTPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

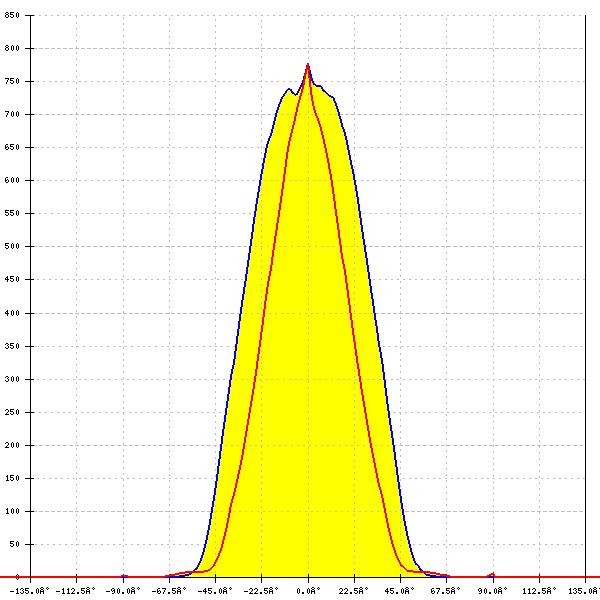

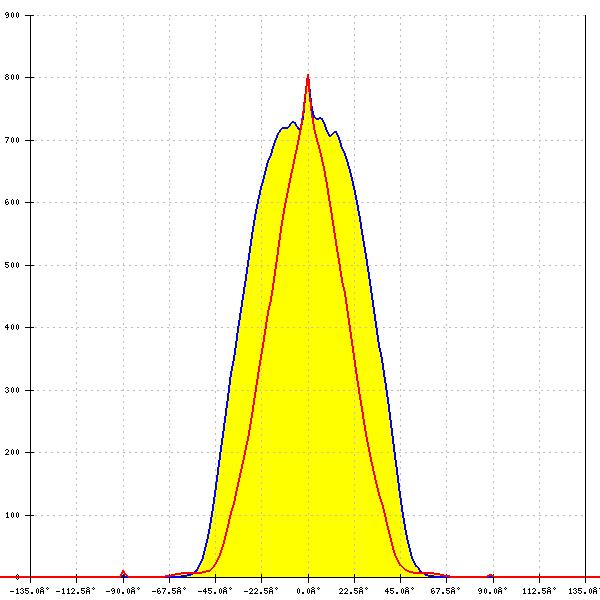

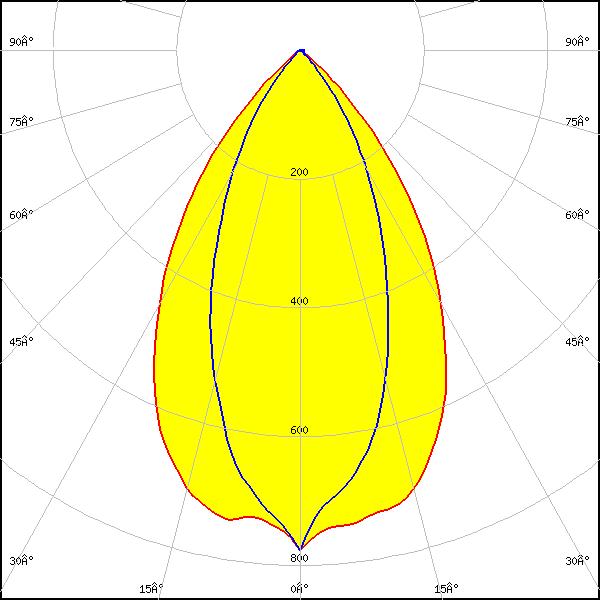

Optical results

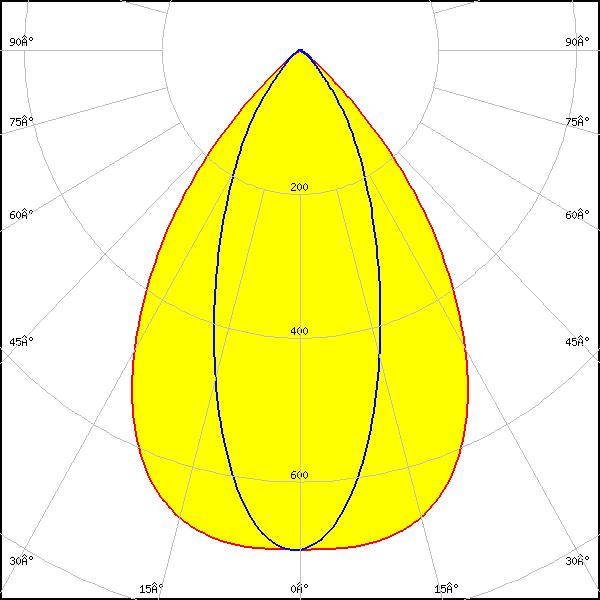

LED:
LED Line SMD L28W2 TW Module 20mm 2800Lm Daisy 7x1 (E21A)
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM:
73° + 40°
FWTM:
97° + 81°
Peak intensity:
0.696 cd/lm
Efficiency:
64 %
LEDs/each optic:
2
Light colour/type:
Tunable White

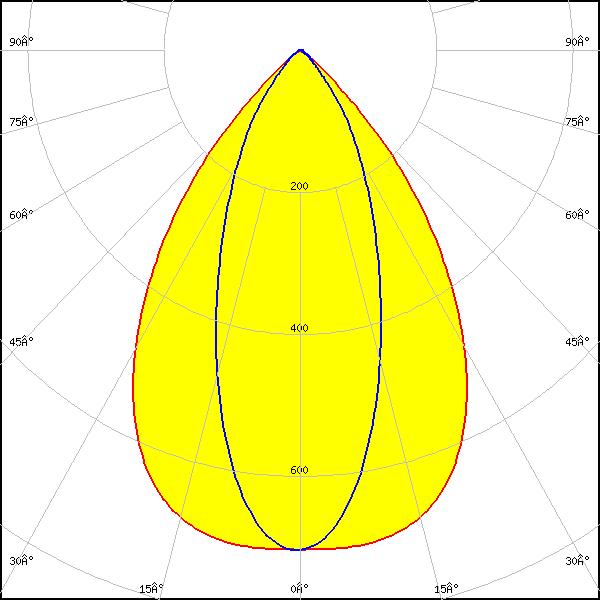

LED:
LED Line SMD L28W2 White Module 20mm 2800Lm Daisy 7x1 (E21A)
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM:
72° + 40°
FWTM:
97° + 80°
Peak intensity:
0.706 cd/lm
Efficiency:
64 %
LEDs/each optic:
2
Light colour/type:
White
LED:
LUXEON 2835 Line
Required components:
C16872_DAISY-7X1-SHD
FWHM:
68° + 41°
FWTM:
96° + 77°
Peak intensity:
0.928 cd/lm
Efficiency:
74 %
LEDs/each optic:
2
Light colour/type:
White

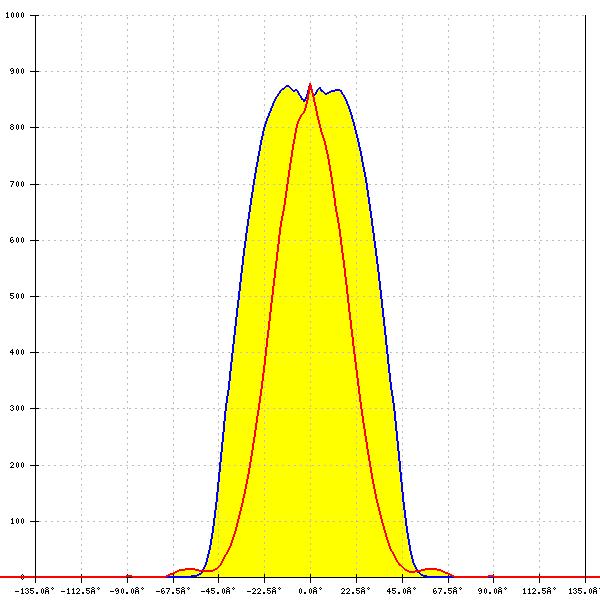

LED:
LUXEON 5050 HE
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM:
74° + 40°
FWTM:
94° + 72°
Peak intensity:
0.879 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White

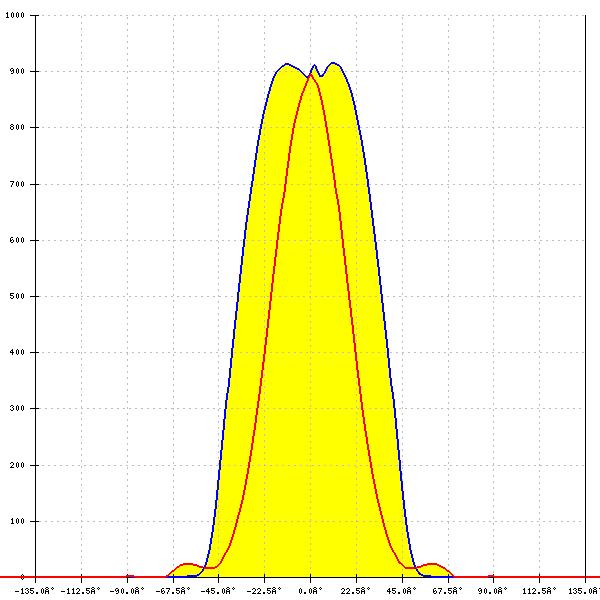

LED:
LUXEON 5050 HE
Required components:
C17533_DAISY-7X1-SHD-MET-MATT
FWHM:
74° + 42°
FWTM:
94° + 74°
Peak intensity:
0.914 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

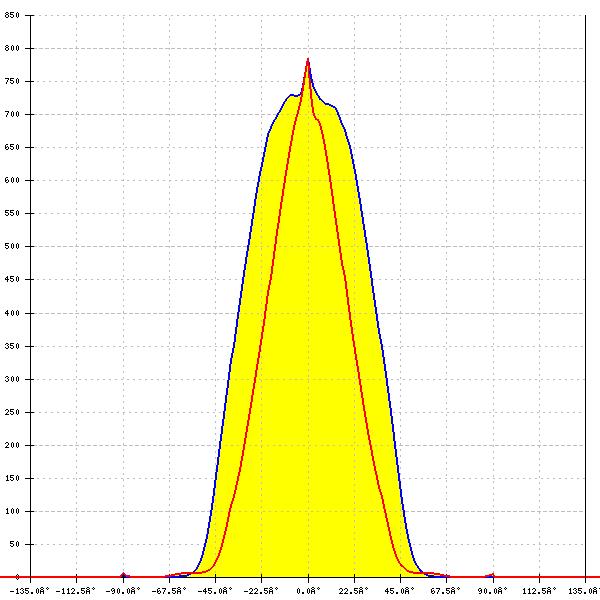

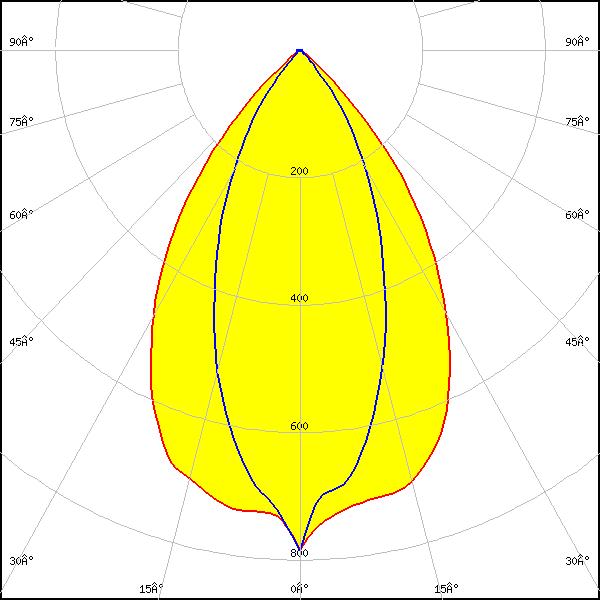

LED:
LUXEON HL2Z
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM:
72° + 40°
FWTM:
97° + 81°
Peak intensity:
0.725 cd/lm
Efficiency:
66 %
LEDs/each optic:
2
Light colour/type:
White

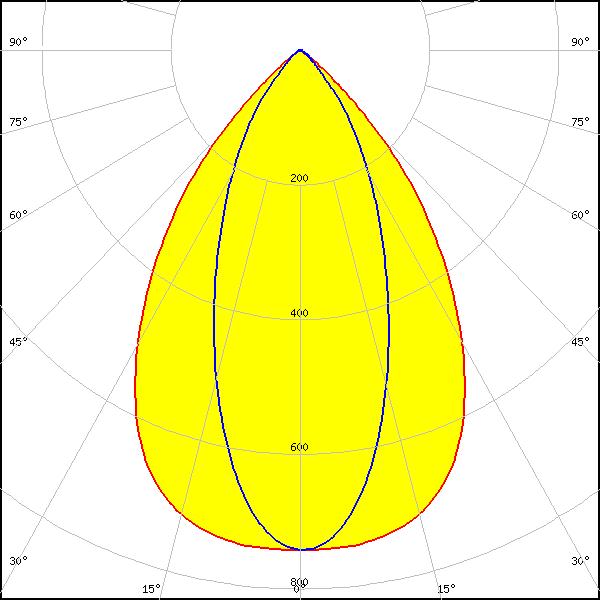

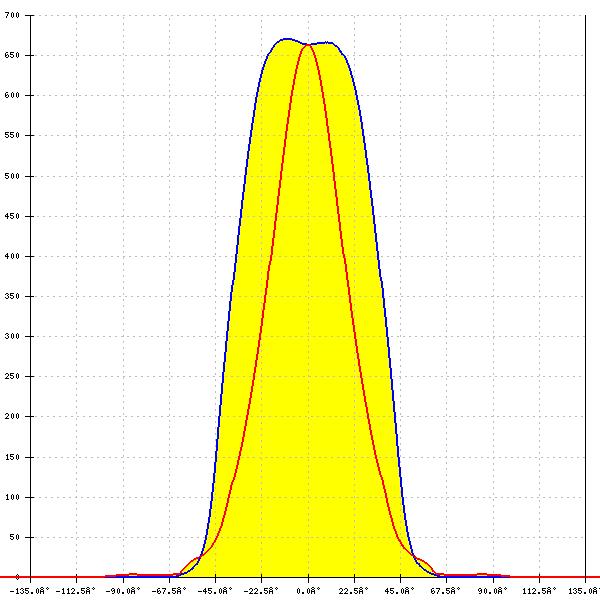

LED:

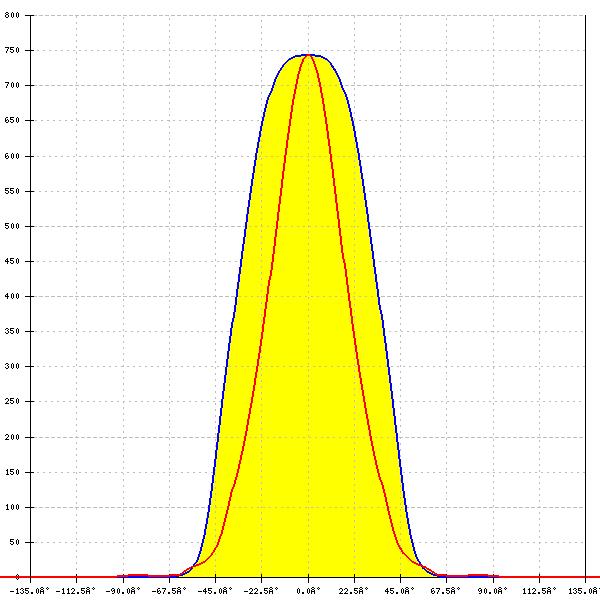

LinLED 280x28mm 1600lm 840 4C 21V DAISY 7x1(ZT25)
Required components:
C16872_DAISY-7X1-SHD
FWHM:
75° + 43°
FWTM:
97° + 83°
Peak intensity:
0.670 cd/lm
Efficiency:
66 %
LEDs/each optic:
1
Light colour/type:
White

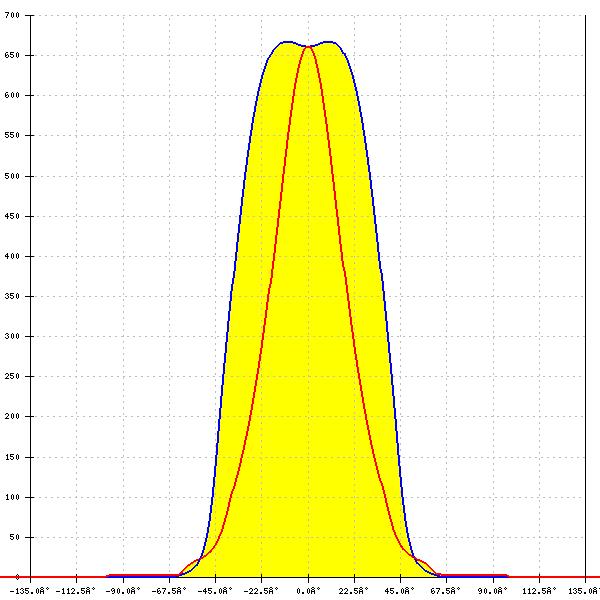

LED:
NCSxE17A
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM:
75° + 41°
FWTM:
96° + 82°
Peak intensity:
0.669 cd/lm
Efficiency:
64 %
LEDs/each optic:
1
Light colour/type:
White

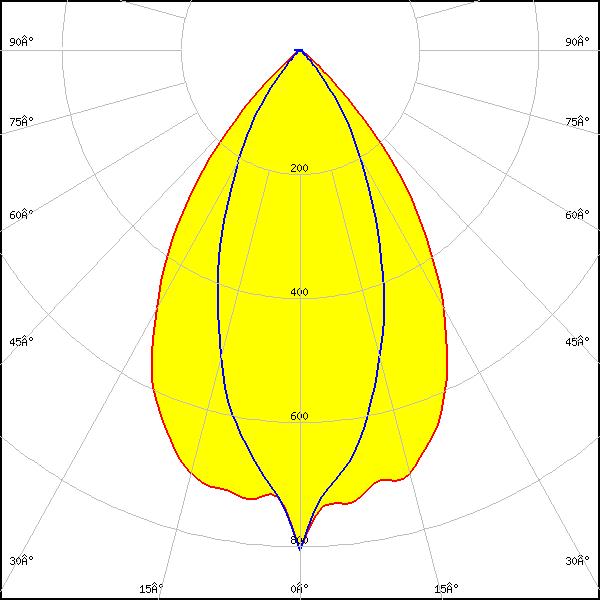

LED:
LH231B
Required components:
C16872_DAISY-7X1-SHD
FWHM:
70° + 43°
FWTM:
99° + 84°
Peak intensity:
0.681 cd/lm
Efficiency:
65 %
LEDs/each optic:
2
Light colour/type:
White
LED:
LH231B
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM:
72° + 47°
FWTM:
104° + 100°
Peak intensity:
0.740 cd/lm
Efficiency:
85 %
LEDs/each optic:
2
Light colour/type:
White
LED:
LH231B
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM:
70° + 43°
FWTM:
99° + 83°
Peak intensity:
0.682 cd/lm
Efficiency:
65 %
LEDs/each optic:
2
Light colour/type:
White
LED:
LH231B
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM:
72° + 46°
FWTM:
104° + 100°
Peak intensity:
0.740 cd/lm
Efficiency:
86 %
LEDs/each optic:
2
Light colour/type:
White
LED:
LH231B
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM:
68° + 47°
FWTM:
100° + 93°
Peak intensity:
0.831 cd/lm
Efficiency:
86 %
LEDs/each optic:
2
Light colour/type:
White
LED:
LH231B
Required components:
C17533_DAISY-7X1-SHD-MET-MATT
FWHM:
69° + 46°
FWTM:
101° + 94°
Peak intensity:
0.802 cd/lm
Efficiency:
84 %
LEDs/each optic:
2
Light colour/type:
White

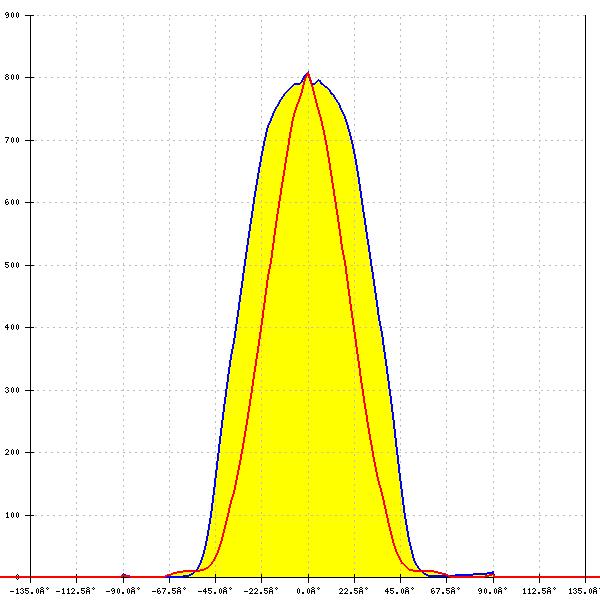

LED:
LM28xB Series
Required components:
C16872_DAISY-7X1-SHD
FWHM:
70° + 44°
FWTM:
96° + 80°
Peak intensity:
0.809 cd/lm
Efficiency:
74 %
LEDs/each optic:
2
Light colour/type:
White

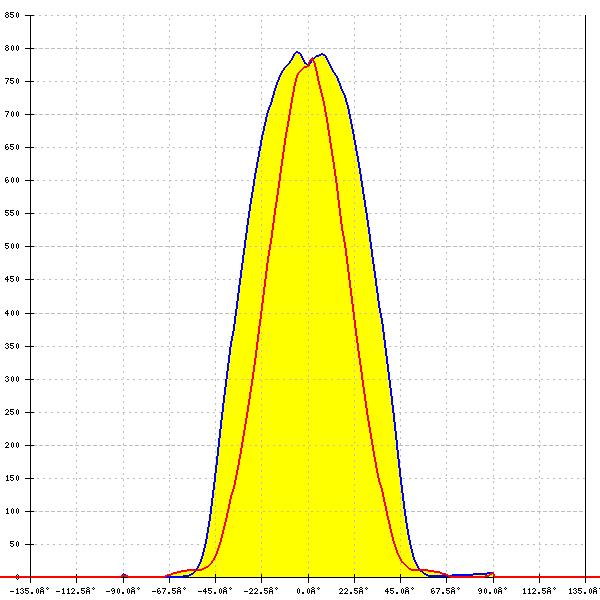

LED:
LM28xB Series
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM:
71° + 46°
FWTM:
96° + 80°
Peak intensity:
0.796 cd/lm
Efficiency:
74 %
LEDs/each optic:
2
Light colour/type:
White
