DAISY-7X1-O
Print

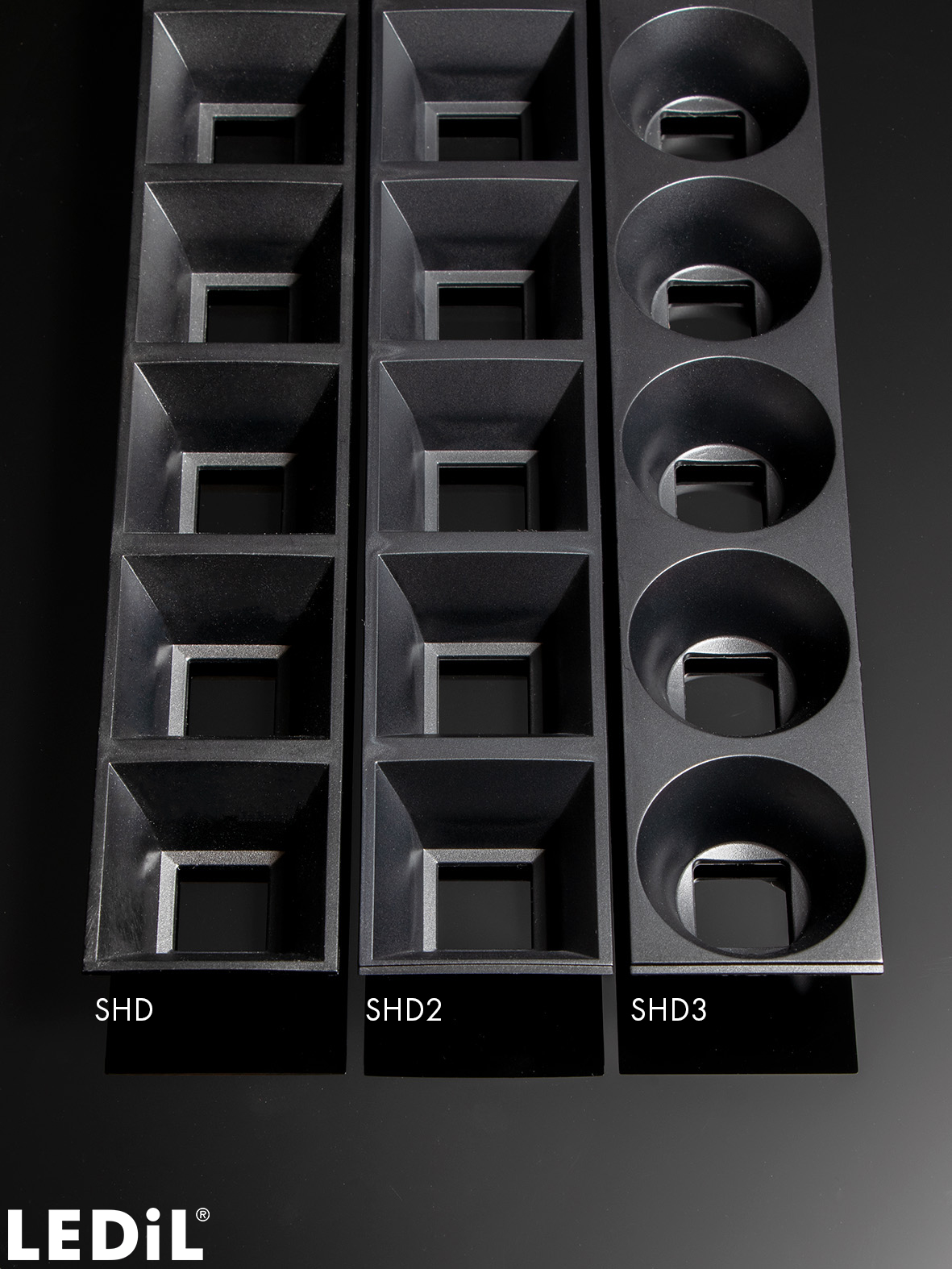

~25 + 70° oval beam. Choose SHD with no lips or SHD2 with narrow lips and square openings. SHD3 with narrow lips and round openings.
This product consists of multiple parts that need to be ordered separately. See ordering information.

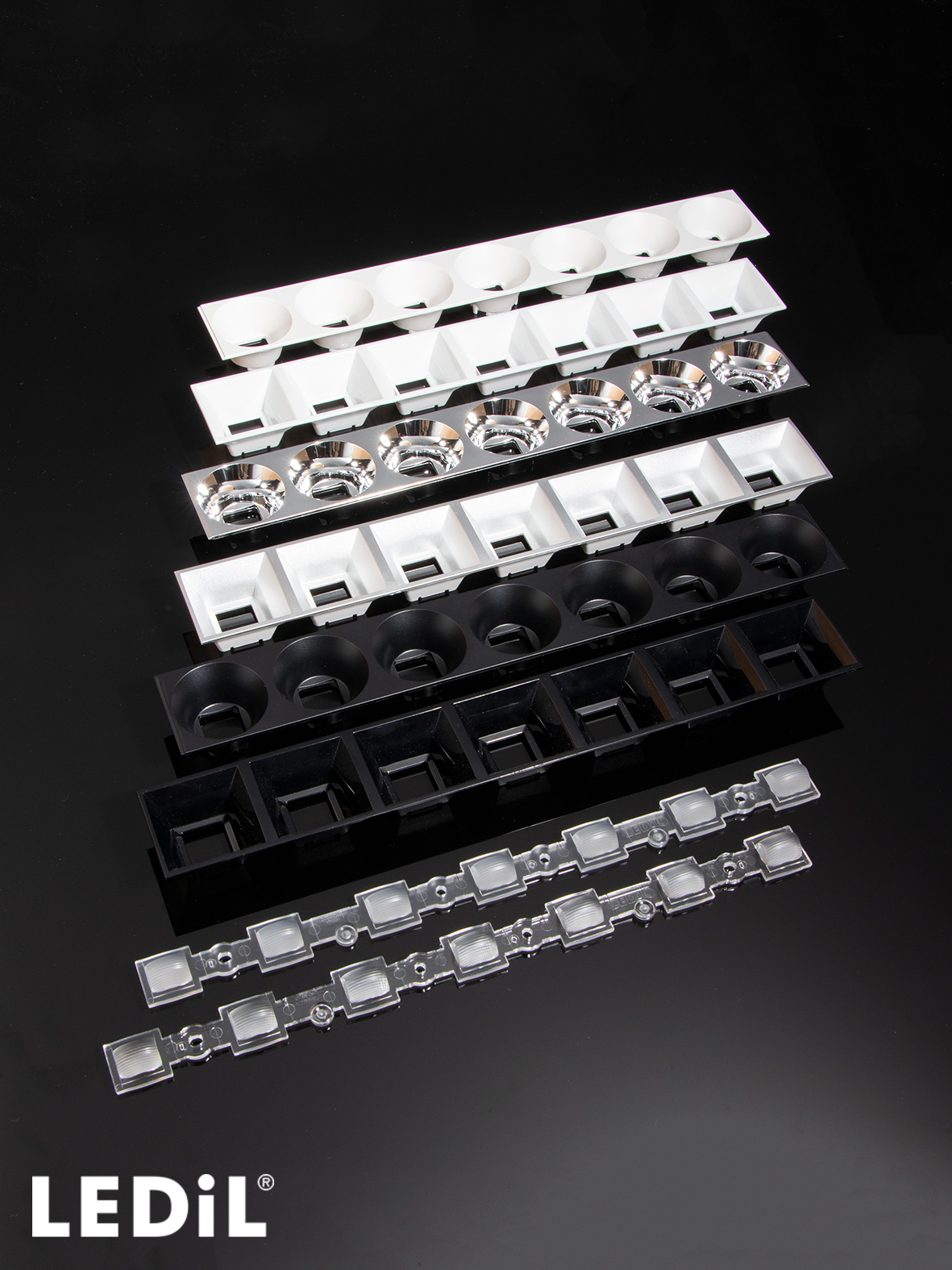

Component Materials
- DAISY-7X1-SHDShadePC
- DAISY-7X1-SHD-WHTShadePC
- DAISY-7X1-SHD-MATTShadePC
- DAISY-7X1-SHD-WHT-MATTShadePC
- DAISY-7X1-OLinear lensPMMA
- DAISY-7X1-SHD-METShadePC
- DAISY-7X1-SHD-MET-MATTShadePC
- DAISY-7X1-SHD3ShadePC
- DAISY-7X1-SHD3-MATTShadePC
- DAISY-7X1-SHD3-WHTShadePC
- DAISY-7X1-SHD3-WHT-MATTShadePC
- DAISY-7X1-SHD3-METShadePC
- DAISY-7X1-SHD3-MET-MATTShadePC
- DAISY-7X1-SHD-MATT-REDShadePC
- DAISY-7X1-SHD-MATT-GRShadePC
- DAISY-7X1-SHD-MATT-GLDShadePC
- DAISY-7X1-SHD3-MATT-GRShadePC
- DAISY-7X1-SHD3-MATT-REDShadePC
- DAISY-7X1-SHD3-MATT-GLDShadePC
- DAISY-7X1-SHD2ShadePC
- DAISY-7X1-SHD2-MATTShadePC-ABS
- DAISY-7X1-SHD2-WHTShadePC
- DAISY-7X1-SHD2-MATT-WHTShadePC
- DAISY-7X1-SHD2-METShadePC
- DAISY-7X1-SHD2-MET-MATTShadePC-ABS
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

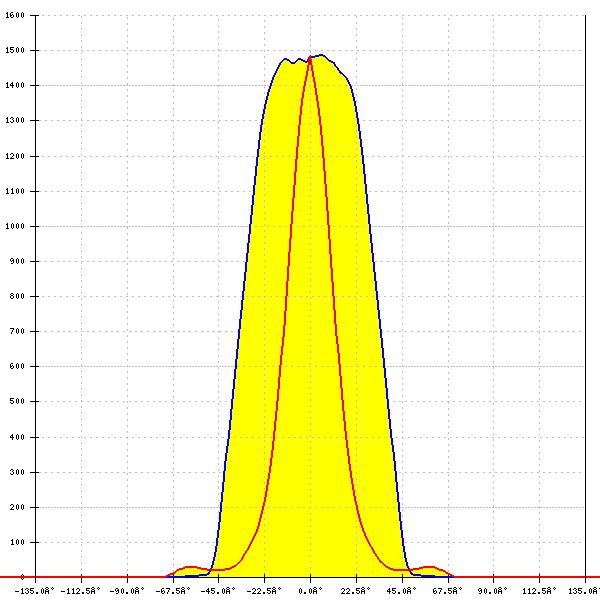

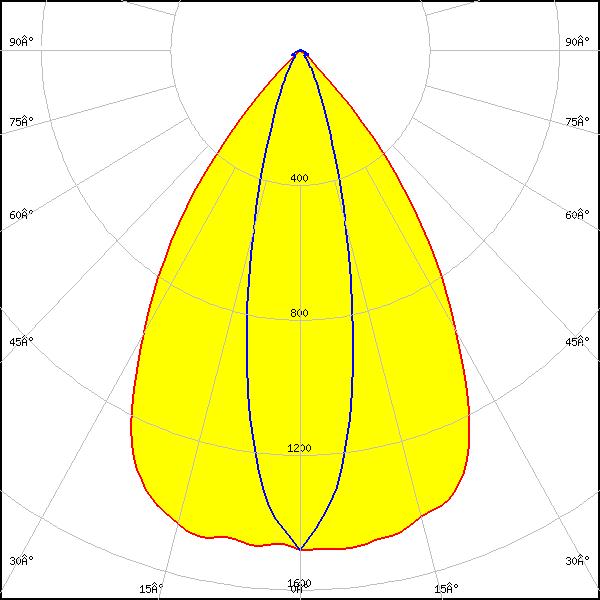

LED:
CSP 2727 (BXCP)
Required components:
C16872_DAISY-7X1-SHD
FWHM:
68° + 24°
FWTM:
88° + 50°
Peak intensity:
1.488 cd/lm
Efficiency:
81 %
LEDs/each optic:
2
Light colour/type:
White

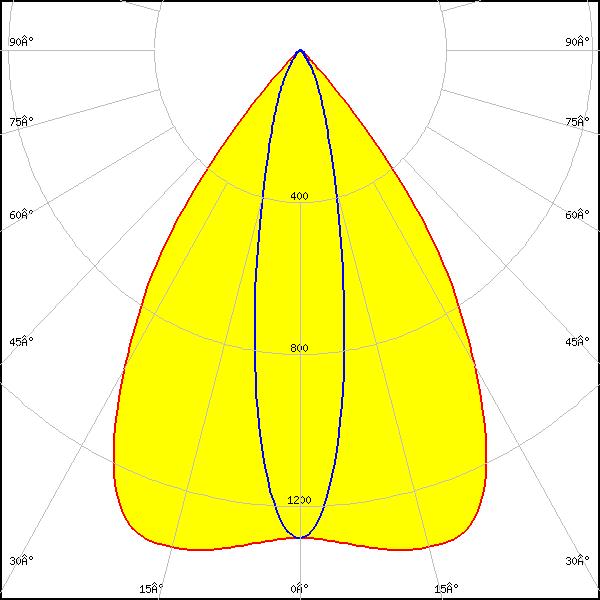

LED:
LED Line SMD L28W2 TW Module 20mm 2800Lm Daisy 7x1 (E21A)
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM:
70° + 22°
FWTM:
88° + 52°
Peak intensity:
1.362 cd/lm
Efficiency:
70 %
LEDs/each optic:
2
Light colour/type:
Tunable White

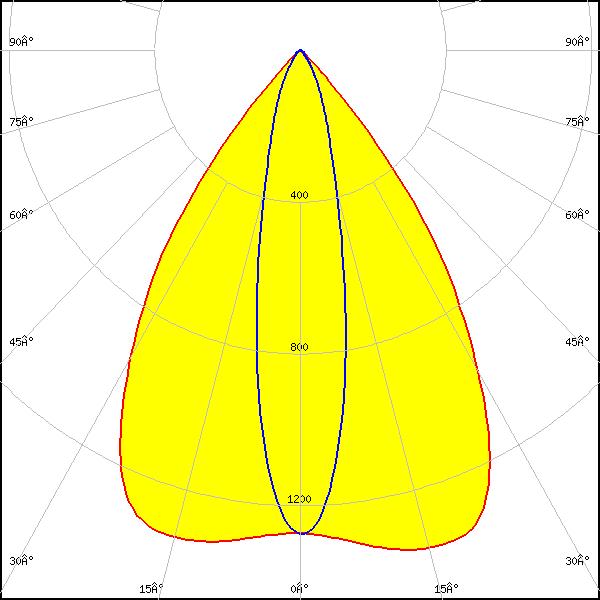

LED:
LED Line SMD L28W2 White Module 20mm 2800Lm Daisy 7x1 (E21A)
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM:
70° + 22°
FWTM:
88° + 52°
Peak intensity:
1.361 cd/lm
Efficiency:
70 %
LEDs/each optic:
2
Light colour/type:
White
LED:
LUXEON 2835 Architectural
Required components:
C16872_DAISY-7X1-SHD
FWHM:
69° + 24°
FWTM:
92° + 57°
Peak intensity:
1.447 cd/lm
Efficiency:
83 %
LEDs/each optic:
2
Light colour/type:
White

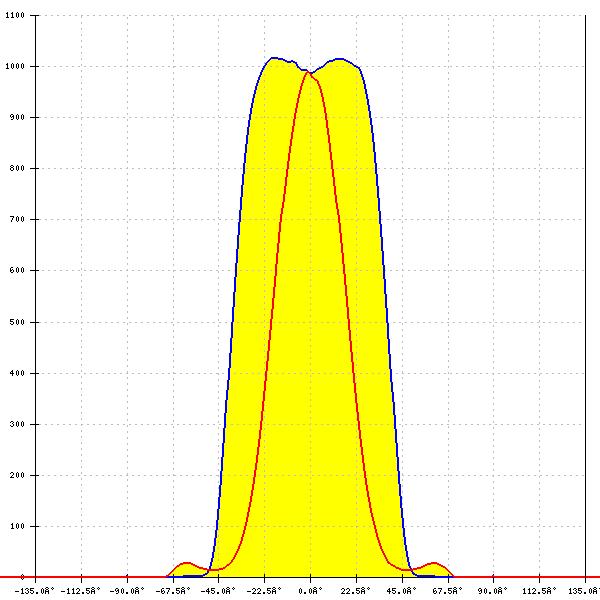

LED:
LUXEON 5050 HE
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM:
76° + 38°
FWTM:
92° + 64°
Peak intensity:
1.017 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

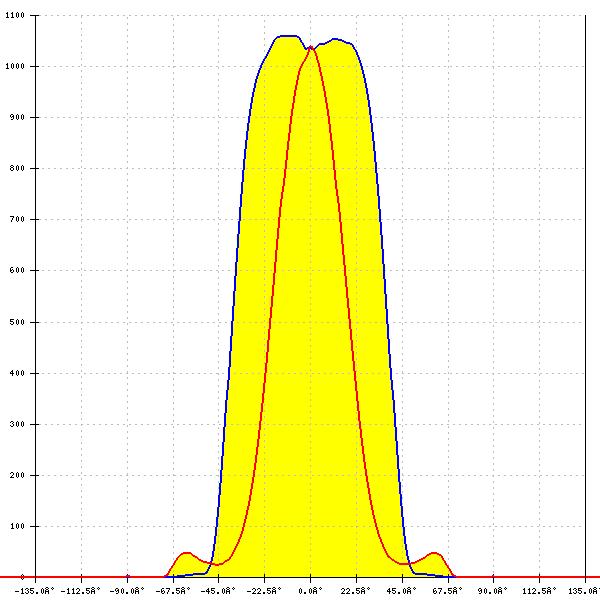

LED:
LUXEON 5050 HE
Required components:
C17533_DAISY-7X1-SHD-MET-MATT
FWHM:
76° + 38°
FWTM:
92° + 64°
Peak intensity:
1.060 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

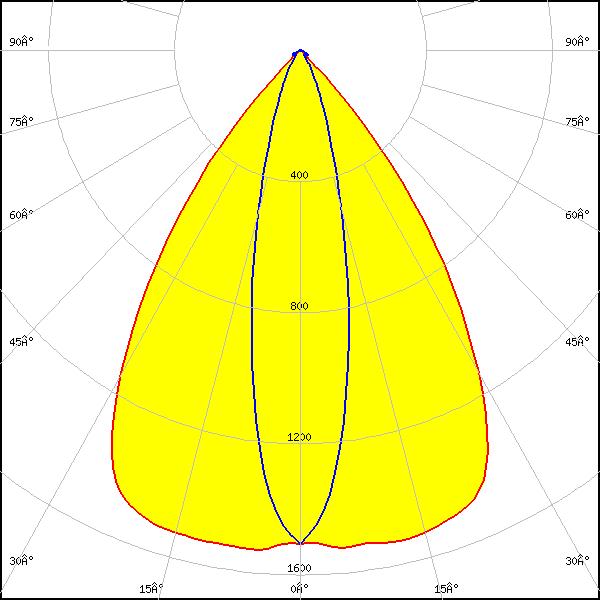

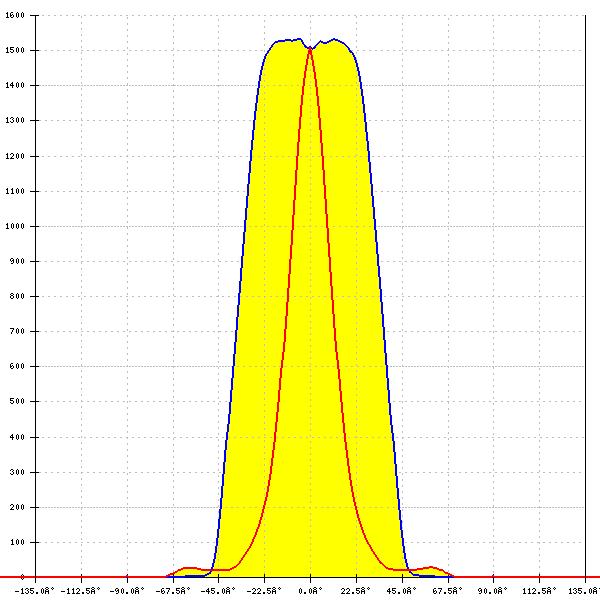

LED:
LUXEON HL2Z
Required components:
C16872_DAISY-7X1-SHD
FWHM:
71° + 24°
FWTM:
88° + 50°
Peak intensity:
1.534 cd/lm
Efficiency:
83 %
LEDs/each optic:
2
Light colour/type:
White
LED:
LUXEON HL2Z
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM:
71° + 23°
FWTM:
88° + 54°
Peak intensity:
1.347 cd/lm
Efficiency:
72 %
LEDs/each optic:
2
Light colour/type:
White

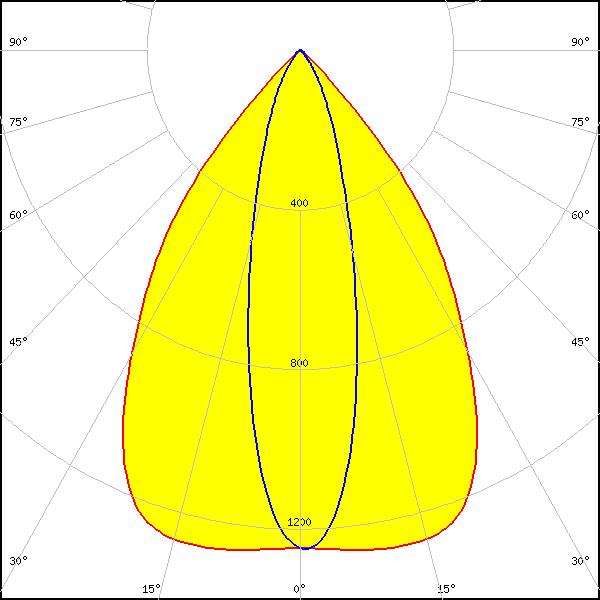

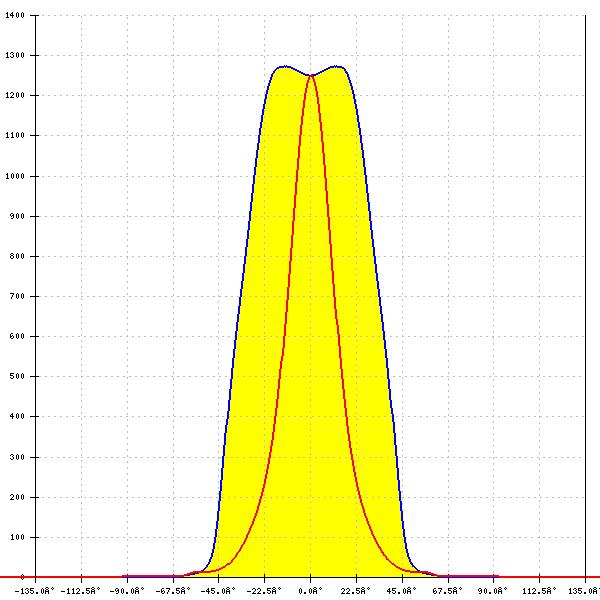

LED:
LinLED 274x24mm 1100lm 840 4C 42V DAISY-7X1 (ZT25) G4
Required components:
C16872_DAISY-7X1-SHD
FWHM:
72° + 26°
FWTM:
91° + 59°
Peak intensity:
1.274 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White

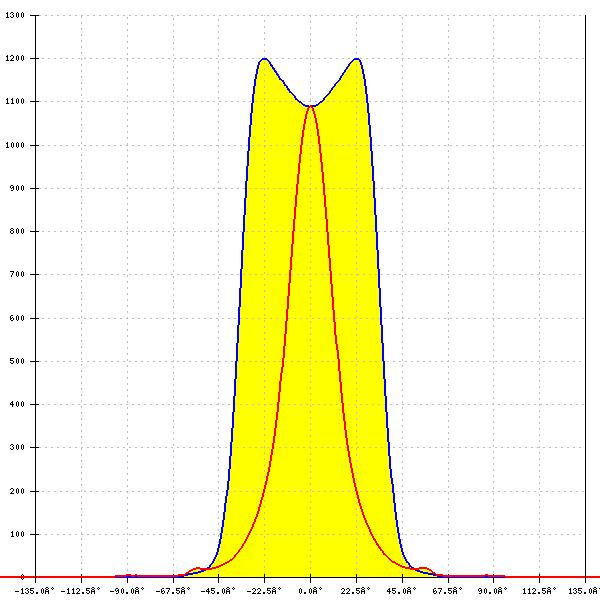

LED:
LinLED 280x28mm 1600lm 840 4C 21V DAISY 7x1(ZT25)
Required components:
C16872_DAISY-7X1-SHD
FWHM:
70° + 26°
FWTM:
85° + 59°
Peak intensity:
1.205 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NCSxE17A
Required components:
C16872_DAISY-7X1-SHD
FWHM:
72° + 20°
FWTM:
86° + 44°
Peak intensity:
1.660 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

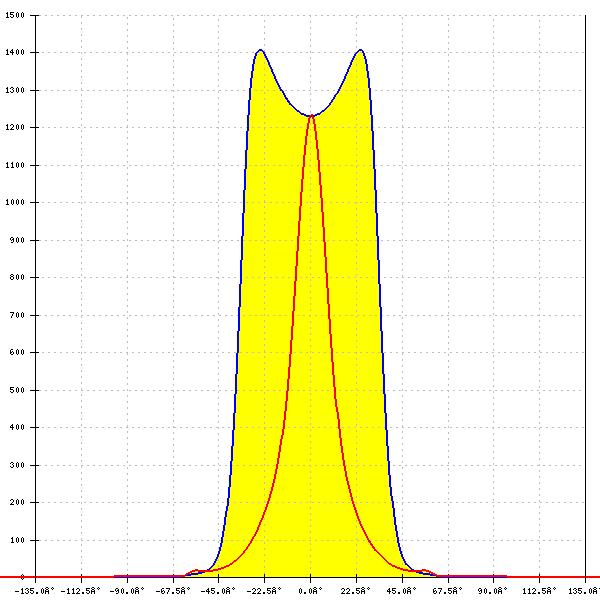

LED:
NCSxE17A
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM:
70° + 20°
FWTM:
84° + 53°
Peak intensity:
1.427 cd/lm
Efficiency:
70 %
LEDs/each optic:
1
Light colour/type:
White

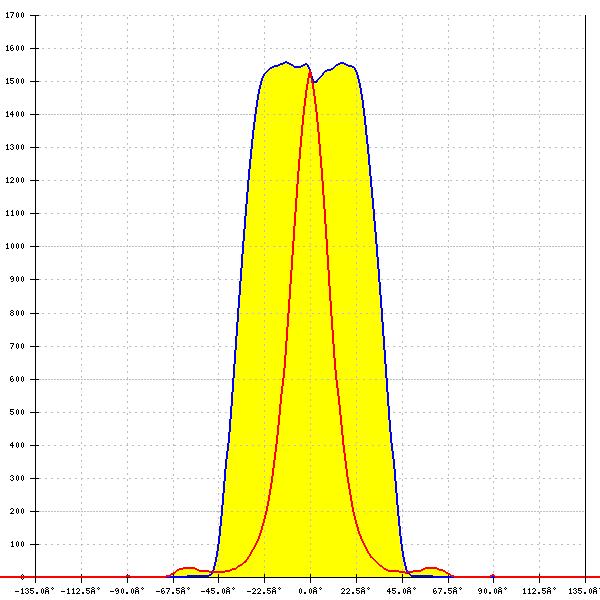

LED:
NVSxE21A
Required components:
C16872_DAISY-7X1-SHD
FWHM:
72° + 22°
FWTM:
88° + 46°
Peak intensity:
1.556 cd/lm
Efficiency:
80 %
LEDs/each optic:
2
Light colour/type:
White
LED:
Duris S8
Required components:
C16872_DAISY-7X1-SHD
FWHM:
76° + 41°
FWTM:
91° + 64°
Peak intensity:
1.007 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 5050 (Q9LR32)
Required components:
C16872_DAISY-7X1-SHD
FWHM:
76° + 40°
FWTM:
90° + 64°
Peak intensity:
0.987 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

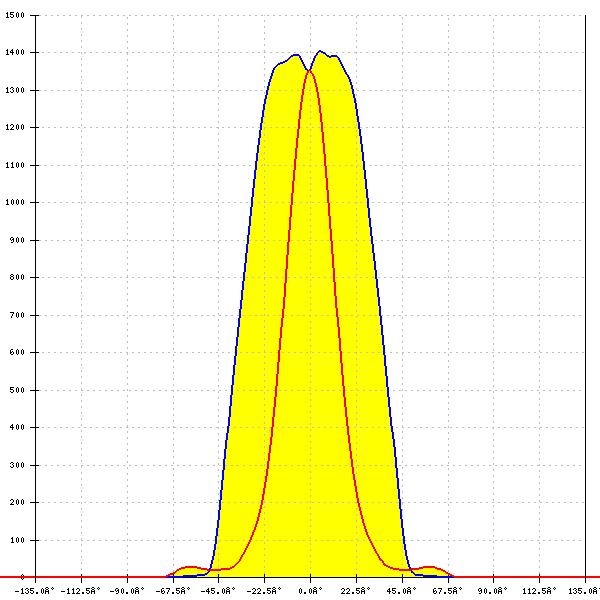

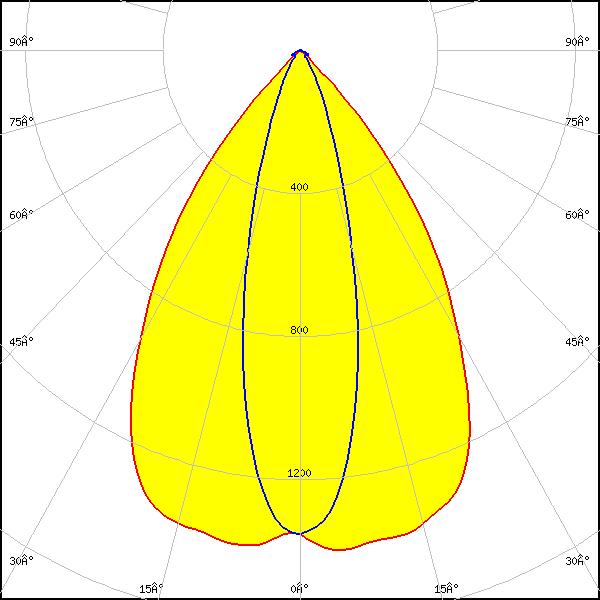

LED:
LH231B
Required components:
C16872_DAISY-7X1-SHD
FWHM:
70° + 28°
FWTM:
90° + 54°
Peak intensity:
1.403 cd/lm
Efficiency:
81 %
LEDs/each optic:
2
Light colour/type:
White

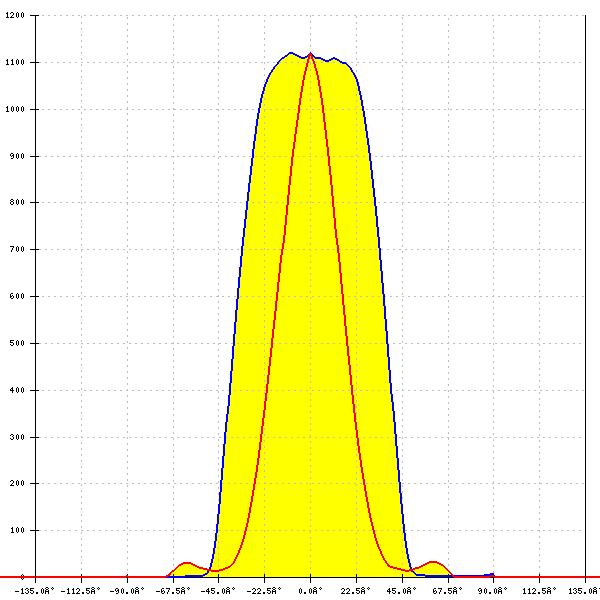

LED:
LM28xB Series
Required components:
C16872_DAISY-7X1-SHD
FWHM:
73° + 34°
FWTM:
91° + 62°
Peak intensity:
1.121 cd/lm
Efficiency:
82 %
LEDs/each optic:
2
Light colour/type:
White
LED:
LM28xB Series
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM:
73° + 34°
FWTM:
91° + 62°
Peak intensity:
1.125 cd/lm
Efficiency:
82 %
LEDs/each optic:
2
Light colour/type:
White

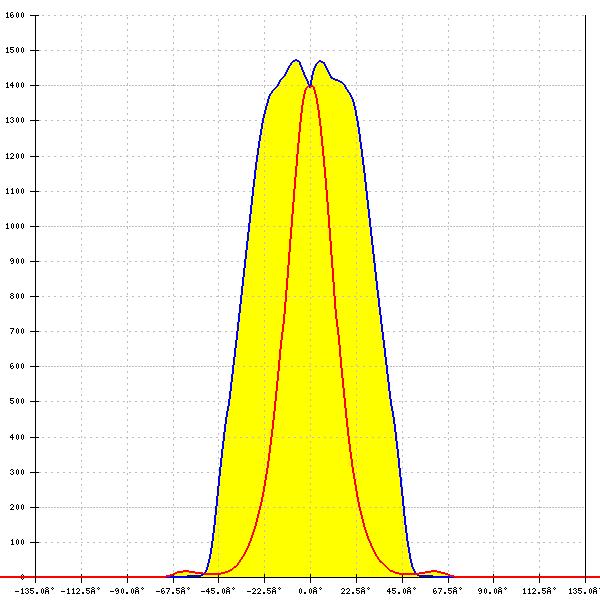

LED:
LM301B
Required components:
C16872_DAISY-7X1-SHD
FWHM:
70° + 27°
FWTM:
94° + 54°
Peak intensity:
1.472 cd/lm
Efficiency:
85 %
LEDs/each optic:
2
Light colour/type:
White
LED:
LM301B
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM:
70° + 27°
FWTM:
94° + 56°
Peak intensity:
1.498 cd/lm
Efficiency:
88 %
LEDs/each optic:
2
Light colour/type:
White

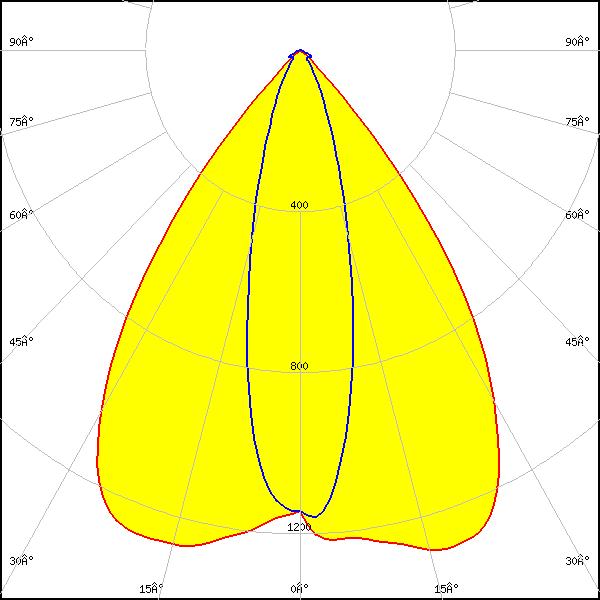

LED:
Z8Y22
Required components:
C16872_DAISY-7X1-SHD
FWHM:
72° + 26°
FWTM:
90° + 56°
Peak intensity:
1.295 cd/lm
Efficiency:
76 %
LEDs/each optic:
2
Light colour/type:
White
