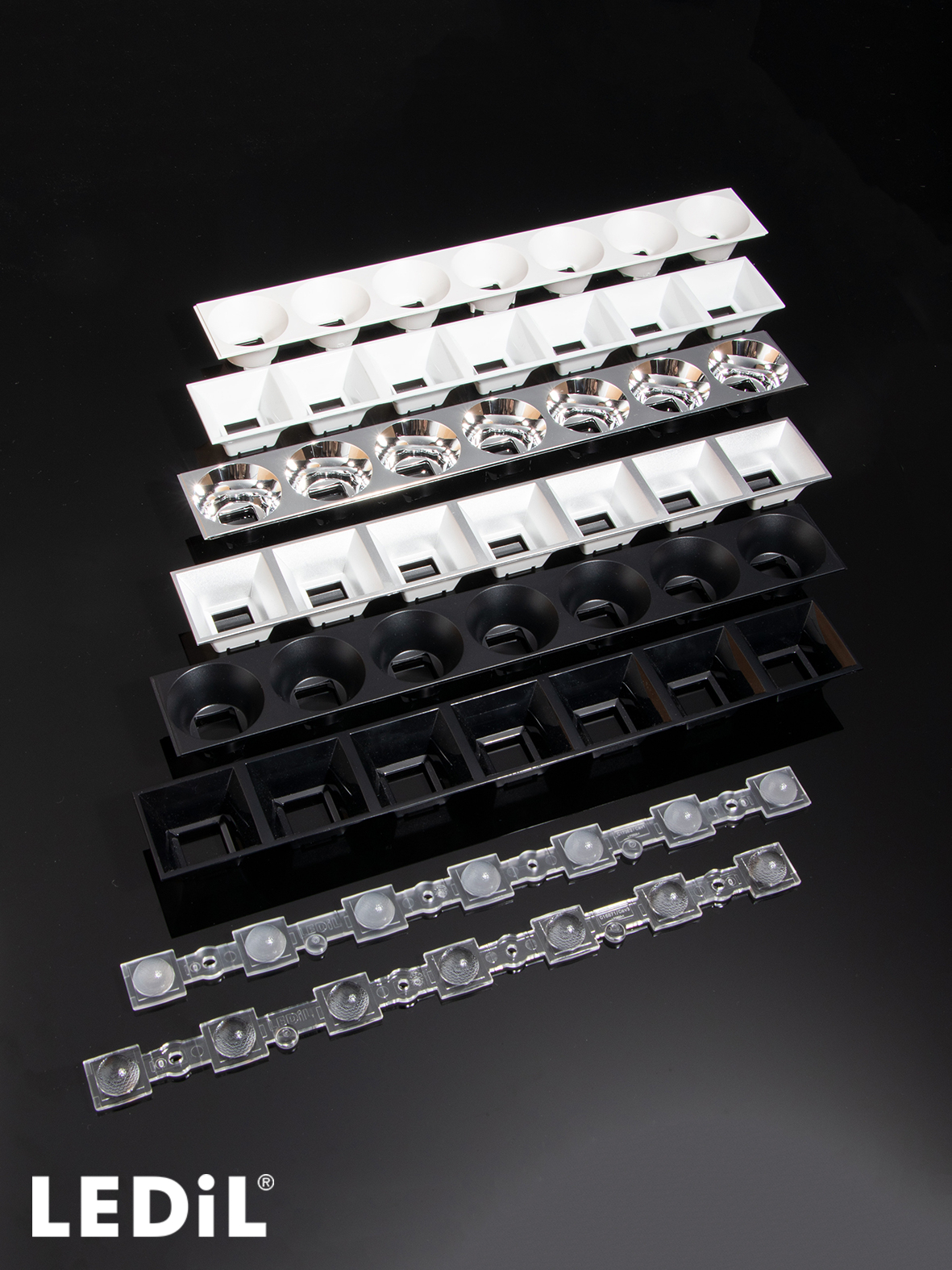

DAISY-7X1-W-D

Print

~50° wide beam. Variant with diffused lenses.

This product consists of multiple parts that need to be ordered separately. See ordering information.

Specification
  • Dimensions:
    280 x  40 mm
  • Height:
    20.30 mm
  • Fastening:
    pin, screw, clips
  • RoHS and REACH compliant:
    Yes
Materials
  • Linear lens
  • C17362_DAISY-7X1-W-D
    PMMA
  • Request material files from Tech Support

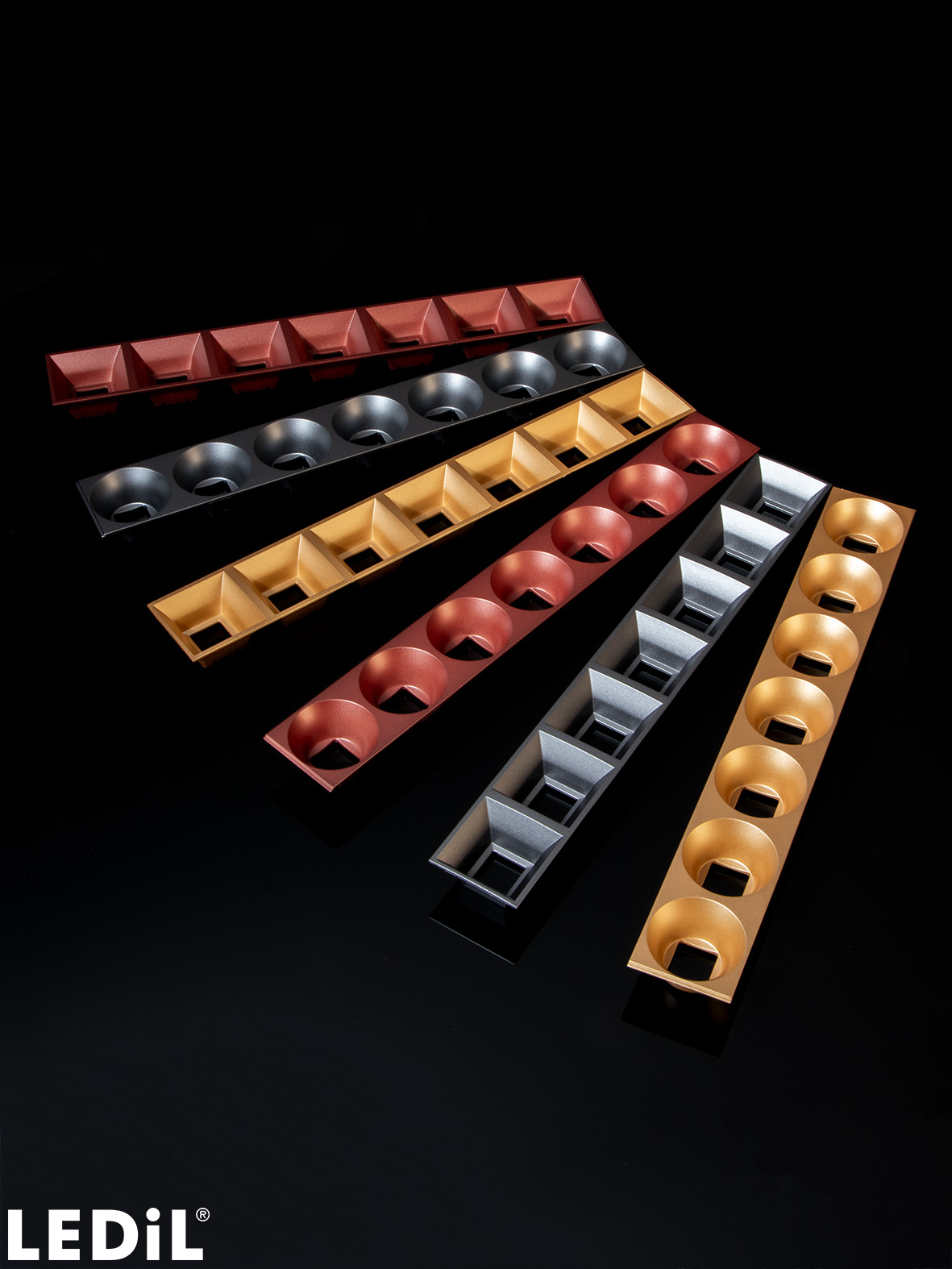

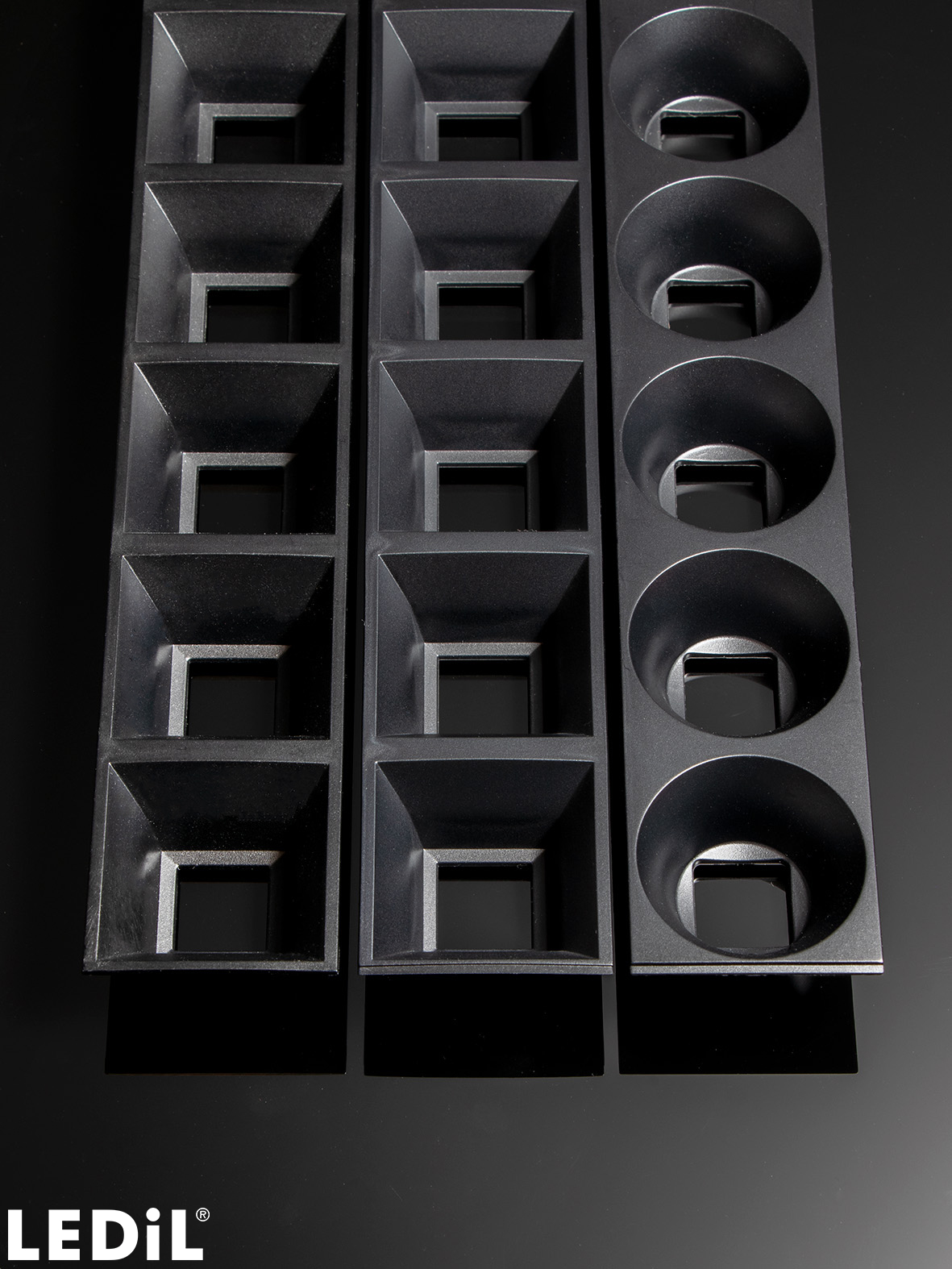

  • Shade
  • C16872_DAISY-7X1-SHD
    PC
  • C16876_DAISY-7X1-SHD-WHT
    PC
  • C17051_DAISY-7X1-SHD-MATT
    PC
  • C17225_DAISY-7X1-SHD-WHT-MATT
    PC
  • C18167_DAISY-7X1-SHD-MET
    PC
  • C18409_DAISY-7X1-SHD-MET-MATT
    PC
  • C19312_DAISY-7X1-SHD3
    PC
  • C19313_DAISY-7X1-SHD3-MATT
    PC
  • C19314_DAISY-7X1-SHD3-WHT
    PC
  • C19315_DAISY-7X1-SHD3-WHT-MATT
    PC
  • C19641_DAISY-7X1-SHD3-MET
    PC
  • C19642_DAISY-7X1-SHD3-MET-MATT
    PC
  • Request material files from Tech Support

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Linear lens
    1 pcs
  • Shade
    1 pcs
  • Linear lens
  • C17362_DAISY-7X1-W-D
    milky
  • Quantity in box:
    312 pcs
  • Box size:
    400 x 300 x 300 mm
  • Box weight:
    6.30 kg
  • MPQ:
    24 pcs
  • MOQ:
    312 pcs
  • MOQ Size:
    400 x 300 x 300 mm
  • MOQ Weight:
    6.30 kg
  • Shade
  • C16872_DAISY-7X1-SHD
    black,gloss
  • C16876_DAISY-7X1-SHD-WHT
    white,gloss
  • C17051_DAISY-7X1-SHD-MATT
    black,matt
  • C17225_DAISY-7X1-SHD-WHT-MATT
    white,matt
  • C18167_DAISY-7X1-SHD-MET
    metal,gloss
  • C18409_DAISY-7X1-SHD-MET-MATT
    metal,matt
  • C19312_DAISY-7X1-SHD3
    black,gloss
  • C19313_DAISY-7X1-SHD3-MATT
    black,matt
  • C19314_DAISY-7X1-SHD3-WHT
    white,gloss
  • C19315_DAISY-7X1-SHD3-WHT-MATT
    white,matt
  • C19641_DAISY-7X1-SHD3-MET
    metal,gloss
  • C19642_DAISY-7X1-SHD3-MET-MATT
    metal,matt
  • Quantity in box:
    156 pcs
  • Box size:
    595 x 360 x 230 mm
  • Box weight:
    7.10 kg
  • MPQ:
    24 pcs
  • MOQ:
    312 pcs
  • MOQ Size:
    595 x 360 x 230 mm
  • MOQ Weight:
    7.10 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    C17362_DAISY-7X1-W-D
    C16872_DAISY-7X1-SHD

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Related Content

Optical results

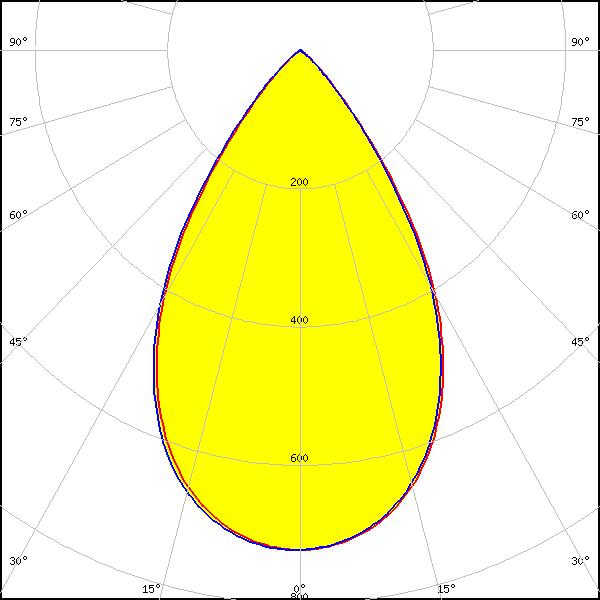

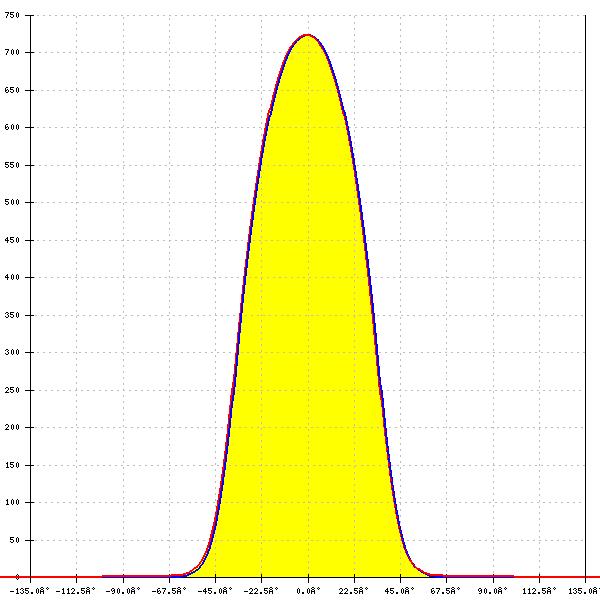

LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
Required components:
C16872_DAISY-7X1-SHD
FWHM: 64°
FWTM: 89°
Peak intensity: 0.751 cd/lm
Efficiency: 78 %
LEDs/each optic: 4
Light colour/type: White

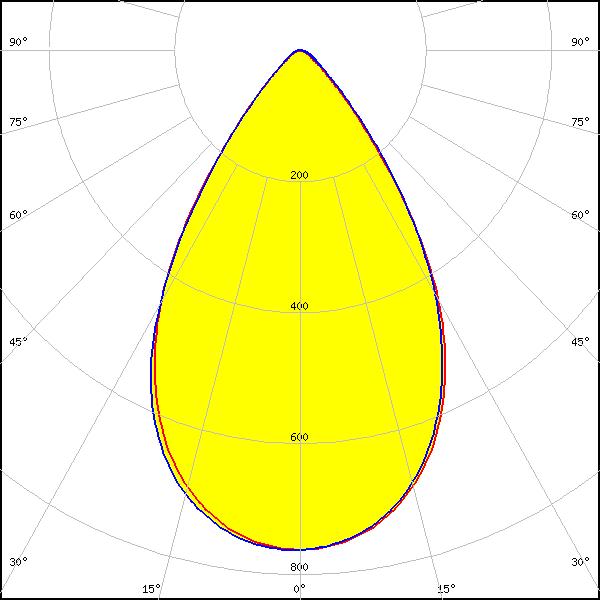

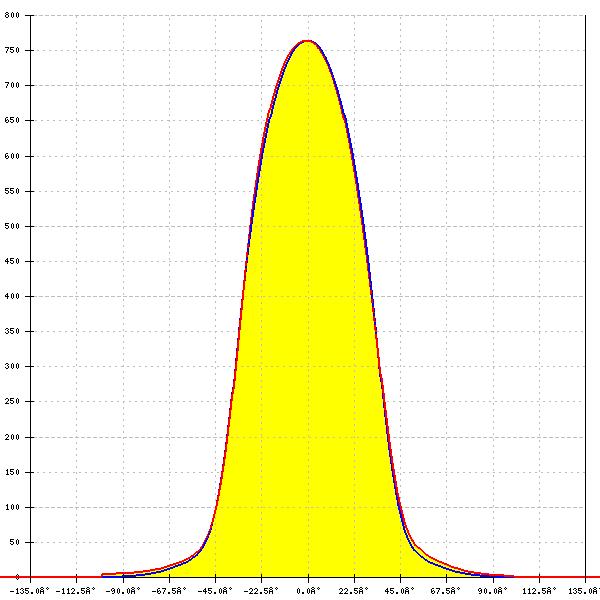

LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 65°
FWTM: 92°
Peak intensity: 0.782 cd/lm
Efficiency: 90 %
LEDs/each optic: 4
Light colour/type: White
LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 63°
FWTM: 88°
Peak intensity: 0.751 cd/lm
Efficiency: 77 %
LEDs/each optic: 4
Light colour/type: White
LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 65°
FWTM: 92°
Peak intensity: 0.784 cd/lm
Efficiency: 89 %
LEDs/each optic: 4
Light colour/type: White
LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: 64°
FWTM: 90°
Peak intensity: 0.829 cd/lm
Efficiency: 90 %
LEDs/each optic: 4
Light colour/type: White
LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
Required components:
C17533_DAISY-7X1-SHD-MET-MATT
FWHM: 64°
FWTM: 90°
Peak intensity: 0.823 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour/type: White

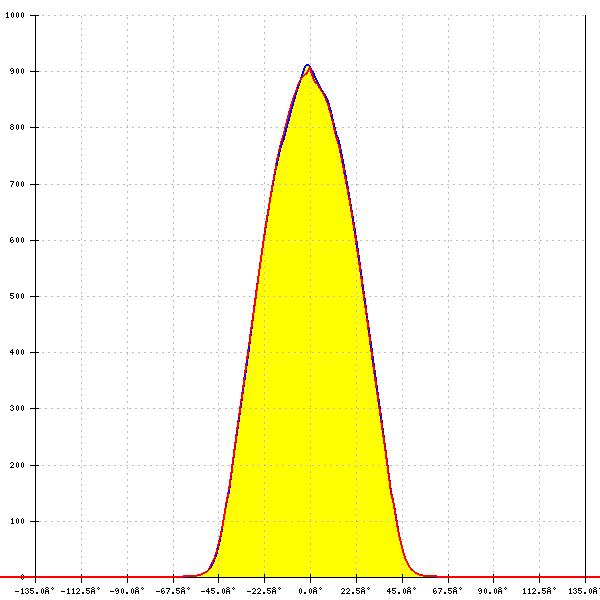

LED: SMD 3838 RGBW 3V
Required components:
C16872_DAISY-7X1-SHD
FWHM: 56°
FWTM: 86°
Peak intensity: 0.912 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: RGBW
LED: J Series 2835
Required components:
C16872_DAISY-7X1-SHD
FWHM: 62°
FWTM: 90°
Peak intensity: 0.821 cd/lm
Efficiency: 78 %
LEDs/each optic: 4
Light colour/type: White
LED: LUXEON 2835 Line
Required components:
C16872_DAISY-7X1-SHD
FWHM: 64°
FWTM: 89°
Peak intensity: 0.751 cd/lm
Efficiency: 78 %
LEDs/each optic: 4
Light colour/type: White
LED: LUXEON 2835 Line
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 65°
FWTM: 93°
Peak intensity: 0.782 cd/lm
Efficiency: 90 %
LEDs/each optic: 4
Light colour/type: White
LED: LUXEON 2835 Line
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 63°
FWTM: 88°
Peak intensity: 0.751 cd/lm
Efficiency: 77 %
LEDs/each optic: 4
Light colour/type: White
LED: LUXEON 2835 Line
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 65°
FWTM: 92°
Peak intensity: 0.784 cd/lm
Efficiency: 89 %
LEDs/each optic: 4
Light colour/type: White
LED: LUXEON 2835 Line
Required components:
C17532_DAISY-7X1-SHD-MET
FWHM: 64°
FWTM: 90°
Peak intensity: 0.829 cd/lm
Efficiency: 90 %
LEDs/each optic: 4
Light colour/type: White
LED: LUXEON 2835 Line
Required components:
C17533_DAISY-7X1-SHD-MET-MATT
FWHM: 64°
FWTM: 91°
Peak intensity: 0.823 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour/type: White
LED: LinLED 280x28mm 1100lm 8x0 2C 42V DAISY-7X1 G1
Required components:
C16872_DAISY-7X1-SHD
FWHM: 64°
FWTM: 89°
Peak intensity: 0.725 cd/lm
Efficiency: 77 %
LEDs/each optic: 4
Light colour/type: White
LED: LinLED 280x28mm 1100lm 8x0 2C 42V DAISY-7X1 G1
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 65°
FWTM: 93°
Peak intensity: 0.757 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour/type: White
LED: LinLED 280x28mm 1100lm 8x0 2C 42V DAISY-7X1 G1
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 64°
FWTM: 89°
Peak intensity: 0.724 cd/lm
Efficiency: 76 %
LEDs/each optic: 4
Light colour/type: White
LED: LinLED 280x28mm 1100lm 8x0 2C 42V DAISY-7X1 G1
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 65°
FWTM: 93°
Peak intensity: 0.758 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour/type: White
LED: LinLED 280x28mm 1100lm 8x0 2C 42V DAISY-7X1 G1
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: 64°
FWTM: 91°
Peak intensity: 0.804 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour/type: White
LED: LinLED 280x28mm 1100lm 8x0 2C 42V DAISY-7X1 G1
Required components:
C17533_DAISY-7X1-SHD-MET-MATT
FWHM: 64°
FWTM: 92°
Peak intensity: 0.802 cd/lm
Efficiency: 87 %
LEDs/each optic: 4
Light colour/type: White

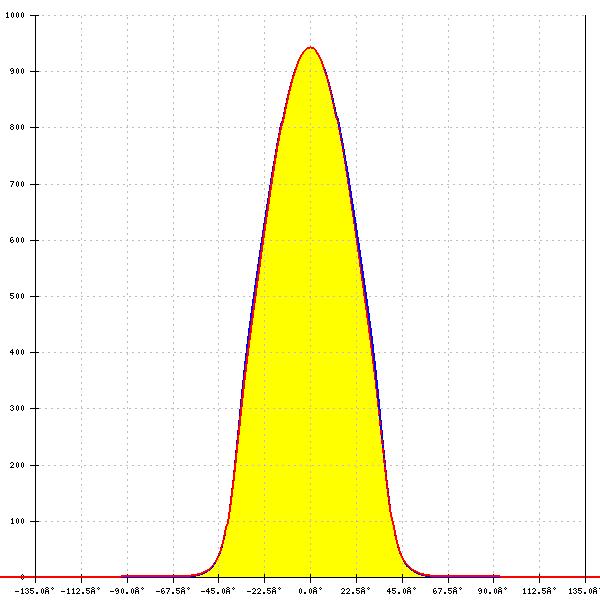

LED: LinLED 280x28mm 1600lm 840 4C 21V DAISY 7x1(ZT25)
Required components:
C16872_DAISY-7X1-SHD
FWHM: 56°
FWTM: 81°
Peak intensity: 0.943 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: LinLED 280x28mm 2x550lm 827-865 2x2C 42V DAISY-7X1 G1
Required components:
C16872_DAISY-7X1-SHD
FWHM: 65°
FWTM: 90°
Peak intensity: 0.714 cd/lm
Efficiency: 77 %
LEDs/each optic: 4
Light colour/type: Tunable White
LED: LinLED 280x28mm 2x550lm 827-865 2x2C 42V DAISY-7X1 G1
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 66°
FWTM: 94°
Peak intensity: 0.747 cd/lm
Efficiency: 89 %
LEDs/each optic: 4
Light colour/type: Tunable White
LED: LinLED 280x28mm 2x550lm 827-865 2x2C 42V DAISY-7X1 G1
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 65°
FWTM: 90°
Peak intensity: 0.715 cd/lm
Efficiency: 76 %
LEDs/each optic: 4
Light colour/type: Tunable White
LED: LinLED 280x28mm 2x550lm 827-865 2x2C 42V DAISY-7X1 G1
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 66°
FWTM: 94°
Peak intensity: 0.749 cd/lm
Efficiency: 89 %
LEDs/each optic: 4
Light colour/type: Tunable White
LED: LinLED 280x28mm 2x550lm 827-865 2x2C 42V DAISY-7X1 G1
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: 65°
FWTM: 91°
Peak intensity: 0.795 cd/lm
Efficiency: 89 %
LEDs/each optic: 4
Light colour/type: Tunable White
LED: LinLED 280x28mm 2x550lm 827-865 2x2C 42V DAISY-7X1 G1
Required components:
C17533_DAISY-7X1-SHD-MET-MATT
FWHM: 65°
FWTM: 92°
Peak intensity: 0.789 cd/lm
Efficiency: 87 %
LEDs/each optic: 4
Light colour/type: Tunable White
LED: NF2W757G-MT (Tunable White)
Required components:
C16872_DAISY-7X1-SHD
FWHM: 61°
FWTM: 84°
Peak intensity: 0.873 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: NF2W757G-MT (Tunable White)
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 62°
FWTM: 86°
Peak intensity: 0.902 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: PL-LIN-2000 280x24mm
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 64°
FWTM: 89°
Peak intensity: 0.714 cd/lm
Efficiency: 76 %
LEDs/each optic: 4
Light colour/type: White

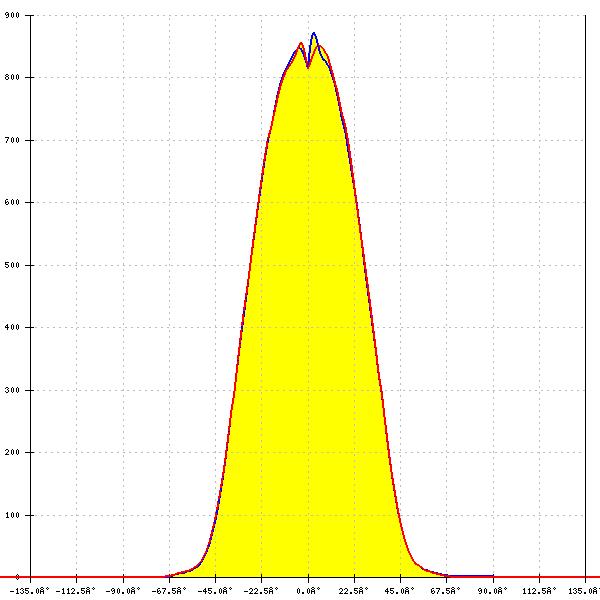

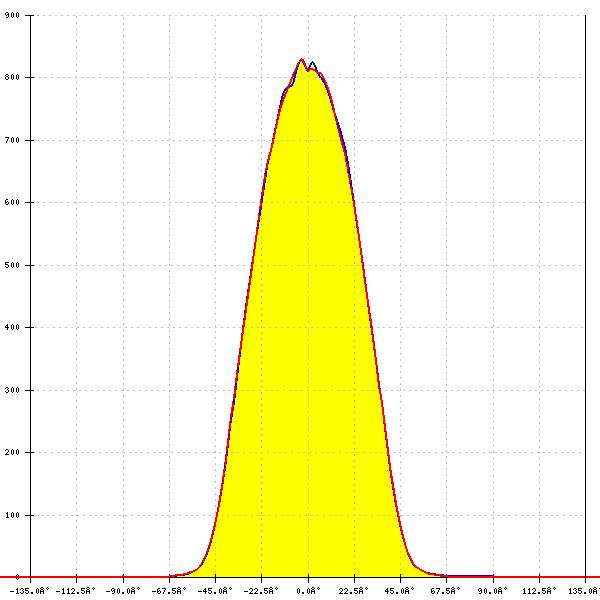

LED: Duris E 2835
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 62°
FWTM: 90°
Peak intensity: 0.833 cd/lm
Efficiency: 83 %
LEDs/each optic: 4
Light colour/type: White
LED: Duris E 2835
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 61°
FWTM: 91°
Peak intensity: 0.872 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour/type: White

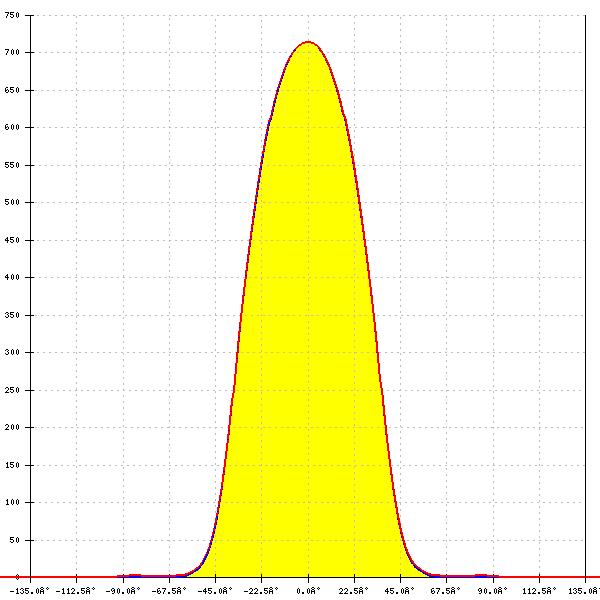

LED: OSCONIQ E 2835
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 64°
FWTM: 89°
Peak intensity: 0.714 cd/lm
Efficiency: 76 %
LEDs/each optic: 4
Light colour/type: White
LED: OSLON PURE 1010
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 50°
FWTM: 76°
Peak intensity: 1.261 cd/lm
Efficiency: 86 %
LEDs/each optic: 4
Light colour/type: White

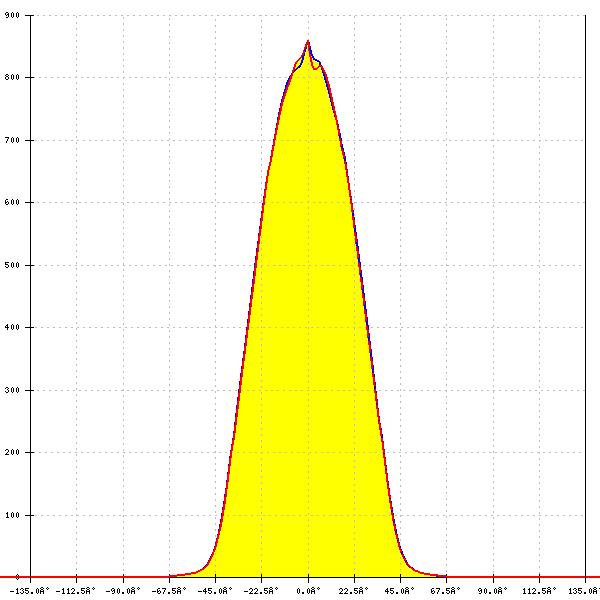

LED: LH231B
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 56°
FWTM: 84°
Peak intensity: 0.860 cd/lm
Efficiency: 75 %
LEDs/each optic: 2
Light colour/type: White
LED: LM101B
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: 58°
FWTM: 82°
Peak intensity: 0.984 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour/type: White
LED: LM101B
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 54°
FWTM: 78°
Peak intensity: 1.115 cd/lm
Efficiency: 86 %
LEDs/each optic: 4
Light colour/type: White

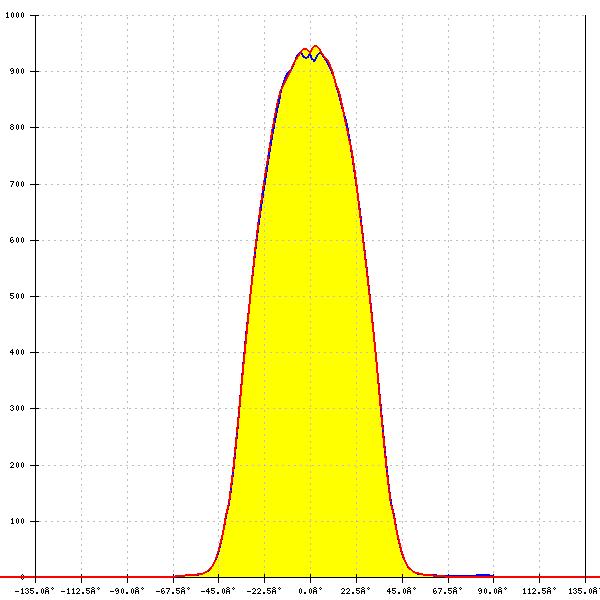

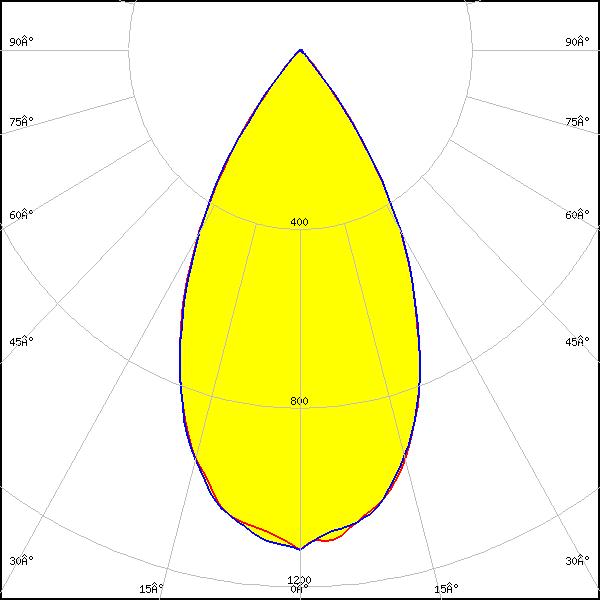

LED: LM28xB Series
Required components:
C19641_DAISY-7X1-SHD3-MET
FWHM: 55°
FWTM: 80°
Peak intensity: 1.128 cd/lm
Efficiency: 89 %
LEDs/each optic: 2
Light colour/type: White

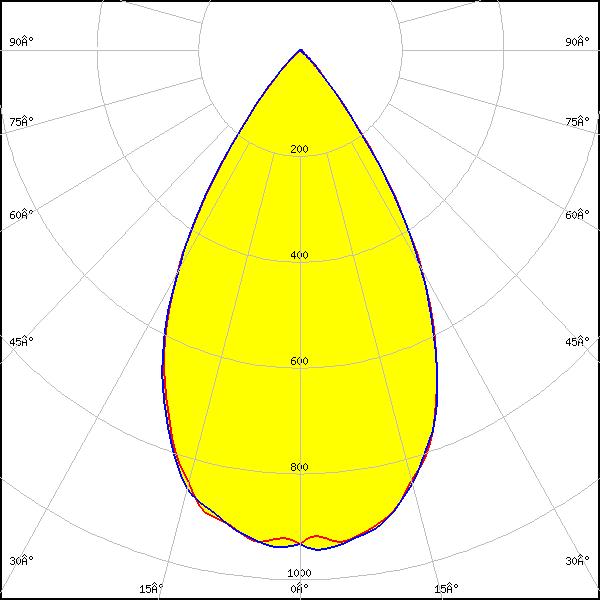

LED: LM28xB Series
Required components:
C19641_DAISY-7X1-SHD3-MET
FWHM: 60°
FWTM: 84°
Peak intensity: 0.957 cd/lm
Efficiency: 87 %
LEDs/each optic: 4
Light colour/type: White
LED: LM28xB Series
Required components:
C16872_DAISY-7X1-SHD
FWHM: 61°
FWTM: 85°
Peak intensity: 0.852 cd/lm
Efficiency: 82 %
LEDs/each optic: 2
Light colour/type: White
LED: LM28xB Series
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 62°
FWTM: 88°
Peak intensity: 0.890 cd/lm
Efficiency: 92 %
LEDs/each optic: 2
Light colour/type: White
LED: LM28xB Series
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 60°
FWTM: 84°
Peak intensity: 0.834 cd/lm
Efficiency: 77 %
LEDs/each optic: 2
Light colour/type: White
LED: LM301Z Plus
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 60°
FWTM: 86°
Peak intensity: 0.808 cd/lm
Efficiency: 75 %
LEDs/each optic: 4
Light colour/type: White
LED: LM301Z Plus
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 60°
FWTM: 86°
Peak intensity: 0.898 cd/lm
Efficiency: 86 %
LEDs/each optic: 4
Light colour/type: White
LED: LM301Z Plus
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: 62°
FWTM: 86°
Peak intensity: 0.907 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour/type: White
LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
Required components:
C16872_DAISY-7X1-SHD
FWHM: 64°
FWTM: 89°
Peak intensity: 0.749 cd/lm
Efficiency: 78 %
LEDs/each optic: 4
Light colour/type: White
LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 65°
FWTM: 93°
Peak intensity: 0.783 cd/lm
Efficiency: 90 %
LEDs/each optic: 4
Light colour/type: White
LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 64°
FWTM: 89°
Peak intensity: 0.752 cd/lm
Efficiency: 77 %
LEDs/each optic: 4
Light colour/type: White
LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 65°
FWTM: 93°
Peak intensity: 0.784 cd/lm
Efficiency: 91 %
LEDs/each optic: 4
Light colour/type: White
LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
Required components:
C18167_DAISY-7X1-SHD-MET
FWHM: 64°
FWTM: 90°
Peak intensity: 0.832 cd/lm
Efficiency: 91 %
LEDs/each optic: 4
Light colour/type: White
LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
Required components:
C17533_DAISY-7X1-SHD-MET-MATT
FWHM: 63°
FWTM: 91°
Peak intensity: 0.836 cd/lm
Efficiency: 90 %
LEDs/each optic: 4
Light colour/type: White
LED: SEOUL DC 3030C
Required components:
C16872_DAISY-7X1-SHD
FWHM: 62°
FWTM: 88°
Peak intensity: 0.825 cd/lm
Efficiency: 80 %
LEDs/each optic: 4
Light colour/type: White
LED: SEOUL DC 3528
Required components:
C16872_DAISY-7X1-SHD
FWHM: 59°
FWTM: 84°
Peak intensity: 0.838 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White
LED: PassivePAQ-L-1F35-SSA3-2.7K-840-3-DC
Required components:
C16872_DAISY-7X1-SHD
FWHM: 68°
FWTM: 93°
Peak intensity: 0.581 cd/lm
Efficiency: 71 %
LEDs/each optic: 4
Light colour/type: White
LED: PassivePAQ-L-1F35-SSA3-2.7K-840-3-DC
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 70°
FWTM: 100°
Peak intensity: 0.623 cd/lm
Efficiency: 87 %
LEDs/each optic: 4
Light colour/type: White
LED: PassivePAQ-L-1F35-SSA3-2.7K-840-3-DC
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 68°
FWTM: 94°
Peak intensity: 0.582 cd/lm
Efficiency: 71 %
LEDs/each optic: 4
Light colour/type: White
LED: PassivePAQ-L-1F35-SSA3-2.7K-840-3-DC
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 70°
FWTM: 100°
Peak intensity: 0.626 cd/lm
Efficiency: 87 %
LEDs/each optic: 4
Light colour/type: White
LED: LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C17533_DAISY-7X1-SHD-MET-MATT
FWHM: 62°
FWTM: 88°
Peak intensity: 0.883 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour/type: White
LED: LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C16872_DAISY-7X1-SHD
FWHM: 65°
FWTM: 90°
Peak intensity: 0.700 cd/lm
Efficiency: 76 %
LEDs/each optic: 4
Light colour/type: White
LED: LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C16876_DAISY-7X1-SHD-WHT
FWHM: 66°
FWTM: 95°
Peak intensity: 0.737 cd/lm
Efficiency: 89 %
LEDs/each optic: 4
Light colour/type: White
LED: LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C17051_DAISY-7X1-SHD-MATT
FWHM: 65°
FWTM: 90°
Peak intensity: 0.703 cd/lm
Efficiency: 76 %
LEDs/each optic: 4
Light colour/type: White
LED: LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM: 66°
FWTM: 95°
Peak intensity: 0.739 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
CCT - LED (K)
CCT - WITH LENS (K)
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
