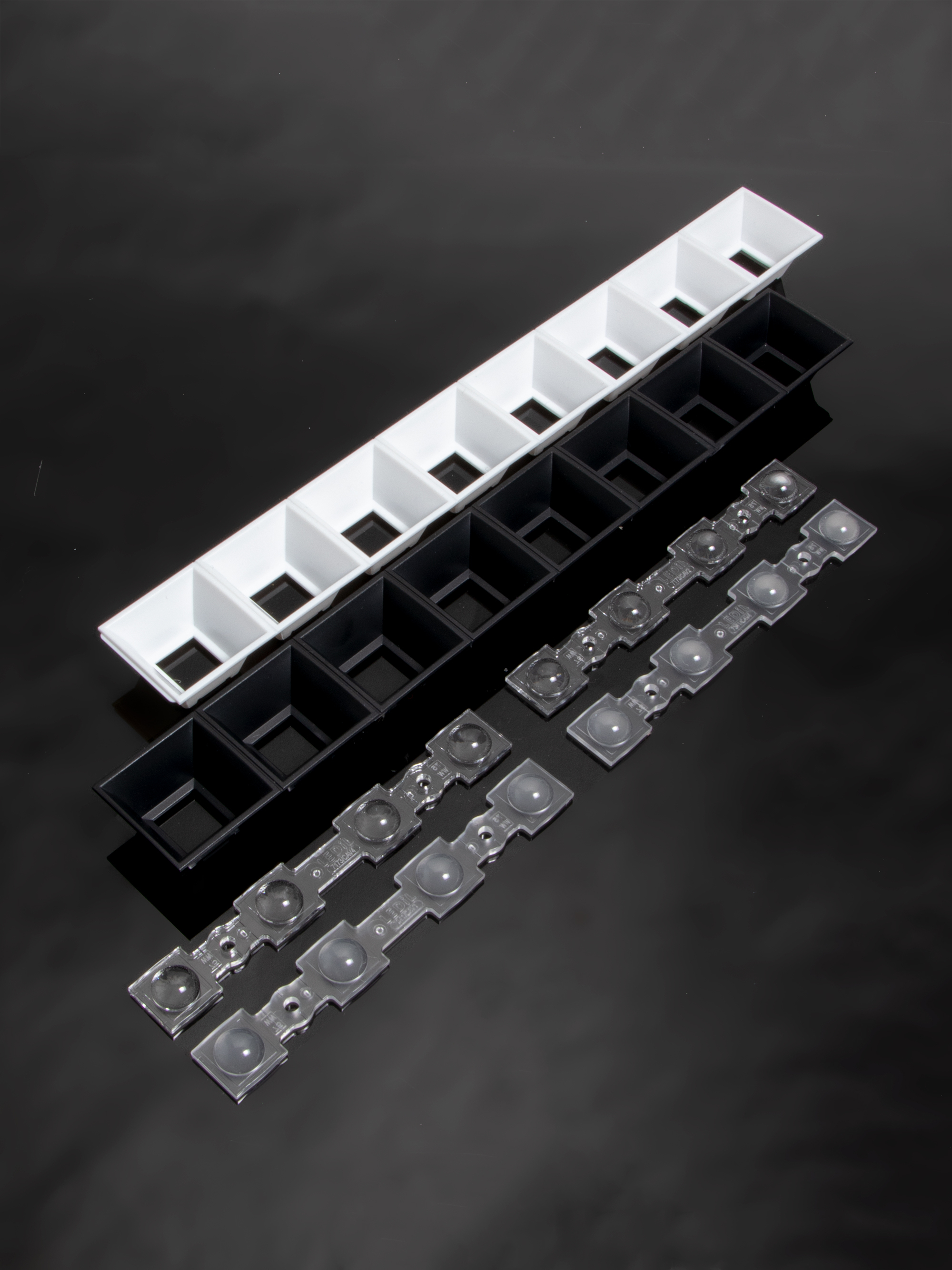

DAISY-8X1-WW-MATT-D

~80° wide beam. Variant with diffused lenses.

This product consists of multiple parts that need to be ordered separately. See ordering information.

Specification

Dimensions:

305 x 38 mm
Height:

21.05 mm
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Component Materials

DAISY-8X1-SHD-MATT
Shade
PC
DAISY-8X1-SHD-MATT-WHT
Shade
PC
DAISY-4X1-WW-US-D
Linear lens
PMMA
Request material files from Tech Support

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information

Quantities for one set:
Linear lens
2 pcs
Shade
1 pcs

Linear lens
C17341_DAISY-4X1-WW-US-D
milky
Quantity in box:
504 pcs
Box size:
480 x 280 x 300 mm
Box weight:
5.50 kg
MPQ:
84 pcs
MOQ:
84 pcs
MOQ Size:
480 x 280 x 70 mm
MOQ Weight:
1.10 kg
Shade
C17171_DAISY-8X1-SHD-MATT
black,matt
C17172_DAISY-8X1-SHD-MATT-WHT
white,matt
Quantity in box:
84 pcs
Box size:
400 x 300 x 300 mm
Box weight:
4.00 kg
MPQ:
42 pcs
MOQ:
42 pcs
MOQ Size:
400 x 300 x 160 mm
MOQ Weight:
2.00 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
Request a 3D mechanical model

Request a 3D mechanical model: CN17345_DAISY-8X1-WW-MATT-D

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PCB drawing

PRODUCT NAME(S):

C17341_DAISY-4X1-WW-US-D

C17171_DAISY-8X1-SHD-MATT

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

FIND A DISTRIBUTOR

ORDER ONLINE

Related Content

User and installation guide

General guide to LEDiL optics

Product video

LEDiL’s elegant Dark Light optic DAISY is a perfect solution for premium class office lighting

PCN

Product change notification NR159 - Change of product ordering method in Daisy family

PCN

Product change notification NR178 - Additional PMMA material approved

PCN

Product change notification NR174 - Additional PMMA material approved

Reference product

serio-HITOS pendant luminaire

News

New Products 2019-11-07

Catalogue

LEDiL Latest products catalogue

Application guide

LEDiL Guide for Retail Lighting Optics

Application guide

Guide for Office Lighting Optics

News

Transforming workspaces with DAISY

News

The perfect office worker just got smaller, DAISY-MINI-FT-D

News

DAISY-MINI-3X1 – where modularity and flexibility meet

News

Meet the perfect office worker, DAISY-7X1-FT-D

News

The future of light is dark – LEDiL DAISY

Application example

Surface uniformity with DAISY-MINI-WWW-D

Application example

Wall-washing with DAISY-7X1-WAS

News

DAISY – the definitive LEDiL Dark Light family for indoor lighting

Reference product

BEA luminaire

News

DAISY diffused lenses

News

Effective fashion retail lighting

News

DAISY optics deliver elegant, human centric lighting

Application example

Retail lighting with DAISY and ILONA

Article

Understanding the standards but aiming higher

News

NEW PRODUCTS - 2018-11-23

Article

Invest in people invest in office lighting

Article

Stylish yet functional LED office lighting

News

DAISY – Brilliance without the glare

Application area

Indoor Architectural Lighting

Application area

Office Lighting

Application area

Retail Lighting

Optical results

LED: LIGHT ENGINE DAISY 8x1 32 LEDs 303.7mm x 20mm

Required components:

C17171_DAISY-8X1-SHD-MATT

FWHM: 73°

FWTM: 92°

Peak intensity: 0.582 cd/lm

Efficiency: 77 %

LEDs/each optic: 4

Light colour/type: White

Datasheet

Light distribution files

LED: LIGHT ENGINE DAISY 8x1 32 LEDs 303.7mm x 20mm

Required components:

C17172_DAISY-8X1-SHD-MATT-WHT

FWHM: 74°

FWTM: 96°

Peak intensity: 0.627 cd/lm

Efficiency: 92 %

LEDs/each optic: 4

Light colour/type: White

Datasheet

Light distribution files

LED: LIGHT ENGINE DAISY 8x1 32 LEDs 303.7mm x 20mm

Required components:

C17534_DAISY-8X1-SHD-MET-MATT

FWHM: 73°

FWTM: 93°

Peak intensity: 0.670 cd/lm

Efficiency: 89 %

LEDs/each optic: 4

Light colour/type: White

Datasheet

Light distribution files

LED: LM28xB Series

Required components:

C17171_DAISY-8X1-SHD-MATT

FWHM: 75°

FWTM: 89°

Peak intensity: 0.537 cd/lm

Efficiency: 74 %

LEDs/each optic: 2

Light colour/type: White

Datasheet

Light distribution files

LED: LM28xB Series

Required components:

C17172_DAISY-8X1-SHD-MATT-WHT

FWHM: 76°

FWTM: 93°

Peak intensity: 0.593 cd/lm

Efficiency: 90 %

LEDs/each optic: 2

Light colour/type: White

Datasheet

Light distribution files
